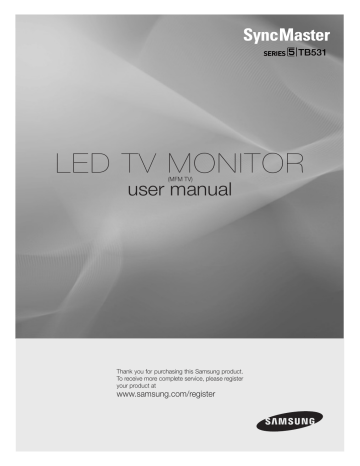

TB531
LED TV MONITOR
(MFM TV)
user manual
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design
and specifications may be changed without notice.
Still image warning
Avoid displaying still images (such as jpeg picture files) or still image elements (such as TV channel logos, panorama or 4:3 image format, stock or news
bars at screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of screen, which will affect image quality. To reduce risk
of this effect, please follow below recommendations:
• Avoid displaying the same TV channel for long periods.
• Always try to display a full screen image.
• Reducing brightness and contrast will help to avoid the appearance of after-images.
• Use all TV features designed to reduce image retention and screen burn, refer to proper user manual section for details.
Securing the Installation Space
Keep the required distance between the product and other objects (e.g. walls) to ensure proper ventilation.
Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.
✎✎ The actual appearance of the TV may differ from the images in this manual, depending on the model.
✎✎ Be careful when you touch the TV. Some parts can be somewhat hot.
Installation with a stand
Installation with a wall-mount
10 cm
10 cm
10 cm
10 cm
10 cm
10 cm
10 cm
English
2
Contents
Getting Started
4
4
11
11
12
13
Safety Precautions
List of Features
Accessories
Viewing the Control Panel
Viewing the Remote Control
Connections
14
14
14
15
16
17
19
Connecting to an Antenna
Setup (Initial Setup)
Connecting to an AV Device
Connecting to a Audio device
Connecting to a PC
Changing the Input Source
Basic Features
19
20
20
22
22
25
26
29
How to Navigate Menus
Using the INFO button (Now & Next guide)
Using the Channel Menu
Channel Menu
Picture Menu
Sound Menu
System Menu
Support Menu
19
Advanced Features
30
36
Other Information
30 Using the Media Play
36
37
38
41
42
Attaching a Wall Mount/Desktop Stand
Anti-theft Kensington Lock
Troubleshooting
License
Specifications
Check the Symbol!
t
This function can be used by pressing the TOOLST button on
the remote control.
Indicates additional information.
English
3
Getting Started
Safety Precautions
Icons used for safety precautions
Warning
Failing to follow the precautions marked with this sign may result in a serious injury or even a
fatality.
Caution
Failing to follow the precautions marked with this sign may result in a personal injury or property
damage.
Do not perform.
Must be followed.
This symbol indicates that high voltage is present
inside. It is dangerous to make any kind of contact
with any internal part of this product.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). THERE ARE
NO USER SERVICEABLE PARTS INSIDE. REFER ALL
SERVICING TO QUALIFIED PERSONNEL.
This symbol alerts you that important literature
concerning operation and maintenance has been
included with this product.
¦¦ Power Related
✎✎ The following images are for your reference and may differ depending on models and countries.
Warning
Avoid using a damaged power cord or
plug or a loose power outlet.
yy Otherwise, it may result in electric
shock or fire.
Avoid connecting multiple electric
appliances to a single wall outlet.
yy Otherwise, it may result in fire due
to overheating of the wall outlet.
Avoid plugging in or unplugging the
power supply with wet hands.
yy Otherwise, it may result in electric
shock.
Plug the power plug in firmly.
yy Otherwise, it may result in fire.
!
!
Make sure to connect the power cord
to a grounded wall outlet (for insulation
class 1 equipment only).
yy Otherwise, it may result in electric
shock or injury.
Avoid bending or twisting the power
cord excessively and avoid placing
heavy objects on the cord.
yy Otherwise, it may result in electric
shock or fire due to a damaged
power cord.
Keep the power cord and the product
away from a heater.
yy Otherwise, it may result in electric
shock or fire.
If the pins of the power plug or the wall
outlet are covered in dust, clean it using
a dry cloth.
yy Otherwise, it may result in fire.
!
English
4
Getting Started
Caution
Avoid unplugging the power plug while
the product is operating.
y Otherwise, it may damage the
product due to electric shock.
!
When unplugging the power plug from
the wall outlet, make sure to hold it by
the plug and not by the cord.
y Otherwise, it may result in electric
shock or fire.
!
!
Make sure to use only the power cord
supplied by our company. In addition,
do not use the power cord of another
electric appliance.
y Otherwise, it may result in electric
shock or fire.
Connect the power plug to a wall outlet
that can be easily reached.
y When a problem occurs with the
product, you must unplug the
power plug to cut the power off
completely. You cannot cut the
power off completely using only the
power button on the product.
¦ Installation related
Warning
Avoid placing burning candles,
mosquitorepellentor cigarettes on the
product.
y Otherwise, it may result in fire.
!
Avoid installing the product in a badlyventilated location such as inside a
bookshelf or closet.
y Otherwise, it may result in fire due
to internal over-heating.
Avoid installing the product in a
location that is unstable or exposed
to excessive vibration such as on an
unstable or slanted shelf.
y The product may fall and this may
result in damage to the product
or injury.
y If you use the product in a location
exposed to excessive vibrations,
it may result in a problem with the
product or fire.
Avoid installing the product in a
location exposed to direct sunlight
and installing the product near a heat
source such as a fireplace or heater.
y This may shorten the product life
cycle or cause fire.
!
!
Ask an installation engineer or relevant
company to install the product onto
the wall.
y Otherwise, it may result in injury.
y Make sure to use the specified wall
mount.
Keep the plastic bags used to pack the
product away from children.
y If children place the plastic
bags over their heads, they may
suffocate.
Avoid installing the product in a location
exposed to dust, moisture (sauna),
oil, smoke or water (rain drops) and
installing it within a vehicle.
y This may result in electric shock
or fire.
Avoid installing the product where
children may reach it.
y If a child touches the product, the
product may fall and this may result
in injury.
y Since the front part is heavier, install
the product on a flat and stable
surface.
English
5
Getting Started
Bend the outdoor antenna cable
downwards at the location where it
comes in the house so that rainwater
does not flow in.
y If rainwater enters the product, it
may result in electric shock or fire.
!
!
Install the antenna far away from any
high voltage cables.
y If the antenna touches or falls onto
a high voltage cable, it may result in
electric shock or fire.
Caution
Do not let the product drop while
moving it.
y This may result in a problem with
the product or injury.
Do not place the product face down on
the floor.
y This may damage the panel of the
product.
When installing the product on a
console or shelf, make sure that the
front of the product does not protrude
out of the console or shelf.
y Otherwise, this may cause the
product to fall off and result in a
malfunction or injury.
y Make sure to use a cabinet or
shelf suitable to the size of the
product.
When putting the product down, handle
it gently.
y Otherwise, it may result in a
problem with the product or injury.
!
SAMSUNG
!
!
If the product is installed in a location
where the operating conditions vary
considerably, a serious quality problem
may occur due to the surrounding
environment. In this case, install the
product only after consulting one of our
service engineers about the matter.
y Places exposed to microscopic
dust, chemicals, too high or
low temperature, high humidity,
airports or stations where the
product is continuously used.
English
6
Getting Started
¦ Cleaning related
Warning
Before cleaning the product, unplug
the power cord.
y Otherwise, it may result in electric
shock or fire.
When cleaning the product, do not
spray water directly over the product
parts.
y Make sure that water does not
enter the product.
y Otherwise, it may result in fire,
electric shock or a problem with the
product.
Avoid spraying cleansing agent directly
onto the product.
y This may result in discoloration
or cracking of the exterior of the
product or the panel coming off.
When cleaning the product, disconnect
the power cord and clean the product
with the supplied cleaning cloth.
y Avoid using chemicals such as
wax, benzene, alcohol, thinner,
mosquitorepellent, fragrance,
lubrication or cleansing agent when
cleaning the product.
!
Caution
!
This may result in the exterior
being deformed or the print being
removed.
If you can't get the product clean with
just the supplied cloth, use a soft,
damp cloth with a "monitor-exclusive
cleansing agent" and wipe the product
with it.
y If no monitor-exclusive cleansing
agent is available, dilute a
cleansing agent with water at a
ratio of 1:10 before cleaning the
product.
!
Since the exterior of the product is easily
scratched, be sure to use the supplied
cleansing cloth.
!
¦ usage related
Warning
Since a high voltage runs through the
product, never disassemble, repair or
modify the product yourself.
y Otherwise, it may result in fire or
electric shock.
y If the product needs to be fixed,
contact a service center.
!
To move the product, turn the power off
and unplug the power cord, the antenna
cable and any other wires connected to
the product.
y Otherwise, it may result in electric
shock or fire due to the damaged
power cord.
English
7
Getting Started
!
!
If the product generates a strange
noise, a burning smell, or smoke,
unplug the power plug immediately
and contact a service center.
yy Otherwise, it may result in electric
shock or fire.
Avoid letting children hang or climb onto
the product.
yy Otherwise, it may result in the
product falling and this may result
in injury or death.
If you drop the product or the case
is damaged, turn the power off and
unplug the power cord. Contact a
service center.
yy Otherwise, it may result in fire or
electric shock.
Avoid placing objects such as toys and
cookies on top of the product.
yy If a child hangs over the product
to grab an object, the object or the
product may fall and this may result
in injury or even death.
When thunder or lighting occurs,
unplug the power cord and under no
circumstance touch the antenna cable
as this is dangerous.
yy Otherwise, it may result in electric
shock or fire.
Avoid dropping an object over the
product or cause impact to the product.
yy Otherwise, it may result in electric
shock or fire.
Avoid moving the product by pulling
the power cord or antenna cable.
yy Otherwise, it may result in electric
shock, fire or a problem with the
product due to damage to the
cable.
Avoid lifting up or moving the product
by holding only the power cord or
signal cable.
yy Otherwise, it may result in electric
shock, fire or a problem with the
product due to damage to the
cable.
Take care not to block the vent by a
table cloth or curtain.
yy Otherwise, it may result in fire due
to internal overheating.
!
GAS
!
When a gas leak occurs, do not touch
the product or the power plug and
ventilate immediately.
yy A spark may result in an explosion
or fire.
yy During a thunder or lighting storm,
do not touch the power cord or
antenna cable.
Avoid using or placing inflammable
spray or objects near the product.
yy This may result in an explosion
or fire.
!
100
Avoid inserting metal objects such
as a chopsticks, coins or hairpins, or
inflammable objects into the product
(the vents, ports, etc).
yy If water or substances enters the
product, turn the power off, unplug
the power cord and contact a
service center.
yy Otherwise, it may result in a
problem with the product, electric
shock or fire.
English
8
Getting Started
Avoid placing a liquid container such
as a vase, flowerpot, beverage,
cosmetics or drugs, or a metal object
over the product.
y If water or substances enter
the product, turn the power
off, unplug the power cord and
contact a service center.
y Otherwise, it may result in a
problem with the product, electric
shock or fire.
Do not press down hard on the product.
The product may become deformed or
damaged.
Displaying a still image for a long time
may create a persistent image or stain
on the screen.
y If you do not use the product for
a long time, use the power-saving
mode or set the screensaver to
the moving picture mode.
When not using the product for a long
time such as leaving your home, unplug
the power cord from the wall outlet.
y Otherwise, it may cause dust
accumulation and result in fire
caused by overheating or short
circuit or result in an electric shock.
Caution
!
-_!
Set the appropriate resolution and
frequency for the product.
y Otherwise, it may result in eye
strain.
Avoid turning the product upside down
or move the product holding only the
stand.
y This may cause the product to fall,
resulting in damage to the product
or injury.
Watching the product from too close
a distance continuously may damage
your eyesight.
Avoid using a humidifier or cooker near
the product.
y Otherwise, it may result in electric
shock or fire.
It is important to give your eyes some
rest (5 minutes every hour) when
viewing the product screen for long
periods of time.
y This will alleviate any eye strain.
Since the display panel is hot after
using it for a long time, do not touch the
product.
!
!
!
English
9
Getting Started
Keep the small accessories in a
location out of the reach of children.
!
!
Take care when adjusting the angle of
the product or the height of the stand.
yy If your hand or finger is caught, you
may be injured.
yy If the product is tilted excessively,
the product may fall and this may
result in injury.
Avoid placing a heavy object over the
product.
yy Otherwise, it may result in a
problem with the product or injury.
When using headphones or earphones,
do not turn the volume too high.
yy Having the sound too loud may
damage your hearing.
Be careful that children do not place
the batteries in their mouths when
removed from the remote control.
Place the battery in a location that
children or infants cannot reach.
yy If children have had the battery in
their mouths, consult your doctor
immediately.
When replacing the batteries, insert
them with right polarity (+, -).
yy Otherwise, the battery may become
damaged or it may cause fire,
personal injury or damage due to
leakage of the internal liquid.
Use only specified standard batteries.
Do not use new and used batteries
together.
yy This may cause a battery to break
or leak and may cause fire, injury,
or contamination (damage).
!
!
The batteries (and rechargeable
batteries) are not ordinary refuse
and must be returned for recycling
purposes. The customer is responsible
for returning the used or rechargeable
batteries for recycling.
yy The customer can return used or
rechargeable batteries to a nearby
public recycling center or to a store
selling the same type of the battery
or rechargeable battery.
English
10
Getting Started
List of Features
y Media Play: Allows you to play movie, music files and pictures saved on a USB device.
y Self Diagnosis: You can check whether picture or sound operate normally.
Accessories
✎ Please make sure the following items are included with your TV. If any items are missing, contact your dealer.
✎ The items' colors and shapes may vary depending on the models.
✎ Cables not included in the package contents can be purchased separately.
✎ Check that there is no accessory hidden behind packing materials when you open the box.
y Remote Control & Batteries (AAA x 2) (Not available in some locations)
y Warranty Card / Safety Guide (Not available in some locations)
y User Manual
y Cleaning Cloth
y Power cord
y Quick Setup Guide
y D-Sub Cable
y Stereo Cable
HDMI-DVI
Component
Composite (AV)
Input Cables (Sold Separately)
HDMI
Coaxial (RF)
English
11
Getting Started
Viewing the Control Panel
✎✎The product color and shape may vary depending on the model.
Control Panel
SOURCE
E
MENU
y
z
Toggles between all the available input sources. In the on-screen menu, use this button as you
would use the ENTERE button on the remote control.
Displays an on-screen menu, the OSD (on screen display) of your TV features.
Adjusts the volume. In the OSD, use the y buttons as you would use the
◄ and ► buttons on the remote control.
Changes the channels. In the OSD, use the z buttons as you would use the ▼ and
▲ buttons on the remote control.
P (Power)
Turns the TV on or off.
Power Indicator
Blinks and turns off when the power is on and lights up in standby mode.
Remote control sensor
Aim the remote control towards this spot on the TV.
Standby mode
Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric
power is still consumed even when the power button is turned off. It is best to unplug the power cord.
English
12
Getting Started
Viewing the Remote Control
Displays and selects the available video
sources.
Turns the TV on and off.
Have direct access to channels.
Returns to the previous channel.
Brazil only : Press to select additional
channels (digital) being broadcasted by
the same station. For example, to select
channel “54.3”, press “54”, then press
“-” and “3”.
Adjusts the volume.
Cuts off the sound temporarily.
VOL
CH
Changes channels.
Displays the main on-screen menu.
Displays the Contents Home, which
includes Channel List, Guide, Media
Play, Schedule Manager and Source.
Quickly select frequently used functions.
Displays channel lists on the screen.
Displays the EPG (Electronic Programme
Guide).
Displays information on the TV screen.
Move the cursor and select an item.
Confirm the setting.
Returns to the previous menu.
Exits the menu.
Use these buttons according to the
direction on screen.
PIP: Turns the PIP on or off.
P.SIZE: Selects the Picture Size.
CC: Displays digital subtitles.
Using these buttons in Media Play
mode.
Installing batteries (Battery size: AAA)
English
13
Connections
Connecting to an Antenna
When the TV is initially powered on, basic settings proceed automatically.
✎✎Connecting the power cord and antenna.
VHF/UHF Antenna
Cable
or
ANT OUT
Setup (Initial Setup)
When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the POWERP button.
✎✎Setup is available only when the Input Source is set to TV.
1
2
3
P
Press the ▲ or ▼ button, then press the ENTERE button. Select the
desired OSD (On Screen Display) language.
Selecting Store Demo Press the ▲ or ▼ button, then press the ENTERE button.
or Home Use
yy Select the Home Use mode. Store Demo mode is for retail
environments.
yy To return the unit’s settings from Store Demo to Home Use (standard):
Press the volume button on the TV. When you see the volume OSD,
press and hold MENU for 5 sec.
yy Store Demo is only for shop display. If you select it, several functions
are not able to use. Please select Home Use when you watch at
home.
Auto Program
Let’s find and store channels on your TV. Do you need to search for channels?
yy Yes, I need to. All the channels available will be found and stored on your TV.
yy No, I don’t need to. My set-top box provides all the channels that are available, so I don't need to
search for channels.
You can complete Setup by selecting it.
Selecting a language
✎✎
To run auto program, please select Next button. Then set the search options for anto tuning.
yy If the antenna is connected to ANT 1 IN (AIR), select Air and if it is connected to ANT 2 IN (CABLE),
select Cable. After selecting the antenna source to memorize, select Next. The TV will begin
memorizing all of the available channels.
4
Setup Clock
5
Complete
Set the Clock Mode automatically or manually.
yy Auto: Allows you to select time zone.
yy Manual: Allows you to manually set the current date and time.
yy Select time zone you are in by pressing the u or d button.
Press the ENTERE button to confirm your choice.
If the customer choose "Manual" set clock, this step doesn't display.
Press the ENTERE button.
✎✎
If You Want to Reset This Feature...
MENUm → System → Setup → ENTERE
You should do Setup again at home although you did in shop.
✎✎If you forget the PIN code, press the remote control buttons in the following sequence in Standby mode, which resets the PIN to “0-00-0”: POWER (off) → MUTE → 8 → 2 → 4 → POWER (on).
English
14
INFO
Connections
Connecting to an AV Device
Using an HDMI or an HDMI to DVI Cable: HD connection (up to 1080p)
Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver.
HDMI OUT
Device
DVI OUT
Device
R
AUDIO OUT
W
✎✎HDMI IN (DVI) / PC/DVI AUDIO IN
xx For better picture and audio quality, connect to a digital device using an HDMI cable.
xx An HDMI cable supports digital video and audio signals, and does not require an audio cable.
–– If an HDMI to DVI cable is connected to the HDMI IN (DVI) port, the audio does not work.
xx The picture may not display normally (if at all) or the audio may not work if an external device that uses an older version of HDMI
mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external device about the HDMI version and,
if out of date, request an upgrade.
xx Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may occur.
xx A basic high-speed HDMI cable or one with ethernet is recommended. This product does not support the ethernet function via
HDMI.
English
15
Connections
Using a Component (up to 1080p) or Audio/Video (480i only) Cable
Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR
Audio Cable
(Not Supplied)
Video Cable
(Not Supplied)
Y
W
R
Y
W
W
R
AUDIO OUT
VIDEO OUT
R-AUDIO-L
Device
R
W
R
R
B
G
Audio Cable
(Not Supplied)
Component Cable
(Not Supplied)
R
R
W
Red White
R
Red
B
G
Blue Green
W
AUDIO OUT
R-AUDIO-L
R
R
B
G
COMPONENT OUT
PR
PB
Y
Device
R
W
Y
Red White Yellow
✎✎When connecting to AV IN, the color of the AV IN [Y/VIDEO] jack (green) will not match the video cable (yellow).
✎✎To obtain the best picture quality, the Component connection is recommended over the A/V connection.
Connecting to a Audio device
Using an Optical (Digital) or a Headphone Connection
Digital audio system
✎✎DIGITAL AUDIO OUT (OPTICAL)
xx When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume of both the TV and
the system.
xx 5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.
xx When the receiver (home theatre) is set to on, you can hear sound output from the TV’s optical jack. When the TV is receiving a
DTV signal, the TV will send 5.1 CH sound to the home theatre receiver. When the source is a digital component such as a DVD /
Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard
from the home theatre receiver. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player /
cable box / STB satellite receiver directly to an amplifier or home theatre.
✎✎Headphones H: You can connect your headphones to the headphones output on your set. While the headphones are connected,
the sound from the built-in speakers will be disabled.
xx Sound function may be restricted when connecting headphones to the TV.
xx Headphone volume and TV volume are adjusted separately.
English
16
Connections
Connecting to a PC
Using an HDMI cable or an HDMI to DVI cable or D-Sub cable
✎✎Connecting through the HDMI cable may not be supported depending on the PC.
HDMI Cable
(Not Supplied)
HDMI to DVI
(Not Supplied)
Stereo Cable
Stereo Cable
D-Sub Cable
English
17
Connections
Display Modes (HDMI/DVI Input)
Optimal resolution : 1920 X 1080 pixels @ 60HZ
Display Mode
Mode
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency(Hz)
Pixel Clock (MHz)
Sync Polarity
(H/V)
IBM
720 x 400
70Hz
31.469
70.087
28.322
-/+
VESA DMT
640 x 480
60Hz
31.469
59.940
25.175
-/-
MAC
640 x 480
67Hz
35.000
66.667
30.240
-/-
VESA DMT
640 x 480
72Hz
37.861
72.809
31.500
-/-
VESA DMT
640 x 480
75Hz
37.500
75.000
31.500
-/-
VESA DMT
800 x 600
60Hz
37.879
60.317
40.000
+/+
VESA DMT
800 x 600
72Hz
48.077
72.188
50.000
+/+
VESA DMT
800 x 600
75Hz
46.875
75.000
49.500
+/+
MAC
832 x 624
75Hz
49.726
74.551
57.284
-/-
VESA DMT
1024 x 768
60Hz
48.363
60.004
65.000
-/-
VESA DMT
1024 x 768
70Hz
56.476
70.069
75.000
-/-
VESA DMT
1024 x 768
75Hz
60.023
75.029
78.750
+/+
VESA DMT
1152 x 864
75Hz
67.500
75.000
108.000
+/+
MAC
1152 x 870
75Hz
68.681
75.062
100.000
-/-
VESA DMT
1280 x 720
60Hz
45.000
60.000
74.250
+/+
VESA DMT
1280 x 800
60Hz
49.702
59.810
83.500
-/+
VESA DMT
1280 x 1024
60Hz
63.981
60.020
108.000
+/+
VESA DMT
1280 x 1024
75Hz
79.976
75.025
135.000
+/+
VESA DMT
1366 x 768
60Hz
47.712
59.790
85.500
+/+
VESA DMT
1440 x 900
60Hz
55.935
59.887
106.500
-/+
VESA DMT
1600 x 900RB
60Hz
60.000
60.000
108.000
+/+
VESA DMT
1680 x 1050
60Hz
65.290
59.954
146.250
-/+
VESA DMT
1920 x 1080
60Hz
67.500
60.000
148.500
+/+
✎✎NOTE
xx The interlace mode is not supported.
xx The set may operate abnormally if a non-standard video format is selected.
xx Separate and Composite modes are supported. SOG(Sync On Green) is not supported.
English
18
Connections
Changing the Input Source
Edit Name
Source
SOURCE s→ TOOLS T→ Edit Name → ENTERE
SOURCE s→ Source
In the Source, press the TOOLST button, and then you can
set an external input sources name you want.
Use to select TV or an external input sources
such as a DVD / Blu-ray player / cable box /
STB satellite receiver.
■■ VCR / DVD / Cable STB / Satellite STB / PVR STB / AV
Receiver / Game / Camcorder / PC / DVI PC / DVI Devices
/ TV / IPTV / Blu-ray / HD DVD / DMA: Name the device
connected to the input jacks to make your input source
selection easier.
■■ TV / PC / HDMI/DVI / AV / Component
/ USB
✎✎ You can only choose external
✎✎When connecting a PC to the HDMI IN (DVI) port with HDMI
✎✎ In Source, TV and PC always stay activated.
✎✎When connecting a PC to the HDMI IN (DVI) port with HDMI
devices that are connected to the
TV. In the Source, connected inputs will be highlighted.
cable, you should set the TV to PC mode under Edit Name.
to DVI cable, you should set the TV to DVI PC mode under
Edit Name.
✎✎When connecting an AV devices to the HDMI IN (DVI) port
with HDMI to DVI cable, you should set the TV to DVI Devices
mode under Edit Name.
POWER
Information
SOURCE s→ TOOLS T→ Information → ENTERE
You can see detailed information about the selected external device.
Basic Features
How to Navigate Menus
How to Operate the OSD (On Screen Display)
Before using the TV, follow the steps below to learn how to navigate
the menu and select and adjust different functions.
The access step may differ depending on the selected menu.
1
MENU m
2
3
4
5
▲/▼
6
7
ENTER E
3
1
2
4
1 ENTERE / Direction button: Move the cursor and select an
item. Confirm the setting.
2 RETURN button: Returns to the previous menu.
3 MENU button: Displays the main on-screen menu.
4 EXIT button: Exits the on-screen menu.
ENTER E
▲/▼
◄/►
EXIT e
The main menu options appear on the
screen:
Picture, Sound, Channel, System,
Support.
Select an icon with the ▲ or ▼ button.
Press ENTERE to access the submenu.
Select the desired submenu with the ▲
or ▼ button.
Adjust the value of an item with the
◄ or ► button. The adjustment in
the OSD may differ depending on the
selected menu.
Press ENTERE to confirm the
selection.
Press EXIT.
English
19
Basic Features
Using the INFO button (Now & Next guide)
xx a Red (Schedule Mgr): Displays the Schedule
The display identifies the current channel and the
status of certain audio-video settings.
The Now & Next guide shows daily TV program
information for each channel according to the
broadcasting time.
yy Scroll ◄ / ► to view information for a desired
program while watching the current channel.
DTV Air
Manager.
xx b Green (-2 Hours): Viewing the list of program to be
broadcasted before 2 hours.
xx {
Yellow (+2 Hours): Viewing the list of program to be
broadcasted after 2 hours.
Mon, 29 Sep 10:15 pm
Globo HD
TELA QUENTE (HD)
HE-AAC
10:06 pm - 12:10 am
1080i HD I 10 I Muiti
05.1
DESVENTURAS EM SERIE (HD)
✎✎Using the operation buttons with the Guide.
a Information
Using the Channel Menu
Press the CONTENT button to select Contents Home, and then
select the menu you want to use. Each screen will be displayed.
xx } Blue (Exit): Exits the guide.
xx ` Information: Displays details of the selected program.
xx k (Page): Move to next or previous page.
xx E (Watch / Schedule)
–– When selecting the current programme, you can watch
the selected programme.
–– When selecting the future programme, you can reserve to
watch the selected programme. To cancel the schedule,
press the ENTERE button again and select Cancel
Schedules.
Schedule Manager
CONTENT → Contents Home → Schedule Manager →
ENTERE
Contents Home
You can view, modify or delete a Channel you have reserved to
watch.
Guide
Channel List
Media Play
Schedule Manager
Source
R Return
• The displayed image may differ depending on the model.
Guide
CONTENT → Contents Home → Guide → ENTERE
The EPG (Electronic Program Guide) information
is provided by broadcasters. Using program
schedules provided by broadcasters, you can
specify programs you want to watch in advance
so that the channel automatically changes to the
selected program channel at the specified time.
Program entries may appear blank or out of date
depending on a channel status.
3. Press the l / r / u / d buttons to set Antenna, Channel,
Repeat, Date, and Start Time.
xx Antenna: Select the desired broadcasting signal.
xx Channel: Select the desired channel.
xx Repeat: Select Once, Manual, Sat~Sun, Mon~Fri or
Guide
Fri, 1 Jan 2:10 am
DTV Air 05.1 Glo bo HD
TELA QUENTE (HD)
Everyday to set at your convenience. If you select Manual,
you can set the day you want.
✎✎ The c mark indicates the date is selected.
xx Date: you can set desired date.
xx Start Time: You can set start time you want.
10:05 pm - 12:10 pm
10
DESVENTURAS EM SERIE (HD)
Channel View
12:00pm
You can set a desired channel to be displayed automatically at the
intended time.
You must set the current time first using the Time → Clock function
in the System menu to use this function.
1. Press the ENTERE button to select Schedule Manager.
2. Press a or TOOLST to add manual booking. The Schedule
Viewing screen appears.
Using Channel View
Today
Using the Schedule Viewing
12:30pm
04.1
Globo HD
American Chopper
05.1
DiscoveryH&L
Programmes resume at 06:00
05.2
TV GloboSD
Home and...
05.3
price-drop.tv
No Information
05.4
QVC
QVC Selection
05.5
R4DTT
No Information
1:00pm
1:30pm
No Information
Fiv...
✎✎ On the Information screen, you can change or
cancel a reserved information.
Tine Team
Dark Angel
a Schedule Mgr b -2 Hours { +2 Hours } Exit ` Information k Page E Watch
• The displayed image may differ depending on the model.
xx Cancel Schedules: Cancel a show you have
reserved to watch.
xx Edit Schedule: Change a show you have reserved
to watch.
xx Return: Return to the previous screen.
English
20
Basic Features
2. Press the ▲/▼ buttons to select the desired
channel, and then press ENTERE button. The
(c) mark indicates the channel you’ve selected.
Channel List
CONTENT → Channel List → ENTERE
You can view all the channel searched.
Channel List
All
1
1futech
2
24ore.tv
3
BBC World
4
Class News
5
Coming Soon
6
R4 DTT
IL MEDICO E LO STREGONE
a1
C2
a2
C4
TTools L CH Mode E Watch k Page
• The displayed image may differ depending on the model.
✎✎ You can select more than one channel.
✎✎ Press ENTERE button again to deselect the
channel.
3. Press the TOOLST button, then select a function
and change its settings.
xx Edit Favorites: Set the selected channels you watch
frequently as favorites.
✎✎ The Edit Favorites screen has five groups
(Favorites 1-5). You can add a favourite
channel to any one of the groups. Press the
u/d buttons to select a group.
xx Lock / Unlock: Lock a channel so that the channel
✎✎When you press the CH LIST button on the remote control,
cannot be selected and viewed.
Using the operation buttons with the Channel List.
✎✎ The PIN input screen appears. Enter your
Channel List screen will be displayed at once.
■■ T (Tools): Press Tools button to check the following
functions.
xx Program View:Press the u/d buttons to select the
desired programme, then press the ENTERE button.
(Only for digital channel)
xx Edit Favorites: Set channels you watch frequently as
favorites.
✎✎ Select the Edit Favorites, then press the ENTERE
button.
–– If the channel is already added to favourite channel,
Edit Favorites will be shown.
xx Lock / Unlock: Lock a channel so that the channel cannot
be selected and viewed.
✎✎ This function is available only when the Channel
✎✎ This function is available only when the
Channel Lock is set to On.
4-digit PIN. You can change the PIN number
using System → Security → Change PIN
menu.
xx Delete: Delete a channel.
xx Deselect All: Deselect the selected channels.
xx Select All: Select all the channels in the channel list.
■■ l r (Ch. Mode): Move to the type of channels you want to
display on the Channel List screen.
✎✎ The option may differ depending on country.
■■ E (Watch / Information): Watches the channel you select. /
Displays details of the selected programme.
■■ k (Page): Move to next or previous page.
Lock is set to On.
How to use Schedule Viewing in Channel List (Digital Channels
Only)
the default of which is “0-0-0-0”. Change the PIN
using the Change PIN option.
xx Channel Name Edit (analog channels only): Assign your
When you set the Schedule Viewing in Channel List, you can only
set the programme in Program View.
1. Press the CH LIST button, then select a desired digital
channel.
xx Delete: You can delete a channel to display the channels
2. Press TOOLST button. and then select the Program View.
The program list for that channel appears.
xx Information: Display the channel name, resolution, picture
3. Press the u / d buttons to select the desired programme,
then press the E (Information) button.
✎✎ The PIN input screen appears. Enter your 4-digit PIN,
own channel name.
you want.
mode, language and so on.(Some just available for DTV)
xx Edit Mode: You can select desired channels and edit it.
xx Using Option Menu in Edit Mode: Set each channel
using the menu options (Edit Favorites, Lock, Unlock,
Delete,Deselect, Select All).
4. Select Schedule Viewing, then press the ENTERE button
when done.
✎✎If you want to cancel Schedule Viewing, follow steps 1
through 3. Select Cancel Schedule.
1. Press the TOOLST button in Channel List screen,
then select the Edit Mode. A check box appears to
the left of the channel.
English
21
Basic Features
Channel Menu
Picture Menu
¦¦ Memorizing Channels
¦¦ Changing the Preset Picture Mode
MENUm → Channel → ENTERE
MENUm → Picture → Picture Mode → ENTERE
Antenna (Air / Cable)
Picture Mode t
Before your television can begin memorizing the available channels,
you must specify the type of signal source that is connected to the
TV.
✎✎When connecting a PC, the Picture Mode is only available
✎✎If the antenna is connected to ANT 1 IN (AIR), select Air and
if it is connected to ANT 2 IN (CABLE), select Cable.
Auto Program
Automatically registers available Air / Cable channels to the
TV.
■■ Air: Air antenna signal.
Select your preferred picture type.
the Standard and Entertain.
■■ Dynamic: Suitable for a bright room.
■■ Standard: Suitable for a normal environment.
■■ Movie: Suitable for watching movies in a dark room.
■■ Entertain: Suitable for watching movies and games.
✎✎ It is only available when connecting a PC.
■■ Cable: Cable antenna signal.
¦¦ Adjusting Picture Settings
Fine Tune
MENUm → Picture → ENTERE
(analog channels only)
If the reception is clear, you do not have to fine tune the channel, as
this is done automatically during the search and store operation. If
the signal is weak or distorted, fine tune the channel manually. Scroll
to the left or right until the image
is clear.
Samsung MagicAngle
✎✎Settings are applied to the channel you're currently watching.
✎✎Fine tuned channels that have been saved are marked with an
asterisk “*” on the right-hand side of the channel number in
the channel banner.
✎✎To reset the fine-tuning, select Reset.
Crosstalk Noise Reduction(Off/On)
(analog channels only)
This function reduce diagonal noise in picture caused by the
crosstalk of signals. If your TV displays with a noise while watching
TV, turns on this function.
Adjust screen viewing Angle to optimize screen quality according to
your viewing position.
■■ Samsung MagicAngle: When viewing the screen at an angle
from below or above by setting the appropriate mode for each
position you can obtain a similar picture quality as viewing the
screen directly from the front.
xx Off: Select when viewing from the front position.
xx Lean Back Mode: Select when viewing from a slightly
lower position.
xx Standing Mode: Select when viewing from the upper
position.
■■ Mode: Adjust screen viewing angle.
✎✎When Samsung MagicAngle is set to Lean Back Mode or
Standing Mode, Gamma is not available.
Color System (Auto / PAL-M / PAL-N / NTSC)
Normally the TV can receive image and sound with good quality
when in the mode auto. This mode detects the signal color
system automatically. In case of some signal reception with color
unsatisfactory, select the Color System mode to Auto, PAL-M,
PAL-N or NTSC.
English
22
Basic Features
Backlight / Contrast / Brightness / Sharpness
/ Color / Tint (G/R)
Your television has several setting options for picture quality control.
✎✎NOTE
xx When connecting a PC, you can only make changes to
Backlight, Contrast, Brightness and Sharpness.
xx Settings can be adjusted and stored for each external
device connected to the TV.
xx Lowering picture brightness reduces power consumption.
Screen Adjustment
Screen Adjustment provides various picture size and aspect ratio
options. Select an option using the up and down arrow keys, and
the press ENTERE. Use the arrow keys to select an option in the
sub-menu, and then press ENTERE.
■■ Picture Size: Your cable box / satellite
receiver may have its own set of screen sizes
as well. However, we highly recommend you
use 16:9 mode most of the time.
16:9: Sets the picture to 16:9 wide mode.
Zoom1: Use for moderate magnification.
Zoom2: Use for a stronger magnification.
Wide Fit: Enlarges the aspect ratio of the picture to fit the
entire screen.
Available with HD 1080i / 720p signals in 16:9 mode.
✎✎
4:3: Sets the picture to basic (4:3) mode.
Do not watch in 4:3 format for a long time. Traces of
borders displayed on the left, right and center of the
screen may cause image retention (screen burn) which
are not covered by the warranty.
✎✎
Screen Fit: Displays the full image without any cut-off when
HDMI (720p / 1080i / 1080p) or Component (1080i / 1080p)
signals are inputted.
■■ Position: Adjusts the picture position. Position is only available
if Picture size is set to Zoom1, Zoom2, Wide Fit, or Screen
Fit.
✎✎To use the Position function after selecting Zoom1, Zoom2
or Wide Fit, follow these steps:
4. When done, Press the ENTERE button.
✎✎ If you want to reset the pictures to its original position,
select Reset in the Position screen, and then press
ENTERE. The picture will be reset to its default
position.
✎✎To use the Position function after selecting Screen Fit
when connected to an HDMI (1080i/1080p) or Component
(1080i/1080p) source, follow these steps:
1. Press the d button to select Position.
2. Press the ENTERE button.
3. Press the u, d, l or r button to move the picture.
4. When done, Press the ENTERE button.
✎✎ NOTE
xx If you want to reset the pictures to its original position,
select Reset in the Position screen. The picture will be set
to its default position.
xx HD (High Definition): 16:9 - 1080i / 1080p (1920x1080),
720p (1280x720)
xx You can adjust and store settings for each external device
you have connected to an input on the TV.
xx Picture Sizes available by Input Source:
Input Source
Picture Size
ATV, AV, Component (480i, 480p)
16:9, Zoom1, Zoom2, 4:3
DTV(1080i), Component (1080i,
1080p), HDMI (720p, 1080i, 1080p)
16:9, Wide Fit, 4:3, Screen Fit
■■ PC Screen Adjustment
✎✎ Available only PC mode.
xx Coarse / Fine: Removes or reduces picture noise. If
the noise is not removed by Fine-tuning alone, then
adjust the frequency as best as possible (Coarse)
and Finetune again. After the noise has been
reduced, readjust the picture so that it is aligned to
the centre of screen.
xx Position: Adjusts the PC screen position with
direction button (u / d / l / r).
xx Image Reset: Resets the image to default settings.
1. Press the d button to select Position.
2. Press the ENTERE button.
3. Press the u or d button to move the picture up or
down.
English
23
Basic Features
Auto Adjustmentt
¦¦ Changing the Picture Options
Frequency values/ position and fine tune are adjusted automatically.
Advanced Settings
✎✎It's only available in PC mode.
Using Your TV as a Computer (PC) Display
Setting Up Your PC Software (Based on Windows XP)
Depending on the version of Windows and the video card, the
actual screens on your PC will probably look different, but the same
basic set-up information will apply in most cases. (If not, contact
your computer manufacturer or Samsung Dealer.)
1. Click on “Control Panel” on the Windows start menu.
2. Click on “Appearance and Themes” in the “Control Panel”
window and a display dialog-box will appear.
MENUm → Picture → Advanced Settings → ENTERE
(Advanced Settings are available in Standard / Movie mode)
Compared to previous models, new Samsung TVs have a more
precise picture.
✎✎When connecting a PC, you can only make changes to
Gamma and White Balance.
Advanced Settings
Dynamic Contrast
3. Click on “Display” and a display dialog box will appear.
Black Tone
4. Navigate to the “Settings” tab on the display dialog-box.
Flesh Tone
yy The correct size setting (resolution).
[Optimum: 1920 x1080 pixels].
yy If a vertical-frequency option exists on your display settings
dialog box, the correct value is “60” or “60 Hz”. Otherwise, just
click “OK” and exit the dialog box.
RGB Only Mode
Color Space
High
Off
0
Off
Native
White Balance
Gamma
0
Maintaining the Correct Posture when Using this Product
■■ Dynamic Contrast (Off / Low / Medium / High): Adjust the
screen contrast.
■■ Black Tone (Off / Dark / Darker / Darkest): Select the black
level to adjust the screen depth.
■■ Flesh Tone: Emphasize pink “Flesh Tone.”
■■ RGB Only Mode (Off / Red / Green / Blue): Displays the Red,
Green and Blue color for making fine adjustments to the hue
and saturation.
■■ Color Space (Auto / Native): Adjust the range of colors
available to create the image.
■■ White Balance: Adjust the color temperature for a more
natural picture.
Maintain the correct posture when using this product.
yy Straighten your back.
yy Keep a distance of 45~50 cm (15~19 inches) from your eyes
to the screen. Look down at the screen and face the screen
forwards.
yy Adjust the angle of the product so that light is not reflected
onto the screen.
yy Keep your elbow at a right angle and keep your arm level with
the back of your hand.
yy Keep your elbow at a right angle.
yy Place your heels flat on the ground while keeping your knees at
an angle of 90 degrees or higher and maintain the position of
your arm so that your arm is below your heart.
R-Offset / G-Offset / B-Offset: Adjust each color's (red,
green, blue) darkness.
R-Gain / G-Gain / B-Gain: Adjust each color's (red, green,
blue) brightness.
Reset: Resets the White Balance to it's default settings.
■■ Gamma: Adjust the primary color intensity.
■■ Motion Lighting (Off / On): Reduce power consumption by
brightness control.
✎✎ When changing a setting value of Contrast, Motion
Lightning will be set to Off.
English
24
Basic Features
Sound Menu
Picture Options
MENum → Picture → Picture Options → ENTErE
✎ When connecting a PC, you can only make changes to the
Color Tone.
¦ Changing the Preset Sound Mode
MENum → Sound → Sound Mode → ENTErE
Sound Mode t
Picture Options
■
Standard: Selects the normal sound mode.
Auto
■
Music: Emphasizes music over voices.
MPEG Noise Filter
Auto
■
Movie: Provides the best sound for movies.
HDMI Black Level
Low
■
Clear Voice: Emphasizes voices over other sounds.
Film Mode
Off
■
amplify: Increase the intensity of high-frequency sound to
allow a better listening experience for the hearing impaired.
Color Tone
Standard
Digital Noise Filter
¦ adjusting Sound Settings
■
Color Tone (Cool / Standard / Warm1 / Warm2)
✎
✎
■
Warm1 or Warm2 will be deactivated when the picture
mode is Dynamic.
Settings can be adjusted and stored for each external
device connected to an input on the TV.
Digital Noise Filter (Off / Low / Medium / High / auto / auto
Visualization): If the broadcast signal received by your TV
is weak, you can activate the Digital Noise Filter feature to
reduce any static and ghosting that may appear on the screen.
✎
When the signal is weak, try other options until the TV
displays.
auto Visualization: When changing analog channels, displays
signal strength.
Only available for analog channels.
✎
✎
When bar is green, is that the best possible signal.
■
MPEg Noise Filter (Off / Low / Medium / High / auto):
Reduces MPEG noise to provide improved picture quality.
■
HDMI Black Level (Normal / Low): Selects the black level on
the screen to adjust the screen depth.
✎
■
Available only in HDMI mode.
Film Mode (Off / auto1 / auto2): Sets the TV to automatically
sense and processes film signals from all sources and adjusts
the picture for optimum quality.
✎
✎
Available in TV mode, HDMI (1080i).
If the screen does not seem natural, change its option to
Off / auto1 / auto2 in Film Mode.
reset Picture (Yes / No)
Resets your current picture mode to its default settings.
MENum → Sound → Sound Effect → ENTErE
Sound Effect
(standard sound mode only)
■
SrS TruSurround HD (Off / On)
This function provides a virtual 5.1 channel surround sound
experience through a pair of speakers using HRTF(Head Related
Transfer Function) technology.
■
SrS TruDialog (Off / On)
This function allows you to increase the intensity of a voice over
background music or sound effects so that dialog can be heard
more clearly.
■
Equalizer
Adjusts the sound mode.
– Balance L/r: Adjusts the balance between the right and left
speaker.
– 100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth
Adjustment): Adjusts the level of specific bandwidth
frequencies.
– reset: Resets the equalizer to its default settings.
¦ Sound Settings
MENum → Sound → ENTErE
Broadcast audio Options
■
audio Language (digital channels only): Change the default
value for audio languages.
✎ The available language may differ depending on the
broadcast.
English
25
Basic Features
■
System Menu
Multi-Track Sound (MTS)
(analog channels only)
– Mono: Choose for channels that are broadcasting in
mono or if you are having difficulty receiving a stereo
signal.
– Stereo: Choose for channels that are broadcasting in
stereo.
– SaP: Choose to listen to the Separate Audio Program,
which is usually a foreign-language translation.
x
MENum → System → Time → ENTErE
Time
■
✎
✎
Depending on the particular program being broadcast, you
can listen to Mono, Stereo or SaP.
SPDIF Output
■
✎
The available Digital Audio output (SPDIF) format may
differ depending on the input source.
audio Delay: Correct audio-video sync problems, when
watching TV or video, and when listening to digital audio
output using an external device such as an AV receiver (0ms ~
250ms).
Speaker Select (External Speaker / TV Speaker):A sound
echo may occur due to a difference indecoding speed between
the main speaker and theaudio receiver. In this case, set the TV
to External Speaker.
Depending on the broadcast station and signal, the
auto time set up may not be correct. In this case, set
the time manually.
Clock Set: Set the Day, Month, Year, Hour, Minute and am/pm.
Available only when Clock Mode is set to Manual.
✎
✎
You can set the Day, Month, Year, Hour and Minute
directly by pressing the number buttons on the remote
control.
Time Zone: Select your time zone.
This function is only available when the Clock Mode is
set to auto.
✎
using the Sleep Timer
✎
When Speaker Select is set to External Speaker, the
volume and MuTE buttons will not operate and the
sound settings will be limited.
✎
When Speaker Select is set to External Speaker.
✎
When Speaker Select is set to TV Speaker.
You can set the TV to turn on automatically at a preset time.
x
■
✎
■
The antenna must be connected in order to set the
time automatically.
– Manual: Set the current time manually.
Speaker Settings
■
If you disconnect the power cord, you have to set the
clock again.
✎
audio Format: You can select the Digital Audio output (SPDIF)
format.
✎
The current time will appear every time you press the
INFO button.
Clock Mode (auto / Manual)
– auto: Set the current time automatically using the time
from a digital channel.
SPDIF (Sony Philips Digital InterFace) is used to provide digital
sound, reducing interference going to speakers and various digital
devices such as a DVD player.
■
Clock: Setting the clock is for using various timer features of
the TV.
x
TV Speaker: Off, External Speaker: On
TV Speaker: On, External Speaker: On
If there is no video signal, both speakers will be mute.
auto Volume (Off / Normal / Night): To equalize the volume
level on each channel, set to Normal.
Night: This mode provides an improved sound experience
compared to Normal mode, making almost no noise. It is
useful at night.
reset Sound (Yes/No)
Reset all sound settings to the factory defaults.
■
Sleep Timer t : Automatically shuts off the TV after a
preset period of time. (30, 60, 90, 120, 150 and 180 minutes).
✎
To cancel the Sleep Timer, select Off.
Setting the On / Off Timer
On Timer 1 / On Timer 2 / On Timer 3: Three different on
timer settings can be made. You must set the clock first.
On Timer 1
Setup
Sun
Off
Mon
Tue
Wed
Time
Thu
Fri
Sat
12:00 am
Volume
20
Source
TV
antenna
air
Channel
3
Close
R return
English
26
Basic Features
Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat,
Sat~Sun or Manual to set at you convenience. If you select
Manual, you can set up the day you want to activate the timer.
The c mark indicates the day is selected.
✎
Time: Set the hour, minute, and am/pm.
Volume: Set the desired volume level.
Source: Select the desired input source to be played when the
TV is turned on automatically. (uSB can be selected only when
a USB device is connected to the TV)
antenna (when the Source is set to TV): Select air or Cable.
Channel (when the Source is set to TV): Select the desired
channel.
Music (when the Source is set to uSB): Select a folder in the
USB device containing music files to be played when the TV is
turned on automatically.
Photos (when the Source is set to uSB): Select a folder in the
USB device containing photo files to be played when the TV is
turned on automatically.
¦ Locking Programs
MENum → System → Security → ENTErE
Security
✎ The PIN input screen appears, Enter your 4 digit PIN number.
✎ The default PIN number of a new TV set is “0-0-0-0”.
■
Channel Lock (Off / On): Lock channels, to prevent
unauthorized users, such as children, from watching unsuitable
program.
■
Program rating Lock: Prevent unauthorized users, such as
children, from watching unsuitable program with a user-defined
4-digit PIN code. If selected channel is locked, the “\” symbol
will be displayed.
■
Change PIN: The Change PIN screen will appear. Choose any
4 digits for your PIN and enter them. As soon as the 4 digits
are entered, the Confirm New PIN screen appears. Re-enter
the same 4 digits. When the Confirm screen disappears, your
PIN has been memorized.
✎
✎ NOTE
x
If there is no music file on the USB device or the
folder containing a music file is not selected, the
Timer function does not operate correctly.
x
When there is only one photo file in the USB, the
Slide Show will not play.
x
If a folder name is too long, the folder cannot be
selected.
x
Each USB you use is assigned its own folder. When
using more than one of the same type of USB, make
sure the folders assigned to each USB have different
names.
x
■
It is recommended that you use a USB memory stick
and a multi card reader when using On Timer. The
On Timer function may not work with USB devices
with a built-in battery, MP3 players, or PMPs made by
some manufacturers because these devices take a
long time to be recognized.
Off Timer 1 / Off Timer 2 / Off Timer 3: Three different off
timer settings can be made. You must set the clock first.
✎
MENum → System → Eco Solution → ENTErE
Eco Solution
■
Energy Saving (Off / Low / Medium / High / Picture Off):
This adjusts the brightness of the TV in order to reduce power
consumption. If you select Picture Off, the screen is turned
off, but the sound remains on. Press any button except volume
button to turn on the screen.
■
No Signal Power Off (Off / 15 min. / 30 min. / 60 min.): To
avoid unnecessary energy consumption, set how long you
want the TV to remain on if it’s not receiving a signal.
✎
Sun
Off
Mon
Tue
Wed
Time
Thu
Fri
Sat
If you forget the PIN, press the remote-control buttons in
the following sequence, which resets the pin to “0-0-00”: POWEr (off) → MuTE → 8 → 2 → 4 → POWEr
(on).
¦ Economical Solutions
Off Timer 1
Setup
Available only when the Input Source is set to TV.
■
Disabled when the PC is in power saving mode.
auto Power Off (Off / On): Saves power by turning TV off
automatically when no user operation is received for 4 hours.
12:00 am
Close
R return
Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat,
Sat~Sun or Manual to set at you convenience. If you select
Manual, you can set up the day you want to activate the timer.
The c mark indicates the day is selected.
✎
Time: Set the hour, minute, and am/pm.
English
27
Basic Features
¦¦ Other Features
MENUm → System → ENTERE
Menu Language
Set the menu language.
1. Select Menu Language and press the ENTERE button.
2. Choose desired language and press the ENTERE button.
Caption
(On-Screen Text Messages)
■■ Caption (Off / On): You can switch the
caption function on or off. If captions are not
available, they will not be displayed on the
screen.
✎✎ The Caption feature doesn’t work in
Component, HDMI or PC modes.
■■ Caption Mode: You can select the desired
caption mode.
✎✎ The availability of captions depends on the program
being broadcast.
CC1~CC4 / Text1~Text4: (analog channels only) The Analog
Caption function operates in either analog TV channel mode
or when a signal is supplied from an external device to the TV.
(Depending on the broadcasting signal, the Analog Caption
function may or may not work with digital channels.)
Auto Protection Time
■■ Off / 2 hours / 4 hours / 8 hours / 10 hours: If the screen
remains idle with a still image for a certain period of time
defined by the user, the screen saver is activated to prevent the
formation of ghost images on the screen.
General
■■ Max. Power Saving (Off / On): Turn off PC monitor when
PC is not used for certain length of time to reduce power
consumption.
■■ Game Mode (Off / On): When connecting to a game console
such as PlayStation™ or Xbox™, you can enjoy a more realistic
gaming experience by selecting the game menu.
✎✎NOTE
xx Precautions and limitations for game mode
–– To disconnect the game console and connect another
external device, set Game Mode to Off in the setup
menu.
–– If you display the TV menu in Game Mode, the screen
shakes slightly.
xx Game Mode is not available when the input source is set
to TV or PC.
xx After connecting the game console, set Game Mode to
On. Unfortunately, you may notice reduced picture quality.
xx If Game Mode is On:
–– Picture mode is set to Standard and Sound mode is set
to Movie.
■■ Panel Lock: Lock or unlock all the keys on the front panel at
once. When Panel Lock is on, none of the keys on the front
panel operate.
■■ Boot Logo (Off / On): Display Samsung logo when the TV is
turned on.
■■ AV Color System (Auto / PAL-M / PAL-N / NTSC): Normally
the TV can receive image and sound with good quality when
in the mode Auto. This mode detects the signal color system
automatically. In case of some signal reception with color
unsatisfactory, select the AV Color System mode to Auto,
PAL-M, PAL-N or NTSC.
¦¦ Picture In Picture (PIP)
MENUm → System → PIP → ENTERE
PIP t
You can watch the TV tuner and one external video source
simultaneously. PIP (Picture-in-Picture) does not function in the
same mode.
✎✎NOTE
xx For PIP sound, refer to the Sound Select instructions.
xx If you turn the TV off while watching in PIP mode, the PIP
window will disappear.
xx You may notice that the picture in the PIP window becomes
slightly unnatural when you use the main screen to view a
game or karaoke.
xx While Program Rating Lock is in operation, the PIP
function cannot be used.
xx PIP Settings
Main picture
Sub picture
Component, HDMI/DVI, PC
TV
■■ PIP (Off / On): Activate or deactivate the PIP function.
■■ Air / Cable (Air / Cable): Select either Air or Cable as the
input source for the sub-screen.
■■ Channel: Select the channel for the sub-screen.
■■ Size (Õ / Ã): Select a size for the sub-picture.
■■ Position (à / – / — / œ): Select a position for the
sub-picture.
■■ Sound Select (Main / Sub): You can choose the desired
sound (Main / Sub) in PIP mode.
¦¦ DivX® Video On Demand
Shows the registration code authorized for the TV. If you connect
to the DivX web site and register, you can download the VOD
registration file. If you play the VOD registration using Media Play,
the registration is completed.
✎✎For more information on DivX® VOD,
visit “http://vod.divx.com”.
English
28
Basic Features
Support Menu
MENum → Support → ENTErE
Installing the Latest Version
By uSB: Insert a USB drive
containing the firmware
upgrade file, downloaded
from “www.samsung.com,”
USB Drive
into the TV. Please be careful
G
not to disconnect the power
or remove the USB drive until upgrades are complete. The TV
will be turned off and on automatically after completing the
firmware upgrade. When software is upgraded, video and audio
settings you have made will return to their default settings. We
advise you to write down your settings so that you can easily
reset them after the upgrade.
■
alternative Software: Replace the current software with the
alternative.
Self Diagnosis
✎ Self Diagnosis might take few seconds, this is part of the
normal operation of the TV.
■
Picture Test: Use to check for picture problems.
Yes: If the test pattern does not appear or there is noise in the
test pattern, select Yes. There may be a problem with the TV.
Contact Samsung’s Call Center for assistance.
No: If the test pattern is properly displayed, select No. There
may be a problem with your external equipment. Please check
your connections. If the problem persists, refer to the external
device’s user manual.
■
Sound Test: Use the built-in melody sound to check for sound
problems.
Yes: If you can hear sound only from one speaker or not at all
during the sound test, select Yes. There may be a problem with
the TV. Contact Samsung’s Call Center for assistance.
No: If you can hear sound from the speakers, select No. There
may be a problem with your external equipment. Please check
your connections. If the problem persists, refer to the external
device’s user manual.
■
Signal Information: (digital channels only) An HD channel’s
reception quality is either perfect or the channels are
unavailable. Adjust your antenna to increase signal strength.
■
reset: Restores all settings to factory defaults.
TV Side
■
Contact Samsung
View this information when your TV does not work properly or
when you want to upgrade the software. You can find information
regarding our call centers and how to download products and
software.
Contents Home
You can enjoy useful and various contents.
Software upgrade
Software upgrade can be performed downloading the latest
firmware from “www.samsung.com,” to a USB memory device.
Current Version - the software already installed in the TV.
✎ Software is represented as “Year/Month/Day_Version.”
Software upgrade
By USB
Alternative Software
English
29
Advanced Features
Using the Media Play
Enjoy videos, photos, music files saved on a USB Mass Storage
Class (MSC) device.
1. Press the CONTENT button.
2. Press the l / r button to select desired menu (Media Play),
then press the ENTErE button.
Contents Home
CONTENT → Media Play → ENTErE
Channel List
Guide
Media Play
Schedule Manager
Source
R Return
• The displayed image may differ depending on the model.
¦ Connecting a uSB Device
1.
Turn on your TV.
2.
Connect a USB device containing photo and music files to the uSB jack on the side of the TV.
3.
When USB is connected to the TV, popup window appears. Then you can select Videos,
Photos or Music directly.
TV Side
G
USB Drive
✎ It might not work properly with unlicenced multimedia files.
✎ Need-to-Know List before using Media Play.
x
x
x
x
MTP (Media Transfer Protocol) is not supported.
x
x
USB (HDD) is not supported.
x
x
x
x
x
Do not disconnect the USB device while it is loading.
x
x
If more than 2 PTP devices are connected, you can only use one at a time.
x
If an over-power warning message is displayed while you are connecting or using a USB device, the device may not be recognized
or may malfunction.
The file system supports FAT16, FAT32 and NTFS.
Certain types of USB Digital camera and audio devices may not be compatible with this TV.
Media Play only supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-Only Transport device.
Examples of MSC are Thumb drives, Flash Card Readers and USB HDD (USB HUB are not supported). Devices should be
connected directly to the TV’s USB port.
Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not
responsible for any data file damage or data loss.
The higher the resolution of the image, the longer it takes to display on the screen.
The maximum supported JPEG resolution is 15360X8640 pixels.
For unsupported or corrupted files, the “Not Supported File Format” message is displayed.
MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management (DRM) is a
technology that supports the creation, distribution and management of the content in an integrated and comprehensive way,
including the protection of the rights and interests of the content providers, the prevention of the illegal copying of contents, as well
as managing billings and settlements.
If more than two MSC devices are connected, some of them may not be recognized. A USB device that requires high power (more
than 500mA or 5V) may not be supported.
English
30
Advanced Features
x
x
x
x
If the TV has been no input during time set in auto Protection Time, the Screensaver will run.
x
Media Play only supports sequential jpeg format.
The power-saving mode of some external hard disk drives may be released automatically when connected to the TV.
If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read.
If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is not played,
connect the USB device to the PC, format the device and check the connection.
¦ Screen Display
Move to the desired file using the u / d / l / r buttons and then press the ENTErE button. The file is played. Media Play screen may
differ depending on the way to enter the screen.
Information:
Displays the selected content
category (Music, for example),
device (USB drive,for example),
folder/file name and page.
Contents mode:
You can select the desired
Content Category.
Media Play / Videos /
upper Folder
2/8
Cruzer.../Video_02.aVI
Video_02.AVI
Video_01
1.Jan.2012
1.Jan.2012
Video_02
Video_03
1.Jan.2012
1.Jan.2012
Video_04
Video_05
1.Jan.2012
1.Jan.2012
Video_06
Video_07
1.Jan.2012
1.Jan.2012
17.6MB
Displays the selected file
information.
Video_08
1.Jan.2012
E Play T Tools R return
• The displayed image may differ depending on the model.
Operation Buttons
• { Turn to the previous page. Only available in Music.
• b Turn to the next page. Only available in Music.
• E Play: Play the selected file.
• T Tools: Displays the option menu.
• R return: Move to the previous step.
English
31
Advanced Features
Videos
Playing Video
1.
Press the l / r / u / d button to select the desired video in the file
list.
2.
Press the ENTErE button or ∂ (Play) button.
x
x
The selected file name is displayed on the top with its playing time.
x
x
During video playback, you can search using l and r button.
If video time information is unknown, play time and
progress bar are not displayed.
You can use π (REW) and µ (FF) buttons during playback.
✎
In this mode, you can enjoy movie clips contained on a
Game, but you cannot play the Game itself.
• The displayed image may differ depending on the model.
Supported Subtitle Formats
– External
Name
Extension
MPEG-4 time-based text
.ttxt
SAMI
.smi
SubRip
.srt
SubViewer
.sub
Micro DVD
.sub or .txt
SubStation Alpha
.ssa
Advanced SubStation Alpha
.ass
Powerdivx
.psb
– Internal
Name
Container
Format
Xsub
AVI
Picture Format
SubStation Alpha
MKV
Text Format
Advanced SubStation Alpha
MKV
Text Format
SubRip
MKV
Text Format
MPEG-4 Timed text
MP4
Text Format
Supported Video Formats
File
Extension
*.avi
*.mkv
*.asf
*.wmv
*.mp4
*.3gp
*.vro
*.mpg
*.mpeg
*.ts
*.tp
*.trp
*.m2ts
*.mts
*.divx
Container
Video Codec
resolution
Frame
rate (fps)
Bit rate
(Mbps)
audio Codec
DivX 3.11 / 4.x / 5.1 / 6.0
AVI
MKV
ASF
MP4
3GP
VRO
VOB
PS
TS
MPEG4 SP / ASP
1920x1080
30
H.264 BP / MP / HP
Motion JPEG
640x480
6 ~ 30
8
Window Media Video v9
MPEG2
1920x1080
30
AC3
LPCM
ADMPCM
(IMA, MS)
AAC
HE-AAC
WMA
DD+
MPEG(MP3)
DTS Core
MPEG1
English
32
Advanced Features
Other restrictions
✎ NOTE
x
x
Video content will not play, or not play correctly, if there is an error in the content or the container.
x
x
If the Index Table is in error, the Seek (Jump) function is not supported.
x
x
x
The menu can be displayed late if the video is over 10Mbps(bit rate).
Sound or video may not work if the contents have a standard bit rate/frame rate above the compatible Frame/sec listed in the table
above.
When playing the video through network, it may not work depending on the network status. When you play video over a network
connection, the video may not be played smoothly.
Some USB/digital camera devices may not be compatible with the player.
Video content can not be played if there are many contents in one file.
Video decoder
audio decoder
y Supports up to H.264, Level 4.1
y H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and
AVCHD are not supported.
y GMC 2 over is not supported.
y Supports up to WMA 7, 8, 9 STD, 9, 10 PRO.
y WMA lossless, audio lossless and audio are not supported.
y WMA sampling rate of 22050Hz mono is not supported.
Photos
Viewing a Photo (or Slide Show)
1.
Press the u / d / l / r button to select the desired photo in the
file list.
2.
Press the ENTErE button.
– When a selected photo is displayed, press the ENTErE
button to start the slide show.
– During the slide show, all files in the file list will be displayed in
order.
Media Play / Photos /
Upper Folder
Cruzer... / Photos / 0801181... .JPG
7 / 1000
1.Jan.2012
663.0KB
1920 x 1080
✎ Music files can be automatically played during the Slide Show if
the Background Music On is set.
✎ The Background Music cannot be changed until the BGM has
finished loading.
πµ Page Move E Play T Tools R return
• The displayed image may differ depending on the model.
Supported Photo Formats
File Extension
Type
resolution
JPEG
15360 x 8640
BMP
1920 x 1080
*.mpo
MPO
15360 x 8640
English
33
Advanced Features
Music
Playing Music
1. Press the u or d button to select a music file from the list.
2. Press the EnterE button or ∂ (Play) button. The music
file will be played.
Media Play / Music /
Cruzer... / Music / Music_01.mp3
Music_01
Singer 1
• To rewind or fast-forward during playback, press the
π(Rewind) or µ (Fast-forward) button.
Music_02
Singer 2
Music_03
Singer 3
Music_04
Singer 4
• To move to another page, press the b Page Down or
{ Page up button.
Music_05
Singer 5
Music_01
Music_06
Singer 6
Music_07
Singer 7
Singer 1
2003
Fallen
Other
Music_08
Singer 8
Music_09
Singer 9
✎
Only displays the files with the file extension in
following supported music formats list.
✎
If there are issues with the sound quality of an MP3 file,
go to Sound and adjust the Equalizer. (There may be
sound quality issues with over-modulated MP3 files.)
1/17
upper Folder
2:36 / 5:00
b{ Page Move E Play T Tools R Return
• The displayed image may differ depending on the model.
Playing selected music files
1. Press the ToolsT button to select Selection Play.
2. Select music files.
✎
✎
The c mark will appear to the left of the selected files.
To select or deselect all files, press Select all or Deselect all.
3. Press the r button to select the Play button.
4. The selected files will be played in sequence.
using the playback menu
Press the ◄/► button to select the desired menu.
• Play / Pause: You can start or stop a music.
• repeat Mode (Off / One Song / all): You can play music files repeatedly.
• Shuffle Mode (Off / On): You can play the music randomly.
• Sound Mode (Standard / Music / Movie / Clear Voice / amplify): You can adjust the sound setting.
Supported Music Formats
File Extension
Type
Codec
*.mp3
MPEG
MPEG1 Audio Layer 3
*.m4a
*.mpa
*.aac
*.3ga
MPEG4
AAC
*.fl ac
FLAC
FLAC
*.ogg
OGG
Vorbis
*.wma
WMA
WMA
English
34
Advanced Features
¦¦ Media Play - Additional Functions
Videos/Photos/Music Play Option menu
Press the TOOLST button and select selection play.
Option
Function
Videos
Photos
Title Search
Directly access another file.
>
Time Search
Navigate scenes in a video at one minute intervals by pressing the l or r
button. Alternatively, navigate scenes by entering the time manually.
>
Shuffle Mode
You can play the music randomly.
Repeat Mode
Play a video or music file repeatedly.
>
Picture Size
Adjust the picture size according to your preference.
>
Picture Mode
Change the Picture Mode setting.
>
>
Sound Mode
Change the Sound Mode setting.
>
>
Subtitle
You can set the subtitle On / Off.
>
Subtitle Settings
Play a video file with captions displayed. This option is available only
when the caption file name matches the video file name.
>
Audio Language
View a video in a supported language of your choice. The option is
available only when a stream-type file that supports multiple audio
formats is played.
>
Music
>
>
>
Start Slide Show /
Stop Slide Show
Start or pause a slide show.
Slide Show Speed
Specify the slide show speed when viewing a slide show.
Background Music On /
Backgroud Music Off
Enable/disable the background music when viewing a slide show.
Background Music
Setting
Specify the background music when viewing a slide show
Zoom
Zoom in to maximize the picture to the full screen.
Rotate
Rotate the picture.
Selection Play
Select and play multiple files.
>
>
>
Information
View detailed information about files that were played.
>
>
>
>
>
>
>
>
>
✎✎To view information about a device, select the device name and press the TOOLST button.
✎✎To view information about a file, select the file and press the TOOLST button.
English
35
Other Information
Attaching a Wall Mount/Desktop Stand
Preparing before installing Wall-Mount/Desktop Stand
1. Turn the product off and unplug the power cord from the wall outlet.
2. Place a soft cloth or cushion on a flat surface to protect the panel and place the product face down.
3. Hold the main body of the product with your hand. Pull the stand in the direction of the arrow as shown in the figure to separate it.
Attaching a Wall Mount/Desktop Stand
1
2
A
3
4
B
A
A
Wall/Desktop
Stand Mount
B
B
Wall mount kit/desktop stand (not supplied)
[[ Caution
Important
For the installation of Wall-mount, please don’t use screws longer than 14mm(L14) of longitude.
4. Align wall mount/desktop stand to the Monitor/TV and firmly fix the wall mount/desktop stand by fastening the screw.
5. Align the groove of the part of the product that is to be connected to the stand with the groove in the stand (desk-top stand, wall mount
stand or another stand) and firmly fix the stand by fastening the screw.
✎✎NOTE
xx If you use screws that are longer than the standard specifications, the inside of the product may be damaged.
xx For wall mounts that are not compatible with the standard VESA specifications, the length of the screw may differ depending on the
corresponding specifications.
English
36
Other Information
xx Avoid using screws that are incompatible with the standard VESA specifications and avoid assembling them using excessive force.
This may result in damage to the product or injury due to the product falling. Samsung shall not be held liable for any damage or
injury.
xx Samsung shall not be held liable for any damage to the product or injury caused by using a wall mount/desktop stand that is not
compatible with the specifications or due to an installation not performed by an authorized installation engineer.
xx When installing the product using a wall mount, purchase a wall mount that provides at least 10 cm (3.93 inches) of space from the
wall.
xx Use the wall mount according to the international specifications.
Anti-theft Kensington Lock
The Kensington Lock is not supplied by Samsung. It is a device used to physically fix
the system when using it in a public place. The appearance and locking method may
differ from the illustration depending on the manufacturer. Refer to the manual provided
with the Kensington Lock for additional information on proper use.
<TV Rear>
1
✎✎Please find a “K” icon on the rear of the TV. A kensington slot is beside the “K”
icon.
<Optional>
To lock the product, follow these steps:
1. Wrap the Kensington lock cable around a large, stationary object such as desk or chair.
2. Slide the end of the cable with the lock attached through the looped end of the Kensington lock cable.
3. Insert the locking device into the Kensington slot on the product 1.
4. Lock the lock.
✎✎These are general instructions. For exact instructions, see the User manual supplied with the locking device.
✎✎The locking device has to be purchased separately.
✎✎The location of the Kensington slot may be different depending on the TV model.
English
37
Other Information
Troubleshooting
If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, visit “www.
samsung.com,” then click on Support, or contact a Samsung customer service center.
Issues
Solutions and Explanations
Poor picture
First of all, please perform the Picture Test and confirm that your TV is properly displaying the test image.
• go to MENU - Support - Self Diagnosis - Picture Test
If the test image is properly displayed, the poor picture may be caused by the source or signal.
The TV image does not look as good as it
did in the store.
• If you have an analog Cable/Set top box, upgrade to a digital set top box. Use HDMI to deliver HD
(high definition) picture quality.
• Cable/Satellite subscribers: Try HD stations from the channel line up.
• Air/Cable Antenna connection: Try HD stations after performing Auto program.
✎✎ Many HD channels are up scaled from SD(Standard Definition) contents.
• Adjust the Cable / Set top box video output resolution to 1080i or 720p.
The picture is distorted: macroblock error,
small block, dots, pixelization.
• Compression of video contents may cause picture distortion, especially in fast moving pictures such
as sports and action movies.
• Low signal level can cause picture distortion. This is not a TV problem.
• Mobile phones used close to the TV (up to 3.3 ft) may cause noise in picture on analog and digital TV.
There is poor color or brightness.
• Adjust the Picture options in the TV menu. (go to Picture Mode / Color / Brightness / Sharpness)
• Adjust Energy Saving option in the TV menu. (go to MENU - System - Eco Solution - Energy
Saving)
• Try resetting the picture to view the default picture setting. (go to MENU - Picture - Reset Picture)
There is a dotted line on the edge of the
screen.
• If the picture size is set to Screen Fit, change it to 16:9.
• Change cable/Set top box resolution.
The picture is black and white.
• If you are using an AV composite input, connect the video cable (yellow) to the Green jack of
component input on the TV.
When changing channels, the picture
freezes or is distorted or delayed.
• If connected to a cable box, please try to reset it. (reconnect the AC cord and wait until the cable box
reboots. It may take up to 20 minutes)
• Set output resolution of the cable box to 1080i or 720p.
Sound Problem
First of all, please perform the Sound Test to confirm that your TV audio is properly operating.
• go to MENU - Support - Self Diagnosis - Sound Test
If the audio is OK, the sound problem may caused by the source or signal.
There is no sound or the sound is too low
at maximum volume.
• Please check the volume of the device (Cable/Sat Box, DVD, Blu-ray etc) connected to your TV.
The picture is good but there is no sound.
• If you are using a DVI to HDMI cable, TV set not support audio.
• Reboot the connected device by reconnecting the device’s power cable.
The speakers are making an inappropriate
noise.
• For Antenna or Cable connections, check the signal information. Low signal level may cause sound
distortion.
• Perform the Sound Test as explained above.
No Picture, No Video
The TV will not turn on.
• Make sure the AC power cord is securely plugged into the wall outlet and the TV.
• Make sure the wall outlet is working.
• Try pressing the POWER button on the TV to make sure the problem is not the remote control.
If the TV turns on, refer to ‘Remote control does not work’ below.
The TV turns off automatically.
•
•
•
•
There is no picture/video.
• Check cable connections. (remove and reconnect all cables connected to the TV and external
devices).
• Set your external device’s (Cable/Set top box, DVD, Blu-ray etc) video outputs to match the
connections to the TV input. For example, if an external device’s output is HDMI, it should be
connected to an HDMI input on the TV.
• Make sure your connected devices are powered on.
• Be sure to select the TV correct source by pressing the SOURCE button on the remote control.
• Reboot the connected device by reconnecting the device’s power cable.
Ensure the Sleep Timer is set to Off in the System menu.
If your PC is connected to the TV, check your PC power settings.
Make sure the AC power cord is plugged in securely to the wall outlet and the TV.
When watching TV from an antenna or cable connection, the TV will turn off after 10 - 15 minutes if
there is no signal.
English
38
Other Information
Issues
Solutions and Explanations
RF(Cable/Antenna) Connection
The TV is not receiving all channels.
• Make sure the coaxial cable is connected securely.
• Please try Auto Program to add available channels to the channel list. go to MENU - Channel - Auto
Program then select Auto and make sure the correct Cable TV signal type is set in the menu.
• Verify the Antenna is positioned correctly.
No Caption on digital channels.
• Check Caption System menu.
• Some channels may not have caption data.
The picture is distorted: macroblock, error,
small block, dots, pixelization.
• Compression of video contents may cause picture distortion. especially on fast moving pictures such
as sports and action movies.
• A low signal can cause picture distortion. This is not a TV problem.
Others
Purple/green rolling horizontal bars and
buzzing noise from the TV speakers with
Component cable connection.
• Remove the left and right audio connections from the set-top-box. If the buzzing stops, this indicates
that the set-top-box has a grounding issue. Replace the Component video cables with an HDMI
connection.
The picture will not display in full screen.
• HD channels will have black bars on either side of the screen when displaying up scaled SD (4:3)
contents.
• Black bars on Top & Bottom will be shown on movies that have aspect ratios different from your TV.
• Adjust picture size option on your external device or TV to full screen.
The remote control does not work.
• Replace the remote control batteries with correct polarity (+/–).
• Clean the transmission window located on the top of the remote control.
• Try pointing the remote control directly at the TV from 5~6 feet away.
The cable/set top box remote control
does not turn the TV on or off, or adjust
the volume.
• Program the Cable/Set top box remote control to the operate the TV. Refer to the Cable/Set top box
user manual for SAMSUNG TV code.
A “Mode Not Supported” message
appears.
• Check the supported resolution of the TV and adjust the external device’s output resolution
accordingly. Refer to resolution settings in this manual.
Caption on TV menu is greyed out.
• Caption can not be selected in the TV menu when connected via PC/HDMI or Component.
• Caption must be activated on the external device.
There is a plastic smell from the TV.
• This smell is normal and will dissipate over time.
TV Signal Information is unavailable in the
Self Diagnosis Test menu.
• This function is only available with digital channels from an Antenna / RF / Coax connection.
TV is tilted to the right or left side.
• Remove the stand base from the TV and reassemble it.
The Channel menu is grey out
(unavailable).
• The Channel menu is only available when the TV source is selected.
Your settings are lost after 30 minutes or
every time the TV is turned off.
• If TV is in the Store Demo mode, it will reset audio and picture settings every 30 minutes. Please
change from Store Demo mode to Home Use mode in the Setup procedure. Press the SOURCE
button to select TV mode, go to MENU → System → Setup → ENTERE.
You have intermittent loss of audio or
video.
• Check the cable connections and reconnect them.
• Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables are
flexible enough for long term use. If mounting the TV to the wall, we recommend using cables with 90
degree connectors.
The PIP menu is not available.
• PIP functionality is only available when you are using a PC/HDMI/Component source.
You see small particles when you look
closely at the edge of the frame of the TV.
• This is part of the product’s design and is not a defect.
POP (TV internal banner ad) appears on
the screen.
• Select Home Use under Setup mode. For details, refer to Setup (Initial Setup).
✎✎This panel uses a panel consisting of sub pixels which require sophisticated technology to produce. However, there may be a few
bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.
English
39
Other Information
¦ Storage and Maintenance
✎ If you attched some stickers on the TV screen, it remains some debris after removing the sticker. Please clean it to watch TV.
x
The exterior and screen of the product can get scratched during cleaning. Be sure to wipe the exterior and screen carefully
using the cloth provided or a soft cloth to prevent scratches.
Do not spray water or a cleaning agent directly onto the product.
Any liquid that goes into the product may cause a failure, fire, or
electric shock.
Clean the product with a soft cloth dapped in a small amount of
water.
[ CauTION
If the height of " A " on one side is different from the other side,
adjust the heights.
English
40
Other Information
License
TheaterSound HD, SRS and the
symbol are trademarks of SRS Labs, Inc.
TheaterSound HD technology is incorporated under licence from SRS Labs, Inc.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
Manufactured under licence under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535
& other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS
2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All
Rights Reserved.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries.
Open source licence notice
In the case of using open source software, Open Source licence are available on the product menu.
Open Source Licence Notice is written only English.
English
41
Other Information
Specifications
Environmental
considerations
Operating
Temperature : 50°F ~ 104°F (10°C ~ 40°C)
Humidity : 10 % ~ 80 %, non-condensing
Storage
Temperature : -4°F ~ 113°F (-20°C ~ 45°C)
Humidity : 5 % ~ 95 %, non-condensing
Tilt
-1° (±2.0°) ~ 20°(±2.0°)
Model Name
LT24B531
Screen Size (Diagonal)
24 inches
(61 cm)
VESA Mounting Interface
75 mm x 75 mm (2.95 inches x 2.95 inches)
Display Resolution
1920 x 1080 @60Hz
Power Consumption
Normal operation
Standby
40 W
< 0.5W
Sound (Output)
Dimension
(W x D x H)
Weight
5W x 2
(Without
Stand)
574.8 × 46.4 × 353.3 mm
(22.6 x 1.8 x 13.9 inches)
(With
Stand)
574.8 × 195.0 × 427.2 mm
(22.6 x 7.7 x 16.8 inches)
(Without
Stand)
4.15 kg
(9.1 lbs)
(With
Stand)
4.4 kg
(9.7 lbs)
✎✎Design and specifications are subject to change without prior notice.
✎✎For information about power supply, and more about power consumption, refer to the label attached to the product.
✎✎Some models may not be available for purchase depending on the region.
✎✎If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected.
✎✎DPMS(Display Power Management Signaling) Function does not work if you used in conjunction with the HDMI IN (DVI) port of this
product.
