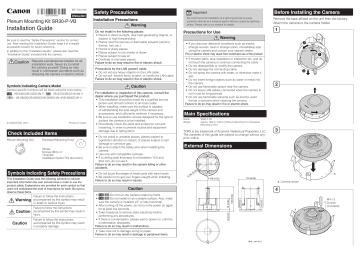

Installation Guide
Installation Precautions
Warning
Do not install in the following places:
Be sure to read the “Safety Precautions” section for correct
use. After reading this Installation Guide, keep it in a readily
accessible location for future reference.
In addition to this “Installation Guide”, please also read the
“Installation Guide” included with the camera.
a professional installer for all
CautionRequest
installation work. Never try to install
the camera yourself. Doing so may
result in unforeseen accidents such as
dropping the camera or electric shock.
•Places in direct sunlight, near heat-generating objects, or
subject to high temperatures
•Places near fire sources or flammable solvents (alcohol,
thinner, fuel, etc.)
•Humid or dusty places
•Places subject to oily smoke or steam
•Places subject to sea air
•Confined or enclosed places
Failure to do so may result in fire or electric shock.
Precautions for the LAN (power) cable:
•Do not set any heavy objects on the LAN cable.
•Do not pull, forcibly bend, scratch, or modify the LAN cable.
Failure to do so may result in fire or electric shock.
Symbols Indicating Camera Model
Camera specific functions will be listed using the icons below.
: VB-S30D/VB-S30D Mk II
: VB-S31D/VB-S31D Mk II
: VB-S800D/VB-S805D/VB-S800D Mk II/VB-S805D Mk II
© CANON INC. 2017
Printed in Taiwan
Check Included Items
Plenum Mounting Unit Recessed Mounting Cover
Sticker
Screws (M4) x 3
Template
Installation Guide (This document)
Symbols Indicating Safety Precautions
This Installation Guide uses the following symbols to indicate
important information the user should know in order to use the
product safely. Explanations are provided for each symbol so that
users will understand the level of importance for each. Be sure to
observe these items.
Warning
Failure to follow the instructions
accompanied by this symbol may result
in death or serious injury.
Caution
Failure to follow the instructions
accompanied by this symbol may result in
injury.
Caution
Failure to follow the instructions
accompanied by this symbol may result
in property damage.
Caution
For installation or inspection of this camera, consult the
dealer where you purchased the product.
•This installation should be made by a qualified service
person and should conform to all local codes.
•When installing, make sure the surface is capable
of withstanding the total weight of the camera and
accessories, and sufficiently reinforce if necessary.
•Be sure to use installation screws designed for the type of
surface the camera is to be installed.
•Periodically check the parts and screws for rust and
loosening, in order to prevent injuries and equipment
damage due to falling items.
•Do not install in unstable places, places subject to
significant vibration or impact, or places subject to salt
damage or corrosive gas.
•Be sure to attach the safety wire when installing the
camera.
•Use only with compatible cameras.
•If a ceiling plate thickness is not between 10.0 and
50.0 mm, do not use it.
Failure to do so may result in the camera falling or other
accidents.
•Do not touch the edges of metal parts with bare hands.
•Be careful not to get your fingers caught when installing.
Failure to do so may result in injuries.
Before Installing the Camera
Important
We recommend the installation of a lightning arrester (a surge
protection device) as a measure against failures caused by lightning
strikes. Please refer to our website for details.
Do not turn the camera rotator by hand.
Do not install on an unstable surface. Also, make
sure the camera is installed ±5° or less horizontal.
•After turning off the power, do not turn the power on again
for at least five seconds.
•Take measures to remove static electricity before
performing any procedures.
•If there is condensation, please wait to power on, until the
condensation dissipates.
Failure to do so may result in malfunctions.
❷
•If you discover defective conditions such as smoke,
strange sounds, heat or strange odors, immediately stop
using the camera and contact your nearest dealer.
Fire or electric shock may result from continued use of the product.
•If thunder starts, stop installation or inspection etc. and do
not touch the camera or continue connecting the cable.
•Do not disassemble or modify the camera.
•Do not damage the connecting cable.
•Do not spray the camera with water, or otherwise make it
wet.
•Do not insert foreign objects such as water or metal into
the camera.
•Do not use flammable sprays near the camera.
•Do not leave LAN cables connected when the camera is
not in use for long periods.
•Do not use flammable solvents such as alcohol, paint
thinner or benzine when cleaning the camera.
Failure to do so may result in fire or electric shock.
❶
❸
2
Main Specifications
ModelSR30-P-VB
Weight
Approx. 900 g (1.99 lb.) (Plenum Mounting Unit, Recessed
Mounting Cover)
TORX is the trademark of Acument Intellectual Properties, LLC.
The contents of this guide are subject to change without any
prior notice.
3
External Dimensions
)
.35
5
6(
a
13
170 (6.09)
158 (6.22)
a. Camera holder
Caution
•
•
Remove the tape affixed on the unit from the factory.
Attach the camera to the camera holder.
1
Precautions for Use
Warning
4
166 (6.54)
Plenum Mounting Kit SR30-P-VB
Safety Precautions
76 (2.99)
ENGLISH
M4 x 3
Screws
(included)
12 (0.47)
BIE-7204-000
•Take care not to damage wiring or pipes.
Failure to do so may result in damage to peripheral items.
Unit : mm (in.)
5
Installing the Camera
1
10
8
2
❷
❶
a
d
f
❸
a. Template
137 mm ( 5.39 in.)
Driver
Tightening torque:
0.7 N·m (max.)
3
❶
g
f. Recessed mounting cover
g. TORX T20 Driver
d. Long screw
11
6
❶
Note
b
❸
Screw included
with the camera
Please take care when handling
the openings, as the edges may
be sharp and lead to an injury.
❶
❷
b. Safety wire (included with camera)
h
e
❷
4
h. Sticker (included)
9
Removing
❷
e. LAN cable
7
Front
❶
Face the
camera
forward
❷
Front
Face the
camera forward
c
❸
Note
c. LAN cable
PAN angle
range
Please take care not
to pinch the rubber on
the safety wire, when
attaching the camera to
the Plenum Mounting Unit.
❶
