Instructions
Thank you for purchasing a Canon product.
The Canon 8×25 IS is a pair of prism binoculars equipped with a tilt-system Image
Stabilizer.
Before using the binoculars, read this instruction booklet to familiarize yourself with
the proper operation.
Features
• Compact 8× binoculars for everyday use such as bird-watching, sports, theater,
etc.
• Image Stabilizer can be operated by either the left or right finger.
• Ergonomic design for easy operation and portability.
Symbols
Warning to prevent malfunction or damage to the binoculars.
Supplementary hints for using the binoculars.
Accessories
The binoculars come with the following accessories:
Case............................................ 1
Strap............................................ 1
Eyepiece lens caps..................... 2
CR123A lithium battery................. 1
ENG-1
Cautionary Notes
For the Binoculars
(1) Never look at the sun or a bright light with the binoculars. Doing so
can cause loss of vision.
(2) If the binoculars are taken from a cold environment to a warm one,
condensation may develop on the surface and internal parts. To
prevent condensation, first put the binoculars into an airtight plastic
bag before taking it to a warm environment. Let it gradually adjust to
the warmer temperature, then take out the binoculars. Do the same
when taking the binoculars from a warm environment to a cold one.
(3) Binoculars are precision instruments. Do not drop them or subject
them to shock. Never attempt to disassemble them.
(4) The binoculars are not waterproof. Avoid exposing the binoculars to
rain or water spray.
(5) High temperatures can cause the binoculars to malfunction. Do not
store them close to a heater or in a closed car on a sunny day.
(6) If the lens is dirty, first use a blower brush to remove dust, etc., from
the lens surface. Then use a soft, dry cloth and wipe the lens gently
without scratching it. Do not use any organic solvent on the body or
lenses.
(7) Storing the binoculars in a humid location may cause fungus on the
lenses. If the binoculars are not to be used for an extended
period, clean the lenses and body thoroughly and store in a wellventilated dry place.
(8) Avoid storing the binoculars in a laboratory or a location where
corrosive chemicals are present. Also avoid storage in a chest of
drawers.
(9) When the binoculars are not to be used for a prolonged period,
remove the batteries. If the batteries are left inside, they may leak,
causing corrosion, malfunction or fire.
ENG-2
Battery Care
(1) Never attempt to disassemble batteries. Do not leave batteries in a hot
place or throw them into a fire. Do not short circuit the contacts. Doing
any of the above is highly dangerous.
(2) You should never mix different types of batteries. When changing
exhausted batteries, replace them all at once.
(3) Although lithium batteries work well in low temperature, their
performance will drop slightly in temperatures below 0 degrees C. In
cold locations, keep a spare set of batteries in a warm pocket and
alternate them with the batteries in use.
(4) If the lamp does not light when you press the Image Stabilizer button,
the battery power is low. Replace the battery.
(5) Even if the lamp lights but the Image Stabilizer does not operate
properly, the battery power is low. Replace the battery.
For CA, USA only
Included lithium battery contains Perchlorate Material - special handling may
apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate/ for details.
All Canon Binoculars are composed only of “Environment Friendly Lead-Free Optical
Glass”. The design is derived from Canon’s corporate policy to care about our environment.
ENG-3
Nomenclature
Focusing knob
Image Stabilizer
button
Eyecup
Lamp
Objective lenses
Battery chamber
cover
Dioptric correction
scale
Dioptric correction
ring
Eyepiece lenses
Strap eyelet
Caps
ENG-4

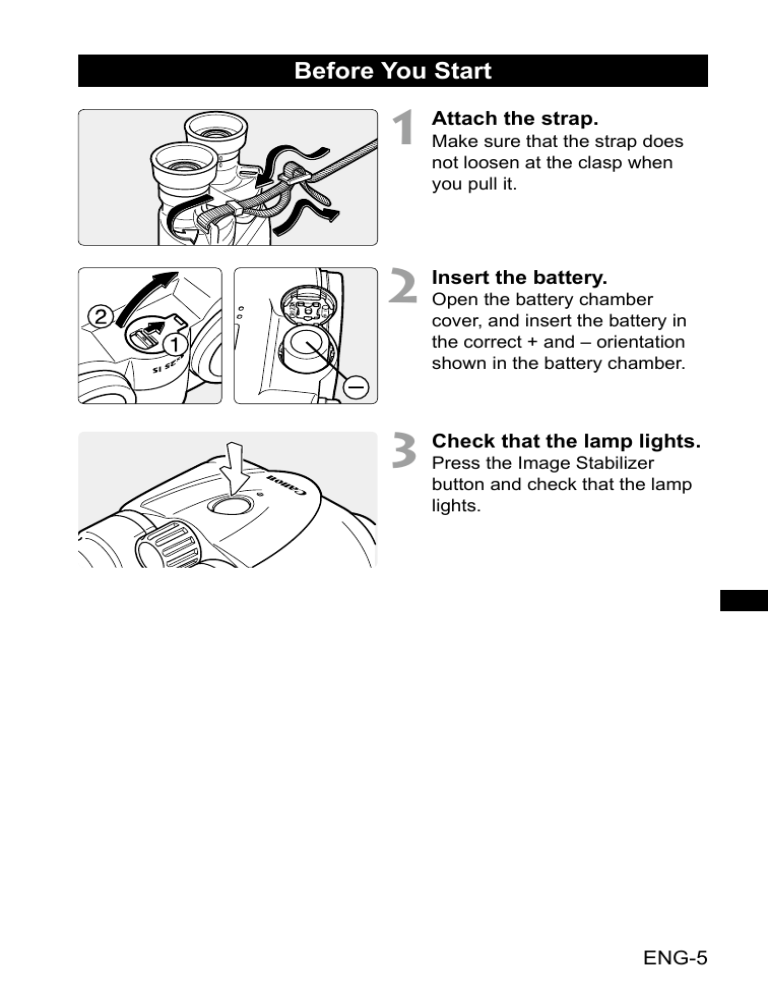

Before You Start
1
Attach the strap.
2
Insert the battery.
3
Check that the lamp lights.
Make sure that the strap does
not loosen at the clasp when
you pull it.
Open the battery chamber
cover, and insert the battery in
the correct + and – orientation
shown in the battery chamber.
Press the Image Stabilizer
button and check that the lamp
lights.
Battery Life (Continuous Use)
CR123A lithium battery
25˚C / 77˚F
6 hours
–10˚C / 14˚F
5 hours
(Based on Canon’s testing conditions.)
ENG-5
4
Adjust the width of the binoculars.
Look through the binoculars and adjust the width until the left and right
images converge as shown above.
• Doing the above minimizes eye fatigue during viewing.
• When adjusting the width of the binoculars to suit the width between your eyes, look at
a distant object.
• If you are wearing eyeglasses, fold back the eye cups.
5
Adjust the diopter.
First look through the left eyepiece
only and adjust the focusing knob
until the object looks sharp.
Then look through the right eyepiece
only and look at the same object
while turning the dioptric correction
ring until the object looks sharp.
ENG-6
6
Adjust the focus.
Look through the eyepiece and turn
the focusing knob until the object
looks sharp.
Using the Image Stabilizer
While you look through the binoculars, the image may be shaking and
difficult to see since your hands are holding the binoculars. In such a case,
the Image Stabilizer can help steady the image.
The Image Stabilizer operates as long as you hold down the Image
Stabilizer button. It stops operating when you let go of the button.
The lamp lights while the Image
Stabilizer is on.
• The Image Stabilizer may not be able to compensate for severe shaking.
• Even without batteries loaded, the binoculars can still be used as is.
ENG-7
Troubleshooting
If there is a problem with the binoculars, first refer to the table below to see
if you can resolve it. If the problem cannot be resolved, take the binoculars
to your nearest Canon Service Center.
Problem
The image is not clear.
The Image Stabilizer does
not operate.
When the binoculars are
shaken severely while the
Image Stabilizer is operating,
there is a strange noise.
ENG-8
Probable Cause
Corrective Measures
The lens is dirty.
Use a blower brush to
remove dust, etc., from the
lens surface. Then use a
soft, dry cloth to wipe the
lens gently.
The width of the binoculars
does not suit the width
between your eyes.
Adjust the width of the
binoculars (see step 4).
The diopter has not been
properly set.
Adjust the diopter
(see step 5).
The binoculars are not
properly focused.
Focus the binoculars
(see step 6).
There are no batteries
loaded.
Load batteries having
enough power.
When the Image Stabilizer
button is pressed, the lamp
does not light.
If the lamp does not light, it
means the batteries are
exhausted. Replace the
batteries with new ones.
The battery power is low.
Even if the lamp lights, the
Image Stabilizer may not
operate if the batteries are
exhausted. Replace the
batteries with new ones.
The batteries are exhausted.
Replace the batteries with
new ones.
Major Specifications
8 × 25 IS
Type
Porro prism binoculars
Magnification
8×
Objective lens effective diameter
25 mm
Real field of view
Apparent field of view
6.6˚
49.5° (Calculated based on ISO 14132-1:2002)
Field of view at 1000 m / yds
115 m / 377 ft
Exit pupil diameter
3.1 mm
Eye relief
13.5 mm
Focusing distance range
Image Stabilizer system
Correction angle
Approx. 3.5 m - infinity
Optical correction by tilt movements of
the corrective optics (No. 3 objective lens)
±1˚
Battery check
Operating environment
Lamp
Dimensions (W × H × D)
Temperature: –10˚C to 45˚C / 14˚F to 113˚F
Humidity: 90%
120 × 137 × 61 mm / 4.7 × 5.4 × 2.4 inch
Weight
Approx. 480 g / 16.9 oz (Excluding batteries)
* Specifications subject to change without notice.
ENG-9
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Do not make any changes or modifications to the equipment unless otherwise specified in the
instructions. If such changes or modifications should be made, you could be required to stop
operation of the equipmet.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
conected.
• Consult the dealer or an experienced radio/ TV technician for help.
CAN ICES-3 (B) / NMB-3 (B)
Only for European Union and EEA (Norway, Iceland and Liechtenstein)
These symbols indicate that this product is not to be disposed of with your
household waste, according to the WEEE Directive (2012/19/EU), the
Battery Directive (2006/66/EC) and/or national legislation implementing
those Directives.
If a chemical symbol is printed beneath the symbol shown above, in
accordance with the Battery Directive, this indicates that a heavy metal
(Hg = Mercury, Cd = Cadmium, Pb = Lead) is present in this battery or
accumulator at a concentration above an applicable threshold specified in
the Battery Directive.
This product should be handed over to a designated collection point, e.g., on an authorized onefor-one basis when you buy a new similar product or to an authorized collection site for recycling
waste electrical and electronic equipment (EEE) and batteries and accumulators. Improper
handling of this type of waste could have a possible impact on the environment and human
health due to potentially hazardous substances that are generally associated with EEE. Your
cooperation in the correct disposal of this product will contribute to the effective usage of natural
resources.
For more information about the recycling of this product, please contact your local city office,
waste authority, approved scheme or your household waste disposal service or visit
www.canon-europe.com/weee, or www.canon-europe.com/battery.
ENG-10
YT1-7921-014
0515Ni
© CANON INC. 2002
