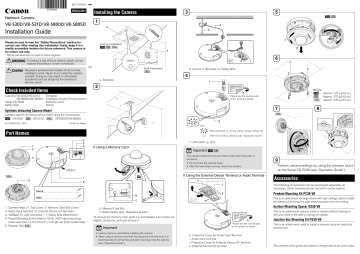

Canon VB-S805D User manual

Canon VB-S805D User manual
Network Camera
Installing the Camera
Installation Guide
Please be sure to read the “Safety Precautions” section for
correct use. After reading this Installation Guide, keep it in a
readily accessible location for future reference. This camera is
for indoor use only.
* Some cameras are not sold in some regions.
Ceiling Installation
WARNING To reduce a risk of fire or electric shock, do not
expose this product to rain or moisture.
Wall Installation
Caution Request a professional installer for all camera
installation work. Never try to install the camera
yourself. Doing so may result in unforeseen
accidents such as dropping the camera or
electric shock.
d. Anchor or Structure / e. Safety Wire
a. Template
Check Included Items
Camera (VB-S30D/VB-S31D/
Setup CD-ROM
Safety Wire
Installation Guide (This document)
Warranty Card
Please see the reverse side
of this guide for details.
Symbols Indicating Camera Model
Camera specific functions will be listed using the icons below.
: VB-S30D : VB-S31D : VB-S800D/VB-S805D
© CANON INC. 2015
Approx. 270 g (9.6 oz.)
Approx. 270 g (9.6 oz.)
Approx. 240 g (8.5 oz.)
Printed in Taiwan
: When powered on, during reboot, during normal use
Part Names
: When [Turn Off] is selected (see “Operation Guide”)
f. LAN cable / g. LED
If Using a Memory Card
The camera head will move and make noise when the power is
turned on.
• Do not touch the camera head.
• After the head stops moving, mount the camera.
If Using the External Device Terminal or Audio Terminal
Serial_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
MAC_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
1. Camera Head / 2. Top Cover / 3. Memory Card Slot Cover /
4. Audio Input Terminal / 5. External Device I/O Terminal /
6. 100Base-TX LAN Connector / 7. Safety Wire Attachment /
8. Tripod Mounting Screw Hole (a 1/4-20 UNC tripod mounting
screw less than 5.5 mm (0.22 in.) in length will fit the screw hole) /
9. Rotation Dial
Perform camera settings by using the software found
on the Setup CD-ROM (see “Operation Guide”).
Pendant Mounting Kit PC30-VB
This is an attachment for large stores with high ceilings used to install
the camera at the end of a pipe stretching down from the ceiling.
Surface Mounting Spacer SS30-VB
b. Memory Card Slot
c. Reset Switch (see “Operation Guide”)
This is an attachment used to install a camera without having to
drill any holes in the wall or ceiling for cables.
To remove the memory card, push it in and release it so it pops out
slightly. Grasp the card and remove it.
•Insert a memory card before installing the camera.
•When using a memory card with the camera for the first time, it is
recommended to format the card after inserting it into the camera
(see “Operation Guide”).
The following accessories can be purchased separately as
necessary. Some accessories are not sold in some regions.
Junction Box Mounting Kit PS30-VB
Please see the reverse side
of this guide for details.
h. Protective Cover for Audio Input Terminal
i. Audio Input Terminal
j. Protective Cover for External Device I/O Terminal
k. External Device I/O Terminal
This is an attachment used to install a camera using an electrical
junction box.
The contents of this guide are subject to change without any prior notice.
External Dimensions
Internal Connection Diagram
43.2 (1.70)
3- 4.4 ( 0.17)
(mounting screw holes)
11.0 (0.43)
53.5 (2.11) 50.0 (1.97)
10 kΩ
0.1 µF
Input terminal
9.5 (0.37)
This Installation Guide uses the following marks to indicate important
information the user should know in order to use the product safely.
In this section, explanations are provided for each mark so that
readers will understand the level of importance for each. Be sure to
observe these items.
Failure to follow the instructions
accompanied by this symbol may result in
death or serious injury.
Failure to follow the instructions accompanied
by this symbol may result in injury.
Output terminal
Unit : mm (in.)
Connecting the Camera
Power Supply
See “Specifications” > “Others” > “Power Supply”.
•Check with your dealer for more information about PoE devices.
•Some PoE devices allow current limits for each port, but applying
limits may interfere with performance. If using this type of PoE
device, do not limit the operating current.
•Some PoE devices have total consumption current limits for ports,
which can interfere with performance when multiple ports are in use.
For more information, check the instruction guide for your PoE device.
External Device I/O Terminals
 External Device Input Terminals (IN)
The external device input terminal consists of a positive terminal (IN)
and negative terminal (GND). Connecting cables to the positive and
negative terminals and opening or closing the circuit notifies the Viewer.
When connecting sensors and switches, use those that have terminals
which are isolated from internal power and GND.
 External Device Output Terminals (OUT)
The external device output terminal consists of an OUT terminal and a GND
terminal. Controls from the viewer can be used to open and close the circuit
between the terminals. A MOSFET device is used for the output terminal.
Rating range for load connected to output terminals.
Rating between output terminals:
Maximum voltage 50 V DC
Continuous load current at or below 100 mA
On resistance: Below 1 Ω
Adaptive wiring for external device cables
Rating Range: (same for contact input and output)
Conductor Size: 0.42 – 0.80 mm ( 0.017 – 0.031 in.) dia.
(AWG: No. 26 – 20)
Stripped cable length should be approximately 11 – 13 mm (0.43 – 0.51 in.)
•The External Device I/O Terminal consists of three terminals (IN, OUT,
and GND). The GND terminal serves as both the external device
input GND and the external device output GND.
•The GND terminal is connected to the camera interior GND.
Audio Input Terminals
Camera has single audio input system supporting two types of microphone
input: LINE IN and MIC IN. Before use, change [Audio Input] on the Setting
Page (see “Operation Guide”). LINE IN is selected by default.
•Dynamic MIC IN
Input impedence: 20 kΩ – 40 kΩ
•Condenser MIC IN
Input impedence (microphone bias resistance): 2.2 kΩ ±20%
Microphone power supply: plug-in power (voltage: 2.3 V)
*Supported microphones: Condenser microphones with plug-in power support
Input level: up to 1 Vp-p
* Use a microphone with an amplifier.
Please refer to the installation procedures or “Operation Guide” for
specifications not listed below.
3.5x optical (4x digital zoom) zoom lens with
auto focus
Fixed focal length lens (4x digital zoom)
Viewing Angle
For 16:9 aspect ratios
Horizontal: 77.7° (W) – 20.7° (T)
Vertical: 40.4° (W) – 11.6° (T)
For 4:3 aspect ratios
Horizontal: 55.3° (W) – 15.5° (T)
Vertical: 40.4° (W) – 11.6° (T)
For 16:9 aspect ratios
Horizontal: 95.0°, Vertical: 60.0°
For 4:3 aspect ratios
Horizontal: 76.0°, Vertical: 60.0°
Pan Angle Range
350° (±175°)
Tilt Angle Range
90º (ceiling-mounted position: -90º – 0º)
When the horizontal direction of the camera is 0°
Rotation Angle Range
180° (±90°)
Network Terminal*
LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex))
Audio Input Terminal
(common for LINE IN & MIC IN)
External Device I/O Terminal
Memory Card
3.5 mm ( 0.14 in.) mini-jack connector (monaural)
LINE IN x 1 or MIC IN x 1
Input x 1, Output x 1
microSD Memory Card, microSDHC Memory Card,
microSDXC Memory Card compatible.
*LAN cables are category 5 or higher, with length 100 m
(328 ft.) or shorter.
Operating Environment Temperature: -10°C – +50°C (+14°F – +122°F)
Humidity: 5% – 85% (without condensation)
Storage Environment Temperature: -30°C – +60°C (-22°F – +140°F)
Humidity: 5% – 90% (without condensation)
Installation Angle
±5° (camera) in relation to a horizontal plane
PoE: PoE power supply via LAN cable
Power Supply
(IEEE802.3af compliant)
Power Consumption
Max. 7.8 W
– Class 0 power sourcing equipment (requests 15.4 W)
Max. 7.6 W
– Class 0 power sourcing equipment (requests 15.4 W)
Max. 4.1 W
– Class 2 power sourcing equipment (requests 7.0 W)
Symbols Indicating Safety Precautions
1 kΩ
10 kΩ
21.0 (0.83) 54.5 (2.15)
Internal controller
54 (2.13)
•When using the external device input and output at the same time, couple
the GND wire from the input cable with the GND wire from the output
cable, conforming to the rating range, and connect it to the GND terminal.
•Do not push the external device I/O terminal button with too much force.
Doing so may cause the button to remain pushed-in.
Failure to follow the instructions
accompanied by this symbol may result in
property damage.
This symbol indicates important or
restricted items.
Contains reference information for
operation or additional explanations.
Safety Precautions
Installation Precautions
Do not install in the following places:
•Places in strong direct sunlight, near heat-generating
objects, or subject to high temperatures
•Places near fire sources or flammable solvents (alcohol, thinner, fuel, etc.)
•Humid or dusty places
•Places subject to oily smoke or steam
•Places subject to sea air
•Confined or enclosed places
Fire or electric shock may result.
Precautions for the LAN (power) cable:
•Do not set any heavy objects on the LAN cable.
•Do not pull, forcibly bend, scratch, or modify the LAN cable.
Fire or electric shock may result.
For installation or inspection of this camera, consult the
dealer where you purchased the product.
•This installation should be made by a qualified service
person and should conform to all local codes.
•When installing on a ceiling, make sure the surface is
capable of withstanding the total weight of the camera, and
is sufficiently reinforced if necessary.
•Be sure to use installation screws designed for the type of
ceiling the camera is to be installed.
•Periodically check the parts and screws for rust and to
see if they have loosened, in order to prevent injuries and
equipment damage due to falling items.
•Do not install in unstable places, places subject to
significant vibration or impact, or places subject to salt
damage or corrosive gas.
•Be sure to attach the safety wire when installing the camera.
Failure to do so may result in the camera falling or other
•Do not touch the edges of metal parts with bare hands.
•Be careful not to trap your fingers during installation of the
Injury may result.
Do not turn the camera rotator by hand.
Do not install on an unstable surface. Also, make
sure the camera is installed ±5°off horizontal.
•After turning off the power, do not turn the power on again
for at least 5 seconds.
•Take measures to remove static electricity before
performing any procedures.
•If there is condensation, please wait to power on, until the
condensation dissipates.
Malfunction may result.
•Take care not to damage wiring or pipes in the room.
Damage to peripheral items may result.
Precautions for Use
•If you discover defective conditions such as smoke,
strange sounds, heat or strange odors, immediately stop
using the camera and contact your nearest dealer.
Fire or electric shock may result from continued use of the product.
•If thunder starts, stop installation or inspection etc. and do
not touch the camera or continue connecting the cable.
•Do not disassemble or modify the camera.
•Do not damage the connecting cable.
•Do not spill water or other liquid inside the camera, spray
the camera with water, or otherwise make it wet.
•Do not insert foreign objects into the camera.
•Do not use flammable sprays near the camera.
•Do not leave LAN cables connected when the camera is
not in use for long periods.
•Do not use flammable solvents such as alcohol, paint
thinner or benzine when cleaning the camera.
Fire or electric shock may result.
Only for European Union and EEA (Norway, Iceland and
These symbols indicate that this product is
not to be disposed of with your household
waste, according to the WEEE Directive
(2012/19/EU), the Battery Directive
(2006/66/EC) and/or national legislation
implementing those Directives.
If a chemical symbol is printed beneath the symbol shown
above, in accordance with the Battery Directive, this indicates
that a heavy metal (Hg = Mercury, Cd = Cadmium, Pb = Lead)
is present in this battery or accumulator at a concentration
above an applicable threshold specified in the Battery
This product should be handed over to a designated collection
point, e.g., on an authorized one-for-one basis when you buy
a new similar product or to an authorized collection site for
recycling waste electrical and electronic equipment (EEE) and
batteries and accumulators. Improper handling of this type of
waste could have a possible impact on the environment and
human health due to potentially hazardous substances that are
generally associated with EEE. Your cooperation in the correct
disposal of this product will contribute to the effective usage of
natural resources.
For more information about the recycling of this product, please
contact your local city office, waste authority, approved scheme
or your household waste disposal service or visit, or
30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
