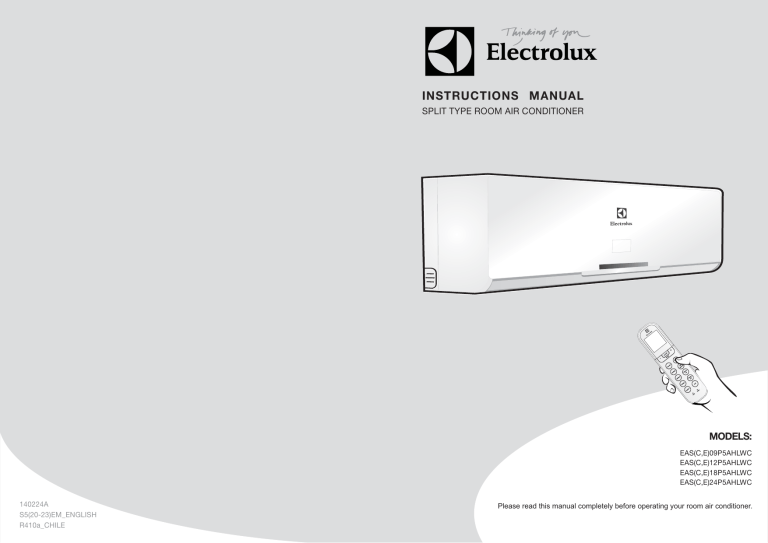

INSTRUCTIONS MANUAL
SPLIT TYPE ROOM AIR CONDITIONER
MODELS:
EAS(C,E)09P5AHLWC
EAS(C,E)12P5AHLWC
EAS(C,E)18P5AHLWC
EAS(C,E)24P5AHLWC
140224A
S5(20-23)EM_ENGLISH
R410a_CHILE
Please read this manual completely before operating your room air conditioner.
contents electrolux 02
01 electrolux welcome
Welcome to the world of
simple handling and no worries.
Contents
Thank you for choosing Electrolux. This manual contains all of the information
required to guarantee your safety and the appropriate use of your air
conditioner.
Welcome.........................................................................................................01
Please read all of the instructions before using the air conditioner and keep this
manual for future reference.
We know you will enjoy your new air conditioner and thank you for choosing our
product. We hope you will consider us for future purchase.
Environmental advices.........................................................................................01
Contents..........................................................................................................02
Safety precautions..........................................................................................04
Choosing the installation site.....................................................................08
Parts list.........................................................................................................10
Indoor unit installation ...........................................................................................12
Outdoor unit installation...........................................................................16
Refrigerant pipe connection...................................................................18
Electrical work.....................................................................................20
Gas leak check.................................................................................28
Operation test........................................................................................................29
Environmental Advices
The packaging material used is recyclable; we
recommend that you separate plastic, paper and
cardboard and give them to recycling companies.
According to WEEE (Waste of Electrical and
Electronic Equipment) guidelines, waste from
electrical and electronic devices should be
collected separately. If you need to dispose of this
appliance in the future, do NOT throw it away with
the rest of your domestic garbage. Instead, please
take the appliance to the nearest WEEE collection
point, where available.
Preparing the device for operation.......................................................................30
Product description..................................................................................31
Remote control....................................................................................................33
Remote control description ..................................................................................35
LCD display indicators .........................................................................................38
How the air conditioner works .............................................................................39
How to use the indoor unit.....................................................................................46
Manual operation (without remote control) ..........................................................48
Maintenance..........................................................................................49
Operation tips...................................................................................51
Solutions for problems..............................................................................53
Technical specifications........................................................................................54
03 electrolux contents
safety precautions electrolux 04
Safety precautions
To prevent injury to the user or other people and property damage, the following
instructions must be followed.
The air conditioner that you have
bought may be slightly different
from the one illustrated in this
manual. Please refer to the
information related to the model
you have.
This air conditioner is for
domestic use only. It is not
reccomended for commercial or
industrial use.
The air conditioner you have may
carry a different plug than the one
illustrated in this manual. The plug
that comes with the product
follows the electrical specification
of the country where it is sold.
Incorrect operation due to ignoring of instructions may cause harm or damage.
The seriousness is classified by the following indications.
1. Connect with the power properly.
Otherwise, it may cause electric
shock or fire due to excess heat
generation.
2. Do not modify power cord length
or share the outlet with other
appliances. It may cause electric
shock or fire due to heat
generation.
3. Always ensure effective earthing.
No earthing may cause electric
shock.
4. Disconnect the power if strange
sounds, smell, or smoke comes
from it. It may cause fire and
electric shock.
5. Keep firearms away. It may cause
fire.
6. Do not operate or stop the unit by
switching on or off the power. It
may cause electric shock or fire
due to heat generation.
7. Do not operate with wet hands or
in damp environment. It may cause
electric shock.
8. Do not allow water to run into
electric parts. It may cause failure
of machine or electric shock.
9. Do not drink water drained from air
safety precautions electrolux 06
05 electrolux safety precautions
conditioner. It contains contaminants
and could make you sick.
10.Do not use the power cord close to
heating appliances. It may cause
fire and electric shock.
11.Do not damage or use an
unspecified power cord. It may
cause electric shock or fire.
12.Do not direct airflow at room
occupants only. This could damage
your health.
13.Always install circuit breaker and a
dedicated power circuit. No
installation may cause fire and
electric shock.
14.Do not open the unit during
operation. It may cause electric
shock.
15.Do not use the power cord near
flammable gas or combustibles,
such as gasoline, benzene, thinner,
etc. It may cause an explosion or
fire.
16.Ventilate room before operating air
conditioner if there is a gas leakage
from another appliance. It may
cause explosion, fire and, burns.
17.Do not disassemble or modify unit.
It may cause failure and electric
shock.
18.When the air filter is to be removed,
do not touch the metal parts of the
unit. It may cause an injury.
19.Do not clean the air conditioner
with water. Water may enter the
unit and degrade the insulation. It
may cause an electric shock.
20.Ventilate the room well when used
together with a stove, etc. An
oxygen shortage may occur.
21.When the unit is to be cleaned,
switch off, and turn off the circuit
breaker. Do not clean unit when
power is on as it may cause fire
and electric shock, it may cause
an injury.
22.Do not put a children, pet or house
plant where it will be exposed to
direct air flow. This could injure the
pet or plant.
23.Do not use for special purposes.
Do not use this air conditioner to
preserve precision devices, food,
pets, plants, and art objects. It
may cause deterioration of quality,
etc.
24.Stop operation and close the
window in storm or hurricane.
Operation with windows opened
may cause wetting of indoor and
soaking of household furniture.
25.Turn off the main power switch
when not using the unit for a long
time. It may cause failure of
product or fire.
26.Do not use strong detergent such
as wax or thinner. Use a soft cloth
for cleaning. Appearance may be
deteriorated due to change of
product color or scratching of its
surface.
27.Ensure that the installation bracket
of the outdoor appliance is not
damaged due to prolonged
exposure. If bracket is damaged,
there is concern of damage due to
choosing the installation site electrolux 08
07 electrolux safety precautions
Choosing the installation site
falling of unit.
Precautions for Installation
28.Always insert the filters securely.
Clean filter once every two weeks.
Operation without filters may
cause failure.
Installation at the following sites may cause problems. If you must inevitably
install the unit at one of these sites, please consult your local distributor
beforehand:
29.Do not place heavy object on the
power cord and take care so that
the cord is not compressed. There
is danger of fire or electric shock.
2. Sites with a high concentration of salinity, such as coastal areas.
30.Do not place obstacles around airinlets or inside of air-outlet. It may
cause failure of appliance or
accident.
1. Site with machine oil.
3. Sites with sulfuric gas, such as hot water springs.
4. Sites with high frequency equipment, such as wireless equipment, welding
machines and medical installations.
5. Sites with flammable gases or volatile material.
6. Sites with special environmental conditions.
7. Laundry rooms.
Indoor Unit
1. The unit must be installed at a site
that does not obstruct the flow of
air.
2. The site must support the weight
of the indoor unit.
3. The site must be easily accessible
for maintenance and replacement
of the air filter.
4. The site must allow for the
necessary space around the
indoor unit, as shown in the
following figure.
5. There should be at least 1 meter (3
feet) between the unit and radio
and television devices. It is ideal
that the unit be installed at the
center of the environment.
6. It must be far from fire, smoke or
flammable gases.
7. The indoor unit must be at least 2.3
meters (7.5 feet) from the ground.
8. The site must allow for the easy
removal of the connector pipe and
drain hose.
9. The unit must be installed at a site
protected from direct sunlight.
More
than 15cm
More
than 12cm
More
than 12cm
More
than 200cm
parts list electrolux 10
09 electrolux outdoor unit
Parts list
Outdoor Unit
1. The outdoor unit must be installed
at a convenient site that is not
exposed to strong winds. The site
should be dry and well ventilated.
More
than 30cm
More
than 60cm
More
than 30cm
2. The site must support the weight
of the outdoor unit and allow for
vertical installation.
3. There must not be the possibility of
increased noise and vibration at
the site.
4. The unit must be installed at a site
where the noise produced by its
operation and air discharge does
not disturb the neighbors or
animals.
5. The site cannot have any leakage
of flammable gases.
More
than 200cm
NUMBERING
PART NAME
QTY.
1
Installation plate
2
Clip anchor
5-8
3
Self-tapping screw A ST3.9x25
5-8
4
Seal
5
Drain Joint
1
Connecting
pipe
assembly*
6
More
than 60cm
1
1
Ø6,35
Ø9,52
Ø9,52
Ø12,7
Ø16
Liquid side
Gas side
Parts you must
purchase
7
Remote controller
1
8
Self-tapping screw B ST2.9x10 (optional)
2
9
Remote controller holder (optional)
1
10
Air freshening filter(installed on Air filter)
1
6. The site must allow for a piping
extension of no less than 5 meters
(16 feet) and for pipes measuring
at least 10 meters (33 feet) in
length.
7. The site must provide enough
space around the unit, as shown in
the diagram.
9
Indoor unit
8
7
8
8. Children must not be able to
access the installation site.
4
1
5
3
2
Outdoor unit
indoor unit installation electrolux 12
11 electrolux parts list
Indoor unit installation
Installation plate description
1
More than 15cm
2
3
Indoor unit
45
41
More than 12cm
6
More than 12cm
Air filter
2,3m or more
6
More than 60cm
7
A
More than
60cm
45
4
41
More than 30cm
5
C
More than 200cm
Outdoor
unit
45
B
1. This illustration is for explanation purposes only.
2. Copper lines must be insulated independently
indoor unit installation electrolux 14
13 electrolux indoor unit installation
Connective pipe and drainage installation
Drainage
1. Run the drain hose sloping
downward. Do not install the drain
hose as illustrated below.
Do not block
water flow
by a rise.
Do not block
water flow
by a rise.
2. When connecting extension drain
hose, insulate the connecting part
of extension drain hose with a
shield pipe, do not let the drain
hose slack.
Do not put the end
of drain hose into water.
24k Btu models
Fixing the installation plate
Connective pipe installation
1. Install the installation plate
horizontally over the structural
parts on the wall using the spaces
indicated on the plate, as shown in
the figure above.
2. In the case of tiled, concrete or
similar walls, create 5 mmdiameter holes. Place anchorage
supports for the appropriate
assembly screws.
3. If expansion screws are used, the
holes must measure 11x20 or
11x26, with a distance of 450 mm
between each.
4. Fix the installation plate to the wall.
1. For the left-hand and right-hand
piping, remove the pipe cover from
the side panel.
Drilling the Hole
Fit the Installation Plate and drill holes
in the wall according to the wall
structure and corresponding mounting
points on the installation plate
(Dimensions are in “mm” unless
otherwise stated).
Wall
Indoor unit
Outdoor unit
5-7mm
1. Determine the position of the hole
for the pipe using the installation
plate and drill the pipe hole (ø
65mm) so that it is titled slightly
downward.
2. Always use a pipe cover with an
opening when drilling a metal bar.
3. Fix the end of the connective pipe.
Pipe
holder
Pipe cover
(left)
Right back
piping
Right piping
Indoor unit
outline
Connective
pipe
43mm
Placa de instalación
2. For the rear-right-hand and rear-lefthand piping, install the piping as
shown. Bend the connective pipe to
be laid at 43mm height or less from
the wall.
Pipe cover
(right)
Fastening the Indoor Unit
1. Pass the piping through the hole in
the wall.
2. Put the upper claw at the back of the
indoor unit on the upper hook of the
installation plate, move the indoor
unit from side to side to see that it is
securely hooked (see Fig.10 &
Fig.11).
Upper hook
Lower hook
outdoor unit installation electrolux 16
15 electrolux indoor unit installation
Outdoor unit installation
3. Piping can easily be made by lifting
the indoor unit with a cushioning
material between the indoor unit
and the wall. Get it out after finish
piping.
4. Push the lower part of the indoor unit
up on the wall, then move the
indoor unit from side to side, up and
down to check if it is hooked
securely.
Piping and wrapping
1. Bundle the tubing, connecting
cable, and drain hose with tape
securely, evenly as shown.
2. Because the condensed water
from rear of the indoor unit is
gathered in ponding box and is
piped out of room. Do not put
anything else in the box.
Cushioning
material
Indoor unit
Cable
de conexión
Ponding
box
Pipe room
Connective
pipe
Drain hose
Wrapping
belt
1. Connect the indoor unit first, then the outdoor unit.
2. Do not allow the piping to let out from the back of the indoor unit.
3. Be careful not to let the drain hose slack.
4. Heat insulated both of the auxiliary piping.
5. Be sure that the drain hose is located at the lowest side of the bundle.
Locating at the upper side can cause drain pan to overflow inside the unit.
6. Never intercross nor intertwist the power wire with any other wiring.
7. Run the drain hose sloped downward to drain out the condensed water
smoothly.
1. Install the outdoor unit on a rigid
base to prevent increasing noise
level and vibration.
2. Determine the air outlet direction
where the discharged air is not
blocked. In the case that the
installation place is exposed to
strong wind such as a seaside,
make sure the fan operating
properly by putting the unit
lengthwise along the wall or using
a dust or shield plates.
3. Specially in windy area, install the
unit to prevent the admission of
wind. If need suspending
installation, the installation bracket
should accord with technique
requirement in the installation
bracket diagram.
4. The installation wall should be solid
brick, concrete or the same
intensity construction, or actions to
reinforce, damping supporting
should be taken. The connection
between bracket and wall, bracket
and the air conditioner should be
firm, stable and reliable.
5. Be sure there is no obstacle which
block radiating air.
Height (mm)
Strong wind
MODEL
Width (mm)
Depht (mm)
9000 Btu
680
255
180
12000 Btu
770
255
188
18000 Btu
905
275
198
24000 Btu
1030
315
220
refrigerant pipe connection electrolux 18
17 electrolux outdoor unit installation
Refrigerant pipe connection
A
Settlement of outdoor unit
Anchor the outdoor unit with
a bolt and nut 10 or 8 tightly
and horizontally on a concrete
or rigid mount.
Outdoor unit dimension
mm - (WxHxD)
B
458
250
685x430x260
460
276
780x540x250
549
276
760x590x285
530
290
845x700x320
560
335
775x545x310
600
320
670x540x250
481
276
760x590x285
530
290
820x590x330
526
340
845x700x320
560
335
Air outlet
Base pan hole
of outdoor unit
Seal
Seal
Drain joint
Drain pipe
Main cause for refrigerant leakage is
due to defect in the flaring work.
Carry out correct flaring work using
the following procedure:
1. Cut the pipes and the cable.
A) Use the piping kit accessory or
pipes purchased locally.
B) Measure the distance between the
indoor and the outdoor unit.
C) Cut the pipes a little longer than
the measured distance.
D) Cut the cable 1.5m longer than the
pipe length.
2. Burr removal
A) Completely remove all burrs from
the cut cross section of pipe/tube.
B) Put the end of the copper
tube/pipe in a downward direction as
you remove burrs in order to avoid
dropping burrs into the tubing.
24k Btu models
Drain joint installation
Fit the seal into the drain elbow, then
insert the drain joint into the base pan
hole of outdoor unit, rotate 90 to
securely assemble them.
Connecting the drain joint with an
extension drain hose (Locally
purchased), in case of the water
draining off the outdoor unit during the
heating mode.
=
Air
inlet
Air outlet
Mounting dimensions
A(mm)
B(mm)
700x540x240
+
Flaring work
Air inlet
3. Putting nut on
A) Remove flare nuts attached to
indoor and outdoor unit, then put
them on pipe/tube having completed
burr removal.(not possible to put them
on after flaring work)
Pipe
Wrong
Correct
Oblique Roughness Burr
Pipe
Reamer
Point
down
Flare nut
Cooper tube
electrical work electrolux 20
19 electrolux refrigerant pipe connection
Electrical work
Electric safety regulations for the initial Installation
4. Flaring work
A) Firmly hold copper pipe in a die in
the dimension shown in the table
below.
OUTER
DIAMETER (mm)
Copper
pipe
Handle
A (mm)
Máx.
Mín.
6,35
1,3
0,7
9,52
1,6
1,0
12,70
1,8
1,0
16
2,2
2,0
Connection Adjustment
1. Align the pipes to be connected.
2. Unscrew the flare nut with your
fingers and then with a wrench and
screw wrench, as shown in the
following figure.
Indoor unit
tubing
Bar
Flare
nut
Yoke
Red arrow mark
Clamp
handle
Caution: Excessive torque can
break nut depending on installation
conditions.
Pipings
OUTER
DIAMETER (mm)
TIGHTENING
TORQUE(cm)
ADDITIONAL TIGHTENING
TORQUE(cm)
6,35
1500 (153 kgf/cm)
1600 (163 kgf/cm)
9,52
2500 (255 kgf/cm)
2600 (265 kgf/cm)
12,70
3500 (357 kgf/cm)
3600 (367 kgf/cm)
16
4500 (459 kgf/cm)
4700 (479 kgf/cm)
1. If there is serious safety problem
about the power supply, the
technicians should refuse to install
the air conditioner and explain to
the client until the problem is
solved.
2. Power voltage should be in the
range of 90%~110%of rated
voltage.
3. The creepage protector and main
power switch with a 1.5 times
capacity of Max. Current of the unit
should be installed in power circuit.
4. Ensure the air conditioner is
grounded well.
5. According to the attached Electrical
Connection Diagram located on the
panel of the outdoor unit to connect
the wire.
6. All wiring must comply with local
and national electrical codes and be
installed by qualified and skilled
electricians.
7. An individual branch circuit and
single receptacle used only for this
air conditioner must be available.
See the following table for
suggested wire sizes and fuse
specifications:
electrical work electrolux 22
21 electrolux electrical work
Connect the cable to the indoor unit
Electric safety regulations for the initial
Installation
1. If there is serious safety problem about
the power supply, the technicians
should refuse to install the air
conditioner and explain to the client
until the problem is solved.
2. Power voltage should be in the range of
90%~110%of rated voltage.
3. The surge protector and main power
switch with a 1.5 times capacity of
Max. Current of the unit should be
installed in power circuit.
4. Ensure the air conditioner is grounded
well.
5. According to the attached Electrical
Connection Diagram located on the
panel of the outdoor unit to connect
the wire.
6. All wiring must comply with local and
national electrical codes and be
installed by qualified and skilled
electricians.
7. An individual branch circuit and single
receptacle used only for this air
conditioner must be avaliable. See the
following specifications:
Electrical box
cover
Before performing any electrical work, turn off the main power to the system.
1. The inside and outside connecting cable can be connected without removing
the front grille.
2. The indoor power cord type is H05VV-F or H05V2V2-F, the outdoor power cord
and interconnected cord type is H07RN-F.
3. Lift the indoor unit panel up, remove the electrical box cover by loosening the
screw.
4. Ensure the colour of wires of outdoor unit and the terminal Nos. are the same to
the indoor respectively.
5. Wrap those cables not connected with terminals with insulation tapes, so that
they will not touch any electrical components. Secure the cable onto the
control board with the cord clamp.
Terminal block of indoor unit
For 8K,12K and18k Btu types
The cable size and the current
of the fuse or switch are
determined by the maximum
current indicated on the
nameplate which located on
the side panel of the unit.
Please refer to the nameplate
before selecting the cable, fuse
and switch.
Rated current
of appliance (A)
Nominal cross-sectional
area (mm2)
>3 and ≤6
0.75
>6 and ≥10
1
>10 and ≥16
1.5
>16 and ≥25
2.5
1 2(N)
1 2(N) 3 4
L
or
For 24k Btu types
Terminal block of indoor unit
1 2(N) 3 4
Cord clamp
N
S
electrical work electrolux 24
23 electrolux electrical work
Connect the cable to the outdoor unit
Terminal block of outdoor unit
1. Remove the electrical control board
cover from the outdoor unit by
loosening the screw.
2. Connect the connective cables to the
terminals as identified with their
respective matched numbers on the
terminal block of indoor and outdoor
units.
3. Secure the cable onto the control
board with the cord clamp.
4. To prevent the ingress of water, form a
loop of the connective cable as
illustrated in the installation diagram of
indoor and outdoor units.
5. Insulate unused cords (conductors)
with PVC-tape. Process them so they
do not touch any electrical or metal
parts.
For 8k, 12k and 18k Btu models
Cover
Screw
1 2(N) 3 4
1 2(N)
1 2(N) 3 4
L N S
For 24k Btu models
Terminal block of outdoor unit
1 2(N) 3
4
To indoor unit
To indoor unit
To power supply
Model A
Model B
electrical work electrolux 26
25 electrolux electrical work
Caution
After the confirmation of the above conditions, prepare the wiring as follows:
1. Never fail to have an individual power circuit specifically for the air
conditioner. As for the method of wiring, be guided by the circuit diagram
posted on the inside of control cover.
2. The screw which fasten the wiring in the casing of electrical fittings are
liable to come loose from vibrations to which the unit is subjected during
the course of transportation. Check them and make sure that they are all
tightly fastened. (If they are loose, it could cause burn-out of the wires.)
3. Specification of power source.
4. Confirm that electrical capacity is sufficient.
5. See to that the starting voltage is maintained at more than 90 percent of the
rated voltage marked on the name plate.
6. Confirm that the cable thickness is as specified in the power source
specification.
7. Always install an earth leakage circuit breaker in a wet or moist area.
8. The following would be caused by voltage drop. Vibration of a magnetic
switch, which will damage the contact point, fuse breaking, disturbance of
the normal function of the overload.
9. The means for disconnection from a power supply shall be incorporated in
the fixed wiring and have an air gap contact separation of at least 3mm in
each active (phase) conductors.
Air purging with vacuum pump
1. Check that each tube(both liquid and gas side tubes) between the indoor
and outdoor units have been properly connected and all wiring for the test
run has been completed. Remove the service valve caps from both the gas
and the liquid side on the outdoor unit. Note that both the liquid and the gas
side service valves on the outdoor unit are kept closed at this stage.
2. When relocate the unit to another place, perform evacuation using vacuum
pump.
3. Pipe length and refrigerant amount:
Additional amount of
refrigerant to be charged
Connective
pipe length
Air purging
metod
Less than 5 m
Use vacuum pump.
More than 5m
Use vacuum pump.
Liquid side:φ6.35mm
Liquid side:φ9.52mm:
R410A: (Pipe length-5)x20g/m R410A: (Pipe length-5)x40g/m
Caution in handling the packed valve
1. Open the valve stem until it hits against the stopper. Do not try to open it
further.
2. Securely tighten the valve stem cap with a spanner or the like. Valve stem
cap tightening torque.
Air purging
Air and moisture in the refrigerant system have undesirable effects as
indicated below:
1. Pressure in the system rises.
2. Operating current rises.
3. Cooling or heating efficiency
drops.
4. Moisture in the refrigerant circuit
may freeze and block capillary
tubing.
5. Water may lead to corrosion of
parts in the refrigeration system.
6. Therefore, the indoor unit and
tubing between the indoor and
outdoor unit must be leak tested
and evacuated to remove any
noncondensables and moisture
from the system.
Refrigerant
Outdoor unit
A
Flare nut
Indoor unit
Gas
Stopper
C
Cap
D
B
Packed valve
Half union
Valve body
Valve stem
gas leak check electrolux 28
27 electrolux electrical work
Gas leak check
When using the vacuum pump
For method of using a manifold valve, refer to its operation manual.
1. Completely tighten the flare nuts,
A, B, C, D, connect the manifold
valve charge hose to a charge port
of the low-pressure valve on the
gas pipe side.
2. Connect the charge hose
connection to the vacuum pump.
3. Fully open the handle Lo of the
manifold valve.
4. Operate the vacuum pump to
evacuate. After starting
evacuation, slightly loose the flare
nut of the Lo valve on the gas pipe
side and check that the air is
entering (Operation noise of the
vacuum pump changes and a
compound meter indicates 0
instead of minus)
5. After the evacuation is complete,
fully close the handle Lo of the
manifold valve and stop the
operation of the vacuum pump.
Make evacuation for 15 minutes or
more and check that the
compound meter indicates 76cmHg (-1x10 Pa).
6. Turn the stem of the packed valve
B about 45o counterclockwise for
6~7 seconds after the gas coming
out, then tighten the flare nut
again. Make sure the pressure
display in the pressure indicator is
a little higher than the atmosphere
pressure.
7. Remove the charge hose from the
Low pressure charge hose.
8. Fully open the packed valve stems
B and A.
9. Securely tighten the cap of the
packed valve.
Soap water method
Apply a soap water or a liquid neutral
detergent on the indoor unit
connection or outdoor unit
connections by a soft brush to check
for leakage of the connecting points
of th piping. If bubbles come out, the
pipes have leakage.
Leak detector
Use the leak detector to check for
leakage.
Manifold valve
Compound meter Pressure gauge
-76cmHg
Handle Lo
Handle Hi
Charge hose
Charge hose
Vacuum pump
Low pressure valve
Caution
A: Lo packed valve, B: Hi packed
valve C and D are ends of indoor unit
connection.
indoor unit
check point
Cover
Outdoor unit
check point
29 electrolux operation test
preparing the device for operation electrolux 30
Operation test
Preparing the device for operation
Perform test operation after completing gas leak check at the flare nut
connections and electrical safety check.
1. Contact a specialist to install the device.
2. Guarantee that the unit is appropriately fastened and complies with all of
the aforementioned safety norms.
3. Before operating the air conditioner, ensure that the air filter is installed
correctly.
4. If the unit has been out of use for a long period of time, it is recommended
that the air filter be cleaned before use. During continuous use, clean the air
filter every two weeks.
5. This air conditioner was designed for use under the following conditions:
1. Connect the power, press the
ON/OFF button on the remote
controller to turn the unit on.
2. Use the MODE button to select
COOL, HEAT, AUTO and FAN to
check if all the functions works
well.
3. When the ambient temperature is
too low(lower than 17ºC), the unit
cannot be controlled by the remote
controller to run at cooling mode,
manual operation can be taken.
Manual operation is used only when
the remote controller is disable or
maintenance necessary.
MODE
Cool
Heat
Deshumidifier
Room Temperature
Room Temperature
Room Temperature
Indoor
Outdoor*
17°C~32°C 18°C~43°C
Auto/Cool
or
Indoor
0°C~30°C
Outdoor
Indoor
Outdoor**
-7°C~24°C 10°C~32°C 11°C~43°C
* (-7°C~43°C cooling only / 18°C~52°C special tropical models)
** (18°C~52°C special tropical models)
Manual control button
Manual control
button
Auto
Cool
If air conditioner is used outside of the above conditions, certain safety protection
features may come into operation and cause the unit to function abnormally.
Room relative humidity less than 80%. If the air conditioner operates in excess of
this figure, the surface of the air conditioner may attract condensation. Please
sets the vertical air flow louver to its maximum angle (vertically to the floor), and
set HIGH fan mode.
Optimum performance will be achieved within these operating temperature.
product description electrolux 32
31 electrolux product description
Product description
Display panel
(indoor unit)
1 Front panel frame
2 Front panel
13 OPERATION
3 Air filter
4
5
6
7
8
9
(inside front panel)
Horizontal airflow grille
Vertical airflow grille
Temperature sensor
(inside front panel)
Panel
Infra-red signal receiver
Drain hose connector and
refrigerant gas connector
Remote control
10
11 Connector cable
12 Detection valve
13 Drain hose and refrigerant
This lamp illuminates when the air
conditioner is in operation.
14 TIMER
14
Lights up during Timer operation.
15 DEFROST indication lamp
(Enabled on cooling & heating
models only): Lights up when the
air conditioner starts defrosting
automatically or when the warm air
control feature is activated in
heating operation.
Air inlet
3
2
1
4
Indoor unit
13
15
14
17
16 Temperature indicator
connecting pipe
5
Air outlet
8
Displays the temperature settings
when the air conditioner is
operational. Displays the
malfunction code.
7
6
10
13
15
14
17
17 Signal receiver
13
Air inlet
15
13
14
11
All the pictures in this manual are for
explanation purpose only. They may be
slightly different from the air conditioner
you purchased.
9
Air outlet
12
Outdoor unit
The description in the control is based
on a typical model. The functions are
the same in your air conditioner, even if
there are some differences in the
appearance.
remote control electrolux 34
33 electrolux remote control
Remote control
Remote control operation
1. Operating Mode: AUTO, COOL, DRY,
HEAT(Cooling only model without),
and FAN.
2. Timer Setting Function in 24 hours.
3. Indoor Setting Temperature Range :
17。C~30。C.
4. Full function of LCD (Liquid Crystal
Display).
REMOTE CONTROLLER SPECIFICATIONS
Rated voltage
3V
Lowest of voltage of CPU emiting signal
2,0 V
Transmission distance
8 m*
Environment
When should the batteries be
replaced
1. Replace the batteries when there
is no receiving beep from the
indoor unit or if the transmission
indicator on the remote controller
fails to light.
2. The remote controller is powed by
two dry batteries(R03/LR03X2)
housed in the rear part and
protected by a cover.
3. Remove the cover by pressing
and sliding off.
4. Remove the old batteries and
insert the new batteries,placing
the(+) and (-) ends correctly.
5. Reattach the cover by sliding it
back into position.
-5ºC ~ 60ºC
* (with 3 V, it reaches 11 m)
1. The air conditioner will not operate if curtains, doors or other materials block
the signals from the remote controller to the indoor unit.
2. Prevent any liquid from falling into the remote controller. Do not expose the
remote controller to direct sunlight or heat. If the infrared signal receiver on
the indoor unit is exposed to direct sunlight, the air conditioner may not
function properly. Use curtains to prevent the sunlight from falling on the
receiver.
3. If other electrical appliances react to the remote controller. Either move these
appliances or consult your authorized assistance.
Remote control battery
To use the remote control, it is necessary to install two (R03/Ir03x2) alkaline
AAA batteries.
Remote control instructions
Use the remote controller within a
distance of 8 meters from the
appliance, pointing it towards the
receiver. Reception is confirmed by a
beep.
1. When the batteries are removed,
the remote controller erases all
programming.
2. After inserting new batteries, the
remote controller must be
reprogrammed.
3. Do not mix old and new batteries or
batteries of different types.
4. Do not leave the batteries in the
remote controller if they are not
going to be used for 2 or 3 months.
5. Do not dispose batteries as
unsorted municipal waste.
Collection of such waste separately
for special treatment is necessary.
remote control description electrolux 36
35 electrolux remote control description
Remote control description
ON/OFF: Operation starts when
this button is pressed and stops
when this button is pressed again.
2 MODE: Each time you push the
button, a mode is selected in a
sequence that goes from AUTO,
COOL*, DRY, HEAT and FAN, as the
following figure indicates:
AUTO
COOL
DRY
HEAT*
FAN
1
* Note: Only for heating and cooling
models.
3 SWING: Used to stop or start
horizontal louver auto swing
feature.
4 SLEEP: Active/Disable SLEEP
function. If pushing more than 2
seconds, the FRESH function will
be activated, pushing more than
2seconds again to disable.
Note: While the unit is running
under SLEEP mode, it would be
cancelled if press the MODE, FAN
SPEED or ON/OFF button.
5
6
DIRECT: Used to change the louver
movement and set the desired
up/down air flow direction. The
louver changes 6° in angle for each
press.
RESET: When you press the
recessed RESET button, all current
settings are cancelled and the
control will return to the initial
settings.
TEMP: Push the + button to
increase setting temperature or to
increase Hour during Timer
setting. Push - the button to
decrease setting temperature or
to decrease Hour during Timer
setting.
8 FAN SPEED: Used to select the
Fan Speed in four steps- AUTO,
LOW, MED or HIGH. Each time
the button is pressed, the fan
speed mode is shifted.
7
1
7
AUTO
2
LOW
MED
3
8
5
9
4
10
11
12
13
6
7
HIGH
13
9
1
TIMER ON: Press this button to
initiate the auto-on time
sequence. Each press will
increase the auto-timed setting in
30 minutes increments. When the
setting time displays 10H, each
press will increase the auto-timed
setting60 minutes increments. To
cancel the auto-timed program,
simply adjust the auto-on time to
0:0.
10 TIMER OFF: Press this button to
initiate the auto-off time
sequence. Each press will
increase the auto-timed setting in
30 minutes increments. When the
setting time displays 10H, each
press will increase the auto-timed
setting 60 minutes increments. To
cancel the auto-timed program,
simply adjust the ON/OFF autooff time to 0:0
2
13
3
8
5
9
4
10
11
12
13
6
lcd display indicators electrolux 38
37 electrolux remote control description
LCD display indicators
1
11 TURBO*: Active/Disable TURBO
function. If pushing more than 2
seconds, the SELF CLEAN
function will be activated, pushing
more than 2 seconds again to
disable(depending on
models).During the heating
operation(only when the setting
mode is HEAT),press this button
and the unit will operate at a
setting temperature of 8°C.The
display window of indoor unit will
display FP. Press the buttons of
ON/OFF, SLEEP, FP, MODE,FAN
SPEED,UP,DOWN and
SHORTCUT while operating will
cancel the FP
12 LED: Disable/Active indoor screen
Display. When pushing more than
2 seconds, the FOLLOW ME
function will be activated, pushing
more than 2 seconds again to
disable.
13 LOCK: When you press the
recessed LOCK button, all current
settings are locked in and the
remote controller does not accept
any operation except that of the
LOCK. Press again to cancel the
LOCK mode.
2
1
7
2
TRANSMISSION INDICATOR: This
transmission indicator lights when
remote controller transmits signals
to the indoor unit.
MODE: Displays the current
operation mode. Including
auto (
), cool(
), dry(
),
heat(
) (Not applicable to cooling
only models), fan(
) and back to
auto(
).
auto cool dry
1
heat
SET TEMP. TIMER ONOFF
sleep follow me lock
2
13
3
8
5
9
4
10
11
12
13
6
14 SHORTCUT: Used to restore the current settings or resume previous settings.
On the first time connecting to the power, if push the SHORTCUT button, the
unit will operate on AUTO mode, 24°C, and fan speed is Auto.
Push this button when remote controller is on, the system will automatically
revert back to the previous settings including operating mode, setting
temperature, fan speed level and sleep feature(if activated). And transmit the
signals to the unit.
If push this button when remote controller is off, the system will only resume
the previous settings and will not transmit the signals to the unit. And the
sleep feature is disable. If pushing more than 2 seconds, the system will
automatically restore the current operation settings including operating mode,
setting temperature, fan speed, level and sleep feature (if activated).
3
4
ON/OFF: Displayed by pressing the
ON/OFF button. Press the ON/OFF
button again to remove.
TEMP/TIMER: Displays the
temperature setting(17°C~30°C).
When you set the operating mode
to FAN, no temperature setting is
displayed. And if in the TIMER
mode, shows the ON and OFF
settings of the TIMER.
5
FOLLOW ME: Displayed when
FOLLOW ME function is activated.
6
LOCK: Displayed when LOCK
mode is activated.
7
SLEEP: Displayed under sleeping
operation. Press the SLEEP button
again to remove.
fan
run
F
7
5
4
3
6
8 FAN SPEED: Displays the
selected fan speed, AUTO(no
display) and three fan speed levels
" " (LOW) " " (MED) " " (HIGH)
can be indicated. The fan speed is
AUTO when the operating mode is
either AUTO or DRY.
39 electrolux how the air conditioner works
how the air conditioner works electrolux 40
How the air conditioner works
Auto operation
Ensure the unit is plugged in and power is available. The OPERATION indicator
on the display panel of the indoor unit starts flashing.
1. Press the MODE button to select Auto.
2. Press the UP/DOWN button to set the desired temperature. The temperature
can be set within a range of 17°C~ 30°C in 1°C increments.
3. Press the ON/OFFbutton to start the air conditioner.
Note:
1. In the Auto mode, the air conditioner can logically choose the mode of
Cooling, Fan, and Heating by sensing1the difference between the actual
ambient room temperature and the setting temperature on the remote
controller.
2. In the Auto mode, you can not switch the fan speed. It has already been
automatically controlled.
3. If the Auto mode is not comfortable for you , the desired mode can be
selected manually.
LED/FOLLOW ME function
Press this button less than 2nds will initiate LED function. And if keep pressing
this button more than 2 seconds the FOLLOW ME function is initiated.
When the FOLLOW ME function is activated remote display is actual
temperature at its location.
The remote control will send this signal to the air conditioner every 3 minutes
interval until press the FOLLOW ME button again. The Follow Me function is not
available under DRY and FAN mode. Switch the operation mode or turn off the
unit will cancel the Follow Me function automatically.
Cooling /Heating/Fan operation
Ensure the unit is plugged in and power is available.
1. Press the MODE button to select COOL, HEAT(cooling & heating models
only) or FAN mode.
2. Press the UP/DOWN buttons to set the desired temperature. The
temperature can be set within a range of 17°C~ 30°C in 1°C increments.
3. Press the FAN button to select the fan speed in four steps- Auto, Low,
Med,or High.
4. Press the ON/OFF button to start the air conditioner.
In the FAN mode the setting temperature is not displayed in the remote
controller and you are not able to control the room temperature either. In this
case, only step 1, 3 and 4 may be performed.
Dehumidifying operation
Ensure the unit is plugged in and power is available. The OPERATION indicator
on the display panel of the indoor unit starts flashing.
1. Press the MODE button to select DRY mode.
2. Press the UP/DOWN buttons to set the desired temperature. The
temperature can be set within a range of 17°C~ 30°C in 1°C increments.
3. Press the ON/OFF button to start the air conditioner.
In the Dehumidifying mode, you can not switch the fan speed. It has already
been automatically controlled.
Adjusting air flow direction
Use the SWING and DIRECT button to adjust the desired airflow direction.
1. When push the DIRECT button, the horizontal louver changes 6 degree in
angle for each push.
2. When push the SWING button, the louver will swing up and down
automatically.
When the louver swing or move to a position which would affect the
cooling or heating effect of the air conditioner, it would automatically
change the swing/moving direction.
Turbo/self clean function
Press this button less than 2nds will initiate TURBO function. And if keep
pressing this button more than 2nds,the SELF CLEAN function is initiated.
Turbo function enables the unit to reach the preset temperature in the shortest
time. When press this button on cooling mode, the unit will blow strong cooling
air with super high fan speed. When press this button on heating mode
(applicable to the unit adopts PTC only), the PTC will be energized and bring
fast heating operation.
Under SELF CLEAN mode, the air conditioner will automatically clean and dry
the Evaporator and keep it as fresh for the next operation.
41 electrolux how the air conditioner works
Timer operation
Press the TIMER ON button can set
the auto-on time of the unit. Press the
TIMER OFF button can set the autooff time of the unit.
To set the Auto-on time:
1. Press the TIMER ON button. The
remote controller shows TIMER ON,
the last Auto-on setting time and
the signal "h" will be shown on the
LCD display area. Now it is ready to
reset the Auto-on time to START the
operation.
2. Push the TIMER ON button again to
set desired Auto-on time. Each time
you press the button, the time
increases by half an hour between 0
and 10 hours and by one hour
between 10 and 24 hours.
3. After setting the TIMER ON ,there
will be a one second delay before
the remote controller transmits the
signal to the air conditioner. Then,
after approximately another 2
seconds, the signal "h" will
disappear and the set temperature
will re-appear on LCD window.
To set Auto-off time:
1. Press the TIMER OFF button. The
remote controller shows TIMER
OFF, the last Auto-off setting time
and the signal "h" will be shown on
the LCD display area. Now it is
ready to reset the Auto-off time to
stop the operation.
2. Push the TIMER OFF button again
to set desired Auto-off time. Each
time you press the button, the time
increases by half an hour between 0
and 10 hours and by one hour
between 10 and 24 hours.
3. After setting the TIMER OFF
,there will be a one second delay
before the remote controller
transmits the signal to the air
conditioner. Then after
approximately another 2
seconds, the signal "h" will
disappear and the set
temperature will re-appear on
the LCD display window.
how the air conditioner works electrolux 42
Timer ON (Auto-on operation)
The TIMER ON feature is useful when you
want the unit to turn on automatically
before you return home. The air conditioner
will automatically start operating at the set
time.
Example:
TIMER ON
To start the air conditioner in 6 hours.
1. Press the TIMER ON button, the last
setting of starting operation time and
the signal "h" will show on the display
area.
2. Press the TIMER ON button to display
"6:0h" on the TIMER ON display of the
remote controller.
Start
Off
Set
6 hours later
3. Wait for 3 seconds and the digital display
area will show the temperature again.
The "TIMER ON" indicator remains on
and this function is activated.
The effective operation time set by
the remote controller for the timer
function is limited to the following
settings: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0,
3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0,
7.5, 8.0, 8.5, 9.0, 9.5, 10, 11, 12,
13, 14, 15,16,17, 18, 19, 20, 21,
22, 23 and 24.
Timer OFF (Auto-off operation)
The TIMER OFF feature is useful when you
want the unit to turn off automatically after
you go to bed. The air conditioner will stop
automatically at the set time. To stop the
air conditioner in 10 hours.
Example:
1. Press the TIMER OFF button, the last
setting of stopping operation time and the
signal "h" will show on the display area.
2. Press the TIMER OFF button to display
"10h" on the TIMER OFF display of the
remote controller.
3. Wait for 3 seconds and the digital
display area will show the temperature
again. The "TIMER OFF" indicator remains
on and this function is activated.
TIMER OFF
Stop
On
Set
10 hours later
how the air conditioner works electrolux 44
43 electrolux how the air conditioner works
COMBINED TIMER (Setting both ON and
OFF timers simultaneously)
TIMER OFF → TIMER ON
(On → Stop → Start operation)
This feature is useful when you want to
stop the air conditioner after you go to bed,
and start it again in the morning when you
wake up or when you return home.
Example:
To stop the air conditioner 2 hours after
setting and start it again 10 hours after
setting.
1. Press the TIMER OFF button.
2. Press the TIMER OFF button again to
display 2.0h on the TIMER OFF display.
3. Press the TIMER ON button.
4. Press the TIMER ON button again to
display 10h on the TIMER ON display .
5. Wait for 3 seconds and the digital display
area will show the temperature again.
The "TIMER ON OFF" indicator remains
on and this function is activated.
TIMER ON → TIMER OFF
(Off → Start → Stop operation)
This feature is useful when you want to
start the air conditioner before you wake up
and stop it after you leave the house.
Example:
To start the air conditioner 2 hours after
setting, and stop it 5 hours after setting.
1. Press the TIMER ON button.
2. Press the TIMER ON button again to
display 2.0h on the TIMER ON display.
3. Press the TIMER OFF button.
4. Press the TIMER OFF button again to
display 5.0h on the TIMER OFF display .
5. Wait for 3 seconds and the digital display
area will show the temperature again.
The "TIMER ON OFF" indicator remains
on and this function
Sleep/Fresh functions
TIMER ON OFF
Press this button less than 2nds will
initiate SLEEP function. And if keep
pressing this button more than
2nds,the FRESH function is initiated.
Start
Stop
On
Set
2 hours later
after setting
10 hours later
after setting
The sleep function enables the unit to
automatically increase(cooling) or
decrease(heating) 1°C per hour for the
first two hours, then hold steady for the
next 5 hours, after that the unit will
stop operation. It can maintain the
most comfortable temperature and
save energy.
The SLEEP function is only available
under Cooling, Heating and AUTO
operations.
When the FRESH function is initiated,
the Ionizer/Plasma Dust Collector
(depending on models) is energized
and will help to remove pollen and
impurities from the air.
TIMER ON OFF
Special functions
Start
Stop
Off
Set
2 hours later
after setting
5 hours later
after setting
The timer setting (TIMER ON or
TIMER OFF) that in sequence
occurs directly after the set time
will be activated first.
Refrigerant Leakage Detection
With this new technology, the dipsplay
area will appear EC and the indication
lamps continue flashing when the
outdoor unit detects refrigerant
leakage.
Louver Angle Memory Function
(optional):
Within the scope of safety angle, it will
memorize the open angle of horizontal
louver. If it exceeds, it will memorize
the boundry of safety angle. In the
following circumstances, it will return
to standard angle:
1. pressing the turbo or manual control
button
2. unplug and then plug in the
machine.
So we strongly suggest that the open
angle of the horizontal louver should
not be set too small, in case the
condensed water forms and drops
from the
horizontal louver.
Self-clean function (optional) Function used after the shut down of
cooling operation to clean the
Evaporator ,it keeps the air fresh for
the next operation.
For cooling models, the unit will
operate under FAN ONLY mode
at LOW fan speed for half an hour, and
then turn off automatically.
For cooling & heating models, the unit
will operate as in the below sequence :
FAN ONLY mode at Low fan speed-Heating operation with LOW fan speed
---FAN ONLY operation--Stop
Operation---Turn off.
This function is only available under
COOL(AUTO COOL, FORCED COOL)
and DRY mode.
Before selecting the function, it is
recommended to run the air
conditioner under cooling operation for
about half an hour. Once the Self Clean
function is activated, all TIMER setting
will be cancelled.
During SELF CLEAN operation, when
pressing the SELF CLEAN button on
the remote controller again,the unit will
stop the operation and turn off the unit
automatically.
how to use the indoor unit electrolux 46
45 electrolux how the air conditioner works
How to use the indoor unit
Clean-air function (optional)
Improving the quality of indoor air is
one of the purposes of an air
conditioner. This air
conditioner is equipped with ionizer or
Plasma Dust Collector(Depending on
specific configuration of the model).
With the anions generated by Ionizer,
the air circulation of the air conditioner
fills the room with refreshing, natural
and healthy air. The Plasma Dust
Collector generates a high voltage
ionization zone, through which the air
is converted to plasma. Inside the air
most of the dust, smoke, and pollen
particles are captured by the
electrostatic filter.
Anti-mildew function (optional
When turns off the unit on COOL, DRY,
AUTO (Cool) mode, the air conditioner
will continue operating for about 10
minutes (depending on models) with
soft wind.This will help to dry up the
condensed water inside the
evaporator, and prevent the breeding
of mildew. Under Anti-mildew
operation, do not restart the air
conditioner until the unit iscompletely
off.
Adjusting air flow direction
Adjust the air flow direction properly
otherwise, it might cause discomfort
or cause uneven room temperatures.
Adjust the horizontal louver using the
remote controller. Adjust the vertical
louver manually.
Adjusting the vertical air flow
direction (up - down)
The air conditioner automatically
adjusts the vertical air flow direction in
accordance with the operating mode.
To set the horizontal air flow
direction (left/ right)
Adjust the vertical louver manually
using the lever on the left or right side
of the vertical louver arm (Depending
on model). Take care not to catch
fingers on the fan, horizontal louver or
to damage vertical louvers. When the
air conditioner is in operation and the
horizontal louver is in a specific
position, move the lever at left (or
right, depending on model) end of the
air outlet to the desired position.
To automatically swing the air flow
direction (up/down)
Perform this function while the air
conditioner is in operation.
Lever
47 electrolux how to use the indoor unit
manual operation (without remote control) electrolux 48
Manual operation (without remote control)
Press the SWING button on the remote
controller.
To stop the function, press the SWING
button again.
Press AIR DIRECTION button to lock
louver in desired position.
The AIR DIRECTION and SWING buttons
will be disabled when the air conditioner is
not in operation (including when the
TIMER ON is set).
Do not operate the air conditioner for long
periods with the air flow direction set
downward in cooling or dry mode.
Otherwise, condensation may occur on
the surface of the horizontal louver
causing moisture to drop on to the floor or
on furnishings.
Do not move the horizontal louver
manually. Always use the AIR DIRECTION
or SWING button. If you move this louver
manually, it may malfunction during
operation. If the louver malfunctions, stop
the airconditioner once and restart it.
When the air conditioner is started
immediately after it was stopped, the
horizontal louver might not move for
approximately 10 seconds.
Open angle of the horizontal louver should
not be set too small, as COOLING or
HEATING performance may be impaired
due to too restricted air flow area.
Do not operate unit with horizontal louver
in closed position.
When the air conditioner is connected to
power (initial power), the horizontal louver
may generate a sound for 10 seconds,
this is a normal operation.
Manual operation can be used
temporarily in case you can not find
the remote controller or its batteries
are exhausted.
1. Open and lift the front panel up to
an angle until it remains fixed with
a clicking sound.
2. One press of the manual control
button will lead to the forced
AUTO operation.
3. Close the panel firmly to its
original position.
Manual control
button
Once you push the manual button,
the operation mode is shifted in an
order as: AUTO, COOL, OFF.
Push the button twice, the unit will
operate in forced COOL mode. This is
used for testing purposes only .
Third press will stop the operation
and turn off the air conditioner
operation.
To restore the remote controller
operation, use the remote controller
directly.
Auto/Cool
maintenance electrolux 50
49 electrolux maintenance
Maintenance
then dry.
6. Clean the support frame using a
vacuum cleaner or water. After, dry
for a couple of hours or until dry.
7. Insert the fresh air filter in its original
place.
8. Insert the high part of the air filter
(fresh air filter + Support frame)
again in the unit keeping in mind that
the outside border (right and left) are
lined up correctly, now place the
whole filter in the initial position.
Cleaning the indoor unit and remote
controller
1. It is necessary to stop the air
conditioner and disconnect the
power supply before cleaning.
2. Use a dry cloth to wipe the indoor
unit and remote controller.
3. A cloth dampened with cold water
may be used on the indoor unit if it is
very dirty.
4. The front panel of the indoor unit can
be removed and cleaned with water.
Then wipe it with a dry cloth.
5. Do not use a chemically treated cloth
or duster to clean the unit.
6. Do not use benzine, thinner,
polishing powder, or similar solvents
for cleaning. These may cause the
plastic surface to crack or deform.
Filtro
refrescante
de aire
Fig.1
Soporte del marco
Fig.2
Filtro
refrescante
de aire
Soporte
del marco
Filtro
refrescante
de aire
Fig.3
Soporte del marco
Fig.4
Fig.5
Cleaning the air filter
A clogged air filter reduces the cooling
efficiency of this unit. Please clean the
filter once every 2 weeks.
1. Lift the indoor unit panel up to an
angle until it stops with a clicking
sound.2. Take hold of the handle of
the air filter and lift it up slightly to
take it out from the filter holder, then
pull it downwards.
3. Remove the air filter (Fresh air filter +
support) of the unit.
4. Remove fresh air filter from frame
support.
5. Clean the fresh air filter at least once
a month, and replace every 4 to 5
months. Use a vacuum cleaner,
filtro de aire
Maintenance
If you plan to idle the unit for a long time, perform the following:
1. Operate the fan for about half a day to dry the inside of the unit.
2. Stop the air conditioner and disconnect power. Remove the batteries from
the remote controller.
3. The outdoor unit requires periodic maintenance and cleaning. Do not attempt
to do this yourself. Contact your dealer or servicer.
Checks before operation
1. Check that the wiring is not broken off or disconnected.
2. Check that the air filter is installed
3. Check if the air outlet or inlet is blocked after the air conditioner has not been
used for a long time.
filtro de aire
51 electrolux operation tips
operation tips electrolux 52
Operation tips
The following events may occur during normal operation.
Protection of the air conditioner.
Compressor protection
The compressor can't restart for 3 minutes after it stops.
Anti-cold air (Cooling and heating models only)
The unit is designed not to blow cold air on HEAT mode, when the indoor heat
exchanger is in one of the following three situations and the set temperature has
not been reached.
1. When heating has just starting.
2. Defrosting.
3. Low temperature heating.
Defrosting (Cooling and heating models only)
Frost may be generated on the outdoor unit during heat cycle when outdoor
temperature is low and humidity is high resulting in lower heating efficiency of
the air conditioner. During this condition air conditioner will stop heating
operation and start defrosting automatically.
The time to defrost may vary from 4 to 10 minutes according to the outdoor
temperature and the amount of frost buildup on the outdoor unit.
The indoor or outdoor fan stop running when defrosting (Cooling and heating
models only).
A white mist coming out from the indoor unit
A white mist may generate due to a large temperature difference between air
inlet and air outlet on COOL mode in an indoor environment that has a high
relative humidity.
A white mist may generate due to moisture generated from defrosting process
when the air conditioner restarts in HEAT mode operation after defrosting.
Low noise of the air conditioner
You may hear a low hissing sound when the compressor is running or has just
stopped running.
This sound is the sound of the refrigerant flowing or coming to a stop.
You can also hear a low "squeak" sound when the compressor is running or has
just stopped running. This is caused by heat expansion and cold contraction of
the plastic parts in the unit when the temperature is changing.
A noise may be heard due to louver restoring to its original position when power
is first turned on.
Dust is blown out from the indoor unit.
This is a normal condition when the air conditioner has not been used for a long
time or during first use of the unit.
A peculiar smell comes out from the indoor unit.
This is caused by the indoor unit giving off smells permeated from building
material, from furniture, or smoke.
The air conditioner turns to FAN only mode from COOL or HEAT (For
cooling and heating models only) mode.
When indoor temperature reaches the temperature setting on air conditioner, the
compressor will stop automatically, and the air conditioner turns to FAN only
mode. The compressor will start again when the indoor temperature rises on
COOL mode or falls on HEAT mode (For cooling and heating models o ly) to the
set point.
Dripping water may generate on the surface of the indoor unit when cooling in a
high relatively humidity (relative humidity higher than 80%). Adjust the horizontal
louver to the maximum air outlet position and select HIGH fan speed.
Heating mode (For cooling and heating models only)
The air conditioner draws in heat from the outdoor unit and releases it via the
indoor unit during heating operation. When the outdoor temperature falls, heat
drawn in by the air conditioner decreases accordingly. At the same time, heat
loading of the air conditioner increases due to larger difference between indoor
and outdoor temperature. If a comfortable temperature can't be achieved by the
air conditioner, we suggest you use a supplementary heating device.
Auto-restart function
Power failure during operation will stop the unit completely.
For the unit without Auto-restart feature, when the power restores, the
OPERATION indicator on the indoor unit starts flashing. To restart the operation,
push the ON/OFF button on the remote controller. For the unit with Auto-restart
feature, when the power restores, the unit restarts automatically with all the
previous settings preserved by the memory function.
Lightning or a car wireless telephone operating nearby may cause the unit
to malfunction.
Disconnect the unit with power and then re-connect the unit with power again.
Push the ON/OFF button on the remote controller to restart operation.
technical specifications electrolux 54
53 electrolux solutions for problems
Solutions for problems
Technical specifications
If your air conditioner malfunctions, check the following information to find
solutions or probable causes of the failure. Do not try to repair the unit by
yourself, if these solutions do not solve the failures; call your local service repair
team.
HEAT AND COOL MODELS
Poor Equipment performance
1. The air outlet or inlet in the exterior part is obstructed.
2. The temperature in the exterior is high due to direct sunlight or another heat
source.
3. Heater or a cooking stove is being used in the same room.
4. Room is full of people.
5. The air filter is obstructed by dust or is dirty.
6. Inappropriate temperature adjustment.
7. Front part is obstructed.
8. The capacity of the equipment is not adequate for the size of the room.
9. Air conditioner was just turn on.
10.Windows or doors are open.
11.Motor protector has been activated.
The unit does not start
1. The plug is not connected to the outlet.
2. No electricity in the outlet.
3. The voltage is different.
4. Temperature is not adjusted properly.
5. burned fuse.
6. The remote control batteries need to be replaced.
7. wrong operation time.
Stop the air conditioner immediately if one of the following malfunctions occur
1. The operation indicator or other indicator flash(5 times per second) and the flashing is
not stop by disconnecting and connecting the unit.
2. Frequent change of fuses and malfunctions in the switch circuit.
3. Water spills over the equipment.
4. Remote control does not work.
5. Any other abnormal situation.
OUTDOOR UNIT
EASC09P5AHL*C
EASC12P5AHL*C EASC18P5AHL*C EASC24P5AHL*C
INDOOR UNIT
EASE09P5AHL*C
EASE12P5AHL*C
W
W
W
W
Heat and Cool
Heat and Cool
Heat and Cool
Heat and Cool
9000
12000
18000
24000
9000
12000
18000
24000
*Color (W=White;S=Silver;M=Mirror)
Cycle
Cooling power (Btu/h)
Heating power (Btu/h)
Rated voltage (V)
EASE18P5AHL*C EASE24P5AHL*C
220-240
220-240
220-240
220-240
Frequency (Hz)
50
50
50
50
Indoor unit width (mm)
680
770
1030
1030
Indoor unit high (mm)
255
255
315
315
Indoor unit depth (mm)
178
188
218
218
7
7,5
12,5
12
Outdoor unit width (mm)
700
780
760
845
Outdoor unit high (mm)
540
540
590
700
Outdoor unit depth (mm)
240
250
285
320
Outdoor unit net weight (kg)
24,5
28
36
50
Indoor unit net weight (kg)
Download PDF

advertising
