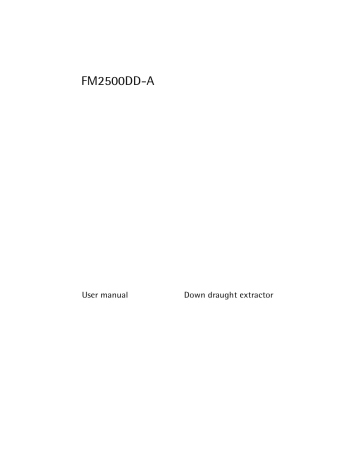

FM2500DD-A
User manual
Down draught extractor
2
Contents
Thank you for choosing one of our high-quality products.
To ensure optimal and regular performance of your appliance please read this instruction manual carefully. It will enable you to navigate all processes perfectly and most efficiently.
To refer to this manual any time you need to, we recommend you to keep it in a safe
place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
Contents
Operating Instructions
3
Cleaning and Care
7
Safety instructions
3
What to do if …
9
Description of the Appliance
Cooking surface layout
Control panel layout
Operating the appliance
Switching the appliance on and off
Setting position of down draught extractor
Setting fan level
Switching intensive fan on and off
Using the timer
Automatic cut-out
4
4
4
5
5
6
6
6
7
7
Disposal
10
1
3
2
z
Installation Instructions
11
Assembly
13
Installing more than one Frontline hob
Rating Plate
Service
15
18
19
The following symbols are used in this user information:
Warning! This must be read! Important advice for the safety of persons and information
on avoiding damage to the appliance
General information and advice
Information on environmental protection
Dangerous voltage
Operating Instructions
3
Operating Instructions
1 Safety instructions
Please comply with these instructions. If you do not, any damage resulting is not covered by the warranty.
Correct use
• This appliance is not intended for use by children or other persons whose physical,
sensory or mental capabilities or lack of experience and knowledge prevents them
from using the appliance safely without supervision or instruction by a responsible
person to ensure that they can use the appliance safely.
• Do not leave the appliance unattended during operation.
• The appliance must not be used as a work surface or as a storage surface.
• Additions or modifications to the appliance are not permitted.
Children’s safety
• Small children must be kept away from the appliance.
• Only let bigger children work on the appliance under supervision.
General safety
• The appliance may only be installed and connected by trained, registered service engineers.
• Built-in appliances may only be used after they have built in to suitable built-in units
and work surfaces that meet standards.
• In the event of faults with the appliance or damage to the glass ceramic (cracks,
scratches or splits), the appliance must be switched off and disconnected from the
electrical supply, to prevent the possibility of an electric shock.
• Repairs to the appliance must only be carried out by trained registered service engineers.
Safety during use
•
•
•
•
•
Remove stickers and film from the glass ceramic.
When the appliance is switched on, do not flambé directly next it.
In the event of fire, switch off appliance.
Smother fire using a cover, never use water to put out.
Switch off the appliance after each use.
Safety when cleaning
• For cleaning, the appliance must be switched off.
• For safety reasons, the cleaning of the appliance with steam jet or high-pressure
cleaning equipment is not permitted.
How to avoid damage to the appliance
• The glass ceramic can be damaged by objects falling onto it.
4
Description of the Appliance
Description of the Appliance
Cooking surface layout
Fin
Filter
Upper
casing
Frontline strip
Control panel
Shaft of down draught
extractor
Control panel layout
Fan level
display
Position selection
Timer indicator
Fan level selection
Intensive fan
On/Off
Timer
Operating the appliance
5
Touch Control sensor fields
The appliance is operated using Touch Control sensor fields. Functions are controlled by
touching sensor fields and confirmed by displays and acoustic signals.
Touch the sensor fields from above, without covering other sensor fields.
Sensor field
Function
On / Off
To switch the appliance on and off
Increase settings
To increase position
Reduce settings
To reduce position
Fan
To set fan level
Intensive fan
To switch intensive fan on/off
Timer
Timer selection
Displays
Display
¾
¿-Á
e
Description
no power setting set
Fan levels
Fan level is set
Clean filter
Filter must be cleaned
Safety cut-out
Safety cut-out has been activated
Operating the appliance
Switching the appliance on and off
3
3
3
Control panel
Display
Pilot light
To switch on
Touch
for 2 seconds
¾
lights up
To switch off
Touch
for 1 second
none
goes out
After switching on, within approx. 10 seconds a function must be set, otherwise the appliance automatically switches itself off.
Let the down draught extractor run for a few minutes before and after preparing a meal.
While the down draught extractor is working, windows in the room should be closed. A
window in a neighbouring room can be open.
6
Operating the appliance
Setting position of down draught extractor
Increasing extractor position
Step
1.
Control panel
Position of extractor
Touch
Middle
once
2.
Touch
Fan level 1 is switched on.
Top
Reducing extractor position
Control panel
Step
Position of extractor
1.
Touch
Middle/bottom
The appliance switches off in the lowest position.
Retaining extractor position
Control panel
Step
Position of extractor
1.
Touch
The appliance switches off.
3
Current position is retained
If the appliance becomes blocked when changing the position, it switches off automatically.
Setting fan level
Control panel
Fan level display
Fan power
1.
Step
Touch
once
¿
150 m³/h
2.
Touch
once
À
220 m³/h
3.
Touch
once
Á
345 m³/h
Switching off fan level
Step
1.
Control panel
Touch
Display
¾
The fan level is switched off.
Switching intensive fan on and off
The intensive fan function makes extra power available for 5 minutes. After that the
appliance switches off automatically or switches back to the previously set fan level.
To switch on
Control panel
Touch
Fan power
480 m³/h
To switch off
Touch
previously set fan power
Cleaning and Care
7
Using the timer
After the time set has elapsed, the suction switches off. The down draught extractor remains in the top position.
Setting the time
Step
1.
Control panel
Touch
once
Display
60 seconds
2.
Touch
... 05...10...15... 20 (5 minute increments
for easier setting)
for longer
The time is set.
The time counts down.
Switching timer function off
Step
1.
Control panel
Display
Touch
The remaining time counts up to 00.
The timer function is switched off.
Automatic cut-out
• If one or more sensor fields are covered for longer than approx. 10 seconds, e.g. by a
pan cloth lying on them, the appliance switches off automatically.
• If the appliance is not switched off after 6 hours or the fan level is not altered, the appliance automatically switches itself off.
must be touched.
• Before the appliance is used again,
Cleaning and Care
1
1
1
1
Important: A blocked grease filter can ignite. Keep appliance clean.
Important: Sharp objects and abrasive cleaning materials will damage the appliance.
Clean with a damp cloth and washing up liquid.
Important: Residues from cleaning agents will damage the appliance. Remove residues
with a damp cloth and washing up liquid.
Important: Risk of fire! Cleaning must be performed according to the instructions in
these operating instructions.
Glass ceramic, shaft of down draught extractor
3
1. Wipe the appliance with a damp cloth and a little washing up liquid.
2. Dry the appliance using a clean cloth.
Scratches or dark stains on the glass ceramic cannot be removed but do not affect the
functioning of the appliance.
8
Cleaning and Care
Upper housing
1.
2.
3.
4.
Filter
3
1
3
3
3
3
Switch on down draught extractor and move to the top position.
Remove upper housing.
Wipe the appliance with a damp cloth and a little washing up liquid.
Dry the appliance using a clean cloth.
After 30 hours of operation the filter must be cleaned, 0 appears.
1.
2.
3.
4.
5.
6.
Important: Fingers can get caught. Only remove filter or upper casing when appliance is
dismantled.
Switch on down draught extractor and move to the top position.
Switch off fan level.
Remove upper casing and place on something soft.
Press in and remove the springs of the filter.
Take filter out.
Clean filter with hot water and washing up liquid or clean in the dishwasher.
If cleaned in the dishwasher, the filter can become discoloured, but this does not affect
the functioning of the filter.
7. Install filter, springs and upper casing in reverse order.
The filter must be completely dry before being installed.
8. Reset filter sensor by pressing
and at the same time for 3 seconds.
9. 0 goes out.
If the filter is cleaned before the 30 hours of operation have elapsed, it can be reset in
the same way.
If the electricity supply is interrupted, the filter sensor automatically resets itself.
Removable Frontline strip
The aluminium Frontline strip fastens on by means of magnets. It is easy to remove by
hand and can be cleaned with detergent. Please do not use any scouring agents or
sponges that scratch. Do not clean the strip in the dishwasher.
What to do if …
9
What to do if …
Problem
The appliance cannot be
switched on or is not operating
Fuses keep blowing
1
3
Possible cause
Remedy
More than 10 seconds have
Switch appliance on again
passed since the appliance was
switched on
Several sensor fields were
touched at the same time
Only touch one sensor field
The sensor fields are partly
covered by a damp cloth or
with liquid
Remove the cloth or the liquid.
Switch appliance on again
Electronics fault
Disconnect appliance from the
electrical supply for a few
minutes. (Take the fuse out of
the house’s wiring system.)
If the appliance still does not
operate after switching on
again, call the Customer Care
Department
Too many electrical appliances
are connected
Switch off electrical appliances
The fan is switched off, but the There was a power cut during
down draught extractor is
operation
raised
Switch on down draught
extractor and touch
e is displayed
Filter sensor has responded.
Clean filter and reset filter
sensor (see section “Cleaning
and Care”)
Down draught extractor has
switched off automatically
and cannot be switched on
again
Vertical adjustment of the
down draught extractor has
become jammed
Disconnect appliance from the
electrical supply for a few
minutes. (Take the fuse out of
the house’s wiring system.)
If the appliance still does not
operate after switching on
again, call the Customer Care
Department
If you are unable to remedy the problem by following the above suggestions,
please contact your local Service Force Centre.
Warning! Repairs to the appliance are only to be carried out by qualified service engineers. Considerable danger to the user may result from improper repairs.
If the appliance has been operated incorrectly, the engineer's visit will be chargeable,
even during the warranty period.
10
Disposal
Disposal
2
2
Packaging material
The packaging materials are environmentally friendly and can be recycled. The plastic
components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.
Old appliance
W
The symbol
on the product or on its packaging indicates that this product may not
be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent potential negative consequences
for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this
product, please contact your local city office, your household waste disposal service or
the shop where you purchased the product.
Installation Instructions
11
Installation Instructions
1
1
1
1
z
z
1
Safety instructions
Warning! This must be read!
The laws, ordinances, directives and standards in force in the country of use are to be
followed (safety regulations, proper recycling in accordance with the regulations, etc.)
Installation may only be carried out by a qualified electrician.
The minimum distances to other appliances and units are to be observed.
Anti-shock protection must be provided by the installation, for example drawers may
only be installed with a protective floor directly underneath the appliance.
The cut surfaces of the worktop are to be protected against moisture using a suitable
sealant.
The sealant seals the appliance to the work top with no gap.
Important: If the down draught extractor is operated at the same time as a gas appliance, there must be sufficient draught in the room.
Important: If the down draught extractor is operated at the same time as a fireplace, the
pressure in the room must be below 4 Pa (4 x 10-5 bar).
Important: If the mains cable is defective, it must only be replaced by a qualified electrician or our Customer Care Department in order to prevent hazards.
Risk of injury from electrical current.
• The electrical mains terminal is live.
• Make electrical mains terminal free of voltage.
• Follow connection schematic.
• Observe electrical safety rules.
• Ensure anti-shock protection by installing correctly.
• The appliance must be connected to the electrical supply by a qualified electrician.
Risk of injury from electrical current.
• Loose and inappropriate plug and socket connections can make the terminal overheat.
• Have the clamping connections correctly installed by a qualified electrician.
• Use strain relief clamp on cable.
A device must be provided in the electrical installation which allows the appliance to be
disconnected from the mains at all poles with a contact opening width of at least 3 mm.
Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to
be removed from the holder), earth leakage trips and contactors.
Connect down draught extractor to an air-tight vent hose or vent pipe with a 120 mm
diameter and at least 1 m long.
Important: Do not connect down draught extractor to the voltage supply until an adequate air outlet has been provided.
Do not connect vent hose or vent pipe to an air shaft, flue or similar which is already in
use.
If several Frontline appliances are installed, install down draught extractor between the
appliances.
Distance from flammable materials: at least 150 mm
12
1
1
1
1
Installation Instructions
Important: Official regulations must be followed when drawing off exhaust air.
Important: Do not conduct exhaust air to a chimney which is used by appliances operated with gas or other combustible fuels.
Installing next to a gas appliance
Important: The appliance must not be built in between two gas appliances.
Important: If a gas appliance is installed next to the down draught extractor, the down
draught extractor may only extract air on the opposite side. Therefore the fin nearest the
gas appliance must be removed and the supplied cover must be fitted.
To remove the fin
1. Switch on down draught extractor and move to
the top position.
2. Switch off fan level.
3. Press in and remove the springs of the filter.
4. Take filter out.
5. Remove upper casing and place on something
soft.
6. Remove the two screws which hold the fin.
7. Remove single screw that holds the lever that
closes the fin.
8. Remove the fin.
To fit cover
1. Lay cover on the glass ceramic.
2. Position cover on the upper housing.
3. Mark four holes on the upper casing. Use cover
as a template.
4. Remove cover and drill the four holes in the
upper casing.
5. Remove adhesive film.
6. Press cover in position on the upper casing.
7. Affix cover with the blind rivets supplied.
8. Install filter, springs and upper casing in reverse
order.
Assembly
Assembly
min. 500 mm
13
14
Assembly
Installing more than one Frontline hob
15
Installing more than one Frontline hob
3
Additional parts: cross bar(s), heat resistant silicon, rubber block, shaving blade.
Only use special heat-resistant silicon.
Cut-out section
Distance from the wall: at least 50 mm
Depth:490 mm
Width: The widths of all appliances to be built-in are added together, minus 20 mm
(see also “Overview of all appliance widths”)
Example:
Installing more than one appliance
1. Work out the size of the cut-out section and saw it out.
2. Remove Frontline strip from the appliances by hand (magnetic fastening).
3. Lay the appliances one at a time on something soft (for example a blanket) with the
underside facing upwards.
4. Screw / clip fixing plates / retaining grips into the appropriate holes in the protective boxes.
5. Place first appliance in the cut-out. Lay connecting cross bar in the cut-out and push up
halfway against the appliance.
16
Installing more than one Frontline hob
6. Put silicon on the appliance corners that will touch one another. Put silicon on the end
of the cross bar.
7. Loosely screw in fixing plates / retaining grips from below on the worktop and on the
connecting cross bar.
8. Place Frontline strips on the appliances. Check that the Frontline strips are in line with
one another.
9. Tighten the fixing plate / retaining grip screws.
Installing more than one Frontline hob
10. Inject a line of silicon into the gap between the appliances.
11. Dampen silicon line with a little soapy water.
12. Press rubber block hard against the glass ceramic and draw it slowly along the gap.
13.
14.
15.
16.
Leave silicon until the next day to harden.
Carefully remove projecting silicon with a shaving blade.
Clean glass ceramic thoroughly.
Replace Frontline strips.
Overview of all appliance widths
180 mm
Worktop-mounted cooker hood
360 mm
Glass ceramic cooking surface with 2 radiation cooking zones
Glass ceramic cooking surface with 2 induction cooking zones
Gas hob with 2 burners
Grill
Grill/Deep fat fryer
Wok
Induction Teppanyaki
580 mm
Glass ceramic cooking surface with 4 radiation cooking zones
Gas hob with 4 burners
Induction Teppanyaki
720 mm
Glass ceramic cooking surface with 4 radiation cooking zones
Glass ceramic cooking surface with 4 induction cooking zones
Gas hob with 4 burners
17
18
Rating Plate
941 177 540
AEG-ELECTROLUX
0,31 kW 230 - 240 V
50 Hz
FDD 180
FM2500DD-A
Service
19
Service
In the event of technical faults, please first check whether you can remedy the problem
yourself with the help of the operating instructions (section “What to do if…”).
If you were not able to remedy the problem yourself, please contact the Customer Care
Department or one of our service partners.
In order to be able to assist you quickly, we require the following information:
– Model description
– Product number (PNC)
– Serial number (S No.)
(for numbers see rating plate)
– Type of fault
– Any error messages displayed by the appliance
– three digit letter-number combination for
glass ceramic
So that you have the necessary reference numbers from your appliance at hand, we recommend that you write them in here:
Model description:
.....................................
PNC:
.....................................
S No:
.....................................
374 469 703-B-250309-02
Subject to change without notice
www.electrolux.com

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
