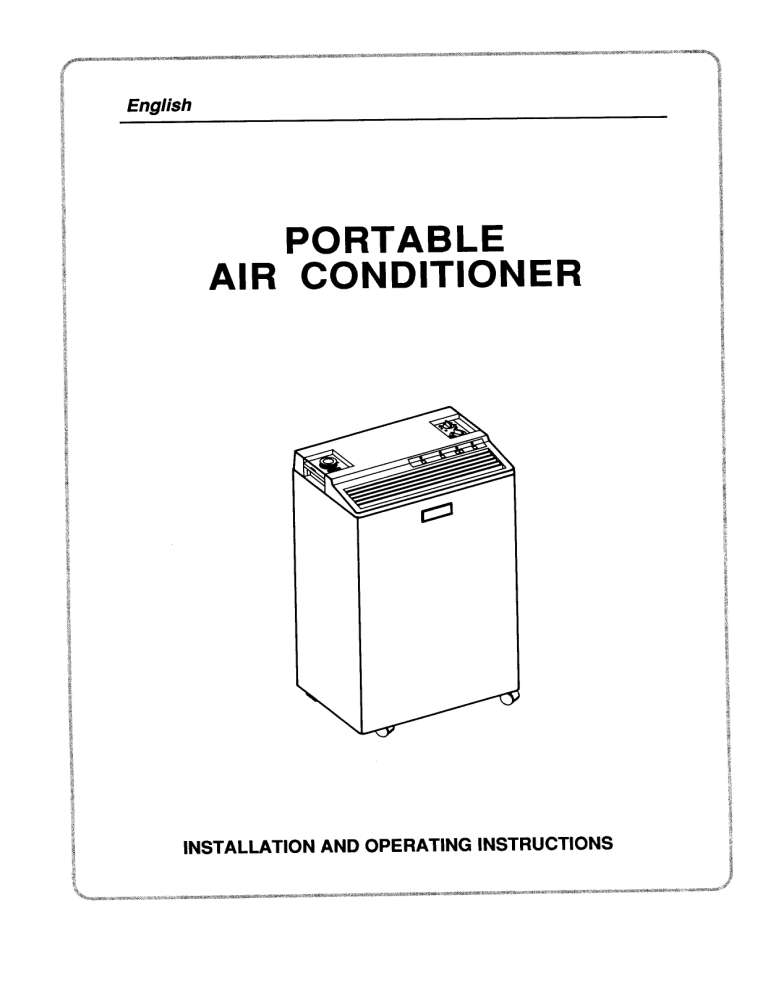

 English
PORTABLE
AIR CONDITIONER
INSTALLATION AND OPERATING INSTRUCTIONS
[] INTRODUCTION
This portable air conditioner is designed for versatile applications:
* Cooling air in the summer.
* Improving cooling effect by dehumidifying the air at high humidity conditions.
* Heating
Dehumidifying damp environments (basements, laundry rooms etc.) by using most of its
energy to remove moisture from the room's space.
PLEASE READ THESE INSTRUCTIONS
BEFORE OPERATING THE AIR CONDITIONER
WARNING
* This air conditioner must be grounded to protect against electrical shock.
* Do not expose the unit to rain.
ATTENTION | ;
In using this air conditioner for the first time, please do the following:
1. Read the instruction manual and familiarize yourself with the controls.
2. Plug the electric cord into a power socket.
3. Check that all control functions operate properly.
as
English 1
[J TECHNICAL SPECIFICATIONS
Cooling capacity(1) W-Btu/hr 2100-7200
Heating capacity W 1500
Power consumption, cooling W 850
Power consumption, heating W 1550
Power consumption, "dry" W 1550
Dehumidification in "cooling” /hr 1.0
Dehumidification in "dry" (Il) Ihr 1.4
Air delivery m3/hr-cfm 340-200
Indoor fan speeds 2
Fiexible discharge hose length mm 1100
Electrical supply V/Ph/Hz 220-240/1/50
Fuse rating amp 10(delayed action)
Dimensions (HxWxD) mm 800x470x330
Weight Kg. 46
(I) Capacity based on test conditions of:
Indoor: 27°C/80°F DB - 19°C/67°F WB
(Il) At entering air of 30°C/86°F and 80% RH
Optimal operating temperatures:
Indoor: 15-36°C/59-97°F.
FEATURES
* On-Unit operation controls
* Indicator control lights
* Warning light
* Thermostat
* Modes:
Fan: High/Low
Cooling: High/Low
Heating: High/Low
Dry: (Dehumidifying)
* Timer (Optional)
* Built-in condensate water overflow protection
Actual cooling capacity might vary according to local environmental conditions.
English 2
В
L] DESCRIPTION
DE
Figure 1 Figure 2
1. Indicator panel 5. Air filter handle
2. Adjustable supply air grille 6. Filter
3. Castors 7. Exhaust hose connection
4. Carrying handle 8. Power cord
9. Drain tube with plug
[] ACCESSORIES
Wall or window hose sleeve
Sleeve cover
Suction pads
Window nozzle
в © № ;-
Figure 3
English 3
[] INSTALLATION FOR COOLING
FIXED INSTALLATION (see fig. 4, fig 5.)
For fixed installation, a sleeve (1. Fig. 3) should be installed through the wall, partition or
window (Fig. 4). The opening may be located in any convenient spot, providing it is within
reach of the exhaust hose.
Prepare an outlet hole 110 mm in diameter. Apply a waterproof sealant to the sleeve flange
and install it in the opening. Insert the exhaust hose end into the fixed sleeve, make sure
the connection is airtight (See Fig. 5).
WARNING: Make sure the unit is level
J
|
7
Figure 4
——]]
LEE Nl
—
Sleeve
Window installation
Partition installation
Wall installation
Waterproof sealant
RON
y
NL” O
Figure 5
Ú
English 4
PROVISIONAL INSTALLATION
This method of installation does not require a permanent opening in the room. The exhaust
hose is inserted through the gap of a slightly opened door or window. This allows the unit
to be easily moved from room to room and re-installed within minutes.
Fit the window nozzle (4, Fig. 3) on the end of the exhaust hose and insert it through the
opening of a door or a window. Use suction pads (3, Fig. 3) to hold the window in place.
(Fig. 6)
WARNING: Make sure the unit is level
\\
Figure 6
A
English 5
INSTALLATION FOR HEATING
For heating operation the exhaust hose is not required, remove the hose and store it. Use
the sleeve cover (2, Fig. 3) to close the wall opening.
INSTALLATION FOR "DRY" OPERATION
In "dry" operation (a mode giving priority to dehumidification while cooling) the exhaust hose
removes hot and moist air to the outdoors. The method of installation is the same as for
cooling operation.
INSTALLATION FOR DEHUMIDIFICATION
In this mode of operation the exhaust hose should be disconnected. Remove the exhaust
hose and store it.
During the entire dehumidification operation, the unit must be connected to a permanent
drain by means of an extension tube. (See Fig. 7).
NOTE:
DURING A PROLONGED DEHUMIDIFICATION OPERATION
EXPECT A RISE IN ROOM TEMPERATURE.
Figure 7
ELECTRICAL CONNECTION
Before plugging in check that:
* The power supply and the fuse correspond to the value shown in the specification table.
* The socket and the mains lead correspond to the power requirements of the air
conditioner.
* The socket fits the plug.
* The socket is properly grounded.
THE MANUFACTURER CANNOT BE HELD RESPONSIBLE FOR ANY DAMAGE DUE TO
FAILURE IN FOLLOWING NORMAL SAFETY PROCEDURES
English 6
7 \
[] ОРЕВАТЮМ
in order to obtain maximum comfort and economy, please make sure:
Doors and windows of room to be conditioned are closed.
* Unit's outlet and inlet openings are obstruction-free.
* Shade the room from direct sun-rays and avoid excessive heat sources in the room.
ON-UNIT CONTROL AND DISPLAY PANEL
A - Selector-switch knob C - Timer - option
B - Temperature control knob D - Timer switch - option
u 1 LJ
O e
[o]
Selector-switch positions <
А1. ОН
A2 Fan only - high D1. Timer OFF (continuous run)
A3. Fan only - low D2. Air conditioner OFF
A4. Cooling - high D3. Timer ON
A5. Cooling - low
A6. Heating - high
A7. Heating - low
A8. Dry
E - Indicators panel
~®= О Jd
| t
| ы ® O |
Indicators
9. Power ON indicator - green 11. Heating/Dry indicator - green
10. Cooling/Dry indicator - green 12. Overflow warning indicator - red |
by |
English 7
te
English 8
OPERATING PROCEDURE
When the unit is connected to a power supply, indicator (9) lights up. This means that the
unit is ready for operation.
Plug in the unit to the power supply. Indicator (9) will light up. Move Timer switch D to D1
position.
90
ей
Turning on the air conditioner
Turn the selector-switch knob (A) from OFF to any desired position.
Fan only operation (Ventilating)
Turn the selector-switch knob (A) to one of the following positions:
* High fan (A2)
* Low fan (A3)
Cooling operation
Turn the selector-switch knob (A) to one of the following positions:
* High cooling (A4)
* Low cooling (A5)
When the cooling mode is activated, indicator (1 0) will light up. Itis recommended to use
the High-cooling mode (A4) when fast drop in temperature is required, while the
low-cooling mode (A5) should be used for normal-quiet operation to maintain the
selected temperature.
Heating operation
Turn the selector-switch knob (A) to one of the following positions:
* High heating (A6).
* Low heating (A7).
When the heating mode is activated, indicator (11) will light-up.
Selecting the temperature
The desired temperature is selected by turning the temperature control knob (B).
If the temperature in the room is higher than desired, turn knob (B) clockwise to a new
position.
If the temperature is lower than desired, turn knob (B) counterclockwise to a new
position.
“Dry” operation
At high humidity conditions, turn selector-switch (A) to the “dry” position (8) to activate
the dehumidifying mode. Indicators (10), (11) will light up. At this mode, the fan will
switch to low speed, the compressor will run continuously and the temperature will be
regulated automatically by the thermostat, which will switch the heating element ON
and OFF. Select suitable temperature.
NOTE: At extremely high humidity conditions, operating in cooling or “dry”mode, the
water basin may fill up. Indicator (12) will turn-on. At this point the unit will stop. Turn the
unit off, drain the water basin and then restart the unit to resume normal operation. To
drain the water basin, place a pan under the drain tube and remove the drain tube plug
(See Fig. 8).
Figure 8
Dehumidifying operation
Important:
At this mode the exhaust air is discharged into the room.
* The air conditioner must be connected to a permanent drain (See Fig. 7). Turn
selector-switch (A) to activate the “dry” mode. indicators (10), (11) will light up.
In a prolonged dehumidification operation, expecta rise in room temperature.
Turning off the air conditioner
Turn selector-switch (A) to OFF position (A1). The power indicator (9) will remain on.
WARNING: Wait 5 minutes before restarting the cooling or dry modes, or selecting
suitable temperature setting.
English 9
Timer (Optional)
To operate the timer, make sure that the unit is plugged-in and the power indicator
(9) is lit.
When the timer switch (D) is in D1 position, the timer cannotbe operated and the unitis
operated directly by the selector switch (A).
When the timer switch (D) is in D2 position, the air conditioner will be turned OFF; in this
position itcannotbe turned ON neither by switch A nor by the timer.
When the timer switch (D) is in D3 position, the unit will be turned ON and OFF by the
timer.
The timer used in this air-conditioner is a “real time” type and must be preset before
use. To do thatturn the timer wheel clockwise until the number indicating the time of day
matches the timer arrow.
The timer rim consists of 48 switching pins (30 minutes time interval per pin). When all
the pins are pushed down, the unit will not operate. Pulling the pins up will cause the
timer to turn on the unit at the time indicated by the pins.
Example: Timer setting
OFF |
IE 5)
ON ] <
© X
Z_——
OFF o
Operation of the unit will be at the mode selected by the selector-switch (A).
[| MAINTENANCE
Cleaning the air filter (See Fig. 2) This filter is located at the rear of the air conditioner (6).
Slide the filter up, pulling on the filter handle (5). Rinse the filter with tap water. Dry it and
re-install it in its place. Clean at least once during the season, or as necessary.
English 10
PRECAUTIONS
* This air conditioner has been manufactured in order to air condition domestic environments
and should not be used for any other purpose.
* Do not obstruct the air discharge and inlet of the air conditioner.
* |t is dangerous to make any changes or alterations in this air conditioner.
* Should repair be necessary, contact the nearest authorized service center. Unqualified
servicing is dangerous.
* This air conditioner is to be used by adults only. Do not allow children to play with it.
* Always ground the unit.
* Make sure the unit is installed level.
* Before cleaning or maintenance operations, always disconnect the plug from the socket.
* Do not apply any strain on the power cord when moving the unit.
* The air conditioner should not be installed where the atmosphere could contain combustible
gases, oil or sulphur, or near sources of heat.
* Do not put hot or heavy objects on the air conditioner.
* Clean air filter periodically.
* The air conditioner should be transported in an upright position. After transporting, wait at
least one hour before switching it on. |
* Move the unit with caution over carpets and rugs.
* |n fixed installation, the air discharged through the exhaust hose has been removed from the
room. Make sure the room is not airlight.
* Lighting up of the red indicator may be a warning against a condensate pan full of water. Turn
the unit off, drain the water, then restart the unit to resume normal operation.
* In case of damage to the power cord, it should be replaced or repaired by an authorized
technician.
English 11
[0 TROUBLESHOOTING
Consult the following troubleshooting check-list whenever the unit does not function properly.
Should this fail to remedy the malfunction, contact your nearest authorized service center
for qualified assistance.
PROBLEM CAUSE SOLUTION
— The unit does not — power failure — check fuse
function.
— plug is disconnected — insert plug
— Timer switch in OFF — Switch to D1
position (D2)
— Unit functions for only — improper thermostat — decrease thermostat
brief periods in cool- setting setting
ing, or dry mode.
— Water overflow — condensate basin full — empty unit
indicator lights up.
— Unit functions but — window open — close window
does not cool. — source of heat in room — remove source of heat
(cooker, etc) or room is
overcrowded with people
— thermostat setting — lower thermostat setting
is too high |
— air filter blocked — clean filter
— air conditioner capacity — consult your supplier
is unsuitable for the
room size or conditions
— loss of refrigerant — — Call service center
— room tightly closed — slightly open window or
outside door
— exhaust hose blocked, — remove obstruction
twisted or bent
— Unit does not heat. — thermostat setting too low — reset thermostat
— heating element burned — call service center
— Dehumidification — Condensate Pan — Drain the water through
overflow indicator full of water the rear tube
lights up.
=
English 12
cod. 24NVSH
502 343 87-004
CAT. NO. 410420: MULTI-LANGUAGE REV. 02 4/95
г -
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
