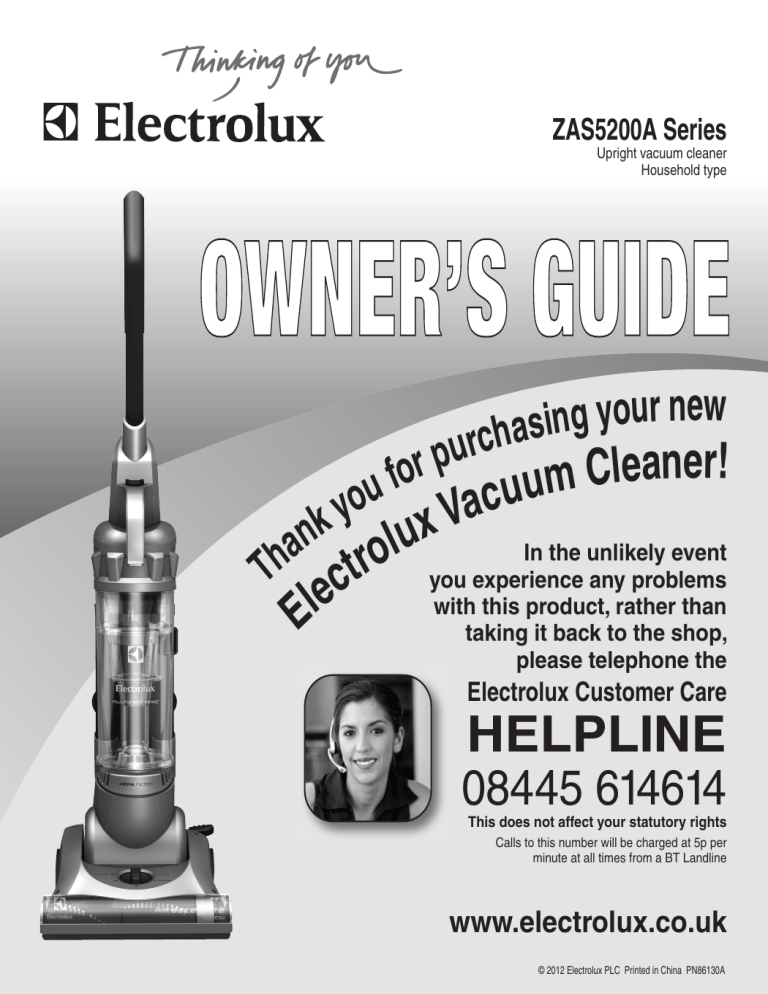

ZAS5200A Series
Upright vacuum cleaner
Household type
OW N ER’S G UIDE
ew
n
r
u
o
y
g
n
i
s
a
h
c
r
u
Cleaner!
for p
Th
m
u
u
u
c
o
a
y
V
k
x
lu
an
In the unlikely event
o
r
t
c
e
l
E
you experience any problems
with this product, rather than
taking it back to the shop,
please telephone the
Electrolux Customer Care
HELPLINE
08445 614614
This does not affect your statutory rights
Calls to this number will be charged at 5p per
minute at all times from a BT Landline
www.electrolux.co.uk
© 2012 Electrolux PLC Printed in China PN86130A
Where to find important vacuum information
Keep this information
Write the model, type and serial number here:
Date of purchase (keep your receipt) _______________
Model number and type _________________________
Serial number _________________________________
Find these numbers on a label on the underside of the vacuum
cleaner. Refer to these numbers when ordering parts and
accessories or if service is needed.
Before you start your vacuum cleaner
Refer to Quick Start Guide for assembly and use. This Owner’s Guide provides
important instructions to prolong the life of your Electrolux vacuum cleaner.
IInspection
Carefully unpack and inspect your new Electrolux vacuum cleaner for shipping damage. Each unit is tested
and thoroughly inspected before shipping. For instructions regarding any shipping damage, call Electrolux
Customer Care HELPLINE 08445 614614 immediately (Calls to this number will be charged at 5p per minute at all times from a BT Landline).
Table of contents
Important safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Before using this vacuum cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
How to identify parts of vacuum cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Maintenance information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Dust bin and filters.
How to use accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Crevice tool, dusting brush, and stair and upholstery brush.
How to maintain your vacuum cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
How to clear a blockage, clean brush roll, maintain brush roll and replace belt ZE090.
Proprietary carpet conditioning and air freshening materials.
How to obtain service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
How to dispose and recycle vacuum properly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Thermal cut-off and problem solving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Electrolux guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
! Follow caution information wherever you see this symbol.
Electrolux Customer Care HELPLINE 08445 614614 Calls to this number will be charged at 5p per minute at all times from a BT Landline.
www.electrolux.co.uk
IMPORTANT SAFEGUARDS
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER
WARNING
!
To reduce the risk of fire, electric shock, or injury:
• Do not use outdoors or on wet surfaces.
• Do not leave vacuum cleaner when plugged in. Turn off the switch and unplug the electrical cord when not in use
and before servicing.
• This appliance is not intended for use by any persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If vacuum cleaner is not working as it should, has been dropped, damaged, left
outdoors, or dropped into water, return it to a service center before using.
• Do not pull or carry by cord. Do not use cord as a handle. Do not close a door on cord or pull cord around sharp edges
or corners. Do not run vacuum cleaner over cord. Keep cord away from
heated surfaces.
• Do not use extension cords or outlets with inadequate current carrying capacity.
• Turn off all controls before unplugging.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or vacuum cleaner with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that
may reduce airflow.
• This vacuum cleaner creates suction and contains a revolving brush roll. Keep hair, loose clothing, fingers, and all parts
of body away from openings and moving parts.
• Do not place vacuum cleaner on furniture or stairs as the brush roll may cause damage. Use extra care when cleaning
stairs. Place vacuum cleaner on floor with the handle in storage
position while using attachments.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without dust bin and filter in place.
• Belt pulleys can become hot during normal use. To prevent burns, avoid touching the belt pulley when servicing the
drive belt.
• Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas where they may be present.
• Store your vacuum cleaner indoors in a cool, dry area.
• Keep your work area well lighted.
• Unplug electrical appliances before vacuuming them.
• Unplug before connecting stair and upholstery brush.
SAVE THESE INSTRUCTIONS
WARNING
The brush in the cleaning head rotates at high speed and can cause damage to the mains supply cable if the
vacuum passes over it during cleaning operations.
Care should be taken to ensure that this does not happen. If the cleaning head has accidentally passed over the mains
supply cable the following action should be taken:
1. Switch off and remove the plug from the socket outlet.
2. Examine the mains supply cable for damage (only after removing the plug from the socket outlet).
3. If there is any sign of damage to the supply cable it MUST be renewed. The repair MUST be carried out by an
Electrolux Service Agent or a similar qualified person.
4. NEVER use the machine with a damaged mains supply cable.
Electrolux Customer Care HELPLINE 08445 614614 Calls to this number will be charged at 5p per minute at all times from a BT Landline.
www.electrolux.co.uk 1
Before using this vacuum cleaner
Check the voltage
• Remove the fuse from the cut off plug.
Before connecting the vacuum to an electrical supply,
ensure that the voltage shown on the rating plate located
beneath the vacuum is of the correct voltage for your
electricity supply. If it is not, do not use the vacuum but refer
back to your dealer.
• The cut off plug should then be disposed of to prevent the
hazard of shocks in case it should be plugged into a 13
amp socket in another part of your home.
Connecting to your electricity supply
• Permanently connected to the vacuum is a mains supply
(2-core) cable fitted with a non-rewirable plug
incorporating a 13A fuse.
• In the event of the fuse requiring replacement the fuse
cover should be removed using a small screwdriver. The
old fuse MUST be replaced by a 13A ASTA approved
BS1362 fuse or a BSI approved fuse. The cover must be
replaced before the plug is used again. In the event of loss
of the fuse cover, replacements can be obtained from your
Electrolux Retailers and must be of the same colour as
indicated by the coloured insert on the base of the plug.
• If difficulty is experienced in obtaining a replacement,
contact Electrolux Customer Care HELPLINE 08445
614614. Calls to this number will be charged at 5p per
minute at all times from a BT Landline.
• In no circumstances must the plug be used without a
correct fuse cover fitted.
• If the plug that is fitted to your appliance is not suitable for
your socket outlet, it must be cut off and the appropriate
plug fitted.
• The wires in the mains cable of this appliance are
coloured in accordance with the following code: Blue:
Neutral. Brown: Live.
• As the colours of the wires in the mains cable of this
appliance may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
• The wire which is coloured blue must be connected
to the terminal which is marked with the letter N or
coloured black.
• The wire which is coloured brown must be connected
to the terminal which is marked with the letter L or
coloured red.
• If using a three-pin plug, do not make any connection
to the terminal marked with the letter E or by the
earth symbol or coloured green or green-and-yellow.
This vacuum is double insulated and no earth
connection is necessary.
• It is in your interest to ensure that the plug is correctly
attached to the mains cable. In case of doubt, consult a
qualified electrician, as Electrolux cannot regard the repair
of faults on the plug connection as a service that can be
given free of charge under the terms of the guarantee.
13 Amp Fuse
Fuse
Cover
E
N
Fuse
Blue
L
Brown
Cord
Clamp
2 Electrolux Customer Care HELPLINE 08445 614614 Calls to this number will be charged at 5p per minute at all times from a BT Landline.
www.electrolux.co.uk
!
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER.
Moving parts! Assemble the vacuum cleaner before using.
How to identify parts of vacuum cleaner
Maintenance information
Clean as needed to maintain suction
Replace within 6 months
Washable filters
HEPA filter EF35
Wash screen
Handle
Stair and upholstery brush
(on some models)
Dust bin release button
Lift latch to open cover.
Cover
Washable dust bin filters
Twist to unlock
cyclone assembly
from dust bin.
Cyclone
Screen
Remove dust bin.
Remove foam filter
from filter frame.
Rinse and dry
THOROUGHLY.
Filter cover
Collar
Cyclone
assembly
Twist HEPA cover
and lift off.
HEPA filter EF35
Carpet height selector
Brush roll cover
Twist and remove
collar to release
screen from cyclone.
(on some models)
Reinstall filters.
Belt ZE090
Brush roll
Cord retainer
Rinse screen and dry
THOROUGHLY;
reassemble.
Power switch
Upper cord wrap
Close cover
until it clicks.
Replace HEPA filter
and cover. Turn to lock.
Snap dust bin
into place.
Never use vacuum without all filters in place.
Power cord
Hose with wand
Empty dust cup after each use
BELT ZE090 – Replace worn,
cut or out of shape belt
Dusting brush
Crevice tool
BRUSH ROLL
Clean monthly
Lower cord wrap
Handle release
Air path selector knob
Press button
to release bottom lid.
Debris will empty.
Close bottom lid
until it clicks.
Electrolux Customer Care HELPLINE 08445 614614 Calls to this number will be charged at 5p per minute at all times from a BT Landline.
www.electrolux.co.uk 3
How to use accessories
!
!
Handle must be in upright position.
Reinsert wand into hose after using accessories.
When using accessories
Turn air path selector knob to
‘TOOLS’ (Fig. 1).
Hose with wand
S
OL
TO
FL O
OR
ATH SELECTO
RP
R
AI
• Pull handle to release hose
(Fig. 2).
• Press power switch to turn
vacuum on (I) (Fig. 3).
Fig. 1
Fig. 2
• Pull out wand (Fig. 4).
• Attach tool to end of wand.
Stretch hose as needed (Fig. 5).
Fig. 4
• Press button to reinsert wand
into hose (Fig. 6).
Fig. 5
Crevice tool
Use for baseboards, corners and furniture.
Push crevice tool onto end of wand (Fig. 7).
Dusting brush
Fig. 6
Fig. 3
Use for furniture, drapes and vents. Push
dusting brush onto end of wand (Fig. 5).
Stair and upholstery brush
(With some models or available for purchase)
Use for furniture and stairs (Fig. 7).
Make sure vacuum is below you, pushed
against the bottom step (Fig. 8).
Fig. 7
Fig. 8
4 Electrolux Customer Care HELPLINE 08445 614614 Calls to this number will be charged at 5p per minute at all times from a BT Landline.
www.electrolux.co.uk
How to maintain your vacuum cleaner
!
Make sure vacuum cleaner is turned off and power cord is unplugged.
How to clear a blockage
Hose blockage
• Pull handle to release hose (Fig. 1).
• Grasp hose collar and twist to unlock.
Remove hose from vacuum body (Fig. 2).
Flexing the hose will loosen blockage.
• Squeeze and pull cover off air path selector
knob (Fig. 3).
Fig. 1
Fig. 2
• Pull out air path selector knob (Fig. 4).
• Use fingers to clear blockage from hose
and valve assembly (Fig. 5).
Fig. 4
• Reinsert air path selector knob. Snap on
cover (Fig. 3).
• To reinstall hose, align tabs with notches
and set into base (Fig. 6). Twist collar to
lock (Fig. 2). Reinsert wand fully into hose;
snap into clip at top (Fig.1).
Fig. 3
Fig. 5
Fig. 6
Fig. 7
Clean brush roll
Turn vacuum face down on floor. Use scissors
to remove hair and threads from brush roll
(Fig. 7).
Electrolux Customer Care HELPLINE 08445 614614 Calls to this number will be charged at 5p per minute at all times from a BT Landline.
www.electrolux.co.uk 5
!
How to maintain your vacuum cleaner
Make sure vacuum cleaner is turned off and power cord is unplugged.
Maintain brush roll
Motor pulley can become hot with normal use.
Remove hair and threads from brush roll periodically. Do not remove end caps.
!
Check belt ZE090. Replace if worn, cut or out of shape.
Avoid touching the motor shaft when checking brush roll or belt.
How to replace brush roll or belt
1) Step on handle release to lower handle
flat onto floor (Fig.1).
2) Remove 4 screws from brush roll cover.
(Fig. 2).
Fig.1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
3) Lift off brush roll cover. (Fig. 3).
4) Remove brush roll and belt. Thread new
belt around motor shaft and brush roll
(Fig. 4).
5) Insert left end of brush roll first. Make
sure end cap fits into base. Pull right side
of brush roll to stretch belt and insert
right end cap into base (Fig. 5). Make
sure it slides into position.
6) Rotate brush roll 2 turns to center belt.
7) Replace brush roll cover (Fig. 3).
8) Replace 4 screws (Fig. 6).
Proprietary carpet conditioning and air freshening materials
After using proprietary carpet conditioning powders, it is recommended that the filters be changed. Some of these
preparations contain substances which if left in the vacuum for extended periods could damage the plastic
mouldings which form the structure of the vacuum.
Many air fresheners, household deodorants, sprays and polishes contain a highly flammable gas propellant.
Because of this, it is particularly important that these products are used strictly in accordance with the relevant
manufacturer’s instructions.
It is essential that none of the above products are sprayed directly into the vacuum or any of its filters, hose
assembly, dustbag chamber or dustbin.
6
Electrolux Customer Care HELPLINE 08445 614614 Calls to this number will be charged at 5p per minute at all times from a BT Landline.
www.electrolux.co.uk
How to obtain service for your vacuum cleaner
Should you require service on your Electrolux vacuum,
please telephone Electrolux Customer Care HELPLINE
08445 614614. Before requesting service, please check
whether your problem is covered under Service
Checklist (see below). Electrolux will arrange the uplift
of the product for repair should no local service agent
be available.
New filter pads, brush rolls and drive belts can be
obtained from Electrolux Retailers. If difficulty is
experienced in obtaining spares, please contact
Electrolux Customer Care HELPLINE 08445 614614.
Service Checklist
• If your vacuum will not operate, check the plug
connection, plug fuse and mains fuse.
• Never allow the dustbin to become so full that it
impedes the air flow, thus reducing the cleaning
efficiency of the machine. The character of household
dust and its effect on the air flow through the machine
may vary considerably. Fluffy dust allows air to pass
through readily whereas fine powdery dust or
proprietary cleaning powders pack tightly in the dustbin,
offering greater resistance to air flow and will reduce
cleaning efficiency if the cup becomes overloaded.
• Always store your vacuum and spare dust filters in a
dry place.
• Sucking up such items as stockings, clippings of cloth,
sizeable pieces of paper, wrappings from cigarette
packets or sweets etc., may block the hose. Electrolux
regrets that the clearing of blocked hoses cannot be
regarded as service that can be given free of charge,
under the guarantee. Should a blockage occur, first
disconnect the vacuum from the electricity supply, refer
to section headed “How to Clear a Blockage.” If these
operations are not successful, contact Electrolux
Customer Care HELPLINE 08445 614614.
• Never pick up hot cinders or lighted cigarette ends.
• Make certain that your vacuum does not come into
contact with water or any other liquid. It is not
designed as a wet pick up vacuum, and must never
be used on damp carpets or wet floors.
Important – in the event of the mains supply cable of this
vacuum requiring replacement, we recommend that this
be carried out by Electrolux Service Staff.
Spares
New filters, brush rolls and drive belts can be obtained
from Authorised Electrolux Dealers and electrical
retailers. If difficulty is experienced in obtaining spares
please call Electrolux Customer Care HELPLINE
08445 614614. Or visit our website at
www.shop.electrolux.co.uk
• Renew the filter pads regularly. This is essential to
ensure continued high filtration of dust particles.
Use care to dispose or recycle properly
This symbol on the product or on its packaging indicates that this product may not be treated as household waste.
Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by inappropriate waste
handling of this product. For more detailed information about recycling of this product, please contact your local
city office, your household waste disposal service or the shop where you purchased the product.
Electrolux Customer Care HELPLINE 08445 614614 Calls to this number will be charged at 5p per minute at all times from a BT Landline.
www.electrolux.co.uk
17
Thermal cut-off
This vacuum has a special thermostat that protects the vacuum in case of motor overheating. If the vacuum switches off,
turn the switch to off position and unplug the vacuum. Check the vacuum for a possible source of overheating such as a
full dustbin, a blocked hose or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before
attempting to use the vacuum. After the 30 minute period, plug the vacuum back in and press the power switch to turn
on (I). If the vacuum still does not run, please call Electrolux Customer Care Helpline.
Problem solving
!
Make sure vacuum is turned off and power cord is unplugged.
Solution
Cause
Problem
Power switch
• Push power switch to turn vacuum on.
Thermal cut-off
• See above.
Dust bin and filter
• Empty dust bin, clean and/or change filter.
• If picking up fine dust, the dust bin may not look full, but
a fine substance tends to reduce suction when it blocks
air flow through the filter and screen. Refer to page 3 for
filter maintenance. Make sure filter, screen and dust bin
are installed properly.
Hose /valve assembly
• Remove clogs from the hose that restrict the airflow. Page 5.
• Clear blockage from hose / valve assembly. Page 5.
• Make sure air path selector knob is turned to ‘FLOOR'
setting. Page 4.
Belt
• Replace a worn, cut, or out of shape belt. Page 6.
Carpet height setting
• Turn carpet height selector to another setting. Page 3.
Dust bin and filter
• Empty dust bin, clean and/or change filter.
• If picking up fine dust, the dust bin may not look full, but
a fine substance tends to reduce suction when it blocks
air flow through the filter and screen. Refer to page 3 for
filter maintenance. Make sure filter, screen and dust bin
are installed properly.
Hose / valve assembly
• Remove clogs from the hose that restrict the airflow. Page 4.
• Clear blockage from hose / valve assembly. Page 4.
• Make sure air path selector knob is turned to ‘HOSE'
setting. Page 3.
Stair and upholstery
brush will not turn.
Rotating brush
• Check stair and upholstery brush for debris.
Vacuum is hard
to push.
Carpet height setting
• Turn carpet height selector to another setting. Page 3.
Belt
• Replace a worn, cut or out of shape belt. Page 6.
Belt
• Check brush roll for debris. Page 5.
Motor will not start.
Vacuum does not
clean carpet.
No suction at the
end of hose.
Burning smell; brush roll
will not turn.
• Replace broken or out of shape belt. Page 6.
8 Electrolux Customer Care HELPLINE 08445 614614 Calls to this number will be charged at 5p per minute at all times from a BT Landline.
www.electrolux.co.uk
GUARANTEE
This guarantee is in addition to your statutory and other legal rights.
This product is for household use only.
Electrolux products are carefully designed, manufactured, tested and inspected and, in consequence, we
undertake to replace or repair any part found to be defective in materials or workmanship, within one year
of delivery to the original purchaser, free of charge. You may be required to take the product to your nearest
service provider if the product requires attention during the first year.
There are certain conditions which may invalidate this guarantee:
a. It is dependent upon the appliance being correctly installed and used in accordance with the Company’s
instructions under normal domestic conditions within the United Kingdom or the Republic of Ireland.
b. Service at all times must be carried out by an Electrolux Service Representative or authorised agent.
c. The guarantee may be invalidated by unauthorised repair or modification of the appliance.
d. You may be charged by Electrolux if you call for an engineer to resolve a problem that we believe is
covered in the instruction booklet. (example: blocked/dirty filters)
Electrolux does not accept liability for all defects arising from neglect, misuse or accident. This guarantee
excludes such normal wearing parts as drive belts, brushes and filters as the life of these depends upon
the amount and nature of use.
Proof of purchase will be required before service under guarantee is provided. Please call Electrolux
Customer Care HELPLINE 08445 614614. Calls to this number will be charged at 5p per minute at all
times from a BT Landline.
Electrolux Floorcare
Addington Way
Luton
Bedfordshire
LU4 9QQ
Features of the Electrolux vacuum and accessories supplied with it are protected in Great Britain and abroad by Patents or Registered Designs.
This appliance conforms with the requirements of the amended E.E.C. directive No. 2004/108/EC relating to electromagnetic compatibility (EMC) CE.
Electrolux, may introduce modifications to their product from time to time, and consequently the details given in this booklet are subject to alteration
without notice.
Electrolux Customer Care HELPLINE 08445 614614 Calls to this number will be charged at 5p per minute at all times from a BT Landline.
www.electrolux.co.uk
9
k
n
a
Th
yo
s
a
h
c
r
u
p
r
o
f
u
cuum Cleaner!
a
V
x
u
l
o
r
t
c
Ele
n
a
g
in
If you experience any problems
with your vacuum, don’t struggle
taking it back to the shop.
Call Electrolux Customer Care
HELPLINE
08445 614614
This does not affect your statutory rights
Calls to this number will be charged at 5p per
minute at all times from a BT Landline
Don’t forget to use
genuine Electrolux belts and filters
Caution: Damages caused by the use of non-genuine
parts are not covered by the Electrolux Guarantee.
www.electrolux.co.uk
Download PDF

advertising
