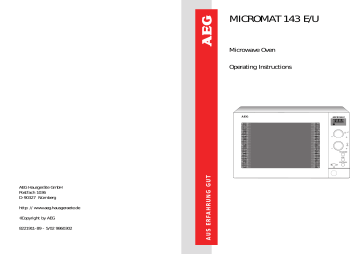

MICROMAT 143 E/U
Microwave Oven
Operating Instructions
PROGRAMME
STOP
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http: // www.aeg.hausgeraete.de
©Copyright by AEG
8221911-89 - 5/02 9860302
AUS ERFAHRUNG GUT
START/QUICK
Dear customer,
Thank you for buying an AEG microwave oven and putting your
trust in the AEG brand name.
Before using your AEG microwave oven for the first time, please
read the instruction book thoroughly. This will enable you to take
advantage of all the features that the appliance offers. It will also
ensure trouble-free operation and minimize unnecessary service
calls. Be sure to keep the manual for future reference.
!
Important information concerning your safety or the operation of
your appliance is noted by this symbol and/or mentions words such
as «Warning», «Take care». Be sure to follow all instructions carefully.
Throughout the manual, this symbol guides you step by step when
operating the appliance.
i
This symbol indicates further information concerning the use of the
appliance.
¤
)
The clover indicates energy-saving tips and hints for environmentally
friendly use of your appliance.
¤
☞
¤
In the event of malfunctioning, please follow the instructions given
in the section «What to do if...»
Printed on recycled paperAEG - putting words into action
2
English
Contents
Important information
Ecologically responsible disposal of packaging materials
and old appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
Safety Instructions
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For trouble free and safe operation . . . . . . . . . . . . . . . . . . . . . . .
Microwaves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
5
6
General operating instructions
Suitable ovenware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
What else to note. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
8
Installing and Connecting
Built-in model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Built-under model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
9
9
Product Description
The Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
11
12
Before using the appliance
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13
“At a glance” operating instructions . . . . . . . . . . . . . . . . . . . . .
14
Modes of operation
Microwave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Notes on microwave power levels . . . . . . . . . . . . . . . . . . . . . . . .
Automatic programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick-Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16
17
18
21
Minute Timer with alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22
Cooking charts and Tips
Microwave tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Practical tips for use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tips on microwaving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Test procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23
27
28
29
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30
What to do if... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31
AEG Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32
3
Important information
Ecologically responsible disposal of packaging
materials and old appliances
¤
)
Packaging materials
AEG microwave ovens require effective packaging to protect them
during transportation. Only the minimum packaging necessary is
used.
Packaging materials (e.g. foil or styrofoam) can place children at risk.
Danger of suffocation. Keep packaging material away from children.
¤
i
¤
!
All packaging materials used are environment friendly and can be
recycled. The cardboard is made from recycled paper and the wooden
parts are untreated. Plastic items are marked as follows :
«PE» polyethylene eg packaging film
«PS» polystyrene eg packaging (CFC-free)
«PP» polypropylene eg packaging straps
By using and re-using the packaging, raw materials are saved and
waste volume is reduced.
Packaging should be taken to your nearest recycling centre. Contact
your local council for information.
¤
¤
)
¤
4
Disposal of old appliances
Old appliances should be made safe before disposal by removing the
plug, and cutting off and disposing of the power cable.
It should then be taken to the nearest recycling centre. Check with
your local Council or Environmental Health Office to see if there are
facilities in your area for recycling the appliance.
English
Safety instructions
!
General
• Your appliance is designed exclusively for the domestic purposes of defrosting, heating or cooking foods. The manufacturer bears no responsibility
in the case of improper usage.
• The appliance should only be operated with the turntable and turntable
support inserted.
• Only suitable microwave ovenware should be used.
• Do not leave the appliance unattended when warming or cooking food in disposable containers made of plastic, paper, or other flammable materials, due
to fire hazard.
• If smoke is observed, turn the oven off, disconnect the power supply and
keep the oven door closed to extinguish any flames. Contact your local
AEG Service Force Centre. Never use the microwave oven if it is no longer
functioning properly.
• This appliance complies with all relevant safety instructions. In order to
maintain the safety of the appliance, repairs should only be carried out by
an AEG Service Force Centre. WARNING: it is dangerous for anyone other
than qualified personnel to make any repairs requiring removal of the cover
providing protection from exposure to microwave energy. In the case of any
defect or breakdown, please therefore contact your local AEG approved
retailer or the AEG Service Force Centre
• WARNING: Should the door seals and/or door seal surfaces be damaged,
the appliance should not be operated until it has been repaired by the AEG
Service Force Centre.
• Damaged appliance parts can only be replaced by exactly the same make
of parts. Special tools are required for this operation.
• Never tamper with the lock mechanism of your microwave oven; you could
cause damage requiring repair by an authorised technician.
• WARNING: This appliance is designed to be operated by adults. Do not allow
children to use the microwave oven without supervision unless they have
been thoroughly instructed in the proper use and the dangers of improper
operation.
!
For trouble free and safe operation
• Never jam anything between the door and the door frame.
• Always keep the door seals and their surfaces clean.
• Do not keep any flammable items in the microwave. They could ignite
when the unit is switched on.
• Switch the appliance on only when the food has been placed inside the
cooking space, as it could overload if there is no food present.
5
Safety instructions
!
Microwaves
• During delayed boiling, the boiling temperature is attained without the typical steam bubbles rising. When the container is shaken, even gently, the liquid
may then suddenly vigorously boil over or spurt - with the risk of scalding the
user. To prevent liquids from boiling over and possible burns, whenever heating liquid, please place a teaspoon in the container and wait 20 seconds before
removing the containers from the appliance or adding anything to the liquid,
to avoid sudden spurting of the liquid.
• WARNING : Be sure to remove the cap or lid before cooking foods or heating liquids in a sealed bottle or container, which could otherwise explode.
• Make sure that a minimum temperature of 70°C is attained for the cooking /
heating of food. Never use a mercury or liquid thermometer for measuring the
temperature of the food.
• Baby food in jars or bottles should always be heated without a lid or top, and
well stirred or shaken after heating, to ensure uniform distribution of the
heat. Always check the temperature before feeding to your child in order
to avoid scalding.
• The hot food in a microwave oven will heat up the ovenware. For this reason
always use oven gloves for handling hot dishes.
• Never cook your food for too long or at too high a power setting. Some
areas of the food can dry out or even ignite.
• To protect the appliance against corrosion from moisture (condensation) in
the cavity or on the door, wipe these areas dry after each use.
• Do not use porcelain or ceramic crockery, or porous earthenware (e.g. on the
handles or unglazed bases) in your microwave as these types of dishes can
absorb moisture from the food as it is cooking. This can cause vapour pressure to build up which could shatter the dish.
• Food with «skin» or «peel», such as potatoes, tomatoes, sausages, and the like,
should be pierced with a fork so that any steam present can escape and the
food will not burst.
!
6
Do not use your microwave oven for the following :
• The heating or cooking of boiled, coddled eggs or fried eggs by microwave is
prohibited. They can burst and cause serious burns or irreparable damage to
your oven.
• to heat large quantities of cooking oil (fondue or deep frying) and drinks
containing a high percentage of alcohol - there is danger of spontaneous
combustion!
• to heat unopened cans, bottles, etc.
• to dry animals, textiles or paper.
English
!
General operating instructions
Suitable ovenware
Ovenware material
Ovenproof glass and ceramic
dishes (without any metal parts,
e.g. Pyrex, oven-to-tableware)
Non ovenproof glass and porcelain
(e.g. table crockery) 1)
Glass ceramic and vitro-ceramic
made of fire/frost proof material
(e.g. Arcoflam)
Ovenproof earthenware 2)
Plastic, heat-resistant up to
200°C 3)
Paper, cardboard
Cling film
Microwave cling film 3)
Black-lacquered or silicone-coated
baking tins
X suitable
Mode of operation
Defrosting
Heating
Cooking
X
X
X
X
-
-
X
X
X
X
X
X
X
X
X
X
X
X
X
X
-
-
-
- non suitable
1)
excluding silver, gold, platinum or metal decoration
does not include glaze containing metal
3) please note the maximum temperature stated by the manufacturer
2)
7
i
What else to note...
• Food comes in all shapes, sizes and textures. The quantities also
vary. For these reasons the time and amount of energy needed to
defrost, heat or cook will also vary. As a general rule :
Double the quantity/weight = nearly * double the time
• Please refer to the cooking charts. To be on the safe side, always
select the shorter cooking time. Then extend the time as necessary.
• Microwaves work by making the food heat itself up. Because of this,
not all areas of the food will be heated at the same time. When heating larger quantities of food, it is particularly important to stir or turn
them over.
• “Standing time” is referred to in the cooking charts. This is the
time you should leave the food to stand without power (either
inside or outside the appliance). This ensures even distribution of
heat throughout the food.
Installing and Connecting
• Check whether your oven has suffered any damage during transport (deformed door or door seal, etc.). If you see any signs of
damage, contact your dealer before use.
• Do not use your appliance immediately (wait approx. 1-2 hours)
after transfer from a cold place to a warm place as condensation
may cause a malfunction.
• The oven must be set on a work surface at least 85 cm above floor
level.
• Place the oven on a flat and horizontal surface, away from any
source of heat or steam.
• Make sure that air may circulate freely around the oven.
For countertop models, leave sufficient space around the oven :
20 cm
cm
- 5 cm between the sides of the
oven and any walls or objects
10
- 20 cm above the oven
5 cm
- 10 cm behind the oven.
8
5 cm
English
Built-in model
To install the appliance in a kitchen cabinet, use the appropriate mounting
frame. Note the relevant instructions for installation and connection. When
building in to a high cabinet, you may use the liftdoor. Note the relevant
information for installation and connection given in the operation instructions of the lift door.
!
Attention !
Never operate the microwave oven with the lift door closed. Such operation
would damage your appliance and invalidate the guarantee.
Built-under model
This appliance can be built under a kitchen wall cabinet with the aid of a set
of fixings. (Optional extra)
!
Electrical connections
• Your installation must be protected by a 10 Amp thermal fuse.
• It is mandatory to use a power point with a ground terminal, connected in accordance with current safety regulations.
• In your electrical installation, provide a device that is accessible to the
installer, capable of separating the appliance from the mains power
and whose contact opening is at least 3 mm at all of the poles.
• Never operate the oven if the supply cord and/ or its plug are damaged.
In case of damage, call in a specialised technician trained by the manufacturer.
This appliance complies with the following EC Directives :
73/23/EEC of 10.02.1973 - Low voltage directive 89/336/EEC of
03.05.1089 (incl. Amendment Directive 92/31/EEC) - EMC
(Electromagnetic Compatibility) Directive.
9
Product Description
The appliance
F
D
A
PROGRAMME
STOP
START/QUICK
E
C
B
A Control panel
B Turntable
C Door seal
D Door latch and catch
E Viewing window
F Interior lighting
10
D
English
The control panel
A Display for time of day,
cooking time, function mode,
power etc.
A
B
B Multi function button to set
the time of day and display the
selected microwave power etc.
C Power knob
with signal
light to select microwave power.
C
D
PROGRAMME
D Rotary knob to select the
cooking time
or the
weight
when using automatic programmes.
E Button for automatic programmes ‘PROGRAMME’ for
defrosting and cooking.
E
STOP
F
START/QUICK
G
H
I
F CLEAR button ‘STOP’ to cancel settings.
G START button ‘START/QUICK’
to start the selected function
and to switch on QUICK-START.
H Button for switching the turntable off with signal light.
I
Button for opening door
.
11
Accessories
The turntable and turntable
support should be installed as
shown in the diagram.
Take care to ensure the turntable support is properly in
place.
The turntable may turn clockwise or counterclockwise
during operation.
Do not try to rotate the roller
ring manually, as you could
damage the drive system.
12
English
Before using the appliance
☞
Setting the clock
Example: 12:15 hrs
1. Plug the appliance into the
mains. The display starts to flash
0 0 : 0 0 ». The
« A E G » and then «0
dots between the digits blink
rapidly.
00:00
2. Press the Multi function button beneath the display (top left
side). The dots between the digits
blink faster.
PROGRAMME
STOP
START/QUICK
3. While keeping the Multi function button pressed, set the time
1).
of day with the rotary knob
Release the button as soon as the
time of day is displayed. The dots
between the digits blink slowly.
The appliance is now ready for
use.
12:15
i
1) The rotary knob
can be turned clockwise (to increase) or counterclockwise (to decrease).
The time of day can be corrected at any moment by pressing the Multifunction button and simultaneously turning the rotary knob
.
13
☞
«At a glance» operating instructions
Action
1. Press the door release button.
Comments
.
The door opens.
2. Place food in the cooking space.
3. Shut the door.
The door will click audibly when it is
properly shut. If the door is not shut properly, the appliance will not function.
4. Select according to the instructions
given on the following pages.
The order in which you programme
functions has no consequence 1). Turn the
time button clockwise to increase or
counterclockwise to decrease time 2).
5. If required : switch off the turntable.
When the turntable has been switched
off, the appropriate signal lamp lights
up. The turntable should only be turned
off when using rectangular ovenware
that is larger than the turntable and is in
danger of jamming.
6. Press the START-button
The appliance starts. The display shows the
selected cooking time, counting down
backwards in seconds. (The signal light
representing the chosen function lights
up.)
‘START/QUICK’.
7. End of cooking sequence.
☞
14
The end of the cooking sequence is indicated by a triple bell. The appliance and the
interior light will switch off. The display
area once again shows the time of day.
1)
If the oven is not started within 4 minutes, the settings are automatically
cancelled; time of day reappears in the display.
2)
If the maximum cooking time setting « 6 0 : 0 0 » is surpassed during the setting,
the display shows « 0 0 : 0 0 »
English
☞
Action
Comments
• Open the door by pressing the door
The appliance and interior lighting switch
off. In the display, the two dots between
the digits flash. The selected settings
remain. The remaining time counts
down automatically.
release button
e.g.for stirring.
• Shut the door and press the START
button ‘START/QUICK’
•Press the CLEAR button ‘STOP’.
The running process is cancelled. The
appliance and the interior lighting
switch off. Time of day is displayed.
• Modify the selected cooking time:
The cooking time in the display changes
when turning the rotary button. 1)
turn the rotary knob
counterclockwise.
clockwise or
• Modify the selected microwave power:
rotate the power knob
.
• Press the Multi function button.
i
1)
The new power setting is displayed for 5
seconds. The cooking process continues
with the new power setting.
The selected parameters are displayed
successively for 5 seconds each, e.g. programme name, weight, microwave
power ...
If the new selection reaches « 00:00 » in the display, the cooking time is over and
a triple bell rings. The appliance and the interior lighting switch off. During a cooking
process, the cooking time can be increased to a maximum of 60 minutes.
15
Modes of operation
☞
Microwave
Setting
Example: 1 minute 15 seconds on
microwave output level 750 W
1. Set the required microwave
power by turning the power
knob. The signal lamp lights up.
The time of day disappears from
the display and the required
microwave power appears:
turn to the left = lower power
turn to the right = higher power
750
PROGRAMME
STOP
2. Set the required cooking time
by turning the Rotary knob
.
The chosen time appears in the
display.
01:15
START/QUICK
3. Press the START button
‘START/QUICK’. The selected time
starts to count down.
01:14
16
i
Cooking times can be set as follows :
from 0 to 2 min in 5 second steps
from 2 to 5 min in 10 second steps
from 5 to 10 min in 20 second steps
from 10 to 20 min in 30 second steps
starting from 21 min in 1 minute steps
Maximum programme length is 60 minutes.
!
Metal items must be kept at least 2 cm from the cavity wall and the
oven door.
English
i
Notes on microwave power levels
The following list shows you the power settings and what they can be
used for during microwave operation :
750 Watt
700 Watt
- Heating liquids
- to start a cooking sequence, start roasting,
stewing, etc.
- cooking vegetables
- cooking dishes
600 Watt
500 Watt
- defrosting and heating of deep frozen ready
made meals
- heating refrigerated ready made meals
- finish cooking casseroles
- cooking egg based dishes
450 Watt
350 Watt
250 Watt
-
finish cooking dishes
cooking of delicate dishes
heating baby food in glass jars
soaking rice
heating delicate dishes
melting of gelatin
150 Watt
80 Watt
-
defrosting meat, fish and bread
defrosting cheese, cream and butter
defrosting cakes with cream or butter icing
to make dough rise
warming cold dishes, drinks, softening butter
17
Modes of operation
Automatic Programmes
Programmes for defrosting and cooking are available. After having
selected the programme, merely enter the weight of the dish, the rest
of the programming is done automatically. The following gives you an
overview of which food can be defrosted and/or cooked with which
programme.
Automatic defrost
Programme
j- 1
Food categories
Examples
Weight from - to
Poultry fresh 1)
Poultry (whole or
portions)
Fish (whole or
fillets)
Pork roast, goulash
100 - 2000 g
Cream pie
100 - 2000 g
Fish 2)
j- 2
j- 3
1)
2)
i
18
Meat
Delicate cakes
and pastries
100 - 2000 g
100 - 2000 g
Cover legs and wings with aluminium foil before defrosting.
Cover tail and thin ends with aluminium foil before defrosting.
Unpack your frozen food item, place on the top of a small overturned
dish set inside a larger one to catch the liquid from defrosting.
Be sure and follow our recommended standing time
(general rule : standing time = defrosting time).
A triple bell will ring halfway through defrost time. Turn dish or stir
contents and, if possible, break up into pieces.
English
Automatic cooking programmes
Programme
Food categories
Examples
C1
Fresh vegetables I
Brussel sprouts,
cabbage, carrots,
celery
C2
Fresh vegetables II
Zucchini, leeks,
potatoes, spinach,
fennel, cauliflower,
broccoli
Frozen vegetables
Carrots, cauliflower,
Brussel sprouts,
leeks, zucchini,
spinach, broccoli
C3
i
Weight from - to
100 - 1000 g
100 - 1000 g
100 - 1000 g
Cook food covered, in a heat-resistant glass dish, whenever possible.
A triple bell rings halfway through cooktime. If cooking over 500 g of
vegetables, stir once or twice during the programme.
Please add water in the following amounts :
- for fresh vegetables (I+II):
100 - 500 g : 3 - 6 tablespoons / 500 - 1000 g : 9 - 12 tablespoons.
- for frozen vegetables :
100 - 500 g : 3 - 9 tablespoons / 500 - 1000 g : 9 - 15 tablespoons.
19
Modes of operation
How to use automatic programmes
☞
Example : defrosting 1 kg chicken
1. Press the button for automatic
programmes ‘PROGRAMME’ until
the desired programme appears
in the display.
j- 1
2. Use the Rotary knob to set the
weight in grams
.
1000
3. Press the START button
‘START/QUICK’. The display
shows the necessary time.
PROGRAMME
STOP
START/QUICK
i
20
29:57
4. If you want to modify the
settings, you have to press the
Clear-button ‘STOP’ and start
again.
Midway through the programme, three short rings will be heard. Stir
or turn the food item at this time. The oven does not switch off.
English
QUICK-Start
☞
How to set
The Quick-Start button ‘START/QUICK’ provides full microwave power
from 30 seconds up to 2 minutes and 30 seconds, by 30 second-intervals. Each time you push the Quick-START button ‘START/QUICK’ the
programme time is increased by 30 seconds.
Example : heating a cup of water (1 min 30 s)
1.
Press the START-button
‘START/QUICK’ three times. The
time appears in the display and
the programme begins. The
microwave power signal lamp
comes on.
01:30
PROGRAMME
2. You may increase the time by
30 second-intervals while the programme is running up to a limit
of 2 minutes and 30 seconds by
pressing the START button
‘START/QUICK’ .
STOP
START/QUICK
i
You cannot use Quick-START for programmes exceeding 2 minutes
and 30 seconds.
21
Modes of operation
Minute timer with alarm
The minute timer with alarm can also be used as a general purpose
reminder. For example, you could use it to set the time it takes to boil
the egg that you are cooking on the hob.
The timer works without switching on the appliance, as long as no
other functions have been selected.
☞
How to set:
0» using the Power knob
1. Select microwave power «0
way to the left).
(all the
2. Set the required time with the Rotary knob
. The time of day
disappears from the display and the required length of time appears.
3. Press the START- button ‘START/QUICK’ . The pre-set time will start
to count down. A triple bell rings when the timer has finished counting down.
22
English
Cooking charts and tips
Defrosting
Dish
Weight
(g)
Power
(Watt)
Duration
(min)
Standing
time
(min)
Remarks/Hints
Meat
Whole meat
500
150
14-20
10-20
Turn once. Cover fatty parts
with aluminium foil after
1st half of defrosting time.
Steak
200
150
7-9
5-10
Turn once.
Mixed chopped
meat
500
150
14-20
10-20
Goulash
500
150
14-20
10-20
Halfway through the
defrosting time remove
any pieces of meat that
have already defrosted.
As above.
Poultry
Chicken
1000
150
25-35
20-30
Turn once.
Cover legs and wings with
aluminium foil halfway
through defrosting time.
15002000
150
30-50
40-60
As for chicken.
Fish
Whole fish
500
150
13-15
15-20
Shrimps/crab
250
150
7-9
5-10
Turn once.
Cover fins with aluminium
foil.
Stir thoroughly.
Dairy produce
Cottage cheese
500
150
17-19
15-20
Butter
250
150
2-4
20-30
Cheese
Cream
250
200 ml
150
150
3-5
7-10
20-30
15-20
Fruit
Strawberries
500
80
10-14
5-10
Cherries
Black currants
Red currants
250
250
250
80
80
80
5-7
5-7
10-12
5-10
5-10
5-10
Duck
Divide and stir frozen
pieces from time to time.
Remove any aluminium
foil wrapping.
Turn once.
As for butter. Stir from
time to time.
Defrost in covered container,
turn once.
As for strawberries.
As for strawberries.
As for strawberries.
23
Cooking charts and tips
Defrosting
Description
Weight Power Duration Standing
(g)
(Watt) (min)
time
(min)
Remarks/Hints
Rolls (50g)
4 units
150
2-4
5-10
Wholemeal,
mixed, rye
loaf
1 slice
(60-80)
500
150
1-2
3-5
150
10-14
10-15
Set on a paper towel, turn
once.
Defrost in a covered container.
Cover cutting surface.
300
80
5-8
30-40
Set on a paper towel, cover.
400450
400
400
80
7-10
5-10
As for dry cakes.
80
80
7-10
7-10
5-10
5-10
As for dry cakes.
As for dry cakes.
300400
80
5-8
10-20
100
750
2-4
50
750
1-11/2
Bread
Pastry
Dry cakes
eg cakes with
short crust pastry
Fruit flans baked
on a baking sheet
1 slice cheese cake
1 slice covered
apple tart
Cream and
butter cake
Begin defrosting with microwaves, then remove.
Melting of food
Chocolate/
toppings
Butter
Break up into pieces, stir
from time to time.
To warm set time for 30 s
longer.
Heating of refrigerated food and drink
24
1 jar baby food
125250
450
11/2-2
2-3
Heat jar without lid.
Stir after warming.
Check temperature.
1 ready meal on
a plate
350400
750
400
3-5
2-3
1 portion meat
approx.
150
750
1-2
2-3
Heat in a covered container.
Place gravy alongside in a
cup.
All meat, except breaded
meat, should be heated in
a covered container.
English
Description
Weight Power Duration Standing Remarks/Hints
(g)
(Watt) (min)
time
(min)
1 portion
approx.
vegetables,
200
potatoes or rice
750
1-2
2-3
Heat in a covered container,
stir once.
1 cup soup
approx.
200 ml
750
1-2
2-3
Heat clear soup uncovered,
cover thick soups. Stir.
200 ml
750
1/2-1
2-3
Remove any lids. Stir after
warming!
Boil 1 cup water 180 ml
750
1/2-2
2-3
1 cup milk
200 ml
750
1
2-3
1 cup coffee
(reheat)
200 ml
750
1/ -1
2
2-3
Stir instant coffee or tea
when the water has stopped
boiling.
Heat milk till it is just hot
enough to drink. Stir.
Stir. Check the temperature!
Drinks
Milk or baby
food
Defrosting and heating of frozen convenience foods
1 portion meat
with gravy
150
750
3-5
2-3
Stir now and again. Heat in
a covered container.
1 portion meat
with vegetables,
garnish
350450
750
7-14
2-3
As for meat with gravy.
25
Cooking charts and tips
Cooking vegetables 1)
Description
Weight Liquid Power Duration Standing Remarks/Hints
(g)
added (Watt) (min) time (min)
Cauliflower
500
1/8 l
750
7-9
2
Dot with butter.
Frozen
broccoli
300
1/8 l
750
6-8
2
Stalks facing outwards.
Mushrooms
250
none
750
3-5
2
Cut into slices.
Frozen peas
and carrots
300
1/
2
cup
750
5-8
2
Carrots
250
2-3 tsp
750
5-7
2
Cut into cubes or slices.
Potatoes
250
2-3 tsp
750
3-5
2
Peel and quarter.
Kohlrabi
250
1/
2
750
5-7
2
Cut into spikes or
slices.
Red/green
peppers
250
750
3-5
2
Cut into spikes or
slices.
Leeks
250
1/
2
cup
750
3-5
2
Cut into rings or pieces.
Frozen Brussel 300
sprouts
Sauerkraut
250
1/
2
cup
750
6-8
2
1/
2
cup
750
5-7
2
1)
cup
none
Cook all vegetables in a covered container.
l = litre
Cooking fish
Description
i
26
Weight Power
(g)
(Watt)
Duration Standing
(min)
time (min)
Fish fillets
500
600
7-9
3
Whole fish
800
1. 750
2. 450
3-4
14-17
3
Remarks/Hints
Cook covered. Turn halfway through cooking
time.
Cover during cooking.
Turn halfway through
cooking time.
The times stated here are for guidance only, and depend on the nature and type of
food being cooked.
English
Cooking of meat and poultry
Description Quantity
(g)
Pork
Pork chop
Poultry
Chicken
Power
(Watt)
Duration
(min )
Remarks/Hints
3 pieces,
370 g
750
600
6-8
12-14
1. Cook on full power, 750 for 6-8 min
2. Turn over, reduce power to 600
and cook for 12 -14 minutes.
1000
750
12-14
Cook covered, add no liquid.
Practical tips for use
General
• After switching off your appliance, let food stand inside for a
few minutes to allow even heat distribution (standing time).
• Remove any aluminium foil or metal containing packaging before
preparing the food.
• Metal objects must be placed at least 2 cm away from the
cooking space walls and door. Otherwise arcing can occur,
resulting in damage to the appliance.
Cooking
–Whenever possible cook food covered. Only pastry dishes with crust
should be cooked uncovered.
–Refrigerated or frozen food require longer cooking times.
–Foods containing sauces should be stirred from time to time.
–Cook soft vegetables such as carrots, peas and cauliflower with
a little water.
–Cook soft vegetables such as mushrooms, peppers and tomatoes
without liquid.
–Increase cooking time by approximately 50 % for larger pieces.
Whenever possible, cut vegetables into equal-sized pieces.
Defrosting of meat, poultry and fish
–Place frozen, unpacked meat on an inverted plate in a glass or
porcelain container, so that the meat juice can drain.
–Halfway through defrosting, turn the food, dividing it when possible and removing the pieces that have defrosted.
27
Cooking charts and tips
i
Defrosting of butter, pieces of layer cake and cottage cheese
–Do not fully defrost in the appliance, but allow to complete defrosting at room temperature to give a more even result.
–Remove any metal or aluminium foil packaging and/or accessories before defrosting
Defrosting of fruit and vegetables
–Fruit and vegetables that are to be used raw later should not be
fully defrosted in the appliance, but left to complete defrosting at
room temperature outside the microwave oven.
–Fruit and vegetables that are to be cooked immediately afterwards
can be cooked without defrosting by using a higher power level.
Ready made meals
– Ready made meals in metal packages or plastic containers with
metal lids should be heated or defrosted in your microwave oven
only if they are explicitly marked as being suitable for microwave
use. Please follow the operating instructions printed on the packages
(e.g. remove the metal lid and prick the plastic foil).
i
Tips on microwaving
You can’t find cooking details for
specific quantity of food.
Base programming on a similar
type of food. Lengthen or shorten
the cooking time accordingly:
Double quantity = almost double
time
Half quantity = half time
28
The food is too dry.
Set a shorter cooking time or
reduce the microwave power
output.
The food is not yet defrosted,
heated through or cooked on
completion of programme time.
Select a longer programme time
or a higher microwave power
setting. Note that larger food will
require a longer time.
The food is overcooked on the
outside and undercooked in the
middle on completion of cooking
time.
Next time, try a lower power setting for a longer time. Stir
liquids, such as soup, periodically.
English
Test procedures
(Microwave output power 750 Watt)
The quality and operation of microwave ovens are established by
recognised test institutes by testing specific dishes.
DIN
Nr. 44 566
Part 2
Defrost and cook
fish fillet
IEC 705
Power
(Watt)
Time
(min)
Standing
time
(min)
750
8-10
3
Power
(Watt)
Time
(min)
Standing
time
(min)
Comments 1)
Cover. Halfway through
cooking turn fillets so that
inner edges face outwards.
Comments
1)
Egg custard
(test A)
350
21-23
120
Sponge mixture
(test B)
Meat loaf (test C)
750
5-7
3-5
750
14-16
5
Defrost minced
meat
150
12-14
5
Place directly on turntable.
Turn over halfway through.
Defrost raspberries
80
10-12
3
Cover.
1)
Place directly on turntable unless otherwise instructed. The turntable has to be
switched on.
29
Cooking charts and tips
i
Cleaning and care
Failure to clean the appliance regularly may damage its surfaces, reduce
durability and lead to hazardous operation.
The Appliance Exterior
Regular cleaning of your oven will keep it in sound operating condition. Wipe the front of the appliance using a soft cloth and a mild,
warm detergent solution, and remove all food residue.
Do not use abrasive cleaning substances, strong detergents or coarse
abrasive cleaning materials.
Cooking area
The interior will remain in good condition for a long time so long as
you don't use scouring pads or rough abrasive materials. Use mild dishwashing liquid to clean the interior. You can neutralise odours inside
the cooking area by boiling a cup of water with a little lemon juice for
a few minutes in your oven.
Through normal operation, liquid may evaporate and condensation
may occur. This is normal and is especially noticeable when the room
temperature is low and the humidity of the air is high. After operation, be sure and wipe off the condensation with a soft cloth.
Turntable and Turntable support
The turntable can be removed by
pressing down on the outer edge
of one side so that the other side
tilts up.
Clean the turntable using washing-up liquid, or put it in the dishwasher.
Clean the turntable support with washing-up liquid.
This should be removed straight after each use and cleaned using
washing-up liquid or in the dishwasher.
30
English
What to do if...
☞
...the microwave appliance is not working properly ?
Check that
- the fuses in the fuse cupboard are working,
- there has not been a power outage.
- If the fuses continue to blow, please contact a qualified electrician.
☞
... the microwave mode is not working ?
Check that
- the door is properly closed,
- the door seals and their surfaces are clean,
- the START-button ‘START/QUICK’ has been pressed,
0’.
- the power knob is not set on ‘0
☞
... the turntable is not turning ?
Check that
- the turntable support is correctly connected to the drive,
- the ovenware does not extend beyond the turntable,
- food does not extend beyond the edge of the turntable preventing it from
rotating.
- there is nothing in the well beneath the turntable,
- the turntable is switched on.
☞
... the microwave will not switch off ?
- Isolate the appliance from the fuse box.
- Contact your local AEG Service Force Centre, or your local dealer.
☞
...the interior light is not working ?
- Call your local AEG Service Force Centre. The interior light bulb can be
exchanged only by trained AEG technicians.
☞
... the food is taking longer to heat through and cook than before ?
- Set a longer cooking time (double quantity = nearly double time) or
- if the food is colder than usual, rotate or turn from time to time or
- set a higher power setting.
31
AEG Service
You can perform certain maintenance on your own; these operations
are listed in section «What to do if...». First verify the problem, then
look it up in the appropriate section. If you do not find the solution therein, then please contact your Service Centre. Have all necessary information handy; this way it will be easier for the technician to diagnose the
problem and determine whether or not he must make a service call.
When contacting AEG Service Department, please quote the E-Number
/PNC and S-Number which you will find
on the appliance's rating plate (see
arrow).
Quoting these numbers enables the service department to identify the required
spare part so that the technician can
repair the oven on his first visit. This
saves you any extra costs that might be
incurred if the technician has to make a
repeat visit.
i
Keep these numbers handy by recording them here :
E-Nr./
PNC
S-Nr
If you decide to call the AEG Service Department to help with any of
the aforementioned problems on the grounds of faulty operation,
there will be a charge for the service technician’s visit, even during
the guarantee period. Please therefore follow the advice given in this
instruction book or any accompanying literature very carefully.
32
English
33
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
