Whirlpool WME 3621 X AQUA.1 Setup and user guide

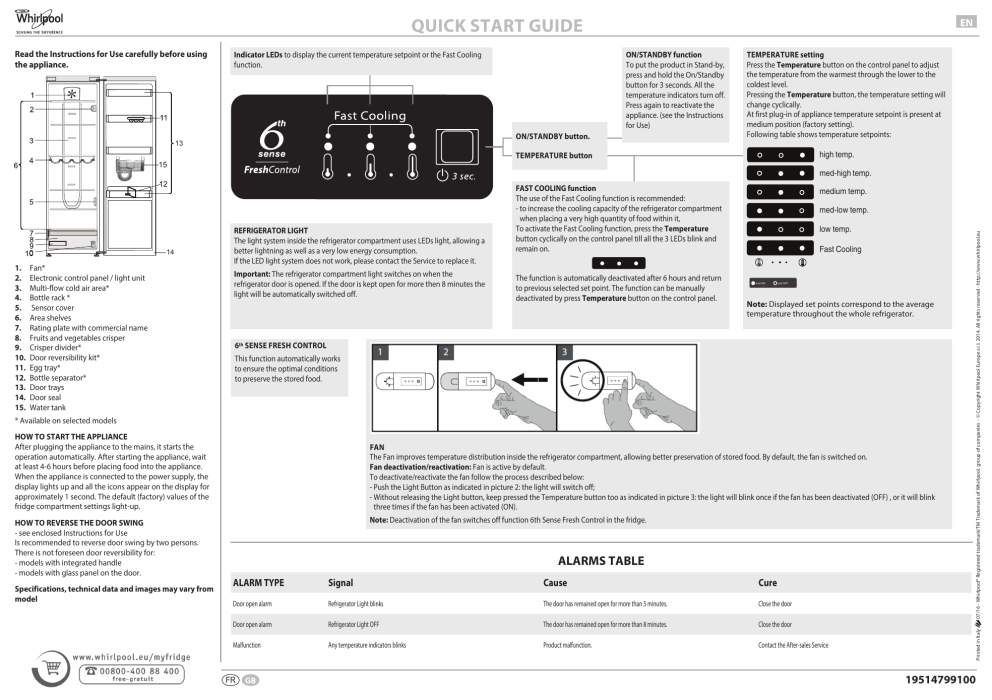

QUICK START GUIDE
Indicator LEDs to display the current temperature setpoint or the Fast Cooling
function.
ON/STANDBY function
To put the product in Stand-by,
press and hold the On/Standby
button for 3 seconds. All the
temperature indicators turn off.
Press again to reactivate the
appliance. (see the Instructions
for Use)
ON/STANDBY button.
13
TEMPERATURE button
Led ON
15
14
1.Fan*
2. Electronic control panel / light unit
3. Multi-flow cold air area*
4. Bottle rack *
5. Sensor cover
6. Area shelves
7. Rating plate with commercial name
8. Fruits and vegetables crisper
9. Crisper divider*
10. Door reversibility kit*
11. Egg tray*
12. Bottle separator*
13. Door trays
14. Door seal
15. Water tank
REFRIGERATOR LIGHT
The light system inside the refrigerator compartment uses LEDs light, allowing a
better lightning as well as a very low energy consumption.
If the LED light system does not work, please contact the Service to replace it.
Important: The refrigerator compartment light switches on when the
refrigerator door is opened. If the door is kept open for more then 8 minutes the
light will be automatically switched off.
Led OFF
TEMPERATURE setting
Press the Temperature button on the control panel to adjust
the temperature from the warmest through the lower to the
coldest level.
Pressing the Temperature button, the temperature setting will
change cyclically.
At first plug-in of appliance temperature setpoint is present at
medium position (factory setting).
Following table shows temperature setpoints:
high temp.
med-high temp.
high
high temp.
temp.
medium temp.
med-high
med-high temp.
temp.
FAST COOLING function
med-low temp.
The use of the Fast Cooling function is recommended:
low temp. compartment
- to increase the cooling capacity of the refrigerator
when placing a very high quantity of food within it,
To activate the Fast Cooling function, press the Temperature
button cyclically on the control panel till all the 3 LEDs blink and
remain on.
The function is automatically deactivated after 6 hours and return
to previous selected set point. The function can be manually
deactivated by press Temperature button on the control panel.
medium
temp.
medium temp.
med-low
temp.
med-low temp.
low
low temp.
temp.
Fast
Fast Cooling
Cooling
Led ON
Led OFF
Note: Displayed set points correspond to the average
temperature throughout the whole refrigerator.
6th SENSE FRESH CONTROL
This function automatically works
to ensure the optimal conditions
to preserve the stored food.
* Available on selected models
HOW TO START THE APPLIANCE
After plugging the appliance to the mains, it starts the
operation automatically. After starting the appliance, wait
at least 4-6 hours before placing food into the appliance.
When the appliance is connected to the power supply, the
display lights up and all the icons appear on the display for
approximately 1 second. The default (factory) values of the
fridge compartment settings light-up.
Specifications, technical data and images may vary from
model
Note: Deactivation of the fan switches off function 6th Sense Fresh Control in the fridge.
ALARMS TABLE
ALARM TYPE
Signal
Cause
Cure
Door open alarm
Refrigerator Light blinks
The door has remained open for more than 5 minutes.
Close the door
Door open alarm
Refrigerator Light OFF
The door has remained open for more than 8 minutes.
Close the door
Malfunction
Any temperature indicators blinks
Product malfunction.
Contact the After-sales Service
FR
GB
Printed in Italy
HOW TO REVERSE THE DOOR SWING
- see enclosed Instructions for Use
Is recommended to reverse door swing by two persons.
There is not foreseen door reversibility for:
- models with integrated handle
- models with glass panel on the door.
FAN
The Fan improves temperature distribution inside the refrigerator compartment, allowing better preservation of stored food. By default, the fan is switched on.
Fan deactivation/reactivation: Fan is active by default.
To deactivate/reactivate the fan follow the process described below:
- Push the Light Button as indicated in picture 2: the light will switch off;
- Without releasing the Light button, keep pressed the Temperature button too as indicated in picture 3: the light will blink once if the fan has been deactivated (OFF) , or it will blink
three times if the fan has been activated (ON).
07/16 - Whirlpool® Registered trademark/TM Trademark of Whirlpool, group of companies - © Copyright Whirlpool Europe s.r.l. 2014. All rights reserved - http://www.whirlpool.eu
Read the Instructions for Use carefully before using
the appliance.
EN
19514799100
QUICK START GUIDE
EN
UTILISATION AND MAINTENANCE OF THE WATER DISPENSER AND FILTER
- (fig. 7) replace the valve cap by rotating clockwise.
Water dispenser
First use
The first time you use the water dispenser or after a long period left not used wash the tank and the filter with water. The water dispenser provides fresh, filtered water, without the need of opening the refrigerator door. This will reduce the number of times the
door is opened, thus also reducing energy consumption of the product.
Fig. 7
Fitting and replacing the active carbon filter
The water filter should be removed from the foil bag (found in the crisper drawer (item 7). Follow the instructions provided with
the filter.
Important: If the filter is left dry for an extended period of time, its performance may be reduced. Immerse the filter in water for a
few seconds to reinstate optimum performance.
To fill the tank, rotate the cap in the direction of the
arrow
Water tank (fig. 1)
The water tank is made of antibacterial material. This prevents and reduces
the proliferation of bacteria. An internal container, with an active carbon
filtered ensures water filtration. To fill the tank: rotate the water inlet towards
you and fill with water, using a jug or other suitable container. Once the tank
is full, close the water inlet by moving it back to its original position. Always
use drinking water only: any other liquid may impair product performance.
- (fig. 8) fit the tank back in place by placing it between the
lateral guides of the door and pushing it in position, ensuring
that the valve is back in its original seat. Check that the there are
no gaps between the rubber seal of the tank and the door.
Fig. 8
Water Filter Duration
To ensure optimum performance you should change the water filter according with the following table:
Tank
Fig. 1
Activation
device
Stop
Water drip
tray
Fig. 2
Obtaining filtered water (fig. 2)
After filling the tank, the water may not be immediately available. This is
because the filtering process may require a few minutes (depending on the
amount of water in the tank).
To dispense water: with the refrigerator door closed, press the water
dispenser tab with the glass. If for safety reason water delivery must be
prevented, simply press the stop at the back of the tab. To release water
delivery, move the stop back to its original position. It is recommended to
drink the supplied water from the dispenser in 6 hours.
Cleaning the water tank (fig. 3-4-5-6-7-8)
Periodically clean the water tank with running water. Twice a year it is
recommended to keep healthy the unit using specific products based on
diluted chlorine that not modify the material properties and rinse with
current water.
To clean the tank, proceed as follows:
- (fig. 3) release and remove the water tank by lifting it and pulling towards
you. Place the tank on a flat surface, remove and wash the top cover.
Note: the tank must be refitted in its position as soon as possible, to
prevent the refrigerator from overheating.
Fig. 3
Water consumption (average)
Filter duration
3.0 l/day
4.5 l/day
4 months
3 months
6.0 l/day
2 months
Filter replacement is not covered by product warranty. To order more water filter cartridges, please contact your after-sales service.
- (fig. 4) remove the internal container and the filter, and wash them
separately.
When washing the filter, only use clean water (no detergent or sharp tools).
To clean the disk filter, first remove it from the container.
Fig. 4
- (fig. 5) for a more thorough cleaning, remove the valve cap (the fitting
connecting the tank to the refrigerator) by rotating it anticlockwise.
Clean the cap. Important: do not pull on the valve body (fig. 6).
Fig. 5
Fig. 6
FR
GB
