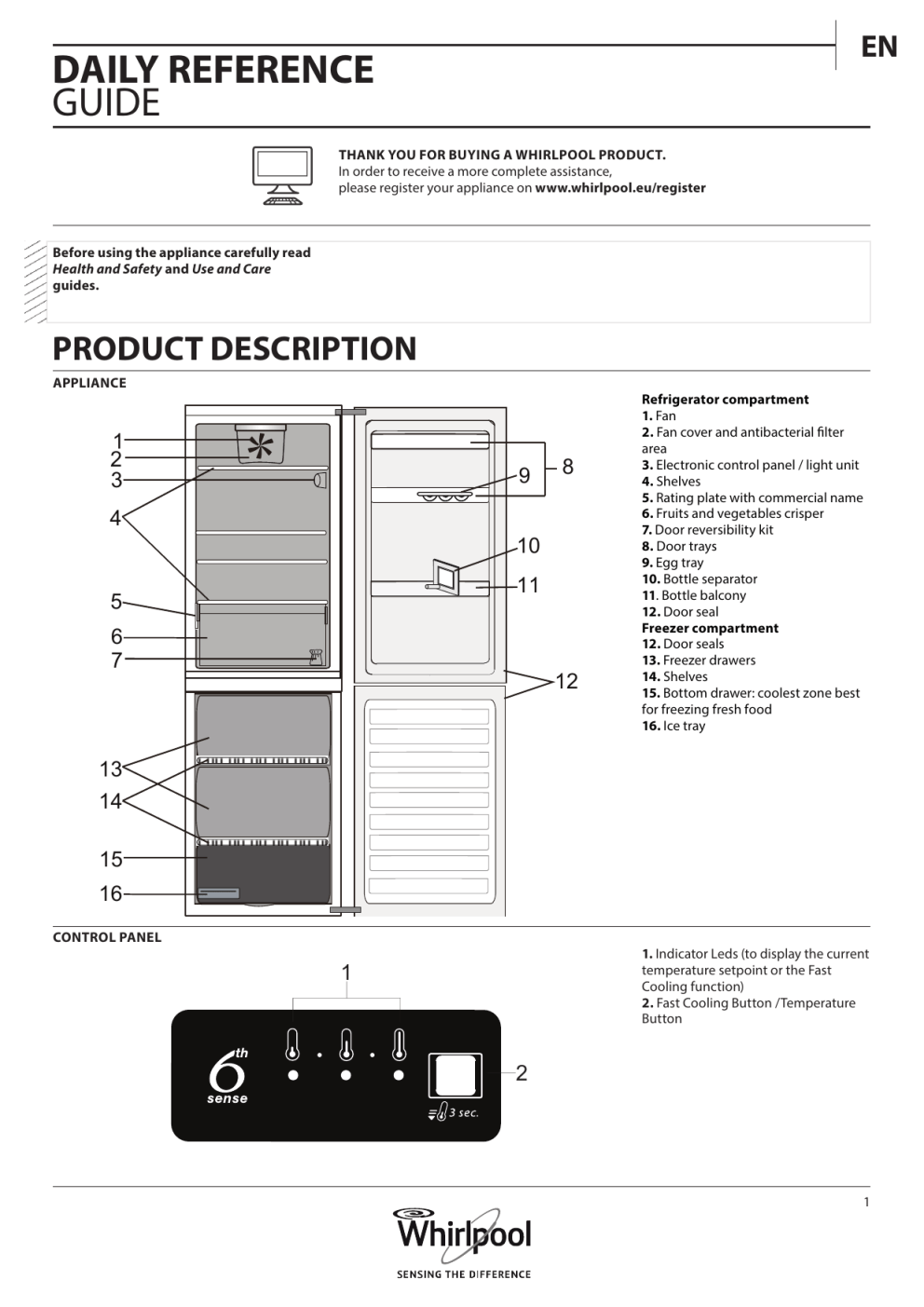

DAILY REFERENCE
GUIDE
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.
In order to receive a more complete assistance,
please register your appliance on www.whirlpool.eu/register
Before using the appliance carefully read
Health and Safety and Use and Care
guides.
PRODUCT DESCRIPTION
APPLIANCE
1
2
3
9
4
8
10
11
5
6
7
12
Refrigerator compartment
1. Fan
2. Fan cover and antibacterial filter
area
3. Electronic control panel / light unit
4. Shelves
5. Rating plate with commercial name
6. Fruits and vegetables crisper
7. Door reversibility kit
8. Door trays
9. Egg tray
10. Bottle separator
11. Bottle balcony
12. Door seal
Freezer compartment
12. Door seals
13. Freezer drawers
14. Shelves
15. Bottom drawer: coolest zone best
for freezing fresh food
16. Ice tray
13
14
15
16
CONTROL PANEL
1. Indicator Leds (to display the current
temperature setpoint or the Fast
Cooling function)
2. Fast Cooling Button /Temperature
Button
1
2
1
ACCESSORIES
EGG TRAY
BOTTLE SEPARATOR
ICE TRAY
FIRST TIME USE
HOW TO START THE APPLIANCE
After plugging the appliance to the mains, it starts the operation
automatically.
After starting the appliance, wait at least 4-6 hours before placing
food into the fridge and into the freezer compartment.
DAILY USE
When the appliance is connected to the power supply, the display
lights up and all the icons appear on the display for approximately 1
second. The default (factory) values of the fridge compartment
settings light-up.
See Use and Care Guide for more details on functions /
see last page for information on how to obtain the Use and Care Guide
FUNCTIONS
TEMPERATURE SETTING
Press the Temperature button on the control panel to
adjust the temperature from the warmest through the
lower to the coldest level.
Pressing the Temperature button, the temperature setting
will change cyclically.
At first plug-in of appliance temperature setpoint is present
at medium position (factory setting).
Following table shows temperature setpoints:
HIGH TEMP.
MED-HIGH TEMP.
MEDIUM TEMP.
MED-LOW TEMP.
LOW TEMP.
FAST COOLING
Led on
6TH SENSE
This function automatically works to ensure the optimal conditions
to preserve the stored food.
The “6th Sense” function is automatically activated when:
• a large amount of food is loaded into the refrigerator
• the refrigerator door is left open for a long time
• a prolonged power failure takes place, causing the internal
temperature of the appliance to increase to values that cannot
guarantee safe storage of food.
FAST COOLING
The use of the Fast Cooling function is recommended to increase
the cooling capacity of the refrigerator compartment when placing
a very high quantity of food within it.
To activate the Fast Cooling function, press and hold for 3 seconds
the Temperature button on the control panel till all the 3 LEDs will
turn on.
The function is automatically deactivated after 24 hours and return
to previous selected set point.
Led off
Note: Displayed set points correspond to the average
temperature throughout the whole refrigerator.
!
!
The function can be manually deactivated by pressing and holding
for 3 seconds the Temperature button on the control panel.
!
2
EN
REFRIGERATOR LIGHT
The light system inside the refrigerator compartment uses
LEDs light, allowing a better lightning as well as a very low
energy consumption.
If the LED light system does not work, please contact the
Service to replace it.
Important: The refrigerator compartment light switches on
when the refrigerator door is opened. If the door is kept
open for more then 8 minutes the light will be automatically
switched off.
FAN + ANTIBACTERIAL FILTER
The Fan improves temperature distribution inside the
refrigerator compartment, allowing better preservation of
stored food.
By default, the fan is switched on.
To turn off the fan press the button of fan.
Please note that when the fan is switched on it will not
continuously work. The fan will start/stop working
depending on the temperature and/or humidity level inside
the fridge.
It is therefore absolutely normal if the fan does not move
even if the fan is switched on.
If the appliance has the
Fan it can be equipped
with the antibacterial
filter.
Remove it from the box
placed in the crisper
drawer and insert into the
fan cover - as in the
picture.
The replacement
procedure is included in
the filter box.
ALARM TABLE
ALARM TYPE
SIGNAL
CAUSE
CURE
Door open alarm
Refrigerator Light blinks
The door has remained open for
more than 5 minutes.
Close the door
Door open alarm
Refrigerator Light OFF
The door has remained open for
more than 8 minutes.
Close the door
Malfunction
Any temperature indicators
blinks
Product malfunction.
Contact the After-sales Service
3
HOW TO STORE FOOD
AND BEVERAGE
Legend
TEMPERATE ZONE Suggested for the
storage of tropical fruit, cans, drinks, eggs,
sauces, pickles, butter, jam
COOL ZONE Suggested for storage of
cheese, milk, daily food, delicatessen,
yogurt, cold cuts, desserts
FRUIT & VEGETABLE DRAWER
NORMAL FREEZER DRAWERS
FREEZING ZONE DRAWER
(MAX COOL ZONE) Suggested to freeze
fresh/cooked food.
Note: The Grey tone of the legend doesn’t
match with the color of drawers
FRIDGE COMPARTMENT
Use recyclable plastic, metal, aluminum and
glass containers and cling film to wrap
foods.
Always use closed containers for liquids and
for food that may give off or be tainted by
odor or flavor transfer or cover them.
If you have a little quantity of food to store
in the refrigerator, we recommend to use
the shelves above the crisper for fruits and
vegetables since this is the coolest area of
the compartment.
MAINTENANCE AND CLEANING
AND PROBLEM SOLVING
For maintenance and cleaning
and for Problem Solving see the
Use and Care Guide.
The Use and Care Guide can be obtained by:
> After-Sales Service; phone number see in
warranty booklet.
> download from Whirlpool Website
http://docs.whirlpool.eu
Foods which give off a large amount
ethylene gas and those that are sensitive to
this gas, such as fruit, vegetables and salad,
should always be separated or wrapped so
as not to reduce the storage life; for
example do not store tomatoes together
with kiwi fruits or cabbage.
To avoid bottles falling over, you can use the
bottle holder (available on selected models).
Do not store food too close together to
enable sufficient air circulation.
FREEZER COMPARTMENT
The freezer is the ideal storage location for
store frozen food, make ice cubes and freeze
fresh food in the freezer compartment.
The maximum number of kilograms of fresh
food that can be frozen within a 24-hour
period is indicated on the rating plate (…
kg/24h).
If you have a little quantity of food to store
in the freezer, we recommend to use the
coldest areas of your freezer compartment,
corresponding to the middle area.
CONTACTING AFTER-SALES SERVICE
Provide both numbers shown on the service sticker when
contacting the After-Sales Service team. http://www.whirlpool.eu
The technical information are situated in the rating
plate on the internal side of the appliance.
