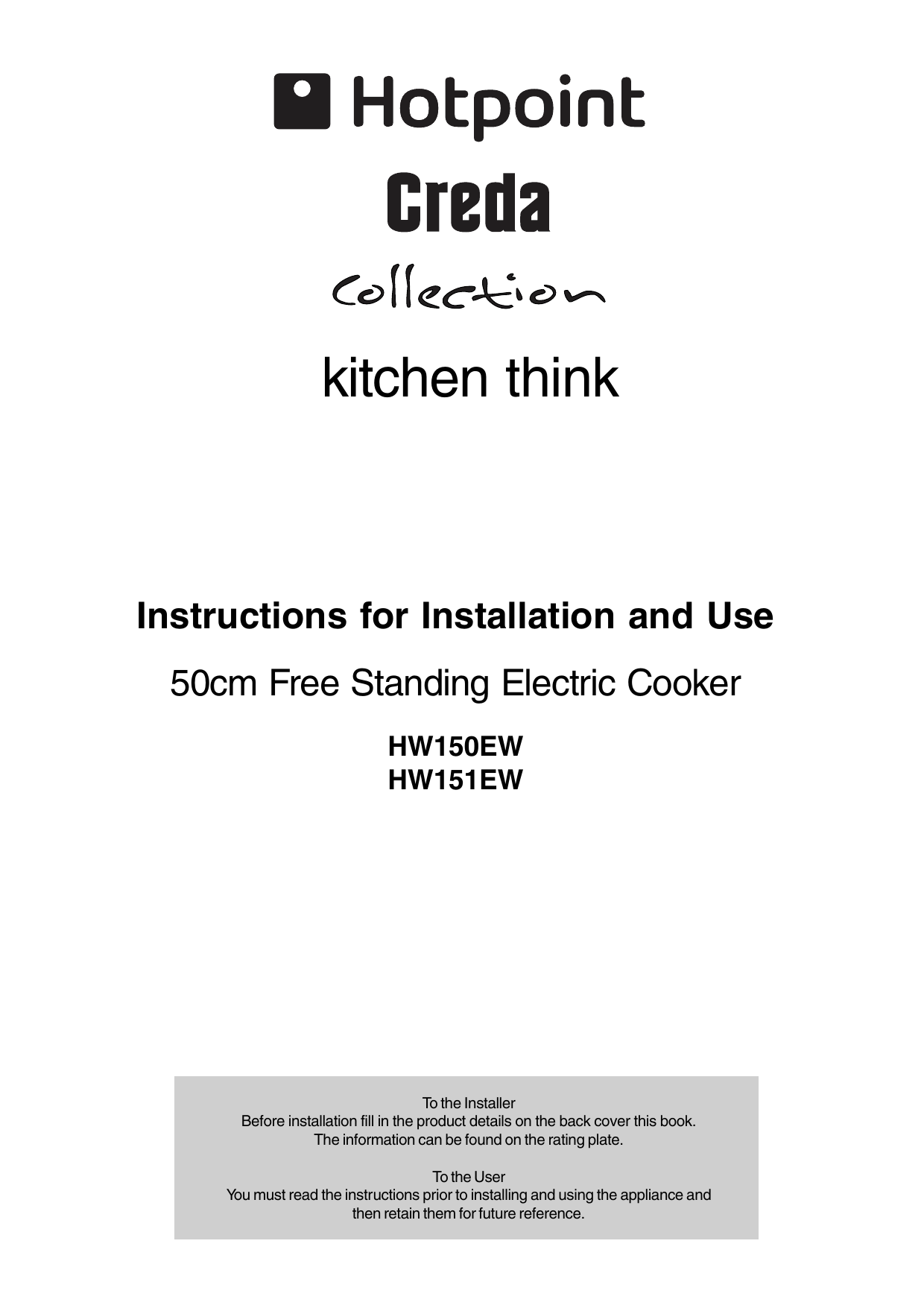

Instructions for Installation and Use
50cm Free Standing Electric Cooker
HW150EW
HW151EW
To the Installer
Before installation fill in the product details on the back cover this book.
The information can be found on the rating plate.
To the User
You must read the instructions prior to installing and using the appliance and
then retain them for future reference.
Contents
Introduction
3
Installation
Safety Information
4
6
Features
8
Control Panel
Use of hotplates
9
10
Hotplates General Information Notes
10
Choosing Your Utensils
Grilling
13
14
Grill Chart
15
Conventional Oven
Conventional Oven cooking charts - Meat
16
17
Conventional Oven cooking charts - Baking
18
Care and Cleaning
Cooking Results Not Satisfactory?
19
20
Something Wrong With Your Cooker?
21
Technical Characteristics
After Sales Service
21
26
Hotpoint Guarantee
27
Key Contacts
Back Cover
You must read these instructions prior to using your appliance and retain them
for future use.
2
Introduction
Your new appliance is guaranteed* and will give lasting service. This guarantee is only applicable if the appliance
has been installed in accordance with the installation instructions detailed in this booklet.
To help make best use of your cooking equipment, please read this booklet carefully.
The cooker is designed specifically for domestic use and responsibility will not be accepted for use in any other
installation.
When the cooker is first used an odour may be emitted,
this will cease after a period of use.
When first using the cooker ensure that the room is well ventilated (e.g. open a window or use an extractor fan) and
that persons who may be sensitive to the odour avoid any fumes. It is suggested that any pets be removed from the
room until the smell has ceased. This odour is due to temporary finish on oven liners and elements and also any
moisture absorbed by the insulation.
* The guarantee is subject to the provisions that the appliance:
(a)
Has been used solely in accordance with the Users Instruction Book.
(b)
Has been properly connected to a suitable supply voltage as stated on the
rating plate attached to this equipment.
(c)
Has not been subjected to misuse or accident or been modified or repaired by
any person other than the authorised employee or agent.
(d)
Has been correctly installed.
3
Installation
WARNING – THIS APPLIANCE MUST BE EARTHED.
Electrical connection
Electric cookers come without a power supply cable. The cooker is designed to operate on an electricity supply which
conforms to the electrical data shown on the Rating Plate. The cooker can be connected to the mains only after removing
the back panel of the cooker itself with a screwdriver.
N.B.: the following installation procedure must be carried out by a qualified electrician. The electrical installation must
comply with the IEE Regulations, Building & local By-Lays.
For the installation of the feeding cable carry out the following operations:
1 Open the terminal board by inserting a screwdriver into the side tabs of the
cover. Use the screwdriver as a lever by pushing it down to open the cover (see
diagram).
2 Loosen the cable clamp screw and remove it, using a screwdriver as a lever
(see figure).
3 Remove the wire contact screws L-N- , then fasten the wires under the screw
heads, respecting the colour code: Black/Blue (N), Red/Brown (L) and Bare Wire/
Yellow-Green ( ).
l Once the connections have been made, tighten all the terminal screws fully.
l Fasten the supply cable in place with the clamp and close the cover of the
terminal board.
4
Installation
650 mm
Siting the Cooker
150 mm
150 mm
The height of the cooker can be adjusted by means of adjustable feet in the plinth
(900mm - 915mm). Adjust the feet by tilting the cooker from the side. Then install the
product into position.
NOTE: This appliance must not be fitted on a platform.
The cooker is designed to fit between kitchen cabinets spaced 500mm apart. The
space either side need only be sufficient to allow withdrawal of the cooker for servicing.
It can be used with cabinets one side or both as well as in a corner setting. It can also
be used free-standing.
Adjacent side walls which project above hob level, must not be nearer to the cooker
than 150mm and should be protected by heat resistant material. Any overhanging
surface or cooker hood should not be nearer than 650mm.
Before moving your cooker check that it is cool, and switch off at the cooker
control unit.
Moving the Cooker
Movement of your cooker is most easily achieved by lifting the front as follows:
Open the grill door sufficiently to allow a comfortable grip on the underside front
edge of the oven roof, avoiding any grill elements.
Note: Take care in moving the cooker as it is heavy.
Take care to ensure that any floor covering is not damaged.
Splashplate optional, apply to Parts Department (see Back Cover for contact
number.)
5
Safety Information
When used properly your appliance is completely safe but as with any electrical product there are certain
precautions that must be observed.
PLEASE READ THE PRECAUTIONS BELOW BEFORE USING YOUR APPLIANCE.
Always
l Remove all packing from inside the oven and grill compartments before switching on for the first time.
l Understand the controls prior to using the appliance.
l Keep children away from the appliance when grilling as the surfaces will get extremely hot during and after
use.
l Turn controls off when you have finished cooking and when not in use.
l Stand back when opening an oven door to allow any build up of steam or heat to disperse.
l Use dry good quality oven gloves when removing items from the oven/grill.
l Place pans centrally over the hotplate making sure handles are kept away from the edge of the hob and cannot
become heated by other hotplate/pans.
l Take care to avoid heat/steam burns when operating the controls.
l Turn off the electricity supply at the wall switch before cleaning and allow the appliance to cool.
l Make sure the shelves are in the correct position before switching on the oven.
l Keep the oven and grill doors closed when the appliance is not in use.
l Take care when removing items from the grill when the lower oven is on as the contents will be hot.
l Keep the appliance clean, as a build up of grease or fat from cooking can cause a fire.
l Follow the basic principles of food handling and hygiene to prevent the possibility of bacterial growth.
l Keep ventilation slots clear of obstructions.
l Refer servicing to a qualified appliance service engineer.
l Take care to avoid touching heating elements inside the oven, as during use the oven becomes hot.
l Before operating the product, remove all plastic film from the sides of the appliance.
l The appliance should not be operated by people (including children) with reduced physical, sensory or mental
capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals
should, at the very least, be supervised by someone who assumes responsibility for their safety or receive
preliminary instructions relating to the operation of the appliance.
6
Safety Information
Never
l Never line the interior of the oven with foil as this may cause the appliance to overheat.
l Never leave children unsupervised where a cooking appliance is installed as all surfaces will be hot during
and after its use.
l Do not allow children or persons who are not familiar with the appliance to use it, without supervision.
l Never allow anyone to sit or stand on any part of the appliance.
l Never store items above the appliance that children may attempt to reach.
l Never leave anything on the hob surface when unattended and not in use.
l Never remove the oven shelves whilst the oven is hot.
l Never heat up unopened food containers as pressure can build up causing the container to burst.
l Never store chemicals/food stuffs, pressurised container in or on the appliance, or in cabinets immediately
above or next to the appliance.
l Never place flammable or plastic items on or near the hob.
l Never fill a deep fat frying pan more than 1/3 full of oil, or use a lid.
DO NOT LEAVE UNATTENDED WHILE COOKING.
l Never operate the grill with the grill door closed as this will cause the appliance to overheat.
l Never use the appliance as a room heater.
l Never use the grill to warm plates.
l Never dry any items on either the hob or oven doors.
l Never install the appliance next to curtains or other soft furnishings.
l Never use steam cleaners.
SAFETY ADVICE IN CASE OF A CHIP-PAN FIRE
In the event of a chip pan fire or any other pan fire.
1 . TURN OFF THE COOKER APPLIANCE AT THE WALL SWITCH.
2 . COVER THE PAN WITH A FIRE BLANKET OR DAMP CLOTH, this will smother the flames and extinguish the
fire.
3 . LEAVE THE PAN TO COOL FOR AT LEAST 60 MINUTES BEFORE MOVING IT. Injuries are often caused by
picking up a hot pan and rushing outside with it.
NEVER USE A FIRE EXTINGUISHER TO PUT OUT A PAN FIRE
as the force
of the extinguisher is likely to tip the pan over.
Never use water to extinguish oil or fat fires.
7
Features
HOB VENTILATION SLOTS
2000W
1500W
1500W
2000W
CONTROL
PANEL
GRILL/MEAT PAN
WITH REMOVABLE
HANDLE AND WIRE
FOOD SUPPORT
GRILL
GRILL DOOR
REMOVABLE
INNER GLASS DOOR
(WHERE FITTED)
MAIN OVEN
WIREWORK
SHELF
SUPPORTS
MODEL & SERIAL
NUMBER
OVEN ROD
SHELVES
8
Control Panel
MAIN OVEN/GRILL
INDICATOR
LIGHT
MAIN OVEN
THERMOSTAT
INDICATOR
LIGHT
MAIN
OVEN
GRILL
PLATE
INDICATOR
LIGHT
LEFT
FRONT
PLATE
GRILL
INDICATOR
LIGHT
MAIN OVEN
THERMOSTAT
INDICATOR
LIGHT
MAIN
OVEN
Control Knobs
GRILL
LEFT
REAR
PLATE
RIGHT
REAR
PLATE
HW150EW
RIGHT
FRONT
PLATE
PLATE
INDICATOR
LIGHT
LEFT
FRONT
PLATE
LEFT
REAR
PLATE
RIGHT
REAR
PLATE
HW151EW
RIGHT
FRONT
PLATE
The knobs for the hotplates can be rotated in either direction to provide variable heat control, the Main
Oven knob can only be rotated clockwise from the Off position.
Note: Always ensure that all controls are in the OFF position, when the appliance is not
in use.
Operating the
control when
the grill is in use
In common with all cookers having controls sited above the grill compartment, care must be taken
when setting the controls, due to hot air being emitted from the grill compartment.
9
Use of Hotplates
Note:
Under no circumstances should the hob be used with aluminium foil in contact with the hob
sur face.
The controls set the hotplates at six pre-set power levels. Each control can be used to select one of six temperature
settings from a minimum at position 1 to a maximum at position 6.
Before using the hot plates for the first time, you should heat them at maximum temperature for approximately 4
minutes, without any pans. During this initial stage, their protective coating hardens and reaches its maximum
resistance.
Hotplates General Information Notes
CONTROL SETTINGS GUIDE
This is provided only as a guide – settings also depend on the type of pan used and the quality of food.
Knob Position Type of food
1
1 or 2
3
4 or 5
5 or 6
6
Safety
requirements
for deep fat frying
10
1.
2.
3.
4.
To melt butter, chocolate, etc.
To
To
To
To
heat food gently.
keep small amounts of water simmering.
heat sauces, containing egg yolks and butter.
simmer: stews, meat, fish, vegetables, fruit.
To heat solid and liquid foods.
Keep water boiling.
Thaw frozen vegetables.
Make 2-3 egg omelettes.
To cook foods, just above simmering.
To maintain 'rolling' boil for preserve making.
To seal meat and fry fish.
Frying potatoes.
Bringing water to the boil.
Deep fat frying.
Dissolve sugar for preserve making.
Use a deep pan, large enough to completely cover the appropriate heating area.
Never fill the pan more than one-third full of oil.
Never leave oil or fat unattended during the heating or cooking period.
Never try to fry too much food at a time, especially frozen food. This only lowers the
temperature of the oil or fat too much, resulting in greasy food.
5 . Always dry food thoroughly before frying, and lower it slowly into the hot oil or fat. Frozen foods,
in particular, will cause frothing and spitting, if added to quickly.
6 . Never heat fat, or fry, with a lid on the pan.
7 . Keep the outside of the pan clean and free from streaks of oil or fat.
Hotplates General Information Notes
PANS SHOULD
Not be concave (bowed in)
Not be convex (bowed out)
Not be rimmed
Not be deeply ridged
But essentially Flat
Always ✓
Use good quality flat-based
cookware on all electric heat
sources.
Always ensure pans have
clean, dry bases bifore
use.
Ensure pans match size of
heating area.
Remember good quality pans
retain heat well, so generally
only a low or medium heat is
necessary.
Ensure pan handles are
positioned safely and away
from heat sources.
Always lift pans, do not drag.
Never ✗
Use gauze, metal pan
diffusers, asbestos mats and
stands e.g. Wok stands - they
can use overheating.
Use utensils with skirts or
rims e.g. buckets and some
kettles.
Use badly dented or distorted
pans.
Leave an element switched
on when not cooking.
Cook food directly on the
ceramic glass.
Drag or slide utensils, along
the hob surface.
Always use pan lids except
when frying.
Deal with spillages
immediately but with care.
THE BEST COMBINATIONS
This table is a general guide to the types of pan suitable for different types of hobs and
cookers. Remember pans should be good quality, with smooth, flat bases. For any further
information refer to manufacturers’ instructions.
Ceramic*
Aluminium
✓
✗
suitable unsuitable
*care should be taken
when using any pans
on these surfaces not to
drag and cause
scratching.
Stainless steel with single layer copper
base
Stainless steel with sandwich bases of
aluminium and stainless or aluminium
and copper
Enamelled steel
Enamelled aluminium
Enamelled based cast iron
With Extra Care
Copper
Toughened glass or ceramic / glass /
pottery
Mild steel, Ferro-magnetic or stainless
with a magnetic sandwich base
Not Recommended
11
Hotplates General Information Notes
Do Not
Do not
cook directly on the hob surface without a cooking utensil, as this will result in damage to the surface of the
hob.
Do not
use the hob as a worktop surface as damage may occur to the smooth surface of the hob.
Do not
drag or slide utensils on the hob surface, as this will cause scratches in the surface of the hob.
Do not
allow a cooking utensil to come into contact with the hob surround.
Do not
place anything between the base of the utensil and the ceramic hob, e.g. do not use asbestos mats, aluminium
or wok stand.
Do not
leave any utensils, food or combustible items on the hob when it is not in use.
Do not
place aluminium or plastic foil, or plastic containers on the hob.
Do not
leave the hotplates or cooking areas switched On unless they are being used. We recommend not to place
large preserving pans or fish kettles across two heating areas.
Do not
leave utensils partly covering the heated areas. Always ensure that they are placet centrally over the heated
areas and have the same diameter as the heating area used.
We recommend not to use a utensil with a base diameter greater than 25cm (l0ins).
Pressure cookers or other large pans should be used on the front cooking areas.
Always ensure that saucepan handles are positioned safely.
12
Choosing Your Utensils
Do not
use utensils with rough bases.
Do not
use lightweight utensils with thin, distorted or uneven bases.
Do not
use lightweight enamelled steel utensils.
Do not
use cast iron utensils.
Do not
use utensils with recessed, scrolled or ridged bases.
Do not
use a utensil which has a base concavity greater than l mm as this will reduce the performance of the hob.
Do not
use a utensil with a convex base.
Do not
use glass ceramic utensils.
Do not
use use lightweight saucepans with plain thin copper bases on ceramic or halogen hot plates.
Note: All copper pans are excellent conductors of heat, and are hard wearing and strong, but need quite a lot of
care. They can be very heavy and do not usually have completely flat bases. The interiors are usually lined with a
different material such as tin.
A stainless steel pan with a sandwich base of aluminium and stainless steel is an excellent conductor of heat and is
suitable for use on ceramic and halogen hobs, providing they are used in accordance with the saucepans
manufacturers’ recommendations.
Stainless steel pans with a sandwich base of aluminium and copper are excellent conductors of heat. If using
stainless steel saucepans with aluminium and copper sandwich bases on ceramic and halogen hobs, the use of
these pans must be in accordance with the saucepan manufacturers’ recommendations.
Extra care should be taken to ensure the base of the pan and the hob is cleaned, and the hob conditioned, after
each and every use, when using this type of saucepan.
If these recommendations are not followed, the result will be a build up of small copper deposits on the surface of
your hob which, if not cleaned after each use, will result in permanent marking of your hob.
Always lift the pan from the hob, do not drag or slide across the hob surface as damage may occur.
13
Grilling
GRILLING MUST BE DONE WITH THE GRILL DOOR OPEN.
CONTROL KNOBS MAY BECOME HOT DURING GRILLING.
CAUTION: ACCESSIBLE PARTS WILL BECOME HOT WHEN THE GRILL
IS USED - CHILDREN SHOULD BE KEPT AWAY.
To operate the grill proceed as follows:
Grill Pan Handle
l
l
l
l
Open the grill door.
Pre-heat the grill on setting 6 for approximately 5 minutes (see chart on guide to grilling).
Fix the grill pan handle securely in position. See below.
Food which only requires browning should be placed directly on/in the grill pan in the grill pan
runner, or on the floor of the grill compartment. (the grill pan grid may be removed.)
l Leave the control on setting 6 for toast, sealing and fast cooking of foods. For thicker foods
requiring longer cooking turn the control to a lower setting after the initial sealing, on both sides,
on setting 6. The thicker the food the lower the control should be set.
Warning: Take care as the grill will be hot – always wear oven gloves. Always ensure
that the grill pan is clean BEFORE use. Excess fat build up in the bottom of the pan
could cause a fire hazard. Never line grill pan with foil.
Fixing the Grill Pan The grill pan handle is detachable from the pan, to facilitate cleaning and storage. Fix the grill pan
handle securely in position before use.
Handle
The handle fits onto the grill pan edge with the small recess, Fig.1.
Tilt the handle over the recess and slide it towards the centre, Fig.2.
Ensure the handle is fully located. Insert the washer and fixing screw and tighten fully to ensure
handle is secured, Fig.3.
Always hold the dripping pan handle in the highlighted zone marked "OK" in figure 4.
OK
Recess
Fig. 1
Fig. 2
Fig. 3
Fig. 4
NO
Always fit the screw prior to use.
The food to be cooked should be placed on the grill pan/grill pan food support.
Place the grill pan on the runners and push back to the stop position when the grill pan is
correctly positioned beneath the grill element.
Plates and dishes placed on the floor of the grill compartment will be heated when the oven is
in use.
Grill Compartment Do not operate the grill control when using the compartment as a hotcupboard.
as a ‘Hotcupboard’
Do take care when removing plates, dishes and utensils from the grill compartment when the oven
is in use as they may become quite hot.
You may need to use oven gloves when removing warmed items.
14
Grill Chart
Pre - heat the grill for 5 minutes on maximum control setting before grillino
GRILL CHART
Food
Grill Setting
Approximate Cooking time
Toasting of Bread
products
6
3 - 10 mins.
Small cuts of meat,
sausages, bacon, etc.
5-6
15 - 20 mins.
Chops etc. Gammon
steaks Chicken
pieces
5
20 - 25 mins. Wire food support used in
upturned position for chicken.
Fish: fingers Whole
Fillets
5
10 - 20 mins. Whole fish and fillets placed in the
base of the grill pan.
Fish in breadcrumbs
5
15 - 20 mins.
Pre - Cooked potato
products
5
15 - 20 mins.
Pizzas
5
12 - 15 mins. in the base of the grill pan.
Browning of food
6
8 - 10 mins. Dish placed directly on base of the
grill pan and pan placed on the base of the grill
compartment.
The settings in the above guide have been developed to cook food successfully without excessive fat spitting and
splashing.
15
Conventional Oven
Oven Control
Heating of the oven is achieved by turning control clockwise to the required oven temperature
scale on the control panel, as recommended in the temperature charts. The main oven light will
immediately come on.
The thermostat light indicates that the main oven is heating. When it turns off, the temperature inside
the oven has reached the setting made with the thermostat knob. At this point, the light will turn on and
off as the oven maintains the temperature at a constant level.
The cooking charts provided in this book are a guide only, giving approximate cooking
temperatures and times. To suit personal taste and requirements, it may be necessary to increase
or decrease temperatures by 10°C.
The oven is fitted with two rod shelves. The oven is heated by two tubular sheathed elements
located under the floor of the oven and on the oven roof, inside the cavity. It should be noted that at
the end of a cooking period there may be a momentary puff of steam when the oven door is
opened. This will disperse in a few seconds and is a perfectly normal characteristic of an oven with
a good door seal.
Oven Positions
The correct positioning of food is indicated in the temperature charts.
To prepare meat and poultry for roasting in your conventional oven.
(a) Wipe the joint, dry well with a clean cloth, kitchen tissue etc. and weigh it. Meat which has been
stored in a refrigerator should be allowed to come to room temperature for approximately 30
minutes before cook ing, and frozen meat or poultry must be completely defrosted before placing
in the oven.
(b) The weight of any stuffing used should be added to the oven ready weight of the meat / poultry
before calculating the cooking time.
(c) Place the joint in the meat pan supplied with your cooker. Small joints weighing less than 1.75kg
(31/2 lbs) should be roasted in a smaller meat pan/tin - or they may be ‘pot roasted’ - a small joint
in a large meat pan causes unnecessary oven splashing and evaporation of meat juices.
(d) Additional fat should not be added, except for veal, very lean meat or poultry which can either be
‘larded’ with fat bacon or brushed very sparingly with cooking oil or melted fat.
(e) Beef, lamb, mutton and poultry may be dusted lightly with seasoned flour to give a crisp outer
surface. The skin of duck and goose should be pricked to release excess fat during cooking, and
the rind of pork should be scored, brushed lightly with oil, and rubbed with salt, to give crisp
crackling.
(f) Potatoes for roasting only require to be brushed with cooking oil or melted fat.
(g) It is not necessary to baste when roasting in an electric oven and stock or liquid should not be
added to the meat pan since this only causes unnecessary soiling, steam and condensation.
For optimum cooking performance, there must be clearance between meat pan and oven
sides. The meat pan must be placed lengthways in the oven to allow for air circulation.
Times and
Temperatures
for Roasting
The secret of succulent, tender meat, is not to roast it too quickly, at too high a temperature. Best
results are obtained when roasting is carried out at a low temperature. When a lower temperature
is used, the joint loses less weight, is more tender (too high a temperature causes meat to be
tough and dry) and the splashing of fat onto the oven interior is reduced to a minimum. When a
complete meal is being cooked in the oven, cooking time may need to be increased and
temperature may need to be raised for approximately the last 30 minutes of the cooking period (for
instance when cooking Yorkshire pudding to serve with roast beef ). The suggested times and
temperatures should be used as a guide, but may vary according to:1 . Whether you prefer meat rare, medium or well done.
2 . The size and shape of your joint.
( a ) A short thick joint requires a longer cooking period than a long thin joint.
(b) A small joint under 1.5kg (3 lbs) takes longer per 450g (1 lb) cook in the time given for
‘minutes’ per 450g (1 lb) without the ‘minutes’ over added.
(c) Boned/rolled and stuffed joints take longer to cook through than those with a bone.
N.B.
Remember to switch off the oven control after cooking is finished. If the door of the oven is left
open for long periods of time with the control switch ON, then the grill element will become hot. The
correct positioning of food is indicated in the temperature charts.
16
Conventional Oven - Cooking Chart MEAT
Note: Where times are stated, they are approximate only.
Conventional Oven
Meat
Preheat
Temperature
°C
Time (approx.)
Beef
Yes
190/200
25-30 mins per 450g
(1lb) + 25 mins over.
Lamb
Yes
190/200
25-30 mins per 450g
(1lb) + 25 mins over.
Pork
Yes
190/200
30-35 mins per 450g
(1lb) + 30 mins over.
Veal
Yes
190/200
25-35 mins per 450g
(1lb) + 30 mins over.
Poultry/Game
up to 4kg (8lb)
Yes
180/190
18-20 mins per 450g
(1lb) + 20 mins over.
Turkey up to
5.5kg (12lb)
Yes
190
22 mins per 450g (1lb) eg.
5.5 kg (11lb) = 242 mins
Turkey over
5.5kg (12lb)
Yes
180
18 mins per 450g (1lb) eg.
10 kg (22lb) = 352 mins
Casserole
Cooking
Yes
140/160
2-2 ½ hrs
Position in
Oven
In meat pan
on runner 2
Runner 3
from bottom
of oven
Runner 3
If using aluminium foil, never:
1. Allow foil to touch sides of oven.
2. Cover oven interior with foil.
3. Cover shelves with foil.
The most accurate method of testing the readiness of joints of meat or whole poultry is to insert a meat thermometer
into the thickest part of a joint, or the thickest part of poultry thighs, during the cooking period. The meat thermometer
will indicate when the required internal temp has been reached.
Beef:
Rare:
Medium:
Well Done:
60°C
70°C
75°C
Lamb:
Pork:
Veal:
80°C
90°C
75°C
Poultry:
90°C
17
Conventional Oven - Cooking Chart BAKING
Conventional Oven Cooking
Food
Preheat
Temperature and Time
Position in Oven
from bottom
Scones
Yes
220/230°C approx. 10-15 mins.
Runners 1 & 4
Small Cakes
Yes
190/200°C approx. 20-25 mins.
Runners 1 & 4
Victoria Sandwich
Yes
180/190°C 6½"-7" tins approx. 20 mins.
8"-8½" tins approx. 30 mins.
Runners 1 & 4
Sponge Sandwich
(Fatless)
Yes
190/200°C 7" tins 15-20 mins.
Runners 1 & 4
Swiss Roll
Yes
200/210°C approx. 10-15 mins.
Runner 4
Semi-rich Cakes
Yes
160/170°C 61½-7" tins 1¼" -1½" hours 8"-9"
tins 2"-2½" hours
Runner 3
Shortcrust Pastry
Yes
200/210°C depending on use
Runners 2 & 5
Puff Pastry
Yes
200/210°C approx. depending on use
Runners 2 & 5
Yorkshire Pudding
Yes
210/220°C 45-50 mins.
Runner 5
Individual Yorkshire
Puddings
Yes
210/220°C approx. 20-25 mins.
Runner 5
Milk Pudding
Yes
150/160°C approx. 2"-2½" hours
Runner 2
Baked Custard
Yes
150/160°C approx. 45-55 mins.
Runner 2
Bread
Yes
230°C 50-60 mins reducing to 210/220°C
230°C 45-50 mins after first 10 minutes
Runners 1 & 4
Meringues
Yes
100/110°C Large3½"-4½" hours
Small 2½"-3" hours
Runner 2
Note:
If soft margarine is used for cake making, temperatures recommended by the manufacturers should be followed.
Temperatures recommended in this chart refer to cakes made with block margarine or butter only.
18
Care and Cleaning
Electric sealed
hotplates
The cleaning of sealed hotplates should be done when they are cold, using a soap filled Brillo pad,
following the grain of the hotplate. This will ensure that any stubborn, burnt on spillages are
removed. Wipe over with a damp clean cloth, making sure that all the cleaner has been removed.
Finally, turn on hotplate to warm for a few minutes, then smear with a little cooking oil to provide a
protective coating, or the restorative agent Homecare Four Hob, available from our spares
department or leading supermarkets. The bezels will mellow with use to a burnished gold colour, a
soap filled Brillo pad will help to keep them bright, care should be taken not to damage the vitreous
enamel hob surface.
Note: We do not recommend the use of decorative covers over the hot hotplates as these can hold
condensation and cause corrosion. Accidental operation with a cover in place can cause intense
heat. Never place saucepan lids on the hotplates, as this may cause corrosion.
Grill
Remove the grill pan and the wire grid food support, it is best to wash these items immediately
after use to prevent stains from being burnt on when used again. Wipe out the Grill compartment,
use a fine steel wool soap pad to remove stubborn stains from the grill runners and the floor of the
compartment. Wipe over the control panel with a damp cloth and polish with a dry cloth.
Control Panel
Do not use cream cleaners, oven cleaners or aerosols, scouring pads or abrasive powder for
cleaning the plastic knobs as damage will occur.
Decorative Trims
It is advisable to clean the decorative trims regularly to prevent any build up of soiling. The
recommended method of cleaning is to wipe over the trims with a soft cloth wrung out in warm
water or mild non-abrasive cleaner. (If in doubt try the cleaner on a small area of trim which is not
noticeable in normal use). Then, after wiping with a cloth wrung out in clear water, dry with a soft
clean cloth.
Doors
Wipe over the outer door glass panels with a cloth wrung out in warm soapy water, then after
wiping with a cloth wrung out in clear water, dry with a soft clean cloth. Ensure that glass doors
are not subjected to any sharp mechanical blows.
Glass Inner Door Panel (where fitted) – open the door fully and unscrew the two screws securing
the glass panel, taking care not to allow the glass to fall. The glass panel may now be washed at
the sink. Stubborn stains can be removed by using a fine steel wool soap pad. Ensure the glass
panel is not subjected to any sharp mechanical blows. Take particular care not to damage the
inner surface which is coated with a heat reflective layer. After cleaning, rinse and dry with a soft
cloth. For slight soiling the inner glass panel may be cleaned, while still warm, without removing it
from the door.
Warning: Oven must not be operated with inner door glass removed.
Take care during cleaning not to damage or distort the door seals. Do not lift the door seal from
the oven chassis, if necessary remove the seal by carefully unhooking the corner clips.
Take care that the rating label edges are not lifted during cleaning, and furthermore that the
lettering is not blurred or removed.
Ovens
Remove the rod shelves and grill pan. Use a fine steel wool soap pad to remove stubborn stains
from the rod shelves, grill pan and the floor of the oven. Clean the glass part of the oven door using a
sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. Do not use rough
abrasive material or sharp metal scrapers as these could scratch the surface and cause the glass to
crack.
Oven Shelf
Supports
The shelf supports are removable and dishwasher safe.
To remove hold the support at the front and pull away from the oven side, this can then be cleaned
in a sink or a dishwasher. When removed it allows access to the oven side, which can be cleaned
with warm soapy water.
To refit the support, insert the longer leg into the rear fixing hole and push in the front leg.
Oven Lamp
Replacement
Open the oven door and remove the rod shelves. Using a suitable cloth to protect the fingers grip
the light glass dome, unscrew anti-clockwise and lift. Reach into the aperture with fingers, and
unscrew the lamp anticlockwise. Fit replacement lamp (25W 300°C rated SES), refit dome.
WARNING: To avoid electric shocks - please ensure that the electricity supply to the
appliance is switched off and the appliance is fully cold, before removing the lamp lens.
19
Cooking Results Not Satisfactory?
Problem
Check
Grilling
Uneven cooking front to Ensure that the grill pan is positioned centrally below
back
the grill element.
Fat splattering
Ensure that the grill is not set to too high a
temperature.
Oven Baking
Uneven rising of cake
Ensure that the oven shelves are level by using a
spirit level on the rod shelf and adjusting, using
suitable packing e.g. wood, under the feet of the
appliance. This should be checked both left to right
and front to back. Ensure that the food is positioned
centrally in the oven.
Sinking of cakes
The following may cause cakes to sink:
1. Cooking at too high a temperature.
2. Using normal creaming method with soft margarine.
Over/Under cooking
Fast/Slow cooking
Refer to the cooking times and temperatures given in
the oven temperature charts, however, it may be
necessary to increase or decrease temperatures by
10°C to suit personal taste.
Do not use utensils greater than 2¼ ins in height.
Uneven cooking of
cakes
1. Too large baking sheet used. (See 'Cookery Notes')
2. Over loading of oven and always ensure even air
gaps around baking tins.
Uneven rising of cake
Ensure that the shelf is level (see above) and that the
food is positioned centrally in the oven.
Food is taking too long
to cook
Only cook one item at a time to avoid overloading the
oven.
Disposal of your product
To minimise the risk of injury to children please dispose of your product carefully and safely. Remove all
doors and lids. Remove the mains cable (where fitted) by cutting off flush with the appliance and always
ensure that no plug is left in a condition where it could be connected to the electricity supply.
To help the environment, Local Authority instructions should be followed for the disposal of your product.
This appliance conforms to the following EEC Directives:
Electromagnetic Compatibility
89/336/EEC
92/31/EEC
93/68/EEC
Low Voltage Equipment
73/23/EEC
93/68/EEC
The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that
old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream.
Old appliances must be collected separately in order to optimise the recovery and recycling of the materials
they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin”
symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be
separately collected.
Consumers should contact their local authority or retailer for information concerning the correct disposal of
their old appliance.
20
Something Wrong with your Cooker?
Before contacting your nearest Service Centre/Installer, check the problem guide below; there may be nothing wrong
with your cooker.
Problem
Slight odour or small amount of
smoke when using the cooker
for the first time.
This is normal and should cease after a short period.
Nothing Works
Is the main cooker wall switch turned on?
There may be no electricity supply.
Oven temperature seems too
high or too low.
Check that the temperature has been set in accordance with the temperature
charts. It may be necessary to increase or decrease the recommended
temperature by up to 10°C to suit your taste.
Oven does not cook evenly.
Check that the temperature and shelf position are as recommended in the
temperature charts.
Check that the containers being used in the oven allow sufficient air flow
around them.
Check that the cooker is level.
Hotplates are slow to boil or
will not simmer
Check that your pans conform to the recommendations in these instructions.
Marks appearing on hotplates.
Can not clean hob / hotplates.
The hob surround can be cleaned with warm soapy water and a cream
cleaner, such as Cif. The sealed hotplates should be cleaned regularly,
(please refer to the Care and Cleaning section for further information. Please
note that replacement hob cleaning kits are available from our parts
department, see Key Contacts, back page.
Grill not working.
The grill door MUST be open.
Grill keeps turning on and off.
When the grill control is operated at a setting less than maximum, this is
normal regulator operation, not a fault.
Condensation on the wall at
the rear of the cooker.
Steam and/or condensation may appear from the vent at the rear of the
appliance when using an oven particularly for foods with a high water content
e.g. frozen chips, roast chicken etc. This is normal and any excess should be
wiped off.
Steam / Condensation in the
oven after use.
Steam is a by-product of cooking any food with a high water content. To help
minimise always:
a) Try to avoid leaving food in the oven to cool after being cooked.
b) Use a covered container, wherever possible
Technical Characteristics
Main Oven
Dimensions (HxWxD): 34x39x44 cm
Volume: 58 Litres
Max. Oven Power Absorption: 1950 W
Voltage and Frequency
240V~ 50/60Hz
ENERGY LABEL
Directive 2002/40/EC on the label of electric ovens
Norm EN 50304
Declared energy consumption for Natural convection Class
heating mode: Convectional
21
22
23
24
25
After Sales Service
"No company is better positioned to offer an after sales service on a
Hotpoint appliance than us - the manufacturer"
As part of our commitment to you, all Hotpoint appliances have the added benefit of a fully inclusive parts
and labour guarantee for the first 12 months. In addition to this you also have the advantage of free
replacement parts for the first 5 years when fitted by a Hotpoint
engineer. When the 12 months parts and labour guarantee expires we offer the following after sales
service options:
Repair Service and Information Help Desk
UK: 08709 066066
www.theservicecentre.co.uk
Republic of Ireland: 1850 302 200
Note: Our operators will require the Model number and the Serial number of your appliance
Available 364 days a year with a fast, effective and value for money service. We have the largest white
goods repair service in the UK with over 1200 of our own fully trained engineers. All repairs include a
parts and labour guarantee for 12 months from the date of the repair.
If you require any information or have any questions about your appliance, our operators are on hand with
help and advice.
All this ensures that you will receive the best available after sales service possible.
Extended Warranties
UK: 08709 088 088
www.theservicecentre.co.uk
Republic of Ireland: 1850 502 200
Whether you have just one or a number of Hotpoint appliances in your kitchen, we offer two service cover
plans to give you total peace of mind.
l Repair Protection Plan
FREE service repairs for a single Hotpoint appliance during the period
of cover.
FREE service repairs for all your Hotpoint appliances less than 8
l Kitchen Cover
years old.
Genuine Parts and AccessoriesUK: 08709 077 077
www.theservicecentre.co.uk
Republic of Ireland: (01) 842 6836
A wide range of genuine parts and accessories are available from our hotline or through our web site.
Genuine parts and accessories, extended warranties and service repairs are all
available on our web-site at:
www.theservicecentre.co.uk
26
Guarantee
"Satisfaction guaranteed or your money back"
We give you a unique 'satisfaction guaranteed' promise - valid for 90 days - after you have
purchased your Hotpoint appliance. If there is a technical problem simply call Hotpoint Repair service
or visit our web-site at www.theservicecentre.co.uk and where necessary, we will arrange for an
engineer to call. If the technical problem is not resolved under this guarantee, we will replace your
machine or, if you prefer, give you your money back.
All Hotpoint appliances carry a fully inclusive 12 month parts and labour guarantee as well as free
replacement parts for the first 5 years (except microwaves, selected integrated appliances and cooker
hoods, which have a one year guarantee) provided that they are fitted by a Hotpoint engineer.
Guarantee terms and conditions
Your guarantee is only applicable in the United Kingdom or Republic of Ireland and is subject to the
following provisions that your appliance:
l
Has been installed and used correctly in accordance with this instruction booklet.
l
Has been used solely for domestic purposes and is located on domestic premises (ie. not for
commercial or trade use).
l
Has been properly connected to a suitable electrical supply voltage as stated on the appliance
rating plate.
l
Has not been subject to misuse, accident, modified or repaired by anyone other than one of our
own service engineers.
For pre purchase information on any other Hotpoint product call: 08701 50 60 70
or visit: www.hotpoint.co.uk
Recycling & Disposal Information
As part of Hotpoint's continued commitment to helping the environment, Hotpoint reserves the right to
use quality recycled components to keep down customer costs and minimise material wastage.
Please dispose of packaging and old appliances carefully.
To minimise risk of injury to children, remove the plug and cut mains cable off flush with the appliance.
Dispose of these parts separately to ensure that the appliance can no longer be plugged into a mains
socket.
27
Key Contacts
After Sales Service
Over 1200 trained specialists, directly employed by us, ensure that you can have complete confidence in
both the appliances and services we offer.
Repair Service and Information Desk
UK: 08709 066 066
(Open 8 to 8 Mon - Fri, 8 to 6 Sat, 10 to 4 Sun & Bank Holidays)
www.theservicecentre.co.uk
Republic of Ireland: 1850 302 200
Note: Our operators will require the following information:
Model number:
Serial number:
Extended Warranties
UK: 08709 088 088
(Open 8 to 8 Mon - Sun)
www.theservicecentre.co.uk
Republic of Ireland: 1850 502 200
Genuine Parts and Accessories
UK: 08709 077 077
(Open 8-30 to 5-30 Mon - Fri & 9 to 12 Sat)
www.theservicecentre.co.uk
Republic of Ireland: (01) 842 6836
Indesit Company UK LTD, Morley Way, Peterborough, PE2 9JB.
06/2008 - 19506030803
">
