Indesit 7HPF 604 (IX) RU/HA Instruction for Use
Indesit 7HPF 604 (IX) RU/HA is an electric hob, suitable for domestic use inside the home. It has two electric plates which vary in diameter and power: "normal" and "fast". The fast plate can be identified by a red boss in the center of the hot plate itself. The position of corresponding electric hot plate is indicated on the control knob for each plate. Plates are controlled with turning knobs. The knob may be turned clockwise or anticlockwise and set to six different positions: 0 (Off), 1 (Low), 2-5 (Medium), 6 (High).
PDF
Download
Document
Advertisement
Advertisement

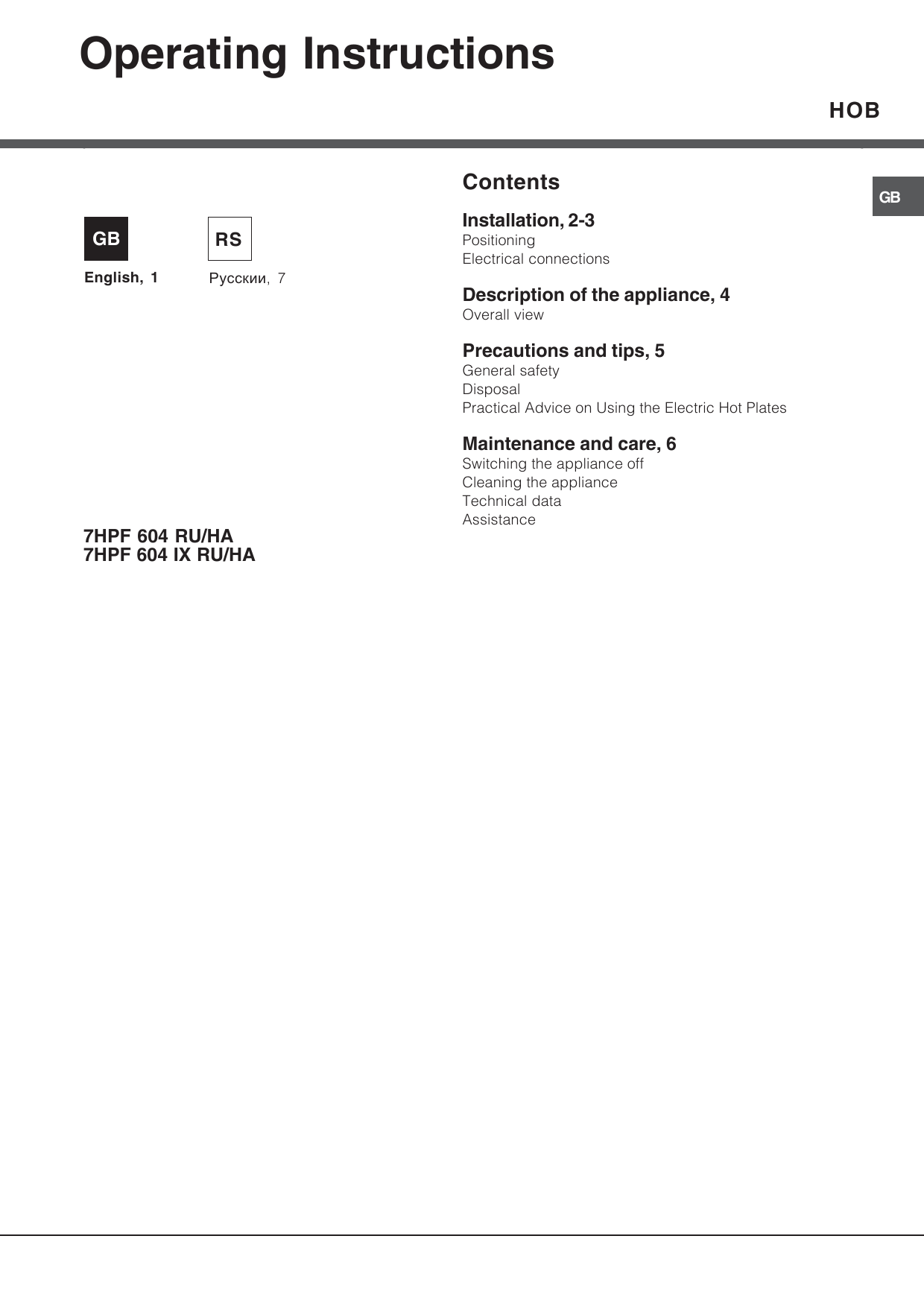

Operating Instructions HOB Contents GB English, 1 RS , 7 Installation, 2-3 Positioning Electrical connections Description of the appliance, 4 Overall view Precautions and tips, 5 General safety Disposal Practical Advice on Using the Electric Hot Plates Maintenance and care, 6 7HPF 604 RU/HA 7HPF 604 IX RU/HA Switching the appliance off Cleaning the appliance Technical data Assistance GBGB Installation ! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance. 55 mm mm 475 ! Before operating your new appliance please read this instruction booklet carefully. It contains important information for safe use, installation and care of the appliance. 555 mm Hook fastening diagram Positioning ! Keep packaging material out of the reach of children. It can become a choking or suffocation hazard (see Precautions and tips). ! The appliance must be installed by a qualified professional according to the instructions provided. Incorrect installation may cause harm to people and animals or may damage property. Hooking position for top H=20 mm Hooking position for top H=30 mm Front Fitting the appliance It is possible to instal them next to furniture which is higher than the working board. For a correct installation of the cooking top the following precautions must be followed: • Kitchen cabinets adjacent to the appliance and taller than the top of the hob must be at least 600 mm from the edge of the hob. 600mm min. 600mm min. • Hoods must be installed according to their relative installation instruction manuals and at a minimum distance of 650 mm from the hob. 700mm min. GB • Place the wall cabinets adjacent to the hood at a minimum height of 420 mm from the hob (see figure). • If the hob is installed beneath a wall cabinet, the latter must be situated at a minimum of 700 mm above the hob (see figure). Hooking position for top H=40 mm Back ! Use the hooks contained in the “accessory pack” • Where the hob is not installed over a built-in oven, a wooden panel must be installed as insulation. This must be placed at a minimum distance of 20 mm from the lower part of the hob. Ventilation To ensure adequate ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm (see diagrams). . • The installation cavity should have the dimensions indicated in the figure. Fastening hooks are provided, allowing you to fasten the hob to tops that are between 20 and 40 mm thick. To ensure the hob is securely fastened to the top, we recommend you use all the hooks provided. 2 560 mm 45 m m. Where a hob is installed above an oven without a forced ventilation cooling system, adequate ventilation must be provided inside the cabinet by means of air holes through which air can pass (see figure). Electrical connection The electric hobs are supplied without power supply cable since the cable must be sized according to the type of electrical connection used (see attached connection diagram). Follow these steps to connect the cable: Connecting the supply cable to the mains GB Install a standardised plug corresponding to the load indicated on the data plate. The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3 mm installed between the appliance and the mains. The circuit-breaker must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the circuit-breaker). The supply cable must not come into contact with surfaces with temperatures higher than 50°C. ! The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations. Before connecting to the power supply, make sure that: • The appliance is earthed and the plug is compliant with the law. • Open the terminal box by removing the screws "V" and opening the cover (see figure). • The socket can withstand the maximum power of the appliance, which is indicated on the data plate. • Connect the wires as shown in the diagram. • The voltage is in the range between the values indicated on the data plate. • Fix the cable using the cable clamp "F", replace the cover and fasten it using the screws "V" (see figure). V 1 2 4 3 5 F 380-400V 3N~ H05RR-F 5x1.5 CEI-UNEL 35363 1 2 3 380-400V 2N~ H05RR-F 4x1.5 CEI-UNEL 35363 1 2 220-230V 1N~ H05RR-F 3x2.5 CEI-UNEL 35363 1 2 3 R 4 5 4 5 4 5 T S R N • The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets. ! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only (see Assistance). ! The manufacturer declines any liability should these safety measures not be observed. ! If the appliance is to be installed above a built-in electric oven, the electrical connection of the hob and the oven must be carried out separately, both for electrical safety purposes and to make extracting the oven easier. S N 3 R N 3 Description of the appliance GB Overall view ELECTRIC PLATE Control knobs for the cook-top ELECTRIC PLATE Pilot lamp of the ELECTRIC PLATE • The ELECTRIC PLATE vary in diameter and power: "normal" and "fast". The latter can be identified by a red boss in the center of the hot plate itself. ! The position of the corresponding electric hot plate is indicated on each control knob. • The ELECTRIC PLATE ON indicator light switches on whenever the knob is moved from the 'off' position. • The ELECTRIC PLATE control knob is a device used to regulate power. The knob may be turned clockwise or anticlockwise and set to six different positions: Setting Normal or Fast Plate 0 Off 1 Low 2-5 6 Medium High ! Please refer to the "Practical Advice on Using the Electric Hot Plates" section for a list of the relative positions and their recommended uses. 4 Precautions and tips ! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. General safety • This manual is for a class 3 built-in cooktop. • These instructions are only valid for the countries the symbols for which appear on the manual and the serial plate. • This appliance is designed for non-professional use in the home. • This appliance was designed for domestic use inside the home and is not intended for commercial or industrial use. • Do not touch the appliance with bare feet or with wet or damp hands and feet. • The appliance must be used by adults only for the preparation of food, in accordance with the instructions outlined in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and unreasonable use of the appliance. • Ensure that power supply cables of other electrical appliances do not come into contact with the hot parts of the hob. • The openings and slots used for ventilation and heat dispersion must never be covered. • Make sure the knobs are in the “•”/”” position when the appliance is not in use. • When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable. • Never carry out any cleaning or maintenance work without having unplugged the plug from the mains. • In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre (see Assistance). • Always make sure pan handles are turned towards the centre of the hob in order to avoid accidental burns. • Do not leave the electric plate switched on without a pan placed on it. • Do not use cookware with uneven or deformed bottoms. • The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance. • Do not let children play with the appliance. • The appliance is not intended to be operated by means of an external timer or separate remote-control system. Disposal • When disposing of packaging material: observe local legislation so that the packaging may be reused. • The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Practical Advice on Using the Electric Hot Plates In order to avoid heat loss and damage to the hot plate, use cookware with a flat bottom the diameter of which is not less than that of the hot plate. Setting Normal or Fast Plate 0 Off 1 Cooking vegetables, fish 2 Cooking potatoes (using steam) soups, chickpeas, beans. 3 Continuing the cooking of large quantities of food, minestrone 4 For roasting (average) 5 For roasting (above average) 6 For browning and reaching a boil in a short time. ! Before using the hot plates for the first time, you should heat them at maximum temperature for approximately 4 minutes, without any pans. During this initial stage, their protective coating hardens and reaches its maximum resistance. 5 GB Maintenance and care GB Switching the appliance off Disconnect your appliance from the electricity supply before carrying out any work on it. Cleaning the appliance Technical characteristic DATA PLATE Electrical connections This appliance conforms to the following European Economic Community directives: 2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments - 2004/108/EEC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments - 93/68/EEC dated 22/07/93 and subsequent amendments. - 2002/96/EC and subsequent amendments. ! Do not use abrasive or corrosive detergents, stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface. ! Never use steam cleaners or pressure cleaners on the appliance. • It is usually enough to wash the hob with a damp sponge and dry it with absorbent kitchen roll. • The electric hobs should be cleaned using a damp cloth and then rubbed with oil while still warm. • Stainless steel may become marked if it comes into contact with very hard water or harsh detergents (containing phosphorous) for long periods of time. After cleaning, it is advisable to rinse thoroughly and dry. It is also recommended that drops of water be dried. 6 voltage of 220-230V/380-400V~ 3N 50/60Hz (see data plate ) maximum power absorbed 5600W Assistance Communicating: • appliance model (Mod.) • serial number (S/N) This information is found on the data plate located on the appliance and/or on the packaging. RS 7HPF 604 RU/HA 7HPF 604 IX RU/HA RS ! ! ! ! 55 mm mm 475 555 mm 600mm min. 600mm min. 700mm min. RS 8 ! . 560 mm 45 m m. V 1 2 4 3 5 F 380-400V 3N~ H05RR-F 5x1.5 CEI-UNEL 35363 1 2 3 380-400V 2N~ H05RR-F 4x1.5 CEI-UNEL 35363 1 2 220-230V 1N~ H05RR-F 3x2.5 CEI-UNEL 35363 1 2 3 R 5 4 5 4 5 T S R 4 N S N 3 R N ! ! ! ! ! ! RS RS ЭЛЕКТРИЧЕСКИЕ КОНФОРКИ Рукоятки ЭЛЕКТРИЧЕСКИХ КОНФОРОК Индикатор работы ЭЛЕКТРИЧЕСКОЙ КОНФОРКИ ! Поз. Нормальная и быстрая конфорка 0 Выключено 1 Минимальная мощность 2-5 6 Средние мощности Максимальная мощность ! 10 ! Позиция Обычная или быстрая конфорка 0 Выключено 1 Приготовление овощей, рыбы 2 Варка картофеля, супов, гороха, фасоли 3 Тушение больших объемов пищи 4 Жаренье (средняя температура) 5 Жаренье (температура выше среднего) 6 Для быстрого поджаривания и кипячения ! RS RS ! ! 12 06/2010 - 195084556.00 XEROX FABRIANO ПАСПОРТНАЯ ТАБЛИЧКА Электрическое подключение напряжение 220-230В/380400В~ 3Н 50/60Гц (см.паспортную табличку) макс.потребляемая мощность 5600Вт Данное изделие соответствует следующим Директивам Европейского Сообщества: 2006/95/CEE от 12.12.06 (Низкое напряжение) с последующими изменениями – 2004/108/CEE от 15.12.04 (Электромагнитная совместимость) с последующими изменениями – 93/68/СЕЕ от 22/07/93 с последующими изменениями. 2002/96/СЕЕ и последующим изменениям; ">
