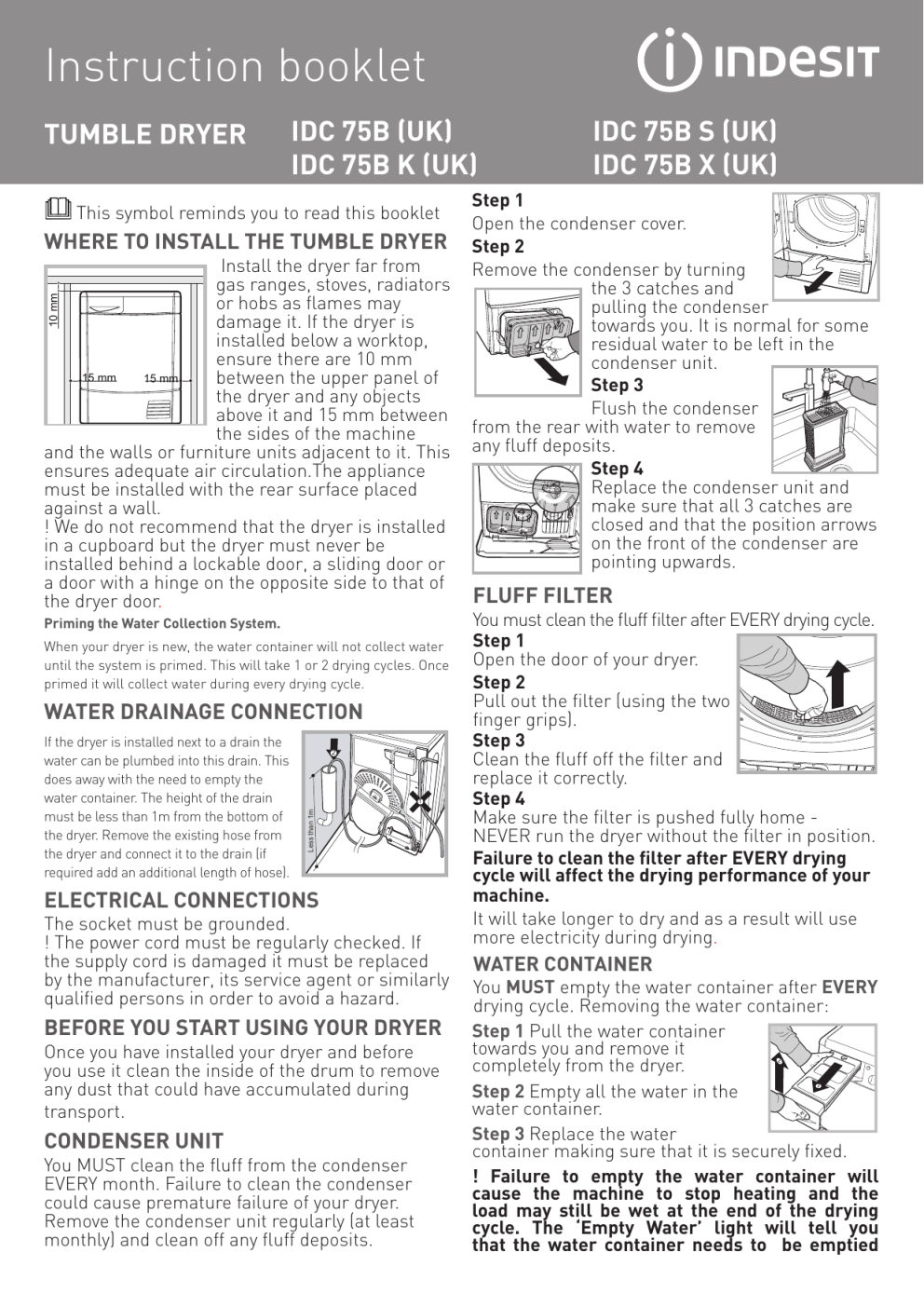

Instruction booklet
TUMBLE DRYER
IDC 75B (UK) IDC 75B S (UK)
IDC 75B K (UK)
IDC 75B X (UK)
This symbol reminds you to read this booklet
WHERE TO INSTALL THE TUMBLE DRYER
10 mm
Install the dryer far from
gas ranges, stoves, radiators
or hobs as flames may
damage it. If the dryer is
installed below a worktop,
ensure there are 10 mm
15 mm
15 mm
between the upper panel of
the dryer and any objects
above it and 15 mm between
the sides of the machine
and the walls or furniture units adjacent to it. This
ensures adequate air circulation.The appliance
must be installed with the rear surface placed
against a wall.
! We do not recommend that the dryer is installed
in a cupboard but the dryer must never be
installed behind a lockable door, a sliding door or
a door with a hinge on the opposite side to that of
the dryer door.
Priming the Water Collection System.
When your dryer is new, the water container will not collect water
until the system is primed. This will take 1 or 2 drying cycles. Once
primed it will collect water during every drying cycle.
WATER DRAINAGE CONNECTION
2
1
Less than 1m
If the dryer is installed next to a drain the
water can be plumbed into this drain. This
does away with the need to empty the
water container. The height of the drain
must be less than 1m from the bottom of
the dryer. Remove the existing hose from
the dryer and connect it to the drain (if
required add an additional length of hose).
ELECTRICAL CONNECTIONS
The socket must be grounded.
! The power cord must be regularly checked. If
the supply cord is damaged it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
BEFORE YOU START USING YOUR DRYER
Once you have installed your dryer and before
you use it clean the inside of the drum to remove
any dust that could have accumulated during
transport.
CONDENSER UNIT
You MUST clean the fluff from the condenser
EVERY month. Failure to clean the condenser
could cause premature failure of your dryer.
Remove the condenser unit regularly (at least
monthly) and clean off any fluff deposits.
Step 1
Open the condenser cover.
Step 2
Remove the condenser by turning
the 3 catches and
pulling the condenser
towards you. It is normal for some
residual water to be left in the
condenser unit.
Step 3
Flush the condenser
from the rear with water to remove
any fluff deposits.
Step 4
Replace the condenser unit and
make sure that all 3 catches are
closed and that the position arrows
on the front of the condenser are
pointing upwards.
FLUFF FILTER
You must clean the fluff filter after EVERY drying cycle.
Step 1
Open the door of your dryer.
Step 2
Pull out the filter (using the two
finger grips).
Step 3
Clean the fluff off the filter and
replace it correctly.
Step 4
Make sure the filter is pushed fully home NEVER run the dryer without the filter in position.
Failure to clean the filter after EVERY drying
cycle will affect the drying performance of your
machine.
It will take longer to dry and as a result will use
more electricity during drying.
WATER CONTAINER
You MUST empty the water container after EVERY
drying cycle. Removing the water container:
Step 1 Pull the water container
towards you and remove it
completely from the dryer.
Step 2 Empty all the water in the
water container.
Step 3 Replace the water
container making sure that it is securely fixed.
! Failure to empty the water container will
cause the machine to stop heating and the
load may still be wet at the end of the drying
cycle. The ‘Empty Water’ light will tell you
that the water container needs to be emptied
2
Warnings
! This appliance has been designed and built
according to international safety standards.
These warnings are given for safety reasons and
must be followed carefully.
General safety
This appliance can be used by children aged
from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use
of the appliance in a safe way and understand the
hazards involved.
This tumble dryer has been designed for home
and not professional, use.
Do not touch the appliance while barefoot or with
wet hands or feet.
Unplug the machine by pulling on the plug, not
the cord.
After using the dryer, turn it off and unplug it.
Keep the door closed to make sure that children
do not use it as a toy.
Children should be supervised to ensure that
they do not play with the dryer.
Cleaning and user maintenance shall not be
made by children without supervision.
Children of less than 3 years should be kept
away from the appliance unless continuously
supervised.
The appliance must be installed correctly and
have proper ventilation. The air intake at the front
of the dryer should never be obstructed
Never use the dryer on carpeting where the pile
height would prevent air from entering the dryer
from the base.
Check to see if the dryer is empty before loading it.
The back of the dryer could become very hot.
Never touch it while in use.
Do not use the dryer unless the filter, watercontainer and condenser are securely in place
Do not overload the dryer (see Laundry for
maximum loads).
Do not load items that are dripping wet.
Carefully check all instructions on clothing labels
Do not tumble dry large, very bulky items.
Do not tumble dry acrylic fibres at high
temperatures.
Do not turn off the dryer when there are still
warm items inside.
Clean the filter after each use.
Empty the water container after each use.
Clean the condenser unit at regular intervals .
Do not allow lint to collect around the dryer.
Never climb on top of the dryer. It could result in
damage.
Always follow electrical standards and
requirements.
Always buy original spare parts and accessories.
To minimise the risk of fire in your
tumble dryer, the following should be
observed:
Tumble dry items only if they have been washed
with detergent and water, rinsed and been
through the spin cycle. It is a fire hazard to dry
items that HAVE NOT been washed with water.
Do not dry garments that have been treated with
chemical products.
Do not tumble dry items that have been spotted
or soaked with vegetable or cooking oils, this
constitutes a fire hazard. Oil-affected items can
ignite spontaneously,especially when exposed to
heat sources such as a tumble dryer. The items
become warm, causing an oxidisation reaction
with the oil, Oxidisation creates heat. If the heat
cannot escape, items can become hot enough to
catch fire. Piling, stacking or storing oil-effected
items can prevent heat from escaping and so
create a fire hazard.If it is unavoidable that fabrics
containing vegetable or cooking oil or those that
have been contaminated with hair care products
be placed in a tumble dryer they should first be
washed with extra detergent - this will reduce,
but not eliminate the hazard. They should not
be removed from the dryer and piled or stacked
while hot.
Do not tumble dry items that have previously
been cleaned in or washed in, soaked in or
soiled with petrol/gasoline, dry cleaning solvents
or other flammable or explosive substances.
Highly flammable substances commonly used
in domestic environments including cooking
oil, acetone, denatured alcohol, kerosene, spot
removers, turpentine, waxes and wax removers.
Ensure these items have been washed in hot
water with an extra amount of detergent before
being dried in the tumble dryer.
Do not tumble dry items containing foam rubber
(also known as latex foam), or similarly textured
rubber like materials. Foam rubber materials
can, when heated, produce fire by spontaneous
combustion.
Fabric softener or similar products should not be
used in a tumble dryer to eliminate the effects of
static electricity unless the practice is specifically
recommended by the manufacturer of the fabric
softener product.
Do not tumble dry undergarments that contain
metal reinforcements eg. bras with metal
reinforcing wires. Damage to the tumble dryer
can result if the metal reinforcements come loose
during drying.
Do not tumble dry rubber, plastic articles such
as shower caps or babies waterproof covers,
polythene or paper.
Do not tumble dry rubber backed articles, clothes
fitted with foam rubber pads, pillows, galoshes
and rubber coated tennis shoes.
Remove all objects from pockets such as lighters
and matches.
WARNING: Never stop the dryer before the end
of the drying cycle unless all items are quickly
removed and spread out so that the heat is
dissipated.
Dryer Description
High Heat
button
Control panel
Drying time
selector knob
The TIMER knob: the 0 position swithes off the dryer.
The HEAT button selects drying temperature.
OUT: LOW heat IN: HIGH heat
Start
button
The TIMER knob sets the drying time: rotate it clockwise, NEVER
COUNTER-CLOCKWISE, until the indictor is pointing to the drying
time you want to select.
The Empty Water indicator light signals that the water container is
full and must be emptied. The light will take a few seconds to go
out after replacing the empty water container, the dryer must be
running for this to happen.
Note: If the water container fills up the indicator lights, the heat is
WASH CARE LABELS
Look at the labels on your garments when tumble drying. The
following symbols are the most common.
May be tumble dried
Do NOT tumble dry
turned off and your laundry will not dry.
CHOOSING A PROGRAMME
Tumble dry at high heat setting
Standard Cotton - High (full) Heat
This is the most efficient program in terms of energy consumption (EU 392/2012). To reach maximum efficiency, select the
highest temperature option.
Drying times 800-1000rpm spin in washing machine
1kg
2kg
3kg
4kg
30-40mins
40-55mins
55-70mins
70-80mins
5kg
6kg
7kg
80-90mins
95-120mins
120-140mins
Tumble dry at low heat setting
ITEMS NOT SUITABLE FOR TUMBLE
DRYING
1. Articles that contain rubber or rubber-like materials or plastic
film, any flammable articles or objects that contain flammable
substances.
2. Glass fibres.
3. Items which have been dry cleaned.
Synthetics - Low (gentle) Heat
4. Large bulky items (quilts, sleeping bags, etc). These expand
when drying and prevent airflow through the dryer.
Drying times on reduced spin in washing machine
1kg
2kg
3kg
40-50mins
50-70mins
70-90mins
1. Plug the dryer into the electrical socket.
2. Sort your laundry according to fabric type.
3. Open the door and make sure the filter is clean and in place.
4. Load the machine and make sure items are not in the way of the
door seal. Close door.
5. Set the temperature with the HEAT button. High heat for Cotton.
Low heat for delicates, synthetics and acrylics.
6. Select a drying time by rotating the TIMER knob clockwise.
The tables below show APPROXIMATE drying times in minutes.
Weights refer to dry garment weights.
7. Press the START button to begin.
During the drying programme, you can check on your laundry
and take out items that are dry while others continue drying.
When you close the door again press the START button in order
to resume drying.
Troubleshooting
Before you call the service centre go through the following
troubleshooting suggestions:
PROBLEM:
The dryer won’t start.
POSSIBLE CAUSES/SOLUTION:
• The plug is not in the socket or making contact.
• There has been a power failure.
• The fuse has blown. Try to plug another appliance into the
socket.
• You are using an extension cord? Try to plug the dryer directly
into the socket.
• The timer knob has not been set properly.
• The start button has not been pressed.
• The door is not closed securely.
8. About 10 minutes before the programme is completed it enters
the final COOL TUMBLE phase (fabrics are cooled) which should
always be allowed to complete.
PROBLEM:
9. Open the door and take the laundry out. Clean and replace the
filter. Empty and replace the water container.
POSSIBLE CAUSES/SOLUTION:
10. Unplug the dryer.
• The filter has not been cleaned.
It is taking a long time to dry.
• The water container needs emptying? The empty water light
is on?
• The condenser needs cleaning.
Laundry
• The temperature setting is not correct.
• The correct time has not been selected.
MAX LOAD SIZE
• The air intake grill is obstructed.
Natural fibres: 7kg max Synthetic fibre: 3kg max
• The dryer was over loaded.
• The items were too wet.
DISPOSAL OF OLD ELECTRICAL APPLIANCES
The European Directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE) requires that old household electrical
appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately
in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the
environment.
The crossed out “wheeled bin” symbol on the product reminds you of your obligation that when you dispose of the appliance it
must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct
disposal of their old appliance.
This appliance conforms to the following EC Directives: - 2006/95/EC (Low Voltage Equipment) - 2004/108/EC
(Electromagnetic Compatibility)
Indesit Company Spa
Viale Aristide Merloni 47
60044 Fabriano (AN)
Italy
www.indesit.com
Product Data - Regulation 392/2012.
Brand
Indesit
Model
IDC 75 B (UK)
Rated capacity of cotton laundry for the "standard cotton
programme" at full load - kg
7.0
This household tumble drier is a
Energy efficiency class on a scale from A+++ (low consumption)
to D (high consumption)
Condenser
The weighted Annual Energy Consumption (AEc)* kWh 1)
This household tumble drier is a
Energy consumption full load; Edry - kWh 2)
Energy consumption partial load; Edry½ - kWh 2)
Power consumption: off-mode (Po) - Watts
Power consumption: left-on mode (Pl) - Watts
Duration of the 'left-on mode' for power management system minutes
504.0
Non-automatic
4.28
2.3
0.00
N/A
B
N/A
Prog. Time - weighted (Tt) full & partial load - minutes 3)
Full load (Tdry) - minutes
Partial load (Tdry½) - minutes
Condensation efficiency class on a scale from G (least efficient) to
A (most efficient)
Average condensation efficiency - %
94
119
69
weighted (Ct) full & partial load 3)
full load (Cdry)
partial load (Cdry½)
Airborne acoustical noise emissions - dB(A) re 1 pW
71
71
71
68.0
C
1) "Standard cotton” at full and partial load is the standard programme to which the
information in the label and the fiche relates. The standard cotton program is
suitable to dry at cupboard level (0%) cotton laundry and is the most efficient
programme in terms of energy consumption. Partial load is half the rated load.
2) based on 160 drying cycles of the standard cotton programme at full and partial
load, and the consumption of the low-power modes. Actual energy consumption
will depend on how the appliance is used.
3) Weighted average of 3 cycles at full load and 4 cycles at half load.
Regulation 932/2012.
Energy consumption in kWh, for program “Synthetics” full load
Programme time in minute, for program “Synthetics” full load
1.34
70
08/2015 Xerox Fabriano
INFORMATION ON RECYCLING
AND DISPOSAL
As part of our continual commitment towards environmental
protection, we reserve the right to use recycled quality
components to reduce costs for our customers and to minimise
materials wastage.
• Disposing of the packaging materials: follow local regulations to
allow for recycling of packaging materials.
• In order to minimise the risk of injury to children, remove the
door and plug, then cut the power supply cord flush with the
appliance. Dispose of these parts separately to prevent the
appliance from being connected to a power supply socket.
SAVE ENERGY AND RESPECT
THE ENVIRONMENT
Wring out all items to eliminate excess water before tumble
drying (if you use a washing machine first, select a high spin
cycle). Doing this will save time and energy during drying.
Always dry full loads - you save energy: single items or small
loads take longer to dry. Clean the filter after each use to contain
energy consumption costs
OUR ADVISORS WILL REQUIRE THE
FOLLOWING INFORMATION:
•
•
•
•
name, address and postal
code
telephone number
type of malfunction
date of purchase
•
•
•
model number
serial number
This information can be
found on the data plate
located behind the door.
Partial load for program “Synthetics” N/A
Repairs and After Sales
For product help and advice, repairs, spare parts or
accessories, we’re here to help.
For local repair engineers - 03448 111 606
ROI - 0818 313 413
UK standard local rate applies
ROI local Irish rate applies
For Parts and Accessories visit:
parts.indesit.co.uk/shop
Please remember to register your appliance at
www.indesitservice.co.uk
to activate your 10 year parts guarantee.
How to find your model and serial number:
">
