Whirlpool ADP 941/2 WH Instruction for Use

GB

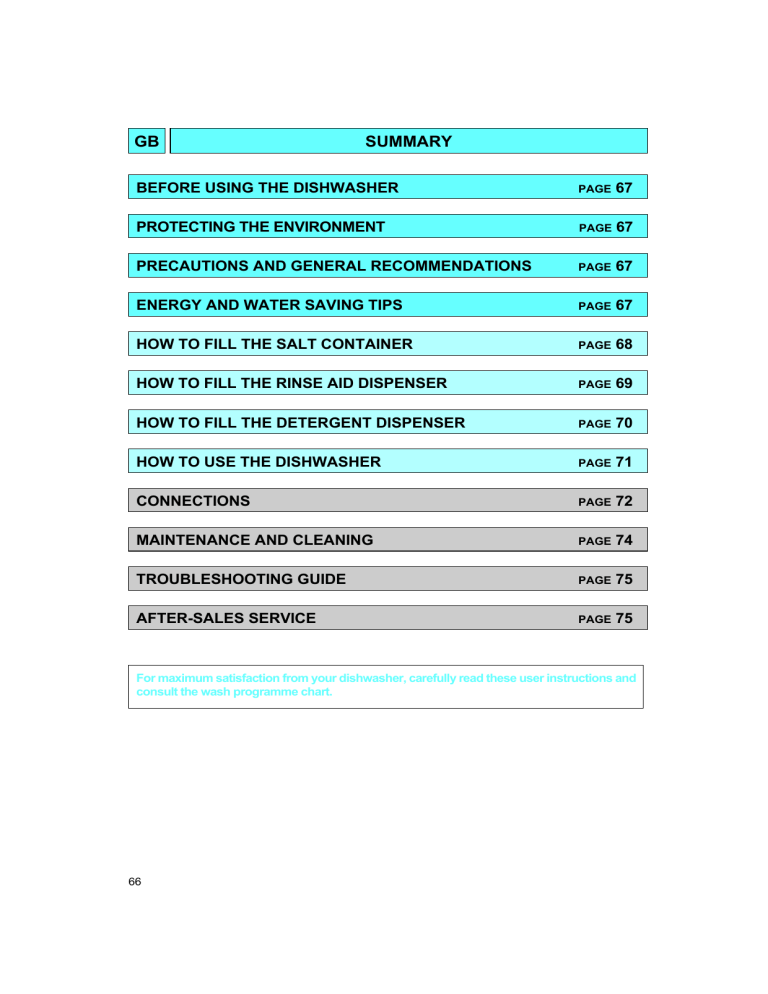

SUMMARY
BEFORE USING THE DISHWASHER
PAGE
67
PROTECTING THE ENVIRONMENT
PAGE
67
PRECAUTIONS AND GENERAL RECOMMENDATIONS
PAGE
67
ENERGY AND WATER SAVING TIPS
PAGE
67
HOW TO FILL THE SALT CONTAINER
PAGE
68
HOW TO FILL THE RINSE AID DISPENSER
PAGE
69
HOW TO FILL THE DETERGENT DISPENSER
PAGE
70
HOW TO USE THE DISHWASHER
PAGE
71
CONNECTIONS
PAGE
72
MAINTENANCE AND CLEANING
PAGE
74
TROUBLESHOOTING GUIDE
PAGE
75
AFTER-SALES SERVICE
PAGE
75
For maximum satisfaction from your dishwasher, carefully read these user instructions and
consult the wash programme chart.
66
BEFORE USING THE DISHWASHER
•
•
After unpacking, make sure the appliance is
undamaged and that the door closes
correctly. Do not use the appliance if it is
damaged. If in doubt, consult your local
retailer.
Keep potentially hazardous packaging
(plastic bags etc.) out of the reach of children.
•
•
This appliance is designed for use in the home
in compliance with its intended purpose.
All water and electrical connections must be
carried out by a qualified technician in
compliance with the manufacturer's
instructions (refer to the enclosed installation
booklet) and current local safety regulations.
PROTECTING THE ENVIRONMENT
1. Packing
The packing box may be fully recycled as
confirmed by the recycling symbol
.
2. Appliance
The appliance is built from reusable materials.
If you decide to scrap the dishwasher, it
must be disposed of in compliance with local
waste disposal laws. Before scrapping, cut
off the power cable so that the appliance
cannot be connected to the mains.
PRECAUTIONS AND GENERAL RECOMMENDATIONS
Child safety
• Do not allow children to play with the
dishwasher.
• Store the detergent, rinse aid and salt in a dry
place out of the reach of children.
General recommendations
• Only use detergents, rinse aids and
regeneration salts specially recommended
for use in domestic dishwashers.
• On completion of the wash programme
switch off the dishwasher and turn off the
water tap.
• Before cleaning or carrying out maintenance,
switch off the appliance, disconnect the
mains plug and turn off the water tap.
• If a fault occurs, switch off the appliance and
turn off the water tap.
• The open dishwasher door can only support
the weight of the loaded rack when pulled
out. Do not rest objects on the open door or
sit or stand on it since the appliance may
topple over.
•
•
•
•
If necessary, the power cable may be
replaced with one the same obtained from our
After-Sales Service. The power cable must
only be replaced by a qualified technician.
For appliances with water-stop system:
The water inlet hose and plastic casing
contain electrical components. Do not
therefore cut the hose or immerse the plastic
casing in water. If the hose is damaged
switch off the appliance immediately.
Do not use solvents inside the dishwasher:
risk of explosion!
Load capacity: -12 place settings
EC Declaration of Conformity
This appliance has been designed,
constructed and distributed in compliance
with the safety requirements of
EC Directives:
• 73/23/EC
• 89/336/EC
• 93/68/EC.
ENERGY AND WATER SAVING TIPS
•
•
Do not rinse crockery under running water.
Always fully load the dishwasher before
switching on or set the wash programme to
half load (if available) if one rack only is
loaded.
•
If ecological energy sources are available
such as solar panel heating, heat pumps or
centralised heating systems, the appliance
may be connected to the hot water mains up
to a maximum temperature of 60°C.
Make sure the water inlet hose is of the
correct type. Refer to the “Connections”
chapter in these user instructions.
67
HOW TO FILL THE SALT CONTAINER
Check the water hardness level in your
area.
Consult your local Water Board or check
your last water bill.
Set the water hardness by turning the
selector (if fitted) inside the door (top left)
with a screwdriver. Use the table below to
set the dial to the required setting.
•
Selector
setting
Water hardness
German
degrees
°dH
French
degrees
°fH
0
1 soft
0-5
0-9
1
1 - 2 medium
6 - 10
10 - 18
2
2 medium
11 - 15
19 - 27
3
3 medium-hard
16 - 21
28 - 37
4
4 hard
22 - 28
38 - 50
5
4 very hard
29 - 35
51 - 63
6
4 extremely hard
36 - 60
64 - 107
If the water hardness level falls within category 1
(soft), no salt is required.
•
•
•
If the water hardness level exceeds
category 1-2 (medium), before using the
dishwasher for the first time, fill the salt
container and run a wash cycle so that
any excess saline solution discharged is
immediately removed by the water to
prevent corrosion. The pre-rinse cycle is
not sufficient for this purpose.
Check the salt level regularly.
Important: Only use regeneration salts
recommended for use in domestic
dishwashers.
Do not fill the salt container with
detergent as this will cause irreparable
damage to the water softener system.
To fill the salt container:
1. Remove the lower rack.
2. Unscrew the cap by turning it counterclockwise.
3. If the dishwasher is new, fill the salt container
to the rim with water.
4. Fill the container to the rim with salt
(max. 2 kg) and stir with a spoon handle.
5. Screw the cap back on by turning it
clockwise.
Salt level indicator
The dishwasher is equipped with an electric or
visual salt level indicator depending on the
model installed.
68
Electric indicator:
The salt level indicator lamp
on the control
panel illuminates when the salt container is empty.
Visual indicator:
The red float is clearly visible in the cap window
when the salt container is full. The red float
lowers and is no longer visible when the salt
container is empty.
HOW TO FILL THE RINSE AID DISPENSER
The rinse aid facilitates drying and prevents the
formation of unsightly spots and streaks on
crockery. Before using the dishwasher for the
first time, fill the rinse aid dispenser.
Thereafter, regularly check the rinse aid level.
Only use rinse aids recommended for use in
domestic dishwashers.
1. Unscrew the cap and press button A
(see drawing). Fill the dispenser with rinse
aid up to the dashed line (about 100 ml
maximum).
2. Immediately wipe away any spilt rinse aid
to prevent excess suds which may spoil
washing results.
3. Replace the cap.
A
How to adjust the rinse aid dosage
regulator.
(Open the cover and close again following
adjustment).
Factory setting: 3
If you are not satisfied with washing or drying
results, change the dial setting with a spoon
handle or coin.
If crockery is prone to whitish streaks, reduce the
dosage by turning the dial to a lower setting. If
instead crockery is wet, increase the dosage by
turning the dial to a higher setting.
Rinse aid level indicator (visual or
electric indicator depending on the
model installed).
Electric indicator:
The indicator lamp
on the control panel
illuminates when the rinse aid dispenser is
empty.
Visual indicator:
light= empty;
dark= full.
69
HOW TO FILL THE DETERGENT DISPENSER
Only use detergents recommended for use in
domestic dishwashers.
If you use “new generation” enzyme-based
detergents, select the Bio programmes which
are also suitable for all normal detergents.
If you use detergents in pellet form, follow the
manufacturer's directions for use.
Always use the recommended dosage stated on
the detergent pack. The use of detergent in
excess of the recommended dosage may cause
pollution. The recommended dosage varies
between different brands.
The figures inside the large compartment serve as
a dosage guide. The figures are in “ml” or “cm 3”.
Only fill the detergent dispenser prior to
starting a wash programme.
Normal load:
For programmes with pre-rinse.
(Example: Normal 65°C refer to the
“Wash programme chart”).
First fill the large compartment.
Then fill the small compartment.
1. Pour two thirds of the recommended dosage
in the large compartment.
2. Pour the remaining third in the small
compartment.
Note: Remember to close the large
compartment lid.
Large compartment volume: 45 ml (up to rim).
Small compartment volume: 10 ml (up to rim).
For programmes without pre-rinse:
• Pour the entire recommended dosage in the
large compartment. If the recommended
dosage on the detergent pack is over 45 ml,
pour the remaining detergent in the small
compartment.
70
For programmes with additional selected
functions:
“Half load”: load the upper or lower rack only.
Use a smaller quantity of detergent.
HOW TO USE THE DISHWASHER
Close the dishwasher door and turn on
the water tap.
1. Press the ON/OFF button to switch on the
dishwasher. Select the programme required
by turning the programme selector knob.
The corresponding indicator lamp will
illuminate.
If required, select any additional functions.
1
2. Press the Start button to start the selected
wash programme. The Start indicator lamp
will illuminate. Once set, the programmed data
cannot be altered by turning the programme
selector knob or pressing the buttons.
Note: Once the Start button has been pressed,
the dishwasher memorises all the programmes
selected. The selected programmes are also
saved in the event of power failure.
2
3. To change the programme selected, press
the Start button for about 5 seconds until the
Start indicator lamp switches off. Select a
new programme using the programme
selector knob and press the Start button.
The End indicator lamp (if fitted) illuminates
briefly and the Start indicator lamp switches
off to indicate the end of the programme.t
3
4. Turn the programme selector knob counter
clockwise to the “0” position to switch off the
dishwasher (only after the End indicator lamp
has illuminated briefly or the Start indicator
lamp has switched off). All the indicator
lamps switch off.
Note: If the dishwasher is switched off
during a wash programme, when switched
on again the dishwasher resumes the wash
cycle from where it was interrupted.
4
Open the door and unload first the lower rack
and then the upper one.
71
CONNECTIONS
Refer to the separate installation instructions
booklet.
Water inlet and drain:
• Strictly follow local Water Board regulations.
• Make sure the inlet and drain hoses are kinkfree and are not crushed.
• If the hose length does not suffice, replace
with similar hoses obtained from your local
dealer or our After-Sales Service.
• The inlet hose must be securely clamped to
the water tap to prevent leaks.
• The inlet water temperature varies according
to the model installed: inlet hose marked
“25°C max.”: maximum temperature 25°C
All other models: maximum temperature 60°C.
• When installing the appliance, make sure the
drain water discharges correctly and, if
necessary, remove the wire gauze from the
sink siphon.
• Secure the drain hose with a clamp to the
siphon to prevent it from dropping off during
operation.
• For appliances with water-stop system only:
if the water connections are made correctly,
the water-stop system safeguards your home
against damage caused by flooding.
72
Electrical connections:
• Closely adhere to local Electricity Board
regulations.
• Voltage information is shown on the rating
plate mounted inside the door on the right
hand side.
• The appliance must be earthed as prescribed
by law.
• Do not use extension leads or multiple
adapters etc.
• Before carrying out maintenance, disconnect
the mains plug.
• Do not use the dishwasher if it has been
damaged in transit. Consult your local retailer
or our After-Sales Service.
• The power cable must only be replaced by a
qualified technician.
CONNECTIONS
1) ELECTRICAL CONNECTIONS
“Warning - this appliance must be
earthed”
This appliance is normally supplied with a
mains lead having a plug fitted in the factory
which has been checked for correct earth
continuity.
If the fitted plug is not suitable for your socket
outlet, or if the machine’s mains lead is not
fitted with a plug, you should fit a suitable new,
good quality plug by following the instructions in
(2) below.
Any unsuitable plug should be cut off and
disposed of in order to avoid a possible shock
hazard should it be inserted into a socket.
2.2 Non-polarized plugs (e.g. 2 pin with side
earth contact)
The wire which is coloured GREEN AND
YELLOW must be connected to the earth contact.
The other two wires should be connected to the
two pins, irrespective of colour.
3) FUSE REPLACEMENT
If the mains lead of this appliance is fitted with
a BS 1363A 13 amp fused plug, replace the
fuse only with an A.S.T.A. approved type
conforming to BS 1362 and proceed as follows:
2) CONNECTION TO A REWIRABLE
PLUG - to be carried out only by a
qualified electrician
The wires in the mains lead are coloured in
accordance with the following code:
BLUE - “NEUTRAL” (“N”)
BROWN - “LIVE” (“L”)
GREEN AND YELLOW - “EARTH” (“E”)
To fit a new plug, proceed as follows:
2.1 Polarized Plugs (e.g. 3 pin, 13 amp plug
conforming to BS 1363A)
a. The GREEN AND YELLOW wire must be
connected to the terminal in the plug which
is marked with the letter “E” or by the Earth
symbol or coloured yellow or green and
yellow.
b. The BLUE wire must be connected to the
terminal which is marked with the letter “N”
or coloured black.
c. The BROWN wire must be connected to the
terminal which is marked with the letter “L”
or coloured red.
1. Remove the fuse cover (A) and the fuse (B).
2. Fit the replacement 13 A fuse into the fuse
cover.
3. Refit both into the plug.
For all other types of plug, the supply socket
should be protected by a 16 A fuse or circuit
breaker at the distribution board
73
MAINTENANCE AND CLEANING
Before cleaning or carrying out maintenance,
press the ON/OFF button.
1. Clean the appliance exterior with a neutral
detergent. Do not use abrasive detergents.
2. Regularly wipe the door seal and inside of the door
with a damp cloth to remove any food residues.
If the spray nozzles become clogged with food
residues, clean the spray arms as follows.
Upper spray arm:
• Slacken the fixing nut (by turning it counter-clockwise)
A and detach the spray arm by pulling it down B.
• Rinse the nozzles.
• Remount the spray arm by aligning it with the
rotary mounting and insert it.
• Tighten the fixing nut by turning it clockwise.
Make sure the nut is fully tightened (it should click).
Make sure the spray arm rotates freely.
Lower spray arm:
• Press the two levers inwards which fix the spray
arm A and detach by pulling it up B.
• Rinse the nozzles.
• Remount the spray arm by aligning it with the rotor
pin and insert it.
• Push the spray arm down until it is fixed in place.
• Make sure the two levers are correctly inserted
(they should click).
Make sure the spray arm rotates freely.
Cleaning the filters
1. Fully unscrew the wide-mesh central filter by
turning it counter-clockwise and extract it A.
2. Fully unscrew the cylindrical filter and extract it
from the wide-mesh central filter B (pay due
attention to the holes in the bottom of the filter).
3. Remove the fine-mesh filter C.
4. Clean all the components.
5. Reassemble:
Insert the cylindrical filter in the wide-mesh central
filter. Fit the fine-mesh filter and screw down the
filter unit by turning it clockwise. The filter unit
must be correctly assembled to ensure good
washing results.
74
A
B
C
TROUBLESHOOTING GUIDE
If a fault occurs, before contacting our After-Sales Service, make the following
checks to try and remedy the problem.
Restart the wash programme to see if the
fault repeats.
• Press the Start button for about 5 seconds
until the Start indicator lamp switches off.
• Briefly press the Start button.
If the malfunction persists, switch off the
appliance and turn off the water tap. Call our
After-Sales Service.
The appliance will not switch on:
• Power plug properly inserted in the mains
socket?
• Power failure?
• Have you switched the dishwasher on?
• Have you pressed the Start button?
• Have you set the delay timer (if fitted)?
• Tap turned on? If not:
• Turn on the water tap.
• Make sure the water hose filter is not
clogged.
To do this, turn off the water tap, disconnect
the water hose, clean the filter, reconnect
the water hose to the tap and turn on the tap.
• Filters clogged?
Crockery loaded upside down?
When loading large items in particular, make
sure the water circulates and does not collect
inside them.
• Door closed properly?
• Fault indicated?
The Start indicator lamp flashes:
Other fault signals
on the model installed:
End
depending
The programme progress indicator lamp
on
the control panel flashes:
Detach the lower spray arm. Check crockery and
cutlery have been loaded correctly and that the
lower spray arm has been correctly fitted.
Crockery still dirty after washing:
• Have you selected the correct programme?
• Have you used the correct amount of
detergent?
• Filters clogged or incorrectly assembled?
• Spray arms blocked or nozzles clogged?
• Salt container cap screwed down?
• Crockery loaded correctly? (the water jets
must spray the entire surface of all items).
Spotted crockery:
• Water hardness duly checked and
regulated?
• Salt container empty?
• Insufficient detergent?
Spotted glasses and cutlery:
• Too much rinse aid? (Adjust the rinse aid
regulator to a lower setting).
Note:
On some models when the Start button is
pressed, a pre-rinse cycle is performed prior to
the actual wash programme to regenerate the
water softener system.
AFTER-SALES SERVICE
Before contacting our After-Sales Service,
1. Try to remedy the problem
(See “Troubleshooting guide”).
2. Switch off the dishwasher and restart the
wash programme to see if the fault repeats.
If, after carrying out the above checks the
malfunction persists, call our After-Sales
Service and specify:
• the nature of the problem,
• the appliance type and model,
•
the service number
(the number after the
word Service on the
adhesive label)
located inside the door
on the right hand side,
•
your name, address
and telephone
number.
75

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
