Whirlpool AKZ 161/02 IX Instruction for Use

54283agb.fm5 Page 3 Tuesday, March 15, 2005 1:16 PM

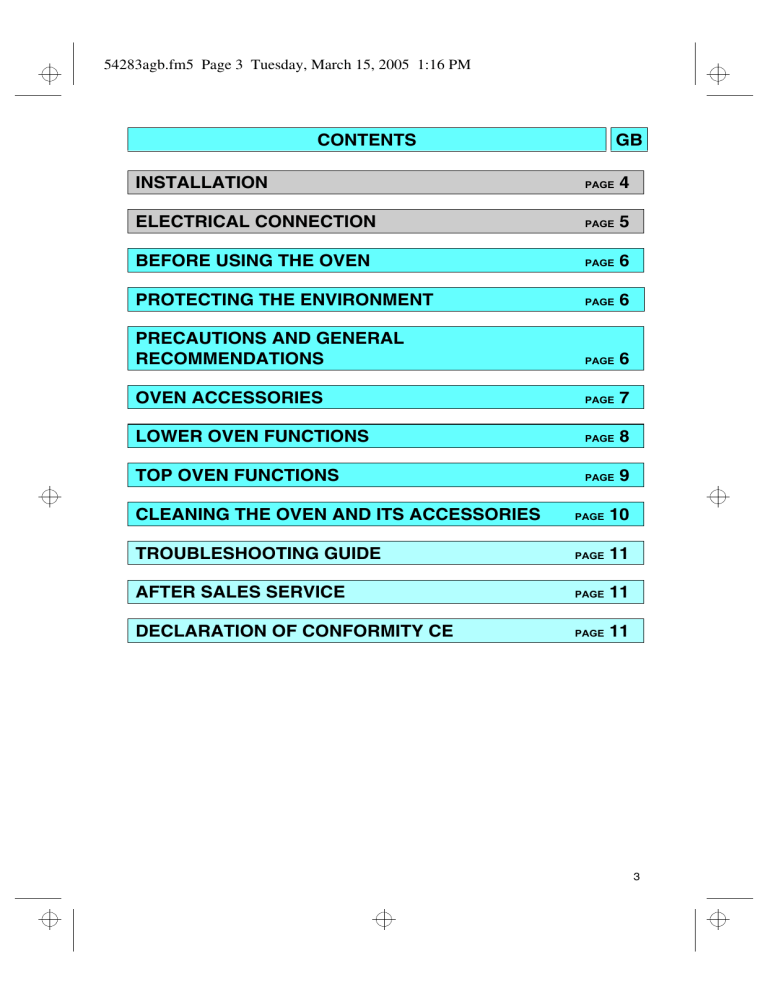

CONTENTS
GB
INSTALLATION
PAGE
4
ELECTRICAL CONNECTION
PAGE
5
BEFORE USING THE OVEN
PAGE
6
PROTECTING THE ENVIRONMENT
PAGE
6
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
PAGE
6
OVEN ACCESSORIES
PAGE
7
LOWER OVEN FUNCTIONS
PAGE
8
TOP OVEN FUNCTIONS
PAGE
9
CLEANING THE OVEN AND ITS ACCESSORIES
PAGE
10
TROUBLESHOOTING GUIDE
PAGE
11
AFTER SALES SERVICE
PAGE
11
DECLARATION OF CONFORMITY CE
PAGE
11
3
54283agb.fm5 Page 4 Tuesday, March 15, 2005 1:16 PM
INSTALLATION
Technical information for the installer
•
•
•
•
•
•
•
•
•
After removing the oven from its packaging,
before making the connections place it on the
polystyrene foam base to protect it from
damage.
Do not attempt to lift the oven by the handle. Lift
at the sides as shown in the figure (see arrow).
Check that the appliance has not been
damaged in transit.
Oven dimensions and kitchen unit dimensions
are shown in the figure opposite.
Kitchen units in contact with the oven must be
heat resistant (80° C min).
If plastic laminates or cement are not sufficiently
heat-resistant, warping, bubbling or detachment
of the finish may result.
Install the oven in the housing, lifting it at the
sides, taking care not to trap the wires of the
electrical supply cable.
For correct ventilation, follow the ventilation
opening directions shown in the figure
(500 min x 80 mm and 500 min x 50 mm inside
the cabinet).
Secure the oven to the kitchen unit with screws
(A) as shown.
During oven installation, care must be taken to
ensure that the sides are not touching the front
edges of the housing or adjacent drawers and doors
(see picture).
4
54283agb.fm5 Page 5 Tuesday, March 15, 2005 1:16 PM
ELECTRICAL CONNECTION
•
•
•
•
•
•
•
•
Important: do not connect to the power
supply before you have finished
connecting the oven and cooktop.
Make sure the appliance is installed and
connected to the electricity supply by a
qualified technician in accordance with
the manufacturer’s instructions and in
compliance with local regulations.
The installer is responsible for the correct
electrical connection of the appliances
and the observance of the relative safety
recommendations.
The appliance must be connected to the
electricity supply by means of an all-pole
disconnect switch with minimum contact
gap of 3 mm.
The appliances must be earthed by law.
Do not use multiple plug adapters or
extension leads.
After the oven has been installed, the
electrical components must be
concealed.
Make sure that the voltage shown on the
rating plate is the same as the power
supply voltage in your home. The rating
plate is on the front edge of the oven
cavity (visible with oven door open).
5
54283agb.fm5 Page 6 Tuesday, March 15, 2005 1:16 PM
BEFORE USING THE OVEN
•
•
To make the most of your new oven, read the
users instructions carefully and keep them on
hand for consultation in the future.
Remove the cardboard protections and the
protective plastic film.
•
Remove the accessories from the oven and
heat it at 200° C for about an hour to eliminate
the smell of protective grease and insulating
materials. Keep the window open during this
procedure.
PROTECTING THE ENVIRONMENT
1. Packing
•
The packaging material can be 100% recycled,
as confirmed by the recycling symbol (
).
2. Appliances
•
The appliances are built from recyclable
materials. If you decide to scrap the appliances
observe local waste disposal
by-laws. Cut off the power cords so that the
appliances cannot be connected to the mains.
.
PRECAUTIONS AND GENERAL RECOMMENDATIONS
•
•
•
•
•
•
•
•
•
6
Before any maintenance on the oven
disconnect it from the mains.
Keep children away from the oven when it is in
use and when its has just been switched off.
The oven must be repaired or adjusted only by
a qualified technician.
Make sure that the electrical wires of other
electrical appliances near the oven do not come
into contact with hot parts and do not become
entrapped in the oven door.
Use oven gloves to remove baking trays and
accessories when the oven is hot.
Do not cover the bottom of the oven with
aluminium foil.
Do not place inflammable material in the oven risk of fire if the oven is inadvertently switched on.
During the cooking process, water evaporates
from food. All ovens require this steam and
other fumes to be vented from the oven cavity.
For reasons of safety and aesthetics, we have
determined that an opening at the bottom of the
door is the optimum solution.
Consequently, vapour may be seen to be
coming from this area on occasions (see
picture).
This is a normal occurrence and the bottom trim
can be cleaned after removal of the oven door
as described later in this chapter “Cleaning the
oven and its accessories”. Bear in mind there
may be residual steam inside the oven.
Accordingly, great care should be taken
when opening the oven door.
Heavy weights must not be placed on the open
door as this may result in damage to the cavity
and hinges. Max weight: 7 kg (15lbs).
•
Never stand or sit on the oven open door. Never
hang any weight at the handle of the oven door
when open.
54283agb.fm5 Page 7 Tuesday, March 15, 2005 1:16 PM
OVEN ACCESSORIES
•
Accessories supplied depend on the model
(see the Product Description Sheet supplied
separately).
1
Drip tray 1
The drip tray is designed to collect fat and food
particles when it is positioned under the grid; it can
also be used as a griddle to cook meat, chicken and
fish, with or without vegetables. When using the drip
tray under the grid, pour in a little water to avoid fat
spatters and smoke.
2
Baking tray
2
For cooking biscuits, meringues and pizzas.
3
The grid can be used to grill food or as a support for
baking trays, cake tins and other cooking
receptacles. It can be placed on any of the runners
in the oven.
Grid
3
Catalytic panels 4
These panels have a microporous coating that
absorbs fat spatters. We recommend an automatic
cleaning cycle after cooking particularly fatty food.
1. To clean the oven heat it to 200° C when empty
and leave it switched on for about an hour.
2. At the end of the cycle and when the oven is
cool; use a moist sponge to remove food
residues if necessary.
Do not use detergent or cleaners - risk of
damaging the catalytic enamel coating.
4
5
Spit
5
Use the spit as indicated in the relevant chapter in
the Product Description Sheet supplied separately.
Pan Set Kit
6
The set comprises a grid 6a , a drip tray 6b and
one or two tongs 6c .
This accessory must be set on the grid 3 and
used with the Grill function.
Roof shield
6
6a
7
To be used for meats and chicken with all functions.
Position it between the oven ceiling and the grill
element to facilitate cleaning of the ceiling. It may
be used in your dishwasher.
6b
6c
7
7
54283agb.fm5 Page 8 Tuesday, March 15, 2005 1:16 PM
LOWER OVEN FUNCTIONS
The functions actually available depend on the
model (see the Product Description Sheet
supplied separately).
•
•
STATIC FUNCTION
•
This function is used to cook food on the same
runner level.
The function allows temperature control; the
temperature can be set in the range of 50° C to
250° C. The default setting is 200° C.
• Preheat the oven until the required temperature
is reached and place the food into the oven
when all the indicators on the scale °C__ are on.
• When using this function, it is advisable to put
the food in the middle of the oven.
GRILL FUNCTION
This function is ideal to grill small pieces of meat
(steaks, sausages) and for making toast.
This function allows four slight adjustments which
progressively increase heat output (position 1, 2, 3,
4) plus a maximum heat setting (position 5) for the
upper heating element. The default setting is 3.
• Preheat the oven for 3/5 minutes with the oven
door closed.
• The oven door should remain open during
grilling for best cooking performance but may
be closed if preferred.
• When cooking meat, to avoid spatters of fat and
smoke, pour a little water into the drip tray.
• Turn the food half-way through grilling time.
“MLTF” FUNCTION (Heat maintenance)
This function keeps one of two temperature levels
of temperature (either 35° C or 60° C) inside the
oven.
• Setting the temperature at 35° C is particularly
useful to raise dough for bread and pizza.
• The default setting is 35° C. For this function it
is advisable to use the first shelf level.
• Use the 60° C temperature setting to keep the
food warm once it is cooked.
FAN FUNCTION
This function is especially useful for simultaneously
cooking different foods at more than one shelf level
(for example: fish, vegetables, pasta).
This function allows temperature control; the
temperature can be set in the range 50° C to
250° C.
The default setting is 160° C.
• If possible choose dishes that require the same
cooking temperature.
• It is not necessary to preheat the oven.
• If the dishes in the oven have different cooking
times, remove completed dishes and leave
remaining foods until cooked.
PASTRY FUNCTION (Static + Fan)
This function is useful when cooking at two levels
and when baking cakes. The function allows
temperature control; the temperature can be set in
the range of 50° C to 250° C.
The default setting is 175° C.
8
It is not necessary to preheat the oven.
Switch the position of the dishes inside the oven
during cooking time.
If the dishes in the oven have different cooking
times, remove completed dishes and leave
remaining foods until cooked.
TURBOGRILL FUNCTION (Grill + Fan)
This function is ideal to cook large chunks of meat
(i.e. roast beef, roasts).
This function allows four slight adjustments which
progressively increase heat output (position 1, 2, 3,
4) plus a maximum heat setting (position 5) for the
upper heating element. The default setting is 3.
• Keep the oven door closed while cooking.
• Lay the meat onto the grid and position the drip
tray on the first shelf level. To avoid spatters of
fat and smoke, pour a little water into the drip
tray.
• Turn over the meat half-way through cooking
time.
ECONOMY GRILL FUNCTION
This function makes it possible to use the left side
of the grill on its own and is ideal for grilling small
amounts of meat (bacon, sausages, steak) and for
toasting bread.
This function allows four slight adjustments which
progressively increase heat output (position 1, 2, 3,
4) plus a maximum heat setting (position 5) for the
upper heating element. The default setting is 3.
• Preheat the oven for 5 minutes with the oven door
closed.
• The oven door should remain open during
grilling for best cooking performance but may
be closed if preferred.
• Lay the food onto the grid and position the drip
tray underneath. To avoid spatters of fat and
smoke, pour a little water into the drip tray.
• Turn the meat or bread halfway through cooking.
PROGRAMME FUNCTION
This function is useful to bake pizzas, bread and
focaccia. The function provides 3 cooking programs
(P1, P2, P3) with preset initial temperatures that
can be adjusted by the user.
The maximum temperature values that can be
adjusted by the user are: 240° C for P1, 200° C for
P2 and 190° C for P3 in order to obtain uniform
cooking results.
Each program corresponds to a recipe for the
preparation of the dish you want.
Programme P1 allows rapid preheating with an
initial temperature of 300° C and a cooking
temperature of 240° C.
To improve energy saving and avoid wasting
electricity, there is no preheating if the oven is
already warm, and the cooking temperature is set
automatically (240° C).
For programmes P2 and P3 the initial temperature
is always 220° C.
54283agb.fm5 Page 9 Tuesday, March 15, 2005 1:16 PM
LOWER OVEN FUNCTIONS
DUAL GRILL FUNCTION
•
This function enables the full grill to be used and is
ideal for grilling meat (bacon, sausages, steak) and
for toasting bread.
This function allows four slight adjustments which
progressively increase heat output (position 1, 2, 3,
4) plus a maximum heat setting (position 5) for the
upper heating element. The default setting is 3.
•
•
•
Preheat the oven for 5 minutes with the oven
door closed.
The oven door should remain open during
grilling for best cooking performance but may
be closed if preferred.
Lay the food onto the grid and position the drip
tray underneath. To avoid spatters of fat and
smoke, pour a little water into the drip tray.
Turn the meat or bread halfway through
cooking.
TOP OVEN FUNCTIONS
0 Off
Oven light
BOTTOM HEATING FUNCTION
Use:
• To finish baking fruitcakes or cheesecakes.
• To thicken sauces.
Use the lower heating function for the last 10 or
15 minutes of cooking time.
DUAL GRILL FUNCTION
This function has 2 positions: single and dual grill.
• Use the single grill position to grill small
quantities of food.
• Use the dual grill position to grill large quantities
of food.
• Place food on the meat tray. Pour some water
into the fat pan to reduce smoke and grease
spatters and position it into the oven.
• During cooking leave the oven door open.
• Before use, preheat the grill for 5 minutes
approx.
GRILL FUNCTION
Use the grill function to cook small pieces of meat
(steaks, sausages) and for making toasts.
• The oven door must be open during the cooking
cycle.
• Pre-heat the grill for about 5 minutes.
• Arrange the meat on the grid with the drip tray
underneath. Pour water in the drip tray to cover
the bottom to reduce smoke and fat spatters.
• Turn over the meat about half-way through
cooking time.
STATIC FUNCTION
Use when all the food is on the same runner level.
• Preheat the oven to the required cooking
temperature and place the food inside as soon
as the red thermostat indicator light switches
off.
• Ideally, the shelf should be on the second
runner level when using the static function.
9
54283agb.fm5 Page 10 Tuesday, March 15, 2005 1:16 PM
CLEANING THE OVEN AND ITS ACCESSORIES
•
•
•
•
•
•
•
When you finish cooking; wait for the oven to
cool and then clean it to prevent the build-up of
baked-on residues.
If the food residues are baked on, use a specific
oven cleaner and follow the manufacturer’s
instructions on the pack.
Clean the exterior of the oven with a sponge
and warm water.
Do not use abrasive cleaners or pan scourers.
Use a liquid detergent to clean the oven door
window.
Wash the accessories in a dishwasher or in the
sink, using an oven cleaner.
After the oven has been in prolonged use and
when cooking on different levels (especially
food with high water contents such as pizzas,
stuffed vegetables, etc.) condensation may
form on the door and on the inside of the door
seal: when the oven is cool, dry any
condensation with a cloth or sponge.
HOW TO REPLACE THE OVEN LAMP
1. Switch off electricity at the mains.
2. Unscrew the lamp cover.
3. Replace the bulb.
4. Remount the lamp cover.
5. Switch on electricity.
Note:
Use only a replacement bulb of 25 Watts 230 V,
Type E-14, T300°C, available from our After Sales
Service.
10
54283agb.fm5 Page 11 Tuesday, March 15, 2005 1:16 PM
TROUBLESHOOTING GUIDE
Oven not working
•
•
•
•
Switch the oven off and then on again to see if
the problem persists.
Check for the presence of mains electrical
power.
Check that the oven selector is not on position
“0”.
•
If the electronic display shows the message
“STOP”, press the button 2 to reset the oven
and then set the clock (see the Programmer
Description Sheet supplied separately).
If the electronic display shows the message
“Fxx”, contact the After Sales Service, quoting
the error code displayed.
AFTER SALES SERVICE
Before contacting After Sales Service:
1. Try to solve the problem
(see “Troubleshooting guide”).
2. Turn off the appliance and restart it to see if the
fault is repeated.
If after the above checks the fault still occurs,
get in touch with the nearest After Sales
Service.
Please give:
•
•
•
the nature of the problem.
the exact type and model.
the service number (number after the word
Service on the rating plate), located on the right
hand edge of the oven cavity (visible when the
oven door is open). The service number is also
indicated on the guarantee booklet.
• Your complete address (including postal code)
and phone number.
If any repairs are required, please contact an
authorised After Sales Service as indicated in the
warranty.
In the unlikely event that an operation or repair is
carried out by an unauthorised technician, always
request a certification of the job carried out and
insist on the use of original spare parts.
Failure to comply with these instructions may
compromise the safety and quality of the
product.
DECLARATION OF CONFORMITY CE
•
•
•
These appliances are designed to come into
contact with foodstuffs and they are constructed
in compliance with Directive 89/109/EEC.
The appliances are designed solely for use as a
domestic cooking appliances. Any other use of
the appliances (e.g. for room heating) is
considered as improper use and potentially
dangerous.
These appliances are designed, built and sold
in compliance with:
- the safety requirements of “Low Voltage”
Directive 73/23/EEC;
- the protection requirements of EMC Directive
89/336/EEC;
- the requirements of Directive 93/68/EEC.
11

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
