Whirlpool BSNF 9782 OX.1 Use and care guide

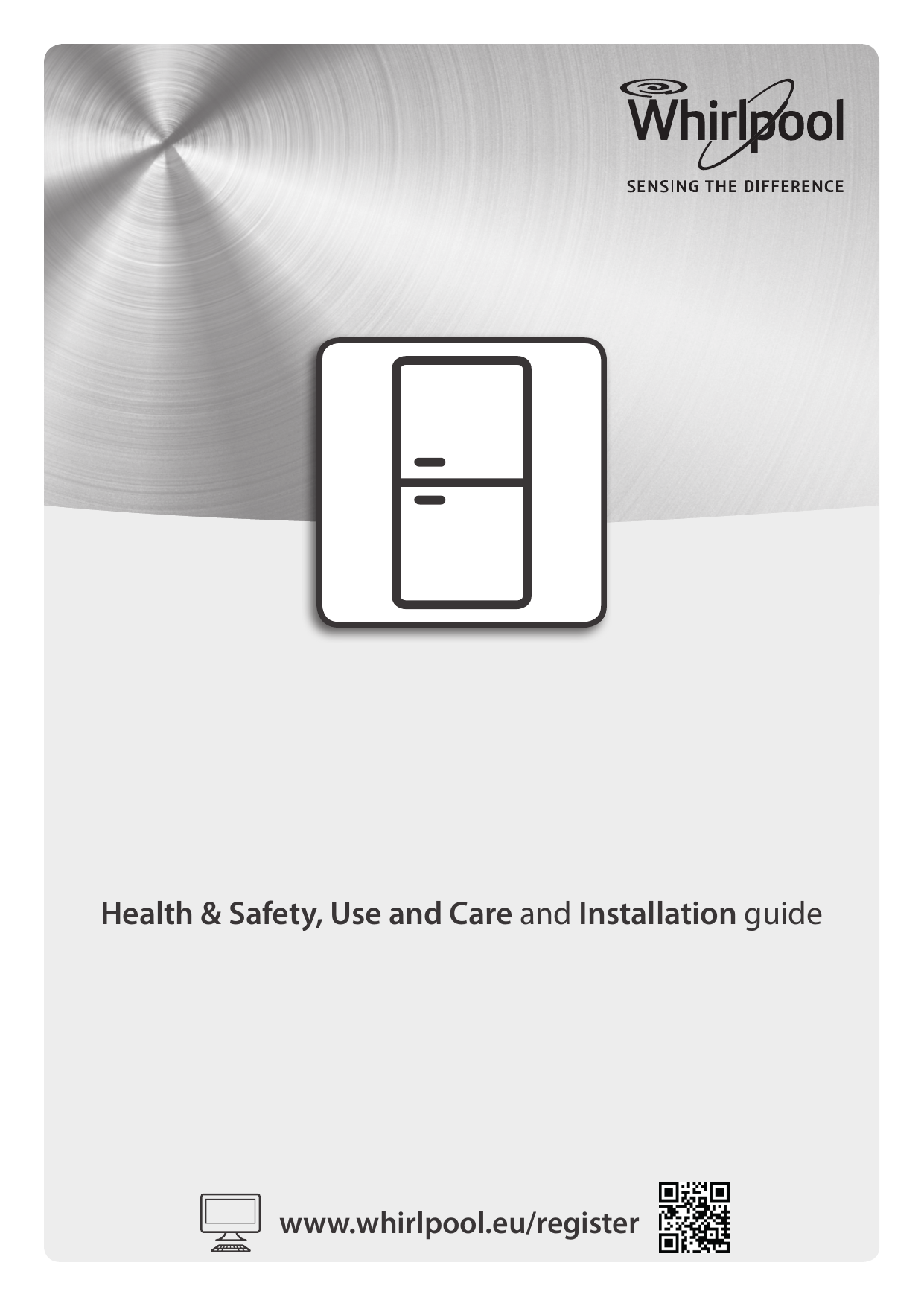

Health & Safety, Use and Care and Installation guide
www.whirlpool.eu/register
ENGLISH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2
EN
ENGLISH
HEALTH & SAFETY, USE & CARE
and INSTALLATION GUIDES
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.
In order to receive a more complete assistance,
please register your appliance on www.whirlpool.eu/register
Index
Health and Safety guide
SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SAFEGUARDING THE ENVIRONMENT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
DECLARATION OF CONFORMITY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Use and Care guide
PRODUCT DESCRIPTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
APPLIANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
CONTROL PANEL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
DOOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
REFRIGERATOR LIGHT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
SHELVES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
FAN + ANTIBACTERIAL FILTER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
NO-FROST REFRIGERATOR COMPARTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
NO-FROST FREEZER COMPARTMENT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
ACCESSORIES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
HOW TO USE THE APPLIANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
FIRST TIME USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
FUNCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
FOOD-STORAGE TIPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
RECOMMENDATION IN CASE OF NO USE OF THE APPLIANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
CLEANING AND MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
TROUBLESHOOTING GUIDE & AFTER-SALES SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
FUNCTIONAL SOUNDS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
TROUBLESHOOTING GUIDE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
AFTER-SALES SERVICE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Installation guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3
SAFETY INSTRUCTIONS
IMPORTANT TO BE READ
AND OBSERVED
Before using the appliance read
these safety instructions.
Keep them for future reference.
These instructions and the
appliance itself provide
important safety warnings, to be
observed at all times.
The manufacturer declines any
liability for failure to observe
these safety instructions, for
inapropriate use of the
appliance or incorrect setting of
controls.
This appliance is intended to be
used in household and similar
applications such as:
– staff kitchen areas in shops,
offices and other working
environments;
– farm houses and by clients in
hotels, motels and other
residential type environments;
– bed and breakfast type
environments;
– catering and similar non-retail
applications.
The bulb used inside the
appliance is specifically
designed for domestic
appliances and is not suitable for
SAFETY WARNINGS
general room lighting within the
Very young (0-3 years) and
home (EC Regulation 244/2009).
young children (3-8 years) shall
The appliance is arranged for
be kept away from the appliance operation in places where the
unless continuously supervised. temperature comes within the
Children from 8 years old and
following ranges, according to
above and persons with reduced the climatic class given on the
physical, sensory or mental
rating plate. The appliance may
capabilities or lack of experience not work properly if it is left for a
and knowledge can use this
long time at a temperature
appliance only if they are
outside the specified range.
supervised or have been given
Climatic Class Amb. T. (°C)
instructions on safe use and
SN From 10 to 32
understand the hazards
N From 16 to 32
involved. Children must not play ST From 16 to 38
with the appliance. Cleaning and T From 16 to 43
user maintenance must not be
This appliance does not contain
carried out by children without
CFCs. The refrigerant circuit
supervision.
contains R600a (HC).
Appliances with Isobutane
PERMITTED USE
(R600a): isobutane is a natural
gas without environmental
CAUTION: The appliance is not
impact, but is flammable.
intended to be operated by
Therefore, make sure the
means of an external timer or
refrigerant circuit pipes are not
separate remote controlled
damaged. Keep special
system.
attention in case of damaged
This appliance is solely for
pipes emptying the refrigerant
domestic, not professional use.
circuit.
Do not use the appliance
WARNING: Do not damage the
outdoors.
appliance refrigerant circuit
Do not store explosive or
pipes.
flammable substances such as
aerosol cans and do not place or WARNING: Keep ventilation
use gasoline or other flammable openings, in the appliance
enclosure or in the builtmaterials in or near the
appliance: a fire may break out if instructure, clear of obstruction.
WARNING: Do not use
the appliance is inadvertently
mechanical, electric or chemical
switched on.
4
means other than those
recommended by the
Manufacturer to speed up the
defrost process.
WARNING: Do not use or place
electrical devices inside the
appliance compartments if they
are not of the type expressly
authorised by the Manufacturer.
WARNING: Ice makers and or
water dispencers not directly
connected to the water supply
must be filled with potable
water only.
WARNING: Automatic icemakers and/or water dispensers
must be connected to a water
supply that delivers potable
water only, with main water
pressure between 0.17 and
0.81 MPa (1.7 and 8.1 bar).
Do not swallow the contents
(non-toxic) of the ice packs (in
some models).
Do not eat ice cubes or ice lollies
immediately after taking them
out of the freezer since they may
cause cold burns.
For products designed to use an
air filter inside an accessible fan
cover, the filter shall be always in
position when the refrigerator is
in function.
Do not store glass containers
with liquids in the freezer
compartment since they may
break.
Do not obstruct the fan (if
available) with food items.
After placing the food check if
the door of compartments
closes properly, especially the
freezer door.
Damaged gasket must be
replaced as soon as possible.
Use the refrigerator
compartment only for storing
fresh food and the freezer
compartment only for storing
frozen food, freezing fresh food
and making ice cubes.
Avoid storing unwrapped food
in direct contact with internal
surfaces of the refrigerator or
freezer compartments.
Appliances could have special
compartments (Fresh Food
Compartment, Zero Degree
Box,...). In case not differently
specified in the specific booklet
of product, they can be
removed, maintaining
equivalent performances.
C-Pentane is used as blowing
agent in the insulation foam and
it is a flammable gas.
INSTALLATION
The appliance must be handled
and installed by two or more
persons. Use protective gloves
to unpack and install the
appliance.
Installation and repairs must be
carried out by a qualified
technician, in compliance with
the manufacturer’s instructions
and local safety regulations. Do
not repair or replace any part of
the appliance unless specifically
stated in the user manual.
Children should not perform
installation operations. Keep
children away during
installation. Keep the packaging
materials (plastic bags,
polystyrene parts, etc.) out of
reach of children, during and
after the installation.
Be careful not to damage the
floors (e.g. parquet) when
moving the appliance. Install the
appliance on a floor or support
strong enough to take its weight
and in a place suitable for its size
and use.
After unpacking the appliance,
make sure that it has not been
damaged during transport. In
the event of problems, contact
the dealer or your nearest Aftersales Service.
The appliance must be
disconnected from the power
supply before any installation
operation.
During installation, make sure
the appliance does not damage
the power cable.
To guarantee adequate
ventilation, leave a space on
both sides and above the
appliance. The distance
between the rear of the
appliance and the wall behind
the appliance should be 50 mm,
to avoid access to hot surfaces. A
reduction of this space will
increase the Energy
consumption of product.
Only activate the appliance
when the installation has been
completed.
Wait at least two hours before
switching the appliance on, to
ensure that the refrigerant
circuit is fully efficient.
Make sure the appliance is not
near a heat source.
ELECTRICAL WARNINGS
For installation to comply with
current safety regulations, an
omnipolar switch with minimum
contact gap of 3 mm is required
and the appliance must be
earthed.
If the power cable is damaged,
replace with an identical one.
The power cable must only be
replaced by a qualified
technician in compliance with
the manufacturer instruction
and current safety regulations.
Contact an authorized service
center.
If the fitted plug is not suitable
for your socket outlet, contact a
qualified technician.
The power cable must be long
enough to connect the
appliance, once fitted in its
housing, to the main power
supply. Do not pull the power
supply cable.
Do not use extension leads,
multiple sockets or adapters.
Do not operate this appliance if
it has a damaged mains cord or
plug, if it is not working
properly, or if it has been
damaged or dropped. Keep the
cord away from hot surfaces.
The electrical components must
not be accessible to the user
after installation.
Do not touch the appliance with
any wet part of the body and do
not operate it when barefoot.
EN
CLEANING AND
MAINTENANCE
Never use steam cleaning
equipment.
Wear protective gloves for
cleaning and maintenance.
The appliance must be
disconnected from the power
supply before any maintenance
operation.
Do not use abrasive or harsh
cleaners such as window sprays,
scouring cleansers, flammable
fluids, cleaning waxes,
concentrated detergents,
bleaches or cleansers containing
petroleum products on plastic
parts, interior and door liners or
gaskets. Do not use paper
towels, scouring pads, or other
harsh cleaning tools.
5
SAFEGUARDING THE ENVIRONMENT
DISPOSAL OF PACKAGING
MATERIALS
The packaging material is 100%
recyclable and is marked with the
recycle symbol . The various parts
of the packaging must therefore be
disposed of responsibility and in full
compliance with local authority
regulations governing waste disposal.
SCRAPPING OF HOUSEHOLD
APPLIANCES
When scrapping the appliance, make
it unusable by cutting off the power
cable and removing the doors and
shelves (if present) so that children
cannot easily climb inside and
become trapped.
This appliance is manufactured with
recyclable or reusable materials.
Dispose of it in accordance with local
waste disposal regulations.
For further information on the
treatment, recovery and recycling of
household electrical appliances,
contact your competent local
authority, the collection service for
household waste or the store where
you purchase the appliance.
This appliance is marked in
compliance with European Directive
2012/19/EU, Waste Electrical and
Electronic Equipment (WEEE).
By ensuring this product is disposed
of correctly, you will help prevent
potential negative consequences for
the environment and human health,
which could otherwise be caused by
inappropriate waste handling of this
product.
on the product or on
The symbol
the accompanying documentation
indicates that it should not be treated
as domestic waste but must be taken
to an appropriate collection center for
the recycling of electrical and
electronic equipment.
ENERGY SAVING TIPS
Install the appliance in a dry, well
ventilated room far away from any
heat source (eg. radiator, cooker, etc.)
and in place not exposed directly to
the sun. If required, use an insulating
plate.
To guarantee adequate ventilation
follow installation instructions.
Insufficient ventilation on back of the
product increases energy
consumption and decreases cooling
efficiency.
Frequent door opening might cause
an increase in Energy consumption.
DECLARATION OF CONFORMITY
This appliance has been designed,
constructed and distributed in
compliance with the requirements of
European Directives:
LVD 2014/35/EU, EMC 2014/30/EU and
RoHS 2011/65/EU.
6
This appliance has been designed,
constructed and distributed in
compliance with the Ecodesign and
energy Labeling Requirements of
EC Directives: 2009/125/EC and
2010/30/EU.
The internal temperatures of the
appliance and the Energy
Consumption may be affected by the
ambient temperature, frequency of
door opening, as well as location of
the appliance. Temperature setting
should take into consideration these
factors.
Reduce to a minimum door opening.
When thawing frozen food, place
them in the refrigerator. The low
temperature of the frozen products
cools the food in the refrigerator.
Allow warm food and drinks to cool
down before placing in the appliance.
Positioning of the shelves in the
refrigerator has no impact on the
efficient usage of energy. Food should
be placed on the shelves in such way
to ensure proper air circulation (food
should not touch each other and
distance between food and rear wall
should be kept).
You can increase storage capacity of
frozen food by removing baskets and,
if present, Stop Frost shelve,
maintaining an equivalent energy
consumption.
High energy class products are fitted
with high efficiency motors that
remain operational for longer, but
have a low power consumption. Do
not worry if the engine continues to
run for longer periods.
EN
Use and Care guide
PRODUCT
DESCRIPTION
APPLIANCE
2
3
4
5
8
9
10
11
12
13
14
6
7
25
15
17
18
19
1
20
21
22
16
23
24
1. Control panel
Refrigerator compartment
2. LED lighting
3. Fan
4. Fan cover and antibacterial filter
area
5. Shelves
6. Bottle rack
7. Cheese box + Lid
8. Multi-flow cold air area
9. Sensor cover
10. Active 0 compartment (to keep
foods fresher for longer)
11. Rating plate with commercial
name
12. Fruits and vegetables crisper
13. Fridge drawer divider
14. Door reversibility kit
15. Door trays
16. Egg tray
17. Small items half balcony
18. Bottle separator
19. Bottle balcony
20. Door seal
Freezer compartment
20. Door seals
21. Quick Ice / Eutetics
22. Shelves
23. Middle drawer: coolest zone
best for freezing fresh food
24. Freezer drawer divider
25. Freezer drawers
7
CONTROL PANEL
1
2
3
4
5
6
7
8
9
10
8
11
12
13
14
15
16
17
1. FRIDGE TEMPERATURE button
2. FRIDGE TEMPERATURE DISPLAY (°C)
3. 6TH SENSE FRESH CONTROL
indicator
4. FREEZER TEMPERATURE DISPLAY (°C)
5. FREEZER TEMPERATURE button
6. ANTIBACTERIAL FILTER ALARM
indicator
7. BLACK-OUT ALARM indicator
8. MALFUNCTION ALARM indicator
9. DOOR OPEN ALARM indicator
10. ON/STAND-BY button
11. FAST COOL button
12. VACATION button
13. ACTIVE 0 button
14. KEY LOCK button
15. FREEZE CONTROL button
16. FAST FREEZE button
17. STOP ALARM button
EN
DOOR
DOOR REVERSIBILITY
Note: The direction of door opening can be changed. If this
operation is performed by After-sales Service it is not covered
by the warranty.
Is recommended to reverse door swing by two persons.
Follow instruction in Installation Guide.
REFRIGERATOR LIGHT
The light system inside the fridge compartment uses
LEDs light, allowing a better lightning as well
as very low energy consumption.
If the LED light system does not work, please contact
the Service to replace it.
Important: The refrigerator compartment light
switches on when the refrigerator door is opened. If
the door is kept open for more than 10 minutes the
light will be automatically switched off.
SHELVES
All shelves, flaps and pull-out baskets are removable.
FAN + ANTIBACTERIAL FILTER
The Fan improves temperature distribution inside the
product, allowing better preservation of stored food.
Note: Do not obstruct the air intake area with food
items.
If the appliance has the Fan it can be equipped with
the antibacterial filter.
Remove it from the box placed in
the crisper drawer and insert into
the fan cover - as in the picture.
The replacement procedure is
included in the filter box.
NO-FROST REFRIGERATOR
COMPARTMENT
Refrigerator compartment defrosting is completely
automatic.
The defrost water is automatically run into a drain
hole hiden behind Multi-flow and collected in a
container, where it evaporates.
9
NO-FROST FREEZER
COMPARTMENT
No Frost freezers provide chilled air circulation around
the storage areas, and prevent the formation of ice,
thereby completely eliminating
the need for defrosting.
Frozen items don’t stick to the walls, labeling stays
legible and storage space remains neat and clear.
ACCESSORIES
EGG TRAY
CHEESE BOX
BOTTLE RACK
BOTTLE SEPARATOR
FREEZER DRAWER DIVIDER
FRIDGE DRAWER DIVIDER
QUICK ICE COMPARTMENT
EUTETICS/QUICK ICE TRAYS
10
EN
HOW TO USE
THE APPLIANCE
FIRST TIME USE
HOW TO START THE APPLIANCE
After plugging the appliance to the mains, it starts
the operation automatically.
After starting the appliance, wait at least 4-6 hours
before placing food into the appliance.
TEMPERATURE SETTING
The appliance is normally factory-set for operation at
the recommended medium temperature.
For details of setting temperature - see the Daily
Reference Guide.
When the appliance is connected to the power
supply, the display lights up and all the icons appear
on the display for approximately 1 second. The
default (factory) values of the fridge compartment
settings light-up.
Note: Displayed set points correspond to the average
temperature throughout the whole refrigerator
INSTALLATION
INSTALLING APPLIANCE
To guarantee adequate ventilation, leave a space on
both sides and above the appliance.
The distance between the rear of the appliance and
the wall behind the appliance should be at least
50mm.
A reduction of this space will increase the Energy
consumption of product.
50mm
50mm
11
DAILY USE
HOW TO INCREASE FREEZER STORAGE CAPACITY
•
•
•
•
•
Do not block the air outlet area (on the back wall
and on the bottom inside the product) with food
products.
All shelves and pull-out baskets are removable.
•
•
removing the baskets to allow the storage of big
products.
placing the food products directly on the freezer
shelves.
removing additional removable accessories.
The internal temperatures of the appliance may be
affected by the ambient temperature, frequency of
door opening, as well as location of the appliance.
Temperature setting should take into consideration
these factors.
Unless otherwise specified the appliance accessories
are not dishwasher safe.
REMOVING THE FREEZER DRAWER CONTAINER
• Open the freezer door
• Pull the upper container upwards by the right and
left corners (1)
• Remove the drawer (2)
1
•
2
Install the upper container in the reverse order
FUNCTIONS
ON/STANDBY
This function turns On/Stand-by the
refrigerator. To put the product in
Stand-by, press & hold the On/Standby button for 3 seconds.
All the indicators turn off except On/
Stand-by icon back light to indicate that
the appliance is in Stand-by.
When the appliance is in Stand-by,
the light inside the refrigerator
compartment does not work.
Remember that this operation does not
disconnect the appliance from
the power supply.
To switch the appliance On again,
simply press and hold for 3 seconds the
On/Stand-By button.
SMART DISPLAY
This optional function can be used
to save energy. To activate the Smart
Display, press Fridge Temperature
and Freezer Temperature buttons at
the same time for 3 seconds until an
audible signal sounds.
To deactivate this function repeat
the same procedure. Remember that
this function does not disconnect the
appliance from the power supply, but
only reduce the power consumed by
external display.
After activation of the Smart Display,
the display goes off, except the 6th
Sense Fresh Control indicator. If
Smart Display is active – to adjust the
temperature or use other functions, it
is necessary to activate the display by
pressing any button.
After about 15 seconds without
performing any action, the display goes
off again and only the 6th Sense Fresh
Control indicator remains visible.
When function is deactivated the
normal display is restored. The Smart
Display is automatically disabled after
a power failure. Remember that this
function does not disconnect the
appliance from the power supply, but
only reduces the power consumed by
external display.
Note: The declared appliance energy
consumption refers to operation with the
Smart Display function activated.
12
EN
FRIDGE TEMPERATURE
To adjust the Fridge Temperature, press
the Fridge °C button.
The Fridge Temperature can be
adjusted between +2°C and +8°C, as
shown by the Fridge Temperature
Display (°C).
FREEZER TEMPERATURE
To adjust the Freezer Temperature,
press the Freezer °C button.
The Freezer Temperature can be
adjusted between -16°C and -24°C, as
shown by the Freezer Temperature
Display (°C).
6TH SENSE FRESH
CONTROL
This function automatically works
to ensure the optimal conditions to
preserve the stored food. If there
are any variations, 6th Sense Fresh
Control immediately restores the ideal
conditions.
Results are outstanding:
freshness preserved at best throughout
the fridge cavity up to 4 times longer.
FAST COOL
The use of this function is recommended
when placing a very high quantity of food
in the refrigerator compartment.
Press the Fast Cool button to activate Fast
Cool function. When activated, the Fast
Cool indicator will turn on. The function
is automatically disabled after 6 hours, or
can be manually disabled by pressing Fast
Cool button.
Using Fast Cool function it is possible
to increase the cooling capacity in the
refrigerator compartment.
Attention:
• Incompatibility with the
“Vacation” function.
To guarantee optimal performance, the
“Vacation” and “Fast Cool” functions
cannot be used at the same time.
Therefore, if the “Vacation” function
has been already engaged, it has to be
disengaged first to activate the “Fast
Cool” function (and vice-versa).
FAST FREEZE
The use of this function is
recommended when placing a very
high quantity of food to be frozen in
the freezer compartment. 24 hours
before freezing fresh food, press the
Freezer button to activate the Fast
Freeze function. When activated, the
Fast Freeze indicatorturns on.
After 24 hours place the food to be
frozen in the middle freezing zone of
freezer compartment. The function is
automatically disabled after 48 hours,
or can be manually disabled by pressing
Fast Freeze button.
VACATION
This function can be activated to
reduce the energy consumption of the
appliance during a period of absence.
Before activating the feature, all
perishable food should be removed
from the refrigeration compartment
and make sure that the door is closed
properly, since the refrigerator will
maintain a suitable temperature to
prevent the formation of unpleasant
odors (+12°C).
To activate/ deactivate the Vacation
function simply press the Vacation mode
button. When the function is enabled,
the related symbol will light up.
Changing the temperature setpoint will
automatically deactivate the function.
The freezer compartment works
properly.
Attention:
• Incompatibility with the “Fast
Cool” function
To guarantee optimal performance, the
“Vacation” and “Fast Cool” functions
cannot be used at the same time.
Therefore, if the “Fast Cool” function
has been already engaged, it has to
be disengaged first to activate the
“Vacation” function (and vice-versa).
13
KEY LOCK
This function prevents anyone from
inadvertently changing settings or
switching off the appliance.
To lock the keys, press Key Lock button
for 3 seconds until the display shows
the Key Lock indicator and an acoustic
signal confirms the function has been
selected. After 3 seconds Key Lock
indicator goes off.
When activated, pressing the other
buttons (except Key Lock button)
activates an audible signal and on
display flashes the Key Lock indicator.
Any alarm can be deactivated when Key
Lock function is active.
To unlock the keys, follow the same
procedure until the display shows the
Key Lock indicator and an acoustic
signal confirms the function has been
disengaged. After 1 second indicator
goes off.
FREEZE CONTROL
Freeze Control is an advanced
technology that reduces temperature
fluctuations in the whole freezer
compartment to minimum, thanks
to an innovative air system, totally
independent from the fridge. Freeze
burns are reduced up to 60% and food
preserves its original quality and color.
To activate/deactivate the Freeze
Control function press and hold for 3
seconds the Party Mode button.
The function works properly in a
defined range of temperature: between
-22°C and -24°C. When the function is
engaged and the current temperature
in the freezer is set to the warmer set
point than -22°C, the temperature is
automatically set to -22°C to match the
working range.
If the function is engaged and the user
modify the freezer temperature out
of the working range, the function is
automatically switched off.
In case of Fast freezing is engaged, the
function “Freeze control” is inhibited
until the Fast Freezing function
switched off.
BLACK OUT ALARM
After a power blackout, your product
is designed to automatically monitor
the temperature in the freezer
when electricity is resupplied. If
the temperature in the freezer rises
above freezing level, the Black Out
icon lit the Alarm indicator blinks and
the acoustical alarm sounds when
electricity is re-supplied. To reset the
alarm press the Reset Alarm button just
once.
In case of Black Out Alarm, the
following actions are recommended:
• If the food in the freezer is unfrozen
but still cold, all the food in the
freezer should be moved to the fridge
compartment and eaten within the
next 24 hours.
• If the food in the freezer is frozen, this
indicates the food was thawed and
then refrozen when electricity was
re-supplied which degrades taste,
quality and nutritional value and also
could be unsafe. It is recommended
to not consume the food but to
dispose of the entire content of the
freezer.
The Black Out Alarm is designed to
provide guidance on food quality in the
freezer in the event of electricity black
out.
This system does not guarantee food
quality or safety and consumers are
advised to use their own judgment in
evaluating food quality in freezer and
refrigerator compartments.
14
EN
OVER TEMPERATURE
ALARM
The alarm is activated when:
• The appliance is connected to the
power supply after prolonged disuse.
• The freezer compartment
temperature is too high.
• The quantity of foods loaded into the
freezer exceeds that indicated on the
rating plate.
• The freezer door has been left open
for a long time.
• To mute the alarm buzzer press Stop
button just once.
•
DOOR OPEN ALARM
The Door Open Alarm is activated when
the door is left open for more than 2
minutes.
Close the door or press the Stop Alarm
to mute the acoustical alarm.
QUICK ICE
HOW TO MAKE ICE CUBES
Put the empty ice cube trays into the
freezer 24 hours before using the Quick
Ice feature to cool them down. To
achieve the best performance of the
Quick Ice trays it is recommended to
keep them permanently in the freezer
and maintain temperature setting at
-18°C or colder.
Remove a Quick Ice tray by pulling it
towards you.
Insert the cover back into the tray and
insert it back into the dedicated slots in
the top freezer drawer. Take care not to
spill water.
Remove the cover and fill the tray with
potable water (maximum level = 2/3 of
the overall capacity of the tray).
The Alarm indicator is automatically
turned-off as soon as the freezer
compartment reaches a temperature
below -10°C and the Alarm indicator
turns off.
Wait at least 30 minutes until the ice
cubes are formed (this time can be
slightly longer if the trays are used
immediately after the first use).
HOW TO TAKE ICE CUBES
When ice is ready please open the
cover and remove cubes.
15
USING QUICK ICE TRAYS
AS EUTETICS
Quick Ice trays can also be used as
eutetics to help in keeping the food
frozen in case of power failure. For the
best usage of them, place them above
food stored in the top drawer of the
freezer compartment. In this position
the trays can still be used to make ice
cubes, however the time needed to do
that may be longer.
ACTIVE 0
COMPARTMENT
The Active 0 compartment is
specifically designed to maintain a low
temperature and a suitable humidity
level, in order to keep foods fresher for
longer (e.g. meat, fish, fruit and winter
vegetables).
ACTIVATING AND DEACTIVATING
THE COMPARTMENT
To activate/deactivate the Active 0
compartment, press the dedicated
button on the control panel ( indicator
in the figure below).
Active 0 compartment off:
button partially lighted
Active 0 compartment ON:
button fully lighted
When activated, the lighting bar on
the Active 0 compartment lights up.
The temperature inside the
ompartment/drawer, when active, is
approximately 0 degrees.
The following factors are vital for the
compartment to work properly:
-the temperature of the refrigerator
compartment must be switched
between +2 °C and +4°C.
-the compartment must be inserted to
enable activation
-no special function must have been
selected (as Standby, Vacation mode –
where applicable).
If one of these special functions has
been selected, the fresh food inside
the Active0 compartment should be
removed.
16
Note:
- if the lighting bar and symbol does not
light up but the the symbol blinks when
the box is being activated, check that the
box is properly inserted; When the drawer
is inserted, the function is able to activate
again after few seconds by simple pressing
the button. if the problem persists, contact
your nearest authorized After-sales Service
- if the Active 0 compartment is active and
the drawer is open, more than 2 minutes,
the function is deactivated automatically.
After the drawer is inserted, the function is
able to activate again after few seconds by
simple pressing the button.
- irrespective of the state of the box, a slight
noise may be heard: this is normal and is
not a cause for concern.
- when the box is not active, the
temperature inside it depends on the
general temperature inside the refrigerator
compartment.
In this case, we recommend it is used to
store fruit and vegetables which are not
sensitive to cold temperatures (fruits of the
forest, apples, apricots, carrots, spinach,
lettuce, etc.).
Important: when the function is
activated and there are foodstuffs with
a high water content, condensation
may form on shelves.
Attention:
• Incompatibility with the
“Vacation” function
To guarantee optimal performance,
the “Vacation” and “Active 0” functions
cannot be used at the same time.
Therefore, if the “Vacation” function
has been already engaged, it has to be
disengaged first to activate the “Active
0” function (and viceversa).
EN
REMOVING THE ACTIVE 0
COMPARTMENT
The Active 0 compartment can be
removed to create more space inside
the refrigerator. In this case proceed as
follows:
-- switch off the compartment
-- pull out the drawer
-- pull out the glass shelf below Active 0
-- remove the white plastic insulation
form the glass shelf
-- put back the glass shelf.
Note: the upper shelf and the side supports
cannot be removed.
of warm water and neutral detergent
specifically formulated for refrigerator
interiors (take care not to immerse
the white plastic shelf underneath the
compartment in water).
Before cleaning the box (including
the outside), remove the drawer so
as to disconnect the box from the
electricity supply.
Never use abrasive detergents.
To restore Active 0 compartment box
operation, make sure you .replace the
white plastic shelf underneath the
box (with the glass shelf assembled
into the plastic) before
inserting the drawer
and reactivating the
function. The Active 0
compartment satisfies
the requirements of
a chill compartment
according to EN 62552.
Clean the compartment and all its parts
regularly, using a cloth and a solution
ALARM TABLE
ALARM TYPE
Door open
alarm
Temperature
alarm
Antibacterial
filter alarm
Signal
Door open alarm indicator
remains on, the acoustical
alarm is activated and the
Alarm Indicator blinks.
The Temperature display
blinks (°C) and the Alarm
Indicator remains on.
The Antibacterial filter
alarm indicator lit on.
Long black-out The Black Out Alarm icon
alarm
remains on, the Alarm
indicator blinks.
Malfunction
Cause
The Fridge or Freezer door has
remained open for more than 2
minutes.
Cure
Close the door or press the
Stop Alarm to mute the
acoustical alarm.
Inside the Freezer the
temperature is not adequate.
Press the Stop Alarm button;
the acoustical alarm stops,
the Temperature Display
(°C) blinks and the Alarm
Indicator remains on until
a temperature < -10°C is
reached.
Finished the validity of
Replace the Antibacterial
Antibacterial filter.
filter, press the Alarm button
to reset it.
Prolonged power failure, able to Press the Stop Alarm button;
cause the inside temperature to the acoustical alarm stops.
increase to 0°C.
The letter “F” blinks on the Product malfunction.
display (°C).
Contact the After-sales
Service.
17
FOOD-STORAGE TIPS
FRIDGE COMPARTMENT
The refrigerator is the ideal storage location for ready
meals, fresh and preserved food, dairy products, fruit
and vegetables and beverage.
Use recyclable plastic, metal, aluminum and glass
containers and cling film to wrap foods.
Always use closed containers for liquids and for food
that may give off or be tainted by odor or flavor
transfer or cover them.
If you have a little quantity of food to store in the
refrigerator, we recommend to use the shelves above
the crisper for fruits and vegetables since this is the
coolest area of the compartment.
Foods which give off a large amount ethylene gas
and those that are sensitive to this gas, such as fruit,
vegetables and salad, should always be separated
or wrapped so as not to reduce the storage life; for
example do not store tomatoes together with kiwi
fruits or cabbage.
To avoid bottles falling over, you can use the bottle
holder (available on selected models).
Do not store food too close together to enable
sufficient air circulation.
AIR VENTILATION
The natural circulation of air in the refrigerator
compartment results in zones with different
temperatures. It is coldest directly above the fruits
and vegetables crisper and at the rear wall. It is
warmest at the top front of the compartment.
Insufficient ventilation results in an increase in energy
consumption and reduction of the refrigerating
performance.
Do not cover air slots by food on other staff - they
are optimized for proper air circulation and food
preservation.
HOW TO STORE FRESH FOOD AND BEVERAGE
› Use recyclable plastic, metal, aluminum and glass
containers and cling film to wrap foods.
› Do not store food too close together to enable
sufficient air circulation.
› Always use closed containers for liquids and for
food that may give off or be tainted by odor or flavor
transfer or cover them.
› To avoid bottles falling over, you can use the bottle
holder.
› Foods which give off a large amount ethylene gas
and those that are sensitive to this gas, such as fruit,
vegetables and salad, should always be separated
or wrapped so as not to reduce the storage life; for
example do not store tomatoes together with kiwi
fruits or cabbage.
› If you have a little quantity of food to store in the
refrigerator, we recommend to use the shelves above
the crisper for fruits and vegetables since this is the
coolest area of the compartment.
› Be aware to do not close air slots by the food.
WHERE TO STORE FRESH FOOD AND BEVERAGE
› On the fridge shelves: ready meals, tropical fruits,
cheeses, deli.
› In the coldest area (the one above the fruits and
vegetables crisper): meat, fish, cold cuts, cakes
18
› In the fruits and vegetables crisper: fruits, salad,
vegetables.
› In the door: butter, jams, sauces, pickles, cans,
bottles, beverage cartons, eggs.
EN
Legend
TEMPERATE ZONE
Suggested for the storage of tropical
fruit, cans, drinks, eggs, sauces,
pickles, butter, jam
COOL ZONE
Suggested for storage of cheese, milk,
dairy food, delicatessen, yogurt
COOLEST ZONE
Suggested for the storage of cold cuts,
desserts
FRUIT & VEGETABLE DRAWER
FREEZING ZONE DRAWER
(MAX COOL ZONE) Suggested to
freeze fresh/cooked food
NORMAL FREEZER DRAWERS
Note: The Grey tone of the legend doesn’t
match with the color of drawers
19
FREEZER COMPARTMENT
The freezer is the ideal storage location for store
frozen food, make ice cubes and freeze fresh food in
the freezer compartment.
The maximum number of kilograms of fresh food that
can be frozen within a 24-hour period is indicated on
the rating plate (…kg/24h).
If you have a little quantity of food to store in the
freezer, we recommend to use the coldest areas of
your freezer compartment, corresponding to the
middle area.
TIPS FOR FREEZING AND STORING FRESH FOOD
original nutritional value, consistency, colour and
flavor. Some meat, especially game, should be hung
before it is frozen.
› We recommend to label and date all your frozen
food. Adding a label will help you to identify foods
and to know when they should be used before their
quality deteriorates.Do not re-freeze defrosted food.
› Before freezing, wrap and seal fresh food in:
aluminium foil, cling film, air and water-tight plastic
bags, polythene containers with lids or freezer
containers suitable for freezing fresh food.
› Food must be fresh, mature and of prime quality in
order to obtain high quality frozen food.
› Fresh vegetables and fruit should preferably be
frozen as soon as they are picked to maintain the full
› Always leave hot food to cool before placing in the
freezer.
› Eat fully or partially defrosted foods immediately.
Do not refreeze unless the food is cooked after it
has thawed. Once cooked, the thawed food can be
refrozen.
› Do not freeze bottles with liquid.
› Please use Fast Cool function to speed up cooling
process (see Daily Reference Guide).
› Please use Fast Freeze function to speed up freezing
process (see Daily Reference Guide).
FROZEN FOOD: SHOPPING TIPS
When purchasing frozen food products:
› Ensure that the packaging is not damaged (frozen
food in damaged packaging may have deteriorated).
If the package is swollen or has damp patches, it may
not have been stored under optimal conditions and
defrosting may have already begun.
› When shopping, buy frozen foods at the end of your
trip and transport them in a thermally insulated cool
bag.
20
› Once at home, place the frozen foods immediately
in the freezer.
› If food has defrosted even partially, do not re-freeze
it. Consume within 24 hours.
› Avoid or reduce temperature variations to the
minimum. Respect the best-before date on the
package.
› Always observe the storage information on the
package.
EN
STORAGE TIME
OF FROZEN FOOD
MEAT
STEWS
Beef
months
8 - 12
Meat, Poultry
Pork, veal
6-9
DAIRY PRODUCTS
Lamb
6-8
Butter
Rabbit
4-6
Mince/Offal
Sausages
FRUITS
Apples
months
12
Apricots
8
6
Blackberries
8 - 12
Cheese
3
Blackcurrants /
Redcurrants
8 - 12
2-3
Double Cream
1-2
Cherries
10
1-2
Ice-cream
2-3
Peaches
10
Eggs
8
Pears
8 - 12
Plum
10
POULTRY
months
2-3
Chicken
5-7
SOUPS AND SAUCES
Turkey
6
Soup
2-3
Raspberries
8 - 12
Giblets
2-3
Meat Sauce
2-3
Strawberries
10
Pate
1
Rhubarb
10
8
Fruit juices (orange,
lemon, grapefruit)
4-6
CRUSTACEANS
Molluscs creab,
lobster
1-2
Ratatouille
Crab, lobster
1-2
PASTRY AND BREAD
1-2
Bread
Cakes (plain)
1-2
4
Asparagus
Basil
8 - 10
6-8
Gateaux (cakes)
2-3
Beans
12
SHELLFISH
Oyster, Shucked
FISH
VEGETABLES
“fatty” (salmon,
herring, meckerel)
2-3
Crepes
1-2
Artichokes
8 - 10
“lean” (code, sole)
3-4
Uncooked pastry
2-3
Broccoli
8 - 10
Quiche
1-2
Brussels sprout
8 - 10
Pizza
1-2
Cauliflower
8 - 10
Carrots
10 - 12
Celery
6-8
Mushrooms
8
Parlsey
6-8
Peppers
10 - 12
Peas
12
Runner-beans
12
Spinach
12
Tomatoes
8 - 10
Zucchini
8 - 10
21
RECOMMENDATION IN CASE
OF NO USE OF THE APPLIANCE
ABSENCE / VACATION
In case longer absence its recommended to use up
food and to disconnect the appliance to save energy.
MOVING
1. Take out all internal parts.
3. Screw the adjustable feet so that they do not touch
the support surface.
2. Wrap them well, and fix them together with
adhesive tape so that they do not bang together or
get lost.
4. Close and fix door with adhesive tape and, again
using adhesive tape, fix the power cable to the
appliance.
POWER FAILURE
In the event of a power failure, call the local office of
your electricity supply company and ask how long it is
going to last.
Note: Bear in mind that a full appliance will stay cold longer
than a partially filled one.
If ice crystals are still visible on the food, it may be
frozen again, although flavour and aroma may be
affected.
If food is found to be in a poor condition, it is best to
throw it away.
22
For power failures lasting up to 24 hours.
Keep the door of the appliance closed. This will allow
the stored food to stay cold as long as possible.
For power failures lasting more than 24 hours.
Empty the freezer compartment and arrange the
food in a portable freezer. If this type of freezer is
not available and, likewise, no artificial ice packs are
available, try to use up the food, which is more easily
perishable.
Empty the ice tray.
EN
CLEANING AND
MAINTENANCE
Before any cleaning or maintenance operation,
unplug the appliance from the mains or disconnect
the electrical power supply.
Never use abrasives. Never clean refrigerator parts
with flammable fluids.
› Periodically clean the appliance with a cloth and
a solution of lukewarm water and neutral detergent
specifically for refrigerator interiors.
› Clean the outside of the appliance and the door seal
with a damp cloth and dry with a soft cloth.
› Condenser placed in the rear of the appliance
should be cleaned regularly using a vacuum cleaner.
Do not use steam cleaners.
The buttons and control panel display must not be
cleaned with alcohol or alcohol-derived substances,
but with a dry cloth.
Important:
› The buttons and control panel display must not be
cleaned with alcohol or alcohol-derived substances,
but with a dry cloth.
› The refrigeration system pipes are located near the
defrost pan and can become hot. Periodically clean
them with a vacuum cleaner.
23
TROUBLESHOOTING
GUIDE & AFTER-SALES
SERVICE
BEFORE CONTACTING AFTER-SALES SERVICE...
Performance problems often result from little things
you can find and fix yourself without tools of any kind.
FUNCTIONAL SOUNDS
Sounds coming from your appliances are normal
since it has a number of fans and engines to regulate
performances that switch on and off automatically.
SOME OF THE FUNCTIONAL SOUNDS CAN BE
REDUCED THROUGH:
› Leveling the appliance and installing it on an even
surface.
› Separating and avoiding contact between the
appliance and furniture.
› Checking if the internal components are correctly
placed.
› Checking if bottles and containers are not in
contactwith each other.
SOME OF THE FUNCTIONAL SOUNDS
YOU MIGHT HEAR
A hissing sound when switching on
the appliance for the first time or
after a long pause.
A gurgling sound when refrigerant BRRR sound is from the compressor
fluid enters into the pipes.
running.
Buzzing sound when water valve or A cracking sound when
fan start working.
compressor starts.
24
The CLICK is from the thermostat
which adjusts how often the
compressor is running.
EN
TROUBLESHOOTING
GUIDE
Problem
Possible Cause
Solution
THE APPLIANCE IS NOT WORKING
There may be an appliance power
supply problem.
› Check if power cable plugged into
a live socket with the proper voltage.
› Check if the protection devices
and fuses of the electrical system in
your home
THERE IS WATER IN THE DEFROST
PAN
This is normal in hot, damp weather.
The pan can even be half full.
› Make sure the appliance is level so
that the water does not overflow.
THE EDGES OF THE APPLIANCE
CABINET, WHICH COME IN
CONTACT WITH THE DOOR SEAL,
ARE WARM TO THE TOUCH
This is not a defect.
This is normal in hot weather and
when the compressor is running.
HE LIGHT DOES NOT WORK
The light may need replacing.
The appliance may be in On/
Stand-by model
› Make sure if the protection devices
and fuses of the electrical system in
your home work well.
› Check if the power cable is plugged
into a live socket with the proper
voltage
› In case the LEDs are broken the
user must call the Service for
exchange of the same type available
only at our After-sales Service
Centers or authorized dealers.
THE MOTOR SEEMS TO RUN TOO
MUCH
Motor running time depends on
different things: number of door
openings, amount of food stored,
temperature of the room, setting
of the temperature controls.
› Make sure that the appliance
controls are correctly set.
› Check if there is not a large amount
of food been added to the appliance.
› Check that the door is not opened
too often.
› Check that the door close properly.
THE APPLIANCE TEMPERATURE IS
TOO HIGH
There could be various causes (see
“Solutions”)
› Make sure that the condenser (back
the appliance) is free of dust and
fluff.
› Make sure that the door properly
closed.
› Make sure that the door seals
properly fitted.
› On hot days or if the room is warm,
the motor naturally runs longer.
› If the appliance door has been left
open for a while or if large amounts
of food have been stored, the motor
will run longer in order to cool down
the interior of the appliance.
THE DOORS DO NOT OPEN AND
CLOSE PROPERLY
There could be various causes (see
“Solutions”)
› Check that food packages are not
blocking the door.
› Check that the internal parts or
automatic ice maker are not out of
position.
› Check that the door seals are not
dirty or sticky.
› Ensure the appliance is level.
25
AFTER-SALES
SERVICE
BEFORE CALLING
THE AFTER-SALES SERVICE
1. See if you can solve the problem by yourself
with the help of the suggestions given in the
TROUBLESHOOTING GUIDE.
2. Switch the appliance off and back on again to see if
the fault persists
IF AFTER THE ABOVE CHECKS THE FAULT STILL
OCCURS, GET IN TOUCH WITH THE NEAREST
AFTER-SALES SERVICE
To receive assistance, call the number shown on the
warranty booklet or follow the instructions on the
website www.whirlpool.eu
Always specify:
• a brief description of the fault;
• the type and exact model of the appliance;
• the service number (number after the word Service
on the rating plate). The service number is also
indicated on the guarantee booklet;
• your full address;
• your telephone number.
If any repairs are required, please contact an authorised
after-sales service (to guarantee that original spare
parts will be used and repairs carried out correctly).
Manufacturer:
Whirlpool Europe s.r.l. - Socio Unico
Viale Guido Borghi 27
21025 Comerio (VA)
Italy
26
EN
2
50mm
abc
4x
1x
1x
1x
A
B
C
D
1
c
2
3
4
5
b
a
c
c
6
c
c
a
27
8
7
9
c
a
10
11
12
c
b
13
B
14
b
a
D
B
15
A
28
b
EN
21
1
1
2
2
3
1
2
3
4
5
6
1
1
45
o
2
2
1
1
45
o
3
2
29
EN
.
30
EN
Relationship for life with
The 10 (9+1) YEAR WARRANTY*
Whirlpool of India Ltd. (WOIL) offers the original purchaser of the Whirlpool refrigerator the benefit of a 10/5 Years Warranty that comprises of a 1 Year Comprehensive Warranty and a
9* Year warranty on the compressor, provided the refrigerator is still in the possession of and used by the purchaser, as f rom the date of purchase.
One Year Comprehensive Warranty.
The refrigerator and all parts thereof (except the light bulb, crisper, glass, Handle, Leg and add-on plastic parts) to be free from defects in material and workmanship under normal use
and service. WOlL's obligations under this Warranty shall be limited to repairing or providing the replacement of any part (except the light bulb, crisper glass, Handle, Leg and plastic
parts) of said refrigerator which thus proves defective within one year from the date of original purchase and which on WOlL's examination discloses to its satisfaction to be thus defective.
9* Year Warranty on Compressor
The compressor to be free from defects in material and workmanship under normal use and service. WOlL's obligation under this warranty shall be limited to repairing or providing the replacement of compressor with
another in working condition which thus proves defective within 9* years commencing immediately after the expiry of the 1 year period from the date of purchase and which on WOlL's examination discloses to
its satisfaction to be thus defective. This warranty covers compressor only. Gas changing is to be borne by the customer. It does not cover any other part such as condenser, freezer, capillary, suction line, overload
protector, relay, thermostat, drier, etc.
10
Warranty of Compressor voids if the customer has replaced / altered any Compressor attachments or accessories like Relay and / or OLP in part or full or if Servicing has been done by an unauthorized Service
person.
Limitations of Warranty.
1.
This Warranty shall not apply to defects arising, in WOlL's opinion a) By reasons of accident, alteration, abuse, misuse, neglect, improper installation, unauthorised repairs or replacement of original parts, fire,
flood or other acts of God.
b) If the product is not used as per the guidelines and instructions given in the user care guide
Charges for repairs of this nature, if carried out, will have to be borne by the original purchaser.
2.
This Warranty holds good only so long as there is correct use and maintenance of refrigerator as detailed in the use-and-care guide.
3.
This Warranty will continue to be in force for the term herein specified, irrespective of what replacements may be provided under it, and such replacement shall not attract any fresh Warranty.
4.
This Warranty is valid and binding provided that no service or repair has been attempted or effected by anyone other than the Authorised Service Franchisee and that immediate notification of any alleged
defect is given to WOIL or to the service franchisee.
5.
This Warranty will cease to be applicable to defects arising out of pulled out power cord, blown fuse or improper electrical circuit which results in inoperation of refrigerator.
6.
WOlL's employees and/or dealer and/or service franchisee have no authority to vary the terms of this Warranty.
7.
Refrigerators are designed to operate on 230 volts, AC 50 cycles, single phase power supply.
8.
a) This Warranty will automatically terminate on the expiry of the Warranty period of twelve months, even if the refrigerator may not be in use for any time during the Warranty period for any reason whatsoever
including any technical breakdowns, and the time taken for such repairs/replacements of parts and transit, whether under this Warranty or otherwise shall not be excluded from the Warranty period.
b) The warranty on compressor will automatically terminate on the expiry of 9* years, even if the refrigerator may not be in use for any time during the said period or for any reason whatsoever.
9.
a) While WOIL will make every effort to carry out repairs/replacements of parts under this Warranty as soon as possible, it is expressly made clear that WOIL shall not be liable to do so within any specified
period of time.
b) In the event of repairs/replacements of any parts, this Warranty will thereafter continue to remain in force only for the unexpired period of the Warranty.
10.
It is entirely left to WOlL's discretion to effect repairs/replacements of parts at the site of installation or any at service station of its branches or of its authorised representatives/dealers.
11.
The original serial numbers, if removed, obliterated or altered from the compressor or the cabinet, then this contract will cease to be valid.
12.
Damage to the refrigerator or any parts thereof if caused during shifting or transportation is not covered by this Warranty. Customers are advised that all risks, inclusive of failure of the unit in transit, be
covered by an Insurance Policy at their cost.
13.
Only courts at National Capital Region Of Delhi or Gurgaon shall have jurisdiction for settling claims or disputes arising out of present warranty.
14.
a) Under the terms of one year Warranty, free service will be provided only within Municipal limits of the towns where the company has its branches or authorised service franchisees. Free service, outside
municipal limits specified above, will be provided after charging the to and fro travelling and other incidental expenses, as prevailing from time to time.
b) Under the Warranty on compressor, standard visit charges will be applicable within the municipal limits of town where WOIL has its Branch Office or authorised service franchisee. Service outside municipal
limits will attract to and fro travelling, other incidental expenses in addition to standard visit charges, as prevailing from time to time.
15.
The warranty does not cover any accessories external to the product like trolleys, covers, etc....even those marketed by Whirlpool. Also light bulb, crisper glass, plastic parts i.e. bins, crisper, chiller, etc. are
not included in Warranty.
16.
Any repair/replacement/refund shall be chargeable as per actual cost of such repair, replacement, where any damage to the product occurs due to any of the following reasons
a) House Wiring/Low Voltage/ Earthing NA.
b) Rat bite issues on wiring harness.
c) Any change with product wiring.
d) Overall cleaning of rubber and plastics parts, water tray cleaning
17.
In case of of any replacement of any part or entire product, the entire part or entire defective product shall be returned to WOIL.
18.
This warranty will cease to be applicable if the product is used without the stabilizer supplied with the product by WOIL.
Shifting of Whirlpool Refrigerator.
1.
It is essential to pack the refrigerator properly, before it is moved from one place to another, to prevent any damages in transportation. This becomes most essential when you move the refrigerator from one
city to another.
2.
To pack the refrigerator properly, kindly contact WOlL's Branch Office or Authorised Dealer's Office in your city. During the Warranty period, whenever the refrigerator is shifted from the original city of
purchase to another, a Warranty transfer fee of Rs. 200/- which also includes the reinstallation charge of the machine, will be charged from the purchaser/owner.
3.
In addition to proper packing, it is important to insure for any transit damages. Damages to the refrigerator during transportation by the purchaser/owner is not covered under Warranty.
Service on Sundays.
In some of the cities where Whirlpool of India Limited is providing service, customers can avail Sunday service on specific request. For details contact our Branch Offices.
If you have any queries about the product, please write to:
Whirlpool Consumer Care Cell: Whirlpool of India Limited, 28, NIT Faridabad, Haryana, India-121001.
.
31
EN
.
32
EN
INSTALLATION REPORT - CUSTOMER'S COPY
.
33
EN
10 (9+1) YEAR WARRANTY*
Name
Address
City
State
Tel (O)
Pin
®
Model No.
Serial No.
Date
Month
Year
Date of Purchase
Dealer’s Stamp & Signature
Purchaser’s Signature
WHIRLPOOL offers the original purchaser 1 year comprehensive
warranty and a 9* year additional warranty on the compressor.
*MODEL No’s (for sale in India Only) BM 425 Optic Inox
34
EN
35
001
30
4 0 0 010 892922
Printed in Italy

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
