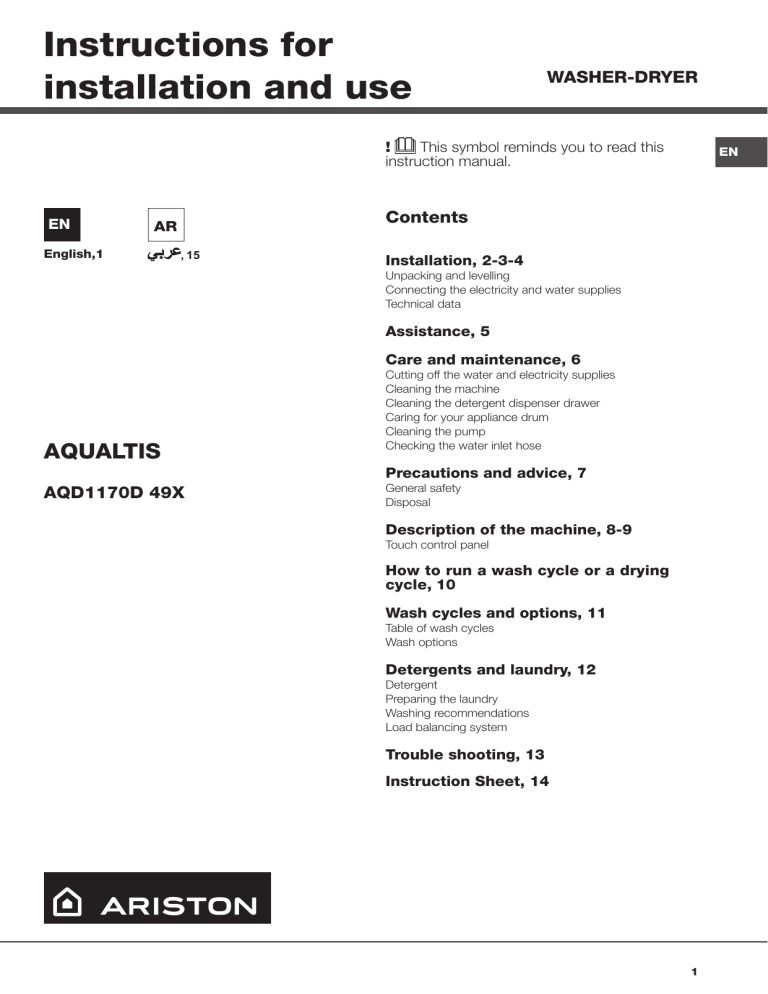

Instructions for
installation and use
WASHER-DRYER
!
This symbol reminds you to read this
instruction manual.
EN
Contents
AR
English,1
EN
, 15
Installation, 2-3-4
Unpacking and levelling
Connecting the electricity and water supplies
Technical data
Assistance, 5
Care and maintenance, 6
AQUALTIS
Cutting off the water and electricity supplies
Cleaning the machine
Cleaning the detergent dispenser drawer
Caring for your appliance drum
Cleaning the pump
Checking the water inlet hose
Precautions and advice, 7
AQD1170D 49X
General safety
Disposal
Description of the machine, 8-9
Touch control panel
How to run a wash cycle or a drying
cycle, 10
Wash cycles and options, 11
Table of wash cycles
Wash options
Detergents and laundry, 12
Detergent
Preparing the laundry
Washing recommendations
Load balancing system
Trouble shooting, 13
Instruction Sheet, 14
1
Installation
EN
! This instruction manual should be kept in a
safe place for future reference. If the Washerdryer is sold, given away or moved, please
ensure the manual is kept with the machine,
so that the new owner may benefit from the
advice contained within it.
! Read these instructions carefully: they
contain vital information relating to the safe
installation and operation of the appliance.
! Inside the pack containing this manual, you
will also find the guarantee and all the details
necessary for installation.
! If the appliance is levelled correctly, it will
be more stable and much less likely to cause
vibrations and noise while it is operating,
particularly during the spin cycle.
! If it is placed on carpet or a rug, adjust the
feet in such a way as to allow a sufficient
ventilation space underneath the Washer-dryer.
Unpacking and levelling
! Before connecting the inlet hose to the water
supply, run the water until it is perfectly clear.
Unpacking
1. Once you have removed all the packaging
from the Washer-dryer, make sure it has not
been damaged during transportation.
If it has been damaged, contact the retailer
and do not proceed any further with the
installation process.
2. Remove the 4
protective screws
(used during
transportation) and
the corresponding
spacer, located on
the rear part of the
appliance (see figure).
3. Close off the holes using the plastic plugs
supplied in the pack.
4. Keep all the parts in a safe place; they will
be needed again if the Washer-dryer is moved
to another location, to prevent the inside of the
appliance being damaged.
! Packaging materials should not be used as
toys for children.
Levelling
1. Place the Washerdryer on a flat sturdy
floor, without resting
it up against walls or
cabinets.
2. If the floor is
uneven, the front feet
of the machine may
be adjusted until it
reaches a horizontal
position (the angle of
inclination must not exceed 2 degrees).
2
Connecting the electricity and
water supplies
Connecting the water inlet hose
1. Connect the inlet
hose to the machine
by screwing it onto
the cold water inlet of
the appliance, which
is situated on the top
right-hand side of
the rear part of the
appliance (see figure).
2. Connect the inlet
hose by screwing it
to a cold water tap
using a 3/4 threaded
connection (see
figure).
3. Make sure that the hose is not folded over
or bent.
! The water pressure at the tap must fall within
the values indicated in the Technical data table
(see next page).
! If the inlet hose is not long enough, contact a
specialised shop or an authorised technician.
! Never use second-hand or old inlet hoses;
use the products supplied with the machine.
Connecting the drain hose
65 - 100 cm
Connect the drain
hose, without bending
it, to a drainage duct
or a wall drain located
at a height between
65 and 100 cm from
the floor;
Alternatively, place
the drain hose
over the edge of
a washbasin or
bathtub, by fastening
the guide
(which
can be purchased
at the technical
assistance centre) to
the tap (see figure).
The free end of the
hose should not be underwater.
! We advise against the use of hose
extensions; if it is absolutely necessary, the
extension must have the same diameter as the
original hose and must not exceed 150 cm in
length.
Electric connection
Before plugging the appliance into the mains
socket, make sure that:
•the socket is earthed and in compliance with
the applicable law;
•the socket is able to sustain the appliance’s
maximum power load indicated on the
Technical Data Plate fixed on the machine;
• the supply voltage is included within the values indicated on the Technical Data Plate fixed on the machine.
• the socket is compatible with the washing
machine’s plug. If this is not the case,
replace the socket or the plug.
WARNING - THIS APPLIANCE MUST BE
EARTHED.
THE FOLLOWING OPERATIONS SHOULD
BE CARRIED OUT BY A QUALIFIED
ELECTRICIAN.
EN
Replacing the fuse:
When replacing a faulty fuse, a 13 amp ASTA
approved fuse to BS 1362 should always be
used, and the fuse cover re-fitted. If the fuse
cover is lost, the plug must not be used until a
replacement is obtained.
Replacement fuse covers:
If a replacement fuse cover is fitted, it must
be of the correct colour as indicated by
the coloured marking or the colour that is
embossed in words on the base of the plug.
Replacements can be obtained directly from
your nearest Service Depot.
Removing the plug:
If your appliance has a non-rewireable
moulded plug and you should wish to re-route
the mains cable through partitions, units etc.,
please ensure that either:
the plug is replaced by a fused 13 ampere
rewireable plug bearing the BSI mark of
approval.
or:
the mains cable is wired directly into a 13
amp cable outlet, controlled by a switch, (in
compliance with BS 5733) which is accessible
without moving the appliance.
Disposing of the plug:
Ensure that before disposing of the plug itself,
you make the pins unusable so that it cannot
be accidentally inserted into a socket.
Instructions for connecting cable to an alternative
plug:
Important: the wires in the mains lead are
coloured in accordance with the following
code:
Green & Yellow Earth
Blue
Neutral
Brown
Live
Your appliance is now supplied with a 13 amp
fused plug it can be plugged into a 13 amp
socket for immediate use. Before using the
appliance please read the instructions below.
3
EN
As the colours of the wires in the lead may
not correspond with the coloured markings
identifying the terminals in your plug, proceed
as follows:
Connect Green & Yellow wire to terminal
marked E or or coloured Green or Green &
Yellow.
Connect Brown wire to terminal marked L or
coloured Red.
Connect Blue wire to terminal marked N or
coloured Black.
If a 13 amp plug (BS 1363) is used it must be
fitted with a
13 amp fuse, either in the plug or adaptor or
at the distribution board.
If you are in any doubt regarding the electrical
supply to your machine, consult a qualified
electrician before use.
How to connect an alternative plug:
The wires in this mains lead are coloured in
accordance with the following code:
BLUE
NEUTRAL (N)
BROWN
LIVE (L)
GREEN & YELLOW
EARTH (E)
GREEN &
YELLOW
BROWN
BLUE
13 ampere fuse
CROSS-BAR
CORD GRIP
Disposing of the appliance:
When disposing of the appliance please
remove the plug by cutting the mains cable
as close as possible to the plug body and
dispose of it as described on the previous
page.
! The washing machine should not be installed
in an outdoor environment, not even where
the area is sheltered, because it may be very
dangerous to leave it exposed to damp, rain
and thunderstorms.
! When the washing machine is installed, the
mains socket must be within easy reach.
! Do not use extensions or multiple sockets.
4
! The power supply cable must never be bent
or dangerously compressed.
! The power supply cable must only be
replaced by an authorised serviceman.
Warning! The company denies all liability if and
when these norms are not respected.
Technical data
Model
Dimensions
Capacity
Electrical
connections
Water connections
Spin speed
AQD1170D 49X
width 59.5 cm
height 85 cm
depth 64.5 cm
from 1 to 11 kg for the
wash programme
from 1 to 7 kg for the
drying programme
please refer to the
technical data plate
fixed to the machine
maximum pressure
1 MPa (10 bar)
minimum pressure
0.05 MPa (0.5 bar)
drum capacity 71 litres
up to 1400 rotations
per minute
Test Programprogramme ; temmes according to perature 60°C + antiSASO 2885:2018 foam
Assistance
Before calling for Assistance:
EN
• Check whether you can solve the problem by yourself (see “Trouble shooting”);
• Restart the wash cycle to check whether the problem has been solved;
• If it has not, contact the Authorised Technical Assistance Service.
! If the Washer-dryer has been installed or used incorrectly, you will have to pay for the call-out service.
! Always request the assistance of authorised technicians.
Please have the following information to hand:
• the type of problem;
• the appliance model (Mod.);
• the serial number (S/N).
The above information can be found on the data plate located on the appliance itself.
! Note: to exit “Demo mode”, switch machine off, press and hold the two “START/PAUSE”
simultaneously for 3 seconds.
and “ON/OFF”
buttons
5
Care and maintenance
EN
Cutting off the water and
electricity supplies
• Turn off the water tap after every wash cycle.
This will limit wear on the hydraulic system in
the machine and help to prevent leaks.
• Unplug the appliance when cleaning it and
during all maintenance work.
Cleaning the machine
The outer parts and rubber components of the
appliance can be cleaned using a soft cloth
soaked in lukewarm soapy water. Do not use
solvents or abrasives.
Cleaning the detergent dispenser
drawer
1
1
2
2
To remove the drawer,
press lever (1) and pull
the drawer outwards (2)
(see figure).
Wash it under running
water; this procedure
should be repeated
frequently.
Caring for your appliance drum
• Always leave the door ajar to prevent
unpleasant odours from forming.
Cleaning the pump
The Washer-dryer is fitted with a selfcleaning pump which does not require any
maintenance. Sometimes, small items (such
as coins or buttons) may fall into the protective
pre-chamber at the base of the pump.
! Make sure the wash cycle has finished and
unplug the appliance.
6
To access the pre-chamber:
1
2
1. take off the cover panel on the front of the
machine by first pressing it in the centre and
then pushing downwards on both sides until
you can remove it (see figures);
2. position a container
so that it will collect the
water which flows out
(approximately 1.5 l)
(see figure);
3. unscrew the lid by
rotating it in an anticlockwise direction (see
figure);
4. clean the inside thoroughly;
5. screw the lid back on;
6. reposition the panel, making sure the hooks
are securely in place before you push it onto
the appliance.
Checking the water inlet hose
Check the inlet hose at least once a year. If
there are any cracks, it should be replaced
immediately: during the wash cycles, water
pressure is very strong and a cracked hose
could easily split open.
Precautions and tips
! The machine was designed and constructed in
accordance with international safety regulations. The
following information is provided for safety reasons and
must therefore be read carefully.
General safety
• This appliance was designed for domestic use only.
• This appliance can be used by children
aged from 8 years and above and
persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved. Children shall not
play with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
– Do not dry unwashed items in the tumble
dryer.
– Items that have been soiled with
substances such as cooking oil, acetone,
alcohol, petrol, kerosene, spot removers,
turpentine, waxes and wax removers should
be washed in hot water with an extra
amount of detergent before being dried in
the tumble dryer.
– Items such as foam rubber (latex foam),
shower caps, waterproof textiles, rubber
backed articles and clothes or pillows fitted
with foam rubber pads should not be dried
in the tumble dryer.
– Fabric softeners, or similar products,
should be used as specified by the fabric
softener instructions.
– The final part of a tumble dryer cycle occurs
without heat (cool down cycle) to ensure
that the items are left at a temperature that
ensures that the items will not be damaged.
WARNING: Never stop a tumble dryer
before the end of the drying cycle unless all
items are quickly removed and spread out
so that the heat is dissipated.
• Do not use the appliance to dry foam rubber or similar elastomers.
• Make sure that the water tap is turned on during the drying cycles.
• Children of less than 3 years should be kept away from the appliance unless continuou-
sly supervised.
• Remove all objects from pockets such as lighters and matches.
•This machine must not be operated in a non airconditioned environment.
Disposal
• Disposing of the packaging materials: observe local
regulations so that the packaging may be re-used.
• The European Directive 2012/19/EU relating to Waste
Electrical and Electronic Equipment (WEEE) states
that household appliances should not be disposed of
using the normal solid urban waste cycle. Exhausted
appliances should be collected separately in order to
optimise the cost of re-using and recycling the materials
inside the machine, while preventing potential damage
to the atmosphere and to public health. The crossed-out
dustbin is marked on all products to remind the owner
of their obligations regarding separated waste collection.
For more information relating to the correct disposal of
household appliances, owners should contact their local
authorities or appliance dealer.
• Do not touch the machine when barefoot or with wet or
damp hands or feet.
• Do not pull on the power supply cable when unplugging
the appliance from the electricity socket. Hold the plug
and pull.
• Do not touch the drained water as it may reach
extremely high temperatures.
• Never force the porthole door. This could damage the
safety lock mechanism designed to prevent accidental
opening.
• If the appliance breaks down, do not under any
circumstances access the internal mechanisms in an
attempt to repair it yourself.
• Always keep children well away from the appliance while
it is operating.
• If it must be moved, proceed with the help of two or
three people and handle it with the utmost care. Never
try to do this alone, because the appliance is very heavy.
• Before loading laundry into the washer dryer, make sure
the drum is empty.
• During the drying phase, the door tends to get quite hot.
• Do not use the appliance to dry clothes that have been washed with flammable solvents (e.g. trichlorethylene).
7
EN
Description of the machine
CONTROL
PANEL
EN
PORTHOLE DOOR
PORTHOLE DOOR
HANDLE
KICK STRIP
ADJUSTABLE FEET
PORTHOLE DOOR
Always use the handle to
open the porthole door (see
figure).
DETERGENT DISPENSER DRAWER
The detergent dispenser
drawer is located inside
the machine and can be
accessed by opening the
door.
For more information on
detergent measures, please
refer to the chapter entitled
“Detergents and laundry”.
1. pre-wash compartment:
use powder detergent.
2. main wash compartment:
1
If liquid detergent is used,
it is recommended that the
2
B
removable plastic partition A
(supplied) be used for proper
dosage. If powder detergent
is used, place the partition into
slot B.
washing additives compartment: for fabric softener
or liquid additives. We recommend that the maximum
level indicated by the grille is not exceeded, and that
concentrated fabric softeners are diluted.
A
210
180
150
120
90
60
8
TOUCH CONTROL PANEL
To adjust the settings, gently
press the icon inside the
sensitive (touch control) area
as illustrated in the figure.
Standby mode
This Washer-dryer, in compliance with new energy saving
regulations, is fitted with an automatic standby system
which is enabled after about 30 minutes if no activity is
detected. Press the ON-OFF
button briefly and wait for
the machine to start up again.
Consumption in off-mode: 0,5 W
Consumption in Left-on: 8 W
START/PAUSE button
Touch control panel
WASH CYCLE
SELECTOR knob
with indicator light
SPIN
button
M2
M1
TEMPERATURE
button
ECO
indicator light
WASH
CYCLE
PHASE
EN
icons
DISPLAY
Button with ON/OFF
indicator light
DRYING
OPTION
button
buttons
CONTROL PANEL LOCK
DELAYED START
button with indicator light
button
LOCK indicator light
Button with
ON/OFF indicator light: press this briefly to switch
the machine on or off. The green indicator light indicates that the
machine is switched on. To switch off the Washer-dryer during
the wash cycle, press and hold the button for approximately
3 seconds; if the button is pressed briefly or accidentally the
machine will not switch off. If the machine is switched off during a
wash cycle, this wash cycle will be cancelled.
WASH CYCLE SELECTOR knob: may be turned in either
direction. To select the most suitable wash cycle, please refer
to the “Table of wash cycles”.
The knob will not move during the wash cycle.
M1-M2 buttons: press and hold one of the buttons to store
a cycle with your own set preferences in the memory of
the machine. To recall a previously-stored cycle, press the
corresponding button.
DRYING button
: press to decrease or exclude drying;
the selected drying level or time will appear on the display
(see “How to run a wash cycle or a drying cycle”).
TEMPERATURE
button: press to modify or exclude
the temperature setting; the value selected will appear on the
display above (see “How to run a wash cycle or a drying cycle”).
SPIN CYCLE
button: press to modify or exclude the spin
cycle; the value selected will appear on the display above (see
“How to run a wash cycle or a drying cycle”).
DELAYED START
button: press to set a delayed start for
the selected wash cycle; the set delay time will appear on the
display above (see “How to run a wash cycle or a drying cycle”).
OPTION buttons: press to select the available options. The
indicator light corresponding to the selected option will remain
lit (see “How to run a wash cycle or a drying cycle”).
WASH CYCLE PHASE icons: these illuminate to indicate
the progress of the wash cycle (Wash
– Rinse
– Spin/
Drain
– Drying
). The text
lights up when the cycle is
complete.
START/PAUSE button with indicator light: when the green
indicator light flashes slowly, press the button to start a wash
cycle. Once the cycle has begun the indicator light will remain
lit in a fixed manner. To pause the wash cycle, press the
button again; the indicator light will flash in an orange colour. If
the “LOCK” indicator light is switched off, the door may be
opened. To start the wash cycle from the point at which it was
interrupted, press the button again.
LOCK indicator light: indicates that the porthole door is
locked. To open the door, pause the wash cycle (see “How to
run a wash cycle or a drying cycle”).
CONTROL PANEL LOCK
button with indicator light: to
activate or deactivate the control panel lock, press and hold
the button for approximately 2 seconds. when the indicator
light is illuminated, the control panel is locked (apart from the
ON/OFF button). This means it is possible to prevent wash
cycles from being modified accidentally, especially where there
are children in the home.
ECO indicator light: the
icon lights up when, after altering the
washing parameters, an energy saving of at least 10% is made.
Furthermore, before the machine enters “Standby” mode, the
icon will light up for a few seconds; when the machine is switched
off the estimated energy saving will be around the 80% mark.
CHANGE LANGUAGEsThe first time the machine is
switched on, the first language will flash on the display. The
“ “, “OK” and “V” symbols will appear on the display, in line
with the 3 buttons on the right-hand side. The languages
change automatically every 3”; alternatively, they can be
changed by pressing the buttons next to the “ “ and “V”
symbols. Use the “OK” button to confirm the language, which
will be set after 2”. If no buttons are pressed, the automatic
language change will begin again after 30”.
To change the language, switch the machine on and off
again; in the 30” time period after it has been switched
off, press and hold the temperature
+spin
+delayed
start buttons simultaneously for 5’’. A short
sound alert will be emitted and the set language will flash
on the display. Press the buttons next to the “ “ and “V”
symbols to change the language. Use the button next to the
“OK” symbol to confirm the language, which will be set after
2”. If no buttons are pressed, the language set previously will
be displayed after 30”. Switch on the machine.
9
How to run a wash cycle or a
drying cycle
EN
WARNING: before you use the Washer-dryer for the first time,
run a wash cycle with detergent and no laundry, using the 90°
cottons cycle without pre-wash.
1. SWITCH THE MACHINE ON. Press the button. All
the indicator lights will illuminate for 1 second and the text
AQUALTIS will appear on the display; the indicator light
corresponding to the button will then remain lit in a constant
manner and the START/PAUSE indicator light will flash.
2. SELECT THE PROGRAMME. Turn the PROGRAMME
KNOB left or right, until the required programme has been
selected; the name of the programme will appear on the
display. A temperature and spin speed is set for each
programme; these may be adjusted. The cycle duration will
also appear on the display.
3. LOAD THE LAUNDRY. Open the porthole door. Load the
laundry, making sure you do not exceed the maximum load value
indicated in the table of wash cycles on the following page.
4. MEASURE OUT THE DETERGENT. Pull out the detergent
dispenser drawer and pour the detergent into the relevant
compartments as described in “Description of the machine”.
5. CLOSE THE PORTHOLE DOOR.
6. CUSTOMISE THE WASH CYCLE. Use the relevant
buttons on the control panel:
Modify the temperature and/or spin speed.
The machine automatically displays the maximum temperature
and spin speed values set for the selected cycle, or the most
recently-used settings if they are compatible with the selected
cycle. The temperature can be decreased by pressing the
button, until the cold wash “OFF” setting is reached. The
spin speed may be progressively reduced by pressing the
button, until it is completely excluded “OFF”. If these buttons
are pressed again, the maximum values are restored.
! Exception: if the
programme is selected, the
temperature can be increased up to a value of 90°C.
Setting the drying cycle.
The first time the button
is pressed, the machine will
automatically select the maximum drying cycle which is
compatible with the selected wash cycle. Subsequent presses
will decrease the drying level and then the drying time, until
the cycle is excluded completely (“OFF”). If these buttons are
pressed again, the maximum values are restored.
Drying may be set as follows:
A - Based on a set time period: between 30 and 180 minutes.
B- Based on the desired laundry dryness level:
Iron: suitable for clothes which will need ironing afterwards.
the remaining dampness softens creases, making them
easier to remove.
Hanger: ideal for clothes which do not need to be dried fully.
Cupboard: suitable for laundry which can be put back in a
cupboard without being ironed.
Extra: suitable for garments which need to be dried
completely, such as sponges and bathrobes.
If your laundry load to be washed and dried is much greater
than the maximum stated load, perform the wash cycle,
and when the cycle is complete, divide the garments into
groups and put some of them back in the drum. At this
point, follow the instructions provided for a “Drying only”
cycle. Repeat this procedure for the remainder of the load.
A cooling-down period is always added to the end of each
drying cycle.
10
Drying only
Use the cycle selector knob to select a drying cycle ( - - )
in accordance with the type of fabric. The desired drying level or
time may also be set using the DRYING button
.
Setting a delayed start.
To set a delayed start for the selected cycle, press the
corresponding button repeatedly until the required delay period has
been reached. During the setting procedure, the delay period and
the text “Starts in:” will be displayed, along with the flashing
symbol. After the delayed start has been set, the
symbol
will remain fixed on the display, which will also indicate the
duration of the selected cycle with the text “Ends in:” and the
cycle duration. Press the DELAYED START button just once to
display the delay time set previously. After the countdown has
begun, the display will show the text “Starts in:” and the delay
period. Once the set delay time has elapsed, the machine will
begin its cycle and the display will show “Ends in:” and the time
remaining until the end of the cycle. To remove the delayed start
option, press the button until the display shows the text OFF;
the
symbol will disappear.
Modify the cycle settings.
• Press the button to activate the option; the name of the option will then appear on the display and the corresponding indicator light will illuminate.
• Press the button again to deactivate the option; the
name of the option will then appear on the display
followed by the text OFF, and the corresponding
indicator light will switch off.
! If the selected option is not compatible with the selected
wash cycle, this incompatibility will be signalled by the
flashing of the indicator light and a sound alert
(3 beeps); the option will not be activated.
! If the selected option is not compatible with another
option that has been selected previously, the indicator light
corresponding to the first option selected will flash and
only the second option will be activated; the indicator light
corresponding to the button will remain lit in a constant
manner.
! The options may affect the recommended load value and/
or the duration of the cycle.
7. START THE PROGRAMME. Press the START/PAUSE
button. The corresponding indicator light remains lit in a fixed
manner and the porthole door locks (the LOCK indicator
light illuminates). The icons corresponding to the wash cycle
phases will light up during the cycle to indicate which phase
is currently in progress. To change a wash cycle once it has
already started, pause the Washer-dryer by pressing the
START/PAUSE button; then select the desired cycle and
press the START/PAUSE button again. To open the door
during a wash cycle, press the START/PAUSE button; if the
LOCK indicator light is switched off you may open the
door. Press the START/PAUSE button again to restart the
wash cycle from the point at which it was interrupted.
8. THE END OF THE WASH CYCLE. This is indicated by
the illuminated text END. The porthole door may be opened
immediately. If the START/PAUSE indicator light is flashing,
press the button to end the cycle. Open the door, unload
the laundry and switch off the machine.
! If you wish to cancel a cycle which has already begun, press
and hold the
button until the cycle stops and the machine
switches off.
Wash cycles and options
Table of wash cycles
Icon Description of the wash cycle
Detergent and adMax.
Max.
ditives
Max. temp.
Cycle
speed Drying
load
PreFabric
(°C)
duration
Wash
(rpm)
(kg)
wash
softener
40°
1400

-


11
Synthetics Resistant
60°
1200

-


5
Whites
60°
1400

-


6
Coloureds
40°
1400

-


6
Darks
30°
800

-


6
Wool Platinum Care: for wool, cashmere, etc.
40°
800

-


2,5
Ultradelicates
30°
0

-


1
Anti Allergy
60°
1400

-


6
Rinse
-
1400

-
-

11
Spin and Pump out
-
1400

-
-
-
11
30°
1400

-


1
Drying Cottons
-
-

-
-
-
7
Drying Wool
-
-

-
-
-
2,5
Drying Synthetics
-
-

-
-
-
5
90°
1400




11
60°
(Max. 90°C)
1400

-


11
Wash&Dry
Cotton Hygiene Prewash
(Add detergent to the relevant compartment).
Cotton Whites (1): heavily soiled whites and resistant colours.
(*) The duration of the wash cycles can be checked on the display.
Cotton Coloureds: lightly soiled whites and delicate colours.
The length of cycle shown on the display or in this booklet is an estimation only and is calculated assuming standard working conditions. The actual duration can vary according to factors such as
water temperature and pressure, the amount of detergent used, the amount and type of load inserted, load balancing and any wash options selected.
(*) Note: 10 minutes after the START, the machine will recalculate the time remaining until the end of the wash cycle on the basis of the load inside it; this value will then be shown on the display.
For all Test Institutes:
1) Test Programmes according to SASO 2885:2018: set wash cycle
with a temperature of 60°C + antifoam.
Wash options
! If the selected option is not compatible with the selected
wash cycle, this incompatibility will be signalled by the
flashing of the indicator light and a sound alert
(3 beeps); the option will not be activated.
! If the selected option is not compatible with another
option that has been selected previously, the indicator light
corresponding to the first option selected will flash and
only the second option will be activated; the indicator light
corresponding to the button will remain lit in a constant
manner.
rotate slowly; the “Easy Iron” and START/PAUSE indicator
lights will flash. To end the cycle press the START/PAUSE
button or the “Easy Iron” button.
Note: If you also want to run the drying cycle, this option is
enabled only if combined with level “Iron”.
Time Saver
If you select this option, the wash cycle duration will be
reduced by up to 50%, depending on the selected cycle,
thereby guaranteeing simultaneous water and energy
saving. Use this cycle for lightly soiled garments.
Super Wash
This option offers a high-performance wash due to the
greater quantity of water used in the initial phase of the
cycle, and due to the increased wash cycle duration, is
particularly useful for the removal of stubborn stains.
Extra rinse
By selecting this option, the efficiency of the rinse is
increased and optimal residual detergent removal is
guaranteed. It is particularly useful for skin which is
sensitive to detergents. We recommend this option is used
with a full load of washing, or when a large amount of
detergent is required.
Easy Iron
By selecting this option, the wash and spin cycles will be
modified in order to reduce the formation of creases.
At the end of the cycle the Washer-dryer drum will
11
EN
Detergents and laundry
EN
Detergent
The type and quantity of detergent required depend on
the type of fabric you are washing (cotton, wool, silk, etc.),
as well as its colour, the washing temperature, the level of
soiling and the hardness of the water in the area.
Measuring out the detergent carefully will avoid wastage
and help to protect the environment: although they are
biodegradable, detergents still contain ingredients which
alter the balance of nature.
We recommend the following:
• use powder detergents for white cotton garments and
pre-washing.
• use liquid detergents for delicate cotton garments and
for all low-temperature wash cycles.
• use gentle liquid detergents for wool and silk garments.
The detergent should be poured into the relevant
compartment - or the dispenser placed directly inside the
drum - before the wash cycle begins. In the latter case, it will
not be possible to select the Cottons with pre-wash cycle.
! Do not use hand washing detergents because these
create too much foam.
Preparing the laundry
• Shake out the garments before loading them into the
machine.
• Divide the laundry according fabric type (symbol on the
washing instruction label) and colour, making sure you
separate the coloured garments from the white ones;
• Empty all pockets and check the buttons;
• Do not exceed the values listed in the “Table of wash cycles”,
which refer to the weight of the laundry when dry.
How much does your laundry weigh?
1 sheet
1 pillowcase
1 tablecloth
1 bathrobe
1 towel
1 pair of jeans
1 shirt 400-500 g
150-200 g
400-500 g
900-1200 g
150-250 g
400-500 g
150-200 g
Washing recommendations
Whites: use this cycle
to wash white clothes. The
programme is designed to maintain the brightness of white
clothes over time.
If the drying function is selected, a drying cycle
automatically activates at the end of the wash cycle that
resembles open-air drying, with the added advantages
of preserving garments from yellowing due to sunlight
exposure and preventing loss of whiteness caused by the
possible presence of dust in the air. Drying cycles can only
be selected on a level basis.
Coloureds: use this cycle
to wash bright coloured
clothes. The programme is designed to maintain bright
colours over time.
Darks: Use cycle
to wash dark-coloured garments.
This programme is designed to maintain dark colours over
time. We recommend using a liquid detergent for the best
results when washing dark-coloured garments.
When you select the drying function, at the end of the washing
cycle the machine will automatically perform a delicate drying
cycle that preserves the colours of the garments. The display
will show the level “Iron”. Max. load: 3 kg.
12
Wool - Woolmark Apparel Care - Green:
the wool wash cycle of this machine has been approved by
The Woolmark Company for the washing of wool garments
labelled as “hand wash” provided that the garments
are washed according to the instructions issued by the
manufacturer of this washing machine. Follow the garment
care label for drying and other laundry instructions.
(M1135)
Ultradelicates: use programme
to wash very delicate
garments having strasses or sequins. We recommend
turning the garments inside out before washing and placing
small items into the special bag for washing delicates. Use
liquid detergent on delicate garments for best results.
When selecting an exclusively time-based drying function,
a drying cycle is performed at the end of the wash cycle
that is particularly delicate, thanks to light handling and
appropriate temperature control of the water jet.
The recommended durations are:
1 kg of synthetic garments --> 160 min
1 kg of synthetic and cotton garments --> 180 min
1 kg of cotton garments --> 180 min
The degree of dryness depends on the load and fabric
composition.
To wash Silk garments and Curtains select cycle
and
then option
; the machine will end the cycle while the
laundry is soaking and the
indicator light will flash. To
drain the water so that the laundry may be removed, press
the START/PAUSE button or the
button.
Anti Allergy: use programme to remove major
allergens such as pollen, mites, cat’s and dog’s hair.
Wash&Dry: select programme
for washing and drying
lightly soiled garments (Cotton and Synthetic) in a short
time. This cycle may be used to wash and dry a laundry
load of up to 1 kg in just 45 minutes. To achieve optimum
results, use liquid detergent and pre-treat cuffs, collars and
stains.
Stubborn stains: it is wise to treat stubborn stains with
solid soap before washing, and to use the Cottons with
pre-wash cycle.
Load balancing system
Before every spin cycle, to avoid excessive vibrations
before every spin and to distribute the load in a uniform
manner, the drum rotates continuously at a speed which
is slightly greater than the washing rotation speed. If,
after several attempts, the load is not balanced correctly,
the machine spins at a reduced spin speed. If the load is
excessively unbalanced, the Washer-dryer performs the
distribution process instead of spinning. To encourage
improved load distribution and balance, we recommend
small and large garments are mixed in the load.
Trouble shooting
Your Washer-dryer could occasionally fail to work. Before contacting the Technical Assistance Centre (see “Assistance”),
make sure that the problem cannot be solved easily using the following list.
Problem:
Possible causes / Solutions:
The Washer-dryer does not switch
on.
• The appliance is not plugged into the socket fully, or not enough to make
contact.
• There is no power in the house.
The wash cycle does not start.
•
•
•
•
EN
The door is not closed properly.
The START/PAUSE button has not been pressed.
The water tap has not been opened.
A delayed start has been set.
The Washer-dryer does not fill with • The water inlet hose is not connected to the tap.
water.
• The hose is bent.
• The water tap has not been opened.
• There is no water supply in the house.
• The pressure is too low.
• The START/PAUSE button has not been pressed.
The Washer-dryer door remains
locked.
• If you have selected the
function, at the end of the cycle the Washer-dryer
drum will rotate slowly; to end the cycle press the START/PAUSE button or the
button.
The machine continuously fills with • The drain hose is not fitted at a height between 65 and 100 cm from the floor
(see “Installation”).
water and drains.
• The free end of the hose is under water (see “Installation”).
• If the dwelling is on one of the upper floors of a building, there may be
problems relating to water drainage, causing the Washer-dryer to fill with water
and drain continuously. Special anti-draining valves are available in shops and
help to prevent this inconvenience.
• The wall drainage system is not fitted with a breather pipe.
The Washer-dryer does not drain or • The wash cycle does not include draining: Some wash cycles require the drain
phase to be started manually (see “Wash cycles and options”).
spin.
• The “Easy iron” option is enabled: to complete the wash cycle, press the
START/PAUSE button (“Wash cycles and options”).
• The drain hose is bent (see Installation).
• The drainage duct is clogged.
The machine vibrates a lot during
• The drum was not unlocked correctly during installation (see “Installation”).
the spin cycle.
• The machine is not level (see “Installation” ).
• The machine is trapped between cabinets and walls (see “Installation”).
• The load is unbalanced (see “Detergents and laundry”).
The Washer-dryer leaks.
• The water inlet hose is not screwed on properly (see “Installation”).
• The detergent dispenser is blocked (to clean it, see “Care and maintenance”).
• The drain hose is not fixed in place properly (see “Installation”).
The icons corresponding to the
“Phase in progress” flash rapidly
at the same time as the ON/OFF
indicator light.
• Switch off the machine and unplug it, wait for approximately 1 minute and
then switch it back on again. If the problem persists, contact the Technical
Assistance Service.
There is too much foam.
• The detergent is not suitable for machine washing (it should display the text
“for Washer-dryer” or “hand and machine wash”, or the like).
• Too much detergent was used.
The washer-dryer does not dry.
•
•
•
•
•
The appliance is not plugged into the socket, or not enough to make contact.
There has been a power failure.
The appliance door is not shut properly.
A DELAY TIMER has been set.
DRYING is in the OFF position.
13
Instruction Sheet
EN
Manufacturer’s name
Whirlpool EMEA S.p.A. - Socio Unico via Carlo Pisacane n.1 - 20016 Pero (MI) - Italy
Description model
AQD1170D 49X
Country of production Italy
Rated Voltage (V)
220/240 V
Rated Frequency (Hz) 60 Hz
Rated Power (W)
1850 W
Net Weight (kg)
75.8 kg
Rated Capacity (kg)
from 1 to 11 kg for the wash programme
from 1 to 7 kg for the drying programme
Annual Energy
Consumption
(kWh/year)
kWh/year 257
Annual Water
Consumption
(liters/year)
liters/year 10890
Dimensions
width 59.5 cm
height 85 cm
depth 64.5 cm
Connecting the drain
hose
Connect the drain hose, without bending it, to a drain duct or a wall drain situated between 65 and
100 cm from the floor.
Alternatively, place the drain hose over the edge of a washbasin or bathtub, by fastening the guide
(which can be purchased at the technical assistance centre) to the tap. The free end of the hose
should not be underwater.
! We advise against the use of hose extensions; if it is absolutely necessary, the extension must have
the same diameter as the original hose and must not exceed 150 cm in length.
Electrical
connections
General safety
Unpacking and
levelling
Before plugging the appliance into the mains socket, make sure that:
• the socket is earthed and in compliance with the applicable law;
• the socket is able to sustain the appliance’s maximum power load indicated on the Technical Data
Plate fixed on the machine;
• the supply voltage is included within the values indicated on the Technical Data Plate fixed on the machine.
• the socket is compatible with the washing machine’s plug. If this is not the case, replace the socket or the plug.
• This appliance was designed for domestic use only.
• This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
• Do not touch the machine when barefoot or with wet or damp hands or feet.
• Do not pull on the power supply cable when unplugging the appliance from the electricity socket.
Hold the plug and pull.
• Do not open the detergent dispenser drawer while the machine is in operation.
• Do not touch the drained water as it may reach extremely high temperatures.
• Never force the porthole door. This could damage the safety lock mechanism designed to prevent
accidental opening.
• If the appliance breaks down, do not under any circumstances access the internal mechanisms in
an attempt to repair it yourself.
• Always keep children well away from the appliance while it is operating.
• The door can become quite hot during the wash cycle.
• If the appliance has to be moved, work in a group of two or three people and handle it with the
utmost care. Never try to do this alone, because the appliance is very heavy.
• Before loading laundry into the washer-dryer, make sure the drum is empty.
• This machine must not be operated in a non air-conditioned environment.
1. Remove the washer-dryer from its packaging.
2. Make sure that the washer-dryer has not been damaged during the transportation process. If it
has been damaged, contact the retailer and do not proceed any further with the installation process.
3. Remove the 4 protective screws (used during transportation) and the rubber washer with the corresponding spacer, located on the rear part of the appliance.
4. Close off the holes using the plastic plugs provided.
5. Keep all the parts in a safe place: you will need them again if the washer-dryer needs to be moved
to another location.
! Packaging materials should not be used as toys for children.
The Gulf Conformity Marking on the product indicates the conformity with all the requirements of the Gulf
Technical Regulation for Low Voltage Electrical Equipment and Appliances BD-142004-01
14

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
