IKEA OV23 User Manual

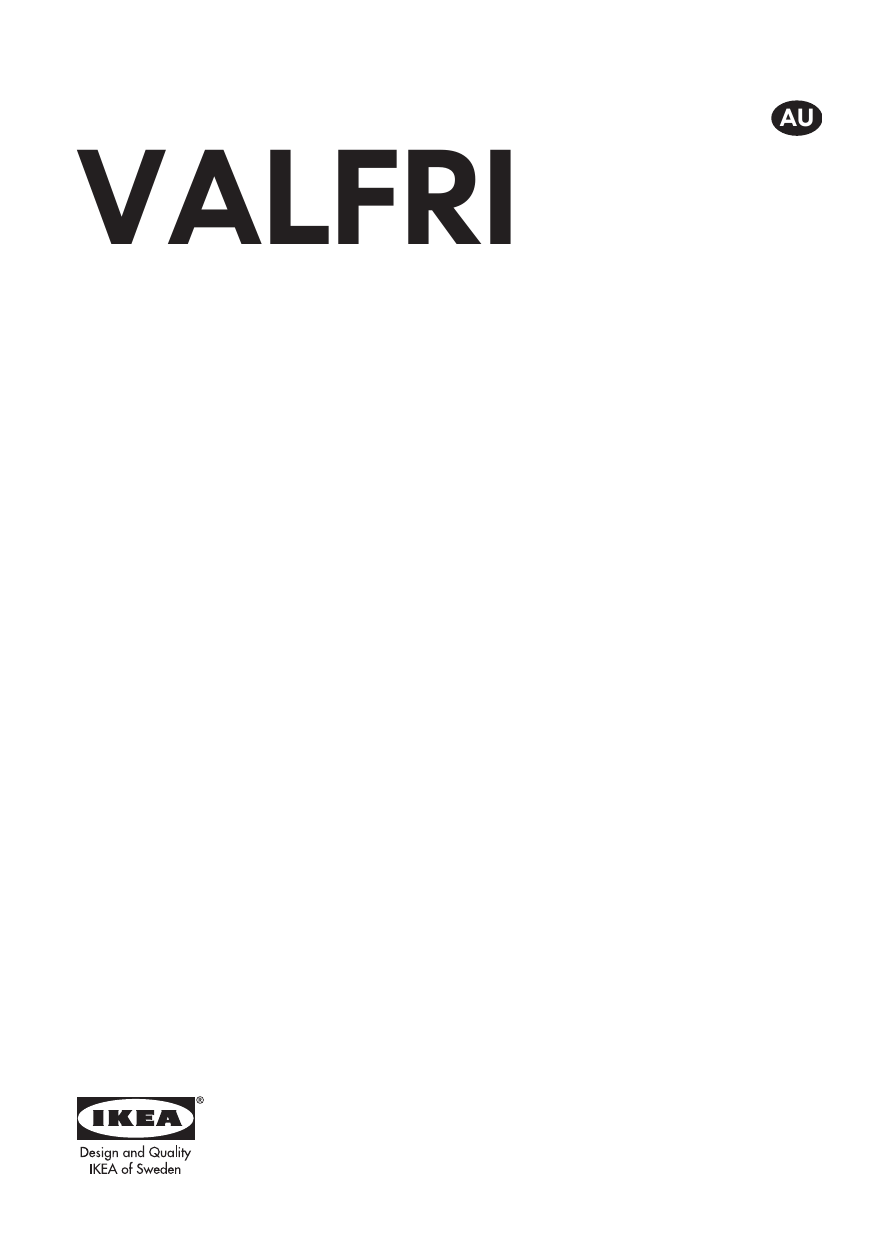

VALFRI
AU
ENGLISH
Please refer to the chapter IKEA GUARANTEE for contact details of
the after sales customer service centre.
ENGLISH
4
4
ENGLISH
Contents
Safety information
Conditions of Use
Safety instructions
Installation
Product description
Before first use
Daily use
Clock functions
Using the accessories
4
6
6
8
9
9
10
13
14
Additional functions
Hints and tips
Care and cleaning
Troubleshooting
Technical data
Energy efficiency
ENVIRONMENTAL CONCERNS
IKEA GUARANTEE
16
16
18
20
21
22
23
23
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible if
an incorrect installation and use causes injuries and damages.
Always keep the instructions with the appliance for future
reference.
Children and vulnerable people safety
•
•
•
•
•
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
Children between 3 and 8 years of age and persons with
very extensive and complex disabilities shall be kept away
unless continuously supervised.
Children of less than 3 years of age should be kept away
unless continuously supervised.
Do not let children play with the appliance.
Keep all packaging away from children and dispose of it
appropriately.
ENGLISH
•
•
•
5
Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are hot.
If the appliance has a child safety device, it should be
activated.
Children shall not carry out cleaning and user maintenance of
the appliance without supervision.
General Safety
•
•
•
•
•
•
•
•
•
•
•
Only a qualified person must install this appliance and
replace the cable.
WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements. Children less than 8 years of age shall be
kept away unless continuously supervised.
Always use oven gloves to remove or put in accessories or
ovenware.
Before maintenance cut the power supply.
Ensure that the appliance is switched off before replacing the
lamp to avoid the possibility of electric shock.
Do not use a steam cleaner to clean the appliance.
Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the glass door since they can scratch the surface,
which may result in shattering of the glass.
If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualified persons to avoid an electrical hazard.
To remove the shelf supports first pull the front of the shelf
support and then the rear end away from the side walls.
Install the shelf supports in the opposite sequence.
The means for disconnection must be incorporated in the
fixed wiring in accordance with the wiring rules.
Use only the food sensor (core temperature sensor)
recommended for this appliance.
6
ENGLISH
Conditions of Use
This appliance is intended to be used in
household and similar applications such as:
• Farm houses
• By clients in serviced apartments, holiday
apartments and other residential type
environments.
Safety instructions
Installation
Warning! Only a qualified
person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is installed
below and adjacent safe structures.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
Electrical connection
Warning! Risk of fire and
electrical shock.
• All electrical connections should be made
by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by our
Authorised Service Centre.
• Do not let mains cables touch or come
near the appliance door, especially
when the door is hot.
• The shock protection of live and
insulated parts must be fastened in such
a way that it cannot be removed without
tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
Use
Warning! Risk of injury, burns
and electrical shock or explosion.
• This appliance is for household use only.
• Do not change the specification of this
appliance.
7
ENGLISH
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance
door while the appliance is in operation.
Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can cause
a mixture of alcohol and air.
• Do not let sparks or open flames to come
in contact with the appliance when you
open the door.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
Warning! Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other objects
in the appliance directly on the
bottom.
– do not put aluminium foil directly on
the bottom of cavity of the
appliance.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in
the appliance after you finish the
cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel or stainless
steel has no effect on the performance of
the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
• Always cook with the oven door closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make sure
the door is never closed when the
appliance is in operation. Heat and
moisture can build up behind a closed
furniture panel and cause subsequent
damage to the appliance, the housing
unit or the floor. Do not close the
furniture panel until the appliance has
cooled down completely after use.
Care and Cleaning
Warning! Risk of injury, fire, or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains plug
from the mains socket.
• Make sure the appliance is cold. There is
a risk that the glass panels can break.
• Replace immediately the door glass
panels when they are damaged. Contact
the Authorised Service Centre.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Fat and food remaining in the appliance
can cause fire.
• If you use an oven spray, obey the safety
instructions on the packaging.
Internal light
• The type of light bulb or halogen lamp
used for this appliance is only for
household appliances. Do not use it for
house lighting.
Warning! Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
ENGLISH
Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
Disposal
Warning! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
8
• Remove the door to prevent children and
pets to get closed in the appliance.
• Packaging material:
The packaging material is
environmentally-friendly and recyclable.
Plastic parts are marked with
international abbreviations such as PE,
PS, etc. Dispose of the packaging
material in the containers provided for
this purpose at your local waste
management facility.
Installation
Warning! Refer to Safety
chapters.
Assembly
Refer to the Assembly Instructions
for the installation.
Electrical installation
Warning! Only a qualified
person must do the electrical
installation.
The manufacturer is not
responsible if you do not follow
the safety precautions from the
Safety chapters.
This appliance is supplied without a main
plug and a main cable.
Cable
Cable types applicable for installation or
replacement:
H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F,
H05 V2V2-F (T90), H05 BB-F
For the section of the cable refer to the total
power on the rating plate. You can also
refer to the table:
Total power (W)
Section of the cable
(mm²)
maximum 1380
3 x 0.75
maximum 2300
3x1
maximum 3680
3 x 1.5
The earth cord (green / yellow cable) must
be 2 cm longer than phase and neutral
cables (blue and brown cables).
ENGLISH
9
Product description
General overview
1
2
3
4
5
6
7
8
9
16
15
14
4
3
2
10
1
13
16
15
14
5
4
3
2
1
13
Accessories
• Wire shelf x 2
For cookware, cake tins, roasts.
• Baking tray x 1
For cakes and biscuits.
• Grill- / Roasting pan x 1
To bake and roast or as pan to collect
fat.
11
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Control panel
Knob for the top oven functions
Temperature indicator for the top oven
Knob for the top oven temperature
Electronic programmer
Knob for the main oven functions
Knob for the main oven temperature
Temperature indicator for the main oven
Air vents for the cooling fan
Rating plate
Socket for the core temperature sensor
Fan
Shelf support, removable
Shelf positions
Lamp
Grill
• Core temperature sensor x 1
To measure how far the food is cooked.
• Panel shield x 1
It prevents control panel damage
because of heat, while grilling with the
oven door open.
Before first use
Warning! Refer to Safety
chapters.
To set the Time of day refer to
"Clock functions" chapter.
Initial Cleaning
Remove all accessories and removable shelf
supports from the oven.
ENGLISH
Refer to "Care and cleaning"
chapter.
Clean the oven and the accessories before
first use.
Put the accessories and the removable shelf
supports back to their initial position.
10
To open the oven door with the child lock:
1. Pull and hold the child lock handle up as
shown in the picture.
Preheating
Preheat the empty appliance to burn off the
remaining grease.
Preheat the two ovens. Heat up
one oven at a time.
Set the functions listed below, if
applicable.
1. Set the function
and the temperature
to 250ºC.
Let the appliance operate for 1 hour.
and the temperature
2. Set the function
to 250ºC.
Let the appliance operate for 15
minutes.
and the temperature
3. Set the function
to 250ºC.
Let the appliance operate for 15
minutes.
Accessories can become hotter than usual.
The appliance can emit an odour and
smoke. This is normal. Make sure that the
airflow is sufficient.
2. Open the door.
Close the oven door without pulling the
child lock.
To remove the child lock, open the oven
door and remove the child lock with the torx
key. The torx key is in the oven fitting bag.
Screw back the screw into the hole after
removing the child lock.
Using the Mechanical child lock
The oven has the child lock installed and
activated. It is on the right side of the oven,
below the control panel.
Daily use
Warning! Refer to Safety
chapters.
Activating and deactivating the appliance
1. Turn the knob for the oven functions to
an oven function.
ENGLISH
11
2. Turn the knob for the temperature to a
temperature.
The temperature indicator comes on while
the temperature in the appliance increases.
3. To deactivate the appliance, turn the
knob for the oven functions and the
knob for the temperature to the Off
position.
Top oven functions
Symbol
Oven function
Application
Off position
The appliance is off.
Light
To activate the lamp without a cooking function.
It can be used with residual heat in final cooking
phase to save energy.
Conventional (Top
and Bottom Heat)
To bake and roast food on one shelf position.
Fast Grilling
To grill flat food in large quantities and to toast
bread.
Main oven functions
Symbol
Oven function
Application
Off position
The appliance is off.
Light
To activate the lamp without a cooking function.
It can be used with residual heat in final cooking
phase to save energy.
Forced Air Cooking
To bake on up to 2 shelf positions at the same time
and to dry food. When you use this function, decrease the oven temperature by 20 - 40 °C from the
standard temperatures you use for cooking with the
function Conventional (Top and Bottom Heat).
Bread and Pizza Bak- To bake food on 1 shelf position for a more intening
sive browning and a crispy bottom. When you use
this function, decrease the oven temperature by 20
- 40 °C from the standard temperatures you use for
cooking with the function Conventional (Top and
Bottom Heat).
ENGLISH
Symbol
12
Oven function
Application
Conventional (Top
and Bottom Heat)
To bake and roast food on one shelf position.
Bottom Heat
To bake cakes with crispy bottom and to preserve
food.
Defrost
This function can be used for defrosting frozen
foods, such as vegetables and fruits. The defrosting
time depends on the amount and size of the frozen
food.
The knob for the temperature must be in the off position.
Grilling
To grill flat food and to toast bread.
Fast Grilling
To grill flat food in large quantities and to toast
bread.
Grilling with Fan
To roast larger meat joints or poultry with bones on
one shelf position. Also to make gratins and to
brown.
Display
A
B
C D
A.
B.
C.
D.
Function indicators
Time and temperature display
Time of day
Core temperature sensor indicator
Buttons
Button
Function
Description
MINUS
To set the time.
CLOCK
To set a clock function.
PLUS
To set the time.
ENGLISH
13
Clock functions
Clock functions table
Clock function
Application
TIME OF DAY
To set, change or check the time of day.
DURATION
To set how long the appliance operates.
END
To set when the appliance deactivates.
TIME DELAY
To combine DURATION and END function.
MINUTE MIND- To set countdown time. This function has no effect on the opER
eration of the appliance.
Setting the time. Changing the time
You must set the time before you operate
the oven.
Only the top oven works without
the set time.
The
flashes when you connect the
appliance to the electrical supply, when
there was a power cut or when the timer is
not set.
Press the
or
to set the correct time.
After approximately five seconds, the
flashing stops and the display shows the
time of day you set.
To change the time of day press
and again until
again
starts to flash.
Setting the DURATION
1. Set an oven function and temperature.
2. Press
again and again until
starts
to flash.
3. Press
or
to set the DURATION
time.
The display shows
.
4. When the time ends,
flashes and an
acoustic signal sounds. The appliance
deactivates automatically.
5. Press any button to stop the acoustic
signal.
6. Turn the knob for the oven functions and
the knob for the temperature to the off
position.
DURATION works only for the
main oven.
Setting the END
1. Set an oven function and temperature.
2. Press
again and again until
starts
to flash.
3. Press
or
to set the time.
.
The display shows
flashes and an
4. When the time ends,
acoustic signal sounds. The appliance
deactivates automatically.
5. Press any button to stop the signal.
6. Turn the knob for the oven functions and
the knob for the temperature to the off
position.
The function works only for the
main oven.
ENGLISH
14
Setting the TIME DELAY
Setting the MINUTE MINDER
1. Set an oven function and temperature.
2. Press
again and again until
starts
to flash.
3. Press
or
to set the time for
DURATION.
4. Press .
5. Press
or
to set the time for END.
to confirm.
6. Press
Appliance turns on automatically later on,
works for the set DURATION time and stops
at the set END time. At the set time an
acoustic signal sounds.
7. The appliance deactivates
automatically. Press any button to stop
the signal.
8. Turn the knob for the oven functions and
the knob for the temperature to the off
position.
TIME DELAY works only for the
main oven.
1. Press
again and again until starts
to flash.
2. Press
or
to set the necessary time.
The Minute Minder starts automatically
after 5 seconds.
3. When the set time ends, an acoustic
signal sounds. Press any button to stop
the acoustic signal.
4. Turn the knob for the oven functions to
the off position.
Cancelling the clock functions
1. Press the
again and again until the
necessary function indicator starts to
flash.
2. Press and hold .
The clock function goes out after some
seconds.
Using the accessories
Warning! Refer to Safety
chapters.
Using the panel shield while grilling with
open oven door
3. Make sure the text "For grilling use
only" is on top and you can read it.
The shield has magnets which let you
attach it below the control panel.
When you use the grilling function with
open oven door it is necessary to attach the
panel shield below the control panel. It
prevents control panel damage because of
heat.
Warning! The shield will be very
hot when you use it while grilling.
Before you remove the shield
wait until it is cold. There is a risk
of burns.
1. Open top oven door.
2. Position the shield horizontally.
Inserting the accessories
Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
15
ENGLISH
Small indentation at the top
increase safety. The indentations
are also anti-tip devices. The
high rim around the shelf
prevents cookware from slipping
of the shelf.
Using the core temperature sensor
The core temperature sensor measures the
core temperature of the meat.
There are two temperatures to be set:
Baking tray/ Deep pan:
Push the baking tray / deep pan between
the guide bars of the shelf support.
Wire shelf and baking tray / deep pan
together:
Push the baking tray / deep pan between
the guide bars of the shelf support and the
wire shelf on the guide bars above.
• The oven temperature.
• The core temperature.
Caution! Only use the core
temperature sensor supplied with
the appliance, or genuine
replacement parts.
1. Put the plug of the core temperature
sensor into the socket on the side of the
main oven.
2. Put the point of the core temperature
sensor into the centre of the meat.
3. Press
again and again until the
indicator for the core temperature
flashes.
sensor
or
to set the core
4. Press the button
temperature.
You can set the temperature from 30 °C
to 99 °C. Refer to values in the table.
Recommended core temperatures
50 °C
Rare
60 °C
Medium
70 °C
Well done
5. Set the oven function and the oven
temperature.
When the meat is at the set core
temperature, an acoustic signal sounds for
two minutes. Press a button to stop the
signal.
6. Deactivate the appliance.
ENGLISH
16
7. Remove the plug of the core
temperature sensor from the socket.
Remove the meat from the appliance.
If the meat is not cooked to your
satisfaction, do the above steps again and
set a higher core temperature.
Warning! Be careful when you
remove the tip and plug of the
core temperature sensor. The
core temperature sensor is hot.
There is a risk of burns.
You can change the temperature at any
time during the cooking. Press
the set core temperature.
to change
Additional functions
Cooling fan
Safety thermostat
When the oven operates, the cooling fan
turns on automatically to keep the surfaces
of the oven cool. If you turn off the oven, the
cooling fan can continue to operate until the
oven cools down.
Incorrect operation of the oven or defective
components can cause dangerous
overheating. To prevent this, the oven has a
safety thermostat which interrupts the
power supply. The oven turns on again
automatically when the temperature drops.
Hints and tips
General information
• Count the shelf positions from the bottom
of the appliance floor.
• The appliance has a special system
which circulates the air and constantly
recycles the steam. With this system you
can cook in a steamy environment and
keep the food soft inside and crusty
outside. It decreases the cooking time
and energy consumption to a minimum.
• Moisture can condense in the appliance
or on the door glass panels. This is
normal. Always stand back from the
appliance when you open the appliance
door while cooking. To decrease the
condensation, operate the appliance for
10 minutes before cooking.
• Clean the moisture after each use of the
appliance.
• Do not put the objects directly on the
appliance floor and do not put
aluminium foil on the components when
you cook. This can change the baking
results and cause damage to the enamel.
Baking cakes
Do not open the oven door before 3/4 of
the set cooking time is up.
If you use two baking trays at the same
time, keep one empty level between them.
Cooking meat and fish
Use a deep pan for very fatty food to
prevent the oven from stains that can be
permanent.
Leave the meat for approximately 15
minutes before carving so that the juice
does not seep out.
To prevent too much smoke in the oven
during roasting, add some water into the
deep pan. To prevent the smoke
ENGLISH
17
condensation, add water each time after it
dries up.
Cooking times
Cooking times depend on the type of food,
its consistency, and volume.
Initially, monitor the performance when you
cook. Find the best settings (heat setting,
cooking time, etc.) for your cookware,
recipes and quantities when you use this
appliance.
Top oven
Quantity
(kg)
Food
Function Shelf position
Temperature
(°C)
Time (min)
0.25
Biscuits
2
170 - 190
10 - 20
0.5
Instant cake
2
150 - 170
50 - 70
1
White bread
1
170 - 180
40 - 50
1
Fish
1
160 - 180
20 - 30
1.5
Fruit pies, crumbles
1
170 - 190
30 - 50
1.5
Pasta, lasagne, etc.
2
160 - 180
40 - 60
1
Quiche, tarts, flans
1
170 - 190
25 - 50
1
Vegetables: baked
jacket / roast potatoes
2
180 - 190
66 - 90
Food
Function Shelf position
Main oven
Quantity
(kg)
Temperature
(°C)
Time (min)
1
Beef / Beef boned
1
170 - 190
50 - 70
1
Mutton / Lamb
1
170 - 190
50 - 70
1
Pork / Veal / Ham
1
170 - 190
50 - 90
1
Chicken
2
180 - 200
50 - 60
3
Turkey / Goose
1
170 - 190
120 - 150
1.5
Duck
2
180 - 200
70 - 100
ENGLISH
Quantity
(kg)
18
Food
Function Shelf position
Temperature
(°C)
Time (min)
1
Pheasant
2
170 - 190
70 - 80
1.5
Rabbit
2
170 - 190
50 - 70
1
Pizza
1
200 - 230
20 - 30
Care and cleaning
Warning! Refer to Safety
chapters.
Notes on cleaning
• Clean the front of the appliance with a
soft cloth with warm water and a
cleaning agent.
• To clean metal surfaces, use a dedicated
cleaning agent.
• Clean the appliance interior after each
use. Fat accumulation or other food
remains may result in a fire. The risk is
higher for the grill pan.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all accessories after each use and
let them dry. Use a soft cloth with warm
water and a cleaning agent.
• If you have nonstick accessories, do not
clean them using aggressive agents,
sharp-edged objects or a dishwasher. It
can cause damage to the nonstick
coating.
Stainless steel or aluminium appliances
Clean the oven door with a
damp cloth or sponge only. Dry it
with a soft cloth.
Do not use steel wool, acids or
abrasive materials as they can
damage the oven surface. Clean
the oven control panel with the
same precautions.
Cleaning the door gasket
Regularly do a check of the door gasket.
The door gasket is around the frame of the
oven cavity. Do not use the oven if the door
gasket is damaged. Contact an Authorised
Service Centre.
To clean the door gasket, refer to the
general information about cleaning.
Removing the shelf supports
To clean the oven, remove the shelf
supports.
1
2
2
1
Pull the front of the
shelf support away
from the side wall.
Pull the rear end of
the shelf support
away from the side
wall and remove it.
Install the shelf supports in the opposite
sequence.
The rounded ends of the shelf
supports must point to the front.
19
ENGLISH
Cleaning the oven door
5
You can remove the door and the internal
glass panels to clean it. The number of glass
panels is different for different models.
The oven door can close if you
try to remove the internal glass
panel before you remove the
oven door.
Caution! Do not use the oven
without the internal glass panel.
1
2
Hold the door glass
panels on their top
edge one by one
and pull them up
out of the guide.
Clean the glass panels with water and
soap. Dry the glass panels carefully.
When the cleaning is completed, install the
glass panel and the oven door. Do the
above steps in the opposite sequence.
Replacing the lamp
Open the door fully Lift and turn the
and hold the two
levers on the two
door hinges.
hinges.
3
4
45°
Close the oven door
to the first opening
position (halfway).
Then pull forward
and remove the
door from its seat.
Hold the door trim
on the top edge of
the door at the two
sides and push
inwards to release
the clip seal. Pull the
door trim to the
front to remove it.
Put a cloth on the bottom of the interior of
the oven. It prevents damage to the lamp
glass cover and the cavity.
Warning! Danger of
electrocution! Disconnect the fuse
before you replace the lamp.
The lamp and the lamp glass
cover can be hot.
1. Turn off the oven.
2. Remove the fuses from the fuse box or
turn off the circuit breaker.
3. Turn the lamp glass cover
counterclockwise to remove it.
4. Clean the glass cover.
5. Replace the oven light bulb with a 25
W, 220 - 240 V (50 Hz), 300 °C heat
resistant oven light bulb (connection
type: E14).
6. Install the glass cover.
ENGLISH
20
Troubleshooting
Warning! Refer to Safety
chapters.
What to do if...
Problem
Possible cause
Remedy
The oven does not heat up.
The oven is deactivated.
Activate the oven.
The oven does not heat up.
The clock is not set.
Set the clock.
The oven does not heat up.
The necessary settings are
not set.
Make sure that the settings
are correct.
The oven does not heat up.
The fuse is blown.
Make sure that the fuse is
the cause of the malfunction.
If the fuse is blown again
and again, contact a qualified electrician.
The lamp does not operate.
The lamp is defective.
Replace the lamp.
Steam and condensation
settle on the food and in the
cavity of the oven.
You left the dish in the oven
for too long.
Do not leave the dishes in
the oven for longer than 15 20 minutes after the cooking
process ends.
The display shows "12.00".
There was a power cut.
Reset the clock.
The display shows F11.
The plug of the core temper- Put the plug of the core temature sensor is not correctly perature sensor as far as
installed into the socket.
possible into the socket.
Service data
If you cannot find a solution to the problem
yourself, contact an Authorised Service
Centre.
the front frame of the appliance cavity. Do
not remove the rating plate from the
appliance cavity.
The necessary data for the service centre is
on the rating plate. The rating plate is on
We recommend that you write the data here:
Model (MOD.)
.........................................
ENGLISH
21
We recommend that you write the data here:
Product number (PNC)
.........................................
Serial number (S.N.)
.........................................
Technical data
Technical data
Dimensions (internal)
Width
top: 440 mm / main: 435
mm
Height
top: 212 mm / main: 368
mm
Depth
top: 448 mm / main: 409
mm
Area of baking tray
1175 cm²
Top heating element (top oven)
1200 W
Top heating element (main oven)
1000 W
Bottom heating element (top oven)
1000 W
Bottom heating element (main oven)
1000 W
Grill element (top oven)
1100 W
Grill element (main oven)
1900 W
Conventional (top oven)
2200 W
Conventional (main oven)
2000 W
Bottom heat
1100 W
Grill
1800 W
Grilling (top oven)
2100 W
Grilling (main oven)
2700 W
Forced air cooking
1900 W
Grilling with fan
2700 W
Bread and pizza setting
2900 W
ENGLISH
22
Defrost
50 W
Total rating
5100 W
Oven lamp
25 W
Cooling fan
22 W
Voltage
220 - 240 V
Frequency
50 Hz
Number of functions
8+2
Energy efficiency
Product information according to EU 66/2014
Model identification
VALFRI 502.847.08
Energy Efficiency Index
Top oven: 106.8
Main oven: 106.2
Energy consumption with a standard load, conventional mode
Top oven: 0.78 kWh/cycle
Main oven: 0.94 kWh/cycle
Energy consumption with a standard load, fan-forced Top oven: not applicable
mode
Main oven: 0.86 kWh/cycle
Number of cavities
2
Heat source
Electricity
Volume
Top oven: 42 l
Main oven: 62 l
Type of oven
Built-In Oven
Mass
57.8 kg
EN 60350-1 - Household electric cooking
appliances - Part 1: Ranges, ovens, steam
ovens and grills - Methods for measuring
performance.
Energy saving
The appliance contains features
which help you save energy
during everyday cooking.
General hints
Make sure that the oven door is closed
properly when the appliance operates and
ENGLISH
23
keep it closed as much as possible during
the cooking.
Use the residual heat to warm up other
dishes.
Use metal dishes to improve energy saving.
Cooking with fan
When possible, use the cooking functions
with fan to save energy.
When possible, do not preheat the oven
before you put the food inside.
When the cooking duration is longer than
30 minutes, reduce the oven temperature to
minimum 3 - 10 minutes before the end of
the cooking time, depending on the
duration of the cooking. The residual heat
inside the oven will continue to cook.
Keep food warm
Choose the lowest possible temperature
setting to use residual heat and keep a
meal warm.
ENVIRONMENTAL CONCERNS
Recycle materials with the symbol . Put
the packaging in relevant containers to
recycle it. Help protect the environment and
human health by recycling waste of
electrical and electronic appliances. Do not
dispose of appliances marked with the
symbol with the household waste. Return
the product to your local recycling facility or
contact your municipal office.
IKEA GUARANTEE
How long is the IKEA guarantee valid?
This guarantee is valid for five (5) years
from the original date of purchase of Your
appliance at IKEA Pty Ltd, ABN
84006270757 or at Cebas Pty Ltd, ABN 15
009 156 003 (Both Trading as IKEA) unless
the appliance is named LAGAN in which
case two (2) years of guarantee apply. The
original sales receipt is required as proof of
purchase. If service work is carried out
under guarantee, this will not extend the
guarantee period for the appliance.
Which appliances are not covered by the
IKEA five (5) years guarantee?
The range of appliances named LAGAN .
Who will execute the service?
IKEA service provider will provide the service through its own service operations or
authorized service partner network. Contact
IKEA for further information.
If you encounter any trouble with the
appliance and wish to register a service call
or make a claim, please refer to
www.ikea.com.au for your local store after
sales customer service center phone
number, online email and opening times.
The principal address and contact details in
Australia are:
For Queensland, New South Wales, and
Victorian customers please contact:
IKEA Pty Ltd
24
ENGLISH
IKEA Pty Ltd
IKEA Service Office
L1 Clock Tower, 630 Princes Highway
Tempe, NSW 2044
Contact - IKEA Customer Service at
www.IKEA.com.au
For Western Australian and South
Australian customers please contact:
Cebas Pty Ltd
8c Sunray Drive, Innaloo WA 6018
Australia
Contact - IKEA Customer Service at
www.IKEA.com.au
What does this guarantee cover?
The guarantee covers faults of the appliance, which have been caused by faulty
construction or material faults from the date
of purchase from IKEA. This guarantee applies to domestic use only. The products
have been designed and tested for
domestic purposes only and this guarantee
does not cover damage arising from use of
the Product in a commercial environment.
The exceptions are specified under the
headline "What is not covered under this
guarantee?" Within the guarantee period,
the costs to remedy the fault e.g. repairs,
parts, labour and travel will be covered,
provided that the appliance is accessible
for repair without special expenditure.
Replaced parts become the property of
IKEA.
The guarantee exists only if the appliance
complies and is installed in accordance
with:
• The technical specifications.
• The Assembly Instructions and user
manual Safety Information.
IKEA's guarantee is subject to Australian
Consumer Law - see Schedule 2 to
Competition and Consumer Act, 2010. This
guarantee is in addition to (and does not
exclude, restrict or modify in any way) any
non-excludable statutory warranties in
Australia.
What will IKEA do to correct the problem?
IKEA appointed service provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee.
They will notify you as to whether your
claim is covered under this guarantee. If
your claim is approved, the IKEA service
provider or its authorized service partner,
will then, at its sole discretion, either repair
the defective product or replace it with the
same or a comparable product.
What is not covered under this
guarantee?
• Normal wear and tear.
• Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or
by connection to the wrong voltage, damage caused by chemical or electro-chemical reaction, rust, corrosion or water
damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal
environmental conditions.
• Consumable parts including batteries
and lamps.
• Non-functional and decorative parts
which do not affect normal use of the appliance, including any scratches and possible colour differences.
• Accidental damage caused by foreign
objects including insect or vermin
infestation or substances and cleaning or
unblocking of filters, drainage systems or
soap drawers.
• Damage to the following parts: ceramic
glass, accessories, crockery and cutlery
baskets, feed and drainage pipes, seals,
25
ENGLISH
lamps and lamp covers, screens, knobs,
casings and parts of casings. Unless such
damages can be proved to have been
caused by production faults.
• Cases where no fault could be found during a technician's visit.
• Repairs not carried out by our appointed
service providers and/or an authorized
service contractual partner or where
non-original parts have been used.
• Repairs caused by installation which is
faulty or not according to specification.
• The use of the appliance in a non-domestic environment i.e. professional use.
• Transportation damages. If a customer
transports the product to their home or
other address, IKEA is not liable for any
damage that may occur during transport.
However, if IKEA delivers the product to
the customer's delivery address, then
damage to the product that occurs
during this delivery will be covered by
this guarantee.
• Cost for carrying out the initial
installation of the IKEA appliance.
However, if an IKEA service provider or
its authorized service partner repairs or
replaces the appliance under the terms
of this guarantee, the service provider or
its authorized service partner will reinstall the repaired appliance or install
the replacement, if necessary.
• The appliance's serial number or
warranty seal has been removed or
defaced.
How country law applies
Our goods come with guarantees that
cannot be excluded under the Australian
Consumer Law (ACL). You are entitled to a
replacement or refund for a major failure
and compensation for any other reasonably
foreseeable loss or damage.
You are also entitled to have the goods
repaired or replaced if the goods fail to be
of acceptable quality and the failure does
not amount to a major failure.
This guarantee is not intended in any way
to limit or exclude such rights and remedies
that you may have under law.
You can find out more information about
the Australian Consumer Law on the ACCC
website: www.accc.gov.au
Area of validity
This IKEA guarantee applies only to
products purchased and installed in
AUSTRALIA .
What you must do to make a claim under
the guarantee:
To make a claim under the guarantee
contact IKEA after sales customer service
center at the above address, the IKEA
catalogue or refer to www.ikea.com.au for
your local store customer service phone
number, online email and opening times.
Please describe the problem that you are
facing with the appliance in detail along
with your product article number (8 digit
code) and date of purchase at the time of
call registration.
Please do not hesitate to contact the
dedicated after sales customer service
center for IKEA appliances to:
1. Make a service request under this guarantee;
2. Ask for clarification on installation of the
IKEA appliance in the dedicated IKEA
kitchen furniture.
3. Ask for clarification on user manual contents and specifications of the IKEA appliance.
To ensure that we provide you with the best
assistance, please read carefully the Assembly Instructions and/or the User Manual
section of this booklet before contacting us.
How to reach us if you need our service
ENGLISH
26
The IKEA after sales customer service centre
will assist you on the phone with basic
trouble shooting for your appliance at the
time of service call request. Please refer to
the IKEA catalogue or www.ikea.com.au
and select your local store for local store
phone numbers and opening times.
Please describe the problem that
you are facing with the
appliance in detail along
with your product article number
( 8 digit code ) and date of
purchase at the time of call
registration .
SAVE THE SALES RECEIPT!
Kindly keep all these details and
original invoice of purchase
handy during the service
technician's visit to enable him to
carry out the job.
It is your proof of purchase and
required for the guarantee to
apply. Note that the receipt
reports also the IKEA article
name and number (8 digit code)
for each of the appliances you
have purchased.
*
ENGLISH
27
867335918-D-432017
© Inter IKEA Systems B.V. 2017
21552
AA-992208-5

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
