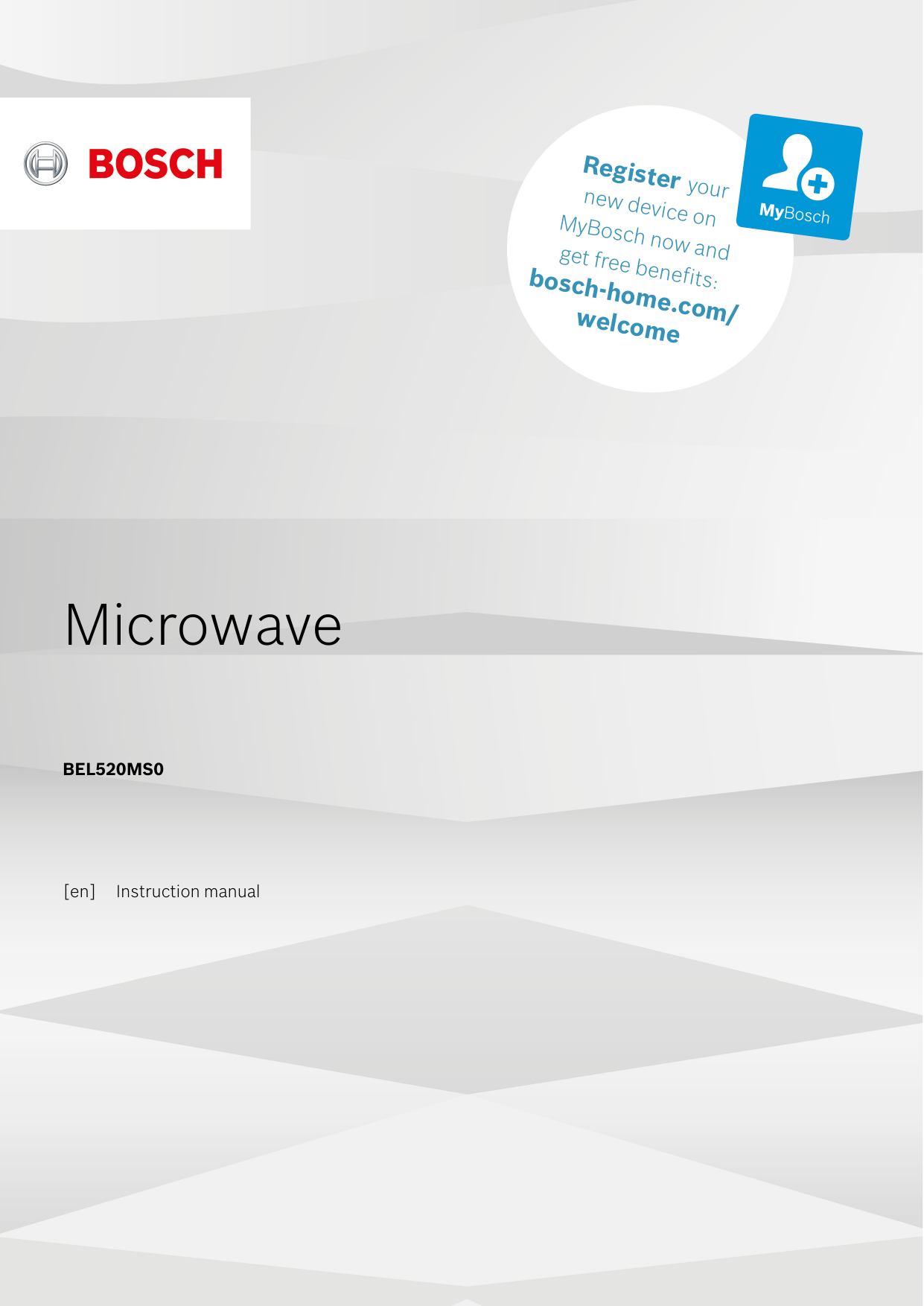

Bosch BEL520MS0 Built-in microwave oven Instruction manual

3FHJTU
FS\RXU
QHZGH
YLFHRQ
0\%RV
FKQRZ
DQG
JHWIUH
HEHQH
ILWV
CPTDI
IPNF
XFMDP DPN
NF
Microwave
BEL520MS0
[en]
Instruction manual
en
Table of contents
[ en] I nst r uct i on manual
8 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
( Important safety information . . . . . . . . . . . . . . . 4
E Test dishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
General information . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Microwave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
5 Installation and connection. . . . . . . . . . . . . . . . . 6
] Causes of damage . . . . . . . . . . . . . . . . . . . . . . . . 7
7 Environmental protection . . . . . . . . . . . . . . . . . . 7
Produktinfo
Additional information on products, accessories,
replacement parts and services can be found at
www.bosch-home.com and in the online shop
www.bosch-eshop.com
Environmentally-friendly disposal . . . . . . . . . . . . . . . . . 7
* Getting to know your appliance . . . . . . . . . . . . . 7
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Control panel symbols . . . . . . . . . . . . . . . . . . . . . . . . . 8
_ Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Special accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
K Before using for the first time. . . . . . . . . . . . . . . 9
Cleaning the cooking compartment and putting the
turntable in place . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cleaning the cooking compartment and accessories . 9
^ Microwave. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cookware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
microwave power settings . . . . . . . . . . . . . . . . . . . . . 10
Setting the microwave . . . . . . . . . . . . . . . . . . . . . . . . 10
d Grilling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setting procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setting the microwave to combi-mode . . . . . . . . . . . . 11
D Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Cleaning agent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3 Trouble shooting . . . . . . . . . . . . . . . . . . . . . . . . 12
4 Customer service . . . . . . . . . . . . . . . . . . . . . . . . 13
E number and FD number . . . . . . . . . . . . . . . . . . . . . 13
Technical specifications . . . . . . . . . . . . . . . . . . . . . . . 13
J Tested for you in our cooking studio. . . . . . . . 14
Suitable ovenware . .
Unsuitable cookware
Defrosting. . . . . . . . .
Heating frozen food .
Heating food . . . . . .
Cooking food . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. 14
. 14
. 14
. 15
. 16
. 17
3
en
Intended use
8Intended use
Read these instructions carefully. Only then
will you be able to operate your appliance
safely and correctly. Retain the instruction
manual and installation instructions for future
use or for subsequent owners.
This appliance is only intended to be fully fitted
in a kitchen. Observe the special installation
instructions.
Check the appliance for damage after
unpacking it. Do not connect the appliance if it
has been damaged in transport.
Only a licensed professional may connect
appliances without plugs. Damage caused by
incorrect connection is not covered under
warranty.
This appliance is intended for domestic use
only. The appliance must only be used for the
preparation of food and drink. The appliance
must be supervised during operation. Only
use this appliance indoors.
This appliance is intended for use up to a
maximum height of 4000 metres above sea
level.
This appliance may be used by children over
the age of 8 years old and by persons with
reduced physical, sensory or mental
capabilities or by persons with a lack of
experience or knowledge if they are
supervised or are instructed by a person
responsible for their safety how to use the
appliance safely and have understood the
associated hazards.
Children must not play with, on, or around the
appliance. Children must not clean the
appliance or carry out general maintenance
unless they are at least 15 years old and are
being supervised.
Keep children below the age of 8 years old at
a safe distance from the appliance and power
cable.
Always place the accessories into the cooking
compartment correctly. ~ "Before using for
the first time" on page 9
I nt ended us e
(Important safety
information
I mpor t ant saf et y i nf or mat i on
General information
: Warning – Risk of fire!
Combustible items stored in the cooking
compartment may catch fire. Never store
combustible items in the cooking
compartment. Never open the appliance
door if there is smoke inside. Switch off the
appliance and unplug it from the mains or
switch off the circuit breaker in the fuse box.
Risk
of fire!
■
The
appliance becomes very hot. If the
appliance is installed in a fitted unit with a
decorative door, heat will accumulate when
the decorative door is closed. Only operate
the appliance when the decorative door is
open.
■
: Warning – Risk of electric shock!
Incorrect repairs are dangerous. Repairs
may only be carried out and damaged
power cables replaced by one of our
trained after-sales technicians. If the
appliance is defective, unplug the appliance
from the mains or switch off the circuit
breaker in the fuse box. Contact the aftersales service.
Risk
of electric
shock and serious
injury!
■
The
cable insulation
on electrical
appliances may melt when touching hot
parts of the appliance. Never bring
electrical appliance cables into contact with
hot parts of the appliance.
Risk
electric
■
Doofnot
use shock!
any high-pressure cleaners or
steam cleaners, which can result in an
electric shock.
Risk
of electric shock!
■
Penetrating
moisture may cause electric
shock. Never subject the appliance to
intense heat or humidity. Only use this
appliance indoors.
Risk
electric shock!
■
A of
defective
appliance may cause electric
shock. Never switch on a defective
appliance. Unplug the appliance from the
mains or switch off the circuit breaker in the
fuse box. Contact the after-sales service.
Risk
of electric
shock!
■
The
appliance
is a high-voltage appliance.
Never remove the casing.
■
: Warning – Risk of burns!
The appliance becomes very hot. Never
touch the interior surfaces of the cooking
compartment or the heating elements.
Always allow the appliance to cool down.
Keep children at a safe distance.
Risk of serious burns!
■
4
Important safety information
Accessories and ovenware become very
hot. Always use oven gloves to remove
accessories or ovenware from the cooking
compartment.
Risk
of burns!vapours may catch fire in the hot
■
Alcoholic
cooking compartment. Never prepare food
containing large quantities of drinks with a
high alcohol content. Only use small
quantities of drinks with a high alcohol
content. Open the appliance door with care.
■
: Warning – Risk of scalding!
When you open the appliance door, hot
steam may escape. Open the appliance
door with care. Keep children at a safe
distance.
Risk
of scalding!
■
Water
in a hot cooking compartment may
create hot steam. Never pour water into the
hot cooking compartment.
■
: Warning – Risk of injury!
Scratched glass in the appliance door may
develop into a crack. Do not use a glass
scraper, sharp or abrasive cleaning aids or
detergents.
Microwave
: Warning – Risk of fire!
Using the appliance for anything other than
its intended purpose is dangerous and may
cause damage.
The following is not permitted: drying out
food or clothing, heating slippers, grain or
cereal pillows, sponges, damp cleaning
cloths or similar.
For example, heated slippers and grain or
cereal pillows may catch fire, even several
hours after they have been heated.The
appliance must only be used for the
preparation of food and drinks.
Risk
of fire!
■
Food
may catch fire. Never heat food in
heat-retaining packages.
Do not leave food heating unattended in
containers made of plastic, paper or other
combustible materials.
Do not select a microwave power or time
setting that is higher than necessary. Follow
the information provided in this instruction
manual.
Never use the microwave to dry food.
Never defrost or heat food with a low water
content, e.g. bread, at too high a microwave
power or for too long.
Risk
of fire! oil may catch fire. Never use the
■
Cooking
microwave to heat cooking oil on its own.
■
en
: Warning – Risk of explosion!
Liquids and other food may explode when in
containers that have been tightly sealed.
Never heat liquids or other food in containers
that have been tightly sealed.
: Warning – Risk of burns!
Foods with peel or skin may burst or
explode during, or even after, heating.
Never cook eggs in their shells or reheat
hard-boiled eggs. Never cook shellfish or
crustaceans. Always prick the yolk when
baking or poaching eggs. The skin of foods
that have a peel or skin, such as apples,
tomatoes, potatoes and sausages, may
burst. Before heating, prick the peel or skin.
Risk
of burns!
■
Heat
is not distributed evenly through baby
food. Never heat baby food in closed
containers. Always remove the lid or teat.
Stir or shake well after the food has been
heated. Check the temperature of the food
before it is given to the child.
Risk
of burns!
■
Heated
food gives off heat. The ovenware
may become hot. Always use oven gloves
to remove ovenware or accessories from
the cooking compartment.
Risk
of burns!
■
Airtight
packaging may burst when food is
heated. Always observe the instructions on
the packaging. Always use oven gloves to
remove dishes from the cooking
compartment.
Risk
of accessible
burns!
■
The
parts become very hot when
in operation. Never touch hot parts. Keep
children at a safe distance.
Risk
of burns!
■
Using
the appliance for anything other than
its intended purpose is dangerous.
You are not permitted to use it to dry food
or clothing or to warm slippers, grain or
cereal pillows, sponges, damp cleaning
cloths or the like.
This is because, for instance, overheated
slippers, grain or cereal pillows, sponges
and damp cleaning cloths, etc., may cause
burns to the skin.
■
: Warning – Risk of scalding!
■
There is a possibility of delayed boiling
when a liquid is heated. This means that the
liquid reaches boiling temperature without
the usual steam bubbles rising to the
surface. Even if the container only vibrates a
little, the hot liquid may suddenly boil over
and spatter. When heating, always place a
spoon in the container. This will prevent
delayed boiling.
5
en
Installation and connection
Microwave energy may escape if the
cooking compartment door or the door seal
is damaged. Never use the appliance if the
cooking compartment door or the door seal
is damaged. Contact the after-sales service.
Risk
of serious damage
health!
■
Microwave
energy to
will
escape from
appliances that do not have any casing.
Never remove the casing. For any
maintenance or repair work, contact the
after-sales service.
■
: Warning – Risk of injury!
Scratched glass in the appliance door may
develop into a crack. Do not use a glass
scraper, sharp or abrasive cleaning aids or
detergents.
Risk
of injury! ovenware may crack. Porcelain
■
Unsuitable
or ceramic ovenware can have small
perforations in the handles or lids. These
perforations conceal a cavity below. Any
moisture that penetrates this cavity could
cause the ovenware to crack. Only use
microwave-safe ovenware.
Risk
of injury!
■
If using
the appliance in microwave mode
only, placing cookware and containers
made of metal or featuring metal detailing
inside the appliance may cause sparks
when the appliance is operating. This may
damage the appliance. Never use metal
containers when using the appliance in
microwave mode only.
Risk
of injury!
■
Using
unsuitable cookware may result in
damage. For microwave combination mode,
always use cookware made from suitable
materials that can also withstand the
temperatures used for hot air and grilling
modes.
Risk
of glass
injury!turntable may splinter.Never allow
■
The
hard objects to strike the turntable.
Risk
of injury!
■
Cracks
or chinks in the glass turntable are
dangerous. Handle the turntable with care.
■
: Warning – Risk of electric shock!
The appliance is a high-voltage appliance.
Never remove the casing.
: Warning – Risk of serious damage to
health!
■
The surface of the appliance may become
damaged if it is not cleaned properly.
Microwave energy may escape. Clean the
appliance on a regular basis, and remove
any food residue immediately. Always keep
the cooking compartment, door seal, door
and door stop clean. ~ "Cleaning"
on page 11
Risk of serious damage to health!
6
5Installation and connection
This appliance is designed for domestic use only.
This appliance is designed to be fully integrated into
kitchen units.
Please follow the dedicated installation instructions.
The appliance is ready to be plugged in and may only
be connected to a Schuko socket that has been
correctly installed. The circuit breaker must have a
rating of 10 A (L- or B-type circuit breaker).The mains
voltage must correspond to the voltage specified on the
rating plate.
Only a qualified electrician may install the socket or
replace the power cable.If the plug is no longer
accessible once the appliance has been installed, an
all-pole isolating switch with a contact gap of at least 3
mm must be provided for the wiring.
Do not use multi-socket adaptors, power strips or
extension leads. Overloading causes a risk of fire.
The appliance can be installed in a wall-hung cabinet
measuring 60 cm wide (it must be at least 30 cm deep
and 85 cm above the floor).
I ns t a l a t i o n a n d c o n ec t i o n
Causes of damage
]Causes of damage
Caution!
Heavily soiled seal: If the seal is very dirty, the
appliance door will no longer close properly during
operation. The fronts of adjacent units could be
damaged. Always keep the seal clean.
■
Operating the microwave without food: Operating
the appliance without food in the cooking
compartment may lead to overloading. Never switch
on the appliance unless there is food in the cooking
compartment.The only exception to this rule is when
performing a short cookware test.~ "Cookware
test" on page 10
■
Microwave popcorn: Never set the microwave
power too high. Use a power setting no higher than
600 watts. Always place the popcorn bag on a glass
plate. The disc may jump if overloaded.
■
Liquid that has boiled over must not be allowed to
run through the turntable drive into the interior of the
appliance. Monitor the cooking process. Choose a
shorter cooking time initially, and increase the
cooking time as required.
■
Never use the microwave oven without the turntable.
■
Creation of sparks: Metal ­ e.g. a spoon in a glass ­
must be kept at least 2 cm from the oven walls and
the inside of the door. Sparks could irreparably
damage the glass on the inside of the door.
■
Foil containers: Do not use foil containers in the
appliance. They damage the appliance by producing
sparks.
■
Cooling with the appliance door open: Only leave
the cooking compartment to cool with the door
closed. Do not trap anything in the appliance door.
Even if the door is only slightly ajar, the fronts of
adjacent units may be damaged over time.
■
Condensation in the cooking compartment:
Condensation may appear on the door window,
interior walls and floor. This is normal and does not
adversely affect microwave operation. To prevent
corrosion, wipe off the condensation every time you
cook.
Causes of damge
■
*Getting to know your
appliance
In this section, we will explain the functions of your new
appliance.
Get i ng t o know your ap l i ance
Note: Depending on the appliance model, individual
details and colours may differ.
Control panel
You can set your appliance's various functions on the
control panel.
7Environmental protection
Envi r onment al pr ot ect i on
en
Y
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly
manner.
This appliance is labelled in accordance with
European Directive 2012/19/EU concerning
used electrical and electronic appliances
(waste electrical and electronic equipment WEEE). The guideline determines the
framework for the return and recycling of used
appliances as applicable throughout the EU.
( Power selector
For setting the microwave power output, grill, and
microwave in combination with the grill.
0 Time selector
0 to 60 minutes
8 Door opening button
7
en
Accessories
Control panel symbols
You will find a brief explanation of the various symbols
below. These symbols allow you to set your appliance
simply and directly.
Symbol
Symbol
90
180
360
600
800
(
( 180
( 360
Meaning
Select a microwave power output of 90 watts
Select a microwave power output of 180 watts
Select a microwave power output of 360 watts
Select a microwave power output of 600 watts
Select a microwave power output of 800 watts
Select the grill
_Accessories
Below, you will find an overview of the accessories
included and information on how to use them correctly.
Ac es or i es
Caution!
When removing dishes, make sure that the turntable
does not move. Make sure that the turntable is properly
locked. The turntable can turn left or right.
Wire rack
Wire rack for grilling, e.g. steak,
sausages or bread, or for
setting down cookware, e.g.
shallow ovenproof dishes.
Grill in combination with the microwave
0 - 60
mins
Set the number of minutes
v
Open appliance door
Note: Place the wire rack onto
the turntable.
Turntable
Note: Never use the appliance
without the turntable.Make sure
that it is properly engaged. The
turntable can turn clockwise or
anti-clockwise.
--------
Cooling fan
The appliance is equipped with a cooling fan. The fan
may run on even if the oven has been switched off.
Notes
■
The cooking compartment remains cold during
microwave operation. The cooling fan will still switch
on. The fan may run on even when microwave
operation has ended.
■
Condensation may appear on the door window,
interior walls and floor. This is normal and does not
adversely affect microwave operation. Wipe away the
condensation after cooking.
Roller ring
Special accessories
Special accessories can be purchased from our aftersales service, from specialist retailers, or online. You
will find a comprehensive range of products in our
brochures and online.
Their availability and whether it is possible to order
them online varies from country to country. Please see
our sales brochures for more details.
Note: Not all special accessories are suitable for every
appliance. When purchasing, please always quote the
exact identification number (E-no.) of your appliance.
~ "Customer service" on page 13
Steaming utensils
8
For cooking rice, potatoes and vegetables
Before using for the first time
KBefore using for the first
time
This section tells you what you need to do before using
your microwave to prepare food for the first time. Read
the section entitled "Safety information" beforehand.
~ "Important safety information" on page 4
Before you can use your new appliance, you will need
to put the turntable in place correctly. You must also
clean the cooking compartment and accessories.
Bef or e usi ng f or t he f i r st t i me
Cleaning the cooking compartment and
putting the turntable in place
Before using the appliance to prepare food for the first
time, you must clean the cooking compartment and
accessories.
How to put the turntable in place
1. Place the roller ring a into the recess in the cooking
compartment.
2. Make sure that the turntable b engages in the drive c
in the centre of the cooking compartment floor.
en
Tip: Once the cooking compartment has cooled down,
clean the smooth surfaces with soapy water and a dish
cloth.
Cleaning the accessories
Clean the accessories thoroughly using soapy water
and a dish cloth or soft brush.
^Microwave
You can use the microwave to cook, heat up or defrost
food quickly. You can use the microwave on its own or
in combination with the grill.
To ensure optimum use of the microwave, please
observe the notes on cookware and familiarise yourself
with the data in the application tables at the end of the
instruction manual.
Try out the microwave straight away. You could heat up
a cup of water for your tea, for example.
Use a large cup without any decorative gold or silver
trim and place a teaspoon in it. Place the cup
containing the water somewhat eccentrically on the
turntable.
Mi cr owave
E
1. Set the power selector to 800 W.
2. Use the time selector to set 2 minutes.
D
A signal sounds after 2 minutes. The water for the tea is
hot.
As you are drinking your tea, please take time to reread
the safety information that can be found at the start of
the instruction manual. This is very important.
F
Note: Never use the appliance without the turntable.
Make sure that it is properly engaged.The turntable can
turn clockwise or anti-clockwise.
Cleaning the cooking compartment and
accessories
To eliminate the new-appliance smell, heat up the
cooking compartment with nothing in it except the
turntable and with the oven door closed.
Make sure that there is no leftover packaging, such as
polystyrene pellets, in the cooking compartment. Before
heating the appliance, wipe the smooth surfaces in the
cooking compartment with a soft, damp cloth. Keep the
kitchen ventilated while the appliance is heating.
: Warning – Risk of scalding!
There is a possibility of delayed boiling when a liquid is
heated. This means that the liquid reaches boiling
temperature without the usual steam bubbles rising to
the surface. Even if the container only vibrates a little,
the hot liquid may suddenly boil over and spatter. When
heating, always place a spoon in the container. This will
prevent delayed boiling.
Settings
Grill (
10 minutes
Heating up the cooking compartment
1. Set the power selector to grill (.
2. Set the time selector to 10 minutes.
An audible signal will sound once the time has elapsed.
Open the appliance door.
9
Grilling
en
Cookware
Not all cookware is microwavable. So that your food is
heated and the appliance is not damaged, only use
microwavable cookware.
Suitable cookware
Heat-resistant cookware made of glass, glass ceramic,
porcelain, ceramic or heat-resistant plastic are suitable.
These materials allow microwaves to pass through.
You can also use serving dishes. This saves you having
to transfer food from one dish to another. You should
only use cookware with decorative gold or silver trim if
the manufacturer guarantees that they are suitable for
use in microwaves.
Unsuitable cookware
Metal cookware is unsuitable. Metal does not allow
microwaves to pass through. Food in covered metal
containers will remain cold.
Caution!
Creation of sparks: Metal – e.g. a spoon in a glass –
must be kept at least 2 cm from the cooking
compartment walls and the inside of the door. Sparks
can irreparably damage the glass on the inside of the
door.
Cookware test
Never switch on the microwave unless there is food
inside. The short cookware test is the only exception to
this rule.
Perform the following test if you are unsure whether
your cookware is suitable for use in the microwave.
1. Heat the empty cookware at maximum power for ½
to 1 minute.
2. Check the temperature of the cookware during this
time.
The cookware should remain cold or warm to the touch.
The cookware is unsuitable if it becomes hot or sparks
are generated.
In this case, stop the test.
Note: If the cooking time is less than two minutes,
first turn to a longer time and then immediately back
to the desired time.
The set cooking time counts down.
A signal sounds once the time has elapsed.
Notes
If you open the appliance door during operation,
microwave operation is interrupted and the set time
maintained. When closed again, operation resumes.
■
In the tables, there are two microwave power
settings and times: set the first microwave power
setting and time initially, and after the signal, set the
second.
■
Changing the cooking time
This can be done at any time. Change the cooking time
using the time switch.
Cancelling operation
Microwave operation is ended when you set the time
switch to 0.
dGrilling
The grill browns food evenly.
You can use the grill on its own or in combination with
the microwave.
Gr i l i ng
Setting procedure
Example: ( grill, 15 minutes
1. Set the power selector to (.
2. Use the time switch to set 15 minutes.
: Warning – Risk of burns!
The accessible parts become very hot when in
operation. Never touch hot parts. Keep children at a
safe distance.
PLQ ZDWW microwave power settings
90 W
180 W
360 W
600 W
800 W
for defrosting delicate foods
For defrosting and continued cooking
For cooking meat and heating delicate foods
For heating and cooking food
For heating liquids
Setting the microwave
1. Set the power selector to the required microwave
power setting.
2. Set a cooking time using the time switch.
10
The cooking time has elapsed
A signal sounds. The appliance switches off.
Correction
You may correct a set cooking time at any time.
Pausing operation
Open the appliance door. The set time continues once
the door is closed.
Cleaning
Cancelling the setting
Turn the time switch to zero. Reset.
DCleaning
With good care and cleaning, your appliance will retain
its appearance and remain fully functioning for a long
time to come. We will explain here how you should
correctly care for and clean your appliance.
Cl eani ng
Setting the microwave to combi-mode
This involves simultaneous operation of the grill and the
microwave. Using the microwave makes your dishes
ready more quickly, but they are still nicely browned.
: Warning – Risk of burns!
The following combinations are possible:
■
(180 watts
■
(360 watts
The appliance becomes very hot. Never clean the
appliance immediately after switching it off. Allow the
appliance to cool down.
Setting procedure
Do not use any high-pressure cleaners or steam
cleaners, which can result in an electric shock.
: Warning – Risk of electric shock!
Exmple: ( 360, 25 minutes.
: Warning – Risk of injury!
1. Set ( 360 using the power selector.
2. Set the cooking time using the time switch.
Scratched glass in the appliance door may develop into
a crack. Do not use a glass scraper, sharp or abrasive
cleaning aids or detergents.
PLQ ZDWW en
The set cooking time counts down.
A signal sounds once the time has elapsed.
Notes
■
If you open the appliance door during operation,
microwave operation is interrupted and the set time
maintained. Microwave operation continues once the
door is closed.
■
If your meal requires more than 60 minutes, set the
remaining time after the signal.
: Warning – Risk of serious harm to health!
The surface of the appliance may become damaged if it
is not cleaned properly. Microwave energy may escape.
Clean the appliance on a regular basis, and remove any
food remnants immediately.~ "Cleaning agent"
on page 11
: Warning – Risk of electric shock!
Do not immerse the appliance in water or clean under a
jet of water.
Note: Unpleasant odours, for example after fish has
been prepared, can be removed very easily. Add a few
drops of lemon juice to a cup of water. Always place a
spoon in the container to prevent delayed boiling. Heat
the water for 1 to 2 minutes at maximum microwave
output.
Cleaning agent
To ensure that the different surfaces are not damaged
by using the wrong cleaning agent, observe the
information in the table.
Do not use:
■
■
■
■
■
Harsh or abrasive cleaning agents.
Metal or glass scrapers to clean the door panels.
Metal or glass scrapers to clean the door seal.
Hard scouring pads or sponges.
Cleaning agents with a high alcohol content.
Wash new sponge cloths thoroughly before use.
11
en
Trouble shooting
Area
Appliance front
Appliance front with
stainless steel
Cooking compartment made of stainless steel
Cleaning product
Hot soapy water: Clean using a dish cloth and
then dry with a soft cloth. Do not use metal or
glass scrapers for cleaning.
Hot soapy water: Clean using a dish cloth and
then dry with a soft cloth. Remove splashes
and patches of limescale, grease, starch and
albumin (e.g. egg white) immediately. Corrosion can form under these patches or
splashes. Special stainless-steel cleaning products are available from the after-sales service
or from specialist retailers. Do not use glass
cleaners or metal or glass scrapers for cleaning.
Hot soapy water or vinegar solution: Clean
using a dish cloth and then dry with a soft
cloth.Do not use oven spray or any other
aggressive oven cleaners or abrasive materials. Scouring pads, rough sponges and pan
cleaners are also unsuitable. These items
scratch the surface. Allow the interior surfaces
to dry completely.
Area
Recess in the cooking compartment
Turntable and roller
ring
Wire rack
Door panels
Cleaning product
Damp cloth: Water must not be allowed to run
into the appliance through the turntable drive.
Dry the turntable drive with a cloth.
Hot soapy water: When placing the turntable
back into its recess, it must engage properly.
Hot soapy water: Soak and clean with a dish
cloth or brush. Do not scour.Do not use metal
or glass scrapers for cleaning.
Glass cleaner: Clean with a dish cloth. Do not
use glass scrapers.
3Trouble shooting
If a fault occurs, there is often a simple explanation.
Before calling the after-sales service, please refer to the
fault table and attempt to correct the fault yourself.
Tr oubl e sho t i ng
Tip: If a dish does not turn out exactly as you wanted,
refer to the following chapter, where you will find lots of
tips and notes relating to the optimum
settings.~ "Tested for you in our cooking studio"
on page 14
Fault table
Fault
The appliance is not working
Incorrect repairs are dangerous. Repairs may only be
carried out and damaged power cables replaced by
one of our trained after-sales technicians. If the
appliance is defective, unplug the appliance from the
mains or switch off the circuit breaker in the fuse box.
Contact the after-sales service.
Remedy/information
Connect the appliance to the electricity supply
Check whether other kitchen appliances are working
Check in the fuse box to make sure that the circuit
breaker/fuse for the appliance is in working order
Faulty operation
Switch off the circuit breaker/fuse for the appliance in
the fuse box and switch it back on after approximately
10 seconds
The microwave is not working.
The door has not been properly closed.
Check whether food remnants or debris is/are
trapped in the door.
A time has not been set using the time selector
Set a time using the time selector.
It is taking longer than usual for food The microwave power output has been set too low.
Select a higher microwave power setting.
to heat up
A larger amount of food than usual has been placed in Double the amount – double the time.
the appliance.
The food was colder than usual.
Stir or turn the food during heating.
The turntable is making a scraping or Dirt or debris in the area around the turntable drive. Clean the roller ring and the recess in the cooking
grinding noise.
compartment.
12
Possible cause
The plug is not plugged into the mains
Power failure
The circuit breaker/fuse is faulty
: Warning – Risk of electric shock!
Customer service
The microwave has stopped for no
apparent reason.
The microwave has a fault.
en
If this fault recurs, please call the after-sales service.
--------
4Customer service
Our after-sales service is there for you if your appliance
needs to be repaired. We will always find an
appropriate solution, also in order to avoid after-sales
personnel having to make unnecessary visits.
Cust omer ser vi ce
E number and FD number
When calling us, please quote the full product number
(E no.) and the production number (FD no.) so that we
can provide you with the correct advice. The rating plate
bearing these numbers can be found on the right-hand
side when you open the cooking compartment door.
E-Nr:
FD:
Z-Nr:
Type:
To save time, you can make a note of the numbers for
your appliance and the telephone number of the aftersales service in the space below in case you need
them.
E no.
Technical specifications
Input voltage
Power consumption
Max. output power
Max. grill output power
Microwave frequency
Circuit breaker/fuse rating
220-230 V AC, 50 Hz
1270 W
800 W (IEC 60705)
1000 W
2450 MHz
10 A
Dimensions (H/W/D)
- Appliance
- Cooking compartment
382 x 594 x 317 mm
201 x 308 x 282 mm
VDE approved
CE mark
Yes
Yes
FD no.
After-sales service O
Please note that a visit from an after-sales service
engineer is not free of charge in the event that the
appliance has been misused, even during the warranty
period.
Please find the contact data of all countries in the
enclosed customer service list.
To book an engineer visit and product advice
GB
0344 892 8979
Calls charged at local or mobile rate.
IE
01450 2655
0.03 € per minute at peak. Off peak 0.0088 €
per minute.
Rely on the professionalism of the manufacturer. You
can therefore be sure that the repair is carried out by
trained service technicians who carry original spare
parts for your appliances.
This appliance corresponds to the standards EN 55011
and CISPR 11. It is a Group 2, Class B product.
Group 2 means that microwaves are produced for the
purpose of heating food. Class B states that the
appliance is suitable for private households.
13
en
Tested for you in our cooking studio
JTested for you in our
cooking studio
In the table below, you will find a selection of dishes
and the ideal settings for them. It tells you which
microwave power setting is best suited to your dish.
You can use the microwave on its own or in
combination with the grill. We have listed some tips with
regard to cookware and preparation methods.
Caution!
Sparks: Metal, e.g. a spoon in a glass, must be kept at
least 2 cm from the oven walls and the inside of the
door. Sparks could irreparably damage the glass on the
inside of the door.
Test ed f or you i n our co ki ng st udi o
Notes
■
The times specified in the tables are intended as a
guide only.They will depend on the quality and
composition of the food.
■
Time ranges are often specified in the tables. Set the
shortest time to begin with, and then extend the time
if necessary.
■
Always use an oven cloth or oven gloves when
taking hot cookware out of the cooking
compartment.
It may be that you have different quantities from those
specified in the tables. There is a rule of thumb for
operating the microwave: Double the amount = almost
double the time, half the amount = half the time.
Always place the cookware on the turntable.
The following tables provide you with numerous options
and settings for the microwave.
Suitable ovenware
Suitable dishes are heat-resistant ovenware made of
glass, glass ceramic, porcelain, ceramic or heatresistant plastic. These materials allow microwaves to
pass through.
You can also use serving dishes. This saves you having
to transfer food from one dish to another. You should
only use ovenware with decorative gold or silver trim if
the manufacturer guarantees that they are suitable for
use in microwaves.
Defrosting
Place the frozen food in an open container on the
turntable.
Delicate parts such as the legs and wings of chicken or
fatty outer layers of roasts can be covered with small
pieces of aluminium foil. The foil must not touch the
sides of the cooking compartment. You can remove the
foil half way through the defrosting time.
Liquid will be produced when defrosting meat or
poultry. Drain off this liquid when turning meat and
poultry and under no circumstances use it for other
purposes or allow it to come into contact with other
foods.
Turn or stir the food once or twice during the defrosting
time. Large pieces of food should be turned several
times.
Leave defrosted items to stand at room temperature for
a further 10 to 20 minutes so that the temperature can
even out. The giblets can be removed from poultry at
this point. The meat can also be processed further
when a small part of the core is frozen.
Tips for defrosting
The time has elapsed but the food Set a longer time. Large quantities
is not defrosted, hot or cooked.
and food which is piled high
require longer times.
Time has elapsed but the food is Stir it during the cooking time and
overheated at the edge and not
next time, select a lower microdone in the middle.
wave power setting and a longer
cooking time.
After defrosting, the poultry or
Next time, select a lower micromeat is defrosted on the outside wave power setting. If you are
but not defrosted in the middle.
defrosting a large quantity, turn it
several times.
Unsuitable cookware
Metal cookware is unsuitable. Metal does not allow
microwaves to pass through. Food in covered metal
containers will remain cold.
Defrosting
Weight
Whole pieces of beef, veal or pork (on the bone 800 g
or boned)
1 kg
1.5 kg
14
Microwave power Cooking
Notes
setting in watts time in minutes
180
15
90
10-20
180
20
90
15-25
180
30
90
20-30
Tested for you in our cooking studio
Defrosting
Weight
Meat in pieces or slices of beef, veal or pork
200 g
500 g
800 g
Minced meat, mixed
200 g
500 g
800 g
Poultry or poultry portions
600 g
1.2 kg
Fish fillet, fish steak or slices
400 g
Vegetables, e.g. peas
Fruit, e.g. raspberries
300 g
300 g
500 g
Butter, defrosting
125 g
250 g
Loaf of bread
500 g
1 kg
Cakes, dry, e.g. sponge cake
500 g
750 g
Cakes, moist, e.g. fruit flan, cheesecake
500 g
750 g
Microwave power Cooking
setting in watts time in minutes
180
2
90
4-6
180
5
90
5-10
180
8
90
10-15
90
10
180
5
90
10-15
180
8
90
10-20
180
8
90
10-20
180
15
90
10-20
180
5
90
10-15
180
10-15
180
7-10
180
8
90
5-10
180
1
90
2-3
180
1
90
3-4
180
6
90
5-10
180
12
90
10-20
90
10-15
180
5
90
10-15
180
5
90
15-20
180
7
90
15--20
Heating frozen food
Notes
■
Take ready meals out of the packaging. They will
heat up more quickly and evenly in microwaveable
cookware. The different components of the meal
may not require the same amount of time to heat up.
■
Food which lies flat will cook more quickly than food
which is piled high. You should therefore distribute
the food so that it is as flat as possible in the
cookware. Food should not be placed in layers on
top of one another.
■
Always cover the food. If you do not have a suitable
cover for your cookware, use a plate or special
microwave foil.
■
■
■
en
Notes
Separate any defrosted parts when turning
Freeze food flat if possible
Turn several times, remove any defrosted meat
Separate any defrosted parts
Separate any defrosted parts
Stir carefully during defrosting and separate any
defrosted parts
Remove all packaging
-
Only for cakes without icing, cream or crème pâtissière, separate the pieces of cake.
Only for cakes without icing, cream or gelatine
Stir or turn the food 2 or 3 times during cooking.
After heating, allow the food to stand for a further 2
to 5 minutes to allow the temperature to even out.
Always use an oven cloth or oven gloves when
removing cookware from the appliance.
15
en
Tested for you in our cooking studio
Heating frozen food
Weight
Menu, plated meal, ready meal
(2-3 components)
Soup
Stew
Slices or pieces of meat in sauce, e.g. goulash
Bakes, e.g. lasagne, cannelloni
Side dishes, e.g. rice, pasta
Vegetables, e.g. peas, broccoli, carrots
Creamed spinach
Notes
300-400 g
Microwave power set- Cooking time in
tings in watts
minutes
600
8-11
400 g
500 g
500 g
600
600
600
8-10
10--13
12-17
Separate the pieces of meat when stirring
450 g
250 g
500 g
300 g
600 g
450 g
600
600
600
600
600
600
10-15
2-5
8-10
8-10
14-17
11-16
Add a little liquid
Heating food
Caution!
Metal, e.g. a spoon in a glass, must be kept at least
2 cm from the oven walls and the inside of the door.
Sparks could irreparably damage the glass on the
inside of the door.
-
Pour water into the dish so that it covers
the base
Cook without additional water
heating, always place a spoon in the container. This will
prevent delayed boiling.
Notes
■
Take ready meals out of the packaging. They will
heat up more quickly and evenly in microwaveable
cookware. The different components of the meal
may not require the same amount of time to heat up.
■
Always cover the food. If you do not have a
dedicated lid for your cookware, use a plate or
special microwave film.
■
Stir or turn the food several times during the heating
time. Check the temperature.
■
After heating, allow the food to stand for a further 2
to 5 minutes to allow the temperature to even out.
■
Always use an oven cloth or oven gloves when
removing cookware from the appliance.
: Warning – Risk of scalding!
There is a possibility of delayed boiling when a liquid is
heated. This means that the liquid reaches boiling
temperature without the usual steam bubbles rising to
the surface. Even if the container only vibrates a little,
the hot liquid may suddenly boil over and spatter. When
Heat up dishes
Weight
Microwave output in watts
Beverages
200 ml
500 ml
50 ml
100 ml
200 ml
800
800
360
360
360
Baby food, e.g. baby bottles
Soup, 1 cup
Soup, 2 cups
Menu, plated meal, ready meal
(2-3 components)
Meat in sauce
16
Cooking
time in minutes
2-3
3-4
Approx. ½
Approx. 1
Notes
Place a spoon in the glass; do not overheat alcoholic
drinks; check occasionally while heating
No teats or lids. Always shake well after heating. You
must check the temperature!
1^
200 g
600
400 g
600
350-500 g 600
2-3
4-5
4-8
-
500 g
8-11
Separate the slices of meat
600
Tested for you in our cooking studio
Heat up dishes
Weight
Microwave output in watts
Stew
400 g
800 g
150 g
300 g
600
600
600
600
Vegetables, 1 portion
Vegetables, 2 portions
Cooking food
Food which lies flat will cook more quickly than food
which is piled high. You should therefore distribute the
food so that it is as flat as possible in the cookware.
Food should not be placed in layers on top of one
another.
Cook the food on its own in the microwave – always
use with a lid on the cookware. Place the cookware
directly on the turntable. If you do not have a suitable lid
for your cookware, use a plate or special microwave
foil.
This will help the food retain its flavour. This means that
you can use salt and seasonings sparingly.
After cooking, allow the food to stand for a further 2 to 5
minutes to allow the temperature to even out.
Always use an oven cloth or oven gloves when
removing cookware from the appliance.
Grilling:
Always grill on the wire rack with the cooking
compartment door closed and do not preheat.
Always place the wire rack on the turntable.
Cooking food
Cooking
time in minutes
6-8
8-11
2-3
3-5
Notes
Add a little liquid
Combined microwave and grill:
Combi mode is especially suitable for bakes and
gratins.
Always place the cookware on the turntable and do not
cover the food.
Use a deep dish when roasting. This will help keep the
cooking compartment clean.
Use large shallow cookware for bakes and gratins.
Food takes longer to cook in narrow, deep containers
and browns more on top.
Check that your cookware fits in the cooking
compartment. It must not be too big, the turntable must
still be able to turn.
Always set the maximum cooking time. Check the food
after the shorter time specified.
Leave the meat to rest for another 5-10 minutes before
carving it. This allows the meat juices to be distributed
evenly so that they do not run out when the meat is
carved.
Bakes and gratins should be left to cook in the
appliance for a further 5 minutes after the appliance has
been switched off.
All the values given in the table are guidelines and can
vary depending on the properties of your food.
Microwave pow- Cooking time in
er setting in
minutes
watts
Chicken, whole, 1.2 kg
Cookware with 600
25-30
lid
Chicken portions, e.g. chicken quarters, Cookware
30-40
360 W + (
800 g
without lid,
wire rack
Chicken wings, marinated frozen, 800 g Cookware
15-25
360 W + (
without lid,
wire rack
Pork without rind approx. 750 g, e.g.
Cookware
40-50
360 W + (
neck
without lid
Bacon rashers, approx. 8 rashers
Wire rack
10-15
180 W + (
Notes
Meat loaf, 750 g
Cookware
without lid
600
360 W + (
20-25
25-35
Cook without a lid
Maximum 6 cm deep
Fish, e.g. fillet steaks, 400 g
600
10-15
Add water, lemon juice or wine as desired
360 W + (
10-15
Defrost frozen fish before cooking
Fish kebabs, 4-5 pieces
Cookware
without lid
Cookware
without lid
Wire rack
180 W + (
10-15
Use wooden skewers
Sweet bakes, e.g. quark and fruit soufflé, 1 kg
Cookware
without lid
360 W + (
30-35
Maximum 5 cm deep
Fish fillet, au gratin, approx. 400 g
en
Accessories
Turn half way through the time
Place with the skin side up, do not turn
Do not turn
Turn once or twice
-
17
en
Tested for you in our cooking studio
Cooking food
Accessories
Savoury bakes made from raw ingredients, e.g. pasta bake, 1 kg
Savoury bakes made from cooked ingredients, e.g. potato gratin, 1 kg
Soup au gratin, e.g. onion soup, 24 cups
Vegetables, fresh, 250 g
Cookware
without lid
Cookware
360 W + (
without lid
Cookware
(
without lid
Cookware with 600
lid
Vegetables, fresh, 500 g
Cookware with 600
lid
Wire rack
180 W + (
Cookware with
lid
Cookware with
lid
Cookware with
lid
Cookware with
lid
Vegetable kebabs, 4-5 pieces
Potatoes, 250 g
Potatoes, 500 g
Potatoes, 750 g
Rice, 125 g
Microwave pow- Cooking time in Notes
er setting in
minutes
watts
30-35
Sprinkle with cheese, maximum 5 cm deep
360 W + (
30-40
Maximum 4 cm deep
approx. 15-20
-
5-10
10-15
Cut the vegetables into pieces of equal size;
Add 1 to 2 tbsp water per 100 g of vegetables;
Stir during cooking
-
15-20
Use wooden skewers
600
8-10
600
11-14
Cut the potatoes into pieces of equal size;
Add 1 to 2 tbsp water for every 100 g;
Stir during cooking
600
15-22
Bread (pre-toasting), 2-4 slices
800
180
Cookware with 800
lid
180
Wire rack
(
Toast with topping, 2-6 slices
Wire rack
Fruit, compote, 500 g
Cookware with 600
lid
Cookware with 600
lid
Rice, 250 g
Sweet foods, e.g. blancmange (instant)
500 ml
18
(
5-7
12-15
6-8
15-18
1st side:
Approx. 2-4
2nd side:
Approx. 2-4
7-10
Add double the amount of liquid
9-12
-
6-8
Stir the blancmange thoroughly 2 to 3 times during cooking using an egg whisk
-
Depending on topping
Test dishes
ETest dishes
en
In accordance with EN 60705:2012, IEC 60705:2010
and EN 60350-1:2013 or IEC 60350-1:2011
These tables have been produced for test institutes to
facilitate the inspection of the appliance.
Test di shes
Microwave cooking
Dish
Microwave power output in watts, cooking time in
minutes
Custard, 750 g
360 W, 12-17 mins + 90 W, 20-25 mins
Sponge
600 W, 8-10 mins
Meat loaf
600 W, 20-25 mins
Note
Place a 20 x 25 cm Pyrex dish onto the turntable.
Place a 22 cm Pyrex dish onto the turntable.
Place a Pyrex dish onto the turntable.
Microwave defrosting
Dish
Microwave power output in watts, cooking time in Note
minutes
Meat
180 W, 5-7 mins + 90 W, 10-15 mins
Place a 22 cm Pyrex dish onto the turntable.
Combined microwave cooking
Dish
Microwave power setting in watts, cooking time in Note
minutes
Potato gratin
Place a pyrex dish with a diameter of 22 cm on the turntable.
( grill + 360 W, 35-40 mins
19
5IBOLZPVGPSCVZJOHB
#PTDI)PNF"QQMJBODF
5HJLVWHU\RXUQHZGHYLFHRQ0\%RVFKQRZDQGSURILWGLUHFWO\IURP
t&YQFSUUJQTUSJDLTGPSZPVSBQQMJBODF
t8BSSBOUZFYUFOTJPOPQUJPOT
t%JTDPVOUTGPSBDDFTTPSJFTTQBSFQBSUT
t%JHJUBMNBOVBMBOEBMMBQQMJBODFEBUBBUIBOE
t&BTZBDDFTTUP#PTDI)PNF"QQMJBODFT4FSWJDF
)UHHDQGHDV\UHJLVWUDWLRQ²DOVRRQPRELOHSKRQHV
XXXCPTDIIPNFDPNXFMDPNF
-PPLJOHGPSIFMQ
:PV}MMGJOEJUIFSF
([SHUWDGYLFHIRU\RXU%RVFKKRPHDSSOLDQFHVQHHGKHOSZLWKSUREOHPV
RUDUHSDLUIURP%RVFKH[SHUWV
)LQGRXWHYHU\WKLQJDERXWWKHPDQ\ZD\V%RVFKFDQVXSSRUW\RX
XXXCPTDIIPNFDPNTFSWJDF
$POUBDUEBUBPGBMMDPVOUSJFTBSFMJTUFEJOUIFBUUBDIFETFSWJDFEJSFDUPSZ
3PCFSU#PTDI)BVTHFSÉUF(NC)
&DUO:HU\6WUD‰H
0QFKHQ
*HUPDQ\
XXXCPTDIIPNFDPN
*9001293388*
9001293388
981016

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
