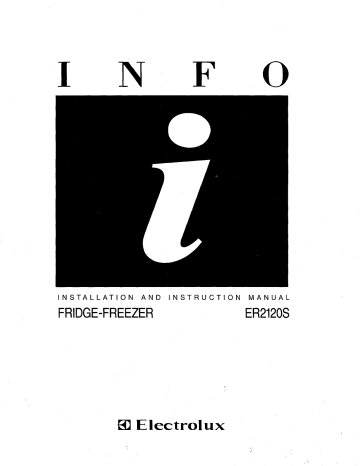

 INSTALLATION AND INSTRUCTION MANUAL
FRIDGE-FREEZER ER21205
E Electrolux
CONTENTS
© © © N NN NO Oro 0 A SS +0
Warnings ...... 0... 2, раде
Installation . . .... ВНЕ раде
Positioning . . . . aaa aaa page
Levelling . . . . . . a o page
“Connecting to the mains . . ....... aa page
Aligning with the other kitchen furniture .. . .. 1... 1111111110 LL LL LL 111120 ;.. page
Fitting under the kitchen worksurfaces . . . 110 . | В раде
Using the fridge/freezer . . . . .... 0000000 aa page
General instructions . .... aaa a a page
Starting up . . . . . aa aaa aa aaa aa ea page
Setting the temperature . . . ..... 1 1011111110 aaa page
Fridge compartment . . ...... LLL CL page
Freshness control . .... 2..2... page
Helpful hygiene tips . . . . . . © 0 … .. page
Freezer compartment .. ..... 1.1.1 111 111 LL 1 LL LL LL LL LL LL LL LL LL 1 page 10
Storing frozenfood . . . . LL LL LL LL A LL LL AL LL LL LS page 10
Startngup. ..... 1112411 LL LL LL LL LL LL A LL LL LL LL LL LL LL LL LL LS page 10
Some useful hints for freezing. . ... . 1. 1 1211111222 L LL LL LL LL LL LL LL LL page 11
Storing ready-frozen food . . ... 1 11111 LL LL LL LL LL LL LL LL LL LL LL LL LL 1120 page 11
Thawing .. .. 1. 1212124 LL LL LL LL LL LL LL LL LL LL 11120 LL LL 111110 page 12
Making ice cubes ...... 1.112111 LL LL LL LL LL LL LL LL LL LL LL LL LS —... page 12
Important points to remember . . ..... aaa page 12
Defrosting — Fridge . . . . . . . . a E page 13
Defrosting — Freezer . . . ..... o . page 13
Food storage guide. . . . =... aaa В раде 14
Maintenance . . . . 0... a page 17
Going on holiday. ... aaa aaa —… page 17
Replacing the bulb. .. . . 1 LL LL LL LL LL LL LL LL LL LL a page 17
Something not working . ...... aa page 18
Service Centres. ...... 1111111211 LL LL LL LL LL LL LL LL NL LL LL LL 0 page 19
Guarantee 1111 LL LL LL LL LL LL LL LL LL 0 LL 1220 page 21
TECHNICAL SPECIFICATIONS
DIMENSIONS Height 850 mm
Width 900 mm
Depth 600 mm
CAPACITY Fridge 4.6 cu ft
Freezer 2.9 cu ft
Fast freeze capacity 4 kg per 24 hours
Power consumption 1.5 kWh
WARNINGS
It is most important that this instruction book
should be retained with the appliance for future
reference. Should the appliance be sold or trans-
ferred to another owner, or should you move
house and leave the appliance, always ensure that
the book is supplied with the appliance in order
that the new owner can be acquainted with the
functioning of the appliance and the relevant
warnings.
‘These warnings are provided in the interest of
safety. You must read them carefully before install-
ing or using the appliance.
mM This appliance is designed to be operated by
adults. Children should not be allowed to tamper
with the controls or play with the product.
E Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
E This product should be serviced by an authorized
— Service Centre and only genuine spare parts
should be used.
m |t is dangerous to alter the specifications or modify
this product in any way.
E This appliance contains Freon gas. It could
damage the environment if the appliance is
scrapped uncorrectly.
« Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
«The domestic refrigerators and freezers are
designed to be used specifically for the storage of
edible foodstuffs only.
a Frozen food must not be refrozen once it has been
thawed out.
E Manufacturers” storage recommendations should
— be strictly adhered to. Refer to relevant instruc-
tions.
mM There are working parts in this product which heat
up. Always ensure that there is adequate ventila-
tion as a failure to do this will result in component
failure and possible food loss. See installation
instructions.
m Parts which heat up should not be exposed. Wher-
ever possible the back of the product should be
against a wall.
m Before any cleaning or maintenance work is car-
ried out, be sure to switch off and unplug the appli-
ance.
m if the appliance has been transported horizontally,
it is possible that the oil contained in the compres-
sor flows in the refrigerant circuit. It is also advis-
able to wait at least two hours before connecting
the appliance to allow the oil to flow back in the
compressor.
M The inner lining of the appliance consists of chan-
nels through which the refrigerant passes. If these
should be punctured this would damage the appli-
ance beyond repair and cause food loss. DO NOT
USE SHARP INSTRUMENTS to scrape off frost or
ice. Frost may be removed by using the scraper
provided. Under no circumstances should solid ice
be forced off the liner. Solid ice should be allowed
to thaw when defrosting the appliance. See defrost
instructions.
E Do not place carbonated or fizzy drinks in the
freezer as it creates pressure on the container,
which may cause it to explode, resulting in damage
to the appliance.
E This appliance ‘is heavy. Care should be taken
when moving it.
B |ce lollies can cause frost burns if consumed
straight from the appliance.
Hu Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out
by inexperienced persons may cause injury or
more serious malfunctioning. Refer to your local
Service Centre and always insist on genuine spare
parts.
INSTALLATION
Safety note
If this new appliance, provided with a magnetic door
closure, replaces one which is equipped with a spring
closure, you are advised to ensure that the door of
the discarded refrigerator can no longer be closed
from the outside.
This is to avoid children accidentally shutting them-
selves inside the fridge and thus endangering their
lives.
Positioning
Position the appliance well away from sources of heat
(radiators, stoves, cooking appliances, direct
sunlight, etc.).
The best performance is obtained with a room
temperature of between +10% and +32%C. If the
temperature drops below this level, there is a low
ambient temperature switch situated below the ther-
mostat housing (see page 7) which should be acti-
vated.
The appliance can be fitted next to other kitchen units
as long as the air can circulate freely (see figure). It is
important that the bottom grill is not obstructed as the
air must circulate freely through this grill.
For the cooling unit to work efficiently the appliance
should be located in a dry atmosphere.
Levelling
Your fridge/freezer will be heavy when loaded with
food and must be stood on a strong firm floor. it
should also be level.
The appliance is provided with two levelling feet
located at the front, and two rear castors for easy
movement. The refrigerator should be levelled accu-
rately, adjusting the feet as necessary so that it is
tilted slightly backwards to facilitate closure of the
doors. |
Make sure the appliance is upright and all adjusters
are in firm contact with the floor so that the cabinet
does not rock in any direction.
Connecting to the mains
Before you use your fridge/freezer, check that the
voltage shown on the data label inside the cabinet.
conforms with your mains supply.
The mains lead of the fridge/freezer is fitted with a
non-rewireable moulded-on 13 amp plug containing a
13 amp fuse. If the fuse requires replacing at any
time, the fuse cover/carrier should be removed, using
a small screwdriver to lever it out. The old fuse
should be replaced by a 13 amp ASTA approved BS
1362 fuse and the fuse cover/carrier must be refitted
before the piug is used again.
If the fuse cover/carrier is lost, it must be replaced by
one of the same colour as that of the coloured insert
in the base of the plug. In no circumstances must
the plug be used without a correct fuse cover/
carrier fitted.
If the plug supplied on the fridge/freezer mains lead
is not suitable for the socket outlet in your home, it
should be cut off and disposed of safely, or
destroyed, to avoid any possible shock hazard
resulting from the plug being inserted into a 13 amp
socket elsewhere in the house. A suitable replace-
ment plug should then be fitted as given below. (If a
13 amp plug and socket are not used, the circuit
supplying the freezer should contain a 10 amp fuse).
WARNING:
THIS APPLIANCE MUST BE EARTHED.
Important
The wires in the mains lead of this appliance are
coloured in accordance with the following code:
GREEN-and-YELLOW EARTH
BLUE NEUTRAL
BROWN LIVE
As the colours of the wires in the mains lead may not
correspond with the coloured markings identifying the
terminal in your plug, proceed as follows:
Connect the GREEN-and-YELLOW coloured wire to
the plug terminal marked letter E or earth symbol ©
or coloured green or green-and-yellow.
Connect the BLUE coloured wire to the plug terminal
marked letter N or coloured black.
Connect the BROWN coloured wire to the plug termi-
nal marked letter L or coloured red.
If at any time a replacement mains lead is required,
the cross sectional area of its conductors must not be
less than 0.75 mm?
The cover of the terminal box can be removed to gain
access to the mains lead terminals after releasing the
two clips with a small screwdriver, but remember to
first disconnect the plug from the electricity
supply socket.
However, we recommend that this operation be
carried out by a member of the Electrolux Service
Organisation or a qualified electrician.
As a general guide to fitting any plug
Ensure the lengths of wire inside the plug are
prepared correctly.
Connections should be firmly made after all
conductor strands are entered into the terminal posts.
When preparing the cable ends take care not to
damage the outer sheath, or the insulation
surrounding the inner conductors.
Tighten all screws.
Replace the top cover of the plug and secure.
Aligning the fridge-freezer top with the
other kitchen units.
The appliance comes with the top aligned with the
door. To change the alignment, follow the instructions
below:
Remove the screws (A) fixing the rear brackets to the
top; move the top and, having selected the new posi-
tion, refit the screws.
Fitting the appliance under the kitchen work
surfaces
This appliance can also be fitted under your existing
kitchen unit tops following the instructions below:
Remove the screws (A) fixing the rear brackets (C) to
the top from the catches (B) and remove.
51%
He
USING THE FRIDGE/FREEZER
5
=
—F
O ON
=
o
© © ~N OO Ot & WN =
== =
=
Fast freezing compartment
Storage times
Pull out storage baskets
Thermostat dial, temperature switch, light
Butter and cheese compartment
Cooked foods, cold meats shelves
Can and egg compartment
Meat, fish shelf
Freshness control
Fruit and vegetables
Bottles
GENERAL INSTRUCTIONS
Starting up
After cleaning and positioning the appliance, connect
the fridge freezer to the mains (see page 5) and set
the temperature as follows:
Setting the temperature
The temperature inside the fridge and freezer is
regulated by a single thermostat with 6 functional
positions and one “stop” (®) position.
Position 1 minimum cold
Position 6 maximum cold
Turn the thermostat dial to the required position; posi-
tion 3 or 4 is usually the most suitable.
The thermostat setting can vary as the temperature
inside the fridge depends on room temperature, how
often the door is opened, how much food is stored
and the position of the appliance, and therefore may
require slight adjustments from time to time.
Important
If the fridge is not defrosting correctly, check the ther-
mostat setting. If a very low temperature has been
selected, the motor will work continuously, which in
turn prevents the defrost cycle from operating.
To ensure that correct defrosting is taking place, a
lower number should be selected on the thermostat.
“You should notice that the motor cuts out from time to
time, which indicates that the defrosting is now
correct.
To return the appliance to a lower temperature, turn
the thermostat to a higher number. However you
should turn the setting lower occasionally to allow
automatic defrosting to take place.
If the room temperature drops below 16 degrees
centigrade, you will need to check the temperature
setting. A switch is located beside the thermostat
knob. The operating position is where the switch is
depressed (the built-in light is on).
You should ensure that this switch is used correctly. It
is most likely that the switch will need to be depressed
throughout the winter to allow for the low overnight
temperatures. No damage can be caused by leaving
the switch in this position for a period of time. During
the Spring, release the switch.
A - Thermostat knob
B - Ambient switch
FRIDGE COMPARTMENT
The coldest area of the refrigerator is the lower part, above the fruit and vegetable drawer.
For the best performance from your refrigerator, al-
ways follow these rules:
E make sure the appliance is installed correctly.
M never put hot drinks or food into the refrigerator,
leave them to cool to room temperature first.
m cover food, especially if strong smelling.
Em Space out the food so that air can circulate freely
around it.
m don't block the gap between the front part of the
shelves and the back. |
Freshness control
The fruit and vegetable compartment can accumulate
moisture depending on the type of food stored.
To regulate the build-up of damp air in this compart-
ment there is a grill which can be adjusted. ‘For
salads and leafy vegetables, a high moisture content
will ensure that they retain their freshness but root
vegetables such as turnips require a less moist
atmosphere.
The adjuster allows you to select the best conditions
for your food, the atmosphere will be dryer the more
the grill is opened.
Helpful hygiene tips
Always wash your hands with soapy water and dry
them with a clean towel before handling food.
Keep work surfaces clean. Do not use the same work
surface for raw and cooked food without washing it
thoroughly in between.
Use clean kitchen roll wherever possible for cleaning
up food. If you use a dishcloth be sure to boil it
frequently.
Regularly remove suspect food from: your fridge and
clean the interior with a solution of bicarbonate of
soda in warm water (1 tablespoon to 1 litre of water).
Never allow spills to dry and harden.
Regularly check the fridge door seal to ensure that it
is clean and free from bits and pieces and sticky
substances.
Make sure that food is used before its “best before”
date.
Cool food as quickly as possible but don’t place in
fridge or freezer until cool. (Leave food in as cool a
place as possible in order that it can be placed in the
fridge or freezer without delay).
Do not store food uncovered.
Do not mix raw and cooked meat, they must be in
separate containers. Take care not to let the meat
juices drip onto other food. If the meat does arip
remove everything and clean thoroughly.
FREEZER COMPARTMENT
/
В
ЕО
N
|
\
TT
NN
=
The symbol means that your freezer will store
food at —18°C (0°F) for long term storage and will
also freeze fresh food.
Storing frozen food
Your freezer compartment has the following capa-
cities:
Net Storage Volume 2.9 cu ft
“Weight of Stored Food
“(This is a standard measurement and the actual
capacity depends upon the density and sizes of food.
The above figures are based on an average density
of 0.32 kg per litre).
Pre-packed commercially frozen food should be
stored in accordance with manufacturer’s instructions
for 3 star frozen food compartments and should be
put into the freezer as soon as possible after
purchase. Your freezer provides for long term storage
which generally means up to 3 months but the length
of storage time can vary and it is important to follow
the recommended times shown on packets of
commercially frozen food.
Storage times for home prepared frozen foods are |
given on pages 14, 15 and 16.
VA
> ! .
10 | 4
If your fridge/freezer breaks down or the power fails,
don’t open the freezer door and the frozen food won't
be affected for up to 15 hours, providing that the door
Is not opened.
Any frozen food which is allowed to thaw accidently
should either be eaten as soon as possible or thrown
away. Alternatively, if the food is uncooked and it has
not been completely defrosted it can be cooked then
refrozen. (Note that some items must be thawed
completely before cooking - see page 12).
Defrosted cooked food must never be refrozen.
Starting up
In any 24 hours you can freeze as much as 4 kg of
fresh food.
Existing frozen food should be re-arranged to leave
space on the top shelf for freezing. The packets to be
frozen should be placed on the top shelf in contact
with the refrigerated surface as far as possible and
spaced apart to allow cold air to circulate between
them. They should not touch existing packets. Leave
the thermostat at its usual setting.
The products for freezing should be placed in the
upper drawer and then transferred to the lower
drawers so that the top compartment is left free for
the next freezing operation. | ’
é
7
No
-
To freeze fresh food after starting up the appliance for
the first time or after a period of non use it is neces-
sary:
1) to position the thermostat to a medium setting e.g
setting 4.
2) to leave the appliance operating for at least 4
hours.
3) to place the fresh food to be frozen in the upper
drawer.
Notice:
if you wish to fast freeze fresh food the following
operation has to be carried out:
1) position the thermostat to the maximum setting (6)
2) leave the appliance operating for at least 4 hours
3) place the food to be frozen in the upper drawer
4) adjust the thermostat dial back to No. 4, 24 hours
after the fresh food has been placed in the freezer
compartment.
Warning:
Following this second procedure, the fridge inner
temperature could drop below 0°C. If this happens
while freezing, adjust the thermostat dial to a setting
corresponding to a higher inner temperature.
To freeze fresh food when the appliance is operating
with other frozen food in the freezer compartment it is
necessary:
1. to depress the switch located underneath the ther-
mostat housing to letter D 24 hours before placing the
fresh food to be frozen in the freezer compartment.
2. to place the fresh food to be frozen in the upper
drawer.
3. to depress the switch located underneath the ther-
mostat housing to letter N 24 hours after the introduc-
tion of fresh food in the freezer compartment.
Notice:
If you wish fo fast freeze food the foliowing operations
have to be done:
1. depress the ambient switch located underneath
the thermostat housing 24 hours before placing the
fresh food to be frozen in the freezer compartment.
2. place the fresh food in the upper drawer and, at
the same time position the thermostat to the
maximum setting.
3. release the switch located underneath the ther-
mostat housing and position the thermostat dial to a
medium setting 24 hours after the fresh food intro-
duction into the freezer compartment.
Some useful hints for freezing
The foods to be frozen must be fresh and of the best
quality.
The size of each pack should be small enough to
ensure that it is used in one go. Small packs freeze
more quickly and uniformly, and give better results.
Frozen food, once thawed, must not be refrozen.
Lean food keeps better and longer than fatty food,
salt reduces the storage time.
Wrap the food in polythene or aluminium freezing
bags or foil, so that they adhere to the food and
provide an air-tight seal. Stick a label on each pack
showing the contents and date of freezing. This
makes it easy to check storage times.
Never place hot food, bottles or cans of fizzy drink in
the freezer as they may explode. Containers with a lid
“must not be filled to the brim.
Do not open the door, or place extra fresh food in the
freezer next to food which is already frozen, as this
could cause the temperature of the frozen food to
rise and its quality and storage life to reduce.
Storing ready-frozen food
Storing ready-frozen foods is quite straightforward.
The packs can be placed beside each other or on top
of each other.
You are strongly advised to place ready-frozen food
in the freezer compartment as quickly as possible
after purchase and we therefore recommend that you
buy them last. Also ensure that the external pack-
aging is intact.
Packaging which is swollen or has traces of refrozen
water droplets on the pack could indicate that the
product has not been kept at a suitable temperature
and that it may have lost its original quality. Partially
thawed food must not be refrozen, it must be
consumed within 24 hours. Never exceed the storage
times indicated.
Do not open the freezer door too often and do not
leave it open longer than necessary.
Caution
In the event of a power cut, the food in the freezer will
not be affected if the power cut is short and if the
freezer is full. Do not open the door. Should the food
begin to thaw, it must be consumed quickly and must
not be refrozen.
11
Thawing
Food can be thawed in a number of ways, depending
on the type of food and the size of the packs.
Meat, fish and fruit should be thawed in the refrigera-
tion compartment and small pieces of meat or poultry
can even be cooked while still frozen, but you must
ensure that it is thoroughly cooked through.
Vegetables should be directly immersed in boiling
water; ready-cooked dishes can be placed directly in
the oven in their aluminium wrapping.
A microwave oven is particularly suitable for thawing
any type of frozen or deep-frozen food, follow the
oven instructions.
Making ice cubes
The freezer compartment includes an ice store
enabling you to build up a supply of ice cubes for a
forthcoming party or spell of hot weather when ice
will be in demand. The ice tray fits in the top of the
store.
First, make ice cubes by filling the ice tray with fresh
drinking water 3/4 full to allow the ice 10 expand and
place it in the top of the ice store or in one of the
freezer drawers.
When the ice cubes have formed, hold the tray
upside down over the ice store and twist the tray
along its length, allowing the loosened cubes to fall
into the store. Several makings of ice cubes can be
accommodated and, of course, you can also leave
the ice tray full of cubes, conveniently placed on top
of the ice store.
12
Important points to remember
DO...
adjust the level of your fridge/freezer before loading it
with food — see page 4.
cover or wrap liquids and foods, particularly those
with strong odours.
put vegetables and salads in the salad drawer, in
plastic bags.
cover melons and pineapples and only store for short
periods.
rotate stocks of frozen foods; date markings will help
with this.
keep the refrigerator drain outlet clear; if blocked,
carefully clean it with a piece of flexible curtain wire.
leave the doors ajar when the fridge/freezer is not in
use.
DONT...
obstruct air circulation in the fridge by tightly packing
stored items.
put hot food in the fridge or freezer.
let food or containers touch the refrigerator cooling
plate.
store bananas in the fridge or freezer.
put bottles or cans of fizzy drinks in the freezer.
give children iced lollies straight from the freezer;
they could cause frost burns. |
use a sharp instrument to hasten defrosting or
remove ice trays.
use the wet tray in any other domestic appliance.
Defrosting
Fridge
The fridge compartment is defrosted automatically.
Defrost water from the cooling plate runs out of the
drain and onto a tray on the motor compressor where
it IS evaporated. This process is completely auto-
matic. Droplets of water on the cooling plate during
defrosting are quite normal and will freeze on the
plate afterwards.
important
To avoid defrost water overflowing into the fridge,
- periodically clean the water discharge hole in the
centre of the V shaped drip collector at the back of
the refrigerator compartment behind the fruit and
vegetable drawer.
Use the special cleaner supplied with the instruction
booklet.
B0655
Freezer
In the Freezer Compartment frost accumulates on the
refrigerated shelves during normal working and
should occasionally be removed using a stiff bristle
brush or a plastic scraper.
Heavy frosting (about 1/4” thick) will reduce the
freezer’s efficiency and therefore complete defrosting
should then be carried out, probably at 6 month inter-
vals depending on usage. Preferably you should do
this when there is little or no food in the freezer in the
following manner:
1. Any remaining frozen food should be placed in
another freezer, or placed in cardboard boxes and
wrapped in blankets, or layers of paper. Put in a cool
place.
2. Switch off at the wall socket and remove the plug.
3. Leave the door open and insert the ice scraper
under the channel in the centre of the lower part of
the appliance. Place a low-sided container beneath
the scraper to collect the water.
4. Defrosting can be speeded up by putting bowls of
hot (not boiling) water on the shelves and loosening
the frost with a stiff bristle brush or a plastic scraper.
5. After defrosting clean and dry the interior as
explained under “Cleaning” and replace the scraper
in one of the drawers.
6. Replace the plug, switch on, replace any frozen
food, and close the door.
Remember
If the temperature of frozen food is allowed to rise
unduly during defrosting, its storage life may be
shortened.
13
FOOD STORAGE GUIDE
Freezing foodstuffs - Individual Characteristics
Max. Storage
Period Method Remarks
MEAT joints
Beef 10-12 months Cut to handy size. Wrap thoroughly
Pork 6-9 months Cut to handy size. Wrap thoroughly
Lamb 9-12 months Cut to handy size. Wrap thoroughly
Offcut steak 10-12 months Separate with cellophane layers
Chops see Pork or
Lamb above Separate with cellophane layers Wrap carefully to protect against
puncturing by sharp bones ‘
Veal fillets 6-9 months Separate with cellophane layers
Bacon, cured © weeks Separate with cellophane layers Pack in handy meal portions
smoked 1 month
Sausages 6 weeks Wrap tightly Pack in handy meal portions
Minced meat 2 months Wrap tightly Pack in handy meal portions
Offal and tripe 3 months Clean thoroughly. Make sure it’s really fresh
Pack in small portions
POULTRY
Chicken 9-12 months Clean in usual way, joint if necessary Wrap giblets separately — do not stuff
© till ready
Turkey 9-12 months Clean in usual way, Joint if necessary
Duck, Goose ‘6 months Clean in usual way, joint if necessary
Giblets 3 months Wrap separately from bird
GAME
All types 6 months Hang before freezing, prepare as for Cook immediately after thawing
poultry
FISH
All types 3-6 months Clean, discard head and tail, wap Must be fresh
separately
Trout 4 months Clean, discard head and tail, wrap Must be fresh
separately
Salmon 4 months Clean, stuff with greaseproof paper Must be fresh
for shape retention, or cut into steaks
VEGETABLES
Mushrooms 12 months Wash, dry thoroughly. Freeze loose Pack viable quantities in boxes
(or sauted in a little butter till
partially cooked, then freeze)
Potatoes 10-12 months New potatoes and chips can be
frozen raw. Otherwise cook partially
in one of usual forms, cool then
freeze
Beans 12 months Peel, pod and wash Blanch for 2 mins., cool for same
| time in iced water then freeze.
Carrots 12 months Use small ones. Prepare Blanch for 5 mins.
14
Max. Storage
Period
Method
Remarks
Cauliflower 12 months Break into florets Blanch for 3 mins.
Spinach 12 months Wash thoroughly. Remove Blanch a few leaves at a time,
thicker veins for 2 mins.
Sprouts 12 months Use only small ones. Remove Blanch for 3 mins.
outer leaves
Root crops 12 months The younger the better. Peel and Blanch for 3 mins.
slice or freeze whole |
FRUIT
Apples 9-12 months Freeze either of two ways: Freeze in small quantities.
— As purée-stew with a little water, Pack in plastic containers, leaving
beat to a smooth pulp, sweetento 1/2” headroom
taste, cool.
— Sliced-blanch for two mins., drain
and cool. Pack tightly in layers with a
little dry sugar sprinkled between, if
so desired; or soak in slightly salted
water fourteen minutes, dry and
freeze :
Apricots 10-12 months Preferably remove stones, but leave Pack in plastic containers, leaving
skins on. Pack in syrup 1/2-1 Ib. 1/2”-1" headroom
sugar to 1 pint of water, making sure
fruit is covered
Cherries 12 months ditto ditto
Damsons 12 months ditto ditto
Plums 9 months ditto ditto
Gooseberries 12 months ditto ditto
Blackberries 12 months Either pack in syrup as above, or ditto
coat with caster sugar and pack in
plastic containers. Also may be
frozen loose: spread over trays
allowed to freeze overnight and then
a packed in containers
Currants 12 months ditto ditto
Raspberries 12 months ditto ditto
Strawberries 12 months - ditto ditto
Peaches 10 months Cover with boiling water for 1 minute, Keep fruit submerged in syrup; place
then cool by dipping into cold and crumpled greaseproof paper on top,
peel carefully. Cut into halves, so there is no room between the
removing stone. Use syrup method surface of the liquid and the lid
of packing and freezing
DAIRY PRODUCTS | |
Egg whites 10 months Eggs must always be separated. Eggs frozen in their shells will crack
Place whites in small containers
just a few at a time
Egg yolks 10 months As for whites, but to prevent Use for savoury or sweet dishes
coagulation mix with 1/2 tsp. sait accordingly
or 1 tsp. caster sugar to every
| two yolks |
Butter 6 months Wrap bought butter in foil and freeze
(unsalted) ;
3 months (salted)
Max. Storage
Period Method
RT
Remarks
Cream (Whipping 4 months
and Double only)
Cheese
Must first be beaten lightly before
freezing
8 months (soft) ~~ Wrap all varieties tightly in foil
3 months (hard)
Allow slight room for expansion in the
container
Hard cheese stores much better
when grated
BAKED ITEMS Wrap in foil or polythene bags
Bread 1-2 months
(freshly baked)
Cakes, plain 6 months Just wrap and freeze
Cakes, iced 3 months Freeze without wrapping, then wrap
and store in polythene
PREPARED FOODS
Stews 2 months May be frozen quite satisfactorily in a
polythene bag
Sauces 4 months Freeze in quantities of 1/2 pint. Egg based sauces are unsuitable
A little extra liquid may be required
when you come to use it
Full courses . 3 months Assemble individual helpings on Cover slices of meat with gravy to
specially constructed aluminium
trays, then cover with foil. To re-heat
leave the cover on and put in the
oven for about 45 minutes at 400°F
(200°C)
prevent drying out
MAINTENANCE
Before all operations, disconnect the appliance from
the mains.
The most suitable time to clean your fridge/freezer is
after defrosting the freezer and remember to first
switch off and pull out the plug.
Both compartments and all the fittings should be
thoroughly cleaned with a clean cloth wrung out in a
solution of one teaspoonful of bicarbonate of soda in
each pint of water.
Never use detergents, abrasive powders, highly
perfumed cleaning materials or wax polishes to clean
the interior. These will damage the surfaces and
leave a strong smell.
The outside should be occasionally dusted or wiped
over with a damp cloth and a small amount of deter-
gent. But not the door seal, which shouid be cleaned
only with soap and water and thoroughly dried.
A small amount of wax polish applied every few
months will maintain the gloss finish of the outside.
The motor compressor and condenser at the rear
should also be cleaned of dust occasionally using a
brush, but make sure the fridge/freezer is unplugged
when you do this.
Occasionally, strong smelling food may leave the
fridge with a slight odour. Placing a small dish of
bicarbonate of soda powder in the fridge should
slowly absorb these smells. The dish should be
refilled periodically.
The freezer drawers can be easily removed for more
thorough cleaning. Pull out fully and lift, unhooking
them, from the catches.
For repositioning, raise the catches, insert and slide
in.
Going on holiday
Don’t switch off at the mains if you intend to leave
food in the fridge and/or freezer.
For 2 days or less there is no need to remove any
_ food from the fridge. For up to 1 week remove all food
except eggs, butter and bacon.
If you are leaving both the fridge and freezer
compartments empty, switch off at the wall socket,
defrost, clean and dry, and leave both doors open.
Replacing the bulb
Should the interior light fail to work, first switch off
and pull out the mains plug, and then replace the
bulb as follows:
Unscrew the bulb in a clockwise direction and remove
it from the appliance.
Replace the bulb in an anti-clockwise direction with a
new S.E.S. 10 watt bulb (available from your local
Electrolux Service Centre as listed on page 19).
17
SOMETHING NOT WORKING
Before you call for a Service Engineer, carry out
these simple checks:
Is there a power failure?
Check your house lights. If so, keep the freezer door
closed until the power is restored.
Is the plug firmly connected to the wall socket and is
the socket switched on?
Check the power supply by plugging in another appli-
ance or a table lamp.
ls the fuse in the plug intact and are the wires in the
mains lead correctly connected to the plug?
(See “Connecting to the Mains”, page 5).
Have you turned the thermostat to the correct
setting?
Have the doors been left open causing the tempera-
ture to rise?
Sometimes the freezer door will be difficult to open
shortly after you have closed it. Dont worry; this is
due to a pressure difference which will quickly equa-
lise and allow the door to open normally.
Purchased from
If after checking these points, your fridge/freezer still
won't work, call your nearest Electrolux Service
Centre without delay. It is listed overleaf.
When calling, tell us your name, address with post-
code, telephone number and what appears to be
wrong. Also the Model number of your fridge/freezer
and when and where you purchased it.
For future reference we suggest you record these
details here, and keep the receipt with the handbook
as proof of purchase.
Date purchased
Model Number ЕВ 2120 5
18
Service & Spares o) | | | | a Service & Spares
for Electrolux & CC t ro U X for Electrolux &
Tricity-Bendix SERVICE Tricity-Bendix
| Postcode areas
Service Centre covered Telephone Address
ABERDEEN DD IV KW AB PH 0224 696569 8 Cornhill Arcade,
Cornhill Drive, Aberdeen AB2 SUT
ALTHAM Manchester SKMBLOLBBLAFYPR 0282 74621/2/3/4 ‘PO Box 19 Altham Lane,
WN Altham, Accrington, Lancs., BB5 5XY.
BELFAST BT 0232 746591 Unit C3,
Edenderry industrial Estate, 326 Crumlin Road, Belfast BT14 7EE
BIRMINGHAM WR DY BWV TF ST 021 358 7076 8 Lammermoor Ave, |
SY WS Great Barr, Birmingham, B43 6ET
BRIGHTON BN RH 0273 694341 31 Bristol Gardens,
Kemptown, Brighton, BN2 5JR
BRISTOL (BA BS SN TA) ... 0272 211876 3 Waring House,
(TQEX TR PL)... 0626 65909 Redcliff Hill, Bristol BS1 6TB
CANVEY ISLAND RM CM SS CO IG 0268 694144 | Canvey Centre 2-4 Sandhurst,
Kings Road, Canvey Island, SS8 OQY
CARDIFF CF HR LD NP SA 0222 460131 Guardian Industrial Estate,
В Clydesmuir Road, Tremorfa, Cardiff, CF2 2QS
GATESHEAD CADLDHNESRTS 091 493 2025 Suite 3,
Saltwell House, Lobley Hill Road, Gateshead, NE8 4DD
GLASGOW DG KA ML G PA 041 647 4381 20 Cunningham Road,
KYEHTDFK Clyde Estate, Ruthergien, Glasgow, G73 1PP
LEEDS S DN HU YO WF 0532 608511 64-66 Cross Gates Road,
HX HD LS HG BD Leeds, LS15 7NN
LEICESTER LE DE CV NG LN PE 0533 515131 10-12 Buckminster Road,
IP NR Leicester LE3 9AR
LIVERPOOL CWCHLLLWA 051 254 1724 Unit 1, -
Honeys Green Lane, West Derby, Liverpool L12 9JR
LONDON EEC WC NNW 081 443 3464 London North Centre 2-4 Sandhurst,
(NORTH) WEN Kings Road, Canvey Island SS8 OQY
LONDON SE SM CR BR SW 081 658 9069 127 Croydon Road,
(SOUTH) Beckenham, Kent BR3 3RA
LONDON AL CB LU MK SG WD 081 965 9699 London West Centre 2-4 Sandhurst,
(WEST) HA UB TW Kings Road, Canvey Island SS8 OQY
OXFORD GL HP NN OX SL RG 0993 704411 Suite 3,
Windrush Court, 56a High Street, Witney 0X8 6BL
PORTSMOUTH BH DT PO SO SP 0705 667411 Limberline Road,
KT GU Hilsea, Portsmouth, P03 5JJ
TONBRIDGE CT DA ME TN 0732 357722 61-63 High Street,
Tonbridge, TNS 13D
19
Hl Electrolux
Postcode to Service Centre cross-reference
SERVICE
AB Aberdeen GU Portsmouth PO Portsmouth
AL London West HA London West PR Altham
B Birmingham HD Leeds RG Oxford
BA Bristol HG Leeds RH Brighton
BB Altham HP Oxford RM Canvey Island
BD Leeds HR Cardiff S Leeds
BH Portsmouth HU Leeds SA Cardiff
BL Altham HX Leeds SE London South
BS Bristol IG Canvey Centre SG London West
BT Belfast IP Leicester SK Altham
BN Brighton IV Aberdeen SL Oxford
BR London South KA Glasgow SM London South
CA Newton Aycliffe KT Portsmouth SN Bristol
CB London West KW Aberdeen SO Portsmouth
CF Сага KY Glasgow SP Portsmouth
CH Liverpool L Liverpool SR Newton Aycliffe
CM Canvey Centre LA Altham ST Birmingham
CO Canvey Centre LD Cardiff SY Birmingham
“CR London South LE Leicester SS Canvey Centre
CT Tonbridge LL Liverpool SW London South
CV Leicester LN Leicester TA Bristol
CW Liverpool LS Leeds TD Glasgow
DA Tonbridge LU London West TF Birmingham
DD Aberdeen M Altham TN Tonbridge
DE Leicester ME Tonbridge TQ Bristol
DG Glasgow MK London West TR Bristol
DH Newton Aycliffe ML Glasgow TS Newton Aycliffe
DL Newton Aycliffe N London North TW London West
DN Leeds NE Newton Aycliffe UB London West
DT Portsmouth NG Leicester W London North
DY Birmingham NN Oxford WA Liverpool
E London North NP Cardiff WC London North
EC London North NR Leicester WD London West
EH Glasgow NW London North WF Leeds
EN London North OL Altham | WN Altham
EX Bristol OX Oxford WR Birmingham
FK Glasgow PA Glasgow WS Birmingham
FY Altham PE Leicester WV Birmingham
G Glasgow PH Aberdeen YO Leeds
GL Oxford PL Bristol
20
GUARANTEE
This guarantee is offered to you as an extra
benefit and does not affect your legal rights.
Electrolux products are carefully designed,
manufactured, tested and inspected and In
consequence we undertake to replace or re-
pair any part found to be defective in material
or workmanship, within one year of delivery to
the original purchaser, free of charge.
The Company does not accept liability for de-
fects arising from neglect, misuse, or acci-
dent.
There are certain conditions which may in-
validate this guarantee:
a) l|tis dependent upon the appliance being
correctly installed and used in accord-
ance with the Companys instructions
under normal domestic conditions within
the United Kingdom or the Republic of
Ireland.
b) Service at all times must be carried out
by an Electrolux service representative
or authorised agent.
C) The guarantee may be invalidated by un-
authorised repair or modification of the
appliance.
Proof of the date of purchase will be required
before service under guarantee is provided.
Addresses or telephone numbers for service
requests are listed on pages 19 and 20.
We must point out that this guarantee does
not cover liability for loss of food or other con-
tents, but would draw your attention to the in-
surance facilities described on the separate
leaflet.
21
22227-0721
ET
4156789101112 / 92
fy 762
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
