7756g.book
1 ページ
2004年7月28日 水曜日 午後6時26分

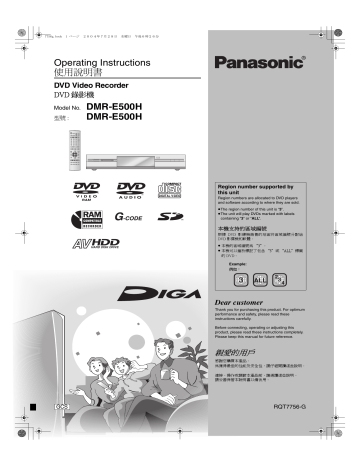

Operating Instructions
使用說明書
DVD Video Recorder
DVD 錄影機
Model No.
型號 :
DMR-E500H
DMR-E500H
Region number supported by
this unit
Region numbers are allocated to DVD players
and software according to where they are sold.
≥The region number of this unit is “3”.
≥The unit will play DVDs marked with labels
containing “3” or “ALL”.
本機支持的區域編號
根據 DVD 影碟機銷售的地區將區域編號分配給
DVD 影碟機和軟體。
HARD DISK DRIVE
≥ 本機的區域編號為 “3”。
≥ 本機可以播放標記了包含 “3”或 “ALL”標籤
的 DVD。
Example:
例如︰
3
ALL
2
3
4
Dear customer
Thank you for purchasing this product. For optimum
performance and safety, please read these
instructions carefully.
Before connecting, operating or adjusting this
product, please read these instructions completely.
Please keep this manual for future reference.
親愛的用戶
感謝您購買本產品。
為獲得最佳的性能及安全性,請仔細閱讀這些說明。
連接、操作或調節本產品前,請通讀這些說明。
請妥善保管本說明書以備後用。
GCS
RQT7756-G
7756g.book
2 ページ
2004年7月28日 水曜日 午後6時26分
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING:
Getting started
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS
TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT
NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES,
SHALL BE PLACED ON THE APPARATUS.
CAUTION!
≥DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,
BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.
ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT
RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT CURTAINS AND ANY
OTHER MATERIALS DO NOT OBSTRUCT THE
VENTILATION VENTS.
≥DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS
WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND
SIMILAR ITEMS.
≥DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS
LIGHTED CANDLES, ON THE UNIT.
≥DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY
FRIENDLY MANNER.
THIS UNIT IS INTENDED FOR USE IN TROPICAL CLIMATES.
This product may receive radio interference caused by mobile
telephones during use. If such interference is apparent, please
increase separation between the product and the mobile
telephone.
The socket outlet shall be installed near the equipment and
easily accessible or the mains plug or an appliance coupler shall
remain readily operable.
- VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
(FDA 21 CFR)
AVOID DIRECT EXPOSURE TO BEAM.
CAUTION - VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
AVOID EXPOSURE TO BEAM.
(IEC60825-1)
RAYONNEMENT
LASER
VISIBLE
ET
INVISIBLE
EN
CAS
D’OUVERTURE.
ATTENTION
EXPOSITION DANGEREUSE AU FAISCEAU.
ADVARSEL - SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING.
UNDGÅ UDSÆTTELSE FOR STRÅLING.
DANGER
VARO!
- AVATTAESSA OLET ALTTIINA NÄKYVÄÄ JA NÄKYMÄTÖN
LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
VARNING - SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL
ÄR ÖPPNAD. BETRAKTA EJ STRÅLEN.
ADVARSEL - SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES.
UNNGÅ EKSPONERING FOR STRÅLEN.
VORSICHT - SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG
GEÖFFNET. NICHT DEM STRAHL AUSSETZEN.
-
RQLS0233
(Inside of product)
Keep the small memory cards such as the SD
Memory Card out of reach of children. If
swallowed, seek medical advice immediately.
RQT7756
2
2
7756g.book
3 ページ
2004年7月28日 水曜日 午後6時26分
Table of contents
Transfer (Dubbing)
Connections for the Network function . . . . . . . . . . . . . . . . . . . . 9
Connecting a LAN cable to this unit. . . . . . . . . . . . . . . . . . . . . 10
STEP 2 Channel reception settings . . . . . . . . . . . 11
STEP 3 Set up to match your television
and remote control. . . . . . . . . . . . . . . . . . . . . . . . 12
To enjoy progressive video . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
STEP 4 Multi-channel speaker setting . . . . . . . . 14
STEP 5 Setting up the Network . . . . . . . . . . . . . . 15
This unit’s network setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
When more than one network compatible
Panasonic DVD recorder is on the Network . . . . . . . . . . . . . 18
HDD, disc and card information . . . . . . . . . . . . . . 19
Recording
Recording television programmes . . . . . . . . . . . . 22
Recording modes and approximate recording times . . . . . . . . 23
Playing while you are recording. . . . . . . . . . . . . . . . . . . . . . . . 23
Flexible Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Timer recording . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Using G-CODE system to make timer recordings . . . . . . . . . . . 25
Manually programming timer recordings . . . . . . . . . . . . . . . . . 26
Check, change or delete a programme . . . . . . . . . . . . . . . . . . 27
Playing back
Playing recorded video contents/Playing playonly discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Operations during play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Editing operations during play . . . . . . . . . . . . . . . . . . . . . . . . . 30
Changing audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Using menus to play MP3 . . . . . . . . . . . . . . . . . . . 31
Playing still pictures . . . . . . . . . . . . . . . . . . . . . . . 32
Useful functions during still picture play. . . . . . . . . . . . . . . . . . 33
Playing MPEG4 titles . . . . . . . . . . . . . . . . . . . . . . . 34
Useful functions during MPEG4 title play . . . . . . . . . . . . . . . . 35
Using on-screen menus and Status messages. . . . 36
On-screen menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Status messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Editing
Editing titles/chapters . . . . . . . . . . . . . . . . . . . . . . 38
Editing titles/chapters and playing chapters . . . . . . . . . . . . . . 38
Title operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Chapter operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Transferring (dubbing) titles or play lists . . . . . . 45
One Touch Transfer (dubbing) . . . . . . . . . . . . . . . . . . . . . . . . . 46
Transferring (dubbing) using the transferring (dubbing) list . . . 46
Transferring (dubbing) a finalized DVD-R. . . . . . . . . . . . . . . . . 48
Recording from a video cassette recorder . . . . . 49
Manual recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
DV automatic recording (DV AUTO REC) . . . . . . . . . . . . . . . . 50
Transferring (dubbing) still pictures . . . . . . . . . . 50
Transferring (dubbing) using the transferring (dubbing) list . . . 50
Transferring (dubbing) all the still pictures on a card
—COPY ALL PICTURES. . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Transferring (dubbing) MPEG4/MPEG2 titles . . . 52
One Touch Transfer (dubbing) . . . . . . . . . . . . . . . . . . . . . . . . . 53
Transferring (dubbing) using the transferring (dubbing) list . . . . . . 53
Getting started
Getting started
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Useful features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
The remote control. . . . . . . . . . . . . . . . . . . . . . . . . . 4
Control reference guide. . . . . . . . . . . . . . . . . . . . . . 5
STEP 1 Connection . . . . . . . . . . . . . . . . . . . . . . . . . 6
Network
Operating the DVD recorder by computer . . . . . 55
Playing back video titles recorded on
another DVD recorder’s HDD . . . . . . . . . . . . . . . 56
Convenient functions
FUNCTIONS window . . . . . . . . . . . . . . . . . . . . . . . 57
Child Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
HDD, disc and card management . . . . . . . . . . . . 58
Setting the protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Providing a disc with a name . . . . . . . . . . . . . . . . . . . . . . . . . .
Erasing all titles, play lists and MPEG4 titles—Erase all titles. . . .
Erasing all the contents of a disc or card—Format. . . . . . . . . .
Enabling DVD-R to be played on other equipment—Finalize . . . .
58
58
58
59
59
Changing the unit’s settings . . . . . . . . . . . . . . . . 60
Common procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Summary of settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tuning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TV System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
60
60
64
65
65
Reference
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Frequently asked questions. . . . . . . . . . . . . . . . .
Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting guide . . . . . . . . . . . . . . . . . . . . .
Maintenance/Disc and card handling . . . . . . . . .
Safety precautions . . . . . . . . . . . . . . . . . . . . . . . .
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
66
67
69
70
71
75
75
76
Creating, editing and playing play lists . . . . . . . . 40
Creating play lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing and playing play lists/chapters. . . . . . . . . . . . . . . . . . .
Play list operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
40
41
41
41
Editing still pictures . . . . . . . . . . . . . . . . . . . . . . . . 42
Picture and folder operation. . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Editing MPEG4 titles . . . . . . . . . . . . . . . . . . . . . . . 43
MPEG4 title operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Entering text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Accessories
Please check and identify the supplied accessories.
∏
∏
∏
∏
∏
1 Remote control
(EUR7721KT0)
1 AC mains lead
≥For use with this unit only. Do not
use it with other equipment.
1 RF coaxial cable
2 Batteries
for remote control
1 Audio/video cable
RQT7756
3
3
7756g.book
4 ページ
2004年7月28日 水曜日 午後6時26分
Useful features
This DVD Video recorder records high quality images to rapid random access capable HDD (Hard disk drive) and DVD-RAM. This
has resulted in many new features that outperform older tape formats. The following information summarizes a few of these
features.
Instant recording
You no longer need to search for empty disc space. By pressing the
recording button, the unit finds available recording space and begins
recording right away. There is no need to worry about overwriting
already recorded content.
Instant play
Getting started
There is no need to rewind or search forward. Direct Navigator
guides you to the beginning of the recorded video immediately.
Transferring (dubbing)/editing/playing MPEG4
titles
≥While recording programmes to the HDD you can simultaneously
record them as MPEG4 titles. By then transferring (dubbing) these
MPEG4 titles from the HDD to a SD Memory Card or
MultiMediaCard, you can view them on a SD Video Camera etc.
≥You can also transfer (dub) MPEG2 titles recorded on a SD Video
Camera etc, to HDD or DVD-RAM.
HDD recording
Chasing playback
You can keep on recording your favorite programmes to an internal
HDD that is able to record up to 709 hours [EP (8 Hour) mode].
You can also high speed transfer (dub) your favorite programmes to
DVD-RAM or DVD-R and create a backup disc.
There is no need to wait until recording is
complete. Without stopping recording,
you can play the video currently being
recorded from its beginning.
LAN terminal, SD/PC card slots, DV input terminal
Simultaneous Recording and
Playback
This unit is equipped with interfaces that allow networking
with digital equipment.
≥The LAN terminal of this unit lets you connect to a computer for
easy text input when giving names to video titles. This also allows
playback of MPEG4 titles and viewing of JPEG. You can also
connect to another network compatible Panasonic DVD recorder
for more video playback choice.
≥The SD/PC card slots of this unit let you transfer (dub) digital
camera photographs from a card to DVD-RAM for easy storage
without using a computer.
≥The DV automatic recording function of this unit lets you easily
transfer (dub) digital images to the HDD by connecting only a
single DV cable.
While recording, you can play another
video programme that was recorded
previously.
Time Slip
During play and also while recording, you
can jump to the scene you wish to view by
specifying the skip time.
5.1 channel surround sound
Enjoy the powerful movie theater and hall-like sound available with
multiple channel audio found on DVDs by connecting an amplifier
and speakers.
The remote control
∫ Batteries
R6/LR6, AA, UM-3
∫ Use
Remote control signal sensor
20
30
20
30
≥Insert so the poles (i and j) match those in the remote control.
≥Do not use rechargeable type batteries.
≥Do not mix old and new batteries.
≥Do not use different types at the same time.
≥Do not heat or expose to flame.
≥Do not take apart or short circuit.
≥Do not attempt to recharge alkaline or manganese batteries.
≥Do not use batteries if the covering has been peeled off.
7 m directly in front of the unit
Mishandling of batteries can cause electrolyte leakage which can
damage items the fluid contacts and may cause a fire.
Remove if the remote control is not going to be used for a long
period of time. Store in a cool, dark place.
[Note]
If you cannot operate the unit or television using the remote control
after changing the batteries, please re-enter the codes (➡ page 13).
RQT7756
4
4
The manufacturer accepts no responsibility and offers no compensation for loss of recorded or edited material due to a problem
with the unit or recordable media, and accepts no responsibility and offers no compensation for any subsequent damage caused by
such loss.
Examples of causes of such losses are
≥A disc recorded and edited with this unit is played in a DVD recorder or computer disc drive manufactured by another company.
≥A disc used as described above and then played again in this unit.
≥A disc recorded and edited with a DVD recorder or computer disc drive manufactured by another company is played in this unit.
7756g.book
5 ページ
2004年7月28日 水曜日 午後6時26分
Control reference guide
Remote control
DVD
TV
Turn the unit on (➡ page 11)
AV
HDD
Select channels and title numbers etc./
Enter numbers
Television operations (➡page 13)
VOLUME
CH
INPUT SELECT
Select drive (HDD, DVD, SD or PC)
(➡ page 22, 28, 33)
SD/PC
DVD
1
2
3
4
5
6
7
8
9
Channel select (➡ page 22)
CH
G-Code
Cancel
CANCEL
-/--
0
SKIP
Basic operations for recording and play
Show G-CODE screen (➡page 25)
Skip 30 seconds forward (➡ page 29)
MANUAL SKIP
Getting started
Input select (AV3, AV4 or DV)
(➡ page 49)
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
DIRECT NAVIGATOR
FUNCTIONS
Show Top menu/Direct Navigator (➡ page 28, 38)
Show FUNCTIONS window (➡ page 57)
TOP MENU
Selection/Enter, Frame-by-frame (➡ page 11, 29)
ENTER
SUB MENU
RETURN
Show sub menu (➡ page 38)
Show on-screen menu (➡ page 36)
PROG/CHECK DISPLAY
Show timer recording programme screen (➡ page 26)
Erase items (➡ page 30)
Timer recording standby/release
(➡ page 25, 26)
TIMER
F
Return to previous screen
Show status messages (➡page 37)
Skip the specified time/Display the television image
as a picture-in-picture (➡ page 23, 29)
Change recording mode (➡ page 22)
Start recording (➡ page 22)
STATUS TIME SLIP
ERASE REC MODE
REC
CREATE
DUBBING CHAPTER AUDIO
A
B
Select audio (➡ page 30)/Adjust the audio recording
level (➡ page 49)
Create chapter (➡ page 30)
One touch transfer (dubbing) (➡ page 46)
C
Manual tuning operation (➡ page 64)
Main unit
Standby/on switch (Í/I) (➡page 11)
Remote control signal sensor/
Press to switch the unit from on to standby mode or
Open/close disc tray (➡ page 22, 28)
vice versa. In standby mode, the unit is still consuming
a small amount of power.
Disc tray (➡ page 22, 28)
SD/PC card slots (➡page 32)
Display (➡below)
Lights when the HDD, DVD, SD
or PC drive is selected
Select drive (➡page 22, 28, 33)
Stop (➡page 22, 29)
Start play
(➡ page 28)
OPEN/CLOSE
EJECT
PC CARD
SD CARD
TIME SLIP
HDD
TIME SLIP
HDD
S-VIDEO IN
VIDEO IN L/MONO AUDIO IN R
DVD
SD
CH
PC
DRIVE SELECT
/x1.3
REC
DVD
Skip/Slow/
Search
(➡ page 29)
Start recording (➡ page 22)
DV IN
AV3
Lights when the HDD or DVD
Connection for camcorder
drive is selected
Channel select (➡page 22)
etc. (➡page 49)
Time Slip indicator (➡ page 23)
Connection for digital video (DV)
Skip the specified time/Display the television image as a
camcorder (➡page 49)
picture-in-picture (➡ page 23, 29)
Rear panel terminals (➡page 7)
The unit’s display
MPEG4 indicator
When lit: Simultaneous MPEG4 recording
Transferring (dubbing)/Network function indicator
function is activated (➡page 22)
Timer recording indicator
Disc type
HDD/card indicator
HDD SD PC XP
DVD - R AM
VCD.MIX
MPEG4 SP
REC PLAY LP
EP
PLAY REC
Recording mode
e.g.,
[HDD]
Recording
EXT Link
REC PLAY
Playback
EXT Link
REC PLAY
Main display section
Recording/Playback
DVD
EXT Link
D.MIX (multi-channel DVD-Audio only)
When lit: Down-mixing (➡ page 67) is possible.
When off: The disc prevents down-mixing
(➡page 20, Regarding DVD-Audio)
RQT7756
REC PLAY
5
5
7756g.book
6 ページ
2004年7月28日 水曜日 午後6時26分
STEP 1 Connection
≥The equipment connections described are examples.
≥Before connection, turn off all equipment and read the appropriate operating instructions.
≥Peripheral equipment and optional cables sold separately unless otherwise indicated.
∫ Examples of equipment you can connect to this unit’s terminals
Television
Amplifier
Getting started
Computer or other
network compatible
Panasonic DVD recorder
From AUDIO/VIDEO OUT or
COMPONENT VIDEO OUT terminals
From AUDIO OUT terminals or
DIGITAL AUDIO OUT terminal
Via the LAN terminal
This unit
To AV4 input terminals (rear)
To AV3 or DV input terminals (front) (➡page 49)
Camcorder
Video cassette recorder
Other equipment
∫ Do not connect the unit through a video cassette recorder
Video signals fed through video cassette recorders will be affected by copyright
protection systems and the picture will not be shown correctly on the television.
≥When connecting to a television with a built in VCR, connect to the input terminals on
the television side, not the VCR side.
∫ When the unit is not to be used for a long time
To save power, unplug it from the household mains socket. This
unit consumes a small amount of power, even when it is turned off
(approx. 3.5 W).
RQT7756
6
6
Television
Television
This unit
VCR
VCR
This unit
Before moving the unit, ensure the disc tray is
empty.
Failure to do so will risk severely damaging the disc and
the unit.
7756g.book
7 ページ
2004年7月28日 水曜日 午後6時26分
Connecting a television with AUDIO/VIDEO, S-VIDEO or COMPONENT VIDEO
terminals and VCR
indicates included accessories.
indicates accessories not included.
1
4 are required connections. Connect in the numbered order.
When making this connection, ensure you
connect the audio cables to the corresponding
audio input terminals on the television.
AUDIO IN VIDEO IN S-VIDEO IN
R
L
COMPONENT
VIDEO IN
Getting started
To the aerial
Television’s
rear panel
To household mains socket
(AC 220–240 V, 50/60 Hz)
VHF/UHF
RF IN
Splitter
Red White Yellow
AC mains lead
Connect only after all other
connections are complete.
4
S-Video
cable
Aerial
cable
RF coaxial cable
3
Audio/Video cable
Video cable
2
1
Red White Yellow
SUB WOOFER CENTER
R - SURROUND - L
R
L
Y
PB
AUDIO OUT
jLAN (10/100)
R - AUDIO - L
5.1ch
FRONT
AV1 (TV)
VIDEO S-VIDEO
OUT
AV4 IN
OPTICAL
AC IN
R - AUDIO - L
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
RF IN
PR
AV2 (DECODER/EXT)
VIDEO S-VIDEO
COMPONENT
VIDEO OUT
(NTSC:480p/480i,
PAL:576p/576i)
RF OUT
S-VIDEO OUT terminal
Red White Yellow
This unit’s rear panel
The S-VIDEO OUT terminal achieves a more
vivid picture than the VIDEO OUT terminal.
(Actual results depend on the television.)
Cooling fan
Audio/Video cable
COMPONENT VIDEO OUT terminal
These terminals can be used for either interlace or
progressive output and provide a purer picture than the
S-VIDEO OUT terminal (➡below).
≥Connect to terminals of the same colour.
Use a splitter if
you also want
to connect the
aerial to your
VCR.
Red White Yellow
VCR’s rear panel
R
L
AUDIO OUT VIDEO OUT
VHF/UHF
RF IN
∫ Component video output
Component signal outputs the colour difference signals (PB/PR) and luminance signal (Y) separately in order to achieve high fidelity in
reproducing colours. If the television is compatible with progressive output, a high quality picture can be output because this unit’s component
video output terminal outputs a progressive output signal (➡page 68).
For progressive output (➡page 12)
∫ Connecting to a television with 21-pin Scart
terminal
You can also connect with the AV1 terminal on this unit using the
21-pin Scart cable.
If your television is equipped with RGB input capability, by
connecting with a fully wired 21-pin Scart cable you can see video
using RGB output on this unit.
To output in RGB select “RGB (without component)” from “AV1
Output” in the SETUP menu (➡page 63).
RGB refers to the three primary colours of light, red (R), green (G),
and blue (B) and also the method of producing video that uses
them. By dividing the video signal into the three colours for
transmission, noise is reduced for even higher quality images.
∫ Connecting to a VCR with 21-pin Scart terminal
You can also connect with the AV2 terminal on this unit using the
21-pin Scart cable.
To input in RGB select “RGB (Not NTSC)” from “AV2 Input” in the
SETUP menu (➡ page 63).
RQT7756
7
7
7756g.book
8 ページ
2004年7月28日 水曜日 午後6時26分
STEP 1 Connection
Connecting an amplifier or system component
Enjoy multi-channel surround sound on DVD by connecting an amplifier and speakers. There are two types of connection, digital and analog.
∫ Digital connection
∫ Analog connection
Getting started
To enjoy multi-channel surround sound on DVD-Video connect an
amplifier with Dolby Digital, DTS and MPEG decoders using an
optical digital audio cable and change the settings in “Digital Audio
Output” (➡ page 62) after tuning is completed (➡page 11).
≥You cannot use DTS Digital Surround decoders not suited to
DVD.
≥Even if using this connection, output will only be from 2 channels
when playing DVD-Audio.
To enjoy multi-channel surround sound on DVD-Video and DVDAudio connect an amplifier using the AUDIO OUT 5.1ch
terminals and go to the settings on page 14.
Amplifier’s rear panel
SUBWOOFER CENTER
Red
SURROUND
R
L
FRONT
R
L
White
Amplifier’s rear panel
OPTICAL IN
Audio
cable
Optical digital audio cable
Do not bend this cable
sharply.
Insert fully, with this side facing up.
To AUDIO OUT 5.1ch
SUB WOOFER CENTER
Red White
R - SURROUND - L
SUB WOOFER CENTER
R - SURROUND - L
R
L
AUDIO OU
jLAN (10/100)
R - AUDIO - L
5.1ch
AUDIO OUT
VIDEO
jLAN (10/100)
5.1ch
VIDEO S-VIDEO
R - AUDIO - L
VIDEO S-VIDEO
FRONT
OUT
R - AUDIO - L
OPTICAL
AV4 IN
AC IN
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
R - AUDIO - L
VIDEO
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
This unit’s rear panel
This unit’s rear panel
Do not place the unit on
amplifiers or equipment
that may become hot.
The heat can damage the unit.
RQT7756
8
8
Connect with AUDIO OUT terminals
to enjoy stereo (2 channel) sound.
≥Switch the attenuator on if sound is distorted with this connection.
(➡page 62)
7756g.book
9 ページ
2004年7月28日 水曜日 午後6時26分
Connections for the Network function
≥If this unit is connected to a computer, the following operations are possible.
–Giving names to video titles
–Playback of MPEG4 titles
–Viewing JPEG
≥If this unit is connected to other network compatible DVD recorders, the following operation is possible.
–Playback video stored on other network compatible Panasonic DVD recorders from this unit
Connecting to the Home Network
Home Network
Other network compatible
Panasonic DVD recorder(s)
HDD
DVD
SD
Getting started
Connect this unit to a router on the Home Network.
Computer
PC
LAN cable (not included)
≥Use category 5 cable.
HDD
DVD
SD
PC
Modem
(Cable, DSL, etc)
Router
≥Use a hub if the modem has a router
function.
This unit
Internet
≥You can also connect to the network with a wireless router.
≥Set the router’s DHCP (Dynamic Host Configuration Protocol) to enable it to automatically assign IP addresses. The default configuration of
the router is normally sufficient.
≥Use a router that supports 100BASE-TX.
≥It may not be possible to connect this unit to the Internet depending upon router security settings.
Visit Panasonic’s homepage for more information about the Network function of the DVD recorder.
http://panasonic.co.jp/pavc/global/cs/dvd/index.html
≥Refer to the router’s operating instructions or contact your Internet service provider for information about router connections and settings.
∫ Connecting directly to a computer
LAN cable (not included)
≥Use category 5 cable.
HDD
DVD
SD
PC
This unit
Modem
(Dial-up)
Computer
Internet
∫ Connecting directly to another network compatible Panasonic DVD recorder
LAN cable (not included)
≥Use category 5 cable.
HDD
This unit
DVD
SD
PC
HDD
Hub
DVD
SD
PC
Another network compatible
Panasonic DVD recorder
≥Setting up the Network (➡page 15–18)
≥Operations with the Network function (➡page 55, 56)
RQT7756
9
9
7756g.book
10 ページ
2004年7月28日 水曜日 午後6時26分
STEP 1 Connection
Connecting a LAN cable to this unit
SUB WOOFER CENTER
R - SURROUND - L
R
L
Y
jLAN (10/100)
R - AUDIO - L
5.1ch
FRONT
AV1 (TV)
VIDEO S-VIDEO
OUT
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
PR
AV4 IN
OPTICAL
AC IN
R - AUDIO - L
RF IN
PB
AUDIO OUT
AV2 (DECODER/EXT)
VIDEO S-VIDEO
COMPONENT
VIDEO OUT
(NTSC:480p/480i,
PAL:576p/576i)
RF OUT
Getting started
This unit
LAN cable (not included)
Use category 5 cable.
The LAN terminal will have the
following marks.
e.g.,
To router, computer, other network
compatible Panasonic DVD recorder, etc
∫ To prevent improper use
∫ Connecting to the Internet
≥The unit’s network password:
–Please do not reveal your password to anyone or let it be seen
by anyone.
–Should a third party have carried out the installation and settingup of this unit please change the password.
–Please initialize the password before requesting any repairs
(➡ page 74).
–If transferring this unit to a third party, or throwing it away, please
initialize it.
≥We are unable to provide any technological information related to
network security.
The Internet connection may not work if not used for years. Please
consult your dealer.
∫ Service support
It is the customer’s responsibility to bear all essential connection
costs for this unit. These include equipment for Internet
communications (modem, router, hub etc.) and contract,
installation, set-up, connection and telecommunication fees from
the telecommunications carrier and Internet provider.
∫ Indemnity Clause
≥Disclosure of the unit’s network password to a third party can
result in the improper use of this unit. The password is your
responsibility so please look after it. We accept no responsibility
for improper use of this unit due to disclosing the password to a
third party.
≥We accept no responsibility for any loss from a connection failure
or a malfunction caused by using equipment for Internet
connections not specified by us, or using more than one piece of
software in a combination not intended.
≥Advanced knowledge about networks is essential for changing
router security settings. Please use your judgement before
proceeding with any such changes. We accept no responsibility
for any problems incurred as a result of changing router security
settings. We are also unable to respond to any inquiries about
router usage.
Computer system requirements
OS: Microsoft® Windows® XP Home Edition/Professional pre-installed
WWW browser: Internet Explorer 6.0 or later
Windows Media Player: Ver 8.0 or later (Ver 9.0 recommended)
Display: 1024k768 pixels or more, High Color (16 bit) or more
Interface: LAN port (100BASE-TX recommended)
[Note]
≥Even if the system requirements mentioned in these operating instructions are fulfilled, some personal computers cannot be used.
≥The Network function cannot be used with Macintosh computers.
≥You will need to download an audio decoder etc. for MPEG4 playback (➡page 55, When you playback MPEG4 titles).
Microsoft, Windows and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/
or other countries.
RQT7756
10
10
7756g.book
11 ページ
2004年7月28日 水曜日 午後6時26分
STEP 2 Channel reception settings
Auto-Setup
Í/ l
When connecting to a television with the
corresponding terminal (➡ page 7).
OPEN/CLOSE
EJECT
PC CARD
TIME SLIP
HDD
TIME SLIP
HDD
DVD
SD
CH
PC
DRIVE SELECT
REC
DVD
X CH W
/x1.3
This unit’s Auto-Setup function automatically tunes all available TV
stations.
1
DVD
TV
Í DVD
VOLUME
CH
INPUT SELECT
2
AV
HDD
Numbered
buttons
SD/PC
DVD
1
2
3
4
5
6
7
8
9
0
-/--
Turn on the television and select the
appropriate AV input to suit the
connections to this unit.
Press [Í DVD] to turn the unit on.
Getting started
SD CARD
Auto-Setup starts. This takes about 5 minutes.
Auto-Setup
CH
CANCEL
SKIP
G-Code
128
MANUAL SKIP
Auto-Setup in progress, please wait.
RETURN: to abort
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
RETURN
DIRECT NAVIGATOR
Auto-Setup is complete when you see the clock setting
menu.
FUNCTIONS
TOP MENU
Clock
3,4,2,1
ENTER
ENTER
SUB MENU
RETURN
Time
RETURN
PROG/CHECK DISPLAY
0 : 00 : 00
F
ERASE REC MODE
0
REC
1 . 2004
9
SELECT
Please set clock manually.
ENTER: store RETURN: leave
ENTER
RETURN
CREATE
DUBBING CHAPTER AUDIO
A
1 .
No.
STATUS TIME SLIP
CHANGE
TIMER
Date
B
C
3
Press [2, 1] to select the item you
want to change.
This is a 24-hour clock.
The items change as follows:
Hour!#Minute!#Second!#Day!#Month!#Year
^-----------------------------------------------------------------------------------------J
Reset the clock regularly to maintain accuracy (➡page 65).
(Monthly accuracy +/– 15 seconds.)
4
Press [3, 4] to change the setting.
You can also use the numbered buttons for setting.
5
Press [ENTER] when you have
finished the settings.
The clock starts and the television displays the channel
being received.
To stop partway
Press [RETURN].
∫ To confirm that stations have been tuned
correctly (➡page 64)
∫ To restart Auto-Setup (➡page 65)
You can also use the following method to restart Auto-Setup.
When the unit is on and stopped
Press and hold [X CH] and [CH W] on the main unit until the
Auto-Setup screen appears.
≥All the settings except for the ratings level, ratings password and
time settings return to the factory preset. The timer recording
programmes are also cancelled.
RQT7756
11
11
7756g.book
12 ページ
2004年7月28日 水曜日 午後6時26分
STEP 3 Set up to match your television and remote control
3
Press [3, 4] to select “Connection”
and press [1].
Press [3, 4] to select “TV Aspect”
and press [ENTER].
DVD
TV
VOLUME
CH
INPUT SELECT
AV
HDD
Numbered
buttons
4
SD/PC
DVD
1
2
3
4
5
6
7
8
9
0
-/--
5
CH
Press [3, 4] to select the TV aspect
and press [ENTER].
G-Code
CANCEL
Tuning
Others
Disc
Sound
Display
Connection
Network
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
DIRECT NAVIGATOR
FUNCTIONS
FUNCTIONS
TOP MENU
3,4,2,1
ENTER
RETURN
RETURN
PROG/CHECK DISPLAY
TIMER
F
STATUS TIME SLIP
ERASE REC MODE
REC
CREATE
DUBBING CHAPTER AUDIO
A
B
16:9 WIDE TV
16:9
4:3 TV
4:3
Letterbox
SELECT
ENTER
RETURN
≥16:9: 16:9 widescreen television
≥4:3: 4:3 aspect television
[HDD] [RAM] Titles are recorded as they appear on screen.
[DVD-V] Video recorded for a widescreen is played as Pan
& Scan (unless prohibited by the producer of the
disc) (➡ page 68).
≥Letterbox: 4:3 aspect television
Widescreen picture is shown in the letterbox style
(➡page 68).
ENTER
SUB MENU
TV Aspect
SETUP
MANUAL SKIP
SKIP
Getting started
TV operation
buttons
C
To enjoy progressive video
You can enjoy progressive video by connecting this unit’s
COMPONENT VIDEO OUT terminals to an LCD/plasma television
or LCD projector compatible with progressive scan (➡page 68).
Selecting television type and aspect
Choose the setting to suit your television and preference.
1
While stopped
Press [FUNCTIONS].
FUNCTIONS
HDD
Playback
DVD SD/PC
Disc Remaining 68:00 SP
DIRECT NAVIGATOR
1
2
3
Recording TIMER RECORDING
Dubbing
Edit
Connect
Setting
DUBBING
FLEXIBLE REC
PLAY LIST
DV AUTO REC
NETWORK LIST
4
DISC MANAGEMENT
SETUP
ENTER
RETURN
2
Press [3, 4, 2, 1] to select
“SETUP” and press [ENTER].
SETUP
Tuning
Others
Disc
Sound
Display
Connection
Network
Manual
Auto-Setup Restart
TAB
SELECT
RETURN
To exit the screen
Press [RETURN] several times.
To return to the previous screen
Press [RETURN].
RQT7756
12
12
5
While stopped
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select
“SETUP” and press [ENTER].
Press [3, 4] to select “Connection”
and press [1].
Press [3, 4] to select “Progressive”
and press [ENTER].
Press [3, 4] to select “On” and
press [ENTER].
Output becomes progressive.
[Note]
≥When connected to a regular television (CRT: Cathode ray tube)
or a multi system television using PAL mode, even if it is
progressive compatible, progressive output can cause some
flickering. Turn off “Progressive” if this occurs (➡page 37).
≥There is no output from the COMPONENT VIDEO OUT terminals
if “AV1 Output” in the SETUP menu is set to “RGB (without
component)”. Set this item to either “Video (with component)” or
“S-Video (with component)” (➡ page 63).
≥If the unit is connected to the television through VIDEO OUT, SVIDEO OUT or AV1 terminal, output will be interlace irrespective
of the settings.
7756g.book
13 ページ
2004年7月28日 水曜日 午後6時26分
Television operation
You can configure the remote control TV operation buttons to turn
the television on/off, change the television input mode, select the
television channel and change the television volume.
Point the remote control at the television
While pressing [Í TV], enter the code
with the numbered buttons.
e.g.,
01:
[0] ➡ [1]
When other Panasonic products
respond to this remote control
If other Panasonic products are placed close together, change the
remote control code on the main unit and the remote control (the
two must match).
Under normal circumstances use the factory set code “DVD 1”.
1
While stopped
Press [FUNCTIONS].
Brand
Panasonic/National
GOLDSTAR/LG
HITACHI
JVC
MITSUBISHI
NEC
PHILIPS
SAMSUNG
SANYO
SHARP
SONY
TOSHIBA
Code
01, 02, 03, 04
15, 16
08
07
09, 10
13
12
12, 17, 18
14, 19
11
05
06
2
Press [3, 4, 2, 1] to select
“SETUP” and press [ENTER].
3
Press [3, 4] to select “Others” and
press [1].
4
Press [3, 4] to select “Remote
Control” and press [ENTER].
5
Press [3, 4] to select the code
(“DVD 1”, “DVD 2” or “DVD 3”) and
press [ENTER].
Test by turning on the television and changing channels. Repeat
the procedure until you find the code that allows correct operation.
≥If your television brand is not listed or if the code listed for your
television does not allow control of your television, this remote
control is not compatible with your television.
SETUP
Tuning
Others
Disc
Sound
6
Getting started
Manufacturer and Code No.
Remote Control
Press “±” and “ENTER” together
for more than 2 seconds on the remote
control.
To change the code on the remote control
While pressing [ENTER], press and
hold the numbered button ([1], [2] or
[3]) for more than 2 seconds.
7
Press [ENTER].
∫ When the following indicator appears on the
unit’s display
The unit’s remote
control code
Change the code on the remote control to match the main unit’s
(➡ step 6).
[Note]
Executing “Shipping Condition” in the SETUP menu returns the
main unit code to “DVD 1”. Change the remote control code to 1
(➡ step 6).
RQT7756
13
13
7756g.book
14 ページ
2004年7月28日 水曜日 午後6時26分
STEP 4 Multi-channel speaker setting
Icon examples: Surround speaker (LS)
DVD
TV
AV
HDD
Select when the speaker supports low-frequency
(under 100 Hz) reproduction.
LS
Select when the speaker does not support lowfrequency reproduction.
VOLUME
CH
INPUT SELECT
LS
SD/PC
DVD
1
2
3
4
5
6
7
8
9
No sound is output from the speaker.
CH
G-Code
CANCEL
-/--
0
Getting started
If the subwoofer is set so that no sound is output, the front
speakers will automatically be set to support low-frequency
reproduction. Connect front speakers that can reproduce the bass
range below 100 Hz if you do not connect a subwoofer.
MANUAL SKIP
SKIP
STOP
SLOW/SEARCH
PAUSE
To set the delay time (b)
(only when the speakers are not placed equidistant from the
seating position)
PLAY/x1.3
DIRECT NAVIGATOR
FUNCTIONS
FUNCTIONS
TOP MENU
3,4,2,1
ENTER
For optimum listening with 5.1-channel sound, all the speakers,
except for the subwoofer, should be the same distance from the
seating position. If you have to place the center or surround
speakers closer to the seating position, adjust the delay time to
make up for the difference.
ENTER
SUB MENU
RETURN
PROG/CHECK
Set as follows when connecting with AUDIO OUT 5.1ch terminals
(➡ page 8).
1
2
3
4
5
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select
“SETUP” and press [ENTER].
Press [3, 4] to select “Sound” and
press [1].
Press [3, 4] to select “Speaker” and
press [ENTER].
Press [3, 4] to select “MultiChannel” and press [ENTER].
Center
b a c
Front (R)
a
L
ms
0.0
C
dB
0.0
R
Test
dB
0.0
SW
dB
0.0
RS
SELECT
ENTER
dB
0.0
ms
0.0
RETURN
(LS)
a c
R
C
d e
f
LS
8
SW
RS
d Center speaker
Difference
Approx. 30 cm
Approx. 60 cm
Approx. 90 cm
Approx. 120 cm
Approx. 150 cm
f Surround speakers
Difference
Approx. 150 cm
Approx. 300 cm
Approx. 450 cm
— Surround — (RS)
b
c a
Subwoofer
c a
Settings a, b, and c can be changed as necessary.
To set the speaker presence and size (a)
Press [3, 4, 2, 1] to select the
speaker icon and press [ENTER].
Press [3, 4] to select the setting
and press [ENTER].
10 Press [3, 4, 2, 1] to select “Test”
and press [ENTER].
A test signal is output from one speaker at a time, starting
with the front left speaker and proceeding clockwise.
Front (L)_—)Center_—)Front (R)
:
;
Surround (LS)(—————=Surround (RS)
11 While listening to the test signal
Press [3, 4] to adjust the volume of
the center and surround speakers.
≥Adjust the volume of the center and surround speakers so
that they sound the same as the front speaker.
(The front speakers cannot be adjusted here.)
≥No signal is output for the subwoofer. To adjust its volume,
play something, then return to this screen and adjust as
desired.
The test signal stops.
14
14
Setting
5.0 ms
10.0 ms
15.0 ms
Press [3, 4, 2, 1] to select “ms”
and press [ENTER].
Press [3, 4] to adjust the delay time
and press [ENTER].
12 Press [ENTER].
RQT7756
Setting
1.0 ms
2.0 ms
3.0 ms
4.0 ms
5.0 ms
To adjust the speaker volume level (c)
Complete
LS
L
9
Multi-Channel Setting
7
If distances d (from the center speaker) and f (from the surround
speakers) are the same as or greater than e (from the front
speakers), leave the delay time as “0”, the factory preset.
If either distance d or f is less than e, find the difference in the
relevant table and change to the recommended setting.
While stopped
Front (L)
a
6
(Effective only when playing multi-channel discs)
To finish the speaker setting
Press [3, 4, 2, 1] to select “Complete” and press [ENTER].
7756g.book
15 ページ
2004年7月28日 水曜日 午後6時26分
STEP 5 Setting up the Network
6
Press [3, 4] to select “TCP/IP
Settings” and press [ENTER].
7
Press [3, 4] to select “Automatic
(DHCP)” and press [ENTER].
DVD
TV
VOLUME
AV
HDD
SD/PC
DVD
1
2
3
4
5
6
CH
When connecting directly to a computer or via a router
with its DHCP disabled
Press [3, 4] to select “Manual” and press [ENTER]
(➡ page 17, To manually enter the DVD recorder’s IP
Address).
G-Code
7
8
9
0
-/--
CANCEL
MANUAL SKIP
SKIP
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
TCP / IP Settings
SETUP
DIRECT NAVIGATOR
FUNCTIONS
Tuning
Others
Disc
Sound
Display
Connection
Network
FUNCTIONS
TOP MENU
3,4,2,1
ENTER
ENTER
SUB MENU
RETURN
RETURN
PROG/CHECK DISPLAY
TIMER
F
Getting started
CH
INPUT SELECT
Manual
IP Address
Subnet Mask
Default Gateway
DNS Server
REC
: 192. 168. 0. 14
: 255. 255. 255. 0
: 192. 168. 0. 1
: 192. 168. 0. 1
SELECT
ENTER
RETURN
≥IP Address:
STATUS TIME SLIP
ERASE REC MODE
Automatic (DHCP)
Make a note of this IP address. You will
need it when operating this unit from the
computer.
CREATE
DUBBING CHAPTER AUDIO
A
B
C
8
Confirm that a connection has been
established.
y
Display
Connection
Network
1
While stopped
Press [FUNCTIONS].
2
3
Press [3, 4, 2, 1] to select
“SETUP” and press [ENTER].
Press [3, 4] to select “Network” and
press [1].
4
Press [3, 4] to select “Network
Function” and press [ENTER].
5
Press [3, 4] to select “Enable” and
press [ENTER].
ENTER
TAB
RETURN
To exit the screen
Press [RETURN] several times.
To return to the previous screen
Press [RETURN].
[Note]
While “Now updating the settings. Please wait for a while.” is
displayed, no operations will be accepted by this unit. Wait about 5
seconds until the highlights appear again.
∫ To change unit names
When more than one network compatible Panasonic DVD recorder
is connected, you need to give each a unique unit name so that
they can be distinguished. (Factory preset: “DVD Recorder”)
After step 3 (➡ left)
1 Press [3, 4] to select “Unit Name Setting” and press [ENTER].
2 Enter the name (➡page 44).
Network Function
SETUP
Tuning
Others
Disc
Sound
Display
Connection
Network
SELECT
Wait until the display changes (this may take a few minutes).
≥“Now connected to the network.” is displayed if the
connection has been correctly established.
≥“Cannot connect to the network.” is displayed if the
connection has failed. Check the LAN cable connection.
This unit’s network setting
Preparation
≥Connect this unit to the Home Network. This can be directly to a
computer or directly to another network compatible Panasonic
DVD recorder (➡page 9, 10).
≥When connecting directly to a computer or via a router with its
DHCP disabled
Check and set the computer’s IP address (➡page 16).
Now searching. . .
Enable
Disable
MAC Address : 00-08-97-24-01-C4
Unit ID
: 4284 1491 6862 6641
Status
: 0000-0000-20LU-3DDE
3900-0V03-0M52-0L00
Password
: No password
SELECT
ENTER
RETURN
RQT7756
15
15
7756g.book
16 ページ
2004年7月28日 水曜日 午後6時26分
STEP 5 Setting up the Network
To set the IP address manually
∫ To check and set the computer’s IP address
DVD
TV
On the computer
VOLUME
CH
INPUT SELECT
AV
HDD
Numbered
buttons
1
2
3
4
5
6
2
CH
G-Code
7
8
9
0
-/--
CANCEL
MANUAL SKIP
¢ CANCEL
Getting started
1
SD/PC
DVD
SKIP
:, 9
SLOW/SEARCH
STOP
PAUSE
Click [start] ➜ [Control Panel].
Double-click [Network Connections].
Right-click the [Local Area
Connection]§ icon and click
[Properties].
PLAY/x1.3
DIRECT NAVIGATOR
FUNCTIONS
FUNCTIONS
3,4,2,1
ENTER
TOP MENU
ENTER
§
SUB MENU
RETURN
RETURN
SUB MENU
PROG/CHECK DISPLAY
TIMER
F
STATUS TIME SLIP
ERASE REC MODE
A message may appear below the icon such as [Bridge
Connection] or [Network Bridge].
3
Select [Internet Protocol (TCP/IP)]
and click [Properties].
4
Check the IP address setting.
REC
CREATE
DUBBING CHAPTER AUDIO
A
B
C
≥If “Obtain an IP address automatically” is selected
Select “Use the following IP address:” and enter the IP
address and so on as shown in the example below.
Example:
IP address:
Subnet mask:
Default gateway:
Preferred DNS server:
192.168.0.15
255.255.255.0
192.168.0.1
192.168.0.1
Please make a note of the “IP address”, “Subnet mask”,
“Default gateway” and “Preferred DNS server” settings
(These will be needed during DVD recorder setting).
5
Click [OK].
You will exit the “Internet Protocol (TCP/IP) Properties”
window.
6
Click [OK].
You will exit the “Local Area Connection Properties” window.
≥Screen shots reprinted by permission from Microsoft Corporation.
RQT7756
16
16
7756g.book
17 ページ
2004年7月28日 水曜日 午後6時26分
∫ To manually enter the DVD recorder’s IP
Address
On the DVD recorder
After step 6 (➡ page 15)
Press [3, 4] to select “Manual” and
press [ENTER].
TCP / IP Settings
SETUP
Tuning
Others
Disc
Sound
Display
Connection
Network
2
3
IP Address
Subnet Mask
Default Gateway
DNS Server
.
.
.
.
.
.
.
.
.
.
.
Getting started
1
.
Set
Press “Set” to store the values after input.
SELECT
ENTER
RETURN
Press [3, 4] to select “IP Address”
and press [ENTER].
Press the numbered buttons to enter
the number and press [ENTER].
≥Press [2, 1] to move the cursor.
≥Press [¢ CANCEL] to clear the numbers.
Repeat step 2 and 3 to enter “Subnet Mask”, “Default
Gateway” and “DNS Server” numbers.
IP Address
If the computer’s IP address is 192.168.0.15, enter
192.168.0. and then enter an arbitrary number, except 15,
between 2 and 254 (➡ page 16, step 4).
Subnet Mask
Enter the same set of digits as the computer’s Subnet mask
(➡ page 16, step 4).
Default Gateway
Enter the same set of digits as the computer’s Default
gateway (➡page 16, step 4).
DNS Server
Enter the same set of digits as the computer’s Preferred
DNS server (➡page 16, step 4).
Example:
192.168.0.14
IP Address§:
Subnet Mask:
255.255.255.0
Default Gateway: 192.168.0.1
DNS Server:
192.168.0.1
§
Make a note of this IP address. You will need it when
operating this unit from the computer (➡page 55).
4
Press [3, 4] to select “Set” and
press [ENTER].
≥Once the connection has been correctly established “Now
connected to the network.” will be displayed.
To exit the screen
Press [RETURN] several times.
To return to the previous screen
Press [RETURN].
RQT7756
17
17
7756g.book
18 ページ
2004年7月28日 水曜日 午後6時26分
STEP 5 Setting up the Network
Refer to the control reference on page 16.
When more than one network
compatible Panasonic DVD recorder is
on the Network
Getting started
You can playback video titles on other network compatible
Panasonic DVD recorders on the Network.
When more than one network compatible Panasonic DVD recorder
is connected, the terms “server” and “client” are used.
The “client” is the DVD recorder that you will actually operate to
receive video titles.
The “server” is the DVD recorder that delivers video titles to your
“client”.
∫ When connected DVD recorders are not
displayed—Refresh
In step 4 (➡ left)
1 Press [SUB MENU].
Edit
2 Press [3, 4] to select “Refresh” and press
Delete
[ENTER].
Refresh
The list will be updated within 15 seconds.
If any DVD recorders are not displayed despite
selecting “Refresh”, add them manually (➡below, Manually adding
DVD recorders).
∫ Manually adding DVD recorders
In step 4 (➡ left)
1 Press [3, 4] to select “Add manually” and press [ENTER].
SETUP
Server
Router/Hub
Client
Make the following settings so this unit can recognize which DVD
recorder will receive the data. This unit will later function as the
server.
Preparation
≥Connect to the Home Network or another network compatible
Panasonic DVD recorder (➡page 9, 10).
≥Confirm “TCP/IP Settings” is set to “Automatic (DHCP)”
(➡page 15, step 7).
≥Give all the DVD recorders a unique unit name (➡page 15, To
change unit names).
On the unit you want to use as the server
1
2
3
4
While stopped
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select
“SETUP” and press [ENTER].
Press [3, 4] to select “Network” and
press [1].
Press [3, 4] to select “Registration
of Client Unit” and press [ENTER].
SETUP
Tuning
Others
Disc
Sound
Registration of Client Unit
No. Unit Name
Model No.
01 Bedroom
DMR-E500H
Add manually
Previous
01/01
Next
The unit names of the DVD recorders on the Network will be
displayed after a few seconds (up to 15 units).
≥When not displayed (➡ right, When connected DVD
recorders are not displayed—Refresh)
5
Press [3, 4] to select the DVD
recorder you want to register as a
client and press [ENTER].
“≤” indicates the registered client unit.
SETUP
Tuning
Others
Registration of Client Unit
No. Unit Name
Model No.
01 Bedroom
DMR-E500H
Add manually
≥Press [ENTER] again to cancel.
≥Repeat this step to register other units as clients.
≥You can have up to 4 client units.
To show other pages
Press [3, 4, 2, 1] to select “Previous” or “Next” and press
[ENTER].
You can also press [:, 9] to show other pages.
RQT7756
18
18
Tuning
Others
Disc
Sound
Display
Connection
Network
Add manually
Input MAC address and unit name,
then press “Add” button.
MAC Address
Unit Name
-
-
-
-
Add manually screen
-
Unit
Add
SELECT
ENTER
RETURN
2 Press [3, 4] to select “MAC Address” and press [ENTER].
3 Press [3, 4, 2, 1] to enter the MAC address of the unit you
want use as client and press [ENTER].
≥To check the MAC address (➡ page 15, step 5).
4 Press [3, 4] to select “Unit Name” and press [ENTER].
5 Enter the name (➡page 44).
6 Press [3, 4] to select “Add” and press [ENTER].
≥You can manually add up to 4 units.
≥“Model” is displayed in the “Model No.” column.
≥You cannot check the properties of manually added DVD
recorders.
∫ To check the properties of the DVD recorders
on the list
(You cannot do this with manually added DVD recorders.)
In step 4 (➡ left)
1 Press [3, 4] to select the DVD recorder and
Properties
press [SUB MENU].
Delete
2 Press [3, 4] to select “Properties” and press
Refresh
[ENTER].
The model name, manufacturer and MAC address
of the DVD recorder will be displayed.
∫ To delete DVD recorders from the list
In step 4 (➡ left)
1 Press [3, 4] to select the DVD recorder and press
[SUB MENU].
2 Press [3, 4] to select “Delete” and press [ENTER].
3 Press [2, 1] to select “Delete” and press [ENTER].
∫ To correct the setting of manually added DVD
recorders
In step 4 (➡ left)
1 Press [3, 4] to select the manually added DVD recorder and
press [SUB MENU].
2 Press [3, 4] to select “Edit” and press [ENTER].
3 Press [3, 4] to select the item and make the correction.
4 Press [3, 4] to select “Set” and press [ENTER].
To exit the screen
Press [RETURN] several times.
To return to the previous screen
Press [RETURN].
7756g.book
19 ページ
2004年7月28日 水曜日 午後6時26分
HDD, disc and card information
HDD and discs you can use for recording and play
Type
Logo
Data that can
be recorded
and played
Instructions
Temporary storage
—
≥You can record up to 709 hours [in EP (8 Hour) mode] (➡ page 23, Recording modes and
approximate recording times).
≥You can view the title being recorded from the beginning (Chasing playback, Time Slip)
(➡page 23).
≥You can record digital broadcasts that allow “One time only recording”. You can transfer (dub) a
recorded title to a CPRM compatible DVD-RAM, however the title is erased from the HDD
(➡page 67).
≥You can play and transfer (dub) still pictures taken on a digital camera etc. (➡ page 32, 50).
≥You can play and transfer (dub) MPEG4 motion pictures taken on a SD Video Camera etc.
(➡page 34, 52)
≥You can record MPEG4 data at the same time as recording a TV programme (➡ page 22).
Video§
Still pictures
MPEG4
Getting started
Hard disk drive
(HDD)
≥400 GB
Indicated in
these
instructions with
[HDD]
Re-writable discs for backup use
DVD-RAM
≥4.7 GB/9.4 GB,
12 cm
≥2.8 GB, 8 cm
[RAM]
≥You can record approximately up to 8 hours [in EP (8 Hour) mode] on a single-sided disc and
16 hours [in EP (8 Hour) mode] on a double-sided disc (➡page 23, Recording modes and
approximate recording times).
≥You can view the title being recorded from the beginning (Chasing playback, Time Slip) (➡page 23).
≥Scratch and dust resistant cartridge discs and large capacity double sided discs (9.4 GB) are
commercially available.
≥You can record digital broadcasts that allow “One time only recording” when using CPRM
compatible discs (➡ page 67). You cannot transfer (dub) a recorded title.
≥This unit is compatible with 1k–5k recording speed discs.
≥You can transfer (dub) up to 40k recording speed by using a high speed recording compatible
disc (➡page 45).
≥You can play and transfer (dub) still pictures taken on a digital camera etc. (➡ page 32, 50).
≥You can play and transfer (dub) MPEG4 motion pictures taken on a SD Video Camera etc.
(➡page 34, 52)
Video§
Still pictures
MPEG4
One time recording discs for backup use (recordable until the disc is full)
DVD-R
≥4.7 GB, 12 cm
≥1.4 GB, 8 cm
[DVD-R]
≥You can record up to 8 hours [in EP (8 Hour) mode] (➡ page 23, Recording modes and
approximate recording times).
≥By finalizing the disc, you can play it in a DVD player as DVD-Video (Play only) (➡ page 59, 67).
≥You cannot record digital broadcasts that allow “One time only recording”.
≥This unit is compatible with 1k–8k recording speed discs.
≥You can transfer (dub) up to 64k recording speed by using a high speed recording compatible
disc (➡page 45).
Video§
§
Conventional recorded programmes
≥We recommend using Panasonic discs. DVD-R from other manufacturers may not be recorded or played due to the condition of the recording.
≥This unit cannot record to discs containing both PAL and NTSC signals. (However, both types of programmes can be recorded onto the HDD.)
Play of discs recorded with both PAL and NTSC on another unit is not guaranteed.
Which should I use, DVD-RAM or DVD-R?
The following chart indicates the differences. Select based upon
what you require.
(Y: Possible, t: Impossible)
DVD-RAM
DVD-R
Re-writable
Y
t
Edit
Y
§1
Y§2
Y§3
Y
t§4
Y§5
t
Y
§6
Play on other players
Recording both M 1 and M 2 of bilingual
broadcast
Recording broadcasts that allow one copy
Recording 16:9 aspect picture
§ 1 You can erase, enter name and change thumbnail. Available
space does not increase after erasing.
§ 2 Only on DVD-RAM compatible players.
§ 3 After finalizing the disc (➡page 59, 67).
§ 4 Only one is recorded (➡ page 62, Bilingual Audio Selection).
§ 5 CPRM (➡ page 67) compatible discs only.
§ 6 The picture is recorded in 4:3 aspect.
[Note]
When “DVD-R Rec for High Speed mode” is set to “On” the
restrictions on secondary audio recording etc. are also applied to
DVD-RAM. Turn this setting “Off” if high speed transfer (dubbing) to
DVD-R is not necessary when recording a programme (➡page 61).
Accessory discs
DVD-RAM
9.4 GB, double-sided, type 4 cartridge:
LM-AD240ME (compatible with high speed recording k5)
LM-AD240LE (compatible with high speed recording k3)
4.7 GB, single-sided, type 2 cartridge:
LM-AB120ME (compatible with high speed recording k5)
LM-AB120LE (compatible with high speed recording k3)
4.7 GB, single-sided, non-cartridge:
LM-AF120ME (compatible with high speed recording k5)
LM-AF120LE (compatible with high speed recording k3)
DVD-R
4.7 GB, single-sided, non-cartridge:
LM-RF120ME (compatible with high speed recording k8)
LM-RF120LE (compatible with high speed recording k4)
RQT7756
19
19
7756g.book
20 ページ
2004年7月28日 水曜日 午後6時26分
HDD, disc and card information
Play-only discs (12 cm/8 cm)
Getting started
Disc type
Logo
DVD-Audio
[DVD-A]
High fidelity music discs
DVD-Video
[DVD-V]
High quality movie and music
discs
Video CD
[VCD]
≥This unit plays CD-R/CD-RW discs (audio recording discs) which
have been recorded under one of the following standards: CD-DA,
MP3 and Video CD. Close the session or finalize the disc after
recording.
Play may be impossible on some CD-R or CD-RW discs due to the
condition of the recording.
≥The producer of the discs can control how discs are played. So you
may not always be able to control play as described in these
operating instructions. Read the disc’s instructions carefully.
Instructions
Regarding DVD-Audio
Some multi-channel DVD-Audio will prevent down-mixing
(➡ page 67) of all or part of their contents if this is the
manufacturer’s intention. When playing such discs, or such parts
of the disc, unless the number of connected speakers is the
same as the disc’s channel specification, audio will not be output
properly (e.g. part of the audio is missing, multi-channel audio
cannot be selected and audio is played in two channels). Refer to
the disc’s jacket for more information.
Recorded music and video
(including CD-R/RW)
Recorded music and audio
(including CD-R/RW)
Audio CD
[CD]
—
CD-R and CD-RW with music
recorded in MP3 (➡ page 31)
Discs that cannot be played
≥2.6 and 5.2 GB DVD-RAM, 12 cm
≥3.95 and 4.7 GB DVD-R for Authoring
≥Unfinalized DVD-R recorded on other equipment (➡ page 67,
Finalize)
≥DVD-Video with a region number other than “3” or “ALL”
≥DVD-ROM
≥CD-ROM
≥CVD
≥PD
≥DVD-RW
≥iR
≥CDV
≥CD-G
≥SVCD
≥SACD
≥Divx Video Disc, etc.
≥iRW
≥Photo CD
≥MV-Disc
Types of disc or title recorded on HDD for the type of connected TV
When you use the discs recorded either PAL or NTSC, or playback a title recorded on HDD using PAL or NTSC, refer to this table.
(Y: Possible, t: Impossible)
TV type
Disc/Titles
recorded on HDD
Yes/No
PAL
Y
NTSC
Y§1
Multi-system TV
NTSC TV
PAL
t
NTSC
Y§2
If you select “NTSC” in “TV System” (➡page 65), the picture may
be clearer.
§2
Select “NTSC” in “TV System” (➡page 65).
§3
If your television is not equipped to handle PAL 525/60 signals
the picture will not be shown correctly.
≥When playing back a title recorded on the HDD, ensure that you
match the “TV System” setting to the title (➡ page 65).
Y
PAL
PAL TV
§1
Y
NTSC
§3
(PAL60)
Cards useable on this unit
Type
SD Memory Card§1
MultiMediaCard
You can insert
directly into the
SD card slot.
[SD]
SD Memory Card
MultiMediaCard
CompactFlash
SmartMedia
MEMORYSTICK
xD-Picture Card
Microdrive
You can insert
into the PC card
slot using an
adaptor (TYPE II
PC card adaptor).
[PC]
Data that can be
recorded and
played
≥You can play and transfer (dub) still pictures taken on a digital camera etc.
(➡page 32, 50).
≥You can set the DPOF (Digital Print Order Format) for automatic printing on
your home printer or at a photo developing store (➡ page 42, 67).
With SD Memory Card, MultiMediaCard, Mobile hard disk
≥You can play and transfer (dub) MPEG4 motion pictures taken on a SD
Video Camera etc. (➡ page 34, 52)
≥You can transfer (dub) MPEG2 motion pictures taken on a SD Video
Camera etc. to the HDD or DVD-RAM. (These will be treated as video titles
in the HDD or DVD-RAM.) (➡ page 52)
Still pictures
MPEG4 (With SD
Memory Card,
MultiMediaCard,
Mobile hard disk)
ATA Flash PC Card
Mobile hard disk§2
RQT7756
20
20
You can insert
directly into the
PC card slot.
[PC]
Instructions
With SD Memory Card and MultiMediaCard
≥You can transfer (dub) at high speed MPEG4 titles being simultaneously
recorded to the HDD (➡ page 52).
≥You can also transfer (dub) video titles already recorded on the HDD or
DVD-RAM to a card by converting to MPEG4 format (➡ page 52).
≥Compatible with: FAT 12 or FAT 16
≥We recommend using a Panasonic SD card.
≥You cannot use SD cards that exceed 2 GB.
≥We recommend using this unit to format a card before recording
(➡page 59, 68).
≥You may not be able to use the card if formatted on a computer.
§1
Includes miniSDTM Cards. A miniSDTM adaptor needs to be inserted before
using cards.
§2 Content saved on SD media storage (SV-PT1).
You can only play the saved still pictures or MPEG4 titles and transfer
(dub) the data onto other cards, HDD or DVD-RAM.
7756g.book
21 ページ
2004年7月28日 水曜日 午後6時26分
HDD (Hard disk drive) handling care
∫ The HDD is a device that is not built to withstand
vibration/shock or dust
Depending on the setup environment and handling of the HDD some
content may become damaged and play and recording may no
longer be possible. Especially during operation, do not subject the
unit to any vibration, shock, or remove the AC mains lead from the
household mains socket. In the event of a power failure the content
during recording or play may be damaged.
∫ Setup precautions
≥Do not place in an enclosed area so the rear cooling fan
and the cooling vents on the side are covered up.
≥Place the unit on a surface that is flat and not subject to
vibration or impact.
≥Do not place on anything that
generates heat like a video cassette
recorder etc.
This unit
≥Do not place in an area often subject to
VCR
temperature changes.
≥Place in an area where condensation
does not occur. Condensation is a phenomenon where moisture
forms on a cold surface when there is an extreme change in
temperature. Condensation may cause internal damage to the
unit.
≥Conditions where condensation may occur
–When there is an extreme change in temperature (moving from
a very hot location to a very cold location, or vice versa, or when
subjected to an air conditioner or when cooled air directly
impacts the unit.) When the HDD (warms during operation) is
subjected to cold air, condensation may form on the inside of the
HDD and may cause damage to the HDD heads etc.
–When there is high humidity or a lot of steam in the room.
–During the rainy season.
∫ The HDD is a temporary storage device
The HDD is not an everlasting storage device for recorded content.
Use the HDD as a temporary storage place for viewing once, editing,
or for saving to a DVD disc.
∫ Immediately save (backup) all content as soon
as you feel there may be problem with the HDD
If there is an irregularity within the HDD, strange sounds or problems
with picture (block noise etc.) may result. Using the HDD in this
condition may worsen the problem and in the worst case the HDD
may no longer become usable. As soon as you notice this type of
problem, save all content to the DVD disc.
Recorded content (Data) on a HDD that has become unusable is
unrecoverable.
Getting started
The HDD is a high precision recording instrument and because of its
long recording capability and high speed operation it is a very
special device that is easily susceptible to damage.
As a basic rule, save important video content to a DVD disc as
backup.
∫ Cigarette smoke etc. causes malfunction or
breakdown
The unit may breakdown if cigarette smoke or bug spray/vapor
etc. gets inside the unit.
∫ While operating
≥Do not move the unit or subject to vibration or impact. (The
HDD may become damaged.)
≥Do not remove the AC mains lead from the household mains
socket, or flip the power breaker switch.
While the unit is on, the HDD is rotating at high speed. Sound or
movement due to rotation is normal.
∫ When moving the unit
1 Turn the unit off. (Wait until “BYE” disappears from the
display.)
2 Remove the AC mains lead from the household mains socket.
3 Move only after the unit has come to a complete stop (approx.
2 minutes) in order to avoid subjecting to vibration and shock.
(Even after turning the unit off, the HDD continues operating
for a short time.)
≥In the above situation, without turning the unit on, let the unit
adjust to the room temperature and wait 2–3 hours until
condensation is gone.
∫ HDD recording time remaining
This unit records using a VBR (Variable bit rate) data compression
system to vary recorded data segments to match video data
segments which may cause differences in the displayed amount of
time and space remaining for recording.
If the remaining amount time is insufficient, erase any unwanted
titles to create enough space before you start recording. (Erasing a
play list will not increase the amount of time.)
∫ When “HDD SLP (SLEEP)” appears in the
display
The HDD has automatically gone into SLEEP mode in order to
extend the life of the HDD. (While power is supplied, the HDD rotates
at high speed. If there is no disc in the unit, the HDD will go into
SLEEP mode after there has been no operation for 30 minutes or
longer.)
≥Press [HDD] to activate.
≥While in SLEEP mode play or recording may not begin right away
because the HDD takes time to be re-activated.
≥When not using the unit, we recommend removing the disc in the
tray in order to set the HDD to the SLEEP mode.
∫ Indemnity concerning recorded content
Panasonic does not accept any responsibility for damages directly or indirectly due to any type of problems that result in loss of recording or
edited content (data), and does not guarantee any content if recording or editing does not work properly. Likewise, the above also applies in
the case any type of repair is made to the unit (including any other non-HDD related component).
RQT7756
21
21
7756g.book
22 ページ
2004年7月28日 水曜日 午後6時26分
Recording television programmes
HDD, DVD indicator
2
1
OPEN/CLOSE
EJECT
SD CARD
PC CARD
TIME SLIP
HDD
DVD
TIME SLIP
HDD
SD
PC
/x1.3
DRIVE SELECT
REC
CH
DVD
HDD, DVD indicator
Time Slip indicator
3
∫ 1
5
TIME SLIP
When transferring (dubbing) in high speed mode to DVD-R
after you have recorded to the HDD.
When transferring (dubbing) a title using the high speed mode to a
DVD-R, set “DVD-R Rec for High Speed mode” to “On” before
recording to the HDD (➡ page 61).
However, the following restrictions apply.
≥When recording bilingual broadcasts, only the audio selected in
“Bilingual Audio Selection” (➡ page 62) is recorded (“M 1” or
“M 2”).
≥Even 16:9 aspect (Widescreen) programmes are recorded in 4:3
aspect.
≥Even if “Hybrid VBR Resolution” is set to “Automatic”, it changes
to “Fixed” automatically, and the “Automatic” setting does not
work (➡page 61).
DVD
TV
VOLUME
CH
INPUT SELECT
AV
HDD
Recording
1
Numbered
buttons
SD/PC
DVD
2
3
CH
4
5
6
7
8
-/--
STOP
PAUSE
PLAY/x1.3
DIRECT NAVIGATOR
;
1
FUNCTIONS
FUNCTIONS
TOP MENU
3,4,2,1
ENTER
Insert with the arrow facing in.
ENTER
SUB MENU
RETURN
RETURN
PROG/CHECK DISPLAY
TIMER
F
ERASE REC MODE
REC
CREATE
DUBBING CHAPTER AUDIO
A
B
C
HDD SD PC XP
To select with the numbered buttons:
e.g.,
5:
[0] ➡ [5]
15:
[-/--] ➡ [1] ➡ [5]
AUDIO
If you set “MPEG4 Rec Mode” “XF”, “SF”, “F”, “N” or “E” before
recording to the HDD, programmes that are recorded as video
titles will be simultaneously recorded in MPEG4 format. You can
transfer (dub) these MPEG4 titles to a SD Memory Card or
MultiMediaCard quickly (➡ page 52).
Digital broadcasts that allow “One time only recording”
cannot be recorded as a MPEG4 title.
Prior to recording to the HDD
1 Set the picture quality of the MPEG4 data to be recorded in
“MPEG4 Rec Mode” in the SETUP menu (➡page 61).
2 Set the capacity of the card you are using in “SD CARD
capacity” in the SETUP menu (➡page 61).
4
Press [REC MODE] to select the
recording mode (XP, SP, LP or EP).
SP
REC PLAY LP
EP
≥To record sound using LPCM (XP mode only):
Set the “Audio Mode for XP Recording” to “LPCM” in the
SETUP menu (➡ page 62).
5
Press [¥ REC] to start recording.
XP
SP
REC PLAY LP
EP
HDD
EXT Link
PLA
Recording will take place on open space on the HDD or on
disc. Data will not be overwritten.
≥You cannot change the channel or recording mode during
recording.
≥[HDD] [RAM] You can change the audio being received by
pressing [AUDIO] during recording. (Does not affect the
recording of audio.)
∫ To pause recording
Press [;].
[Note]
∫ To stop recording
When recording to DVD-R
≥When recording bilingual broadcasts, only the audio selected in
“Bilingual Audio Selection” (➡page 62) is recorded (“M 1” or “M 2”).
≥In order to play a DVD-R recorded using this unit on another
playback source, the disc must first be finalized (➡ page 59).
Remaining
time on the
disc
HDD SD PC XP
EXT Link
≥When recording bilingual broadcasts, only the audio selected in
“Bilingual Audio Selection” (➡page 62) is recorded (“M 1” or
“M 2”).
≥The audio for MPEG4 is monaural and the aspect ratio of the
recorded picture is 4:3.
≥You cannot use the simultaneous MPEG4 recording function
while transferring (dubbing) or “DV automatic recording”.
≥When recording a programme without recording limits after
recording programmes with recording limits, the first 10 seconds
or so of the MPEG4 title may not be recorded.
22
SP
REC PLAY LP
EP
5
∫ Simultaneous MPEG4 recording [HDD]
22
Press [W X CH] to select the channel.
EXT Link
TIME SLIP
[HDD] [RAM] [DVD-R]
≥It is not possible to record to both HDD (Hard disk drive) and DVD
drive simultaneously.
≥You can record up to 500 titles on HDD, 99 titles on one disc.
≥It is not possible to record continuously from one side of a double sided
disc to the other. You will need to eject the disc and turn it over.
≥When using 8 cm DVD-RAM, remove the disc from the cartridge.
≥It is not possible to record digital broadcasts that allow “One time
only recording” onto DVD-R or 2.8 GB DVD-RAM discs.
≥It is not possible to record directly onto a card. To set the
simultaneous MPEG4 recording function (➡ below)
RQT7756
3
STATUS TIME SLIP
STATUS
4
≥Press the button again to close the tray.
Insert label-up.
Insert fully so it clicks into place.
SLOW/SEARCH
∫
If you selected the DVD drive
Press [< OPEN/CLOSE] on the main
unit to open the tray and insert a disc.
MANUAL SKIP
0
Press [HDD] or [DVD] to select the
recording drive.
The HDD or DVD indicator lights up on the unit.
2
9
SKIP
F TIMER
1
G-Code
CANCEL
DIRECT
NAVIGATOR
1
3
Press again to restart recording.
(Title is not split into separate titles.)
Press [∫].
From the start to the end of the recording is called one title.
[HDD]
When continuously recording for long durations, titles are
automatically divided every 8 hours.
[DVD-R]
It takes about 30 seconds for the unit to complete recording
management information after recording finishes.
23 ページ
2004年7月28日 水曜日 午後6時26分
∫ To specify a time to stop recording—One Touch
Recording
During recording
Press [¥ REC] on the main unit to select the recording
time.
Each time you press the button:
30 (min.) ""# 60 (min.) ""# 90 (min.) ""# 120 (min.)
^" Counter (cancel) ,"" 240 (min.) ,"" 180 (min.) ,}
≥This does not work during timer recordings (➡page 25) or while
using Flexible Recording (➡ page 24).
To stop recording partway
Press [∫].
Playing while you are recording
You can change the drive and play while recording on this unit. Also,
while recording to the HDD or to DVD-RAM you can view the title
being recorded from the beginning as well as play a recorded title.
[HDD] [RAM]
Playing from the beginning of the title you are
recording—Chasing playback
Press [1] (PLAY).
Time Slip indicator on the main unit lights.
Playing a title previously recorded while recording—
Simultaneous rec and play
Recording modes and approximate
recording times
Depending on the content being recorded, the recording times may
become shorter than indicated.
If you set simultaneous MPEG4 recording (➡page 22), the available
recording time to HDD is reduced.
(Unit: hour)
DVD-RAM
HDD
DVD-R
SingleDoubleMode
(400 GB)
(4.7 GB)
sided
sided
(4.7 GB)
(9.4 GB)
XP (High quality)
89
1
2
1
SP (Normal)
177
2
4
2
LP (Long play)
355
4
8
4
EP (Extra long
play)
709
(532§)
8 (6§)
16 (12§)
8 (6§)
1
2
Press [DIRECT NAVIGATOR].
Recording
7756g.book
Press [3, 4, 2, 1] to select a title
and press [ENTER].
Time Slip indicator on the main unit lights.
To exit the DIRECT NAVIGATOR screen
Press [DIRECT NAVIGATOR].
Reviewing the recorded images while recording—
Time Slip
1
Press [TIME SLIP].
Time Slip indicator on the main unit lights.
PLAY
0 min
Play starts from 30
seconds previous.
Picture quality
XP
REC
The image currently being
recorded
SP
LP
≥You will hear the playback audio.
EP (6 Hour)§
2
EP (8 Hour)
Recording time
§
When “Recording time in EP mode” is set to “EP (6 Hour)” in the
SETUP menu.
The sound quality is better when using “EP (6 Hour)” than when
using “EP (8 Hour)”.
[Note]
When recording to DVD-RAM using “EP (8 Hour)” mode, play may
not be possible on DVD players that are compatible with DVD-RAM.
In this case use “EP (6 Hour)” mode.
FR (Flexible Recording Mode)
The unit automatically selects a recording rate between XP and EP
(8 Hour) that will enable the recordings to fit in the remaining disc
space with the best possible recording quality.
≥You can set when transferring (dubbing) or programming timer
recordings.
≥When recording to the HDD, picture quality is automatically
adjusted to precisely fit a transferred (dubbed) title on a 4.7 GB
disc.
≥All the recording modes from XP to EP appear in the
XP
display.
SP
Press [3, 4] to select the time and
press [ENTER].
≥Press [TIME SLIP] to show the play images in full. Press
again to show the play and recording images.
∫ To stop play
Press [∫].
∫ To stop recording
2 seconds after play stops
Press [∫].
∫ To stop timer recording
Press [F TIMER].
≥You can also press and hold [∫] on the main unit for more than 3
seconds to stop recording.
[Note]
Chasing play can only be used with programmes of the same
encoding system (PAL/NTSC).
LP
EP
RQT7756
23
23
7756g.book
24 ページ
2004年7月28日 水曜日 午後6時26分
Recording television programmes
Refer to the control reference on page 22.
[HDD] [RAM] [DVD-R]
Flexible Recording
The unit sets the best possible picture quality that fits the recording
within the remaining disc space. The recording mode becomes FR
mode.
e.g.,
Recorded
Remain
Perfectly fit!
45 minutes in
SP mode
Recording
Recording rate
between SP and LP
60 minutes
Programme to be recorded
Preparation
≥Select the channel to record.
≥Press [HDD] or [DVD] to select the recording drive.
1
While stopped
2
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select
“FLEXIBLE REC” and press [ENTER].
FLEXIBLE REC
Recording in FR mode
Maximum rec. time
Set rec. time
Start
3 Hour 00 Min.
3 Hour 00 Min.
Cancel
SELECT
RETURN
3
Press [2, 1] to select “Hour” and
“Min.” and press [3, 4] to set the
recording time.
≥You cannot record more than 8 hours.
≥You can also set the recording time with the numbered
buttons.
4
When you want to start recording
Press [3, 4, 2, 1] to select “Start”
and press [ENTER].
Recording starts.
To exit the screen without recording
Press [RETURN].
To stop recording partway
Press [∫].
To show the remaining time
Press [STATUS].
Remaining
time
DVD-RAM
REC 59
ARD
LR
RQT7756
24
24
7756g.book
25 ページ
2004年7月28日 水曜日 午後6時26分
Timer recording
4
DVD
VOLUME
CH
INPUT SELECT
TIMER
RECORDING
AV
HDD
Numbered
buttons
SD/PC
DVD
1
2
3
4
5
6
7
8
9
0
-/--
HDD, DVD
G-Code
CANCEL
G-Code
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
DIRECT NAVIGATOR
FUNCTIONS
TOP MENU
3,4,2,1
ENTER
ENTER
SUB MENU
RETURN
PROG/CHECK DISPLAY
F TIMER
ERASE REC MODE
F
REC
CREATE
DUBBING CHAPTER AUDIO
A
B
REC MODE
C
[HDD] [RAM] [DVD-R]
You can enter up to 32 programmes up to a month in advance.
Using G-CODE system to make timer
recordings
Entering G-CODE numbers is an easy way of timer recording. You can
find these numbers in TV listings in newspapers and magazines.
Press [G-Code].
G-Code
Remain HDD 30:24 SP DVD 1:58 SP
12:53:00 15. 7. TUE
Enter G-Code Number by using 0-9 keys.
2
Press the numbered buttons to enter
the G-CODE number.
Press [2] to move back to correct a digit.
3
Press [ENTER].
TIMER
RECORDING
Remain HDD 30:24 SP DVD 1:58 SP
Name
Date
1 ARD 15/ 7 TUE
12:54:00 15. 7. TUE
Start
19:00
Check to make sure “OK”
is displayed (➡ page 27).
5
Press [F TIMER].
∫ To release the unit from recording standby
STATUS TIME SLIP
PROG/CHECK
TIMER
12:55:00 15. 7. TUE
HDD Disc
Date
Start Stop Mode DVD space
15/ 7 TUE 19:00 20:00 SP
OK
New Timer Programme
“F” lights on the unit’s display to indicate timer recording
standby has been activated.
≥The message screen
Timer standby is active. Playback is possible.
appears. Only play is
possible while timer
recording is in standby (➡page 28, 29). (You cannot play a
title recorded using a different encoding system from that of
the TV system currently selected on the unit.)
≥The unit is not off. To save power, turn the unit off by
pressing [Í DVD].
MANUAL SKIP
SKIP
Remain HDD 30:24 SP DVD 1:58 SP
Repeat steps 1–4 to programme other recordings.
CH
¢ CANCEL
1
No. Name
01 ARD
Recording
Í DVD
Press [ENTER].
The settings are stored.
TV
HDD
Stop Mode DVD
20:00 SP HDD
Programme Name
≥Confirm the programme and make corrections if necessary
using [3, 4, 2, 1] (➡page 26, step 3).
≥When “-- ---” appears in the “Name” column, you cannot set
timer recording. Press [3, 4] to select desired programme
position. After you have entered the information of a TV
station, it is kept in the unit’s memory.
≥You can also press [REC MODE] to change the recording
mode.
≥You can also press [HDD] or [DVD] to select the recording
drive.
When the recording drive is “DVD” and there is not enough
remaining space, recording automatically switches to the
“HDD” (➡right, Relief Recording).
≥RENEW (Auto Renewal Recording) [HDD] (➡page 26)
ON!)OFF
≥Programme Name
Press [2, 1] to select “Programme Name” and press
[ENTER] (➡ page 44).
Press [F TIMER].
“F” goes out.
≥Be sure to press [F TIMER] before the programme start time to
put the unit on recording standby. Timer recording will work only
if “F” is displayed.
∫ To cancel recording when recording has
already begun
Press [F TIMER].
≥You can also press and hold [∫] on the main unit for more than
3 seconds to stop recording.
[Note]
≥Timer recordings are activated regardless of whether the unit is
turned on/off.
≥Timer recordings begin when the set time is reached even
when playing.
≥Timer recordings do not begin while editing or transferring
(dubbing) in normal speed mode (➡ page 45).
≥“F” flashes for about 5 seconds when the unit cannot go to
timer recording standby.
≥If the unit is not put in the timer recording standby mode at the
latest 10 minutes before the programmed timer recording
starting time, the “F” flashes on the unit display. In this case,
press [F TIMER] to put the unit in the timer recording standby
mode.
≥When you programme successive timer recordings to start
immediately one after the other, the unit cannot record the part
at the beginning of the later programmes (a few seconds when
recording with HDD or DVD-RAM and approximately 30
seconds when recording with DVD-R).
∫ Relief Recording
When the recording drive is set to “DVD” for timer recording and
if the programme will not fit onto the disc, the recording drive will
be altered to the “HDD” automatically.
≥If there is no disc in the tray or the disc cannot be recorded on
or when timer recording starts while transferring (dubbing), the
recording drive will be altered to the HDD.
≥The Direct Navigator shows which programmes were reliefrecorded (“ ” is displayed.) (➡ page 28).
≥If the time remaining on the HDD is insufficient, as much of the
programme as possible will be recorded onto the HDD.
RQT7756
25
25
7756g.book
26 ページ
2004年7月28日 水曜日 午後6時26分
Timer recording
Refer to the control reference on page 25.
[HDD] [RAM] [DVD-R]
You can enter up to 32 programmes up to a month in advance.
(Each daily or weekly programme is counted as one programme.)
Manually programming timer
recordings
1
Press [PROG/CHECK].
TIMER
RECORDING
Remain HDD 30:24 SP DVD 1:58 SP
12:56:00 15. 7. TUE
HDD Disc
Recording
No. Name Date Start Stop Mode DVD space
01 ARD 15/ 7 TUE19:00 20:00 SP
OK
New Timer Programme
SELECT
ENTER
2
3
Press [3, 4] to select “New Timer
Programme” and press [ENTER].
Press [1] to move through the items
and change the items with [3, 4].
TIMER
RECORDING
Remain HDD 30:24 SP DVD 1:58 SP
12:57:00 15. 7. TUE
Name
Date
1 ARD 15/ 7 TUE
Start
22:00
HDD
Stop Mode DVD
22:30 SP HDD
Programme Name
≥Press and hold [3, 4] to alter the Start (Start time) and
Stop (Finish time) in 30-minute increments.
≥You can also set Name (Programme position/TV Station
Name), Date, Start (Start time), and Stop (Finish time) with
the numbered buttons.
≥You can also press [REC MODE] to change the recording
mode.
≥Date
[. Date:
Current date up to one month later minus
l ;:
one day
l Daily timer: SUN-SAT>MON-SAT>MON-FRI
l ;:
a. Weekly timer: SUN>--->SAT
≥You can also press [HDD] or [DVD] to select the recording
drive.
When the recording drive is “DVD” and there is not enough
remaining space, recording automatically switches to the
“HDD” (➡ page 25, Relief Recording).
≥RENEW (Auto Renewal Recording) [HDD] (➡ right)
ON!)OFF
≥Programme Name (➡page 44)
Press [2, 1] to select “Programme Name” and press
[ENTER].
4
No. Name
01 ARD
02 ARD
26
≥Timer recordings are activated regardless of whether the unit is
turned on/off.
≥Timer recordings begin when the set time is reached even
when playing.
≥Timer recordings do not begin while editing or transferring
(dubbing) in normal speed mode (➡ page 45).
≥“F” flashes for about 5 seconds when the unit cannot go to
timer recording standby.
≥If the unit is not put in the timer recording standby mode at the
latest 10 minutes before the programmed timer recording
starting time, the “F” flashes on the unit display. In this case,
press [F TIMER] to put the unit in the timer recording standby
mode.
≥When you programme successive timer recordings to start
immediately one after the other, the unit cannot record the part
at the beginning of the later programmes (a few seconds when
recording with HDD or DVD-RAM and approximately 30
seconds when recording with DVD-R).
Auto Renewal Recording
[HDD]
If you record a programme onto HDD repeatedly everyday or every
week using timer recording, the unit will record the new programme
over the old one.
This function can be used only when weekly recording or daily
recording is selected.
1
2
3
4
Remain HDD 30:24 SP DVD 1:58 SP
Press [3, 4] to select the programme
and press [ENTER].
Press [2, 1] to select “RENEW”
column.
Press [3, 4] to select “ON” and press
[ENTER].
Date
TUE
Remain HDD 30:24 SP DVD 1:58 SP
12:57:00 15. 7. TUE
HDD
Start Stop Mode DVD RENEW
22:00 22:30 SP HDD ON
Programme Name
12:58:00 15. 7. TUE
HDD Disc
Date
Start Stop Mode DVD space
15/ 7 TUE 19:00 20:00 SP
OK
15/ 7 TUE 22:00 22:30 SP
OK
New Timer Programme
Press [PROG/CHECK].
Name
1 ARD
Check to make sure “OK”
is displayed (➡ page 27).
Press [F TIMER].
“F” lights on the unit’s display to indicate timer recording
standby has been activated.
≥The message screen
Timer standby is active. Playback is possible.
appears. Only play is
possible while timer
recording is in standby (➡page 28, 29). (You cannot play a
title recorded using a different encoding system from that of
the TV system currently selected on the unit.)
≥The unit is not off. To save power, turn the unit off by
pressing [Í DVD].
26
Press [F TIMER].
≥You can also press and hold [∫] on the main unit for more than
3 seconds to stop recording.
TIMER
RECORDING
Repeat steps 2–4 to programme other recordings.
RQT7756
∫ To cancel recording when recording has
already begun
Press [ENTER].
TIMER
RECORDING
5
Press [F TIMER].
“F” goes out.
≥Be sure to press [F TIMER] before the programme start time to
put the unit on recording standby. Timer recording will work only
if “F” is displayed.
[Note]
Press ENTER to store
new programme.
RETURN
∫ To release the unit from recording standby
[Note]
≥If a programme set for Auto Renewal Recording is protected or
while play back is taking place from the HDD, or while transferring
(dubbing), the programme will not be overwritten. Instead the
programme set for recording will be saved as a separate
programme, and this programme will be the one to be overwritten
when the next Auto Renewal Recording takes place.
≥Play lists made from programmes that were set for Auto Renewal
Recording are erased along with auto renewal.
≥When there is not enough space on the HDD, the programme may
not be recorded completely.
≥You cannot select Auto Renewal Recording when “XF”, “SF”, “F”,
“N” or “E” is selected on “MPEG4 Rec Mode” (➡page 61).
7756g.book
27 ページ
2004年7月28日 水曜日 午後6時26分
Check, change or delete a programme
≥Even when the unit is turned off, you can display the timer
recording list by pressing [PROG/CHECK].
Press [PROG/CHECK].
Icons
[ This programme is currently recording.
W The times overlap those in another programme.
Recording of the programme with the later start time
starts when the earlier programme finishes recording.
F The disc was full so the programme failed to record.
The material was copy-protected so it was not recorded.
Recording
X The programme did not complete recording because the
disc is dirty or some other reason.
Timer programmes set to Auto Renewal Recording
(➡page 26).
Titles that have been rerouted to the HDD
(Displayed while recording.)
Recording drive: HDD
Recording drive: DVD
TIMER
RECORDING
Remain HDD 30:24 SP DVD 1:58 SP
No. Name
12:56:00 15. 7. TUE
HDD Disc
Date
Start Stop Mode DVD space
New Timer Programme
12:55:00 15. 7. TUE
SELECT
ENTER
RETURN
Press ENTER to store
new programme.
Message displayed in the “Disc space” line
OK:
Displayed if the recording can fit in the
remaining space.
> (Date): For recordings made daily or weekly, the display
will show until when recordings can be made (up
to a maximum of one month from the present
time) based on the time remaining on the disc.
!:
It may not be possible to record because:
≥there is not enough space left
≥the number of possible titles has reached its
maximum.
Relief: Timer programmes that will be relief recorded to
the HDD.
∫ To change a programme
Press [3, 4] to select the programme and press [ENTER].
(➡ page 26, step 3)
∫ To delete a programme
Press [3, 4] to select the programme and press [¢ CANCEL].
∫ To exit the timer recording list
Press [PROG/CHECK].
∫ To put the unit on timer recording standby
Press [F TIMER].
“F” lights on the unit’s display to indicate timer recording standby
has been activated.
≥Programmes that failed to record are deleted from the timer
recording list at 4 a.m. two days later.
RQT7756
27
27
7756g.book
28 ページ
2004年7月28日 水曜日 午後6時26分
Playing recorded video contents/Playing play-only discs
HDD, DVD indicator
2
∫ Selecting recorded programmes (titles) to play—
Direct Navigator
1∫3
[HDD] [RAM] [DVD-R]
1 Press [DIRECT NAVIGATOR].
OPEN/CLOSE
EJECT
PC CARD
SD CARD
TIME SLIP
HDD
DVD
TIME SLIP
HDD
SD
CH
PC
DRIVE SELECT
≥Thumbnail Display
/x1.3
≥Table Display
REC
DVD
DIRECT NAVIGATOR
TITLE VIEW
HDD
007
VIDEO MPEG4 PICTURE
DIRECT NAVIGATOR
No.
001
002
003
004
005
006
007
008
---
HDD, DVD indicator
TIME SLIP
D,
E
TV
VOLUME
CH
INPUT SELECT
Previous
ENTER
RETURN
AV
HDD
SD/PC
DVD
1
2
3
4
5
6
CH
7
8
2
MANUAL SKIP
-/--
SKIP
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
∫
DIRECT NAVIGATOR
FUNCTIONS
TOP MENU
ENTER
SUB MENU
RETURN
6, 5
PROG/CHECK DISPLAY
ERASE
F
3
007
3,4,2,1
ENTER
2;, ;1
REC
CREATE
DUBBING CHAPTER AUDIO
A
B
C
AUDIO
CREATE
CHAPTER
01/01
Select
Next
008
VIDEO MPEG4 PICTURE
---
Press [HDD] or [DVD] to select the
playback drive.
You can also select titles with the numbered buttons.
e.g.,
[HDD]
[RAM] [DVD-R]
5:
[0] ➡ [0] ➡ [5]
5:
[0] ➡ [5]
15:
[0] ➡ [1] ➡ [5]
15:
[1] ➡ [5]
115:
[1] ➡ [1] ➡ [5]
To show other pages
Press [3, 4, 2, 1] to select “Previous” or “Next” and press [ENTER].
≥You can also press [:, 9] to show other pages.
To exit the screen
Press [DIRECT NAVIGATOR].
Direct Navigator screen icons
Title protected.
The HDD or DVD indicator lights up on the unit.
2
Previous
SUB MENU
3 Press [3, 4, 2, 1] to select the title and press
[ENTER].
≥It is possible to watch playback from one drive while recording on
another (editing is not possible).
≥It is not possible to play still pictures and MPEG4 titles while
recording.
≥It is not possible to play continuously from one side of a double
sided disc to the other. You will need to eject the disc and turn it
over.
≥When using 8 cm DVD-RAM, remove the disc from the cartridge.
≥When playing back a title recorded on the HDD, ensure that you
match the “TV System” setting to the recorded title (➡page 65).
1
ENTER
RETURN
[HDD] To sort Title View for easy searching (Table Display only)
This function is convenient when searching for one title to
playback from many titles.
1 Press [SUB MENU].
2 Press [3, 4] to select “Sort” and press [ENTER].
3 Press [3, 4] to select the item and press [ENTER].
If you select an item other than “No.”
≥The Direct Navigator screen will reappear after playback of the
selected title has finished. (You cannot play titles continuously.)
≥Skip and Time Slip will only function with the title currently being
played back.
≥If you exit the Direct Navigator screen, or switch to the “MPEG4”
or “PICTURE” Direct Navigator screen, the sorted Title View will
be cancelled.
;
STATUS TIME SLIP
ERASE REC MODE
TITLE VIEW
HDD
TIME SLIP
TIMER
Next
Select
VIDEO MPEG4 PICTURE
Day Time Name of title
FRI 13:30
SAT 12:15
FRI 20:00
FRI 22:05
SAT 16:10
FRI 9:25
FRI 13:30
SAT 21:00
[HDD] [RAM]
DIRECT NAVIGATOR
RETURN
SUB MENU
02/02
SUB MENU
Date
26/ 9
27/ 9
3/10
3/10
4/10
10/10
10/10
11/10
Press [3, 4, 2, 1] to select “VIDEO” tab and
press [ENTER].
MANUAL SKIP
0
Playing back
W X CH
9
CANCEL
DIRECT
NAVIGATOR,
TOP MENU
---
Name
ARD
ZDF
AV2
ARD
AV2
ZDF
ARD
ARD
Switching the Direct Navigator appearance
1 Press [SUB MENU] while Thumbnail Display is displayed.
2 Press [3, 4] to select “Table Display” and press [ENTER].
≥The display appearance last used is saved even after the unit is
turned off.
1
G-Code
:, 9
ARD 11/10 SAT
---
X CH W
DVD
Numbered
buttons
ARD 10/10 FRI
---
TITLE VIEW
HDD
---
008
If you selected the DVD drive
Press [< OPEN/CLOSE] on the main
unit to open the tray and insert a disc.
t
[
≥Press the button again to close the tray.
Insert label-up.
Insert fully so it clicks into place.
Title that was not recorded due to recording
protection (Digital broadcasts etc.)
Title cannot be played
[When transferring (dubbing) a title to the HDD, or
when data is damaged etc.]
Currently recording.
Titles that have been rerouted to the HDD
(➡ page 25, Relief Recording)
Title with “One time only recording” restriction
(NTSC)
(PAL)
Insert with the arrow facing in.
3
Press [1] (PLAY).
28
28
EXT Link
REC PLAY
[HDD] [RAM] [DVD-R]
Play starts from the most recently recorded
title.
[DVD-A] [DVD-V] [VCD] [CD]
Play starts from the beginning of the disc.
RQT7756
HDD
Title recorded using a different encoding system from
that of the TV system currently selected on the unit.
≥Alter the “TV System” setting on this unit to suit
(➡page 65).
∫ When a menu screen appears on the television
XP
SP
LP
EP
[DVD-A] [DVD-V]
Press [3, 4, 2, 1] to select the item and press [ENTER].
Some items can also be selected using the numbered buttons.
[VCD]
Press the numbered buttons to select the item.
e.g.,
5:
[0] ➡ [5]
15:
[1] ➡ [5]
≥To return to the menu screen
[DVD-A] Press [TOP MENU].
[DVD-V] Press [TOP MENU] or [SUB MENU].
[VCD] Press [RETURN].
7756g.book
29 ページ
2004年7月28日 水曜日 午後6時26分
Operations during play
Stop
Press [∫].
Pause
XP
SP
REC PLAY LP
EP
HDD
The stopped position is memorized.
The indicator on the right appears in the unit’s display. (Excluding when playing from
the Direct Navigator and when playing a play list.)
Resume play function
Press [1] (PLAY) to restart from this position.
EXT Link
Press [;].
Press again to restart play.
Search
Press [6] or [5].
≥On the main unit, press and hold [D] or [E].
≥The speed increases up to 5 steps.
≥Press [1] (PLAY) to restart play.
≥Audio is heard during first level search forward.
You can turn off the sound during search (➡ page 62, “PLAY k1.3 & Audio during Search”).
Audio is heard during all levels of search. [DVD-A] (excluding moving picture parts) [CD]
Skip
Press [:] or [9].
Starting from a
selected item
Playing back
≥On the main unit, press [D] or [E].
≥Each press increases the number of skips.
Press the numbered buttons.
e.g., 5:
15:
[0] ➡ [5]
[1] ➡ [5]
[HDD]
5:
[CD] (MP3 discs only) 15:
[0] ➡ [0] ➡ [5]
[0] ➡ [1] ➡ [5]
[DVD-A] Selecting groups
While stopped (screen saver is displayed on the television ➡ right)
5:
[5]
≥This works only when stopped (screen saver is displayed on the television
➡ right) with some discs.
Quick View
Press and hold [1] (PLAY/a1.3).
[HDD] [RAM]
The play speed can be increased
without distorting the audio.
≥Press again to return to normal speed.
≥This does not work if the setting is “Off” in “PLAY k1.3 & Audio during Search” (➡page 62).
Slow-motion
While paused, press [6] or [5].
[HDD] [RAM] [DVD-R] [DVD-A] (Motion
picture parts only) [DVD-V] [VCD]
≥On the main unit, press and hold [D] or [E].
≥The speed increases up to 5 steps.
≥Press [1] (PLAY) to restart play.
≥Forward direction only. [VCD]
≥The unit will pause if slow-motion play is continued for 5 minutes.
Frame-by-frame
While paused, press [2;] or [;1].
[HDD] [RAM] [DVD-R] [DVD-A] (Motion
picture parts only) [DVD-V] [VCD]
≥Each press shows the next frame.
≥Press [1] (PLAY) to restart play.
≥Forward direction only. [VCD]
Displaying the
television image as a
picture-in-picture
Press [TIME SLIP].
Skipping the specified
time (Time Slip)
[HDD] [RAM] [DVD-R]
The unit displays the television image as a picture-inpicture.
≥You will hear the playback audio.
≥Press [TIME SLIP] again to cancel.
≥Time Slip does not work when the unit’s “TV
System” settings are different from the title
recorded on the disc.
≥The grey background does not appear on the
receiving screen even if you select “On” from the
“Grey Background” in the SETUP menu (➡page 62).
Play images
Current receiving images
≥You can change the channel being
received by pressing [W X CH].
≥You cannot change the channel being
received while recording.
1 Press [TIME SLIP].
2 Press [3, 4] to select the time and press [ENTER].
Play skips the specified time.
≥Press [TIME SLIP] to show the play images in full.
[Note]
Time Slip does not work while timer recording is in standby.
Manual Skip
[HDD] [RAM] [DVD-R]
Play restarts from approximately 30
seconds later.
Press [MANUAL SKIP].
RQT7756
29
29
7756g.book
30 ページ
2004年7月28日 水曜日 午後6時26分
Playing recorded video contents/Playing play-only discs
Refer to the control reference on page 28.
Editing operations during play
Erase
[HDD] [RAM] [DVD-R]
1 Press [ERASE].
2 Press [2, 1] to select “Erase” and press [ENTER].
≥A title cannot be restored once it is erased. Make certain before proceeding.
≥You cannot erase while recording or transferring (dubbing).
Create Chapter
Press [CREATE CHAPTER].
(➡page 38, Title/Chapter)
[HDD] [RAM]
≥Press [:, 9] to skip to the start of a chapter.
≥You cannot divide while recording or transferring (dubbing).
Changing audio
Press [AUDIO].
Playing back
[HDD] [RAM] [VCD]
LR>L>R
^---------------}
[DVD-A] [DVD-V]
You can change the audio channel number each time you press the
buttons. This allows you to change things like the soundtrack
language (➡page 36, Soundtrack).
HDD
PLAY
Soundtrack
LR
e.g., “L R” is selected
1 ENG
e.g., English is selected.
[Note]
You cannot change the audio type in the following cases.
≥When a DVD-R disc is in the disc tray while DVD drive is selected.
≥When the recording mode is XP and “Audio Mode for XP Recording” is set to “LPCM” (➡page 62).
≥When “DVD-R Rec for High Speed mode” is set to “On” (➡ page 61).
RQT7756
30
30
Î Digital 3/2.1ch
7756g.book
31 ページ
2004年7月28日 水曜日 午後6時26分
Using menus to play MP3
Using the tree screen to find a group
DVD
While the file list is displayed
TV
1
VOLUME
CH
INPUT SELECT
AV
Numbered
buttons
HDD
SD/PC
DVD
1
2
3
4
5
6
7
8
9
Selected group No. /Total groups
If the group has no track, “– –” is displayed
as group number.
CH
G-Code
CANCEL
MENU
G
8
T
14
TOTAL
40/111
MANUAL SKIP
-/--
0
SKIP
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
DIRECT NAVIGATOR
No.
0 – 9
FUNCTIONS
SELECT
TOP MENU
ENTER
TOP MENU
RETURN
3,4,2,1
ENTER
ENTER
SUB MENU
2
RETURN
RETURN
PROG/CHECK DISPLAY
TIMER
F
STATUS TIME SLIP
ERASE REC MODE
B
G 7/25
001 My favorite
001 Brazilian pops
002 Chinese pops
003 Czech pops
004 Hungarian pops
005 Liner notes
006 Japanese pops
007 Mexican pops
008 Philippine pops
009 Swedish pops
001 Momoko
002 Standard number
001 Piano solo
002 Vocal
You cannot select groups
that contain no compatible
files.
Press [3, 4, 2, 1] to select a group
and press [ENTER].
The file list for the group appears.
REC
To return to the file list
Press [RETURN].
CREATE
DUBBING CHAPTER AUDIO
A
Tree
MP3 music
Playing back
DVD
Press [1] while a track is highlighted
to display the tree screen.
C
Tips for making MP3 discs
≥Discs must conform to ISO9660 level 1 or 2 (except for
extended formats).
[CD] (MP3 discs only)
This unit plays MP3 files recorded on CD-R/RW designed for audio
recording that are finalized (➡ page 67) on a computer. Files are
treated as tracks and folders are treated as groups.
Preparation
Press [DVD] to select the DVD drive.
1
Press [TOP MENU].
Selected group
G: Group No.
T: Track No. in the group
TOTAL: Track No./Total tracks
in all groups
MENU
G
1
T
1
TOTAL
1/111
No.
0 – 9
SELECT
ENTER
RETURN
2
No
Group
1 : My favorite
Total
Track
Tree
001 Both Ends Freezing
1
002 Lady Starfish
2
003 Life on Jupiter
3
004 Metal Glue
4
005 Paint It Yellow
5
006 Pyjamamama
6
007 Shrimps from Mars
7
008 Starperson
8
009 Velvet Cuppermine
9
010 Ziggy Starfish
10
Prev.
Next
Press [3, 4] to select the track and
press [ENTER].
Play continues to the last track in the last group.
≥“0” indicates the track currently playing.
≥You can also select the track with the numbered buttons.
e.g.,
5:
[0] ➡ [0] ➡ [5]
15:
[0] ➡ [1] ➡ [5]
≥Compatible compression rate: between 32 kbps and 320 kbps
≥Compatible sampling rate: 16 kHz, 22.05 kHz, 24 kHz, 32 kHz,
44.1 kHz and 48 kHz
≥Maximum number of tracks and groups recognizable:
999 tracks and 99 groups
≥This unit is compatible with multi-session.
≥This unit is not compatible with ID3 tags or packet writing.
≥Depending on the recording, some items may not be playable.
≥Reading or play of the disc may take time if there are a lot of still
pictures or sessions.
≥The display order may differ from how the order is displayed on
a computer.
Naming folders and files
≥MP3 files must have the
extension “.MP3” or “.mp3”.
≥At the time of recording, give
folder and file names a 3digit numeric prefix in the
order you want them to play
(this may not work at times).
≥English alphabets and
Arabic numerals are
displayed correctly. Other
characters may not be
displayed correctly.
e.g.,
Root
001
001 (folder=group)
001track.mp3 (file=track)
002track.mp3
003track.mp3
002 group
003 group
001track.mp3
002track.mp3
003track.mp3
004track.mp3
001track.mp3
002track.mp3
003track.mp3
Order of play
To show other pages
Press [3, 4, 2, 1] to select “Prev.” or “Next” and press [ENTER].
After listing all the tracks in one group, the list for the next group
appears.
To exit the screen
Press [TOP MENU].
RQT7756
31
31
7756g.book
32 ページ
2004年7月28日 水曜日 午後6時26分
Playing still pictures
DRIVE SELECT
PC card slot
OPEN/CLOSE
EJECT
SD CARD
PC CARD
TIME SLIP
HDD
SD card slot
HDD
DVD
SD
PC
DRIVE SELECT
/x1.3
DVD
HDD, DVD, SD, PC indicator ∫
Inserting/Removing the SD/PC card
Only insert or remove the SD/PC card after turning the unit off.
When the card indicator (“SD” or “PC”) on the unit’s display is
flashing, the card is being read from or written to. Do not turn off the
unit or remove the card. Such action may result in malfunction or
loss of the card’s contents.
∫ SD card slot
Inserting the card
DVD
TV
Insert straight-in until it
fits into space.
VOLUME
CH
INPUT SELECT
AV
HDD
Numbered
buttons
SD/PC
DVD
1
2
3
4
5
6
7
8
9
0
-/--
CH
Insert the card label up with cut-off
corner at the right.
G-Code
CANCEL
MANUAL SKIP
SKIP
Removing the card
SLOW/SEARCH
STOP
Playing back
HDD, DVD,
SD/PC
PAUSE
PLAY/x1.3
∫
DIRECT
NAVIGATOR
DIRECT NAVIGATOR
FUNCTIONS
TOP MENU
3,4,2,1
ENTER
ENTER
SUB MENU
RETURN
1
Press on the center of the card.
2
Draw straight out.
SUB MENU
PROG/CHECK DISPLAY
STATUS TIME SLIP
STATUS
TIMER
ERASE
F
ERASE REC MODE
CREATE
DUBBING CHAPTER AUDIO
A
B
∫ PC card slot
REC
C
Inserting the card
There are cards requiring adaptors (➡ page 20).
Hold the edge of the card and insert until it
fits into place.
≥If using the adaptor, do not press directly
on the card.
Regarding still pictures (JPEG, TIFF)
≥Compatible formats: DCF§ compliant (Content recorded on a
digital camera etc.)
§ Design rule for Camera File system: unified standard
established by Japan Electronics and Information Technology
Industries Association (JEITA).
≥File format: JPEG, TIFF (non-compressed RGB chunky format)
≥Number of pixels: 34k34 to 6144k4096
(Sub sampling is 4:2:2 or 4:2:0)
≥This unit can handle a maximum of 3000 files and 300 folders
(including higher folders).
≥Operation may take time to complete when playing TIFF format
still pictures, or when there are many files and/or folders, some
files may not display or be playable.
≥MOTION JPEG is not supported.
2
2 align to match
the mark
1
The labeled side facing upwards
Terminal connections facing into the unit
Removing the card
1
Push
Eject button
comes out
2 Push again
≥If using the adaptor, remove the adaptor and card together.
RQT7756
32
32
33 ページ
2004年7月28日 水曜日 午後6時26分
[HDD] [RAM] [SD] [PC]
1
∫ To select the still pictures in another folder
Press [HDD], [DVD] or [SD/PC] to
select the drive.
≥Each time you press [SD/PC]:
SD card drive ,". PC card drive
≥On the main unit, press [DRIVE
SELECT] several times.
The indicator lights up on the unit.
2
SD CARD
Folder
0002
0003
0004
0005
0006
0007
0008
----
Previous
ENTER
RETURN
4
MPEG4 PICTURE
103__DVD
0001
0009
3
e.g.,
SD card drive
Press
[DIRECT NAVIGATOR].
DIRECT NAVIGATOR PICTURE (JPEG) VIEW
SUB MENU
----
001/001
(➡ page 67, Structure of folders displayed by this unit)
1 Press [3, 4, 2, 1] to select “Folder” and press
[ENTER].
2 Press [3, 4] to select the folder and press [ENTER].
PICTURE (JPEG) VIEW
screen
DIRECT NAVIGATOR PICTURE (JPEG) VIEW
SD CARD
Folder
\DCIM
MPEG4 PICTURE
103__DVD
0001
0002
0003
0004
0005
0006
0007
0008
\DCIM\100__DVD
001 100__DVD
002 101__DVD
003 102__DVD
004 103__DVD
-----
You can also select folders with the numbered buttons.
e.g.,
5:
[0] ➡ [0] ➡ [5]
15:
[0] ➡ [1] ➡ [5]
115:
[1] ➡ [1] ➡ [5]
≥If there is a multiple number of higher folders recognizable,
you can switch them using [2, 1].
\DCIM
\DCIM\100__DVD
001 100__DVD
002 101__DVD
003 102 DVD
----
Next
Select
Press [3, 4, 2, 1] to select
“PICTURE” tab and press [ENTER].
Press [3, 4, 2, 1] to select the still
picture and press [ENTER].
You can also select still pictures with the numbered buttons.
e.g.,
5:
[0] ➡ [0] ➡ [0] ➡ [5]
115: [0] ➡ [1] ➡ [1] ➡ [5]
15: [0] ➡ [0] ➡ [1] ➡ [5]
1115: [1] ➡ [1] ➡ [1] ➡ [5]
≥Press [2, 1] to display the previous or next still picture.
≥Useful functions during still picture play (➡ below)
To stop playing
Press [∫].
∫ To show the picture properties
Press [STATUS] twice.
Shooting date
18:53:50 11.10.
Playing back
7756g.book
Folder - Picture No. 103 - 0006
Date 11. 12. 2003
No.
3/9
To exit the picture properties screen
Press [STATUS].
[Note]
≥Still pictures cannot be played during recording or transferring
(dubbing).
Direct Navigator screen icons
To exit the screen
Press [DIRECT NAVIGATOR].
Title protected.
Picture in which the number of prints is set (DPOF).
(➡page 42, 67)
Useful functions during still picture play
[HDD] [RAM] [SD] [PC]
Start Slide Show
Slide Interval
Rotate
You can display still pictures one by one with constant interval.
While the PICTURE (JPEG) VIEW screen is displayed
1 Press [SUB MENU].
2 Press [3, 4] to select “Start Slide Show” and press
[ENTER].
Erase Picture
≥To change the display timing
1 Press [3, 4] to select “Slide Interval” in step 2 and press [ENTER].
2 Press [2, 1] to select the desired timing (0–30 seconds) and press [ENTER].
Start Slide Show
1 Press [SUB MENU].
2 Press [3, 4] to select “Rotate RIGHT” or “Rotate LEFT”
and press [ENTER].
Set up Protection
Cancel Protection
DPOF
Slide Interval
Rotate RIGHT
Rotate LEFT
ENTER
RETURN
≥Rotation information will not be stored.
Zoom in
Zoom out
(Only for a still picture with a low
pixel count)
Erase
1 Press [SUB MENU].
2 Press [3, 4] to select “Zoom in” and press [ENTER].
≥To return the picture to its original size, press [3, 4] to select “Zoom out” in step 2
and press [ENTER].
≥When zooming in, the picture may be cut off.
≥The enlargement information will not be stored.
Rotate RIGHT
Rotate LEFT
Zoom in
ENTER
RETURN
1 Press [ERASE].
2 Press [2, 1] to select “Erase” and press [ENTER].
≥Once erased, the recorded contents are lost and cannot be restored. Make certain before
proceeding.
RQT7756
33
33
7756g.book
34 ページ
2004年7月28日 水曜日 午後6時26分
Playing MPEG4 titles
DRIVE SELECT
∫ 1
[HDD] [RAM] [SD] [PC] (Mobile hard disk only)
Preparation
Insert a disc or a card (➡page 28, 32).
OPEN/CLOSE
EJECT
SD CARD
PC CARD
TIME SLIP
HDD
TIME SLIP
HDD
DVD
SD
CH
PC
DRIVE SELECT
/x1.3
REC
DVD
HDD, DVD, SD, PC indicator
1
Press [HDD], [DVD] or [SD/PC] to
select the drive.
On the main unit, press [DRIVE
SELECT] several times.
The indicator lights up on the unit.
D,
E
e.g.,
SD card drive
DVD
TV
VOLUME
CH
INPUT SELECT
AV
HDD
1
Numbered
buttons
SD/PC
DVD
2
4
5
6
7
8
9
Playing back
Press [DIRECT NAVIGATOR].
≥Thumbnail Display
DIRECT NAVIGATOR
SD CARD
CH
007
TITLE VIEW
≥Table Display
MPEG4 PICTURE
---
008
G-Code
MANUAL SKIP
0
-/--
SKIP
:, 9
STOP
SLOW/SEARCH
PAUSE
6, 5
FUNCTIONS
TOP MENU
SUB MENU
Previous
;
1
RETURN
---
SUB MENU
002/002
DIRECT NAVIGATOR
SD CARD
No.
001
002
003
004
005
006
007
008
---
Next
Select
ENTER
RETURN
TITLE VIEW
Name
ARD
ZDF
AV2
ARD
AV2
ZDF
ARD
ARD
Date
26/ 9
27/ 9
3/10
3/10
4/10
10/10
10/10
11/10
Day Time
FRI 13:30
SAT 12:15
FRI 20:00
FRI 22:05
SAT 16:10
FRI 9:25
FRI 13:30
SAT 21:00
Previous
001/001
SUB MENU
Select
MPEG4 PICTURE
Name of title
MOL002
MOL009
MOL004
MOL074
MOL011
MOL012
MOL047
MOL005
Next
Switching the Direct Navigator appearance
1 Press [SUB MENU] while Thumbnail Display is displayed.
2 Press [3, 4] to select “Table Display” and press [ENTER].
≥The display appearance last used is saved even after the unit is
turned off.
3,4,2,1
ENTER
ENTER
RETURN
3
SUB MENU
PROG/CHECK DISPLAY
STATUS TIME SLIP
STATUS
DISPLAY
F
ARD 11/10 SAT
MOL009
---
ENTER
PLAY/x1.3
DIRECT NAVIGATOR
TIMER
ARD 10/10 FRI
MOL002
---
MANUAL SKIP
∫
ERASE
2
3
CANCEL
DIRECT
NAVIGATOR
HDD, DVD,
SD/PC
ERASE REC MODE
REC
CREATE
4
You can also select the titles with the numbered buttons.
e.g.,
5:
[0] ➡ [0] ➡ [5]
15:
[0] ➡ [1] ➡ [5]
115:
[1] ➡ [1] ➡ [5]
Regarding MPEG4
≥Compatible formats: SD-Video format conforming (ASF)
Video: MPEG4 conforming
Audio: G.726 conforming (monaural)
≥Bit rate (Include Audio transfer rate as 32 kbps)
Maximum: approx. 100 kbps to 1.5 Mbps
Average: approx. 93 kbps to 1050 kbps
≥Number of pixels: 176k144 (QCIF), 320k240 (QVGA)
Frame rate: 6 fps to 30 fps
≥It is compatible up to 999 files.
≥The picture is enlarged to match the display frame in this unit
(320k240.) so the aspect ratio may differ from that of the
original picture and the sides of the picture may be cut off.
≥The recording date may differ from that of the actual data.
≥Files that have been recorded on other devices may not be
correctly displayed on this unit (playback may not be possible or
the picture file name may be incorrect). Similarly files recorded
on this unit may not be correctly displayed on other devices.
Press [3, 4, 2, 1] to select
“MPEG4” tab and press [ENTER].
Press [3, 4, 2, 1] to select the title
and press [ENTER].
To show other pages
Press [3, 4, 2, 1] to select “Previous” or “Next” and press
[ENTER].
≥You can also press [:, 9] to show other pages.
(Mobile hard disk only) To select the MPEG4 titles in
another folder (➡ page 35)
To stop playing
Press [∫].
To exit the screen
Press [DIRECT NAVIGATOR].
Direct Navigator screen icons
Title protected.
t
Title cannot be played
(e.g. the data is damaged/the file format is not
compatible with this unit)
The audio cannot be output
(e.g. the audio was not recorded by G.726)
Title name cannot be entered
(e.g. the data was recorded on another
manufacturer’s equipment)
[Note]
RQT7756
34
34
You cannot play MPEG4 titles while recording or transferring
(dubbing).
7756g.book
35 ページ
2004年7月28日 水曜日 午後6時26分
Useful functions during MPEG4 title play
Pause
Press [;].
[HDD] [RAM] [SD] [PC] (Mobile hard
disk only)
The status display will be shown automatically (➡below).
Press again to restart play.
Search
Press [6] or [5].
[HDD] [RAM] [SD] [PC] (Mobile hard
disk only)
While searching, the title being played is displayed as a still picture. The elapsed play time display
will be shown automatically to indicate the current position (➡below).
≥On the main unit, press and hold [D] or [E].
≥The speed increases up to 3 steps.
≥Press [1] (PLAY) to restart play.
Skip
Press [:] or [9].
[HDD] [RAM] [SD] [PC] (Mobile hard
disk only)
≥On the main unit, press [D] or [E].
≥Each press increases the number of skips.
Manual Skip
Press [MANUAL SKIP].
Repeat play
[HDD] [RAM] [SD] [PC] (Mobile hard
disk only)
Erase
Playing back
[HDD] [RAM] [SD] [PC] (Mobile hard
disk only)
Play restarts from approximately 30
seconds later.
1 Press [DISPLAY].
2 Press [1] twice and press [3, 4] to select “Title”.
Title is played repeatedly.
≥To cancel repeat play, press [3, 4] to select “OFF”.
≥Press [DISPLAY] again to clear the on-screen menus.
1 Press [ERASE].
2 Press [2, 1] to select “Erase” and press [ENTER].
[HDD] [RAM] [SD]
≥Once erased, the recorded contents are lost and cannot be restored. Make certain before
proceeding.
∫ To view the playback status of a MPEG4 title
Press [STATUS].
The display changes each time you press the button.
SD CARD
Play status
PLAY
Date and time
Title number
18:53:50 11.10.
π T2
0:01:08
Elapsed play
time
No display
(Mobile hard disk only)
∫ To select the MPEG4 titles in another folder
Select the title in step 4 (➡page 34)
1 Press [SUB MENU].
2 Press [3, 4] to select “Folder” and press [ENTER].
3 Press [2, 1] to select the folder and press [ENTER].
RQT7756
35
35
7756g.book
36 ページ
2004年7月28日 水曜日 午後6時26分
Using on-screen menus and Status messages
Disc menu—Setting the disc content
DVD
TV
Soundtrack§
VOLUME
CH
INPUT SELECT
AV
HDD
[HDD] [RAM] [DVD-R]
The disc’s audio attributes appear.
[DVD-A] [DVD-V]
Select the audio and language (➡ below, Audio attribute,
Language).
SD/PC
DVD
1
2
3
4
5
6
7
8
9
CH
G-Code
CANCEL
Subtitle§
[HDD] [RAM] [DVD-R]
(Only discs that contain subtitle on/off information)
[DVD-A] [DVD-V]
MANUAL SKIP
-/--
0
SKIP
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
DIRECT NAVIGATOR
Turn the subtitle on/off and select the language (➡below,
Language).
≥Subtitle on/off information cannot be recorded using this
unit. [HDD] [RAM] [DVD-R]
FUNCTIONS
TOP MENU
3,4,2,1
ENTER
ENTER
Playing back
SUB MENU
Audio channel [HDD] [RAM] [VCD]
RETURN
PROG/CHECK DISPLAY
➡ page 30, Changing audio
STATUS TIME SLIP
STATUS
DISPLAY
TIMER
F
ERASE REC MODE
Angle§ [DVD-A] [DVD-V]
REC
CREATE
DUBBING CHAPTER AUDIO
A
B
STILL-P (Still picture) [DVD-A]
C
Selects the play method for still pictures.
Slide Show: Plays according to the default order on the disc.
Page:
Select the still picture number and play.
≥RANDOM: Plays in random order.
≥Return:
Returns to the default still picture on the disc.
On-screen menus
1
PBC (Playback control ➡ page 68) [VCD]
Indicates whether menu play (playback control) is on or off.
Press [DISPLAY].
Disc
Play
Sound
Menu
Soundtrack
1
Î Digital 2/0 ch
Subtitle
OFF
Audio channel
LR
Item
Setting
≥Depending on the condition of the unit (playing, stopped,
etc.) and disc contents, there are some items that you
cannot select or change.
2
3
4
Press [3, 4] to select the menu and
press [1].
Press [3, 4] to select the item and
press [1].
Press [3, 4] to select the setting.
≥Some items can be changed by pressing [ENTER].
To clear the on-screen menus
Press [DISPLAY].
RQT7756
36
36
§
You may have to use the menus (➡ page 28) on the disc to make
changes.
≥The display changes according to the disc content. You cannot
change when there is no recording.
Audio attribute
LPCM/PPCM/ÎDigital/DTS/MPEG:
k (kHz):
b (bit):
ch (channel):
Language
ENG: English
FRA: French
DEU: German
ITA: Italian
ESP: Spanish
NLD: Dutch
SVE:
NOR:
DAN:
POR:
RUS:
JPN:
Signal type
Sampling frequency
Number of bits
Number of channels
Swedish
Norwegian
Danish
Portuguese
Russian
Japanese
CHI:
KOR:
MAL:
VIE:
THA:
¢:
Chinese
Korean
Malay
Vietnamese
Thai
Others
37 ページ
2004年7月28日 水曜日 午後6時26分
Play menu—Change the play sequence
This function works only when the elapsed play time is displayed.
Repeat Play
≥All
≥Chapter
≥Group
≥PL (Play list)
≥Title§
≥Track
Status messages
Status messages appear on the television when you operate the unit
to show the condition of the unit.
Press [STATUS].
[VCD] [CD] (excluding MP3 discs)
[HDD] [RAM] [DVD-R] [DVD-V]
[DVD-A] [CD] (MP3 discs only)
[HDD] [RAM]
[HDD] [RAM] [DVD-R] [DVD-V]
[DVD-A] [VCD] [CD]
Select “OFF” to cancel.
§
This can also be selected during MPEG4 title playback.
Picture menu—Change the picture quality
Playback NR
Reduces noise and picture degradation.
The display changes each time you press the button.
≥Displayed information are examples.
HDD
REC
PLAY
STEREO
LR
DVD REC
Recording or play status/input channel
TV audio type being received (➡ below)
Selected audio type
Recording drive/
Transfer (dubbing) progress indicator
Title number and elapsed time during
recording/Recording mode
Available recording time and
Date and time
recording mode
πRemain
18:53:50 11.10.
π T2 0:05.14 XP
π T1 0:00.10 SP
Progressive§ (➡page 68)
Select “ON” to enable progressive output.
Select “OFF” if the picture is stretched horizontally.
Selected drive/type of disc
13:50 XP+SF
Used HDD
space
Playing back
7756g.book
Play position within the title
Title number and elapsed time during play/
Recording mode
Transfer§ [When “Progressive” (➡ above) is set to “ON”.]
Select the method of conversion for progressive output to suit
the type of material being played (➡ page 67, Film and video).
When the output signal is PAL
≥Auto:
≥Video:
Detects 25 frame-per-second film content and
appropriately converts it.
Select when using “Auto”, and the video
content is distorted.
No display
≥TV audio type
STEREO: STEREO/NICAM stereo broadcast
M 1/M 2: Bilingual/NICAM dual-sound broadcast
M 1:
NICAM monaural broadcast
When the output signal is NTSC
≥Auto1
(normal):
≥Auto2:
≥Video:
§
Detects 24 frame-per-second film content and
appropriately converts it.
Compatible with 30 frame-per-second film
content in addition to 24 frame-per-second
film content. (Picture distortion may occur
depending on the content)
Select when using “Auto1” and “Auto2”, and
the video content is distorted.
Only when you have set “Progressive” to “On” in the SETUP menu
(➡page 12).
Sound menu—Change the sound effect
V.S.S. [HDD] [RAM] [DVD-R] [DVD-V]
(Dolby Digital, MPEG, 2-channel or over only)
Enjoy a surround-like effect if you are using two front speakers
only.
≥Turn V.S.S. off if it causes distortion.
≥V.S.S. does not work for bilingual recordings.
Dialog Enhancer [DVD-A] [DVD-V]
(Dolby Digital, 3-channel or over only, including a centre channel)
The volume of the centre channel is raised to make dialogue
easier to hear.
RQT7756
37
37
7756g.book
38 ページ
2004年7月28日 水曜日 午後6時26分
Editing titles/chapters
Editing titles/chapters and playing
chapters
DVD
TV
Preparation
≥Press [HDD] or [DVD] to select the drive.
≥Release protection (➡page 58). [RAM]
VOLUME
CH
INPUT SELECT
AV
HDD, DVD
HDD
SD/PC
DVD
1
2
3
4
5
6
7
8
9
1
2
CH
G-Code
CANCEL
MANUAL SKIP
0
-/--
SKIP
:, 9
3
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
;
1
DIRECT
NAVIGATOR
DIRECT NAVIGATOR
007
3,4,2,1
ENTER
ENTER
SUB MENU
RETURN
TIMER
F
STATUS TIME SLIP
ERASE REC MODE
A
B
REC
C
[HDD] [RAM] [DVD-R]
4
Title/Chapter
Programmes are recorded as a single title consisting of one
chapter.
Title
ARD 11/10 SAT
---
---
02/02
SUB MENU
Next
Select
Press [SUB MENU], then [3, 4] to
select the operation and press [ENTER].
≥If you select “Edit”, press [3, 4] to select the operation and
press [ENTER].
Chapter
Enter Name
Set up Protection
Start
End
Cancel Protection
You can divide a title into multiple chapters. [HDD] [RAM]
(➡page 30, 39, Create Chapter)
Chapter
Erase
Partial Erase
Properties
Change Thumbnail
Edit
Divide Title
page 28, Switching the Direct
Navigator appearance
Table Display
Chapter
Chapter
Refer to “Title
operations”.
Chapter View
Title
Chapter
Title View screen
To show other pages
Press [3, 4, 2, 1] to select “Previous” or “Next” and
press [ENTER].
≥You can also press [:, 9] to show other pages.
Multiple editing
Select with [3, 4, 2, 1] and press [;]. (Repeat.)
A check mark appears. Press [;] again to cancel.
CREATE
DUBBING CHAPTER AUDIO
Editing
ARD 10/10 FRI
ENTER
VIDEO MPEG4 PICTURE
---
---
RETURN
PROG/CHECK DISPLAY
TITLE VIEW
008
Previous
RETURN
SUB MENU
Press [3, 4, 2, 1] to select “VIDEO”
tab and press [ENTER].
Press [3, 4, 2, 1] to select the title.
DIRECT NAVIGATOR
HDD
FUNCTIONS
TOP MENU
Press [DIRECT NAVIGATOR].
∫ If you select “Chapter View”
5
Press [3, 4, 2, 1] to select the chapter.
To start play ➡ Press [ENTER].
To edit ➡ Step 6.
You can change the order of chapters and create a play list
(➡page 40). [HDD] [RAM]
DIRECT NAVIGATOR CHAPTER VIEW
HDD
VIDEO MPEG4 PICTURE
Chapter View screen
008 ARD 11/10 SAT
≥Titles are divided into about 5-minute chapters after finalizing
(➡ page 59). [DVD-R]
≥The maximum number of items on a disc:
[HDD]
–Titles:
500
–Chapters:
Approx. 1000 per title
(Depends on the state of recording.)
[RAM] [DVD-R]
–Titles:
99
–Chapters:
Approx. 1000
(Depends on the state of recording.)
001
---
---
---
---
---
---
---
---
---
---
---
Previous
ENTER
01/01
SUB MENU
≥To show other pages/Multiple editing (➡ above)
6
Press [SUB MENU], then [3, 4] to
select the operation and press [ENTER].
Erase Chapter
Create Chapter
RQT7756
38
38
Next
Select
RETURN
[Note]
Combine Chapters
≥Once erased, divided or partially erased, it cannot be restored to its
original state. Make certain before proceeding.
≥You cannot edit during recording, chasing play or transferring
(dubbing), etc.
≥Restricted recording information remains even after editing (e.g.
dividing a title etc.)
Title View
Refer to “Chapter
operations”.
≥You can go back to Title View.
To exit the screen
Press [DIRECT NAVIGATOR].
To return to the previous screen
Press [RETURN].
7756g.book
39 ページ
2004年7月28日 水曜日 午後6時26分
Title operations
Erase§
Press [2, 1] to select “Erase” and press [ENTER].
[HDD] [RAM] [DVD-R]
≥Once erased, the recorded contents are lost and cannot be restored. Make certain before proceeding.
≥The available recording time on DVD-R does not increase when you erase titles.
Properties
Information (e.g., time and date) is shown.
Properties
[HDD] [RAM] [DVD-R]
Dinosaur
No.
26
Time
12:19
Date 11/10/2004 MON Rec time 0:30 (SP)
Name 12
SELECT
[HDD] [RAM] [DVD-R]
You can give names to recorded titles.
➡ page 44, Entering text
Set up Protection§
Cancel Protection§
Press [2, 1] to select “Yes” and press [ENTER].
[HDD] [RAM]
The lock symbol appears when the title is protected.
Partial Erase
[HDD] [RAM]
If set, this will protect the title from accidental erasure.
You can remove unnecessary parts of the recording such as commercials.
1
2
Press [ENTER] at the start point and end
point of the section you want to erase.
Press [3, 4] to select “Exit” and press
[ENTER].
≥Select “Next” and press [ENTER] to erase other sections.
3
Change Thumbnail
[HDD] [RAM] [DVD-R]
3
Divide Title
[HDD] [RAM]
007
008
ARD 10/10 FRI
ARD 11/10
DIRECT NAVIGATOR Partial Erase
HDD
008
TITLE
VIDEO MPEG4 PICTURE
PLAY
Start
End
Next
Exit
0:43.21
Start
End
- -:- -.- -
- -:- -.- -
ENTER
RETURN
Press [2, 1] to select “Erase” and press [ENTER].
You can change an image to be shown as the thumbnail picture in the Title
View.
1
2
DIRECT NAVIGATOR
HDD
Editing
Enter Name
DIRECT NAVIGATOR Change Thumbnail
VIDEO MPEG4 PICTURE
HDD
;
008
Change
Press [1] (PLAY) to start play.
Exit
Press [ENTER] when the image you want
to use as a thumbnail is shown.
Press [3, 4] to select “Exit” and press
[ENTER].
You can divide a title into two.
1 Press [ENTER] at the point you want to divide the title.
2 Press [3, 4] to select “Exit” and press [ENTER].
3 Press [2, 1] to select “Divide” and press [ENTER].
0:06.45
Change
0:06.45
ENTER
DIRECT NAVIGATOR
HDD
Divide Title
VIDEO MPEG4 PICTURE
008
PLAY
Preview
Divide
Exit
0:43.21
To confirm the division point
Press [3, 4] to select “Preview” and press [ENTER]. (The unit plays 10
seconds before and after the division point.)
To change the division point
Restart play and press [3, 4] to select “Divide”, then press [ENTER] at the point you want to change.
Divide
- -:- -.- -
ENTER
[Note]
≥The divided titles retain the title name and CPRM property (➡page 67) of the original title.
≥Video and audio just before and after the dividing point may momentarily cut out.
§
Multiple editing is possible.
Chapter operations
Erase Chapter§
Press [2, 1] to select “Erase” and press [ENTER].
[HDD] [RAM]
≥Once erased, the recorded contents are lost and cannot be restored. Make certain before proceeding.
Create Chapter
1
[HDD] [RAM]
Press [ENTER] at the point you want to
divide.
DIRECT NAVIGATOR
HDD
008
≥Repeat this step to divide at other points.
2
§
Combine Chapters
Press [3, 4] to select “Exit” and press
[ENTER].
Press [2, 1] to select “Combine” and press [ENTER].
[HDD] [RAM]
≥The selected chapter and next chapter are combined.
Create Chapter
VIDEO MPEG4 PICTURE
PLAY
Create
Exit
0:43.21
Multiple editing is possible.
For quicker editing
≥Use search, Time Slip or slow-motion (➡page 29) to find the desired point.
≥Press [:, 9] to skip to the end of a title.
RQT7756
39
39
7756g.book
40 ページ
2004年7月28日 水曜日 午後6時26分
Creating, editing and playing play lists
2
DVD
TV
VOLUME
CH
INPUT SELECT
Press [3, 4, 2, 1] to select “PLAY
LIST” and press [ENTER].
PLAY LIST
HDD
AV
PLAY LIST VIEW
--
HDD, DVD
HDD
SD/PC
DVD
1
2
--
--
--
--
Create
3
--
CH
4
5
6
7
8
9
Previous
G-Code
0
-/--
3
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
DIRECT NAVIGATOR
4
FUNCTIONS
FUNCTIONS
TOP MENU
3,4,2,1
ENTER
SUB MENU
RETURN
PROG/CHECK DISPLAY
STATUS TIME SLIP
ERASE REC MODE
REC
CREATE
DUBBING CHAPTER AUDIO
Editing
B
001 ARD 11/10 SAT
Source Title
001
002
---
---
Source Chapter
001
003
---
---
---
[HDD] [RAM]
5
You can arrange the chapters (➡ page 38) to create a play list.
Title
Title
Chapter
Chapter
Chapter
SUB MENU
Chapter
Chapter
Create
001 ARD 11/10 SAT
Source Title
001
002
---
---
Source Chapter
001
003
---
---
---
ENTER
RETURN
Transferring (dubbing) (➡ page 45) a play list will create a title.
≥Editing play lists doesn’t modify the recording data.
≥Play lists are not recorded separately so this doesn’t use much
capacity.
6
001/001
002
≥You cannot create or edit a play list while recording or while
transferring (dubbing).
≥Play lists must be made in accordance with the encoding system
currently selected in “TV System” (➡page 65).
While stopped
Press [FUNCTIONS].
FUNCTIONS
HDD
Playback
DVD SD/PC
Disc Remaining 68:00 SP
DIRECT NAVIGATOR
Recording TIMER RECORDING
Dubbing
Edit
40
40
FLEXIBLE REC
DV AUTO REC
Connect
NETWORK LIST
Setting
SETUP
ENTER
RQT7756
DUBBING
PLAY LIST
RETURN
DISC MANAGEMENT
SUB MENU
001/001
Press RETURN to exit.
Press [2, 1] to select the position to
insert the chapter and press [ENTER].
PLAY LIST
HDD
[Note]
Preparation
≥Press [HDD] or [DVD] to select the drive.
≥Release protection (➡ page 58). [RAM]
001/001
≥You can also create a new chapter from the source title.
Press [SUB MENU] to select “Create Chapter” and press
[ENTER] (➡page 39, Create Chapter)
≥The maximum number of items on a disc:
–Play lists:
99
–Chapters in play lists: Approx. 1000
(Depends on the state of recording.)
Creating play lists
Press RETURN to exit.
Press [3] to cancel.
Chapters in PLAY LIST
-----
1
001/001
Press [2, 1] to select the chapter you
want to add to a play list and press
[ENTER].
PLAY LIST
HDD
Play list
001/001
002
Chapters in PLAY LIST
-----
ENTER
Chapter
001/001
C
RETURN
Chapter
Create
PLAY LIST
HDD
RETURN
SUB MENU
A
Press [3, 4, 2, 1] to select “Create”
and press [ENTER].
Press [2, 1] to select the source title
and press [4].
≥Press [ENTER] to select all the chapters in the title, then
skip to step 6.
ENTER
F
Next
MANUAL SKIP
SKIP
TIMER
01/01
ENTER
RETURN
CANCEL
Create
001 ARD 11/10 SAT
Source Title
001
002
---
---
Source Chapter
001
003
---
---
---
001/001
002
Chapters in PLAY LIST
-----
ENTER
RETURN
001/001
001/001
Press RETURN to exit.
≥Press [3] to select other source titles.
≥Repeat steps 5–6 to add other chapters.
7
Press [RETURN].
To exit the screen
Press [RETURN] several times.
To return to the previous screen
Press [RETURN].
7756g.book
41 ページ
2004年7月28日 水曜日 午後6時26分
Editing and playing play lists/chapters
1
2
3
Play list operations
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “PLAY
LIST” and press [ENTER].
Press [3, 4, 2, 1] to select the play
list.
Erase§
Press [2, 1] to select “Erase” and press
[ENTER].
Properties
Play list information (e.g., time and date) is
shown.
Properties
Dinosaur
No.
10
Chapters 002
To start play ➡ Press [ENTER].
To edit ➡ Step 4.
01
--
12/10 SUN 0:30
Create
--
--
Previous
ENTER
RETURN
01/01
SUB MENU
SELECT
ENTER
--
Create
➡ page 40, Creating play lists, Step4–7
--
Copy§
Press [2, 1] to select “Copy” and press
[ENTER].
Enter
Name
You can give names to play lists.
➡ page 44, Entering text
Change
Thumbnail
➡ page 39, Change Thumbnail
Next
Select
≥To show other pages/Multiple editing (➡page 38)
4
RETURN
PLAY LIST View screen
PLAY LIST VIEW
Press [SUB MENU], then [3, 4] to
select the operation and press
[ENTER].
≥If you select “Edit”, press [3, 4] to select the operation and
press [ENTER].
§
Multiple editing is possible.
Editing
PLAY LIST
HDD
Date 12/10/2004 TUE
Total 0:30.53
Chapter operations
Create
Copy
Refer to “Play list
operations”.
Erase
Enter Name
Properties
Change Thumbnail
Editing chapters in a play list does not modify the source titles and
source chapters.
Edit
Chapter View
∫ If you select “Chapter View”
5
Add
Chapter
➡ page 40, Creating play lists, Step 4–6
Move
Chapter
Press [3, 4, 2, 1] to select the position
to insert the chapter and press [ENTER].
PLAY LIST
HDD
Press [3, 4, 2, 1] to select the
chapter.
To start play ➡ Press [ENTER].
To edit ➡ Step 6.
PLAY LIST
HDD
001
002
---
---
---
---
---
---
---
---
---
---
Previous
01/01
Next
ENTER
Chapter View screen
CHAPTER VIEW
Move Chapter
01 12/10 SUN 0:30
RETURN
01 12/10 SUN 0:30
001
002
---
---
---
---
---
---
---
---
---
---
Previous
ENTER
01/01
SUB MENU
Next
Select
RETURN
≥To show other pages/Multiple editing (➡page 38)
6
Press [SUB MENU], then [3, 4] to
select the operation and press
[ENTER].
§
Create
Chapter
➡ page 39, Create Chapter
Combine
Chapters
➡ page 39, Combine Chapters
Erase
Chapter§
➡ page 39, Erase Chapter
Multiple editing is possible.
Add Chapter
Move Chapter
Create Chapter
Combine Chapters
Refer to “Chapter
operations”.
Erase Chapter
PLAY LIST View
≥You can go back to PLAY LIST View.
To exit the screen
Press [RETURN] several times.
To return to the previous screen
Press [RETURN].
RQT7756
41
41
7756g.book
42 ページ
2004年7月28日 水曜日 午後6時26分
Editing still pictures
1
2
DVD
TV
CH
INPUT SELECT
VOLUME
AV
HDD
SD/PC
DVD
1
2
3
4
5
6
7
8
9
0
-/--
HDD, DVD,
SD/PC
3
CH
STOP
DIRECT
NAVIGATOR
4
MANUAL SKIP
SKIP
SLOW/SEARCH
PAUSE
DIRECT NAVIGATOR
PLAY/x1.3
FUNCTIONS
ENTER
SUB MENU
RETURN
PROG/CHECK DISPLAY
Set up Protection
Cancel Protection
below
DPOF
Start Slide Show
RETURN
SUB MENU
Press [SUB MENU], then [3, 4] to
select the operation and press
[ENTER].
Erase Picture
3,4,2,1
ENTER
TOP MENU
Press [3, 4, 2, 1] to select
“PICTURE” tab and press [ENTER].
Press [3, 4, 2, 1] to select the still
picture.
≥To show other pages/Multiple editing (➡ page 38)
≥To select the still pictures in another folder (➡ page 33)
G-Code
CANCEL
Press [DIRECT NAVIGATOR].
Slide Interval
page 33
STATUS TIME SLIP
∫ To edit still picture folders
Editing
[HDD] [RAM] [SD] [PC]
Preparation
≥Press [HDD], [DVD] or [SD/PC] to select the drive.
≥Release protection (➡ page 58).
Erase Whole Folder
In step 3 (➡ above)
Folder Name
1 Press [3, 4, 2, 1] to select “Folder” and
Set up Protection
press [ENTER].
Cancel Protection
2 Press [3, 4] to select the folder.
DPOF
≥To show other pages/Multiple editing (➡page 38)
3 Press [SUB MENU], then [3, 4] to select the operation and
press [ENTER].
≥To select another higher folder (➡page 33)
To exit the screen
Press [DIRECT NAVIGATOR].
To return to the previous screen
Press [RETURN].
Picture and folder operation
Erase Picture§
Erase Whole Folder§
[HDD] [RAM] [SD] [PC]
Set up Protection§
Cancel Protection§
[HDD] [RAM] [SD] [PC]
DPOF§
[SD] [PC]
Press [2, 1] to select “Erase” and press [ENTER].
≥Once erased, the recorded contents are lost and cannot be restored. Make certain before
proceeding.
≥When erasing a folder, even the files not containing still pictures will also be erased if they are inside the
folder. (This does not apply to folders under the folder concerned.)
If set, this will protect the still picture or folder from accidental erasure.
Press [2, 1] to select “Yes” and press [ENTER].
DIRECT NAVIGATOR
Folder
The lock symbol appears when the still picture or folder is protected.
≥Even if the protection setting is used by this unit to protect a folder, the folder
may be erased by another unit.
103__
0001
0002
0005
0006
You can select a whole folder or individual pictures for printing and specify the number of prints to be
made.
Press [2, 1] to select number of print (0 to 9)
and press [ENTER].
DPOF
Set up DPOF on the picture (JPEG).
Setting on other equipment will be cancelled.
Number of prints
P
1
ENTER
The DPOF mark appears.
≥This appears on the still pictures inside a folder when you make the DPOF setting for the folder.
To cancel the print setting
Set the number of print to “0”.
≥When this is set by this unit, any settings established by other units will be released.
≥Print settings (DPOF) made using this unit may not be viewable on other equipment.
≥Settings cannot be made for folders and files not in accordance with DCF standards or if there is no
remaining space on the card.
Folder Name
[HDD] [RAM] [SD] [PC]
§
RQT7756
42
42
Multiple editing is possible.
PIC
SD CARD
You can give names to still picture folders.
➡page 44, Entering text
≥Folder names inputted using this unit may not be displayed on other equipment.
7756g.book
43 ページ
2004年7月28日 水曜日 午後6時26分
Editing MPEG4 titles
1
2
DVD
TV
VOLUME
CH
INPUT SELECT
AV
HDD
SD/PC
DVD
1
2
3
4
5
6
HDD, DVD,
SD/PC
3
Press [DIRECT NAVIGATOR].
Press [3, 4, 2, 1] to select
“MPEG4” tab and press [ENTER].
Press [3, 4, 2, 1] to select the title.
DIRECT NAVIGATOR
CH
TITLE VIEW
MEPG4 PICTURE
SD CARD
007
008
---
ARD 10/10 FRI
MOL003
---
ARD 11/10 SAT
MOL005
---
---
Previous
002/002
G-Code
8
9
0
-/--
MANUAL SKIP
SKIP
:, 9
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
;
DIRECT
NAVIGATOR
DIRECT NAVIGATOR
ENTER
RETURN
3,4,2,1
ENTER
ENTER
SUB MENU
RETURN
SUB MENU
RETURN
PROG/CHECK DISPLAY
TIMER
F
STATUS TIME SLIP
ERASE REC MODE
REC
CREATE
DUBBING CHAPTER AUDIO
A
B
C
Next
Select
To show other pages
Press [3, 4, 2, 1] to select “Previous” or “Next” and
press [ENTER].
≥You can also press [:, 9] to show other pages.
Multiple editing
Select with [3, 4, 2, 1] and press [;]. (Repeat.)
A check mark appears. Press [;] again to cancel.
(Mobile hard disk only) To select the MPEG4 titles in
another folder (➡page 35)
FUNCTIONS
TOP MENU
SUB MENU
4
Press [SUB MENU], then [3, 4] to
select the operation and press [ENTER].
Editing
7
CANCEL
≥If you select “Edit”, press [3, 4] to select the operation and
press [ENTER].
Enter Name
Set up Protection
[HDD] [RAM] [SD] [PC] (Mobile hard disk only)
Preparation
≥Press [HDD], [DVD] or [SD/PC] to select the drive.
≥Release protection (➡page 58).
Erase
Properties
Edit
Table Display
To exit the screen
Press [DIRECT NAVIGATOR].
Refer to “MPEG4
title operations”
(➡ below).
Cancel Protection
page 34, Switching the Direct
Navigator appearance
To return to the previous screen
Press [RETURN].
MPEG4 title operations
Erase§
Press [2, 1] to select “Erase” and press [ENTER].
[HDD] [RAM] [SD]
≥Once erased, the recorded contents are lost and cannot be restored. Make certain before
proceeding.
Properties
Information (e.g., time and date) is shown.
[HDD] [RAM] [SD] [PC] (Mobile hard
disk only)
Properties
Dinosaur
No.
Date
Name
Time
001
26/4/2004 MON
ABC
17:23
Rec time
Bit Rate
File Size
File Name
2:45
417Kbps
27MB
MOL001
SELECT
ENTER
Enter Name
[HDD] [RAM] [SD]
§
RETURN
You can give names to titles.
➡ page 44, Entering text
Set up Protection§
Cancel Protection§
If set, this will protect the title from accidental erasure.
[HDD] [RAM] [SD]
The lock symbol appears when the title is protected.
DIRECT NAVIGATOR
TITLE VIEW
SD CARD
Press [2, 1] to select “Yes” and press [ENTER].
007
008
ARD 10/10 FRI
MOL003
---
ARD 11/10 SAT
MOL005
---
Multiple editing is possible.
RQT7756
43
43
7756g.book
44 ページ
2004年7月28日 水曜日 午後6時26分
Entering text
1
Show Enter Name screen.
DVD
Title (timer recording)
Select “Programme Name” in step 3 on page 25, 26.
TV
VOLUME
CH
INPUT SELECT
AV
HDD
Numbered
buttons
¢ CANCEL
Title
Select “Enter Name” in step 4 on page 38.
SD/PC
DVD
1
2
3
4
5
6
7
8
9
Play list
Select “Enter Name” in step 4 on page 41.
CH
Disc
Select “Disc Name” in step 3 on page 58.
G-Code
CANCEL
MANUAL SKIP
-/--
0
SKIP
Folder of still pictures
Select “Folder Name” in step 3 on page 42, “To edit still
picture folders”.
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
∫
;
DIRECT NAVIGATOR
MPEG4 title
Select “Enter Name” in step 4 on page 43.
FUNCTIONS
Unit name
Select “Unit Name Setting” after step 3 on page 15.
TOP MENU
3,4,2,1
ENTER
ENTER
SUB MENU
Select “Unit Name” in the “Add manually” screen on page 18.
RETURN
RETURN
PROG/CHECK DISPLAY
TIMER
F
Name field: shows the text you have entered
STATUS TIME SLIP
ERASE REC MODE
Enter Name
_
REC
CREATE
DUBBING CHAPTER AUDIO
B
Title on TOP MENU
(DVD-R)
C
Editing
A
;
π
1 1
2
3
5
6
7
8
9
0
2 A
B
C
a
b
c
i j
3 D
4 G
E
F
d
e
f
/
*
l %
H
I
g
h
i
fl
$
ERASE
SET
5 J
K
L
j
O N @
6 M N
O
k
n
l
m
o
[
0 –– ¢
7 P
8 T
Q
R
p
q
r
U
V
t
u
v
9 W X
0 . ,
Y
Z
w
x
?
!
"
'
y
:
SELECT
4
S
[HDD] [RAM] [DVD-R] [SD] [PC]
&
]
_
s
(
{
}
)
-
z
;
\
`
|
^
SPACE
ENTER
RETURN
You can give names to recorded titles, etc. or to units for
distinguishing them on the network.
2
The maximum number of characters:
[HDD] [RAM]
Title
§
Characters
Repeat this step to enter other characters.
64 (44§)
Play list
64
Disc
64
Folder of still pictures
36
MPEG4 title
44
≥To erase a character
Press [3, 4, 2, 1] to select the character in the name field
and press [;].
≥Using the numbered buttons to enter characters
e.g., entering the letter “R”
Title name for timer recording
[DVD-R]
44
Disc
40
[SD] [PC]
Folder of still pictures
[SD]
MPEG4 title
(Network function)
Unit name
36
44
Characters
16
[Note]
If a name is long, parts of it may not be shown in some screens.
3
7
L
7
O
Q
R
U
V
S
Press [∫] (SET).
Returns to the previously displayed screen.
To end partway
Press [RETURN].
Text is not saved.
For your reference
If you enter a long name, only part of it is shown in the Top Menu
after finalization (➡ page 59). When entering a title name, the name
that will appear in the Top Menu can be previewed in “Title on TOP
MENU (DVD-R)” window.
Title on TOP MENU
(DVD-R)
Chapter 1
RQT7756
S
44
6 M N
7 P
8 T
Enter Name
Chapter 1_
44
K
7
≥To enter a space
Press [¢ CANCEL] and press
[ENTER].
Characters
Characters
5 J
1 Press [7] to move to the 7th
row.
2 Press [7] twice to highlight
“R”.
3 Press [ENTER].
Characters
Title
Press [3, 4, 2, 1] to select a
character and press [ENTER].
1 1
2
3
5
6
7
8
9
0
2 A
B
C
a
b
c
i j
3 D
4 G
E
F
d
e
f
/
*
l %
H
I
g
h
i
fl
$
5
4
&
7756g.book
45 ページ
2004年7月28日 水曜日 午後6時26分
Transferring (dubbing) titles or play lists
[HDD] [RAM] [DVD-R]
You can select from a variety of methods to transfer (dub) on this unit.
When transferring (dubbing) MPEG4 motion pictures or video titles by converting them to MPEG4 format (➡page 52).
∫ Transferring (dubbing) direction
You can transfer (dub) your favorite titles and play lists to an archive disc.
≥Transferring (dubbing) a play list will create a title.
When you want to re-edit finalized content on
a DVD-R etc.
High speed mode§
High speed mode
HDD
HDD
RAM
DVD-R
Normal speed mode
Normal speed mode
DVD-V§
HDD
Normal speed mode
≥When you want to play a transferred
(dubbed) disc on other equipment, you must
finalize the disc after transferring (dubbing)
(➡ page 59, 67).
§ Before recording to HDD, set “DVD-R Rec
for High Speed mode” to “On” (➡ page 61).
§
Finalized DVD-R or DVD-Video on sale that
is not copy-protected, etc.
Normal speed mode: Select XP, SP, LP, EP or FR as the recording mode for transferring (dubbing) (➡ page 23).
∫ Transferring (dubbing) mode
Transferring (dubbing) a title or a play list
Transferring (dubbing) multiple titles and play lists together
One Touch Transfer (dubbing) (➡page 46)
Transferring (dubbing) using the transferring (dubbing) list (➡ page 46)
You can select transferring (dubbing) speed mode and picture quality (➡ below)
Features
High speed
Normal speed (XP, SP, LP, EP, FR)
You can transfer (dub) in a very short amount
of time. You can transfer (dub) even faster if
you use a high speed recording compatible
disc.
You can record and play using the HDD
while high speed transferring (dubbing).
You can record for a long period of time on 1 disc.
For example, using LP mode, you can record approximately
4 hours on 1 (4.7 GB) disc (➡page 23).
e.g., 1 hour TV drama
Only one episode using XP mode
XP
LP LP LP LP
4 episodes using LP mode
Transferring (dubbing)
times
➡ below, Approximate transferring (dubbing)
times
The same amount of time it takes to record the source
Picture quality
Original picture quality
Can change§1
§2
Are chapters/thumbnails
maintained?
Yes
Other operations while
transferring (dubbing)
You can record/play using the HDD.
§1
§2
Transfer (Dubbing)
∫ Transferring (dubbing) speed mode types and features
No (One title is recorded as one chapter. Thumbnails return
to the default position.)
No
If you select a recording mode with better picture quality than the original, the picture quality does not improve. (However it does prevent
against degradation of picture quality.)
When transferring (dubbing) play lists to DVD-R, the thumbnails may not reflect changes made to them.
∫ Approximate transferring (dubbing) times (Max. speed)
(Excludes time required to write data management information)
HDD
Recording mode
5k high speed recording compatible DVD-RAM
Recording time
XP
1
SP
8k high speed recording compatible DVD-R
Required time
Speed
Required time
Speed
Approx. 12 min.
5k
Approx. 8.7 min.
Approx. 8k
Approx. 6 min.
10k
Approx. 4 min.
16k
Approx. 4 min.
20k
Approx. 2 min.
32k
EP (6 Hour)
Approx. 3 min.
30k
Approx. 1.5 min.
48k
EP (8 Hour)
Approx. 1.5 min.
40k
Approx. 56 sec.
64k
LP
1 hour
[Note]
≥When recording or playing while transferring (dubbing), the unit may not use the maximum recording speed.
≥Depending on the condition of the disc, the unit may not transfer (dub) using the maximum speed.
Regarding high speed transfer (dubbing) to DVD-R
To high speed transfer (dub) titles (or play lists created from those
titles), set “DVD-R Rec for High Speed mode” to “On” before
recording to the HDD (➡page 61).
However in the following cases, transferring (dubbing) to DVD-R
using the high speed mode does not work.
≥Play lists created from titles using a variety of recording modes
≥Play lists created from multiple titles using FR recording mode
≥Play lists mixed with a variety of audio types (Dolby Digital and
LPCM, etc.)
≥Titles that contain many erased segments
Regarding transferring (dubbing) of digital broadcasts that
allow “One time only recording”
You can transfer (dub) a recorded title to a CPRM (➡page 67)
compatible DVD-RAM, however the title is erased from the HDD.
≥You cannot use one touch transfer (dubbing). Use the transferring
(dubbing) list (➡ page 46).
≥Titles will not be transferred (dubbed) if they are protected
(➡page 39).
≥You cannot transfer (dub) play lists created from “One time only
recording” titles.
≥Titles with recording limitations and play lists cannot be registered
on the same transferring (dubbing) list.
≥Titles or play lists cannot be transferred (dubbed) from DVD-RAM to
the HDD.
RQT7756
45
45
7756g.book
46 ページ
2004年7月28日 水曜日 午後6時26分
Transferring (dubbing) titles or play lists
Transferring (dubbing) using the
transferring (dubbing) list
DVD
TV
[HDD] ,-. [RAM]
[HDD] > [DVD-R]
You can order titles and play lists for transfer (dubbing) as desired as
well as select the speed and picture quality.
VOLUME
CH
INPUT SELECT
AV
HDD
Numbered
buttons
SD/PC
DVD
1
2
3
4
5
6
CH
G-Code
7
8
9
0
-/--
CANCEL
MANUAL SKIP
SKIP
:, 9
SLOW/SEARCH
STOP
PAUSE
;
Preparation
Select the audio type for recording bilingual broadcast from
“Bilingual Audio Selection” (➡ page 62) when:
≥Transferring (dubbing) to a DVD-R.
≥When “Audio Mode for XP Recording” is set to “LPCM” (➡page 62)
and you are transferring (dubbing) in XP mode.
PLAY/x1.3
1
∫
DIRECT NAVIGATOR
FUNCTIONS
1
While stopped
2
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select
“DUBBING” and press [ENTER].
FUNCTIONS
3,4,2,1
ENTER
TOP MENU
ENTER
SUB MENU
RETURN
RETURN
SUB MENU
DUBBING
PROG/CHECK DISPLAY
Cancel All
STATUS
TIMER
ERASE REC MODE
F
1 Dubbing Direction
2 Dubbing Mode
A
B
VIDEO
Transfer (Dubbing)
3
One Touch Transfer (dubbing)
0
Play the title or play list you want to
transfer (dub).
Press [DUBBING].
4
DUBBING
No
When transferring (dubbing) to 8k high speed recording
compatible DVD-R or 5k high speed recording compatible
DVD-RAM in High speed mode
1 Press [3] to select “DVD drive speed”.
2 Press [2, 1] to select “Maximum” or “Normal (Silent)” and
press [4].
≥Selecting “Normal (Silent)” means the noise generated by this
unit is less than “Maximum”, however the time required for
transferring (dubbing) will increase (approximately) double.
Press [2, 1] to select “Yes” and
press [ENTER].
≥The transfer (dubbing) speed and picture quality are set as
follows.
The recording mode changes to FR mode if the remaining disc space
is exceeded using one of the recording modes indicated below.
[HDD] > [RAM]: High speed mode
[HDD] > [DVD-R]:
DVD-R Rec for High Speed mode setting
On
Off
Press [3, 4] to select “Dubbing
Mode” and press [1].
1 Press [3, 4] to select “Format” and press [ENTER].
2 Press [3, 4] to select “VIDEO” and press [ENTER].
3 Press [3, 4] to select “Recording Mode” and press
[ENTER].
4 Press [3, 4] to select the mode and press [ENTER].
5 Press [2] to confirm.
High Speed mode is selected.
Is it OK to start?
Yes
Press [3, 4] to select “Dubbing
Direction” and press [1].
1 Press [3, 4] to select “Source” and press [ENTER].
2 Press [3, 4] to select the drive and press [ENTER].
3 Press [3, 4] to select “Destination” and press
[ENTER].
The same drive as the transfer (dubbing) source cannot be
selected.
4 Press [3, 4] to select the drive and press [ENTER].
5 Press [2] to confirm.
[HDD] > [RAM]
[HDD] > [DVD-R]
Preparation
Select the audio type for recording bilingual broadcast from
“Bilingual Audio Selection” (➡ page 62) when transferring (dubbing)
to a DVD-R.
3
5
Press [3, 4] to select “Create List”
and press [1].
Select the transferring (dubbing) items and register on the list.
≥When transferring (dubbing) to DVD-R using high speed
mode, only items indicated with “
DUBBING
High speed mode
Same recording mode used as when
recording the source title (XP–EP, FR).
≥Play lists are transferred (dubbed) in FR
mode.
[Note]
Titles and play lists cannot be transferred (dubbed) if they contain
digital broadcast that allow “One time only recording”.
46
46
” can be registered.
Create dubbing list.
Cancel All
1 Dubbing Direction
HDD > DVD
Size:
0MB
Destination Capacity: 4343MB
Name of item
No. Size
New item
2 Dubbing Mode
VIDEO
High Speed
3 Create List
Previous
Next
Start Dubbing
Set
01/01
ENTER
RETURN
1 Press [3, 4] to select “New item” and press [ENTER].
2 Press [3, 4, 2, 1] to select “Video” or “PLAY LIST”
tab and press [ENTER].
Create List
HDD
007
RQT7756
DVD
≥If you are not going to change the registered list press [4]
several times (➡step 7).
Titles and play lists recorded using a different encoding system from the
TV system currently selected on the unit cannot be transferred (dubbed).
2
HDD
Destination
High Speed
3 Create List
C
[Note]
1
Source
HDD > DVD
REC
CREATE
DUBBING CHAPTER AUDIO
DUBBING
Select the dubbing direction.
STATUS TIME SLIP
Video PLAY LIST
008
1200MB
ARD 10/10 FRI
ARD 11/10 SAT
---
---
Previous
ENTER
RETURN
---
---
02/02
Select
Next
47 ページ
2004年7月28日 水曜日 午後6時26分
3 Press [3, 4, 2, 1] to select the titles or play lists and
press [ENTER].
≥To select a multiple number of items together, press [;]
to add the check mark and press [ENTER] (➡ below,
Multiple editing).
≥To show other pages (➡ below)
≥To edit the transferring (dubbing) list (➡ below)
6
Transferring (dubbing) list indicators
Titles and play lists that can be transferred
(dubbed) in high speed mode to DVD-R
(➡page 61)
Title with “One time only recording” restriction
Titles erased from the HDD by “One time only
recording” restriction after transferring (dubbing).
Press [3, 4] to select “Set” and
press [ENTER].
Title or play list contains still picture(s)
≥Still picture(s) cannot be transferred (dubbed).
The transferring (dubbing) list is registered.
7
Title or play list recorded using a different
encoding system from that of the TV system
currently selected on the unit.
≥Titles and play lists displaying these marks
cannot be selected.
(NTSC)
Press [3, 4] to select “Start
Dubbing” and press [ENTER].
(PAL)
When transferring (dubbing) to 8k high speed recording
compatible DVD-R or 5k high speed recording compatible
DVD-RAM in High speed mode
1 Press [3] to select “DVD drive speed”.
2 Press [2, 1] to select “Maximum” or “Normal (Silent)” and
press [4].
≥Selecting “Normal (Silent)” means the noise generated by
this unit is less than “Maximum”, however the time required
for transferring (dubbing) will increase (approximately)
double.
Data size of each registered item
Size:
0MB
Destination Capacity: 4343MB
Name of item
No. Size
New item
Previous
Next
Set
01/01
Press [2, 1] to select “Yes” and press [ENTER] to start
transferring (dubbing).
∫ To edit the transferring (dubbing) list
Select the item in step 5 (➡ page 46, right column)
1 Press [SUB MENU].
2 Press [3, 4] to select the operation and press
[ENTER].
§ Multiple editing is possible (➡ below).
Erase All
Data size recorded to the transfer
(dubbing) destination
≥When transferring (dubbing) at normal
speed, the total data size will change
according to the recording mode.
≥When transferring (dubbing) to the HDD
using high speed mode, data
management information is
automatically added so the total data
size becomes larger than the sum of the
data size for all registered items.
Add
Erase§
Move
To cancel all registered transferring (dubbing) setting and lists
In step 3 (➡ page 46, right column)
1 Press [3, 4] to select “Cancel All” and press [ENTER].
2 Press [2, 1] to select “Yes” and press [ENTER].
≥The settings and lists may be cancelled in the following situations.
–When a title, still picture, etc. has been recorded or erased at the
transfer (dubbing) source
–When steps have been taken, for instance, to turn off the unit,
open the tray, change the transfer (dubbing) direction, etc.
To show other pages
Press [3, 4, 2, 1] to select “Previous” or “Next” and press
[ENTER].
≥You can also press [:, 9] to show other pages.
Multiple editing
Select with [3, 4, 2, 1] and press [;]. (Repeat.)
Press [ENTER] to register to the list.
≥A check mark appears. Press [;] again to cancel.
≥When you switch between the “Video” and “PLAY LIST” tab, the
check mark is cancelled.
Transfer (Dubbing)
7756g.book
∫ To stop transferring (dubbing)
Press and hold [RETURN] for 3 seconds.
≥If stopped partway, transferring (dubbing) will be up to that point.
However, in high speed mode, only titles that have completed
transferring (dubbing) at the point stopped are transferred
(dubbed). [Even if the title was not transferred (dubbed) to the
DVD-R, the amount of remaining writable disc space becomes
less.]
∫ To return to the previous screen
Press [RETURN].
∫ Recording and playing while transferring
(dubbing)
You can record and play using the HDD while high speed
transferring (dubbing).
Press [ENTER] to cancel the screen display.
≥To confirm the current progress
Press [STATUS].
[Note]
≥You cannot perform chasing play or edit etc. while transferring
(dubbing).
≥Timer recordings executed while transferring (dubbing) are
recorded to the HDD regardless of the recording drive settings.
≥You cannot play a play list while transferring (dubbing) titles with
“One time only recording” restriction (➡ page 45).
RQT7756
47
47
7756g.book
48 ページ
2004年7月28日 水曜日 午後6時26分
Transferring (dubbing) titles or play lists
Refer to the control reference on page 46.
Transferring (dubbing) a finalized
DVD-R
[DVD-V] > [HDD]
While playing a disc, the content being played is transferred
(dubbed) to the HDD according to the set time.
≥Operations and on screen displays during transfer
(dubbing) are also recorded.
≥Almost all DVD-Video on sale have been treated to prevent
illegal copying, and cannot be transferred (dubbed).
≥The following cannot be transferred (dubbed): DVD-Audio,
Video CD, Audio CD and so on.
After performing steps 1–4 (“Format” is automatically set to “DVDVideo”.) (➡page 46, right column)
5
6
Press [3, 4] to select “Dubbing
Time” and press [1].
Press [2, 1] to select “Hour” and
“Min.” and press [3, 4] to set the
recording time.
DUBBING
Set the time to finish dubbing.
Cancel All
1 Dubbing Direction
Transfer (Dubbing)
DVD > HDD
2 Dubbing Mode
DVD-Video
2
Hour
00 Min.
XP
3 Dubbing Time
Set the time with the numbered
buttons or arrow buttons.
Start Dubbing
ENTER
RETURN
≥You can also set the recording time with the numbered
buttons.
≥Set a few minutes longer than the source title, in order to
include the operation time before play begins.
7
8
Press [2] to select “Dubbing Time”.
Press [3, 4] to select “Start
Dubbing” and press [ENTER].
Press [2, 1] to select “Yes” and press [ENTER] to start
transferring (dubbing).
The disc top menu is displayed.
≥Disc play automatically begins from title 1 when “Title 1” is
selected from the “Auto-Play Select” menu when finalizing
the disc (➡ page 59).
9
When the top menu is displayed
Press [3, 4, 2, 1] to select the title
you want to start transferring
(dubbing), and press [ENTER].
My favorite
01/02
01
Chapter 1
02
Chapter 2
03
Chapter 3
04
Chapter 4
05
06
While playing in order, all the titles after the selected title are
recorded until the set time. (After the last title on the disc has
finished playing the top menu is recorded until the set time is
reached.)
To stop transferring (dubbing)
Press [∫].
You can also press and hold [RETURN] for 3 seconds to stop
transferring (dubbing).
≥If stopped partway, transferring (dubbing) will be up to that point.
To return to the previous screen
Press [RETURN].
RQT7756
48
48
[Note]
≥The screen on the right (screen saver) is
recorded at the beginning.
≥Recorded as 1 title from the start of transfer
(dubbing) to the end.
≥If play does not begin automatically or if the top menu does not
display automatically, press [1] (PLAY) to start.
≥Even if you transfer (dub) a high quality video/audio DVD, the
original picture and audio quality cannot be exactly replicated.
7756g.book
49 ページ
2004年7月28日 水曜日 午後6時26分
Recording from a video cassette recorder
Manual recording
[HDD] [RAM] [DVD-R]
Preparation
≥Connect a video cassette recorder to this unit’s input terminals.
≥Press [HDD] or [DVD] to select the recording drive.
≥To adjust the audio recording level (➡ below)
≥When recording bilingual programmes
[HDD] [RAM]
When both M 1 and M 2 is selected on the connected equipment,
you can select the audio type in playback.
([HDD] When simultaneously recording by MPEG4 format, select
either M 1 or M 2 on the connected equipment)
[DVD-R]
Select either M 1 or M 2 on the connected equipment.
≥When the output signal from the external equipment is NTSC,
change the “TV System” to “NTSC” in the SETUP menu (➡page 65).
≥To reduce noise in input from a video cassette recorder, set “AV-in
NR” to “On” in the SETUP menu (➡ page 61).
DVD
TV
VOLUME
CH
INPUT SELECT
INPUT SELECT
AV
HDD, DVD
HDD
SD/PC
DVD
1
2
3
4
5
6
CH
G-Code
7
8
9
0
-/--
CANCEL
MANUAL SKIP
SKIP
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
;
∫
DIRECT NAVIGATOR
FUNCTIONS
FUNCTIONS
1
TOP MENU
3,4,2,1
ENTER
ENTER
SUB MENU
Press [INPUT SELECT] to select the
input channel for the equipment you
have connected.
RETURN
PROG/CHECK DISPLAY
While stopped
STATUS TIME SLIP
e.g., If you have connected to AV3 input terminals, select “AV3”.
ERASE REC MODE
F
REC MODE
REC
B
2
¥ REC
CREATE
DUBBING CHAPTER AUDIO
A
AUDIO
C
3
4
Press [REC MODE] to select the
recording mode.
Start play on the other equipment.
Press [¥ REC].
Transfer (Dubbing)
TIMER
Recording starts.
e.g., Connecting other video equipment to the AV3 or DV input
terminals
≥Turn off the unit and other video equipment before connecting.
This unit
OPEN/CLOSE
EJECT
SD CARD
PC CARD
TIME SLIP
HDD
S-VIDEO IN
VIDEO IN L/MONO AUDIO IN R
HDD
DVD
SD
PC
DRIVE SELECT
VIDEO IN
To record programmes to fill up the remaining space on the disc
➡ page 24, Flexible Recording
DVD
DV IN
L/MONO - AUDIO IN - R
∫ To adjust the audio recording level
DV IN
Yellow White Red
S-Video
cable§
To stop recording
Press [∫].
/x1.3
AV3
S-VIDEO IN
To skip unwanted parts
Press [;] to pause recording. (Press again to restart recording.)
Audio/
Video cable
1 Before recording commences, press and hold [AUDIO] for
more than 3 seconds.
DV cable
(IEEE 1394, 4-pin)
Other video
equipment
Audio REC Level
L L 0
L/R
R R 0
CH SELECT
ENTER
If the audio output of the other equipment is monaural, connect to
L/MONO.
§ The S-VIDEO terminal achieves a more vivid picture than the
VIDEO terminal.
DV automatic recording (DV AUTO REC) (➡page 50)
When recording from the unit’s DV terminal
Select the type of audio recording from “Audio Mode for DV Input” in
the SETUP menu (➡page 62).
-¶ 30 20 15 10 5 0 OVER
ADJUST
RETURN
2 Press [3, 4] to select “L/R”.
To individually adjust a level press [3, 4] to select “L” (left) or “R”
(right).
3 Press [2, 1] to adjust the audio recording level and press
[ENTER].
≥Set the level to neutral again after recording is finished.
≥If the recording level is too high the audio will be distorted. Set it so
the audio level meter is not shaking. (Maximum –10 dB to –5 dB is
an appropriate level)
≥The DV input is unaffected.
Almost all videos and DVD software on sale have been
treated to prevent illegal copying. Any software that has
been so treated cannot be recorded using this unit.
RQT7756
49
49
7756g.book
50 ページ
2004年7月28日 水曜日 午後6時26分
Transferring (dubbing) still pictures
Recording from a video cassette recorder
Refer to the control reference on page 49.
HDD
DV automatic recording (DV AUTO REC)
SD/PC
DVD
1
2
3
4
5
6
7
8
9
SD/PC
CH
[HDD] [RAM]
When the “DV AUTO REC” function is used, programmes are
recorded as a title while at the same time chapters are created at
each break in the images and the play list is created automatically.
Preparation
1 Turn off the main unit and DV equipment, then connect the
equipment with the unit’s DV input terminal (➡ page 49).
2 Turn on the main unit and DV equipment.
3 Pause play of the DV equipment at the point you want recording
to start.
4 Press [HDD] or [DVD] to select the recording drive.
≥When the output signal from the external equipment is NTSC,
change the “TV System” to “NTSC” in the SETUP menu (➡page 65).
1
2
3
4
G-Code
CANCEL
0
-/--
SKIP
:, 9
STOP
SLOW/SEARCH
PAUSE
PLAY/x1.3
;
DIRECT NAVIGATOR
FUNCTIONS
FUNCTIONS
TOP MENU
3,4,2,1
ENTER
ENTER
SUB MENU
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “DV
AUTO REC” and press [ENTER].
Press [REC MODE] to select the
recording mode.
Press [2, 1] to select “Rec” and
press [ENTER].
Transferring (dubbing) using the
transferring (dubbing) list
1
While stopped
2
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select
“DUBBING” and press [ENTER].
DUBBING
Select the dubbing direction.
Cancel All
1 Dubbing Direction
Source
SD CARD
Destination
HDD
SD CARD > HDD
2 Dubbing Mode
PICTURE High Speed
[Note]
If the DV automatic recording function does not work properly,
check the connections and DV equipment settings, and turn the
unit off and back on.
If that does not work, follow the instructions for manual
recording (➡ page 49).
RETURN
[HDD] [RAM] [SD] [PC]
When recording finishes
The confirmation screen appears. Press [ENTER] to finish DV
automatic recording.
To stop recording
Press [∫].
≥Only one piece of DV equipment (e.g., digital video camcorder) can
be connected to the unit via the DV input terminal.
≥It is not possible to operate the unit from the connected DV
equipment.
≥The DV input on this unit is for use with DV equipment only. (It
cannot be connected to a computer, etc.)
≥The DV equipment name may not be shown correctly.
≥Depending on the DV equipment, the images or audio may not be
input properly.
≥The date and time information on the tape of the DV equipment will
not be recorded.
≥You cannot record and play simultaneously.
≥Even if you set the simultaneous MPEG4 recording function
(➡page 22), MPEG4 recording will not take place.
RETURN
SUB MENU
While stopped
Recording starts.
Transfer (Dubbing)
MANUAL SKIP
3 Create List
0
≥If you are not going to change the registered list press [4]
several times (➡page 51, step 7).
3
Press [3, 4] to select “Dubbing
Direction” and press [1].
1 Press [3, 4] to select “Source” and press [ENTER].
2 Press [3, 4] to select the drive and press [ENTER].
3 Press [3, 4] to select “Destination” and press
[ENTER].
4 Press [3, 4] to select the drive and press [ENTER].
The same drive as the transfer (dubbing) source can be selected.
5 Press [2] to confirm.
4
Press [3, 4] to select “Dubbing
Mode” and press [1].
1 Press [3, 4] to select “Format” and press [ENTER].
2 Press [3, 4] to select “PICTURE” and press [ENTER].
“Recording Mode” is automatically set to “High Speed”.
3 Press [2] to confirm.
5
Press [3, 4] to select “Create List”
and press [1].
Select the transferring (dubbing) items and register on the list.
Still pictures and folders cannot be registered on the same list.
DUBBING
Create dubbing list.
Cancel All
1 Dubbing Direction
SD CARD > HDD
Picture/Folder
Destination Capacity: 4343MB
Name of item
No. Size
New item
2 Dubbing Mode
PICTURE High Speed
3 Create List
Previous
Start Dubbing
Next
Set
01/01
ENTER
RETURN
∫ To register individual still pictures
RQT7756
50
50
1 Press [3, 4] to select “New item” and press [ENTER].
2 Press [3, 4, 2, 1] to select the still picture and press
[ENTER].
≥To select a multiple number of items together, press [;]
to add the check mark and press [ENTER] (➡page 51,
Multiple editing).
≥To show other pages (➡ page 51)
≥To select the still pictures in another folder (➡ page 51)
≥To edit the transferring (dubbing) list (·page 51)
51 ページ
2004年7月28日 水曜日 午後6時26分
∫ To register on a folder by folder basis
Transferring (dubbing) all the still
pictures on a card—COPY ALL
PICTURES
1 Press [3, 4] to select “Picture/Folder” and press [ENTER].
DUBBING
Create dubbing list.
Cancel All
1 Dubbing Direction
SD CARD > HDD
Picture/Folder
Destination Capacity: 4343MB
Name of item
No. Size
New item
[SD] or [PC] > [HDD] or [RAM]
2 Dubbing Mode
2 Press [3, 4] to select “Folder” and press [ENTER].
3 Press [3, 4] to select “New item” and press [ENTER].
4 Press [3, 4] to select the folder and press [ENTER].
≥To select a multiple number of items together, press [;]
to add the check mark and press [ENTER] (➡ below,
Multiple editing).
≥To show other pages (➡ below)
≥To switch another higher folder (➡ below)
≥To edit the transferring (dubbing) list (·below)
6
Preparation
Press [SD/PC] to select the source drive.
1
While stopped
2
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “COPY
ALL PICTURES” and press [ENTER].
COPY ALL PICTURES
Press [3, 4] to select “Set” and
press [ENTER].
Copy from
\DCIM
The transferring (dubbing) list is registered.
7
Copy all pictures (JPEG) in the card
≥If there is a multiple number of higher folders recognizable,
you can switch them using [2, 1].
Press [3, 4] to select “Start
Dubbing” and press [ENTER].
≥For individual still pictures only
When specifying another folder as the transferring (dubbing)
destination, select “Folder”.
\JPEG\DCIM001
Folder
3
4
New folder
001
002
003
004
---
Make a new folder and dub to it?
SD CARD
Copy to
HDD
\JPEG\DCIM001
100__DVD
101__DVD
102__DVD
103__DVD
Press [2, 1] to select “Yes” and press [ENTER] to start
transferring (dubbing).
5
Press [3, 4] to select “Copy from”
and press [2, 1] to select the drive.
Press [3, 4] to select “Copy to” and
press [2, 1] to select the drive.
Press [3, 4, 2, 1] to select “Copy”
and press [ENTER].
To stop transferring (dubbing)
Press and hold [RETURN] for 3 seconds.
To stop transferring (dubbing)
Press and hold [RETURN] for 3 seconds.
To return to the previous screen
Press [RETURN].
To return to the previous screen
Press [RETURN].
Transfer (Dubbing)
7756g.book
∫ To select another folder
1 Press [3, 4, 2, 1] to select “Folder” and press [ENTER].
2 Press [3, 4] to select the folder and press [ENTER].
Create List
\DCIM
Picture (JPEG)
SD CARD
Folder
0001
103__DVD
0002
0003
0004
\DCIM\100__DVD
001 100__DVD
002 101__DVD
003 102__DVD
004 103__DVD
---
≥The still pictures of different folders cannot be registered on the
same list.
≥If there is a multiple number of higher
folders recognizable, you can switch
them using [2, 1]. (Folders whose
higher folders are different cannot be registered on the same list.)
\DCIM
\DCIM\100__DVD
001 100__DVD
002 101__DVD
003 102 DVD
∫ To edit the transferring (dubbing) list
Select the item in step 5 (➡ page 50, right column)
1 Press [SUB MENU].
2 Press [3, 4] to select the operation and press
[ENTER].
§
Multiple editing is possible (➡ below).
Erase All
Add
Erase§
To cancel all registered transferring (dubbing) settings and lists
In step 3 (➡ page 50, right column)
1 Press [3, 4] to select “Cancel All” and press [ENTER].
2 Press [2, 1] to select “Yes” and press [ENTER].
≥The settings and lists may be cancelled in the following situations.
–When a title or still picture has been recorded or erased at the
transfer (dubbing) source
–When steps have been taken, for instance, to turn off the unit,
remove the card, open the tray, change the transfer (dubbing)
direction, etc.
To show other pages
Press [3, 4, 2, 1] to select “Previous” or “Next” and press [ENTER].
≥You can also press [:, 9] to show other pages.
Multiple editing
Select with [3, 4, 2, 1] and press [;]. (Repeat.)
Press [ENTER] to register to the list.
≥A check mark appears. Press [;] again to cancel.
[Note]
≥When transferring (dubbing) the still pictures on a folder by
folder or card by card basis, files other than the still picture files
inside the folder will also be transferred (dubbed). (This does
not apply to the lower folders contained inside the folders.)
≥If still pictures are already contained inside the transfer
(dubbing) destination folder, the new still pictures are recorded
following the existing still pictures.
≥If the space on the destination drive runs out or the number of
files/folders to be transferred (dubbed) exceeds the maximum
(➡page 32), transferring (dubbing) will stop partway through.
≥When a name has not been input for the transfer (dubbing)
source folder, it is possible that this folder’s number will not be
the same on the transfer (dubbing) destination. It is
recommended that you input a folder name before transferring
(dubbing) (➡ page 44).
≥Print number setting (DPOF) is not transferred (dubbed).
≥The sequence in which the still pictures are registered on the
transfer (dubbing) list may not be the same at the transfer
(dubbing) destination.
RQT7756
51
51
7756g.book
52 ページ
2004年7月28日 水曜日 午後6時26分
Transferring (dubbing) MPEG4/MPEG2§ titles
§
MPEG2 data taken on a SD Video Camera
∫ Transferring (dubbing) types and features
High Speed
mode transfer
(dubbing)
MPEG4
MPEG4 titles recorded on the HDD using the simultaneous MPEG4
recording function (➡ page 22), can be transferred directly, or through
DVD-RAM, to a SD Memory Card or MultiMediaCard at high speed.
MPEG4
MPEG4#MPEG4
HDD
DVD-RAM
Transferring
(dubbing) by
converting to
MPEG4
VIDEO
You can watch on a SD
Video Camera.
You can transfer (dub) video titles recorded on HDD or DVD-RAM to a
SD Memory Card or MultiMediaCard by converting them to MPEG4
format.
MPEG4
VIDEO #MPEG4
HDD
DVD-RAM
You can watch on a
SD Video Camera.
MPEG4
MPEG2
High Speed
mode transfer
(dubbing)
MPEG4#MPEG4
MPEG4
VIDEO
HDD
MPEG2#VIDEO
≥One Touch transfer (dubbing) is convenient when transferring (dubbing)
one title (➡ page 53).
≥Use the transferring (dubbing) list when transferring (dubbing) multiple
titles at the same time (➡ page 53).
DVD-RAM
≥Use the transferring (dubbing) list (➡page 53) [One Touch transfer
(dubbing) is not possible.].
≥Digital broadcasts that allow “One time only recording” cannot be
converted to MPEG4.
Motion pictures encoded in the MPEG2 or MPEG4 format, which have
been taken by a SD Video Camera, digital video camera etc, can be
stored on HDD or DVD-RAM. [MPEG2 titles transferred (dubbed) to HDD
or DVD-RAM will be treated as video titles.]
≥Use the transferring (dubbing) list (➡page 53) [One Touch transfer
(dubbing) is not possible.].
Transfer (Dubbing)
≥You cannot transfer (dub) MPEG4 data to a MultiMediaCard in “XF” or “SF” mode.
≥A title that is transferred (dubbed) to a computer-formatted card by converting it to MPEG4 format may not playback normally. Format the card
on this unit before transferring (dubbing) (➡ page 59).
≥Some equipment which allows MPEG4 playback may not be compatible with this unit’s recording modes. Please check the equipment’s
operating instructions for more information. (Some equipment may display messages such as “Press the RESET button” when playing a noncompatible title.)
∫ Approximate recording time when recording a MPEG4 title on Panasonic SD Memory Card
≥Not all of the capacity is available for recording or transferring (dubbing) because the copyright information is also included.
≥The approximate time on the left of each column is applicable when recording pictures with a lot of movement and the one on the right when
recording pictures with little movement.
RQT7756
52
52
MPEG4 Rec Mode
SD CARD
Capacity
XF (Extra Fine)
SF (Super Fine)
F (Fine)
N (Normal)
E (Economy)
8 MB
0 min. (0 min.)
1 min. (1 min.)
2 min. (3 min.)
3 min. (4 min.)
8 min. (9 min.)
16 MB
1 min. (1 min.)
2 min. (2 min.)
4 min. (6 min.)
6 min. (9 min.)
19 min. (21 min.)
32 MB
2 min. (4 min.)
4 min. (5 min.)
9 min. (13 min.)
13 min. (18 min.)
41 min. (44 min.)
64 MB
5 min. (8 min.)
8 min. (10 min.)
19 min. (26 min.)
28 min. (38 min.)
1 h 24 min. (1 h 31 min.)
128 MB
11 min. (16 min.)
16 min. (21 min.)
40 min. (53 min.)
57 min. (1 h 18 min.)
2 h 50 min. (3 h 4 min.)
256 MB
22 min. (33 min.)
32 min. (42 min.)
1 h 19 min. (1 h 45 min.)
1 h 53 min. (2 h 36 min.)
5 h 40 min. (6 h 7 min.)
512 MB
44 min. (1 h 6 min.)
1 h 5 min. (1 h 24 min.)
2 h 40 min. (3 h 31 min.)
3 h 49 min. (5 h 16 min.)
11 h 26 min. (12 h 21 min.)
1 GB
1 h 25 min. (2 h 8 min.)
2 h 6 min. (2 h 43 min.)
5 h 9 min. (6 h 47 min.)
7 h 21 min. (10 h 7 min.)
21 h 59 min. (23 h 45 min.)
2 GB
2 h 51 min. (4 h 16 min.)
4 h 12 min. (5 h 26 min.)
10 h 19 min. (13 h 35 min.)
14 h 42 min. (20 h 15 min.)
43 h 59 min. (47 h 30 min.)
7756g.book
53 ページ
2004年7月28日 水曜日 午後6時26分
Transferring (dubbing) using the
transferring (dubbing) list
DVD
TV
[HDD] [RAM] [SD] [PC] (Mobile hard disk only)
Preparation
Select the audio type to be used when transferring (dubbing) a video
title by converting to MPEG4 format, from “Bilingual Audio Selection”
in the SETUP menu (➡ page 62).
VOLUME
CH
INPUT SELECT
AV
HDD
SD/PC
DVD
1
2
3
4
5
6
CH
G-Code
7
8
9
0
-/--
CANCEL
While stopped
2
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select
“DUBBING” and press [ENTER].
MANUAL SKIP
SKIP
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
;
DUBBING
DIRECT NAVIGATOR
Cancel All
FUNCTIONS
1 Dubbing Direction
3,4,2,1
ENTER
MPEG4
PROG/CHECK DISPLAY
STATUS TIME SLIP
ERASE REC MODE
REC
3
A
B
[HDD] [RAM] >[SD]
Play the MPEG4 title you want to
transfer (dub).
Press [DUBBING].
DUBBING
High Speed mode is selected.
Is it OK to start?
3
No
Press [2, 1] to select “Yes” and
press [ENTER].
The transfer (dubbing) mode is set to High Speed mode.
≥You cannot record or play while transferring (dubbing).
Press [3, 4] to select “Dubbing
Direction” and press [1].
1 Press [3, 4] to select “Source” and press [ENTER].
2 Press [3, 4] to select the drive and press [ENTER].
3 Press [3, 4] to select “Destination” and press
[ENTER].
≥Do not select the same drive as the transfer (dubbing)
source.
≥Transferring (dubbing) by converting to MPEG4 format is
only possible when the source is set as the HDD or DVDRAM and the destination as the SD card.
≥Mobile hard disk cannot be selected as the destination.
4 Press [3, 4] to select the drive and press [ENTER].
5 Press [2] to confirm.
C
One Touch Transfer (dubbing)
Yes
0
≥If you are not going to change the registered list press [4]
several times (➡ page 54, step 7).
CREATE
DUBBING CHAPTER AUDIO
DUBBING
SD CARD
RETURN
RETURN
F
HDD
High Speed
3 Create List
SUB MENU
SUB MENU
2
Destination
2 Dubbing Mode
ENTER
TIMER
Source
HDD > SD CARD
TOP MENU
1
Select the dubbing direction.
FUNCTIONS
4
Transfer (Dubbing)
:, 9
1
Press [3, 4] to select “Dubbing
Mode” and press [1].
∫To transfer (dub) the MPEG4 title
1 Press [3, 4] to select “Format” and press [ENTER].
2 Press [3, 4] to select “MPEG4” and press [ENTER].
“Recording Mode” is automatically set to “High Speed”.
3 Press [2] to confirm.
∫ To transfer (dub) video titles by converting
to MPEG4 format/To transfer (dub) MPEG2
titles
1 Press [3, 4] to select “Format” and press [ENTER].
2 Press [3, 4] to select “VIDEO” and press [ENTER].
When transferring (dubbing) the MPEG2 title, “Recording
Mode” is automatically set to “High Speed”.
3 Press [3, 4] to select “Recording Mode” and press
[ENTER].
4 Press [3, 4] to select the mode and press [ENTER].
5 Press [2] to confirm.
(Continued on the next page)
RQT7756
53
53
7756g.book
54 ページ
2004年7月28日 水曜日 午後6時26分
Transferring (dubbing) MPEG4/MPEG2§ titles
§
MPEG2 data taken on a SD Video Camera
Refer to the control reference on page 53.
After performing steps 1–4 (➡ page 53, right column)
5
Press [3, 4] to select “Create List”
and press [1].
DUBBING
Create dubbing list.
Cancel All
1 Dubbing Direction
HDD > SD CARD
Size:
0MB
Destination Capacity: 4343MB
Name of item
No. Size
New item
2 Dubbing Mode
MPEG4
High Speed
3 Create List
Previous
Start Dubbing
Next
Set
When transferring
(dubbing) by converting
to MPEG4 format, the
total data size will
change according to the
recording mode.
01/01
ENTER
RETURN
Transfer (Dubbing)
Select the transferring (dubbing) items and register on the list.
1 Press [3, 4] to select “New item” and press [ENTER].
2 Press [3, 4, 2, 1] to select the titles (or play lists)
and press [ENTER].
≥To select a multiple number of items together, press [;]
to add the check mark and press [ENTER] (➡right,
Multiple editing).
≥To show other pages (➡ right)
≥To edit the transferring (dubbing) list (➡right)
≥(Mobile hard disk only) To select the titles in another
folder (➡ page 35)
≥To view the contents of MPEG2 titles. [SD] [PC] (Mobile
hard disk only)
MPEG2 titles are shown as still pictures on the Create list
screen. Follow the steps below to display the chapters.
1 Press [3, 4, 2, 1] to select the title and press
[SUB MENU].
2 Press [3, 4] to select “Chapter View” and press
[ENTER].
Chapter View screen is displayed.
When transferring (dubbing) by converting to MPEG4
format, the displayed “Size” value is calculated using video
segments that contain the most information. You may still be
able to transfer (dub) even if the “Size” has exceeded
“Destination Capacity” when the video images contain little
movement.
6
Press [3, 4] to select “Set” and
press [ENTER].
The transferring (dubbing) list is registered.
7
Press [3, 4] to select “Start
Dubbing” and press [ENTER].
When transferring (dubbing) the MPEG2 title to 5k high
speed recording compatible DVD-RAM
1 Press [3] to select “DVD drive speed”.
2 Press [2, 1] to select “Maximum” or “Normal (Silent)” and
press [4].
≥Selecting “Normal (Silent)” means the noise generated by
this unit is less than “Maximum”, however the time required
for transferring (dubbing) will increase (approximately)
double.
Press [2, 1] to select “Yes” and press [ENTER] to start
transferring (dubbing).
RQT7756
54
54
∫ To edit the transferring (dubbing) list
Select the item in step 5 (➡left)
When transferring (dubbing) MPEG4 titles in “High
Speed” mode, “Move” is not displayed.
1 Press [SUB MENU].
2 Press [3, 4] to select the operation and press
[ENTER].
§ Multiple editing is possible (➡ below).
Erase All
Add
Erase§
Move
To cancel all registered transferring (dubbing) setting and lists
In step 3 (➡ page 53, right column)
1 Press [3, 4] to select “Cancel All” and press [ENTER].
2 Press [2, 1] to select “Yes” and press [ENTER].
≥The settings and lists may be cancelled in the following situations.
–When a title etc. has been recorded or erased at the transfer
(dubbing) source
–When steps have been taken, for instance, to turn off the unit,
open the tray, remove the card, change the transfer (dubbing)
direction, etc.
To show other pages
Press [3, 4, 2, 1] to select “Previous” or “Next” and press
[ENTER].
≥You can also press [:, 9] to show other pages.
Multiple editing
Select with [3, 4, 2, 1] and press [;]. (Repeat.)
Press [ENTER] to register to the list.
≥A check mark appears. Press [;] again to cancel.
≥When you switch between the “Video” and “PLAY LIST” tab, the
check mark is cancelled.
To stop transferring (dubbing)
Press and hold [RETURN] for 3 seconds.
To return to the previous screen
Press [RETURN].
[Note]
≥When a name has not been input for the transfer (dubbing) source
title, it is possible that this title’s number will not be the same on the
transfer (dubbing) destination. It is recommended that you input a
title name before transferring (dubbing) (➡ page 44).
≥The sequence in which the MPEG4 titles are registered on the
transfer (dubbing) list may not be reflected at the transfer (dubbing)
destination.
7756g.book
55 ページ
2004年7月28日 水曜日 午後6時26分
Operating the DVD recorder by computer
Refer to the control reference on page 56.
3
Select the operation.
The functions below are available if you connect your computer to
the DVD recorder directly or through the Home Network.
≥Entering, and editing, the names of video titles recorded on the
DVD recorder’s HDD or DVD-RAM. (“Edit Video Title-Name”
function)
≥Viewing MPEG4 titles and still pictures (JPEG files only) recorded
on the DVD recorder’s HDD or DVD-RAM. (“Play MPEG4”, “View
Pictures” functions)
Preparation
≥Connect to the Home Network or a computer (➡page 9, 10)
≥Set “This unit’s network setting” (➡page 15)
≥Insert a disc if necessary.
≥Turn off the DVD recorder.
On the computer
1
Start Internet Explorer. Input the DVD
recorder’s IP address in the address
bar and press the “Enter” key.
Wait about 1 minute until the connection with the DVD
recorder has been established, then click [OK].
≥“AV NETWORK” is displayed on the DVD recorder’s display.
Please follow the on-screen instructions for each operation.
≥Refer to “Help” in the DIGA MANAGER for more information.
≥The DVD recorder may turn off, if more than 30 minutes
pass without any operations.
≥When timer recording begins on the DVD recorder,
operations from the computer are interrupted.
When you playback MPEG4 titles
[On\the\DVD\recorder]
To confirm the DVD recorder’s IP address
1 While stopped
Press [FUNCTIONS].
TCP / IP Settings
2 Press [3, 4, 2, 1] to select
Automatic (DHCP)
“SETUP” and press [ENTER].
Manual
3 Press [3, 4] to select “Network”
IP Address : 192. 168. 0. 14
Subnet Mask : 255. 255. 255. 0
and press [1].
Default Gateway : 192. 168. 0. 1
DNS Server : 192. 168. 0. 1
4 Press [3, 4] to select “TCP/IP
Settings” and press [ENTER].
≥If “The page cannot be displayed” is shown, start Internet
Explorer and click [Tools] ➜ [Internet Options...] ➜
[Connections] ➜ [LAN settings...]. Uncheck “Use a proxy
server for your LAN” and click [OK].
2
Enter the network password and click
[OK].
When upgrading to Windows Media Player Ver 9.0, various
errata need to be corrected. Visit the homepage below for
more information.
Should the computer be able to simultaneously connect to
both the DVD recorder and the Internet, an audio decoder will
automatically be installed should this be necessary.
Network
The log-in screen appears.
≥If the installation does not start
1 Start Windows Media Player (Click [start] ➜ [All
Programs] ➜ [Accessories] ➜ [Entertainment] ➜
[Windows Media Player]).
2 Click [Tools] ➜ [Options...] ➜ [Player] tab.
3 Check “Download codec automatically”.
4 Click [OK].
≥If the computer is unable to simultaneously connect to the
DVD recorder and the Internet
Connect your computer to the Internet and download the
sample MPEG4 file from the address below. When you
playback this file, an audio decoder will be automatically
installed in your computer should this be necessary. (This
should be done before trying to operate the unit from the
computer.)
http://panasonic.jp/support/dvd/e500h/use_info/env_e.html
To exit the operation
Click [Log Out].
≥The DVD recorder will switch off if left for 30 minutes.
The first time that you log in the password is unset so needs to
be set here.
Enter this password when subsequently logging in.
To exit the Network function and operate the DVD recorder
directly
[On\the\DVD\recorder]
1 Press [RETURN].
A message appears on the television connected to the DVD
recorder.
2 Press [2, 1] to select “Yes” and press [ENTER].
∫ Playback of MPEG4 titles recorded using the XF
mode
In the DIGA MANAGER (➡above) click [Help] and select “Important
Information”. Click the link in “Before You Start” concerning playback
of MPEG4 titles recorded using the XF mode. Download and install
the specifically designed decoder. You can also obtain the decoder
from the above-mentioned address.
RQT7756
55
55
7756g.book
56 ページ
2004年7月28日 水曜日 午後6時26分
Playing back video titles recorded on another DVD recorder’s HDD
HDD
Numbered
buttons
4
SD/PC
DVD
1
2
3
4
5
6
CH
Press [3, 4] to select a title and
press [ENTER].
Server Name:Living room
7
8
9
0
-/--
CANCEL
:, 9
Network List
MANUAL SKIP
SKIP
STOP
SLOW/SEARCH
PAUSE
PLAY/x1.3
FUNCTIONS
FUNCTIONS
TOP MENU
3,4,2,1
ENTER
ENTER
SUB MENU
RETURN
RETURN
SUB MENU
These steps are for when there is more than one network
compatible Panasonic DVD recorder.
You can playback video titles recorded on the HDD of other network
compatible Panasonic DVD recorders without any need for
transferring (dubbing). (This is not possible with the play list.)
For example, a video title recorded on the unit in the living room
(server) can be played back on the unit in the bedroom (client).
≥This function will work while the client unit is recording.
≥This function will work while timer recording is in operation on the
server unit.
[Note]
Network
≥This function will not work while transferring (dubbing) is in
operation on the client unit.
Server
Router/Hub
Client
Preparation
≥Connect to the Home Network or another network compatible
Panasonic DVD recorder (➡ page 9, 10).
≥Set “This unit’s network setting” (➡ page 15).
≥Set “When more than one network compatible Panasonic DVD
recorder is on the Network” (➡ page 18).
≥Turn off the server unit.
≥Change the “TV System” setting for both server and client to match
the title to be played (➡page 65).
Model No.
DMR-E500H
01/01
Maker
Panasonic
Next
Plays back titles recorded on the server unit in the network.
ENTER
RETURN
SUB MENU
Please select the server.
“AV NETWORK” appears on the server unit’s display.
To show other pages
Press [3, 4, 2, 1] to select “Previous” or “Next” and press
[ENTER].
≥You can also press [:, 9] to show other pages.
56
56
t
2
Previous
RQT7756
TITLE VIEW screen icons
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select
“NETWORK LIST” and press [ENTER].
NETWORK
Next
≥On the server
1 Press [RETURN].
A message appears on the television connected to the server.
2 Press [2, 1] to select “Yes” and press [ENTER].
While stopped
Network List
001/001
SUB MENU
To exit the network function and operate the units directly
≥On the client
Press [RETURN].
The server will switch off if left for 30 minutes.
1
Press [3, 4] to select the server and
press [ENTER].
Day Time Name of title
FRI 13:30
SAT 12:15
FRI 20:00
FRI 22:05
SAT 16:10
FRI 9:25
FRI 13:30
SAT 21:00
Play starts after a few seconds.
≥The title menu screen will return
–After playback has been completed or stopped. (Playback
can only take place one title at a time.)
–When reaching the start or finish point of the title during a
search.
≥You cannot skip titles.
≥Quick view, slow-motion and frame-by-frame will not work.
≥Audio is not output during search.
(PAL)
“AV NETWORK” appears on the client unit’s display.
Date
26/ 9
27/ 9
3/10
3/10
4/10
10/10
10/10
11/10
≥To show other pages (➡ left)
≥To return to the Network List screen
Press [3, 4, 2, 1] to select “Network List” and press
[ENTER].
(NTSC)
No. Server Name
01 DVD Recorder
Name
ARD
ZDF
AV2
ARD
AV2
ZDF
ARD
ARD
You can also select the titles with the numbered buttons.
e.g.,
5:
[0] ➡ [0] ➡ [5]
15:
[0] ➡ [1] ➡ [5]
115:
[1] ➡ [1] ➡ [5]
On the client
3
No.
001
002
003
004
005
006
007
008
---
Previous
ENTER
RETURN
DIRECT NAVIGATOR
TITLE VIEW
NETWORK
G-Code
Title cannot be played.
≥Title currently being recorded on the server.
≥Server’s “TV System” setting does not match the
title. Change the “TV System” setting for both
server and client to match the title (➡page 65).
Playback not possible as client’s “TV System”
setting does not match the title.
≥Change the setting of the client’s “TV System”
(➡page 65).
∫ Useful functions on the Network List screen
Select the server in step 3 (➡ left)
1 Press [SUB MENU].
Properties
2 Press [3, 4] to select the operation and press
Refresh
[ENTER].
≥Properties
Information about the server unit, such as model number, will be
displayed.
≥Refresh
The Network List screen will be updated.
∫ Useful functions on the TITLE VIEW screen
In step 4 (➡above)
1 Press [SUB MENU].
2 Press [3, 4] to select the operation and press
[ENTER].
≥Properties
The date, time and channel of the recorded titles will
be displayed.
≥Sort
Press [3, 4] to select the item and press [ENTER].
The video titles will be sorted.
≥Refresh
The page currently displayed will be updated.
Properties
Sort
Refresh
7756g.book
57 ページ
2004年7月28日 水曜日 午後6時26分
FUNCTIONS window
By using the FUNCTIONS window you may access the main
functions quickly and easily.
DVD
TV
1
VOLUME
CH
INPUT SELECT
AV
HDD
1
2
Press [FUNCTIONS].
SD/PC
DVD
FUNCTIONS
3
HDD
CH
4
5
Playback
6
8
9
0
-/--
Dubbing
Edit
CANCEL
MANUAL SKIP
SKIP
DVD SD/PC
Disc Remaining 68:00 SP
DIRECT NAVIGATOR
Recording TIMER RECORDING
G-Code
7
While stopped
SLOW/SEARCH
DUBBING
FLEXIBLE REC
PLAY LIST
DV AUTO REC
Connect
NETWORK LIST
Setting
SETUP
DISC MANAGEMENT
ENTER
STOP
PAUSE
PLAY/x1.3
DIRECT NAVIGATOR
RETURN
Functions displayed depend on the selected drive or type of
disc.
FUNCTIONS
FUNCTIONS
3,4,2,1
ENTER
TOP MENU
2
ENTER
SUB MENU
RETURN
PROG/CHECK DISPLAY
TIMER
STATUS TIME SLIP
ERASE REC MODE
F
Press [3, 4, 2, 1] to select an item
and press [ENTER].
To exit the FUNCTIONS window
Press [FUNCTIONS].
REC
CREATE
DUBBING CHAPTER AUDIO
A
B
C
Child Lock
Convenient functions
The Child Lock deactivates all buttons on the unit and remote
control. Use it to prevent other people from operating the unit.
DVD
TV
Press and hold [ENTER]
and [RETURN]
simultaneously until “X
HOLD” appears on the unit’s display.
VOLUME
CH
INPUT SELECT
AV
HDD
SD/PC
DVD
1
2
3
4
5
6
7
8
9
CH
If you press a button while the Child Lock is on, “X HOLD” appears
on the unit’s display and operation is impossible.
G-Code
CANCEL
MANUAL SKIP
0
SKIP
STOP
-/-SLOW/SEARCH
PAUSE
DIRECT NAVIGATOR
To cancel the Child Lock
Press and hold [ENTER] and [RETURN] simultaneously until “X
HOLD” disappears.
PLAY/x1.3
FUNCTIONS
TOP MENU
ENTER
ENTER
SUB MENU
RETURN
RETURN
RQT7756
57
57
7756g.book
58 ページ
2004年7月28日 水曜日 午後6時26分
HDD, disc and card management
4
Press [2, 1] to select “Yes” and
press [ENTER].
DVD
TV
DISC
MANAGEMENT Title No. 11
VOLUME
CH
INPUT SELECT
AV
HDD
DVD-RAM
1
2
HDD, DVD,
SD/PC
SD/PC
DVD
Used
3
Disc Name
Disc Protection
5
6
7
8
9
MANUAL SKIP
The lock symbol appears closed when the disc is writeprotected.
-/-SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
DIRECT NAVIGATOR
Providing a disc with a name
FUNCTIONS
FUNCTIONS
ENTER
SUB MENU
RETURN
1
RETURN
PROG/CHECK DISPLAY
TIMER
F
[RAM] [DVD-R]
Preparation
≥Press [DVD] to select the DVD drive.
≥Release protection (➡left).
TOP MENU
3,4,2,1
ENTER
While stopped
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “DISC
MANAGEMENT” and press [ENTER].
Press [3, 4] to select “Disc Name”
and press [ENTER].
STATUS TIME SLIP
ERASE REC MODE
2
REC
CREATE
DUBBING CHAPTER AUDIO
A
B
Format Disc
ENTER
RETURN
CANCEL
0
Erase all titles (MPEG4)
SELECT
G-Code
SKIP
On
Erase all titles
CH
4
Remain 5:38 (EP)
0 : 22
C
3
➡page 44, Entering text
≥The disc name is displayed in the FUNCTIONS window.
≥With a finalized DVD-R, the name is displayed on the Top
Menu.
Setting the protection
FUNCTIONS
HDD
∫ Setting the protection for the whole disc or card
Playback
Convenient functions
≥For a DVD-RAM with a cartridge or for a card
[RAM]
With the write-protect tab in the protect position,
play automatically starts when inserted in the unit.
LOCK
Title
Select “Set up Protection” in step 4 on page 38.
1
2
Still picture
Select “Set up Protection” in step 4 on page 42.
Folder of still pictures
Select “Set up Protection” in step 3 on page 42, “To edit still
picture folders”.
MPEG4 title
Select “Set up Protection” in step 4 on page 43.
3
4
Disc Protection
5
[RAM]
Preparation
Press [DVD] to select the DVD drive.
3
While stopped
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “DISC
MANAGEMENT” and press [ENTER].
Press [3, 4] to select “Disc
Protection” and press [ENTER].
To exit the screen
Press [RETURN] several times.
58
01/02
02
Chapter 2
While stopped
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “DISC
MANAGEMENT” or “CARD
MANAGEMENT” and press [ENTER].
Press [3, 4] to select “Erase all
titles” or “Erase all titles (MPEG4)”
and press [ENTER].
Press [2, 1] to select “Yes” and
press [ENTER].
Press [2, 1] to select “Start” and
press [ENTER].
A message appears when finished.
6
Press [ENTER].
[Note]
≥Once erased, the recorded contents are lost and cannot be
restored. Make certain before proceeding.
≥Erasing all video titles will result in all play lists also being erased.
≥Still picture data (JPEG, TIFF) or computer data cannot be erased.
≥With MPEG4, files that are not compatible with this unit may be
erased.
≥Erase does not work if one or more titles are protected.
RQT7756
58
01
Chapter 1
Preparation
≥Press [HDD], [DVD] or [SD/PC] to select the drive.
≥Release protection (➡left).
∫ Other protection settings
2
My favorite
DIRECT NAVIGATOR
[HDD] [RAM] [SD]
e.g. SD Memory Card
≥For a DVD-RAM without a cartridge
(➡ below, Disc Protection)
1
Documentary
Disc Protection Of
Cartridge Protectio
Erasing all titles, play lists and MPEG4
titles—Erase all titles
PROTECT
[SD] [PC]
Switch the write-protect switch to the
“LOCK” position.
DVD SD/PC
DVD-RAM
To return to the previous screen
Press [RETURN].
59 ページ
2004年7月28日 水曜日 午後6時26分
Erasing all the contents of a disc or
card—Format
3
Press [3, 4, 2, 1] to select the background and press
[ENTER].
You can select the background
TOP MENU LIST
that will be displayed as the
DVD-Video top menu after
finalizing.
Display after finalizing
≥You can change thumbnails
Thumbnail
displayed in the top menu.
(Still picture)
(➡page 39, Change
Title Name
Thumbnail)
[HDD] [RAM] [SD] [PC]
Preparation
≥Press [HDD], [DVD] or [SD/PC] to select the drive.
≥Release protection (➡page 58).
1
While stopped
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “DISC
MANAGEMENT” or “CARD
MANAGEMENT” and press [ENTER].
Press [3, 4] to select “Format” or
“Format Disc” and press [ENTER].
Press [2, 1] to select “Yes” and
press [ENTER].
Press [2, 1] to select “Start” and
press [ENTER].
2
3
4
5
4
Enabling DVD-R to be played on other
equipment—Finalize
[DVD-R]
Preparation
Press [DVD] to select the DVD drive.
1
While stopped
2
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “DISC
MANAGEMENT” and press [ENTER].
3
4
5
6
8
9
Press [3, 4] to select “Auto-Play
Select” and press [ENTER].
Press [3, 4] to select “Top Menu” or “Title 1” and press
[ENTER].
You can select whether to show the top menu after finalizing.
Top Menu: The top menu appears first.
Title 1:
The disc content is played without displaying the
top menu.
5
Press [3, 4] to select “Finalize” and
press [ENTER].
1 Press [2, 1] to select “Yes” and press [ENTER].
2 Press [2, 1] to select “Start” and press [ENTER].
A message appears when finalizing is finished.
3 Press [ENTER].
[Note]
≥To stop formatting [RAM]
Press [RETURN].
(You can cancel formatting if it takes more than 2 minutes. The disc
must be reformatted if you do this.)
≥Formatting cannot be performed on DVD-R or CD-R/RW.
≥When a disc or card has been formatted using this unit, it may not
be possible to use it on any other equipment.
≥You cannot format a Microdrive or mobile hard disk on this unit.
2
7
Press [ENTER].
≥Formatting erases all contents (including computer data),
and it cannot be restored. Check carefully before
proceeding. The contents are erased when you format it even if
you have set protection.
≥Do not disconnect the AC mains lead while formatting. This
can render the disc unusable.
Formatting normally takes a few minutes, however it may take up
to a maximum of 70 minutes ([RAM]).
1
01
A message appears when formatting is finished.
6
Press [3, 4] to select “Top Menu”
and press [ENTER].
[Note]
≥When finalizing a high-speed recording compatible disc, it may
take longer than displayed on the confirmation screen
(approximately four times).
After finalizing
≥The disc becomes play-only and you can no longer record
or edit.
≥When transferring (dubbing) in high speed, chapters will be
replicated.
≥Titles are divided into about 5-minute§ chapters, if
–the titles were directly recorded to DVD-R.
–the titles were transferred (dubbed) using any mode other than
the high speed mode.
§ This time varies greatly depending on the condition and mode
of recording.
≥There is a pause of several seconds between titles and
chapters during play.
Convenient functions
7756g.book
Do not disconnect the AC mains lead while the message
“Finalizing the disc” is on the television. This will render the
disc unusable.
Finalizing takes up to 15 minutes.
≥You cannot finalize DVD-R recorded on other manufacturer’s
equipment.
≥If you finalize a recorded DVD-R on Panasonic equipment other
than this unit, the background selected as “Top Menu” may not
display.
Disc display on this unit
Before
finalizing
After
finalizing
DVD-R
DVD-V
Recording/Editing/Entering name
Y
t
Play on other players
t
Y
DVD-R finalized on this unit may not be playable on other players
due to the condition of the recording.
To exit the screen
Press [RETURN] several times.
To return to the previous screen
Press [RETURN].
RQT7756
59
59
7756g.book
60 ページ
2004年7月28日 水曜日 午後6時26分
Changing the unit’s settings
Common procedures
∫
< OPEN/CLOSE
OPEN/CLOSE
EJECT
SD CARD
PC CARD
TIME SLIP
HDD
HDD
DVD
SD
PC
DRIVE SELECT
1
While stopped
2
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “SETUP”
and press [ENTER].
/x1.3
DVD
DVD
Tabs
TV
VOLUME
CH
INPUT SELECT
SETUP
AV
HDD
Numbered
buttons
Tuning
Others
Disc
Sound
Display
Connection
Network
SD/PC
DVD
1
2
3
4
5
6
CH
G-Code
7
8
9
0
-/--
CANCEL
3
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
DIRECT NAVIGATOR
4
FUNCTIONS
FUNCTIONS
TOP MENU
3,4,2,1
ENTER
5
ENTER
SUB MENU
RETURN
RETURN
PROG/CHECK DISPLAY
F
A
B
STATUS TIME SLIP
ERASE REC MODE
Remote Control
Clock
Power Save
Shipping Condition
Default Settings
TAB
DVD 1
Off
SELECT
RETURN
B
Press [3, 4] to select the tab and
press [1].
Press [3, 4] to select the menu and
press [ENTER].
Press [3, 4] to select the option and
press [ENTER].
To exit the screen
Press [RETURN] several times.
REC
CREATE
DUBBING CHAPTER AUDIO
A
Options
MANUAL SKIP
SKIP
TIMER
Menus
C
C
To return to the previous screen
Press [RETURN].
Convenient functions
Summary of settings
The settings remain intact even if you switch the unit to standby.
Tabs
Tuning
Menus
Options (Underlined items are the factory presets.)
Manual (➡page 64)
Auto-Setup Restart (➡ page 65)
Others
Remote Control (➡ page 13)
≥DVD 1
≥DVD 2
≥DVD 3
Clock (➡page 65)
RQT7756
60
60
Power Save
≥Refer to the following when “Power Save” is set to “On”.
–“FL Display” is automatically set to “Automatic” (➡page 62).
–This function does not work in the timer recording standby
mode.
≥On: Power consumption is minimized when the unit is turned
to standby (➡page 66).
≥Off
Shipping Condition
All the settings except for the ratings level, ratings password and
time settings return to the factory preset. The timer recording
programmes are also cancelled.
≥Yes
≥No
Default Settings
All the settings other than the programmed channels, time
settings, disc language settings, ratings level, ratings password
and remote control code, unit name and registered client unit’s
information return to the factory presets
≥Yes
≥No
61 ページ
2004年7月28日 水曜日 午後6時26分
Tabs
Disc
Menus
Options (Underlined items are the factory presets.)
Preferred Language
Choose the language for audio, subtitle and disc menus. [DVD-V]
≥Press [ENTER] to show the following settings.
≥Some discs start in a certain language despite any changes you make here.
≥Enter a code (➡ page 63) with the numbered buttons when you select “Other ¢¢¢¢”.
When the selected language is not available on the disc, the default language is played. There are discs where you can only
switch the language from the menu screen (➡ page 28).
Soundtrack
≥German ≥Italian
≥Spanish
≥English ≥French
≥Original: The original language of each disc will be selected.
≥Other ¢¢¢¢
Subtitle
≥Automatic: If the language selected for “Soundtrack” is not
available, subtitles of that language will
automatically appear if available on that disc.
≥English ≥French
≥German ≥Italian
≥Spanish
≥Other ¢¢¢¢
Menus
≥English ≥French
≥Other ¢¢¢¢
Ratings
Set a ratings level to limit DVD-Video play.
Follow the on-screen instructions. Enter a 4-digit password with
the numbered buttons when the password screen is shown.
≥Do not forget your password.
≥German
≥Italian
≥Spanish
≥8 No Limit: All DVD-Video can be played.
≥1 to 7:
Prohibits play of DVD-Video with corresponding
ratings recorded on them.
≥0 Lock All: Prohibits play of all DVD-Video.
≥Unlock Recorder
≥Change Level
≥Change Password
≥Temporary Unlock
Recording time in EP mode
Select the maximum number of hours for recording in EP mode
(➡page 23, Recording modes and approximate recording
times).
≥EP (6 Hour): You can record for 6 hours on an unused 4.7 GB
disc.
≥EP (8 Hour): You can record for 8 hours on an unused 4.7 GB
disc.
DVD-Audio Video mode Playback
Select “On” to play DVD-Video content on some DVD-Audio.
≥On: The setting returns to “Off” when you change the disc or
turn the unit off.
≥Off
DVD-R Rec for High Speed mode
When high speed transferring (dubbing) a title to DVD-R, it is
necessary to turn this setting “On” before recording to the HDD,
however the screen size etc. is restricted (➡ right). We
recommend turning the setting “Off” if high speed transfer
(dubbing) to DVD-R is not necessary when recording a
programme.
≥On: Makes high speed mode transferring (dubbing) to DVD-R
possible. Press [2, 1] to select “Yes” and press
[ENTER]. [“
” appears in the transferring (dubbing)
list (➡page 47).]
–Pictures are saved at 4:3.
–“Hybrid VBR Resolution” (➡ below) setting is “Fixed”.
–Select the type of audio in advance from “Bilingual
Audio Selection” (➡page 62).
≥Off
Convenient functions
7756g.book
MPEG4 Rec
Press [ENTER] to show the following settings.
MPEG4 Rec Mode
If you set this mode to “XF”, “SF”, “F”, “N” or “E”, you can
record MPEG4 motion pictures at the selected mode while
recording the programme to HDD. (➡ page 52,
Approximate recording time when recording a MPEG4 title
on Panasonic SD Memory Card)
≥XF (Extra Fine) ≥SF (Super Fine) ≥F (Fine)
≥N (Normal)
≥E (Economy)
≥Off (Recording will not take place)
–When recording bilingual broadcast, select the type of audio
in advance from “Bilingual Audio Selection”. (➡ page 62)
–You cannot transfer (dub) titles to a MultiMediaCard if you
select “XF” or “SF”.
–You cannot select when Auto Renewal Recording is set.
(➡ page 26)
SD CARD capacity
Set the capacity of the card you are using. MPEG4 data
recorded to the HDD will be divided to match the card’s
capacity setting. It can then be transferred (dubbed) to the
card.
≥8 MB
≥256 MB
≥16 MB
≥512 MB
≥32 MB
≥1 GB
≥64 MB
≥2 GB
≥128 MB
Comb Filter
Select the picture sharpness when recording.
The setting is fixed with “On” if you set “TV System” to “NTSC”
(➡page 65).
≥On: Pictures become clear and vivid. Normally, use this
setting.
≥Off: Select it when recording noisy pictures.
Hybrid VBR Resolution (➡ page 68, VBR)
≥Automatic: The resolution is automated to provide efficient
recording with less block noise. [HDD] [RAM]
The resolution is fixed to ensure that there is no
≥Fixed:
loss of source picture resolution while recording.
Still Mode
Select the type of picture shown when you pause play
(➡page 68, Frames and fields).
≥Automatic
≥Field: Select if jittering occurs when “Automatic” is selected.
≥Frame: Select if small text or fine patterns cannot be seen
clearly when “Automatic” is selected.
Seamless Play
Selects the play mode for play list chapter segments.
≥On: The chapters in play lists are played seamlessly. This
does not work when there are several audio types
included on the play list and when using Quick View.
Additionally, the positioning of chapter segments may
change slightly.
≥Off: The points where chapters in play lists change are played
accurately, but the picture may freeze for a moment.
AV-in NR
Reduces video tape noise while transferring (dubbing).
≥On: Noise reduction works for input video.
≥Off: Noise reduction is off. Select when you want to record
input as is.
RQT7756
61
61
7756g.book
62 ページ
2004年7月28日 水曜日 午後6時26分
Changing the unit’s settings
Tabs
Sound
Menus
Options (Underlined items are the factory presets.)
PLAY k1.3 & Audio during Search
You may hear sound regardless of this setting with some discs.
≥On: Audio is heard during first level search forward.
≥Off: Audio is not heard during search. Quick View (➡page 29)
does not work.
Dynamic Range Compression [DVD-V] (Dolby Digital only)
Change the dynamic range for late night viewing.
≥On
≥Off
Bilingual Audio Selection
Select whether to record the main or secondary audio type
when:
–Recording or transferring (dubbing) to a DVD-R.
–Recording or transferring (dubbing) sound in LPCM. (➡ below,
“Audio Mode for XP Recording”)
–Recording or transferring (dubbing) in MPEG4.
≥M 1
≥M 2
In the following cases, you cannot select the audio on this unit.
Select on the other equipment.
–when recording from an external source onto DVD-R.
–when simultaneously recording MPEG4 from an external
source.
Digital Audio Output
Change the settings when you have connected equipment through this unit’s DIGITAL AUDIO OUT terminal (➡ page 8).
≥Press [ENTER] to show the following settings.
PCM Down Conversion
Select how to output audio with a sampling frequency of
96 kHz or 88.2 kHz.
≥On: Signals are converted to 48 kHz or 44.1 kHz. (Choose
when the connected equipment cannot process signals
with a sampling frequency of 96 kHz or 88.2 kHz.)
≥Off: Signals are output as 96 kHz or 88.2 kHz. (Choose when
the connected equipment can process signals with a
sampling frequency of 96 kHz or 88.2 kHz.)
Signals are converted to 48 kHz or 44.1 kHz despite the above
settings if the signals have a sampling frequency of over 96 kHz
or 88.2 kHz, or the disc has copy protection.
Dolby Digital Select how to output the signal, to output
“Bitstream” so the connected equipment
decodes the signal, or to decode on this
unit and output the signal as “PCM” (2
channel).
DTS
≥Bitstream: When connecting to equipment displaying the
Dolby Digital logo.
≥PCM: When connecting to equipment not displaying the Dolby
Digital logo.
[Note]
Convenient functions
MPEG
Not making the proper settings may result
in noise, possibly damage your hearing
and speakers, and digital recording may
not work properly.
RQT7756
62
62
≥Bitstream: When connected to equipment with a built-in
MPEG decoder.
≥PCM: When connected to equipment without a built-in MPEG
decoder.
Audio Mode for XP Recording
Choose the audio type when recording or transferring (dubbing)
with XP mode.
≥Dolby Digital (➡page 67)
≥LPCM (➡ page 68)
–The picture quality of LPCM recordings may be lower than
that of normal XP mode recordings.
–The audio recording becomes Dolby Digital even if you
selected LPCM when using a recording mode other than XP.
–When recording bilingual broadcast, select the type of audio
in advance from “Bilingual Audio Selection” (➡ above).
Audio Mode for DV Input
You can select the kind of audio when recording from the unit’s
DV input terminal (➡page 49, 50).
≥Stereo 1: Records audio (L1, R1).
≥Stereo 2: Records added audio such as narration (L2, R2)
subsequent to original recording.
≥Mix:
Records both Stereo 1 and Stereo 2.
When recording bilingual broadcast to a DVD-R or recording in
LPCM audio, select the type of audio in advance from “Bilingual
Audio Selection” (➡above).
Speaker (Analog connection only)
Choose the settings to suit your audio system and listening
environment.
≥Multi-Channel: When you connect with AUDIO OUT 5.1ch
terminals (➡page 14).
When you connect with AUDIO OUT terminals.
≥2-Channel:
Attenuator
Select “On” if sound is distorted.
Display
≥Bitstream: When connecting to equipment displaying the DTS
logo.
≥PCM: When connecting to equipment not displaying the DTS
logo.
≥On
≥Off
On-Screen Messages
Choose whether to show status messages automatically.
≥Automatic
≥Off
Grey Background
Select “Off” if you do not want to have the unit show the grey
background when reception is weak.
≥On
≥Off
FL Display
Changes the brightness of the unit’s display.
This setting is fixed with “Automatic” if you set “Power Save”
(➡ page 60) to “On”.
≥Dim
≥Bright
≥Automatic: The display turns dark during play, and reappears
momentarily if a button is pressed. When the unit
is turned off all displays disappear. While using this
mode the standby power consumption can be
reduced.
63 ページ
2004年7月28日 水曜日 午後6時26分
Tabs
Menus
Options (Underlined items are the factory presets.)
≥16:9
≥4:3
Progressive (➡ page 12)
≥On
≥Off
TV System (➡page 65)
≥PAL
≥NTSC
AV1 Output
Selects the output from the AV1 terminal.
Select “RGB (without component)” for RGB output.
Select “Video (with component)” or “S-Video (with component)”
for component output.
≥Video (with component)
≥S-Video (with component)
≥RGB (without component)
AV2 Input
Set to “RGB (Not NTSC)” when receiving or recording RGB
output video from external equipment.
≥Video
≥S-Video
≥RGB (Not NTSC)
Network Function
Select whether to use the network function.
≥Enable
≥Disable
TCP/IP Settings
Set this unit’s IP address and other settings.
There is usually no need to do anything manually.
≥Automatic (DHCP)
≥Manual: When automatic setting fails press [ENTER] to set
the following settings manually.
Connection TV Aspect (➡ page 12)
Network
≥IP Address
≥Default Gateway
≥Letterbox
≥Subnet Mask
≥DNS Server
Unit Name Setting
You can give a name to each unit to distinguish them on the
network.
Factory preset: “DVD Recorder”
Press [ENTER] to input or change the name (➡ page 44).
Internet Connection
This setting is for features that may be added later. Select, and
keep at, “Off”.
≥On
≥Off
Registration of Client Unit (➡ page 18)
Select a DVD recorder from the list of connected DVD recorders
and register as a client. Video titles recorded on this unit can be
played back on the client unit.
Press [3, 4] to select and press [ENTER] to register.
≥Use “Add manually” if connected DVD recorders are not
shown on the list.
Language code list
Abkhazian:
6566
Afar:
6565
Afrikaans:
6570
Albanian:
8381
Ameharic:
6577
Arabic:
6582
Armenian:
7289
Assamese:
6583
Aymara:
6588
Azerbaijani:
6590
Bashkir:
6665
Basque:
6985
Bengali; Bangla:
6678
Bhutani:
6890
Bihari:
6672
Breton:
6682
Bulgarian:
6671
Burmese:
7789
Byelorussian: 6669
Cambodian:
7577
Convenient functions
7756g.book
Input the code with the numbered buttons.
Catalan:
Chinese:
Corsican:
Croatian:
Czech:
Danish:
Dutch:
English:
Esperanto:
Estonian:
Faroese:
Fiji:
Finnish:
French:
Frisian:
Galician:
Georgian:
German:
Greek:
Greenlandic:
Guarani:
6765
9072
6779
7282
6783
6865
7876
6978
6979
6984
7079
7074
7073
7082
7089
7176
7565
6869
6976
7576
7178
Gujarati:
Hausa:
Hebrew:
Hindi:
Hungarian:
Icelandic:
Indonesian:
Interlingua:
Irish:
Italian:
Japanese:
Javanese:
Kannada:
Kashmiri:
Kazakh:
Kirghiz:
Korean:
Kurdish:
Laotian:
Latin:
Latvian, Lettish:
7185
7265
7387
7273
7285
7383
7378
7365
7165
7384
7465
7487
7578
7583
7575
7589
7579
7585
7679
7665
7686
Lingala:
Lithuanian:
Macedonian:
Malagasy:
Malay:
Malayalam:
Maltese:
Maori:
Marathi:
Moldavian:
Mongolian:
Nauru:
Nepali:
Norwegian:
Oriya:
Pashto, Pushto:
Persian:
Polish:
Portuguese:
Punjabi:
Quechua:
7678
7684
7775
7771
7783
7776
7784
7773
7782
7779
7778
7865
7869
7879
7982
8083
7065
8076
8084
8065
8185
Rhaeto-Romance:
8277
Romanian:
8279
Russian:
8285
Samoan:
8377
Sanskrit:
8365
Scots Gaelic: 7168
Serbian:
8382
Serbo-Croatian: 8372
Shona:
8378
Sindhi:
8368
Singhalese:
8373
Slovak:
8375
Slovenian:
8376
Somali:
8379
Spanish:
6983
Sundanese:
8385
Swahili:
8387
Swedish:
8386
Tagalog:
8476
Tajik:
8471
Tamil:
Tatar:
Telugu:
Thai:
Tibetan:
Tigrinya:
Tonga:
Turkish:
Turkmen:
Twi:
Ukrainian:
Urdu:
Uzbek:
Vietnamese:
Volapük:
Welsh:
Wolof:
Xhosa:
Yiddish:
Yoruba:
Zulu:
8465
8484
8469
8472
6679
8473
8479
8482
8475
8487
8575
8582
8590
8673
8679
6789
8779
8872
7473
8979
9085
RQT7756
63
63
7756g.book
64 ページ
2004年7月28日 水曜日 午後6時26分
Changing the unit’s settings
Refer to the control reference on page 60.
∫ To change the tuning settings for individual
programme position
Tuning
1
2
3
5
While stopped
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “SETUP”
and press [ENTER].
Press [3, 4] to select “Tuning” and
press [1].
SETUP
Press [3, 4, 2, 1]
to select a
programme position
and press [ENTER].
To change the programme position in which
the TV stations are assigned
Press [3, 4] or numbered buttons to select the
number of the desired programme position and
press [ENTER].
Name
To enter or change the name of a TV station
Press [3, 4, 2, 1] to enter station name and
press [ENTER].
If the station name needs a blank space, select
the blank between “Z” and “¢”.
Channel
To enter newly available TV stations or change
the channel number of an already tuned TV
station
Press [3, 4] or the numbered buttons to enter
the channel number of the desired TV station.
Wait a few moments until the desired TV station
has been tuned.
After the desired TV station is tuned, press
[ENTER].
Fine Tuning
To obtain the best tuning condition
Press [3, 4] to adjust the best tuning condition
and press [ENTER].
≥Press [1] to return to “Auto”.
Video
System
To select the video system type
Press [3, 4] to select “PAL” or “SECAM” if the
picture lacks colour, and press [ENTER].
Auto:
This unit automatically distinguishes
PAL and SECAM signals.
PAL:
For receiving PAL signals.
SECAM: For receiving SECAM signals.
Audio Mode
To select the audio reception type
If sound quality is poor, press [3, 4] to select
“BG”, “I” or “DK” and press [ENTER].
BG: PAL B.G.
I:
PAL I
DK: PAL D.K.K1
Mono
To select the type of sound to be recorded
Press [3, 4] to select “On” if the stereo sound is
distorted due to inferior reception conditions, or if
you want to record the normal (mono) sound
during a stereo, bilingual or NICAM broadcast,
and press [ENTER].
You can add or delete channels, or change programme positions.
Manual Tuning
SELECT
ENTER
RETURN
Delete
Move
1
2
3
4
5
6
7
8
9
10
ARD
ZDF
N3
HR3
BR3
Ch
4
2
5
8
10
Pos Name
Ch
11
12
13
14
15
16
17
18
19
20
Add
A B C
To delete a programme position
Press [3, 4, 2, 1] to select a programme position and press [A].
Convenient functions
To add a blank programme position
Press [3, 4, 2, 1] to select a programme position and press [B].
RETURN
Pos
Manual
Pos Name
1
ARD
4
Auto
Auto
BG
Off
Press [3, 4] to select an item and press [1].
Manual
Auto-Setup Restart
Press [3, 4] to select “Manual” and
press [ENTER].
CHANGE
Pos
Name
Channel
Fine Tuning
Video System
Audio Mode
Mono
RETURN : leave
Tuning
Others
4
Manual
Tuning
To move a TV station to another programme position
1 Press [3, 4, 2, 1] to select a programme position and press
[C].
2 Press [3, 4, 2, 1] to select the new programme position to
which you want to assign the TV station and press [ENTER].
You can make the following two settings by selecting the external
input channel (AV3, AV4) in step 4.
≥Video System (Auto/PAL/SECAM)
In order to record properly, make the appropriate settings to match
the connected equipment.
RQT7756
64
64
65 ページ
2004年7月28日 水曜日 午後6時26分
Auto-Setup Restart
TV System
You can restart auto channel setting if Auto-Setup (➡page 11) fails
for some reason.
After performing steps 1–3 (➡page 64)
Change the setting to match the equipment you are connecting with, or
to match the title when there are both PAL and NTSC titles on the HDD.
4
1
Press [3, 4] to select “Auto-Setup
Restart” and press [ENTER].
The confirmation screen appears.
5
Press [2, 1] to select “Yes” and
press [ENTER].
Auto-Setup starts.
To exit the screen
Press [RETURN] several times.
To return to the previous screen
Press [RETURN].
List of TV Reception Channels
SYSTEM
VHF
UHF
CATV
CCIR Standard
(B.G.H)
E21–
E69
S01–S05
M1–M10
U1–U10
S21–S41
BG
E2–E12
I
Hong kong Special
Administrative
Region of China (I)
—
DK
OIRT (D.K.K1)
D
China
2
3
4
21–69
—
R1–R12
21–69
44–470 MHz
1–12
13–57
Z1–Z35
5
Tuning
Others
Disc
Sound
Display
Connection
Network
2
3
4
While stopped
Clock
Time
15 : 45 : 39
CHANGE
SELECT
ENTER
RETURN
6
Press [2, 1] to select “Yes” and
press [ENTER].
To exit the screen
Press [RETURN] several times.
Date
1 .
8 . 2004
9
SELECT
NTSC
To return to the previous screen
Press [RETURN].
No.
0
TV System
PAL
≥PAL (factory preset)
–Select when connecting to a PAL or Multi-system television.
Titles recorded using NTSC are played as PAL 60.
–Select to record television programmes and PAL input from
other equipment.
–[HDD] Select when playing a PAL input title recorded on the
HDD.
≥NTSC
–Select when connecting to a NTSC television. Television
programmes cannot be recorded properly.
–Select to record NTSC input from other equipment.
–[HDD] Select when playing a NTSC input title recorded on
the HDD.
In the case of a power failure, the clock setting remains in memory
for approximately 60 minutes.
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “SETUP”
and press [ENTER].
Press [3, 4] to select the “Others”
and press [1].
Press [3, 4] to select “Clock” and
press [ENTER].
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “SETUP”
and press [ENTER].
Press [3, 4] to select “Connection”
and press [1].
Press [3, 4] to select “TV System”
and press [ENTER].
Press [3, 4] to select the TV system
and press [ENTER].
SETUP
Clock settings
1
While stopped
Convenient functions
7756g.book
Please set clock manually.
ENTER: store RETURN: leave
∫ To change the setting all at once (PAL!#NTSC)
While stopped, keep pressing [∫] and [< OPEN/CLOSE] on the
main unit for 5 or more seconds.
ENTER
RETURN
5
Press [2, 1] to select the item you
want to change.
The items change as follows:
Hour!#Minute!#Second!#Day!#Month!#Year
^-----------------------------------------------------------------------------------------J
6
Press [3, 4] to change the setting.
You can also use the numbered buttons for setting.
7
Press [ENTER] when you have
finished the settings.
The clock starts.
To exit the screen
Press [RETURN] several times.
To return to the previous screen
Press [RETURN].
RQT7756
65
65
7756g.book
66 ページ
2004年7月28日 水曜日 午後6時26分
Specifications
Recording system
DVD Video Recording format (DVD-RAM),
DVD-Video format (DVD-R)
Recordable discs
DVD-RAM: 12 cm 4.7 GB, 12 cm 9.4 GB, 8 cm 2.8 GB
12 cm 4.7 GB (Ver. 2.1/3k-SPEED DVD-RAM Revision 1.0)
12 cm 4.7 GB (Ver.2.2/5k-SPEED DVD-RAM Revision 2.0)
DVD-R: 12 cm 4.7 GB, 8 cm 1.4 GB (for General Ver. 2.0)
12 cm 4.7 GB (for General Ver. 2.0/4k-SPEED DVD-R Revision 1.0)
12 cm 4.7 GB (for General Ver.2.x/8k-SPEED DVD-R Revision 3.0)
Recording time
Maximum 8 hours (with 4.7 GB disc)
XP: Approx. 1 hour, SP: Approx. 2 hours
LP: Approx. 4 hours, EP: Approx. 6 hours/8 hours
Maximum 709 hours (with built-in 400 GB HDD)
XP: Approx. 89 hours, SP: Approx. 177 hours
LP: Approx. 355 hours, EP: Approx. 532 hours/709 hours
Playable discs
DVD-RAM: 12 cm 4.7 GB, 12 cm 9.4 GB, 8 cm 2.8 GB
12 cm 4.7 GB (Ver. 2.1/3k-SPEED DVD-RAM Revision 1.0)
12 cm 4.7 GB(Ver.2.2/5k-SPEED DVD-RAM Revision 2.0)
DVD-R: 12 cm 4.7 GB, 8 cm 1.4 GB (for General Ver. 2.0)
12 cm 4.7 GB (for General Ver. 2.0/4k-SPEED DVD-R Revision 1.0)
12 cm 4.7 GB (for General Ver.2.x/8k-SPEED DVD-R Revision 3.0)
DVD-Video, DVD-Audio, Video CD, CD-Audio (CD-DA)
CD-R/RW (MP3, CD-DA, Video CD formatted discs)
Built-in HDD capacity
400 GB
Drive unit
High Speed Drive (correspond to maximum 8 times speed with
DVD-R disc and 5 times speed with DVD-RAM disc.)
Maximum 64k High-Speed Recording from
Hard Disk to DVD-R (EP mode)
LASER specification
Class I LASER Product
Wave length:
CD
795 nm wave length
DVD
662 nm wave length
Laser power:
No hazardous radiation is emitted with the safety protection
Audio
Recording system:
Reference
Dolby Digital 2ch, Linear PCM (XP mode, 2ch),
G.726 (MPEG4)
Audio in:
AV1/AV2 (21 pin), AV3/AV4 (pin jack)
Input level:
Standard: 0.5 Vrms, Full scale: 2.0 Vrms at 1 kHz
Input impedance:
More than 10 k≠
Audio out:
2 channel: AV1/AV2 (21 pin)
Audio Out (pin jack)
5.1 channel: 5.1 channel discrete output (pin jack)
Output level:
Standard: 0.5 Vrms, Full scale: 2.0 Vrms at 1 kHz
Output impedance:
Less than 1 k≠
Digital audio out: Optical terminal (PCM, Dolby Digital, DTS, MPEG)
Television system
Tuner system
Channel coverage
PAL-BGH,
VHF: CH E2–E12
SECAM-BG
UHF: CH E21–E69
CCIR
CATV: CH S01–S05,
M1–M10, U1–U10, S21–S41
PAL-I
UHF: CH 21–69
Hong Kong
PAL-DK,
VHF: CH R1–R12
SECAM-DKK1
UHF: CH 21–69
OIRT
CATV: 44 MHz–470 MHz
PAL-D
VHF: CH 1–12
China
UHF: CH 13–57
CATV: Z1–Z35
RF converter output:
Not provided
Video
Video system:
SECAM (only input)/PAL colour signal, 625 lines, 50 fields
NTSC colour signal, 525 lines, 60 fields
Recording system:
MPEG2 (Hybrid VBR), MPEG4 (VBR)
Video in (SECAM/PAL/NTSC):
AV1/AV2 (21 pin), AV3/AV4 (pin jack) 1 Vp-p 75 ≠, termination
S-Video in (SECAM/PAL/NTSC):
AV2 (21 pin), AV3/AV4 (S terminal) 1 Vp-p 75 ≠, termination
RGB in (PAL):
AV2 (21 pin) 0.7 Vp-p (PAL) 75 ≠, termination
Video out (PAL/NTSC):
AV1/AV2 (21 pin), Video Out (pin jack) 1 Vp-p 75 ≠, termination
S-Video out (PAL/NTSC):
AV1 (21 pin), S-Video Out (S terminal) 1 Vp-p 75 ≠, termination
RGB out (PAL/NTSC):
AV1 (21 pin) 0.7 Vp-p (PAL) 75 ≠, termination
Component video output (NTSC 480p/480i, PAL 576p/576i)
Y: 1.0 Vp-p 75 ≠, termination
PB: 0.7 Vp-p 75 ≠, termination
PR: 0.7 Vp-p 75 ≠, termination
DV input (PAL/NTSC)
IEEE 1394 Standard, 4 pin
Ethernet terminal
10BASE-T / 100BASE-TX
SD/PC card slot
SD Memory Card slot: 1 pc.
PC Card slot (Type II): 1 pc.
Still picture (JPEG, TIFF)
Compatible media (SD Card Slot):
SD Memory Card§1, MultiMediaCard
Compatible media (PC Card Slot):
A PC Card adaptor conforming to PC Card Standards,
ATA Flash PC Card, PC Card adaptor (SD Memory Card§1,
xD-Picture Card, Microdrive, MultiMediaCard, CompactFlash,
SmartMedia, MEMORYSTICK), Mobile hard disk
Format:
FAT12, FAT16
Image file format:
JPEG conforming DCF (Design rule for Camera File system),
(sub sampling; 4:2:2 or 4:2:0)
TIFF (Uncompressed RGB chunky), DPOF Compatible
Number of pixels:
34 a 34 to 6144 a 4096
Thawing time:
Approx. 7 sec (2 M pixels)
SD Video (MPEG4, MPEG2)
Compatible media (SD Card Slot):
SD Memory Card§1,
MultiMediaCard (restricted to fine, normal, economy of MPEG4),
Compatible media (PC Card Slot): Mobile hard disk (only read)
MPEG4
Codec:
Video: MPEG4 conforming, Audio: G.726 conforming
Number of pixels:
Extra fine/Super fine/
Fine: 320 a 240 (QVGA), Normal/Economy: 176 a 144 (QCIF)
Recording rate (Max):
Extra fine: Approx. 1.5 Mbps,
Super fine: 1050 kbps, Fine: 430 kbps, Normal: 300 kbps,
Economy: 100 kbps (Including audio transfer rate as 32 kbps)
File format:
SD-Video format conforming (ASF)
MPEG2§2
Codec:
MPEG2 (SD-Video Entertainment Video Profile)
File Format:
SD-Video format conforming
Others
Region code:
Operating temperature:
Operating humidity range:
Power supply:
Power consumption:
Dimensions (WkDkH):
Mass:
‚3
5–40 oC
10–80 % RH (no condensation)
AC 220–240 V, 50/60 Hz
48 W
Approx. 430 mmk302 mmk79 mm
Approx. 5 kg
Power consumption in standby mode:
Approx. 3.5 W (Power Save mode)
[Note]
RQT7756
66
66
Specifications are subject to change without notice.
Mass and dimensions are approximate.
§1 Includes miniSDTM Cards. (A miniSDTM adaptor needs to be
inserted.)
§2 Video Recording conversion and transfer is possible from card to
HDD or DVD-RAM disc.
After Video Recording conversion and transfer to HDD or DVDRAM disc, the playback is possible.
7756g.book
67 ページ
2004年7月28日 水曜日 午後6時26分
Glossary
Bitstream
This is the digital form of multi-channel audio data (e.g., 5.1 channel)
before it is decoded into its various channels.
CPRM (Content Protection for Recordable Media)
CPRM is technology used to protect broadcasts that are allowed to
be recorded only once. Such broadcasts can be recorded only with
CPRM compatible recorders and discs.
DHCP (Dynamic Host Configuration Protocol)
Provides a mechanism for automatically assigning network
information such as the IP address or Subnet mask sent by the
router and so on to this unit.
DNS server
A server which acts like a telephone directory and translates Internet
domain names into IP address.
Dolby Digital
This is a method of coding digital signals developed by Dolby
Laboratories. Apart from stereo (2-channel) audio, these signals can
also be multi-channel audio. A large amount of audio information can
be recorded on one disc using this method.
When recording on this unit Dolby Digital (2 channel) is the default
audio.
Down-mixing
This is the process of remixing the multi-channel audio found on
some discs into two channels. It is useful when you want to listen to
the 5.1-channel audio recorded on DVDs through your television’s
speakers. Some DVD-Audio prevent down-mixing of all or part of
their contents. When playing such discs, or such parts of the disc,
unless the number of connected speakers is the same as the disc’s
channel specification, audio will not be output properly.
DPOF (Digital Print Order Format)
DPOF is the standard printing format for still picture data taken by a
digital camera, etc. It is used for automatic printing at a photo
developing store or on your home printer.
DTS (Digital Theater Systems)
This surround system is used in many movie theaters. There is good
separation between the channels, so realistic sound effects are
possible.
Dynamic range
Dynamic range is the difference between the lowest level of sound
that can be heard above the noise of the equipment and the highest
level of sound before distortion occurs.
Dynamic range compression means reducing the gap between the
loudest and softest sounds. This means you can listen at low
volumes but still hear dialogue clearly.
Film and video
DVD-Videos are recorded using either film or video. This unit can
determine which type has been used, then uses the most suitable
method of progressive output.
For PAL
Film is 25 frames per second.
Video is 50 fields per second (two fields making up one frame).
For NTSC
Film is 24 or 30 frames per second, with motion picture film generally
being 24 frames per second.
Video is 60 fields per second (two fields making up one frame).
Finalize
A process that makes play of a recorded CD-R, CD-RW, DVD-R, etc.
possible on equipment that can play such media. You can finalize
DVD-R on this unit.
After finalizing, the disc becomes play-only and you can no longer
record or edit.
Folder
This is a place on the hard disk or memory card where groups of
data are stored together. In the case of this unit, it refers to the place
where still pictures (JPEG, TIFF) or MPEG4 are stored.
Structure of folders displayed by this unit (➡below)
Drive
In the instance of this unit, this refers to the hard disk (HDD), disc
(DVD), SD card (SD) and PC card (PC). These perform the reading
and writing of data.
The following
¢¢¢: Numbers
Reference
Structure of folders displayed by this unit
can be displayed on this unit.
XXX: Letters
DVD-RAM
Card
DCIM (Higher folder)
¢¢¢XXXXX (Picture folder)
JPEG
DCIM¢¢¢ (Higher folder)
¢¢¢XXXXX (Picture folder)
XXXX¢¢¢¢.TIF
IM¢¢CDPF or IMEXPORT
XXXX¢¢¢¢.TIF
§
§
DCIM
XXXX¢¢¢¢.TIF
¢¢¢XXXXX
XXXX¢¢¢¢.TIF
SD_VIDEO
PRL¢¢¢ (MPEG4 folder)
MOL¢¢¢.ASF
PRG¢¢¢ (MPEG2 folder)
SD_VIDEO
PRL¢¢¢ (MPEG4 folder)
MOL¢¢¢.ASF
MOV¢¢¢.MOD
MOV¢¢¢.MOI
PRG¢¢¢.PGI
MGRINFO (MPEG2 information manager folder)
§ Folders can be created on other equipment. However, these folders cannot be selected as a transferring (dubbing) destination.
≥The folder cannot be displayed if the numbers are all “0” (e.g., DCIM000 etc).
≥If a folder name or filename has been input using other equipment, the name may not be displayed properly or you may not be able to play or
edit the data.
RQT7756
67
67
7756g.book
68 ページ
2004年7月28日 水曜日 午後6時26分
Glossary
Formatting
Formatting is the process of making media such as DVD-RAM
recordable on recording equipment.
You can format the HDD, DVD-RAM and memory cards on this unit.
Formatting erases irrevocably all contents.
Frames and fields
Frames refer to the single images that constitute the video you see
on your television. Each frame consists of two fields.
u
r
Frame
Field
Field
≥A frame still shows two fields, so there may be some blurring, but
picture quality is generally better.
≥A field still shows less picture information so it may be rougher, but
there is no blurring.
Gateway
IP address of the electronic device providing Internet access.
Usually called a router IP address. (e.g., 192.168.0.1)
HDD (Hard disk drive)
This is a mass data storage device used in computers etc. A disk
with a surface that has been treated with magnetic fluid is spun and
a magnetic head is brought in close proximity to facilitate the reading
and writing of large amounts of data at high speed.
Hub
Used for connecting more than one device to the network.
IP address
A set of numbers which distinguish each computer on the network
when, for example, connected to the Internet. When using a
computer in a LAN (➡ below) to access a computer or device not
part of the LAN, the IP address is called the local IP address. (e.g.,
192.168.0.10)
JPEG (Joint Photographic Experts Group)
This is a system used for compressing/decoding colour still pictures.
If you select JPEG as the storage system on digital cameras etc.,
the data will be compressed to 1/10–1/100 of its original size. The
feature of JPEG is less deterioration in picture quality considering
the degree of compression.
Reference
LAN (Local Area Network)
A group of linked devices in a company, school or home. Indicates
the boundaries of a particular network.
68
Playback control (PBC)
If a Video CD has playback control, you can select scenes and
information with menus.
(This unit is compatible with version 2.0 and 1.1.)
Progressive/Interlace
The PAL video signal standard has 576 (or 625) interlaced (i) scan
lines, whereas progressive scanning, called 576p (or 625p), uses
twice the number of scan lines. For the NTSC standard, these are
called 480i (or 525i) and 480p (or 525p) respectively.
Using progressive output, you can enjoy the high-resolution video
recorded on media such as DVD-Video.
Your television must be compatible to enjoy progressive video.
Protection
You can prevent accidental erasure by setting writing protection or
erasure protection.
Router
Distinguishes the IP address assigned to each device, such as the
computer, and relays the flow of data within the network.
Sampling frequency
Sampling is the process of converting the heights of sound wave
(analog signal) samples taken at set periods into digits (digital
encoding). Sampling frequency is the number of samples taken per
second, so larger numbers mean more faithful reproduction of the
original sound.
Subnet mask
Enables efficient network use. A set of numbers which identify which
part of the IP address allocated to every device connected to the
router is the network portion.
TCP/IP (Transmission Control Protocol/Internet Protocol)
These are the standard protocols for sending and receiving data.
Thumbnail
This refers to a miniature representation of a picture used to display
multiple pictures in the form of a list.
MAC (Media Access Control) address
Address assigned to each device connected to the network to allow
it to be recognized.
TIFF (Tag Image File Format)
This is a system used for compressing/decoding colour still pictures.
A common format for storing high quality images on digital cameras
and other devices.
MPEG2/MPEG4 (Moving Picture Experts Group)
A standard for efficiently compressing and expanding color video.
MPEG2 is a compression standard used for DVD and satellite based
digital broadcasting. This unit records programmes using MPEG2.
MPEG4 is a compression standard created for use with mobile
equipment and use over networks, providing highly efficient
recordings even with low bit rates.
68
Letterbox: Black bands appear at the top and
bottom of the picture so the picture
itself appears in an aspect ratio of
16:9.
LPCM (Linear PCM)
These are uncompressed digital signals, similar to those found on
CDs. LPCM sound is available when recording in XP mode.
MP3 (MPEG Audio Layer 3)
An audio compression method that compresses audio to
approximately one tenth of its size without any considerable loss of
audio quality. You can play MP3 you have recorded onto CD-R and
CD-RW.
RQT7756
Pan&Scan/Letterbox
In general, DVD-Video are produced with the intention that they be
viewed on a widescreen television (16:9 aspect ratio), so images
often don’t fit regular (4:3 aspect ratio) televisions. Two styles of
picture, “Pan & Scan” and “Letterbox”, deal with this problem.
Pan & Scan: The sides are cut off so the picture
fills the screen.
VBR (Variable bitrate)
This is a method of video recording that adjusts the bit rate
according to video signal.
7756g.book
69 ページ
2004年7月28日 水曜日 午後6時26分
Frequently asked questions
Set up
Page
What equipment is necessary to play multi
channel surround sound?
≥This unit has a built-in decoder so you can enjoy multi-channel surround
sound by connecting an amplifier with AUDIO OUT 5.1 ch terminals and
three or more speakers.
8
Are the headphones and speakers directly
connected to the unit?
≥You cannot directly connect to the unit. Connect through the amplifier
etc.
8
The television has both S-VIDEO IN
terminal and COMPONENT VIDEO IN
terminals. Which terminal should I connect
with?
≥Connecting with the component video out terminal provides a more
vivid picture compared to connecting with the S-Video out terminal.
If you have an LCD/plasma television or LCD projector compatible with
progressive scan, connect through the component video terminals for
high-quality progressive video.
If you have a CRT television or a multi system television using PAL
mode that is compatible with progressive scan, we cannot recommend
progressive output as some flickering can occur.
7
Is my television progressive output
compatible?
≥All Panasonic televisions that have 576p (625p)/480p (525p) input
terminals are compatible. Consult the manufacturer if you have another
brand of television.
—
Can I play DVD-Video, DVD-Audio and
Video CDs bought in another country?
≥You cannot play DVD-Video if their region number does not include “3”
or “ALL”.
Cover
Can a DVD-Video that does not have a
region number be played?
≥The DVD-Video region number indicates the disc conforms to a
standard. You cannot play discs that do not have a region number.
—
Please tell me about DVD-R and DVD-RW
compatibility with this unit.
≥This unit records and plays DVD-R. However, you cannot record onto
DVD-R discs that are finalized.
≥This unit also records and plays high speed recording compatible discs.
≥This unit does not record or play DVD-RW.
—
≥This unit plays CD-R/CD-RW discs (audio recording discs) which have
been recorded under one of the following standards: CD-DA, MP3 and
Video CD. Close the session or finalize the disc after recording.
≥You cannot write to a CD-R or CD-RW with this unit.
20, 31
Can I record from a commercially
purchased video cassette or DVD?
≥Most commercially sold video cassettes and DVD are copy protected;
therefore, recording is usually not possible.
—
Can a DVD-R recorded on this unit be
played on other equipment?
≥You can play on DVD-R compatible players after finalizing the disc on
this unit; however, due to the condition of the recording, play may not be
possible.
59
Can I high speed transfer (dub) to a disc?
≥You can record up to 64k recording speed to DVD-R and up to 40k
recording speed to DVD-RAM when using a high speed compatible
disc.
45
Can I record digital audio signals using this
unit?
≥You cannot record digital signals. The digital audio terminals on this unit
are for output only. (The audio recorded using the DV automatic
recording function from a digital video camcorder, for example, is
recorded digitally.)
—
Can a digital audio signal from this unit be
recorded to other equipment?
≥You can record if using the PCM signal. When recording DVD, change
the “Digital Audio Output” settings to the following in the SETUP menu.
–PCM Down Conversion: On
–Dolby Digital/DTS/MPEG: PCM
However, only as long as digital recording from the disc is permitted and
the recording equipment is compatible with a sampling frequency of
48 kHz.
≥You cannot record MP3 signals.
62
≥With HDD and DVD-RAM, you can. Just press [AUDIO].
≥With DVD-R, you cannot. Change before recording with “Bilingual Audio
Selection” in the SETUP menu.
30
62
The router’s LAN port is insufficient.
≥Commercially available devices can augment the connection port (hub).
After connecting the router and hub with a commercially available LAN
cable the computer and this unit should connect through the hub.
Please read the hub’s operating instructions for further information.
9, 10
The screen temporarily freezes.
≥This may occur depending on computer and network efficiency. It is
most likely when using a wireless LAN so a LAN cable is
recommended.
Disc
Please tell me about CD-R and CD-RW
compatibility with this unit.
—
—
—
Can I switch to bilingual broadcast during
recording?
Reference
Recording
—
Network
—
RQT7756
69
69
7756g.book
70 ページ
2004年7月28日 水曜日 午後6時26分
Error messages
On the television
Page
Cannot connect to the network.
≥The router etc. is not properly connected. Please check the LAN cable connection and
router’s AC main’s lead and setting (DHCP server setting etc.).
Cannot finish recording
completely.
≥The programme was copy-protected.
≥The HDD or disc may be full.
—
—
Cannot playback this title.
TV system is different from the
setting.
To playback this title, please
change the TV System in SETUP.
≥You tried to play a title recorded using a different encoding system from that of the TV
system currently selected on the unit.
Alter the “TV System” setting on this unit to suit.
65
Cannot record on the disc.
≥The disc may be dirty or scratched.
≥You cannot format a Microdrive or mobile hard disk on this unit.
75
—
Cannot play on this unit.
≥You tried to play a non-compatible image.
≥Turn the unit off and re-insert the card.
32
32
Cannot record. Disc is full.
Cannot record. Maximum
number of titles exceeded.
≥Create space by erasing any unnecessary titles. [HDD] [RAM]
(Even if you erase recorded content from the DVD-R, there is no increase in disc space.)
≥Use a new disc.
Error has occurred. Please press
ENTER.
≥Press [ENTER] to start recovery process. You cannot operate the unit while it is
recovering (“SELF CHECK” appears on the unit’s display).
No Disc
≥The disc may be upside down.
No file.
No title.
≥Make sure the MPEG4 titles or still pictures have been recorded.
To record MPEG4 titles on the HDD, set “MPEG4 Rec Mode” in the SETUP menu to
“XF”, “SF”, “F”, “N” or “E”.
No folders.
≥There is no compatible folder in this unit.
67
No PC CARD
No SD CARD
No valid PC card.
No valid SD card.
≥The card is not inserted. If this message is displayed with a compatible card already
inserted, turn off the unit, remove and then re-insert the card.
≥The card inserted is not compatible or the card format does not match.
32
Not enough space on dubbing
destination.
≥Create space by erasing any unnecessary items.
Please check the disc.
9, 10
Unable to format.
Reference
≥Erase one or more items registered on the transfer (dubbing) list to ensure that the
“Destination Capacity” is not exceeded.
30, 35, 39,
43, 58, 59
—
—
—
33, 34
61
20
30, 33, 35,
39, 42, 43,
58, 59
47, 54
Please change the disc.
≥There may be a problem with the disc. Press [< OPEN/CLOSE] on the main unit to
remove it and check it for scratches or dirt. (The unit turns off automatically after you
open the tray.)
75
This is a non-recordable disc.
≥The unit cannot record on the disc you inserted. Insert a DVD-RAM or unfinalized
DVD-R.
≥You inserted an unformatted DVD-RAM. Format the disc with this unit.
—
59
≥The operation is prohibited by the unit or disc.
—
This disc is not properly
formatted.
Formatting is necessary using
DISC MANAGEMENT.
$
On the unit’s display
RQT7756
70
70
HDD SLP
≥In order to extend HDD life, the HDD is in SLEEP mode. Press [HDD] to activate.
21
HARD ERR
≥If there is no change after turning the unit on and off, consult the dealer where the unit was purchased.
—
NO READ
≥The disc is dirty or badly scratched. The unit cannot record, play, or edit.
≥You have used a DVD-RAM/PD lens cleaner and it has finished. Press [< OPEN/CLOSE] on the main
unit to eject the disc.
75
—
PROG FULL
≥There are already 32 timer programmes. Delete unnecessary timer programmes.
27
REMOTE DVD 
(“∑” stands for a
number.)
≥The remote control and main unit are using different codes. Change the code on the remote control.
13
SELF CHECK
≥The unit is starting up. Wait until the message disappears.
—
U14
≥The unit is hot.
The unit switches to standby for safety reasons. Wait for about 30 minutes until the message
disappears.
Select a position with good ventilation when installing the unit. Do not block the cooling fan on the rear
of the unit.
—
U99
≥The unit fails to operate properly. Press [Í/I] on the main unit to switch the unit to standby. Now press
[Í/I] on the main unit again to turn the unit on.
—
UNSUPPORT
≥You have inserted a disc the unit cannot play or record on.
X HOLD
≥The Child Lock function is activated.
Press and hold [ENTER] and [RETURN] simultaneously until “X HOLD” disappears.
Press and hold [ENTER] and the indicated number button at the
same time for more than 2 seconds.
19, 20
57
7756g.book
71 ページ
2004年7月28日 水曜日 午後6時26分
Troubleshooting guide
Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart
do not solve the problem, consult your dealer for instructions.
The following do not indicate a problem with this unit:
≥Regular disc rotating sounds.
≥Poor reception due to atmospheric conditions.
≥Image disturbance during search.
≥A sound is heard when the HDD goes into SLEEP mode, or
operations are slow to respond in SLEEP mode.
Power
Page
≥Insert the AC mains lead securely into a known active AC mains socket.
7
≥One of the unit’s safety devices is activated. Press [Í/I] on the main unit to turn the unit on.
—
The display is dim.
≥Change “FL Display” in the SETUP menu.
62
“0:00” is flashing on the unit’s
display.
≥Set the clock.
65
The time recorded on the disc
and the available time shown
do not add up.
The play time shown for MP3
does not agree with the actual
time.
≥Times shown may disagree with actual times.
≥When transferring (dubbing) pictures with little motion, by converting to MPEG4 format, they
may be transferred (dubbed) within small amount of capacity.
≥When the disc contains still pictures or MPEG4 data, the available recording time is
reduced.
≥More disc space than the actual recording time is used after recording or editing the DVD-R
200 times or more.
≥While searching, the elapsed time may not display correctly.
≥Even if you erase recorded content from the DVD-R, there is no increase in disc space.
—
—
≥The displayed recording/play time is converted from the number of frames at 29.97 frames
(equal to 0.999 seconds) to one second. There will be a slight difference between the time
displayed and the actual elapsed time (e.g., actual one-hour elapsed time may display as
approximately 59 minutes 56 seconds). This does not affect the recording.
—
Television reception worsens
after connecting the unit.
≥This can occur because the signals are being divided between the unit and other
equipment. It can be solved by using a signal booster, available from audio-visual suppliers.
—
Status messages do not
appear.
≥Select “Automatic” in “On-Screen Messages” in the SETUP menu.
62
The grey background does not
appear.
≥Select “On” in “Grey Background” in the SETUP menu.
62
Picture does not appear
during timer recording.
≥Timer recordings work regardless whether the unit is on or off. To confirm the timer
recording is going to work properly, turn the unit on.
—
The 4:3 aspect ratio picture
expands left and right.
≥Use the television to change the aspect. If your television does not have that function, set
“Progressive” in the Picture menu to “OFF”.
≥Check the settings for “TV Aspect” in the SETUP menu.
37
There is a lot of after-image
when playing video.
≥Set “Playback NR” in the Picture menu to “OFF”.
37
When playing DVD-Video
using progressive output, one
part of the picture
momentarily appears to be
doubled up.
≥Set “Progressive” in the Picture menu to “OFF”. This problem is caused by the editing
method or material used on DVD-Video, but should be corrected if you use interlace output.
37
There is no apparent change
in picture quality when
adjusted with the Picture
menu in the on-screen menus.
≥The effect is less perceivable with some types of video.
—
The images from this unit do
not appear on the television.
≥Make sure that the television is connected to the VIDEO OUT terminal, S-VIDEO OUT
terminal or COMPONENT VIDEO OUT terminals on this unit.
≥Make sure that the television’s input setting (e.g., AV 1) is correct.
≥The television isn’t compatible with progressive signals. Press and hold [∫] and [TIME SLIP]
on the main unit at the same time for about 5 seconds. The setting will change to interlace.
≥The unit’s “TV System” setting differs from the TV system used by the disc now playing.
While stopped, keep pressing [∫] and [< OPEN/CLOSE] on the main unit for 5 or more
seconds. The system switches from PAL to NTSC or vice versa.
7
No power.
Unit does not turn on pressing
[Í DVD].
The unit switches to standby
mode.
Displays
Compared to the actual
recorded time, the remaining
time displayed is less.
(Only when recording in NTSC)
—
—
—
—
Screen size is wrong.
Picture is distorted.
Reference
TV screen and video
12
—
—
65
RQT7756
71
71
7756g.book
72 ページ
2004年7月28日 水曜日 午後6時26分
Troubleshooting guide
Sound
No sound.
Low volume.
Distorted sound.
Cannot hear the desired audio
type.
Cannot switch audio.
Page
≥Check the connections and settings. Check the input mode on the amplifier if you have
connected one.
≥Press [AUDIO] to select the audio.
≥Turn off V.S.S. in the following cases.
–When using discs that do not have surround sound effects such as Karaoke discs.
–When three or more speakers are connected.
–When playing bilingual broadcast programmes.
≥The disc may have restrictions on the method of audio output (e.g. discs for which “D.MIX” is
not displayed during play). With some multi-channel discs, unless the number of connected
speakers is the same as the disc’s channel specification, audio will not be output properly.
Refer to the disc’s jacket for more information. [DVD-A]
≥You cannot switch the audio in the following cases.
–When a DVD-R disc is in the disc tray while DVD drive is selected.
–When the recording mode is XP and “Audio Mode for XP Recording” is set to “LPCM”.
–When “DVD-R Rec for High Speed mode” is set to “On”
≥You have used a digital connection. Set “Dolby Digital” to “PCM” or connect using audio
cables (analog connection).
≥There are discs for which audio cannot be changed because of how the disc was created.
≥The audio for the MPEG4 is monaural.
7, 8, 14,
62
30
37
—
—
62
61
62, 8
—
—
Operation
Cannot operate the television.
The remote control doesn’t
work.
≥Change manufacturer code. Some televisions cannot be operated even if you change the
code.
≥The remote control and main unit are using different codes. Change the code on the remote
control.
13
13
Press and hold [ENTER] and the indicated number
button at the same time for more than 2 seconds.
Reference
≥The batteries are depleted. Replace them with new ones.
≥Coloured glass may obstruct the signal reception/transmission.
≥Don’t place the signal sensor in direct sunlight or in areas that may be subject to sunlight
exposure.
≥The child lock function is activated.
4
—
—
57
The unit is on but cannot be
operated.
≥Recording drive or playback drive has not been selected properly.
≥Some operations may be prohibited by the disc.
≥The unit is hot (“U14” appears on the display). Wait for “U14” to disappear.
≥One of the unit’s safety devices may have been activated.
Reset the unit as follows:
Press [Í/I] on the main unit to switch the unit to standby.
If the unit doesn’t switch to standby, press and hold [Í/I] on the main unit for about 10
seconds. The unit is forcibly switched to standby.
Alternatively, disconnect the AC mains lead, wait one minute, then reconnect it.
HDD activation is slow.
≥The HDD is in SLEEP mode. (“HDD SLP” appears in the unit’s display.)
21
Cannot eject disc.
≥The unit may have a problem. While the unit is off, press and hold [∫] and [CH W] on the
main unit at the same time for about 5 seconds. Remove the disc and consult the dealer.
If the Child Lock function is activated, above operation does not work. Cancel the Child Lock
function.
57
Cannot tune channels.
≥Check the connections.
7
22, 28
—
—
—
Recording, timer recording and transferring (dubbing)
Cannot record.
≥You haven’t inserted a disc or the disc you inserted cannot be recorded on. Insert a disc the
unit can record onto.
≥The disc is un-formatted. Format the disc. [RAM]
≥The write-protect tab on the cartridge is set to PROTECT, or the disc is protected with DISC
MANAGEMENT.
≥Some programmes have limitations on the number of times they can be recorded (CPRM).
≥You cannot record when there is not enough space or when the number of titles has
reached its limit. Erase unwanted titles.
≥You cannot record on finalized DVD-R discs.
≥Due to peculiarities of DVD-R, you may be unable to record onto them if you either insert
and remove the disc or switch the unit on and off while a disc is loaded, a total of fifty times.
≥A DVD-R recorded on this unit may not be recordable on other Panasonic DVD recorders.
Timer recording does not
work properly.
G-CODE programming does not
work properly.
Continued on the next page
RQT7756
72
72
≥The timer programme is incorrect or different timer programme times overlap. Correct the
programme.
≥The unit is not on timer recording standby. (“F” on the unit’s display is not on.) Press
[F TIMER].
≥Set the clock.
19
59
58
67
30, 35,
39, 43,
58, 59
—
—
—
27
25, 26
65
7756g.book
73 ページ
2004年7月28日 水曜日 午後6時26分
Recording, timer recording and transferring (dubbing) (Continued)
Page
Timer recording does not stop
even when [∫] is pressed.
≥While using timer recording, press [F TIMER]. (“F” disappears.)
The timer programme remains
even after recording finishes.
≥The timer programme remains if set to daily or weekly.
26
A part or whole of a recorded
title has been lost.
≥If there is a power failure or the plug is disconnected from the household AC mains socket
while recording or editing, the title may be lost or the disc may become unusable.
You will have to format the disc ([HDD] [RAM]) or use a new disc. We cannot offer any
guarantee regarding lost programmes or discs.
—
Cannot transfer (dub) to a
DVD-R disc using the high
speed mode.
≥When recording to the HDD, set “DVD-R Rec for High Speed mode” to “On” in the SETUP
menu.
61
When transferring (dubbing),
it takes a long time even when
high speed mode is selected.
≥Use a disc that is compatible with high speed recording. Even if the disc is high speed
recording compatible, the maximum speed recording rating may not be possible due to the
condition of the disc.
≥It takes longer than normal to transfer (dub) many titles.
≥You cannot high speed transfer (dub) to DVD-R titles longer than 6 hours when using other
Panasonic DVD recorders that are not compatible with EP (8 Hour) mode recording.
—
An unusually loud sound is
coming from the rotating DVD-R.
≥When recording or high speed transferring (dubbing) to a DVD-R, the sound of the disc
rotating may be louder than normal, however, this is not a problem.
—
The DV automatic recording
function does not work.
≥If images cannot be recorded or if the recording is aborted, check the connections and DV
equipment settings.
≥You cannot start recording until the images from the DV equipment appear on the television.
≥Recording may not be performed as desired if the time codes on the tape in the DV
equipment are not successive.
≥Depending on the equipment, the DV automatic recording may not operate properly.
49, 50
≥Insert the disc correctly with the label facing up.
≥You tried to play a blank DVD-RAM/DVD-R, or disc unplayable on this unit.
≥You may be able to transfer (dub) a “One time only recording” title that was recorded to
DVD-RAM using a different Panasonic DVD Recorder to this unit’s HDD, but play is not
possible due to copyright protection.
≥When recording to DVD-RAM using “EP (8 Hour)” mode, play may not be possible on DVD
players that are compatible with DVD-RAM. In this case use “EP (6 Hour)” mode.
≥You cannot play discs during DV automatic recording.
28
19, 20
—
Audio and video momentarily
pause.
≥This occurs between play list chapters.
≥This occurs between chapters and with partially deleted titles on finalized DVD-R that have
been transferred (dubbed) using the high speed mode.
—
—
DVD-Video is not played.
≥Some DVD-Video cannot be played when you change the ratings level.
61
Alternative soundtrack and
subtitles cannot be selected.
≥The languages are not recorded on the disc.
≥You may have to use the disc’s menus to select languages.
—
—
No subtitles.
≥Subtitles are not recorded on the disc.
≥Turn the subtitles on.
—
36
Angle cannot be changed.
≥Angles can only be changed during scenes where different angles are recorded.
—
You have forgotten your
ratings password.
≥While the disc tray is open, press [DVD] then press and hold [D] and [E] on
the main unit at the same time for 5 or more seconds (“INIT” will appear on the unit’s
display).
—
Quick View does not work.
≥This does not work if the setting is “Off” in “PLAY k1.3 & Audio during Search”.
≥This does not work when audio is other than Dolby Digital.
≥This does not work when recording is in XP or FR mode. [RAM]
62
—
—
The resume play function
does not work.
≥This function only works when the indicator on the right appears on the unit
display.
≥Memorized positions are canceled when the unit is turned off or when the
tray is opened. The memorized position on the play list is also canceled
when the play list and title are edited.
25, 26
—
—
—
—
—
Play
XP
SP
REC PLAY LP
EP
HDD
61
—
Reference
Play fails to start even when
[1] (PLAY) is pressed.
Play starts but then stops
immediately.
—
EXT Link
—
The Video CD picture does not
display properly.
≥When connecting to Multi-system TV, select “NTSC” in “TV System” in the SETUP menu.
≥When connecting to PAL TV, the lower part of the picture cannot be displayed correctly
during search.
65
—
Time Slip does not work.
≥Time Slip does not work when the unit’s “TV System” settings are different from the title
recorded on the disc.
65
RQT7756
73
73
7756g.book
74 ページ
2004年7月28日 水曜日 午後6時26分
Troubleshooting guide
Edit
Page
Cannot format.
≥The disc is dirty. Use a special cleaner and wipe clean.
≥You tried formatting a disc that is not compatible with this unit.
75
19
Cannot create chapters.
≥The unit writes the chapter information to the disc when you turn it off or remove the disc.
The information is not written if there is an interruption to the power before this.
≥These operations are not possible with still pictures.
≥You cannot set points if they are too close to each other. You cannot set an end point before
a start point.
—
Cannot erase chapters.
≥When the chapter is too short to erase, use “Combine Chapters” to make the chapter
longer.
39
The available recording time
doesn’t increase even after
erasing recordings on the
disc.
≥Available recording space on the DVD-R does not increase even after erasing previously
recorded titles.
—
Cannot create a play list.
≥You cannot select all the chapters at once in a title if the title also includes still pictures.
Select them individually.
—
Cannot display Direct
Navigator screen.
≥This screen cannot be displayed during recording or transfer (dubbing).
—
Cannot edit or format a card.
≥Release the card’s protection setting. (With some cards, the “Write Protection Off” message
sometimes appears on the screen even when protection has been set.)
58
The contents of the card
cannot be read.
≥The card format is not compatible with the unit. (The contents on the card may be
damaged.)
Format using FAT 12 or FAT 16 with other equipment or format the card with this unit.
≥The card contains a folder structure and/or file extensions that are not compatible with this
unit.
≥Turn off and then turn on the unit again.
20, 32
Cannot mark the start point or
the end point during “Partial
Erase” operation.
—
—
Still pictures and MPEG4
59
67
—
Transferring (dubbing),
erasing and setting protection
takes a long time.
≥When there are a lot of folders and files, it may sometimes take a few hours.
≥When repeating transferring (dubbing) or erasing, it may sometimes take a long time.
Format the disc or card.
—
59
The PC card cannot be
removed.
≥Make sure the PC card is slotted home firmly before attempting to remove.
32
≥When using a wireless router, operations may be being affected by local signal conditions
(weak radio waves or the network environment).
≥Turn off the DVD recorder operated via the Network.
≥Check the router setting (DHCP server and the security settings etc.). Read the router’s
operating instructions for further information.
≥There may be limits to your usage of the router by your telecommunications carrier or
Internet service provider. Please contact the telecommunications carrier or Internet service
provider that you subscribe to.
≥Enter the IP address correctly if operating by computer.
≥Make sure the LAN cable is properly connected.
≥Make sure the client units are registered.
≥The server cannot transmit data to more than one place at the same time (e.g. more than
one client, a client and a computer and so on).
≥Please check the connection.
Select the “Network” tab in the SETUP menu. Press and hold [ENTER] for more than 5
seconds. Operation is possible when the display changes from “Now updating the settings”
to “Now connected to the network”.
—
Network
Reference
The network function will not
run.
—
—
—
55
10
18
—
—
∫ To initialize this unit’s network password
While the disc tray is open, press [DVD] then press and hold [D] and [TIME SLIP] on the main unit at the same time for 5 or more
seconds (“INIT” will appear on the unit’s display). The password setting will be erased. If “Network Function” is set to “Disable” the password
cannot be erased (➡page 63).
RQT7756
74
74
7756g.book
75 ページ
2004年7月28日 水曜日 午後6時26分
Maintenance/Disc and card handling
Unit care
The precision parts in this unit are readily affected by the
environment, especially temperature, humidity, and dust.
Cigarette smoke also can cause malfunction or breakdown.
To clean this unit, wipe with a soft, dry cloth.
≥Never use alcohol, paint thinner or benzine to clean this unit.
≥Before using chemically treated cloth, read the instructions that
came with the cloth carefully.
Observe the following points to ensure continued listening and
viewing pleasure.
Dust and dirt may adhere to the unit’s lens over time, making it
impossible to record or play discs.
Use the DVD-RAM/PD lens cleaner (LF-K123LCA1, where
available) about once every year, depending on frequency of use
and the operating environment. Read the lens cleaner’s instructions
carefully before use.
Disc and card handling
∫ How to hold a disc or
card
Do not touch the recorded
surface or the terminal surface.
∫ If there is dirt or condensation on the disc
[RAM] [DVD-R]
≥Clean with an optional DVD-RAM/PD disc cleaner (LF-K200DCA1,
where available).
≥Do not use cleaners for CDs or cloths.
[DVD-A] [DVD-V] [VCD] [CD]
Wipe with a damp cloth and then wipe dry.
∫ Handling precautions
≥Do not attach labels or stickers to discs. (This may cause disc
warping and un-balanced rotation, rendering it unusable.)
≥Do not write on the label side with a ball-point pen or other writing
instrument.
≥Do not use record cleaning sprays, benzine, thinner, static
electricity prevention liquids or any other solvent.
≥Do not use scratch-proof protectors or covers.
≥Do not expose the terminals of the card to water, garbage or other
strange things.
≥Do not use the following discs:
–Discs with exposed adhesive from removed stickers or labels
(rented discs etc).
–Discs that are badly warped or cracked.
–Irregularly shaped discs, such as heart shapes.
≥Do not place in the following areas:
–In direct sunlight.
–In very dusty or humid areas.
–Near a heater
–Where static electricity or electromagnetic waves occur
Placement
Set the unit up on an even surface away from direct sunlight, high
temperatures, high humidity, and excessive vibration. These
conditions can damage the cabinet and other components, thereby
shortening the unit’s service life.
Do not place heavy items on the unit.
Voltage
Do not use high voltage power sources. This can overload the unit
and cause a fire.
Do not use a DC power source. Check the source carefully when
setting the unit up on a ship or other place where DC is used.
AC mains lead protection
Ensure the AC mains lead is connected correctly and not
damaged. Poor connection and lead damage can cause fire or
electric shock. Do not pull, bend, or place heavy items on the lead.
Grasp the plug firmly when unplugging the lead. Pulling the AC
mains lead can cause electric shock.
Do not handle the plug with wet hands. This can cause electric
shock.
Reference
Safety precautions
Foreign matter
Do not let metal objects fall inside the unit. This can cause electric
shock or malfunction.
Do not let liquids get into the unit. This can cause electric shock or
malfunction. If this occurs, immediately disconnect the unit from the
power supply and contact your dealer.
Do not spray insecticides onto or into the unit. They contain
flammable gases which can ignite if sprayed into the unit.
Service
Do not attempt to repair this unit by yourself. If sound is
interrupted, indicators fail to light, smoke appears, or any other
problem that is not covered in these instructions occurs, disconnect
the AC mains lead and contact your dealer or an authorized service
center. Electric shock or damage to the unit can occur if the unit is
repaired, disassembled or reconstructed by unqualified persons.
Extend operating life by disconnecting the unit from the power
source if it is not to be used for a long time.
RQT7756
75
75
7756g.book
76 ページ
2004年7月28日 水曜日 午後6時26分
Index
Angle. . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Aspect. . . . . . . . . . . . . . . . . . . . . . . . . . 12
Audio
Attribute . . . . . . . . . . . . . . . . . . . . . . 36
Language . . . . . . . . . . . . . . . . . . . . . 61
Playback . . . . . . . . . . . . . . . . . . . . . . 30
Receiving . . . . . . . . . . . . . . . . . . . . . 37
Recording level . . . . . . . . . . . . . . . . . . 49
Audio recording level . . . . . . . . . . . . . 49
Auto Renewal Recording . . . . . . . . . . 26
Change Thumbnail . . . . . . . . . . . . . . . 39
Channel
Audio. . . . . . . . . . . . . . . . . . . . . . . . . 36
Auto-Setup . . . . . . . . . . . . . . . . . 11, 65
Chapter . . . . . . . . . . . . . . . . . . . . . . 30, 38
Chasing playback . . . . . . . . . . . . . . . . 23
Child Lock . . . . . . . . . . . . . . . . . . . . . . 57
Cleaning
Disc. . . . . . . . . . . . . . . . . . . . . . . . . . 75
Lens . . . . . . . . . . . . . . . . . . . . . . . . . 75
Main unit . . . . . . . . . . . . . . . . . . . . . . 75
Clock settings . . . . . . . . . . . . . . . . . . . 65
Connection
Aerial. . . . . . . . . . . . . . . . . . . . . . . . . . 7
Amplifier, system component . . . . . . . 8
AV3 input terminals. . . . . . . . . . . . . . 49
DV input terminal . . . . . . . . . . . . . . . 49
Network. . . . . . . . . . . . . . . . . . . . . . 9, 10
Television . . . . . . . . . . . . . . . . . . . . . . 7
Video cassette recorder . . . . . . . . 7, 49
Copy (play list) . . . . . . . . . . . . . . . . . . . 41
CPRM . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Create Chapter . . . . . . . . . . . . . . . . 30, 39
Create play lists . . . . . . . . . . . . . . . . . . 40
Reference
Default Settings . . . . . . . . . . . . . . . . . . 60
Dialog Enhancer . . . . . . . . . . . . . . . . . 37
Direct Navigator . . . 28, 33, 34, 38, 42, 43
Divide Title . . . . . . . . . . . . . . . . . . . . . . 39
DPOF. . . . . . . . . . . . . . . . . . . . . . . . 42, 67
DV automatic recording . . . . . . . . . . . 50
DVD-R (Enabling DVD-R to be played on
other equipment—Finalize). . . . . . . . . 59
DVD-R Rec for High Speed mode. . . . 61
DVD-RAM, DVD-R . . . . . . . . . . . . . . . . 19
Enter name
Disc. . . . . . . . . . . . . . . . . . . . . . . . . . 58
Entering text . . . . . . . . . . . . . . . . . . . 44
Folder . . . . . . . . . . . . . . . . . . . . . . . . 42
MPEG4 title. . . . . . . . . . . . . . . . . . . . 43
Play list . . . . . . . . . . . . . . . . . . . . . . . 41
Title . . . . . . . . . . . . . . . . . . . . 25, 26, 39
Erase
All titles . . . . . . . . . . . . . . . . . . . . . . . 58
Chapter . . . . . . . . . . . . . . . . . 30, 39, 41
Folder . . . . . . . . . . . . . . . . . . . . . . . . 42
MPEG4 title. . . . . . . . . . . . . . . . . . . . 43
Play list . . . . . . . . . . . . . . . . . . . . 30, 41
Still picture . . . . . . . . . . . . . . . . . . . . 42
Title . . . . . . . . . . . . . . . . . . . . . . . 30, 39
Finalize. . . . . . . . . . . . . . . . . . . . . . . 59, 67
Flexible Recording . . . . . . . . . . . . . . . . 24
Format . . . . . . . . . . . . . . . . . . . . . . . 59, 68
FR (Flexible Recording Mode) . . . . . . . 23
FUNCTIONS window. . . . . . . . . . . . . . . 57
G-CODE . . . . . . . . . . . . . . . . . . . . . . . . . . 25
IP address . . . . . . . . . . . . . . . . . 15–17, 68
JPEG . . . . . . . . . . . . . . . . . . . . . . . . 32, 68
Language
Audio . . . . . . . . . . . . . . . . . . . . . . . . . 61
Code list. . . . . . . . . . . . . . . . . . . . . . . 63
Soundtrack . . . . . . . . . . . . . . . . . 36, 61
Subtitle. . . . . . . . . . . . . . . . . . . . . 36, 61
LPCM . . . . . . . . . . . . . . . . . . . . . . . . 62, 68
Manual Skip. . . . . . . . . . . . . . . . . . . 29, 35
Menu
MP3 . . . . . . . . . . . . . . . . . . . . . . . . . . 31
On-screen . . . . . . . . . . . . . . . . . . . . . 36
SETUP. . . . . . . . . . . . . . . . . . . . . . . . 60
Mode
Recording . . . . . . . . . . . . . . . . . . . . . 23
Still Mode. . . . . . . . . . . . . . . . . . . . . . 61
MP3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
MPEG4
Edit . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Play . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Recording . . . . . . . . . . . . . . . . . . . . . 22
Transferring (dubbing) . . . . . . . . . . . . 52
Multi-channel speaker setting . . . . . . . 14
Network
Connection . . . . . . . . . . . . . . . . . . 9, 10
Operation. . . . . . . . . . . . . . . . . . . 55, 56
Set up . . . . . . . . . . . . . . . . . . . . . 15–18
Noise reduction (NR)
AV-in NR . . . . . . . . . . . . . . . . . . . . . . 61
Playback NR . . . . . . . . . . . . . . . . . . . 37
One Touch Transfer (dubbing) . . . 46, 53
On-screen
Menus . . . . . . . . . . . . . . . . . . . . . . . . 36
Status messages . . . . . . . . . . . . . . . . 37
Partial Erase . . . . . . . . . . . . . . . . . . . . . 39
PC card . . . . . . . . . . . . . . . . . . . . . . . . . 20
PCM Down Conversion . . . . . . . . . . . . 62
Picture settings. . . . . . . . . . . . . . . . 37, 61
Play list . . . . . . . . . . . . . . . . . . . . . . . . . 40
Playback NR . . . . . . . . . . . . . . . . . . . . . 37
Power Save . . . . . . . . . . . . . . . . . . . . . . 60
Progressive . . . . . . . . . . . . . 12, 37, 63, 68
Properties
MPEG4 title . . . . . . . . . . . . . . . . . . . . 43
Play list . . . . . . . . . . . . . . . . . . . . . . . 41
Still picture . . . . . . . . . . . . . . . . . . . . . 33
Title . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Protection
Card. . . . . . . . . . . . . . . . . . . . . . . . . . 58
Cartridge . . . . . . . . . . . . . . . . . . . . . . 58
Disc . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Folder . . . . . . . . . . . . . . . . . . . . . . . . 42
MPEG4 title . . . . . . . . . . . . . . . . . . . . 43
Still picture . . . . . . . . . . . . . . . . . . . . . 42
Title . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby
Laboratories.
“DTS” and “DTS Digital Surround” are registered trademarks of
Digital Theater Systems, Inc.
G-CODE is a trademark of Gemstar Development Corporation.
The G-CODE system is manufactured under license from Gemstar
Development Corporation.
MPEG Layer-3 audio decoding technology licensed from
Fraunhofer IIS and Thomson multimedia.
RQT7756
76
76
Quick View . . . . . . . . . . . . . . . . . . . . . . 29
Ratings level . . . . . . . . . . . . . . . . . . . . 61
Recording . . . . . . . . . . . . . . . . . . . . . . . 22
Auto Renewal . . . . . . . . . . . . . . . . . . 26
DV automatic recording . . . . . . . . . . 50
Flexible Recording . . . . . . . . . . . . . . 24
Mode. . . . . . . . . . . . . . . . . . . . . . . . . 23
Relief . . . . . . . . . . . . . . . . . . . . . . . . 25
Timer . . . . . . . . . . . . . . . . . . . . . 25–27
Relief Recording . . . . . . . . . . . . . . . . . 25
Remote control code . . . . . . . . . . . . . . 13
Repeat Play . . . . . . . . . . . . . . . . . . 35, 37
Resume play function . . . . . . . . . . . . . 29
SD card . . . . . . . . . . . . . . . . . . . . . . . . .
SETUP menu . . . . . . . . . . . . . . . . . . . .
Shipping Condition . . . . . . . . . . . . . . .
Simultaneous rec and play . . . . . . . . .
Soundtrack . . . . . . . . . . . . . . . . . . . . . .
Status messages . . . . . . . . . . . . . . . . .
Still picture
Edit . . . . . . . . . . . . . . . . . . . . . . . . . .
Play. . . . . . . . . . . . . . . . . . . . . . . . . .
Transferring (dubbing) . . . . . . . . . . .
Subtitle . . . . . . . . . . . . . . . . . . . . . . . . .
20
60
60
23
36
37
42
33
50
36
TIFF . . . . . . . . . . . . . . . . . . . . . . . . . 32, 68
Time Slip. . . . . . . . . . . . . . . . . . . . . 23, 29
Timer recording . . . . . . . . . . . . . . . 25–27
Transfer . . . . . . . . . . . . . . . . . . . . . . . . 37
Transfer (dubbing)
MPEG4 title . . . . . . . . . . . . . . . . . . . 52
Still picture . . . . . . . . . . . . . . . . . . . . 50
Title/play list . . . . . . . . . . . . . . . . . . . . 45
Tuning
Auto-Setup . . . . . . . . . . . . . . . . . 11, 65
Manual . . . . . . . . . . . . . . . . . . . . . . . 64
TV System (PAL/NTSC) . . . . . . . . . . . . 65
TV type . . . . . . . . . . . . . . . . . . . . . . . . . 12
V.S.S. . . . . . . . . . . . . . . . . . . . . . . . . . . 37
5.1 channel surround sound
Connection . . . . . . . . . . . . . . . . . . . . . . 8
Speaker setting. . . . . . . . . . . . . . . . . . 14
