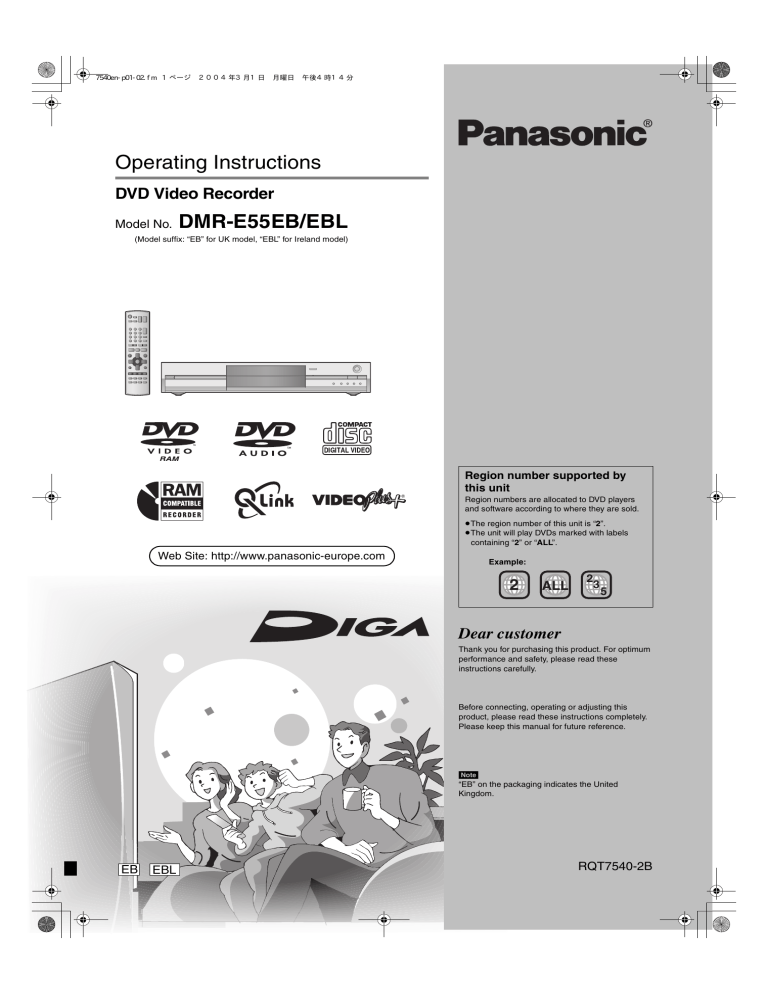

Operating Instructions
DVD Video Recorder
Model No.
DMR-E55EB/EBL
(Model suffix: “EB” for UK model, “EBL” for Ireland model)
Region number supported by
this unit
Region numbers are allocated to DVD players
and software according to where they are sold.
≥The region number of this unit is “2”.
≥The unit will play DVDs marked with labels
containing “2” or “ALL”.
Web Site: http://www.panasonic-europe.com
Example:
2
ALL
2
3
5
Dear customer
Thank you for purchasing this product. For optimum
performance and safety, please read these
instructions carefully.
Before connecting, operating or adjusting this
product, please read these instructions completely.
Please keep this manual for future reference.
[Note]
“EB” on the packaging indicates the United
Kingdom.
EB
EBL
RQT7540-2B
7540en.book 2 ページ
2004年2月10日 火曜日 午後12時58分
Caution for AC Mains Lead
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING:
Getting started
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS
TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT
NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES,
SHALL BE PLACED ON THE APPARATUS.
(For United Kingdom and Republic of Ireland)
(“EB” and “EBL” area code model only)
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin mains plug for
your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the
replacement fuse has a rating of 5-ampere and that it is approved by
ASTA or BSI to BS1362.
Check for the ASTA mark Ï or the BSI mark Ì on the body of the
fuse.
If the plug contains a removable fuse cover you must ensure that it is
refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a
replacement cover is obtained.
A replacement fuse cover can be purchased from your local dealer.
CAUTION!
CAUTION!
≥DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,
BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.
ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT
RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT CURTAINS AND ANY
OTHER MATERIALS DO NOT OBSTRUCT THE
VENTILATION VENTS.
≥DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS
WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND
SIMILAR ITEMS.
≥DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS
LIGHTED CANDLES, ON THE UNIT.
≥DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY
FRIENDLY MANNER.
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR
THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE
SHOULD BE REMOVED AND THE PLUG CUT OFF AND
DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK
IF THE CUT OFF PLUG IS INSERTED INTO ANY 13AMPERE SOCKET.
THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.
(➡page 45, Specifications—Others)
This product may receive radio interference caused by mobile
telephones during use. If such interference is apparent, please
increase separation between the product and the mobile
telephone.
The socket outlet shall be installed near the equipment and
easily accessible or the mains plug or an appliance coupler shall
remain readily operable.
If a new plug is to be fitted please observe the wiring code as stated
below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accordance with the
following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Black or Blue.
The wire which is coloured Brown must be connected to the terminal
which is marked with the letter L or coloured Brown or Red.
WARNING: DO NOT CONNECT EITHER WIRE TO THE
EARTH TERMINAL WHICH IS MARKED WITH THE
LETTER E, BY THE EARTH SYMBOL Ó OR COLOURED
GREEN OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF—KEEP DRY.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of AC mains plug
(figures A and B). Confirm the AC mains plug fitted and follow the
instructions below.
Illustrations may differ from actual AC mains plug.
Y
RF IN
PB
R - AUDIO - L
AV1 (TV)
VIDEO S-VIDEO
OUT
OPTICAL
AV4 IN
AC IN
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
R - AUDIO - L
PR
AV2 (DECODER/EXT)
VIDEO S-VIDEO
COMPONENT
VIDEO OUT
(NTSC:480P/480I,
PAL:576P/576I)
RF OUT
(Back of product)
1. Open the fuse cover with a screwdriver.
Figure A
Figure B
- VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
(FDA 21 CFR)
AVOID DIRECT EXPOSURE TO BEAM.
CAUTION - VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
AVOID EXPOSURE TO BEAM.
(IEC60825-1)
ATTENTION - RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D’OUVERTURE.
EXPOSITION DANGEREUSE AU FAISCEAU.
SYNLIG
OG
USYNLIG
LASERSTRÅLING
VED
ÅBNING.
ADVARSEL
UNDGÅ UDSÆTTELSE FOR STRÅLING.
DANGER
VARO!
Fuse cover
- AVATTAESSA OLET ALTTIINA NÄKYVÄÄ JA NÄKYMÄTÖN
LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
VARNING - SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL
ÄR ÖPPNAD. BETRAKTA EJ STRÅLEN.
ADVARSEL - SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES.
UNNGÅ EKSPONERING FOR STRÅLEN.
VORSICHT - SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG
GEÖFFNET. NICHT DEM STRAHL AUSSETZEN.
2. Replace the fuse and close or attach the fuse cover.
-
RQLS0233
RQT7540
2
(Inside of product)
≥For your safety, be sure not to connect or handle the equipment
with wet hands.
≥Your attention is drawn to the fact that the recording pre-recorded
tapes or discs or other published or broadcast material may
infringe copyright laws.
Figure A
Figure B
Fuse
(5 ampere)
Fuse
(5 ampere)
7540enTOC.fm 3 ページ
2004年2月26日 木曜日 午前11時16分
Table of contents
Editing
Caution for AC Mains Lead . . . . . . . . . . . . . . . . . . . 2
Useful features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
The remote control. . . . . . . . . . . . . . . . . . . . . . . . . . 4
Control reference guide. . . . . . . . . . . . . . . . . . . . . . 5
STEP 1 Connection . . . . . . . . . . . . . . . . . . . . . . . . . 6
STEP 2 TV Tuning . . . . . . . . . . . . . . . . . . . . . . . . . 11
STEP 3 Set up to match your television and
remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
To enjoy progressive video. . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Disc information . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Recording
Recording television programmes . . . . . . . . . . . . 18
Recording modes and approximate recording times . . . . . . . .
Direct TV Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Playing while you are recording . . . . . . . . . . . . . . . . . . . . . . . .
Flexible Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recording from an external equipment . . . . . . . . . . . . . . . . . .
19
19
19
20
20
Timer recording . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Using VIDEO Plus+ number to make timer recordings . . . . . .
Manually programming timer recordings . . . . . . . . . . . . . . . . .
To record programmes from satellite receiver
by RGB signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Check, change or delete a programme . . . . . . . . . . . . . . . . . .
Linked timer recordings with external equipment (EXT LINK) . .
21
22
23
23
23
Playing back
Editing titles/chapters and playing chapters . . . . . . . . . . . . . . . 30
Title operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Chapter operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Creating, editing and playing play lists. . . . . . . . 32
Creating play lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing and playing play lists/chapters . . . . . . . . . . . . . . . . . . .
Play list operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32
33
33
33
Convenient functions
DISC MANAGEMENT. . . . . . . . . . . . . . . . . . . . . . . 34
Disc Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disc Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Format Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto-Play Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Finalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35
35
35
35
35
Entering text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
FUNCTIONS window and Status messages . . . . 37
FUNCTIONS window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Status messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Changing the unit’s settings . . . . . . . . . . . . . . . . 38
Common procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Summary of settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TV System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
38
38
42
43
44
Child Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Reference
Playing discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Operations during play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Editing operations during play . . . . . . . . . . . . . . . . . . . . . . . . . 26
Changing audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Using menus to play MP3 . . . . . . . . . . . . . . . . . . . 27
Using on-screen menus . . . . . . . . . . . . . . . . . . . . 28
Common procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disc menu—Setting the disc content . . . . . . . . . . . . . . . . . . . .
Play menu—Change the play sequence . . . . . . . . . . . . . . . . .
Picture menu—Change the picture quality . . . . . . . . . . . . . . .
Sound menu—Change the sound effect . . . . . . . . . . . . . . . . .
Editing titles/chapters. . . . . . . . . . . . . . . . . . . . . . 30
Getting started
Getting started
28
28
29
29
29
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Frequently asked questions. . . . . . . . . . . . . . . . . 47
Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . 49
Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . 51
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back cover
Useful features
This DVD Video recorder records high quality images
to rapid random access capable DVD-RAM media.
This has resulted in many new features that out
perform older tape formats. The following information
summarizes a few of these features.
Chasing playback
There is no need to wait until
recording is complete. Without
stopping recording, you can play
the video currently being
recorded from its beginning.
Instant recording
You no longer need to search for empty disc space. By
pressing the recording button, the unit finds available
recording space and begins recording right away.
There is no need to worry about overwriting already
recorded content.
Instant play
There is no need to rewind or search forward. Direct
Navigator guides you to the beginning of the recorded
video immediately.
Simultaneous Recording
and Playback
While recording, you can play
another video programme that
was recorded previously.
Time Slip
During play and also while
recording, you can jump to the
scene you wish to view by
specifying the skip time.
RQT7540
3
7540en.fm
4 ページ
2004年2月12日 木曜日 午後12時10分
Accessories
Getting started
Please check and identify the supplied accessories.
Use numbers when asking for replacement parts.
∏
∏
∏
∏
∏
1 Remote control
(EUR7720KB0)
1 AC mains lead
(RJA0044-3C)
≥For use with this unit only. Do not
use it with other equipment.
1 RF coaxial lead
(K1TWACC00001)
2 Batteries
R6 Size
for remote control
1 Audio/video cable
(K2KA6CA00001)
∫ Sales and Support Information
Customer Care Centre
≥For UK customers: 08705 357357
≥For Republic of Ireland customers: 01 289 8333
≥Visit our website for product information
≥E-mail: [email protected]
Direct Sales at Panasonic UK
≥Order accessory and consumable items for your product with ease
and confidence by phoning our Customer Care Centre MondayFriday 9:00am-5:30pm. (Excluding public holidays)
≥Or go on line through our Internet Accessory ordering application
at www.panasonic.co.uk
≥Most major credit and debit cards accepted.
≥All enquiries transactions and distribution facilities are provided
directly by Panasonic UK Ltd.
≥It couldn’t be simpler!
≥Also available through our Internet is direct shopping for a wide
range of finished products, take a browse on our website for further
details.
The remote control
∫ Batteries
∫ Use
R6, LR6, AA, UM-3
Remote control signal sensor
20˚
30˚
20˚
30˚
≥Insert so the poles (i and j) match those in the remote control.
≥Do not use rechargeable type batteries.
≥Do not mix old and new batteries.
≥Do not use different types at the same time.
≥Do not heat or expose to flame.
≥Do not take apart or short circuit.
≥Do not attempt to recharge alkaline or manganese batteries.
≥Do not use batteries if the covering has been peeled off.
7 m directly in front of the unit
Mishandling of batteries can cause electrolyte leakage which can
damage items the fluid contacts and may cause a fire.
Remove if the remote control is not going to be used for a long
period of time. Store in a cool, dark place.
[Note]
If you cannot operate the unit or television using the remote control
after changing the batteries, please re-enter the codes (➡ page 15).
The manufacturer accepts no responsibility and offers no compensation for loss of recorded or edited material due to a problem
with the unit or recordable media, and accepts no responsibility and offers no compensation for any subsequent damage caused by
such loss.
Examples of causes of such losses are
≥A disc recorded and edited with this unit is played in a DVD recorder or computer disc drive manufactured by another company.
≥A disc used as described above and then played again in this unit.
≥A disc recorded and edited with a DVD recorder or computer disc drive manufactured by another company is played in this unit.
RQT7540
4
7540en.book 5 ページ
2004年2月10日 火曜日 午後12時58分
Control reference guide
Remote control
DVD
TV
Turn the unit on (➡ page 11)
Select channels and title numbers etc./
Enter numbers
VOLUME
CH
DIRECT TV REC
1
2
3
4
5
6
7
8
Channel select (➡ page 18)
CH
VIDEO Plus+
Cancel
9
CANCEL
INPUT SELECT MANUAL SKIP
0
SKIP
Basic operations for recording and play
Television operations (➡page 15)
AV
SLOW/SEARCH
STOP
PAUSE
Show VIDEO Plus+ screen (➡page 21)
Skip 30 seconds forward (➡ page 25)
Input select (AV1, AV2, AV3 or AV4)
PLAY/x1.3
DIRECT NAVIGATOR
FUNCTIONS
Show Top menu/Direct navigator (➡ page 24, 30)
Show FUNCTIONS window (➡ page 37)
Getting started
Direct TV recording (➡ page 19)
TOP MENU
Selection/Enter, Frame-by-frame (➡ page 11, 25)
ENTER
SUB MENU
RETURN
Show sub menu (➡ page 30)
Show on-screen menu (➡ page 28)
PROG/CHECK DISPLAY
Show timer recording programme screen (➡ page 22)
Erase items (➡ page 26)
Programme recording standby/release
(➡ page 21, 22)
Linked timer recordings with external equipment
(➡ page 23)
Manual tuning operation (➡ page 42)
TIMER
F
STATUS TIME SLIP
ERASE REC MODE
REC
CREATE
CHAPTER AUDIO
EXT LINK
A
B
C
Return to previous screen
Show status messages (➡ page 37)
Skip the specified time/Display the television image
as a picture-in-picture (➡ page 19, 25)
Change recording mode (➡ page 18)
Start recording (➡ page 18)
Select audio (➡ page 26)
Create chapter (➡page 26)
Main unit
Standby/on switch (Í/I) (➡page 11)
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a
small amount of power.
Start play (➡ page 24)
Start recording (➡ page 18)
Remote control signal sensor
Stop (➡ page 18, 25)
Disc tray (➡page 18, 24)
Open/close disc tray (➡ page 18, 24)
OPEN/CLOSE
REC
TIME SLIP
/x1.3
PULL OPEN
TIME SLIP
AV3
S-VIDEO IN
VIDEO IN
L/MONO AUDIO IN
CH
R
Display (➡below)
Connection for camcorder etc.
(➡ page 20)
Time Slip indicator (➡ page 19)
Skip the specified time/Display the television image
as a picture-in-picture (➡page 19, 25)
Channel select (➡ page 18)
Skip/Slow/Search (➡ page 25)
Rear panel terminals (➡ page 7, 8)
The unit’s display
Linked timer recordings with
external equipment indicator
Recording mode
Timer recording indicator
EXT Link
Disc type
D.MIX (multi-channel DVD-Audio only)
When lit: down-mixed audio is played.
When off: the disc prevents down-mixing so on the two front channels can
be played.
DVD - R AM
XP
SP
LP
EP
Recording
Playback
VCD.MIX
PLAY REC
REC
PLAY
Recording/
Playback
PLAY REC
RQT7540
Main display section
5
7540en.book 6 ページ
2004年2月10日 火曜日 午後12時58分
STEP 1 Connection
≥The equipment connections described are examples.
≥Before connection, turn off all equipment and read the appropriate operating instructions.
≥Peripheral equipment and optional cables sold separately unless otherwise indicated.
∫ Recommended connection for your television
Required
cable(s)
What kind of input terminal does your television have?
Scart
Getting started
AV IN
Component
video
COMPONENT
VIDEO IN
S-Video
Audio/Video
S-VIDEO IN
AUDIO IN VIDEO IN
R
L
Page No. for
connections
Page No. for TV
settings
Highly recommended connection.
≥You can enjoy high-quality RGB video from this
unit by connecting to an RGB compatible
television.
≥If your television has the Q Link feature, you can
use a variety of useful functions.
Fully wired 21pin Scart lead
➡7
These terminals provide a purer picture than the SVideo terminal.
≥If your television is compatible with progressive
scan, you can enjoy high-quality progressive video.
If you have a progressive compatible CRT
television, we cannot recommend this connection
as some flickering may occur.
3 video cables
➡8
➡ 12
S-Video cable
➡8
➡ 12
Audio/Video
cable (included)
➡8
➡ 12
This terminal achieves a more vivid picture than the
video terminal.
The most basic connection.
➡ 12
≥If it’s a Q Link
television ➡11
[For]the[United]Kingdom]only[
If your television does not have one of the terminals mentioned above, connect with the RF sockets only (➡ page 9). However, when using this
connection, picture received from a satellite receiver may not be clear, therefore we do not recommend it.
Q Link functions
Q Link offers a range of convenient functions (For further details ➡page 46). Make sure to connect a fully wired 21-pin Scart lead to the
television if using the Q Link function.
The following systems from other manufacturers have similar function to Q Link from Panasonic. For details, refer to your television’s operating
instructions or consult your dealer.
≥Megalogic (registered trademark of Grundig)
≥Q Link (registered trademark of Panasonic)
≥SMARTLINK (registered trademark of Sony)
≥DATA LOGIC (registered trademark of Metz)
≥Easy Link (registered trademark of Philips)
∫ Examples of equipment you can connect to this unit’s terminals
Amplifier
Television
From AV1, AUDIO/VIDEO OUT or
COMPONENT VIDEO OUT terminals
From AUDIO OUT terminals or
DIGITAL AUDIO OUT terminal
This unit
To AV2 or AV4 input terminals (rear)
To AV3 input terminals (front)
Decoder or satellite/
digital receiver
Camcorder
Video cassette recorder
∫ Do not connect the unit through a video cassette recorder
Video signals fed through video cassette recorders will be affected by copyright protection
systems and the picture will not be shown correctly on the television.
≥When connecting to a television with a built in VCR, connect to the input terminals on
the television side, not the VCR side.
Before moving the unit, ensure the disc tray is
empty.
RQT7540
6
Failure to do so will risk severely damaging the disc and
the unit.
Television
Television
This unit
VCR
VCR
This unit
7540en.book 7 ページ
2004年2月10日 火曜日 午後12時58分
Connecting a television with 21-pin Scart terminal and Satellite receiver
≥When there is no 21-pin Scart terminal on the television (➡page 8)
≥Change the “AV2 Input” setting to match the output from a satellite receiver and set the “AV2 Connection” setting to “Normal” in the SETUP
menu (➡ page 41) after tuning is completed (➡page 11, 12).
indicates included accessories.
BE SURE TO READ THE CAUTION FOR THE AC MAINS
LEAD ON PAGE 2 BEFORE CONNECTION.
indicates accessories not included.
4
are required connections. Connect in the numbered order.
To household mains socket
(AC 220–240 V, 50 Hz)
AV IN
VHF/UHF
RF IN
Television’s
rear panel
RF coaxial lead
AC mains lead
Connect only after all other
connections are complete.
4
1
Fully wired 21-pin
Scart lead
3
Cooling fan
To the
aerial
Aerial
lead
2
Y
Getting started
1
RF IN
PB
R - AUDIO - L
AV1 (TV)
VIDEO S-VIDEO
OUT
OPTICAL
AV4 IN
AC IN
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
R - AUDIO - L
PR
AV2 (DECODER/EXT)
COMPONENT
VIDEO OUT
(NTSC:480P/480I,
PAL:576P/576I)
VIDEO S-VIDEO
RF OUT
This unit’s rear panel
AV1 terminal
Fully wired 21-pin
Scart lead
If your television is equipped with RGB input
capability, by connecting with a fully wired 21-pin
Scart lead you can see video using RGB output on
this unit (➡ below).
To output in RGB select “RGB (without component)”
from “AV1 Output” in the SETUP menu (➡page 41).
DVD/VCR
Satellite receiver’s rear panel
∫ To view satellite programmes
Press [INPUT SELECT] to select the input channel “A2” for the satellite receiver or put this unit in standby mode.
∫ RGB
This refers to the three primary colours of light, red (R), green (G), and blue (B) and also the method of producing video that uses them. By
dividing the video signal into the three colours for transmission, noise is reduced for even higher quality images.
RQT7540
7
7540en.book 8 ページ
2004年2月10日 火曜日 午後12時58分
STEP 1 Connection
Connecting a television with AUDIO/VIDEO, S-VIDEO or COMPONENT VIDEO
terminals and VCR
Connecting to the television using the 21-pin Scart leads (➡ page 7)
indicates included accessories.
BE SURE TO READ THE CAUTION FOR THE AC MAINS
LEAD ON PAGE 2 BEFORE CONNECTION.
indicates accessories not included.
1
are required connections. Connect in the numbered order.
4
When making this connection, ensure you
connect the audio cables to the corresponding
audio input terminals on the television.
Getting started
To household mains socket
(AC 220–240 V, 50 Hz)
To the aerial
AUDIO IN VIDEO IN
R
L
S-VIDEO IN
COMPONENT
VIDEO IN
VHF/UHF
RF IN
Splitter
Television’s
rear panel
Red White Yellow
AC mains lead
Connect only after all other
connections are complete.
S-Video
cable
Aerial
lead
RF coaxial lead
Audio/Video cable
4
3
2
Video cable
Y
Red White Yellow
R - AUDIO - L
PB
OUT
AV4 IN
AC IN
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
This unit’s rear panel
Cooling fan
R - AUDIO - L
PR
AV2 (DECODER/EXT)
VIDEO S-VIDEO
Red White Yellow
RF IN
AV1 (TV)
VIDEO S-VIDEO
OPTICAL
1
COMPONENT
VIDEO OUT
(NTSC:480P/480I,
PAL:576P/576I)
RF OUT
S-VIDEO OUT terminal
The S-VIDEO OUT terminal achieves a more
vivid picture than the VIDEO OUT terminal.
(Actual results depend on the television.)
Audio/Video cable
COMPONENT VIDEO OUT terminal
These terminals can be used for either interlace or
progressive output and provide a purer picture than the
S-VIDEO OUT terminal (➡ below).
≥Connect to terminals of the same colour.
Use a splitter if
you also want
to connect the
aerial to your
VCR.
Red White Yellow
VCR’s rear panel
R
L
AUDIO OUT VIDEO OUT
You can also connect with the AV2 terminal
on this unit using the 21-pin Scart lead.
VHF/UHF
RF IN
∫ Component video output
Component signal outputs the colour difference signals (PB/PR) and luminance signal (Y) separately in order to achieve high fidelity in
reproducing colours. If the television is compatible with progressive output, a high quality picture can be output because this unit’s component
video output terminal outputs a progressive output signal (➡page 46).
For progressive output (➡page 14)
RQT7540
8
7540en.book 9 ページ
2004年2月10日 火曜日 午後12時58分
[For]the[United]Kingdom]only[
Connecting a television with RF socket only and Satellite receiver
Connect in the numbered order. If you do not have a Satellite receiver, connect the aerial to the RF Input socket of this unit and skip step 3.
To the
aerial
BE SURE TO READ THE CAUTION FOR THE AC MAINS
LEAD ON PAGE 2 BEFORE CONNECTION.
indicates included accessories.
indicates accessories not included.
VHF/UHF
RF IN
1
Television’s
rear panel
AC mains lead
Connect only after all other
connections are complete.
4
2
RF coaxial lead
Cooling fan
Y
Getting started
To household mains socket
(AC 220–240 V, 50 Hz)
RF IN
PB
R - AUDIO - L
OUT
AV4 IN
AC IN
AV1 (TV)
VIDEO S-VIDEO
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
R - AUDIO - L
PR
AV2 (DECODER/EXT)
VIDEO S-VIDEO
COMPONENT
VIDEO OUT
(NTSC:480P/480I,
PAL:576P/576I)
This unit’s rear panel
3
RF OUT
Aerial
lead
RF coaxial lead
RF IN
Satellite receiver’s rear panel
RF OUT
RQT7540
9
7540en.book 10 ページ
2004年2月10日 火曜日 午後12時58分
STEP 1 Connection
Connecting a decoder or digital receiver
≥Decoder here means the device used to decode scrambled broadcasts (Pay TV).
≥Change the “AV2 Input” and “AV2 Connection” settings in the SETUP menu to match the connected equipment (➡page 41) after tuning is
completed (➡page 11, 12).
Decoder or digital receiver’s
rear panel
Getting started
AV OUT
21-pin Scart lead
This unit’s
rear panel
Y
RF IN
PB
AV1 (TV)
PR
AV2 (DECODER/EXT)
COMPONENT
VIDEO OUT
(NTSC:480P/480I,
PAL:576P/576I)
RF OUT
Connecting an amplifier or system component
∫ To enjoy multi-channel surround sound on
DVD-Video
∫ Connection to a stereo amplifier
Connect an amplifier with Dolby Digital, DTS and MPEG decoders
using an optical digital audio cable and change the settings in
“Digital Audio Output” (➡page 40).
≥You cannot use DTS Digital Surround decoders not suited to
DVD.
≥Even if using this connection, output will be only 2 channels when
playing DVD-Audio.
Amplifier’s rear panel
AUDIO IN
R L
Amplifier’s rear panel
OPTICAL IN
Red White
Optical digital audio cable
Do not bend this cable sharply.
Audio cable
Insert fully, with this side facing up.
Red White
R - AUDIO -
This unit’s rear panel
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
R - AUDIO -
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
This unit’s rear panel
Do not place the unit on
amplifiers or equipment
that may become hot.
The heat can damage the unit.
RQT7540
10
VIDEO S-VIDEO
R - AUDIO - L
VIDEO S-VIDEO
OPTICAL
AV4 IN
AC IN
R - AUDIO - L
OUT
OPTICAL
7540en.book 11 ページ
2004年2月10日 火曜日 午後12時58分
STEP 2 TV Tuning
3
Í/ l
When downloading has completed, the Owner ID
settings screen appears.
Press [1] and press the numbered
buttons to enter a 4-digit PIN number.
OPEN/CLOSE
REC
TIME SLIP
/x1.3
TIME SLIP
CH
Owner ID
X CH W
PIN number ¢¢¢¢
DVD
Name
House No.
RETURN
VOLUME
CH
DIRECT TV REC
Postcode
AV
RETURN : leave
Numbered
buttons
1
2
3
4
5
6
CH
VIDEO Plus+
7
8
9
CANCEL
¢ CANCEL
W X CH
≥Make a note of the PIN number (don’t forget), as it is not
possible to return to the factory preset.
4
VIDEO Plus+
INPUT SELECT MANUAL SKIP
0
The cursor moves to “Name”.
SKIP
SLOW/SEARCH
STOP
PAUSE
5
6
PLAY/x1.3
DIRECT NAVIGATOR
FUNCTIONS
FUNCTIONS
TOP MENU
ENTER
SUB MENU
RETURN
RETURN
PROG/CHECK DISPLAY
F
STATUS TIME SLIP
ERASE REC MODE
REC
CREATE
CHAPTER AUDIO
EXT LINK
A
Press [1].
Press [3, 4] to select a letter and
then press [1].
Repeat this to enter the name.
3,4,2,1
ENTER
TIMER
Press [ENTER] twice to store the PIN
number.
Getting started
TV
Í DVD
B
C
7
8
9
Press [ENTER] to store the name.
Press [4] and [1], “House No.” and
“Postcode” in the same way.
Press [RETURN].
The Owner ID settings screen disappears.
To stop partway
Press [RETURN].
∫ If the clock setting menu appears
Preset Download
(Setup with Q Link functions)
When connecting to a television that has the Q Link
function (➡page 46) with a fully wired 21-pin Scart lead
(➡page 7).
You can download the tuning positions from the television.
This unit’s Auto Clock Setting function synchronizes the time when
the TV channel that is broadcasting time and date information is
tuned.
1
2
Turn on the television and select the
appropriate AV input to suit the
connections to this unit.
Press [Í DVD] to turn the unit on.
Set the clock manually (➡ page 44).
∫ To confirm that stations have been tuned
correctly (➡page 42)
∫ To restart Preset Download (➡page 43)
∫ If you connect other equipment to AV2 terminal
of this unit
Change the “AV2 Input” and “AV2 Connection” in the SETUP menu
to match the connected equipment (➡ page 41).
[For]the[United]Kingdom]only[
∫ If there is interference or a very poor picture
appears on the TV screen, stop the RF output
(➡page 13, Removing Interference)
Downloading starts.
Download
Pos
4
Download in progress, please wait.
RETURN: to abort
RETURN
RQT7540
11
7540en.book 12 ページ
2004年2月10日 火曜日 午後12時58分
Refer to the control reference on page 11.
STEP 2 TV Tuning
Auto-Setup
(Setup without Q Link functions)
Getting started
≥When connecting to a television with the VIDEO OUT,
S-VIDEO OUT or COMPONENT VIDEO OUT terminal
(➡ page 8).
≥When connecting to a television that does not have
the Q Link function (➡page 46).
This unit’s Auto-Setup function automatically tunes all available TV
stations and synchronizes the time when the TV channel that is
broadcasting time and date information is tuned.
[For]the[United]Kingdom]only[
≥When connecting to a television with RF socket only
(➡ page 9)
1
2
Turn on the television and select the
appropriate AV input to suit the
connections to this unit.
Press [Í DVD] to turn the unit on.
Auto-Setup starts. This takes about 5 minutes.
5
6
Press [1].
Press [3, 4] to select a letter and
then press [1].
Repeat this to enter the name.
7
8
9
Press [ENTER] to store the name.
Press [4] and [1], “House No.” and
“Postcode” in the same way.
Press [RETURN].
The Owner ID settings screen disappears.
To stop partway
Press [RETURN].
∫ If the clock setting menu appears
Set the clock manually (➡ page 44).
Auto-Setup
Ch
1
Auto-Setup in progress, please wait.
RETURN: to abort
RETURN
[For]the[United]Kingdom]only[
(When connecting to a television with RF socket only)
Set the new RF output channel to TV (refer to the
instructions for your TV).
Select an unused channel pre-set on your TV and tune it to
the RF output channel number shown on the unit’s display.
(When the Auto-Setup screen does not appear clearly even
after performing the above operations, re-tune the channel
until the Auto-Setup screen becomes clear.)
3
[For]the[United]Kingdom]only[
[When connecting to a television with RF socket only (➡page 9)]
∫ To enter the satellite station’s name (➡page 42)
Press [1] and press the numbered
buttons to enter a 4-digit PIN number.
∫ If you connect other equipment to AV2 terminal
of this unit
Name
House No.
RETURN
Postcode
RETURN : leave
≥Make a note of the PIN number (don’t forget), as it is not
possible to return to the factory preset.
Press [ENTER] twice to store the PIN
number.
The cursor moves to “Name”.
12
You can also use the following method to restart Auto-Setup.
When the unit is on and stopped
Press and hold [X CH] and [CH W] on the main unit for about 5
seconds.
≥All the settings except for the ratings level, ratings password,
Owner ID and time settings return to the factory preset. The timer
recording programmes are also cancelled.
screen appears.
PIN number ¢¢¢¢
RQT7540
∫ To restart Auto-Setup (➡page 43)
The name of the satellite station is not set automatically. (“-- ---” will
appear under “Name” in the program list). After Auto-Setup is
completed, enter the name manually.
When Auto-Setup has completed, the Owner ID settings
Owner ID
4
∫ To confirm that stations have been tuned
correctly (➡page 42)
Change the “AV2 Input” and “AV2 Connection” in the SETUP menu
to match the connected equipment (➡ page 41).
7540en.book 13 ページ
2004年2月10日 火曜日 午後12時58分
VIDEO Plus+ numbers for Satellite/
Cable TV stations
Removing Interference
TV screen
Picture with interference
In some cases, interference (lines or patterning) or a very poor
picture may appear on the TV screen when this unit is connected.
≥When connecting to a television with RF leads only
(➡page 9)
Follow the steps below to change the video playback channel (RF
output channel) to remove the interference.
≥When connecting to a television with a fully wired 21-pin
Scart lead (➡ page 7).
Perform steps 1, 2 and 4 to stop the RF output. In step 2, press [0]
to select “ss”.
1
This unit doesn’t recognise Video Plus+ numbers for Satellite
stations or Cable TV stations.
The following operation also allows you to use Video Plus+
numbers to make timer recordings for satellite and cable TV
stations. As the settings indicated below are dummy timer
recordings, delete them in step 6.
Preparation
Turn on the Satellite receiver(s) or Cable TV box.
Select a correct station.
1
Press [VIDEO Plus+].
VIDEO Plus+
Remain 1:58 SP
12:53:00 15. 7. TUE
Enter VIDEO Plus+ Number by using 0-9 key.
2
Press [FUNCTIONS] for more than 5
seconds.
Unit’s display
Getting started
[For]the[United]Kingdom]only[
Press the numbered buttons to enter
a VIDEO Plus+ number for a satellite
station (e.g. Sky One) or Cable TV
station.
Press [2] to move back to correct a digit.
3
Press [ENTER] .
“-- ---” will appear under “Name”.
RF output channel number appears.
TIMER
RECORDING
TV screen
Name
RF OUTPUT CHANNEL
Remain 1:58 SP
12:54:00 15. 7. TUE
Date
15/ 7 TUE
Start
19:00
Mode PDC
SP OFF
Stop
20:00
Programme Name
DVD
CH :
28
4
SELECT
ENTER
RETURN
Test pattern screen appears.
2
Press [W X CH] to select a channel
number, which differs by 2 or 3 from
the present channel number.
Press [3, 4] to select the channel or
AV input that is to be used for
recording from the satellite station or
Cable TV station.
TIMER
RECORDING
No.
01
Name
AV2
Remain 1:58 SP
12:55:00 15. 7. TUE
Disc
Date Start Stop Mode PDC space
15/ 7 TUE 19:00 20:00 SP OFF OK
New Timer Programme
e.g. If the original channel number was 28, enter 31.
5
Press [ENTER].
The channel or AV input corresponding to the VIDEO Plus+
number is memorised.
The test pattern screen disappears.
3
Re-tune your TV until you receive the
test pattern screen.
RF OUTPUT CHANNEL
6
DVD
CH :
31
SELECT
ENTER
Repeat steps 1s5 above until you have set dummy timer
recordings for each of the satellite stations or Cable TV
stations that you will make VIDEO Plus+ recordings from.
RETURN
Press [3] to select each programme
that you have just set and press
[¢ CANCEL] to delete it from the
timer recording list.
If you can’t see the test pattern screen clearly, repeat step 1
and 2 to select RF output channel again
4
Press [ENTER] to finish this setting.
Clear picture
To exit the screen
Press [RETURN].
RQT7540
13
7540en.book 14 ページ
2004年2月10日 火曜日 午後12時58分
STEP 3 Set up to match your television and remote control
3
Press [3, 4] to select “Connection”
and press [1].
Press [3, 4] to select “TV Aspect”
and press [ENTER].
DVD
TV
VOLUME
CH
DIRECT TV REC
AV
Numbered
buttons
1
2
3
4
5
6
7
8
TV operation
buttons
4
5
CH
Press [3, 4] to select the TV aspect
and press [ENTER].
VIDEO Plus+
9
CANCEL
TV Aspect
SETUP
INPUT SELECT MANUAL SKIP
0
Getting started
SKIP
16:9 WIDE TV
16:9
SLOW/SEARCH
STOP
PAUSE
Tuning
Others
Disc
Sound
Display
Connection
PLAY/x1.3
DIRECT NAVIGATOR
FUNCTIONS
FUNCTIONS
TOP MENU
3,4,2,1
ENTER
RETURN
RETURN
PROG/CHECK DISPLAY
TIMER
F
A
STATUS TIME SLIP
ERASE REC MODE
REC
CREATE
CHAPTER AUDIO
EXT LINK
B
Letterbox
SELECT
ENTER
RETURN
≥16:9: 16:9 widescreen television
≥4:3: 4:3 standard aspect television
[RAM] Titles played as recorded.
[DVD-V] Video recorded for a widescreen is played as Pan
& Scan (unless prohibited by the producer of the
disc) (➡ page 46).
≥Letterbox: 4:3 standard aspect television
Widescreen picture is shown in the letterbox style
(➡page 46).
ENTER
SUB MENU
4:3 TV
4:3
C
To enjoy progressive video
You can enjoy progressive video by connecting this unit’s
COMPONENT VIDEO OUT terminals to an LCD/plasma television
or LCD projector compatible with progressive scan (➡page 46).
Selecting television type and aspect
Choose the setting to suit your television and preference.
1
While stopped
Press [FUNCTIONS].
FUNCTIONS
No Disc
DVD
1
2
3
Playback
Recording TIMER RECORDING
Dubbing
Edit
Setting
4
SETUP
ENTER
RETURN
2
Press [3, 4, 2, 1] to select
“SETUP” and press [ENTER].
SETUP
Tuning
Others
Disc
Sound
Display
Connection
Manual
Auto-Setup Restart
Download
TAB
SELECT
RETURN
To exit the screen
Press [RETURN] several times.
RQT7540
14
To return to the previous screen
Press [RETURN].
5
While stopped
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select
“SETUP” and press [ENTER].
Press [3, 4] to select “Connection”
and press [1].
Press [3, 4] to select “Progressive”
and press [ENTER].
Press [3, 4] to select “On” and
press [ENTER].
Output becomes progressive.
[Note]
≥When connected to a regular television (CRT: Cathode ray tube),
even if it is progressive compatible, progressive output can cause
some flickering. Turn off “Progressive” if this occurs (➡ page 29).
≥Video will not be displayed correctly if connected to an
incompatible television.
≥There is no output from the COMPONENT VIDEO OUT terminals
if “AV1 Output” in the SETUP menu is set to “RGB (without
component)”. Set this item to either “Video (with component)” or
“S-Video (with component)” (➡ page 41).
≥If the unit is connected to the television through VIDEO OUT, SVIDEO OUT or AV1 terminal, output will be interlace irrespective
of the settings.
2004年2月10日 火曜日 午後12時58分
Television operation
You can configure the remote control TV operation buttons to turn
the television on/off, change the television input mode, select the
television channel and change the television volume.
Point the remote control at the television
While pressing [Í TV], enter the code
with the numbered buttons.
e.g.,
01:
[0] ➡ [1]
When other Panasonic products
respond to this remote control
If other Panasonic products are placed close together, change the
remote control code on the main unit and the remote control (the
two must match).
Under normal circumstances use the factory set code “DVD 1”.
1
While stopped
Press [FUNCTIONS].
Manufacturer and Code No.
Brand
Panasonic
AIWA
AKAI
BLAUPUNKT
BRANDT
BUSH
CURTIS
DESMET
DUAL
ELEMIS
FERGUSON
GOLDSTAR/LG
GOODMANS
GRUNDIG
HITACHI
INNO HIT
IRRADIO
ITT
JVC
LOEWE
METZ
MITSUBISHI
MIVAR
NEC
NOKIA
NORDMENDE
ORION
PHILIPS
PHONOLA
PIONEER
PYE
RADIOLA
SABA
SALORA
SAMSUNG
SANSUI
SANYO
SBR
SCHNEIDER
SELECO
SHARP
SIEMENS
SINUDYNE
SONY
TELEFUNKEN
THOMSON
TOSHIBA
WHITE WESTINGHOUSE
Code
01, 02, 03, 04, 45
35
27, 30
09
10, 15
05, 06
31
05, 31, 33
05, 06
31
10
31
05, 06, 31
09
22, 23, 31, 40, 41, 42
34
30
25
17, 39
07
28, 31
06, 19, 20
24
36
25, 26, 27
10
37
05, 06
31, 33
38
05, 06
05, 06
10
26
31, 32, 43
05, 31, 33
21
06
05, 06, 29, 30, 31
06, 25
18
09
05, 06, 33
08
10, 11, 12, 13, 14
10, 15, 44
16
05, 06
Test by turning on the television and changing channels. Repeat
the procedure until you find the code that allows correct operation.
≥If your television brand is not listed or if the code listed for your
television does not allow control of your television, this remote
control is not compatible with your television.
2
Press [3, 4, 2, 1] to select
“SETUP” and press [ENTER].
3
Press [3, 4] to select “Others” and
press [1].
4
Press [3, 4] to select “Remote
Control” and press [ENTER].
5
Press [3, 4] to select the code
(“DVD 1”, “DVD 2” or “DVD 3”) and
press [ENTER].
SETUP
Tuning
Others
Disc
6
7
Getting started
7540en.book 15 ページ
Remote Control
Press “±” and “ENTER” together
for more than 2 seconds on the remote
control.
While pressing [ENTER], press and
hold the numbered button ([1], [2] or
[3]) for more than 2 seconds.
Press [ENTER].
∫ When the following indicator appears on the
unit’s display
The unit’s remote
control code
Change the code on the remote control to match the main unit’s
(➡ step 6).
[Note]
Executing “Shipping Condition” in the SETUP menu returns the
main unit code to “DVD 1”. Change the remote control code to 1
(➡ step 6).
RQT7540
15
7540en.book 16 ページ
2004年2月10日 火曜日 午後12時58分
Disc information
Discs you can use for recording and play (12 cm/8 cm)
Disc type
Logo
Instructions
Re-writable discs
≥You can record up to 16 hours [in EP (8 Hour) mode on double-sided disc. You
cannot record or play continuously on two sides] (➡ page 19, Recording modes and
approximate recording times).
≥You can perform chasing playback (➡page 19).
≥Scratch and dust resistant cartridge discs and large capacity double sided discs (9.4
GB) are commercially available.
≥You can record digital broadcasts that allow “One time only recording” when using
CPRM (Content Protection for Recordable Media) compatible discs (➡ page 45).
Getting started
DVD-RAM
≥4.7 GB/9.4 GB, 12 cm
≥2.8 GB, 8 cm
Indicated in these instructions with
[RAM]
One time recording discs (recordable until the disc is full)
DVD-R
≥4.7 GB, 12 cm, 1.4 GB, 8 cm
for General Ver. 2.0
≥4.7 GB, 12 cm for General Ver. 2.0/
4k-SPEED DVD-R Revision 1.0
[DVD-R]
≥You can record up to 8 hours [in EP (8 Hour) mode].
≥By finalizing the disc, you can play it in a DVD player as DVD-Video (Play only)
(➡page 35, 45).
≥You cannot record digital broadcasts that allow “One time only recording”.
≥This unit is compatible with 1k–4k recording speed discs.
≥We recommend using Panasonic discs. DVD-R from other manufacturers may not be recorded or played due to the condition of the recording.
≥This unit cannot record to discs containing both PAL and NTSC signals. Play of discs recorded with both PAL and NTSC on another unit is not
guaranteed.
Which should I use, DVD-RAM or DVD-R?
The following chart indicates the differences. Select based upon what you require.
§ 1 You can erase, enter name and change thumbnail. Available
(Y: Possible, t: Impossible)
DVD-RAM
DVD-R
space does not increase after erasing.
Re-writable
Y
t
§ 2 Only on DVD-RAM compatible players.
§ 3 After finalizing the disc (➡page 35, 45).
Edit
Y
§1
§ 4 Only one is recorded (➡page 40, Bilingual Audio Selection).
Play on other players
Y§3
Y§2
§ 5 CPRM (➡ page 45) compatible discs only.
Recording both M 1 and M 2 of
§ 6 The picture is recorded in 4:3 aspect.
Y
t§4
bilingual broadcast
Recording broadcasts that allow
one copy
Recording 16:9 aspect picture
Y§5
t
Y
§6
Play-only discs (12 cm/8 cm)
Disc type
Logo
DVD-Audio
[DVD-A]
High fidelity music discs
≥Played on this unit in 2
channels.
DVD-Video
[DVD-V]
High quality movie and music
discs
Video CD
[VCD]
Recorded music and video
(including CD-R/RW)
Audio CD
[CD]
Recorded music and audio
(including CD-R/RW)
—
RQT7540
16
Instructions
CD-R and CD-RW with music
recorded in MP3 (➡page 27)
≥This unit plays CD-R/CD-RW (audio recording discs). Close the
sessions or finalize the disc after recording.
Play may be impossible on some CD-R or CD-RW discs due to the
condition of the recording.
≥The producer of the material can control how discs are played. So
you may not always be able to control play as described in these
operating instructions. Read the disc’s instructions carefully.
∫ Protection [RAM] (Cartridge discs)
With the write-protect tab in the protect
position, you cannot record to, edit, or erase
from the disc.
Play automatically starts when inserted in the
unit.
PROTECT
Discs that cannot be played
≥2.6 and 5.2 GB DVD-RAM, 12 cm
≥3.95 and 4.7 GB DVD-R for Authoring
≥Unfinalized DVD-R recorded on other equipment (➡ page 45,
Finalize)
≥DVD-Video with a region number other than “2” or “ALL”
≥DVD-ROM
≥DVD-RW
≥iR
≥iRW
≥CD-ROM
≥CDV
≥CD-G
≥Photo CD
≥CVD
≥SVCD
≥SACD
≥MV-Disc
≥PD
≥Divx Video Disc, etc.
Accessory discs
DVD-RAM
You can also record signals which allow you to make one copy,
onto these discs.
9.4 GB, double-sided, type 4 cartridge:
4.7 GB, single-sided, type 2 cartridge:
4.7 GB, single-sided, non-cartridge:
DVD-R
4.7 GB, single-sided, non-cartridge:
LM-AD240E
LM-AB120E
(set of 3, LM-AB120E3)
LM-AF120E
(set of 3, LM-AF120E3)
LM-RF120LE
7540en.book 17 ページ
2004年2月10日 火曜日 午後12時58分
Disc handling
∫ How to hold a disc
Do not touch the recorded surface.
∫ If there is dirt or condensation on the disc
[DVD-A] [DVD-V] [VCD] [CD]
Wipe with a damp cloth and then
wipe dry.
∫ Handling precautions
≥Do not attach labels or stickers to discs. (This may cause disc
warping and un-balanced rotation, rendering it unusable.)
≥Do not write on the label side with a ball-point pen or other writing
instrument.
≥Do not use record cleaning sprays, benzine, thinner, static
electricity prevention liquids or any other solvent.
≥Do not use scratch-proof protectors or covers.
≥Do not use the following discs:
–Discs with exposed adhesive from removed stickers or labels
(rented discs etc).
–Discs that are badly warped or cracked.
–Irregularly shaped discs, such
as heart shapes.
≥Do not place in the following
areas:
–In direct sunlight.
–In very dusty or humid areas.
–Near a heater.
Getting started
[RAM] [DVD-R]
≥Clean with an optional DVD-RAM/PD disc cleaner (LF-K200DCA1,
where available).
≥Do not use cleaners for CDs or cloths.
Types of disc for the type of connected
TV
When you use the discs recorded either PAL or NTSC, refer to this
table.
(Y: Possible, t: Impossible)
TV type
Disc
PAL
Yes/No
Y
Multi-system TV
NTSC
PAL
Y§1
t
NTSC TV
NTSC
PAL
Y§2
Y
PAL TV
NTSC
§1
§2
§3
Y§3 (PAL60)
If you select “NTSC” in “TV System” (➡ page 43), the picture may
be clearer.
Select “NTSC” in “TV System” (➡ page 43).
If your television is not equipped to handle PAL 525/60 signals
the picture will not be shown correctly.
RQT7540
17
7540en.book 18 ページ
2004年2月10日 火曜日 午後12時58分
Recording television programmes
1
1
2
4
Press [W X CH] to select the channel.
DVD - R AM
SP
OPEN/CLOSE
REC
TIME SLIP
/x1.3
PULL OPEN
TIME SLIP
AV3
S-VIDEO IN
VIDEO IN
L/MONO AUDIO IN
To select with the numbered buttons:
e.g.,
5:
[0] ➡ [5]
15:
[1] ➡ [5]
CH
R
AV3 input terminals
Time Slip indicator
TIME SLIP
2∫ 1
3
DVD
TV
¥ DIRECT
TV REC
Recording
Numbered
buttons
VOLUME
CH
DIRECT TV REC
1
2
3
4
5
6
7
8
CH
2
VIDEO Plus+
9
INPUT SELECT MANUAL SKIP
0
SKIP
Remaining time on the disc
4
STOP
INPUT SELECT
XP
PAUSE
PLAY/x1.3
DIRECT NAVIGATOR
Recording will take place on open space on disc. Data will not
be overwritten.
≥You cannot change the channel or recording mode during
recording.
≥[RAM] You can change the audio being received by pressing
[AUDIO] during recording. (Does not affect the recording of
audio.)
FUNCTIONS
FUNCTIONS
3,4,2,1
ENTER
ENTER
SUB MENU
RETURN
RETURN
PROG/CHECK DISPLAY
STATUS TIME SLIP
STATUS
F
ERASE REC MODE
REC
CREATE
CHAPTER AUDIO
EXT LINK
A
DVD - R AM
REC
;
1
TOP MENU
F TIMER
Press [¥ REC] to start recording.
SLOW/SEARCH
∫
TIMER
DVD - R AM
XP
AV
CANCEL
DIRECT
NAVIGATOR
Press [REC MODE] to select the
recording mode (XP, SP, LP or EP).
B
C
TIME SLIP
∫ To stop recording
4
Press [∫].
Recorded as 1 title until the position where stopped.
AUDIO
3
[DVD-R]
It takes about 30 seconds for the unit to complete recording
management information after recording finishes.
∫ To pause recording
Press [;].
[RAM] [DVD-R]
≥It is not possible to record continuously from one side of a double
sided disc to the other. You will need to eject the disc and turn it
over.
≥When using 8 cm DVD-RAM, remove the disc from the cartridge.
≥You can record up to 99 titles on one disc.
≥It is not possible to record CPRM (➡ page 45) protected material
onto DVD-R or 2.8 GB DVD-RAM discs.
≥When recording bilingual TV broadcast onto DVD-R, only one of
either “M 1” or “M 2” audio can be recorded. Select at “Bilingual
Audio Selection” (➡page 40).
30 (min.) ""# 60 (min.) ""# 90 (min.) ""# 120 (min.)
^" Counter (cancel) ,"" 240 (min.) ,"" 180 (min.) ,}
1
≥This does not work during timer recordings (➡ page 21) or while
using Flexible Recording (➡ page 20).
Press [< OPEN/CLOSE] on the main
unit to open the tray and insert a disc.
≥Press the button again to close the tray.
Insert fully so it clicks into place.
Insert label-up.
Press again to restart recording.
(Title is not split into a separate title.)
∫ To specify a time to stop recording
During recording
Press [¥ REC] on the main unit to select the recording
time.
Each time you press the button:
If a station also broadcasts Teletext information
The unit automatically records the programme’s and station’s name
if the station’s Title Page is correctly set (➡page 42).
[Note]
The unit may take some time in retrieving titles (up to 30 minutes)
and may fail in some cases.
Insert with the arrow facing in.
RQT7540
18
19 ページ
2004年2月26日 木曜日 午前11時17分
Recording modes and approximate
recording times
Playing while you are recording
[RAM]
Depending on the content being recorded, the recording times may
become shorter than indicated.
(Unit: hour)
DVD-RAM
DVD-R
Mode
Single-sided Double-sided (4.7 GB)
(4.7 GB)
(9.4 GB)
XP (High quality)
1
2
1
SP (Normal)
2
4
2
LP (Long play)
4
EP (Extra long play)
8
§
8 (6 )
4
§
16 (12 )
8 (6§)
Picture quality
XP
Playing from the beginning of the title you are
recording—Chasing playback
Press [1] (PLAY).
Time Slip indicator on the main unit lights.
Playing a title previously recorded while recording—
Simultaneous rec and play
1
2
SP
To exit the DIRECT NAVIGATOR screen
Press [DIRECT NAVIGATOR].
Hour)§
EP (8 Hour)
Reviewing the recorded images while recording—
Time Slip
Recording time
§
Press [3, 4, 2, 1] to select a title
and press [ENTER].
Time Slip indicator on the main unit lights.
LP
EP (6
Press [DIRECT NAVIGATOR].
When “Recording time in EP mode” is set to “EP (6 Hour)” in the
SETUP menu.
The sound quality is better when using “EP (6 Hour)” than when
using “EP (8 Hour)”.
1
Press [TIME SLIP].
Time Slip indicator on the main unit lights.
PLAY
0 min
Play starts from 30
seconds previous.
[Note]
When recording to DVD-RAM using “EP (8 Hour)” mode, play may
not be possible on DVD players that are compatible with DVD-RAM.
In this case use “EP (6 Hour)” mode.
FR (Flexible Recording Mode)
The unit automatically selects a recording rate between XP and EP
(8 Hour) that will enable the recordings to fit in the available
recording time on the disc with the best possible recording quality.
≥You can set when programming timer recordings.
≥All the recording modes from XP to EP appear in the
XP
SP
display.
LP
EP
Direct TV Recording
When connected to a television that has the Q Link
function using a fully wired 21-pin Scart lead.
This function allows you to immediately start recording the
programme that you are viewing on the TV.
1
2
REC
The current recording
images
≥You will hear the playback audio.
2
Press [3, 4] to select the time and
press [ENTER].
≥Press [TIME SLIP] to show the play images in full. Press
again to show the play and recording images.
∫ To stop play
Press [∫].
∫ To stop recording
2 seconds after play stops
Press [∫].
Insert a disc. (➡ page 18)
∫ To stop timer recording
Press [¥ DIRECT TV REC].
Press [F TIMER].
≥You can also press and hold [∫] on the main unit for more than 3
seconds to stop recording.
Recording starts.
Recording
7540en.fm
To stop recording
Press [∫].
RQT7540
19
7540en.book 20 ページ
2004年2月10日 火曜日 午後12時58分
Recording television programmes
Refer to the control reference on page 18.
Recording from an external equipment
Flexible Recording
[RAM] [DVD-R]
The unit sets the best possible picture quality that fits the recording
within the remaining disc space.
e.g.,
Recorded
Remain
Perfectly fit!
45 minutes in
SP mode
Recording rate
between SP and LP
e.g., Connecting other video equipment to the AV3 input
terminals
60 minutes
Recording
[RAM] [DVD-R]
Preparation
≥Connect a video cassette recorder, decoder or satellite/digital
receiver, etc. to this unit’s input terminals.
≥When recording bilingual programmes
[RAM] When both M 1 and M 2 is selected on the connected
equipment, you can select the audio type in playback.
[DVD-R] Select either M 1 or M 2 on the connected equipment. (You
cannot select the audio type in playback.)
≥When the output signal from the external equipment is NTSC,
change the “TV System” to “NTSC” in the SETUP menu
(➡ page 43).
Programme to be recorded
OPEN/CLOSE
REC
This unit
TIME SLIP
PULL OPEN
AV3
Preparation
Select the channel to record.
1
While stopped
2
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select
“FLEXIBLE REC” and press [ENTER].
/x1.3
TIME SLIP
S-VIDEO IN
S-VIDEO IN
VIDEO IN
L/MONO AUDIO IN
CH
R
VIDEO IN L/MONO - AUDIO IN - R
Yellow White Red
S-Video cable§
Audio/Video cable
FLEXIBLE REC
Recording in FR mode
Maximum rec. time
Set rec. time
Start
3 Hour 00 Min.
3 Hour 00 Min.
Cancel
Other video equipment
SELECT
RETURN
3
Press [2, 1] to select “Hour” and
“Min.” and press [3, 4] to set the
recording time.
≥You can also set the recording time with the numbered
buttons.
4
If the audio output of the other equipment is monaural, connect to L/
MONO.
§ The S-VIDEO terminal achieves a more vivid picture than the
VIDEO terminal.
1
When you want to start recording
Press [3, 4, 2, 1] to select “Start”
and press [ENTER].
≥Recording starts.
≥The recording mode becomes FR mode.
2
3
To stop recording partway
Press [∫].
[Note]
Press [INPUT SELECT] to select the
input channel for the equipment you
have connected.
Press [REC MODE] to select the
recording mode (XP, SP, LP or EP).
≥Using Flexible Recording (➡ left), you can save content of a
video cassette to 1 disc with the best possible quality of
recording without wasting disc space.
To exit the screen without recording
Press [RETURN].
To show the remaining time
Press [STATUS].
While stopped
When recording from other video equipment
Start play on the other equipment.
Remaining
time
When recording from decoder or satellite/digital receiver
DVD-RAM
REC 59
BBC
LR
When performing EXT LINK recording (➡ page 23), the flexible
recording function does not work.
4
Select the channel on the other
equipment.
Press [¥ REC].
Recording starts.
To skip unwanted parts
Press [;] to pause recording. (Press again to restart recording.)
To stop recording
Press [∫].
Almost all videos and DVD software on sale have been
treated to prevent illegal copying. Any software that has
been so treated cannot be recorded using this unit.
RQT7540
20
7540en.book 21 ページ
2004年2月10日 火曜日 午後12時58分
Timer recording
≥You can also press [REC MODE] to change the recording
mode.
≥PDC (➡ below)
ON!)OFF (– – –)
≥Programme Name
Press [2, 1] to select “Programme Name” and press
[ENTER] (➡ page 36).
DVD
TV
VOLUME
CH
AV
Numbered
buttons
¢ CANCEL
1
2
3
4
5
6
7
8
9
4
CH
VIDEO Plus+
CANCEL
The settings are stored.
VIDEO Plus+
TIMER
RECORDING
INPUT SELECT MANUAL SKIP
0
SKIP
PAUSE
DIRECT NAVIGATOR
FUNCTIONS
RETURN
PROG/CHECK DISPLAY
STATUS TIME SLIP
PROG/CHECK
TIMER
ERASE REC MODE
F
REC
CREATE
CHAPTER AUDIO
EXT LINK
A
B
REC MODE
C
[RAM] [DVD-R]
You can enter up to 16 programmes up to a month in advance.
Using VIDEO Plus+ number to make
timer recordings
Entering VIDEO Plus+ numbers is an easy way of timer recording.
You can find these numbers in TV listings in newspapers and
magazines.
≥Using VIDEO Plus+ numbers for Satellite stations or Cable TV
stations
Set this unit to recognise VIDEO Plus+ numbers for Satellite stations
or Cable TV stations before you start the following operations
(➡ page 13, VIDEO Plus+ numbers for Satellite/Cable TV stations).
1
Press [VIDEO Plus+].
VIDEO Plus+
Press [F TIMER].
The unit turns off and “F” lights on the unit’s display to
indicate timer recording standby has been activated.
ENTER
SUB MENU
EXT LINK
Repeat steps 1–4 to programme other recordings.
5
TOP MENU
F TIMER
Check to make sure
“OK” is displayed.
PLAY/x1.3
1
3,4,2,1
ENTER
Remain 1:58 SP
12:55:00 15. 7. TUE
Disc
No. Name
Date Start Stop Mode PDC space
01 BBC 1 15/ 7 TUE 19:00 20:00 SP OFF OK
New Timer Programme
SLOW/SEARCH
STOP
DIRECT
NAVIGATOR
Press [ENTER].
Remain 1:58 SP
12:53:00 15. 7. TUE
[RAM]
Even if the unit is in timer recording standby, play starts when you
press [1] (PLAY) or [DIRECT NAVIGATOR]. Timer recording works
even during play.
Recording
DIRECT TV REC
∫ To release the unit from recording standby
Press [F TIMER].
The unit turns on and “F” goes out.
≥Be sure to press [F TIMER] before the programme start time to
put the unit on recording standby. Timer recording will work only
if “F” is displayed.
∫ To cancel recording when recording has
already begun
Press [F TIMER].
≥You can also press and hold [∫] on the main unit for more than
3 seconds to stop recording.
[Note]
≥“F” flashes for about 5 seconds when the unit cannot go to
timer recording standby (e.g., a recordable disc is not in the
disc tray).
≥If the unit is not put in the timer recording standby mode at the
latest 10 minutes before the programmed timer recording
starting time, the “F” flashes on the unit display. In this case,
press [F TIMER] to put the unit in the timer recording standby
mode.
≥When you programme successive timer recordings to start
immediately one after the other, the unit cannot record the part
at the beginning of the later programmes (a few seconds when
recording with DVD-RAM and approximately 30 seconds when
recording with DVD-R).
∫ PDC function (➡page 46)
Enter VIDEO Plus+ Number by using 0-9 key.
2
Press the numbered buttons to enter
the VIDEO Plus+ number.
As long as a PDC signal is being broadcast by the TV station,
even if the broadcast programme time changes, the recording
time automatically changes to match the new broadcast time.
To activate the PDC function
In step 3 in the PDC column, press [3, 4] to select “ON”.
Press [2] to move back to correct a digit.
3
Press [ENTER].
TIMER
RECORDING
Name
Date
1 BBC 15/ 7 TUE
Remain 1:58 SP
12:54:00 15. 7. TUE
Start
19:00
Stop
20:00
Mode PDC
SP OFF
Programme Name
≥Confirm the programme and make corrections if necessary
using [3, 4, 2, 1] (➡page 22, step 3).
≥When “-- ---” appears in the “Name” column, you cannot set
timer recording. Press [3, 4] to select desired programme
position. After you have entered the information of a TV
station, it is kept in the unit’s memory.
RQT7540
21
7540en.book 22 ページ
2004年2月10日 火曜日 午後12時58分
Timer recording
Refer to the control reference on page 21.
[RAM] [DVD-R]
You can enter up to 16 programmes up to a month in advance.
(Each daily or weekly programme is counted as one programme.)
[RAM]
Even if the unit is in timer recording standby, play starts when you
press [1] (PLAY) or [DIRECT NAVIGATOR]. Timer recording works
even during play.
∫ To release the unit from recording standby
Manually programming timer
recordings
1
Press [PROG/CHECK].
TIMER
RECORDING
Remain 1:58 SP
∫ To cancel recording when recording has
already begun
12:56:00 15. 7. TUE
No. Name
01 BBC
Press [F TIMER].
The unit turns on and “F” goes out.
≥Be sure to press [F TIMER] before the programme start time to
put the unit on recording standby. Timer recording will work only
if “F” is displayed.
Disc
Date Start Stop Mode PDC space
15/ 7 TUE 19:00 20:00 SP OFF OK
New Timer Programme
Recording
Press [F TIMER].
≥You can also press and hold [∫] on the main unit for more than
3 seconds to stop recording.
SELECT
ENTER
2
3
[Note]
Press ENTER to store
new programme.
RETURN
Press [3, 4] to select “New Timer
Programme” and press [ENTER].
Press [1] to move through the items
and change the items with [3, 4].
TIMER
RECORDING
Name
1 BBC
Remain 1:58 SP
12:57:00 15. 7. TUE
Date
15/ 7 TUE
Start
22:00
Stop
22:30
Mode PDC
SP OFF
Programme Name
≥Press and hold [3, 4] to alter the Start (Start time) and
Stop (Finish time) in 30-minute increments.
≥You can also set Name (Programme position/TV Station
Name), Date, Start (Start time), and Stop (Finish time) with
the numbered buttons.
≥You can also press [REC MODE] to change the recording
mode.
≥Date
[. Date:
l ;:
l Daily timer:
l ;:
a. Weekly timer:
Current date up to one month later minus
one day
SUN-SAT>MON-SAT>MON-FRI
SUN>--->SAT
≥PDC (➡ page 21)
ON!)OFF (– – –)
≥Programme Name (➡page 36)
Press [2, 1] to select “Programme Name” and press
[ENTER].
4
Press [ENTER].
TIMER
RECORDING
No.
01
02
Name
BBC
BBC
Remain 1:58 SP
12:58:00 15. 7. TUE
Disc
Date Start Stop Mode PDC space
15/ 7 TUE 19:00 20:00 SP OFF OK
15/ 7 TUE 22:00 22:30 SP OFF OK
New Timer Programme
Check to make sure
“OK” is displayed.
Repeat steps 2–4 to programme other recordings.
5
Press [F TIMER].
The unit turns off and “F” lights on the unit’s display to
indicate timer recording standby has been activated.
RQT7540
22
≥“F” flashes for about 5 seconds when the unit cannot go to
timer recording standby (e.g., a recordable disc is not in the
disc tray).
≥If the unit is not put in the timer recording standby mode at the
latest 10 minutes before the programmed timer recording
starting time, the “F” flashes on the unit display. In this case,
press [F TIMER] to put the unit in the timer recording standby
mode.
≥When you programme successive timer recordings to start
immediately one after the other, the unit cannot record the part
at the beginning of the later programmes (a few seconds when
recording with DVD-RAM and approximately 30 seconds when
recording with DVD-R).
23 ページ
2004年2月26日 木曜日 午前11時36分
To record programmes from satellite
receiver by RGB signals
Preparation
≥Change the settings in the SETUP menu as follows (➡page 41).
–“AV2 Input”: “RGB (Not NTSC)”
–“AV2 Connection”: “Normal”
Follow the steps indicated for manually
programming timer recordings
(➡ page 22).
≥Make sure you connect to the “TV Scart terminal” of a Sky Digital
STB with a 21-pin Scart lead.
≥Set your Sky Digital STB to output “RGB” signals.
≥After setting the Personal Planner programmes as required, Sky
Digital STB must be left on (not set to standby) to ensure
continuous output of RGB signals.
Check, change or delete a programme
≥Even when the unit is turned off, you can display the timer
recording list by pressing [PROG/CHECK].
Press [PROG/CHECK].
Icons
[ This programme is currently recording.
W The times overlap those in another programme.
Recording of the programme with the later start time
starts when the earlier programme finishes recording.
F The disc was full so the programme failed to record.
The material was copy-protected so it was not recorded.
X The programme did not complete recording because the
disc is dirty or some other reason.
∫ To change a programme
Press [3, 4] to select the programme and press [ENTER].
(➡page 22, step 3)
∫ To delete a programme
Press [3, 4] to select the programme and press [¢ CANCEL].
∫ To exit the timer recording list
Press [PROG/CHECK].
∫ To put the unit on timer recording standby
Press [F TIMER].
The unit turns off and “F” lights on the unit’s display to indicate timer
recording standby has been activated.
≥Programmes that failed to record are displayed gray. They are
automatically deleted from the timer recording list at 4 a.m. two
days later.
Linked timer recordings with external
equipment (EXT LINK)
[RAM] [DVD-R]
If an external equipment (for example a satellite receiver) with a
timer function is connected to the AV2 terminal of this unit by a
21-pin Scart lead (➡ page 7, 10), it is possible to control the
recording of the unit with the equipment.
Recording
7540en.fm
Preparation
≥Change the “Ext Link” in the SETUP menu to match the connected
equipment (➡ page 41).
≥Timer programming has to be done on the external equipment and
switch to the timer recording standby mode. Refer to the
equipment’s operating instructions.
Press [EXT LINK].
The unit turns off and switches to the recording standby mode.
≥Recording begins when a signal is received from the connected
equipment.
≥As long as a video picture is being transmitted by the external
equipment, the unit will record it.
When the following message appears on the television screen, press
[2, 1] to select “Yes” (continue recording the current programme)
or “Cancel” (cancel recording) and press [ENTER].
DVD now recording this programme.
TIMER
RECORDING
No.
Remain 1:58 SP
12:56:00 15. 7. TUE
Name
Yes
Disc
Date Start Stop Mode PDC space
New Timer Programme
Cancel
ENTER
RETURN
[Note]
SELECT
ENTER
RETURN
Press ENTER to store
new programme.
It is not possible to use EXT LINK function for timer recording of
RGB signals from Sky Digital STB (➡ left, To record programmes
from satellite receiver by RGB signals).
To record programmes from a satellite receiver
using the “Sky Personal Planner” function
Message displayed in the “Disc space” line
OK:
Displayed if the recording can fit in the
remaining space.
> (Date): For recordings made daily or weekly, the display
will show until when recordings can be made (up
to a maximum of one month from the present
time) based on the time remaining on the disc.
! :
It may not be possible to record because:
≥the disc is write-protected
≥there is not enough space left
≥the number of possible titles has reached its
maximum.
Change the settings in the SETUP menu as follows ( ➡page 41).
–“AV2 Input”: “Video”
–“AV2 Connection”: “Normal”
–“Ext Link”: “Ext Link 1”
≥Make sure you connect to the “VCR Scart terminal” of a Sky Digital
STB with a 21-pin Scart lead.
To cancel the external control
Press [EXT LINK] to stop recording or to cancel linked timer
recording standby.
≥You can also press and hold [∫] on the main unit for more than 3
seconds to stop recording.
≥In order to prevent accidental operation, press [EXT LINK] to
cancel the setting after recording is finished.
For your reference
≥The video being recorded automatically appears on the television
when connected to this unit’s AV1 terminal with the 21-pin Scart
lead.
≥This function does not work with some equipment. Refer to the
equipment’s operating instructions.
≥The beginnings of recordings may not be recorded correctly in
some cases.
≥When “Ext Link” is set to “Ext Link 2”, this function does not work if
the input signal is NTSC system.
RQT7540
23
7540en.book 24 ページ
2004年2月10日 火曜日 午後12時58分
Playing discs
1
1
2
∫
∫ Selecting recorded programmes (titles) to play
[RAM] [DVD-R]
1 Press [DIRECT NAVIGATOR].
OPEN/CLOSE
REC
TIME SLIP
/x1.3
TIME SLIP
CH
DIRECT NAVIGATOR
DVD-RAM
08
07
X CH W
TIME SLIP
D, E
TITLE VIEW
--
BBC 10/10 FRI
BBC 11/10 SAT
--
--
--
DVD
TV
Previous
VOLUME
CH
DIRECT TV REC
ENTER
AV
RETURN
Numbered
buttons
1
2
3
4
5
6
7
8
CH
W X CH
VIDEO Plus+
9
CANCEL
INPUT SELECT MANUAL SKIP
MANUAL SKIP
0
SKIP
Playing back
:, 9
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
∫
DIRECT NAVIGATOR
DIRECT
NAVIGATOR,
TOP MENU
FUNCTIONS
TOP MENU
ENTER
SUB MENU
RETURN
2
;
PROG/CHECK DISPLAY
TIMER
You can also select titles with the numbered buttons.
e.g.,
5:
[0] ➡ [5]
15:
[1] ➡ [5]
To exit the screen
Press [DIRECT NAVIGATOR].
Direct Navigator screen icons
3,4,2,1
ENTER
2;, ;1
Title protected.
Title that was not recorded due to recording
protection (Digital broadcasts etc.)
F
A
STATUS TIME SLIP
ERASE REC MODE
B
TIME SLIP
t
Title cannot be played because data is
damaged.
AUDIO
CREATE
CHAPTER
[
Currently recording.
(NTSC)
Title recorded using a different encoding
system from that of the TV system currently
selected on the unit.
REC
CREATE
CHAPTER AUDIO
EXT LINK
C
(PAL)
≥It is not possible to play continuously from one side of a double
sided disc to the other. You will need to eject the disc and turn it
over.
≥When using 8 cm DVD-RAM, remove the disc from the cartridge.
1
Press [< OPEN/CLOSE] on the main
unit to open the tray and insert a disc.
≥Press the button again to close the tray.
Insert fully so it clicks into place.
Insert label-up.
Insert with the arrow facing in.
2
Press [1] (PLAY).
[RAM] [DVD-R]
Play starts from the most recently
recorded title.
[DVD-A] [DVD-V] [VCD] [CD]
Play starts from the beginning of the disc.
RQT7540
24
Next
Select
2 Press [3, 4, 2, 1] to select the title and press
[ENTER].
RETURN
SUB MENU
ERASE
6, 5
02/02
SUB MENU
DVD - R AM
PLAY
∫ When a menu screen appears on the television
[DVD-A] [DVD-V]
Press [3, 4, 2, 1] to select the item and press [ENTER].
Some items can also be selected using the numbered buttons.
[VCD]
Press the numbered buttons to select the item.
e.g.,
5:
[0] ➡ [5]
15:
[1] ➡ [5]
≥To return to the menu screen
[DVD-A] Press [TOP MENU].
[DVD-V] Press [TOP MENU] or [SUB MENU].
[VCD] Press [RETURN].
7540en.fm
25 ページ
2004年2月26日 木曜日 午前11時17分
Operations during play
Press [∫].
Stop
Pause
The stopped position is memorized.
The indicator on the right appears in the unit’s display (Excluding when playing
from the Direct Navigator and when playing a play list.)
Resume play function
Press [1] (PLAY) to restart from this position.
DVD - R AM
Press [;].
Press again to restart play.
Press [6] or [5].
Skip
Press [:] or [9].
≥On the main unit, press [D] or [E].
≥Each press increases the number of skips.
Press the numbered buttons.
Starting from a
selected item
e.g., 5:
15:
[0] ➡ [5]
[1] ➡ [5]
[CD] (MP3 discs only) 5:
15:
[0] ➡ [0] ➡ [5]
[0] ➡ [1] ➡ [5]
Playing back
Search
≥On the main unit, press and hold [D] or [E].
≥The speed increases up to 5 steps.
≥Press [1] (PLAY) to restart play.
≥Audio is heard during first level search forward.
You can turn off the sound during search (➡ page 40, “PLAY k1.3 & Audio during Search”).
Audio is heard during all levels of search. [DVD-A] (excluding moving picture parts) [CD]
[DVD-A] Selecting groups
While stopped (screen saver is displayed on the television ➡ right)
5:
[5]
≥This works only when stopped (screen saver is displayed on the television ➡right) with some discs.
Quick View
Press and hold [1] (PLAY/a1.3).
[RAM]
The play speed can be increased
without distorting the audio.
≥Press again to return to normal speed.
≥This does not work if the setting is “Off” in “PLAY k1.3 & Audio during Search” (➡page 40).
While paused, press [6] or [5].
Slow-motion
[RAM] [DVD-R] [DVD-A] (Motion
picture parts only) [DVD-V] [VCD]
Frame-by-frame
[RAM] [DVD-R] [DVD-A] (Motion
picture parts only) [DVD-V] [VCD]
Displaying the
television image as a
picture-in-picture
Skipping the specified
time (Time Slip)
[RAM] [DVD-R]
Manual Skip
≥On the main unit, press and hold [D] or [E].
≥The speed increases up to 5 steps.
≥Press [1] (PLAY) to restart play.
≥Forward direction only. [VCD]
≥The unit will pause if slow-motion play is continued for 5 minutes.
While paused, press [2;] or [;1].
≥Each press shows the next frame.
≥Press [1] (PLAY) to restart play.
≥Forward direction only. [VCD]
Press [TIME SLIP].
The unit displays the television image as a picture-inpicture.
≥You will hear the playback audio.
≥Press [TIME SLIP] again to cancel.
≥The grey background does not appear on the
receiving screen even if you select “On” from the
“Grey Background” in the SETUP menu
(➡ page 40).
Play images
Current receiving images
≥You can change the channel being
received by pressing [W X CH].
≥You cannot change the channel being
received while recording.
1 Press [TIME SLIP].
2 Press [3, 4] to select the time and press [ENTER].
Play skips the specified time.
≥Press [TIME SLIP] to show the play images in full.
Press [MANUAL SKIP].
[RAM] [DVD-R]
Play restarts from approximately 30
seconds later.
RQT7540
25
7540en.fm
26 ページ
2004年2月26日 木曜日 午前11時18分
Playing discs
Refer to the control reference on page 24.
Editing operations during play
1 Press [ERASE].
2 Press [2, 1] to select “Erase” and press [ENTER].
Erase
≥A title cannot be restored once it is erased. Make certain before proceeding.
≥You cannot erase when recording and playing at the same time.
[RAM] [DVD-R]
Create Chapter
[RAM]
Press [CREATE CHAPTER].
The message screen appears for 5 seconds to confirm that a chapter is created.
≥Press [:, 9] to skip to the start of a chapter.
≥You cannot divide when recording and playing at the same time.
Changing audio
Playing back
Press [AUDIO].
[RAM] [VCD]
LR>L>R
^---------------}
[DVD-V] [DVD-A]
You can change the audio channel number each time you press the
buttons. This allows you to change things like the soundtrack
language (➡page 28, Soundtrack).
DVD-RAM
PLAY
LR
Soundtrack
e.g., “L R” is selected
[Note]
You cannot change the audio type when a DVD-R is in the disc tray.
RQT7540
26
1 ENG
Î Digital 3/2.1ch
e.g., English is selected.
7540en.book 27 ページ
2004年2月10日 火曜日 午後12時58分
Using menus to play MP3
Using the tree screen to find a group
DVD
While the file list is displayed
TV
1
VOLUME
CH
DIRECT TV REC
AV
2
3
4
5
6
Selected group no. /Total group no.
If the group has no track, “– –” is displayed
as group number.
CH
VIDEO Plus+
7
8
9
CANCEL
MENU
G
8
T
14
TOTAL
40/111
INPUT SELECT MANUAL SKIP
0
SKIP
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
DIRECT NAVIGATOR
No.
0 – 9
FUNCTIONS
TOP MENU
SELECT
ENTER
TOP MENU
RETURN
3,4,2,1
ENTER
ENTER
SUB MENU
2
RETURN
RETURN
PROG/CHECK DISPLAY
TIMER
F
ERASE REC MODE
B
001 My favorite
001 Brazilian pops
002 Chinese pops
003 Czech pops
004 Hungarian pops
005 Liner notes
006 Japanese pops
007 Mexican pops
008 Philippine pops
009 Swedish pops
001 Momoko
002 Standard number
001 Piano solo
002 Vocal
G 7/25
You cannot select groups
that contain no compatible
files.
Press [3, 4, 2, 1] to select a group
and press [ENTER].
The file list for the group appears.
REC
To return to the file list
Press [RETURN].
CREATE
CHAPTER AUDIO
EXT LINK
A
STATUS TIME SLIP
Tree
MP3 music
C
Tips for making MP3 discs
≥Discs must conform to ISO9660 level 1 or 2 (except for
extended formats).
[CD] (MP3 discs only)
This unit plays MP3 files recorded on CD-R/RW designed for audio
recording that are finalized (➡ page 45) on a computer. Files are
treated as tracks and folders are treated as groups.
1
Press [TOP MENU].
Selected group
G: Group no.
T: Track no. in the group
TOTAL: Track no./Total track
no. in all groups
MENU
G
1
T
1
TOTAL
1/111
No.
0 – 9
SELECT
ENTER
RETURN
2
No
Group
1 : My favorite
Total
Track
Tree
001 Both Ends Freezing
1
002 Lady Starfish
2
003 Life on Jupiter
3
004 Metal Glue
4
005 Paint It Yellow
5
006 Pyjamamama
6
007 Shrimps from Mars
7
008 Starperson
8
009 Velvet Cuppermine
9
010 Ziggy Starfish
10
Prev.
Next
Press [3, 4] to select the track and
press [ENTER].
Play continues to the last track in the last group.
≥“0” indicates the track currently playing.
≥You can also select the track with the numbered buttons.
e.g.,
5:
[0] ➡ [0] ➡ [5]
15:
[0] ➡ [1] ➡ [5]
Playing back
Numbered
buttons
1
Press [1] while a track is highlighted
to display the tree screen.
≥Compatible compression rate: between 32 kbps and 320 kbps
≥Compatible sampling rate: 16 kHz, 22.05 kHz, 24 kHz, 32 kHz,
44.1 kHz and 48 kHz
≥Maximum number of tracks and groups recognizable:
999 tracks and 99 groups
≥This unit is compatible with multi-session.
≥This unit is not compatible with ID3 tags or packet writing.
≥Depending on the recording, some items may not be playable.
≥Reading or play of the disc may take time if there are a lot of still
pictures or sessions.
≥The display order may differ from how the order is displayed on
a computer.
Naming folders and files
e.g.,
≥MP3 files must have the
Root
001 (folder=group)
extension “.MP3” or “.mp3”.
001
≥At the time of recording, give
001track.mp3 (file=track)
002track.mp3
folder and file names a 3-digit
003track.mp3
numeric prefix in the order you
002 group
want them to play (this may
001track.mp3
003 group
not work at times).
002track.mp3
003track.mp3
≥English alphabets and Arabic
004track.mp3
001track.mp3
numerals are displayed
002track.mp3
003track.mp3
correctly. Other characters
may not be displayed correctly. Order of play
To show other pages
Press [3, 4, 2, 1] to select “Prev.” or “Next” and press [ENTER].
After listing all the tracks in one group, the list for the next group
appears.
To exit the screen
Press [TOP MENU].
RQT7540
27
7540en.book 28 ページ
2004年2月10日 火曜日 午後12時58分
Using on-screen menus
Disc menu—Setting the disc content
DVD
TV
Soundtrack§
VOLUME
CH
DIRECT TV REC
AV
1
2
3
4
5
6
7
8
[RAM] [DVD-R]
The disc’s audio attributes appear.
[DVD-A] [DVD-V]
Select the audio and language (➡ below, Audio attribute,
Language).
CH
VIDEO Plus+
9
CANCEL
INPUT SELECT MANUAL SKIP
Subtitle§
[RAM] [DVD-R] (Only discs that contain subtitle on/off information)
[DVD-A] [DVD-V]
0
SKIP
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
DIRECT NAVIGATOR
Turn the subtitle on/off and select the language.
≥Subtitle on/off information cannot be recorded using this
unit. [RAM] [DVD-R]
FUNCTIONS
TOP MENU
3,4,2,1
ENTER
Audio channel [RAM] [VCD]
ENTER
Playing back
SUB MENU
➡ page 26, Changing audio
RETURN
PROG/CHECK DISPLAY
Angle§ [DVD-A] [DVD-V]
STATUS TIME SLIP
DISPLAY
TIMER
F
ERASE REC MODE
A
STILL-P (Still picture) [DVD-A]
REC
CREATE
CHAPTER AUDIO
EXT LINK
B
Selects the play method for still pictures.
Slide Show: Plays according to the default order on the disc.
Page:
Select the still picture number and play.
≥RANDOM: Plays in random order.
≥Return:
Returns to the default still picture on the disc.
C
PBC (Playback control ➡ page 46) [VCD]
Common procedures
1
Indicates whether menu play (playback control) is on or off.
Press [DISPLAY].
Disc
Play
Sound
Menu
Soundtrack
1
Î Digital 2/0 ch
Subtitle
OFF
Audio channel
LR
Item
Setting
≥Depending on the condition of the unit (playing, stopped,
etc.) and disc contents, there are some items that you
cannot select or change.
2
Press [3, 4] to select the menu and
press [1].
3
Press [3, 4] to select the item and
press [1].
Press [3, 4] to select the setting.
4
≥Some items can be changed by pressing [ENTER].
To clear the on-screen menus
Press [DISPLAY].
RQT7540
28
§ You may have to use the menus (➡page 24) on the disc to change.
≥The display changes according to the disc content. You cannot
change when there is no recording.
Audio attribute
LPCM/PPCM/ÎDigital/DTS/MPEG:
k (kHz):
b (bit):
ch (channel):
Language
ENG: English
FRA: French
DEU: German
ITA: Italian
ESP: Spanish
NLD: Dutch
SVE:
NOR:
DAN:
POR:
RUS:
JPN:
Signal type
Sampling frequency
Number of bits
Number of channels
Swedish
Norwegian
Danish
Portuguese
Russian
Japanese
CHI:
KOR:
MAL:
VIE:
THA:
¢:
Chinese
Korean
Malay
Vietnamese
Thai
Others
7540en.book 29 ページ
2004年2月10日 火曜日 午後12時58分
Play menu—Change the play sequence
This function works only when the elapsed play time is displayed.
Repeat play
≥All
≥Chapter
≥Group
≥PL (Play list)
≥Title
≥Track
[VCD] [CD] (excluding MP3 discs)
[RAM] [DVD-R] [DVD-V]
[DVD-A] [CD] (MP3 discs only)
[RAM]
[RAM] [DVD-R] [DVD-V]
[DVD-A] [VCD] [CD]
Select “OFF” to cancel.
Picture menu—Change the picture
quality
Reduces noise and picture degradation.
Progressive§ (➡ page 46)
Select “ON” to enable progressive output.
Select “OFF” if the picture is stretched horizontally.
Playing back
Playback NR
Transfer§ (When “Progressive” is set to “ON”.)
Select the method of conversion for progressive output to suit
the type of material being played (➡ page 45, Film and video).
When the output signal is PAL
≥Auto
≥Video:
Detects 25 frame-per-second film content and
appropriately converts it.
Select when using Auto, and the video
content is distorted.
When the output signal is NTSC
≥Auto1
(normal):
≥Auto2:
≥Video:
§
Detects 24 frame-per-second film content and
appropriately converts it.
Compatible with 30 frame-per-second film
content in addition to 24 frame-per-second
film content.
Select when using Auto1 and Auto2, and the
video content is distorted.
Only when you have set “Progressive” to “On” in the SETUP menu
(➡page 14).
Sound menu—Change the sound effect
V.S.S. [RAM] [DVD-R] [DVD-V]
(Only with Dolby Digital with 2 or more channels)
Enjoy a surround-like effect if you are using two front speakers
only.
≥Turn V.S.S. off if it caused distortion.
≥V.S.S. does not work for bilingual recordings.
Dialog Enhancer [DVD-A] [DVD-V]
(Dolby Digital, 3-channel or over only, including a centre channel)
The volume of the centre channel is raised to make dialogue
easier to hear.
RQT7540
29
7540en.book 30 ページ
2004年2月10日 火曜日 午後12時58分
Editing titles/chapters
Editing titles/chapters and playing
chapters
DVD
TV
VOLUME
CH
DIRECT TV REC
Preparation
Release protection (cartridge ➡ page 16, disc ➡page 35). [RAM]
AV
1
2
1
2
3
CH
4
5
6
7
8
9
VIDEO Plus+
CANCEL
SKIP
Press [3, 4, 2, 1] to select the title.
DIRECT NAVIGATOR
DVD-RAM
INPUT SELECT MANUAL SKIP
0
:, 9
Press [DIRECT NAVIGATOR].
TITLE VIEW
07
08
BBC 10/10 FRI
BBC 11/10 SAT
--
--
--
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
;
--
1
DIRECT
NAVIGATOR
DIRECT NAVIGATOR
FUNCTIONS
Previous
ENTER
RETURN
TOP MENU
3,4,2,1
ENTER
ENTER
SUB MENU
RETURN
PROG/CHECK DISPLAY
TIMER
F
REC
CREATE
CHAPTER AUDIO
EXT LINK
B
3
C
Editing
A
STATUS TIME SLIP
ERASE REC MODE
Next
Select
To show other pages
Press [3, 4, 2, 1] to select “Previous” or “Next” and
press [ENTER].
≥You can also press [:, 9] to show other pages.
Multiple editing
Select with [3, 4, 2, 1] and press [;]. (Repeat.)
A check mark appears. Press [;] again to cancel.
RETURN
SUB MENU
02/02
SUB MENU
Press [SUB MENU], then [3, 4] to
select the operation and press
[ENTER].
≥If you select “Edit”, press [3, 4] to select the operation and
press [ENTER].
[RAM] [DVD-R]
Enter Name
Set up Protection
Title/Chapter
Programmes are recorded as a single title consisting of one
chapter.
Title
Erase
Cancel Protection
Properties
Partial Erase
Edit
Change Thumbnail
Refer to “Title
operations”.
Chapter View
Chapter
Start
End
∫ If you select “Chapter View”
4
You can divide a title into multiple chapters. [RAM]
(➡page 26, 31, “Create Chapter”)
To start play ➡ Press [ENTER].
To edit ➡ Step 5.
Title
Chapter
Chapter
Press [3, 4, 2, 1] to select the
chapter.
Chapter
Chapter
DIRECT NAVIGATOR
DVD-RAM
CHAPTER VIEW
08 BBC 11/10 SAT
You can change the order of chapters and create a play list. [RAM]
001
---
---
---
---
---
---
---
---
---
---
---
Previous
≥Titles are divided into about 5-minute chapters after finalizing
(➡ page 35). [DVD-R]
ENTER
01/01
SUB MENU
Next
Select
RETURN
≥To show other pages/Multiple editing (➡ above)
≥The maximum number of items on a disc:
–Titles:
99
–Chapters:
Approximately 1000
(Depends on disc contents.)
5
Press [SUB MENU], then [3, 4] to
select the operation and press
[ENTER].
[Note]
Erase Chapter
≥Once erased or partially erased, it cannot be restored to its original
state. Make certain before proceeding.
≥You cannot edit during recording.
Create Chapter
Combine Chapters
Refer to “Chapter
operations”.
Title View
≥You can go back to Title View.
To exit the screen
Press [DIRECT NAVIGATOR].
RQT7540
30
To return to the previous screen
Press [RETURN].
7540en.book 31 ページ
2004年2月10日 火曜日 午後12時58分
Title operations
Erase§
Press [2, 1] to select “Erase” and press [ENTER].
[RAM] [DVD-R]
≥The available recording time on DVD-R does not increase when you erase titles.
Information (e.g., time and date) is shown.
Properties
Properties
Dinosaur
No.
26
Time
12:19
Date 11/10/2004 MON Rec time 0:30 (SP)
Name 12
[RAM] [DVD-R]
SELECT
ENTER
Enter Name
RETURN
➡ page 36, Entering text
[RAM] [DVD-R]
[RAM]
If set, this will protect the title from accidental erasure.
1
Partial Erase
2
DIRECT NAVIGATOR
DVD-RAM
08
TITLE
08
07
The lock symbol appears when the title is protected.
You can remove unnecessary parts of the recording such as
commercials.
[RAM]
DIRECT NAVIGATOR
DVD-RAM
Press [2, 1] to select “Yes” and press
[ENTER].
BBC 10/10 FRI
BBC 11/10
--
--
Partial Erase
PLAY
Start
End
Press [ENTER] at the start point and
end point of the section you want to
erase.
Press [3, 4] to select “Exit” and
press [ENTER].
Next
Exit
0:43.21
Start
End
- -:- -.- -
- -:- -.- -
Editing
Set up Protection§
Cancel Protection§
ENTER
RETURN
≥Select “Next” and press [ENTER] to erase other sections.
3
Press [2, 1] to select “Erase” and press [ENTER].
You can change an image to be shown as a thumbnail picture in the
Title View.
Change Thumbnail
[RAM] [DVD-R]
1
2
3
§
DIRECT NAVIGATOR
DVD-RAM
Change Thumbnail
;
08
Change
Press [1] (PLAY) to start play.
Exit
Press [ENTER] when the image you
want to use as a thumbnail is shown.
Press [3, 4] to select “Exit” and
press [ENTER].
0:06.45
Change
00:06.45
ENTER
RETURN
Multiple editing is possible.
Chapter operations
Erase Chapter§
Press [2, 1] to select “Erase” and press [ENTER].
[RAM]
1
Create Chapter
[RAM]
§
Press [ENTER] at the point you want
to divide.
DIRECT NAVIGATOR
DVD-RAM
08
Create Chapter
PLAY
≥Repeat this step to divide at other points.
2
Press [3, 4] to select “Exit” and
press [ENTER].
Create
Exit
0:43.21
ENTER
RETURN
Combine Chapters
Press [2, 1] to select “Combine” and press [ENTER].
[RAM]
≥The selected chapter and next chapter are combined.
Multiple editing is possible.
For quicker editing
≥Use search, Time Slip or slow-motion (➡page 25) to find the
desired point.
≥Press [:, 9] to skip to the end of a title.
RQT7540
31
7540en.book 32 ページ
2004年2月10日 火曜日 午後12時58分
Creating, editing and playing play lists
2
DVD
TV
VOLUME
CH
DIRECT TV REC
Press [3, 4, 2, 1] to select “PLAY
LIST” and press [ENTER].
PLAY LIST
DVD-RAM
AV
PLAY LIST VIEW
--
--
--
--
--
Create
1
2
3
--
CH
4
5
6
7
8
9
VIDEO Plus+
CANCEL
Previous
0
SKIP
3
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
DIRECT NAVIGATOR
4
FUNCTIONS
FUNCTIONS
TOP MENU
3,4,2,1
ENTER
SUB MENU
PLAY LIST
DVD-RAM
RETURN
PROG/CHECK DISPLAY
Editing
STATUS TIME SLIP
ERASE REC MODE
REC
CREATE
CHAPTER AUDIO
EXT LINK
A
Press [3, 4, 2, 1] to select “Create”
and press [ENTER].
Press [2, 1] to select the source title
and press [4].
RETURN
SUB MENU
F
B
Create
08 BBC 11/10 SAT
Source Title
01
02
--
--
Source Chapter
001
003
---
---
---
01/01
001/001
002
Chapters in PLAY LIST
-----
001/001
C
ENTER
RETURN
5
[RAM]
SUB MENU
Press RETURN to exit.
Press [2, 1] to select the chapter you
want to add to a play list and press
[ENTER].
Press [3] to cancel.
PLAY LIST
DVD-RAM
You can arrange the chapters (➡ page 30) to create a play list.
Title
Title
Chapter
Chapter
Chapter
Chapter
Chapter
Create
08 BBC 11/10 SAT
Source Title
01
02
--
--
Source Chapter
001
003
---
---
---
ENTER
RETURN
Play list
Chapter
6
≥The maximum number of items on a disc:
–Play lists:
99
–Chapters in play lists: Approximately 1000
(Depends on disc contents.)
Press RETURN to exit.
Press [2, 1] to select the position to
insert the chapter and press [ENTER].
PLAY LIST
DVD-RAM
Create
08 BBC 11/10 SAT
Source Title
01
02
--
--
Source Chapter
001
003
---
---
---
ENTER
Preparation
Release protection (cartridge ➡ page 16, disc ➡page 35).
RETURN
01/01
001/001
002
Chapters in PLAY LIST
-----
Creating play lists
001/001
Press RETURN to exit.
≥Repeat steps 5–6 to add other chapters.
≥Press [3] to select other source titles.
7
While stopped
SUB MENU
001/001
≥You can also create a new chapter from the source title.
Press [SUB MENU] to select ”Create Chapter” and press
[ENTER] (➡page 31, Create Chapter).
Chapter
≥Editing play lists doesn’t modify the recording data.
≥Play lists are not recorded separately so this doesn’t use much
capacity.
01/01
001/001
002
Chapters in PLAY LIST
-----
1
Next
≥Press [ENTER] to select all the chapters in the title, then
skip to step 6.
ENTER
TIMER
01/01
ENTER
RETURN
INPUT SELECT MANUAL SKIP
Press [RETURN].
Press [FUNCTIONS].
FUNCTIONS
DVD
DVD-RAM
Playback
Disc Protection Off
Cartridge Protection Off
DIRECT NAVIGATOR
Recording TIMER RECORDING
Dubbing
Edit
Setting
ENTER
RETURN
RQT7540
32
FLEXIBLE REC
PLAY LIST
SETUP
DISC MANAGEMENT
To exit the screen
Press [RETURN] several times.
To return to the previous screen
Press [RETURN].
2004年2月10日 火曜日 午後12時58分
Editing and playing play lists/chapters
1
2
3
Play list operations
While stopped
Erase§
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “PLAY
LIST” and press [ENTER].
Press [3, 4, 2, 1] to select the play
list.
Play list information (e.g., time and date) is
shown.
Properties
Properties
--
12/10 SUN 0:30
Create
--
--
Previous
ENTER
RETURN
SELECT
Create
➡ page 32, Creating play lists
Copy§
Press [2, 1] to select “Copy” and press
[ENTER].
Enter
Name
➡ page 36, Entering text
Change
Thumbnail
➡ page 31, Change Thumbnail
--
01/01
SUB MENU
Next
Select
Press [SUB MENU], then [3, 4] to
select the operation and press
[ENTER].
§
≥If you select “Edit”, press [3, 4] to select the operation and
press [ENTER].
Copy
Erase
Enter Name
Properties
Change Thumbnail
Multiple editing is possible.
Chapter operations
Editing chapters in a play list does not modify the source titles and
source chapters.
Create
Refer to “Play list
operations”.
Add
Chapter
Edit
Chapter View
PLAY LIST
DVD-RAM
Move
Chapter
Press [3, 4, 2, 1] to select the
chapter.
To start play ➡ Press [ENTER].
To edit ➡ Step 6.
PLAY LIST
DVD-RAM
002
---
---
---
---
---
---
---
---
---
---
Previous
01/01
SUB MENU
001
002
---
---
---
---
---
---
---
---
---
---
01/01
Next
ENTER
RETURN
CHAPTER VIEW
001
Move Chapter
01 12/10 SUN 0:30
Previous
01 12/10 SUN 0:30
ENTER
➡ page 32, Creating play lists, Step 4–6
Press [3, 4, 2, 1] to select the position
to insert the chapter and press [ENTER].
∫ If you select “Chapter View”
5
RETURN
--
≥To show other pages/Multiple editing (➡page 30)
4
Date 12/10/2004 TUE
Total 0:30.53
ENTER
PLAY LIST VIEW
01
Dinosaur
No.
10
Chapters 002
To start play ➡ Press [ENTER].
To edit ➡ Step 4.
PLAY LIST
DVD-RAM
Press [2, 1] to select “Erase” and press
[ENTER].
Editing
7540en.book 33 ページ
Next
Create
Chapter
➡ page 31, Create Chapter
Combine
Chapters
➡ page 31, Combine Chapters
Erase
Chapter§
➡ page 31, Erase Chapter
Select
RETURN
≥To show other pages/Multiple editing (➡page 30)
6
Press [SUB MENU], then [3, 4] to
select the operation and press
[ENTER].
§
Multiple editing is possible.
Add Chapter
Move Chapter
Create Chapter
Combine Chapters
Refer to “Chapter
operations”.
Erase Chapter
PLAY LIST View
≥You can go back to PLAY LIST View.
To exit the screen
Press [RETURN] several times.
To return to the previous screen
Press [RETURN].
RQT7540
33
7540en.book 34 ページ
2004年2月10日 火曜日 午後12時58分
DISC MANAGEMENT
[RAM] [DVD-R]
DVD
Preparation
Release protection. [RAM]
(cartridge ➡ page 16, disc ➡right)
TV
VOLUME
CH
DIRECT TV REC
AV
1
2
1
3
CH
4
5
Press [FUNCTIONS].
6
VIDEO Plus+
7
8
FUNCTIONS
9
CANCEL
DVD
INPUT SELECT MANUAL SKIP
DVD-RAM
0
Playback
SKIP
SLOW/SEARCH
STOP
While stopped
PAUSE
DIRECT NAVIGATOR
Recording TIMER RECORDING
Dubbing
Edit
PLAY/x1.3
Setting
DIRECT NAVIGATOR
Disc Protection Off
Cartridge Protection Off
FLEXIBLE REC
PLAY LIST
SETUP
DISC MANAGEMENT
FUNCTIONS
ENTER
FUNCTIONS
TOP MENU
3,4,2,1
ENTER
RETURN
2
ENTER
SUB MENU
RETURN
RETURN
PROG/CHECK DISPLAY
Press [3, 4, 2, 1] to select “DISC
MANAGEMENT” and press
[ENTER].
STATUS TIME SLIP
DISC
MANAGEMENT Title No. 11
TIMER
F
ERASE REC MODE
CREATE
CHAPTER AUDIO
EXT LINK
A
DVD-RAM
REC
B
Used
Remain 5:38 (EP)
0 : 22
Disc Name
C
Disc Protection
Off
Format Disc
SELECT
ENTER
Convenient functions
RETURN
3
Press [3, 4] to select the operation
and press [ENTER].
To exit the screen
Press [RETURN] several times.
To return to the previous screen
Press [RETURN].
[Note]
≥Once the disc has been formatted, the contents cannot be
restored. Check carefully before proceeding. The contents on
the disc are erased when you format it even if you have set title
or disc protection.
≥After finalizing [DVD-R]
–The disc becomes play-only and you can no longer record or
edit.
–There is a pause of several seconds between titles.
–Titles are divided into about 5-minute§ chapters.
§ This time varies greatly depending on the condition and
mode of recording.
RQT7540
34
7540en.book 35 ページ
2004年2月10日 火曜日 午後12時58分
Disc Name
Auto-Play Select
[RAM] [DVD-R]
➡ page 36, Entering text
The disc name is displayed in the FUNCTIONS window.
FUNCTIONS
DVD
DVD-RAM
Playback
Documentary
Disc Protection Off
Cartridge Protection Of
[DVD-R]
Select whether to show the top menu after finalizing the disc.
Do this before finalizing the disc.
Press [3, 4] to select “Top Menu” or
“Title 1” and press [ENTER].
DIRECT NAVIGATOR
Top Menu: The top menu appears first.
Title 1:
The disc content is played without displaying the top
menu.
Disc Protection
[RAM]
If set, this will protect the disc from accidental erasure.
Press [2, 1] to set disc protection and
press [ENTER].
DISC
MANAGEMENT Title No. 11
DVD-RAM
Used
Remain 5:38 (EP)
Finalize
(➡page 45, Finalize)
[DVD-R]
You can play DVD-R on compatible DVD players by finalizing them
on this unit, effectively making them into DVD-Video that complies
with DVD-Video standards.
0 : 22
Disc Name
Disc Protection
On
1
Press [2, 1] to select “Yes” and
press [ENTER].
2
Press [2, 1] to select “Start” and
press [ENTER].
Format Disc
ENTER
RETURN
The lock symbol appears closed when the disc is write-protected.
A message appears when finalizing is finished.
Format Disc
(➡ page 45, Formatting)
[RAM]
Some DVD-RAM are unformatted. Format them before using them in
this unit. Formatting also allows you to erase the entire contents of a
disc.
1
2
Press [2, 1] to select “Yes” and
press [ENTER].
Press [2, 1] to select “Start” and
press [ENTER].
3
Press [ENTER].
≥Do not disconnect the AC mains lead while the message
“Finalizing the disc” is on the television. This will render the
disc unusable.
≥Finalizing takes up to 15 minutes.
≥You cannot finalize DVD-R recorded on other manufacturer’s
equipment.
Before
finalizing
After
finalizing
DVD-R
DVD-V
Recording/Editing/Entering name
Y
t
Play on other players
t
Y
Disc display on this unit
Convenient functions
SELECT
A message appears when formatting is finished.
3
Press [ENTER].
To stop formatting
Press [RETURN].
≥You can cancel formatting if it takes more than 2 minutes. The disc
must be reformatted if you do this.
DVD-R finalized on this unit may not be playable on other players
due to the condition of the recording.
≥Visit Panasonic’s homepage for more information about DVDs.
http://www.panasonic-europe.com
≥Do not disconnect the AC mains lead while the message
“Formatting the disc” is on the television. This can render the
disc unusable.
≥Formatting normally takes a few minutes, however it may take up to
a maximum of 70 minutes.
≥Formatting cannot be performed on DVD-R or CD-R/RW.
RQT7540
35
7540en.fm
36 ページ
2004年2月26日 木曜日 午前11時18分
Entering text
1
DVD
VOLUME
CH
DIRECT TV REC
AV
Numbered
buttons
¢ CANCEL
Show Enter Name screen.
Title (timer recording)
Select “Programme Name” in step 3 on page 21, 22.
TV
Title
Select “Enter Name” in step 3 on page 30.
1
2
3
4
5
6
7
8
9
Play list
Select “Enter Name” in step 4 on page 33.
CH
Disc
Select “Disc Name” in step 3 on page 34.
VIDEO Plus+
CANCEL
INPUT SELECT MANUAL SKIP
0
SKIP
SLOW/SEARCH
STOP
PAUSE
Name field: shows the text you have entered
PLAY/x1.3
;
∫
DIRECT NAVIGATOR
Enter Name
_
FUNCTIONS
1 1
2
3
5
6
7
8
9
0
2 A
B
C
a
b
c
i j
3 D
4 G
E
F
d
e
f
/
*
l %
H
I
g
h
i
fl
$
ERASE
SET
5 J
K
L
j
l
O N @
6 M N
O
k
m n
0 –– ¢
7 P
8 T
Q
R
U
V
9 W X
0 . ,
Y
?
TOP MENU
3,4,2,1
ENTER
ENTER
;
SUB MENU
π
RETURN
RETURN
PROG/CHECK DISPLAY
STATUS TIME SLIP
SELECT
TIMER
F
ERASE REC MODE
o
[
]
_
q
r
s
(
t
u
v
{
}
)
-
Z
w
x
!
"
'
y
:
z
;
\
`
|
^
SPACE
RETURN
CREATE
CHAPTER AUDIO
EXT LINK
A
&
p
S
*
ENTER
REC
4
B
2
C
Press [3, 4, 2, 1] to select a
character and press [ENTER].
Convenient functions
Repeat this step to enter other characters.
≥To erase a character
Press [3, 4, 2, 1] to select the character in the name field
and press [;].
[RAM] [DVD-R]
You can give names to recorded titles, etc.
≥Using the numbered buttons to enter characters
e.g., entering the letter “R”
The maximum number of characters:
§
[RAM]
Characters
Title
64 (44§)
Play list
64
Disc
64
1 Press [7] to move to the 7th
row.
2 Press [7] twice to highlight
“R”.
3 Press [ENTER].
Title name for timer recording
[DVD-R]
≥To enter a space
Press [¢ CANCEL] and press
[ENTER].
Characters
Title
44
Disc
40
If a name is long, parts of it may not be shown in some screens.
3
36
K
7
7
6 M N
7 P
8 T
Press [∫] (SET).
Returns to the previously displayed screen.
To end partway
Press [RETURN].
Text is not saved.
RQT7540
5 J
L
7
O
Q
R
U
V
S
7540en.book 37 ページ
2004年2月10日 火曜日 午後12時58分
FUNCTIONS window and Status messages
Status messages
DVD
Status messages appear on the television when you operate the unit
to show the condition of the unit.
TV
VOLUME
CH
DIRECT TV REC
AV
Press [STATUS].
The display changes each time you press the button.
1
2
3
4
5
6
7
8
9
DVD-RAM
REC
PLAY
NICAM
LR
CH
VIDEO Plus+
CANCEL
INPUT SELECT MANUAL SKIP
0
SKIP
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
DIRECT NAVIGATOR
FUNCTIONS
FUNCTIONS
TOP MENU
3,4,2,1
ENTER
Recording or play status/input channel
TV audio type being received
(NICAM or MONO)
Selected audio type
Date and time
Recording
mode
πRemain
18:53:50 11.10.
π T2 0:05.14 XP
π T1 0:00.10 SP
ENTER
SUB MENU
Disc indication
RETURN
Available recording time and
recording mode
0:50 XP
Play position
PROG/CHECK DISPLAY
STATUS TIME SLIP
STATUS
TIMER
F
ERASE REC MODE
Elapsed play time
Elapsed recording time
CREATE
CHAPTER AUDIO
EXT LINK
A
REC
B
C
FUNCTIONS window
By using the FUNCTIONS window you may access the main
functions quickly and easily.
1
While stopped
Press [FUNCTIONS].
Convenient functions
No display
FUNCTIONS
DVD
DVD-RAM
Playback
Disc Protection Off
Cartridge Protection Off
DIRECT NAVIGATOR
Recording TIMER RECORDING
Dubbing
Edit
Setting
FLEXIBLE REC
PLAY LIST
SETUP
DISC MANAGEMENT
ENTER
RETURN
Functions displayed depend on the type of disc.
2
Press [3, 4, 2, 1] to select an item
and press [ENTER].
To exit the FUNCTIONS window
Press [FUNCTIONS].
RQT7540
37
7540en.book 38 ページ
2004年2月10日 火曜日 午後12時58分
Changing the unit’s settings
Common procedures
< OPEN/CLOSE
∫
OPEN/CLOSE
REC
TIME SLIP
/x1.3
TIME SLIP
CH
1
While stopped
2
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “SETUP”
and press [ENTER].
Tabs
Options
Menus
DVD
TV
SETUP
VOLUME
CH
DIRECT TV REC
AV
Numbered
buttons
1
2
3
4
5
6
Tuning
Others
Disc
Sound
Display
Connection
CH
VIDEO Plus+
7
8
9
CANCEL
3
INPUT SELECT MANUAL SKIP
0
SKIP
SLOW/SEARCH
STOP
PAUSE
4
PLAY/x1.3
DIRECT NAVIGATOR
FUNCTIONS
FUNCTIONS
TOP MENU
3,4,2,1
ENTER
5
ENTER
SUB MENU
Remote Control
Clock
Owner ID
DVD 1
Shipping Condition
Default Settings
TAB
SELECT
RETURN
Press [3, 4] to select the tab and
press [1].
Press [3, 4] to select the menu and
press [ENTER].
Press [3, 4] to select the option and
press [ENTER].
RETURN
Convenient functions
RETURN
PROG/CHECK DISPLAY
TIMER
F
A
B
ERASE REC MODE
A
To return to the previous screen
Press [RETURN].
REC
CREATE
CHAPTER AUDIO
EXT LINK
To exit the screen
Press [RETURN] several times.
STATUS TIME SLIP
B
C
C
Summary of settings
The settings remain intact even if you switch the unit to standby.
Tabs
Tuning
Menus
Options (Underlined items are the factory presets.)
Manual (➡page 42)
Auto-Setup Restart (➡ page 43)
Download (➡ page 43)
Others
Remote Control (➡ page 15)
≥DVD 1
≥DVD 2
≥DVD 3
Clock
Auto Clock Setting (➡page 44)
Manual Clock Setting (➡ page 44)
RQT7540
38
Owner ID (➡ page 11)
In order to prevent another person from using this unit if it is
stolen, you can set a PIN number and input your personal
information.
Once the PIN number has been set, you cannot return to the
factory preset. Make sure not to forget this.
≥PIN number ≥Name ≥House No. ≥Postcode
Shipping Condition
All the settings except for the ratings level, ratings password,
Owner ID and time settings return to the factory preset. The
timer recording programmes are also cancelled.
≥Yes
≥No
Default Settings
All the settings other than the programmed channels, time
settings, disc language settings, ratings level, ratings password,
Owner ID and remote control code return to the factory presets.
≥Yes
≥No
39 ページ
2004年2月12日 木曜日 午後12時12分
Tabs
Disc
Menus
Language
Choose the language for audio, subtitle and disc menus. [DVD-V]
≥Press [ENTER] to show the following settings.
≥Some discs start in a certain language despite any changes you make here.
≥Enter a code (➡ page 41) when you selecting “Other ¢¢¢¢”.
Soundtrack
≥German ≥Italian
≥Spanish
≥English ≥French
≥Original: The original language of each disc will be selected.
≥Other ¢¢¢¢
Subtitle
≥Automatic: If the language selected for “Soundtrack” is not
available, subtitles of that language will
automatically appear if available on that disc.
≥English ≥French
≥German ≥Italian
≥Spanish
≥Other ¢¢¢¢
Menus
≥English ≥French
≥Other ¢¢¢¢
Ratings
Set a ratings level to limit DVD-Video play.
Follow the on-screen instructions. Enter a 4-digit password with
the numbered buttons when the password screen is shown.
≥Do not forget your password.
Options (Underlined items are the factory presets.)
≥German
≥Italian
≥Spanish
≥8 No Limit: All DVD-Video can be played.
≥1 to 7:
Prohibits play of DVD-Video with corresponding
ratings recorded on them.
≥0 Lock All: Prohibits play of all DVD-Video.
≥Unlock Recorder
≥Change Level
≥Change Password
≥Temporary Unlock
Recording time in EP mode
Select the maximum number of hours for recording in EP mode
(➡page 19, Recording modes and approximate recording
times).
≥EP (6 Hour): You can record for 6 hours on an unused 4.7 GB
disc.
≥EP (8 Hour): You can record for 8 hours on an unused 4.7 GB
disc.
DVD-Audio Video mode Playback
Select “On” to play DVD-Video content on some DVD-Audio.
≥On: The setting returns to “Off” when you change the disc or
turn the unit off.
≥Off
Comb Filter
Select the picture sharpness when recording.
The setting is fixed with “On” if you set “TV System” to “NTSC”
(➡page 43).
≥On: Select it to record clear picture.
≥Off: Normally, use this setting.
Hybrid VBR Resolution (➡ page 46, VBR)
≥Automatic: The resolution is automated to provide efficient
recording with less block noise. [RAM]
The resolution is fixed to ensure that there is no
≥Fixed:
loss of source picture resolution while recording.
Still Mode
Select the type of picture shown when you pause play
(➡page 45, Frames and fields).
≥Automatic
≥Field: Select if jittering occurs when “Automatic” is selected.
≥Frame: Select if small text or fine patterns cannot be seen
clearly when “Automatic” is selected.
Convenient functions
7540en.fm
RQT7540
39
7540en.fm
40 ページ
2004年2月26日 木曜日 午前11時19分
Changing the unit’s settings
Tabs
Sound
Menus
Options (Underlined items are the factory presets.)
PLAY k1.3 & Audio during Search
You may hear sound regardless of this setting with some discs.
≥On: Audio is heard during first level search forward.
≥Off: Audio is not heard during search. Quick View (➡page 25)
does not work.
Dynamic Range Compression [DVD-V] (Dolby Digital only)
Change the dynamic range for late night viewing.
≥On
≥Off
Bilingual Audio Selection [DVD-R]
Select whether to record the main or secondary audio type
when recording to DVD-R.
You cannot select this when recording from an external source
onto DVD-R. Select the audio on the other equipment.
≥M 1
≥M 2
Convenient functions
Digital Audio Output
Change the settings when you have connected equipment through this unit’s DIGITAL AUDIO OUT terminal (➡ page 10).
≥Press [ENTER] to show the following settings.
RQT7540
40
PCM Down Conversion
Select how to output audio with a sampling frequency of 96
kHz or 88.2 kHz.
≥Signals are converted to 48 kHz or 44.1 kHz despite the
above settings if the signals have a sampling frequency
of over 96 kHz or 88.2 kHz, or the disc has copy
protection.
≥On: Signals are converted to 48 kHz or 44.1 kHz. (Choose
when the connected equipment cannot process signals
with a sampling frequency of 96 kHz or 88.2 kHz.)
≥Off: Signals are output as 96 kHz or 88.2 kHz. (Choose when
the connected equipment can process signals with a
sampling frequency of 96 kHz or 88.2 kHz.)
Dolby Digital Select how to output the signal, to output
“Bitstream” so the connected equipment
decodes the signal, or to decode on this
unit and output the signal as “PCM” (2
channel).
DTS
≥Bitstream: When connecting to equipment displaying the
Dolby Digital logo.
≥PCM: When connecting to equipment not displaying the Dolby
Digital logo.
[Note]
MPEG
Display
Not making the proper settings may result
in noise, possibly damage your hearing
and speakers, and digital recording may
not work properly.
≥Bitstream: When connecting to equipment displaying the DTS
logo.
≥PCM: When connecting to equipment not displaying the DTS
logo.
≥Bitstream:
When connected to equipment with a built-in
MPEG decoder.
≥PCM: When connected to equipment without a built-in MPEG
decoder.
On-Screen Messages
Choose whether to show status messages automatically.
≥Automatic
≥Off
Grey Background
Select “Off” if you do not want to have the unit show the grey
background when reception is weak.
≥On
≥Off
FL Display
Changes the brightness of the unit’s display.
≥Bright
≥Dim
7540en.book 41 ページ
2004年2月10日 火曜日 午後12時58分
Tabs
Menus
Options (Underlined items are the factory presets.)
≥16:9
≥4:3
Progressive (➡ page 14)
≥On
≥Off
TV System (➡page 43)
≥PAL
≥NTSC
AV1 Output
Selects the output from the AV1 terminal.
Select “RGB (without component)” for RGB output.
Select “Video (with component)” or “S-Video (with component)”
for component output.
≥Video (with component)
≥S-Video (with component)
≥RGB (without component)
Connection TV Aspect (➡ page 14)
≥Letterbox
AV2 Settings
Set to match the connected equipment.
≥Press [ENTER] to show the following settings.
AV2 Input
Set to “RGB (Not NTSC)” when receiving or recording
RGB output video from external equipment.
≥Video
≥S-Video
≥RGB (Not NTSC)
AV2 Connection
This setting is fixed with “Normal” if you set “TV System” to
“NTSC” (➡page 43).
≥Decoder:
≥Normal:
When a decoder is connected.
When the VCR or a satellite receiver is
connected.
Ext Link
This setting cannot be made when the “TV System” is set
to “NTSC” (➡page 43).
≥Ext Link 1:
When a digital receiver which transmits a special
control signal recordings via the 21-pin Scart
lead is connected.
When an external equipment with a timer
function is connected.
Convenient functions
≥Ext Link 2:
Language code list
Abkhazian:
6566
Afar:
6565
Afrikaans:
6570
Albanian:
8381
Ameharic:
6577
Arabic:
6582
Armenian:
7289
Assamese:
6583
Aymara:
6588
Azerbaijani:
6590
Bashkir:
6665
Basque:
6985
Bengali; Bangla:
6678
Bhutani:
6890
Bihari:
6672
Breton:
6682
Bulgarian:
6671
Burmese:
7789
Byelorussian: 6669
Cambodian:
7577
Input the code with the numbered buttons.
Catalan:
Chinese:
Corsican:
Croatian:
Czech:
Danish:
Dutch:
English:
Esperanto:
Estonian:
Faroese:
Fiji:
Finnish:
French:
Frisian:
Galician:
Georgian:
German:
Greek:
Greenlandic:
Guarani:
6765
9072
6779
7282
6783
6865
7876
6978
6979
6984
7079
7074
7073
7082
7089
7176
7565
6869
6976
7576
7178
Gujarati:
Hausa:
Hebrew:
Hindi:
Hungarian:
Icelandic:
Indonesian:
Interlingua:
Irish:
Italian:
Japanese:
Javanese:
Kannada:
Kashmiri:
Kazakh:
Kirghiz:
Korean:
Kurdish:
Laotian:
Latin:
Latvian, Lettish:
7185
7265
7387
7273
7285
7383
7378
7365
7165
7384
7465
7487
7578
7583
7575
7589
7579
7585
7679
7665
7686
Lingala:
Lithuanian:
Macedonian:
Malagasy:
Malay:
Malayalam:
Maltese:
Maori:
Marathi:
Moldavian:
Mongolian:
Nauru:
Nepali:
Norwegian:
Oriya:
Pashto, Pushto:
Persian:
Polish:
Portuguese:
Punjabi:
Quechua:
7678
7684
7775
7771
7783
7776
7784
7773
7782
7779
7778
7865
7869
7879
7982
8083
7065
8076
8084
8065
8185
Rhaeto-Romance:
8277
Romanian:
8279
Russian:
8285
Samoan:
8377
Sanskrit:
8365
Scots Gaelic: 7168
Serbian:
8382
Serbo-Croatian: 8372
Shona:
8378
Sindhi:
8368
Singhalese:
8373
Slovak:
8375
Slovenian:
8376
Somali:
8379
Spanish:
6983
Sundanese:
8385
Swahili:
8387
Swedish:
8386
Tagalog:
8476
Tajik:
8471
Tamil:
Tatar:
Telugu:
Thai:
Tibetan:
Tigrinya:
Tonga:
Turkish:
Turkmen:
Twi:
Ukrainian:
Urdu:
Uzbek:
Vietnamese:
Volapük:
Welsh:
Wolof:
Xhosa:
Yiddish:
Yoruba:
Zulu:
8465
8484
8469
8472
6679
8473
8479
8482
8475
8487
8575
8582
8590
8673
8679
6789
8779
8872
7473
8979
9085
RQT7540
41
7540en.book 42 ページ
2004年2月10日 火曜日 午後12時58分
Changing the unit’s settings
Refer to the control reference on page 38.
∫ To change the tuning settings for individual
programme position
Tuning
1
5
While stopped
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “SETUP”
and press [ENTER].
Press [3, 4] to select “Tuning” and
press [1].
2
3
SETUP
Press [3, 4, 2, 1]
to select a
programme position
and press [ENTER].
To change the programme position in which
the TV stations are assigned
Press [3, 4] or numbered buttons to select the
number of the desired programme position and
press [ENTER].
Name
To enter or change the name of a TV station
Press [3, 4, 2, 1] to enter station name and
press [ENTER].
If the station name needs a blank space, select
the blank between “Z” and “¢”.
Channel
To enter newly available TV stations or change
the channel number of an already tuned TV
station
Press [3, 4] or the numbered buttons to enter
the channel number of the desired TV station.
Wait a few moments until the desired TV station
has been tuned.
After the desired TV station is tuned, press
[ENTER].
NICAM
To select the type of sound to be recorded
Press [3, 4] to select “Auto” and press [ENTER].
≥Select “Off” if you want to record the normal
(mono) sound during a stereo, bilingual or
NICAM broadcast, or if the stereo sound is
distorted due to inferior reception conditions.
Title Page
To enter the Teletext title page for a channel
Entering title page number allows the unit to
automatically record programme and station
names.
Press [3, 4] or numbered buttons to enter the
number and press [ENTER].
≥To find the correct title page for the station, refer
to its Teletext TV guide.
≥The unit’s clock must be set correctly.
Manual Tuning
Convenient functions
Pos Name
SELECT
ENTER
RETURN
Delete
Move
1
2
3
4
5
6
7
8
9
10
Ch
BBC 1 22
BBC 2 23
ITV
24
25
CH4
CH5
26
Pos Name
Ch
11
12
13
14
15
16
17
18
19
20
Add
A B C
To delete a programme position
Press [3, 4, 2, 1] to select a programme position and press [A].
To add a blank programme position
Press [3, 4, 2, 1] to select a programme position and press [B].
To move a TV station to another programme position
1 Press [3, 4, 2, 1] to select a programme position and press
[C].
2 Press [3, 4, 2, 1] to select the new programme position to
which you want to assign the TV station and press [ENTER].
[Note]
If Preset Download (➡ page 11) has been performed, only deletion
of the programme position can be performed.
RQT7540
42
RETURN
Pos
You can add or delete channels, or change programme positions.
Press [3, 4] to select “Manual” and
press [ENTER].
1
BBC
4
Auto
301
Press [3, 4] to select an item and press [1].
Manual
4
CHANGE
Pos
Name
Channel
NICAM
Title Page
RETURN : leave
Manual
Auto-Setup Restart
Download
Tuning
Others
Manual
Tuning
2004年2月10日 火曜日 午後12時58分
Auto-Setup Restart, Download
TV System
You can restart auto channel setting if Preset Download or AutoSetup (➡ page 11, 12) fails for some reason.
Change this setting if you connect an NTSC television or to record
NTSC video from another source.
∫ Auto-Setup Restart
1
4
Press [3, 4] to select “Auto-Setup
Restart” and press [ENTER].
The confirmation screen appears.
5
Press [2, 1] to select “Yes” and
press [ENTER].
2
3
Auto-Setup starts.
4
∫ Download
4
Press [3, 4] to select “Download”
and press [ENTER].
5
While stopped
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “SETUP”
and press [ENTER].
Press [3, 4] to select “Connection”
and press [1].
Press [3, 4] to select “TV System”
and press [ENTER].
Press [3, 4] to select the TV system
and press [ENTER].
The confirmation screen appears.
5
TV System
SETUP
Press [2, 1] to select “Yes” and
press [ENTER].
PAL
Tuning
Others
Disc
Sound
Display
Connection
Download starts.
To exit the screen
Press [RETURN] several times.
NTSC
SELECT
ENTER
RETURN
≥PAL (factory preset)
–Select when connecting to a PAL or Multi-system
television. Programmes recorded using NTSC are played
as PAL 60.
–Select to record television programmes and PAL input from
other equipment.
≥NTSC
–Select when connecting to a NTSC television. Television
programmes cannot be recorded properly.
–Select to record NTSC input from other equipment.
To return to the previous screen
Press [RETURN].
The confirmation screen appears.
6
Convenient functions
7540en.book 43 ページ
Press [2, 1] to select “Yes” and
press [ENTER].
To exit the screen
Press [RETURN] several times.
To return to the previous screen
Press [RETURN].
∫ To change the setting all at once (PAL!#NTSC)
While stopped, keep pressing [∫] and [< OPEN/CLOSE] on the
main unit for 5 or more seconds.
RQT7540
43
7540en.book 44 ページ
2004年2月10日 火曜日 午後12時58分
Changing the unit’s settings
Refer to the control reference on page 38.
Clock settings
Usually, the unit’s Preset Download or Auto-Setup function (➡ page 11, 12) automatically adjusts the clock to correct time. Under some reception
conditions, however, the unit cannot set the clock automatically.
In this case, follow the operation steps below to manually set the clock.
≥In the case of a power failure, the clock setting remains in memory for approximately 60 minutes.
1
2
3
4
While stopped
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “SETUP” and press [ENTER].
Press [3, 4] to select the “Others” and press [1].
Press [3, 4] to select “Clock” and press [ENTER].
Auto Clock Setting
Manual Clock Setting
If a TV station transmits a time setting signal, and when “Automatic”
in the Clock setting menu is set to “On”, the automatic time
correction function checks the time and if necessary it is adjusted
several times every day.
5
5
Press [3, 4] to select “Off” of
“Automatic” and press [ENTER].
Clock
Press [3, 4] to select “On” of
“Automatic” and press [ENTER].
Automatic Off
Time
15 : 45 : 39
Auto clock setting starts.
1 .
8 . 2004
No.
0
Convenient functions
Date
The following screen appears when setting is complete.
CHANGE
9
SELECT
Please set clock manually.
ENTER: store RETURN: leave
ENTER
Clock
RETURN
6
Automatic On
Time
Date
15 : 45 : 39
1 .
8 . 2004
The items change as follows:
Hour!#Minute!#Second!#Day!#Month!#Year
^-----------------------------------------------------------------------------------------J
Automatic clock setting completed.
ENTER: access RETURN: leave
CHANGE
Press [2, 1] to select the item you
want to change.
ENTER
RETURN
7
To stop partway
Press [RETURN].
Press [3, 4] to change the setting.
You can also use the numbered buttons for setting.
8
Press [ENTER] when you have
finished the settings.
The clock starts.
To exit the screen
Press [RETURN] several times.
To return to the previous screen
Press [RETURN].
Child Lock
The Child Lock deactivates all buttons on the unit and remote
control. Use it to prevent other people from operating the unit.
STOP
PAUSE
PLAY/x1.3
DIRECT NAVIGATOR
Press and hold [ENTER]
and [RETURN]
simultaneously until “X
HOLD” appears on the unit’s display.
FUNCTIONS
TOP MENU
ENTER
ENTER
RETURN
SUB MENU
RETURN
PROG/CHECK DISPLAY
TIMER
F
RQT7540
44
STATUS TIME SLIP
ERASE REC MODE
If you press a button while the Child Lock is on, “X HOLD” appears
on the unit’s display and operation is impossible.
REC
To cancel the Child Lock
Press and hold [ENTER] and [RETURN] simultaneously until “X
HOLD” disappears.
7540en.book 45 ページ
2004年2月10日 火曜日 午後12時58分
Specifications
DVD Video Recording format (DVD-RAM),
DVD Video format (DVD-R)
Recordable discs
DVD-RAM: 12 cm 4.7 GB, 12 cm 9.4 GB, 8 cm 2.8 GB
DVD-R: 12 cm 4.7 GB, 8 cm 1.4 GB (for General Ver. 2.0)
12 cm 4.7 GB (for General Ver. 2.0/4k-SPEED DVD-R Revision 1.0)
Recording time
Maximum 8 hours (with 4.7 GB disc)
XP: Approx. 1 hour, SP: Approx. 2 hours
LP: Approx. 4 hours, EP: Approx. 6 hours/8 hours
Playable discs
DVD-RAM: 12 cm 4.7 GB, 12 cm 9.4 GB, 8 cm 2.8 GB
DVD-R: 12 cm 4.7 GB, 8 cm 1.4 GB (for General Ver. 2.0)
12 cm 4.7 GB (for General Ver. 2.0/4k-SPEED DVD-R Revision 1.0)
DVD-Video, DVD-Audio, Video CD, CD-Audio (CD-DA)
CD-R/RW (MP3, CD-DA, Video CD formatted discs)
LASER specification
Class I LASER Product
Wave length:
795 nm, 658 nm
Laser power:
No hazardous radiation is emitted with the safety protection
Audio
Recording System:
Dolby Digital 2ch
Audio in:
AV1/AV2 (21 pin), AV3/AV4 (pin jack)
Input level:
Standard: 0.5 Vrms, Full scale: 2.0 Vrms at 1 kHz
Input impedance:
More than 10 k≠
Audio out:
AV1/AV2 (21 pin), Audio Out (pin jack)
Output level:
Standard: 0.5 Vrms, Full scale: 2.0 Vrms at 1 kHz
Output impedance:
Less than 1 k≠
Digital audio out: Optical terminal (PCM, Dolby Digital, DTS, MPEG)
Television System
Tuner system:
Channel Coverage:
[The]United]Kingdom]
[Republic[of[Ireland[
RF converter output:
[The[United]Kingdom]
[Republic[of[Ireland[
Video
Video system:
PAL colour signal, 625 lines, 50 fields
NTSC colour signal, 525 lines, 60 fields
MPEG2 (Hybrid VBR)
Recording system:
Video in:
AV1/AV2 (21 pin), AV3/AV4 (pin jack) 1 Vp-p 75 ≠, termination
S-Video in:
AV2 (21 pin), AV3/AV4 (S terminal) 1 Vp-p 75 ≠, termination
RGB in:
AV2 (21 pin) 0.7 Vp-p (PAL) 75 ≠, termination
Video out:
AV1/AV2 (21 pin), Video Out (pin jack) 1 Vp-p 75 ≠, termination
S-Video out:
AV1 (21 pin), S-Video Out (S terminal) 1 Vp-p 75 ≠, termination
RGB out:
AV1 (21 pin) 0.7 Vp-p (PAL) 75 ≠, termination
Component video output (NTSC 480P/480I, PAL 576P/576I)
Y: 1.0 Vp-p 75 ≠, termination
PB: 0.7 Vp-p 75 ≠, termination
PR: 0.7 Vp-p 75 ≠, termination
Others
Region code
Operating temperature:
Operating humidity range:
Power supply:
Power consumption:
Dimensions (WkDkH):
Mass:
‚2
5–40 oC
10–80 % RH (no condensation)
AC 220–240 V, 50 Hz
29 W
Approx. 430k274k79 mm
Approx. 3.5 kg
PAL-I
UHF: CH 21–68
VHF: CH 4–13, A–J
UHF: CH 21–68
[Note]
Specifications are subject to change without notice.
Mass and dimensions are approximate.
UHF: CH 21–68 71d3 dBg
Not provided
Reference
Recording system
Glossary
Bitstream
This is the digital form of multi-channel audio data (e.g., 5.1 channel)
before it is decoded into its various channels.
CPRM (Content Protection for Recordable Media)
CPRM is technology used to protect broadcasts that are allowed to
be recorded only once. Such broadcasts can be recorded only with
CPRM compatible recorders and discs.
Down-mixing
This is the process of remixing the multi-channel audio found on
some discs into two channels for stereo output. It is useful when you
want to listen to the 5.1-channel audio recorded on DVDs through
your television’s speakers. Some discs prohibit down-mixing and this
unit can then only output the front two channels.
Dynamic range
Dynamic range is the difference between the lowest level of sound
that can be heard above the noise of the equipment and the highest
level of sound before distortion occurs.
Dynamic range compression means reducing the gap between the
loudest and softest sounds. This means you can listen at low
volumes but still hear dialog clearly.
Film and video
DVD-Videos are recorded using either film or video. This unit can
determine which type has been used, then uses the most suitable
method of progressive output.
For PAL
Film is 25 frames per second.
Video is 50 fields per second (two fields making up one frame).
For NTSC
Film is 24 or 30 frames per second, with motion picture film generally
being 24 frames per second.
Video is 60 fields per second (two fields making up one frame).
Finalize
A process that makes play of a recorded CD-R, CD-RW or DVD-R
etc. possible on equipment that can play such media. You can
finalize DVD-R on this unit.
You cannot record onto or edit finalized discs.
Formatting
Formatting is the process of making media such as DVD-RAM
recordable on recording equipment.
You can format the DVD-RAM on this unit. Formatting erases
irrevocably all recordings on the disc.
Frames and fields
Frames refer to the single images that constitute the video you see
on your television. Each frame consists of two fields.
u
Frame
r
Field
Field
≥A frame still shows two fields, so there may be some blurring, but
picture quality is generally better.
≥A field still shows less picture information so it may be rougher, but
there is no blurring.
MP3 (MPEG Audio Layer 3)
An audio compression method that compresses audio to
approximately one tenth of its size without any considerable loss of
audio quality. You can play MP3 you have recorded onto CD-R and
CD-RW.
RQT7540
45
7540en.book 46 ページ
2004年2月12日 木曜日 午後2時19分
Glossary
Pan&Scan/Letterbox
In general, DVD-Video are produced with the intention that they be
viewed on a widescreen television (16:9 aspect ratio), so images
often don’t fit regular (4:3 aspect ratio) televisions. Two styles of
picture, “Pan & Scan” and “Letterbox”, deal with this problem.
Pan & Scan: The sides are cut off so the picture
fills the screen.
Letterbox: Black bands appear at the top and
bottom of the picture so the picture
itself appears in an aspect ratio of
16:9.
Playback control (PBC)
If a Video CD has playback control, you can select scenes and
information with menus.
(This unit is compatible with version 2.0 and 1.1.)
Progressive/Interlace
The PAL video signal standard has 625 (or 576) interlaced (I) scan
lines, whereas progressive scanning, called 625P (or 576P), uses
twice the number of scan lines. For the NTSC standard, these are
called 525I (or 480I) and 525P (or 480P) respectively.
Using progressive output, you can enjoy the high-resolution video
recorded on media such as DVD-Video.
Your television must be compatible to enjoy progressive video.
Panasonic televisions with 625 (576)/50I · 50P, 525 (480)/60I · 60P
input terminals are progressive compatible.
Protection
You can prevent accidental erasure by setting writing protection or
erasure protection.
Sampling frequency
Sampling is the process of converting the heights of sound wave
(analog signal) samples taken at set periods into digits (digital
encoding). Sampling frequency is the number of samples taken per
second, so larger numbers mean more faithful reproduction of the
original sound.
Reference
VBR (Variable bitrate)
This is a method of video recording that adjusts the bit rate
according to video signal.
Q Link
This function works only if the unit is connected via a fully wired 21pin Scart lead to a TV featuring the Q Link or similar function.
Q Link offers the following functions:
≥Download from the TV§
When you connect the unit to a TV, the station list data is
automatically copied from the TV to the unit, and the TV stations
are assigned to the programme positions on the unit in the same
order as on the TV.
≥Direct TV Recording
By simply pressing [¥ DIRECT TV REC], you can at once record
the same programme that you are watching on the TV.
≥TV/DVD Auto On§
Even if the TV and the unit are off (standby mode), pressing
[1] (PLAY), [DIRECT NAVIGATOR, TOP MENU], [VIDEO Plus+]
or [PROG/CHECK] automatically turns on both the TV and the unit.
If the TV is off (standby mode) and the unit is on, when you press
[FUNCTIONS] or [1] (PLAY), or insert the disc (except DVD-RAM
and DVD-R), the TV automatically is turned on.
≥DVD Auto Standby§
When you turn the TV off, the unit is turned off as well. However,
this function works in the stop mode.
This function does not work during the following operations: Preset
Download, Auto-Setup, Auto Clock Setting and Manual Tuning.
This function does also not work when an audio CD is in the disc
tray.
≥On-Screen Messages§
When you are watching a TV programme, the following messages
appear on the TV screen to inform you of the unit’s condition:
Message
Message appears when:
This programme has A timer recording has just started.
already started
Set DVD to timer
standby mode
The unit is not in the timer standby mode
10 minutes before the programmed
recording start time (message appears
every minute during these 10 minutes).
DVD is in timer
recording mode
[¥ REC] or [VIDEO Plus+] was pressed
while the unit is in the timer recording
mode.
Depending on the type of TV used, the above messages may not
appear correctly.
§
These operations are only available if the unit is connected to a TV
featuring the Q Link function.
PDC (Programme Delivery Control)
Programme Delivery Control adjusts the start and stop time of a timer recording automatically to ensure the recording starts and finishes in line
with the programme broadcast. This is useful when a programme over-runs the published times.
The station must be transmitting PDC and the exact time must be set for PDC to work.
The unit detects whether a station is transmitting PDC only during the tuning process.
If PDC is introduced or discontinued by a station you will need to re-tune the unit before it becomes aware of this.
PDC transmissions are not currently nation-wide so please check with your local broadcaster for more information.
The beginnings of recordings may not be recorded correctly in some cases.
RQT7540
46
7540en.book 47 ページ
2004年2月12日 木曜日 午後2時19分
Frequently asked questions
Set up
Page
≥DVD-Video:
You can play DVD-Video multi channel surround by digitally connecting
an amplifier equipped with a Dolby Digital, DTS or MPEG decoder.
≥DVD-Audio:
This unit plays DVD-Audio in 2 channels. You cannot play multi channel
surround sound.
10
Are the headphones and speakers directly
connected to the unit?
≥You cannot directly connect to the unit. Connect through the amplifier
etc.
10
The television has a Scart terminal and
component video input terminal. Which
terminal should I connect with?
≥If you have a regular television (CRT: cathode ray tube) we recommend
using the Scart terminal. You can enjoy high-quality RGB video from
this unit by connecting to an RGB compatible television.
If you have an LCD/plasma television or LCD projector compatible with
progressive scan, connect through the component video terminals for
high-quality progressive video.
If you have a CRT television that is compatible with progressive scan,
we cannot recommend progressive output as some flickering can occur.
7, 8
Is my television progressive output
compatible?
All Panasonic televisions that have 625 (576)/50I · 50P, 525 (480)/60I ·
60P) input terminals are compatible. Consult the manufacturer if you
have another brand of television.
What equipment is necessary to play multi
channel surround sound?
—
—
Disc
Can I play DVD-Video, DVD-Audio and
Video CDs bought in another country?
≥You cannot play DVD-Video if their region number does not include “2”
or “All”.
Can a DVD-Video that does not have a
region number be played?
≥The DVD-Video region number indicates the disc conforms to a
standard. You cannot play discs that do not have a region number.
—
Please tell me about DVD-R and DVD-RW
compatibility with this unit.
≥This unit records and plays DVD-R. However, you cannot record onto
DVD-R discs that are finalized.
≥This unit also records and plays 1k–4k recording speed DVD-R discs.
≥This unit does not record or play DVD-RW.
—
≥You can play CD-R and CD-RW on this unit that are created using a
compatible format.
≥You cannot write to a CD-R or CD-RW with this unit.
—
—
16, 27
—
Reference
Please tell me about CD-R and CD-RW
compatibility with this unit.
Cover
Recording
Can I record from a commercially
purchased video cassette or DVD?
≥Most commercially sold video cassettes and DVD are copy protected;
therefore, recording is usually not possible.
—
Can a DVD-R recorded on this unit be
played on other equipment?
≥You can play on DVD-R compatible players after finalizing the disc on
this unit; however, due to the condition of the recording, play may not be
possible.
35
How many times can I write to a DVD-RAM
disc?
≥You can write to the disc approximately 100,000 times depending upon
the conditions of use.
—
Can I record digital audio signals using this
unit?
≥You cannot record digital signals. The digital audio terminals on this unit
are for output only.
—
Can a digital audio signal from this unit be
recorded to other equipment?
≥You can record if using the PCM signal. When recording DVD, change
the “Digital Audio Output” settings to the following in the SETUP menu.
–PCM Down Conversion: On
–Dolby Digital/DTS/MPEG: PCM
However, only as long as digital recording from the disc is permitted and
the recording equipment is compatible with a sampling frequency of
48 kHz.
≥You cannot record MP3 signals.
40
≥With DVD-RAM, you can. Just press [AUDIO].
≥With DVD-R, you cannot. Change before recording with the “Bilingual
Audio Selection” in the SETUP menu.
26
40
Can I switch to bilingual broadcast during
recording?
—
RQT7540
47
7540en.book 48 ページ
2004年2月10日 火曜日 午後12時58分
Error messages
On the television
Page
Cannot finish recording
completely.
≥The programme was copy-protected.
≥The disc may be full.
—
—
Cannot record on the disc.
≥The disc may be dirty or scratched.
17
Please check the disc.
Unable to format.
Cannot record. Disc is full.
Cannot record. Maximum
number of titles recorded.
Error has occurred. Please
press ENTER.
≥Create space by erasing any unnecessary titles. [RAM]
≥Use a new disc. [RAM] [DVD-R]
≥Press [ENTER] to start recovery process. You cannot operate the unit while it is recovering
(“SELF CHECK” appears on the unit’s display).
26, 31, 35
—
—
No Disc
≥The disc may be upside down.
—
Please change the disc.
≥There may be a problem with the disc. Press [< OPEN/CLOSE] on the main unit to
remove it and check it for scratches or dirt. (The unit turns off automatically after you open
the tray.)
17
This is a non-recordable disc.
≥The unit cannot record on the disc you inserted. Insert a DVD-RAM or unfinalized DVD-R.
≥You inserted an unformatted DVD-RAM. Format the disc with this unit.
—
35
≥The operation is prohibited by the unit or disc.
—
HARD ERR
≥If there is no change after turning the unit on and off, consult the dealer where the unit was
purchased.
—
NO READ
≥The disc is dirty or badly scratched. The unit cannot record, play, or edit.
≥You have used a DVD-RAM/PD lens cleaner and it has finished. Press [< OPEN/CLOSE]
on the main unit to eject the disc.
17
—
This disc is not properly
formatted.
Formatting is necessary using
DISC MANAGEMENT.
$
Reference
On the unit’s display
PROG FULL
≥There are already 16 timer programmes. Delete unnecessary timer programmes.
23
REMOTE DVD
(“∑” stands for a number.)
≥The remote control and main unit are using different codes. Change the code on the
remote control.
Press and hold [ENTER] and the indicated number
button at the same time for more than 2 seconds.
15
SELF CHECK
≥The unit is starting up. Wait until the message disappears.
—
U14
≥The unit is hot.
The unit switches to standby for safety reasons. Wait for about 30 minutes until the
message disappear.
Select a position with good ventilation when installing the unit. Do not block the cooling fan
on the rear of the unit.
—
U99
≥The unit fails to operate properly. Press [Í/I] on the main unit to switch the unit to standby.
Now press [Í/I] on the main unit again to turn the unit on.
—
UNSUPPORT
≥You have inserted a disc the unit cannot play or record on.
16
X HOLD
≥The Child Lock function is activated.
Press and hold [ENTER] and [RETURN] simultaneously until “X HOLD” disappears.
44
Maintenance
The precision parts in this unit are readily affected by the
environment, especially temperature, humidity, and dust.
Cigarette smoke also can cause malfunction or breakdown.
To clean this unit, wipe with a soft, dry cloth.
≥Never use alcohol, paint thinner or benzine to clean this unit.
≥Before using chemically treated cloth, read the instructions that
came with the cloth carefully.
RQT7540
48
Observe the following points to ensure continued listening and
viewing pleasure.
Dust and dirt may adhere to the unit’s lens over time, making it
impossible to record or play discs.
Use the DVD-RAM/PD lens cleaner (LF-K123LCA1, where
available) about once every year, depending on frequency of use
and the operating environment. Read the lens cleaner’s instructions
carefully before use.
7540en.book 49 ページ
2004年2月10日 火曜日 午後12時58分
Troubleshooting guide
Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart
do not solve the problem, consult your dealer for instructions.
The following do not indicate a problem with this unit:
≥Regular disc rotating sounds. The sound of the disc rotating may
become louder especially when finalizing a DVD-R.
≥Poor reception due to atmospheric conditions.
≥Image disturbance during search.
≥Interruptions to reception due to periodic satellite broadcasting
breaks.
Power
Page
No power.
≥Insert the AC mains lead securely into a known active AC mains socket.
The unit switches to the
standby mode.
≥One of the unit’s safety devices is activated. Press [Í/I] on the main unit to turn the unit on.
—
The display is dim.
≥Change “FL Display” in the SETUP menu.
40
“0:00” is flashing on the unit’s
display.
≥Set the clock.
44
The time recorded on the disc
and the available time shown
do not add up.
The play time shown for MP3
does not agree with the actual
time.
≥Times shown may disagree with actual times.
≥More disc space than the actual recording time is used after recording or editing the DVD-R
200 times or more.
≥While searching, the elapsed time may not display correctly.
≥Even if you erase recorded content from the DVD-R, there is no increase in disc space.
—
—
The clock is not correct.
≥Under adverse reception conditions, etc., the automatic time correction function may not
work. In this case, “Automatic” is automatically turned to “Off”. If re-setting the Auto Clock
Setting does not work, set the time manually.
44
Television reception worsens
after connecting the unit.
≥This can occur because the signals are being divided between the unit and other
equipment. It can be solved by using a signal booster, available from audio-visual suppliers.
—
Status messages do not
appear.
≥Select “Automatic” in “On-Screen Messages” in the SETUP menu.
40
The grey background does not
appear.
≥Select “On” in “Grey Background” in the SETUP menu.
40
The 4:3 aspect ratio picture
expands left and right.
≥Use the television to change the aspect. If your television does not have that function, set
“Progressive” in the Picture menu to “OFF”.
≥Check the settings for “TV Aspect” in the SETUP menu.
29
There is a lot of after-image
when playing video.
≥Set “Playback NR” in the Picture menu to “OFF”.
29
When playing DVD-Video
using progressive output, one
part of the picture
momentarily appears to be
doubled up.
≥Set “Progressive” in the Picture menu to “OFF”. This problem is caused by the editing
method or material used on DVD-Video, but should be corrected if you use interlace output.
29
There is no apparent change
in picture quality when
adjusted with the Picture
menu in the on-screen menus.
≥The effect is less perceivable with some types of video.
—
The images from this unit do
not appear on the television.
≥Make sure that the television is connected to the AV1 terminal, VIDEO OUT terminal, SVIDEO OUT terminal or COMPONENT VIDEO OUT terminals on this unit.
≥Make sure that the television’s input setting (e.g., AV 1) is correct.
≥The television isn’t compatible with progressive signals. Press and hold [∫] and [TIME SLIP]
on the main unit at the same time for about 5 seconds. The setting will change to interlace.
7, 8
≥Check the connections and settings. Check the input mode on the amplifier if you have
connected one.
≥Press [AUDIO] to select the audio.
≥Turn off V.S.S. in the following cases.
–When using discs that do not have surround sound effects such as Karaoke discs.
–When playing bilingual broadcast programmes.
≥The disc may have a restriction on the method of audio output. If “D.MIX” does not appear in
the display when playing multi-channel DVD-Audio, only audio for the two front channels will
be output. Refer to the disc’s jacket.
7–10, 40
7–9
Displays
—
—
Screen size is wrong.
Picture is distorted.
Reference
TV screen and video
14
—
—
Sound
No sound.
Low volume.
Distorted sound.
Cannot hear the desired audio
type.
Continued on next page
26
29
—
RQT7540
49
7540en.book 50 ページ
2004年2月10日 火曜日 午後12時58分
Troubleshooting guide
Sound (Continued)
Cannot switch audio.
Page
≥You cannot change the audio type when a DVD-R is in the disc tray.
≥You have used a digital connection. Set “Dolby Digital” to “PCM” or connect using audio
cables (analog connection).
≥There are discs which audio cannot be changed because of how the disc was created.
—
40, 10
—
Operation
Reference
Cannot operate the television.
The remote control doesn’t
work.
≥Change manufacturer code. Some televisions cannot be operated even if you change the
code.
≥The remote control and main unit are using different codes. Change the code on the remote
control.
Press and hold [ENTER] and the indicated number
button at the same time for more than 2 seconds.
15
≥The batteries are depleted. Replace them with new ones.
≥Coloured glass may obstruct the signal reception/transmission.
≥Don’t place the signal sensor in direct sunlight or in areas that may be subject to sunlight
exposure.
≥The child lock function is activated.
4
—
—
≥Some operations may be prohibited by the disc.
≥The unit is hot (“U14” appears on the display). Wait for “U14” to disappear.
≥One of the unit’s safety devices may have been activated.
Reset the unit as follows:
Press [Í/I] on the main unit to switch the unit to standby.
If the unit doesn’t switch to standby, press and hold [Í/I] on the main unit for about 10
seconds. The unit is forcibly switched to standby.
Alternatively, disconnect the AC mains lead, wait one minute, then reconnect it.
—
—
—
Cannot eject disc.
≥The unit may have a problem. While the unit is off, press and hold [∫] and [CH W] on the
main unit at the same time for about 5 seconds. Remove the disc and consult the dealer.
If the Child Lock function is activated, above operation does not work. Cancel the Child Lock
function.
44
Cannot tune channels.
≥Check the connections.
≥You must connect to a television equipped with the Q Link function with a fully wired 21-pin
Scart lead to download channel presets.
7–9
—
≥You haven’t inserted a disc or the disc you inserted cannot be recorded on. Insert a disc the
unit can record onto.
≥The disc is un-formatted. Format the disc. [RAM]
≥The write-protect tab on the cartridge is set to PROTECT, or the disc is protected with DISC
MANAGEMENT.
≥Some programmes have limitations on the number of times they can be recorded (CPRM).
≥The disc is full or nearly full. Erase un-needed titles or use another disc.
16
Cannot download channel
presets.
Recording and timer recording
≥You cannot record on finalized DVD-R discs.
≥Due to peculiarities of DVD-R, you may be unable to record onto them if you either insert
and remove the disc or switch the unit on and off while a disc is loaded, a total of fifty times.
≥A DVD-R recorded on this unit may not be recordable on other Panasonic DVD recorders.
Timer recording does not
work properly.
VIDEO Plus+ programming
does not work properly.
50
44
The unit is on but cannot be
operated.
Cannot record.
RQT7540
15
≥The timer programme is incorrect or different timer programme times overlap. Correct the
programme.
≥The unit is not on timer recording standby. (“F” on the unit’s display is not on.) Press
[F TIMER].
≥Set the clock.
35
16, 35
45
26, 31,
35
—
—
—
23
21, 22
44
Timer recording does not stop
even when [∫] is pressed.
≥While using timer recording, press [F TIMER]. (“F” disappears.)
≥When using the linked timer recording with external equipment, press [EXT LINK]. (“Ext
Link” disappears.)
The timer programme remains
even after recording finishes.
≥The timer programme remains if set to daily or weekly.
22
A part or whole of a recorded
title has been lost.
≥If there is a power failure or the plug is disconnected from the household AC mains socket
while recording or editing, the title may be lost or the disc may become unusable.
You will have to format the disc ([RAM]) or use a new disc. We cannot offer any guarantee
regarding lost programmes or discs.
—
21, 22
23
7540en.fm
51 ページ
2004年2月26日 木曜日 午前11時19分
Play
Page
Play fails to start even when
[1] (PLAY) is pressed.
Play starts but then stops
immediately.
≥Insert the disc correctly with the label facing up.
≥You tried to play a blank DVD-RAM/DVD-R, or discs unplayable on this unit.
≥When recording to DVD-RAM using “EP (8 Hour)” mode, play may not be possible on DVD
players that are compatible with DVD-RAM. In this case use “EP (6 Hour)” mode.
24
16
39
DVD-Video is not played.
≥Some DVD-Video cannot be played when you change the ratings level.
39
Alternative soundtrack and
subtitles cannot be selected.
≥The languages are not recorded on the disc.
≥You may have to use the disc’s menus to select languages.
—
—
No subtitles.
≥Subtitles are not recorded on the disc.
≥Turn the subtitles on.
—
28
Angle cannot be changed.
≥Angles can only be changed during scenes where different angles are recorded.
—
You have forgotten your
ratings password.
≥While the disc tray is open, press and hold [D] and [E] on the main unit at the
same time for 5 or more seconds.
—
Quick View does not work.
≥This does not work if the setting is “Off” in “PLAY k1.3 & Audio during Search”
≥This does not work when audio is other than Dolby Digital.
≥This does not work when recording is in XP or FR mode.
40
—
—
The resume play function
does not work.
≥This function only works when the indicator on the right appears in
the unit display.
≥Memorized positions are canceled when the unit is turned off or when
the tray is opened. The memorized position on the play list is also
canceled when the play list and title are edited.
DVD - R AM
—
—
The Video CD picture does not
display properly.
≥When connecting to Multi-system TV, select “NTSC” in “TV System” in the SETUP menu.
≥When connecting to PAL TV, the lower part of the picture cannot be displayed correctly
during search.
43
—
Time Slip does not work.
≥Time Slip does not work when the unit’s “TV System” settings are different from the title
recorded on the disc.
43
Cannot format.
≥The disc is dirty. Use a special cleaner and wipe clean.
≥You tried formatting a disc that is not compatible with this unit.
17
16
Cannot create chapters.
≥The unit writes the chapter information to the disc when you turn it off or remove the disc.
The information is not written if there is an interruption to the power before this.
≥These operations are not possible with still pictures.
≥You cannot set points if they are too close to each other. You cannot set an end point before
a start point.
—
Cannot erase chapters.
≥When the chapter is too short to erase, use “Combine Chapters” to make the chapter
longer.
31
The available recording time
doesn’t increase even after
erasing recordings on the
disc.
≥Available recording space on the DVD-R does not increase even after erasing previously
recorded titles.
—
Cannot create a play list.
≥You cannot select all the chapters at once in a title if the title also includes still pictures.
Select them individually.
—
Cannot mark the start point or
the end point during “Partial
Erase” operation.
—
—
Reference
Edit
Safety precautions
Placement
Set the unit up on an even surface away from direct sunlight, high
temperatures, high humidity, and excessive vibration. These
conditions can damage the cabinet and other components, thereby
shortening the unit’s service life.
Do not place heavy items on the unit.
Voltage
Do not use high voltage power sources. This can overload the unit
and cause a fire.
Do not use a DC power source. Check the source carefully when
setting the unit up on a ship or other place where DC is used.
AC mains lead protection
Ensure the AC mains lead is connected correctly and not
damaged. Poor connection and lead damage can cause fire or
electric shock. Do not pull, bend, or place heavy items on the lead.
Grasp the plug firmly when unplugging the lead. Pulling the AC
mains lead can cause electric shock.
Do not handle the plug with wet hands. This can cause electric
shock.
Foreign matter
Do not let metal objects fall inside the unit. This can cause electric
shock or malfunction.
Do not let liquids get into the unit. This can cause electric shock or
malfunction. If this occurs, immediately disconnect the unit from the
power supply and contact your dealer.
Do not spray insecticides onto or into the unit. They contain
flammable gases which can ignite if sprayed into the unit.
Service
Do not attempt to repair this unit by yourself. If sound is
interrupted, indicators fail to light, smoke appears, or any other
problem that is not covered in these instructions occurs, disconnect
the AC mains lead and contact your dealer or an authorized service
center. Electric shock or damage to the unit can occur if the unit is
repaired, disassembled or reconstructed by unqualified persons.
Extend operating life by disconnecting the unit from the power
source if it is not to be used for a long time.
RQT7540
51
7540enIX.fm 52 ページ
2004年3月1日 月曜日 午後4時15分
Index
Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Aspect . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Audio
Attribute . . . . . . . . . . . . . . . . . . . . . . . 28
Language . . . . . . . . . . . . . . . . . . . . . . 39
Playback . . . . . . . . . . . . . . . . . . . . . . 26
Receiving . . . . . . . . . . . . . . . . . . . . . . 37
Change Thumbnail . . . . . . . . . . . . . . . . 31
Channel
Audio . . . . . . . . . . . . . . . . . . . . . . . . . 28
Auto-Setup . . . . . . . . . . . . . . . . . . . . . 12
Preset Download . . . . . . . . . . . . . . . . 11
Chapter . . . . . . . . . . . . . . . . . . . . . . 26, 30
Chasing playback . . . . . . . . . . . . . . . . . 19
Child Lock . . . . . . . . . . . . . . . . . . . . . . . 44
Cleaning
Disc . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Main unit . . . . . . . . . . . . . . . . . . . . . . 48
Lens . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Clock settings . . . . . . . . . . . . . . . . . . . . 44
Connection
AV3 input terminals . . . . . . . . . . . . . . 20
Aerial . . . . . . . . . . . . . . . . . . . . . . . . 7–9
Amplifier, system component . . . . . . . 10
Decoder, digital receiver . . . . . . . . . . 10
Satellite receiver . . . . . . . . . . . . . . . . 7, 9
Television . . . . . . . . . . . . . . . . . . . . . 7–9
Video cassette recorder . . . . . . . . 8, 20
Copy (play list) . . . . . . . . . . . . . . . . . . . . 33
CPRM . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Create Chapter . . . . . . . . . . . . . . . . . . . 31
Create play lists . . . . . . . . . . . . . . . . . . 32
Default Settings . . . . . . . . . . . . . . . . . . 38
Dialog Enhancer . . . . . . . . . . . . . . . . . . 29
Direct Navigator . . . . . . . . . . . . . . . 24, 30
Direct TV Recording . . . . . . . . . . . . . . . 19
DVD-RAM, DVD-R . . . . . . . . . . . . . . . . . 16
Enter name
Disc . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Entering text . . . . . . . . . . . . . . . . . . . . 36
Play list . . . . . . . . . . . . . . . . . . . . . . . 33
Title . . . . . . . . . . . . . . . . . . . . 21, 22, 31
Erase
Chapter . . . . . . . . . . . . . . . . . 26, 31, 33
Play list . . . . . . . . . . . . . . . . . . . . 26, 33
Title . . . . . . . . . . . . . . . . . . . . . . . 26, 31
Ext Link . . . . . . . . . . . . . . . . . . . . . . 23, 41
Finalize . . . . . . . . . . . . . . . . . . . . . . 35, 45
Flexible Recording . . . . . . . . . . . . . . . . 20
Format disc . . . . . . . . . . . . . . . . . . . . . 35
FR (Flexible Recording Mode) . . . . . . . 19
FUNCTIONS window . . . . . . . . . . . . . . 37
Language
Audio . . . . . . . . . . . . . . . . . . . . . . . . 39
Code list . . . . . . . . . . . . . . . . . . . . . . 41
Soundtrack . . . . . . . . . . . . . . . . . 28, 39
Subtitle . . . . . . . . . . . . . . . . . . . . 28, 39
Manual Skip . . . . . . . . . . . . . . . . . . . . .
Menu
MP3 . . . . . . . . . . . . . . . . . . . . . . . . .
On-screen . . . . . . . . . . . . . . . . . . . . .
SETUP . . . . . . . . . . . . . . . . . . . . . . .
Mode
Recording . . . . . . . . . . . . . . . . . . . . .
Still Mode . . . . . . . . . . . . . . . . . . . . .
MP3 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25
27
28
38
19
39
27
Noise reduction (NR)
Playback NR . . . . . . . . . . . . . . . . . . . 29
On-screen
Menus . . . . . . . . . . . . . . . . . . . . . . . . 28
Status messages . . . . . . . . . . . . . . . 37
Owner ID . . . . . . . . . . . . . . . . . . . . . 11, 38
Partial Erase . . . . . . . . . . . . . . . . . . . . . 31
PCM Down Conversion . . . . . . . . . . . . 40
PDC . . . . . . . . . . . . . . . . . . . . . . . . . 21, 46
Picture settings . . . . . . . . . . . . . . . 29, 39
Play list . . . . . . . . . . . . . . . . . . . . . . . . . 32
Playback NR . . . . . . . . . . . . . . . . . . . . . 29
Progressive . . . . . . . . . . . . 14, 29, 41, 46
Properties
Play list . . . . . . . . . . . . . . . . . . . . . . . 33
Title . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Protection
Cartridge . . . . . . . . . . . . . . . . . . . . . . 16
Disc . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Title . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Ratings level . . . . . . . . . . . . . . . . . . . . . 39
Recording . . . . . . . . . . . . . . . . . . . . . . . 18
Direct TV Recording . . . . . . . . . . . . . 19
External Link . . . . . . . . . . . . . . . . . . . 23
Flexible Recording . . . . . . . . . . . . . . . 20
Mode . . . . . . . . . . . . . . . . . . . . . . . . . 19
Timer . . . . . . . . . . . . . . . . . . . . . . 21–23
Remote control code . . . . . . . . . . . . . . 15
Repeat play . . . . . . . . . . . . . . . . . . . . . . 29
Resume play function . . . . . . . . . . . . . 25
RGB
Input . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Output . . . . . . . . . . . . . . . . . . . . . . 7, 41
SETUP menu . . . . . . . . . . . . . . . . . . . . . 38
Shipping Condition . . . . . . . . . . . . . . . . 38
Simultaneous rec and play . . . . . . . . . 19
Soundtrack . . . . . . . . . . . . . . . . . . . . . . 28
Status messages . . . . . . . . . . . . . . . . . 37
Subtitle . . . . . . . . . . . . . . . . . . . . . . . . . 28
Teletext . . . . . . . . . . . . . . . . . . . . . . . . . 18
Time Slip . . . . . . . . . . . . . . . . . . . . . 19, 25
Timer recording . . . . . . . . . . . . . . . 21–23
Transfer . . . . . . . . . . . . . . . . . . . . . . . . . 29
Tuning
Auto-Setup . . . . . . . . . . . . . . . . . . . . . 12
Manual . . . . . . . . . . . . . . . . . . . . . . . . 42
Preset Download . . . . . . . . . . . . . . . . 11
TV System (PAL/NTSC) . . . . . . . . . . . . 43
TV type . . . . . . . . . . . . . . . . . . . . . . . . . . 14
VIDEO Plus+ . . . . . . . . . . . . . . . . . . . . . 21
V.S.S. . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Q Link . . . . . . . . . . . . . . . . . . . . . . . . 6, 46
Quick View . . . . . . . . . . . . . . . . . . . . . . 25
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby
Laboratories.
“DTS” and “DTS 2.0iDigital Out” are trademarks of Digital
Theater Systems, Inc.
VIDEO Plus+ and PlusCode are registered trademarks of
Gemstar Development Corporation.
The VIDEO Plus+ system is manufactured under license from
Gemstar Development Corporation.
MPEG Layer-3 audio decoding technology licensed from
Fraunhofer IIS and Thomson multimedia.
This product incorporates copyright protection technology that is
protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation
and other rights owners. Use of this copyright protection
technology must be authorized by Macrovision Corporation, and
is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
Environment friendly printed on chlorine free bleached paper.
Matsushita Electric Industrial Co., Ltd.
Web Site: http://www.panasonic.co.jp/global/
p
RQT7540-2B
F0204NS2034
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
