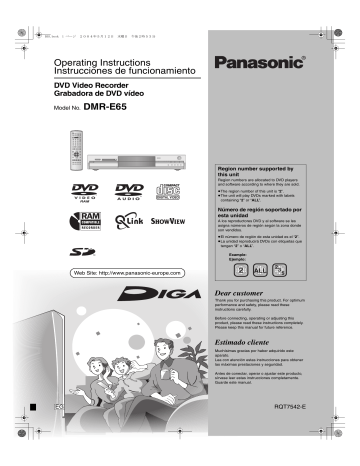

Operating Instructions
Instrucciones de funcionamiento
DVD Video Recorder
Grabadora de DVD vídeo
Model No.
DMR-E65
Region number supported by
this unit
Region numbers are allocated to DVD players
and software according to where they are sold.
≥The region number of this unit is “2”.
≥The unit will play DVDs marked with labels
containing “2” or “ALL”.
Número de región soportado por
esta unidad
A los reproductores DVD y al software se les
asigna números de región según la zona donde
son vendidos.
≥El número de región de esta unidad es el “2”.
≥La unidad reproducirá DVDs con etiquetas que
tengan “2” o “ALL”.
Example:
Ejemplo:
Web Site: http://www.panasonic-europe.com
2
ALL
2
3
5
Dear customer
Thank you for purchasing this product. For optimum
performance and safety, please read these
instructions carefully.
Before connecting, operating or adjusting this
product, please read these instructions completely.
Please keep this manual for future reference.
Estimado cliente
Muchísimas gracias por haber adquirido este
aparato.
Lea con atención estas instrucciones para obtener
las máximas prestaciones y seguridad.
Antes de conectar, operar o ajustar este producto,
sírvase leer estas instrucciones completamente.
Guarde este manual.
EG
RQT7542-E
E65.book
2 ページ 2004年5月12日 水曜日 午後2時53分
SUOMI
CAUTION!
VAROITUS!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ
KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA
ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1
YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE.
WARNING:
Getting started
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS
TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT
NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES,
SHALL BE PLACED ON THE APPARATUS.
CAUTION!
≥DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,
BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.
ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT
RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT CURTAINS AND ANY
OTHER MATERIALS DO NOT OBSTRUCT THE
VENTILATION VENTS.
≥DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS
WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND
SIMILAR ITEMS.
≥DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS
LIGHTED CANDLES, ON THE UNIT.
≥DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY
FRIENDLY MANNER.
THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.
This product may receive radio interference caused by mobile
telephones during use. If such interference is apparent, please
increase separation between the product and the mobile
telephone.
The socket outlet shall be installed near the equipment and
easily accessible or the mains plug or an appliance coupler shall
remain readily operable.
VAROITUS:
TULIPALO-, SÄHKÖISKUVAARAN TAI TUOTETTA
KOHTAAVAN MUUN VAHINGON VÄHENTÄMISEKSI EI
LAITETTA SAA ALTISTAA SATEELLE, KOSTEUDELLE,
VESIPISAROILLE TAI ROISKEELLE, EIKÄ NESTETTÄ
SISÄLTÄVIÄ ESINEITÄ, KUTEN ESIMERKIKSI MALJAKOITA,
SAA ASETTAA LAITTEEN PÄÄLLE.
VAROITUS!
≥ÄLÄ ASENNA TAI LAITA TÄTÄ LAITETTA
KABINETTITYYPPISEEN KIRJAKAAPPIIN TAI MUUHUN
SULJETTUUN TILAAN, JOTTA TUULETUS ONNISTUISI.
VARMISTA, ETTÄ VERHO TAI MIKÄÄN MUU MATERIAALI
EI HUONONNA TUULETUSTA, JOTTA VÄLTETTÄISIIN
YLIKUUMENEMISESTA JOHTUVA SÄHKÖISKU- TAI
TULIPALOVAARA.
≥ÄLÄ PEITÄ LAITTEEN TUULETUSAUKKOJA
SANOMALEHDELLÄ, PÖYTÄLIINALLA, VERHOLLA TAI
MUULLA VASTAAVALLA ESINEELLÄ.
≥ÄLÄ ASETA PALAVAA KYNTTILÄÄ TAI MUUTA AVOTULEN
LÄHDETTÄ LAITTEEN PÄÄLLE.
≥HÄVITÄ PARISTOT LUONTOA VAHINGOITTAMATTOMALLA
TAVALLA.
TÄMÄ LAITE ON TARKOITETTU KÄYTETTÄVÄKSI LEUDOSSA
ILMASTOSSA.
Laite tulee asettaa lähelle verkkopistorasiaa ja pistokkeen täytyy
olla sellaisessa asennossa, että siihen on helppo tarttua
ongelman sattuessa.
NORSK
ADVARSEL!
DETTE PRODUKTET ANVENDER EN LASER.
BETJENING AV KONTROLLER, JUSTERINGER ELLER
ANDRE INNGREP ENN DE SOM ER BESKREVET I DENNE
BRUKSANVISNING, KAN FØRE TIL FARLIG BESTRÅLING.
DEKSLER MÅ IKKE ÅPNES, OG FORSØK ALDRI Å
REPARERE APPARATET PÅ EGENHÅND. ALT SERVICE OG
REPARASJONSARBEID MÅ UTFØRES AV KVALIFISERT
PERSONELL.
ADVARSEL:
FOR Å REDUSERE FAREN FOR BRANN, ELEKTRISK STØT
ELLER SKADER PÅ PRODUKTET, MÅ DETTE APPARATET
IKKE UTSETTES FOR REGN, FUKTIGHET, VANNDRÅPER
ELLER VANNSPRUT. DET MÅ HELLER IKKE PLASSERES
GJENSTANDER FYLT MED VANN, SLIK SOM
BLOMSTERVASER, OPPÅ APPARATET.
Y
RF IN
ADVARSEL!
PB
R - AUDIO - L
AV1 (TV)
VIDEO S-VIDEO
OUT
OPTICAL
AV4 IN
AC IN
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
R - AUDIO - L
PR
AV2 (DECODER/EXT)
COMPONENT
VIDEO OUT
RF OUT
(PROGRESSIVE/
INTERLACE)
VIDEO S-VIDEO
- VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
(FDA 21 CFR)
AVOID DIRECT EXPOSURE TO BEAM.
CAUTION - VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
AVOID EXPOSURE TO BEAM.
(IEC60825-1)
ATTENTION - RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D’OUVERTURE.
EXPOSITION DANGEREUSE AU FAISCEAU.
ADVARSEL - SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING.
UNDGÅ UDSÆTTELSE FOR STRÅLING.
DANGER
VARO!
- AVATTAESSA OLET ALTTIINA NÄKYVÄÄ JA NÄKYMÄTÖN
LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
VARNING - SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL
ÄR ÖPPNAD. BETRAKTA EJ STRÅLEN.
ADVARSEL - SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES.
UNNGÅ EKSPONERING FOR STRÅLEN.
VORSICHT - SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG
GEÖFFNET. NICHT DEM STRAHL AUSSETZEN.
-
RQLS0233
(Inside of product)
(Tuotteen sisällä)
(Produktets innside)
Keep the small memory cards such as the SD
Memory Card out of reach of children. If
swallowed, seek medical advice immediately.
RQT7542
2
2
≥APPARATET MÅ IKKE PLASSERES I EN BOKHYLLE, ET
INNEBYGGET KABINETT ELLER ET ANNET LUKKET STED
HVOR VENTILASJONSFORHOLDENE ER
UTILSTREKKELIGE. SØRG FOR AT GARDINER ELLER
LIGNENDE IKKE FORVERRER
VENTILASJONSFORHOLDENE, SÅ RISIKO FOR
ELEKTRISK SJOKK ELLER BRANN FORÅRSAKET AV
OVERHETING UNNGÅS.
≥APPARATETS VENTILASJONSÅPNINGER MÅ IKKE
DEKKES TIL MED AVISER, BORDDUKER , GARDINER OG
LIGNENDE.
≥PLASSER IKKE ÅPEN ILD, SLIK SOM LEVENDE LYS, OPPÅ
APPARATET.
≥BRUKTE BATTERIER MÅ KASSERES UTEN FARE FOR
MILJØET.
DETTE APPARATET ER BEREGNET TIL BRUK UNDER
MODERATE KLIMAFORHOLD.
Utstyret bør plasseres i nærheten av AC-stikkontakten, og
støpslet må være lett tilgjengelig hvis det skulle oppstå
problemer.
E65.book
3 ページ 2004年5月12日 水曜日 午後2時53分
Table of contents
Getting started
Transfer (Dubbing)
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Useful features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
The remote control. . . . . . . . . . . . . . . . . . . . . . . . . . 4
Control reference guide. . . . . . . . . . . . . . . . . . . . . . 5
STEP 1 Connection . . . . . . . . . . . . . . . . . . . . . . . . . 6
STEP 2 Channel reception settings . . . . . . . . . . . 10
STEP 3 Set up to match your television
and remote control. . . . . . . . . . . . . . . . . . . . . . . . 12
Recording from a video cassette recorder . . . . . 35
Manual recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
DV automatic recording (DV AUTO REC) . . . . . . . . . . . . . . . . . 35
Transferring (dubbing) still pictures . . . . . . . . . . 36
Transferring (dubbing) using the transferring (dubbing) list . . . 36
Transferring (dubbing) all the still pictures of a card
onto a DVD-RAM—COPY ALL PICTURES . . . . . . . . . . . . . . 37
Convenient functions
To enjoy progressive video. . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Recording
Recording television programmes . . . . . . . . . . . . 16
Recording modes and approximate recording times . . . . . . . .
Playing while you are recording . . . . . . . . . . . . . . . . . . . . . . . .
Flexible Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Direct TV Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recording from satellite/digital receiver or decoder. . . . . . . . .
17
17
18
18
18
Timer recording . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Using SHOWVIEW number to make timer recordings. . . . . . . . .
Manually programming timer recordings . . . . . . . . . . . . . . . . .
Check, change or delete a programme . . . . . . . . . . . . . . . . . .
Linked timer recordings with external equipment (EXT LINK) . .
19
20
21
21
FUNCTIONS window . . . . . . . . . . . . . . . . . . . . . . . 37
Disc and card management . . . . . . . . . . . . . . . . . 38
Setting the protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Providing a disc with a name . . . . . . . . . . . . . . . . . . . . . . . . . .
Erasing all titles and play lists—Erase all titles . . . . . . . . . . . . .
Erasing all the contents of a disc or card—Format. . . . . . . . . .
Enabling DVD-R to be played on other equipment—Finalize . .
Getting started
Disc and card information . . . . . . . . . . . . . . . . . . . 14
38
38
38
39
39
Entering text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Changing the unit’s settings . . . . . . . . . . . . . . . . 41
Common procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Summary of settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TV System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
41
41
45
46
47
Child Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Reference
Playing back
Playing recorded video contents/Playing playonly discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Operations during play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Editing operations during play . . . . . . . . . . . . . . . . . . . . . . . . . 24
Changing audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Using menus to play MP3 . . . . . . . . . . . . . . . . . . . 25
Playing still pictures . . . . . . . . . . . . . . . . . . . . . . . 26
Useful functions during still picture play. . . . . . . . . . . . . . . . . . 27
Using on-screen menus and Status messages. . 28
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Frequently asked questions. . . . . . . . . . . . . . . . .
Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting guide . . . . . . . . . . . . . . . . . . . . .
Safety precautions . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance/Disc and card handling . . . . . . . . .
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
48
49
51
52
53
57
57
58
On-screen menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Status messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Editing
Editing titles/chapters . . . . . . . . . . . . . . . . . . . . . . 30
Editing titles/chapters and playing chapters. . . . . . . . . . . . . . . 30
Title operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Chapter operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Creating, editing and playing play lists . . . . . . . . 32
Creating play lists. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing and playing play lists/chapters . . . . . . . . . . . . . . . . . . .
Play list operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32
33
33
33
Editing still pictures . . . . . . . . . . . . . . . . . . . . . . . . 34
Picture and folder operation. . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Accessories
Please check and identify the supplied accessories.
∏
∏
∏
∏
∏
1 Remote control
(EUR7721KC0)
1 AC mains lead
≥For use with this unit only. Do not
use it with other equipment.
1 RF coaxial cable
2 Batteries
for remote control
1 Audio/video cable
RQT7542
3
3
E65.book
4 ページ 2004年5月12日 水曜日 午後2時53分
Useful features
This DVD Video recorder records high quality images to rapid random access capable DVD-RAM media. This has resulted in
many new features that out perform older tape formats. The following information summarizes a few of these features.
Instant recording
Chasing playback
You no longer need to search for empty disc space. By
pressing the recording button, the unit finds available
recording space and begins recording right away. There is no
need to worry about overwriting already recorded content.
There is no need to wait until
recording is complete. Without
stopping recording, you can play the
video currently being recorded from
its beginning.
SD/PC card slots, DV input terminal
This unit is equipped with interfaces that allow networking
with digital equipment.
Simultaneous Recording
and Playback
Getting started
≥The SD/PC card slots of this unit let you transfer (dub) digital
camera photographs from a card to DVD-RAM for easy storage
without using a computer.
≥The DV automatic recording function of this unit lets you easily
transfer (dub) digital images to the DVD-RAM by connecting only a
single DV cable.
While recording, you can play
another video programme that was
recorded previously.
Instant play
There is no need to rewind or search forward. Direct
Navigator guides you to the beginning of the recorded video
immediately.
Time Slip
During play and also while recording,
you can jump to the scene you wish
to view by specifying the skip time.
The remote control
∫ Batteries
∫ Use
R6/LR6, AA, UM-3
Remote control signal sensor
20˚
30˚
20˚
30˚
≥Insert so the poles (i and j) match those in the remote control.
≥Do not use rechargeable type batteries.
≥Do not mix old and new batteries.
≥Do not use different types at the same time.
≥Do not heat or expose to flame.
≥Do not take apart or short circuit.
≥Do not attempt to recharge alkaline or manganese batteries.
≥Do not use batteries if the covering has been peeled off.
7 m directly in front of the unit
Mishandling of batteries can cause electrolyte leakage which can
damage items the fluid contacts and may cause a fire.
Remove if the remote control is not going to be used for a long
period of time. Store in a cool, dark place.
[Note]
If you cannot operate the unit or television using the remote control
after changing the batteries, please re-enter the codes (➡ page 13).
The manufacturer accepts no responsibility and offers no compensation for loss of recorded or edited material due to a problem
with the unit or recordable media, and accepts no responsibility and offers no compensation for any subsequent damage caused by
such loss.
Examples of causes of such losses are
≥A disc recorded and edited with this unit is played in a DVD recorder or computer disc drive manufactured by another company.
≥A disc used as described above and then played again in this unit.
≥A disc recorded and edited with a DVD recorder or computer disc drive manufactured by another company is played in this unit.
RQT7542
4
4
E65.book
5 ページ 2004年5月12日 水曜日 午後2時53分
Control reference guide
Remote control
DVD
TV
Turn the unit on (➡ page 10, 11)
Television operations (➡page 13)
VOLUME
CH
DIRECT TV REC
Direct TV recording (➡ page 18)
AV
Select drive (DVD, SD or PC)
(➡page 16, 22, 27)
DVD DRIVE SELECT SD/PC
2
3
4
5
6
Cancel
7
8
9
Channel select (➡ page 16)
CH
ShowView
CANCEL
Show SHOWVIEW screen (➡ page 19)
Skip 30 seconds forward (➡ page 23)
Input select (AV1, AV2, AV3, AV4 or DV)
(➡ page 18, 35)
INPUT SELECT MANUAL SKIP
0
SKIP
Basic operations for recording and play
SLOW/SEARCH
STOP
PAUSE
Getting started
1
Select channels and title numbers etc./
Enter numbers
PLAY/x1.3
DIRECT NAVIGATOR
FUNCTIONS
Show Top menu/Direct navigator (➡ page 22, 30)
Show FUNCTIONS window (➡ page 37)
TOP MENU
Selection/Enter, Frame-by-frame (➡ page 10, 23)
ENTER
RETURN
SUB MENU
Show sub menu (➡ page 30)
Show on-screen menu (➡ page 28)
PROG/CHECK DISPLAY
Show timer recording programme screen (➡ page 20)
Erase items (➡ page 24)
Programme recording standby/release
(➡ page 19, 20)
Linked timer recordings with external equipment
(➡ page 21)
Manual tuning operation (➡ page 45)
TIMER
F
STATUS TIME SLIP
ERASE REC MODE
REC
CREATE
CHAPTER AUDIO
EXT LINK
A
Return to previous screen
Show status messages (➡page 29)
Skip the specified time/Display the television image
as a picture-in-picture (➡ page 17, 23)
Change recording mode (➡ page 16)
Start recording (➡ page 16)
B
Select audio (➡ page 24)
Create chapter (➡ page 24)
C
Main unit
Standby/on switch (Í/I) (➡ page 10, 11)
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a small
amount of power.
Disc tray (➡page 16, 22)
SD/PC card slots (➡ page 26)
Select drive (➡ page 16, 22, 27)
Stop (➡page 16, 23)
Lights when the DVD, SD or PC
drive is selected
Remote control signal sensor/
Start recording (➡page 16)
OPEN/CLOSE
SD CARD
PC CARD
REC
EJECT
TIME SLIP
DVD
SD
PC
DRIVE SELECT
TIME SLIP
AV3
S-VIDEO IN
VIDEO IN
L/MONO AUDIO IN
/x1.3
CH
Start play
(➡ page 22)
DV IN
R
Open/close disc tray (➡ page 16, 22)
Connection for camcorder
Display (➡ below)
Time Slip indicator (➡page 17)
etc. (➡ page 35)
Connection for digital
Skip the specified time/Display the television
video (DV) camcorder
image as a picture-in-picture (➡ page 17, 23)
(➡ page 35)
Skip/Slow/Search
(➡page 23)
Channel select
(➡ page 16)
Rear panel terminals (➡ page 7, 8)
The unit’s display
Card indicator Recording mode
Timer recording indicator
Linked timer recordings
with external equipment
indicator
Transferring (dubbing) in progress indicator
DVD - R AM
SD PC XP
EXT Link
PLAY REC
Main display section
Recording
REC
Disc type
VCD.MIX
SP
LP
EP
Playback
PLAY
Recording/Playback
PLAY REC
D.MIX (multi-channel DVD-Audio only)
When lit: down-mixed audio is played.
When off: the disc prevents down-mixing so only
the two front channels can be played.
RQT7542
5
5
E65.book
6 ページ 2004年5月12日 水曜日 午後2時53分
STEP 1 Connection
≥The equipment connections described are examples.
≥Before connection, turn off all equipment and read the appropriate operating instructions.
≥Peripheral equipment and optional cables sold separately unless otherwise indicated.
∫ Recommended connection for your television
Required
cable(s)
What kind of input terminal does your television have?
Scart
Getting started
AV IN
Component
video
COMPONENT
VIDEO IN
S-Video
Audio/Video
S-VIDEO IN
AUDIO IN VIDEO IN
R
L
Page No. for
connections
Page No. for TV
settings
Highly recommended connection.
≥You can enjoy high-quality RGB video from this
unit by connecting to an RGB compatible
television.
≥If your television has the Q Link feature, you can
use a variety of useful functions.
Fully wired 21pin Scart cable
➡7
These terminals provide a purer picture than the SVideo terminal.
≥If your television is compatible with progressive
scan, you can enjoy high-quality progressive video.
If you have a progressive compatible CRT
television, we cannot recommend this connection
as some flickering may occur.
3 video cables
➡8
➡ 11
S-Video cable
➡8
➡ 11
Audio/Video
cable (included)
➡8
➡ 11
This terminal achieves a more vivid picture than the
video terminal.
The most basic connection.
➡ 11
≥If it’s a Q Link
television ➡10
Q Link functions
Q Link offers a range of convenient functions (For further details ➡page 50). Make sure to connect a fully wired 21-pin Scart cable to the
television if using the Q Link function.
The following systems from other manufacturers have similar function to Q Link from Panasonic. For details, refer to your television’s operating
instructions or consult your dealer.
≥Q Link (registered trademark of Panasonic)
≥DATA LOGIC (registered trademark of Metz)
≥Easy Link (registered trademark of Philips)
≥Megalogic (registered trademark of Grundig)
≥SMARTLINK (registered trademark of Sony)
∫ Examples of equipment you can connect to this unit’s terminals
Amplifier
Television
From AUDIO OUT terminals or
DIGITAL AUDIO OUT terminal
From AV1, AUDIO/VIDEO OUT or
COMPONENT VIDEO OUT terminals
This unit
To AV2 or AV4 input terminals (rear)
To AV3 or DV input terminals (front) (➡ page 35)
Satellite/digital
receiver or decoder
Camcorder
Video cassette recorder
∫ Do not connect the unit through a video cassette recorder
Video signals fed through video cassette recorders will be affected by copyright
protection systems and the picture will not be shown correctly on the television.
Television
Television
≥When connecting to a television with a built in VCR, connect to the input terminals on
the television side, not the VCR side.
This unit
VCR
VCR
This unit
∫ When the unit is not to be used for a long time
To save power, unplug it from the household mains socket. This
unit consumes a small amount of power, even when it is turned off
(approx. 3 W).
RQT7542
6
6
Before moving the unit, ensure the disc tray is
empty.
Failure to do so will risk severely damaging the disc and
the unit.
E65.book
7 ページ 2004年5月12日 水曜日 午後2時53分
Connecting a television with 21-pin Scart terminal and VCR
When there is no 21-pin Scart terminal on the television (➡ page 8)
indicates included accessories.
indicates accessories not included.
1
4 are required connections. Connect in the numbered order.
To household mains socket
(AC 220–240 V, 50 Hz)
To the aerial
Television’s
rear panel
AV IN
VHF/UHF
RF IN
AC mains lead
Connect only after all other
connections are complete.
4
Aerial
cable
RF coaxial cable
Fully wired 21-pin Scart cable
3
Cooling fan
Getting started
Splitter
2
Y
1
RF IN
PB
R - AUDIO - L
OUT
PR
AV4 IN
AC IN
AV1 (TV)
VIDEO S-VIDEO
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
R - AUDIO - L
VIDEO S-VIDEO
Red White Yellow
This unit’s rear panel
Audio/Video cable
Red White Yellow
VCR’s rear panel
R
L
AUDIO OUT VIDEO OUT
AV2 (DECODER/EXT)
AV1 terminal
COMPONENT
VIDEO OUT
(PROGRESSIVE/
INTERLACE)
If your television is equipped with RGB
input capability, by connecting with a
fully wired 21-pin Scart cable you can
see video using RGB output on this
unit (➡ below).
To output in RGB select
“RGB ( without component )” from
“AV1 Output” in the SETUP menu
(➡ page 44) after tuning is completed
(➡ page 10, 11).
RF OUT
Use a splitter if you
also want to connect
the aerial to your VCR.
You can also connect with the AV2 terminal
on this unit using the 21-pin Scart cable.
VHF/UHF
RF IN
∫ RGB
This refers to the three primary colours of light, red (R), green (G), and blue (B) and also the method of producing video that uses them. By
dividing the video signal into the three colours for transmission, noise is reduced for even higher quality images.
RQT7542
7
7
E65.book
8 ページ 2004年5月12日 水曜日 午後2時53分
STEP 1 Connection
Connecting a television with AUDIO/VIDEO, S-VIDEO or COMPONENT VIDEO
terminals and VCR
Connecting to the television using the 21-pin Scart cables (➡ page 7)
indicates included accessories.
indicates accessories not included.
1
4 are required connections. Connect in the numbered order.
Getting started
When making this connection, ensure you
connect the audio cables to the corresponding
audio input terminals on the television.
Television’s
rear panel
To household mains socket
(AC 220–240 V, 50 Hz)
AUDIO IN VIDEO IN
R
L
To the aerial
S-VIDEO IN
COMPONENT
VIDEO IN
VHF/UHF
RF IN
Splitter
Red White Yellow
AC mains lead
Connect only after all other
connections are complete.
S-Video
cable
Aerial
cable
RF coaxial cable
Audio/Video cable
4
3
2
Video cable
Y
Red White Yellow
R - AUDIO - L
PB
OUT
AV4 IN
AC IN
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
This unit’s rear panel
Cooling fan
R - AUDIO - L
RF IN
AV1 (TV)
VIDEO S-VIDEO
OPTICAL
1
PR
AV2 (DECODER/EXT)
VIDEO S-VIDEO
COMPONENT
VIDEO OUT
(PROGRESSIVE/
INTERLACE)
RF OUT
Red White Yellow S-VIDEO OUT terminal
The S-VIDEO OUT terminal achieves a more
vivid picture than the VIDEO OUT terminal.
(Actual results depend on the television.)
Audio/Video cable
COMPONENT VIDEO OUT terminal
These terminals can be used for either interlace or
progressive output and provide a purer picture than the
S-VIDEO OUT terminal (➡below).
≥Connect to terminals of the same colour.
Red White Yellow
VCR’s rear panel
R
L
AUDIO OUT VIDEO OUT
Use a splitter if
you also want
to connect the
aerial to your
VCR.
You can also connect with the AV2 terminal
on this unit using the 21-pin Scart cable.
VHF/UHF
RF IN
∫ Component video output
Component signal outputs the colour difference signals (PB/PR) and luminance signal (Y) separately in order to achieve high fidelity in
reproducing colours. If the television is compatible with progressive output, a high quality picture can be output because this unit’s component
video output terminal outputs a progressive output signal (➡page 49).
For progressive output (➡page 12)
RQT7542
8
8
E65.book
9 ページ 2004年5月12日 水曜日 午後2時53分
Connecting a satellite receiver, digital receiver or decoder
≥Decoder here means the device used to decode scrambled broadcasts (Pay TV).
≥Change the “AV2 Input” and “AV2 Connection” settings in the SETUP menu to match the connected equipment (➡page 44) after tuning is
completed (➡page 10, 11).
21-pin Scart cable
This unit’s
rear panel
Y
Getting started
Viewing video from the decoder on the television while the
unit is stopped, or while recording
If you connected the television to the AV1 terminal and the decoder
to the AV2 terminal on this unit, press [0]i[ENTER]. (“DVD”
appears on the unit’s display.)
Press again to cancel. (“TV” appears on the unit’s display.)
≥If the television is compatible with RGB input, the RGB output
signal from the decoder can also be output from the main unit the
same way.
Satellite receiver,
digital receiver or
decoder’s rear panel
AV OUT
RF IN
PB
AV1 (TV)
PR
AV2 (DECODER/EXT)
COMPONENT
VIDEO OUT
(PROGRESSIVE/
INTERLACE)
RF OUT
Connecting an amplifier or system component
∫ To enjoy multi-channel surround sound on
DVD-Video
∫ Connection to a stereo amplifier
Connect an amplifier with Dolby Digital, DTS and MPEG decoders
using an optical digital audio cable and change the settings in
“Digital Audio Output” (➡page 43) after tuning is completed
(➡ page 10, 11).
≥You cannot use DTS Digital Surround decoders not suited to DVD.
≥Even if using this connection, output will be only 2 channels when
playing DVD-Audio.
Amplifier’s rear panel
Amplifier’s rear panel
AUDIO IN
R L
OPTICAL IN
Red White
Optical digital audio cable
Do not bend this cable sharply.
Audio cable
Insert fully, with this side facing up.
Red White
R - AUDIO -
This unit’s rear panel
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
VIDEO S-VIDEO
R - AUDIO - L
VIDEO S-VIDEO
OPTICAL
AV4 IN
AC IN
R - AUDIO - L
OUT
OPTICAL
R - AUDIO -
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
This unit’s rear panel
Do not place the unit on
amplifiers or equipment
that may become hot.
The heat can damage the unit.
RQT7542
9
9
E65.book
10 ページ
2004年5月12日 水曜日 午後2時53分
STEP 2 Channel reception settings
Preset Download
(Setup with Q Link functions)
Í/ l
OPEN/CLOSE
SD CARD
PC CARD
REC
EJECT
TIME SLIP
DVD
SD
PC
TIME SLIP
DRIVE SELECT
CH
X CH W
DVD
TV
Í DVD
VOLUME
CH
DIRECT TV REC
Getting started
DRIVE SELECT
1
2
3
4
5
6
When connecting to a television that has the Q Link
function (➡page 50) with a fully wired 21-pin Scart
cable (➡page 7).
You can download the tuning positions from the television.
This unit’s Auto Clock Setting function synchronizes the time when
the TV channel that is broadcasting time and date information is
tuned.
1
AV
DVD
/x1.3
SD/PC
CH
2
ShowView
7
8
9
CANCEL
Downloading from the television starts.
INPUT SELECT MANUAL SKIP
0
SKIP
Turn on the television and select the
appropriate AV input to suit the
connections to this unit.
Press [Í DVD] to turn the unit on.
Download from TV
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
DIRECT NAVIGATOR
Pos
4
Download in progress, please wait.
RETURN: to abort
FUNCTIONS
TOP MENU
3,4,2,1
ENTER
ENTER
RETURN
SUB MENU
RETURN
RETURN
PROG/CHECK DISPLAY
TIMER
F
A
STATUS TIME SLIP
ERASE REC MODE
REC
CREATE
CHAPTER AUDIO
EXT LINK
B
Downloading is complete when you see the television
picture.
≥If the Country setting menu appears on the television,
press [3, 4, 2, 1] to select the country and press
[ENTER].
C
Country
België
Belgique
Belgien
Danmark
España
SELECT
ENTER
RETURN
France
Italia
Nederland
Norge
RETURN: leave
Deutschland
Österreich
Portugal
Suomi
Sverige
Schweiz
Suisse
Svizzera
Others
ENTER: access
If you select “Schweiz”, “Suisse” or “Svizzera” in the Country
setting, or when the television tuning setting has been set to
Switzerland, the “Power Save” setting menu appears. Select
“On” or “Off” (➡page 41).
To stop partway
Press [RETURN].
∫ If the clock setting menu appears
Set the clock manually (➡ page 47).
∫ To confirm that stations have been tuned
correctly (➡page 45)
∫ To restart Preset Download (➡page 46)
RQT7542
10
10
E65.book
11 ページ
2004年5月12日 水曜日 午後2時53分
Auto-Setup
(Setup without Q Link functions)
≥When connecting to a television with the VIDEO OUT,
S-VIDEO OUT or COMPONENT VIDEO OUT terminal
(➡ page 8).
≥When connecting to a television that does not have
the Q Link function (➡page 50).
1
2
Getting started
This unit’s Auto-Setup function automatically tunes all available TV
stations and synchronizes the time when the TV channel that is
broadcasting time and date information is tuned.
Turn on the television and select the
appropriate AV input to suit the
connections to this unit.
Press [Í DVD] to turn the unit on.
The Country setting menu appears.
Country
België
Belgique
Belgien
Danmark
España
SELECT
ENTER
RETURN
Deutschland
Österreich
Portugal
Suomi
Sverige
Schweiz
Suisse
Svizzera
Others
France
Italia
Nederland
Norge
RETURN: leave
ENTER: access
If you select “Schweiz”, “Suisse” or “Svizzera”, the “Power
Save” setting menu appears. Select “On” or “Off”
(➡ page 41).
3
4
Press [3, 4, 2, 1] to select the
country.
Press [ENTER].
Auto-Setup starts. This takes about 8 minutes.
Auto-Setup
Ch
1
Auto-Setup in progress, please wait.
RETURN: to abort
RETURN
Auto-Setup is complete when you see the television picture.
To stop partway
Press [RETURN].
∫ If the clock setting menu appears
Set the clock manually (➡ page 47).
∫ To confirm that stations have been tuned
correctly (➡page 45)
∫ To restart Auto-Setup (➡page 46)
You can also use the following method to restart Auto-Setup.
When the unit is on and stopped
Press and hold [X CH] and [CH W] on the main unit until the
Country setting screen appears.
≥All the settings except for the ratings level, ratings password and
time settings return to the factory preset. The timer recording
programmes are also cancelled.
RQT7542
11
11
E65.book
12 ページ
2004年5月12日 水曜日 午後2時53分
STEP 3 Set up to match your television and remote control
3
Press [3, 4] to select “Connection”
and press [1].
Press [3, 4] to select “TV Aspect”
and press [ENTER].
DVD
TV
VOLUME
CH
DIRECT TV REC
AV
DVD
Numbered
buttons
DRIVE SELECT
1
2
3
4
5
6
7
8
TV operation
buttons
4
SD/PC
5
CH
Press [3, 4] to select the TV aspect
and press [ENTER].
ShowView
9
CANCEL
TV Aspect
SETUP
INPUT SELECT MANUAL SKIP
0
Getting started
SKIP
16:9 WIDE TV
16:9
SLOW/SEARCH
STOP
PAUSE
Tuning
Others
Disc
Sound
Display
Connection
PLAY/x1.3
DIRECT NAVIGATOR
FUNCTIONS
FUNCTIONS
TOP MENU
3,4,2,1
ENTER
RETURN
RETURN
PROG/CHECK DISPLAY
TIMER
F
A
STATUS TIME SLIP
ERASE REC MODE
REC
CREATE
CHAPTER AUDIO
EXT LINK
B
Letterbox
SELECT
ENTER
RETURN
≥16:9: 16:9 widescreen television
≥4:3: 4:3 aspect television
[RAM] Titles are recorded as they appear on screen.
[DVD-V] Video recorded for a widescreen is played as Pan
& Scan (unless prohibited by the producer of the
disc) (➡ page 49).
≥Letterbox: 4:3 aspect television
Widescreen picture is shown in the letterbox style
(➡page 49).
ENTER
SUB MENU
4:3 TV
4:3
C
To enjoy progressive video
You can enjoy progressive video by connecting this unit’s
COMPONENT VIDEO OUT terminals to an LCD/plasma television
or LCD projector compatible with progressive scan (➡page 49).
Selecting television type and aspect
Choose the setting to suit your television and preference.
1
While stopped
Press [FUNCTIONS].
FUNCTIONS
DVD
No Disc
SD/PC
1
2
3
Playback
Recording TIMER RECORDING
Dubbing
Edit
Setting
4
DUBBING
SETUP
ENTER
RETURN
2
Press [3, 4, 2, 1] to select
“SETUP” and press [ENTER].
SETUP
Tuning
Others
Disc
Sound
Display
Connection
Manual
Auto-Setup Restart
Download from TV
TAB
SELECT
RETURN
To exit the screen
Press [RETURN] several times.
To return to the previous screen
Press [RETURN].
RQT7542
12
12
5
While stopped
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select
“SETUP” and press [ENTER].
Press [3, 4] to select “Connection”
and press [1].
Press [3, 4] to select “Progressive”
and press [ENTER].
Press [3, 4] to select “On” and
press [ENTER].
Output becomes progressive.
[Note]
≥When connected to a regular television (CRT: Cathode ray tube)
or a multi system television using PAL mode, even if it is
progressive compatible, progressive output can cause some
flickering. Turn off “Progressive” if this occurs (➡page 29).
≥There is no output from the COMPONENT VIDEO OUT terminals
if “AV1 Output” in the SETUP menu is set to “RGB ( without
component )”. Set this item to either “Video ( with component )” or
“S-Video ( with component )” (➡ page 44).
≥If the unit is connected to the television through VIDEO OUT, SVIDEO OUT or AV1 terminal, output will be interlace irrespective
of the settings.
E65.book
13 ページ
2004年5月12日 水曜日 午後2時53分
Television operation
You can configure the remote control TV operation buttons to turn
the television on/off, change the television input mode, select the
television channel and change the television volume.
Point the remote control at the television
While pressing [Í TV], enter the code
with the numbered buttons.
e.g.,
01:
[0] ➡ [1]
When other Panasonic products
respond to this remote control
If other Panasonic products are placed close together, change the
remote control code on the main unit and the remote control (the
two must match).
Under normal circumstances use the factory set code “DVD 1”.
1
While stopped
Press [FUNCTIONS].
Brand
Panasonic
AIWA
AKAI
BLAUPUNKT
BRANDT
BUSH
CURTIS
DESMET
DUAL
ELEMIS
FERGUSON
GOLDSTAR/LG
GOODMANS
GRUNDIG
HITACHI
INNO HIT
IRRADIO
ITT
JVC
LOEWE
METZ
MITSUBISHI
MIVAR
NEC
NOKIA
NORDMENDE
ORION
PHILIPS
PHONOLA
PIONEER
PYE
RADIOLA
SABA
SALORA
SAMSUNG
SANSUI
SANYO
SBR
SCHNEIDER
SELECO
SHARP
SIEMENS
SINUDYNE
SONY
TELEFUNKEN
THOMSON
TOSHIBA
WHITE WESTINGHOUSE
Code
01, 02, 03, 04, 45
35
27, 30
09
10, 15
05, 06
31
05, 31, 33
05, 06
31
10
31
05, 06, 31
09
22, 23, 31, 40, 41, 42
34
30
25
17, 39
07
28, 31
06, 19, 20
24
36
25, 26, 27
10
37
05, 06
31, 33
38
05, 06
05, 06
10
26
31, 32, 43
05, 31, 33
21
06
05, 06, 29, 30, 31
06, 25
18
09
05, 06, 33
08
10, 11, 12, 13, 14
10, 15, 44
16
05, 06
Test by turning on the television and changing channels. Repeat
the procedure until you find the code that allows correct operation.
≥If your television brand is not listed or if the code listed for your
television does not allow control of your television, this remote
control is not compatible with your television.
2
Press [3, 4, 2, 1] to select
“SETUP” and press [ENTER].
3
Press [3, 4] to select “Others” and
press [1].
4
Press [3, 4] to select “Remote
Control” and press [ENTER].
5
Press [3, 4] to select the code
(“DVD 1”, “DVD 2” or “DVD 3”) and
press [ENTER].
SETUP
Tuning
Others
Disc
6
Getting started
Manufacturer and Code No.
Remote Control
Press “±” and “ENTER” together
for more than 2 seconds on the remote
control.
To change the code on the remote control
While pressing [ENTER], press and
hold the numbered button ([1], [2] or
[3]) for more than 2 seconds.
7
Press [ENTER].
∫ When the following indicator appears on the
unit’s display
The unit’s remote
control code
Change the code on the remote control to match the main unit’s
(➡ step 6).
[Note]
Executing “Shipping Condition” in the SETUP menu returns the
main unit code to “DVD 1”. Change the remote control code to 1
(➡ step 6).
RQT7542
13
13
E65.book
14 ページ
2004年5月12日 水曜日 午後2時53分
Disc and card information
Discs you can use for recording and play (12 cm/8 cm)
Disc type
Logo
Instructions
Re-writable discs
≥You can record up to 16 hours [in EP (8Hour) mode on double-sided disc. You cannot
record or play continuously on two sides] (➡page 17, Recording modes and
approximate recording times).
≥You can view the title being recorded from the beginning (Chasing playback, Time Slip)
(➡page 17).
≥Scratch and dust resistant cartridge discs and large capacity double sided discs (9.4 GB)
are commercially available.
≥You can record digital broadcasts that allow “One time only recording” when using CPRM
(Content Protection for Recordable Media) compatible discs (➡ page 49).
≥This unit is compatible with 1k–3k recording speed discs.
≥You can play and transfer (dub) still pictures taken on a digital camera etc. (➡page 26, 36).
Getting started
DVD-RAM
≥4.7 GB/9.4 GB, 12 cm
≥2.8 GB, 8 cm
Indicated in these instructions with
[RAM]
One time recording discs (recordable until the disc is full)
≥You can record up to 8 hours [in EP (8Hour) mode] (➡page 17, Recording modes and
approximate recording times).
≥By finalizing the disc, you can play it in a DVD player as DVD-Video (Play only)
(➡page 39, 49).
≥You cannot record digital broadcasts that allow “One time only recording”.
≥This unit is compatible with 1k–4k recording speed discs.
DVD-R
≥4.7 GB, 12 cm
≥1.4 GB, 8 cm
[DVD-R]
≥We recommend using Panasonic discs. DVD-R from other manufacturers may not be recorded or played due to the condition of the recording.
≥This unit cannot record to discs containing both PAL and NTSC signals. Play of discs recorded with both PAL and NTSC on another unit is not
guaranteed.
Which should I use, DVD-RAM or DVD-R?
The following chart indicates the differences. Select based upon
what you require.
(Y: Possible, t: Impossible)
DVD-RAM
DVD-R
Re-writable
Y
t
Edit
Y
§1
Y§2
Y§3
Recording both M 1 and M 2 of
bilingual broadcast
Y
t§4
Recording broadcasts that allow
one copy
Y§5
t
Y
§6
Play on other players
Recording 16:9 aspect picture
Play-only discs (12 cm/8 cm)
Disc type
Logo
Instructions
DVD-Audio
[DVD-A]
High fidelity music discs
≥Played on this unit in 2
channels.
DVD-Video
[DVD-V]
High quality movie and music
discs
Video CD
[VCD]
Recorded music and video
(including CD-R/RW)
Audio CD
[CD]
Recorded music and audio
(including CD-R/RW)
§ 1 You can erase, enter name and change thumbnail. Available
space does not increase after erasing.
§ 2 Only on DVD-RAM compatible players.
§ 3 After finalizing the disc (➡page 39, 49).
§ 4 Only one is recorded (➡page 43, Bilingual Audio Selection).
§ 5 CPRM (➡ page 49) compatible discs only.
§ 6 The picture is recorded in 4:3 aspect.
≥This unit plays CD-R/CD-RW discs (audio recording discs) which
have been recorded under one of the following standards: CD-DA,
MP3 and Video CD. Close the session or finalize the disc after
recording.
Play may be impossible on some CD-R or CD-RW discs due to the
condition of the recording.
≥The producer of the material can control how discs are played. So
you may not always be able to control play as described in these
operating instructions. Read the disc’s instructions carefully.
Discs that cannot be played
—
RQT7542
14
14
CD-R and CD-RW with music
recorded in MP3 (➡page 25)
≥2.6 and 5.2 GB DVD-RAM, 12 cm
≥3.95 and 4.7 GB DVD-R for Authoring
≥Unfinalized DVD-R recorded on other equipment (➡ page 49,
Finalize)
≥DVD-Video with a region number other than “2” or “ALL”
≥DVD-ROM
≥DVD-RW
≥iR
≥iRW
≥CD-ROM
≥CDV
≥CD-G
≥Photo CD
≥CVD
≥SVCD
≥SACD
≥MV-Disc
≥PD
≥Divx Video Disc, etc.
E65.book
15 ページ
2004年5月12日 水曜日 午後2時53分
Cards useable on this unit
Instructions
SD Memory Card
MultiMediaCard
SD Memory Card
MultiMediaCard
CompactFlash
SmartMedia
MEMORYSTICK
xD-Picture Card
Microdrive
≥You can play and transfer (dub) still pictures taken on a digital camera etc.
(➡page 26, 36).
≥You can set the DPOF (Digital Print Order Format) for automatic printing on your
home printer or at a photo developing store (➡page 34, 49).
You can insert into the PC
card slot using an adaptor
(TYPE II PC card adaptor).
[PC]
≥Compatible with: FAT 12 or FAT 16
≥We recommend using a Panasonic SD card.
≥You cannot use SD cards that exceed 2 GB.
≥We recommend using this unit to format a card before recording (➡page 39, 49).
≥You may not be able to use the card if formatted on a computer.
ATA Flash PC Card
Mobile hard disk§
You can insert directly into the
PC card slot.
[PC]
§
Getting started
Type
You can insert directly into the
SD card slot.
[SD]
Content saved on SD media storage (SV-PT1).
You can only play the recorded still pictures and transfer (dub) the data onto other
cards or DVD-RAM.
Structure of folders displayed by this unit
The following
can be displayed on this unit.
¢¢¢: Numbers
XXX: Letters
DVD-RAM
Card
JPEG
DCIM (Higher folder)
DCIM¢¢¢ (Higher folder)
¢¢¢XXXXX
¢¢¢XXXXX
XXXX¢¢¢¢.TIF
IM¢¢CDPF or IMEXPORT
XXXX¢¢¢¢.TIF
§
§
DCIM
XXXX¢¢¢¢.TIF
¢¢¢XXXXX
XXXX¢¢¢¢.TIF
§
Folders can be created on other equipment. However, these folders cannot be selected as a transferring (dubbing) destination.
≥The folder cannot be displayed if the numbers are all “0” (e.g., DCIM000 etc).
≥If a folder name or filename has been input using other equipment, the name may not be displayed properly or you may not be able to play or
edit the data.
Types of disc for the type of connected
TV
When you use the discs recorded either PAL or NTSC, refer to this
table.
(Y: Possible, t: Impossible)
TV type
Disc
Yes/No
PAL
Y
NTSC
Y§1
PAL
t
NTSC
Y§2
PAL
Y
NTSC
Y§3 (PAL60)
Accessory discs
DVD-RAM
9.4 GB, double-sided, type 4 cartridge: LM-AD240LE
4.7 GB, single-sided, type 2 cartridge: LM-AB120LE
4.7 GB, single-sided, non-cartridge:
LM-AF120LE
DVD-R
4.7 GB, single-sided, non-cartridge:
LM-RF120LE
Multi-system TV
NTSC TV
PAL TV
§1
§2
§3
If you select “NTSC” in “TV System” (➡ page 46), the picture may
be clearer.
Select “NTSC” in “TV System” (➡ page 46).
If your television is not equipped to handle PAL 525/60 signals
the picture will not be shown correctly.
RQT7542
15
15
E65.book
16 ページ
2004年5月12日 水曜日 午後2時53分
Recording television programmes
2
Time Slip indicator
15
PC CARD
REC
EJECT
TIME SLIP
DVD
SD
PC
DRIVE SELECT
TIME SLIP
DVD indicator
TIME SLIP
Press [DVD] to select the DVD drive.
The DVD indicator lights up on the unit.
2
OPEN/CLOSE
SD CARD
1
/x1.3
CH
Press [< OPEN/CLOSE] on the main
unit to open the tray and insert a disc.
≥Press the button again to close the tray.
Insert label-up.
Insert fully so it clicks into place.
3∫ 1
DVD
TV
¥ DIRECT
TV REC
VOLUME
CH
DIRECT TV REC
AV
DVD DRIVE SELECT SD/PC
Recording
Numbered
buttons
1
2
3
4
5
6
7
8
9
CH
1
3
Insert with the arrow facing in.
3
Press [W X CH] to select the channel.
DVD - R AM
SP
ShowView
CANCEL
INPUT SELECT MANUAL SKIP
0
SKIP
STOP
PAUSE
PLAY/x1.3
∫
DIRECT
NAVIGATOR
INPUT SELECT
To select with the numbered buttons:
e.g.,
5:
[0] ➡ [5]
15:
[1] ➡ [5]
SLOW/SEARCH
DIRECT NAVIGATOR
;
1
FUNCTIONS
FUNCTIONS
4
TOP MENU
3,4,2,1
ENTER
Press [REC MODE] to select the
recording mode (XP, SP, LP or EP).
ENTER
DVD - R AM
XP
SUB MENU
RETURN
RETURN
PROG/CHECK DISPLAY
STATUS TIME SLIP
F TIMER
TIMER
F
ERASE REC MODE
A
REC
CREATE
CHAPTER AUDIO
EXT LINK
4
Remaining time on the disc
TIME SLIP
STATUS
B
C
≥To record sound using LPCM (XP mode only):
Set the “Audio Mode for XP Recording” to “LPCM” in the
SETUP menu (➡ page 43).
5
AUDIO
5
Press [¥ REC] to start recording.
XP
DVD - R AM
REC
[RAM] [DVD-R]
≥You can record up to 99 titles on one disc.
≥It is not possible to record continuously from one side of a double sided
disc to the other. You will need to eject the disc and turn it over.
≥When using 8 cm DVD-RAM, remove the disc from the cartridge.
≥It is not possible to record CPRM (➡ page 49) protected material
onto DVD-R or 2.8 GB DVD-RAM discs.
≥It is not possible to record to a card.
When recording to DVD-R
≥When recording bilingual broadcasts, only the audio selected in
“Bilingual Audio Selection” (➡ page 43) is recorded (“M 1” or
“M 2”).
≥In order to play a DVD-R recorded using this unit on
another playback source, the disc must first be finalized
(➡ page 39).
Recording will take place on open space on disc. Data will not
be overwritten.
≥You cannot change the channel or recording mode during
recording.
≥[RAM] You can change the audio being received by pressing
[AUDIO] during recording. (Does not affect the recording of
audio.)
∫ To stop recording
Press [∫].
From the start to the end of the recording is called one title.
[DVD-R]
It takes about 30 seconds for the unit to complete recording
management information after recording finishes.
∫ To pause recording
Press [;].
Press again to restart recording.
(Title is not split into separate titles.)
RQT7542
16
16
17 ページ
2004年5月12日 水曜日 午後2時53分
∫ To specify a time to stop recording—One Touch
Recording
During recording
Press [¥ REC] on the main unit to select the recording
time.
Each time you press the button:
30 (min.) ""# 60 (min.) ""# 90 (min.) ""# 120 (min.)
^" Counter (cancel) ,"" 240 (min.) ,"" 180 (min.) ,}
≥This does not work during timer recordings (➡page 19) or while
using Flexible Recording (➡ page 18).
To stop recording partway
Press [∫].
Playing while you are recording
While recording to DVD-RAM you can view the title being recorded
from the beginning as well as play a recorded title.
[RAM]
Playing from the beginning of the title you are
recording—Chasing playback
Press [1] (PLAY).
Time Slip indicator on the main unit lights.
Playing a title previously recorded while recording—
Simultaneous rec and play
If a station broadcasts Teletext information
The unit automatically records the programme’s and station’s name
if the station’s Title Page is correctly set (➡ page 45).
[Note]
The unit may take some time in retrieving titles (up to 30 minutes)
and may fail in some cases.
1
2
Press [DIRECT NAVIGATOR].
Recording
E65.book
Press [3, 4, 2, 1] to select a title
and press [ENTER].
Time Slip indicator on the main unit lights.
Recording modes and approximate
recording times
To exit the DIRECT NAVIGATOR screen
Press [DIRECT NAVIGATOR].
Depending on the content being recorded, the recording times may
become shorter than indicated.
(Unit: hour)
DVD-RAM
DVD-R
Mode
Single-sided Double-sided (4.7 GB)
(4.7 GB)
(9.4 GB)
XP (High quality)
1
2
1
SP (Normal)
2
4
2
LP (Long play)
4
EP (Extra long play)
8
§
8 (6 )
Reviewing the recorded images while recording—
Time Slip
1
Press [TIME SLIP].
Time Slip indicator on the main unit lights.
PLAY
0 min
Play starts from 30
seconds previous.
4
§
16 (12 )
§
8 (6 )
REC
The image currently being
recorded
Picture quality
XP
≥You will hear the playback audio.
SP
2
LP
EP (6 Hour)§
≥Press [TIME SLIP] to show the play images in full. Press
again to show the play and recording images.
EP (8 Hour)
Recording time
§
Press [3, 4] to select the time and
press [ENTER].
∫ To stop play
When “Recording time in EP mode” is set to “EP (6Hour)” in the
SETUP menu.
The sound quality is better when using “EP (6Hour)” than when
using “EP (8Hour)”.
Press [∫].
∫ To stop recording
2 seconds after play stops
Press [∫].
[Note]
When recording to DVD-RAM using “EP (8Hour)” mode, play may
not be possible on DVD players that are compatible with DVD-RAM.
In this case use “EP (6Hour)” mode.
∫ To stop timer recording
Press [F TIMER].
≥You can also press and hold [∫] on the main unit for more than 3
seconds to stop recording.
FR (Flexible Recording Mode)
The unit automatically selects a recording rate between XP and EP
(8Hour) that will enable the recordings to fit in the remaining disc
space with the best possible recording quality.
≥You can set when programming timer recordings.
≥All the recording modes from XP to EP appear in the
XP
SP
display.
LP
EP
RQT7542
17
17
E65.book
18 ページ
2004年5月12日 水曜日 午後2時53分
Recording television programmes
Refer to the control reference on page 16.
Direct TV Recording
[RAM] [DVD-R]
When connected to a television that has the Q Link
function using a fully wired 21-pin Scart cable.
Flexible Recording
The unit sets the best possible picture quality that fits the recording
within the remaining disc space. The recording mode becomes FR
mode.
e.g.,
Recorded
Remain
Perfectly fit!
45 minutes in
SP mode
1
Press [DVD] to select the DVD drive.
The DVD indicator lights up on the unit.
2
3
Insert a disc. (➡page 16)
Press [¥ DIRECT TV REC].
Recording starts.
Recording rate
between SP and LP
Recording
This function allows you to immediately start recording the
programme that you are viewing on the TV.
To stop recording
Press [∫].
60 minutes
Programme to be recorded
Recording from satellite/digital receiver
or decoder
Preparation
Select the channel to record.
1
While stopped
2
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select
“FLEXIBLE REC” and press [ENTER].
FLEXIBLE REC
Recording in FR mode
Maximum rec. time
Set rec. time
Start
3 Hour 00 Min.
3 Hour 00 Min.
Cancel
SELECT
RETURN
3
4
Press [2, 1] to select “Hour” and
“Min.” and press [3, 4] to set the
recording time.
When you want to start recording
e.g., If you have connected to AV2 input terminals, select “AV2”.
Press [3, 4, 2, 1] to select “Start”
and press [ENTER].
2
Recording starts.
3
To show the remaining time
Press [STATUS].
4
Press [REC MODE] to select the
recording mode.
Select the channel on the other
equipment.
Press [¥ REC].
Recording starts.
Remaining
time
DVD-RAM
REC 59
ARD
LR
18
While stopped
Press [INPUT SELECT] to select the
input channel for the equipment you
have connected.
To stop recording partway
Press [∫].
18
1
≥You can also set the recording time with the numbered
buttons.
To exit the screen without recording
Press [RETURN].
RQT7542
Preparation
≥Connect a satellite/digital receiver or decoder to this unit’s input
terminals (➡page 9).
≥When recording bilingual programmes
[RAM]
When both M 1 and M 2 is selected on the connected equipment,
you can select the audio type in playback.
[DVD-R]
Select either M 1 or M 2 on the connected equipment. (You cannot
select the audio type in playback.)
≥When the output signal from the external equipment is NTSC,
change the “TV System” to “NTSC” in the SETUP menu
(➡ page 46).
≥Press [DVD] to select the DVD drive.
To skip unwanted parts
Press [;] to pause recording. (Press again to restart recording.)
To stop recording
Press [∫].
E65.book
19 ページ
2004年5月12日 水曜日 午後2時53分
Timer recording
4
DVD
Press [ENTER].
The settings are stored.
TV
TIMER
RECORDING
VOLUME
AV
DVD
DVD
Numbered
buttons
No.
01
SD/PC
DRIVE SELECT
1
2
3
4
5
6
CH
7
8
ShowView
9
INPUT SELECT MANUAL SKIP
¢ CANCEL
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
PLAY
DIRECT
NAVIGATOR
3,4,2,1
ENTER
DIRECT NAVIGATOR
FUNCTIONS
TOP MENU
ENTER
SUB MENU
STATUS TIME SLIP
PROG/CHECK
TIMER
F TIMER
ERASE REC MODE
F
EXT LINK
REC
CREATE
CHAPTER AUDIO
EXT LINK
A
B
5
Press [F TIMER].
[RAM]
Even if the unit is in timer recording standby, play starts when you
press [1] (PLAY) or [DIRECT NAVIGATOR]. Timer recording works
even during play.
∫ To release the unit from recording standby
RETURN
PROG/CHECK DISPLAY
Check to make sure
“OK” is displayed
(➡ page 21).
The unit turns off and “F” lights on the unit’s display to
indicate timer recording standby has been activated.
0
SKIP
Remain 1:58 SP
12:55:00 15. 7. TUE
VPS Disc
Date Start Stop Mode PDC
space
15/ 7 TUE 19:00 20:00 SP OFF OK
New Timer Programme
Repeat steps 1–4 to programme other recordings.
ShowView
CANCEL
Name
ARD
Recording
CH
DIRECT TV REC
REC MODE
C
Press [F TIMER].
The unit turns on and “F” goes out.
≥Be sure to press [F TIMER] before the programme start time to
put the unit on recording standby. Timer recording will work only
if “F” is displayed.
∫ To cancel recording when recording has
already begun
Press [F TIMER].
≥You can also press and hold [∫] on the main unit for more than
3 seconds to stop recording.
[RAM] [DVD-R]
You can enter up to 16 programmes up to a month in advance.
Using SHOWVIEW number to make timer
recordings
Entering SHOWVIEW numbers is an easy way of timer recording. You
can find these numbers in TV listings in newspapers and magazines.
1
Press [ShowView].
ShowView
Remain 1:58 SP
12:53:00 15. 7. TUE
Enter ShowView Number by using 0-9 key.
2
Press the numbered buttons to enter
the SHOWVIEW number.
Press [2] to move back to correct a digit.
3
[Note]
≥“F” flashes for about 5 seconds when the unit cannot go to
timer recording standby (e.g., a recordable disc is not in the
disc tray).
≥If the unit is not put in the timer recording standby mode at the
latest 10 minutes before the programmed timer recording
starting time, the “F” flashes on the unit display. In this case,
press [F TIMER] to put the unit in the timer recording standby
mode.
≥When you programme successive timer recordings to start
immediately one after the other, the unit cannot record the part
at the beginning of the later programmes (a few seconds when
recording with DVD-RAM and approximately 30 seconds when
recording with DVD-R).
∫ VPS/PDC function (➡page 50)
As long as a VPS/PDC signal is being broadcast by the TV
station, even if the broadcast programme time changes, the
recording time automatically changes to match the new
broadcast time.
To activate the VPS/PDC function
In step 3 in the VPS/PDC column, press [3, 4] to select “ON”.
Press [ENTER].
TIMER
RECORDING
Name
Date
1 ARD 15/ 7 TUE
Remain 1:58 SP
12:54:00 15. 7. TUE
Start
19:00
Stop
20:00
VPS
Mode PDC
SP OFF
Programme Name
≥Confirm the programme and make corrections if necessary
using [3, 4, 2, 1] (➡page 20, step 3).
≥When “-- ---” appears in the “Name” column, you cannot set
timer recording. Press [3, 4] to select desired programme
position. After you have entered the information of a TV
station, it is kept in the unit’s memory.
≥You can also press [REC MODE] to change the recording
mode.
≥VPS/PDC (➡right)
ON!)OFF (– – –)
≥Programme Name
Press [2, 1] to select “Programme Name” and press
[ENTER] (➡ page 40).
RQT7542
19
19
E65.book
20 ページ
2004年5月12日 水曜日 午後2時53分
Timer recording
Refer to the control reference on page 19.
[RAM] [DVD-R]
You can enter up to 16 programmes up to a month in advance.
(Each daily or weekly programme is counted as one programme.)
[RAM]
Even if the unit is in timer recording standby, play starts when you
press [1] (PLAY) or [DIRECT NAVIGATOR]. Timer recording works
even during play.
∫ To release the unit from recording standby
Manually programming timer
recordings
1
Press [PROG/CHECK].
TIMER
RECORDING
No.
01
Remain 1:58 SP
∫ To cancel recording when recording has
already begun
12:56:00 15. 7. TUE
Name
ARD
Press [F TIMER].
The unit turns on and “F” goes out.
≥Be sure to press [F TIMER] before the programme start time to
put the unit on recording standby. Timer recording will work only
if “F” is displayed.
VPS Disc
Date Start Stop Mode PDC
space
15/ 7 TUE 19:00 20:00 SP OFF OK
New Timer Programme
Recording
Press [F TIMER].
≥You can also press and hold [∫] on the main unit for more than
3 seconds to stop recording.
SELECT
ENTER
2
3
RETURN
[Note]
Press ENTER to store
new programme.
Press [3, 4] to select “New Timer
Programme” and press [ENTER].
Press [1] to move through the items
and change the items with [3, 4].
TIMER
RECORDING
Remain 1:58 SP
12:57:00 15. 7. TUE
Name
Date
1 ARD 15/ 7 TUE
Start
22:00
VPS
Mode PDC
SP OFF
Stop
22:30
Programme Name
≥Press and hold [3, 4] to alter the Start (Start time) and
Stop (Finish time) in 30-minute increments.
≥You can also set Name (Programme position/TV Station
Name), Date, Start (Start time), and Stop (Finish time) with
the numbered buttons.
≥You can also press [REC MODE] to change the recording
mode.
≥Date
[. Date:
l ;:
l Daily timer:
l ;:
a. Weekly timer:
Current date up to one month later minus
one day
SUN-SAT>MON-SAT>MON-FRI
SUN>--->SAT
≥VPS/PDC (➡ page 19)
ON!)OFF (– – –)
≥Programme Name
Press [2, 1] to select “Programme Name” and press
[ENTER] (➡ page 40).
4
Press [ENTER].
TIMER
RECORDING
No.
01
02
Name
ARD
ARD
Remain 1:58 SP
12:58:00 15. 7. TUE
VPS Disc
PDC space
Date Start Stop Mode
15/ 7 TUE 19:00 20:00 SP
15/ 7 TUE 22:00 22:30 SP
New Timer Programme
OFF OK
OFF OK
Check to make sure
“OK” is displayed
(➡ page 21).
Repeat steps 2–4 to programme other recordings.
5
Press [F TIMER].
The unit turns off and “F” lights on the unit’s display to
indicate timer recording standby has been activated.
RQT7542
20
20
≥“F” flashes for about 5 seconds when the unit cannot go to
timer recording standby (e.g., a recordable disc is not in the
disc tray).
≥If the unit is not put in the timer recording standby mode at the
latest 10 minutes before the programmed timer recording
starting time, the “F” flashes on the unit display. In this case,
press [F TIMER] to put the unit in the timer recording standby
mode.
≥When you programme successive timer recordings to start
immediately one after the other, the unit cannot record the part
at the beginning of the later programmes (a few seconds when
recording with DVD-RAM and approximately 30 seconds when
recording with DVD-R).
E65.book
21 ページ
2004年5月12日 水曜日 午後2時53分
Check, change or delete a programme
≥Even when the unit is turned off, you can display the timer
recording list by pressing [PROG/CHECK].
Press [PROG/CHECK].
Icons
[ This programme is currently recording.
W The times overlap those in another programme.
Recording of the programme with the later start time
starts when the earlier programme finishes recording.
F The disc was full so the programme failed to record.
The material was copy-protected so it was not recorded.
X The programme did not complete recording because the
disc is dirty or some other reason.
Linked timer recordings with external
equipment (EXT LINK)
[RAM] [DVD-R]
If an external equipment (for example a satellite receiver) with a
timer function is connected to the AV2 terminal of this unit by a
21-pin Scart cable (➡ page 9), it is possible to control the recording
of the unit with the equipment.
Preparation
≥Change the “Ext Link” in the SETUP menu to match the connected
equipment (➡ page 44).
≥Timer programming has to be done on the external equipment and
switch to the timer recording standby mode. Refer to the
equipment’s operating instructions.
≥Press [DVD] to select the DVD drive.
The unit turns off and switches to the recording standby mode.
≥Recording begins when a signal is received from the connected
equipment.
≥As long as a video picture is being transmitted by the external
equipment, the unit will record it.
TIMER
RECORDING
No.
Recording
Press [EXT LINK].
Remain 1:58 SP
12:56:00 15. 7. TUE
Name
VPS Disc
Date Start Stop Mode PDC
space
New Timer Programme
When the following message appears on the television screen, press
[2, 1] to select “Yes” (continue recording the current programme)
or “Cancel” (cancel recording) and press [ENTER].
DVD now recording this programme.
Yes
SELECT
ENTER
RETURN
Cancel
Press ENTER to store
new programme.
ENTER
Message displayed in the “Disc space” line
OK:
Displayed if the recording can fit in the
remaining space.
> (Date): For recordings made daily or weekly, the display
will show until when recordings can be made (up
to a maximum of one month from the present
time) based on the time remaining on the disc.
! :
It may not be possible to record because:
≥there is not enough space left
≥the number of possible titles has reached its
maximum.
RETURN
To cancel the external control
Press [EXT LINK] to stop recording or to cancel linked timer
recording standby.
≥You can also press and hold [∫] on the main unit for more than 3
seconds to stop recording.
≥In order to prevent accidental operation, press [EXT LINK] to
cancel the setting after recording is finished.
For your reference
≥The video being recorded automatically appears on the television
when connected to this unit’s AV1 terminal with the 21-pin Scart
cable.
≥This function does not work with some equipment. Refer to the
equipment’s operating instructions.
≥The beginnings of recordings may not be recorded correctly in
some cases.
≥When “Ext Link” is set to “Ext Link 2”, this function does not work if
the input signal is NTSC system.
∫ To change a programme
Press [3, 4] to select the programme and press [ENTER].
(➡ page 20, step 3)
∫ To delete a programme
Press [3, 4] to select the programme and press [¢ CANCEL].
∫ To exit the timer recording list
Press [PROG/CHECK].
∫ To put the unit on timer recording standby
Press [F TIMER].
The unit turns off and “F” lights on the unit’s display to indicate timer
recording standby has been activated.
≥Programmes that failed to record are deleted from the timer
recording list at 4 a.m. two days later.
RQT7542
21
21
E65.book
22 ページ
2004年5月12日 水曜日 午後2時53分
Playing recorded video contents/Playing play-only discs
1∫ 3
2
OPEN/CLOSE
SD CARD
PC CARD
TIME SLIP
DVD
SD
PC
TIME SLIP
DRIVE SELECT
[RAM] [DVD-R]
1 Press [DIRECT NAVIGATOR].
REC
EJECT
∫ Selecting recorded programmes (titles) to play—
Direct Navigator
/x1.3
CH
DIRECT NAVIGATOR
DVD-RAM
DVD indicator
TIME SLIP
DVD
TV
VOLUME
CH
DIRECT TV REC
X CH W
D,
E
DVD DRIVE SELECT SD/PC
Numbered
buttons
1
2
3
4
5
6
7
8
9
CH
1
CANCEL
W X CH
SKIP
Playing back
SLOW/SEARCH
PAUSE
PLAY/x1.3
∫
DIRECT NAVIGATOR
FUNCTIONS
TOP MENU
ENTER
SUB MENU
RETURN
6, 5
3
;
3,4,2,1
ENTER
2;, ;1
RETURN
SUB MENU
PROG/CHECK DISPLAY
STATUS TIME SLIP
TIME SLIP
TIMER
F
ERASE
ERASE REC MODE
A
B
C
AUDIO
CREATE
CHAPTER
≥It is not possible to play continuously from one side of a double
sided disc to the other. You will need to eject the disc and turn it
over.
≥When using 8 cm DVD-RAM, remove the disc from the cartridge.
1
Press [DVD] to select the DVD drive.
The DVD indicator lights up on the unit.
2
02/02
SUB MENU
Next
Select
TITLE VIEW
07
08
ARD 10/10 FRI
ARD 11/10 SAT
VIDEO PICTURE
--
Press [< OPEN/CLOSE] on the main
unit to open the tray and insert a disc.
≥Press the button again to close the tray.
Insert label-up.
3 Press [3, 4, 2, 1] to select the title and press
[ENTER].
You can also select titles with the numbered buttons.
e.g.,
5:
[0] ➡ [5]
15:
[1] ➡ [5]
To show other pages
Press [3, 4, 2, 1] to select “Previous” or “Next” and press
[ENTER].
≥You can also press [:, 9] to show other pages.
REC
CREATE
CHAPTER AUDIO
EXT LINK
Previous
--
MANUAL SKIP
0
DIRECT
NAVIGATOR,
TOP MENU
--
DIRECT NAVIGATOR
DVD-RAM
INPUT SELECT MANUAL SKIP
STOP
ARD 11/10 SAT
--
2 Press [3, 4, 2, 1] to select “VIDEO” tab and
press [ENTER].
ShowView
:, 9
ARD 10/10 FRI
ENTER
VIDEO PICTURE
--
08
RETURN
AV
TITLE VIEW
07
Insert fully so it clicks into place.
To exit the screen
Press [DIRECT NAVIGATOR].
Direct Navigator screen icons
Title protected.
Title that was not recorded due to recording
protection (Digital broadcasts etc.)
t
Title cannot be played because data is
damaged etc.
[
Currently recording.
(NTSC)
(PAL)
Title recorded using a different encoding
system from that of the TV system currently
selected on the unit.
≥Alter the “TV System” setting on this unit to
suit (➡ page 46).
∫ When a menu screen appears on the television
Insert with the arrow facing in.
3
Press [1] (PLAY).
[RAM] [DVD-R]
Play starts from the most recently
recorded title.
[DVD-A] [DVD-V] [VCD] [CD]
Play starts from the beginning of the disc.
RQT7542
22
22
DVD - R AM
PLAY
[DVD-A] [DVD-V]
Press [3, 4, 2, 1] to select the item and press [ENTER].
Some items can also be selected using the numbered buttons.
[VCD]
Press the numbered buttons to select the item.
e.g.,
5:
[0] ➡ [5]
15:
[1] ➡ [5]
≥To return to the menu screen
[DVD-A] Press [TOP MENU].
[DVD-V] Press [TOP MENU] or [SUB MENU].
[VCD] Press [RETURN].
E65.book
23 ページ
2004年5月12日 水曜日 午後2時53分
Operations during play
Stop
Press [∫].
The stopped position is memorized.
The indicator on the right appears in the unit’s display. (Excluding when playing
from the Direct Navigator and when playing a play list.)
Resume play function
Press [1] (PLAY) to restart from this position.
Pause
DVD - R AM
Press [;].
Press again to restart play.
Search
Press [6] or [5].
≥On the main unit, press and hold [D] or [E].
≥The speed increases up to 5 steps.
≥Press [1] (PLAY) to restart play.
≥Audio is heard during first level search forward.
You can turn off the sound during search (➡ page 43, “PLAY k1.3 & Audio during Search”).
Audio is heard during all levels of search. [DVD-A] (excluding moving picture parts) [CD]
Press [:] or [9].
Playing back
Skip
≥On the main unit, press [D] or [E].
≥Each press increases the number of skips.
Starting from a
selected item
Press the numbered buttons.
e.g., 5:
15:
[0] ➡ [5]
[1] ➡ [5]
[CD] (MP3 discs only) 5:
15:
[0] ➡ [0] ➡ [5]
[0] ➡ [1] ➡ [5]
[DVD-A] Selecting groups
While stopped (screen saver is displayed on the television ➡ right)
5:
[5]
≥This works only when stopped (screen saver is displayed on the television
➡ right) with some discs.
Quick View
Press and hold [1] (PLAY/a1.3).
[RAM]
The play speed can be increased
without distorting the audio.
≥Press again to return to normal speed.
≥This does not work if the setting is “Off” in “PLAY k1.3 & Audio during Search” (➡page 43).
Slow-motion
While paused, press [6] or [5].
[RAM] [DVD-R] [DVD-A] (Motion
picture parts only) [DVD-V] [VCD]
≥On the main unit, press and hold [D] or [E].
≥The speed increases up to 5 steps.
≥Press [1] (PLAY) to restart play.
≥Forward direction only. [VCD]
≥The unit will pause if slow-motion play is continued for 5 minutes.
Frame-by-frame
While paused, press [2;] or [;1].
[RAM] [DVD-R] [DVD-A] (Motion
picture parts only) [DVD-V] [VCD]
≥Each press shows the next frame.
≥Press [1] (PLAY) to restart play.
≥Forward direction only. [VCD]
Displaying the
television image as a
picture-in-picture
Press [TIME SLIP].
Skipping the specified
time (Time Slip)
[RAM] [DVD-R]
The unit displays the television image as a picture-inpicture.
≥You will hear the playback audio.
≥Press [TIME SLIP] again to cancel.
≥The grey background does not appear on the
receiving screen even if you select “On” from the
“Grey Background” in the SETUP menu
(➡ page 43).
Play images
Current receiving images
≥You can change the channel being
received by pressing [W X CH].
≥You cannot change the channel being
received while recording.
1 Press [TIME SLIP].
2 Press [3, 4] to select the time and press [ENTER].
Play skips the specified time.
≥Press [TIME SLIP] to show the play images in full.
[Note]
Time Slip does not work while timer recording is in standby.
Manual Skip
[RAM] [DVD-R]
Play restarts from approximately 30
seconds later.
Press [MANUAL SKIP].
RQT7542
23
23
E65.book
24 ページ
2004年5月12日 水曜日 午後2時53分
Playing recorded video contents/Playing play-only discs
Refer to the control reference on page 22.
Editing operations during play
Erase
1 Press [ERASE].
2 Press [2, 1] to select “Erase” and press [ENTER].
[RAM] [DVD-R]
≥A title cannot be restored once it is erased. Make certain before proceeding.
≥You cannot erase when recording and playing at the same time.
Create chapter
Press [CREATE CHAPTER].
(➡page 30, Title/Chapter)
[RAM]
≥Press [:, 9] to skip to the start of a chapter.
≥You cannot divide when recording and playing at the same time.
Changing audio
Press [AUDIO].
Playing back
[RAM] [VCD]
LR>L>R
^---------------}
[DVD-V] [DVD-A]
You can change the audio channel number each time you press the
buttons. This allows you to change things like the soundtrack
language (➡page 28, Soundtrack).
DVD-RAM
PLAY
LR
Soundtrack
e.g., “L R” is selected
1 ENG
e.g., English is selected.
[Note]
You cannot change the audio type in the following cases.
≥When a DVD-R disc is in the disc tray while DVD drive is selected.
≥When the recording mode is XP and “Audio Mode for XP Recording” is set to “LPCM” (➡page 43).
RQT7542
24
24
Î Digital 3/2.1ch
E65.book
25 ページ
2004年5月12日 水曜日 午後2時53分
Using menus to play MP3
Using the tree screen to find a group
DVD
While the file list is displayed
TV
1
VOLUME
CH
DIRECT TV REC
AV
Press [1] while a track is highlighted
to display the tree screen.
DVD DRIVE SELECT SD/PC
2
3
4
5
6
Selected group no. /Total group no.
If the group has no track, “– –” is displayed
as group number.
CH
ShowView
7
8
9
CANCEL
MENU
G
8
T
14
TOTAL
40/111
INPUT SELECT MANUAL SKIP
0
SKIP
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
DIRECT NAVIGATOR
No.
0 – 9
FUNCTIONS
TOP MENU
SELECT
ENTER
TOP MENU
RETURN
3,4,2,1
ENTER
ENTER
SUB MENU
2
RETURN
RETURN
PROG/CHECK DISPLAY
TIMER
F
ERASE REC MODE
B
G 7/25
001 My favorite
001 Brazilian pops
002 Chinese pops
003 Czech pops
004 Hungarian pops
005 Liner notes
006 Japanese pops
007 Mexican pops
008 Philippine pops
009 Swedish pops
001 Momoko
002 Standard number
001 Piano solo
002 Vocal
You cannot select groups
that contain no compatible
files.
Press [3, 4, 2, 1] to select a group
and press [ENTER].
The file list for the group appears.
REC
To return to the file list
Press [RETURN].
CREATE
CHAPTER AUDIO
EXT LINK
A
STATUS TIME SLIP
Tree
MP3 music
Playing back
Numbered
buttons
1
C
Tips for making MP3 discs
≥Discs must conform to ISO9660 level 1 or 2 (except for
extended formats).
[CD] (MP3 discs only)
This unit plays MP3 files recorded on CD-R/RW designed for audio
recording that are finalized (➡ page 49) on a computer. Files are
treated as tracks and folders are treated as groups.
1
Press [TOP MENU].
Selected group
G: Group no.
T: Track no. in the group
TOTAL: Track no./Total track
no. in all groups
MENU
G
1
T
1
TOTAL
1/111
No.
0 – 9
SELECT
ENTER
RETURN
2
No
Group
1 : My favorite
Total
Track
Tree
001 Both Ends Freezing
1
002 Lady Starfish
2
003 Life on Jupiter
3
004 Metal Glue
4
005 Paint It Yellow
5
006 Pyjamamama
6
007 Shrimps from Mars
7
008 Starperson
8
009 Velvet Cuppermine
9
010 Ziggy Starfish
10
Prev.
Next
Press [3, 4] to select the track and
press [ENTER].
Play continues to the last track in the last group.
≥“0” indicates the track currently playing.
≥You can also select the track with the numbered buttons.
e.g.,
5:
[0] ➡ [0] ➡ [5]
15:
[0] ➡ [1] ➡ [5]
≥Compatible compression rate: between 32 kbps and 320 kbps
≥Compatible sampling rate: 16 kHz, 22.05 kHz, 24 kHz, 32 kHz,
44.1 kHz and 48 kHz
≥Maximum number of tracks and groups recognizable:
999 tracks and 99 groups
≥This unit is compatible with multi-session.
≥This unit is not compatible with ID3 tags or packet writing.
≥Depending on the recording, some items may not be playable.
≥Reading or play of the disc may take time if there are a lot of still
pictures or sessions.
≥The display order may differ from how the order is displayed on
a computer.
Naming folders and files
≥MP3 files must have the
extension “.MP3” or “.mp3”.
≥At the time of recording, give
folder and file names a 3digit numeric prefix in the
order you want them to play
(this may not work at times).
≥English alphabets and
Arabic numerals are
displayed correctly. Other
characters may not be
displayed correctly.
e.g.,
Root
001
001 (folder=group)
001track.mp3 (file=track)
002track.mp3
003track.mp3
002 group
003 group
001track.mp3
002track.mp3
003track.mp3
004track.mp3
001track.mp3
002track.mp3
003track.mp3
Order of play
To show other pages
Press [3, 4, 2, 1] to select “Prev.” or “Next” and press [ENTER].
After listing all the tracks in one group, the list for the next group
appears.
To exit the screen
Press [TOP MENU].
RQT7542
25
25
E65.book
26 ページ
2004年5月12日 水曜日 午後2時53分
Playing still pictures
PC card slot
DRIVE SELECT
OPEN/CLOSE
SD CARD
PC CARD
REC
EJECT
TIME SLIP
DVD
SD
PC
TIME SLIP
DRIVE SELECT
/x1.3
CH
DVD, SD, PC indicator ∫
SD card slot
Inserting/Removing the SD/PC card
Only insert or remove the SD/PC card after turning the unit off.
When the card indicator (“SD” or “PC”) on the unit’s display is
flashing, the card is being read from or written to. Do not turn off the
unit or remove the card. Such action may result in malfunction or
loss of the card’s contents.
∫ SD card slot
Inserting the card
DVD
TV
Insert straight-in until it
fits into space.
VOLUME
CH
DIRECT TV REC
EJECT
AV
PC CARD
SD CARD
DVD DRIVE SELECT SD/PC
Numbered
buttons
1
2
3
4
5
6
7
8
9
DVD, SD/PC
CH
Insert the card label up with cut-off
corner at the right.
ShowView
CANCEL
INPUT SELECT MANUAL SKIP
0
Removing the card
SKIP
SLOW/SEARCH
Playing back
STOP
PAUSE
PLAY/x1.3
∫
DIRECT
NAVIGATOR
EJECT
PC CARD
DIRECT NAVIGATOR
SD CARD
FUNCTIONS
TOP MENU
1 Press on the center of the card.
3,4,2,1
ENTER
ENTER
SUB MENU
2
Draw straight out.
RETURN
SUB MENU
PROG/CHECK DISPLAY
STATUS TIME SLIP
STATUS
ERASE
TIMER
F
ERASE REC MODE
CREATE
CHAPTER AUDIO
EXT LINK
A
REC
B
C
∫ PC card slot
Inserting the card
There are cards requiring adaptors (➡ page 15).
Hold the edge of the card and insert until it
fits into place.
≥If using the adaptor, do not press directly
on the card.
EJECT
PC CARD
SD CARD
Regarding still pictures (JPEG, TIFF)
≥Compatible formats: DCF§ compliant (Content recorded on a
digital camera etc.)
§ Design rule for Camera File system: unified standard
established by Japan Electronics and Information Technology
Industries Association (JEITA).
≥File format: JPEG, TIFF (non-compressed RGB chunky format)
≥Number of pixels: 34k34 to 6144k4096
(Sub sampling is 4:2:2 or 4:2:0)
≥This unit can handle a maximum of 3000 files and 300 folders
(including higher folders).
≥Operation may take time to complete when playing TIFF format
still pictures, or when there are many files and/or folders, some
files may not display or be playable.
≥MOTION JPEG is not supported.
2
2 align to match
the mark
1
The labeled side facing upwards
Terminal connections facing into the unit
Removing the card
1
Eject button
comes out
Push
EJECT
EJECT
PC CARD
PC CARD
2
Push again
EJECT
PC CARD
EJECT
PC CARD
SD CARD
≥If using the adaptor, remove the adaptor and card together.
RQT7542
26
26
27 ページ
2004年5月12日 水曜日 午後2時53分
[RAM] [SD] [PC]
1
∫ To select the still pictures in another folder
Press [DVD] or [SD/PC] to select the
drive.
≥Each time you press [SD/PC]:
SD card drive ,". PC card drive
≥On the main unit, press [DRIVE SELECT]
several times.
The indicator lights up on the unit.
2
SD CARD
Folder
0002
0003
0004
0005
0006
0007
0008
0009
----
----
----
Previous
ENTER
4
103__DVD
0001
RETURN
3
e.g.,
SD card drive
DVD
SD
SUB MENU
001/001
DIRECT NAVIGATOR PICTURE (JPEG) VIEW
SD CARD
Folder
PC
Press [DIRECT NAVIGATOR].
DIRECT NAVIGATOR PICTURE (JPEG) VIEW
(➡ page 15, Structure of folders displayed by this unit)
1 Press [3, 4, 2, 1] to select “Folder” and press
[ENTER].
2 Press [3, 4] to select the folder and press [ENTER].
PICTURE (JPEG) VIEW
screen
\DCIM
103__DVD
0001
0002
0003
0004
0005
0006
0007
0008
\DCIM\100__DVD
001 100__DVD
002 101__DVD
003 102__DVD
004 103__DVD
-----
You can also select folders with the numbered buttons.
e.g.,
5:
[0] ➡ [0] ➡ [5]
15:
[0] ➡ [1] ➡ [5]
115:
[1] ➡ [1] ➡ [5]
≥If there is a multiple number of higher folders recognizable,
you can switch them using [2, 1].
\DCIM
001 100__DVD
002 101__DVD
003 102 DVD
Next
Select
[RAM]
Press [3, 4, 2, 1] to select
“PICTURE” tab and press [ENTER].
Press [3, 4, 2, 1] to select the still
picture and press [ENTER].
You can also select still pictures with the numbered buttons.
e.g.,
5:
[0] ➡ [0] ➡ [0] ➡ [5]
115: [0] ➡ [1] ➡ [1] ➡ [5]
15: [0] ➡ [0] ➡ [1] ➡ [5]
1115: [1] ➡ [1] ➡ [1] ➡ [5]
≥Press [2, 1] to display the previous or next still picture.
≥Useful functions during still picture play (➡ below)
To stop playing
Press [∫].
∫ To show the picture properties
Press [STATUS] twice.
Shooting date
18:53:50 11.10.
Playing back
E65.book
Folder - Picture No. 103 - 0006
Date 11. 12. 2003
No.
3/9
To exit the picture properties screen
Press [STATUS].
[Note]
≥Still pictures cannot be played during recording.
≥DVD is always selected as the drive when the unit is turned off and
then turned back on.
To exit the screen
Press [DIRECT NAVIGATOR].
Useful functions during still picture play
[RAM] [SD] [PC]
Start Slide Show
Slide Interval
You can display still pictures one by one with constant interval.
While the PICTURE (JPEG) VIEW screen is displayed
1 Press [SUB MENU].
2 Press [3, 4] to select “Start Slide Show” and press
[ENTER].
≥To change the display timing
1 Press [3, 4] to select “Slide Interval” in step 2 and press [ENTER].
2 Press [2, 1] to select the desired timing (0–30 seconds) and press [ENTER].
Rotate
1 Press [SUB MENU].
2 Press [3, 4] to select “Rotate RIGHT” or “Rotate LEFT”
and press [ENTER].
Erase Picture
Set up Protection
Cancel Protection
DPOF
Start Slide Show
Slide Interval
Rotate RIGHT
Rotate LEFT
ENTER
RETURN
≥Rotation information will not be stored.
Zoom in
Zoom out
(Only for a still picture with a low
pixel count)
Erase
1 Press [SUB MENU].
2 Press [3, 4] to select “Zoom in” and press [ENTER].
≥To return the picture to its original size, press [3, 4] to select “Zoom out” in step 2
and press [ENTER].
≥When zooming in, the picture may be cut off.
≥The enlargement information will not be stored.
Rotate RIGHT
Rotate LEFT
Zoom in
ENTER
RETURN
1 Press [ERASE].
2 Press [2, 1] to select “Erase” and press [ENTER].
≥Once erased, the recorded contents are lost and cannot be restored. Make certain before
proceeding.
RQT7542
27
27
E65.book
28 ページ
2004年5月12日 水曜日 午後2時53分
Using on-screen menus and Status messages
Disc menu—Setting the disc content
DVD
Soundtrack§
TV
VOLUME
CH
DIRECT TV REC
[RAM] [DVD-R]
The disc’s audio attributes appear.
[DVD-A] [DVD-V]
Select the audio and language (➡ below, Audio attribute,
Language).
AV
DVD
DRIVE SELECT
1
2
3
4
5
6
7
8
SD/PC
CH
ShowView
Subtitle§
[RAM] [DVD-R] (Only discs that contain subtitle on/off information)
[DVD-A] [DVD-V]
9
CANCEL
INPUT SELECT MANUAL SKIP
0
SKIP
SLOW/SEARCH
STOP
PAUSE
Turn the subtitle on/off and select the language (➡below,
Language).
≥Subtitle on/off information cannot be recorded using this
unit. [RAM] [DVD-R]
PLAY/x1.3
DIRECT NAVIGATOR
FUNCTIONS
TOP MENU
3,4,2,1
ENTER
Audio channel [RAM] [VCD]
ENTER
Playing back
SUB MENU
➡ page 24, Changing audio
RETURN
PROG/CHECK DISPLAY
Angle§ [DVD-A] [DVD-V]
STATUS TIME SLIP
STATUS
DISPLAY
TIMER
F
ERASE REC MODE
CREATE
CHAPTER AUDIO
EXT LINK
A
STILL-P (Still picture) [DVD-A]
REC
B
Selects the play method for still pictures.
Slide Show: Plays according to the default order on the disc.
Page:
Select the still picture number and play.
≥RANDOM: Plays in random order.
≥Return:
Returns to the default still picture on the disc.
C
PBC (Playback control ➡ page 49) [VCD]
On-screen menus
1
Indicates whether menu play (playback control) is on or off.
§
Press [DISPLAY].
Disc
Play
Sound
Menu
Soundtrack
1
Î Digital 2/0 ch
Subtitle
OFF
Audio channel
LR
Item
Setting
≥Depending on the condition of the unit (playing, stopped,
etc.) and disc contents, there are some items that you
cannot select or change.
2
3
4
Press [3, 4] to select the menu and
press [1].
Press [3, 4] to select the item and
press [1].
Press [3, 4] to select the setting.
≥Some items can be changed by pressing [ENTER].
To clear the on-screen menus
Press [DISPLAY].
RQT7542
28
28
You may have to use the menus (➡ page 22) on the disc to make
changes.
≥The display changes according to the disc content. You cannot
change when there is no recording.
Audio attribute
LPCM/PPCM/ÎDigital/DTS/MPEG:
k (kHz):
b (bit):
ch (channel):
Language
ENG: English
FRA: French
DEU: German
ITA: Italian
ESP: Spanish
NLD: Dutch
SVE:
NOR:
DAN:
POR:
RUS:
JPN:
Signal type
Sampling frequency
Number of bits
Number of channels
Swedish
Norwegian
Danish
Portuguese
Russian
Japanese
CHI:
KOR:
MAL:
VIE:
THA:
¢:
Chinese
Korean
Malay
Vietnamese
Thai
Others
29 ページ
2004年5月12日 水曜日 午後2時53分
Play menu—Change the play sequence
This function works only when the elapsed play time is displayed.
Repeat play
≥All
≥Chapter
≥Group
≥PL (Play list)
≥Title
≥Track
Status messages
Status messages appear on the television when you operate the unit
to show the condition of the unit.
Press [STATUS].
[VCD] [CD] (excluding MP3 discs)
[RAM] [DVD-R] [DVD-V]
[DVD-A] [CD] (MP3 discs only)
[RAM]
[RAM] [DVD-R] [DVD-V]
[DVD-A] [VCD] [CD]
Select “OFF” to cancel.
The display changes each time you press the button.
≥Displayed information are examples.
DVD-RAM
REC
PLAY
STEREO
LR
Selected drive/type of disc
Recording or play status/input channel
TV audio type being received (➡ below)
Selected audio type
Title number and elapsed time during
recording/Recording mode
Picture menu—Change the picture quality
Available recording time
and recording mode
Date and time
Playback NR
Reduces noise and picture degradation.
πRemain
18:53:50 11.10.
π T2 0:05.14 XP
π T1 0:00.10 SP
Progressive§ (➡page 49)
Select “ON” to enable progressive output.
Select “OFF” if the picture is stretched horizontally.
0:50 XP
Playing back
E65.book
Play position
Title number and elapsed time during play/
Recording mode
Transfer§ [When “Progressive” (➡ above) is set to “ON”.]
Select the method of conversion for progressive output to suit
the type of material being played (➡ page 49, Film and video).
When the output signal is PAL
≥Auto
≥Video:
Detects 25 frame-per-second film content and
appropriately converts it.
Select when using “Auto”, and the video
content is distorted.
No display
≥TV audio type
STEREO: STEREO/NICAM stereo broadcast
M 1/M 2: Bilingual/NICAM dual-sound broadcast
M 1:
NICAM monaural broadcast
When the output signal is NTSC
≥Auto1
(normal):
≥Auto2:
≥Video:
§
Detects 24 frame-per-second film content and
appropriately converts it.
Compatible with 30 frame-per-second film
content in addition to 24 frame-per-second
film content. (Picture distortion may occur
depending on the content)
Select when using “Auto1” and “Auto2”, and
the video content is distorted.
Only when you have set “Progressive” to “On” in the SETUP menu
(➡page 12).
Sound menu—Change the sound effect
V.S.S. [RAM] [DVD-R] [DVD-V]
(Dolby Digital, MPEG, 2-channel or over only)
Enjoy a surround-like effect if you are using two front speakers
only.
≥Turn V.S.S. off if it caused distortion.
≥V.S.S. does not work for bilingual recordings.
Dialog Enhancer [DVD-A] [DVD-V]
(Dolby Digital, 3-channel or over only, including a centre channel)
The volume of the centre channel is raised to make dialogue
easier to hear.
RQT7542
29
29
E65.book
30 ページ
2004年5月12日 水曜日 午後2時53分
Editing titles/chapters
Editing titles/chapters and playing
chapters
DVD
TV
VOLUME
CH
DIRECT TV REC
Preparation
≥Press [DVD] to select the DVD drive.
≥Release protection (➡page 38). [RAM]
AV
DVD
DVD DRIVE SELECT SD/PC
1
2
3
4
5
6
1
2
CH
ShowView
7
8
9
CANCEL
INPUT SELECT MANUAL SKIP
0
SKIP
:, 9
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
3
;
1
DIRECT
NAVIGATOR
DIRECT NAVIGATOR
SUB MENU
ARD 10/10 FRI
ARD 11/10 SAT
--
--
Previous
RETURN
ENTER
PROG/CHECK DISPLAY
Editing
C
4
[RAM] [DVD-R]
Press [SUB MENU], then [3, 4] to
select the operation and press [ENTER].
≥If you select “Edit”, press [3, 4] to select the operation and
press [ENTER].
Title/Chapter
Programmes are recorded as a single title consisting of one
chapter.
Title
Enter Name
Set up Protection
Cancel Protection
Chapter
Start
End
You can divide a title into multiple chapters. [RAM]
(➡page 24, 31, Create Chapter)
Chapter
Chapter
Erase
Partial Erase
Properties
Change Thumbnail
Edit
Divide Title
Refer to “Title
operations”.
Chapter View
∫ If you select “Chapter View”
5
Title
Chapter
Next
Select
To show other pages
Press [3, 4, 2, 1] to select “Previous” or “Next” and
press [ENTER].
≥You can also press [:, 9] to show other pages.
Multiple editing
Select with [3, 4, 2, 1] and press [;]. (Repeat.)
A check mark appears. Press [;] again to cancel.
REC
CREATE
CHAPTER AUDIO
B
02/02
STATUS TIME SLIP
ERASE REC MODE
EXT LINK
A
Title View screen
--
SUB MENU
RETURN
F
VIDEO PICTURE
--
08
RETURN
SUB MENU
TIMER
TITLE VIEW
07
3,4,2,1
ENTER
ENTER
Press [3, 4, 2, 1] to select “VIDEO”
tab and press [ENTER].
Press [3, 4, 2, 1] to select the title.
DIRECT NAVIGATOR
DVD-RAM
FUNCTIONS
TOP MENU
Press [DIRECT NAVIGATOR].
Press [3, 4, 2, 1] to select the chapter.
To start play ➡ Press [ENTER].
To edit ➡ Step 6.
Chapter View screen
DIRECT NAVIGATOR
CHAPTER VIEW
Chapter
VIDEO PICTURE
DVD-RAM
008 ARD 11/10 SAT
You can change the order of chapters and create a play list
(➡page 32). [RAM]
001
---
---
---
--
---
---
---
---
---
---
---
Previous
≥Titles are divided into about 5-minute chapters after finalizing
(➡ page 39). [DVD-R]
≥The maximum number of items on a disc:
–Titles:
99
–Chapters:
Approximately 1000
(Depends on the state of recording.)
ENTER
01/01
SUB MENU
≥To show other pages/Multiple editing (➡ above)
6
Press [SUB MENU], then [3, 4] to
select the operation and press [ENTER].
Erase Chapter
Create Chapter
[Note]
≥Once erased, divided or partially erased, it cannot be restored to its
original state. Make certain before proceeding.
≥You cannot edit during recording or chasing play.
≥Restricted recording information remains even after editing (e.g.
dividing a title etc.)
Next
Select
RETURN
Combine Chapters
Refer to “Chapter
operations”.
Title View
≥You can go back to Title View.
To exit the screen
Press [DIRECT NAVIGATOR].
RQT7542
30
30
To return to the previous screen
Press [RETURN].
E65.book
31 ページ
2004年5月12日 水曜日 午後2時53分
Title operations
Erase§
Press [2, 1] to select “Erase” and press [ENTER].
[RAM] [DVD-R]
≥Once erased, the recorded contents are lost and cannot be restored. Make certain before proceeding.
≥The available recording time on DVD-R does not increase when you erase titles.
Properties
Information (e.g., time and date) is shown.
Properties
[RAM] [DVD-R]
Dinosaur
No.
26
Time
12:19
Date 11/10/2004 MON Rec time 0:30 (SP)
Name 12
SELECT
[RAM] [DVD-R]
Set up Protection§
Cancel Protection§
Press [2, 1] to select “Yes” and press [ENTER].
[RAM]
The lock symbol appears when the title is protected.
If set, this will protect the title from accidental erasure.
Partial Erase
You can remove unnecessary parts of the recording such as commercials.
[RAM]
1
2
Press [ENTER] at the start point and end
point of the section you want to erase.
Press [3, 4] to select “Exit” and press
[ENTER].
DIRECT NAVIGATOR
DVD-RAM
08
07
DIRECT NAVIGATOR
DVD-RAM
ARD 10/10 FRI
ARD 11/10
--
--
Partial Erase
08
TITLE
VIDEO PICTURE
PLAY
Start
End
Next
Exit
0:43.21
Start
End
- -:- -.- -
- -:- -.- -
Editing
Enter Name
You can give names to recorded titles.
➡page 40, Entering text
ENTER
RETURN
≥Select “Next” and press [ENTER] to erase other sections.
3
Change Thumbnail
[RAM] [DVD-R]
You can change an image to be shown as a thumbnail picture in the Title
View.
1
2
3
Divide Title
[RAM]
Press [2, 1] to select “Erase” and press [ENTER].
Press [1] (PLAY) to start play.
Press [ENTER] when the image you want
to use as a thumbnail is shown.
Press [3, 4] to select “Exit” and press
[ENTER].
You can divide a title into two.
1 Press [ENTER] at the point you want to divide the title.
2 Press [3, 4] to select “Exit” and press [ENTER].
3 Press [2, 1] to select “Divide” and press [ENTER].
DIRECT NAVIGATOR
DVD-RAM
Change Thumbnail
08
;
VIDEO PICTURE
Change
Exit
0:06.45
Change
0:06.45
ENTER
DIRECT NAVIGATOR
Divide Title
VIDEO PICTURE
DVD-RAM
08
PLAY
Preview
Divide
Exit
To confirm the division point
0:43.21
Press [3, 4] to select “Preview” and press [ENTER]. (The unit plays 10
seconds before and after the division point.)
To change the division point
Restart play and press [3, 4] to select “Divide”, then press [ENTER] at the point you want to change.
Divide
- -:- -.- -
ENTER
[Note]
≥The divided titles retain the title name and CPRM property (➡page 49) of the original title.
≥Video and audio just before and after the dividing point may momentarily cut out.
§
Multiple editing is possible.
Chapter operations
Erase Chapter§
Press [2, 1] to select “Erase” and press [ENTER].
[RAM]
≥Once erased, the recorded contents are lost and cannot be restored. Make certain before proceeding.
Create Chapter
1
[RAM]
Press [ENTER] at the point you want to
divide.
DIRECT NAVIGATOR
DVD-RAM
08
≥Repeat this step to divide at other points.
2
§
Press [3, 4] to select “Exit” and press
[ENTER].
Combine Chapters
Press [2, 1] to select “Combine” and press [ENTER].
[RAM]
≥The selected chapter and next chapter are combined.
Create Chapter
PLAY
VIDEO PICTURE
Create
Exit
0:43.21
Multiple editing is possible.
For quicker editing
≥Use search, Time Slip or slow-motion (➡page 23) to find the desired point.
≥Press [:, 9] to skip to the end of a title.
RQT7542
31
31
E65.book
32 ページ
2004年5月12日 水曜日 午後2時53分
Creating, editing and playing play lists
2
DVD
TV
VOLUME
CH
DIRECT TV REC
Press [3, 4, 2, 1] to select “PLAY
LIST” and press [ENTER].
PLAY LIST
DVD-RAM
AV
PLAY LIST VIEW
--
DVD
DVD
DRIVE SELECT
1
2
SD/PC
--
--
--
--
Create
--
3
CH
4
5
7
8
6
Previous
ShowView
9
01/01
Next
ENTER
RETURN
CANCEL
INPUT SELECT MANUAL SKIP
0
SKIP
3
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
DIRECT NAVIGATOR
4
FUNCTIONS
FUNCTIONS
TOP MENU
3,4,2,1
ENTER
≥Press [ENTER] to select all the chapters in the title, then
skip to step 6.
ENTER
SUB MENU
RETURN
PROG/CHECK DISPLAY
STATUS TIME SLIP
ERASE REC MODE
F
A
REC
B
--
--
Source Chapter
001
003
---
---
---
ENTER
5
[RAM]
You can arrange the chapters (➡ page 30) to create a play list.
Title
Title
Chapter
Chapter
Chapter
Chapter
Chapter
≥The maximum number of items on a disc:
–Play lists:
99
–Chapters in play lists: Approximately 1000
(Depends on the state of recording.)
DVD
SD/PC
DVD-RAM
Playback
6
003
---
---
---
Disc Protection Off
Cartridge Protection Off
Dubbing
Edit
SUB MENU
Setting
ENTER
RETURN
001/001
Press RETURN to exit.
Press [2, 1] to select the position to
insert the chapter and press [ENTER].
Create
01 ARD 11/10 SAT
Source Title
01
02
--
--
Source Chapter
001
003
---
---
---
ENTER
RETURN
01/01
001/001
002
001/001
Press RETURN to exit.
≥Press [3] to select other source titles.
≥Repeat steps 5–6 to add other chapters.
Press [RETURN].
To exit the screen
Press [RETURN] several times.
To return to the previous screen
Press [RETURN].
DIRECT NAVIGATOR
DUBBING
001/001
002
Chapters in PLAY LIST
-----
7
Recording TIMER RECORDING
32
Source Chapter
001
01/01
≥You can also create a new chapter from the source title.
Press [SUB MENU] to select “Create Chapter” and press
[ENTER] (➡page 31, Create Chapter)
Preparation
≥Press [DVD] to select the DVD drive.
≥Release protection (➡ page 38).
32
--
ENTER
Creating play lists
RQT7542
--
RETURN
You cannot create or edit a play list while recording.
Press [FUNCTIONS].
Create
01 ARD 11/10 SAT
Source Title
01
02
PLAY LIST
DVD-RAM
While stopped
Press RETURN to exit.
Press [2, 1] to select the chapter you
want to add to a play list and press
[ENTER].
Chapters in PLAY LIST
-----
[Note]
FUNCTIONS
001/001
Press [3] to cancel.
Chapter
≥Editing play lists doesn’t modify the recording data.
≥Play lists are not recorded separately so this doesn’t use much
capacity.
1
001/001
002
SUB MENU
PLAY LIST
DVD-RAM
Play list
01/01
C
RETURN
Chapter
Create
01 ARD 11/10 SAT
Source Title
01
02
Chapters in PLAY LIST
-----
CREATE
CHAPTER AUDIO
EXT LINK
Editing
PLAY LIST
DVD-RAM
RETURN
SUB MENU
TIMER
Press [3, 4, 2, 1] to select “Create”
and press [ENTER].
Press [2, 1] to select the source title
and press [4].
FLEXIBLE REC
PLAY LIST
DV AUTO REC
SETUP
DISC MANAGEMENT
E65.book
33 ページ
2004年5月12日 水曜日 午後2時53分
Editing and playing play lists/chapters
1
2
3
Play list operations
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “PLAY
LIST” and press [ENTER].
Press [3, 4, 2, 1] to select the play
list.
Erase§
Press [2, 1] to select “Erase” and press
[ENTER].
Properties
Play list information (e.g., time and date) is
shown.
Properties
Dinosaur
No.
10
Chapters 002
To start play ➡ Press [ENTER].
To edit ➡ Step 4.
PLAY LIST View screen
PLAY LIST
PLAY LIST VIEW
SELECT
ENTER
DVD-RAM
--
12/10 SUN 0:30
Create
--
--
Previous
ENTER
RETURN
01/01
SUB MENU
--
Create
➡ page 32, Creating play lists
--
Copy§
Press [2, 1] to select “Copy” and press
[ENTER].
Enter
Name
You can give names to play lists.
➡ page 40, Entering text
Change
Thumbnail
➡ page 31, Change Thumbnail
Next
Select
≥To show other pages/Multiple editing (➡page 30)
4
RETURN
Press [SUB MENU], then [3, 4] to
select the operation and press
[ENTER].
≥If you select “Edit”, press [3, 4] to select the operation and
press [ENTER].
§
Multiple editing is possible.
Editing
01
Date 12/10/2004 TUE
Total 0:30.53
Chapter operations
Create
Copy
Erase
Enter Name
Properties
Change Thumbnail
Refer to “Play list
operations”.
Editing chapters in a play list does not modify the source titles and
source chapters.
Edit
Chapter View
∫ If you select “Chapter View”
5
Add
Chapter
➡ page 32, Creating play lists, Step 4–6
Move
Chapter
Press [3, 4, 2, 1] to select the position
to insert the chapter and press [ENTER].
PLAY LIST
DVD-RAM
Press [3, 4, 2, 1] to select the
chapter.
Move Chapter
01 12/10 SUN 0:30
To start play ➡ Press [ENTER].
To edit ➡ Step 6.
Chapter View screen
PLAY LIST
CHAPTER VIEW
001
002
---
---
---
---
---
---
---
---
---
---
Previous
01/01
Next
ENTER
RETURN
DVD-RAM
01 12/10 SUN 0:30
001
002
---
---
---
---
---
---
---
---
---
---
Previous
ENTER
01/01
SUB MENU
Next
Select
RETURN
≥To show other pages/Multiple editing (➡page 30)
6
Press [SUB MENU], then [3, 4] to
select the operation and press
[ENTER].
§
Create
Chapter
➡ page 31, Create Chapter
Combine
Chapters
➡ page 31, Combine Chapters
Erase
Chapter§
➡ page 31, Erase Chapter
Multiple editing is possible.
Add Chapter
Move Chapter
Create Chapter
Combine Chapters
Refer to “Chapter
operations”.
Erase Chapter
PLAY LIST View
≥You can go back to PLAY LIST View.
To exit the screen
Press [RETURN] several times.
To return to the previous screen
Press [RETURN].
RQT7542
33
33
E65.book
34 ページ
2004年5月12日 水曜日 午後2時53分
Editing still pictures
2
DVD
TV
CH
DIRECT TV REC
VOLUME
AV
DVD
DRIVE SELECT
1
2
3
4
5
6
SD/PC
DVD, SD/PC
3
7
8
4
9
INPUT SELECT MANUAL SKIP
0
SKIP
STOP
DIRECT
NAVIGATOR
SLOW/SEARCH
PAUSE
PLAY/x1.3
FUNCTIONS
Set up Protection
Cancel Protection
3,4,2,1
ENTER
ENTER
SUB MENU
RETURN
below
DPOF
Start Slide Show
Slide Interval
page 27
RETURN
SUB MENU
PROG/CHECK DISPLAY
STATUS TIME SLIP
[RAM] [SD] [PC]
Editing
Press [SUB MENU], then [3, 4] to
select the operation and press
[ENTER].
Erase Picture
DIRECT NAVIGATOR
TOP MENU
Preparation
≥Press [DVD] or [SD/PC] to select the drive.
≥Release protection (➡ page 38).
1
Press [3, 4, 2, 1] to select
“PICTURE” tab and press [ENTER].
Press [3, 4, 2, 1] to select the still
picture.
≥To show other pages/Multiple editing (➡ page 30)
≥To select the still pictures in another folder (➡ page 27)
CH
ShowView
CANCEL
[RAM]
Press [DIRECT NAVIGATOR].
∫ To edit still picture folders
Erase Whole Folder
In step 3 (➡ above)
Folder Name
1 Press [3, 4, 2, 1] to select “Folder” and
Set up Protection
press [ENTER].
Cancel Protection
2 Press [3, 4] to select the folder.
DPOF
≥To show other pages/Multiple editing
(➡page 30)
3 Press [SUB MENU], then [3, 4] to select the operation and
press [ENTER].
≥To select another higher folder (➡page 27)
To exit the screen
Press [DIRECT NAVIGATOR].
To return to the previous screen
Press [RETURN].
Picture and folder operation
Erase Picture§
Erase Whole Folder§
[RAM] [SD] [PC]
Set up Protection§
Cancel Protection§
[RAM] [SD] [PC]
DPOF§
[SD] [PC]
Press [2, 1] to select “Erase” and press [ENTER].
≥Once erased, the recorded contents are lost and cannot be restored. Make certain before
proceeding.
≥When erasing a folder, even the files not containing still pictures will also be erased if they are inside the
folder. (This does not apply to folders under the folder concerned.)
If set, this will protect the still picture or folder from accidental erasure.
Press [2, 1] to select “Yes” and press [ENTER].
DIRECT NAVIGATOR
Folder
The lock symbol appears when the still picture or folder is protected.
≥Even if the protection setting is used by this unit to protect a folder, the folder
may be erased by another unit.
103__
0001
0002
0005
0006
You can select a whole folder or individual pictures for printing and specify the number of prints to be
made.
Press [2, 1] to select number of print (0 to 9)
and press [ENTER].
DPOF
Set up DPOF on the picture (JPEG).
Setting on other equipment will be cancelled.
Number of prints
P
1
ENTER t
t
The DPOF mark appears.
≥This appears on the still pictures inside a folder when you make the DPOF setting for the folder.
To cancel the print setting
Set the number of print to “0”.
≥When this is set by this unit, any settings established by other units will be released.
≥Print settings (DPOF) made using this unit may not be viewable on other equipment.
≥Settings cannot be made for folders and files not in accordance with DCF standards or if there is no
remaining space on the card.
Folder Name
[RAM] [SD] [PC]
§
RQT7542
34
34
Multiple editing is possible.
PIC
SD CARD
You can give names to still picture folders.
➡page 40, Entering text
≥Folder names inputted using this unit may not be displayed on other equipment.
E65.book
35 ページ
2004年5月12日 水曜日 午後2時53分
Recording from a video cassette recorder
2
Press [REC MODE] to select the
recording mode.
Start play on the other equipment.
DVD
TV
3
4
VOLUME
CH
DIRECT TV REC
AV
DVD
DVD
DRIVE SELECT
1
2
3
4
5
6
7
8
SD/PC
Press [¥ REC].
Recording starts.
CH
To skip unwanted parts
Press [;] to pause recording. (Press again to restart recording.)
ShowView
9
CANCEL
INPUT SELECT MANUAL SKIP
INPUT SELECT
0
SKIP
STOP
SLOW/SEARCH
PAUSE
To stop recording
Press [∫].
PLAY/x1.3
;
∫
DIRECT NAVIGATOR
FUNCTIONS
FUNCTIONS
To record programmes to fill up the remaining space on the
disc
➡ page 18, Flexible Recording
TOP MENU
Almost all videos and DVD software on sale have been
treated to prevent illegal copying. Any software that has
been so treated cannot be recorded using this unit.
ENTER
SUB MENU
RETURN
PROG/CHECK DISPLAY
TIMER
F
REC MODE
STATUS TIME SLIP
ERASE REC MODE
DV automatic recording (DV AUTO REC)
REC
¥ REC
CREATE
e.g., Connecting other video equipment to the AV3 or DV input
terminals
≥Turn off the unit and other video equipment before connecting.
This unit
OPEN/CLOSE
SD CARD
PC CARD
REC
EJECT
TIME SLIP
DVD
SD
PC
TIME SLIP
AV3
S-VIDEO IN
S-VIDEO IN
VIDEO IN
L/MONO AUDIO IN
R
DRIVE SELECT
/x1.3
CH
DV IN
VIDEO IN L/MONO - AUDIO IN - R
DV IN
Yellow White Red
[RAM]
When the “DV AUTO REC” function is used, programmes are
recorded as a title while at the same time chapters are created at
each break in the images and the play list is created automatically.
Preparation
1 Turn off the main unit and DV equipment, then connect the
equipment with the unit’s DV input terminal (➡ left).
2 Turn on the main unit and DV equipment.
3 Pause play of the DV equipment at the point you want recording
to start.
4 Press [DVD] to select the DVD drive.
≥When the output signal from the external equipment is NTSC,
change the “TV System” to “NTSC” in the SETUP menu (➡page 46).
1
S-Video
cable§
Audio/
Video cable
DV cable
(IEEE 1394, 4-pin)
Other video
equipment
If the audio output of the other equipment is monaural, connect to L/MONO.
§
The S-VIDEO terminal achieves a more vivid picture than the
VIDEO terminal.
When recording from the unit’s DV terminal
Select the type of audio recording from “Audio Mode for DV Input” in
the SETUP menu (➡page 43).
2
3
4
Transfer (Dubbing)
3,4,2,1
ENTER
While stopped
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “DV
AUTO REC” and press [ENTER].
Press [REC MODE] to select the
recording mode.
Press [2, 1] to select “Rec” and
press [ENTER].
Recording starts.
Manual recording
[RAM] [DVD-R]
Preparation
≥Connect a video cassette recorder to this unit’s input terminals.
≥Press [DVD] to select the DVD drive.
≥When recording bilingual programmes
[RAM]
When both M 1 and M 2 is selected on the connected equipment,
you can select the audio type in playback.
[DVD-R]
Select either M 1 or M 2 on the connected equipment. (You cannot
select the audio type in playback.)
≥When the output signal from the external equipment is NTSC,
change the “TV System” to “NTSC” in the SETUP menu (➡page 46).
≥To reduce noise in input from a video cassette recorder, set “AV-in
NR” to “On” in the SETUP menu (➡ page 42).
1
While stopped
Press [INPUT SELECT] to select the
input channel for the equipment you
have connected.
e.g., If you have connected to AV3 input terminals, select “AV3”.
When recording finishes
The confirmation screen appears. Press [ENTER] to finish DV
automatic recording.
To stop recording
Press [∫].
[Note]
≥Only one piece of DV equipment (e.g., digital video camcorder) can
be connected to the unit via the DV input terminal.
≥It is not possible to operate the unit from the connected DV
equipment.
≥The DV input on this unit is for use with DV equipment only. (It
cannot be connected to a computer, etc.)
≥The DV equipment name may not be shown correctly.
≥Depending on the DV equipment, the images or audio may not be
input properly.
≥The date and time information on the tape of the DV equipment will
not be recorded.
≥You cannot record and play simultaneously.
If the DV automatic recording function does not work properly,
check the connections and DV equipment settings, and turn the
unit off and back on.
If that does not work, follow the instructions for manual
recording (➡ left).
RQT7542
35
35
E65.book
36 ページ
2004年5月12日 水曜日 午後2時53分
Transferring (dubbing) still pictures
DVD
DRIVE SELECT
1
2
SD/PC
∫ To register on a folder by folder basis
SD/PC
1 Press [3, 4] to select “Picture/Folder” and press [ENTER].
3
DUBBING
CH
4
5
1 Dubbing Direction
ShowView
7
8
SD CARD> DVD
9
CANCEL
SLOW/SEARCH
PAUSE
PLAY/x1.3
;
DIRECT NAVIGATOR
FUNCTIONS
FUNCTIONS
TOP MENU
3,4,2,1
ENTER
ENTER
SUB MENU
RETURN
RETURN
SUB MENU
New Item
2 Dubbing Mode
0
STOP
Picture/Folder
Destination Capacity: 4343MB
Name of item
No. Size
2 Press [3, 4] to select “Folder” and press [ENTER].
3 Press [3, 4] to select “New item” and press [ENTER].
4 Press [3, 4] to select the folder and press [ENTER].
≥To select a multiple number of items together, press [;]
to add the check mark and press [ENTER] (➡below,
Multiple editing).
≥To show other pages (➡ below)
≥To switch another higher folder (➡below)
≥To edit the transferring (dubbing) list (·below)
Still pictures and folders cannot be registered on the same list.
INPUT SELECT MANUAL SKIP
SKIP
:, 9
Create dubbing list.
Cancel All
6
5
Press [3, 4] to select “Set” and
press [ENTER].
[RAM] [SD] [PC]
The transferring (dubbing) list is registered.
Transfer (Dubbing)
Transferring (dubbing) using the
transferring (dubbing) list
1
While stopped
2
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select
“DUBBING” and press [ENTER].
DUBBING
6
Press [3, 4] to select “Start
Dubbing” and press [ENTER].
≥For individual still pictures only
When specifying another folder as the transferring (dubbing)
destination, select “Folder”.
\JPEG\DCIM001
Folder
Make a new folder and dub to it?
Select the dubbing direction.
Source
SD CARD
Destination
DVD
SD CARD> DVD
2 Dubbing Mode
0
≥If you are not going to change the registered list press [4]
several times (➡step 6).
3
Press [3, 4] to select “Dubbing
Direction” and press [1].
1 Press [3, 4] to select “Source” and press [ENTER].
2 Press [3, 4] to select the drive and press [ENTER].
3 Press [3, 4] to select “Destination” and press
[ENTER].
4 Press [3, 4] to select the drive and press [ENTER].
The same drive as the transfer (dubbing) source can be
selected.
5 Press [2] to confirm.
4
100__DVD
101__DVD
102__DVD
New folder
To stop transferring (dubbing)
Press and hold [RETURN] for 3 seconds.
PICTURE High Speed
3 Create List
001
002
003
-----
Press [2, 1] to select “Yes” and press [ENTER] to start
transferring (dubbing).
Cancel All
1 Dubbing Direction
New folder
Press [3, 4] to select “Create List”
and press [1].
Select the transferring (dubbing) items and register on the list.
DUBBING
Create dubbing list.
Cancel All
1 Dubbing Direction
SD CARD > DVD
Picture/Folder
Destination Capacity: 4343MB
Name of item
No. Size
New item
To return to the previous screen
Press [RETURN].
∫ To select another folder
1 Press [3, 4, 2, 1] to select “Folder” and press [ENTER].
2 Press [3, 4] to select the folder and press [ENTER].
Create List
\DCIM
Picture (JPEG)
SD CARD
Folder
0001
103__DVD
0002
0003
0004
001
002
003
004
---
\DCIM\100__DVD
100__DVD
101__DVD
102__DVD
103__DVD
≥The still pictures of different folders cannot be registered on the
same list.
≥If there is a multiple number of higher
folders recognizable, you can switch
them using [2, 1]. (Folders whose
higher folders are different cannot be registered on the same list.)
\DCIM
001 100__DVD
002 101__DVD
003 102 DVD
∫ To edit the transferring (dubbing) list
Select the item in step 4 (➡left)
1 Press [SUB MENU].
2 Press [3, 4] to select the operation and press
[ENTER].
§
Multiple editing is possible (➡ below).
Erase All
Add
Erase§
2 Dubbing Mode
PICTURE High Speed
3 Create List
Previous
Start Dubbing
Next
Set
01/01
ENTER
RETURN
∫ To register individual still pictures
1 Press [3, 4] to select “New item” and press [ENTER].
2 Press [3, 4, 2, 1] to select the still picture and press
[ENTER].
≥To select a multiple number of items together, press [;]
to add the check mark and press [ENTER] (➡right,
Multiple editing).
≥To show other pages (➡ right)
≥To select the still pictures in another folder (➡right)
≥To edit the transferring (dubbing) list (·right)
RQT7542
36
36
To cancel all registered transferring (dubbing) setting and lists
In step 3 (➡ left)
1 Press [3, 4] to select “Cancel All” and press [ENTER].
2 Press [2, 1] to select “Yes” and press [ENTER].
≥The settings and lists may be cancelled in the following situations.
–When a still picture or folder has been recorded or erased at the
transfer (dubbing) source
–When steps have been taken, for instance, to turn off the unit,
remove the card, open the tray, change the transfer (dubbing)
direction, etc.
To show other pages
Press [3, 4, 2, 1] to select “Previous” or “Next” and press [ENTER].
≥You can also press [:, 9] to show other pages.
Multiple editing
Select with [3, 4, 2, 1] and press [;]. (Repeat.)
Press [ENTER] to register to the list.
≥A check mark appears. Press [;] again to cancel.
E65.book
37 ページ
2004年5月12日 水曜日 午後2時53分
FUNCTIONS window
Transferring (dubbing) all the still
pictures of a card onto a DVD-RAM—
COPY ALL PICTURES
DVD
TV
AV
[SD] or [PC] > [RAM]
DVD
Preparation
Press [SD/PC] to select the source drive.
1
While stopped
2
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “COPY
ALL PICTURES” and press [ENTER].
3
4
5
6
7
8
SD/PC
ShowView
9
INPUT SELECT MANUAL SKIP
0
SKIP
SLOW/SEARCH
STOP
PAUSE
PLAY/x1.3
DIRECT NAVIGATOR
FUNCTIONS
Transfer (Dubbing)
FUNCTIONS
SD CARD
TOP MENU
3,4,2,1
ENTER
Copy to
DVD
\JPEG\DCIM001
ENTER
≥If there is a multiple number of higher folders recognizable,
you can switch them using [2, 1].
4
2
CANCEL
Copy all pictures (JPEG) in the card
3
DRIVE SELECT
1
CH
COPY ALL PICTURES
Copy from
\DCIM
VOLUME
CH
DIRECT TV REC
SUB MENU
Press [3, 4] to select “Copy from”
and press [2, 1] to select the drive.
Press [3, 4, 2, 1] to select “Copy”
and press [ENTER].
RETURN
PROG/CHECK DISPLAY
TIMER
F
ERASE REC MODE
REC
CREATE
CHAPTER AUDIO
EXT LINK
A
STATUS TIME SLIP
B
C
To stop transferring (dubbing)
Press and hold [RETURN] for 3 seconds.
By using the FUNCTIONS window you may access the main
functions quickly and easily.
1
Convenient functions
To return to the previous screen
Press [RETURN].
While stopped
Press [FUNCTIONS].
FUNCTIONS
DVD
SD/PC
DVD-RAM
Playback
Disc Protection Off
Cartridge Protection Off
DIRECT NAVIGATOR
Recording TIMER RECORDING
Dubbing
Edit
Setting
DUBBING
FLEXIBLE REC
PLAY LIST
DV AUTO REC
SETUP
DISC MANAGEMENT
ENTER
RETURN
Functions displayed depend on the selected drive or type of
disc.
2
Press [3, 4, 2, 1] to select an item
and press [ENTER].
To exit the FUNCTIONS window
Press [FUNCTIONS].
[Note]
≥When transferring (dubbing) the still pictures on a folder by
folder or card by card basis, files other than the still picture files
inside the folder will also be transferred (dubbed). (This does
not apply to the lower folders contained inside the folders.)
≥If still pictures are already contained inside the transfer
(dubbing) destination folder, the new still pictures are recorded
following the existing still pictures.
≥If the space on the destination drive runs out or the number of
files/folders to be transferred (dubbed) exceeds the maximum
(➡page 26), transferring (dubbing) will stop partway through.
≥When a name has been input by this unit for the transfer
(dubbing) source folder, the folder name will be reflected in the
transfer (dubbing) destination folder.
≥Print number setting (DPOF) is not transferred (dubbed).
≥The sequence in which the still pictures are registered on the
transfer (dubbing) list may not be reflected at the transfer
(dubbing) destination.
RQT7542
37
37
E65.book
38 ページ
2004年5月12日 水曜日 午後2時53分
Disc and card management
4
Press [2, 1] to select “Yes” and
press [ENTER].
DVD
TV
VOLUME
CH
DIRECT TV REC
DISC
MANAGEMENT Title No. 11
AV
DVD-RAM
DVD
DRIVE SELECT
SD/PC
Used
Remain 5:38 (EP)
0 : 22
DVD, SD/PC
Disc Name
1
2
3
4
5
6
7
8
Disc Protection
CH
ShowView
ENTER
RETURN
INPUT SELECT MANUAL SKIP
0
SKIP
The lock symbol appears closed when the disc is writeprotected.
SLOW/SEARCH
STOP
PAUSE
Format Disc
SELECT
9
CANCEL
On
Erase all titles
PLAY/x1.3
DIRECT NAVIGATOR
Providing a disc with a name
FUNCTIONS
FUNCTIONS
[RAM] [DVD-R]
TOP MENU
3,4,2,1
ENTER
Preparation
≥Press [DVD] to select the DVD drive.
≥Release protection (➡left).
ENTER
SUB MENU
RETURN
RETURN
PROG/CHECK DISPLAY
TIMER
F
ERASE REC MODE
B
While stopped
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “DISC
MANAGEMENT” and press [ENTER].
Press [3, 4] to select “Disc Name”
and press [ENTER].
REC
2
CREATE
CHAPTER AUDIO
EXT LINK
A
1
STATUS TIME SLIP
C
3
➡page 40, Entering text
≥The disc name is displayed in the FUNCTIONS window.
≥With a finalized DVD-R, the name is displayed on the Top Menu.
Setting the protection
Convenient functions
∫ Setting the protection for the whole disc or card
Documentary
Disc Protection Of
SD/PC
Cartridge Protectio
DVD-RAM
Playback
DIRECT NAVIGATOR
FUNCTIONS
≥For a DVD-RAM with a cartridge or for a card
[RAM]
With the write-protect tab in the protect position,
play automatically starts when inserted in the unit.
DVD
My favorite
01
Chapter 1
01/02
02
Chapter 2
PROTECT
[SD] [PC]
Switch the write-protect switch to the
“LOCK” position.
Erasing all titles and play lists—Erase
all titles
e.g. SD Memory Card
LOCK
≥For a DVD-RAM without a cartridge
(➡ below, Disc Protection)
∫ Other protection settings
Title
Select “Set up Protection” in step 4 on page 30.
Still picture or folder
Select “Set up Protection” in step 4 on page 34.
Disc Protection
[RAM]
Preparation
≥Press [DVD] to select the DVD drive.
≥Release protection (➡left).
1
2
3
[RAM]
Preparation
Press [DVD] to select the DVD drive.
1
2
3
RQT7542
38
38
While stopped
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “DISC
MANAGEMENT” and press [ENTER].
Press [3, 4] to select “Disc
Protection” and press [ENTER].
To exit the screen
Press [RETURN] several times.
4
5
While stopped
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “DISC
MANAGEMENT” and press [ENTER].
Press [3, 4] to select “Erase all
titles” and press [ENTER].
Press [2, 1] to select “Yes” and
press [ENTER].
Press [2, 1] to select “Start” and
press [ENTER].
A message appears when finished.
6
Press [ENTER].
[Note]
≥Once erased, the recorded contents are lost and cannot be
restored. Make certain before proceeding.
≥Still picture data (JPEG, TIFF) or computer data cannot be erased.
≥Erase does not work if one or more titles are protected.
To return to the previous screen
Press [RETURN].
39 ページ
2004年5月12日 水曜日 午後2時53分
Erasing all the contents of a disc or
card—Format
[RAM] [SD] [PC]
Preparation
≥Press [DVD] or [SD/PC] to select the drive.
≥Release protection (➡page 38).
1
2
3
4
5
Enabling DVD-R to be played on other
equipment—Finalize
[DVD-R]
Preparation
Press [DVD] to select the DVD drive.
1
While stopped
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “DISC
MANAGEMENT” or “CARD
MANAGEMENT” and press [ENTER].
Press [3, 4] to select “Format Disc”
or “Format” and press [ENTER].
Press [2, 1] to select “Yes” and
press [ENTER].
Press [2, 1] to select “Start” and
press [ENTER].
2
3
4
[Note]
≥To stop formatting
Press [RETURN].
(You can cancel formatting if it takes more than 2 minutes. The disc
or card must be reformatted if you do this.)
≥Formatting cannot be performed on DVD-R or CD-R/RW.
≥When a disc or card has been formatted using this unit, it may not
be possible to use it on any other equipment.
≥You cannot format a Microdrive or mobile hard disk on this unit.
Press [3, 4] to select “Finalize” and
press [ENTER].
1 Press [2, 1] to select “Yes” and press [ENTER].
2 Press [2, 1] to select “Start” and press [ENTER].
A message appears when finalizing is finished.
3 Press [ENTER].
Press [ENTER].
≥Formatting erases all contents (including computer data),
and it cannot be restored. Check carefully before
proceeding. The contents are erased when you format it even if
you have set protection.
≥Do not disconnect the AC mains lead while formatting. This
can render the disc unusable.
Formatting normally takes a few minutes, however it may take up
to a maximum of 70 minutes ([RAM]).
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “DISC
MANAGEMENT” and press [ENTER].
Press [3, 4] to select “Auto-Play
Select” and press [ENTER].
Press [3, 4] to select “Top Menu” or “Title 1” and press
[ENTER].
You can select whether to show the top menu after finalizing.
Top Menu: The top menu appears first.
Title 1:
The disc content is played without displaying the
top menu.
A message appears when formatting is finished.
6
While stopped
[Note]
After finalizing
≥The disc becomes play-only and you can no longer record
or edit.
≥Titles are divided into about 5-minute§ chapters.
§ This time varies greatly depending on the condition and mode
of recording.
≥There is a pause of several seconds between titles during play.
Convenient functions
E65.book
Do not disconnect the AC mains lead while finalizing. This
will render the disc unusable.
Finalizing takes up to 15 minutes.
≥You cannot finalize DVD-R recorded on other manufacturer’s
equipment.
Disc display on this unit
Before
finalizing
After
finalizing
DVD-R
DVD-V
Recording/Editing/Entering name
Y
t
Play on other players
t
Y
DVD-R finalized on this unit may not be playable on other players
due to the condition of the recording.
≥Visit Panasonic’s homepage for more information about DVDs.
http://www.panasonic-europe.com
To exit the screen
Press [RETURN] several times.
To return to the previous screen
Press [RETURN].
RQT7542
39
39
E65.book
40 ページ
2004年5月12日 水曜日 午後2時53分
Entering text
1
DVD
VOLUME
CH
DIRECT TV REC
AV
DVD
Numbered
buttons
¢ CANCEL
DRIVE SELECT
1
2
3
4
5
6
7
8
9
Title
Select “Enter Name” in step 4 on page 30.
SD/PC
Play list
Select “Enter Name” in step 4 on page 33.
CH
Disc
Select “Disc Name” in step 3 on page 38.
ShowView
CANCEL
INPUT SELECT MANUAL SKIP
0
SKIP
Folder of still pictures
Select “Folder Name” in step 4 on page 34.
SLOW/SEARCH
STOP
PAUSE
Show Enter Name screen.
Title (timer recording)
Select “Programme Name” in step 3 on page 19, 20.
TV
PLAY/x1.3
∫
;
DIRECT NAVIGATOR
Name field: shows the text you have entered
FUNCTIONS
Enter Name
_
TOP MENU
3,4,2,1
ENTER
1 1
2
3
5
6
7
8
9
0
2 A
B
C
a
b
c
i j
3 D
4 G
E
F
d
e
f
/
*
l %
H
I
g
h
i
fl
$
ERASE
SET
5 J
K
L
l
O N @
6 M N
O
k
m n
o
[
]
_
0 –– ¢
7 P
8 T
Q
R
S
p
q
r
s
(
U
V
t
u
v
{
}
)
-
9 W X
0 . ,
Y
Z
w
x
?
!
"
'
y
:
z
;
\
`
|
^
ENTER
SUB MENU
RETURN
RETURN
PROG/CHECK DISPLAY
TIMER
F
π
STATUS TIME SLIP
ERASE REC MODE
REC
CREATE
CHAPTER AUDIO
EXT LINK
A
;
B
SELECT
4
j
&
SPACE
C
ENTER
RETURN
2
Press [3, 4, 2, 1] to select a
character and press [ENTER].
Repeat this step to enter other characters.
[RAM] [DVD-R] [SD] [PC]
≥To erase a character
Press [3, 4, 2, 1] to select the character in the name field
and press [;].
Convenient functions
You can give names to recorded titles, etc.
The maximum number of characters:
[RAM]
Title
§
Characters
≥Using the numbered buttons to enter characters
e.g., entering the letter “R”
64 (44§)
Play list
64
Disc
64
Folder of still pictures
36
Title name for timer recording
[DVD-R]
44
Disc
40
[SD] [PC]
Folder of still pictures
Characters
3
K
7
7
6 M N
7 P
8 T
≥To enter a space
Press [¢ CANCEL] and press
[ENTER].
Characters
Title
5 J
1 Press [7] to move to the 7th
row.
2 Press [7] twice to highlight
“R”.
3 Press [ENTER].
L
7
O
Q
R
U
V
S
Press [∫] (SET).
Returns to the previously displayed screen.
36
[Note]
If a name is long, parts of it may not be shown in some screens.
To end partway
Press [RETURN].
Text is not saved.
[DVD-R]
For your reference
If you enter a long name, only part of it is shown in the Top Menu
after finalization (➡ page 39). When entering a title name, the name
that will appear in the Top Menu can be previewed in “Title on TOP
MENU (DVD-R)” window.
Enter Name
Chapter 1_
Title on TOP MENU
(DVD-R)
Chapter 1
1 1
2
3
5
6
7
8
9
0
2 A
B
C
a
b
c
i j
3 D
4 G
E
F
d
e
f
/
*
l %
H
I
g
h
i
fl
$
5
RQT7542
40
40
4
&
E65.book
41 ページ
2004年5月12日 水曜日 午後2時53分
Changing the unit’s settings
< OPEN/CLOSE
Common procedures
∫
OPEN/CLOSE
SD CARD
PC CARD
REC
EJECT
TIME SLIP
DVD
SD
PC
TIME SLIP
DRIVE SELECT
1
While stopped
2
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “SETUP”
and press [ENTER].
/x1.3
CH
DVD
TV
SETUP
AV
DVD
Numbered
buttons
Menus
Tabs
DRIVE SELECT
1
2
3
4
5
6
7
8
SD/PC
Tuning
Others
Disc
Sound
Display
Connection
CH
ShowView
9
CANCEL
Options
VOLUME
CH
DIRECT TV REC
INPUT SELECT MANUAL SKIP
Remote Control
Clock
Power Save
Language
Shipping Condition
Default Settings
TAB
DVD 1
Off
English
SELECT
RETURN
0
3
SLOW/SEARCH
PAUSE
PLAY/x1.3
DIRECT NAVIGATOR
FUNCTIONS
FUNCTIONS
4
TOP MENU
3,4,2,1
ENTER
5
ENTER
SUB MENU
RETURN
RETURN
PROG/CHECK DISPLAY
TIMER
F
A
STATUS TIME SLIP
ERASE REC MODE
B
To exit the screen
Press [RETURN] several times.
REC
CREATE
CHAPTER AUDIO
EXT LINK
A
B
Press [3, 4] to select the tab and
press [1].
Press [3, 4] to select the menu and
press [ENTER].
Press [3, 4] to select the option and
press [ENTER].
C
C
To return to the previous screen
Press [RETURN].
Convenient functions
SKIP
STOP
Summary of settings
The settings remain intact even if you switch the unit to standby.
Tabs
Tuning
Menus
Options (Underlined items are the factory presets.)
Manual (➡ page 45)
Auto-Setup Restart (➡page 46)
Download from TV (➡ page 46)
Others
Remote Control (➡page 13)
≥DVD 1
≥DVD 2
≥DVD 3
Clock
Auto Clock Setting (➡ page 47)
Manual Clock Setting (➡page 47)
Power Save
≥Refer to the following when “Power Save” is set to “On”.
–“FL Display” is automatically set to “Automatic” (➡ page 43).
–This function does not work in the timer recording standby
mode.
–When the unit is off, Pay TV programmes cannot be watched
on the TV because the signal from the connected decoder is
not looped through. To watch them, turn on the unit.
≥On: Power consumption is minimized when the unit is turned
to standby (➡ page 48).
≥Off
Language
Choose the language for these menus and the on-screen
messages.
≥English
Shipping Condition
All the settings except for the ratings level, ratings password and
time settings return to the factory preset. The timer recording
programmes are also cancelled.
≥Yes
≥No
Default Settings
All the settings other than the programmed channels, time
settings, country settings, language settings, disc language
settings, ratings level, ratings password and remote control
code return to the factory presets.
≥Yes
≥No
≥Deutsch
≥Français ≥Italiano
≥Español
RQT7542
41
41
E65.book
42 ページ
2004年5月12日 水曜日 午後2時53分
Changing the unit’s settings
Tabs
Disc
Menus
Language
Choose the language for audio, subtitle and disc menus. [DVD-V]
≥Press [ENTER] to show the following settings.
≥Some discs start in a certain language despite any changes you make here.
≥In case of English/French/German/Italian/Spanish languages, when you make download from TV, and Country setting of AutoSetup in plug-in, the language (“Soundtrack”/“Menus”) will be same and “Subtitle” will set to “Automatic”.
≥Enter a code (➡ page 44) with the numbered buttons when you select “Other ¢¢¢¢”.
When the selected language is not available on the disc, the default language is played. There are discs where you can only
switch the language from the menu screen (➡page 22).
Soundtrack
≥German ≥Italian
≥Spanish
≥English ≥French
≥Original: The original language of each disc will be selected.
≥Other ¢¢¢¢
Subtitle
≥Automatic: If the language selected for “Soundtrack” is not
available, subtitles of that language will
automatically appear if available on that disc.
≥English ≥French
≥German ≥Italian
≥Spanish
≥Other ¢¢¢¢
Menus
≥English ≥French
≥Other ¢¢¢¢
Ratings
Set a ratings level to limit DVD-Video play.
Convenient functions
Follow the on-screen instructions. Enter a 4-digit password with
the numbered buttons when the password screen is shown.
≥Do not forget your password.
RQT7542
42
42
Options (Underlined items are the factory presets.)
≥German
≥Italian
≥Spanish
≥8 No Limit: All DVD-Video can be played.
≥1 to 7:
Prohibits play of DVD-Video with corresponding
ratings recorded on them.
≥0 Lock All: Prohibits play of all DVD-Video.
≥Unlock Recorder
≥Change Level
≥Change Password
≥Temporary Unlock
Recording time in EP mode
Select the maximum number of hours for recording in EP mode
(➡ page 17, Recording modes and approximate recording
times).
≥EP (6Hour): You can record for 6 hours on an unused 4.7 GB
disc.
≥EP (8Hour): You can record for 8 hours on an unused 4.7 GB
disc.
DVD-Audio Video mode Playback
Select “On” to play DVD-Video content on some DVD-Audio.
≥On: The setting returns to “Off” when you change the disc or
turn the unit off.
≥Off
Comb Filter
Select the picture sharpness when recording.
The setting is fixed with “On” if you set “TV System” to “NTSC”
(➡ page 46).
≥On: Pictures become clear and vivid. Normally, use this
setting.
≥Off: Select it when recording noisy pictures.
Hybrid VBR Resolution (➡page 49, VBR)
≥Automatic: The resolution is automated to provide efficient
recording with less block noise. [RAM]
The resolution is fixed to ensure that there is no
≥Fixed:
loss of source picture resolution while recording.
Still Mode
Select the type of picture shown when you pause play
(➡ page 49, Frames and fields).
≥Automatic
≥Field: Select if jittering occurs when “Automatic” is selected.
≥Frame: Select if small text or fine patterns cannot be seen
clearly when “Automatic” is selected.
Seamless Play
Selects the play mode for play list chapter segments.
≥On: The chapters in play lists are played seamlessly. This
does not work when there are several audio types
included on the play list and when using Quick View.
Additionally, the positioning of chapter segments may
change slightly.
≥Off: The points where chapters in play lists change are played
accurately, but the picture may freeze for a moment.
AV-in NR
Reduces video tape noise while transferring (dubbing).
≥On: Noise reduction works for input video.
≥Off: Noise reduction is off. Select when you want to record
input as is.
E65.book
43 ページ
2004年5月12日 水曜日 午後2時53分
Tabs
Sound
Menus
Options (Underlined items are the factory presets.)
PLAY k1.3 & Audio during Search
You may hear sound regardless of this setting with some discs.
≥On: Audio is heard during first level search forward.
≥Off: Audio is not heard during search. Quick View (➡ page 23)
does not work.
Dynamic Range Compression [DVD-V] (Dolby Digital only)
Change the dynamic range for late night viewing.
≥On
≥Off
Bilingual Audio Selection
Select whether to record the main or secondary audio type
when:
–Recording to a DVD-R.
–Recording sound in LPCM. (➡ below, “Audio Mode for XP
Recording”)
≥M 1
≥M 2
You cannot select this when recording from an external source
onto DVD-R. Select the audio on the other equipment.
Digital Audio Output
Change the settings when you have connected equipment through this unit’s DIGITAL AUDIO OUT terminal (➡ page 9).
≥Press [ENTER] to show the following settings.
PCM Down Conversion
Select how to output audio with a sampling frequency of 96
kHz or 88.2 kHz.
≥On: Signals are converted to 48 kHz or 44.1 kHz. (Choose
when the connected equipment cannot process signals
with a sampling frequency of 96 kHz or 88.2 kHz.)
≥Off: Signals are output as 96 kHz or 88.2 kHz. (Choose when
the connected equipment can process signals with a
sampling frequency of 96 kHz or 88.2 kHz.)
Signals are converted to 48 kHz or 44.1 kHz despite the above
settings if the signals have a sampling frequency of over 96 kHz
or 88.2 kHz, or the disc has copy protection.
Dolby Digital
≥Bitstream: When connecting to equipment displaying the
Dolby Digital logo.
≥PCM: When connecting to equipment not displaying the Dolby
Digital logo.
[Note]
MPEG
Display
Not making the proper settings may result
in noise, possibly damage your hearing
and speakers, and digital recording may
not work properly.
≥Bitstream: When connecting to equipment displaying the DTS
logo.
≥PCM: When connecting to equipment not displaying the DTS
logo.
Convenient functions
DTS
Select how to output the signal, to output
“Bitstream” so the connected equipment
decodes the signal, or to decode on this
unit and output the signal as “PCM” (2
channel).
≥Bitstream:
When connected to equipment with a built-in
MPEG decoder.
≥PCM: When connected to equipment without a built-in MPEG
decoder.
Audio Mode for XP Recording
Choose the audio type when recording with XP mode.
≥Dolby Digital (➡ page 49)
≥LPCM (➡page 49)
–The picture quality of LPCM recordings may be lower than
that of normal XP mode recordings.
–The audio recording becomes Dolby Digital even if you
selected LPCM when using a recording mode other than XP.
–When recording bilingual broadcast, select the type of audio
in advance from “Bilingual Audio Selection” (➡above).
Audio Mode for DV Input
You can select the kind of audio when recording from the unit’s
DV input terminal (➡ page 35).
≥Stereo 1: Records audio (L1, R1).
≥Stereo 2: Records added audio such as narration (L2, R2)
subsequent to original recording.
≥Mix:
Records both Stereo 1 and Stereo 2.
When recording bilingual broadcast to a DVD-R or recording in
LPCM audio, select the type of audio in advance from “Bilingual
Audio Selection” (➡ above).
On-Screen Messages
Choose whether to show status messages automatically.
≥Automatic
≥Off
Grey Background
Select “Off” if you do not want to have the unit show the grey
background when reception is weak.
≥On
≥Off
FL Display
Changes the brightness of the unit’s display.
This setting is fixed with “Automatic” if you set “Power Save”
(➡page 41) to “On”.
≥Bright
≥Dim
≥Automatic: The display turns dark during play, and reappears
momentarily if a button is pressed. When the unit
is turned off all displays disappear. While using this
mode the standby power consumption can be
reduced.
RQT7542
43
43
E65.book
44 ページ
2004年5月12日 水曜日 午後2時53分
Changing the unit’s settings
Tabs
Menus
Options (Underlined items are the factory presets.)
≥16:9
Connection TV Aspect (➡page 12)
≥4:3
Progressive (➡page 12)
≥On
≥Off
TV System (➡ page 46)
≥PAL
≥NTSC
AV1 Output
Selects the output from the AV1 terminal.
Select “RGB ( without component )” for RGB output.
Select “Video ( with component )” or
“S-Video ( with component )” for component output.
≥Video ( with component )
≥S-Video ( with component )
≥RGB ( without component )
≥Letterbox
AV2 Settings
Set to match the connected equipment.
≥Press [ENTER] to show the following settings.
AV2 Input
Set to “RGB ( Not NTSC )” when receiving or recording
RGB output video from external equipment.
≥Video
≥S-Video
≥RGB ( Not NTSC )
AV2 Connection
This setting is fixed with “Ext” if you set “TV System” to
“NTSC” (➡ page 46).
≥Decoder:
≥Ext:
When a decoder is connected.
When the VCR or a satellite receiver is
connected.
Ext Link
This setting cannot be made when the “TV System” is set
to “NTSC” (➡ page 46).
≥Ext Link 1:
When a digital receiver which transmits a special
control signal recordings via the 21-pin Scart
cable is connected.
When an external equipment with a timer
function is connected.
Convenient functions
≥Ext Link 2:
Language code list
Abkhazian:
6566
Afar:
6565
Afrikaans:
6570
Albanian:
8381
Ameharic:
6577
Arabic:
6582
Armenian:
7289
Assamese:
6583
Aymara:
6588
Azerbaijani:
6590
Bashkir:
6665
Basque:
6985
Bengali; Bangla:
6678
Bhutani:
6890
Bihari:
6672
Breton:
6682
Bulgarian:
6671
Burmese:
7789
Byelorussian: 6669
Cambodian:
7577
RQT7542
44
44
Input the code with the numbered buttons.
Catalan:
Chinese:
Corsican:
Croatian:
Czech:
Danish:
Dutch:
English:
Esperanto:
Estonian:
Faroese:
Fiji:
Finnish:
French:
Frisian:
Galician:
Georgian:
German:
Greek:
Greenlandic:
Guarani:
6765
9072
6779
7282
6783
6865
7876
6978
6979
6984
7079
7074
7073
7082
7089
7176
7565
6869
6976
7576
7178
Gujarati:
Hausa:
Hebrew:
Hindi:
Hungarian:
Icelandic:
Indonesian:
Interlingua:
Irish:
Italian:
Japanese:
Javanese:
Kannada:
Kashmiri:
Kazakh:
Kirghiz:
Korean:
Kurdish:
Laotian:
Latin:
Latvian, Lettish:
7185
7265
7387
7273
7285
7383
7378
7365
7165
7384
7465
7487
7578
7583
7575
7589
7579
7585
7679
7665
7686
Lingala:
Lithuanian:
Macedonian:
Malagasy:
Malay:
Malayalam:
Maltese:
Maori:
Marathi:
Moldavian:
Mongolian:
Nauru:
Nepali:
Norwegian:
Oriya:
Pashto, Pushto:
Persian:
Polish:
Portuguese:
Punjabi:
Quechua:
7678
7684
7775
7771
7783
7776
7784
7773
7782
7779
7778
7865
7869
7879
7982
8083
7065
8076
8084
8065
8185
Rhaeto-Romance:
8277
Romanian:
8279
Russian:
8285
Samoan:
8377
Sanskrit:
8365
Scots Gaelic: 7168
Serbian:
8382
Serbo-Croatian: 8372
Shona:
8378
Sindhi:
8368
Singhalese:
8373
Slovak:
8375
Slovenian:
8376
Somali:
8379
Spanish:
6983
Sundanese:
8385
Swahili:
8387
Swedish:
8386
Tagalog:
8476
Tajik:
8471
Tamil:
Tatar:
Telugu:
Thai:
Tibetan:
Tigrinya:
Tonga:
Turkish:
Turkmen:
Twi:
Ukrainian:
Urdu:
Uzbek:
Vietnamese:
Volapük:
Welsh:
Wolof:
Xhosa:
Yiddish:
Yoruba:
Zulu:
8465
8484
8469
8472
6679
8473
8479
8482
8475
8487
8575
8582
8590
8673
8679
6789
8779
8872
7473
8979
9085
E65.book
45 ページ
2004年5月12日 水曜日 午後2時53分
Refer to the control reference on page 41.
∫ To change the tuning settings for individual
programme position
1
5
While stopped
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “SETUP”
and press [ENTER].
Press [3, 4] to select “Tuning” and
press [1].
2
3
SETUP
Press [3, 4, 2, 1]
to select a
programme position
and press [ENTER].
Pos
To change the programme position in which
the TV stations are assigned
Press [3, 4] or numbered buttons to select the
number of the desired programme position and
press [ENTER].
Name
To enter or change the name of a TV station
Press [3, 4, 2, 1] to enter station name and
press [ENTER].
If the station name needs a blank space, select
the blank between “Z” and “¢”.
Channel
To enter newly available TV stations or change
the channel number of an already tuned TV
station
Press [3, 4] or the numbered buttons to enter
the channel number of the desired TV station.
Wait a few moments until the desired TV station
has been tuned.
After the desired TV station is tuned, press
[ENTER].
Fine Tuning
To obtain the best tuning condition
Press [3, 4] to adjust the best tuning condition
and press [ENTER].
≥Press [1] to return to “Auto”.
Decoder
To preset pay TV stations
Press [3, 4] to select “On” and press [ENTER].
Video
System
To select the video system type
Press [3, 4] to select “PAL” or “SECAM” if the
picture lacks colour, and press [ENTER].
Auto:
This unit automatically distinguishes
PAL and SECAM signals.
PAL:
For receiving PAL signals.
SECAM: For receiving SECAM signals.
Audio Mode
To select the audio reception type
If sound quality is poor, press [3, 4] to select
“BG” or “L” and press [ENTER].
BG: PAL B.G.H/SECAM B.G
L: SECAM L, L’/PAL L
Mono
To select the type of sound to be recorded
Press [3, 4] to select “On” if the stereo sound is
distorted due to inferior reception conditions, or if
you want to record the normal (mono) sound
during a stereo, bilingual or NICAM broadcast,
and press [ENTER].
Title Page
To enter the Teletext title page for a channel
Entering title page number allows the unit to
automatically record programme and station
names.
Press [3, 4] or numbered buttons to enter the
number and press [ENTER].
≥To find the correct title page for the station, refer
to its Teletext TV guide.
You can add or delete channels, or change programme positions.
Press [3, 4] to select “Manual” and
press [ENTER].
Manual Tuning
Pos Name
SELECT
ENTER
RETURN
Delete
Move
1
2
3
4
5
6
7
8
9
10
ARD
ZDF
N3
HR3
BR3
Ch
4
2
5
8
10
Pos Name
Ch
11
12
13
14
15
16
17
18
19
20
Add
A B C
To delete a programme position
Press [3, 4, 2, 1] to select a programme position and press [A].
To add a blank programme position
Press [3, 4, 2, 1] to select a programme position and press [B].
To move a TV station to another programme position
1 Press [3, 4, 2, 1] to select a programme position and press
[C].
2 Press [3, 4, 2, 1] to select the new programme position to
which you want to assign the TV station and press [ENTER].
[Note]
If Preset Download (➡page 10) has been performed, only deletion
of the programme position can be performed.
RETURN
1
ARD
4
Auto
Off
Auto
BG
Off
301
Press [3, 4] to select an item and press [1].
Manual
4
SELECT
Pos
Name
Channel
Fine Tuning
Decoder
Video System
Audio Mode
Mono
Title Page
RETURN : leave
Manual
Auto-Setup Restart
Download from TV
Tuning
Others
Manual
Tuning
Convenient functions
Tuning
You can make the following two settings by selecting the external
input channel (AV1, AV2, AV3, AV4) in step 4.
≥Video System (Auto/PAL/SECAM)
In order to record properly, make the appropriate settings to match
the connected equipment.
≥Title Page (Auto/Off)
RQT7542
45
45
E65.book
46 ページ
2004年5月12日 水曜日 午後2時53分
Changing the unit’s settings
Refer to the control reference on page 41.
TV System
Auto-Setup Restart, Download from TV
You can restart auto channel setting if Preset Download or AutoSetup (➡ page 10, 11) fails for some reason.
After performing steps 1–3 (➡ page 45)
∫ Auto-Setup Restart
4
5
6
Press [3, 4] to select “Auto-Setup
Restart” and press [ENTER].
Press [2, 1] to select “Yes” and
press [ENTER].
If pictures are distorted, change the settings to match the equipment
you are connecting with.
1
2
3
The country setting menu appears.
4
Press [3, 4, 2, 1] to select a
country and press [ENTER].
5
Auto-Setup starts.
While stopped
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “SETUP”
and press [ENTER].
Press [3, 4] to select “Connection”
and press [1].
Press [3, 4] to select “TV System”
and press [ENTER].
Press [3, 4] to select the TV system
and press [ENTER].
TV System
SETUP
∫ Download from TV
4
5
PAL
Tuning
Others
Disc
Sound
Display
Connection
Press [3, 4] to select “Download
from TV” and press [ENTER].
Press [2, 1] to select “Yes” and
press [ENTER].
SELECT
ENTER
RETURN
≥PAL (factory preset)
–Select when connecting to a PAL or Multi-system
television. Titles recorded using NTSC are played as PAL
60.
–Select to record television programmes and PAL input from
other equipment.
≥NTSC
–Select when connecting to a NTSC television. Television
programmes cannot be recorded properly.
–Select to record NTSC input from other equipment.
Downloading from the television starts.
To exit the screen
Press [RETURN] several times.
Convenient functions
NTSC
To return to the previous screen
Press [RETURN].
6
Press [2, 1] to select “Yes” and
press [ENTER].
To exit the screen
Press [RETURN] several times.
To return to the previous screen
Press [RETURN].
∫ To change the setting all at once (PAL!#NTSC)
While stopped, keep pressing [∫] and [< OPEN/CLOSE] on the
main unit for 5 or more seconds.
List of TV Reception Channels
Channel
indication
2–4
5 – 10
RQT7542
46
46
§
TV Channel
Germany/Italy
E2 – E10
France
Other Countries
2–4
5 – 10, G – J (172.00 – 220.00 MHz) (INTER BANDE)
E2 – E12
11 – 12
E11 – E12 (Germany)
H1 – H2 (Italy)
—
13 – 20
A – H (Only Italy)
—
—
21 – 69
E21 – E69
E21 – E69
E21 – E69
74 – 78
S01 – S05
—
S1 – S5
80
S1
—
M1
81 – 89
S2 – S10
B – F (100.00 – 172.00 MHz) (INTER BANDE)
M2 – M10
90 – 99
S11 – S20
K – Q (220.00 – 300.00 MHz) (INTER BANDE)
U1 – U10
121 – 141
S21 – S41§ (Hyperband)
S21 – S41 (299.25 – 467.25 MHz) (INTER BANDE)
S21 – S41 (Hyperband)
Only for 8 MHz channel raster
E65.book
47 ページ
2004年5月12日 水曜日 午後2時53分
Clock settings
Usually, the unit’s Preset Download or Auto-Setup function (➡page 10, 11) automatically adjusts the clock to correct time. Under some reception
conditions, however, the unit cannot set the clock automatically.
In this case, follow the operation steps below to manually set the clock.
≥In the case of a power failure, the clock setting remains in memory for approximately 60 minutes.
1
2
3
4
While stopped
Press [FUNCTIONS].
Press [3, 4, 2, 1] to select “SETUP” and press [ENTER].
Press [3, 4] to select the “Others” and press [1].
Press [3, 4] to select “Clock” and press [ENTER].
Auto Clock Setting
Manual Clock Setting
If a TV station transmits a time setting signal, and when “Automatic”
in the Clock setting menu is set to “On”, the automatic time
correction function checks the time and if necessary it is adjusted
several times every day.
5
5
Press [3, 4] to select “Off” of
“Automatic” and press [ENTER].
Clock
Press [3, 4] to select “On” of
“Automatic” and press [ENTER].
Automatic Off
Time
15 : 45 : 39
Auto clock setting starts.
Date
1 .
8 . 2004
No.
0
The following screen appears when setting is complete.
CHANGE
9
SELECT
Please set clock manually.
ENTER: store RETURN: leave
ENTER
Clock
RETURN
6
Automatic On
Date
15 : 45 : 39
1 .
8 . 2004
The items change as follows:
Hour!#Minute!#Second!#Day!#Month!#Year
^-----------------------------------------------------------------------------------------J
Automatic clock setting completed.
ENTER: access RETURN: leave
CHANGE
Press [2, 1] to select the item you
want to change.
ENTER
RETURN
7
To stop partway
Press [RETURN].
Convenient functions
Time
Press [3, 4] to change the setting.
You can also use the numbered buttons for setting.
8
Press [ENTER] when you have
finished the settings.
The clock starts.
To exit the screen
Press [RETURN] several times.
To return to the previous screen
Press [RETURN].
Child Lock
STOP
PAUSE
The Child Lock deactivates all buttons on the unit and remote
control. Use it to prevent other people from operating the unit.
PLAY/x1.3
DIRECT NAVIGATOR
Press and hold [ENTER]
and [RETURN]
simultaneously until “X
HOLD” appears on the unit’s display.
FUNCTIONS
TOP MENU
ENTER
ENTER
SUB MENU
RETURN
RETURN
PROG/CHECK DISPLAY
TIMER
F
ERASE REC MODE
B
C
If you press a button while the Child Lock is on, “X HOLD” appears
on the unit’s display and operation is impossible.
REC
CREATE
CHAPTER AUDIO
EXT LINK
A
STATUS TIME SLIP
To cancel the Child Lock
Press and hold [ENTER] and [RETURN] simultaneously until “X
HOLD” disappears.
RQT7542
47
47
E65.book
48 ページ
2004年5月12日 水曜日 午後2時53分
Specifications
Recording system
DVD Video Recording format (DVD-RAM),
DVD-Video format (DVD-R)
Recordable discs
DVD-RAM: 12 cm 4.7 GB, 12 cm 9.4 GB, 8 cm 2.8 GB
12 cm 4.7 GB (Ver. 2.1/3k-SPEED DVD-RAM Revision 1.0)
DVD-R: 12 cm 4.7 GB, 8 cm 1.4 GB (for General Ver. 2.0)
12 cm 4.7 GB (for General Ver. 2.0/4k-SPEED DVD-R Revision 1.0)
Recording time
Maximum 8 hours (with 4.7 GB disc)
XP: Approx. 1 hour, SP: Approx. 2 hours
LP: Approx. 4 hours, EP: Approx. 6 hours/8 hours
Playable discs
DVD-RAM: 12 cm 4.7 GB, 12 cm 9.4 GB , 8 cm 2.8 GB
12 cm 4.7 GB (Ver. 2.1/3k-SPEED DVD-RAM Revision 1.0)
DVD-R: 12 cm 4.7 GB, 8 cm 1.4 GB (for General Ver. 2.0)
12 cm 4.7 GB (for General Ver. 2.0/4k-SPEED DVD-R Revision 1.0)
DVD-Video, DVD-Audio, Video CD, CD-Audio (CD-DA)
CD-R/RW (MP3, CD-DA, Video CD formatted discs)
Drive unit
High Speed Drive (correspond to 4 times speed with
DVD-R disc and 3 times speed with DVD-RAM disc.)
LASER specification
Class I LASER Product (Pickup)
Wave length:
795 nm, 658 nm
Laser power:
No hazardous radiation is emitted with the safety protection
NORSK
Bølgelengde:
795 nm, 658 nm
Laserstyrke:
Ingen farlig stråling sendes ut
Reference
Audio
Recording system: Dolby Digital 2ch, Linear PCM (XP mode, 2ch)
Audio in:
AV1/AV2 (21 pin), AV3/AV4 (pin jack)
Input level:
Standard: 0.5 Vrms, Full scale: 2.0 Vrms at 1 kHz
Input impedance:
More than 10 k≠
Audio out:
AV1/AV2 (21 pin), Audio Out (pin jack)
Output level:
Standard: 0.5 Vrms, Full scale: 2.0 Vrms at 1 kHz
Output impedance:
Less than 1 k≠
Digital audio out: Optical terminal (PCM, Dolby Digital, DTS, MPEG)
Television system
Tuner system
Channel coverage
PAL-BGH
SECAM-BG
(CCIR)
VHF: E2–E12, A–H2 (Italy)
UHF: 21–69
CATV: S01–S05 (S1–S3),
S1–S20 (M1–U10), S21–S41
SECAM-L, L’
(France)
VHF: 2–10
UHF: 21–69
CATV: B–Q (100.5–299.5 MHz),
S21–S41 (299.5–467.25 MHz)
RF converter output:
Video
Video system:
SECAM (only input)/PAL colour signal, 625 lines, 50 fields
NTSC colour signal, 525 lines, 60 fields
Recording system:
MPEG2 (Hybrid VBR)
Video in (SECAM/PAL/NTSC):
AV1/AV2 (21 pin), AV3/AV4 (pin jack) 1 Vp-p 75 ≠, termination
S-Video in (SECAM/PAL/NTSC):
AV2 (21 pin), AV3/AV4 (S terminal) 1 Vp-p 75 ≠, termination
RGB in (PAL):
AV2 (21 pin) 0.7 Vp-p (PAL) 75 ≠, termination
Video out (PAL/NTSC):
AV1/AV2 (21 pin), Video Out (pin jack) 1 Vp-p 75 ≠, termination
S-Video out (PAL/NTSC):
AV1 (21 pin), S-Video Out (S terminal) 1 Vp-p 75 ≠, termination
RGB out (PAL/NTSC):
AV1 (21 pin) 0.7 Vp-p (PAL) 75 ≠, termination
Component video output (NTSC 480P/480I, PAL 576P/576I)
Y: 1.0 Vp-p 75 ≠, termination
PB: 0.7 Vp-p 75 ≠, termination
PR: 0.7 Vp-p 75 ≠, termination
DV input (PAL/NTSC)
SD/PC card slot
IEEE 1394 Standard, 4 pin
SD Memory Card slot: 1 pc.
PC Card slot (Type II): 1 pc.
Still pictures (JPEG, TIFF)
Compatible media (SD card slot):
SD Memory Card, MultiMediaCard
Compatible media (PC card slot):
A PC card adaptor conforming to PC card standards,
ATA Flash PC Card,
PC card adaptor (SD Memory Card, xD-Picture Card,
Microdrive, MultiMediaCard, CompactFlash,
SmartMedia, MEMORYSTICK), Mobile hard disk
Format:
FAT12, FAT16
Image file format:
JPEG conforming to DCF
(Design rule for Camera File system),
(sub sampling 4:2:2 or 4:2:0),
TIFF (uncompressed RGB chunky),
DPOF compatible
Number of pixels:
34a34 to 6144a4096
Thawing time:
Approx. 7 sec. (2 M pixels)
Others
Region code:
Operating temperature:
Operating humidity range:
Power supply:
Power consumption:
Dimensions (WkDkH):
Mass:
‚2
5–40 oC
10–80 % RH (no condensation)
AC 220–240 V, 50 Hz
32 W
Approx. 430 mmk274 mmk79 mm
Approx. 3.6 kg
Not provided
Power consumption in standby mode:
Approx. 3 W (Power Save mode)
[Note]
Specifications are subject to change without notice.
Mass and dimensions are approximate.
RQT7542
48
48
E65.book
49 ページ
2004年5月12日 水曜日 午後2時53分
Glossary
CPRM (Content Protection for Recordable Media)
CPRM is technology used to protect broadcasts that are allowed to
be recorded only once. Such broadcasts can be recorded only with
CPRM compatible recorders and discs.
Dolby Digital
This is a method of coding digital signals developed by Dolby
Laboratories. Apart from stereo (2-channel) audio, these signals can
also be multi-channel audio. A large amount of audio information can
be recorded on one disc using this method.
When recording on this unit Dolby Digital (2 channel) is the default
audio.
Down-mixing
This is the process of remixing the multi-channel audio found on
some discs into two channels. It is useful when you want to listen to
the 5.1-channel audio recorded on DVDs through your television’s
speakers. Some discs prohibit down-mixing and this unit can then
only output the front two channels.
DPOF (Digital Print Order Format)
DPOF is the standard printing format for still picture data taken by a
digital camera, etc. It is used for automatic printing at a photo
developing store or on your home printer.
JPEG (Joint Photographic Experts Group)
This is a system used for compressing/decoding colour still pictures.
If you select JPEG as the storage system on digital cameras etc.,
the data will be compressed to 1/10–1/100 of its original size. The
feature of JPEG is less deterioration in picture quality considering
the degree of compression.
LPCM (Linear PCM)
These are uncompressed digital signals, similar to those found on
CDs. LPCM sound is available when recording in XP mode.
MP3 (MPEG Audio Layer 3)
An audio compression method that compresses audio to
approximately one tenth of its size without any considerable loss of
audio quality. You can play MP3 you have recorded onto CD-R and
CD-RW.
Pan&Scan/Letterbox
In general, DVD-Video are produced with the intention that they be
viewed on a widescreen television (16:9 aspect ratio), so images
often don’t fit regular (4:3 aspect ratio) televisions. Two styles of
picture, “Pan & Scan” and “Letterbox”, deal with this problem.
Pan & Scan: The sides are cut off so the picture
fills the screen.
Drive
In the instance of this unit, this refers to the disc (DVD), SD card
(SD) and PC card (PC). These perform the reading and writing of
data.
Letterbox: Black bands appear at the top and
bottom of the picture so the picture
itself appears in an aspect ratio of
16:9.
DTS (Digital Theater Systems)
This surround system is used in many movie theaters. There is good
separation between the channels, so realistic sound effects are
possible.
Playback control (PBC)
If a Video CD has playback control, you can select scenes and
information with menus.
(This unit is compatible with version 2.0 and 1.1.)
Dynamic range
Dynamic range is the difference between the lowest level of sound
that can be heard above the noise of the equipment and the highest
level of sound before distortion occurs.
Dynamic range compression means reducing the gap between the
loudest and softest sounds. This means you can listen at low
volumes but still hear dialogue clearly.
Film and video
DVD-Videos are recorded using either film or video. This unit can
determine which type has been used, then uses the most suitable
method of progressive output.
For PAL
Film is 25 frames per second.
Video is 50 fields per second (two fields making up one frame).
For NTSC
Film is 24 or 30 frames per second, with motion picture film generally
being 24 frames per second.
Video is 60 fields per second (two fields making up one frame).
Finalize
A process that makes play of a recorded CD-R, CD-RW, DVD-R, etc.
possible on equipment that can play such media. You can finalize
DVD-R on this unit.
After finalizing, the disc becomes play-only and you can no longer
record or edit.
Folder
This is a place on the DVD-RAM or memory card where groups of
data are stored together. In the case of this unit, it refers to the place
where still pictures (JPEG, TIFF) are stored.
Formatting
Formatting is the process of making media such as DVD-RAM
recordable on recording equipment.
You can format the DVD-RAM and memory cards on this unit.
Formatting erases irrevocably all contents.
Progressive/Interlace
The PAL video signal standard has 625 (or 576) interlaced (I) scan
lines, whereas progressive scanning, called 625P (or 576P), uses
twice the number of scan lines. For the NTSC standard, these are
called 525I (or 480I) and 525P (or 480P) respectively.
Using progressive output, you can enjoy the high-resolution video
recorded on media such as DVD-Video.
Your television must be compatible to enjoy progressive video.
Panasonic televisions with 625 (576)/50I · 50P, 525 (480)/60I · 60P
input terminals are progressive compatible.
Reference
Bitstream
This is the digital form of multi-channel audio data (e.g., 5.1 channel)
before it is decoded into its various channels.
Protection
You can prevent accidental erasure by setting writing protection or
erasure protection.
Sampling frequency
Sampling is the process of converting the heights of sound wave
(analog signal) samples taken at set periods into digits (digital
encoding). Sampling frequency is the number of samples taken per
second, so larger numbers mean more faithful reproduction of the
original sound.
TIFF (Tag Image File Format)
This is a system used for compressing/decoding colour still pictures.
A common format for storing high quality images on digital cameras
and other devices.
Thumbnail
This refers to a miniature representation of a picture used to display
multiple pictures in the form of a list.
VBR (Variable bitrate)
This is a method of video recording that adjusts the bit rate
according to video signal.
Frames and fields
Frames refer to the single images that constitute the video you see
on your television. Each frame consists of two fields.
u
r
Frame
Field
Field
≥A frame still shows two fields, so there may be some blurring, but
picture quality is generally better.
≥A field still shows less picture information so it may be rougher, but
there is no blurring.
RQT7542
49
49
E65.book
50 ページ
2004年5月12日 水曜日 午後2時53分
Glossary
Q Link
This function works only if the unit is connected via a fully wired 21pin Scart cable to a TV featuring the Q Link or similar function.
Q Link offers the following functions:
≥Download from the TV§
When you connect the unit to a TV, the station list data is
automatically copied from the TV to the unit, and the TV stations
are assigned to the programme positions on the unit in the same
order as on the TV.
≥Direct TV Recording
By simply pressing [¥ DIRECT TV REC], you can at once record
the same programme that you are watching on the TV.
≥TV/DVD Auto On§
Even if the TV and the unit are off (standby mode), pressing
[1] (PLAY), [DIRECT NAVIGATOR, TOP MENU], [ShowView] or
[PROG/CHECK] automatically turns on both the TV and the unit.
If the TV is off (standby mode) and the unit is on, when you press
[FUNCTIONS] or [1] (PLAY), or insert the disc (except DVD-RAM
and DVD-R), the TV automatically is turned on.
≥DVD Auto Standby§
When you turn the TV off, the unit is turned off as well. However,
this function works in the stop mode.
This function does not work during the following operations: Preset
Download, Auto-Setup, Auto Clock Setting and Manual Tuning.
This function does also not work when the DVD drive selected and
an audio CD is in the disc tray.
Reference
VPS (Video Programme System)/PDC (Programme Delivery Control)
VPS or PDC is a very convenient system which records exactly from
beginning to end of the TV programmes set in timer recording, even
if the actual broadcasting time differs from the scheduled time due to
delayed start or extension of the programme duration. Also, if a
programme is interrupted, for example, some special news is
inserted, the recording will be paused automatically and resumed
when the programme continues.
Depending on the signals sent from the TV stations, the VPS/PDC
system may not work properly even when “VPS/PDC” has been set
to “ON”.
Please check with the broadcasters in your area for details.
≥In the case of VPS/PDC recording, use the correct time (VPS/PDC
time) for recording the TV programmes.
Set “VPS/PDC” to “OFF” when the recording time is not the correct
time (VPS/PDC time).
VPS/PDC recording is not performed when the time (VPS/PDC
time) is incorrect, even if only by one minute. To find out the correct
time (VPS/PDC time), consult Teletext, a newspaper or magazine,
or other source.
≥If the actual broadcasting times of timer recordings overlap
(regardless of whether they are VPS/PDC controlled), the
recording that starts first always has priority, and the recording of
the later programme will start only after the first timer recording has
finished.
≥On-Screen Messages§
When you are watching a TV programme, the following messages
appear on the TV screen to inform you of the unit’s condition:
Message
Message appears when:
This programme has A timer recording has just started.
already started
Set DVD to timer
standby mode
The unit is not in the timer standby mode
10 minutes before the programmed
recording start time (message appears
every minute during these 10 minutes).
DVD is in timer
recording mode
[¥ REC] or [ShowView] was pressed while
the unit is in the timer recording mode.
Depending on the type of TV used, the above messages may not
appear correctly.
§ These operations are only available if the unit is connected to a TV
featuring the Q Link function.
[Note]
If “Power Save” is set to “On”, Direct TV Recording function does not
work when the unit is switched off (standby mode).
≥When the VPS/PDC signal drops out because the broadcast signal
is weak, or when a TV station does not transmit a regular VPS/
PDC signal, the timer recording will be performed in the normal
mode (without VPS/PDC) even if it was programmed for VPS/PDC.
In this case, even if the timer recording is performed, whatever has
been programmed will not be cancelled at that particular time but
at 4 a.m. two days later.
≥The start times of scheduled programmes listed in the newspaper
or magazine may be changed at a later date. Set “VPS/PDC” to
“OFF” when programming a programme whose start time has
been subsequently changed. Particular care must be taken in this
respect with SHOWVIEW programming since “VPS/PDC” is
automatically set to “ON” in some countries (➡below).
≥If a programme listed in a newspaper or magazine has two
SHOWVIEW numbers, use the SHOWVIEW number for VPS/PDC if
you wish to proceed with VPS/PDC recording using SHOWVIEW
programming.
≥The default settings for “VPS/PDC” differ depending on the country
concerned. Refer to the following table.
When SHOWVIEW
programming
When the SHOWVIEW programming
start time is changed
When programming
manually
Belgium, Netherlands, Sweden,
Denmark, Finland, Norway, France
ON
OFF
OFF
Germany, Switzerland, Austria
ON
ON
ON
Italy, Spain, Portugal, Greece,
Other Countries
OFF
OFF
OFF
≥If the broadcasting station is not transmitting VPS/PDC signals, “jjj” appears in the menu for timer programming under “VPS/PDC”.
≥The beginnings of recordings may not be recorded correctly in some cases.
RQT7542
50
50
E65.book
51 ページ
2004年5月12日 水曜日 午後2時53分
Frequently asked questions
Set up
What equipment is necessary to play multi
channel surround sound?
Page
≥DVD-Video:
You can play DVD-Video multi channel surround by digitally connecting
an amplifier equipped with a Dolby Digital, DTS or MPEG decoder.
≥DVD-Audio:
This unit plays DVD-Audio in 2 channels. You cannot play multi channel
surround sound.
9
—
Are the headphones and speakers directly
connected to the unit?
≥You cannot directly connect to the unit. Connect through the amplifier
etc.
The television has a Scart terminal and
component video input terminal. Which
terminal should I connect with?
≥If you have a regular television (CRT: cathode ray tube) we recommend
using the Scart terminal. You can enjoy high-quality RGB video from
this unit by connecting to an RGB compatible television.
If you have an LCD/plasma television or LCD projector compatible with
progressive scan, connect through the component video terminals for
high-quality progressive video.
If you have a CRT television or a multi system television using PAL
mode that is compatible with progressive scan, we cannot recommend
progressive output as some flickering can occur.
7, 8
Is my television progressive output
compatible?
≥All Panasonic televisions that have 625 (576)/50I · 50P, 525 (480)/60I ·
60P input terminals are compatible. Consult the manufacturer if you
have another brand of television.
—
Can I play DVD-Video, DVD-Audio and
Video CDs bought in another country?
≥You cannot play DVD-Video if their region number does not include “2”
or “ALL”.
Cover
Can a DVD-Video that does not have a
region number be played?
≥The DVD-Video region number indicates the disc conforms to a
standard. You cannot play discs that do not have a region number.
—
Please tell me about DVD-R and DVD-RW
compatibility with this unit.
≥This unit records and plays DVD-R. However, you cannot record onto
DVD-R discs that are finalized.
≥This unit also records and plays high speed recording compatible discs.
≥This unit does not record or play DVD-RW.
—
≥This unit plays CD-R/CD-RW discs (audio recording discs) which have
been recorded under one of the following standards: CD-DA, MP3 and
Video CD. Close the session or finalize the disc after recording.
≥You cannot write to a CD-R or CD-RW with this unit.
14, 25
Can I record from a commercially
purchased video cassette or DVD?
≥Most commercially sold video cassettes and DVD are copy protected;
therefore, recording is usually not possible.
—
Can a DVD-R recorded on this unit be
played on other equipment?
≥You can play on DVD-R compatible players after finalizing the disc on
this unit; however, due to the condition of the recording, play may not be
possible.
39
How many times can I write to a DVD-RAM
disc?
≥You can write to the disc approximately 100,000 times depending upon
the conditions of use.
—
Can I record digital audio signals using this
unit?
≥You cannot record digital signals. The digital audio terminals on this unit
are for output only. (The audio recorded using the DV automatic
recording function from a digital video camcorder, for example, is
recorded digitally.)
—
Can a digital audio signal from this unit be
recorded to other equipment?
≥You can record if using the PCM signal. When recording DVD, change
the “Digital Audio Output” settings to the following in the SETUP menu.
–PCM Down Conversion: On
–Dolby Digital/DTS/MPEG: PCM
However, only as long as digital recording from the disc is permitted and
the recording equipment is compatible with a sampling frequency of
48 kHz.
≥You cannot record MP3 signals.
43
≥With DVD-RAM, you can. Just press [AUDIO].
≥With DVD-R, you cannot. Change before recording with “Bilingual Audio
Selection” in the SETUP menu.
24
43
9
Disc
Reference
Please tell me about CD-R and CD-RW
compatibility with this unit.
—
—
—
Recording
Can I switch to bilingual broadcast during
recording?
—
RQT7542
51
51
E65.book
52 ページ
2004年5月12日 水曜日 午後2時53分
Error messages
On the television
Page
Cannot finish recording
completely.
≥The programme was copy-protected.
≥The disc may be full.
—
—
Cannot playback this title.
TV system is different from the
setting.
To playback this title, please
change the TV System in
SETUP.
≥You tried to play a title recorded using a different encoding system from that of the TV
system currently selected on the unit.
Alter the “TV System” setting on this unit to suit.
46
Cannot record on the disc.
≥The disc may be dirty or scratched.
≥You cannot format a Microdrive or mobile hard disk on this unit.
57
—
Cannot play on this unit.
≥You tried to play a non-compatible image.
≥Turn the unit off and re-insert the card.
26
26
Cannot record. Disc is full.
Cannot record. Maximum
number of titles exceeded
≥Create space by erasing any unnecessary titles. [RAM]
(Even if you erase recorded content from the DVD-R, there is no increase in disc space.)
≥Use a new disc.
24, 31,
38, 39
—
Error has occurred. Please
press ENTER.
≥Press [ENTER] to start recovery process. You cannot operate the unit while it is recovering
(“SELF CHECK” appears on the unit’s display).
—
Please check the disc.
Unable to format.
No Disc
≥The disc may be upside down.
—
No folders.
≥There is no compatible folder in this unit.
15
No PC CARD
No SD CARD
No valid PC card.
No valid SD card.
≥The card is not inserted. If this message is displayed with a compatible card already
inserted, turn off the unit, remove and then re-insert the card.
≥The card inserted is not compatible or the card format does not match.
26
Not enough space on dubbing
destination.
≥Create space by erasing any unnecessary items.
Please change the disc.
≥There may be a problem with the disc. Press [< OPEN/CLOSE] on the main unit to
remove it and check it for scratches or dirt. (The unit turns off automatically after you open
the tray.)
57
This is a non-recordable disc.
≥The unit cannot record on the disc you inserted. Insert a DVD-RAM or unfinalized DVD-R.
≥You inserted an unformatted DVD-RAM. Format the disc with this unit.
—
39
≥The operation is prohibited by the unit or disc.
—
HARD ERR
≥If there is no change after turning the unit on and off, consult the dealer where the unit was
purchased.
—
NO READ
≥The disc is dirty or badly scratched. The unit cannot record, play, or edit.
≥You have used a DVD-RAM/PD lens cleaner and it has finished. Press [< OPEN/CLOSE]
on the main unit to eject the disc.
57
—
PROG FULL
≥There are already 16 timer programmes. Delete unnecessary timer programmes.
21
REMOTE DVD 
(“∑” stands for a number.)
≥The remote control and main unit are using different codes. Change the code on the
remote control.
13
Reference
This disc is not properly
formatted.
Formatting is necessary using
DISC MANAGEMENT.
$
15
24, 27, 31,
34, 38, 39
On the unit’s display
Press and hold [ENTER] and the indicated number
button at the same time for more than 2 seconds.
RQT7542
52
52
SELF CHECK
≥The unit is starting up. Wait until the message disappears.
—
U14
≥The unit is hot.
The unit switches to standby for safety reasons. Wait for about 30 minutes until the
message disappears.
Select a position with good ventilation when installing the unit. Do not block the cooling fan
on the rear of the unit.
—
U99
≥The unit fails to operate properly. Press [Í/I] on the main unit to switch the unit to standby.
Now press [Í/I] on the main unit again to turn the unit on.
—
UNSUPPORT
≥You have inserted a disc the unit cannot play or record on.
14
X HOLD
≥The Child Lock function is activated.
Press and hold [ENTER] and [RETURN] simultaneously until “X HOLD” disappears.
47
E65.book
53 ページ
2004年5月12日 水曜日 午後2時53分
Troubleshooting guide
Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart
do not solve the problem, consult your dealer for instructions.
The following do not indicate a problem with this unit:
≥Regular disc rotating sounds. The sound of the disc rotating may
become louder especially when finalizing a DVD-R.
≥Poor reception due to atmospheric conditions.
≥Image disturbance during search.
≥Interruptions in reception due to periodic satellite broadcasting
breaks.
Power
Page
≥Insert the AC mains lead securely into a known active AC mains socket.
≥Linked timer recordings with external equipment is in recording standby. Press [EXT LINK]
to cancel the recording standby.
7, 8
21
≥One of the unit’s safety devices is activated. Press [Í/I] on the main unit to turn the unit on.
—
The display is dim.
≥Change “FL Display” in the SETUP menu.
43
“0:00” is flashing on the unit’s
display.
≥Set the clock.
47
The time recorded on the disc
and the available time shown
do not add up.
The play time shown for MP3
does not agree with the actual
time.
≥Times shown may disagree with actual times.
≥More disc space than the actual recording time is used after recording or editing the DVD-R
200 times or more.
≥While searching, the elapsed time may not display correctly.
≥Even if you erase recorded content from the DVD-R, there is no increase in disc space.
—
—
The clock is not correct.
≥Under adverse reception conditions, etc., the automatic time correction function may not
work. In this case, “Automatic” is automatically turned to “Off”. If re-setting the Auto Clock
Setting does not work, set the time manually.
47
Television reception worsens
after connecting the unit.
≥This can occur because the signals are being divided between the unit and other
equipment. It can be solved by using a signal booster, available from audio-visual suppliers.
—
Status messages do not
appear.
≥Select “Automatic” in “On-Screen Messages” in the SETUP menu.
43
The grey background does not
appear.
≥Select “On” in “Grey Background” in the SETUP menu.
43
The 4:3 aspect ratio picture
expands left and right.
≥Use the television to change the aspect. If your television does not have that function, set
“Progressive” in the Picture menu to “OFF”.
≥Check the settings for “TV Aspect” in the SETUP menu.
29
There is a lot of after-image
when playing video.
≥Set “Playback NR” in the Picture menu to “OFF”.
29
When playing DVD-Video
using progressive output, one
part of the picture
momentarily appears to be
doubled up.
≥Set “Progressive” in the Picture menu to “OFF”. This problem is caused by the editing
method or material used on DVD-Video, but should be corrected if you use interlace output.
29
There is no apparent change
in picture quality when
adjusted with the Picture
menu in the on-screen menus.
≥The effect is less perceivable with some types of video.
—
The images from this unit do
not appear on the television.
≥Make sure that the television is connected to the AV1 terminal, VIDEO OUT terminal, SVIDEO OUT terminal or COMPONENT VIDEO OUT terminals on this unit.
≥Make sure that the television’s input setting (e.g., AV 1) is correct.
≥The television isn’t compatible with progressive signals. Press and hold [∫] and [TIME SLIP]
on the main unit at the same time for about 5 seconds. The setting will change to interlace.
≥The unit’s “TV System” setting differs from the TV system used by the disc now playing.
While stopped, keep pressing [∫] and [< OPEN/CLOSE] on the main unit for 5 or more
seconds. The system switches from PAL to NTSC or vice versa.
No power.
Unit does not turn on pressing
[Í DVD].
The unit switches to standby
mode.
Displays
—
—
Screen size is wrong.
Picture is distorted.
Reference
TV screen and video
12
7, 8
—
—
46
RQT7542
53
53
E65.book
54 ページ
2004年5月12日 水曜日 午後2時53分
Troubleshooting guide
Sound
No sound.
Low volume.
Distorted sound.
Cannot hear the desired audio
type.
Cannot switch audio.
Page
≥Check the connections and settings. Check the input mode on the amplifier if you have
connected one.
≥Press [AUDIO] to select the audio.
≥Turn off V.S.S. in the following cases.
–When using discs that do not have surround sound effects such as Karaoke discs.
–When playing bilingual broadcast programmes.
≥The disc may have a restriction on the method of audio output. If “D.MIX” does not appear in
the display when playing multi-channel DVD-Audio, only audio for the two front channels will
be output. Refer to the disc’s jacket. [DVD-A]
≥You cannot switch the audio in the following cases.
–When a DVD-R disc is in the disc tray while DVD drive is selected.
–When the recording mode is XP and “Audio Mode for XP Recording” is set to “LPCM”.
≥You have used a digital connection. Set “Dolby Digital” to “PCM” or connect using audio
cables (analog connection).
≥There are discs for which audio cannot be changed because of how the disc was created.
7–9, 43
24
29
—
—
43
43, 9
—
Operation
Cannot operate the television.
The remote control doesn’t
work.
≥Change manufacturer code. Some televisions cannot be operated even if you change the
code.
≥The remote control and main unit are using different codes. Change the code on the remote
control.
13
13
Press and hold [ENTER] and the indicated number
button at the same time for more than 2 seconds.
Reference
≥The batteries are depleted. Replace them with new ones.
≥Coloured glass may obstruct the signal reception/transmission.
≥Don’t place the signal sensor in direct sunlight or in areas that may be subject to sunlight
exposure.
≥The child lock function is activated.
4
—
—
47
The unit is on but cannot be
operated.
≥Recording drive or playback drive has not been selected properly.
≥Some operations may be prohibited by the disc.
≥The unit is hot (“U14” appears on the display). Wait for “U14” to disappear.
≥One of the unit’s safety devices may have been activated.
Reset the unit as follows:
Press [Í/I] on the main unit to switch the unit to standby.
If the unit doesn’t switch to standby, press and hold [Í/I] on the main unit for about 10
seconds. The unit is forcibly switched to standby.
Alternatively, disconnect the AC mains lead, wait one minute, then reconnect it.
Cannot eject disc.
≥The unit may have a problem. While the unit is off, press and hold [∫] and [CH W] on the
main unit at the same time for about 5 seconds. Remove the disc and consult the dealer.
If the Child Lock function is activated, above operation does not work. Cancel the Child Lock
function.
47
Cannot tune channels.
≥Check the connections.
≥You must connect to a television equipped with the Q Link function with a fully wired 21-pin
Scart cable to download channel presets.
7, 8
—
Cannot download channel
presets from the television.
16, 22
—
—
—
Recording, timer recording and transferring (dubbing)
Cannot record.
≥You haven’t inserted a disc or the disc you inserted cannot be recorded on. Insert a disc the
unit can record onto.
≥The disc is un-formatted. Format the disc. [RAM]
≥The write-protect tab on the cartridge is set to PROTECT, or the disc is protected with DISC
MANAGEMENT.
≥Some programmes have limitations on the number of times they can be recorded (CPRM).
≥The disc is full or nearly full. Erase un-needed titles or use another disc.
≥You cannot record on finalized DVD-R discs.
≥Due to peculiarities of DVD-R, you may be unable to record onto them if you either insert
and remove the disc or switch the unit on and off while a disc is loaded, a total of fifty times.
≥A DVD-R recorded on this unit may not be recordable on other Panasonic DVD recorders.
Timer recording does not
work properly.
SHOWVIEW programming does
not work properly.
Continued on next page
RQT7542
54
54
≥The timer programme is incorrect or different timer programme times overlap. Correct the
programme.
≥The unit is not on timer recording standby. (“F” on the unit’s display is not on.) Press
[F TIMER].
≥Set the clock.
14
39
38
49
24, 31,
38, 39
—
—
—
21
19, 20
47
E65.book
55 ページ
2004年5月12日 水曜日 午後2時53分
Recording, timer recording and transferring (dubbing) (Continued)
Page
Timer recording does not stop
even when [∫] is pressed.
≥While using timer recording, press [F TIMER]. (“F” disappears.)
≥When using the linked timer recording with external equipment, press [EXT LINK]. (“Ext
Link” disappears.)
The timer programme remains
even after recording finishes.
≥The timer programme remains if set to daily or weekly.
20
A part or whole of a recorded
title has been lost.
≥If there is a power failure or the plug is disconnected from the household AC mains socket
while recording or editing, the title may be lost or the disc may become unusable.
You will have to format the disc ([RAM]) or use a new disc. We cannot offer any guarantee
regarding lost programmes or discs.
—
The DV automatic recording
function does not work.
≥If images cannot be recorded or if the recording is aborted, check the connections and DV
equipment settings.
≥You cannot start recording until the images from the DV equipment appear on the television.
≥Recording may not be performed as desired if the time codes on the tape in the DV
equipment are not successive.
≥Depending on the equipment, the DV automatic recording may not operate properly.
35
≥Insert the disc correctly with the label facing up.
≥You tried to play a blank DVD-RAM/DVD-R, or disc unplayable on this unit.
≥When recording to DVD-RAM using “EP (8Hour)” mode, play may not be possible on DVD
players that are compatible with DVD-RAM. In this case use “EP (6Hour)” mode.
≥You cannot play discs during DV automatic recording.
22
14
42
Audio and video momentarily
pause.
≥This occurs between play list chapters. [RAM]
—
DVD-Video is not played.
≥Some DVD-Video cannot be played when you change the ratings level.
42
Alternative soundtrack and
subtitles cannot be selected.
≥The languages are not recorded on the disc.
≥You may have to use the disc’s menus to select languages.
—
—
No subtitles.
≥Subtitles are not recorded on the disc.
≥Turn the subtitles on.
—
28
Angle cannot be changed.
≥Angles can only be changed during scenes where different angles are recorded.
—
You have forgotten your
ratings password.
≥While the disc tray is open, press [DVD] then press and hold [D] and [E] on
the main unit at the same time for 5 or more seconds.
—
Quick View does not work.
≥This does not work if the setting is “Off” in “PLAY k1.3 & Audio during Search”.
≥This does not work when audio is other than Dolby Digital.
≥This does not work when recording is in XP or FR mode. [RAM]
43
—
—
The resume play function
does not work.
≥This function only works when the indicator on the right appears on
the unit display.
≥Memorized positions are canceled when the unit is turned off or when
the tray is opened. The memorized position on the play list is also
canceled when the play list and title are edited.
19, 20
21
—
—
—
Play
DVD - R AM
—
Reference
Play fails to start even when
[1] (PLAY) is pressed.
Play starts but then stops
immediately.
—
—
The Video CD picture does not
display properly.
≥When connecting to Multi-system TV, select “NTSC” in “TV System” in the SETUP menu.
≥When connecting to PAL TV, the lower part of the picture cannot be displayed correctly
during search.
46
—
Time Slip does not work.
≥Time Slip does not work when the unit’s “TV System” settings are different from the title
recorded on the disc.
46
RQT7542
55
55
E65.book
56 ページ
2004年5月12日 水曜日 午後2時53分
Troubleshooting guide
Edit
Page
Cannot format.
≥The disc is dirty. Use a special cleaner and wipe clean.
≥You tried formatting a disc that is not compatible with this unit.
57
14
Cannot create chapters.
≥The unit writes the chapter information to the disc when you turn it off or remove the disc.
The information is not written if there is an interruption to the power before this.
≥These operations are not possible with still pictures.
≥You cannot set points if they are too close to each other. You cannot set an end point before
a start point.
—
Cannot erase chapters.
≥When the chapter is too short to erase, use “Combine Chapters” to make the chapter
longer.
31
The available recording time
doesn’t increase even after
erasing recordings on the
disc.
≥Available recording space on the DVD-R does not increase even after erasing previously
recorded titles.
—
Cannot create a play list.
≥You cannot select all the chapters at once in a title if the title also includes still pictures.
Select them individually.
—
Cannot display Direct
Navigator screen.
≥This screen cannot be displayed during recording or transfer (dubbing) or while the unit is
standing by for linked timer recording with external equipment.
—
Cannot edit or format a card.
≥Release the card’s protection setting. (With some cards, the “Write protection Off” message
sometimes appears on the screen even when protection has been set.)
38
The contents of the card
cannot be read.
≥The card format is not compatible with the unit. (The contents on the card may be
damaged.)
Format using FAT 12 or FAT 16 with other equipment or format the card with this unit.
≥The card contains a folder structure and/or file extensions that are not compatible with this
unit.
≥Turn off and then turn on the unit again.
15, 26
Cannot mark the start point or
the end point during “Partial
Erase” operation.
—
—
Reference
Still pictures
RQT7542
56
56
39
15
—
Transferring (dubbing),
erasing and setting protection
takes a long time.
≥When there are a lot of folders and files, it may sometimes take a few hours.
≥When repeating transferring (dubbing) or erasing, it may sometimes take a long time.
Format the disc or card.
—
39
The PC card cannot be
removed.
≥Make sure the PC card is slotted home firmly before attempting to remove.
26
E65.book
57 ページ
2004年5月12日 水曜日 午後2時53分
Safety precautions
Placement
Set the unit up on an even surface away from direct sunlight, high
temperatures, high humidity, and excessive vibration. These
conditions can damage the cabinet and other components, thereby
shortening the unit’s service life.
Do not place heavy items on the unit.
Voltage
Do not use high voltage power sources. This can overload the unit
and cause a fire.
Do not use a DC power source. Check the source carefully when
setting the unit up on a ship or other place where DC is used.
AC mains lead protection
Ensure the AC mains lead is connected correctly and not
damaged. Poor connection and lead damage can cause fire or
electric shock. Do not pull, bend, or place heavy items on the lead.
Grasp the plug firmly when unplugging the lead. Pulling the AC
mains lead can cause electric shock.
Do not handle the plug with wet hands. This can cause electric
shock.
Foreign matter
Do not let metal objects fall inside the unit. This can cause electric
shock or malfunction.
Do not let liquids get into the unit. This can cause electric shock or
malfunction. If this occurs, immediately disconnect the unit from the
power supply and contact your dealer.
Do not spray insecticides onto or into the unit. They contain
flammable gases which can ignite if sprayed into the unit.
Service
Do not attempt to repair this unit by yourself. If sound is
interrupted, indicators fail to light, smoke appears, or any other
problem that is not covered in these instructions occurs, disconnect
the AC mains lead and contact your dealer or an authorized service
center. Electric shock or damage to the unit can occur if the unit is
repaired, disassembled or reconstructed by unqualified persons.
Extend operating life by disconnecting the unit from the power
source if it is not to be used for a long time.
Maintenance/Disc and card handling
The precision parts in this unit are readily affected by the
environment, especially temperature, humidity, and dust.
Cigarette smoke also can cause malfunction or breakdown.
To clean this unit, wipe with a soft, dry cloth.
≥Never use alcohol, paint thinner or benzine to clean this unit.
≥Before using chemically treated cloth, read the instructions that
came with the cloth carefully.
Observe the following points to ensure continued listening and
viewing pleasure.
Dust and dirt may adhere to the unit’s lens over time, making it
impossible to record or play discs.
Use the DVD-RAM/PD lens cleaner (LF-K123LCA1, where
available) about once every year, depending on frequency of use
and the operating environment. Read the lens cleaner’s instructions
carefully before use.
Disc and card handling
∫ How to hold a disc
or card
Do not touch the recorded
surface or the terminal
surface.
∫ If there is dirt or condensation on the disc
[RAM] [DVD-R]
≥Clean with an optional DVD-RAM/PD disc cleaner (LF-K200DCA1,
where available).
≥Do not use cleaners for CDs or cloths.
Reference
Unit care
[DVD-A] [DVD-V] [VCD] [CD]
Wipe with a damp cloth and then
wipe dry.
∫ Handling precautions
≥Do not attach labels or stickers to discs. (This may cause disc
warping and un-balanced rotation, rendering it unusable.)
≥Do not write on the label side with a ball-point pen or other writing
instrument.
≥Do not use record cleaning sprays, benzine, thinner, static
electricity prevention liquids or any other solvent.
≥Do not use scratch-proof protectors or covers.
≥Do not expose the terminals of the card to water, garbage or other
strange things.
≥Do not use the following discs:
–Discs with exposed adhesive from removed stickers or labels
(rented discs etc).
–Discs that are badly warped or cracked.
–Irregularly shaped discs, such
as heart shapes.
≥Do not place in the following
areas:
–In direct sunlight.
–In very dusty or humid areas.
–Near a heater
–Where static electricity or electromagnetic waves occur
RQT7542
57
57
E65.book
58 ページ
2004年5月12日 水曜日 午後2時53分
Index
Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Aspect . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Audio
Attribute . . . . . . . . . . . . . . . . . . . . . . . 28
Language . . . . . . . . . . . . . . . . . . . . . . 42
Playback . . . . . . . . . . . . . . . . . . . . . . 24
Receiving . . . . . . . . . . . . . . . . . . . . . . 29
Change Thumbnail . . . . . . . . . . . . . . . . 31
Channel
Audio . . . . . . . . . . . . . . . . . . . . . . . . . 28
Auto-Setup . . . . . . . . . . . . . . . . . . 11, 46
Preset Download . . . . . . . . . . . . . 10, 46
Chapter . . . . . . . . . . . . . . . . . . . . . . 24, 30
Chasing playback . . . . . . . . . . . . . . . . . 17
Child Lock . . . . . . . . . . . . . . . . . . . . . . . 47
Cleaning
Disc . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Lens . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Main unit . . . . . . . . . . . . . . . . . . . . . . 57
Clock settings . . . . . . . . . . . . . . . . . . . . 47
Connection
Aerial . . . . . . . . . . . . . . . . . . . . . . . . 7, 8
Amplifier, system component . . . . . . . . 9
AV3 input terminals . . . . . . . . . . . . . 35
DV input terminal . . . . . . . . . . . . . . . . 35
Satellite receiver, digital receiver,
decoder . . . . . . . . . . . . . . . . . . . . . . . . 9
Television . . . . . . . . . . . . . . . . . . . . . 7, 8
Video cassette recorder . . . . . . . 7, 8, 35
Copy (play list) . . . . . . . . . . . . . . . . . . . 33
Country setting . . . . . . . . . . . . . . . . 10, 11
CPRM . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Create Chapter . . . . . . . . . . . . . . . . 24, 31
Create play lists . . . . . . . . . . . . . . . . . . 32
Reference
Default Settings . . . . . . . . . . . . . . . . . . 41
Dialog Enhancer . . . . . . . . . . . . . . . . . . 29
Direct Navigator . . . . . . . . . 22, 27, 30, 34
Direct TV Recording . . . . . . . . . . . . . . . 18
Divide Title . . . . . . . . . . . . . . . . . . . . . . . 31
DPOF . . . . . . . . . . . . . . . . . . . . . . . . 34, 49
DV automatic recording . . . . . . . . . . . . 35
DVD-R (Enabling DVD-R to be played on
other equipment—Finalize) . . . . . . . . . 39
DVD-RAM, DVD-R . . . . . . . . . . . . . . . . . 14
Enter name
Disc . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Entering text . . . . . . . . . . . . . . . . . . . . 40
Folder . . . . . . . . . . . . . . . . . . . . . . . . . 34
Play list . . . . . . . . . . . . . . . . . . . . . . . 33
Title . . . . . . . . . . . . . . . . . . . . 19, 20, 31
Erase
All titles . . . . . . . . . . . . . . . . . . . . . . . . 38
Chapter . . . . . . . . . . . . . . . . . 24, 31, 33
Folder . . . . . . . . . . . . . . . . . . . . . . . . . 34
Play list . . . . . . . . . . . . . . . . . . . . 24, 33
Still picture . . . . . . . . . . . . . . . . . . . . . 34
Title . . . . . . . . . . . . . . . . . . . . . . . 24, 31
Ext Link . . . . . . . . . . . . . . . . . . . . . . 21, 44
Finalize . . . . . . . . . . . . . . . . . . . . . . 39, 49
Flexible Recording . . . . . . . . . . . . . . . . 18
Format . . . . . . . . . . . . . . . . . . . . . . . 39, 49
FR (Flexible Recording Mode) . . . . . . 17
FUNCTIONS window . . . . . . . . . . . . . . 37
JPEG . . . . . . . . . . . . . . . . . . . . . . . . 26, 49
Language
Audio . . . . . . . . . . . . . . . . . . . . . . . . 42
Code list . . . . . . . . . . . . . . . . . . . . . . 44
On-screen . . . . . . . . . . . . . . . . . . . . . 41
Soundtrack . . . . . . . . . . . . . . . . . 28, 42
Subtitle . . . . . . . . . . . . . . . . . . . . 28, 42
LPCM . . . . . . . . . . . . . . . . . . . . . . . . 43, 49
Manual Skip . . . . . . . . . . . . . . . . . . . . .
Menu
MP3 . . . . . . . . . . . . . . . . . . . . . . . . .
On-screen . . . . . . . . . . . . . . . . . . . . .
SETUP . . . . . . . . . . . . . . . . . . . . . . .
Mode
Recording . . . . . . . . . . . . . . . . . . . . .
Still Mode . . . . . . . . . . . . . . . . . . . . .
MP3 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Partial Erase . . . . . . . . . . . . . . . . . . . . . 31
PC card . . . . . . . . . . . . . . . . . . . . . . . . . 15
PCM Down Conversion . . . . . . . . . . . . 43
Picture settings . . . . . . . . . . . . . . . 29, 42
Play list . . . . . . . . . . . . . . . . . . . . . . . . . 32
Playback NR . . . . . . . . . . . . . . . . . . . . . 29
Power Save . . . . . . . . . . . . . . . . . . . . . . 41
Progressive . . . . . . . . . . . . 12, 29, 44, 49
Properties
Play list . . . . . . . . . . . . . . . . . . . . . . . 33
Still picture . . . . . . . . . . . . . . . . . . . . 27
Title . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Protection
Card . . . . . . . . . . . . . . . . . . . . . . . . . 38
Cartridge . . . . . . . . . . . . . . . . . . . . . . 38
Disc . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Folder . . . . . . . . . . . . . . . . . . . . . . . . 34
Still picture . . . . . . . . . . . . . . . . . . . . 34
Title . . . . . . . . . . . . . . . . . . . . . . . . . . 31
SHOWVIEW is a trademark of Gemstar Development Corporation.
The SHOWVIEW system is manufactured under licence from
Gemstar Development Corporation.
58
17
42
25
On-screen
Language . . . . . . . . . . . . . . . . . . . . . 41
Menus . . . . . . . . . . . . . . . . . . . . . . . . 28
Status messages . . . . . . . . . . . . . . . 29
“DTS” and “DTS 2.0iDigital Out” are trademarks of Digital
Theater Systems, Inc.
58
25
28
41
Noise reduction (NR)
AV-in NR . . . . . . . . . . . . . . . . . . . . . . 42
Playback NR . . . . . . . . . . . . . . . . . . . 29
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby
Laboratories.
RQT7542
23
MPEG Layer-3 audio decoding technology licensed from
Fraunhofer IIS and Thomson multimedia.
Q Link . . . . . . . . . . . . . . . . . . . . . . . . 6, 50
Quick View . . . . . . . . . . . . . . . . . . . . . . 23
Ratings level . . . . . . . . . . . . . . . . . . . . . 42
Recording . . . . . . . . . . . . . . . . . . . . . . . 16
Direct TV Recording . . . . . . . . . . . . . 18
DV automatic recording . . . . . . . . . . . 35
External Link . . . . . . . . . . . . . . . . . . . 21
Flexible Recording . . . . . . . . . . . . . . . 18
Mode . . . . . . . . . . . . . . . . . . . . . . . . . 17
Timer . . . . . . . . . . . . . . . . . . . . . . 19–21
Remote control code . . . . . . . . . . . . . . 13
Repeat Play . . . . . . . . . . . . . . . . . . . . . . 29
Resume play function . . . . . . . . . . . . . 23
RGB
Input . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Output . . . . . . . . . . . . . . . . . . . . . . 7, 44
SD card . . . . . . . . . . . . . . . . . . . . . . . . . 15
SETUP menu . . . . . . . . . . . . . . . . . . . . . 41
Shipping Condition . . . . . . . . . . . . . . . . 41
SHOWVIEW . . . . . . . . . . . . . . . . . . . . . . . . 19
Simultaneous rec and play . . . . . . . . . 17
Soundtrack . . . . . . . . . . . . . . . . . . . . . . 28
Status messages . . . . . . . . . . . . . . . . . 29
Still picture
Edit . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Play . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Transferring (dubbing) . . . . . . . . . . . . 36
Subtitle . . . . . . . . . . . . . . . . . . . . . . . . . 28
Teletext . . . . . . . . . . . . . . . . . . . . . . . . . 17
TIFF . . . . . . . . . . . . . . . . . . . . . . . . . 26, 49
Time Slip . . . . . . . . . . . . . . . . . . . . . 17, 23
Timer recording . . . . . . . . . . . . . . . 19–21
Transfer . . . . . . . . . . . . . . . . . . . . . . . . . 29
Transferring (dubbing) still pictures . . 36
Tuning
Auto-Setup . . . . . . . . . . . . . . . . . . 11, 46
Manual . . . . . . . . . . . . . . . . . . . . . . . . 45
Preset Download . . . . . . . . . . . . . 10, 46
TV System (PAL/NTSC) . . . . . . . . . . . . 46
TV type . . . . . . . . . . . . . . . . . . . . . . . . . . 12
V.S.S. . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
VPS/PDC . . . . . . . . . . . . . . . . . . . . . 19, 50
