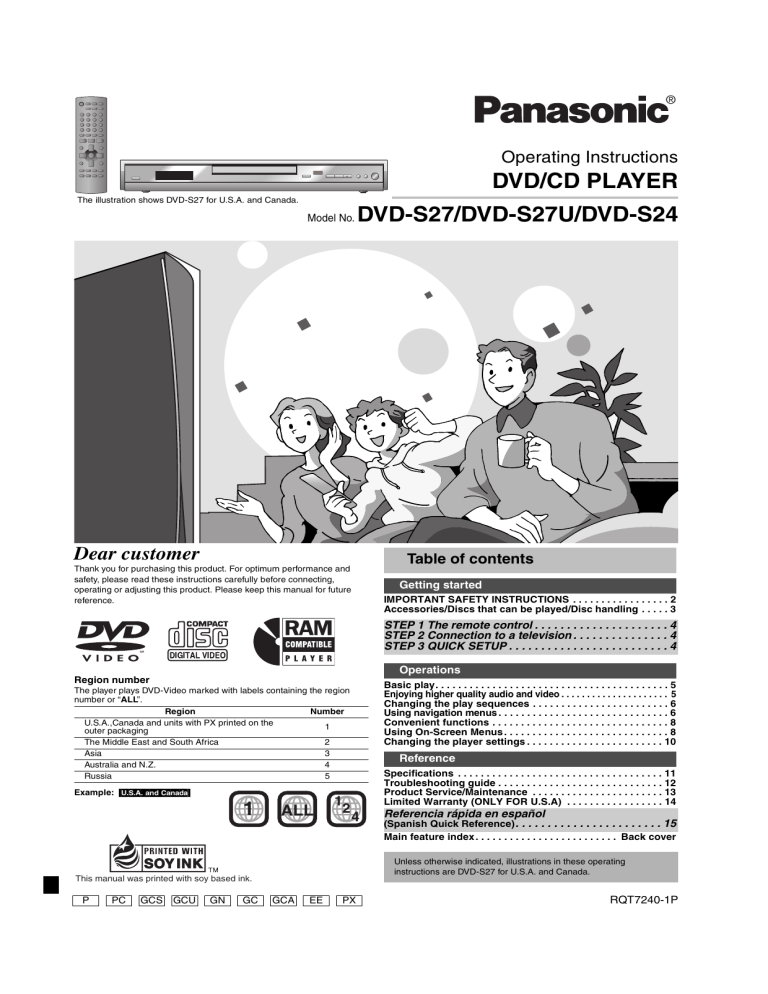

Panasonic DVDS24 Operating Instructions
®
Operating Instructions
DVD/CD PLAYER
The illustration shows DVD-S27 for U.S.A. and Canada.
Model No.
DVD-S27/DVD-S27U/DVD-S24
Dear customer
Table of contents
Thank you for purchasing this product. For optimum performance and
safety, please read these instructions carefully before connecting,
operating or adjusting this product. Please keep this manual for future
reference.
Getting started
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . 2
Accessories/Discs that can be played/Disc handling . . . . . 3
STEP 1 The remote control . . . . . . . . . . . . . . . . . . . . . 4
STEP 2 Connection to a television . . . . . . . . . . . . . . . 4
STEP 3 QUICK SETUP . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operations
Region number
Basic play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Enjoying higher quality audio and video . . . . . . . . . . . . . . . . . . . . . 5
Changing the play sequences . . . . . . . . . . . . . . . . . . . . . . . . 6
Using navigation menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Convenient functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using On-Screen Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Changing the player settings . . . . . . . . . . . . . . . . . . . . . . . . 10
The player plays DVD-Video marked with labels containing the region
number or “ALL”.
Region
Number
U.S.A.,Canada and units with PX printed on the
1
outer packaging
The Middle East and South Africa
2
Asia
3
Australia and N.Z.
4
Russia
5
Example: [U.S.A.\and\Canada[
1
ALL
1
2
Reference
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Product Service/Maintenance . . . . . . . . . . . . . . . . . . . . . . . 13
Limited Warranty (ONLY FOR U.S.A) . . . . . . . . . . . . . . . . . 14
4
Referencia rápida en español
(Spanish Quick Reference) . . . . . . . . . . . . . . . . . . . . . . . 15
Main feature index . . . . . . . . . . . . . . . . . . . . . . . . . Back cover
Unless otherwise indicated, illustrations in these operating
instructions are DVD-S27 for U.S.A. and Canada.
This manual was printed with soy based ink.
P
PC
GCS
GCU
GN
GC
GCA
EE
PX
RQT7240-1P
Except for U.S.A. and Canada
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PRODUCT DAMAGE, DO NOT
EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND
THAT NO OBJECTS FILLED WITH LIQUIDS,
SUCH AS VASES, SHALL BE PLACED ON THE
APPARATUS.
CAUTION!
≥ DO NOT INSTALL OR PLACE THIS UNIT IN A
BOOKCASE, BUILT-IN CABINET OR IN ANOTHER
CONFINED SPACE. ENSURE THE UNIT IS WELL
VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK
OR FIRE HAZARD DUE TO OVERHEATING, ENSURE
THAT CURTAINS AND ANY OTHER MATERIALS DO NOT
OBSTRUCT THE VENTILATION VENTS.
≥ DO NOT OBSTRUCT THE UNIT’S VENTILATION
OPENINGS WITH NEWSPAPERS, TABLECLOTHS,
CURTAINS, AND SIMILAR ITEMS.
≥ DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH
AS LIGHTED CANDLES, ON THE UNIT.
≥ DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY
FRIENDLY MANNER.
The socket outlet shall be installed near the equipment and easily
accessible or the mains plug or an appliance coupler shall remain
readily operable.
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
CAUTION:
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
≥Reorient or relocate the receiving antenna.
≥Increase the separation between the equipment and receiver.
≥Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
≥Consult the dealer or an experienced radio/TV technician for help.
Any unauthorized changes or modifications to this equipment would
void the user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
THE FOLLOWING APPLIES ONLY IN THE U.S.A. AND CANADA
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the presence
of uninsulated “dangerous voltage” within
the product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
(Inside of product)
[The\Middle\East,\South\Africa\and\Asia\
THIS UNIT IS INTENDED FOR USE IN TROPICAL CLIMATES.
\Australia,\N.Z.,\Russia,\and\units\with\PX\printed\on\the\outer\packaging]
THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.
The exclamation point within an
equilateral triangle is intended to alert the
user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompanying
the appliance.
This product may receive radio interference caused by mobile
telephones during use. If such interference is apparent, please increase
separation between the product and the mobile telephone.
RQT7240
IMPORTANT SAFETY INSTRUCTIONS
2
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed
below. Keep these operating instructions handy for future reference.
10) Protect the power cord from being walked on or pinched particularly
1) Read these instructions.
at plugs, convenience receptacles, and the point where they exit from
2) Keep these instructions.
the apparatus.
3) Heed all warnings.
11) Only use attachments/accessories specified by the manufacturer.
4) Follow all instructions.
12) Use only with the cart, stand, tripod, bracket, or table
5) Do not use this apparatus near water.
specified by the manufacturer, or sold with the apparatus.
6) Clean only with dry cloth.
When a cart is used, use caution when moving the cart/
7) Do not block any ventilation openings. Install in accordance with the
apparatus combination to avoid injury from tip-over.
manufacturer’s instructions.
13) Unplug this apparatus during lightning storms or
8) Do not install near any heat sources such as radiators, heat registers,
when unused for long periods of time.
stoves, or other apparatus (including amplifiers) that produce heat.
14) Refer all servicing to qualified service personnel.
9) Do not defeat the safety purpose of the polarized or grounding-type
Servicing is required when the apparatus has been damaged in any
plug. A polarized plug has two blades with one wider than the other. A
way, such as power-supply cord or plug is damaged, liquid has been
grounding-type plug has two blades and a third grounding prong. The
spilled or objects have fallen into the apparatus, the apparatus has
wide blade or the third prong are provided for your safety. If the
been exposed to rain or moisture, does not operate normally, or has
provided plug does not fit into your outlet, consult an electrician for
been dropped.
replacement of the obsolete outlet.
Accessories
(Only for U.S.A.) To order accessories, refer to “Accessory Purchases” on page 14.
(For other areas) To order accessories, call the dealer from whom you have made your purchase.
∏ 1
∏ 1
∏ 2
Remote control
AC power supply cord
[U.S.A.\and\Canada]
\Australia\and\N.Z.]
[United\Arab\Emirates,\South\Africa,\Asia,\Russia,\
\and\units\with\PX\printed\on\the\outer\packaging]
AC power supply cords
[The\Middle\East]except\United\Arab\Emirates\
(EUR7631020)
(K2CB2CB00006)
(K2CJ2DA00008)
∏ 1 Audio/video cable
(JAC3315N)
∏ 2 Remote control batteries
\Units\with\PX\printed\on\the\outer\packaging\
∏ 1 Power plug adaptor
(K2DA42E00001)
(RJA0019-2X)
(RJA0019-2X)
(RJA0053-3X)
[For\Saudi\Arabia\
[Note]
The included AC power supply cord is for use with this unit only. Do not
use it with other equipment.
Discs that can be played
Disc
Logo
Indication
in these
operating
instructions
[RAM]
DVD-RAM
[JPEG]
Remarks
Recorded using Version 1.1 of the Video
Recording Format (a unified video
recording standard).
Recorded using the DCF (Design rule for
Camera File system) standard.
≥ Recorded with DVD video recorders, DVD
video cameras, personal computers, etc.
≥ Remove discs from their cartridges before use.
≥ Recorded with Panasonic DVD-Video recorders
≥ To play JPEG files, select “Play as Data
Disc” in Other Menu (➜ page 9).
—
DVD-Video
[DVD-V]
DVD-R
Panasonic DVD-R recorded and finalized§ on a Panasonic DVD-Video recorders or DVDVideo cameras are played as DVD-Video on this unit.
Accessories/Discs that can be played/Disc handling
Use numbers when asking for replacement parts.
—
Video CD
[VCD]
Conforming to IEC62107
SVCD
—
[CD]
CD
[WMA]
≥ This unit can play CD-R/RW (audio recording disc) recorded with the formats on the left.
Close the sessions or finalize§ the disc after recording.
[MP3]
CD-R
≥ HighMAT discs
—
[JPEG]
WMA, MP3 or JPEG files only.
CD-RW
[CD]
To play without using the HighMAT function, select “Play as Data Disc” in Other Menu
(➜ page 9).
[VCD]
§A process that allows play on compatible equipment.
≥ It may not be possible to play the above discs in all cases due to the type of disc or condition of the recording.
∫ Discs that cannot be played
DVD-Audio, DVD-ROM, CD-ROM, CDV, CD-G, DVDiR, iRW, DVD-RW,
SACD, Divx Video Discs and Photo CD, DVD-RAM that cannot be removed from
their cartridge, 2.6-GB and 5.2-GB DVD-RAM, and “Chaoji VCD” available on
the market including CVD, DVCD and SVCD that do not conform to IEC62107.
∫ Audio format of DVDs
You can play discs in stereo with these
symbols.
HighMAT™ and the HighMAT logo are either
trademarks or registered trademarks of
Microsoft Corporation in the United States and/
or other countries.
∫ To clean discs
[DVD-V] [VCD] [CD]
Wipe with a damp cloth and then wipe dry.
[RAM] [DVD-R]
≥ Clean with an optional DVD-RAM/PD disc cleaner (LF-K200DCA1, where available).
≥ Never use cloths or cleaners for CDs etc.
∫ Handling precautions
≥ Do not attach labels or stickers to discs (This may cause disc warping,
rendering it unusable).
≥ Do not write on the label side with a ball-point pen or other writing
instrument.
≥ Do not use record cleaning sprays, benzine, thinner, static electricity
prevention liquids or any other solvent.
≥ Do not use scratch-proof protectors or covers.
≥ Do not use the following discs:
– Discs with exposed adhesive from removed stickers or labels (rented
discs etc).
– Discs that are badly warped or cracked.
– Irregularly shaped discs, such as heart shapes.
RQT7240
Disc handling
3
STEP 1 The remote control
∫ Batteries
≥ Insert so the poles (i and j) match those in the
remote control.
≥ Do not use rechargeable type batteries.
R6/LR6, AA, UM-3
Mishandling of batteries can cause electrolyte
leakage which can damage items the fluid contacts
and may cause a fire.
Remove if the remote control is not going to be used
for a long period of time. Store in a cool, dark place.
Do not:
The remote control/Connection to a television/QUICK SETUP
≥ mix old and new batteries.
≥ use different types at the same time.
≥ heat or expose to flame.
≥ take apart or short circuit.
≥ attempt to recharge alkaline or manganese
batteries.
≥ use batteries if the covering has been peeled off.
∫ Use
Aim at the remote control sensor, avoiding obstacles,
at a maximum range of 7 m (23 feet) directly in front
of the unit.
STEP 2 Connection to a television
≥ Do not place the unit on amplifiers or equipment that may become hot. The heat can damage the unit.
≥ Do not connect through the video cassette recorder. Due to copy guard protection, the picture may not display properly.
≥ Turn off all equipment before connection and read the appropriate operating instructions.
≥ Connect the terminals of the same color.
Television
WITH VIDEO IN or S VIDEO IN
AUDIO IN
R
L
VIDEO
IN
or
WITH
COMPONENT VIDEO IN
COMPONENT
VIDEO IN
AUDIO IN
R
L
S VIDEO
IN
S video cable§
Audio/video
cable
(included)
Audio/video
cable (included)
Video
cables
Not used
To enjoy progressive video
Connect to a progressive output
compatible television.
1 Select “Enable” in the progressive
output setting in QUICK SETUP
(➜ see below).
2 Set “Video Output Mode” in Picture
Menu to “480P” (➜ page 9).
All Panasonic televisions with 480P input
connectors are compatible. Consult the
manufacturer if you have another brand
of television.
\U.S.A.,\Canada\and\units\with\PX\printed\on\the\outer\packaging\
≥ Select “Darker” from the “Black Level Control” in the “Video”
tab (➜ page 10).
§When
using this connection, the audio cable
(red and white plugs) should also be
connected.
You can connect the audio cable to the 2channel audio input terminals of an
analog amplifier or system component to
enjoy stereo.
Back of the unit
∫ Connect the AC power supply cord last
For units with PX printed on the outer packaging
If the power plug does not fit your AC
outlet, use the power plug adaptor
(included).
If it still doesn’t fit, contact an electrical
parts distributor for assistance.
AC power supply cord
(included)
To household AC outlet
∫ Enjoying multi-channel surround sound
AC IN
Amplifier with a
built-in decoder or a
Coaxial cable decoder-amplifier
combination
Conserving power
This unit consumes a small amount of power, even
when it is turned off (1 W). To save power when the
unit is not to be used for a long time, unplug it from
the household AC outlet.
COAXIAL IN
Change “PCM Digital Output”,
“Dolby Digital”, “DTS Digital
Surround” and “MPEG§” in “Audio”
tab (➜ page 10).
[For[Saudi]Arabia\
[The\Middle\East\
≥ Use the AC power supply cord that matches the
socket for the area you live in.
§
Back of the unit
MPEG: [The\Middle\East,\South\Africa,\Russia,\Australia\and\N.Z.]
STEP 3 QUICK SETUP
Turn on the television and select the appropriate video input on the television.
AV ENHANCER FL SELECT OPEN/CLOSE
1
2
3
4
5
ADVANCED
SURROUNDPICTURE MODE REPEAT
RETURN
SETUP
DIRECT NAVIGATOR
TOP MENU
RQT7240
ENTER
SETUP
MENU
ENTER
4
ENTER
PLAY LIST
Power ON.
RETURN
DISPLAY
SUBTITLE AUDIO ANGLE/PAGE SETUP
PLAY MODE SLEEP
ZOOM
GROUP
Shows QUICK
SETUP screen.
Follow the message
and make the settings.
To change these settings later
Select “QUICK SETUP” in “Others” tab (➜ page 10).
Press to finish
QUICK SETUP.
Press to
exit.
Basic play
1 Power ON.
AV ENHANCER FL SELECT OPEN/CLOSE
2 Open the disc tray.
Stop
Pause
ADVANCED
SURROUND PICTURE MODE REPEAT
1
2
3
4
5
6
PLAY SPEED
POSITION MEMORY
7
8
9
0
10
CANCEL
QUICK REPLAY
SKIP
STOP
SLOW/SEARCH
PAUSE
DIRECT NAVIGATOR
Remote control
signal sensor
PLAY
PLAY LIST
TOP MENU
3 Load the disc.
MENU
ENTER
DISPLAY
4 Start play.
Press to skip.
Press and hold to
–search
–slow-motion.
≥ Load double-sided discs so
the label for the side you
want to play is facing up.
RETURN
SUBTITLE AUDIO ANGLE/PAGE SETUP
Stop
PAUSE
Pause
The position is memorized when
“!” flashes on the display.
≥ Press [1] (PLAY) to resume.
[DVD-V] To review the previous
chapters (➜ page 8, Position
memory).
≥ Press [∫] to clear the position.
Enter number
1
2
3
4
5
6
7
8
9
0
10
≥ Press [1] (PLAY) to restart
play.
TOP MENU
[DVD-V]
Shows a disc menu
SKIP
ENTER
Search
(during play)
SLOW/SEARCH
Slow-motion
Disc menu
≥ Up to 5 steps
≥ Press [1] (PLAY) to start play.
≥ [VCD] Slow motion, forward
direction only
(during pause)
Frame-byframe
≥ [VCD] forward direction only
Select
On-screen
item select
MENU
RETURN
Return to
previous
screen
ENTER
Register
[VCD]
Shows a disc menu
RETURN
ENTER
(during pause)
[VCD] with playback control
While stopped, press the
numbered buttons.
[WMA] [MP3] [JPEG]
e.g. To select 123:
[1] ➜ [2] ➜ [3] ➜ [ENTER]
[DVD-V]
Shows a disc top menu
(Group skip [WMA] [MP3] [JPEG])
Skip
[RAM] [DVD-V] [VCD] [CD]
e.g. To select 12:
[S10] ➜ [1] ➜ [2]
Main unit
display
FL SELECT
Information
screen
SUBTITLE
Number display
:;
Time display
[WMA] [MP3] [JPEG]
Turns the information screen on/off
∫ Standby/on switch (Í/I)
Basic play/Enjoying higher quality audio and video
STOP
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of power.
\Units\sold\outside\the\U.S.A\and\Canada\
If you are experiencing problems, refer to troubleshooting guide
(➜ page 12, 13).
Standby/on indicator (Í)
[Note]
Discs continue to rotate while menus are displayed. Press [∫] when you
finish to preserve the unit’s motor and your television screen.
When the unit is connected to the AC mains supply, this indicator
lights up in standby mode and goes out when the unit is turned on.
Enjoying higher quality audio and video
AV Enhancer
(Main unit)
By just pressing this one button the disc type is
automatically determined and the best audio and
video settings which are indicated below are
configured.
Picture Mode
[RAM] [DVD-V] [VCD] [JPEG]
Press [PICTURE MODE] to change the
picture quality for movie viewing.
Menu
AV Enhancer
On
Press [AV ENHANCER] to select “On”.
Audio settings: Advanced Surround (➜ page 6)
Dialogue Enhancer (➜ page 9)
Video settings: Picture Mode (➜ right)
≥ When AV Enhancer is on, individual settings can no longer be changed.
Menu
Picture Mode
Normal
Cinema1: Mellows images and enhances detail in dark scenes.
Cinema2: Sharpens images and enhances detail in dark scenes.
Animation
Dynamic
Normal
RQT7240
PICTURE MODE
AV ENHANCER
5
Enjoying higher quality audio and video
Using navigation menus
(➜ Refer to the back cover for remote control button positions)
(➜ Refer to the back cover for remote control button positions)
ADVANCED
SURROUND
Playing data discs
Advanced Surround
[WMA] [MP3] [JPEG] [CD] (CD-text only)
MENU
[RAM] [DVD-V] [VCD] (2 or more channels)
Menu
Press [ADVANCED SURROUND] to
select “SP1” ,“SP2”,“HP1”or “HP2”.
SP (Speaker) 1 Natural
HP (Headphone) 1 Natural
Advanced Surround SP 1
SP 2 Enhanced
HP 2 Enhanced
Changing the play sequences
Enjoying higher quality audio and video/Changing the play sequences/Using navigation menus
Press [3 4] to select “All”, “Audio”, or “Picture” and press
[ENTER].
≥To display/exit the screen
Press [TOP MENU].
∫ Using navigation menus
1 Press [MENU].
2 Press [3 42 1] to select the group or audio/picture
content and press [ENTER].
Navigation Menu
002 My favorite2 005 Japanese 001 Lady Starfish
(➜ Refer to the back cover for remote control button positions)
Perfume
001 My favorite1
002 My favorite2
001 Brazilian
002 Chinese
003 Czech
004 Hungarian
005 Japanese
006 Mexican
007 Philippine
008 Swedish
009 Piano
010 Vocal
Program/Random play
[DVD-V] [VCD] [CD] [WMA] [MP3] [JPEG]
While stopped, press [PLAY MODE].
e.g. [DVD-V]
1 Press the numbered buttons to
select the items ([WMA] [MP3] [JPEG]
then press [ENTER]).
Choose a title and chapter.
No. Title Chapter Time
11
Play
Clear
Repeat this step to program other items.
Clear all
2 Press [1] (PLAY).
Selecting all the items
(on the disc or in the title or group)
Press [ENTER] and [3 4] to select “ALL”, then press [ENTER] again to
register.
Changing the program
Press [3 4] to select an item.
–To change an item, repeat step 1.
–To clear an item, press [CANCEL] (or select “Clear” and press [ENTER]).
≥ Press [ANGLE/PAGE] to skip page by page.
Clearing the whole program
Select “Clear all” and press [ENTER]. The whole program is also cleared
when the unit is turned off or the disc tray is opened.
∫ Random play
1 ([DVD-V] [WMA] [MP3] [JPEG])
Press the numbered buttons to
select a group ([WMA] [MP3] [JPEG]
then press [ENTER]) or a title.
2 Press [1] (PLAY).
Random
Press Playback
PLAY to start
Choose a title.
Title 1
PLAY to start
to exit
Number currently selected
Audio/picture contents
Using the submenu [WMA] [MP3] [JPEG]
1 While the menu is displayed, press [DISPLAY].
Multi
List
Tree
Thumbnail
Next group
Previous group
Groups and content
All
Audio
WMA/MP3 and JPEG files
Help display
Find
Content only
Groups only
Thumbnail images [JPEG]
To the next group [WMA] [MP3]
To the previous group [WMA] [MP3]
WMA/MP3 files only
JPEG files only
To switch between guide messages and
the elapsed play time indicator
To search by content or group title (➜ see below)
∫ Searching by a content or group title
[WMA] [MP3] [JPEG]
Place the cursor on the group title to search a group, or place the cursor
on the content title to search content.
¢ A
Find
2 Press [34] to select a character and press [ENTER].
≥Repeat to enter another character.
≥Lower case is also searched.
≥Press [6 5] to skip between A, E, I, O and U.
≥Press [2] to erase a character.
≥Erase the asterisk (¢) to search for the titles starting with that
character.
Repeat play
(Only when the elapsed play time can be displayed
[JPEG]: Works with all JPEG content.)
Press [REPEAT] several times to select
an item to be repeated.
RETURN
1 Select “Find”
(➜ see above).
To exit the program or random mode
Press [PLAY MODE] several times while stopped.
REPEAT
:WMA/MP3 files
2 Press [3 4] to select the submenu and press [ENTER].
e.g. [DVD-V]
0 ~ 9 to select
:JPEG files
≥To enjoy listening to WMA/MP3 contents while showing a JPEG
image on the screen
Select a JPEG file first, and then select audio contents.
(The opposite order is not effective.)
≥To exit the screen
Press [MENU].
≥ Disable HighMAT disc play to use random and program play.
Select “Play as Data Disc” in Other Menu (➜ page 9).
∫ Program play (up to 32 items)
Group and content number
currently playing
JPEG
Content 0001/0004
DISPLAY to display the sub menu
Group
5
001 Lady Starfish
002 Metal Glue
003 Life on Jupiter
004 Starperson
Group 005/023
Each time you press the button:
Program -------------------------------------) Random
^-------------Off (Normal play),-----------b
RQT7240
6
∫ Using playback menus (except JPEG files on DVD-RAM)
While the menu is displayed
Off
≥ When using discs recorded with surround sound, sound seems to come
from speakers on either side of you.
≥ When using headphones from the connected equipment, select “HP 1”
or “HP 2”.
≥ Optimum seating position is 3 to 4 times the distance between the front
left and right speakers or the width of the television if using the
television’s speakers.
≥ Do not use in combination with surround effects on other equipment.
PLAY MODE
[WMA] [MP3] [JPEG]
You can play JPEG files on DVD-RAM or play HighMAT discs without using
the HighMAT function (➜ page 9, “Play as Data Disc” in Other Menu).
3 Press [1] to select “Find” and press [ENTER].
Menu
Repeat
The search result screen appears.
Off
4 Press [3 4] to select the content or group and press
[ENTER].
To use the contents screen to find a track
[CD] (CD text only)
Press [3 4] to move
through the tracks
and press [ENTER].
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
≥ Press [ANGLE/PAGE] to
skip page by page.
Ashley at Prom
City Penguin
Formura one
Soccer
Baseball
Neanderthal
Cartoons
Trilobites
White Dwarf
Discovery
RETURN
to exit
Select the item following the on-screen instructions.
Menu1
P l ay l i s t 2
2 Prev
P l ay l i s t 1
Menu2
Menu3
P l ay l i s t 3
3Return
Next1
Menu: Takes you to the
next menu which
shows play lists
or another menu
Play list: play starts
On
No.
Date
1
2
3
4
5
11/ 1(WED)
1/ 1 (MON)
2/ 2 (TUE)
3/ 3 (WED)
4/10(THU)
0:05 AM
1:05 PM
2:21 PM
3:37 PM
11:05 AM
Contents
Title
Monday feature
Auto action
Cinema
Music
Baseball
≥Press [ANGLE/PAGE] to skip
page by page.
0
9 to select and press ENTER
≥To select a 2-digit number
e.g. 23: [S10] ➜ [2] ➜ [3]
≥Press [1] to show the contents of the program.
PLAY LIST
While the menu is displayed
PAG E 1 / 3
Direct Navigator
2 Press [3 4] or the
numbered buttons to
select the program.
Playing HighMAT discs [WMA] [MP3] [JPEG]
New Playlist Item Long Name Display Te
1 Press [DIRECT NAVIGATOR].
≥Titles appear only if you have
entered them.
≥You cannot change program
and disc titles.
to select and press ENTER
TOP MENU
2 01
1/23
All By Artist
Pink Island
Long John Platinum
SHIPWRECKED
RETURN
to exit
RETURN
to exit
Playing a play list [RAM]
(Only when the disc contains a play list)
1 Press [PLAY LIST].
2 Press [3 4] or the
numbered buttons to select
the play list.
Playlist
≥Press [ANGLE/PAGE] to skip
page by page.
≥To select a 2-digit number
e.g. 23: [S10] ➜ [2] ➜ [3]
≥To change the menu background
Press [DISPLAY].
The background changes to the one recorded on the disc.
≥To display/exit the screen
Press [TOP MENU].
3 Press [ENTER].
0
No.
1
2
Date
11/1
1/ 1
Length
0:00:01
0:01:20
Title
City Penguin
Ashley at Prom
3
2/ 2
1:10:04
Formula one
4
5
3/ 3
4/10
0:10:20
0:00:01
Soccer
Baseball
6
7
4/11
4/ 15
0:00:01
0:01:10
City Penguin
Ashley at Prom
8
9
10
4/ 17
4/ 20
4/22
0:13:22
0:05:30
0:07:29
Formula one
Soccer
Baseball
9 to select and press ENTER
∫ Selecting from the list
1 Press [MENU].
2 Press [2] then [3 4] to
switch among Playlist,
Group and Content lists.
3 Press [ 1] then [3 4] to
select an item and press
[ENTER].
≥Press [ANGLE/PAGE] to skip
page by page.
≥To exit the screen
Press [MENU].
Playlist
All By Artist
No.
Content title
1 Few times in summer
2 Less and less
Playlist
Group
3
4
5
6
Content
And when I was born
Quatre gymnopedies
You've made me sad
Using navigation menus
CD-Text
Disc Title:
Disc Artist:
Track Title:
Track Artist:
Playing the programs [RAM]
I can't quit him
Evening glory
8 Wheeling spin
9 Velvet Cuppermine
10 Ziggy starfish
7
0
9
to select
ENTER to play
RETURN
to exit
Tips for making WMA/MP3 and JPEG discs (For CD-R/CD-RW)
≥ Discs must conform to ISO9660 level 1 or 2 (except for extended
formats).
≥ This unit is compatible with multi-session but if there are a lot of
sessions it takes more time for play to start. Keep the number of
sessions to a minimum to avoid this.
Naming folders and files
e.g. [MP3]
At the time of recording, prefix folder
root
001 group
and file names with 3-digit numbers in
the order you want to play them (this
001
may not work at times).
001 track.mp3
Files must have the extension:
002 track.mp3
003 track.mp3
“.WMA” or “.wma”
002 group
“.MP3” or “.mp3”
“.JPG”, “.jpg”, “.JPEG” or “.jpeg”
003 group
001 track.mp3
002 track.mp3
003 track.mp3
004 track.mp3
001 track.mp3
002 track.mp3
003 track.mp3
[WMA]
≥ You cannot play WMA files that are copy protected.
[MP3]
≥ This unit is not compatible with ID3 tags.
≥ Compatible sampling rate: 8, 11.02, 12, 16, 22.05, 24, 32, 44.1, and
48 kHz
[JPEG]
≥ To view JPEG files on this unit:
– Take them on a digital camera that meets the DCF Standard (Design
rule for Camera File system) Version 1.0. Some digital cameras have
functions that are not supported by the DCF Standard Version 1.0
like automatic picture rotation which may render a picture unviewable.
– Do not alter the files in any way or save them under a different name.
≥ This unit cannot display moving pictures, MOTION JPEG and other
such formats, still pictures other than JPEG (e.g. TIFF) or play
associated sound.
RQT7240
While the menu is
displayed
DIRECT NAVIGATOR
7
Convenient functions (➜ Refer to the back cover for remote control button positions)
AUDIO
Audio
Changing play speed
PLAY SPEED
[DVD-V] (with multiple soundtracks) [RAM] [VCD]
Press [AUDIO] several times to select the soundtrack.
[RAM] [DVD-V]
Press [W, PLAY SPEED] or [X, PLAY
SPEED].
–from k0.6 to k1.4 (in 0.1 units)
≥ After you change the speed
–Digital output switches to PCM-2ch.
–Sampling frequency of 96 kHz is converted to 48 kHz.
≥To return to normal play
Press [1] (PLAY).
ZOOM
[RAM] [VCD]
You can use this button to select “L”, “R” or “L R”.
[DVD-V] (Karaoke discs)
Press [2 1] to select “On” or “Off” of vocals. Read
the disc’s instructions for details.
DVD-VR
a0.9
[RAM] [DVD-V] [VCD]
This feature expands the letterbox picture to fit the screen.
Press [ZOOM] several times to select the preset aspect ratio
or “Auto”. (Just Fit Zoom)
Convenient functions/Using On-Screen Menus
LPCM/Î Digital/DTS/MPEG: Signal type
kHz (Sampling frequency)/bit/ch (Number of channels)
Example: 3/2 .1ch
.1: Low frequency effect
(not displayed if there is no signal)
0: No surround
1: Mono surround
2: Stereo surround (left/right)
1: Center
2: Front leftiFront right
3: Front leftiFront rightiCenter
Menu
GROUP
Just Fit Zoom
Starting play from a selected group
a1.00
[WMA] [MP3] [JPEG]
A folder on WMA/MP3 and JPEG discs is treated as a “Group”.
POSITION MEMORY
Position memory
1 Press [GROUP].
2 Press [3 4] to select the item and
press [ENTER].
(Only when the elapsed play time can be displayed
[JPEG]: Works with all JPEG content.)
ANGLE/PAGE
This position is memorized even after turning off the unit or changing the disc.
Menu
Group Search
1
Angle select and Still picture rotation
Press [POSITION MEMORY].
Press [ANGLE/PAGE] several times to select the angle or
rotate the still picture.
Position memorized
≥ Up to 5 discs.
≥ When the sixth disc is memorized, the earliest position is replaced.
[DVD-V] (with multiple angles)–Angle select
[JPEG] –Still picture rotation
When the unit is turned on or the disc is inserted, “!” flashes on the
display.
SLEEP
Sleep timer
Press [1] (PLAY) to start play from that position.
To review the previous chapters [DVD-V]
Press [1] (PLAY) while the following message is displayed.
Press PLAY to preview chapters
or
Press [SLEEP] to select the time to turn
off (60 min, 90 min, 120 min) or “Auto”.
Press PLAY to Chapter Review
SUBTITLE
Menu
Sleep
Auto
Auto:
–Turns the unit off 5 minutes after play finishes.
–Also works with DVDs that show a menu after play finishes.
–Does not work if you stop play or show a disc menu. It is activated again
when you restart play.
To confirm the remaining time
Press [SLEEP] again.
Do not press [1] (PLAY) if you want to cancel review.
Subtitle
[DVD-V] (with multiple subtitles) [VCD] (SVCD only)
[RAM] (On/Off only)
QUICK REPLAY
Press [SUBTITLE] several times to
select the subtitle language.
To clear/display the subtitles
Press [2 1] to select “On” or “Off”.
Quick replay
Menu
Subtitle
Off
≥ [RAM] (Only discs that contain subtitle on/off information)
Subtitle on/off information cannot be recorded using Panasonic DVD
Recorders. (Subtitle on/off information is also not recordable on
Panasonic DVD-R finalized with a Panasonic DVD Recorder.)
Except [JPEG]
(Only when the elapsed play time can be displayed)
Press [QUICK REPLAY] to skip back a few
seconds.
Using On-Screen Menus (➜ Refer to the back cover for remote control button positions)
1
2
DISPLAY
3
Go to the next
menu
RQT7240
Return to the
previous menu
Press once.
4
Select
Register
Select the menu.
(\DVD-S27/DVD-S27U\ When
pressed twice, the elapsed play
time indicator appears. ➜ page 9)
Items shown differ depending on the type of software.
Select
1
2
3
4
5
6
7
8
9
0
10
RETURN
ENTER
ENTER
8
1
Signal type/data
Zoom
Fine adjustments (Manual Zoom)
Press [2 1] .
–from k1.00 to k1.60 (in 0.01 units)
–from k1.60 to k2.00 (in 0.02 units)
Menu
Audio
Register
Make the settings.
Press to exit.
Using On-Screen Menus
Main menus
Program
Group
Title
Chapter
Track
Playlist
Content
Time
To start from a specific item
(➜ page 8)
To display the current bitrate or sampling frequency
Thumbnail To show thumbnail images
(➜ page 8)
Subtitle
Marker (VR) To recall a marker recorded on DVD-Video recorders
(➜ page 8)
Angle
Audio
To skip incrementally or decrementally (Time Slip for play only)
1. Press [ENTER] twice to show Time Slip indicator.
2. Press [3 4] to select the time and press [ENTER].
≥Press and hold [3 4] to change faster.
To start from a specific time (Time Search)
To change remaining/elapsed time display
Rotate
To turn on/off slideshow
Slideshow To change the slideshow timing (0–30 sec)
Other settings
∫ Audio Menu
Advanced
Surround
∫ Play Menu
Dialogue
Enhancer
(Only when the elapsed play time can be displayed
[JPEG]: Works with all JPEG content.)
Repeat
(➜ page 6)
Except
[JPEG]
[RAM] (still
picture part)
To repeat a specified section
Press [ENTER] at the starting and ending points. Press
[ENTER] again to cancel.
A-B
Repeat
[ENTER] (The unit is now ready to accept markers.)
To mark a position:
[ENTER] (at the desired point)
To mark another position: [2 1] ➜ [ENTER]
To recall a marker:
[2 1] ➜ [ENTER]
To erase a marker:
[2 1] ➜ [CANCEL]
≥ This feature doesn’t work during program and random
play.
∫ Picture Menu
Mode
Video
Output
Mode
Transfer
Mode
To make the dialogue in movies easier to hear
[DVD-V] (Dolby Digital, DTS, MPEG§, 3-channel or over,
with the dialogue recorded in the center channel)
On ,------. Off
Switch on if sound is distorted. (For AUDIO OUT connection)
On ,------. Off
MPEG: [The\Middle\East,\South\Africa,\Russia,\Australia\and\N.Z.]
∫ Display Menu
On ,------. Off
To mark up to 5 positions to play again
Marker
Attenuator
§
(➜ page 6)
(➜ page 5)
480I (Interlace) ,--. 480P (Progressive)
If you have chosen “480P” (➜ above), select the method
of conversion for progressive output to suit the type of
material.
Auto 1 (normal): For viewing film material
Auto 2: For viewing film material (the same as Auto 1,
but able to convert 30-frame-per-second
progressive video)
Video: For video material
Information ([JPEG]: Off, Date, Details)
0 to s60 (in 2 units)
Subtitle
Position
Auto, 0 to s7
Subtitle
Brightness
To select how to show images made for 4:3 aspect
screens on a 16:9 aspect television.
Normal: Laterally stretches images.
Auto:
Expands 4:3 letterbox images to fill more of the
screen. Other images appear in full in the center
4:3 Aspect
of the screen.
Shrink: Images appear in the center of the screen.
Zoom: Expands all images to fill the screen.
If your television has a similar feature, use it instead for a
better effect.
(➜ page 8)
Just Fit Zoom
Manual Zoom
GUI See-through
GUI Brightness
Using On-Screen Menus
Play Speed (➜ page 8)
(➜ page 5)
AV
Enhancer
(➜ page 8)
On ,------. Off
s3 to r3
∫ Other Menu
Sleep
(➜ page 8)
Play as DVD-VR
Play as HighMAT
or
Play as Data Disc
While stopped
≥ Select “Play as Data Disc” to play
JPEG files on DVD-RAM or to play a
HighMAT disc without using the
HighMAT function.
\DVD-S27/DVD-S27U\
∫ Elapsed play time indicator
Current playback item
Play mode
Current position
: Normal Play
PGM: Program Play
RND: Random Play
Elapsed play time
RQT7240
Condition–
play, pause or slow/search
9
Changing the player settings (‹ Refer to the back cover for remote control button positions)
≥ The settings remain intact even if you switch the unit to standby.
≥ Underlined items are the factory preset.
≥ See page 11 for operation.
The QUICK SETUP enables successive settings of the items in the
shaded area.
∫ “Disc” tab
Audio
Choose the audio language.
Subtitle
Choose the subtitle language.
Menus
Choose the language for disc menus.
Ratings
Set a ratings level to limit DVD-Video play.
≥ Follow the on-screen instructions.
≥ English
≥ (Language options)§1
≥ Automatic§4 ≥ English
≥ Original§2
≥ (Language options)§1
≥ Other¢¢¢¢§3
≥ Other¢¢¢¢§3
≥ English
≥ (Language options)§1
≥ Other¢¢¢¢§3
≥ Changing the menu language from QUICK SETUP also changes this setting.
Setting ratings (When level 8 is selected)
≥ 8 No Limit ≥ 1 to 7
≥ 0 Lock All: To prevent play of discs without ratings levels.
Changing ratings (When level 0–7 is selected)
≥ Unlock Player ≥ Change Password ≥ Change Level
≥ Temporary Unlock
∫ “Video” tab
TV Aspect
Choose the setting to suit your television
and preference.
Progressive Out (Component)
Changing the player settings
TV Type
Select to suit the type of television.
Time Delay
When connected with an AV amplifier and
Plasma display, adjust if you notice the
audio is out of sync with the video.
Still Mode
Specify the type of picture shown when paused.
Black Level Control§5
Change the black level of the picture if you
connected a television through the
COMPONENT VIDEO OUT terminals.
NTSC Disc Output§6§7
Choose PAL 60 or NTSC output when playing
NTSC discs.
≥ 4:3 Pan&Scan: Regular aspect television (4:3)
The sides of the widescreen picture are cut off so it fills the screen (unless
prohibited by the disc).
≥ 4:3 Letterbox: Regular aspect television (4:3)
Widescreen picture is shown in the letterbox style.
≥ 16:9: Widescreen television (16:9)
≥ Disable: Interlace output
≥ Enable§5 or ≥ Enable (NTSC Disc Only)§6§7: Progressive output
≥ Standard(Direct View TV) ≥ CRT Projector
≥ LCD TV/Projector ≥ Projection TV
≥ Plasma TV
≥ 0ms
≥ 20ms
≥ 40ms
≥ 60ms
≥ 80ms
≥ 100ms
≥ Automatic
≥ Field: The picture is not blurred, but picture quality is lower.
≥ Frame: Overall quality is high, but the picture may appear blurred.
≥ Lighter: When connected through VIDEO OUT or S VIDEO OUT.
≥ Darker: When connected through COMPONENT VIDEO OUT.
≥ PAL60: When connected to a PAL television
≥ NTSC: When connected to an NTSC television ([Asia]: “NTSC” is the factory preset.)
∫ “Audio” tab
PCM Digital Output
Check the digital input limitations of the
equipment you connect using COAXIAL
terminal and select the maximum sampling
frequency of PCM digital output.
Dolby Digital
DTS Digital Surround
MPEG§7
Dynamic Range Compression
Audio during Search
≥ Up to 48 kHz: When connected to equipment compatible with 44.1 or 48 kHz
≥ Up to 96 kHz: When connected to equipment compatible with 88.2 or 96 kHz
– Signals that exceed the set maximum frequency and signals from copy-protected discs are converted
to 48 or 44.1 kHz.
– Some equipment cannot handle sampling frequencies of 88.2 kHz, even if they can handle 96 kHz.
Read your equipment’s operating instructions for details.
Select “Bitstream” when the equipment can decode the bitstream (digital
≥ Bitstream ≥ PCM
form of multi-channel data). Otherwise, select “PCM”.
≥ PCM
≥ Bitstream
≥ If the bitstream is output to the equipment without a decoder, high levels
≥ PCM
≥ Bitstream
of noise can be output and may damage your speakers and hearing.
≥ Off
≥ On: Adjusts for clarity even when the volume is low through compressing the range of the lowest sound
level and the highest sound level. Convenient for late night viewing. (Only works with Dolby Digital)
≥ On
≥ Off
∫ “Display” tab
≥ English
≥ English
§7
≥ English
≥ On
§5
Menu Language
On-Screen Messages
§6
≥ Français ≥ Español
≥
≥ Français ≥ Deutsch ≥ Italiano
≥ Off
≥ Español ≥ Português≥ Svenska ≥ Nederlands
∫ “Others” tab
FL Dimmer
Changes the brightness of the unit’s display.
Auto Power Off
≥ Bright
≥ Dim
≥ Auto: The display is dimmed during play, but brightens when you perform some operations.
≥ On: The unit switches to standby mode after approximately 30 minutes in the stop mode,
irrespective of the SLEEP setting.
HighMAT
QUICK SETUP
Re-initialize Setting
This returns all values in the Setup menus to
the default settings.
RQT7240
§1
10
§2
≥ Off
≥ Enable
≥ Disable (Unable to use the HighMAT function.)
≥ Yes
≥ No
≥ Yes: The password screen is shown if “Ratings” (➜ above) are set. Please enter the same password.
≥ No
After “INI” on the display disappears, turn the unit off and on again.
Language options
[U.S.A.,\Canada[and\units\with\PX\printed\on\the\outer\packaging\ :
French and Spanish
[Asia] : Chinese
[The\Middle\East,\South\Africa,\Russia,\Australia\and\N.Z.] :
French, German, Italian, Spanish, Portuguese, Swedish and Dutch
The original language designed on the disc is selected.
§3
§4
§5
§6
§7
Input a code number referring to the table on page 11.
If the language selected for “Audio” is not available, subtitle appear in
that language (If available on the disc).
[U.S.A.,\Canada[and\units\with\PX\printed\on\the\outer\packaging\
[Asia]
[The\Middle\East,\South\Africa,\Russia,\Australia\and\N.Z.]
1
2
3
4
Select
Select
5
Select
SETUP
ENTER
Shows Setup menu.
Select the tab.
2
3
4
5
6
7
8
9
0
10
SETUP
ENTER
ENTER
Go right
1
Register
Register
Select the item.
Make the settings.
Press to exit.
Hausa:
7265
Hebrew:
7387
Hindi:
7273
Hungarian:
7285
Icelandic:
7383
Indonesian:
7378
Interlingua:
7365
Irish:
7165
Italian:
7384
Japanese:
7465
Javanese:
7487
Kannada:
7578
Kashmiri:
7583
Kazakh:
7575
Kirghiz:
7589
Korean:
7579
Kurdish:
7585
Laotian:
7679
Latin:
7665
Latvian, Lettish:7686
Lingala:
7678
Lithuanian:
7684
Macedonian: 7775
Malagasy:
7771
Malay:
7783
Malayalam:
7776
Maltese:
7784
Maori:
7773
Marathi:
7782
Moldavian:
7779
Mongolian:
7778
Nauru:
7865
Nepali:
7869
Norwegian:
7879
Oriya:
7982
Pashto, Pushto:8083
Persian:
7065
Polish:
8076
Portuguese:
8084
Punjabi:
8065
Quechua:
8185
Rhaeto-Romance:8277
Romanian:
8279
Russian:
8285
Samoan:
8377
Sanskrit:
8365
Scots Gaelic: 7168
Serbian:
8382
Serbo-Croatian:8372
Shona:
8378
Sindhi:
8368
Singhalese:
8373
Slovak:
8375
Slovenian:
8376
Somali:
8379
Spanish:
6983
Sundanese:
8385
Swahili:
8387
Swedish:
8386
Tagalog:
8476
Tajik:
8471
Tamil:
8465
Tatar:
8484
Telugu:
Thai:
Tibetan:
Tigrinya:
Tonga:
Turkish:
Turkmen:
Twi:
Ukrainian:
Urdu:
Uzbek:
Vietnamese:
Volapük:
Welsh:
Wolof:
Xhosa:
Yiddish:
Yoruba:
Zulu:
8469
8472
6679
8473
8479
8482
8475
8487
8575
8582
8590
8673
8679
6789
8779
8872
7473
8979
9085
Specifications
Signal system:
[U.S.A.,\Canada[and\units\with\PX\printed\on\the\outer\packaging\
NTSC
[Other\areas]
PAL 625/50, PAL 525/60, NTSC
Operating temperature range:
i5 to i35 oC (i41 to i95 xF)
Operating humidity range:
5 to 90 % RH (no condensation)
Discs played [8 cm (3 z) or 12 cm (5 z)]:
(1) DVD-RAM (DVD-VR compatible, JPEG formatted discs)
(2) DVD-Video
(3)DVD-R (DVD-Video compatible)
(4) CD-Audio (CD-DA)
(5)Video CD
(6) SVCD (Conforming to IEC62107)
(7) CD-R/CD-RW
(CD-DA, Video-CD, SVCD, MP3, WMA, JPEG formatted discs)
(8) MP3/WMA§
≥Compatible compression rate:
MP3:
between 32 kbps and 320 kbps
WMA:
between 48 kbps and 320 kbps
(9) JPEG§
≥Exif Ver 2.1 JPEG Baseline files
≥Picture resolution:
between 320k240 and 6144k4096 pixels
(sub sampling is 4:2:2 or 4:2:0)
(10) HighMAT Level 2 (Audio and Image)
Video output:
Output level:
1 Vp-p (75 ≠)
Output connector:
Pin jack (1 system)
S-video output:
Y output level:
1 Vp-p (75 ≠)
C output level:
[U.S.A.,\Canada[and\units\with\PX\printed\on\the\outer\packaging\
0.286 Vp-p (75 ≠)
[Other\areas]
NTSC; 0.286 Vp-p (75 ≠)
PAL; 0.300 Vp-p (75 ≠)
Output connector:
S terminal (1 system)
Component video output:
[U.S.A.\and\Canada\
(480P/480I)
[Other\areas]
(NTSC: 480P/480I, PAL: 576I)
Y output level:
1 Vp-p (75 ≠)
0.7 Vp-p (75 ≠)
PB output level:
0.7 Vp-p (75 ≠)
PR output level:
Output connector:
Pin jack (Y: green, PB: blue, PR: red)
Number of connectors:
1 system
Audio output:
Output level:
Output connector:
Number of connectors:
Audio performance:
(1) Frequency response:
≥DVD (linear audio):
2 Vrms (1 kHz, 0 dB)
Pin jack
2 channel: 1 system
4 Hz–22 kHz (48 kHz sampling)
4 Hz–44 kHz (96 kHz sampling)
4 Hz–20 kHz
≥CD Audio:
(2) S/N ratio:
≥ CD Audio:
115 dB
(3) Dynamic range:
≥DVD (linear audio):
100 dB
≥CD Audio:
98 dB
(4) Total harmonic distortion:
≥CD Audio:
0.0025 %
Digital audio output:
Coaxial digital output:
Pin jack
Pickup:
Wave length:
662 nm/785 nm
Laser power:
[U.S.A.\
CLASS IIa/CLASS I
[Other\areas]
CLASS 2/CLASS 3A
Power supply:
[U.S.A.\and\Canada\
AC 120 V, 60 Hz
[Russia,\Australia\and\N.Z.]
AC 220–240 V, 50 Hz
[Other\areas]
AC 110–240 V, 50/60 Hz
Power consumption:
[U.S.A.\and\Canada[
8W
[Other\areas]
9W
Power consumption in standby mode:
1W
Dimensions:
430 (W)k227 (D)k55 (H) mm
[16 15/16z (W)k8 15/16z (D)k2 3/16z (H)]
Mass:
1.9 kg (4.2 lb)
Specifications
9072
6779
7282
6783
6865
7876
6978
6979
6984
7079
7074
7073
7082
7089
7176
7565
6869
6976
7576
7178
7185
[Note]
Specifications are subject to change without notice. Mass and dimensions
are approximate.
§
The total combined maximum number of recognizable audio and picture
contents and groups: 4000 audio and picture contents and 400 groups.
RQT7240
Chinese:
Corsican:
Croatian:
Czech:
Danish:
Dutch:
English:
Esperanto:
Estonian:
Faroese:
Fiji:
Finnish:
French:
Frisian:
Galician:
Georgian:
German:
Greek:
Greenlandic:
Guarani:
Gujarati:
Changing the player settings
Language code list
Abkhazian:
6566
Afar:
6565
Afrikaans:
6570
Albanian:
8381
Ameharic:
6577
Arabic:
6582
Armenian:
7289
Assamese:
6583
Aymara:
6588
Azerbaijani:
6590
Bashkir:
6665
Basque:
6985
Bengali; Bangla:6678
Bhutani:
6890
Bihari:
6672
Breton:
6682
Bulgarian:
6671
Burmese:
7789
Byelorussian: 6669
Cambodian:
7577
Catalan:
6765
11
Troubleshooting guide
Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not
solve the problem, refer to the “Customer Services Directory” on page 14 if you reside in the U.S.A., or refer to the “Product information” on page 13 if
you reside in Canada. In other areas, consult your dealer.
Power
Page
No power.
≥ Insert the AC power supply cord securely into the household AC outlet.
4
The unit is automatically
switched to the standby mode.
≥ When “Auto Power Off” is set to “On”, the unit automatically switches to standby after
approximately 30 minutes in the stop mode.
≥ The Sleep timer functioned.
10
No response when any buttons
pressed.
≥ This unit cannot play discs other than the ones listed in these operating instructions.
≥ The unit may not be operating properly due to lightning, static electricity or some other external
factor. Turn the unit off and then back to ON. Alternatively, turn the unit off, disconnect the AC
power supply cord, and then reconnect it.
≥ Condensation has formed: Wait 1 to 2 hours for it to evaporate.
3
–
No response when remote
control buttons pressed.
≥ Check that the batteries are installed correctly.
≥ The batteries are depleted: Replace them with new ones.
≥ Point the remote control at the remote control sensor and operate.
4
4
5
No picture or sound.
≥ Check the video or audio connection.
≥ Check the power or input setting of the connected equipment.
≥ Check that the DVD-RAM has something recorded on it.
4
–
–
You have forgotten your ratings
password.
Reset all the settings to Factory
Preset.
≥ While stopped, press and hold [D] and [;] on the unit and then also press and hold [<]
on the unit until “Initialized” disappears from the television. Turn the unit off and on again. All
settings will return to the default values.
–
8
No operation
–
Specific operation impossible or incorrect
It takes time before play starts.
[MP3]
Programmed items are not
played. [DVD-V]
A menu screen appears during
skip or search. [VCD]
≥ Play may take time to begin when an MP3 track has still picture data. Even after the track starts,
the correct play time will not be displayed, however this is normal.
≥ Some items cannot be played even if you have programmed them.
–
≥ This is normal for Video CDs.
–
–
Subtitle
Subtitle position is wrong.
≥ Adjust the position. (“Subtitle Position” in Display Menu)
9
No subtitles.
≥ Display the subtitles.
8
The subtitles overlap closed
captions recorded on discs.
≥ Clear the subtitles.
8
Point B is automatically set.
≥ The end of an item becomes point B when it is reached.
–
A-B repeat is automatically canceled.
≥ A-B repeat is canceled when you press [QUICK REPLAY].
–
≥ Ensure that the unit is connected directly to the television, and is not connected through a video
cassette recorder.
≥ Change “TV Aspect” in “Video” tab.
≥ Use the television to change the aspect. If your television does not have that function, change
“4:3 Aspect” in Display Menu.
≥ Change the Zoom setting.
≥ The unit and television are using different video systems.
[U.S.A.,\Canada,\Asia,\and]units\with\PX\printed\on\the\outer\packaging\
Use a multi-system or NTSC television.
[Other\areas]
Use a multi-system or PAL television.
≥ The system used on the disc doesn’t match your television.
[U.S.A.,\Canada[and]units\with\PX\printed\on\the\outer\packaging\
–PAL discs cannot be played.
[Other\areas]
–PAL discs cannot be correctly viewed on an NTSC television.
–This unit can convert NTSC signals to PAL 60 for viewing on a PAL television (“NTSC Disc
Output” in “Video” tab).
≥ Restore the zoom ratio to a1.00.
≥ Set “Subtitle Position” in Display Menu to “0”.
≥ Set “4:3 Aspect” in Display Menu to “Normal”.
≥ Turn off TV’s zoom function.
≥ Use the other preset aspect ratios or manual adjustment.
≥ Zoom function may not work well, especially in dark scenes and may not work depending on the
type of disc.
4
Troubleshooting guide
A-B repeat
Picture incorrect
Picture distorted.
Picture size doesn’t fit the
screen.
The television may display
incorrectly or colors appear
faded.
Menu not displayed correctly.
Auto zoom function does not
work well.
10
9
8
–
–
–
10
8
9
9
–
8
–
RQT7240
Progressive video
12
There is ghosting when
progressive output is on.
Pictures not in progressive
output.
Closed captions not displayed.
≥ Change “Video Output Mode” in Picture Menu to “480I”. This problem is caused by the editing
method or material used on DVD-Video, but should be corrected if you use interlace output.
≥ If the unit is connected to the television through VIDEO OUT or S VIDEO OUT, output will be
interlace.
≥ Select “Enable” in “Progressive Out (Component)” in “Video” tab. Then, select “480P” in “Video
Output Mode” in Picture Menu.
≥ When progressive output is on, closed captions will not be displayed.
9
–
9, 10
–
Sound incorrect
Page
Sound distorted.
≥ Select “Off” in “Advanced Surround”.
≥ Select “On” in “Attenuator” in Audio Menu if it causes distortion with AUDIO OUT connections.
≥ Noise may occur when playing WMA files.
Piercing noise comes from the
speakers.
≥ If you have connected a digital amplifier which does not include decoder, be sure to select “PCM”
in “Dolby Digital”, “DTS Digital Surround” or “MPEG§” in “Audio” tab.
≥ None of the audio effects work when the unit is outputting bitstream signals from the DIGITAL
AUDIO OUT terminal. In this case, connect with the AUDIO OUT terminal.
≥ Some audio effects do not work or have less effect with some discs.
≥ Advanced surround does not work if you have changed the play speed.
Effects do not work.
6
9
–
10
4
–
–
Recording
≥ You cannot record WMA/MP3.
≥ You cannot record DVDs that have protection preventing digital recording.
≥ You cannot record DVDs if the recording equipment cannot handle signals with a sampling
frequency of 48 kHz.
≥ Make the following settings:
– Advanced Surround:
Off
– PCM Digital Output:
Up to 48 kHz
– Dolby Digital/DTS Digital Surround/MPEG§: PCM
6
10
10
“noPLAy”
≥ You inserted a disc the unit cannot play; insert one it can.
≥ You inserted a blank disc.
3
–
“U11”
≥ Disc is dirty: Wipe it clean.
3
“U15”
≥ You inserted a DVD-R that has not been finalized.
3
“H∑∑”
∑∑ stands for a number.
≥ Trouble may have occurred. The number following “H” depends on the status of the unit. Turn the
unit off and then back to ON. Alternatively, turn the unit off, disconnect the AC power supply cord,
and then reconnect it.
≥ If the service numbers fail to clear, note the service number and contact a qualified service
person.
≥ You haven’t inserted a disc: Insert one.
≥ You haven’t inserted the disc correctly: Insert it correctly.
–
Cannot record to digital
recording equipment.
(Incorrect sound recorded.)
–
–
–
Unit displays
“nodISC”
–
–
5
≥ The operation is prohibited by the unit or disc.
–
≥ You are trying to display incompatible contents.
7
“The progressive out is set to
“Disable””
≥ Select “Enable” in “Progressive Out (Component)” in “Video” tab.
10
“This disc may not be played in
your region”
≥ You can only play DVD-Video if their region number is the same or includes the same region
number as the unit or if the DVD-Video is marked “ALL”. Confirm the region number for the unit on
the rear panel.
No on-screen display.
≥ Select “On” in “On-Screen Messages” in “Display” tab.
Cover
10
MPEG: [The\Middle\East,\South\Africa,\Russia,\Australia\and\N.Z.]
§
Product Service
1. Damage requiring service—The unit should be serviced by qualified
service personnel if:
(a) The AC power supply cord or AC adaptor has been damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a marked change in
performance; or
(e) The unit has been dropped or the cabinet damaged.
2. Servicing—Do not attempt to service the unit beyond that described
in these operating instructions. Refer all other servicing to authorized
servicing personnel.
3. Replacement parts—When parts need replacing ensure the servicer
uses parts specified by the manufacturer or parts that have the same
characteristics as the original parts. Unauthorized substitutes may
result in fire, electric shock, or other hazards.
4. Safety check—After repairs or service, ask the servicer to perform
safety checks to confirm that the unit is in proper working condition.
Product information
For product information or assistance with product operation:
In the U.S.A., refer to “Customer Services Directory” on page 14.
In Canada, contact the Panasonic Canada Inc. Customer Care Centre at
1-800-561-5505, or visit the website (www.panasonic.ca), or an
authorized Servicentre closest to you.
Maintenance
Clean this unit with a soft, dry cloth.
≥ Never use alcohol, paint thinner or benzine to clean this unit.
≥ Before using chemically treated cloth, read the instructions that came with the cloth carefully.
RQT7240
“/”
“Cannot display group xx,
content xx”
Troubleshooting guide/Product Service/Maintenance
Television displays
13
Limited Warranty (ONLY FOR U.S.A.)
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way Secaucus, New Jersey 07094
Panasonic Sales Company, Division of Matsushita Electric
of Puerto Rico, Inc.,
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Panasonic DVD Player Limited Warranty
Limited Warranty Coverage
If your product does not work properly because of a defect in materials or workmanship,
Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively
referred to as “the warrantor”) will, for the length of the period indicated on the chart below,
which starts with the date of original purchase (“Limited Warranty period”), at its option
either (a) repair your product with new or refurbished parts, or (b) replace it with a new or
a refurbished product. The decision to repair or replace will be made by the warrantor.
Parts
Labor
DVD Player
Product or Part Name
One (1) Year
Ninety (90) Days
Rechargeable Batteries
(in exchange for defective item)
Ten (10) Days
Not Applicable
During the “Labor” Limited Warranty period there will be no charge for labor. During
the “Parts” warranty period, there will be no charge for parts. You must mail-in your
product during the warranty period. If non-rechargeable batteries are included, they
are not warranted. This Limited Warranty only applies to products purchased and
serviced in the United States or Puerto Rico. This Limited Warranty is extended only to
the original purchaser and only covers product purchased as new. A purchase receipt
or other proof of original purchase date is required for Limited Warranty service.
Mail-In Service
For assistance in the continental U.S.A. in obtaining repairs please ship the product to:
Panasonic Services Company
Customer Servicenter
Suite B
4900 George McVay Drive
McAllen, TX 78503
For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax
(787)-768-2910.
When shipping the unit carefully pack and send it prepaid, adequately insured and
preferably in the original carton. Include a letter detailing the complaint and provide a
day time phone and/or email address where you can be reached.
IF REPAIR IS NEEDED DURING THE LIMITED WARRANTY PERIOD THE
PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF
PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF
PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT
RECEIVED WITHOUT SUCH PROOF OF PURCHASE.
Limited Warranty Limits And Exclusions
This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship,
and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty
ALSO DOES NOT COVER damages which occurred in shipment, or failures which are
caused by products not supplied by the warrantor, or failures which result from accidents,
misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up
adjustments, misadjustment of consumer controls, improper maintenance, power line
surge, lightning damage, modification, or commercial use (such as hotel, office, restaurant,
or other business), rental use of the product, or service by anyone other than a Factory
Servicenter or other Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED
WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR
ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes
damages for lost time, cost of having someone remove or re-install an installed unit if
applicable, travel to and from the servicer, loss of or damage to media or images, data or
other recorded content. The items listed are not exclusive, but are for illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF
MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or
limitations on how long an implied Limited Warranty lasts, so the exclusions may not apply to you.
This Limited Warranty gives you specific legal rights and you may also have other rights which vary
from state to state. If a problem with this product develops during or after the Limited Warranty
period, you may contact your dealer or Servicenter. If the problem is not handled to your satisfaction,
then write to the warrantor’s Consumer Affairs Department at the addresses listed for the warrantor.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY,
ARE YOUR RESPONSIBILITY.
Customer Services Directory
Obtain Product Information and Operating Assistance; locate your nearest Dealer or Servicenter; purchase Parts and
Accessories; or make Customer Service and Literature requests by visiting our Web Site at:
http://www.panasonic.com/support
or, contact us via the web at:
http://www.panasonic.com/contactinfo
Limited Warranty (ONLY FOR U.S.A.)
You may also contact us directly at:
1-800-211-PANA (7262),
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
Accessory Purchases
Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at:
http://www.pasc.panasonic.com
or, send your request by E-mail to:
npcparts@panasonic.com
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday – Friday 9 am to 8 pm, EST.)
Panasonic Services Company
20421 84th Avenue South, Kent, WA 98032
(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)
For hearing or speech impaired TTY users, TTY : 1-866-605-1277
Service in Puerto Rico
Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company
Factory Servicenter:
Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Phone (787)750-4300, Fax (787)768-2910
F1003
RQT7240
User memo:
14
DATE OF PURCHASE ___________________________________
DEALER NAME ________________________________________
DEALER ADDRESS _____________________________________
______________________________________________________
TELEPHONE NUMBER __________________________________
The model number and serial number of this product can be found on
either the back or the bottom of the unit. Please note them in the
space provided below and keep for future reference.
MODEL NUMBER
SERIAL NUMBER
Referencia rápida en español
Conexiones
∫ Conexión a un televisor
AV ENHANCER FL SELECT OPEN/CLOSE
ADVANCED
SURROUNDPICTURE MODE REPEAT
Televisor
A una toma de CA
1
2
3
4
5
6
PLAY SPEED
AUDIO IN
R
L
VIDEO
IN
POSITION MEMORY
7
8
9
0
10
CANCEL
Cable de
audio/
vídeo
(incluido)
Cable de
alimentación
de CA
(incluido)
QUICK REPLAY
SKIP
STOP
SLOW/SEARCH
PAUSE
DIRECT NAVIGATOR
PLAY
PLAY LIST
TOP MENU
MENU
ENTER
DISPLAY
RETURN
SUBTITLE AUDIO ANGLE/PAGE SETUP
PLAY MODE SLEEP
≥ Conecte el cable de alimentación de CA el último.
PREPARACIÓN RÁPIDA
Encienda el televisor y seleccione la entrada de vídeo apropiada
en el mismo.
1
2
3
[Í]
Encienda.
[SETUP]
Muestra la pantalla QUICK SETUP.
[3 4]
[ENTER]
[RETURN]
Pulse [3 4] para seleccionar
“Español” y pulse [ENTER].
Siga el mensaje y haga los ajustes.
4
[ENTER]
Pulse para terminar PREPARACIÓN
RÁPIDA.
5
[SETUP]
Pulse para salir.
Reproducción básica
Pausa [;]
Salto [: 9]
Búsqueda
(durante la
reproducción)
[6 5]
La posición se memoriza cuando “!”
parpadea en el visualizador.
≥Pulse [1] (PLAY) para proseguir.
≥Pulse [∫] para borrar la posición.
≥Pulse [1] (PLAY) para reiniciar la
reproducción.
(Salto de grupo [WMA] [MP3] [JPEG]
[3 4])
≥Hasta 5 pasos
≥Pulse [1] (PLAY) para iniciar la
reproducción.
≥[VCD] Cámara lenta, sentido de
avance solamente
Cámara lenta
(durante la pausa)
[6 5]
≥[VCD] Sentido de avance solamente
Cuadro a cuadro
(durante la pausa)
[2 1]
Selección de
elemento en pantalla
[3 4 2 1]
[ENTER]
Introduzca número [RAM] [DVD-V] [VCD] [CD]
Botones numerados Ej.: Para seleccionar 12:
[S10] ➜ [1] ➜ [2]
1
2
3
4
[Í]
Encienda.
[<]
Abre el cajón.
[VCD] con control de reproducción
Durante la parada, pulse los botones numerados.
[WMA] [MP3] [JPEG]
Ej.: Para seleccionar 123:
[1] ➜ [2] ➜ [3] ➜ [ENTER]
Introduzca el disco.
[1] (PLAY)
Inicie la reproducción.
Menú de disco
[TOP MENU]
[DVD-V]
Muestra un menú inicial de disco
[DVD-V] Muestra un menú de disco
[VCD] Muestra un menú de disco
Referencia rápida en español
Parte posterior del aparato
Parada [∫]
GROUP
[MENU]
[RETURN]
Vuelta a la pantalla
anterior
[RETURN]
Visualización de números
Visualizador del
:;
aparato principal
Visualización de tiempo
[FL SELECT]
RQT7240
AC IN
ZOOM
15
Main feature index
Changes the unit’s display (➜page 5)
Recalls recommended audio/
video setting (➜page 5)
AV ENHANCER FL SELECT OPEN/CLOSE
ADVANCED
SURROUNDPICTUREMODE REPEAT
To enjoy virtual surround with
television’s speakers (➜page 6)
To select the preset picture
quality (➜page 5)
1
2
3
4
5
6
Repeat play (➜page 6)
PLAY SPEED
Changes play speed (➜page 8)
POSITION MEMORY
7
8
9
CANCEL
QUICK REPLAY
0
10
SKIP
STOP
SLOW/SEARCH
PAUSE
DIRECT NAVIGATOR
Shows a disc top menu (➜page 5)
Shows a program list (➜page 7)
Memorizes the position during play
(➜page 8)
Skips back a few seconds (‹page 8)
PLAY
PLAY LIST
TOP MENU
MENU
Shows a disc menu (➜page 5)
Shows a play list (➜page 7)
ENTER
Shows On-Screen Menus
(➜page 8)
Changes subtitles (➜page 8)
RETURN
DISPLAY
SUBTITLE AUDIO ANGLE/PAGE SETUP
Changes soundtracks (➜page 8)
PLAYMODE
SLEEP
ZOOM
GROUP
Changes angles or rotates still pictures
(➜page 8)
Program/random play (➜page 6)
Selects groups to play (➜page 8)
Sleep timer (➜page 8)
Changes the zoom ratio (➜page 8)
[For\U.S.A.\and\Canada\
Manufactured under license from Dolby Laboratories. “Dolby” and
the double-D symbol are trademarks of Dolby Laboratories.
As an ENERGY STAR® Partner,§
Panasonic has determined that
this product meets the ENERGY STAR®
guidelines for energy efficiency.
§
For Canada only: The word “Participant” is used in place of
the word “Partner”.
CLASS 1
LASER PRODUCT
“DTS” and “DTS 2.0 i Digital Out” are trademarks of Digital
Theater Systems, lnc.
Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, and
4,819,098, licensed for limited viewing uses only.
This product incorporates copyright protection technology that is
protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology
must be authorized by Macrovision Corporation, and is intended
for home and other limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
MPEG Layer-3 audio decoding technology licensed from
Fraunhofer IIS and Thomson multimedia.
Windows Media, and the Windows logo
are trademarks, or registered trademarks
of Microsoft Corporation in the United
States and/or other countries.
The laser product label has not been attached to products for the
U.S.A. and Canada.
WMA is a compression format developed
by Microsoft Corporation. It achieves the
same sound quality as MP3 with a file
size that is smaller than that of MP3.
pr
[For\Canada]
[For\U.S.A.]
Panasonic Consumer Electronics Company,
Panasonic Sales Company,
Panasonic Canada Inc.
Division of Matsushita Electric Corporation of Division of Matsushita Electric of 5770 Ambler Drive, Mississauga,
America
Puerto Rico, Inc. (“PSC”)
Ontario L4W 2T3
One Panasonic Way Secaucus, New Jersey 07094
http://www.panasonic.com
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
\For\units\with\PX\printed\on\the\outer\packaging]
Matsushita Electric Industrial Co., Ltd. Corporate
Management Division for the Americas
Sales Office for North America
Tokyo Panasonic Sales Section
32nd Floor, World Trade Center 4-1, Hamamatsu-cho,
2-Chome, Minato-Ku, Tokyo 105-6132, Japan
C 2004 Matsushita Electric Industrial Co., Ltd.
www.panasonic.ca
[For\others]
Panasonic Marketing Europe
Matsushita Electric Industrial Co., Ltd.
G.M.B.H. Wiesbaden N.
Web Site: http://www.panasonic.co.jp/global/
(a Division of Panasonic Marketing
G.M.B.H.)
Military Sales Department
6200 Wiesbaden-Biebrich, Hagenauerstr.
43 Germany
RQT7240-1P
F0104AK1024
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
