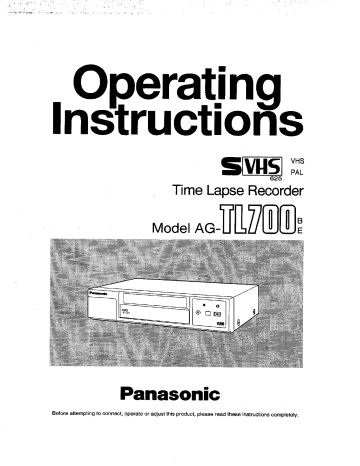

~~ Time Lapse Recorder
~~ Model ле (1/1)
Panasonic
Before attempting to connect, operate or adjust this product, please read these instructions completely.
Caution for AC Mains Lead
FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY.
FOR U.K. ONLY
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A 5 amp fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that
the replacement fuse has a rating of 5 amps and that it
is approved by ASTA or BSI to BS1362.
Check for the ASTA mark& or the BSI mark Y on the
body of the fuse.
the plug contains a removable fuse cover you must
ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used
until a replacement cover is obtained.
A replacement fuse cover can be purchased from your
local Panasonic Dealer.
IF THE FITTED MOULDED PLUG IS UNSUITABLE
FOR THE SOCKET OUTLET IN YOUR HOME THEN
THE FUSE SHOULD BE REMOVED AND THE PLUG
CUT OFF AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL
SHOCK IF THE CUT OFF PLUG IS INSERTED INTO
ANY 13 AMP SOCKET.
It a new plug is to be fitted please observe the wiring
code as shown below.
If-in any doubt please consult a qualified electrician,
IMPORTANT: The wires in this mains lead are coloured
in accordance with the following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this
appliance may not correspond with the coloured mark-
ings identifying the terminals in your plug, proceed as
follows:
* The wire which is coloured BLUE must be connected
to the terminal in the plug which is marked with the
letter N or coloured BLACK.
The wire which is coloured BROWN must be con-
* nected to the terminal in the plug which is marked with
the letter L or coloured RED,
Under no circumstances should either of these wires
* be connected to the terminal in the plug which is
marked with the letter E or by the Earth symbol +.
How to replace the fuse
1. Open the fuse compartment with a screwdriver.
DO NOT REMOVE PANEL COVER BY UNSCREW-
ING.
To reduce the risk of electric shock, do not remove
cover, No user serviceable parts inside. Refer ser-
vicing to qualified service personnel.
If the unit is not going to be used for length of time, turn
the power OFF and disconnect the power plug from the
AC outlet.
CAUTION:
TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD AND ANNOYING INTERFERENCE, USE
THE RECOMMENDED ACCESSORIES ONLY.
CAUTION:
Do not install or place this unit in a bookcase,
bullt in cabinet or in another confined space in
order to keep well ventilated condition. Ensure
that curtains and any other materials do not
obstruct the ventilation condition to prevent
risk of electric shock or fire hazard due to
overheating.
WARNING:
TO REDUCE THE RISK OF FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE.
[1 is the safety information.
Lithium Battery
Warning
The lithium battery in this equipment must only be replaced
by qualified personnel. When necessary, contact your local
Panasonic supplier.
“The lithium battery is a critical component {type number
VL2330/1HF manufactured by Panasonic.)
It must never be subjected to excessive heat or discharge.
It must therefore only be fitted in equipment designed
specifically for its use.
CAUTION
Danger of explosion if battery is incorractly replaced.
Replace only with the same or equivalent type recom-
mended by the equipment manufacturer. Discard used
batteries according to manufacturer's instructions.
VARNING
Explosionsfara vid felaktigt batteribyte. Anvánd samma
batterityp eller en ekvivalent typ som rekommenderas
av apparattiliverkaren. Kassera använt batteri enligt fabri-
kantens instruktion.
Replacement batteries must be of the same type and
manufacturer. They must be fitted in the same manner and
location as the original battery, with the correct polarity
connctions observed.
ADVARSEL
Eksplosionsfare ved fejlagtig hándtering.
Udskiftning má kun ske med batteri af samme fabrikat
0 e. Levér det brugte batteri tilbage til leverandoren.
Do not attempt to re-charge the old battery or re-use it 9 typ 9 9 n
for any other purpose. It should be disposed of in waste
products destined for burial rather than incineration.”
VAROITUS
Paristo voi räjähtää, jos se on virheellisesti asennettu.
Vaihda paristo ainoastaan laitevalmistajan suosittele-
maan tyyplin. Hävitä käytetty paristo valmistajan ohjeiden
mukaisesti.
Attention/Attentie
À battery is used for memory-backup in the unit. When the battery is
exhausted, you should not throw it away, but dispose of it as small chemical
waste,
Voor het reservegeheugen van het apparaat wordt gebruikgemaakt van een
batterij. Wanneer de batterij is uitgeput, mag u deze niet gewoon weggooien,
maar dient u deze als klein chemisch afval weg te doen.
Removing the battery/Verwijderen van de batterij
Battery for memory-backup (lithium battery)
Batterij voor reservegeheugen (lithiumbatterij)
Remove the battery from the unit.
Verwijder de batterijhouder uti het apparaat.
|
— — fi 0000007 | 7%
000000
[| ‚| NINO) 2
Battery holder/Batterijhouder Lithium battery/Lithiumbatterij
To replace the battery, please consult your local dealer.
Voor het vernieuwen van de batterij dient u uw plaatselijke handelaar te
raadplegen.
Contents
Features в в а меч т ви о я и 4 4 a ww Ea awa 5
- Regular Maintenance Service
Recommendation- - - - - .. ..... ae aa 5
Parts And Their Functions + - + + + << = - <<< 6
Menu Screens - + + + + sra e aaa 9
Date and Time Settings +... кок), 12
Time/Date Display Position - - + + + + + + 140500 16
Time Mode Selection » - + - - ++ 4114505005 16
Recording Procedure - + + + + == 17
Tips For Better Recording - - + «eee... 18
* Recording Mode Lock: - + += «<=... 18
* Hour Meter - - + « + e... ae a 18
* Recording Check + + » + +045 55818080 18
* Restoration-of-Power-After-Failure
Recording + + + » «+ reee 18
Timer Recording + + + + «+ E TE 19
* Internal Timer Recording - - + + + + + + +000 19
Daily Recording (Daily Timer)/
Weekly Recording (Weekly Timer) + - + » - -< + - + 21
* External Timer Recording: + +... . 23
Auto Repeat Recording/Auto Rewinding - +» > + + = - 24
Alarm Recording (Emergency Recording) : + + - + 25
+ Alarm Recall - = + » «erre. 27
Sequential Switcher Connection and
Recording + - +» «ear eee 28
Playback Procedure +++. 29
Routine & Regular Inspection Request « - - + - = - 30
Troubleshooting + + + - - rre «31
Specifications- - - - - - + ++ 4144111 11100 23
B Do not insert fingers or any objects into the video casette
holder.
B Avoid operating or leaving the unit near strong magnetic
fields. Be especially careful of large audio speakers.
B Avoid operating or storing the unit in an excessively hot,
cold, or damp environment as this may result in damage
both to the recorder and to the tape.
E Do not spray any cleaner or wax directly on the unit.
E! the unit is not going to be used for a length of time,
protect it from dirt and dust.
B Do not leave a cassette in the recorder when not in use.
№ Ро по! Боск the ventilation slots of the unit.
M Use this unit horizontally and do not place anything on
the top panel.
E Cassette tape can be used only for one-side, one
direction recording. Two-way or two-track recordings
cannot be made.
M Cassette tape can be used for either Colour or Black 4
White recording.
E Do not attempt to disassemble the recorder.
There are no user serviceable parts inside.
E |f any liquid spills inside the recorder, have the recorder
examined for possible damage.
B Refer any needed servicing to authorized service
personnel.
Features
Recording and playback up to 170-hour time modes
In addition to the 3-hour time modes, recording and
playback can be performed in the time lapse modes
(L12-, L24-, 24-, 48-, 72-, 96-, 120-, 170- hour modes).
Excellently defined still-picture images
More clearly defined still picture images can be produced
during playback in the S-VHS/colour mode thanks to the
horizontal resolution of 400 lines.
Full line-up of recording functions
Included in the wide range of recording functions are
restoration-of-power-after-failure recording, recording
every day and by the days of the week using the internal
timer, external timer recording, alarm recording, emer-
gency recording and repeat recording.
Playback functions
Among the convenient playback functions are the re-
cording review function for immediate viewing of recorded
material, the handy search function for locating images
promptly, and the forward/reverse field advance and still-
picture functions for careful viewing of particular scenes.
Auto tracking function
The tracking can be automatically adjusted by pressing
the “~" and + tracking buttons together.
Built-in time/date generator
This unit comes with a built-in microprocessor with a
calendar function for displaying the time on the display
or TV monitor and for controlling the time of the internal
timer.
Recording lock function
A double recording mode lock function is provided for
safeguarding against operational errors during recording.
Connection to frame switcher
Easy connection to a frame switcher is possible once
the unit has been connected to the video input and
camera SW connectors.
Hour meter
The unit contains an hour meter which provides useful
information for maintenance and inspections.
Remote control |
The unit can be operated from a distance of about 5
meters if the AG-A11 remote controller, available as an
optional accessory, is connected.
IMPORTANT
“Unauthorized recording of copyrighted television
programmes, films, vídeo tapes and other materials
may infringe the right of copyright owners and be
contrary to copyright laws.”
Regular Maintenance Service Recommendation
Although this unit is designed to withstand long-term use, the items listed below should be inspected regularly so
that the unit is kept in perfect working order. Use the hour meter to know when to conduct the inspections.
The VTR is a piece of precision-made equipment and, as such, it is recommended that the user enter into a
maintenance and inspection agreement to keep the unit operating free of trouble or failures. For further details,
please consult with your dealer.
Cumulative operation time
(hours) 500 | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | 10000
Inspection item Model number
Transport system cleaning e 0 0 e o e e o
Audio heads VBRO178 e o © e © © e ©
Video heads VEH0679 e © | © O © © © ©
Cylinder unit VEG1163 © e o A e O © e
O Service life inspection
O Cleaning
(12-/24-hour mode use)
The above table merely serves to lay down general guidelines for the inspection of typical parts involved in regular
inspections. The timing of the inspections needs to be adjusted according to the VTR's operating environment,
Parts And Their Functions
© OCUPO
© VTR switch
The power is turned on when this switch is pressed.
When the switch is pressed again, the power is
turned off. , ;
STOP button
When this is pressed, the tape stops traveling.
PAUSE/STILL button
When this is pressed during recording, the tape
temporarily stops traveling.
When pressed during playback, the tape temporarily
stops traveling, and a still picture appears on the TV
monitor. When pressed again, the tape travel
resumes.
PLAY (page) button
Playback starts when this button is pressed. The
pages on the menu screen are advanced when the
button is pressed while a menu screen is displayed.
Cassette holder
This is the loading slot for the video cassette.
Tracking (—, +) buttons/Vertical hold buttons
These buttons are used to adjust the tracking or to
compensate the vertical dancing during still picture.
If noise appears on the playback picture, press the
buttons to adjust the tracking is such a way that the
picture is made as clear as possible. When both
buttons are pressed together, the tracking is
adjusted automatically.
If the image shakes slightly in the vertical direction
during still picture, press the vertical hold buttons to
reduce the dancing.
SUMMER TIME button
This is used to switch between the present time
and summer (daylight saving) time.
©
000 © @ 0
© ALARM display lamp |
This remains lighted while alarm recording is in
progress. It flashes when alarm recording ends.
© MENU/REC LOCK switch
When this switch is set to REC LOCK, the time
mode and operation buttons as weil as the power
switch cannot be operated while recording is in
progress.
When it is set to MENU, the menu screen appears.
@ TIMER MODE (REC MODE) switch
This is the operation switch for internal timer
recording or external timer recording. The displays
shown below light on the display panel.
INT TIMER: At the times set by the internal timer,
the power is automatically turned on
or off and recording starts or stops.
OFF: When timer recording is not perform-
ed.
EXT TIMER: When the external power is turned
on, recording starts automatically.
O REW (shift) button
When this button is pressed, the tape is rewound.
When it is kept depressed during playback, the
review mode is established.
When it is pressed while a menu screen is dis-
played, the setting items move downward.
O FF (shift) button
When this is pressed, the tape is fast forwarded.
When it is kept depressed during playback, the unit
is placed in the cue mode.
When it is pressed while a menu screen is dis-
played, the setting items move toward the right.
Cassete insertion display
Tape remaining
display
O Field REV ADV (set) button
When this is kept depressed during still-picture
playback, the picture is advanced field by field in
the reverse direction. When it is released, the still
picture reappears. When a menu screen is
displayed, it is used to change an item {decrement
a value).
Field FWD ADV (set) button
When this is kept depressed during still-picture
playback, the picture is advanced field by field in
the forward direction. When it is released, the still
picture reappears. When a menu screen is
displayed, it is used to change an item (increment
a vaiue).
O Display panel
Recording display
Internal timer recording mode display
External timer recording mode display
Auto repeat recording display
Recording lock display
Alarm recording
mode display
S-VHS display VTR operation
mode display
SEC BRECHEN dos arma
- RENCIA O Tom wong COUT Y E 0
@ 5 57 Ноно
ew las El El Y EY
|
a
El,
Time mode Time/counter Time display
display
Recording tape
end display Date setting display
Tape counter mode display
Alarm search moda display
Memory stop mode display
* Operation mode displays
Operation mode Display
Playback ID» ог №
Recording |» Rec lamp lights.
Still picture 11
Recording pause
Recording check
Bl Rec lamp lights.
B Rec lamp lights.
Fast forwarding >>
Rewinding <<
Cue >>
Review <<
Forward field advance | NN
Reverse field advance | NN
®
©
D
* Error messages
An error code appears when trouble has
occurred during operation.
E-2: Trouble in video cassette insertion area
E-3: Trouble in video cassette tape loading area
E-4: Trouble in cytinder area
E-5: Troubie in tape transport area
d: Formation of condensation (dew)
TIME MODE button
This is used to select the recording and playback
time mode. Each time this is pressed, the time
mode changes in the following sequence:
170H «> 3H + L12H «> L24H +> 24H
120H +— 96H + 72H +— 48H
COUNTER/SEARCH selector button
When this button is pressed, the display on the
display panel changes to time, counter, counter
memory, alarm search and number of repeat
recording times. The M mark appears on the
display panel in the counter memory mode. When
the tape is fast forwarded or rewound in this mode,
the counter will automatically stop when 0:00:00 is
approached. The AS mark appears on the display
panel in the alarm search mode. When the tape is
fast forwarded or rewound in this mode, the unit is
automatically set to still-picture playback at the
alarm recording section.
“* PAS” is displayed during repeat recording.
“--PAS" appears at ail other times.
(where “**” denotes the number of repeat times)
RESET button
When this button is pressed, the counter display is
reset to 0:00:00.
EJECT button
This is used to eject the video cassette.
REC REVIEW button
When the button is pressed during recording, the
tape runs temporarily in
the reverse direction, and after the recorded
section has been played back, the unit is returned
to the recording mode.
REC button
Recording starts when this button is pressed.
For Swedish and Danish Customers
Aven om denna omkopplare ár i “OFF"-läge, gar
fortfarande en del av apparaten nátspánning.
Selv om denne omskifter er ¡ “OFF” stilling, tilores
en del af apparatet stadig strom.
n° — 7
Le |, 00 =) 0000000 |
O AC IN connector
Connect the supplied power cord to an AC outlet. -
Battery installation area
Install the battery in this area. See “Lithium Battery”
on page 3.
Camera switching output connector
Camera switching output connector; connect it to
the frame switcher.
Audio input/output connectors
Audio input/output connectors (phono jacks)
S-VIDEO input/output connectors
For S-Video input/output connectors (4-pin).
Video input/output connectors
Video input/output connectors (BNC); connect the
input connector to the video camera, etc. and the
output connector to the TV monitor, etc.
MIC input jack
Input jack (3 mm) for an external microphone.
This jack has precedence when signals are
supplied simultaneously to this jack and the audio
input connectors.
REMOTE control connector
For connecting the AG-A11 remote controller which
is available as an optional accessory.
| 000
00 000
© Alarm input connector
O
®
®
Alarm recording input connector; connect it to the
external sensor.
COMMON terminal
Alarm reset input connector
Input connector for releasing alarm recording; a +4
to +14V DC voltage is required.
SUMMER TIME IN connector
This is used to switch between the present time
and summer time. (See page 14.)
Tape end output connector
When the cassette tape comes to its end during
recording, the alarm deviceinstalled externally is
activated.
WARNING/REC output connector
When trouble has occurred in the unit, the alarm
device installed externally is activated,
Menu Screens
One of the menu screens appears on the TV monitor when the MENU/REC LOCK switch is set to MENU. The
display returns to the regular screen when this switch is set to OFF.
* When a menu screen has appeared, the items are set using the page, shift and set buttons.
* Advance through the pages ( page up ) of the menu screen using the page button.
* Move the items (downward or toward the right) using the shift button.
* Change the items (increment or decrement the values) using the set button.
MENU SCREEN 1
In addition to the date and time display and the recording mode lock setting which appear on the TV monitor,
the hour meter is displayed on Menu Screen 1.
(TIME ADJUST) pL O Date setting (see page 12)
01- 1-96 MON _—
0:00:00 ——|[email protected] € Time setting (see page 12)
(REC LOCK) O Recording mode lock
MODE — ——@ ON: LOCK on the front display tube lights up, and all operations except for
(HOUR METER) REC REVIEW are prohibited while recording is in progress.
— © O Hour meter (see page 18)
This indicates the unit's total operation time (the cumulative total for the
cylinder rotation time).
MENU SCREEN 2
The time/date display position, monitor screen blue display and buzzer settings are performed on Menu Screen 2.
© Display position selection (see page 15)
oso „нове —l— 8 This selects the position where the date and time are to be displayed on the
(REC INDICATE) TV monitor.
NOT REC CAMERA —1—Q (L-UPPER — R-UPPER — L-BOTTOM — R-BOTTOM — CENTRE — OFF)
(BUZZER) -
ALARM OFF @ Blue display
PAP SNA IA ol 0 This sets a blue display on the monitor screen at all times except while
TAPE WARN OFF recording or playback is in.progress.
BLUE: The display on the monitor screen is blue at all times except while
recording or playback is in progress.
CAMERA: The pictures from the video input connector are shown on the
monitor screen at all times except while playback is in progress.
© Setting of the buzzer sound
ALARM: The buzzer sounds once alarm recording is performed.
TAPE END: When the tape end is reached in the recording mode, the
buzzer sounds white the tape is at the end.
TAPE REMAIN: The buzzer sounds when there is only about 3% (with an
NV-E180 tape) of the tape remaining before the end is
reached in the recording mode.
ERR WARN: The buzzer sounds when the unti is set to the warning
status.
To release the buzzer:
ALARM: Release alarm recording.
TAPE END: Transfer the mode from the tape end or press the STOP
button.
TAPE REMAIN: Transfer the mode (but not to PAUSE or REC REVIEW)
from the recording mode or press the REC button.
ERR WARN: Release the warning status.
When TAPE END and TAPE REMAIN have been set to ON, END and
REMAIN flash on the display tube at the same time as the buzzer sounds.
They cease flashing when the buzzer is released.
9
+ ry эго
. - a mi, ur i ee a ; 0
cee dard aD о А МАСЛО MAR i,
MENU SCREEN3 |
The alarm recording mode is set on Menu Screen 3.
(ALARM) Di - © Setting of alarm recording and recording time mode during alarm
MODE OFF —Q recording (see page 25)
DURATION 0. 3MIN — e OFF: No alarm recording takes place even in the event of an alarm input.
(RECALL) - ———— TO ALARM: When there is an alarm input during recording in the time lapse
mode, the recording time mode is switched to the designated mode
(3H), and the details of the alarm status are faithfully recorded.
(QUT PUT SELECT) o
TERMINAL OUT ERR WARN —— @ Alarm recording duration setting
This sets the time allowed to elapse from the start of alarm recording until its
end. This time can be set individually from 0.5 min. to 10 min.
(0.5 — 1.0 — 2.0 — 3.0 — 5.0 — 10 — CONTINUE — MANUAL)
CONTINUE: Alarm recording continues until the tape end.
MANUAL: Alarm recording is performed while the alarm input continues.
@® Alarm recall (see page 27)
This checks the time when an alarm signal was input (up to 4 times).
D Terminal connector output signal setting |
ERR WARN: When trouble has occurred in the unit (AUTO OFF)
The LOW signal is output.
REC: When trouble has occurred in the unit during recording
The LOW signal is output.
MENU SCREEN 4
The position of the display on the TV monitor and VTR modes are selected on Menu Screen 4.
(REC MODE) P4 ® Recording time mode selection |
REC T-MODE OFF — —€ When recording starts, the set time mode is always established.
TAPE IN so —+—@® OFF: The time mode can be set as desired using the time mode button on
TAPE END so — —@ the VTR's sub panel. The mode can be changed even during record-
(VIDEO MODE) ing.
pos AUTO — | ® 3H: 3-hour mode (compatible with the standard mode of ordinary VTR's).
VHS REC vas —6 L12H: 12-hour mode (linear slow recording)
SHARPNESS or —® L24H: 24-hour mode (linear slow recording) |
DETAIL ON —— 6 24H: 24-hour mode (time lapse recording at 0.18 sec. intervals)
48H: 48-hour mode (time lapse recording at 0.34 sec. intervals)
72H: 72-hour mode (time {apse recording at 0.5 sec. intervals)
96H: 96-hour mode (time lapse recording at 0.66 sec. intervals)
120H: 120-hour mode (time lapse recording at 0.82 sec. intervals)
170H: 170-hour mode {time lapse recording at 1.12 sec. intervals)
® Selection of VTR operation when cassette is inserted
STOP: Stop mode
REC: Simply by inserting the cassette tape, recording is started
automatically.
REW » REC: When the cassette is inserted, it is first rewound to the start of
the tape and then recording is started automatically.
10
MENU SCREEN 5
The internal timer recording modes are set on Menu Screen 5.
(INTERNAL TIMER REC) P35
(TIMER)START END T-M—
SUN OFF
MON OFT
TUE OFF
WED OFT
THU OFF |
FRI OFF
SAT OFF
DLY OFF
— 0
CAUTION:
© Selection of operation when tape end is detected during recording (see
page 24)
STOP: Stop mode
REW: The tape is automatically rewound to the start where it stops.
REPEAT: The tape is automatically rewound to the start, and recording is
repeated.
EJECT: The tape is ejected.
Video signal mode
This selects the operation of the colour/black-and-white automatic selector
circuit.
AUTO: The circuit automatically identifies the type of video input or playback
signals, and selects the colour or black-and-white mode accordingly.
B_W: The black-and-white mode is forcibly established.
Video input signal selection
This selects the video input signal.
LINE: The input signal from the VIDEO IN (BNC) connector is selected.
S-VHS: The input signal from the. S-VIDEO IN (4-pin) connector is selected.
Setting the S-VHS recording mode
Select the S-VHS recording mode.
ON: Whether the tape is VHS or S-VHS is automatically identified, and
recording proceeds in the correspond-ing mode.
OFF: Recording always proceeds in the VHS mode regard-less of the type of
cassette used.
During playback, the tape type is automatically identified.
Playback picture quality selection
The outlines of the playback images can be emphasized.
OFF: Regular mode
ON: The playback picture has emphasized outlines.
Playback picture detail selection
The playback picutres can be given a softer look.
OFF: The playback pictures appear softer.
ON: Regular mode
@ Internal timer recording mode setting (see page 19)
This sets the weekly timer or daily timer recording mode. (OFF/ON)
OFF: Internal timer recording is not set.
ON: Internal timer recording is set.
Note: Internal timer recording does not operate when the date and time have
not been set.
+ The menu screens are not displayed while the unit is playing back a tape.
11
Date and Time Settings
This unit comes with a time/date generator which enables the date and time to be superimposed on the recording.
When re power is switched on, the date, time of the day and time mode are displayed (in the case of a regular
screen).
TV monitor
O Date
O Time mode
0
1
96
30 A
3H
3
0:1
1
1
O Time
O Date:
© Alarm display
The date appears as day/month/year.
Time mode:
This is set by pressing the TIME MODE button. It
flashes unless recording is in progress.
Time:
The 24-hour system is used.
O Alarm display:
This appears during alarm recording.
Step
Operation
Example: Setting the date and time
to Monday, March 3, 1997 at 3:25.
The time mode is set to 24 hours.
Monitor display
Display area
Set the MENU/REC LOCK switch to
MENU. Menu Screen 1 appears, and
Menu Screen 1
(TIME ADJUST) Pl
the year digits flash. € Y m d
1 Ln 01- 1-96 MON IE > ! I / !
0:00:00 Fa T
TES OFF [MENU]
Press the SET (+, —) buttons to set
the year to “97”, (TIME ADJUST) Pl
p # à у m d
2 REV. FWD 01- 1-97 WED vor si 1
0:00:00 atl sd Ld A
re
When the shift ( > ) button is
pressed, the month digits flash. (TIME ADJUST) Pl
Press the SET (+, —) buttons to set У ваз т d
the month to “3”. 01- 3-97 SAT Dd RACK |
3 > 0:00:00 1 IL) Дн |
FF REV o“ a
12
Step Operation Monitor display Display area
When the shift ( [> } button is
pressed, the day digits flash. Press (TIME ADJUST) Pl y mad
the SET (+, -) buttons to set the OUT
day to “03”. 03- 3-97 MON LI LE) Ja
> 0:00:00 ЖА
“1 © do”
* The year can be set from 1996 to
2011.
When the shift (<7) button is press-
ed, the hour digits flash. Press the (TIME ADJUST) PL Da IME
SET (+, —) buttons to set the hour to v | —
sg”? ll -_ jl /
5 " <q 03- 3-97 MON , el |}
REW REV o 3:00:00 Pv?
When the shift ( [>) button is
pressed, minute digits flash. Press (TIME ADJUST) PI ‚а «ПМЕ
the SET (+, —) buttons to set th ID
6 minutes to “5”. | | 03- 3-97 MON Дм к
>» 3:25:00 a
FF o o eT
When the MENU/REC LOCK switch
is set to OFF, the clock automatically (TIME ADJUST) Pl _ _TIME
starts running from time and date set. A AL
03- 3-97 MON el LA
- PAUL
REC | OFF (MENU
OFF
LOCK
For the seconds, “O0” is set.
Even when the switch is set to
MENU, the time will keep advancing
if it has not been changed.
3:25:00
To clear the date and time display, set POSITION under (DISPLAY) on Menu Screen 2 to OFF.
Even if the power should fail for a period of up to one week, the date, time and time mode display data are
stored in the memory (but only if power has been supplied continuously to the unit for 3 or more days). When
the unit has just been purchased or when it has not been used for along time, the data is not stored in the
memory and the display shown below appears.
(TIME ADJUST) Pl
01- 1-96 MON
0:00:00
For the date setting, the unit automatically adjusts for leap years.
Due to temperature fluctuations and other factors, the clock time may run fast or slow with a monthly error of
up to +60 seconds. This is not indicative of malfunctioning. Reset the time at regular intervals.
13
Summer time setting
When the SUMMER TIME button is pressed with a
hour, and at the same time “SUM” appears on the display. When the butt
small screwdriver, the time is automatically advanced by one
on is pressed again, the time returns
to its original setting, and at the same time "SUM" disappears from the dispiay.
» The above settings can also be performed at the SUMMER TIME IN connector on the rear panel.
> The following phenomenon occurs when the date and time are set with the summer time setting.
<Exampie> 31 - 12 - 1996 (TUE) 23:22:00
When the “hour” has been changed, be absolutely sure to check that the date is correct.
“Hour” setting
Date
Example
23 — 0
Moved up by 1 day
1-1-1997 (WED) 0:22:00.
0—1 Moved down by 1 day 31 - 12 - 1996 (TUE) 1: 22:00
1 — 0 Moved up by 1 day 1-1-1997 (WED) 0:22:00
| 0>23 Moved down by 1 day 31 - 12 - 1996 (TUE) 23:22:00
14
Time/Date Display Position
The position of the date and time dispiays on the TV monitor changes as shown below when (DISPLAY) on Menu
Screen 2 is changed.
Top left comer Top right corner Bottom left comer
—] [|
|
[|]
No display Centre Bottom right corner
Step Setting and operation TV monitor display
Set the MENU/REC LOCK switch to MENU to display to menu Menu Screen 2
screens. Press the page button to display Menu Screen 2 on the
TV monitor. (DISPLAY) P2
> POSITION L-UPPER
1 PLAY (REC INDICATE)
NOT REC CAMERA
| (BUZZER)
ALARM OFF
TAPE END OFF
Press the set (+, —) buttons to position the display as desired.
(DISPLAY) P2
REV FWD POSITION L-BOTTOM
2 (REC INDICATE)
NOT REC CAMERA
(BUZZER)
ALARM OFF
Upon completion of the settings, set the MENU/REC LOCK
switch to OFF. The regular screen is restored, and the date and
time appear at the selected position.
25- 6-96 24H
4:15:23
15
Time Mode Selection
Panasonic AL AMA
| | Te)
MAL ON токио ro (4) LJ 0
Yi: ma Pr =
O Tame Legua Tubes Eunvator Rave ríos 4 2 ОЙ
\ LH J
Y
TIME MODE button
Refer to the table given below to select the mode that suits the intended purpose of use.
Recording enable time Tape Video
Mode (in hours) replacement! recording Audio Type of
standard interval recording tape travel
180-minute | 120-minute | (recording (in seconds)
tape tape times)
3H 3 2 == -- 1/50 Possible Continuous travel
, Continuous travel
L12H 12 8 50 0.1 Possible at low speed
, Continuous travel
L24H 24 16 50 0.18 Possible at low speed
24H 24 16 50 0.18 Not Possible Intermittent travel
48H 48 32 25 0.34 Not Possible Intermittent travel
72H 72 48 20 0.5 Not Possible intermittent travel
96H 96 64 20 0.66 Not Possible Intermittent travel
120H 120 80 15 0.82 Not Possible Intermittent travel
170H 170 112 10 1.12 Not Possible Intermittent travel
Notes on operation
* This unit is designed with the NV-E180 cassette tape as a reference.
« Depending on the type of video cassette used, the recordable time will differ.
+ The actual recording enable time will be slightly longer than the “Recording enable time” given in the above
table although this wili depend on the tape used.
For instance, it is possible to record for about 27 hours using a 180- minute tape in the 24H mode.
+ A tape recorded in a time lapse mode can be played back in quick motion in the 3-hour mode.
« A tape recorded in the 3-hour mode can be played back in slow motion using the time lapse mode.
Selecting the cassette tape
» The unit is designed as a product required to exhibit high reliability in surveillance, security, monitoring, etc. In
order to maintain its recording reliability, it is recommended that the Panasonic video tapes listed below be used.
<VHS tapes> + NV-E180 <S-VHS tapes> + NV-SE180
e NV-E120 NV-SE120
NV-E90 NV-SE60
NV-E60
+» Avoid using 240-minute tapes with this unit.
16
Recording Procedure
O Switch on the power to the connected equipment. © Set the timer recording, auto repeat recording, alarm
recording, restoration-of-power-after-failure record-
O Adjust so that the images of the video cameras ing or other recording function.
appear properiy on the TV monitor. |
O Select the time mode for the recording.
YTIME MODE A
O Press the REC button.
— =
| REC
© Check that the date and time displayed on the TV
monitor have been adjusted properly.
—Ñ o,
f
15-11-66 3H
10:10:55
lo 0000 В
—
O Insert a cassette tape into the unit after checking
that the tab on the cassette is intact.
Notes on operation
If the PAUSE/STILL button is pressed during recording, the unit is set to the pause mode, and after about 5
minutes in this mode it is transferred to the stop mode.
Neat frame-to-frame continuity is not achieved if the recording mode is set again after the PAUSE/STILL button
15 pressed during recording. |
When the MENU/REC LOCK switch has been set to OFF, other operations can be performed during recording.
When restoration-of-power-after-failure recording is performed,recording can be continued in the same time mode
even if the power should fail provided that the power is restored within about one week. (This applies only if
the power has been supplied continuousiy for 3 or more days.) |
When performing auto repeat recording or timer recording, do not neglect to conduct the routine inspections.
When recording images from a black-and-white camera, set the video signal mode on Menu Screen 4 to B_W.
Remove the cassette tape if the unit is to be left standing for a prolonged period of time.
When the power supply is interrupted during recording (with the power switch still ON), a non-recorded portion
will be made in the beginning of the tape travel, or the tape will be over-recorded at its ending section. But
this is not a malfunction,
17
Tips For Better Recording
In order to ensure greater reliability in monitoring, surveillance and other continuous operations lasting many hours,
this unit comes with some safety functions for recording. Read the following descriptions of these functions before
proceeding to operate the unit.
Recording mode lock
There are two ways, as described below, to maintain
the recording mode during recording by disabling the
operations of the power switch as weil as the TIME
MODE and operation buttons.
O Set the MENU/REC LOCK switch to REC LOCK.
O set REC LOCK on Menu Screen 1 to ON. (See
Note)
The following switch and connectors are operational even
if the MENU/REC LOCK switch is set to REC LOCK.
« Alarm input connector, alarm reset connector
* REC REVIEW
Hour Meter
By showing for how many hours the unit has been used,
this meter provides useful information for regular in-
spection, maintenance and servicing involving the
cleaning and replacement of the inside parts, etc. When
the MENU/REC LOCK switch is set to MENU, the hour
meter will appear on the TV monitor together with the
date and time settings.
OFF [MENU]
LOCK
Fl
Menu Screen 1
(TIME ADJUST)
01- 1-96 MON
0:00:00
(REC LOCK)
MODE OFF
(HOUR METER)
00000H
The regular screen is restored when the MENU/REC
LOCK switch is set to OFF.
18
Recording check
When the REC REVIEW button is pressed during
recording, the tape runs temporarily in the reverse
direction, and the recorded section is played back. This
function can be used to check the daily operation of the
equipment in the system,
REC
REVIEW
—
Restoration-of-power-after-failure
recording
When a power failure has occurred during recording,
the unit automatically starts recording if the power is:
restored within approximately one week.
* When the power fails, the tape “losing” safety pro-
tection function is activated to protect the video heads
and video tape.
Before power is restored
After power is restored
+ Stop, play, fast forward
Stop mode is established.
* Recording
Recording mode is
established.
* Auto rewind
* Auto rewind during auto
repeat recording
Unit is returned to the mode
applying before the power
failed,
The table given below shows what happens after the power is
restored when VIDEC MODE “IN” on Menu Screen 4 has
been set to “LINE”.
Before power is restored
After power is restored
* Recording |
Recording mode is
established.
* Tape is being rewound in
auto repeat recording.
Recording mode is
established after tape has
been rewound.
Stop mode is established.
* Any other mode
* If the power is restored after a power failure when
the remaining charge of the back-up battery is low,
the unit automatically proceeds with recording in the
24H mode of the EXT REC mode. However, unless
REC T-MODE on menu screen 4 has been set to
OFF, recording will commence in the time mode set.
Note:
Once the recording mode is established, recording
cannot be released until REC LOCK on Menu Screen 1
is set OFF,
Timer Recording
There are two methods of timer recording: one uses the internal timer and the other uses an external timer.
Internal timer recording
Start time and stop time
Bear in mind the following points when setting these times.
* When the stop time is set later than the start time:
Recording will commence at the start time on the day concerned and stop at the end time on the same day.
Example: 8:30 <17:00
* When the start time is set later than the stop time or the start time and stop time for weekly recording
(weekly timer) are the same: |
Recording starts at the start time on the day concerned and ends at the stop time on the following day.
Example: 17:00 <8:30
* When the start time and stop time are the same (for weekly recording):
Recording starts at 8:30 on the day concerned and ends at 8:30 on the following day.
Example: 8:30 = 8:30
To record for an entire day, set the start time and stop time to 00:00.
* Weekly recording (weekly timer) can be set by the day of the week.
* When (INTERNAL TIMER REC) on Menu Screen 5 is set to OFF for both the weekly timer and daily
recording (daily timer), nothing appears for the start or stop time. Timer recording is considered not to be
set.
Internal timer recording operation
Step Operation TV monitor display
1 Check that a video cassette with its tab intact has been inserted.
Check that the TV monitor shows the correct present time,
2 25- 6-96 24H
a. 4:13:08
Set the MENU/REC LOCK switch to MENU to display the menu Menu Screen 5
screens, Press the page button so that the INTERNAL TIMER
REC timer setting screen appears on the TV monitor. (INTERNAL TIMER REC) P5
(TIMER) START END T-M
SUN OFF
| > ; MON OFF
3 CII | PLAY TUE OFF
WED OFF
OFF [MENU] THU OFF
FRI OFF
SAT OFF
DLY OFF
19
Step
Operation
TV monitor display
Set the operation times of the internal timer.
* For details on the settings, refer to the sections on “Daily
timer" or "Weekly timer." (See page 21 to 22.)
Upon completion of the settings, set the MENU/REC LOCK
switch to OFF. The regular screen is restored.
[11]
REC ¡OFF (MENU
LOCK
25- 6-96 24H
4:15:23
Set the TIMER MODE (REC MODE) switch to INT TIMER so that
INT lights on the display. (The internal timer lamp also lights.)
OFF mA =) | INT
TIMER
Display
When a cassette has not been inserted, the timer has not been
set or a cassette with a broken out tab has been inserted,
the internal timer lamp flashes, and INT on the display also flashes.
When the recording time arrives, nothing will be recorded.
VTR operations after the settings
* The unit's power is turned off, and even if other buttons are pressed, their operations are not accepted.
* When the start time and stop time have not been set, INT flashes on the display.
* Alarm recording is performed in the event of an alarm input even when the unit is in the timer recording standby
mode. When alarm recording is completed, the power is switched off and the unit
standby mode.
Releasing the internal timer mode
Set the TIMER MODE (REC MODE) switch to OFF to clear INT on the display.
Note:
is set to the timer recording
о Since it takes some moments for recording to start, set the start time for timer recording one minute earlier.
on
Daily Recording (Daily Timer)/Weekly Recording (Weekly Timer)
Step
Selection and operation
When recording from 8:30 to 12:00 from Sunday through
Thursday and from 9:00 to 12:00 on Fridays and Saturdays
TV monitor display
Check that OFF or ON for Sunday (SUN) is flashing. If the
setting is OFF, press the set (+, =) buttons to display ON.
REV FWD
O
BET
Menu Screen 5
(INTERNAL TIMER REC) ES
(TIMER)START END T-M
SUN OFF
MON OFF
When the shift ( >) button is pressed, the setting moves to the
start time and the “hour” digits flash.
>
FF
O
(INTERNAL TIMER REC) P5
(TIMER)START END T-M
al
SUN ON 000 0:00
MON OFF
Press the set (+, —) buttons to display “8.”
| REV FWD
(INTERNAL TIMER REC) PS
(TIMER) START END T-M
SUN ON 78500 0:00
MON OFF
} When the shift (>) button is pressed, the “minutes” digits flash.
> Do
FF
O
(INTERNAL TIMER REC) PS
(TIMER)START END T-M
SUN ON 8:0 0:00
MON OFF
Press the set (+, —) buttons to display “30.”
(INTERNAL TIMER REC} P5
O
5 REV FWD (TIMER)START END T-M
© | SUN ON 8:36 0:00
MON OFF
When the shift ( [>) button is pressed, the “hour” digits flash.
> | (INTERNAL TIMER REC) P5
6 FF (TIMER)START END T-M
SUN ON 8:30 0500
MON OFF
Press the set (+, —) buttons to display “12. ”
REV FWD
O
(INTERNAL TIMER REC) P5
(TIMER)START END T-M
SUN ON 8:30 12:00
MON OFF |
21
Step Selection and operation
When the shift ( [> ) button is pressed, the “minutes” digits flash.
(INTERNAL TIMER REC} P5
Pl
8 FF (TIMER)START END T-M
SUN ON 8:30 12:)@
MON OFF |
Press the set (+, —) buttons to display “00.”
Press the shift ( [>) button and set the recording time mode. (INTERNAL TIMER REC) P5
When the shift {\/) button is pressed, the MON is flashing. (TIMER)START END T-M
9 | REV FWD <a SUN ON 8:30 12:36
O — REW MON OFF
Following the same procedure in steps 1 to 9, display the start
time of “8:30” and stop time of “12:00” from Monday (MON)
through Thursday (THU). Following the above procedure, set the
1 0 times for Friday (FRI) and Saturday (SAT) as well.
In this way, the timer operation times have been set for each
day of the week.
The settings for daily recording (daily timer) are also performed
following the same steps 1 to 9.
* When daily recording and recording by day of the week are to be conducted together, the timer recording
operations will be as shown below when the time settings are as follows.
(INTERNAL TIMER REC) P5
(TIMER)START END T-M
SUN ON 8:00 8:00 120
MON ON 12:00 14:00 120
The setting shown on the screen at the left translates
into the weekly and daily timer recording combinations
shown below which, in turn, means that the actual re-
TUE OFF cording time on the tape is shown at the bottom.
WED OFF
THU ON 14:00 23:00 120
FRI OFF
SAT ON 12:00 8:00 120
DLY ON 18:00 8:00 120
Sunday Monday Tuesday | Wendnesday | Thursday | Friday | Saturday | Sunday
Weekly Timer i | |
веку 8:00 8:00 14:00 14:00 23:00 12:00 8:00
12:00
—— o | |
8:00 18:00 8:00 | à Do Là 1 |
I I I I 1 1 1 I
I d d A 4
Actual Recording | id | Do |] | | |
Time 8:00 14:00 8:00 18:00 8:00 18:00 8:00 14:00 8:00 18:00 8:0012:00 8:00
* The day of the week time settings are displayed, enabling the settings to be checked for each day of the week.
* When the weekly timer and daily timer recording functions are used in combination, the time mode set for
weekly timer recording takes precedence if there should be any overlap between the two time settings.
22
External Timer Recording
The unit can be made to record using an external timer to turn on its power.
— | Power Cord
= — MN = (Audio timer availabie from dealer)
To AC IN Timer
External timer recording operations
Step Selection and operation TV monitor display
1 Check that a video cassette with its tab intact has been inserted.
Set the TIMER MODE (REC MODE) switch to EXT TIMER so that
EXT lights on the display. At the set time, power is supplied from the
external timer and the unit is set to the recording mode.
EXT
; TIME MODE
24H
Display
3 When setting the EXT TIMER, ensure that the VTR is in waiting
the TIME MODE showing in the dispiay.
* If the video cassette tape has not been inserted or if its accidental erasure prevention tab has been broken,
EXT will flash on the display, and external timer recording cannot be conducted.
* Since it takes some moments for recording to start, set the start time for timer recording one minute earlier.
23
Auto Repeat Recording/Auto Rewinding
Auto repeat recording: This function automatically rewinds the cassette tape when its end is detected in the
recording mode, and it repeats recording from the start of the tape.
Auto rewinding: This function automatically rewinds the tape to the start when the tape end is detected in the
. recording mode.
Step | Selection and operation TV monitor display
1 Check that a video cassette with its tab intact has been inserted.
Set the MENU/REC LOCK switch to MENU to display the menu Menu Screen 2
screens. Press the page button to display Menu Screen 2 on the
TV monitor. (DISPLAY) P2
POSITION L-UPPER
2 > (REC INDICATE)
|| PLAY | NOT REC CAMERA
OFF END) PAGE (BUZZER)
ALARM OFF
TAPE END OFF
TAPE REMAIN OFF
TAPE WARN OFF
Press the shift (7) button to move the flashing to TAPE END.
Press the set (+ or —) button to display REPEAT for auto repeat (DISPLAY) P2
recording or REW for auto rewinding. POSITION L-UPPER
{ (REC INDICATE)
3 << NOT REC CAMERA
$ REW REV FWD (BUZZER)
e O O | ALARM OFF
TAPE END REPEAT
TAPE REMAIN OFF
TAPE WARN OFF
“Co lights on the display.
Ce * If auto rewinding has been
4 selected, “ C4” is cleared.
Display
Upon completion of the settings, set the MENU/REC LOCK
switch to OFF. The regular screen is restored.
25- 6-96 24H
4:15:23
Notes of operation
* Alarm signals are not accepted during auto rewinding, and so alarm recording is not performed.
* If an alarm signal is supplied during auto repeat recording, the alarm recording mode is established. If the tape
then reaches its end, auto repeat recording is performed but alarm recording is released.
24
Alarm Recording (Emergency Recording)
When an emergency occurs at the monitoring site during prolonged monitoring and recording, the alarm function
is automatically triggered, and alarm recording is performed.
Principle of alarm recording Connecting the alarm input
Alarm input Allarm reset input connector
Tape start Y ' Таре епа ;
| Recording Alarm recording] Recording Alarm switch
Time lapse mode | Alarm mode T Time lapse mode ”
(3H) | |
* When an alarm signal is supplied by an alarm sensor 000000
(door or intercom switch, etc.) during recording in a
time lapse mode, the recording speed is switched to
the 3-hour mode and the details of the state of Alarm switch
emergency are faithfully recorded.
Alarm reset switch
Alarm and display methods during
alarm recording
ALARM display lam | | itch |
Spray ‘amp * Alarm recording starts when the alarm switch is set
| on. When the alarm reset switch is set ON after re-
Parsords | о cording has started, alarm recording is released and
— SEG operation is returned to the original time lapse re-
та NES cording mode.
== тент = БД
¥
* Alarm recording can be released by pressing the
STOP button during alarm recording.
* When an alarm signal is supplied, the alarm display However, it cannot be released even by pressing the
lamp functions as follows. STOP button if the MENU/REC LOCK switch is at
REC LOCK or INT is lighted on the display.
Alarm on Flashing | Off * Alarm recording can be automatically reset without
lamp ” >, supplying the aiarm reset input signal.
| | | The reset time can be set for 0.5, 1.0, 2.0, 3.0, 5.0 or
10 minutes.
Alarm input Alarm reset VTR switch is
input pressed.
Display .
switch to “3H,”
17-11-96 3H —
10:14:30 A —
* Another option is alarm recording only while the alarm
input signal is supplied.
* Alarm recording is also possible as far as the end
of the tape.
“A” display
TV monitor appears
25
Alarm recording operation
Step Selection and operation TV monitor display
1 Check that a video cassette with its tab intact has been inserted.
Set the MENU/REC LOCK switch to MENU to display the menu
screens. Press the page button to display the alarm recording (ALARM) | РЗ
setting screen (Menu Screen 3) on the TV monitor. MODE OFF
> DURATION 0.5MIN
2 CO PLAY (RECALL) -
-
REC | OFF [MENU] -
Press the set (+ or —) button to display ALARM for MODE.
(ALARM) P3
; REV FWD MODE ALARM
3 | o O DURATION 0.5MIN
(RECALL) -
Press the shift (V ) button to move the flashing to T-MODE.,
Press the set (+ or —) button to set the time mode. (ALARM) P3
pope MODE ALARM
4 ; REW REV FWD DURATION 0.5MIN
O do no
i
Press the shift ( V ) button to move the flashing to DURATION.
Press the set (+ or ~} button to set the recording duration. | (ALARM) РЗ
” MODE ALARM
5 REW REV FWD DURATION 0.5MIN
e (RECALL) -
_
Upon completion of the settings, set the MENU/REC LOCK
switch to OFF. The regular screen is restored. 25- 6-96 24H
4:15:23
Press the REC button.
REG
7 le]
If an alarm input signal is subsequently supplied, the time mode
set by T-MODE changes to 3H, and alarm recording continues
until the alarm is released.
* |f TAPE END on Menu Screen 4 has been set to REPEAT, the auto repeat recording mode is established when
the tape comes to the end.
* With emergency recording, set the unit to the POWER OFF or STOP mode.
26
Alarm Recall
The time when the alarm signal was input can be ascertained on the TV monitor by checking the alarm input
time in the RECALL item on Menu Screen 3.
Step Selection and operation TV monitor display
Set the MENU/REC LOCK switch to MENU to display the menu
screens. Press the page button to display the alarm recording (ALARM) P3
setting screen (Menu Screen 3) on the TV monitor. MODE ALARM
> DURATION 0.5MIN
— PLAY (RECALL) 01-10-96 20:19
1 14-09-96 12:05
RFC |oFF [MENU] 30-08-96 08:40
| 25-06-96 04:14
Upon completion of the settings, set the MENU/REC LOCK
9 switch to OFF. The regular screen is rastored.
19-12-96 24H
4:15:23
* The alarm recall function stores up to 4 alarm input times in the memory and dispiays them on the screen. If
there have been more than 4 inputs, they will be deleted from the screen in sequence starting with the oldest
data.
* When the RESET button is pressed while Menu Screen 3 is on the display, the alarm recall memory can be
cleared.
27
Frame Switcher Connection and Recording
Connections (using the WJ-FS20)
Video Output | | |
и - Cl
Playback Input TV monitor
— Camera Camera
° uu QO
ООС O OO do Se
000
POORER A
Frame Switcher
WJ-FS20
- — Camera
switching
— - male OL TON
nf (0000000 = 00000) | 78) OL no Laso VR
== [|] 0000000 ——=Jre Time Lapse VT
; 00 of DO00000 |° mamar
* Do not supply signals from colour cameras and
black-and-white cameras simultaneously to the
camera input conectors since this may disturb the
synchronization on the monitor screen or generate
noise.
28
Playback Procedure
Before operating the unit, check that the internal/external timer recording displays (INT/EXT) have been cleared
from the display. (If INT or EXT is displayed, set the TIMER MODE switch to OFF to clear it.)
@ Switch on the power to the unit and TV monitor. @ Press the PLAY button.
>
@ Insert the recorded cassette tape into the unit. PLAY
O Select the time mode.
Y TIME MODE A
©
Notes on operation
1. Bear in mind the following points when playing back parts of a tape recorded in a time lapse or linear slow mode.
* When the tape is played back in the same mode, noise resembiing dropouts will appear on the screen: this
Is not indicative of malfunctioning. |
* The picture may oscillate in the vertical direction: this is not indicative of malfunctioning.
* When a tape is played back in the same time mode, the picture may shake slightly sideways: this is not
indicative of malfunctioning.
* Turn Quasi-V insertion ON (E) or OFF ( » ) with the FWD ADV button. Dancing can be minimized when a
tape is played back in a time lapse (exept 3-hour) or linear slow mode.
2. Bear in mind the following points when playing back parts of a tape recorded in a VHS/S-VHS mode (3 hours).
* When a tape is played back in a time lapse mode, slight noise may appear at the top and bottom of the
screen: this is not indicative of malfunctioning.
* When the tape is played back in the L12H or L24H mode, the picture may oscillate in the vertical direction: this
Is not indicative of malfunction.
3. When noise has occurred during still-picture playback, press the FWD ADV button to play it out. |
4. Bear in mind that if the power cabie is disconnected and then re-connected or if the power has been restored
after it has failed when the tape was piayed with EXT indicated on the display by the TIMER MODE switch,
the unit will automatically be set from playback to the recording mode. -
5. When the PAUSE/STILL button is pressed during playback, the unit is set to the pause mode, and a still picture
will appear on the monitor screen. To release this state, press the PAUSE/STILL button again or press the
PLAY button. If the unit is kept in the pause mode for more than 5 minutes, it will be set to the stop mode.
6. If the horizontal AFC on the TV monitor is too long or when a video camera with random interlace scanning
has been used, the top area of the TV monitor may be distorted: this is not indicative of malfunctioning.
Tracking | Vertical hold adjustment
When noise such as that shown below appears on tf the image shakes slightly in the vertical direction during
the playback image, press the tracking (+ or —) button still-picture playback, press the vertical hold buttons (=, +)
to minimize the noise. to reduce the dancing.
TRACKING, fo
—V-LOCK + [ | = —
OTO =
* If the TV monitor has a vertical hold control, adjust
that control also.
—
29
Routine & Regular Inspection Request
This unit is designed to withstand many hours of operation. Nevertheless, it is recommended that routine inspections
be conducted to help ensure trouble-free operation.
CAUTION
Do not forget to conduct the routine inspection with auto repeat recording.
Routine inspection procedure
O Setthe power switches on the unit, video cameras, O Press the TIME MODE button to set to the mode
TV monitor and otherequipment connected in the to 3H (3 hours).
monitoring system to the ON position. Y TIME MODE A
TIME MODE
O Is the picture on the TV monitor OK? ( ) | o 3H
O Press the PLAY button. The tape is played back
by an amount equivalent to a count on the counter
Display
Of several figures. >
(e co000 9 PLAY
- =
O Are the date and time displayed on the TV monitor
correct?
| , = O Is the playback image OK?
O Is there any problem with the recorded date and
15-11-06 3H time?
10:10:55
| O Press the REC button.
руны
ВЕС
@ Rewind the cassette tape, which was recorded on
the previous day, by an amount equivalent to a count
on the counter of several figures.
|
REW @ Check the playback images which were recorded
| © in the 3-hour time mode.
@ Upon completion of all the checks, set the unit to
the desired mode.
Action taken after routine inspections
In the unlikely event of a problem with the unit, turn off the power, take hold of the power plug and disconnect it
from the power outlet, and consult with the dealer from whom the unit was purchased.
Regular inspections recommended
This unit has an hour meter which shows for how many hours the VTR has been used. When the MENU/REC
LOCK switch is set to MENU, Menu Screen 1 appears on the TV monitor, and the hour meter can be checked.
Use the hour meter as a rough guideline to cleaning or replacing the parts inside the unit. For further details,
consult with your dealer.
[TIT]
=> (HOUR METER)
REG. [OFF [MENU] 00150H
TV monitor
30
Troubleshooting
| No pc power. o
No picture. * |s the unit connected properly with the TV, video cameras, etc.”
* Are any of the connecting cables making faulty contact?
Indistinct picture. ° * Has the focus on 1 the video cameras been adjusted correctly?
Nothing happens even n when operation + ls the video c cassette loaded?
buttons are pressed. * [s the MENU/REC LOCK switch at OFF? -
* Has the video cassette been inserted properly? Press the
EJECT button to eject the cassette and insert properly.
* Has INT lighted on the dispiay?
“g ” markis flashing. * The unit will not operate because its safety protection function
has been triggered. Wait until the flashing disappears.
The “ d " mark at display
section flashes.
+
e Ejection will remain
incomplete when a video
cassette has been inserted.
3
Wait until the “ g ” mark
goes out with VTR switch
turned “ON”. it may take a
few hours, although it
depends upon conditions.
Date and time display data has not been * Has the unit's power plug been disconnected from the power
stored in memory when the power failed. outlet for a long time?
insert the unit's power plug into the power outlet and supply
power continuously for at least 3 days to to the. unit.
Tape can be played, fast forwarded or | st s the tab o on n the video cassette broken?
rewound but not recording results.
Recording has stopped. * Is the video cassette tape at its end?
* Have more than 5 minutes elapsed since the PAUSE/STILL
button was pressed during recording?
* Are the routine inspections being carried out? If this phenome-
non keeps recurring, it means that some failure or other is to
blame. Consult with your dealer.
31
The power has been restored after a
power failure but recording does not
automatically resume.
* Has the power failure lasted a long time (more than 1 week)?
Set the timer recording switch to EXT to ensure that the unit is
set to the recording mode even after a prolonged power failure.
Recording cannot be stopped.
* First set the MENU/REC LOCK switch to OFF and then
operate.
* Is REC LOCK on Menu Screen 1 at OFF?
1-week programmed timer recording
cannot be conducted properly.
* Are the date and time on the regular displays correct?
(See page 12) |
One or more cameras do not record
when a multiple number of cameras are
used.
* Turn the time adjustment control on the sequential switcher,
and adjust it to a setting which is longer than the video
recording duration in the recording time mode.
* Connect a camera switching cable between the unit and
frame switcher. (See page 28)
No auto repeat recording.
* Has the stop button been pressed during auto rewinding?
No timer recording.
* Are the present time and start/stop times for the timer
recording correct? | |
* Has INT or EXT lighted on the display?
No alarm recording. .
* Have the alarm sensors and alarm input connectors been
connected properly?
* Has the alarm recording mode been selected on Menu Screen
37
me НЙ
Noise sometimes appears on the play-
back pictures.
Te
PC po
djust the tra
ee Ду ir
Dirty playback picture.
» The video heads may be dirty or clogged or they may have
reached the end of their service life. Consult with your dealer.
“Snow” on playback picture.
* The video heads may be dirty or clogged. Consult with your
dealer.
While a multiple number of cameras are
being used, two scenes appear as the
playback picture when the cameras are
switched.
* Has the camera switching signal cable been connected
properly?
Recording starts when the unit's power
plug is connected to or disconnected
from the power outlet.
* Has INT or EXT lighted on the display?
No playback because recording starts
when the main power for the connected
equipment is set to ON.
* Has INT or EXT lighted on the display?
32
Specifications
Power Source:
220 — 240 V AC, 50 — 60 Hz
Power Consumption: 20 W
General
Operating Temperature: 5°C to 40°C
Operating Humidity: 35% to 80%
Dimensions: 430(W) x 100(H) x 290.5(D) mm
Weight: Approx. 4.7 kg
Video Recording System:
Tape Speed:
Tape Format:
Recording Time:
FF/REW Time:
Video
Television System:
Modulation System:
S-VIDEO Input (4P):
Video Input (BNC):
S-VIDEO Output (4P):
Video Output (BNC):
Horizontal Resolution:
S/N:
Audio
Line Input (Phono):
Mic Input (3 mm):
Line Output (Phono):
Track:
Recording/Playback mode:
Standard accessory
Power Cord:
4 rotary heads, Azimuth recording system, VHS/S-VHS formats
23.39 mm/s (3H mode)
S-VHS/VHS tape
3/L12/L24/24/48/72/96/120/170 hours
Approx. 3 min. (with 180-minute tape)
CCIR Standard (625 lines, 50 fields)
PAL colour signal
Luminance; Frequency modulation recording
Colour signal; Converted subcarrier phase shift recording
Y; 1.0Vp-p, 75 ohms, unbalanced
С; 0.3Vp-p (burst), 75 ohms, unbalanced
1.0Vp-p, 75 ohms, unbalanced
Y; 1.0Vp-p, 75 ohms, unbalanced
С; 0.3Vp-p (burst), 75 ohms, unbalanced
1.0Vp-p, 75 ohms, unbalanced
B/W mode; 320 lines (VHS)
400 lines (S-VHS)
Colour mode; 240 lines (VHS)
400 lines (S-VHS)
B/W mode; 45 dB (3H mode, VHS/S-VHS)
Colorur mode; 45 dB (3H mode, VHS/S-VHS)
—10 dBv, 47 kohms, unbalanced
—60 dBv, 600 ohms, unbalanced
-8 dBv, 1 kohm, unbalanced
1 track (normal)
3H/L12H/L24 mode
x 1
Weight and dimensions shown are approximate.
Specifications are subject to change without notice.
33
Input/Output Terminal Signal Level
p-——» |
[Не
Terminal Signal Level Note
Alarm Input/Summer Time | NV: 0-0.6v
Setting Input he LOW Input
MIN 400 msec.
MIN 400 msec.
Alarm Reset Input HIGH Input
Camera Switching Output
Video recording interval
of
>
20 msec.
i [Г * | Von = 11-13V (5.6k0)
| Vou = 0-0.6V (max. 3 mA)
During auto repeat or When stopped
auto rewinding V y
T nd outout VOH OH = 11-13V (4.7k©)
ape end outp | | ле. vo. | Мон = 0-0.6\ (max. 3 mA)
f—
Approx. 10 sec
Warning output
VOH: 11 ~13V
L VoL
Vor = 11=13V (4.7kQ)
Vou = 0-0.6V (max. 3 mA)
34
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
