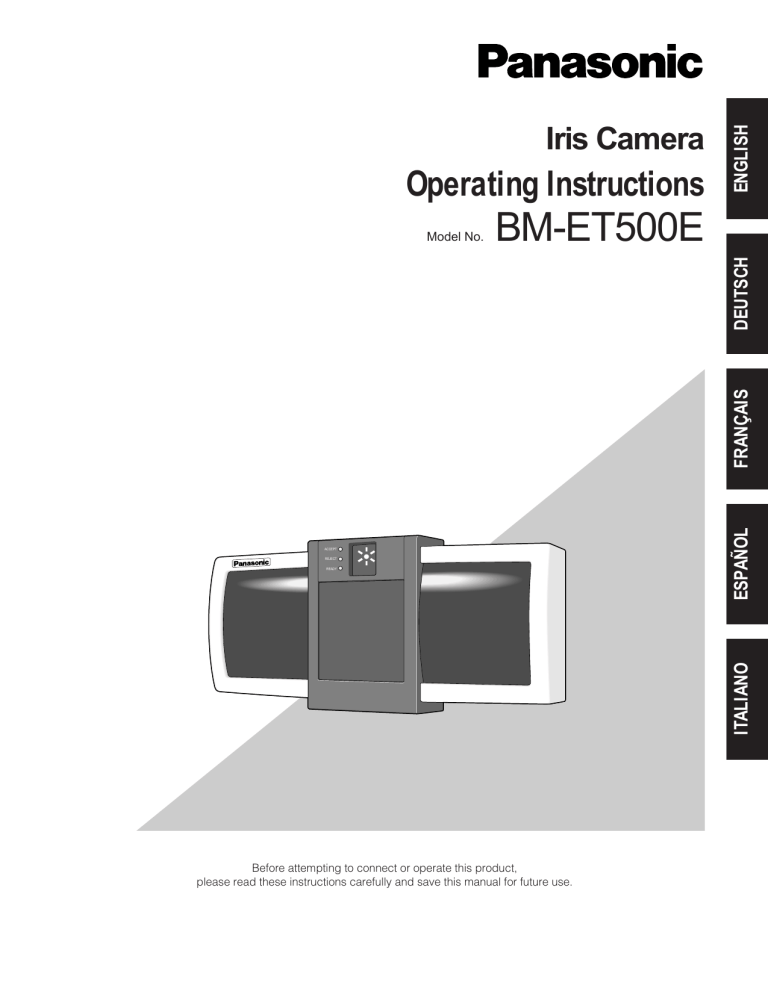

Operating Instructions
BM-ET500E
ACCEPT
REJECT
ITALIANO
READY
ESPAÑOL
FRANÇAIS
DEUTSCH
Model No.
ENGLISH
Iris Camera
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
ENGLISH VERSION
We declare under our sole responsibility that the product to which this
declaration relates is in conformity with the standards or other normative documents following the provisions of Directives EEC/73/23 and
EEC/89/336.
Ilmoitamme yksinomaisella vastuullamme, että tuote, jota tämä ilmoitus koskee, noudattaa seuraavia standardeja tai muita ohjeellisia asiakirjoja, jotka noudattavat direktiivien 73/23/EEC ia 89/336/EEC.
säädöksiä.
Wij verklaren als enige aansprakelijke, dat het product waarop deze
verklaring betrekking heeft, voldoet aan de volgende normen of
andere normatiefve dokumenten, overeenkomstig de bepalingen van
Richtlijnen 73/23/EEC en 89/336/EEC.
Vi erklærer oss alene ansvarlige for at produktet som denne erklæringen gjelder for, er i overensstemmelse med følgende normer eller
andre normgivende dokumenter som fælger bestemmelsene i direktiven 73/23/EEC og 89/336/EEC.
Vi erklærer os eneansvarlige for, at dette produkt, som denne deklaration omhandler, er i overensstemmelse med den følgende standarder eller andre normative dokumenter i følge bestemmelserne i
direktivene 73/23/EEC og 89/336/EEC.
Vi deklarerar härmed värt fulla ansvar för att den produkt till vilken
denna deklaration hänvisar är i överensstämmelse med standarddokument, eller andra normativa dokument som framstölls i Direktiv
73/23/EEC och 89/336/EEC.
Cautions:
• This unit is for indoor use only.
• Before attempting to connect or operate this product,
please read the label on the bottom.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
The serial number of this product may be found on the bottom of the unit.
You should note the serial number of this unit in the space
provided and retain this book as a permanent record of your
purchase to aid identification in the event of theft.
Model No.
BM-ET500E
Serial No.
WARNING: To prevent fire or electric shock hazard, do not expose this appliance to rain or moisture. The apparatus shall not be exposed to
dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
2
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not use near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider
than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the points
where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-overs.
S3125A
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or objects fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
3
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ........................................................................................................................................ 3
PREFACE ...................................................................................................................................................................................... 5
FEATURES .................................................................................................................................................................................... 5
PRECAUTIONS ............................................................................................................................................................................. 6
DOCUMENT CONVENTION ......................................................................................................................................................... 7
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS ...................................................................................................... 8
INSTALLATIONS AND CONNECTIONS ....................................................................................................................................... 9
DIMENSIONS OF THE MOUNTING BRACKET ............................................................................................................................. 12
ADJUSTMENTS AND MAINTENANCE ......................................................................................................................................... 13
■ Adjustment ............................................................................................................................................................................. 13
■ Maintenance .......................................................................................................................................................................... 13
RECOGNITION PROCEDURES .................................................................................................................................................... 14
■ Iris Recognition ...................................................................................................................................................................... 14
■ ID-and-password Authorization ............................................................................................................................................. 15
ADDITIONAL SYSTEM COMPONENTS ....................................................................................................................................... 16
■ Control Unit BM-ED500 ......................................................................................................................................................... 16
■ Administration Software BM-ES500E ..................................................................................................................................... 16
TROUBLESHOOTING .................................................................................................................................................................. 17
SPECIFICATIONS ......................................................................................................................................................................... 18
OPTIONAL ACCESSORIES .......................................................................................................................................................... 18
4
PREFACE
Iris Camera BM-ET500E is designed for an iris physical
access system, which identifies the person with one’s iris
pattern.
FEATURES
• This system is composed of an iris camera, control unit,
and the administration PC (you need the optional software BM-ES500E).
• Iris recognition technology is a way to identify a person
with iris patterns (an iris is the thin plate-shaped film in
front of the eyeball), which differ among each person.
When you look at the iris camera, the camera automatically executes recognition procedures by capturing
your iris image.
Iris
Retina
Pupil
Notes:
• These operating instructions describe the details on iris
camera. Refer to the control unit's operating instructions
on how to install iris cameras and the control unit.
• To execute recognition, you need to register iris data in
advance. Refer to the dealer for details on how to
obtain the administration software.
5
PRECAUTIONS
• Refer all work related to the installation of this
product to qualified service personnel or system
installers.
Consult an expert on the load bearing capacity of the
installation surface and structure. If the surface is not
strong enough, the camera may fall down. Refer to the
product specifications for weights.
• Do not drop metallic parts through slots.
This could permanently damage the appliance. Turn
the power off immediately and contact qualified service
personnel for service.
• Do not attempt to disassemble the appliance.
To prevent electric shock, do not remove screws or
covers.
There are no user-serviceable parts inside. Contact
qualified service personnel for maintenance.
• Handle the appliance with care.
Do not strike or shake, as this may damage the appliance.
• Do not expose the appliance to water or moisture.
Do not try to operate it in wet areas.
Take immediate action if the appliance gets wet. Turn
the power off and refer servicing to qualified service
personnel. Moisture can damage the appliance and
also cause electric shocks.
• Do not use strong or abrasive detergents when
cleaning the appliance body.
Use a dry cloth to clean the appliance when it is dirty.
When the dirt is hard to remove, use a mild detergent
and wipe gently.
• Do not operate the appliance beyond its specified
temperature, humidity, or power source ratings.
Use the appliance at temperatures between 0 °C and
40 °C (between 32 °F and 104 °F) and humidity between
30 % and 80 %.
The input power source for this appliance is 32 V DC
(when supplied from the control unit) or 24 V DC (when
supplied from an external power unit).
• This unit has no power switch.
Power is supplied from Control Unit BM-ED500 or from
an external 24 V DC power-control device. Refer to the
control unit's operating instructions for how to turn
on/off the power.
Note: While the power is turned off, recognition and
entrance will be unavailable.
6
• When you use an external power control unit, do the
following:
Turn on the external power control unit before turning
on Control Unit BM-ED500.
Turn off the external power control unit after turning off
the control unit.
• Consumable part
Contact your dealer for the front panel replacement, for
example, when it is damaged or when you cannot recognize or enroll yourself.
Part number of the front panel: 3CF001017AAA
• Use of near-infrared ray
Near-infrared ray is used when iris data is enrolled or
recognized by the unit. The near-infrared ray is compliant with the radiological safety standard of IEC60825-1.
• Indication
Refer to the bottom of the unit as to the indications of
equipment classification and power source, etc.
• This product is not designed to prevent theft in
advance. We shall not guarantee you for any trouble
caused by using this unit.
• If you are in a situation that iris recognition is
impossible from the exterior, recognition or
enrollment will be invalid.
• Iris data is privacy. Take enough care not to leak the
image data out of the administration PC. It is also
recommended that you should get an agreement
from a person to register his or her data.
• We recommend that you note down your settings
and save them. Power or battery failure may erase
the setting.
• Do the self-diagnostic test, when you open this unit
door for maintenance, etc. The self-diagnostic test
can be carried out by turning on a power supply.
Read BM-ED500 Operating Instructions for turning on a
power supply.
DOCUMENT CONVENTION
These operating instructions use the following convention when describing the use and operation of this system.
Unit: Panasonic Iris Camera BM-ET500E
Control unit: Panasonic Control Unit BM-ED500
Administration software: Panasonic Administration Software BM-ES500E
Caution: Text with this appearance is a special instruction which you should heed for your safety.
Note: Text with this appearance is a special instruction, rule, or side comment related to the topic.
7
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS
w User guidance indicators
q Status indicator
ACCEPT
e Built-in color
CCTV camera
r Operation indicators
REJECT
READY
t Front panel
y 10 key cover
u LED indicator
1
6
2
7
3
8
4
9
5
0
CANCEL
ENTER
o Buzzer-level adjustment hole
i Numeric keys
q Status Indicator
Shows the status of recognition or enrollment.
ACCEPT: Lights up when recognition has been successfully executed. *
Or lights up when enrollment has been successfully
executed through iris image capturing.
REJECT: Lights up when recognition has not been successfully executed.
Or lights up when enrollment has not been successfully executed through iris image capturing.
READY: Lights up when recognition/enrollment is available.
When this indicator is blinking, recognition/enrollment is unavailable.
* Depending on capturing condition, you might not enroll
your iris data even when ACCEPT is lighting. After the
enrollment, confirm through the administration PC, in
which the administration software is installed, if the
recognition has been successfully executed.
w User guidance indicators
These indicators light up when you stand in front of the
unit, and then inform you that recognition/enrollment will
start.
e Built-in colour CCTV camera
This is a colour camera for surveillance.
For example, it is used for status confirmation if a
recognition has not been successfully executed.
8
r Operation indicators
These indicators show the operation statuses of the
unit. The central indicator is lit all the time when power
is applied. Refer to p.14.
t Front panel
y 10 key cover
u LED indicator
Shows which numeric key has been pressed.
i Numeric keys
These keys are used when you execute ID-and-password authorization instead of iris recognition.
o Buzzer-level adjustment hole
Adjusts the level of buzzer, which informs you of recognition/enrollment results. Refer to p.13 for details on
level adjustment.
Note: Keep away from this hole except for qualified service personnel.
INSTALLATIONS AND CONNECTIONS
2. Remove the shipping lock as follows:
WARNING
The installation described in these figures should be made
by qualified service personnel or trained system installers.
Cautions:
• This system must be installed within the protected
promise in accordance with the International
Electrotechnical Commission, and the local authorities
having jurisdiction.
• Attach this unit to a flat wall with the supplied mounting
bracket. After the installation, secure the unit to prevent
dropping.
The unit can be mounted over the wall as described.
1. Attach the anchor into the wall, and then attach the supplied mounting bracket to the anchor.
(Refer to the figure in p.12.)
The anchor bolt should meet the standards shown in
the illustration.
1
Locked
2
Belt
(1) Remove the screw.
(2) Insert the belt until it hits
to the stop.
3
Unlocked
(3) Bend the belt and secure it with the screw.
• Take care not to drop the screw inside the unit.
• You can use an M3 screw if you have lost this screw.
Wall
10 mm (2/5 in.) or less
3. Remove the numeric keyboard.
You can remove the keys by taking off the two tamperproof screws (with the supplied screw driver tool) and
lifting up the keyboard. The control cable should also
be removed.
1
6
2
7
3
8
4
5
9
0
CANCEL
ENTER
Remove the screws.
Mounting bracket
2 mm (2/25 in.) (D)
1
9
2
3
4
5
CANCEL
4. Attach the unit to the mounting bracket.
(1) Attach the mounting
bracket to the wall.
Video output cable and
power cable *
(from the control unit)
(2) Remove the numeric
keyboard.
1
2
3
4
5
CANCEL
Screw nut (M5)
Provide access for
cables to be routed
through the wall.
(3) Remove the shipping lock.
(4) Attach the unit to the mounting bracket.
Secure the unit and bracket with the screw nut,
using an 8 mm (0.03 in.) socket driver.
(5) Connect the cables to the unit.
(6) Attach the numeric keyboard.
* Refer to the control unit’s operating instructions
for the specifications.
5. Connect the coaxial cable to the unit.
The unit is connected to the control unit (Camera 1 - 3).
7. Connect the DC power cable to the unit.
If you use power supply from the control unit to the unit,
connect the DC power cable to 0 V and +32 V ports.
If you use 24 V DC power supply from an external
power-control device, connect the power cable to 0 V
and +24 V ports.
Pass the cable
through this hole.
Coaxial cable
To CAMERA 1 - 3 of the control unit
To the control unit
6. When you use the built-in CCTV camera, connect the
supplied video output cable to VIDEO OUT. Then, connect the supplied video output cable and the video
input cable of a connected device (for example, monitor or DVR).
Connect them.
Pass the cable
through this hole.
To a monitor or Digital Disk Recorder
10
0 V +24 V
+32 V
Caution: Take DC 24 V power supply from a third-party
external power supply device that complies with the
safety standard.
(Refer to p.18.)
8. Attach the numeric keyboard.
Connect the control cable which has been connected
to the numeric keyboard. Then, attach the keyboard
with the tamperproof screws.
(for example, places near air conditioners or ven· noise.
tilators)
· electricity.
places.
· outdoor
vibration.
(It may cause invalid recognition or injury.)
·• Do not place
anything inside the space described in
Caution: Insert the cable into the unit so as to avoid
pressure from the keyboard.
the illustration.
• This unit is for indoor use only.
• This unit must be mounted horizontally on the wall.
• Determine the optimum mounting height. The recommendation is between 1.38 m (54 in.) and 1.5 m (60 in.)
for enrollment/recognition effectiveness.
• Mount the bracket on the wall. Be sure to provide
access for video control and DC power from the control
unit.
Notes:
• Keep the unit:
in the temperature between 0 °C and 40 °C (between
32 °F and 104 °F) and the humidity between 30 % and
80 %.
• Keep the unit away from:
direct sunlight or light reflection.
incandescent or halogen lighting.
places where shadow appear over the front panel.
·
·
·
·
400 mm (16 in.)
900 mm (35 in.)
1 300 mm (51 in.)
Keep this area free
from obstructions
80 mm (3 in.)
400 mm (16 in.)
700 mm (28 in.) 700 mm (28 in.)
1 380 mm (54 in.) or more
(recommended)
211 mm (18 in.)
Keep this area free
from obstructions
400 mm (16 in.) 400 mm (16 in.)
Side View
430 mm (17 in.)
Top View
900 mm (35 in.)
1 300 mm (51 in.)
Floor
System Instruction (Maximum System)
Coaxial cable(BNC)
Camera power cable
Coaxial cable(BNC)
OK
NG
BM-ET500E
(For identification)
OK
BM-ET500E
(For
enrollment)
NG
General-purpose
power supply
(24V DC,UL listed)
BM-ED500
POWER
ALARM S3
S2
S1
Camera 1
Electric lock*
Camera 3
Administration PC*
Camera 2
OK
NG
BM-ET500E
(For identification)
LAN cable
*UL not verified
11
DIMENSIONS OF THE MOUNTING BRACKET
398
180.5
174.5
26
22
4-φ10
22.5
45
180.5
49
186.5
8
M5
(Unit of length: mm)
12
99.3
90
89.4
47
173.7
124.2
63
1
R
6.5
ADJUSTMENTS AND MAINTENANCE
■ Adjustment
3. When finished, connect the control cable to the numeric
keyboard.
● Adjusting the Buzzer Level
Adjust the buzzer level, which informs you of recognition
results, as follows.
1. Open the cover of the numeric keyboard.
2. Insert a Phillips precision screwdriver into the buzzerlevel adjustment hole.
3. Turn the screwdriver to the right or left to adjust the
buzzer level.
To the right: The volume will go up.
To the left: The volume will go down.
1
6
2
7
3
8
4
9
5 CANCEL
0 ENTER
Buzzer-level
adjustment hole
Volume down
● Cleaning the Inside of the Camera Unit
There are a mirror, proximity sensor, and two cameras
inside the unit. The cameras will be used for capturing a
face and irises. If dust is sticking to the cameras, it may
cause malfunction. Clean the inside of the camera unit as
follows.
1. Remove the numeric keyboard and the front panel.
(Refer to p. 9 and this page.)
2. Blow dust away from the mirror, sensor, Camera 1 and
Camera 2 by using a blower, etc.
If dust still sticks after blowing, wipe away the appliances gently with an eyeglass cleaner or a camera-lens
cleaner.
3. After finished, attach the front panel and numeric keyboard to the unit.
Volume up
Mirror
■ Maintenance
Camera 2
Camera 1
● Replacing the Front Panel
When the supplied front panel has been damaged, you can
replace it to a new one.
1. Remove the numeric keyboard. (Refer to p. 9.)
2. Remove the front panel, and then replace it to a new
one.
You can take the panel away by sliding down.
During the replacement, wear gloves on your hand to
keep the new panel clean.
Make sure the panel’s
correct side.
Bottom
13
Sensor
Notes:
• Keep your hands away from the mirror, Camera 1
and Camera 2. If you touch them directly, it may
cause malfunction due to smudges.
• Do not clean the camera unit with a glass-cleaner,
thinner or water. It may cause malfunction.
• Clean the camera unit with delicate care. Force may
damage the appliance, which may cause trouble.
RECOGNITION PROCEDURES
There is two ways of identification:
• Iris recognition
• ID-and-password authorization
3. Status indicator (1) will light up.
The indicator lights up.
q
Note: When “READY” is blinking, recognition will be
unavailable. Wait until the indicator is on, not blinking.
ACCEPT
REJECT
READY
■ Iris Recognition
The procedures are as follows.
1. Stand in front of the unit and turn your face to the centre
front panel.
Stop at the point you can see the two guidance indicators simultaneously, and then turn your face to the unit.
Guidance indicators
Note: Depending on the distance between you and the
unit, status indicators will blink as shown in Figure 1
or 2. When the indicators show Figure 1 status,
come closer to the unit. When the indicators show
Figure 2 status, go farther from the unit.
(Figure 1)
(Figure 2)
Blinking
ACCEPT
REJECT
READY
The distance is too long.
Blinking
The distance is too short.
4. The status indicators will light up in the order shown in
the figure.
When all indicators have lighten up, the recognition will
be finished.
q
2. The guidance indicators will automatically light up, and
iris recognition will start. Then, the buzzer will beep
briefly.
Light up
one by
one
ACCEPT
REJECT
READY
Light up
ACCEPT
REJECT
READY
5. When recognition has been successfully executed,
ACCEPT will light up and the buzzer will beep.
When recognition has not been successfully executed
(or you have not been enrolled to the unit), REJECT will
light up and the buzzer will beep.
ACCEPT
REJECT
READY
ACCEPT
REJECT
READY
14
Lights
up
Notes:
• The capturing range is as follows.
Top View
Side View
1 765 mm
(69 in.)
Upside limit of
the eye position
90 mm (3-1/2 in.) (Right-side limit)
0 mm (0 in.)
(Center of the camera unit)
90 mm (3-1/2 in.) (Left-side limit)
33°
1 490 mm (59 in.)
Center of optical
axis
(Recommended
installation height)
72°
1 380 mm (54 in.)
Bottom of the
camera unit
300 mm (12 in.)
1 215 mm
(48 in.)
Downside limit of
the eye position
600 mm (24 in.)
44 mm (1-7/10 in.)
0 mm (0 in.)
44 mm (1-7/10 in.)
0 mm (0 in.)
300 mm (12 in.)
600 mm (24 in.)
• The height of the unit, shown in the figure, is recommendation. Centre of optical axis and upside/downside limit of eye
position will differ depending on the installation height.
• If your eye position is higher than the upside limit, bend down. If your eye position is lower than the upside limit, get on
a pedestal, etc.
■ ID-and-password Authorization
You can also identify yourself by entering your ID and password with numeric keys.
The procedures are as follows.
When the ID and password are matching with the
enrolled information, “ACCEPT” will light up and the
buzzer will beep briefly.
When you have mistaken the entry of ID or password
“REJECT” will light up and the buzzer will beep.
1. Open the keyboard cover at the bottom of the unit.
No indicator is lighting at this point.
ACCEPT
2. Press a numeric key. (Any key is OK.)
“0” will light up on the LED indicator.
3. Enter your ID number by pressing numeric keys, and
then press ENTER.
The digit number will light up on the LED indicator.
For example, if you enter a five-digit password, “5” will
light up on the LED indicator. (If the digit is 10 or more,
the end number will light up.)
Note: If you cancel ID-and-password-authorization and
return to iris recognition, press CANCEL.
4. Enter your password by pressing numeric keys, and
then press ENTER.
The digit number will appear on the LED indicator.
For example, if you enter a five-digit password, “5” will
light up on the LED indicator. (If the digit is 10 or more,
the end number will light up.)
Note: If you cancel ID-and-password-authorization and
return to iris recognition, press CANCEL.
15
REJECT
Lights up
READY
ACCEPT
REJECT
READY
Caution: Avoid setting the following examples to your ID or
password.
• Public information such as your birthday or phone number
• Repeated numerics such as 1111 or 7777
• Sequential numerics such as 1234 or 7890
Note: The digit number differs depends on the system environment.
When you have forgotten your ID or password, contact
the system administrator.
ADDITIONAL SYSTEM COMPONENTS
■ Control Unit BM-ED500
■ Administration Software BMES500E
Administration Software
BM-ES500E
This product is necessary for administering iris data, IDs,
and passwords.
This product is necessary for iris data recognition/enrollment and controlling an electric lock.
16
TROUBLESHOOTING
Check to see the following before request for repair.
If a trouble cannot be corrected even after checking and trying remedy, contact your dealer.
Problem
System does not power up.
Check item
The power of the control unit may be
turned off. (The control unit supply the
power to the unit.)
Remedy
Confirm if the power of the control unit
is turned on. (Refer to the control unit's
operating instructions.)
Third party external power may be off.
“REJECT” is lighting.
This unit may be disconnected from the
control unit.
Refer to the dealer or service personnel.
Your iris data, ID, or password may not
have been registered.
Refer to the system administrator.
Your ID or password may be wrong.
The status indicator does not light up.
The front panel may have dust or be
damaged.
Remove the dust from the front panel.
If the panel has been damaged,
replace it with a new one.
(Refer to p.13.)
The coaxial cable may not be connected
between the unit's VIDEO OUT and the
control unit's iris camera connector
(CAMERA 1 to 3).
Confirm the connection. (Refer to p.10.)
The power of the control unit may be
turned off. (The control unit supply the
power to the unit.)
Confirm if the power of the control unit
is turned on. (Refer to the control unit's
operating instructions.)
Third party external power may be off.
The buzzer does not sound.
17
This unit may be disconnected from the
control unit.
Refer to the dealer or service personnel.
The buzzer level may be too low to be
heard.
Adjust the buzzer level. (Refer to p.13.)
SPECIFICATIONS
General
Power source:
Weight:
32 V, 3 A DC (when supplied from Control Unit BM-ED500)
24 V, 4 A DC (when supplied from an external power control unit *)
30 W (while waiting)
60 W (max. while operating)
3 seconds
0 °C to +40 °C (32 °F to 104 °F)
30 % to 80 %
430 mm (W) x 211 mm (H) x 80 mm (D)
17 in. (W) x 8-3/10 in. (H) x 3-1/10 in. (D)
4.5 kg (10 lbs.)
Input/Output
CCTV camera output:
1 V[p-p]/75 Ω
Power consumption:
Iris recognition time:
Ambient operating temperature:
Ambient operating humidity:
Dimensions:
*The third-party external power-control unit should meet the following standards.
Output voltage:
24 V DC ± 0.5 V
Output current capacity:
0 A to 4.5 A
Rated ripple voltage/Ripple noise:
150 mV[p-p] or less
Overcurrent protection:
Enabled (mandatory)
Note: We recommend the use of a third-party external power supply when the iris camera is located
more than 20 meters (65 ft.) away from the control unit.
OPTIONAL ACCESSORIES
Mounting bracket ............................................ 1 pc.
Screw nut (M5) ................................................ 1 pc.
Screw Driver tool *1
(for tamperproof screws) ................................ 1 pc.
Video output cable
(for the built-in colour CCTV camera) ............. 1 pc.
Operating instruction sticker *2 ........................ 1 pc.
Operating instructions (this book).................... 1 pc.
*1 You will use it for installation. Keep it in safe place after use.
*2 Stick to a viewable area (except for the front panel) if necessary.
18
Matsushita Electric Industrial Co., Ltd.
Web Site : http://www.panasonic.co.jp/global/
NM1002-1122
2002
© Matsushita Electric Industrial Co., Ltd. All rights reserved.
3TR001095BAA
Printed in Japan
Gedruckt in Japan
Imprimé au Japon
Impreso en Japón
Stampat in Jiappone
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
