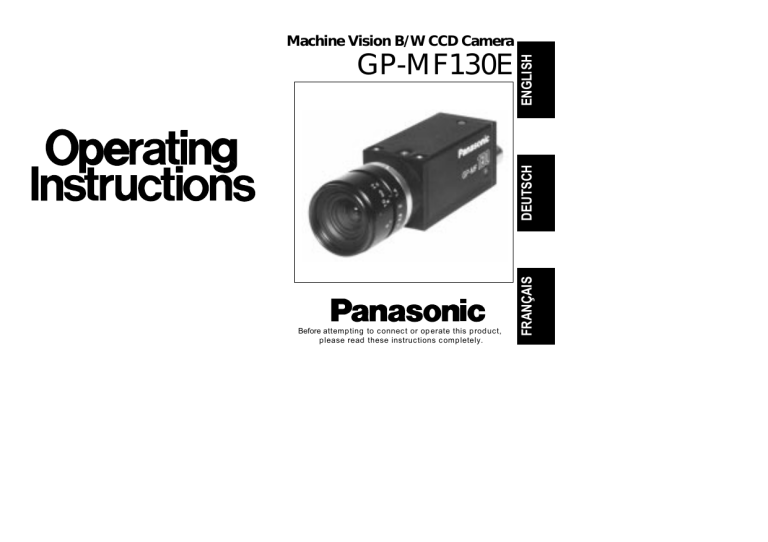

Panasonic GPMF130E Operating instructions

Panasonic GPMF130E Operating instructions
Before attempting to connect or operate this product,
please read these instructions completely.
FRANÇAIS
DEUTSCH
GP-MF130E
ENGLISH
Machine Vision B/W CCD Camera
ENGLISH VERSION
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance (servicing) instructions in
the literature accompanying the
appliance.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence
of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient
magnitude to constitute a risk
of electric shock to persons.
Remove dust on the faceplate of filter glass
before mounting the lens on the camera.
The serial number of this product may be found on
the top of the unit.
You should note the serial number of this unit in the
space provided and retain this book as a permanent
record of your purchase to aid identification in the
event of theft.
Model No.
Serial No.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
PREFACE ....................................................... 2
FEATURES ..................................................... 2
PRECAUTIONS .............................................. 3
MAJOR OPERATING CONTROLS AND
THEIR FUNCTIONS ........................................ 5
PREPARATIONS ............................................. 8
SYSTEM CONNECTIONS ............................... 9
EXTERNAL SYNCHRONIZATION .................. 10
PREVENTION OF BLOOMING AND SMEAR .. 10
SPECIFICATIONS ........................................... 11
OPTIONAL ACCESSORIES ............................. 12
Nosotros declaramos bajo nuestra única responsabilidad
que el producto a que hace referencia esta declaración està
conforme con las normas u otros documentos normativos
siguiendo las estipulaciones de la directiva CEE/89/336.
Noi dichiariamo sotto nostra esclusiva responsabilità che il
prodotto a cui si riferisce la presente dichiarazione risulta
conforme ai seguenti standard o altri documenti normativi
conformi alle disposizioni della direttiva CEE/89/336.
Wij verklaren als enige aansprakelijke, dat het product
waarop deze verklaring betrekking heeft, voldoet aan de
volgende normen of andere normatiefve dokumenten,
overeenkomstig de bepalingen van Richtlijn 89/336/EEC.
Vi erklærer os eneansvarlige for, at dette produkt, som
denne deklaration omhandler, er i overensstemmelse med
den følgende standarder eller andre normative dokumenter i
følge bestemmelserne i direktiv 89/336/EEC.
Vi deklarerar härmed värt fulla ansvar för att den produkt till
vilken denna deklaration hänvisar är i överensstämmelse
med standarddokument, eller andra normativa dokument
som framstölls i Direktiv 89/336/EEC.
Ilmoitamme yksinomaisella vastuullamme, että tuote, jota
tämä ilmoitus koskee, noudattaa seuraavia standardeja tai
muita ohjeellisia asiakirjoja, jotka noudattavat direktiivin
89/336/EEC. säädöksiä.
Vi erklærer oss alene ansvarlige for at produktet som denne
erklæringen gjelder for, er i overensstemmelse med
følgende normer eller andre normgivende dokumenter som
fælger bestemmelsene i direktiv 89/336/EEC.
-1-
ENGLISH
CONTENTS
We declare under our sole responsibility that the product to
which this declaration relates is in conformity with the standards or other normative documents following the provisions of Directive EEC/89/336.
PREFACE
The Panasonic GP-MF130 Machine Vision B/W
CCD Camera has a 1/3” Interline Transfer CCD
image sensor which features 440 000 pixels, a
horizontal resolution of 560 lines, and minimum
smear.
FEATURES
1. Newly developed multi-function solid state
image sensor 1/3” Inter Line Transfer type
CCD image sensor with 752 (H) x 582 (V)
pixels.
3. External synchronization :
External HD/VD input enables system setup
with external video processors, etc.
4. High speed shutters up to 1/96 000 second
enables to capture the moving objects.
2. Selectable scanning system :
1-line interlace and 2-line interlace are available for the highest quality possible within
video processing.
-2-
PRECAUTIONS
1. Do not attempt to dissemble the camera.
To prevent electric shock, do not remove
screws or covers.
There are no serviceable parts inside. Ask a
qualified service person for servicing.
4. Do not use the strong or abrasive
detergents when cleaning the camera
body.
Use a dry cloth to clean the camera when
dirty.
In case the dirt is hard to remove, use a
mild detergent and wipe gently.
2. Handle the camera with care.
Do not abuse the camera. Avoid striking,
shaking, etc. The camera could be damaged by improper handling or shortage.
5. Clean the CCD faceplate with care.
Do not clean the CCD with strong or abrasive detergents. Use lens tissue or a cotton
tipped applicator and ethanol.
3. Do not expose the camera to rain or
moisture, or try to operate it in wet areas.
This camera is designed for indoor use.
Turn the power off immediately and ask a
qualified service person for servicing.
Moisture can damage the camera and also
create the danger of electric shock.
6. Never face the camera towards the sun.
Do not aim the camera at bright objects.
Whether the camera is in use or not, never
aim at the sun or other extremely bright
objects. Otherwise, blooming or smear may
be caused.
-3-
7. Do not drop anything inside the camera.
Dropping metal for example inside the camera could permanently damage the unit. If
anything is dropped inside the camera, turn
the power off immediately and ask a qualified service person for servicing.
8. Do not operate the camera beyond the
specified temperature, humidity or power
source ratings.
Use the camera under conditions where
temperature is between −10°C - +50°C
(14°F - 122°F), and humidity is below 90 %.
The input power source is DC 12 V, 170 mA.
-4-
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS
!2
!3
!4
130
ON
OFF
1
q
6
r
e
w
12P
VIDEO
t
ON
OFF
1. 1/3” Manual Iris Lens (Sold Separately)
1
6
u o !1
y i !0
2. Camera Connector (12-pin)
This is connected with the optional Camera
Cable GP-CA34 , GP-CA33, GP-CA59 or
GP-CA60.
-5-
q o
w !0 i
e !1 !2 u
r t y
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
CAUTION: CONNECT
THIS TO A DC 12V
CLASS 2 POWER
SUPPLY ONLY.
4. Manual Gain Control
This controls the gain level from 0 to 6 dB.
5. Video Output Connector
This connector is used to connect with the
VIDEO IN connector of the monitor.
ON
6. Switch 1 No.1 (1/ON) 1
This switch selects the Field or Frame
Accumulation.
ON : Field Accumulation
OFF: Frame Accumulation
Description
Ground
+12V IN
Ground for Video Out
Video Out
Ground for HD
HD IN
VD IN
Ground
No connection
No connection
No connection
Ground for VD
7. Switch 1 No.2 (2/ON) 2
ON
8. Switch 1 No.3 (3/ON) 3
ON
9. Switch 1 No.4 (4/ON) 4
ON
10. Switch 1 No.5 (5/ON) 5
ON
These switches (Switch 1 No. 2, 3, 4, and 5)
are used to set the shutter speed.
3. Pedestal Control
This controls the pedestal level from 0 mV to
100 mV.
-6-
The shutter speed can be set as below:
Switch 1
No. 2 No. 3 No. 4 No. 5
OFF OFF OFF OFF
ON
OFF OFF OFF
Shutter Speed
1/120
ON
OFF OFF
1/500
ON
ON
OFF OFF
1/1 000
OFF OFF
ON
OFF
1/2 000
ON
ON
OFF
1/4 000
OFF
ON
ON
OFF
1/8 000
ON
ON
ON
OFF
1/16 000
OFF OFF OFF
ON
1/32 000
ON
OFF OFF
ON
1/64 000
OFF
ON
ON
OFF
Other Combinations
12. Switch 2 No.1 (1/ON) 1
ON
Switch 2 No.2 (2/ON) 2
ON
Switch 2 No.3 (3/ON) 3
ON
Normal
OFF
OFF
ON
11. Switch 1 No.6 (6/ON) 6
This switch is not available for this model.
Switch 2 No.4 (4/ON) 4
ON
These switches are not available for this
model. Keep these switches at OFF position.
13. Switch 2 No.5 (5/ON) 5
ON
This switch turns on or off the termination for
HD signal with 75 Ω.
1/96 000
Not Specified
14. Switch 2 No.6 (6/ON) 6
ON
This switch turns on or off the termination for
VD signal with 75 Ω.
-7-
PREPARATIONS
1. Power Supply for Camera
3. Switch Covers Removal
Prepare a regulated DC power supply
which can supply DC 12 V ±10 % 170 mA
or more current and rated CLASS 2.
Caution: The following preparation should
be made by qualified service personnel or system installers.
For setting the Switch 1 No.1 to 6 and 2 No.
1 to 6, remove the switch cover fixing screw
on the side panel as shown below.
2. Lenses
Be sure to use the optional manual iris lens
having the following items.
Focus : Adjustable
Lens Weight : Less than 300 g (0.66 lbs.)
Note: If the lens is heavier than 300 g (0.66
lbs.), both the lens and the camera
should be secured by using the supporter.
Mount : C-mount
Remove this screw
And to control the pedestal level or gain
level, remove the cover fixing screw on the
rear panel as shown below.
The protrusion
at the rear of
the lens should
be as shown in
the illustration.
Remove
this screw
12P
VIDEO
Less than 8 mm (Less than 5/6")
-8-
SYSTEM CONNECTIONS
Caution: Keep the power switches of all units to OFF before connections.
1. Connect the optional camera cable GP-CA34 between the connector of this camera and the 12 V
DC Class 2 power supply(not provided as an accessory).
2. Connect the video connector of the GP-CA34 to the Video Monitor.
Coaxial Cable
Camera
GP-CA34
Coaxial Cable
Video Monitor
IN
VIDEO
OUT
75Ω
130
Hi-Z
12V DC
Power Supply
HD IN
VD IN
Caution: Use a 12 V DC Class 2
Power Supply only
-9-
EXTERNAL SYNCHRONIZATION
Note: If the picture appears disturbed, be sure
to match the phases of falling edges of the
external HD/VD.
2 : 1 Interlace
The GP-MF130 works in 2 : 1 interlace mode
when external 2 : 1 interlaced HD/VD signal is
supplied to pin-6 and pin-7 of the camera connector (12-pin).
PREVENTION OF BLOOMING AND SMEAR
,
,
,
,
,
,
When the camera is aimed at a bright light, such
as a spotlight, or a surface that reflects bright
light, smear or blooming may appear. Therefore,
the camera should be operated carefully in the
vicinity of extremely bright objects to avoid
smear or blooming.
- 10 -
Smear
Bright object
SPECIFICATIONS
Pick-up Device :
Image Size :
Synchronization :
External Reset :
Horizontal Resolution :
Minimum Illumination :
Signal to Noise Ratio:
Gamma :
Gain Selection :
Electronic Shutter :
Lens Mount :
Inter Line Transfer type CCD with 752 (H) x 582 (V) pixels.
1/3” (6.00 (H) x 4.96 (V) mm)
2 : 1 interlace 1-line interlace (Frame accumulation)
2 : 1 interlace 2-line interlace (Field accumulation)
Internal or External (Selectable Automatically)
Internal : Built-in sync generator
External : 4.0 V[p-p]/75 Ω Horizontal drive and Vertical drive pulses
for 2 : 1 interlace
External signal (4.0 V[p-p]/75 Ω, negative) supplied to EXT VD IN connector can be used as reset signal
560 lines at center
1.0 lx (0.1 foot-candles), (F1.4, Manual Gain Max (+6 dB), γ OFF, 2 : 1
interlace, without shutter)
54 dB Typical (Manual Gain OFF (0 dB), γ OFF, 2:1 interlace without
shutter)
1.0
0 - 6 dB (Adjustable by Manual Gain Control on rear panel)
10-step (1/120 s to 1/96 000 s)
C-Mount
- 11 -
Vibration Resistance :
Shock Resistance :
Power Source :
Ambient Temperature :
Dimensions :
Weight :
10 G (10 Hz - 150 Hz) (2 hours each for three axes)
80 G (IEC 68) *IEC=International Electronical Technical Commission
DC + 12 V, 170 mA
−10˚C - +50˚C (14˚F - 122˚F)
29(W) x 29(H) x 65(D) mm [1-1/8”(W) x 1-1/8”(H) x 2-13/16”(D)]
86 g (0.19 lbs.) (Camera Only)
Dimensions and weight indicated are approximate values.
Specifications are subject to change without notice.
OPTIONAL ACCESSORIES
Camera Cable
GP-CA34
GP-CA33
GP-CA59
GP-CA60
- 12 -
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
