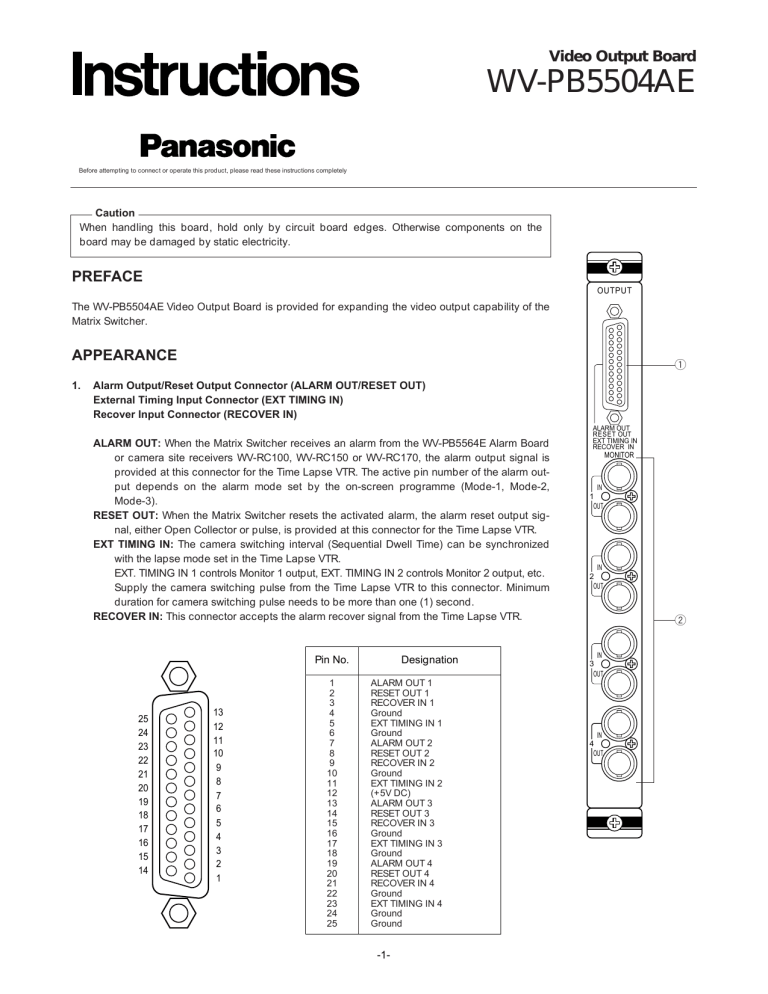

Video Output Board
WV-PB5504AE
Before attempting to connect or operate this product, please read these instructions completely
Caution
When handling this board, hold only by circuit board edges. Otherwise components on the
board may be damaged by static electricity.
PREFACE
OUTPUT
The WV-PB5504AE Video Output Board is provided for expanding the video output capability of the
Matrix Switcher.
APPEARANCE
1.
q
Alarm Output/Reset Output Connector (ALARM OUT/RESET OUT)
External Timing Input Connector (EXT TIMING IN)
Recover Input Connector (RECOVER IN)
ALARM OUT: When the Matrix Switcher receives an alarm from the WV-PB5564E Alarm Board
or camera site receivers WV-RC100, WV-RC150 or WV-RC170, the alarm output signal is
provided at this connector for the Time Lapse VTR. The active pin number of the alarm output depends on the alarm mode set by the on-screen programme (Mode-1, Mode-2,
Mode-3).
RESET OUT: When the Matrix Switcher resets the activated alarm, the alarm reset output signal, either Open Collector or pulse, is provided at this connector for the Time Lapse VTR.
EXT TIMING IN: The camera switching interval (Sequential Dwell Time) can be synchronized
with the lapse mode set in the Time Lapse VTR.
EXT. TIMING IN 1 controls Monitor 1 output, EXT. TIMING IN 2 controls Monitor 2 output, etc.
Supply the camera switching pulse from the Time Lapse VTR to this connector. Minimum
duration for camera switching pulse needs to be more than one (1) second.
RECOVER IN: This connector accepts the alarm recover signal from the Time Lapse VTR.
Pin No.
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Designation
ALARM OUT 1
RESET OUT 1
RECOVER IN 1
Ground
EXT TIMING IN 1
Ground
ALARM OUT 2
RESET OUT 2
RECOVER IN 2
Ground
EXT TIMING IN 2
(+5V DC)
ALARM OUT 3
RESET OUT 3
RECOVER IN 3
Ground
EXT TIMING IN 3
Ground
ALARM OUT 4
RESET OUT 4
RECOVER IN 4
Ground
EXT TIMING IN 4
Ground
Ground
-1-
ALARM OUT
RESET OUT
EXT TIMING IN
RECOVER IN
MONITOR
IN
1
OUT
IN
2
OUT
w
IN
3
OUT
IN
4
OUT
2.
Monitor Input/Output Connector (MONITOR IN/OUT)
OUT: The video signal selected by the Matrix Switcher is provided at this connector for the video monitor.
IN: This connector is used for video input from a VTR or system expansion to 128 camera input.
BOARD SETTING
Before installing this board, the following settings should be made by qualified service personnel or system installers.
1. Set switches (SW1) on the board to meet the monitor output number as shown in the following table.
Initially, monitor 1-4 is selected at the factory.
BOARD MONITOR
OUT NO.
NO.
SW1 SETTING
3
4
3
4
1
2
SW6
OFF
5-8
SW3
OFF
1
3
SW4
SW5
4
2
3
1
2
2
SW1
OFF
1
2
1-4
OFF
1
1
2
3
4
9-12
SW2
OFF
1
4
2
3
4
13-16
SW100
OFF
1
5
2
3
SW150
4
1-4
SW200
OFF
1
6
SW250
2
3
4
2
3
4
2
3
4
5-8
OFF
1
7
9-12
OFF
1
8
13-16
OFF
2. Set switches (SW2/SW3/SW4/SW5) on the board to choose the alarm
reset output signal as either Open Collector (OPEN C.) or Pulse (VTR).
Open Collector (OPEN C.): 16VDC 100mA max.
Pulse (VTR): +5VDC approx. 500 msec.
Initially, VTR positions are selected at the factory.
Note
Be careful when setting these switches as the swtches are not physically
located on the board in numerical order. Switch location from the top of the
board, going downward, is: SW4 (reset out 3), SW5 (reset out 4), SW3
(reset out 2) and SW2 (reset out 1).
-2-
CH1
OPEN C
VTR
3. Set switches (SW100/SW150/SW200/SW250) on the board to choose the
character display mode on the monitor.
NOR: White with Black border
REV: Black with White border
Initially, normal (NOR) positions are selected at the factory.
MONITOR OUT NO.
SW100 SW150 SW200 SW250
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
BOARD
NO.
1 (5)
2 (6)
3 (7)
4 (8)
NOR
REV
NOR Position
NOR
REV
REV Position
4. Confirm switches (SW6) on the board are set to the following positions.
PAL 1 2
SW6
NTSC OFF
Note
These switches are used only for factory test.
Always keep these switches in the positions as shown on the right in the
field.
TEST
NOR
INSTALLATION
Rear Panel(s)
Caution
Before installing this board be sure to turn off the Power
Switch of the Matrix Switcher.
The following installation should be made by qualified service personnel or system installers.
1. Remove the screws from the rear panel(s) of the
Matrix Switcher.
2. Remove the rear panel(s).
3. Place the Video Output Board into the desired position
in the rear of Matrix Switcher by sliding it inside the
board guides.
Remove screws.
Note
Each slot is identical, so the board can installed in any
slot.
However it is recommended to install the board as
shown below for an orderly installation.
Alarm Board
CPU
CONTROL
ALARM
INPUT
VIDEO OUT1
RS-232C
INPUT
VIDEO OUT1
INPUT
VIDEO OUT1
INPUT
INPUT
INPUT
INPUT
INPUT
VIDEO OUT1
VIDEO OUT1
VIDEO OUT1
VIDEO OUT1
VIDEO OUT1
OUTPUT
OUTPUT
OUTPUT
OUTPUT
ALARM OUT
RESET OUT
EXT TIMING IN
RECOVER IN
ALARM OUT
RESET OUT
EXT TIMING IN
RECOVER IN
ALARM OUT
RESET OUT
EXT TIMING IN
RECOVER IN
ALARM OUT
RESET OUT
EXT TIMING IN
RECOVER IN
MONITOR
MONITOR
MONITOR
DATA 1
DATA 2
00
MODE
5
DATA 3
CAMERA IN
CAMERA IN
CAMERA IN
CAMERA IN
CAMERA IN
CAMERA IN
CAMERA IN
CAMERA IN
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
TEST
TIME
ADJUST IN
COM
RESET
DATA 4
1-32
+9V
MONITOR
+5V
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
DATA 5
PRINTER
IN
IN
IN
IN
1
OUT
1
OUT
1
OUT
1
OUT
IN
2
OUT
IN
2
OUT
IN
2
OUT
IN
2
OUT
−5V
POWER
DATA 6
ON
DATA 7
6
6
6
6
6
6
6
6
DATA 8
7
7
7
7
7
7
7
7
TEST 1
8
8
8
8
8
8
8
8
OFF
33-64
VS/VD
IN
IN
3
OUT
IN
3
OUT
IN
3
OUT
IN
3
OUT
IN
4
OUT
IN
4
OUT
IN
4
OUT
IN
4
OUT
OUT
TEST 2
VD
OUT
VIDEO OUT2
VIDEO OUT2
VIDEO OUT2
VIDEO OUT2
VIDEO OUT2
VIDEO OUT2
Video Input Board
VIDEO OUT2
VIDEO OUT2
Video Output Board
-3-
11A00001
Tighten screws.
4. Make sure to push in the Video Output Board until it is
seated firmly.
5. Secure the Video Output Board by tightening the two
screws on the board.
6. Close off open spaces on the rear of the Matrix
Switcher by using WV-Q63E Blank Panels (Optional)
or supplied rear panel(s).
(Refer to the instructions for WV-Q63E)
Blank Panel
or
Note
Refer to the Operating Instructions of WJ-SX550A for
more details.
Video Output Board
Tighten screws.
SPECIFICATIONS
Monitor Output (1 - 4):
Monitor Input (1 - 4):
Alarm Output (1 - 4):
Reset Output (1 - 4):
External Timing Input (1 - 4):
Recover Input (1 - 4):
Character Generator:
Dimensions:
Weight:
1.0V[p-p]/75Ω composite video signal
1.0V[p-p]/75Ω composite video signal
Open collector output: 16VDC 100mA max.
Pulse (VTR): +5VDC 500msec. or
Open collector output: 16VDC 100mA max.
Pulse 5V[p-p] interval time more than one second
Make Contact or Open collector Input
Contact time more than 0.5 second
Interval time more than two seconds
Camera ID; 30 characters (15 x 2 lines)
Character Style; White with Black Border
Black with White Border
24.5 (W) x 265 (H) x 260 (D) mm
15/16” (W) x 10-7/16” (H) x 10-1/4” (D)
400g (0.9 lbs.)
Weight and dimensions indicated are approximate.
specifications are subject to change without notice.
