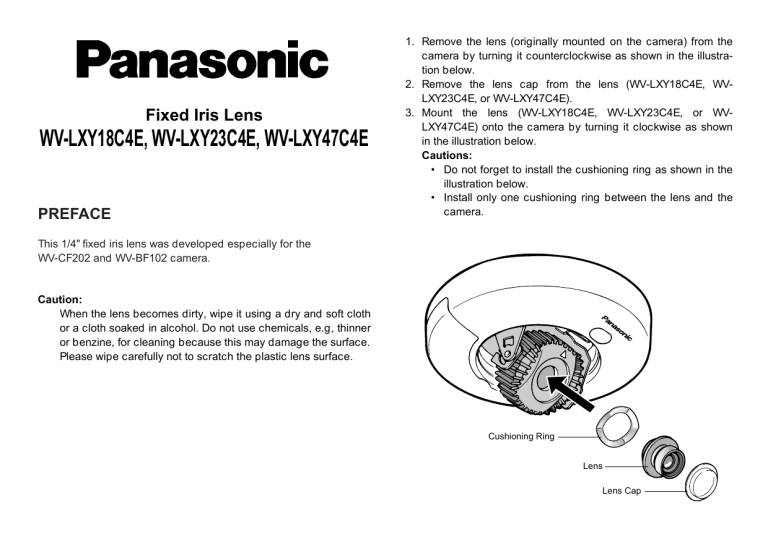

Fixed Iris Lens
WV-LXY18C4E, WV-LXY23C4E, WV-LXY47C4E
PREFACE
1. Remove the lens (originally mounted on the camera) from the
camera by turning it counterclockwise as shown in the illustration below.
2. Remove the lens cap from the lens (WV-LXY18C4E, WVLXY23C4E, or WV-LXY47C4E).
3. Mount the lens (WV-LXY18C4E, WV-LXY23C4E, or WVLXY47C4E) onto the camera by turning it clockwise as shown
in the illustration below.
Cautions:
• Do not forget to install the cushioning ring as shown in the
illustration below.
• Install only one cushioning ring between the lens and the
camera.
This 1/4" fixed iris lens was developed especially for the
WV-CF202 and WV-BF102 camera.
Caution:
When the lens becomes dirty, wipe it using a dry and soft cloth
or a cloth soaked in alcohol. Do not use chemicals, e.g, thinner
or benzine, for cleaning because this may damage the surface.
Please wipe carefully not to scratch the plastic lens surface.
Cushioning Ring
Lens
Lens Cap
SPECIFICATIONS
Model
Specifications
WV-LXY18C4E
(Super Wide-angle)
WV-LXY23C4E
(Wide-angle)
Attached Lens
WV-LXY47C4E
(Standard)
φ4.5 mm (3.6(H) x 2.7(V) mm)
Image Size
Focal Length
1.8 mm
2.3 mm
3.8 mm
4.7 mm
Maximum Aperture Ratio
1 : 2.8
1 : 2.8
1 : 2.0
1 : 2.8
115°
92°
53°
44°
Angular Field
of View
H
V
Dimensions
Ambient Operating Temperature
Dimensions
86°
68°
40°
33°
φ22.8 x 12.0 mm
φ22.8 x 13.2 mm
φ14.0 x 16.5 mm
φ22.8 x 14.5 mm
–30°C to 60°C (–22°F to +140°F)
2g (0.07 oz)
6g (0.21 oz)
2g (0.07 oz)
The cameras WV-CF202 and WV-BF102 have a glass lens. Exchanging this lens for one of the above lenses may have the following results:
• The monitor picture becomes less clear.
• The sensitivity decreases at a low illumination level.
STANDARD ACCESSORY
Cushioning Ring ............................................................................. 1
Matsushita Electric Industrial Co., Ltd.
Central P.O. Box 288, Osaka 530-91, Japan
N0498-1078
YWV8QA5000BN
Printed in Japan
N 30
