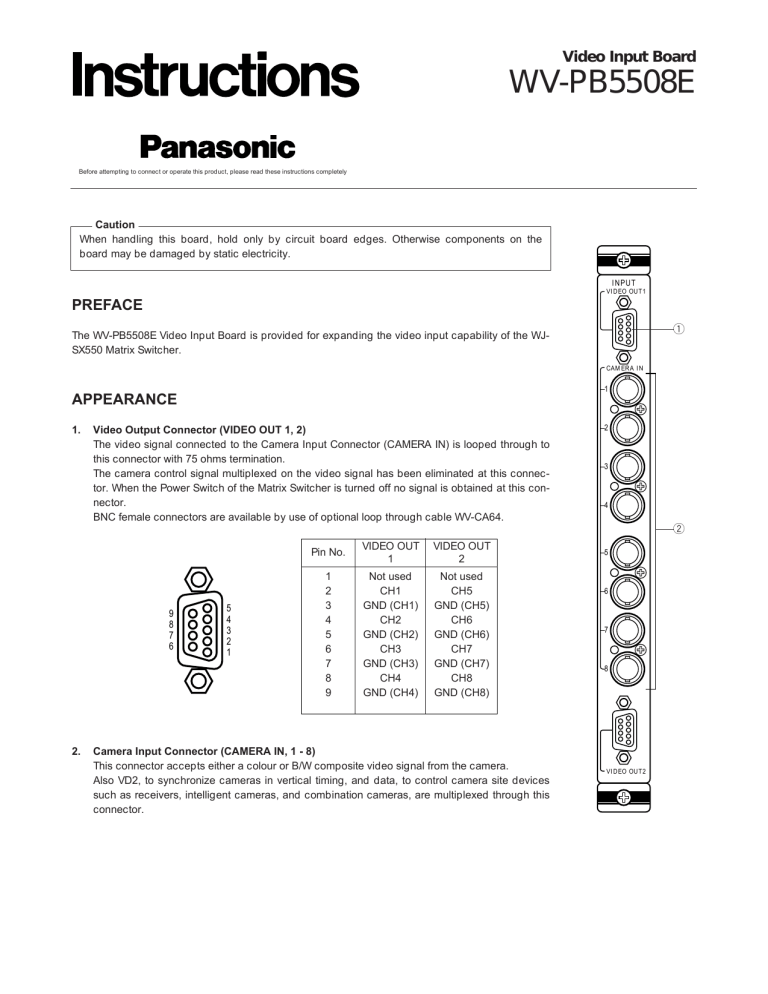

Video Input Board
WV-PB5508E
Before attempting to connect or operate this product, please read these instructions completely
Caution
When handling this board, hold only by circuit board edges. Otherwise components on the
board may be damaged by static electricity.
INPUT
VIDEO OUT1
PREFACE
q
The WV-PB5508E Video Input Board is provided for expanding the video input capability of the WJSX550 Matrix Switcher.
CAMERA IN
1
APPEARANCE
1.
Video Output Connector (VIDEO OUT 1, 2)
The video signal connected to the Camera Input Connector (CAMERA IN) is looped through to
this connector with 75 ohms termination.
The camera control signal multiplexed on the video signal has been eliminated at this connector. When the Power Switch of the Matrix Switcher is turned off no signal is obtained at this connector.
BNC female connectors are available by use of optional loop through cable WV-CA64.
2
3
4
w
9
8
7
6
2.
5
4
3
2
1
Pin No.
VIDEO OUT
1
VIDEO OUT
2
1
2
3
4
5
6
7
8
9
Not used
CH1
GND (CH1)
CH2
GND (CH2)
CH3
GND (CH3)
CH4
GND (CH4)
Not used
CH5
GND (CH5)
CH6
GND (CH6)
CH7
GND (CH7)
CH8
GND (CH8)
Camera Input Connector (CAMERA IN, 1 - 8)
This connector accepts either a colour or B/W composite video signal from the camera.
Also VD2, to synchronize cameras in vertical timing, and data, to control camera site devices
such as receivers, intelligent cameras, and combination cameras, are multiplexed through this
connector.
5
6
7
8
VIDEO OUT2
BOARD SETTING
Before installing this board, the following settings should be made by qualified service personnel or system installers.
Set switches (SW1) on the board to meet the camera input number as shown in the following table.
Initially, camera input 1-8 is selected at the factory.
BOARD
NO.
CAMERA
IN NO.
1
1-8
SW1 SETTING
1
2
3
4
2
3
4
2
3
4
2
3
4
2
3
4
2
3
4
2
3
4
2
3
4
OFF
1
2
9-16
OFF
1
3
17-24
OFF
1
2
3
1
4
4
25-32
OFF
OFF
SW1
1
5
33-40
OFF
1
6
41-48
OFF
1
7
49-56
OFF
1
8
57-64
OFF
INSTALLATION
Caution
Before installing this board be sure to turn off the Power
Switch of the WJ-SX550 Matrix Switcher.
Rear Panel
The following installation should be made by qualified service personnel or system installers.
1. Remove the four screws from the rear panel of the
Matrix Switcher.
2. Remove the rear panel.
3. Place the Video Input Board into the desired position
in the rear of Matrix Switcher by sliding it inside the
board guides.
Remove four
screws.
Note
Each slot is identical, so the board can installed in any
slot.
However it is recommended to install the board as
shown below for an orderly installation.
Alarm Board
WV-PB5564E
CPU
CONTROL
ALARM
INPUT
VIDEO OUT1
RS-232C
INPUT
VIDEO OUT1
INPUT
VIDEO OUT1
INPUT
VIDEO OUT1
INPUT
VIDEO OUT1
INPUT
VIDEO OUT1
INPUT
VIDEO OUT1
INPUT
OUTPUT
OUTPUT
OUTPUT
OUTPUT
ALARM OUT
RESET OUT
MONITOR
ALARM OUT
RESET OUT
MONITOR
ALARM OUT
RESET OUT
MONITOR
ALARM OUT
RESET OUT
MONITOR
VIDEO OUT1
DATA 1
DATA 2
00
MODE
5
DATA 3
CAMERA IN
CAMERA IN
CAMERA IN
CAMERA IN
CAMERA IN
CAMERA IN
CAMERA IN
CAMERA IN
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
TEST
TIME
ADJUST IN
COM
RESET
DATA 4
+9V
1-32
+5V
DATA 5
PRINTER
IN
1
OUT
IN
1
OUT
IN
1
OUT
IN
1
OUT
IN
2
OUT
IN
2
OUT
IN
2
OUT
IN
2
OUT
IN
IN
IN
IN
3
OUT
3
OUT
3
OUT
3
OUT
IN
4
OUT
IN
4
OUT
IN
4
OUT
IN
4
OUT
−5V
POWER
DATA 6
ON
DATA 7
6
6
6
6
6
6
6
6
7
7
7
7
7
7
7
7
8
8
8
8
8
8
8
8
OFF
33-64
DATA 8
VS/VD
IN
TEST 1
OUT
TEST 2
11A00001
VD
OUT
VIDEO OUT2
VIDEO OUT2
VIDEO OUT2
VIDEO OUT2
VIDEO OUT2
VIDEO OUT2
VIDEO OUT2
VIDEO OUT2
Video Input Board
4. Make sure to push in the Video Input Board until it is
seated firmly.
5. Secure the Video Input Board by tightening the two
screws on the board.
6. Close off open spaces on the rear of the Matrix
Switcher by using WV-Q63E Blank Panels (Optional).
(Refer to the instructions for WV-Q63E)
Video Output
Board
Tighten screws.
Blank Panel
Note
Refer to the Operating Instructions of WJ-SX550 for
more details.
Video Input Board
Tighten screws.
SPECIFICATIONS
Camera Input (1 - 8):
Video Output (1 - 2):
Function:
Dimensions:
Weight:
1.0 Vp-p/75 ohms composite video signal
0.5Vp-p/75 ohms data signal and 2.5 Vp-p/75 ohms vertical timing pulse multiplexed
1.0 Vp-p/75 ohms composite video signal
9 pin D-Sub Connector
Camera Site Control: All Input
Cable Compensation: S, M, L (Short, Middle, Long)
Vertical Drive (VD2) Output: On/Off
24.5(W) x 265(H) x 260(D) mm
15/16"(W) x 10-7/16"(H) x 10-1/4"(D)
450g (1.0 lbs.)
Weight and dimensions indicated are approximate.
specifications are subject to change without notice.
Matsushita Electric Industrial Co., Ltd.
Central P.O. Box 288, Osaka 530-91, Japan
N1094-0
YWV8QA3424AN
Printed in Japan
N 19
