RS485 Cables & Connectors
Model No.
WV-CA48/10K
WV-CA48/50
WV-CA48/JN
WV-CA48/TN
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
This manual describes the cables and connectors used for RS-485 communication among units with Panasonic Security
Data Link (PS . Data) capability.

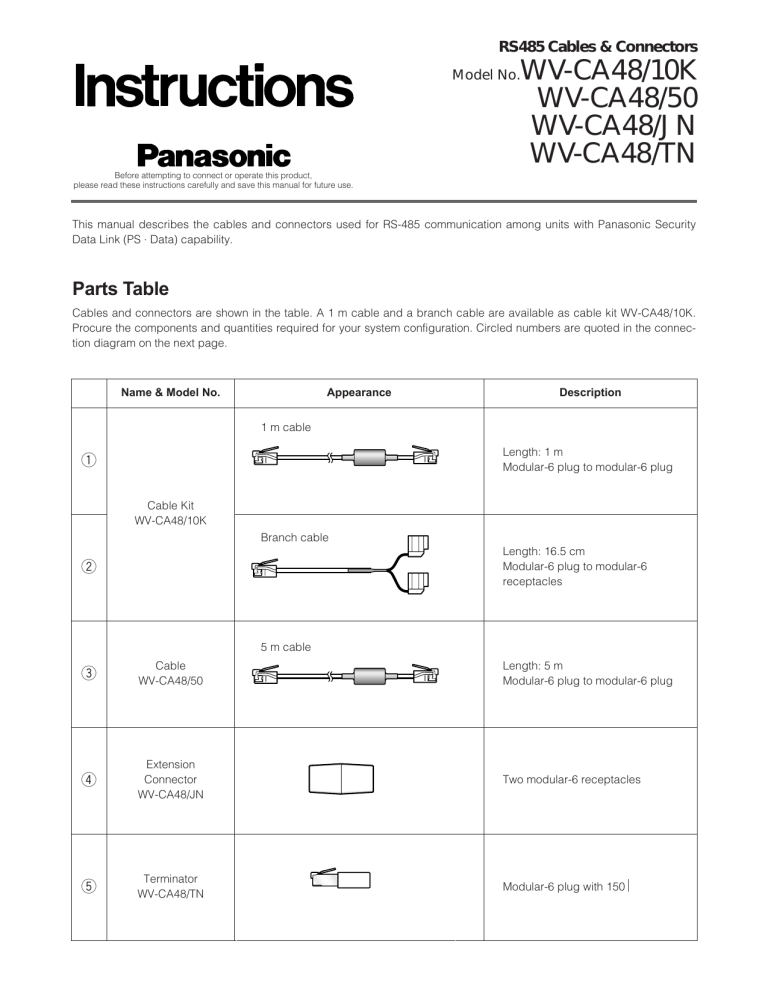

Parts Table
Cables and connectors are shown in the table. A 1 m cable and a branch cable are available as cable kit WV-CA48/10K.
Procure the components and quantities required for your system configuration. Circled numbers are quoted in the connection diagram on the next page.
Name & Model No.
Appearance
Description
1 m cable
Length: 1 m
Modular-6 plug to modular-6 plug
q
Cable Kit
WV-CA48/10K
Branch cable
Length: 16.5 cm
Modular-6 plug to modular-6
receptacles
w
5 m cable
e
Cable
WV-CA48/50
Length: 5 m
Modular-6 plug to modular-6 plug
r
Extension
Connector
WV-CA48/JN
Two modular-6 receptacles
t
Terminator
WV-CA48/TN
Modular-6 plug with 150Ω
Connection
Termination: ON
System Controller WV-CU
360
Termination
1. Termination should be made on both
ends of the chain. Never turn on the termination on a unit in the middle of the
chain.
A System Controller
with PS.Data capability
Camera
q or e
Camera
2. If the unit has a termination switch set it
to on or off, as may be the case.
3. If the unit does not have a switch and it
is at the end of the chain, provide a termination.
Camera
Camera
Termination: OFF
A unit with PS.Data capability
w
Notes:
q or e
Camera
Camera
Camera
r
Camera
q or e
Termination: OFF
A unit with PS.Data capability
• Do not fasten the cable together with the
power cord or other electric power lines
to prevent communication error.
• Hold only the connector body and its
stopper when you plug or unplug the
connector.
• If necessary, support the cable weight
with wire or tape to prevent the plug from
falling off.
Caution:
• Do not plug connectors into the telephone lines to avoid troubles.
w
Monitor
Monitor
q or e
w
A unit with PS.Data capability
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
16
15
14
13
12
11
10
9
8
VIDEO
7
6
5
4
3
2
1
IN
OUT
No termination switch equipped
t
Matsushita Electric Industrial Co., Ltd.
Central P.O. Box 288, Osaka 530-91, Japan
N0500-0
YWV8QA5543AN
Printed in Japan
N 19
