ENGLISH
DEUTSCH
ESPAÑOL

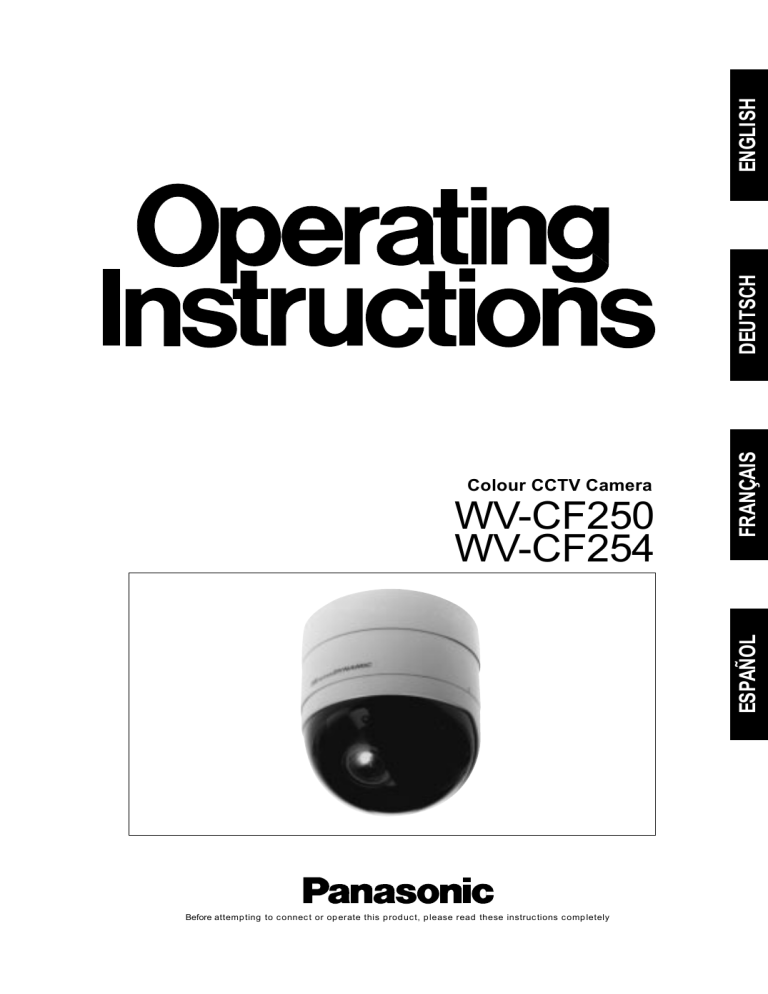

WV-CF250
WV-CF254
FRANÇAIS
Colour CCTV Camera
Before attempting to connect or operate this product, please read these instructions completely
ENGLISH VERSION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK), NO
USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is
interned to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that
may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating
and maintenance (servicing) instructions in the literature accompanying the
appliance.
The serial number of this product may be found on the
top of the unit.
You should note the serial number of this unit in the
space provided and retain this book as a permanent
record of your purchase to aid identification in the event
of theft.
Model No.
Serial No.
For Australia
THIS APPARATUS MUST BE EARTHED.
To ensure safe operation the three-pin plug must be inserted only
into a standard three-pin power point which is effectively earthed
through the normal household wiring. Extension cords used with
the equipment must be three-core and be correctly wired to provide connection to earth. Wrongly wired extension cords are a
major cause of fatalities.
The fact that the equipment operates satisfactorily does not imply
that the power point is earthed and that the installation is completely safe. For your safety, if in any doubt about the effective
earthing of the power point, consult a qualified electrician.
For U.K.
FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY.
WARNING
THIS APPARATUS MUST BE EARTHED.
IMPORTANT
The wires in this mains lead are coloured in accordance with the following code.
Green-and-yellow:
Earth
Blue:
Neutral
Brown:
Live
As the colours of the wire in the mains lead of this appliance may
not correspond with the coloured markings identifying the terminals in
your plug, proceed as follows.
The wire which is coloured green-and-yellow must be connected to
the terminal in the plug which is marked with the letter E or by the earth
symbol I or coloured green or green-and-yellow.
The wire which is coloured blue must be connected to the terminal
in the plug which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal in the plug which is marked with the letter L or coloured red.
WARNING:
TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
PREFACE ............................................................................................................................................................ 2
FEATURES .......................................................................................................................................................... 2
PRECAUTIONS ................................................................................................................................................... 2
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS ............................................................................. 3
CONNECTIONS .................................................................................................................................................. 5
INSTALLATION ..................................................................................................................................................... 6
ADJUSTMENT ....................................................................................................................................................... 9
SYSTEM CONNECTION ...................................................................................................................................... 11
SETUP ................................................................................................................................................................. 12
1. CAMERA SETUP MENU ............................................................................................................................... 12
2. SETUP OPERATION ..................................................................................................................................... 12
SETTING PROCEDURES .................................................................................................................................... 15
PREVENTION OF BLOOMING AND SMEAR ...................................................................................................... 20
SPECIFICATIONS ................................................................................................................................................ 21
STANDARD ACCESSORY ................................................................................................................................... 21
OPTIONAL ACCESSORIES ................................................................................................................................. 21
We declare under our sole responsibility that the product to
which this declaration relates is in conformity with the standards or other normative documents following the provisions of
Directives EEC/73/23 and EEC/89/336.
Vi deklarerar härmed värt fulla ansvar för att den produkt till
vilken denna deklaration hänvisar är i överensstämmelse med
standarddokument, eller andra normativa dokument som
framstölls i Direktiv 73/23/EEC och 89/336/EEC.
Noi dichiariamo sotto nostra esclusiva responsabilità che il
prodotto a cui si riferisce la presente dichiarazione risulta conforme ai seguenti standard o altri documenti normativi conformi
alle disposizioni delle direttive CEE/73/23 e CEE/89/336.
Ilmoitamme yksinomaisella vastuullamme, että tuote, jota tämä
ilmoitus koskee, noudattaa seuraavia standardeja tai muita
ohjeellisia asiakirjoja, jotka noudattavat direktiivien 73/23/EEC
ia 89/336/EEC. säädöksiä.
Wij verklaren als enige aansprakelijke, dat het product waarop
deze verklaring betrekking heeft, voldoet aan de volgende normen of andere normatiefve dokumenten, overeenkomstig de
bepalingen van Richtlijnen 73/23/EEC en 89/336/EEC.
Vi erklærer oss alene ansvarlige for at produktet som denne
erklæringen gjelder for, er i overensstemmelse med følgende
normer eller andre normgivende dokumenter som fælger
bestemmelsene i direktiven 73/23/EEC og 89/336/EEC.
Vi erklærer os eneansvarlige for, at dette produkt, som denne
deklaration omhandler, er i overensstemmelse med den
følgende standarder eller andre normative dokumenter i følge
bestemmelserne i direktivene 73/23/EEC og 89/336/EEC.
The model numbers in these Operating Instructions are given without suffix.
-1-
ENGLISH
CONTENTS
PREFACE
PRECAUTIONS
Panasonic's WV-CF250 series colour digital camera introduces a new level of high picture quality
and high resolution through the use of a 1/3-inch
interline transfer CCD image sensor having 753
horizontal pixels (picture elements), and digital signal processing LSIs. This model offers cutting-edge
technology for advanced video surveillance.
1. Do not attempt to disassemble the camera.
To prevent electric shock, do not remove
screws or covers.
There are no user serviceable parts inside. Ask
a qualified service person for servicing.
2. Handle the camera with care.
Do not abuse the camera. Avoid striking,
shaking, etc. The camera could be damaged
by improper handling or storage.
3. Do not expose the camera to rain or
moisture, or try to operate it in wet areas.
Turn the power off immediately and ask a qualified service person for servicing. Moisture can
damage the camera and also create the danger of electric shock.
FEATURES
4. Do not use strong or abrasive detergents
when cleaning the camera body.
Use a dry cloth to clean the camera when
dirty.
In case the dirt is hard to remove, use a mild
detergent and wipe gently.
1. The following functions are built in.
(1) The SUPER-D function eliminates interference by strong background lighting which
makes the camera picture dark, such as a
spotlight.
Dynamic range of 42 dB.
(2) Auto/Manual White Balance Function
(3) Electronic Shutter Function
2. Camera with a built in Vari-Focal lens
3. Signal-to-noise ratio of 50 dB
4. Minimum illumination of 5 lux (0.5 footcandle).
5. 480 lines of horizontal resolution
6. High quality picture:
(a) 2H type vertical enhancer for greater picture sharpness
(b) Chroma averaging circuit for better colour
signal to noise ratio
(c) Minimum of aliasing on fine objects
(d) Expanded dynamic range by use of knee
circuit
(e) Highlight aperture correction for greater
picture detail of bright object
5. Never face the camera towards the sun.
Do not aim the camera at bright objects.
Whether the camera is in use or not, never aim
it at the sun or other extremely bright objects.
Otherwise, blooming or smear may be caused.
6. Do not operate the camera beyond the
specified temperature, humidity or power
source ratings.
Use the camera under conditions where temperature is between −10°C - +50°C (14°F 122°F), and humidity is below 90%. The input
power source is 220 - 240V AC 50Hz for WVCF250 and 24V AC 50Hz for WV-CF254.
-2-
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS
OP
EN
LO
CK
UP
LEFT
RIGHT
SET
DOWN
CK
LO
EN
OP
-3-
q Panning Table
This adjusts the panning angle of the camera.
o
w Camera Head
This adjusts the tilting angle of the camera.
!0 Lens Holders
These holders bring the picture in an upright
position on the monitor screen.
e Focus Ring
This adjusts the focus.
!1 Dome Cover
This protects the camera head.
r Zoom Ring
This adjusts the angle of view.
t
(D) (Down Button)
This button moves the cursor downward. It
also selects items in the CAM SET UP menu.
y
(R) (Right Button)
This button moves the cursor to the right. It
also selects the mode and adjusts some levels.
u
(L) (Left Button)
This button moves the cursor to the left. It also
selects the mode and adjusts some levels.
i
(S) (Set Button)
This button activates a selected item in the
CAM SET UP menu.
!2 Video Output Cable with BNC Connector
This connector is used to connect with the
VIDEO IN connector of the monitor.
!3 Power Cable with MOLEX Connector
(for WV-CF254)
This cable is for connecting the 24 V AC power
supply cable.
!4 AC Power Cable (for WV-CF250)
This cable is for connecting the 220-240 V AC
power supply.
!54 Camera Fixing Bracket
This bracket holds the camera on the ceiling or
the wall.
(U) (Up Button)
This button moves the cursor upward. It also
selects items in the CAM SET UP menu.
Caution:
Connect to 24 V AC (19.5 V-28 V) class 2
power supply only. Make sure to connect
the grounding lead to the GND terminal
when the power is supplied from a 24 V AC
power source.
-4-
CONNECTION
Precaution:
The following connections should be made by qualified service personnel or system installers in accordance with the local codes.
220-240V AC (WV-CF250)
24V AC
(WV-CF254)
Coaxial Cable
Video Output Cable
BNC
Plug
OP
EN
LO
CK
To Video IN
(CAMERA IN)
BNC Plug
Approx.
3 mm (1/8 inch)
Up
Contact
• Power supply connection
A. WV-CF250 (220-240V AC 50Hz)
Connect the AC power cable to an electrical
outlet of 220-240V AC 50Hz.
Recommended wire gauge sizes for 24 V AC line.
Length
of Cable
(Approx.)
#20
#18
#24
#22
(0.22mm2) (0.33mm2) (0.52mm2) (0.83mm2)
(m)
20
30
45
75
(ft)
65
100
160
260
Insert
Insert the wire until A position
and clamp the contacts.
Prepare the individual conductors for clamping.
Use MOLEX band tool part number 57027-5000
(for UL-Style Cable UL1015) or 57026-5000 (for ULStyle UL-1007) for clamping the contacts.
After clamping the contacts, push them into the
proper holes in the accessory connector of this
camera until they snap in place.
B. WV-CF254 (24V AC 50Hz)
Connect the power cable with MOLEX connector according to the references below.
Copper wire size
(AWG)
Wire
A
Up
Wire
Contact
Accessory Connector Information
Pin No.
CAUTION
Power Source
1:
24 V AC LIVE
2:
24 V AC NEUTRAL
3:
Ground
4:
Not used
4
3
2
1
Shrinking the cable-entry seal is a one-time
procedure. Do not shrink the cable-entry
seal until it has been ascertained that the
unit is functioning.
CONNECT THIS TO 24V AC CLASS 2
POWER SUPPLY ONLY.
How to assemble the cable with the accessory
connector
Strip back the cable jacket approx. 3 mm (1/8 inch)
and separate the individual conductors.
-5-
INSTALLATION
2. Mounting the camera onto the camera
fixing bracket
Important Notices:
• The following installation should be made by
qualified service personnel or system installers
and should confirm to all local codes.
• Be sure to use a ceiling board having enough
strength to support this camera.
2-1. Make sure the video output cable and power
cable are fixed by the coaxial cable clamps.
Video output cable
Coaxial cable clamps
1. Mounting the camera fixing bracket
1-1. Make a hole (diameter 75mm) in the ceiling
board in the desired location.
Power cable
Ceiling board
ø75 mm (ø2-15/16”)
CK
LO
EN
OP
Mounting hole
1-2. Fix the camera fixing bracket onto the ceiling
board by using four camera fixing bracket
mounting screws (not provided).
Ceiling board
2-2. Pass the video output cable and power cable
through the hole in the camera fixing bracket,
and connect as described in the previous section “CONNECTION.”
Camera
fixing bracket
Mounting screws (not provided)
Caution: Noise may be produced in the picture on
the monitor screen if the camera is installed on
metallic ceiling. To prevent the hum, using the
optional wall mounting bracket WV-Q103A is
recommended.
Note:
Before fixing the bracket with screws, confirm
the direction of the camera by checking the
position of signs “FRONT g UPPER” and
“REAR g LOWER” on the camera fixing bracket.
“FRONT g UPPER” sign indicates the direction of the camera head.
“REAR g LOWER” sign indicates the direction
opposite to the camera head.
REAR
LOWER
-6-
UPPER
FRONT
2-3. Remove the dome cover from the camera by
turning it counterclockwise.
2-5. Turn the camera in the LOCK direction until the
lock tab of the camera fixing bracket meets the
lock line of the camera.
Lock tab
Lock line
OP
EN
LO
CK
OPEN
OPEN
LOCK
LOCK
2-6. Attach the fall prevention cap on the lock tab
of the camera fixing bracket as shown below to
prevent the camera from falling down.
OP
EN
LO
CK
2-4. Match the slit in the camera fixing bracket with
the lock line on the camera, and mount the
camera onto the camera fixing bracket.
Slit
OPEN
Notes:
• If the camera body is not installed correctly in
the camera fixing bracket, the fall prevention
cap cannot be inserted.
• The camera body cannot be moved after the
fall prevention cap is installed.
• When you need to remove the camera body,
first remove the fall prevention cap.
LOCK
Lock
line
-7-
2-7. Match the four grooves on the camera with the
four projections on the dome cover.
OP
EN
LO
CK
Grooves
Projections
2-8. Attach the dome cover to the camera by turning this cover clockwise so that the window in
the dome cover matches the camera head.
OP
EN
LO
CK
-8-
ADJUSTMENT
1. Panning
3. Uprighting the picture
Loosen the 2 lens holders and bring the picture in an upright position on the monitor
screen by turning the camera head.
The Panning table can be moved between the
guide lines.
Guide lines
OP
EN
LO
CK
SUPE
RD
YN
AM
IC
Lens holders
Panning table
4. Focusing
2. Tilting the camera
Precaution:
The focus adjustment should be done at
the same time as the camera angle adjustment.
The tilting angle is shown below.
OP
EN
LO
CK
SUPE
RD
C
YN
AM
I
Zoom lock lever
77.5° (max)
Focus ring
Focus lock lever
Note: Uprighting the picture on the monitor screen
is usually necessary. (Refer to 3. Uprighting
the picture.)
4-1. Loosen the zoom lock lever.
4-2. Set the angular field of view according to the
scene desired.
4-3. After setting the angular field of view, tighten
the zoom lock lever.
4-4. Loosen the focus lock lever.
-9-
4-5. Set the correct focus by turning the focus ring.
4-6. After setting the correct focus, tighten the
focus lock lever.
4-7. After adjusting the angular field of view and
focus, attach the dome cover to the camera
body.
OP
EN
LO
CK
-10-
SYSTEM CONNECTION
Shown below is an example of a basic system connection.
OP
EN
LO
CK
AUX
Alarm
Video Multiplexer
16
ON
OFF
LOCK
ALARM
POWER
RESET
CAMERA/PRESET POSITION
MULTI MULTISCREEN
SELECT
SCREEN
SPOT
SEQUENCE
VCR
CAM
PUSH OPEN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
RS-232C/Wired
Time Lapse VTR
Spot Monitor
Live 1-16ch
-11-
Multiscreen Monitor
Live 1-16ch
Playback 1-16ch
SETUP
1. CAMERA SETUP MENU
This camera utilizes a user setup menu that is displayed on-screen.
The setup menu contains various items that form a tree-type structure as shown below.
It is described in the following section : “2. SETUP OPERATION.”
CAM SET UP
SET UP DISABLE → SET UP ENABLE →
Camera
ID
ON/OFF
Camera
ID
Editing
Camera ID
Display
Position
Light
Control
ALC
SUPER-D
ON
Shutter
Speed
ELC
AGC
ON/OFF
SUPER-D
OFF
Manual
Level
Selection
SYNC
INT/LL
INT
Manual
Selection
Manual
Mask Area
Selection
Manual
Level
Selection
Manual
Mask Area
Selection
This camera utilizes a user setup menu (CAM SET
UP) that is displayed on the monitor.
To set items on the CAM SET UP menu, use the following buttons on the side panel.
Up Button
Right Button
Set Switch
Down Button
VD2
Automatic
Selection
V. Phase
Manual
Adjustment
the parameters of the selected item. The
parameter changes each time this button is
pressed.
(L) (Left Button):
This button is used to move the cursor to
the left. Use this button to select or adjust
the parameters of the selected item. The
parameter changes each time this button is
pressed.
(S) (Set Button):
This button is used to set the determined
parameter. If the item has its own setting
menu (as indicated by
), press this button to display the setting menu.
2. SETUP OPERATION
Left Button
LL
Manual
Selection
• All Reset Operation
All Reset allows you to reset all setup menu items
to the factory settings if you are unsure about the
correct settings. Proceed as follows:
(1) Make sure that the CAM SET UP menu is not
displayed (a camera picture is displayed).
(2) While pressing both
(L) and
(R), press
(S) for a few seconds. The words ALL
RESET momentarily appear on the monitor.
At this time all adjustments and parameters are
reset to the factory default settings.
(U) (Up Button):
This button is used to move the cursor
upwards. Use this button to select an item
or adjust the parameters.
(D) (Down Button):
This button is used to move the cursor
downwards. Use this button to select an
item or adjust the parameters.
(R) (Right Button):
This button is used to move the cursor to
the right. Use this button to select or adjust
-12-
White
Balance
ATW
Special
menu
AWC
Manual
Level
Adjustment
Manual
Level
Adjustment
Manual
Mask Area
Selection
Manual
Mask Area
Selection
Chroma
Gain
AP
Gain
Pedestal
• Opening the Setup Menu
** CAM SET UP **
CAMERA ID
OFF
ALC/ELC
ALC
SHUTTER
--AGC
ON
SYNC
INT
WHITE BAL
ATW
(S) for a second or longer.
↵↵
Press and hold down
Blinking
↵↵
↵
** CAM SET UP **
CAMERA ID
OFF
ALC/ELC
ALC
SHUTTER
--AGC
ON
SYNC
INT
WHITE BAL
ATW
END
END
SET UP DISABLE
• Editing the CAM SET UP Menu
SET UP DISABLE
Important Notice:
When the words SET UP DISABLE appear on
the bottom line of the CAM SET UP menu, you
cannot change the currently active settings.
This is to prevent accidental changing of the
settings.
The CAM SET UP menu appears on the monitor as
shown above.
Check the current settings on the menu.
Refer to the sections below for a detailed description of menu items. If you decide not to make any
changes after checking the current settings, move
the cursor to END at the start of the bottom line,
and press
(S) to close the CAM SET UP menu
and return to normal camera picture mode.
Note: If no button is pressed for 6 minutes while
the CAM SET UP menu or any other setting
menu is displayed, displaying the menu is
automatically canceled and the mode returns
to the normal camera picture.
To edit the CAM SET UP menu (change settings),
use
(U) and
(D) or
(L) and
(R) to
move the cursor to SET UP DISABLE in the bottom
line.
Press
(S). SET UP DISABLE changes to SET
UP ENABLE. Move the cursor to END, then to the
item(s) you want to change.
-13-
↵
↵
↵↵
** CAM SET UP **
CAMERA ID
OFF
ALC/ELC
ALC
SHUTTER
--AGC
ON
SYNC
INT
WHITE BAL
ATW
↵↵
** CAM SET UP **
CAMERA ID
OFF
ALC/ELC
ALC
SHUTTER
--AGC
ON
SYNC
INT
WHITE BAL
ATW
END
SET UP DISABLE
END
SET UP ENABLE
• Editing the SPECIAL menu
To edit the SPECIAL menu (change settings), proceed as for editing the CAM SET UP menu above.
Move the cursor to END after the words SET UP
ENABLE appear. Then press
(L) and
(R)
simultaneously for 2 seconds or longer.
The SPECIAL menu appears on the monitor. Select
the item to be changed and change the setting as
described for the CAM SET UP menu.
** SPECIAL **
CHROMA GAIN
AP GAIN
PEDESTAL
....I....
....I....
.I.......
+
CAMERA RESET
PUSH SW
RET
END
Important Notice:
When the cursor is moved to END and the
CAM SET UP menu closed after changing the
parameters, the new values are stored in the
EEPROM (Electric Erasable and Programmable Read Only Memory). These values
remain valid until new values are stored, even
if the power of the camera is off.
-14-
SETTING PROCEDURES
To erase all characters in the editing area
Move the cursor to RESET and press
(S). All
characters in the editing area disappear.
1. Camera Identification (CAMERA ID)
Setting
You can use the camera identification (CAMERA
ID) to assign a name to the camera. The camera ID
consists of up to 16 alphanumeric characters. You
can select whether to have the camera ID displayed on the monitor screen or not.
To determine the display position of the
CAMERA ID
1. Move the cursor to POSI, and press
(S).
The display shown below appears and the
CAMERA ID starts blinking.
↵↵
** CAM SET UP **
CAMERA ID
OFF
ALC/ELC
ALC
SHUTTER
--AGC
ON
SYNC
INT
WHITE BAL
ATW
↵
Blinking
END
WV-CF254
SET UP ENABLE
To edit the CAMERA ID
1. Move the cursor to the CAMERA ID parameter.
2. Press
(S). The CAMERA ID menu appears.
The cursor on the letter “0” starts blinking.
2. Move the CAMERA ID to the desired position
by pressing
(L)/
(R)/
(U)/
(D).
3. Press
(S) to fix the position of the CAMERA
ID. The mode returns to the previous CAMERA
ID menu.
Notes:
• The CAMERA ID stops at the edges of the
monitor screen.
• The CAMERA ID moves faster if any of
(L)/
(R)/
(U)/
(D) is kept
pressed for a second or longer.
Character Cursor
0123456789
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
().,'":;&#!?=
+-*/%$ÄÜÖÆÑÅ
Pointer
Character
Area
SPACE
POSI RET END RESET
Command
................
Editing
Area
To return to the CAM SET UP menu
Move the cursor to RET and press
CAM SET UP menu appears.
CAMERA ID menu
(S). The
2. Light Control Setting (ALC/ELC)
3. Move the cursor to the character you want to
change by pressing
(L)/
(R)/
(U)/
(D).
4. After selecting the character, press
(S).
The selected character appears in the editing
area. (The pointer in the editing area moves to
the right automatically at this moment.)
5. Repeat the steps above until all characters are
edited.
You can select one of the following light control
modes:
ALC: This camera has an ALC lens.
ELC: If you select this mode, the iris is kept open.
The brightness is automatically controlled.
↵↵
** CAM SET UP **
CAMERA ID
OFF
ALC/ELC
ALC
SHUTTER
--AGC
ON
SYNC
INT
WHITE BAL
ATW
To enter a blank space in the CAMERA ID
Move the cursor to SPACE and press
(S).
↵
To edit a specific character in the CAMERA ID
1. Move the cursor to the editing area by pressing
(S).
2. Move the pointer to the character to be edited
by pressing
(L) or
(R). Then move the
cursor to the character area and select a new
character.
3. Press
(S) to determine the CAMERA ID.
END
SET UP ENABLE
1. Move the cursor to the ALC/ELC parameter.
2. Select ALC or ELC.
-15-
2-1. ALC Mode with SUPER-D ON
2-2. ALC Mode with SUPER-D OFF and ELC
Mode
Super Dynamic Function (SUPER-D)
The important object in a scene is usually placed in
the centre of the monitor’s screen. In SUPER-D
mode, more photometric weight is given to the centre of the screen (where the important object is
located) than to the edge of the picture (where a
bright backlight would most likely be located). You
can use the SUPER-D function if you select ALC. It
eliminates interference by strong background lighting which makes the camera picture dark, such as
a spotlight.
Note: If ELC is selected, set MASK SET according
to this procedure.
1. Move the cursor to the SUPER-D parameter
and select OFF. (When you select ELC,
SUPER-D is not available.) The item MASK SET
appears on the menu.
MASK SET
↵
** ALC CONT **
BACK LIGHT COMP
SUPER-D
OFF
LEVEL
...I.....
+
↵↵
** CAM SET UP **
CAMERA ID
OFF
ALC/ELC
ALC
SHUTTER
--AGC
ON
SYNC
INT
WHITE BAL
ATW
END
↵
RET
END
2. Move the cursor to MASK SET and press
(S). The 48 mask areas appear on the monitor
screen. The cursor is blinking in the top left
corner of the screen.
SET UP ENABLE
1. Press
(S) after selecting ALC. The ALC
CONT menu appears.
2. Move the cursor to the SUPER-D parameter
and select ON.
Blinking
MASK SET
LEVEL
↵
** ALC CONT **
BACK LIGHT COMP
SUPER-D
OFF
RET
...I.....
+
END
3. Move the cursor to the area where backlight is
bright and press
(S) to mask that area.
The mask turns white. (When the cursor is
moved on an area that has already been
masked, the mask and cursor start blinking.)
** ALC CONT **
BACK LIGHT COMP
SUPER-D
ON
LEVEL
RET
...I.....
+
Blinking
END
3. If you want to adjust the video output level,
move the cursor to the “I” position. Adjust to
the desired level by pressing
(L) or
(R).
4. Move the cursor to RET and press
(S) to
return to the CAM SET UP menu. (To return to
the camera picture, move the cursor to END
and press
(S).)
-16-
4. Repeat step 3 to mask the desired areas. To
cancel masking, move the cursor to that area
and press
(S).
4. Gain Control Setting (AGC ON/OFF)
You can set the gain (brightness level portion of an
image) to automatic level adjustment (ON) or fixed
level (OFF).
Turns to white
** CAM SET UP **
CAMERA ID
OFF
ALC/ELC
ALC
SHUTTER
--AGC
ON
SYNC
INT
WHITE BAL
ATW
↵
↵↵
Blinking
END
5. After masking is completed, press
(S) for 2
seconds or longer. The ALC CONT menu
appears.
6. If you want to change the video output level
(picture contrast), move the “I” cursor to
LEVEL and adjust the level.
7. Move the cursor to RET and press
(S) to
return to the CAM SET UP menu. (To return to
the camera picture, move the cursor to END
and press
(S).)
SET UP ENABLE
Move the cursor to the AGC parameter and select
automatic level adjustment (ON) or fixed level
(OFF).
5. Synchronization Setting (SYNC)
You can select internal sync mode (INT) or line-lock
mode (LL). The VD2 signal (multiplexed vertical
drive signal) with the composite video output signal
from external equipment such as a Matrix Switcher
is also acceptable.
Whenever the VD2 signal is supplied to this camera, the camera automatically switches to the VD2
sync mode.
1. Move the cursor to the SYNC parameter and
select line-lock (LL) or internal (INT).
2. Press
(S).
If LL is selected, the SYNC menu appears. (If
INT is selected, the synchronization mode is
automatically set to internal sync pulse, and
the menu is not displayed.)
3. Shutter Speed Setting (SHUTTER)
Note: When ON is selected for SUPER-D on the
ALC CONT menu, this item is not available.
To select electronic shutter speed, select OFF
for SUPER-D in the menu.
You can select an electronic shutter speed of 1/50
(OFF), 1/120, 1/250, 1/500, 1/1 000, 1/2 000, 1/4 000,
or 1/10 000 seconds.
↵↵
** CAM SET UP **
CAMERA ID
OFF
ALC/ELC
ALC
SHUTTER
--AGC
ON
SYNC
INT
WHITE BAL
ATW
↵
↵
↵↵
** CAM SET UP **
CAMERA ID
OFF
ALC/ELC
ALC
SHUTTER
--AGC
ON
SYNC
INT
WHITE BAL
ATW
END
END
Important Notices:
1. The priority for the sync modes is as follows.
1. Multiplexed Vertical Drive (VD2) (Highest
priority)
2. Line-lock (LL)
3. Internal Sync (INT) (Lowest priority)
2. The line-lock mode has its own menu for linelock vertical phase adjustment. If the camera
installation is relocated, check the vertical
phase adjustment again since the AC line
phase may be different.
Move the cursor to the SHUTTER parameter and
select the electronic shutter speed.
The preset values for SHUTTER (electronic shutter
speed) change by pressing
(L) or
(R) as
follows:
OFF (1/50)
1/10000
SET UP ENABLE
SET UP ENABLE
1/120
1/4000
1/250
1/500
1/2000
1/1000
-17-
5-1. Line-lock Sync Mode (LL)
8. Press
(L) or
(R) to match the vertical
phase for both video output signals as closely
as possible.
(FINE adjustment can be made up to 22.5
degrees by pressing
(L) or
(R).)
Notes:
• When the “I” cursor reaches the “+” end, it
jumps back to “−”. At the same time,
COARSE is incremented by one step to
enable a continuous adjustment. The
reverse takes place when the “I” cursor
reaches the “−” end.
• When
(L) or
(R) is kept pressed
for a second or longer, the “I” cursor
moves faster.
• To reset COARSE and FINE to the values
preset at the factory, press
(L) or
(R) simultaneously. COARSE and FINE
adjustments are preset at the factory to
zero-crossing of the AC line phase.
• If the AC line contains noise (spike noise,
etc.), the stability of the vertical phase of
the camera video output signal may be
disturbed.
1. Move the cursor to the SYNC parameter and
select LL.
Note: The settings in this menu can be made
only when the multiplexed vertical drive
signal (VD2) is not supplied to the camera.
2. After confirming the cursor is on LL, press
(S). The vertical phase adjustment menu
appears on the monitor.
** SYNC **
V PHASE
COARSE
FINE
RET
1(1--16)
I........
+
END
3. Move the cursor to COARSE. The cursor starts
blinking.
6. White Balance Setting (WHITE BAL)
4. Supply the video output signal of the camera
to be adjusted and the reference camera video
output signal to a dual-trace oscilloscope.
You can select one of two modes for white balance
adjustment as follows:
5. Set the oscilloscope to the vertical rate and
expand the vertical sync portion on the oscilloscope.
• ATW (Auto Tracing White Balance)
In this mode, the colour temperature is monitored continuously and thereby white balance is
set automatically. The colour temperature range
for the proper white balance is approximately
2 600 - 6 000K. Proper white balance may not
be obtained under the following conditions:
1. The colour temperature is out of the 2 600
- 6 000K range.
2. When the scene contains mostly high
colour temperature objects, such as a
blue sky or sunset.
3. When the scene is dim.
In these cases, select the AWC mode.
6. Press
(L) or
(R) to match the vertical
phase for both video output signals as closely
as possible. (COARSE adjustment can be incremented in 16 steps by 22.5 degrees by pressing
(L) or
(R).)
1 (1 - - 16): 0 degree
2 (1 - - 16): 22.5 degrees
Move the cursor to the WHITE BAL parameter
and select ATW. The white balance of the
camera is automatically set.
16 (1 - - 16): 337.5 degrees
Note: After the sixteenth step, the adjustment
returns to the first step.
↵↵
** CAM SET UP **
CAMERA ID
OFF
ALC/ELC
ALC
SHUTTER
--AGC
ON
SYNC
INT
WHITE BAL
ATW
↵
7. Move the cursor to FINE. The cursor starts
blinking.
END
-18-
SET UP ENABLE
• AWC (Automatic White Balance Control)
In this mode, accurate white balance is
obtained within a colour temperature range of
approximately 2 300-10 000K.
1. Move the cursor to the WHITE BAL parameter
and select AWC → PUSH SW.
5. Press
(L) or
(R) to obtain the optimum
amount of blue gain.
Note: When you need to set MASK SET, re-adjust
to obtain the optimum amount of red and blue
gain.
7. Special Menu (SPECIAL)
** CAM SET UP **
CAMERA ID
OFF
ALC/ELC
ALC
SHUTTER
--AGC
ON
SYNC
INT
WHITE BAL
AWC→PUSH SW
↵↵
This menu lets you adjust and set up the video signal of the camera to meet your requirements.
Move the cursor to END on the bottom line of the
CAM SET UP menu and press
(L) or
(R)
simultaneously for 2 seconds or longer. The SPECIAL menu appears on the monitor as shown
below.
END
SET UP ENABLE
2. Press
(S) to start the white balance setup.
The words PUSH SW start blinking to indicate
that the white balance is being set.
** SPECIAL **
CHROMA GAIN
AP GAIN
PEDESTAL
....I....
....I....
.I.......
+
CAMERA RESET
PUSH SW
↵
↵↵
** CAM SET UP **
CAMERA ID
OFF
ALC/ELC
ALC
SHUTTER
--AGC
ON
SYNC
INT
WHITE BAL
ATW
↵↵
** CAM SET UP **
CAMERA ID
OFF
ALC/ELC
ALC
SHUTTER
--AGC
ON
SYNC
INT
WHITE BAL
AWC→PUSH SW
END
END
SET UP ENABLE
RET
END
Blinking
7-1. Chroma Level Setting (CHROMA GAIN)
1. Move the cursor to the CHROMA GAIN parameter.
2. While observing the vectorscope or colour
video monitor, move the “I” cursor to adjust the
chroma level.
SET UP ENABLE
3. When the white balance setting is completed,
the words PUSH SW stop blinking.
4. When you want to adjust the white balance
manually, press
(R) to select AWC and
press
(S). The AWC menu appears on the
monitor. (When ATW is selected, pressing
(S) displays the ATW menu.)
7-2. Aperture Gain Setting (AP GAIN)
1. Move the cursor to the AP GAIN parameter.
2. While observing the vectorscope or video
monitor, move the “I” cursor to adjust the aperture gain level.
7-3. Pedestal Level Setting (PEDESTAL)
** AWC **
R
....I....
+
B
....I....
+
MASK SET
END
SET UP ENABLE
RET
1. Move the cursor to the PEDESTAL parameter.
2. While observing the waveform monitor/oscilloscope or video monitor, move the “I” cursor to
adjust the pedestal level (black level).
↵
↵
↵↵
** CAM SET UP **
CAMERA ID
OFF
ALC/ELC
ALC
SHUTTER
--AGC
ON
SYNC
INT
WHITE BAL
AWC
END
To reset to the factory settings
1. Move the cursor to the CAMERA RESET parameter. The words PUSH SW start blinking.
2. While holding down
(L) and
(R), press
(S) for 2 seconds or longer. The camera is
reset to the factory settings.
Manual Fine Adjustment of AWC (ATW)
You can set details for white balance manually.
1. To set MASK SET, proceed as described in
steps 1 to 4 of “ALC mode with SUPER-D OFF
and ELC mode” on page 16.
2. Move the cursor to R.
3. Press
(L) or
(R) to obtain the optimum
amount of red gain.
4. Move the cursor to B.
-19-
To close the SPECIAL menu and return to the
CAM SET UP menu
Move the cursor to RET and press
(S).
To close the SPECIAL menu and return to the
camera picture
Move the cursor to END and press
(S).
PREVENTION OF BLOOMING AND SMEAR
When the camera is aimed at a bright light, such as
a spotlight, or a surface that reflects bright light,
smear or blooming may appear. Therefore, the
camera should be operated carefully in the vicinity
of extremely bright objects to avoid smear or
blooming.
,
,
,
,
,
,
Smear
Bright object
-20-
SPECIFICATIONS
Pick-up Device:
Scanning Area:
Scanning:
Horizontal:
Vertical:
Synchronization:
Video Output:
Horizontal Resolution:
Signal-to-Noise Ratio:
Dynamic Range:
Minimum Illumination:
Angular Field of View:
Gain Control:
White Balance:
Aperture:
Electronic Light Control:
Super-D:
Electronic Shutter Speed:
Ambient Operating Temperature:
Ambient Operating Humidity:
Power Source:
Dimensions:
Weights:
753 (H) x 582 (V) pixels, Interline Transfer CCD
4.9 (H) x 3.6 (V) mm (Equivalent to scanning area of 1/3” pick-up tube)
625 lines / 50 fields / 25 frames
15.625 kHz
50.00 Hz
Internal, Line-locked, Multiplexed Vertical Drive (VD2) Selectable
1.0 V[p-p] PAL composite 75 Ω / BNC connector
480 lines
50 dB (AGC OFF, weight ON)
42 dB
5 lx (0.5 footcandle) at WIDE end
Horizontal; 41.5° (TELE) - 76.7° (WIDE)
Vertical; 31.9° (TELE) - 59.8° (WIDE)
Selectable AGC ON or OFF (SETUP MENU)
Selectable ATW or AWC (SETUP MENU)
Variable (SETUP MENU)
Equivalent to continuously variable shutter speed between 1/50 second
and 1/10 000 second
Selectable On or Off (SETUP MENU)
Selectable 1/50 (OFF), 1/120, 1/250, 1/500, 1/1 000, 1/2 000, 1/4 000,
1/10 000 second
−10°C - +50°C (14°F - 122°F)
Less than 90%
WV-CF250:
220-240V AC 50 Hz, 4.6 W
WV-CF254:
24V AC 50 Hz, 4.6 W
143.5 (H) x 121 (D) mm [5-5/8” (H) x 4-3/4” (D)]
WV-CF250:
1.2 kg (2.6 lbs.)
WV-CF254:
1.1 kg (2.4 lbs.)
Weights and dimensions indicated are approximate.
Specifications are subject to change without notice.
STANDARD ACCESSORY
Camera Fixing Bracket...............................................................1
OPTIONAL ACCESSORIES
Ceiling Mounting Bracket ...........................................WV-Q100A
Wall Mounting Bracket .............................................. WV-Q103A
-21-
Matsushita Electric Industrial Co., Ltd.
Central P.O. Box 288, Osaka 530-91, Japan
N1297-0
YWV8QA4880AN
N 30
Printed in Japan
Gedruckt in Japan
Imprimé au Japon
Impreso en Japón
Download PDF

advertising
