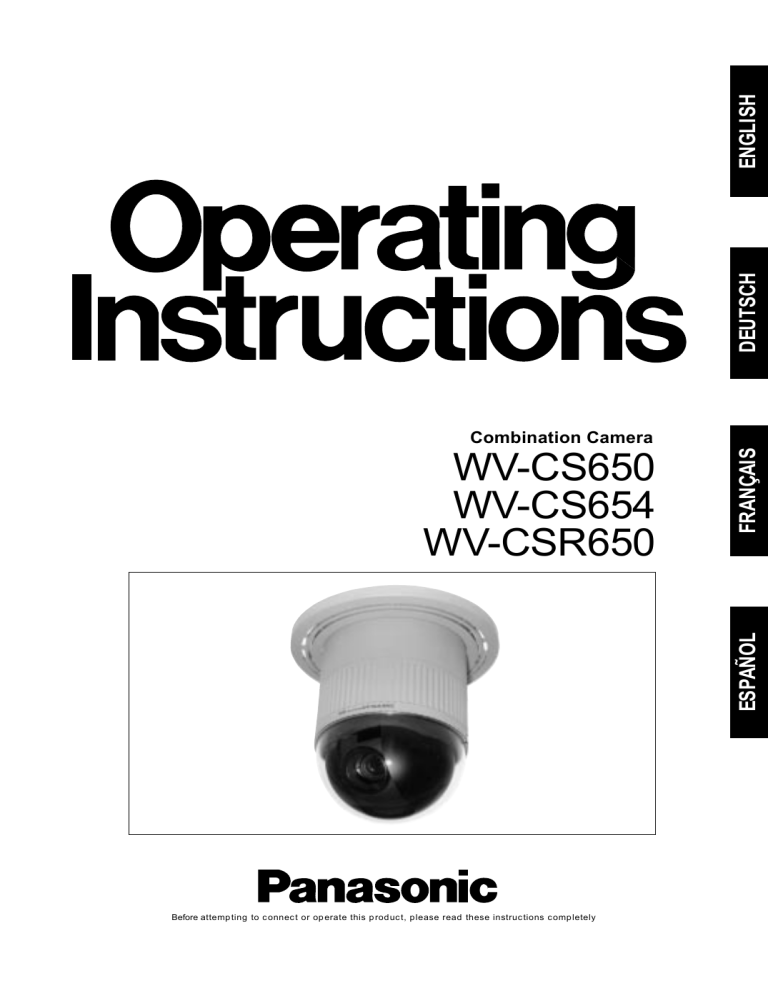

Panasonic | WVCS650_SERIES | Operating instructions | Panasonic WVCS650_SERIES Operating Instructions

ENGLISH
DEUTSCH
ESPAÑOL
WV-CS650
WV-CS654
WV-CSR650
FRANÇAIS
Combination Camera
Before attempting to connect or operate this product, please read these instructions completely
ENGLISH VERSION
We declare under our sole responsibility that the product to
which this declaration relates is in conformity with the
standards or other normative documents following the
provisions of Directives EEC/73/23 and EEC/89/336.
Vi erklærer os eneansvarlige for, at dette produkt, som
denne deklaration omhandler, er i overensstemmelse med
den følgende standarder eller andre normative dokumenter i
følge bestemmelserne i direktivene 73/23/EEC og
89/336/EEC.
Noi dichiariamo sotto nostra esclusiva responsabilità che il
prodotto a cui si riferisce la presente dichiarazione risulta
conforme ai seguenti standard o altri documenti normativi
conformi alle disposizioni delle direttive CEE/73/23 e
CEE/89/336.
Vi deklarerar härmed värt fulla ansvar för att den produkt till
vilken denna deklaration hänvisar är i överensstämmelse
med standarddokument, eller andra normativa dokument
som framstölls i Direktiv 73/23/EEC och 89/336/EEC.
Wij verklaren als enige aansprakelijke, dat het product
waarop deze verklaring betrekking heeft, voldoet aan de
volgende normen of andere normatiefve dokumenten,
overeenkomstig de bepalingen van Richtlijnen 73/23/EEC en
89/336/EEC.
Ilmoitamme yksinomaisella vastuullamme, että tuote, jota
tämä ilmoitus koskee, noudattaa seuraavia standardeja tai
muita ohjeellisia asiakirjoja, jotka noudattavat direktiivien
73/23/EEC ia 89/336/EEC. säädöksiä.
Vi erklærer oss alene ansvarlige for at produktet som denne
erklæringen gjelder for, er i overensstemmelse med følgende
normer eller andre normgivende dokumenter som fælger
bestemmelsene i direktiven 73/23/EEC og 89/336/EEC.
For U.K.
FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT
CAREFULLY.
WARNING
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK), NO
USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead
symbol, within an equilateral triangle, is
interned to alert the user to the
presence of uninsulated "dangerous
voltage" within the product's enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions
in
the
literature
accompanying the appliance.
THIS APPARATUS MUST BE EARTHED
IMPORTANT
The wires in this mains lead are coloured in accordance with the
following code.
Green-and-yellow:
Earth
Blue:
Neutral
Brown:
Live
As the colours of the wire in the mains lead of this appliance may
not correspond with the coloured markings identifying the terminals in
your plug, proceed as follows.
The wire which is coloured green-and-yellow must be connected
to the terminal in the plug which is marked with the letter E or by the
earth symbol I or coloured green or green-and-yellow.
The wire which is coloured blue must be connected to the terminal
in the plug which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal in the plug which is marked with the letter L or coloured red.
The serial number of this product may be found on the
top of the unit.
You should note the serial number of this unit in the
space provided and retain this book as a permanent
record of your purchase to aid identification in the event
of theft.
Model No.
Serial No.
WARNING:
TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
IMPORTANT! / WICHTIG! / IMPORTANT!
■ Do not install the camera near the air
outlet of an air conditioner.
The lens may become cloudy due to condensation if the camera is used under the following
conditions.
• Rapid temperature fluctuations when switching the air conditioner on or off.
• Rapid temperature fluctuations when opening or closing doors.
• Use in an environment where eyeglasses fog
up.
• Use in a room where the air is filled with cigarette smoke or other impurities.
If the lens becomes cloudy due to condensation, remove the dome cover and dry all
moist surfaces with a soft cloth.
■ Die Kamera darf nicht in der Nähe
des Luftaustritts einer Klimaanlage
installiert werden.
Unter folgenden Umstäanden kann Kondensation zum Beschlagen des Objektivs führen:
• Starke Temperaturschwankungen beim Einund Ausschalten der Klimaanlage.
• Starke Temperaturschwankungen beim Öffnen und Schließen von Türen.
• Betrieb in einem Raum, in dem Brillengläser
beschlagen.
• Starker Zigarettenrauch oder anderweitig
verunreinigte Raumluft.
IBei Beschlagen des Objektivs die Glocke
abnehmen und alle beschlagenen Flächen
mit einem weichen Tuch trockenwischen.
■ La caméra vidéo ne doit pas être
installée près d’une prise de refoulement d’air d’un climatiseur.
En effet, la surface de l’objectif risque d’être
embuée à la suite d’une formation de condensation de l’humidité si la caméra vidéo est utilisée
dans les conditions suivantes.
• Variations rapides de température lorsque le
climatiseur est mis en fonction et qu’il est arrêté.
• Variations rapides de température lorsque
les portes sont ouvertes et fermées.
• Utilisée dans des conditions telles que des
lunettes sont rapidement embuées.
• Utilisée dans une pièce dont l’air est saturé
de fumée de cigarette ou toute autre sorte
d’impuretés.
Si toutefois la surface de l’objectif est
embuée à la suite de la formation d’une condensation de l’humidité, retirer le couvercle
du dôme et assécher toutes les surfaces
atteintes par l’humidité avec un morceau
d’étoffe souple.
■ Removal of Dome Cover
1. Remove the 2 dome clamp screws
(small) and 2 dome retainers using a precision screwdriver.
Be careful not to lose these parts
because they will be used again.
2. Remove the dome cover by turning it
counterclockwise.
3. Dry all moist surfaces with a soft cloth.
4. Place the dome cover back on, and fasten it securely with the screws and dome
retainers.
■ Entfernen der Glocke
1. Mit einem Präzisionsschraubenzieher die
2 Klemmschrauben (klein) mit Haltern
aus der Glocke entfernen und sorgfältig
aufbewahren.
2. Die Glocke entgegen dem Uhrzeigersinn
drehen und abnehmen.
3. Alle beschlagenen Flächen mit einem
weichen Tuch trockenwischen.
4. Die Glocke wieder aufsetzen und mit den
Schrauben und Haltern befestigen.doors.
■ Comment retirer le couvercle du
dôme
1. Retirer les deux vis d’immobilisation du
couvercle du dôme (petites) et les deux
éléments de retenue en se servant d’un
tournevis de précision.
Veiller à ne pas égarer ces pièces parce
qu’elles seront utilisées ultérieurement.
2. Retirer le couvercle du dôme en le
faisant pivoter dans le sens inverse des
aiguilles d’une montre.
3. Assécher toutes les surfaces atteintes
par l’humidité avec un morceau d’étoffe
souple.
4. Remonter le couvercle du dôme et bloquer fermement les vis de fixation et les
éléments de retenue du dôme.
■ Self Return Setting .................................. 17
■ Auto Mode Setting .................................. 18
■ FLIP-A-CHIP Setting ............................... 19
■ LOCAL/REMOTE Setting ........................ 19
■ Camera Setting ....................................... 20
INSTALLATION ............................................... 31
CONNECTIONS .............................................. 34
SYSTEM CONNECTIONS ............................... 36
PREVENTION OF BLOOMING
AND SMEAR ................................................... 37
SPECIFICATIONS ........................................... 37
ACCESSORIES ............................................... 38
OPTIONAL ACCESSORIES ............................ 38
PREFACE .......................................................... 1
FEATURES ........................................................ 1
PRECAUTIONS ................................................. 2
CONSTRUCTION .............................................. 3
SETUP ............................................................... 4
■ Setup Menu ............................................... 4
■ Setup Menu Description ........................... 6
SETTING PROCEDURES ................................ 10
■ Menu Display .......................................... 10
■ RS485 Set Up ......................................... 10
■ Preset ..................................................... 12
■ Deleting Preset Positions ........................ 17
■ Home Position Setting ............................. 17
PREFACE
Panasonic presents highly advanced CCTV
technology meets the demand of new and everchanging applications. This model is utilized
video surveillance device that incorporates a
Digital Signal Processing (DSP) highperformance camera, pan/tilt mechanism, 10
times zoom lens and receiver in its compact
enclosure.
The camera portion incorporating a high-
sensitivity CCD provides 480-line horizontal
resolution. With its advanced digital signal
processing circuit, it is equipped to handle the
surveillance tasks of the coming age.
The pan/tilt portion, allowing 360-degree endless
panning, is designed to meet specific user need.
This model utilized surveillance device offers
cutting-edge technology for advanced video
surveillance.
FEATURES
1. The following functions are built in.
(1) The SUPER-D function eliminates interference by strong background lighting
which makes the camera picture dark,
such as a spotlight.
(2) Dynamic range of 42 dB
(3) Auto/Manual White Balance Function
(4) Electronic Shutter Function
(5) Auto Light Control (ALC)/Manual Override Iris
2. Minimum illumination of 3 lux (0.3 footcandle)
3. High quality picture:
(a) 2H type vertical enhancer for greater
picture sharpness
(b) Chroma averaging circuit for better
colour signal to noise ratio
4.
5.
6.
7.
8.
9.
10.
-1-
(c) Minimum of aliasing on fine objects
(d) Highlight aperture correction for greater
picture detail of bright objects
Back Light Compensation for use under
unusual lighting conditions.
Selectable electronic sensitivity enhancing
modes including : AUTO, MANUAL and OFF
Built in Digital Motion Detector
64 preset position-Position, focus, zoom
ratio, rotation mode, etc.
360-degree endless panning.
Maximum 240 degrees/second speed from
one position to the next.
There is no distance limit for remote access
with the specified extension unit. (only for
WV-CSR650)
ENGLISH
CONTENTS
PRECAUTIONS
8. If “OVER HEAT” sign appears on the
monitor screen
The temperature inside the camera exceeds
the normal level because of a malfunction of
the cooling fan etc. Turn the power off
immediately and refer servicing to qualified
service personal.
1. Do not attempt to disassemble the
camera.
To prevent electric shock, do not remove
screws or covers.
There are no user serviceable parts inside.
Ask a qualified service person for servicing.
2. Handle the camera with care.
Do not abuse the camera. Avoid striking,
shaking, etc. The camera could be
damaged by improper handling or storage.
9. Do not operate the camera beyond the
specified temperature, humidity or power
source ratings.
Use the camera under conditions where
temperature is between −10°C - +50°C (14°F
- 122°F), and humidity is below 90 %. The
input power source is 220 -240 V AC 50Hz
for WV-CS650, WV-CSR650, and 24 V AC
50Hz for WV-CS654.
3. Do not expose the camera to rain or
moisture, or try to operate it in wet areas.
This product is designed for indoor use or
locations where it is protected from rain and
moisture.
Turn the power off immediately and ask a
qualified service person for servicing.
Moisture can damage the camera and also
create the danger of electric shock.
CAUTION
To prevent fire or electric shock hazard, the
UL listed wire, VW-1, style 1015, AWG 18 or
UL listed power supply cord, type SJT should
be used for the cable for 24V AC input
terminals.
4. Do not use strong or abrasive detergents
when cleaning the camera body.
Use a dry cloth to clean the camera when
dirty.
In case the dirt is hard to remove, use a mild
detergent and wipe gently.
5. Never face the camera towards the sun.
Do not aim the camera at bright objects.
Whether the camera is in use or not, never
aim it at the sun or other extremely bright
objects. Otherwise, blooming or smear may
be caused.
6. Do not install this camera upside down
This camera is designed for mounting on the
ceiling or wall. Using this camera installed
upside down, for example,mounted on the
floor, may cause malfunction.
7. Do not block cooling holes on the diecast
case
This camera has a cooling fan inside.
Blocking the cooling holes leads to build up
of heat the camera and may cause
malfunction.
-2-
CONSTRUCTION
e
e*
r
t
w
y
q
u
i
o
(1) Data Cable (only for WV-CSR650)
(6) Fall Prevention Wire
(2) Video Output Connector
(7) Decoration Cover
(3) Power Cable for WV-CS650 and WVCSR650
(8) Cooling Holes
(9) Dome Cover
(3*) Power Cable for WV-CS654
(4) Camera Mounting Angle
(5) Panning Start Point
-3-
SETUP
■ Setup Menu
This camera utilizes a user setup menu that is displayed on-screen.
This setup menu contains various sub menus that form a tree-type
structure as shown below.
This menu is described in the "SETUP MENU DESCRIPTION".
Preset
Menu
MAP
Menu
Home
Position
Setting
Setup
Menu
CAMERA
SET UP MENU
Self
Return
Setting
Auto
Mode
Setting
Position
No.
Selection
Auto-pan
Setting
Menu
Camera
ID
Editing
Light
Control
ALC MANUAL
Camera ID
Display
Position
Super-D
OFF
Super-D
ON
White
Balance
AWC ATW
Motion
Detector
ON/OFF
AF Mode
MANUAL/
AUTO
AF
Area
Selection
Preset
Setting
Menu
Position
Setting
Light
Control
ALC MANUAL
Preset ID
Editing
Preset ID
Display
Position
Super-D
OFF
Manual
Level
Adjustment
(Contrast)
Dwell Time
Setting
Scene File
Setting
Shutter
Speed
ON/OFF
Super-D
ON
AGC
ON/OFF
Flip-AChip
ON/OFF
Electronic
Sensitivity
Up ON/OFF
Manual
Iris
Adjustment
Manual
Mask Area
Selection
Manual
Level
Adjustment
Manual
Level
Adjustment
Sensitivity
Level
Adjustment
Manual
Mask
Area
Selection
Manual
Mask
Area
Selection
Mask
Area
Selection
The above menus should be set with the
following switches.
Joystick
F1
• WV-CU550A
ACK
RESET
BACK FORWARD
SEQ SEQ ALT
F2
F3
1
2
3
4
5
6
F4
PRESET
UP
IRIS
CLOSE OPEN
LEFT
Joystick:
CAM (SET) Key:
Used to move the Cursor
Upward/Downward/Right/
Left and select the mode.
Also used to adjust the level.
This key is for setting the
mode and switching between
menus.
RIGHT
AF
1
AUX
2
DEC INC
-1CAM +1CAM STOP
7
8
9
MON
0
CAM
ESC
SET
ZOOM
TELE
FOCUS
NEAR
WIDE
FAR
DOWN
System Controller WV-CU
CAM (SET) Key
-4-
550A
Note:
The menus described in bold are displayed only when WV-CSR650 is used.
UNIT
NUMBER
TRANSMISSION
SPEED
Local/
Remote
Shutter
Speed
ON/OFF
Manual
Iris
Adjustment
DATA
BIT
PARITY
BIT
STOP
BIT
XON/
XOFF
WAIT
TIME
ALARM
DATA
DELAY
TIME
Camera
Menu
AGC
ON/OFF
INT
Manual
Selection
Manual
Manual
Level
Mask Area
Adjustment Selection
(Contrast)
Sensitivity
Up
ON/OFF
LL
Manual
Selection
White
Balance
AWC ATW
Sync.
INT/LL
VD2
Automatic
Selection
V-phase
Manual
Adjustment
Manual
Level
Adjustment
Manual
Level
Adjustment
Manual
Mask
Area
Selection
Manual
Mask
Area
Selection
Motion
Detector
ON/OFF
Sensitivity
Level
Adjustment
Mask
Area
Selection
AF Mode
Manual/
Auto
Special
Menu
AF
Area
Selection
Up
Side
Down
Chroma
Gain
AP Gain
• WV-RM70
(available with all models except WV-CSR650)
Up Switch:
Down Switch:
Right Switch:
Left Switch:
Moves the cursor upwards.
Moves the cursor downwards.
Moves the cursor right. This
switch also selects the mode
and can be used to adjust
certain Levels.
Moves the cursor left. This
switch also selects the mode
Set Switch:
Pedestal
Camera
Reset
and can be used to adjust
certain Levels.
This switch is for setting the
mode and switching between
menus.
Up Switch
Left Switch
Right Switch
Set Switch
Down Switch
-5-
■ Setup Menu Description
● RS485 site communication (only WV-CSR650)
Communication parameters
• Full/Half duplex (page 31)
• Transmission speed (2 400 - 19 200 bps) (page 11)
• Parity bit, Stop bit, Flow control (page 11)
• Retransmit time, Delay time, Alarm output (pages 11, 12)
• Camera units (96 units max.) (page 31)
• Termination ON/OFF (page 31)
• Reset parameters (page 31)
● PRESET
(1) Position (POSITION SET)
POSITION SET adjusts the camera picture by panning, tilting, zooming and focusing.
See page 13 for the setting.
(2) Preset Identification (PRESET ID)
A preset ID (identification of up to 16 alphanumeric characters) can be displayed on the screen.
See page 14 for the setting.
(3) Light Control (ALC/MANUAL)
ALC/MANUAL refers to the mode of the incoming light level control.
See page 15 for the setting.
(4) Dwell Time (DWELL TIME)
DWELL TIME is the duration that the picture of each camera position is displayed. You can select a
preset duration from the menu.
See page 16 for the setting.
(5) Scene File (SCENE FILE)
SCENE FILE is used to memorize the camera shooting scene. You can store up to 10 (scene file No.
1 to No. 10) camera shooting scenes. The camera functions below are available for detail setting of
the scene files to be stored. These functions are stored in memory together with the scene files.
Camera functions available for detail setting of scene files are: shutter speed, AGC, electronic
sensitivity enhancement, white balance, motion detector and AF mode.
See page 16 for the setting.
● Home Position (HOME POSITION)
HOME POSITION is the camera’s basic position. It returns to this position automatically, when a specified
time has elapsed after a manual operation.
See page 17 for the setting.
● Self Return (SELF RETURN)
SELF RETURN is the time-out parameter for returning to the home position.
See page 17 for the setting.
-6-
● AUTO MODE
AUTO MODE is for setting the movement of the camera. You can select from three automatic operation
modes and one manual operation mode as follows:
OFF mode: No automatic operation. The camera can be operated only manually.
SEQ mode: The camera operates in the sequence of preset positions in numerical order.
SORT mode: The camera operates in the sequence of preset positions counterclockwise from Pan/Tilt
Starting Point.
AUTO PAN mode: The camera automatically turns within the preset panning range.
See page 18 for the setting.
● FLIP-A-CHIP
FLIP-A-CHIP is for setting the movement of the camera by using the joystick.
See page 19 for the setting.
● LOCAL/REMOTE
LOCAL/REMOTE determines the relationship between camera operation and ON/OFF status of the
controller. You can select one of the following two modes:
LOCAL: The camera continues operating in auto mode when the controller is turned OFF.
REMOTE: The camera stops operating in auto mode approx. 1 minute after the controller is turned off.
See page 19 for the setting.
● Camera
(1) Camera Identification (CAMERA ID)
You can use the camera identification (CAMERA ID) to assign a name to the camera. The camera ID
consists of up to 16 alphanumeric characters. You can select whether to have the camera ID
displayed on the monitor screen or not.
Note: See page 20 for the setting.
(2) Light Control (ALC/MANUAL)
You can select the mode for adjusting the lens iris.
The modes are as follows:
ALC: The lens iris is automatically adjusted according to the brightness of the object.
You can select one of two modes (SUPER-D ON or SUPER-D OFF).
MANUAL: The lens iris is fixed at the value you have set regardless of the brightness of the object.
• ALC Mode with SUPER-D ON
Super Dynamic Function (SUPER-D)
The important object in a scene is usually placed in the centre of the monitor’s screen. In SUPER-D
mode, more photometric weight is given to the centre of the screen (where the important object is
located) than to the edge of the picture (where a bright backlight would most likely be located).
You can use the SUPER-D function if you select ALC. It eliminates interference by strong background
lighting which makes the camera picture dark, such as a spotlight.
Note: See page 21 for the setting.
• ALC Mode with SUPER-D OFF
In this mode, the picture is divided into 48 areas. If there is a source of brightness that interferes with
the clarity of the picture in these masks, corresponding areas mask the light to keep the clarity of the
picture.
-7-
Generally, when a light from the background is too strong such as a spotlight, all objects except the
main object in the picture are displayed darker because the lens iris is adjusted with respect to
strong brightness. This model ignores strong brightness by masking the source of the strong
brightness, thereby all objects are displayed clearly.
Note: The result of field setup of the mask area and level adjustment is fed back (effected) to the lens
iris control in ALC mode.
(3) Shutter Speed (SHUTTER)
You can select the shutter speed from 1/50 (OFF), 1/120, 1/250, 1/500, 1/1 000, 1/2 000, 1/4 000, and
1/10 000 seconds.
Note: See page 23 for the setting.
(4) Gain Control (AGC)
You can set the gain (brightness level portion of an image) to automatic adjustment (Automatic Gain
Control ON) or fixed (Automatic Gain Control OFF).
Note: See page 23 for the setting.
(5) Electronic Sensitivity Enhancement (SENS UP)
The electronic sensitivity emhancement (SENS UP) function varies the shutter speed to raise the
sensitivity in low light conditions when OFF is selected for ALC.
You can select the shutter speed for SENS UP from the preset values as follows;
1/30 seconds (x2), 1/15 seconds (x4), 1/10 seconds (x6), 1/6 seconds (x10), 1/3.8 seconds (x16), or
1/1.9 seconds (x32).
There are two modes for SENS UP as follows;
AUTO: If you select x32, for example, the sensitivity is raised automatically to x32 max.
FIX: If you select x32, for example, the sensitivity is raised to just x32.
Notes:
• See page 23 for the setting.
• Moving objects will appear blurred when shot during the electronic sensitivity enhancement
mode since SENS UP is equivalent to setting the shutter speed to a slower speed in a still picture
camera.
• The horizontal and vertical resolution will be lowered in this mode.
• If the video output level is adjusted too low (the iris opening is too small), the Electronic
Sensitivity Enhancement (SENS UP)/AUTO mode will not function. Select ALC mode with SUPERD ON in this condition.
(6) Synchronization (SYNC)
You can select internal sync mode (INT) or line-lock sync (LL). Additionally, this model accepts the
VD2 signal (multiplexed vertical drive signal) with the composite video output signal from a specified
component. Whenever the VD2 signal is supplied to this camera, the camera automatically switches
to the VD2 sync mode.
When you select line-lock sync (LL), you can set vertical phase adjustment for composite sync mode
or horizontal and sub-carrier phase adjustments for the black burst mode.
Important Notice:
The priority of sync modes is as follows:
1. Multiplexed Vertical Drive (VD2) (Highest)
2. Line-lock (LL)
3. Internal Sync (INT) (Lowest)
Note: The priority of automatic sync mode is the same as shown above. See page 24 for the setting.
-8-
(7) White Balance (WHITE BAL)
You can select one of two modes for white balance adjustment as follows:
• ATW (Auto Tracing White Balance)
In this mode, the colour temperature is monitored continuously and thereby white balance is set
automatically. The colour temperature range for the proper white balance is approximately 2 600 6 000K. Proper white balance may not be obtained under the following conditions:
1. The colour temperature is out of the 2 600 - 6 000K range.
2. When the scene contains mostly high colour temperature (bluish) objects, such as a blue sky or
sunset.
3. When the scene is dim.
In these cases, select the AWC mode.
• AWC (Automatic White Balance)
In this mode, accurate white balance is obtained within a colour temperature range of approx. 2 300
- 10 000K.
Note: See page 26 for the setting.
(8) Motion Detector (MOTION DET)
The Motion Detector detects the motion in the scene by monitoring changes in the brightness level.
You can select the level of sensitivity for motion on the SET UP menu.
When this camera is connected to a compatible intelligent CCTV system, the camera transmits an
alarm signal by multiplexing it with the video signal.
When the camera detects the motion in AUTO, it supplies the alarm signal to the external equipment
and stops at its position for the preset dwell time. You can select the dwell time as follows;
OFF 1/2/3/5/10/20/30/60 min.
Note: See page 27 for the setting.
(9) Auto Focus (AF MODE)
You can select one of two AF modes as follows:
MANUAL: AF mode is activated by pressing the AF button of the controller.
AUTO: AF mode is activated automatically after a manual panning, tilting or zooming operation.
Notes:
• AUTO in AF MODE is disabled unless SENS UP is set to OFF. If SENS UP is not OFF, AF MODE
is set automatically to MANUAL.
• See page 28 for the setting.
(10) Special Menu (SPECIAL)
This menu allows you to adjust the following items: upside down, chroma level, aperture level and
pedestal level. You can also reset your parameters to the values preset at the factory.
See page 29 for the setting.
-9-
SETTING PROCEDURES
The following setting procedures are described on the assumption that this model is used in combination
with the WJ-SX550A matrix switcher and WV-CU550A system controller. If used with the WV-RM70
camera controller, refer to “WV-RM70” on page 5 for operation.
■ Menu Display
D4 menu
● Setup Menu Display
1. Select the number of the camera you want to set up and a monitor
to display the SET UP MENU.
2. Display the D4 menu on the LCD by pressing the appropriate
cursor buttons.
F1 F2
F3 F4
Camera Set Up Menu
Res A.Res Exit
F1 F2
F3 F4
Setup menu
for camera communication
(only for WV-CSR650)
3. Press the F1 button.
The SET UP MENU appears on the monitor.
4. To close the SET UP MENU, press the F4 button.
Note:
Do not change the SET UP MENU (for camera communication) settings of the WV-CSR650 except CAMERA*. If those
settings are changed, the camera and the controller may get
out of control.
● Submenu Display
The items marked
Camera Set Up Menu
On
Exit
*** SET UP MENU ***
CAMERA*
UNIT NUMBER
1
BAUD RATE
19200
DATA BIT
8
PARITY BIT
NONE
XON/XOFF
NOT USE
WAIT TIME
OFF
ALARM DATA
AUTO 2
DELAY TIME
OFF
COM. SET UP DISABLE
Setup menu
(for camera setting)
can be selected/changed on the submenu.
• Move the cursor to an item with the
mark and press the CAM
(SET) key. The submenu is displayed.
Note:
When you use the WV-CSR650, move the cursor to CAMERA
on the SET UP MENU for camera communication and press
the CAM (SET) key. The SET UP MENU for camera setting
appears in the display.
*** SET UP MENU ***
PRESET 1*
MAP
HOME POSITION 15
SELF RETURN
10MIN
AUTO MODE
AUTO PAN
FLIP-A-CHIP
ON
LOCAL/REMOTE LOCAL
CAMERA
■ RS485 Set Up
● Initial camera communication parameters
• Confirm the communication parameters of the matrix switcher (WJ-SX550A), and display the camera
SET UP MENU.
The initial camera communication parameters are shown in the illustration above.
The other parameters are as follows:
Daisy : OFF
Camera In Number : 1
F/H Duplex : Full
- 10 -
● Changing the camera communication parameters
1. Display the SET UP MENU. Move the cursor to COM. SET UP DISABLE and press the CAM (SET)
key to select COM. SET UP ENABLE.
2. Move the cursor to the item and select the parameter by moving the joystick to the left or right.
You can remote control this camera by using a specified extension
unit such as a computer with a modem. The RS485 menu is used to
set the parameters of the below items for RS485 site communication.
Move the cursor to RS485 of the SET UP menu and press the CAM
(SET) key. The RS485 menu appears on the monitor screen.
Setup menu
for camera communication
(only for WV-CSR650)
*** SET UP MENU ***
CAMERA*
UNIT NUMBER
1
BAUD RATE
19200
DATA BIT
8
PARITY BIT
NONE
XON/XOFF
NOT USE
WAIT TIME
OFF
ALARM DATA
AUTO 2
DELAY TIME
OFF
COM. SET UP DISABLE
UNIT NUMBER
Specifies the camera ID numbers in case more than two cameras and WV-RM70 controllers are daisy
chain connected. Select (1-32), (33-64) or (65-96) with the dip switch. The factory setting is 1.
BAUD RATE
Specifies the transmission speed (2 400, 4 800, 9 600, 19 200 bps) for the RS485 communication. (BAUD
is a unit equal to bits per second.) The factory setting is 19 200.
DATA BIT
Specifies the number of data bits (7 or 8 bits) for the RS485 communication. The factory setting is 8.
PARITY BIT
Specifies the parity bits (NONE, ODD, EVEN) for the RS485 communication. The factory setting is NONE.
STOP BIT
Specifies the number of stop bits (1 or 2 bits) for the RS485 communication. The factory setting is 1.
X ON/X OFF
Specifies whether to apply flow control or not (NOT USE, USE) for the RS485 communication. The factory
setting is NOT USE.
WAIT TIME
Specifies the time to wait until retransmitting after confirming that no data is received from the controller.
(OFF: no transmission, 100, 200, 400, 1 000 ms).
ALARM DATA
Specifies the alarm data transmission mode (POLLING, AUTO 1, AUTO 2). The factory setting is AUTO 2.
POLLING:
Transmit the alarm data to the controller against request from the controller.
AUTO 1:
Transmit the alarm data each time the alarm signal is received.
AUTO 2:
Transmit the alarm data every five seconds. (This mode is recommended when WV-CU550A is
used).
- 11 -
CU550A.
DELAY TIME
Specifies the time to transmit the acknowledge request when communicating on a two-line connection.
(OFF, 10, 20, 40, 100 ms) The factory setting is OFF.
This menu appears only when a two-line communication is used.
The settings become effective with closing of the SET UP MENU.
Note:
If the conditions of the communication for the camera became effective, the communication between
the camera and the controller may not work. Set the conditions of the communication for the
controller to the same as the camera’s. The communication between the camera and the controller
works correctly.
Setting the dip switch C inside the camera unit to ON resets the conditions of the communication for
the camera to the factory preset settings. (See page 31)
■ Preset
● Preset Menu Display
1. Displaying the preset menu directly
(1) Move the cursor to PRESET 1 and move the joystick to the left or right to select the position
number to be set.
(2) Press the CAM (SET) key.
The preset menu appears on the monitor screen.
2. Displaying the preset menu from the PRESET NUMBER SET menu
(1) Move the cursor to MAP and press the CAM (SET) key.
The PRESET NUMBER SET menu appears on the monitor screen.
(2) Move the cursor to the position number to be set and press the CAM (SET) key.
The preset menu appears on the monitor screen. To display position number 33-64, move the
cursor to “33-64” in the lower left of the screen and press the CAM (SET) key.
Setup menu
*** SET UP MENU ***
PRESET 1*
MAP
HOME POSITION 15
SELF RETURN
10MIN
AUTO MODE
AUTO PAN
FLIP-A-CHIP
ON
LOCAL/REMOTE LOCAL
CAMERA
PRESET NUMBER SET menu
* PRESET NUMBER SET *
1*
2*
5*
6*
9*
10*
13*
14*
17
18
21
22
25
26
29
30
ID:DOOR
33-64 RET
3*
7*
11*
15*H
19
23
27
31
4*
8*
12*
16
20*
24
28
32
* PRESET NUMBER SET *
33
37
41
45
49
53
57
61
ID:
1-32 RET
Notes:
• The * mark means the position number is preset.
• The character H means home position.
• The right side of ID: is the preset ID of the preset number with the cursor.
- 12 -
34
38
42
46
50
54
58
62
35
39
43
47
51
55
59
63
36
40
44
48
52
56
60
64
● Position Setting
Preset setting menu
1. Move the cursor to POSITION SET and press the CAM (SET) key.
The position set menu is displayed.
PRESET NO.15*H
POSITION SET
PRESET ID
ALC/MANUAL
DWELL TIME
SCENE FILE
RET
2. To set panning/tilting positions
Move the cursor to PUSH SET next to PAN/TILT and press the
CAM (SET) key. The setting menu appears.
Select panning/tilting positions moving the joystick up and down,
right and left, and press the CAM (SET) key. The positions are set
and the screen returns to the position set menu.
ON
ALC
2S
1
DEL
Position setting menu
POSITION 15*H
PAN/TILT
ZOOM/FOCUS
→PUSH SET
→PUSH SET
RET
FLOOR 1
DOOR
POSITION 15*H
PAN/TILT
ZOOM/FOCUS
→PUSH SET
→PUSH SET
U TILT D/L PAN R
RET
FLOOR 1
DOOR
3. To set the lens zoom and focus positions
Move the cursor to PUSH SET next to ZOOM/FOCUS and press
the CAM (SET) key. The setting screen appears.
Select a zoom position by moving the zoom control up and down,
and a focus position by moving the focus control up and down,
and then press the CAM (SET) key. The positions are set and the
screen returns to the position set menu.
Note:
When the camera is used at a nearly horizontal angle, the
focus may not be adjustable to a high level of accuracy.
Position setting menu
POSITION 15*H
PAN/TILT
ZOOM/FOCUS
→PUSH SET
→PUSH SET
RET
FLOOR 1
DOOR
POSITION 15*H
PAN/TILT
ZOOM/FOCUS
→PUSH SET
→PUSH SET
U ZOOM D/L FOCUS R
RET
FLOOR 1
DOOR
4. Move the cursor to RET and press the CAM (SET) key to return to
the preset menu.
Position setting menu
POSITION 15*H
PAN/TILT
ZOOM/FOCUS
RET
FLOOR 1
DOOR
- 13 -
→PUSH SET
→PUSH SET
● Preset ID Setting
Preset setting menu
1. Move the cursor to PRESET ID and move the joystick to the left or
right to select ON or OFF.
ON: Preset ID is displayed on the screen.
OFF: Preset ID is not displayed.
PRESET NO.15*H
POSITION SET
PRESET ID
ALC/MANUAL
DWELL TIME
SCENE FILE
RET
ON
ALC
2S
1
DEL
2. To edit the camera identification to be changed
Move the cursor to PRESET ID and press the CAM (SET) key to
display the set menu.
To edit the PRESET ID displayed on the screen
Move the cursor to the character you want to change by
using the joystick, and press the CAM (SET) key. The
selected character appears in the editing area. (The pointer
in the editing area moves to the right automatically at this
moment.) To enter a blank, select SPACE.
Repeat the above procedure until all characters are edited.
Preset ID setting menu
Character Cursor
PRESET NO.15*H
0123456789
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
().,'":;&#!?=
+-*/%$ ÄÜÖÆÑÅ
SPACE
COPY POSI RET RESET
DOOR............
↑
Character
Area
Command
Editing
Area
Pointer
To copy a preset ID from another position
Move the cursor to COPY and press the CAM (SET) key. The
preset ID in the immediately preceding position is shown.
Each consecutive operation of the CAM (SET) key displays
the ID preceding the one currently displayed.
PRESET NO.15*H
0123456789
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
().,'":;&#!?=
+-*/%$ÄÜÖÆÑÅ
SPACE
COPY POSI RET RESET
DOOR............
↑
To change an edited PRESET ID
1. Move the pointer to the character to be edited in the editing
area by using the joystick, and press the CAM (SET) key.
2. Select a new character by using the joystick.
3. Press the CAM (SET) key to determine the PRESET ID.
PRESET NO.15*H
0123456789
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
().,'":;&#!?=
+-*/%$ÄÜÖÆÑÅ
SPACE
COPY POSI RET RESET
DOOR............
↑
- 14 -
To delete an edited PRESET ID
Move the cursor to RESET and press the CAM (SET) key.
PRESET NO.15*H
0123456789
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
().,'":;&#!?=
+-*/%$ÄÜÖÆÑÅ
SPACE
COPY POSI RET RESET
DOOR............
↑
To set a display position for a PRESET ID
Move the cursor to POSI and press the CAM (SET) key. The
PRESET ID blinks and the display position set menu appears.
Using the joystick, move the ID to the desired position on the
screen, then press the MON (ESC) key. The display position
is set and the screen returns to the PRESET ID menu.
PRESET NO.15*H
0123456789
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
().,'":;&#!?=
+-*/%$ÄÜÖÆÑÅ
SPACE
COPY POSI RET RESET
DOOR............
↑
FLOOR 1
DOOR
To return to the preset menu
Move the cursor to RET and press the CAM (SET) key.
PRESET NO.15*H
0123456789
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
().,'":;&#!?=
+-*/%$ÄÜÖÆÑÅ
SPACE
COPY POSI RET RESET
DOOR............
↑
● Light Control Setting
Preset setting menu
1. Move the cursor to ALC/MANUAL and move the joystick to the left
or right to select ALC or MANUAL.
ALC: The lens iris is automatically adjusted to suit the brightness
of the object.
MANUAL: The lens iris is fixed at the set value regardless of the
brightness of the object.
2. In case of ALC
Press the CAM (SET) key. The back light compensation menu
appears in the display. See page 21 for the setting.
PRESET NO.15*H
POSITION SET
PRESET ID
ALC/MANUAL
DWELL TIME
SCENE FILE
RET
DEL
Manual setting menu
** MANUAL CONT **
IRIS
3. In case of MANUAL
Press the CAM (SET) key. The setting menu appears in the
display. Set the lens iris level as desired by moving the joystick to
the left or right.
- 15 -
ON
ALC
2S
1
RET
....I....
CLOSE
OPEN
● Dwell Time Setting
Preset setting menu
• Move the cursor to DWELL TIME and set a dwell time by moving
the joystick to the left or right. Dwell time changes as follows:
2S
3S
5S
10S
30S
1MIN
2MIN
3MIN
4MIN
The letter S signifies second(s) and MIN minute(s).
PRESET NO.15*H
POSITION SET
PRESET ID
ALC/MANUAL
DWELL TIME
SCENE FILE
RET
● Scene File Setting
ON
ALC
2S
1
DEL
Preset setting menu
1. To set a scene file number
Move the cursor to SCENE FILE and select a scene file number (1
to 10, or OFF) by moving the joystick to the left or right. No scene
file is selected at OFF.
PRESET NO.15*H
POSITION SET
PRESET ID
ALC/MANUAL
DWELL TIME
SCENE FILE
RET
2. To set scene file details
Move the cursor to a scene file number and press the CAM (SET)
key. The setting menu appears.
See the pages below for the setting.
Shutter speed: Page 23
AGC: Page 23
Electronic sensitivity enhancement: Page 23
White balance: Page 25
Motion detector: Page 27
Auto focus: Page 28
DEL
Scene file setting menu
* * SCENE FILE 1 **
SHUTTER
AGC
SENS UP
WHITE BAL
MOTION DET
AF MODE
Preset setting menu
PRESET NO.15*H
POSITION SET
PRESET ID
ALC/MANUAL
DWELL TIME
SCENE FILE
RET
● To return to the setup menu
OFF
ON
OFF
ATW
ON
MANUAL
RET
● To return to the PRESET NUMBER SET Menu
• Move the cursor to RET and press the CAM (SET) key. The
PRESET NUMBER SET menu appears with the * mark on the right
of the preset position number.
ON
ALC
2S
1
ON
ALC
2S
1
DEL
PRESET NUMBER SET menu
• Move the cursor to RET and press the CAM (SET) key.
* PRESET NUMBER SET *
1*
5*
9*
13*
17
21
25
29
ID:
33-64
- 16 -
2*
6*
10*
14*
18
22
26
30
RET
3*
7*
11*
15*H
19
23
27
31
4*
8*
12*
16
20*
24
28
32
■ Deleting Preset Positions
Setup menu
1. Move the cursor to PRESET 1* and select the position number to
be deleted by moving the joystick.
*** SET UP MENU ***
PRESET 1*
MAP
HOME POSITION
SELF RETURN
AUTO MODE
FLIP-A-CHIP
LOCAL/REMOTE
15
10MIN
AUTO PAN
ON
LOCAL
CAMERA
2. Press the CAM (SET) key to display the preset setting menu.
Preset setting menu
PRESET NO.15*H
POSITION SET
PRESET ID
ALC/MANUAL
DWELL TIME
SCENE FILE
RET
3. Move the cursor to DEL and press the CAM (SET) key.
This deletes the preset position and the PRESET NUMBER SET
menu appears. The * mark on the right of the position disappears.
Note: Your selected preset number is canceled only in SEQ and
SORT mode. The previously set parameters (for PAN, TILT
positions, etc.) are not changed. If you wish to change these
parameters, you must set them again.
ON
ALC
2S
1
DEL
PRESET NUMBER SET menu
* PRESET NUMBER SET *
1*
5*
9*
13*
17
21
25
29
ID:
33-64
■ Home Position Setting
2*
6*
10*
14*
18
22
26
30
3*
7*
11*
15
19
23
27
31
4*
8*
12*
16
20*
24
28
32
RET
Setup menu
1. To set a position number for the home position
Move the cursor to HOME POSITION and select the desired
position number by moving the joystick to the left or right.
2. Select OFF if you are not using the home position function.
*** SET UP MENU ***
PRESET 1*
MAP
HOME POSITION
SELF RETURN
AUTO MODE
FLIP-A-CHIP
LOCAL/REMOTE
15
10MIN
AUTO PAN
ON
LOCAL
CAMERA
■ Self Return Setting
Setup menu
• To set a time-out parameter for return to the home position
Move the cursor to SELF RETURN and select a return time by
moving the joystick to the left or right. Return time changes as
follows:
1MIN
OFF
2MIN
3MIN
60MIN
5MIN
30MIN
10MIN
20MIN
MIN signifies minute(s).
- 17 -
*** SET UP MENU ***
PRESET 1*
MAP
HOME POSITION
SELF RETURN
AUTO MODE
FLIP-A-CHIP
LOCAL/REMOTE
CAMERA
15
10MIN
AUTO PAN
ON
LOCAL
■ Auto Mode Setting
Setup menu
1. To set auto mode
Move the cursor to AUTO MODE and select a mode by moving
the joystick to the left or right. Modes change as follows:
OFF
SEQ
SORT
AUTO PAN
*** SET UP MENU ***
PRESET 1*
MAP
HOME POSITION
SELF RETURN
AUTO MODE
FLIP-A-CHIP
LOCAL/REMOTE
15
10MIN
AUTO PAN
ON
LOCAL
CAMERA
2. When AUTO PAN is selected, set details as follows:
Move the cursor to AUTO PAN and press the CAM (SET) key to
display the AUTO PAN setting menu.
AUTO PAN setting menu
** AUTO PAN **
POSITION SET
SPEED
ENDLESS
DWELL TIME
START
END
...I....
L
H
ON
1S
RET
3. To set a panning start position and panning end position
Follow the steps below.
(1) Move the cursor to POSITION SET and press the CAM (SET)
key.
The cursor moves to START.
(2) Move the joystick to the left or right to select a panning start
position and press the CAM (SET) key.
This determines the start position and the cursor moves to
END.
** AUTO PAN **
POSITION SET
SPEED
ENDLESS
DWELL TIME
RET
** AUTO PAN **
POSITION SET
(3) Move the joystick to the left or right to select a panning end
position and press the CAM (SET) key.
This determines the end position and the cursor moves to
POSITION SET.
4. To set a panning speed
Move the cursor to SPEED, and move the joystick to the left or
right to set a panning speed.
The panning speed increases when the joystick is moved to the
right, and decreases when it is moved to the left.
Caution: If the panning range is changed after the camera has not
panned for a long time or has been panning in the same panning
range, the picture may not be clear or noise may appear. If this is
the case, pan the camera fully several times.
If this does not eliminate the problem, refer servicing to qualified
service personnel.
- 18 -
START
END
...I....
L
H
ON
1S
SPEED
ENDLESS
DWELL TIME
START
END
...I....
L
H
ON
1S
RET
** AUTO PAN **
POSITION SET
SPEED
ENDLESS
DWELL TIME
RET
START
END
...I....
L
H
ON
1S
5. To set endless turn ON/OFF
Move the cursor to ENDLESS, and move the joystick to the left or
right to set endless turn ON or OFF.
ON: The camera pans from the start position to the end position,
then keeps rotating in the same direction to return to the start
position.
OFF: The camera pans from the start position to the end position,
then rotates backward to the start position.
This movement is repeated over and over.
6. To set a dwell time
Move the cursor to DWELL TIME and select a dwell time by
moving the joystick to the left or right. Dwell time changes as
follows:
0S
1S
2S
3S
30S
20S
10S
5S
** AUTO PAN **
POSITION SET
SPEED
ENDLESS
DWELL TIME
START
END
...I....
L
H
ON
1S
RET
** AUTO PAN **
POSITION SET
SPEED
ENDLESS
DWELL TIME
START
END
...I....
L
H
ON
1S
RET
Notes:
• When the panning, tilting, lens zoom or focus operation is
controlled manually, the Auto mode function should be
canceled.
To activate Auto mode, select AUTO MODE ON again.
• When 0S is selected, the camera stops without dwelling and
starts.
■ FLIP-A-CHIP Setting
• Move the cursor to FLIP-A-CHIP, and move the joystick to the left
or right to set FLIP-A-CHIP to ON or OFF.
Setup menu
*** SET UP MENU ***
When the joystick is kept pressed down to move the camera to
the bottom end, the camera moves to the bottom end of the range
and stops.
When FLIP-A-CHIP ON is selected, the camera automatically
rotates 180° at the bottom end, and starts moving upward.
Notes:
• If you move the joystick to the centre once and then move it
upward (or downward) after the camera rotated by FLIP-ACHIP, the camera moves upward (or downward).
• When you want the camera to move by FLIP-A-CHIP, move
the joystick to the centre once.
• FLIP-A-CHIP does not work when the WV-RM70 or WV-CU254
is connected.
PRESET 1*
MAP
HOME POSITION
SELF RETURN
AUTO MODE
FLIP-A-CHIP
LOCAL/REMOTE
15
10MIN
AUTO PAN
ON
LOCAL
CAMERA
Setup menu
■ LOCAL/REMOTE Setting
*** SET UP MENU ***
• Move the cursor to LOCAL/REMOTE, and move the joystick to the
left or right.
You can toggle between LOCAL and REMOTE.
Note: REMOTE does not work when the WV-RM70 or WV-CU254
is connected. Make sure LOCAL is selected in this case.
- 19 -
PRESET 1*
MAP
HOME POSITION
SELF RETURN
AUTO MODE
FLIP-A-CHIP
LOCAL/REMOTE
CAMERA
15
10MIN
AUTO PAN
ON
LOCAL
■ Camera Setting
Setup menu
1. To display the Camera Setting Menu
*** SET UP MENU ***
• Move the cursor to CAMERA
, and press the CAM (SET) key.
The camera setting menu is displayed.
PRESET 1*
MAP
HOME POSITION
SELF RETURN
AUTO MODE
FLIP-A-CHIP
LOCAL/REMOTE
15
10MIN
AUTO PAN
ON
LOCAL
CAMERA
Camera setting menu
** SET UP **
CAMERA ID
OFF
ALC/MANUAL
ALC
SHUTTER
--AGC
ON
SENS UP
OFF
SYNC
INT
WHITE BAL
ATW
MOTION DET
OFF
AF MODE
MANUAL
RET
SPECIAL
2. Camera Identification Setting (CAMERA ID)
1. Move the cursor to CAMERA ID, and select ON (to display the
camera identification) or OFF by using the joystick.
2. Follow the steps below to edit the camera ID characters:
2-1 Move the cursor to CAMERA ID and press the CAM (SET) key
to display the character editing menu. The character cursor
on the letter “0” and the editing cursor on the left of the
editing area start blinking.
2-2 Move the character cursor to the character you want to
change by using the joystick, and press the CAM (SET) key.
The selected character appears in the editing area. (The
blinking editing cursor moves to the right automatically at this
moment.)
2-3 Repeat the steps above until all characters are edited.
3. After editing the camera identification characters, follow the steps
below to set the position of the CAMERA ID on the monitor
screen.
3-1 Move the cursor to POSI, and press the CAM (SET) key to
display the ID position menu. The CAMERA ID starts blinking
and the ID position menu appears in the display.
3-2 Use the joystick to decide the position of the CAMERA ID on
the monitor screen. Press the MON (ESC) key to fix the
position, and return to the character editing menu.
** SET UP **
CAMERA ID
OFF
ALC/MANUAL
ALC
SHUTTER
--AGC
ON
SENS UP
OFF
SYNC
INT
WHITE BAL
ATW
MOTION DET
OFF
AF MODE
MANUAL
RET
SPECIAL
Character editing menu
CAMERA ID.-0123456789
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
().,'":;&#!?=
+-*/%$ÄÜÖÆÑÅ
SPACE
---- POSI RET RESET
CAM1.......
↑
Blinking
Blinking
CAM1
Notes:
• When you want the pointer to move to a specific character in
the editing area, select a new character, and press the CAM
(SET) key. This function allows you to edit or correct a
specific character.
• When you want a blank space in the CAMERA ID, move the
character cursor to SPACE, and press the CAM (SET) key.
• When you want to erase all characters in the editing area,
move the cursor to RESET and press the CAM (SET) key.
- 20 -
• The positioning of the CAMERA ID stops at the edges of the
screen.
• The CAMERA ID moves faster when the joystick is kept
pressed for more than 0.5 seconds.
• To return to SET UP for setting other items, move the cursor to
RET, and press the CAM (SET) key.
CAMERA ID.-0123456789
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
().,'":;&#!?=
+-*/%$ÄÜÖÆÑÅ
SPACE
---- POSI RET RESET
CAM1.......
↑
CAMERA ID.-0123456789
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
().,'":;&#!?=
+-*/%$ÄÜÖÆÑÅ
SPACE
---- POSI RET RESET
CAM1.......
↑
3. Light Control Setting (ALC/MANUAL)
1. Display SET UP on the monitor screen.
If necessary, refer to Setup Menu Display on page 10 for details
on displaying the SET UP on the monitor screen.
2. Move the cursor to ALC/MANUAL and select ALC or MANUAL by
using the joystick. When you select ALC, set back light compensation.
Note:
The back light compensation submenu associated with this
menu is described separately and should be set up after
installing the camera at the site and observing the actual site
picture.
(1) ALC Mode with SUPER-D ON
1. Press the CAM (SET) key after selecting ALC. The ALC CONT
menu appears.
2. Move the cursor to the SUPER-D parameter and select ON.
3. If you want to adjust the video output level, move the cursor to the
“I” position. Adjust to the desired level by using the joystick.
4. Move the cursor to RET and press the CAM (SET) key to return to
the CAM SET UP menu. (To return to the camera picture, press
the F4 button.)
Camera setting menu
** SET UP **
CAMERA ID
OFF
ALC/MANUAL
ALC
SHUTTER
--AGC
ON
SENS UP
OFF
SYNC
INT
WHITE BAL
ATW
WIDE D-RANGE OFF
MOTION DET
OFF
AF MODE
MANUAL
RET
SPECIAL
Back light compensation menu
** ALC CONT **
BACK LIGHT COMP
SUPER-D
OFF
MASK SET
LEVEL
....I....
+
RET
** ALC CONT **
BACK LIGHT COMP
SUPER-D
LEVEL
RET
- 21 -
ON
....I....
+
(2) ALC Mode with SUPER-D OFF
1. Move the cursor to the SUPER-D parameter and select OFF.
(When you select MANUAL, SUPER-D is not available.) The item
MASK SET appears on the menu.
Blinking
2. Move the cursor to MASK SET and press the CAM (SET)key. The
48 mask areas appear on the monitor screen. The cursor is
blinking in the top left corner of the screen.
3. Move the cursor to the area where backlight is bright and press
the CAM (SET) key to mask that area. The mask turns white.
(When the cursor is moved on an area that has already been
masked, the mask and cursor start blinking.)
Blinking
4. Repeat steps 1 to 3 to mask the desired area. To cancel masking,
move the cursor to that area and press the F2 button of the WVCU550A. (For the WV-RM70, press the Left and Right switches
simultaneously.
Turns to white
Blinking
5. After masking is completed, press the MON (ESC) key. The 48
mask areas on the monitor screen disappear and the field setup
menu appears.
6. If you want to change the video output level (picture contrast),
move the “I” cursor for LEVEL and adjust the level.
7. Move the cursor to RET and press the CAM (SET) key to return to
the CAM SET UP menu. (To return to the camera picture, press
the F4 button.)
** ALC CONT **
BACK LIGHT COMP
SUPER-D
OFF
MASK SET
LEVEL
....I....
+
RET
** ALC CONT **
BACK LIGHT COMP
SUPER-D
OFF
MASK SET
LEVEL
....I....
+
RET
(3) MANUAL Mode
1. Move the cursor to ALC/MANUAL and select MANUAL by using
the joystick.
2. Press the CAM (SET) key so that the manual setting menu
appears.
Control the level by using the joystick.
3. Move the cursor to RET by using the joystick and press the CAM
(SET) key to return to SET UP.
- 22 -
Manual setting menu
** MANUAL CONT **
IRIS
RET
....I....
CLOSE
OPEN
Camera setting menu
4. Shutter Speed Setting (SHUTTER)
Note: When ON is selected for SUPER-D on the ALC CONT menu,
this item is not available.
To select electronic shutter speed, select OFF for SUPER-D in the
menu.
1. Display SET UP on the monitor screen.
If necessary, refer to Setup Menu Display on page 10 for details
on displaying the SET UP menu on the monitor screen.
2. Move the cursor to SHUTTER and select the electronic shutter
speed by using the joystick.
The electronic shutter speed changes as follows by operating the
joystick:
OFF (1/50)
1/10 000
1/120
1/4 000
1/250
** SET UP **
CAMERA ID
OFF
ALC/MANUAL
ALC
SHUTTER
OFF
AGC
ON
SENS UP
OFF
SYNC
LL
WHITE BAL
ATW
MOTION DET
OFF
AF MODE
MANUAL
RET
SPECIAL
1/500
1/2 000
1/1 000
Camera setting menu
5. Gain Control Setting (AGC ON/OFF)
1. Display SET UP on the monitor screen.
If necessary, refer to Setup Menu Display on page 10 for details
on displaying the SET UP menu on the monitor screen.
2. Move the cursor to AGC and select ON or OFF by using the
joystick.
** SET UP **
CAMERA ID
OFF
ALC/MANUAL
ALC
SHUTTER
OFF
AGC
ON
SENS UP
OFF
SYNC
LL
WHITE BAL
ATW
MOTION DET
OFF
AF MODE
MANUAL
RET
SPECIAL
6. Electronic Sensitivity Enhancement Setting (SENS UP)
1. Display SET UP on the monitor screen.
If necessary, refer to Setup Menu Display on page 10 for details
on displaying the SET UP menu on the monitor screen.
2. Move the cursor to SENS UP and select the desired electronic
sensitivity enhancement mode by using the joystick.
The electronic sensitivity enhancement mode changes as follows
by operating the joystick;
OFF
X2 AUTO
X16 AUTO
X6 FIX
X4 AUTO
X32 AUTO
X10 FIX
OFF
X16 FIX
X6 AUTO
X2 FIX
X10 AUTO
X4 FIX
X32 FIX
Notes:
• When ON is selected for SUPER-D in the ALC CONT menu, FIX is
not available for this item.
• When you select AUTO for SENS UP and ON for SUPER-D, the
SENS UP function has priority so that the SUPER-D function is not
activated automatically.
• While the SENS UP function is selected, noise or spots may
appear in the picture when the sensitivity of the camera is
increased. This is a normal phenomenon.
- 23 -
Camera setting menu
** SET UP **
CAMERA ID
OFF
ALC/MANUAL
ALC
SHUTTER
OFF
AGC
ON
SENS UP
OFF
SYNC
LL
WHITE BAL
ATW
MOTION DET
OFF
AF MODE
MANUAL
RET
SPECIAL
Camera setting menu
7. Synchronization Setting (SYNC)
1. Display SET UP on the monitor screen.
If necessary, refer to Setup Menu Display on page 10 for details
on displaying the SET UP menu on the monitor screen.
2. Move the cursor to SYNC and select line-lock (LL) or internal (INT)
by using the joystick.
Important Notice:
1. The priority of SYNC modes is as follows;
1. Multiplexed vertical drive (VD2) (highest priority)
2. Line-lock (LL)
3. Internal sync (INT) (lowest priority)
2. To use internal sync, select INT.
3. Whenever the vertical drive pulse (VD2) is supplied to the
camera, the camera sync mode is automatically switched to the
multiplexed vertical drive (VD2) regardless which sync mode is
selected.
Line-lock Sync Mode (LL)
1. Display SET UP on the monitor screen.
(Refer to Setup Menu Display on page 10 for details on displaying
the SET UP menu on the monitor screen.)
2. Move the cursor to SYNC and select LL by using the joystick. LL
sync mode is not available when the multiplexed vertical drive
(VD2) pulse is supplied.
** SET UP **
CAMERA ID
OFF
ALC/MANUAL
ALC
SHUTTER
OFF
AGC
ON
SENS UP
OFF
SYNC
LL
WHITE BAL
ATW
MOTION DET
OFF
AF MODE
MANUAL
RET
SPECIAL
Camera setting menu
** SET UP **
CAMERA ID
OFF
ALC/MANUAL
ALC
SHUTTER
OFF
AGC
ON
SENS UP
OFF
SYNC
LL
WHITE BAL
ATW
MOTION DET
OFF
AF MODE
MANUAL
RET
SPECIAL
3. After selecting LL, press the CAM (SET) key.
The SYNC menu appears on the monitor screen.
4. Supply the video output signal of the camera to be adjusted and
the reference camera video output signal (for example, Camera 1)
to a dual-trace oscilloscope.
SYNC menu
** SYNC **
V PHASE
5. Set the dual-trace oscilloscope to the vertical rate and expand the
vertical sync portion on the oscilloscope.
COARSE
FINE
6. Move the cursor to COARSE by using the joystick.
The cursor starts blinking.
RET
7. Use the joystick to match the vertical phases for both video output
signals as closely as possible. (COARSE adjustment can be
incremented in steps of 22.5 degrees (16 steps) with the joystick.)
@
@ @ @
V PHASE
1 (1 - - - 16): 0 degree
2 (1 - - - 16): 22.5 degrees
Note: After the 16 steps, the adjustment returns to the first step.
- 24 -
** SYNC **
COARSE
1(1--16)
FINE
.I.......
−
+
RET
16 (1 - - - 16): 337.5 degrees
1(1--16)
.I........
−
+
8. Move the cursor to FINE by using the joystick. The cursor starts
blinking.
9. Use the joystick to match the vertical phase for both video output
signals as closely as possible.
Notes:
• When the “|” cursor reaches the “+” end, it jumps back to “–”. At the same time, COARSE is
incremented by one step to enable a continuous adjustment. The reverse takes place when the “|”
cursor reaches the “–” end.
• When the joystick is kept to the right or left for more than one second, the “|” cursor moves quickly.
• To reset COARSE and FINE to the values preset at the factory, press the F2 button of the WVCU550A. (For the WV-RM70, press the Left switch and Right switch simultaneously.) COARSE is
preset at the factory to zero-crossing of the AC line phase.
• If the AC line contains noise (spike noise, etc., the stability of the vertical phase of the camera video
output signal may be disturbed.
@
** SYNC **
@ @ @
V PHASE
COARSE
FINE
4(1--16)
......I..
+
RET
@
** SYNC **
@ @ @
V PHASE
COARSE
1(1--16)
FINE
.I.......
+
RET
Camera setting menu
8. White Balance Setting (WHITE BAL)
(1) Auto-Tracing White Balance Mode (ATW)
1. Display SET UP on the monitor screen.
(Refer to Setup Menu Display on page 10 for details on displaying
the SET UP menu on the monitor screen.)
2. Move the cursor to WHITE BAL and select ATW by using the
joystick. The white balance of the camera is automatically set.
3. For fine adjustment of the ATW, press the CAM (SET) key to
display the ATW fine adjustment menu on the monitor screen.
You can mask the areas in this menu.
** SET UP **
CAMERA ID
OFF
ALC/MANUAL
ALC
SHUTTER
OFF
AGC
ON
SENS UP
OFF
SYNC
LL
WHITE BAL
ATW
MOTION DET
OFF
AF MODE
MANUAL
RET
SPECIAL
ATW fine adjustment menu
** ATW **
4. Move the cursor to MASK SET and press the CAM (SET) key.
Forty-eight mask areas appear on the monitor screen.
Refer to the Light Control Setting section on page 21 for details
about masking areas.
R
B
MASK SET
RET
5. After masking areas, press the MON (ESC) key. The previous
settings ATW appear on the monitor screen.
6. Move the cursor to “R.”
Use the joystick to obtain the optimum amount of red gain. The “I”
cursor moves to the left or right.
- 25 -
....I....
−
+
....I....
−
+
7. Move the cursor to “B.”
Use the joystick to obtain the optimum amount of blue gain. The
“I” cursor moves to the left or right.
8. Move the cursor to RET by using the joystick and press the CAM
(SET) key to return to SET UP.
Camera setting menu
(2) Automatic White Balance Control Mode (AWC)
1. Display SET UP on the monitor screen.
(Refer to Setup Menu Display on page 10 for details on displaying
the SET UP menu on the monitor screen.)
** SET UP **
CAMERA ID
OFF
ALC/MANUAL
ALC
SHUTTER
OFF
AGC
ON
SENS UP
OFF
SYNC
LL
AWC→PUSH SW
WHITE BAL
MOTION DET
OFF
AF MODE
MANUAL
RET
SPECIAL
2. Move the cursor to WHITE BAL and select AWC → PUSH SW by
using the joystick.
3. Press the CAM (SET) key to start the white balance set- up.
“PUSH SW” starts blinking to indicate that the white balance is
being set.
AWC fine adjustment menu
** AWC **
4. “PUSH SW” stops blinking when balance setting is completed.
R
....I....
−
+
....I....
−
+
B
5. For fine adjustment of the AWC, move the cursor to select AWC
and press the CAM (SET) key to display the AWC fine adjustment
menu on the monitor screen.
You can mask the areas in this menu.
MASK SET
RET
6. Move the cursor to MASK SET and press the CAM (SET) key.
48 mask areas appear on the monitor screen.
Refer to the Light Control Setting section on page 21 for details
about masking areas.
Bluish
7. After masking areas, press the MON (ESC)
key. The previous settings for AWC appear
on the monitor screen.
10000K
Blue sky
9000K
8. Move the cursor to “R.”
Use the joystick to obtain the optimum
amount of red gain. The “I” cursor moves to
the left or right.
Rainy
8000K
AWC
Cloudy
7000K
Partly cloudy
ATW
6000K
9. Move the cursor to “B.”
Use the joystick to obtain the optimum
amount of blue gain. The “I” cursor moves to
the left or right.
Fine
Fluorescent
lamp
5000K
4000K
10. Move the cursor to RET by using the joystick
and press the CAM (SET) key to return to
SET UP.
Halogen lamp
Tungsten
lamp
3000K
2000K
1000K
Reddish
- 26 -
Candle
9. Motion Detector Setting (MOTION DET)
Camera setting menu
** SET UP **
1. Display SET UP on the monitor screen.
(Refer to Setup Menu Display on page 10 for details on
displaying the SET UP menu on the monitor screen.)
2. Move the cursor to MOTION DET and select ON or OFF by using
the joystick.
3. When you select ON, press the CAM (SET) key to display the
motion detect setup menu.
You can mask the areas in this menu.
CAMERA ID
OFF
ALC/MANUAL
ALC
SHUTTER
OFF
AGC
ON
SENS UP
OFF
SYNC
LL
WHITE BAL
AWC
MOTION DET
ON
AF MODE
MANUAL
RET
SPECIAL
Motion detect menu
** MOTION DETECT **
LEVEL
4. Move the cursor to MASK SET and press the CAM (SET) key.
48 mask areas appear on the monitor screen.
Refer to the Light Control Setting section on page 21 for details
about masking areas.
5. After masking areas, press the MON (ESC) key. The motion
detect setup menu appear on the monitor screen.
6. Move the cursor to ALARM and select ON or OFF by using the
joystick.
ON: The alarm signal is supplied while the DISPLAY MODE is
active.
OFF: The alarm signal is not supplied while the DISPLAY MODE
is active.
7. Move the cursor to DISPLAY MODE.
Press the CAM (SET) key to see the present setting. The masks
that detect the brightness change start blinking.
8. Move the cursor to LEVEL by using the joystick.
Use the joystick to obtain the optimum detection level. The “I”
cursor moves to the left or right.
Note: Repeat the above procedures until you obtain the desired
adjustment.
9. Move the cursor to RECOVER TIME by using the joystick.
You can select the recover time for from the following values:
OFF
60MIN
1MIN
2MIN
30MIN
3MIN
20MIN
5MIN
10MIN
10. Move the cursor to RET and press the CAM (SET) key to return to
SET UP.
- 27 -
DISPLAY MODE
ALARM
....I....
−
+
OFF
MASK SET
RECOVER TIME
RET
1 MIN
Important Notices:
• The object of motion detection should meet the following conditions.
1) It should be larger than 1/48 of the size of the picture screen.
2) The contrast ratio (at max. detection level) between the object and the background picture on the
screen should be more than 5%.
3) The time it takes the object to move from one end of the screen to the other should be more than
0.1 seconds.
• Also under the following conditions, mask or adjust the detection level to prevent malfunction.
1) When leaves or curtains etc, are swayed by the wind.
2) When a noisy picture exists such as under low light condition.
3) When the object is subjected to illumination by lighting equipment that constantly turns on and
off.
• The alarm signal will take about 0.2 second to reach the alarm terminal of the VTR, after the camera
detects the object.
Because the alarm signal is multiplexed on the video signal it may be mistakenly interpreted by other
video equipment as a time code signal. Therefore, when this camera is not used in a Panasonic
Intelligent CCTV System, select OFF to prevent the above from occurring.
Camera setting menu
10.Auto Focus Setting (AF MODE)
1. Move the cursor to AF MODE, and move the joystick to the left or
right to set auto focus operation mode.
MANUAL: The AF mode is activated by pressing the AF button of
the controller.
AUTO: AF mode is activated automatically after a manual
panning, tilting or zooming operation.
Note: AUTO in AF MODE is disabled unless SENS UP is set to
OFF. If SENS UP is not OFF, AF MODE is set automatically to
MANUAL.
2. To set an area
Move the cursor to MANUAL or AUTO, and press the CAM (SET)
key. The AF AREA SET menu is shown. Move the cursor to
AREA, and move the joystick to the left or right to select LARGE,
MID or SMALL for the area.
3. To confirm operation
To check auto focus operation, move the cursor to AF CHECK,
and press the CAM (SET) key.
Notes:
• When the electronic sensitivity enhancement (SENS UP) is active,
this function is automatically set to MANUAL.
• The auto focus lens may not function properly in AUTO under the
following conditions.
1. Dirt or water on window glass.
The auto focus may focus on the dirt or water.
2. Low lighting/illumination or zone marker is blinking.
3. Bright objects or high intensity objects.
4. Single colour with unfigured object such as white wall or fine
felt.
5. No centre objects, sloping objects.
6. Far and near objects on the screen.
- 28 -
** SET UP **
CAMERA ID
OFF
ALC/MANUAL
ALC
SHUTTER
OFF
AGC
ON
SENS UP
OFF
SYNC
LL
WHITE BAL
ATW
MOTION DET
OFF
AF MODE
MANUAL
RET
SPECIAL
Area setting menu
** AF AREA SET **
AREA
SMALL
AF CHECK
→PUSH SW
RET
** AF AREA SET **
AREA
SMALL
AF CHECK
→PUSH SW
RET
Camera setting menu
11.Special Menu (SPECIAL)
This menu lets you adjust and set up the video signal of the camera
to meet your requirements.
• Display SET UP on the monitor screen.
(Refer to Setup Menu Display on page 10 for details on
displaying the SET UP on the monitor screen.)
• Move the cursor to SPECIAL and press the F2 button of the WVCU550A. The special menu appears on the monitor screen.
(For the WV-RM70, keep pressing the Right and Left switches
simultaneously for more than 2 seconds.)
(1) Chroma Level Setting (CHROMA GAIN)
1. Move the cursor to CHROMA GAIN. The “I” cursor starts blinking.
2. While observing the vectorscope or colour video monitor, adjust
the chroma level by using the joystick. The “I” cursor moves to
the left or right.
To reset to the factory setup, press the F2 button of the WVCU550A.
(For the WV-RM70, keep pressing the Right and Left switches
simultaneously for more than 2 seconds.)
(2) Aperture Level Setting (AP GAIN)
1. Move the cursor to AP GAIN. The “I” cursor starts blinking.
2. While observing the video monitor, adjust the aperture level with
the joystick. The “I” cursor moves to the left (soft) or right (sharp).
To reset to the factory setup, press the F2 button of the WVCU550A.
(For the WV-RM70, keep pressing the Right and Left switches
simultaneously for more than 2 seconds.)
(3) Pedestal Level Setting (PEDESTAL)
1. Move the cursor to PEDESTAL. The “I” cursor starts blinking.
2. While observing the waveform monitor/oscilloscope or video
monitor, adjust the pedestal level (black level) by moving the
joystick. The “I” cursor moves to the left (low, dark) or right (high,
bright).
To reset to the factory setup, press the F2 button of the WVCU550A.
(For the WV-RM70, keep pressing the Right and Left switches
simultaneously for more than 2 seconds.)
- 29 -
** SET UP **
CAMERA ID
OFF
ALC/MANUAL
ALC
SHUTTER
OFF
AGC
ON
SENS UP
OFF
SYNC
LL
WHITE BAL
ATW
WIDE D-RANGE OFF
MOTION DET
ON
AF MODE
MANUAL
RET
SPECIAL
Special menu
** SPECIAL **
CHROMA GAIN
AP GAIN
PEDESTAL
UP SIDE DOWN
REFRESH
CAMERA RESET
....I....
....I....
.I.......
−
+
OFF
→PUSH SW
→PUSH SW
RET
** SPECIAL **
CHROMA GAIN
AP GAIN
PEDESTAL
UP SIDE DOWN
REFRESH
CAMERA RESET
....I....
....I....
.I.......
–
+
OFF
→PUSH SW
→PUSH SW
RET
** SPECIAL **
CHROMA GAIN
AP GAIN
PEDESTAL
UP SIDE DOWN
REFRESH
CAMERA RESET
RET
....I....
....I....
.I.......
–
+
OFF
→PUSH SW
→PUSH SW
(4) Camera Picture Setting (UP SIDE DOWN)
1. In this menu, it is possible to turn the picture upside down. Use
this menu as described below.
2. Move the cursor to UP SIDE DOWN and select ON by using the
joystick. The picture will be shown upside down, but the sides will
not be reversed.
** SPECIAL **
CHROMA GAIN
AP GAIN
PEDESTAL
UP SIDE DOWN
REFRESH
CAMERA RESET
....I....
....I....
.I.......
–
+
OFF
→PUSH SW
→PUSH SW
RET
(5) To restore the camera default position
Move the cursor to REFRESH by using the joystick and press the
F2 button of the WV-CU550A.
(For the WV-RM70, keep pressing the Right and Left switches
simultaneously for more than 2 seconds.)
** SPECIAL **
CHROMA GAIN
AP GAIN
PEDESTAL
UP SIDE DOWN
REFRESH
CAMERA RESET
....I....
....I....
.I.......
–
+
OFF
→PUSH SW
→PUSH SW
RET
(6) Camera Resetting
Move the cursor to CAMERA RESET by using the joystick and
press the F3 button of the WV-CU550A.
The camera is reset to the factory preset parameters.
(For the WV-RM70, keep pressing the Right, Left and Set
switches simultaneously for more than 2 seconds.)
** SPECIAL **
CHROMA GAIN
AP GAIN
PEDESTAL
UP SIDE DOWN
REFRESH
CAMERA RESET
(7) To close the SPECIAL menu
Move the cursor to RET and press the CAM (SET) key.
The setup menu appears on the monitor screen.
RET
Note:
■ How to reset to the factory preset parameters
Any of the above settings plus the ALC/MANUAL level control and
phase adjustments can be reset to the factory preset parameters by
placing the cursor over the desired mode and then press the F2
button of the WV-CU550A.
(For the WV-RM70, keep pressing the Right and Left switches simultaneously for more than 2 seconds.)
CHROMA GAIN
AP GAIN
PEDESTAL
....I....
....I....
.I.......
–
+
OFF
→PUSH SW
→PUSH SW
** SPECIAL **
- 30 -
UP SIDE DOWN
REFRESH
CAMERA RESET
RET
....I....
....I....
.I.......
–
+
OFF
→PUSH SW
→PUSH SW
INSTALLATION
2.
Precaution:
The following installations should be made by
qualified service personnel or system installers.
Setting the switches
Set the switches as follows:
DIP φ
DIP 1
DIP 2
DIP 3
DIP Switches
Setting the camera switches
(only for WV-CSR650)
• To reset the communication parameters to
the factory preset values, for example, when
operating multiple cameras in a daisy chain
connection, set the switches inside the
camera as shown in the table below.
ON
OFF
1. Disassemble the camera
Confirm the power is turned off.
Remove the screw from inside the hole for
the fall prevention wire. Hold the diecast
case containing the camera and rotate it to
the left as shown below.
Note: Setting of switches while the power is
on may cause a malfunction. Make sure
the power is turned off before setting
the switches.
Switch B
Termination
ON
OFF
Switch A
Full
(4 lines)
Half
(2 lines)
Switch A: Full duplex (four lines)/Half duplex
(two lines) switch
Switch B: Termination ON/OFF switch
Switch C: Dip switches (become effective
when the power is turned on)
OFF Normal Setting
Initialization of software communica- DIP 3
Initial
ON
tion parameters
Settings
Notes:
• Select OFF after resetting the parameters by
selecting ON.
• The factory settings is OFF.
Diecast Case
DIP 1 DIP 2
Camera Unit No.
OFF OFF
01 - 32
OFF
ON
33 - 64
ON
OFF
65 - 96
ON
ON
Inhibition
The factory settings for the dip switch 1 and 2
are OFF both.
- 31 -
PAL or NTSC
DIP φ
OFF
NTSC
ON
PAL
b. Top cable exit
Note: The dip switch φ is not for changing NTSC
to PAL or PAL to NTSC. This switch is set at
factory. Do not change the setting of this
switch. The factory setting is ON.
3. Assemble the camera
Reverse the disassembly procedure. Take
care not to cut any cables.
Precautions:
1. The following installation work should be
referred to qualified service personnel or
system installers and must conform with
local codes.
2. Be sure to select a ceiling board that is
strong enough to support this camera.
3. To mount the camera on any other kind of
ceiling, use the optional ceiling bracket WVQ105, WV-Q106 or WV-Q107.
4. To mount the camera on the wall, use the
optional wall mount bracket WV-Q108.
1. Remove the mounting screw (M3) from the
camera mounting angle (provided).
2. Mark the mounting holes on the ceiling,
using the removed camera mounting angle
as a template.
a. Sideway cable exit
Prepare a cutout in the diecast case and
decoration cover as shown in the following
drawing.
Marking
Diecast Case
3. Fix the camera mounting angle to the ceiling
with four screws (not provided).
Caution:
The installation should be strong
enough to support 4 times the total
weight.
Note: Be sure to protect the video and
power cables. Otherwise, the cut edges
will damage the cables.
- 32 -
4. Hook the Fall prevention wire on the camera
mounting angle.
2. Follow the instructions given here to
ensure that the camera and camera
mounting angle are installed safely.
3. When removing the camera from the
camera mounting angle, loosen and
press up the camera fixing screw (M3)
by using a screwdriver.
Be sure to match the wire with the fall
prevention wire fixing angle as shown below.
Fall Prevention
Wire Fixing Angle
7. Fix the decoration cover to the camera
mounting angle.
a. Sideway cable exit
Pass the cables through the cutout made in
the diecast case and decoration cover (refer
to item a, INSTALLATION).
Ring of the
Fall Prevention
Wire
5. Mount the camera on the camera mounting
angle and rotate the camera clockwise.
15°
b. Top cable exit
Push the decoration cover against the
camera mounting angle.
6. Tighten the fixing screw M3 (provided).
Notes :
1. Tighten the camera fixing screw with a
screwdriver.
When using the optional bracket for
mounting refer to the Operating instruction
for the WV-Q105, WV-Q106, WV-Q107 or
WV-Q108.
- 33 -
CONNECTIONS
Precaution:
The following connections should be made by qualified service personnel or system installers in
accordance with all local codes.
220 - 240V AC (WV-CS650, WV-CSR650)
24V AC (WV-CS654)
Data cable (Only for WV-CSR650)
Video Output Cable
RS485 cable
BNC Plug Coaxial Cable
(5C-2V)
To Video IN
(CAMERA IN)
BNC Plug
✻ The coaxial cable length (RG-6/U, 5C-2V) for the connection is up to 1 200 meter
(4,000 ft.)
Note: When powered up, the unit performs a self-check (including one panning, tilting, zooming and
focusing operation).
● Power supply connection
Recommended wire gauge sizes for 24V AC line
#20
#18
#24
#22
(0.22mm2) (0.33mm2) (0.52mm2) (0.83mm2)
Copper wire size
(AWG)
Length
of Cable
(Approx.)
(m)
20
30
45
75
(ft)
65
100
160
260
Accessory Connector Information
Pin No.
Up
Up
Power Source
1:
24 V AC LIVE
2:
24 V AC NEUTRAL
4
3
3:
Ground
2
1
4:
Not use
CAUTION
Shrinking the cable-entry seal is a one-time
procedure. Do not shrink the cable-entry seal
until it has been ascertained that the unit is
functioning.
CONNECT THIS TO 24V AC CLASS 2 POWER
SUPPLY ONLY.
Wire
Wire
Up A
Contact
Contact
Wire
Wire
Contact
Contact
How to assemble the cable with the
accessory connector
Strip back the cable jacket approx. 3 mm (0.1
inch) and separate the individual conductors.
Approx.
Approx.
30.1
mm
(0.1 inch)
inch
Prepare the individual conductors for clamping.
Use MOLEX band tool part number 57027-5000
(for UL-Style Cable UL1015) or 57026-5000 (for
UL-Style UL1007) for clamping the contacts.
After clamping the contacts, push them into the
proper holes in the accessory connector of this
camera until they snap in place.
Insert
Insert
Insert
until AAposition
position
Insert the
the wire
wire until
and
andclamp
clamp the
the contacts.
- 34 -
● RS485 site connection
Brown
GND
Red
Data Transmission
Orange
Yellow
Data Reception
Green
T (B)
T (A)
R (B)
R (A)
For daisy chain connection of multiple cameras, make sure to match each male connector with its female
counterpart.
Note:
Use the cable that is described below for RS485 site communication by using WV-CSR650.
• Shielded, twisted pair cable
• Low impedance
• Wire gauge size is thicker than AWG #22 (0.33mm2).
- 35 -
SYSTEM CONNECTIONS
Combination Camera
WV-CS650
WV-CS654
WV-CSR650 only
or other models
Max. 64 Cameras
Matrix
Switcher
Personal Computer
RS-232C Port
CPU
CONTROL
ALARM
INPUT
VIDEO OUT1
RS-232C
Alarm Inputs
INPUT
VIDEO OUT1
INPUT
DATA
(RS485)
VIDEO OUT1
INPUT
VIDEO OUT1
INPUT
VIDEO OUT1
INPUT
VIDEO OUT1
INPUT
TL
TL
TL
TL
VTRs (up to 16)
OUTPUT
OUTPUT
OUTPUT
OUTPUT
ALARM OUT
RESET OUT
MONITOR
ALARM OUT
RESET OUT
MONITOR
ALARM OUT
RESET OUT
MONITOR
ALARM OUT
RESET OUT
MONITOR
VIDEO OUT1
DATA 1
T
DATA 2
00
MODE
5
CAMERA IN
1
RESET
2
2
3
3
DATA 4
T
A
CAMERA IN
B
A
R
B
T
2
CAMERA IN
CAMERA IN
CAMERA IN
CAMERA IN
1
1
1
1
1
2
2
2
2
2
3
3
3
3
3
4
4
4
4
4
A
B
A
R
B
1-32
4
4
3
A
B
A
R
B
+9V
+5V
G
T
DATA 5
PRINTER
1
G
TEST
TIME
ADJUST IN
COM
B
G
CAMERA IN
1
DATA 3
A
A
R
B
4
IN
1
OUT
IN
1
OUT
IN
1
OUT
IN
1
OUT
−5V
G
POWER
DATA 6
5
5
6
6
DATA 8
7
7
TEST 1
8
8
VS/VD
A
B
5
5
5
5
5
6
6
6
6
6
7
7
7
7
7
8
8
8
8
8
1
G
T
33-64
Printer
T
A
R
B
DATA 7
2
A
B
A
R
B
OUT
IN
2
OUT
IN
2
OUT
ON
OFF
A
A
R
B
T
IN
2
OUT
B
G
IN
IN
2
OUT
IN
3
OUT
IN
3
OUT
IN
3
OUT
IN
3
OUT
IN
4
OUT
IN
4
OUT
IN
4
OUT
IN
4
OUT
3
G
T
TEST 2
A
B
A
R
B
VD
OUT
4
11A00001
G
VIDEO OUT2
VIDEO OUT2
VIDEO OUT2
VIDEO OUT2
VIDEO OUT2
VIDEO OUT2
VIDEO OUT2
System Status
Monitor
Monitors (up to 16)
Control Units (up to 8)
Note: Eight cameras are maximum that can be connected with a data board even if the cameras are
connected by the daisy chain connection.
- 36 -
PREVENTION OF BLOOMING AND SMEAR
,
,
,
,
,
,
When the camera is aimed at a bright light, such
as a spotlight, or a surface that reflects bright
light, smear or blooming may appear. Therefore,
the camera should be operated carefully in the
vicinity of extremely bright objects to avoid
smear or blooming.
Smear
Bright object
SPECIFICATIONS
Effective Pixels
Scanning Area
Synchronization
Horizontal Scanning
Frequency
Vertical Scanning
Frequency
Video Output
Horizontal Resolution
Vertical Resolution
Signal-to-noise Ratio
Dynamic Range
Minimum Illumination
Zoom Speed
Focus Speed
Iris
Maximum Aperture Ratio
Focal Length
H
Angular Field
of View
V
Electronic Shutter
SUPER-D
Zoom Ratio
Iris Range
Power Source
Power Consumption
Ambient Operating
Temperature
Dimensions
Weight
752 (H) x 582 (V)
1/3”
Internal/Line-lock / Multiplexed Vertical Drive (VD2)
15.625 kHz
50.00 Hz
1.0 V[p-p] PAL composite/75 Ω
More than 480 lines at centre
More than 400 lines at centre
50 dB (AGC OFF, weight on)
42 dB (SUPER-D ON)
3 lx (0.3 foot-candle)
Approx. 6 s (TELE/ WIDE) in Manual mode
Approx. 5 s (FAR/NEAR) in Manual mode
Automatic (Open / Close is possible)/Manual
1 : 1.2 (WIDE) - 1.9 (TELE)
5 - 50 mm
5.2° - 52.3°
4.0° - 39.7°
1/50 (OFF), 1/120, 1/250, 1/500, 1/1 000, 1/2 000, 1/4 000, 1/10 000 s
Selectable ON/OFF (SETUP MENU)
x 10
F1.2 - 64, CLOSE
WV-CS650 and WV-CSR650 220 - 240 V AC, 50 Hz
WV-CS654 24 V AC, 50 Hz
16W (WV-CS650 and WV-CS654)
19W (WV-CSR650)
−10°C - +50°C (14°F - 122°F)
130 (D) x 191 (H) mm (5-1/8” (D) x 7-1/2” (H))
Approx. 2 kg (4.4 lbs)
- 37 -
Panning Range
Panning Angle Setting
Panning mode
Panning Speed
Tilting Range
Tilting Mode
Tilting Speed
Controls
360° Endless
Possible (in Auto-Pan mode)
Manual/Sequential Position/Sort Position/Auto Pan
Manual : Approx. 3°/s - 120°/s eight steps
Sequence Position : Maximum approx. 240°/s
0 - 90°
Manual/Sequential Position/Sort Position
Manual : Approx. 1.5°/s - 60°/s. eight steps
Sequential Position : Maximum approx. 120°/s
Pan/Tilt, Lens, 64 Preset Positions, Home Position
Weights and dimensions indicated are approximate.
Specifications are subject to change without notice.
ACCESSORIES
Camera Mounting Angle ........................................ 1 pc.
Camera Fixing Screw ............................................ 1 pc.
Connector (only for WV-CS654) ............................ 1 pc.
Decoration Cover ................................................... 1 pc.
OPTIONAL ACCESSORIES
Dome Cover (Smoked type) ................................. WV-CS1S
Ceiling Mount Bracket ........ WV-Q105, WV-Q106, WV-Q107
Wall Mount Bracket ............................................... WV-Q108
- 38 -
Matsushita Electric Industrial Co., Ltd.
Central P.O. Box 288, Osaka 530-91, Japan
N0798-0
YWV8QA4984AN
N 30
Printed in Japan
Gedruckt in Japan
Imprimé au Japon
Impreso en Japón
Download PDF

advertising
