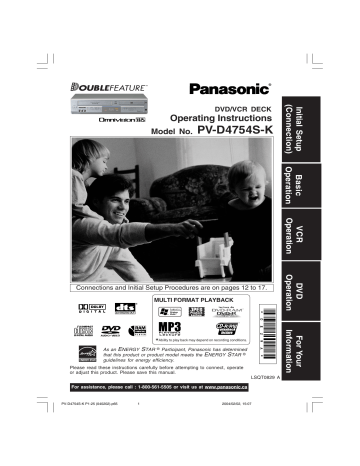

Operating Instructions
Model No.
PV-D4754S-K
Initial Setup
(Connection)
DVD/VCR DECK
Basic
Operation
VCR
Operation
MULTI FORMAT PLAYBACK
For Your
Information
*Ability to play back may depend on recording conditions.
As an ENERGY STAR ® Participant, Panasonic has determined
that this product or product model meets the ENERGY STAR ®
guidelines for energy efficiency.
Please read these instructions carefully before attempting to connect, operate
or adjust this product. Please save this manual.
LSQT0829 A
For assistance, please call : 1-800-561-5505 or visit us at www.panasonic.ca
PV-D4754S-K P1-25 (040202).p65
1
DVD
Operation
Connections and Initial Setup Procedures are on pages 12 to 17.
2004/02/02, 15:07
Important Safeguards and Precautions
TO REDUCE THE RISK OF ELECTRIC SHOCK, FIRE, INJURY TO PERSONS OR DAMAGE TO
THIS PRODUCT, READ AND RETAIN ALL SAFETY AND OPERATING INSTRUCTIONS. HEED ALL
WARNINGS IN THE MANUAL AND ON THE PRODUCT.
INSTALLATION
OUTDOOR ANTENNA INSTALLATION
1
POWER SOURCE CAUTION
Operate only from a power source indicated on the unit or in this
manual. If necessary, have your Electric Utility Service
Company or Video Products Dealer verify the power source in
your home.
2 POLARIZED OR GROUNDING PLUG
As a safety feature, this product comes with either a polarized
power cord plug (one blade is wider than the other), or a threewire grounding type plug.
POLARIZED PLUG CAUTION:
This plug will only fit into an outlet one way. If you cannot fully insert
the plug, try reversing it. If it still will not fit, have an electrician
install the proper wall outlet. Do not defeat the safety feature by
tampering with the plug.
GROUNDING PLUG CAUTION:
This plug will only fit into a three-hole grounding outlet. If necessary,
have an electrician install the proper outlet. Do not defeat the safety
feature by tampering with the plug.
3 POWER CORD
Make sure power cords are routed so that they are not likely to
have anything rest on them, roll over them, or be in the way of
walking traffic. If an extension cord is used, make sure it also
has either a polarized or grounded plug and that the cords can
be securely connected. Frayed cords, damaged plugs, and
damaged or cracked wire insulation are hazardous and should
be replaced by a qualified service technician.
Overloaded outlets and extension cords are fire hazards and
should be avoided.
4 DO NOT BLOCK VENTILATION HOLES
Ventilation openings in the cabinet release heat generated during
operation. If they are blocked, heat build-up inside the unit can
cause failures that may result in a fire hazard or heat damage to
cassettes or discs.
For protection, follow these rules:
a. Never cover ventilation slots or the unit while in use, or
operate the unit when placed on a bed, sofa, rug, or other
soft surface.
b. Avoid built-in installation, such as a book case or rack,
unless proper ventilation is provided.
5 PLACEMENT: AVOID EXTREMELY HOT LOCATIONS OR
SUDDEN TEMPERATURE CHANGES
Do not place the unit over or near heater or radiator, in direct
sunlight, inside closed vehicles, in high temperature [over 104°F
(40°C)], or in over 75% humidity. If the unit is suddenly moved
from a cold place to a warm one, moisture may condense in the
unit and on the tape causing damage. Never subject the unit to
vibration, impact, or place it so that the surface is tilted as
internal parts may be seriously damaged.
6 TO AVOID PERSONAL INJURY
• Do not place unsecured equipment on a
sloping surface.
• Do not place this unit on any support that
is not firm, level, and adequately strong.
The unit could fall causing serious injury
to a child or adult and damage to the unit.
• An appliance and cart combination should
be moved with care. Quick stops, excessive force, and
uneven surfaces may cause the appliance and cart
combination to overturn.
• Carefully follow all operating instructions and use the
manufacturer's recommended accessories when operating
this unit or connecting it to any other equipment.
1 SAFE ANTENNA AND CABLE CONNECTION
If an outside antenna or cable system is connected to the equipment, be sure the
antenna or cable system is grounded so as to provide some protection against
built up static charges and voltage surges.
Part 1 of the Canadian Electrical Code, in
USA Section 810 of the National Electrical
Code, ANSI/NFPA 70, provides information
with respect to proper grounding of the mast
and supporting structure, grounding of the leadin wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge
unit, connection to grounding electrodes and requirements for
the grounding electrode.
2 KEEP ANTENNA CLEAR OF HIGH VOLTAGE POWER LINES OR
CIRCUITS
An outside antenna system should be located well away from power lines,
electric light or power circuits and where it will never come into contact with
these power sources if it should happen to fall. When installing an outside
antenna, extreme care should be taken to avoid touching power lines, circuits or
other power sources as this could be fatal. Because of the hazards involved,
antenna installation should be left to a professional.
NEC - NATIONAL
ELECTRICAL CODE
ANTENNA
LEAD IN
WIRE
GROUND
CLAMP
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
ELECTRIC
SERVICE
EQUIPMENT
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
USING THE UNIT
If the unit has been in storage or moved to a new location, refer first to the
INSTALLATION section of these safeguards.
1 KEEP THE UNIT AWAY FROM WATER OR MOISTURE OF ANY KIND.
2 IF EQUIPMENT IS EXPOSED TO RAIN, MOISTURE, OR STRONG
IMPACT, unplug the unit and have it inspected by a qualified service technician
before use.
3 DURING AN ELECTRICAL STORM
During a lightning storm, whether indoors or outdoors, or before leaving the unit
unused for extended periods of time, disconnect all equipment from the power
source as well as the antenna and cable system.
4 WHEN THE UNIT IS PLUGGED IN
• Never expose the unit to rain or water. DO NOT OPERATE if liquid has been
spilled into the unit. Immediately unplug the unit, and have it inspected by a
service technician. Fire and shock hazards can result from electrical shorts
caused by liquid contact inside.
• Never drop or push any object through openings in the unit. Some internal parts
carry hazardous voltages and contact can cause electric shock or fire hazard.
Do not put any foreign object on the disc tray.
• Avoid placing the unit directly above or below your TV set as this may cause
electrical interference. Keep all magnets away from electronic equipment.
5 USING ACCESSORIES
Use only accessories recommended by the manufacturer to avoid risk of fire,
shock, or other hazards.
6 CLEANING THE UNIT
Unplug the unit. Then, use a clean, dry, chemically untreated cloth to gently
remove dust or debris. DO NOT USE cleaning fluids, aerosols, or forced air that
could over-spray, or seep into the unit and cause electrical shock. Any substance
such as wax, adhesive tape, etc. may mar the cabinet surface. Exposure to
greasy, humid, or dusty areas may adversely affect internal parts.
SERVICE
1
2
3
2
PV-D4754S-K P1-25 (040202).p65
2
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
DO NOT SERVICE THIS PRODUCT YOURSELF
If, after carefully following the detailed operating instructions, this product
does not operate properly, do not attempt to open or remove covers, or make
any adjustments not described in the manual. Unplug the unit and contact a
qualified service technician.
IF REPLACEMENT PARTS ARE REQUIRED
Make sure the service technician uses only parts specified by the
manufacturer, or those having the same safety characteristics as the original
parts. The use of unauthorized substitutes may result in fire, electric shock,
or other hazards.
HAVE THE SERVICE TECHNICIAN PERFORM A SAFETY CHECK
After any service or repairs to the unit, request the service technician to
conduct a thorough safety check as described in the manufacturer’s service
literature to ensure that the unit is in safe operating condition.
2004/02/02, 15:07
Safety Precautions
To prevent fire or shock hazard, do not expose this equipment to rain
or moisture.
To prevent electric shock, match wide blade of plug to wide slot, fully insert.
This symbol warns the user that uninsulated voltage
within the unit may have sufficient magnitude to cause
electric shock.
Therefore, it is dangerous to make any kind of contact
with any inside part of this unit.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
This symbol alerts the user that important literature
concerning the operation and maintenance of this unit
has been included. Therefore, it should be read
carefully in order to avoid any problems.
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
CAUTION:
UNIT IS A CLASS I LASER PRODUCT.
HOWEVER THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD
CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED.
BE SURE TO OPERATE THE UNIT CORRECTLY AS INSTRUCTED.
WHEN THIS UNIT IS PLUGGED TO THE WALL OUTLET, DO NOT PLACE
YOUR EYES CLOSE TO THE OPENING OF THE DISC TRAY AND OTHER
OPENINGS TO LOOK INTO THE INSIDE OF THIS UNIT.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT ATTEMPT TO REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
CAUTION:
LASER RADIATION
WHEN OPEN DO NOT
STARE INTO BEAM.
(Inside of product)
FCC NOTE:
This equipment has been tested and found to comply with part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference when operated in a
residential environment. If this equipment does cause interference to radio or television reception,
which can be determined by turning the equipment off and on, use the equipment in another location
and/or utilize an electrical outlet different from that used by the receiver.
If necessary, consult the dealer or an experienced radio/TV technician for help. The user may find
the booklet, “Something About Interference” available from FCC local regional offices helpful.
FCC Caution:
To assure continued compliance, (example- use only shielded interface cables when connecting to
other devices.) Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
Region Management Information:
This DECK is designed and manufactured to respond to the
Region Management Information that is recorded on a DVD
disc. If the Region number described on the DVD disc does
not correspond to the Region number of this DECK, this
DECK cannot play this disc.
Example:
1
ALL
1
2
4
● The Region number for this DECK is “1”.
● The Player will play DVD-Video marked with labels
containing “1” or “ALL”.
3
PV-D4754S-K P1-25 (040202).p65
3
2004/02/02, 15:07
Before Using
Congratulations
on your purchase of one of the most
sophisticated and reliable products on the
market today. Used properly, it will bring you
years of enjoyment. Please fill in the information
below. The serial number is on the tag located
on the back of your DECK.
• Date of Purchase
• Dealer Purchased From
• Dealer Address
• Dealer Phone No.
PV-D4754S-K
• Model No.
• Serial No.
Accessories
Remote Control
Batteries 2 “AA”
EUR7724KB0
Head Cleaning
Playing older or damaged tapes may eventually
cause video heads to become clogged.
Video Head Clog Sensor
During playback, this screen
appears if clogging is detected.
To remove screen, press PLAY
on the remote or DECK.
V I DEO HEADS MAY
NEED CLEAN I NG
PLEASE I NSERT HEAD
CLEAN I NG CASSETTE
OR REFER TO MANUAL
END
: PLAY
• Use “dry” type head cleaning cassette only.
(Part No. NV-TCL30PT is recommended.)
• Follow cleaning tape instructions carefully.
Excessive use of tape can shorten head life.
• If head clog symptoms persist, contact your
nearest Factory Servicentre or authorized
Servicentre (see p. 61).
Cleaning DECK
RF Coaxial Cable
LSJA0418
Loading the Batteries
Features for a Quality Picture (VCR)
1) Open cover.
2) Insert batteries as
marked.
3) Close cover.
Battery replacement caution
• Do not mix old and new batteries.
• Do not mix alkaline with manganese batteries.
Record/ Playback Time
Only use tapes with the
Digital Auto Picture
Automatically controls the video output signal for
less noise depending on the tape condition.
Digital Auto Tracking
Continuously analyzes the signal and adjusts for
optimum picture quality.
Manual Tracking Control
(to reduce picture noise)
Use during Playback and Slow Motion mode to
reduce picture noise.
Press CH (TRACKING) / on the remote control
or on DECK until the picture clears up.
To return to Auto Tracking, press POWER off, then
on again a few seconds later.
mark in this DECK.
Type of Video Cassette
SLP
(Super Long Play) 6 Hours
8 Hours
9 Hours
R
R
R
V-Lock Control (to reduce picture jitter)
In Still mode, CH (TRACKING) / operate as a
V-Lock control.
4
PV-D4754S-K P1-25 (040202).p65
4
R
R
T180
R
T160
2 Hours
SP
(Standard Play) 2 Hours 40 Minutes 3 Hours
R
T120
R
Tape Speed
Setting
Use a soft cloth or dusting attachment of a vacuum
cleaner to remove dust from the ventilation holes on
the back sides and bottom of the cabinet.
Plastic surfaces are easily scratched and can be
marred by alcohol and various solvents.
Avoid excessive use of oil-based furniture polishes
since the materials used in the cabinet will
accumulate more dust. We recommend using a
non-abrasive, antistatic cleaner and polisher.
2004/02/02, 15:07
Table of Contents
DVD / VCR
Important Safeguards and Precautions ............................ 2, 3
Before Using ............................................................................ 4
DECK & Cassette Information ........................................... 6 , 7
Location of Controls ....................................................... 8 ~ 10
Displays (On Screen Displays and Multi Function Display) .................... 11
Connections .................................................................. 12 ~ 15
Initial Setup for Basic Connections (Ready to Play) .......... 16, 17
Initial Setup
(Connection)
VCR
Reset Language, Channels, Clock, VCR’s Output Channel ... 18, 19
Playback/ Record on a Tape........................................... 20, 21
DVD
Basic DVD Operation ...................................................... 22, 23
Basic
Operation
Timer Recording .............................................................. 24, 25
MTS Broadcast/ VHS Hi-Fi Stereo System .................... 26, 27
Multi-Brand Control Feature ........................................... 28, 29
Tape Operation (Search System) ......................................... 30, 31
Special VCR Features ................................................... 32 ~ 34
Copying Your Tapes (Dubbing) ......................................................... 35
VCR
Operation
Disc Operation ............................................................... 36 ~ 41
DVD-RAM Operation (DVD-RAM only) ................................. 42, 43
DVD Operation using On-Screen Displays ................. 44 ~ 48
MP3/WMA/JPEG Playback Operation .......................... 49 ~ 51
Settings for DVD Operation .......................................... 52 ~ 55
A/V OPTIMIZER ...................................................................... 55
Language Code List .............................................................. 56
DVD
Operation
DVD / VCR
Warning and Instruction Displays........................................ 57
Before Requesting Service............................................. 58, 59
Limited Warranty ................................................................... 60
Servicentre List...................................................................... 61
Index ................................................................................. 62, 63
For Your
Information
5
PV-D4754S-K P1-25 (040202).p65
5
2004/02/02, 15:07
DECK & Cassette Information
Prevent Accidental Tape Erasure
DVD-RAM discs
DVD-RAM discs must meet the following conditions
for this unit to be able to play them.
Break off the tab to
prevent recording.
Record Tab
Type
Screw driver
Capacity
To record again
• Non-cartridge discs
• Discs that can be removed from
their cartridges (TYPE 2 and 4)
• 12 cm (5”) 9.4 GB (double-sided)
and 4.7 GB (single-sided)
• 8 cm (3”) 2.8 GB (double-sided)
• Remove TYPE 2 and 4 discs from their cartridges
before use, then return them when you are finished.
Read the instructions for the disc carefully.
Cover the hole
with cellophane tape.
Disc formats supported by this DECK
DECK can play back discs bearing any of the
following marks:
Logo
Disc type
DVD-RAM (Version 1.1 of the
Video Recording Format a
unified video recording
standard)
• Some parts of the disc, for example where one program
ends and another begins, may not play smoothly.
Disc Handling
Handling precautions
CD (CD-DA)
• Sticking a label on the disc may impair DVD-R playback.
• Do not attach sticker to discs. (Do not use discs with
exposed adhesive from tape or left over peeled-off
stickers.)
• Only hold disc by edges as shown below. Fingerprints,
dirt and scratches can cause skipping and distortion.
• Do not write on label side of disc.
• Never use record cleaning
sprays, benzine, thinner,
Disc tray
static electricity prevention
Disc
liquids, or any other solvent.
CD-R/CD-RW
• CD-DA format
• WMA/MP3/JPEG file and
finalized.*
• Do not try to close disc tray when disc is not
DVD (DVD-Video)
DVD-R (DVD-Video formatted
discs [finalized])
DVD-Audio
properly placed.
[Discs Played 8cm (3") or 12cm (5")]
To
clean disc surface
*A process that allows play on compatible equipment.
Discs which cannot be played
• DVD with Region No. other than “1” or “ALL”
• PAL discs (the audio on DVD-Audio can be
played), DVD-ROM, DVD-RW, DVD+R,
DVD+RW, CD-ROM, CDV, CD-G, CVD, SVCD,
SACD, CD-TEXT, Divx Video Disc, Photo-CD
and Video CD
Notes
• Do not use irregularly shaped discs (e.g. heartshaped), as these can damage the unit.
• It may not be possible to play CD-R, CD-RW,
DVD-R and DVD-RAM in all cases due to the
type of disc or condition of the recording.
With a soft, damp (water only) cloth,
gently wipe from the center hole to the
outer edge as shown below. (Wiping in a
circular pattern will scratch the surface.)
• DVD-RAM, DVD-R :
Clean only with the DVD-RAM disc
cleaner available. Never use cloths or
cleaners for CDs etc.
If disc is brought from a cold to a warm
environment, moisture may form on the disc
Wipe away moisture with a soft, dry, lint-free cloth
before using disc. (See above.)
Improper disc storage
Discs could be damaged if stored or left in areas:
• exposed to direct sunlight.
• that are humid or dusty.
• near heat (i.e. heater, radiator, etc.).
6
PV-D4754S-K P1-25 (040202).p65
6
2004/02/02, 15:07
Specifications
Input/Output Terminal:
Input Terminal:
Output Terminal:
Operating Temperature:
Operating Humidity:
Weight:
Dimensions:
Discs Played
(1) DVD-Video Disc
DVD-Audio Disc
DVD-RAM Disc
(2) Compact Disc
(CD-DA)
(CD-R/CD-RW, MP3, WMA, JPEG)
Digital Audio Output:
Pickup:
120 V AC, 60 Hz
Power On: Approx. 28 watts, Power Off: Approx. 0.85 watts
EIA Standard NTSC colour
4 rotary heads helical scanning system
1 track (Normal), 2 channel (Hi-Fi Audio Sound)
VHF 2 ~ 13, UHF 14 ~ 69
Midband A through I (14 ~ 22), Superband J through W (23 ~ 36)
Hyperband AA ~ EEE (37 ~ 64), Lowband A-5 ~ A-1 (95 ~ 99)
Special CABLE channel 5A (01), Ultraband 65 ~ 94, 100 ~ 125
Audio/Video Line Input/Output, RF Input/Output
Audio/Video Line Input (Front)
S-Video Output (DVD only), Component Video Output (DVD only)
Audio Output 2 (L), (R)
5 °C ~ 40 °C (41 °F ~ 104 °F)
10 % ~ 75 %
3.85 kg (8.5 lbs).
430 (W) x 95 (H) x 273 (D) mm
16-15/16” (W) x 3-3/4” (H) x 10-3/4” (D) inch
5”
5”
5”
3”
3”
3”
5”
3”
5”
3”
Initial Setup
(Connection)
Power Source:
Power Consumption:
Video Signal:
Video Recording System:
Audio Track:
Tuner
Broadcast Channels:
CABLE Channels:
(12 cm) single-sided single-layer
(12 cm) single-sided double-layer
(12 cm) double-sided double-layer (one layer per side)
(8 cm) single-sided single-layer
(8 cm) single-sided double-layer
(8 cm) double-sided double-layer (one layer per side)
(12 cm) 9.4 GB (double-sided) and 4.7 GB (single-sided)
(8 cm) 2.8 GB (double-sided)
(12 cm) disc
(8 cm) disc
Digital Optical Connector
Wavelength: 655 nm (DVD), 790 nm (CD)
Laser power: CLASS II
Note: • Designs and specifications are subject to change without notice.
Definition of Terms (DVD)
Angle:
Some DVD discs feature scenes simultaneously shot from different angles.
The ANGLE button can be used to view the scene from different angles.
(ANGLE Indicator lights on DECK when a scene recorded at different
angles is detected.)
Chapter Number: Titles are subdivided into numbered sections. You can quickly search for
a favorite scene using these numbers.
DVD:
A high-density optical disc on which high-quality pictures and sound have
been digitally recorded. DVD incorporates video compression technology
(MPEG II) and high-density recording technology which allow entire
movies to be recorded with incredible playback quality.
Subtitles:
Written dialogue which appears at the bottom of the screen.
Time Number:
The elapsed play time from the start of a disc or title. Use to quickly find
scenes. (May not work with some discs.)
Title Number:
For DVD discs with two or more titles, the title is numbered as title 1, title 2, etc.
Track Number: Numbers assigned to tracks on CDs to allow specific tracks to be quickly
located.
Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098 and 4,907,093,
licensed for limited viewing uses only.
This product incorporates copyright protection technology that is protected by method claims of
certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology must be authorized by Macrovision
Corporation, and is intended for home and other limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
7
PV-D4754S-K P1-25 (040202).p65
7
2004/02/02, 15:07
Location of Controls
Remote Control
Bold: VCR Function / Bold Italic: VCR and DVD Functions
Italic: DVD Function / Normal:
Others
VCR/TV
EJECT /
OPEN / CLOSE
p. 21
pp. 20, 22
TV mode
p. 28
POWER
CHANNEL / /
TRACKING / V-LOCK / 10
pp. 4, 21, 22
NUMBER keys
VOLUME + / p. 28
MENU / PLAY LIST
ADD/DELETE / CLEAR
pp. 19, 39
p. 38, 43
ACTION
SELECT
pp. 18, 52
SET
DVD mode
p. 28
VCR mode
p. 28
PLAY
pp. 20, 22
STOP
pp. 20, 22
SKIP+
SKIP-
REWIND / SEARCH /
SLOW-
p. 23
pp. 20, 23
Virtual Surround Sound (V.S.S.) /
ENTER
FAST FORWARD /
SEARCH / SLOW+
pp . 23, 28
pp. 20, 23
ZOOM
PAUSE / STILL
p. 37
pp. 20, 23
ANGLE
TAPE POSITION /STATUS
VOLUME ADJUST
p. 37
p. 31, 40
SUB TITLE
p. 36
AUDIO (SAP / Hi-Fi)
pp. 27, 36
TITLE /
DIRECT NAVIGATOR
p. 38, 42
RETURN / SEARCH
pp . 22, 30
INPUT
COMMERCIAL SKIP /
ZERO SEARCH
A/V OPTIMIZER
p. 35
DISPLAY
p. 11, 44
pp. 30, 55
COUNTER RESET
RECORD
p. 30
p. 21
SPEED / PAGE
PROGRAM
p. 21, 41
p. 24
EJECT button: When this button is pressed in VCR mode, the tape is ejected.
This button is inoperative if pressed during recording.
If pressed in DVD mode, the disc tray opens or closes.
8
PV-D4754S-K P1-25 (040202).p65
8
2004/02/02, 15:07
If the disc cannot be removed...
First, unplug DECK. Then, prepare a rigid
wire (e.g. an extended paper clip) and,
applying moderate force, insert it straight
into the hole at the base of the tray.
The tray will eject a little. Now, pull the tray
all the way out and remove the disc.
Bold:
VCR Function
Italic:
DVD Function
Bold Italic: VCR and DVD Functions
Normal:
Others
PLAY
p. 20
STOP/EJECT
Initial Setup
(Connection)
FrontView
View
DECK
Front
ofof
DECK
Over 2 inches
p. 20
Remote
Sensor
POWER
Cassette
Compartment
Audio/Video
Input Connector 2
(LINE 2) p. 35
Disc Tray
OPEN/CLOSE
Blue Light
p. 22
p. 32
REC
Multi Function
Display
p. 21
p. 11
CHANNEL /
TRACKING/V-LOCK
FAST FORWARD
/ SEARCH /
SKIP
p. 20, 23
REWIND / SEARCH /
SKIP
pp. 4, 21
p. 20, 23
PLAY
p. 22
STOP
p. 22
Reset All Memory Functions
Returns to factory setting. Use if relocating DECK, or if Initial Setup needs to be redone.
• Make sure a tape is not inserted in the DECK.
1
2
1
3
2
Turn DECK Power on.
Press and hold both VCR PLAY
and CHANNEL
on the DECK for
more than 5 seconds.
• The power shuts off.
Perform “Initial Setup (Ready to Play)”
on page 16.
9
PV-D4754S-K P1-25 (040202).p65
9
2004/02/02, 15:07
Location of Controls (continued)
Bold:
VCR Function
Italic: DVD Function
Bold Italic: VCR and DVD Functions
Rear View of DECK
AC Power Plug
VHF/UHF Antenna Output Terminal
p.12
• While plugged into an AC outlet,
this DECK consumes 0.85 W of
electrical power in off mode.
VHF/UHF Antenna Input Terminal
p. 12
Component Video Output
Connector (Y, PB, PR)
(DVD Only)
p. 13
Video Output
Connector
p. 12
•
Video Input
Connector
p. 35
•
•
Audio Output 1
Connector (L/R)
p. 12
Optical Digital Audio
Output Connector
(DVD Only)
p. 15
S-Video Out Connector
(DVD Only)
pp. 10, 13
Audio Output 2
Connector (L/R)
p. 13
Audio Input
Connector (L/R)
p. 35
The following table shows the status of the output jacks when in VCR or DVD mode.
Video Output
Audio Out 1
Audio Out 2
VCR
DVD
YES
YES
Component
Video Output
S-VIDEO OUT
N/A
N/A
YES
Note • PROG functions on the remote are not available when using Component Video Output and
S-VIDEO OUT. Please set TV to either RF INPUT or VIDEO INPUT, and then press PROG.
To enjoy PROGRESSIVE SCAN video
(1). Connect Component Video Output to the component video input terminals of a television.
(See p. 13.)
(2). When PROGRESSIVE OUT is set to “ON” in the DVD Main Menu (p. 55), a Progressive
Scan signal is output from the Component Video Output Connector .
Notes
• The screen may shift off-center when using progressive output. Please adjust the screen
position if this occurs. (Refer to your TV manual.)
• If the television is not progressive compatible, a progressive scan picture is not available.
Connect the Video Output or S-Video Output connector (see p. 12, 13) and
set PROGRESSIVE OUT to “OFF” in the DVD Main Menu. (See p. 55.)
10
PV-D4754S-K P1-25 (040202).p65
10
2004/02/02, 15:07
Displays (On Screen & Multi Function)
Function & Channel Displays
CH 0 8
When a function button
is pressed, e.g. PLAY,
or you change
channels, a 5-second
display appears.
Blank Tape/ No Video Signal
Indications
Whenever a blank section of a tape comes
up in Play mode, or when the selected
channel has no broadcast signal with Weak
Signal Display Feature (p. 33) set to OFF,
the TV screen will turn solid blue.
Current Time
VCR Status & Clock Displays
To display or remove
screen shown at right,
CH 02
REW
1 2 : 0 0AM
-0 : 1 2 : 3 4
0 : 25
SP
STEREO
SAP
MONO
Rec Time Remaining
(OTR mode only,
see p. 21.)
➛ press DISPLAY.
Channel
Function Status
Broadcast Audio
Being Received
(See pp. 26, 27.)
Initial Setup
(Connection)
On Screen Displays (VCR)
Counter
Tape Speed
(See p. 4.)
Multi Function Display
VCR mode Indicator
Tape Indicator
DISC Indicator
DVD mode Indicator
Lights up when
DECK is in VCR mode.
Lights up when a tape
is inserted.
Lights up when a
disc is inserted.
Lights up when
DECK is in DVD mode.
Timer Indicator
VCR REC Indicator
Lights up when
DECK is set for
Timer Recording,
or when One
Touch Recording
(OTR) is used.
Flashes when
Timer Recording is
set, but a tape has
not been inserted
into DECK and
when a power
interruption occurs
during Timer
Programming.
Lights up during
recording.
CD/MP3/WMA
Indicator
VCR
DVD
TIMER
REC
Hi - Fi
DIGITAL
DIGIT
Hi-Fi Indicator
Lights up when
Hi-Fi audio is
present in Play
mode.
C D MP3 WMA
ANGLE
AM
PM
CD : Lights when an
Audio CD is
inserted or
JPEG file is
played.
MP3/WMA :
Lights when an
MP3 or WMA
file is played.
ANGLE Indicator
AM/PM
Indicator
Lights up when a
scene recorded at
different angles is
detected.
(See p. 37.)
(DVD only)
DTS Indicator
Lights up when a DTS
formatted DVD is played.
(DVD only)
Clock/ Status/ Channel/ Speed Display
Displays current time. Briefly displays DECK
status when you press a function button,
channel number or “L1” or “L2” when you select
channel or line input, and recording speed when
you press SPEED.
Dolby Digital
Indicator
Lights up when a “Dolby Digital”
formatted DVD is played.
(DVD only)
11
PV-D4754S-K P1-25 (040202).p65
11
2004/02/02, 15:07
Connections
Basic Connections
• If your TV has AUDIO and VIDEO IN terminals, connect them to DECK for higher
quality picture and sound.
• You can enjoy stereo sound even if your TV is not stereo by connecting a stereo
amplifier to DECK.
• Connect DECK and TV with an RF Coaxial Cable a (supplied) or an AV Cable b
(not supplied) as shown in the figure below.
■ DSS Receiver
DECK
■ DECK
TV
■ Cable Box
TV
DECK
TV
Antenna or Cable
DSS
Receiver
IN
IN
IN
OUT
Cable Box
OUT
or
1 Disconnect antenna or cable from TV
and connect to DECK.
2 Connect DECK to TV with RF Coaxial Cable.
a
DVD/VCR DECK
TV
OUT
IN 1
RF COAXIAL CABLE
(supplied)
IN FROM ANT.
VIDEO
VHF/
UHF
L
VHF/UHF
AUDIO
OUT TO TV
AUDIO IN VIDEO
L
IN
R
R
b
AV CABLE (not supplied)
When using “Nut type” RF coaxial cables, tighten with
fingers only. Overtightening may damage terminals.
Note to CABLE system installer
This reminder is provided to call the CABLE system installer’s attention to Article 820-40 of the
NEC in USA (and to the Canadian Electrical Code in Canada) that provides guidelines for proper
grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
12
PV-D4754S-K P1-25 (040202).p65
12
2004/02/02, 15:07
Other Connections
You Can
IN 1
OUT
IN FROM ANT.
IN
Cable Box
VHF/UHF
OUT TO TV
IN
OUT
VHF/
UHF
R
L
ANT
or
CATV
OUT
Cable Box
IN
IN 1
IN FROM ANT.
OUT
VHF/UHF
OUT TO TV
2-Way Splitter
Cable Box
OUT 1 OUT 2
IN
OUT
A/B Switch
IN 1 IN 2
• record
scrambled
channels.
OUT
AUDIO
VIDEO
■ Connect With Two Cable Boxes
DVD/VCR DECK
• view any
(including
scrambled)
channel.
Initial Setup
(Connection)
■ With a Cable Box (DECK Cable Box TV)
DVD/VCR DECK
ANT or CATV
TV
You Cannot
• use Remote
Control to select
channels without
using Multi-brand
control feature.
You Can
• record and view
both scrambled
and unscrambled
channels if
additional
TV
equipment is
added.
IN OUT
This connection
R
AUDIO
requires: two
L
converter boxes,
VIDEO
an A/B switch,
VHF/
UHF
and a 2-way
splitter.
You Cannot
• view a channel
other than the
one selected
for any type of
recording.
• set a Timer
recording of a
channel unless
you select it on
the Cable Box.
Connections For DVD Only (enjoying higher picture quality)
1 Connect AUDIO OUT2 (L, R) to the AUDIO IN (L, R) of the TV. (audio input for COMPONENT
or S-VIDEO mode).
2 If your TV has COMPONENT VIDEO INPUT, connect to COMPONENT VIDEO OUT.
3
If your TV does not have COMPONENT VIDEO INPUT but has S-VIDEO INPUT, connect to
S-VIDEO OUT.
When in DVD mode, set your TV to either COMPONENT VIDEO IN or S-VIDEO IN.
Notes • You can watch DVDs through the S-VIDEO or COMPONENT VIDEO, VHF/UHF OUT TO TV,
and VIDEO OUT connections to your TV. The VCR and TUNER pictures are available only
from the VIDEO OUT and VHF/UHF OUT TO TV connections to your TV.
• PROG functions on the remote are not available when using S-VIDEO OUT and COMPONENT
Video Output. Please set TV to either RF INPUT or VIDEO INPUT, and then press PROG.
• TV must have capability to accept and display a progressive scan signal to use
PROGRESSIVE mode. Consult your TV operating instructions.
DVD/VCR DECK
DVD OUTPUT
COMPONENT
VIDEOOUT
TV
AUDIOOUT2
Y
IN
IN
IN
Y
L
PB
R
From DECK’s
A/V OUTPUT
AUDIO
L
PB
PR
S-VIDEO OUT
R
PR
VIDEO
S-VIDEO
IN
or
PV-D4754S-K P1-25 (040202).p65
13
13
2004/02/02, 15:07
Connections (continued)
Audio Connections
Ready Checklist
Turn down the volume, then turn DECK, as well as other equipment to be connected,
off before proceeding with connection.
Do not block ventilation holes of any of the equipment and arrange them so that air can
circulate freely.
Read through the instructions before connecting other equipment.
Ensure that you observe the colour coding when connecting audio and video cables.
■ Connecting Amplifier (2ch stereo system)
Speaker
DVD/VCR DECK
AUDIO OUT2
L
R
Amplifier
AUDIO IN
R L
Speaker
Enjoying digital audio output from the digital audio output connector
Notes on audio output from the optical digital audio output connector
Disc
Sound recording format
DVD
Dolby Digital
Linear PCM(48 kHz/16 bit)
Optical digital audio output from connector
Dolby Digital bitstream (1-5.1 ch)
or PCM (48 kHz sampling/16 bit only)*1
Linear PCM (2 ch)
(48 kHz sampling/16 bit or 44.1 kHz sampling/
16 bit)*2
Bitstream or PCM (48 kHz sampling/16 bit only)*1
Dolby Digital bitstream (1 - 5.1 ch)
or PCM (48 kHz sampling/16 bit only)
Linear PCM (2 ch)
CD
Linear PCM
Linear PCM (44.1 kHz sampling)
MP3
WMA
MP3
WMA
Linear PCM (It depends on the MP3 file)
Linear PCM (It depends on the WMA file)
Linear PCM
(48/96/192/44.1/88.2/
176.4 kHz 16/20/24bit)
DTS
DVD-RAM
Dolby Digital
*1 The type of audio output from the connector can be selected by the Settings for DVD
Operation. (See p. 53.)
*2 When “LPCM(DVD)” is set to OFF in the DVD Main Menu, 44.1 or 48 kHz sampling/16 bit is
ouput. When set to ON, sampling of sound quality greater than 44.1 or 48 kHz/16 bit is reduced
to 44.1 or 48 kHz/16 bit. (See page 53.)
For your reference:
• Dolby Digital is a digital sound compression technique developed by the Dolby Laboratories
Licensing Corporation. Supporting 5.1-channel surround sound, as well as stereo (2-channel)
sound, this technique enables a large quantity of sound data to be efficiently recorded on a disc.
• Linear PCM is a signal recording format used in CDs. While CDs are recorded in 44.1 kHz/16 bit,
DVDs are recorded in 44.1 kHz/16 bit ~ 192 kHz/24 bit.
• If you have a Dolby Pro Logic Surround decoder, you will obtain the full benefit of Pro Logic from
the same DVD movies that provide full 5.1 channel Dolby Digital soundtracks, as well as from
titles with the Dolby Surround mark. For information on Panasonic Dolby Pro Logic Surround
Sound Decoders please contact your local dealer.
14
PV-D4754S-K P1-25 (040202).p65
14
2004/02/02, 15:07
Initial Setup
(Connection)
■ Connecting Amplifier (5.1 ch Surround system) [Digital connection]
DECK Dolby Digital Receiver Amplifier Speaker
or
DECK DTS (Digital Theater Systems) Receiver Amplifier Speaker
When DVDs recorded in Dolby Digital or DTS are played, Dolby Digital bitstream
or DTS bitstream is output from the DECK OPTICAL digital audio output connector.
When DECK is connected to a Dolby Digital or DTS receiver, you can enjoy
theater-quality audio in your home. [An optical digital audio cable (optional) is
required when an optional Dolby Digital or DTS receiver is used.]
Notes on connecting an optical
digital audio cable (optional)
Surround
Speaker
Surround
Speaker
[5.1 ch Surround system]
• Firmly connect the cable to the
connector.
Center
Speaker
Front
Speaker
Front
Speaker
Amplifier
DVD/VCR DECK
(Rear)
Decoder with
Dolby Digital /
DTS processing
To Optical Digital
Audio Input Connector
Optical Digital
Audio Cable
(optional)
Receiver
Subwoofer
Caution for optical digital audio output connector:
• When connecting an amplifier (with an Optical Digital Input Connector) which does not
contain the Dolby Digital or DTS receiver, be sure to select “PCM” at “Dolby Digital” and
“PCM” at “dts” of the Settings for DVD Operation “Audio Output” (see p. 53).
Otherwise, any attempt to play DVDs may cause such a high level of noise that it may be
harmful to your ears and damage your speakers.
• When a Dolby Digital/DTS receiver is connected, please select “Bitstream” at “dts” or
“Dolby Digital” of the Settings for DVD Operation “Audio Output”.
If “PCM” is selected, there will be stereo sound. (See p. 53.)
• CDs can be played as usual.
Note:
• Some DTS receivers which do not support DVD-DTS interface may not work properly with DECK.
Manufactured under license from Digital Theater Systems, Inc. US Pat. No’s. 5,451,942,
5,956,674, 5,974,380, 5,978,762, 6,487,535 and other US. and world-wide patents issued and
pending. “DTS” and “DTS 2.0 + Digital Out” are trademarks of Digital Theater Systems, Inc.
Copyright 1996, 2003 Digital Theater Systems, Inc. All Rights Reserved.
Manufactured under license from Dolby Laboratories.
“Dolby,” “Pro Logic,” and the double-D symbol are trademarks of Dolby Laboratories.
15
PV-D4754S-K P1-25 (040202).p65
15
2004/02/02, 15:07
Initial Setup for Basic Connections (Ready to Play)
Before doing Initial Setup
1 Turn TV on.
2
See connections a RF Coaxial Cable Connection and b AV Cable Connection on page 12.
<RF Coaxial Cable Connection>
Set TV to channel 3.
<AV Cable Connection>
Set TV to VIDEO.
3
[DECK ➛ TV]
• Go to “Initial Setup (Ready to Play).” (See below.)
[Cable Box ➛ DECK ➛ TV], [DSS ➛ DECK ➛ TV]
• Turn on Cable Box and set it to your Public Broadcasting Station (PBS) channel
in your time zone.
• If you use a DSS Receiver, it must be turned off.
Initial Setup (Ready to Play)
1
2
Press VCR on remote for VCR mode.
Plug DECK Power Cord into AC wall outlet. DECK comes on and SELECT
LANGUAGE screen appears. When one of “1”, “2”, “3” keys is pressed, auto
channel and clock set starts.
• If screen below does not appear, check DECK - TV connection and, if TV is tuned to
channel 3, try switching it to channel 4.
• To change VCR’s output channel, please refer to “VCR’s Output Channel” on page 19.
• If wrong language is set, do “Reset All Memory Functions” (p. 9).
Plug VCR Power plug into an AC wall outlet.
SELECT LANGUAGE
ENGL I SH
FRANÇA I S
ESPAÑOL
:PRESS
:APPUYER
:OPR I M I R
1
2
3
CH AUTO SET PROCEEDING
CANCEL : STOP
AUTO CLOCK SET
PROCEEDING
Select language
Press 1 : English
Press 2 : French
Press 3 : Spanish
Notes
• Function buttons are void during Initial Setup.
• To eject a tape during Auto Set, press EJECT on remote
or STOP/EJECT twice on DECK.
Then make settings manually. (See p. 18.)
• If Auto Clock Set takes more than 30 minutes,
press STOP and perform settings manually. (See p. 18.)
CANCEL : STOP
Continued on next page...
16
PV-D4754S-K P1-25 (040202).p65
16
2004/02/02, 15:07
dy to Play)
*Important: If a remote control button does not work when pressed,
press the VCR button on the remote and try the button again.
Settings are made automatically.
When complete, this screen appears.
EJECT
If “AUTO CLOCK SET IS INCOMPLETE”
appears, manually set clock (below).
ACTION
Initial Setup
(Connection)
3
SELECT
AUTO CLOCK SET
SET
VCR
IS I NCOMPLETE
PLEASE SET CLOCK BY
PRESSING ACT I ON KEY
Manual Clock Set
If Auto Clock Set was incomplete.
1
Press ACTION* on remote to display
CLOCK screen.
SET CLOCK
1 / 1/2004 THU-- 12:00PM
DST : ON
----------------------SELECT :
SET : SET
END
: ACT I ON
2
STOP/EJECT
Press
to select the month and SET to
set. In the same manner, select and set
the date, year, time, and DST (Daylight
Saving Time).
SET CLOCK
6 /20/2004 SUN- -15:30PM
DST : ON
----------------------SELECT :
SET : SET
START : ACT I ON
3
Press ACTION to start clock and exit.
17
PV-D4754S-K P1-25 (040202).p65
17
2004/02/02, 15:07
Reset Language, Channels, Clock,
1
Press ACTION*
to display MENU.
MENU
SET UP VCR
SET UP CLOCK
SET UP CHANNEL
IDIOMA/LANGUE : ENGLISH
VCR’S OUTPUT CH:3
• PROGRAM functions are not available
when using COMPONENT Video Output
and S-VIDEO OUT. Please set TV to
either RF INPUT or VIDEO INPUT, and
then press PROGRAM.
SELECT :
SET : SET
EXIT
: ACTION
2
Language
Channels
1) Press
to select
language item.
1) Press
to select
“SET UP CHANNEL,”
and press SET.
Clock
1) Press
to select
“SET CLOCK,” and
press SET.
MENU
SET UP VCR
SET UP CLOCK
SET UP CHANNEL
IDIOMA/LANGUE : ENGLISH
VCR’S OUTPUT CH:3
MENU
SET UP VCR
SET UP CLOCK
SET UP CHANNEL
IDIOMA/LANGUE : ENGLISH
VCR’S OUTPUT CH:3
MENU
SET UP VCR
SET UP CLOCK
SET UP CHANNEL
IDIOMA/LANGUE : ENGLISH
VCR’S OUTPUT CH:3
SELECT :
SET : SET
EXIT
: ACTION
SELECT :
SET : SET
EXIT
: ACTION
SELECT :
SET : SET
EXIT
: ACTION
2) Press SET repeatedly to
change language item as
shown below.
MENU
PREPARAR VCR
FIJAR RELOJ
FIJAR CANAL
LANGUE/LANGUAGE:ESPAÑOL
SALIDA DE VCR CANAL : 3
2) Press
to select
“ANTENNA,” then
press SET to set your
antenna system
(“TV” or “CABLE.”)
SET CLOCK
SET UP CHANNEL
ANTENNA : CABLE
AUTO SET
WEAK S I GNAL D I SPLAY : OFF
ELEGIR :
FIJAR : SET
SALIR
: ACTION
➡
For Spanish
SELECT :
SET : SET
EXIT
: ACT I ON
to select
3) Press
“AUTO SET,” then
press SET.
• If you use a Cable Box,
set it to the PBS channel
in your time zone.
➡
For French
2) Press
to select
“MANUAL,” and press SET.
(For Auto Clock Set, select
“AUTO CLOCK SET.”)
AUTO CLOCK SET
MANU
NUAL
T I ME ZONE ADJUST : 0
SELECT :
SET : SET
EXIT
: ACT I ON
(“TIME ZONE ADJUST”
appears only when auto
clock is set.)
SET CLOCK
1 / 1/2004 THU-- 12:00PM
DST : ON
----------------------SELECT :
SET : SET
END
: ACT I ON
MENU
SET UP VCR
SET UP CLOCK
SET UP CHANNEL
IDIOMA/LANGUE : ENGLISH
VCR’S OUTPUT CH:3
CH AUTO SET PROCEEDING
CANCEL : STOP
SELECT :
SET : SET
EXIT
: ACTION
• After Channel Auto Set
is finished, Auto Clock
Set will be performed.
For English
3) Press ACTION to exit.
and to
3) Press
select, then set the date,
time, and DST (Daylight
Saving Time).
4) Press ACTION to start
Clock and exit this
mode.
18
PV-D4754S-K P1-25 (040202).p65
18
2004/02/02, 15:07
VCR’s O
k,
VCR’s Output Channel
*Important: If a remote control button does not work
when pressed, press the VCR button
on the remote and try the button again.
POWER
NUMBER
keys
CH
Time Zone Adjust
VCR’s Output
Channel
(Only when Auto Clock is set.)
1) Press
to select
“VCR’S OUTPUT CH.,”
and press SET.
MENU
SET UP VCR
SET UP CLOCK
SET UP CHANNEL
IDIOMA/LANGUE : ENGLISH
VCR’S OUTPUT CH:3
MENU
SET UP VCR
SET UP CLOCK
SET UP CHANNEL
IDIOMA/LANGUE : ENGLISH
VCR’S OUTPUT CH:3
SELECT :
SET : SET
EXIT
: ACTION
SELECT :
SET : SET
EXIT
: ACTION
2) Press
to select
“TIME ZONE ADJUST,”
SET
VCR
2) Press SET.
I F YOU PRESS ACT I ON
KEY, VCR’ S OUTPUT CH
SW I TCHES TO CH 4.
SET CLOCK
AUTO CLOCK SET
MANUAL
T I ME ZONE ADJUST : 0
3) Press ACTION.
SELECT :
EXIT
: ACT I ON
ADD/DLT
ACTION
SELECT
Basic
Operation
1) Press
to select
“SET CLOCK,” and
press SET.
/
SET : SET
Add or Delete a Channel
To add channel:
Select channel with NUMBER keys
and press ADD/DLT.
CHANNEL 08 ADDED
and press SET to
subtract or add hour(s)
as necessary.
➡
3) Press ACTION.
• “TIME ZONE ADJUST”
returns to “0” if clock is
set manually.
PLEASE TUNE YOUR TV TO
CH 4.
After 3 seconds
To delete channel:
Select channel with CH / or
NUMBER keys and press ADD/DLT.
CHANNEL 08 DELE TED
MENU
SET UP VCR
SET UP CLOCK
SET UP CHANNEL
IDIOMA/LANGUE : ENGLISH
VCR’S OUTPUT CH:4
SELECT :
SET : SET
EXIT
: ACTION
• To Make Corrections,
repeat steps 1) ~ 3).
DST (Daylight Saving Time)
DECK auto adjusts clock for DST.
(p. 17.)
Spring (First Sunday in April)
DST:ON ➛ Sets clock ahead one hour.
Autumn (Last Sunday in October)
DST:ON ➛ Turns clock back one hour.
• If your area does not observe
Daylight Saving Time, select
DST:OFF.
• Keep these time changes in mind
when programming DECK for
timer recordings.
19
PV-D4754S-K P1-25 (040202).p65
19
2004/02/02, 15:07
Playback/ Record on a Tape
Ready Checklist
EJECT
VCR/TV
All connections are made. (pp. 12 ~ 15)
TV and DECK are plugged in.
TV is on and tuned to CH 3, 4, or VIDEO.
Remote is in VCR mode. (Press VCR.)
CH
/
Playback a Tape
1
2
Insert a tape.
• DECK power comes on. If Auto VCR/TV (see
p. 32) is set to “OFF,” press VCR/TV on the
remote for VCR mode.
Press PLAY* to play a tape.
VCR
FF/
DVD
PLAY
STOP
• If tape has no rec. tab (p. 6), auto play begins. SLOW+
Special Features During Play
Forward/Reverse Scene Search
➛ Press FF/SLOW+ or REW/SLOW-.
➛ Press PLAY to release.
After search has begun, each additional press of
FF or REW changes speed.
Notes
• Picture interruption may occur with some TVs.
• FF and REW search speed may vary depending
on current tape position.
• After 10 minutes in search mode, VCR returns to
Play mode to protect the tape and the video heads.
Still (Freeze) Picture
➛ Press PAUSE/STILL.
➛ Press PLAY to release.
Frame by Frame Picture
➛ Press PAUSE/STILL in Still mode.
➛ Press PLAY to release.
Slow Motion Picture
➛ Press FF/SLOW+ (increase speed) or
REW/SLOW- (decrease speed) in Still
mode.
➛ Press PLAY to release.
3
REW/
SLOWPAUSE/
STILL
REC
SPEED
Notes
• These features work best in SP or SLP mode.
• The sound will be muted.
• To reduce picture noise, see “Manual
Tracking Control” on page 4.
• After 3 minutes in Still or Slow mode, VCR
stops to protect the tape and the video heads.
Playback using DECK buttons
1 Insert a tape.
2 Press PLAY.
Press STOP to stop a tape.
Rapid Rewind/FF
Press REW/SLOW- or FF/SLOW+ in Stop
mode to rewind or fast forward a tape.
• Rewinds a T-120 tape in approx. 1 minute.
Press EJECT on remote,
or STOP/EJECT on DECK to eject a tape.
Multi Function Display
Press STOP/EJECT to stop
and/ or eject a tape.
20
PV-D4754S-K P1-25 (040202).p65
20
2004/02/02, 15:07
*Important: If a remote control button does not work when pressed,
press the VCR button on the remote and try the button again.
Record on a Tape
This video recorder, equipped with HQ
(High Quality) system, is compatible
with existing VHS equipment.
Only use tapes with the
mark.
Only tapes tested and inspected for
use in 2, 4, 6, and 8 hour machines
are recommended.
Insert a tape with a record tab (p. 6).
1
• DECK power comes on. If Auto VCR/TV (see p. 32)
is set to “OFF,” press VCR/TV on the remote for
VCR mode.
2
Press CH
, or NUMBER keys
to select the channel.
• If channel number is over 100, first press 100 key
then the other 2 digits.
• For “LINE” input, see p. 35.
Note
Press SPEED
to select the record speed (p. 4).
3
SP = Standard Play
SLP = Super Long Play
• Speed appears on-screen and on Multi Function Display.
4
5
Press REC
to start recording.
(The VCR REC indicator lights up on Multi Function
Display),
• To edit out unwanted scenes, press PAUSE/STILL
to pause, and again to resume recording.
• You cannot view another channel during recording.
Basic
Operation
Remove loose or peeling
labels from tapes to prevent
tape jam.
CH 02
0 : 00 : 00
SP
REC T I ME :
Press STOP
to stop recording.
0 : 30
T I ME : PRESS REC KEY
CANCEL : PRESS STOP KEY
<One Touch Recording screen>
One Touch Recording (recording in progress),
➛ press REC repeatedly to set the recording length
(30 min. ~ 4 hours) (see right).
• DECK shuts off after the preset record length.
Normal Rec
4:00
3:00
0:30
2:00
1:00
1:30
Record one station, watch another,
➛ press VCR/TV on the remote
(change to TV mode),
➛ select channels at TV (recording continues).
Select Channels at DECK (In Stop or
Rec. Pause mode)
➛ press VCR/TV on the remote
(change to TV mode),
➛ select channels at DECK.
Record using DECK buttons
4 Press
REC
to start
recording.
1 Insert a tape.
Play a disc while recording a tape.
➛ insert a disc during recording,
➛ press DVD, and then press PLAY.
Notes
• It is not possible to record from DVD/ CD to
VHS tape using DECK.
• Watching one channel and recording another
is not possible when using Cable Box or
DSS Receiver.
• After 5 minutes in Pause mode, DECK stops to
protect a tape and video heads.
PV-D4754S-K P1-25 (040202).p65
21
2 Select
Channel.
Multi Function Display
Press STOP/EJECT to stop.
21
2004/02/02, 15:07
Basic DVD Operation
Ready Checklist
All connections are made. (pp. 12 ~ 15)
DECK is plugged in.
If DECK is connected to an audio amplifier,
turn the stereo system’s power on.
1
2
3
OPEN/
CLOSE
Press POWER* on the remote or DECK.
Press DVD to select DVD mode.
• If a disc is already inserted, go to step 4.
(Depending on the disc, playback may
start automatically.)
Press OPEN/CLOSE,
and then place a disc into the disc tray.
• Hold disc by its edges
only (p. 6) with printed
side up and use guides
1 to place into tray.
2 Use 1 3” (8 cm)
or 2 5” (12 cm) disc.
DVD-RAM ➡ see p. 42
POWER
10
NUMBER
keys
SELECT
MENU
4
Press PLAY to start playing.
Disc tray closes automatically.
CLOSE
SET
STOP
FF/
SLOW+
DVD
PLAY
REW/
SLOW-
SKIP+
SKIPVSS
READING
PAUSE/
STILL
TITLE
RETURN
• You may also close tray by
pressing OPEN/CLOSE .
• Data reading time differs with
each disc.
<Example1>
T I TLE MENU
If an interactive DVD*1 is used
and TITLE MENU appears, go
to step 5.
5
1 Press
POWER.
Press
OPEN/CLOSE.
4 Press PLAY.
3 Insert a disc.
Cas t l es
Love r s
B i r ds
Press
or
NUMBER keys (see
below) to select title,
and press SET or
PLAY to start playing.
Operation using DECK buttons
3, 7
Dogs
<Example2>
• Pressing SET or PLAY
is not necessary when
using NUMBER keys.
Using NUMBER keys starts play automatically.
The number of available titles varies with each disc.
1 digit number
1 •••• 1
<Input
2 digit number
12 ••• 10 ➛ 1 ➛ 2
Example>
| or SKIP- |
to go to next or
Press SKIP+
previous menu screen.
• SKIP function not available with all discs.
Please refer to disc jacket for operation information.
To return to menu (play stops)
Press TITLE, MENU, or RETURN.
6 Press
STOP.
*1 Interactive DVD...
May include multiple camera angles,
stories, etc.
6
7
Press STOP to stop playing.
Press OPEN/CLOSE to eject the disc.
22
PV-D4754S-K P1-25 (040202).p65
22
2004/02/02, 15:07
*Important: If a remote control button does not work when pressed,
press the DVD button on the remote and try the button again.
■ Forward/Reverse Scene Search
V.S.S. (Virtual Surround Sound)
Press FF/SLOW+ or REW/SLOW- during play.
Enjoy a surround-like effect if you are
Press PLAY to release.
• Search speed, slow at first, increases with each
additional press of the button up to 5 levels.
■ Forward/Reverse Chapter/Track Skip
using two front speakers only. The effect
is broadened and sound seems to come
from virtual speakers on either side if the
disc has surround signals recorded on it.
Press SKIP+
| or SKIP- |
during play. Press VSS in DVD mode.
Each press skips a chapter (DVD-Video),
• The Surround sound effect can be
track (DVD-Audio/CD) or Program/Play List/ changed by pressing VSS repeatedly as
shown by the figure below.
Marker (DVD-RAM).
DVD-Video, DVD-Audio and CD
• Pressing SKIP- |
once midway through a
chapter/track returns to the start of that
chapter/track. Each additional press skips
back one chapter/track.
Current playback position
VSS OFF
VSS OFF (default)
Chapter/Track Chapter/Track
Program/Play List Program/Play List Program/Play List
Reverse Skip
Forward Skip
■ Still Picture or Pause
VSS2
VSS3
Chapter/Track
Reverse Skip
Forward Skip
DVD-RAM
• Pressing SKIP- |
once midway through a
program/play list returns to the start of that
program/play list. Each additional press skips
back one program/play list.
Current playback position
Marker
Basic
Operation
VSS1
Note
• Surround sound effect is available in DVD
mode only.
• Turn off the surround effects on the other
equipment.
• V.S.S. will not work, or will have less
effect, with some discs.
• Turn V.S.S. off if it causes distortion.
• Sound will only come from the two front
speakers if V.S.S. is on.
Resume Function
DECK memorizes the point where STOP is
Press PAUSE/STILL during play.
pressed (STOP
is displayed on screen).
Press PLAY to release.
Press PLAY to resume play from this point.
• DVD : DECK will enter still picture mode.
Pressing STOP again or opening the tray
• CD : DECK will enter pause mode.
cancels RESUME, however, RESUME is not
■ Frame by Frame Picture (DVD)
cancelled when power is turned off and on.
Press PAUSE/STILL in still mode.
• RESUME works only with discs for which
Press PLAY to release.
elapsed play time is displayed during play.
• Each press advances picture one frame.
• When a DVD-RAM still picture is played
• Hold button down for consecutive frame advance.
back, the counter will not be displayed,
• Whether pictures are advanced by “FRAME” or
however RESUME will function.
“FIELD” is selected automatically. (See p. 54.)
■ Slow Motion Picture (DVD)
Notes
Press FF/SLOW+ or REW/SLOW- in still mode. • Please read the disc jacket for operation
information.
Press PLAY to release.
• Slow motion speed, slow at first, is increased
with each additional press of the button up to
5 levels.
Auto-Power Off Function
Power turns off after DECK has been in
Stop mode (DVD) for about 5 minutes.
• When
appears on the screen while a button is
being operated, it means that the corresponding
operation is prohibited by DECK or the disc.
PV-D4754S-K P1-25 (040202).p65
23
• If a single sided disc is placed in upside
down, “THIS TYPE OF DISC CANNOT
BE PLAYED. PLEASE INSERT A
DIFFERENT DISC” is displayed.
• Remove disc and press DECK POWER
off when not in use.
• Disc continues to rotate with menu
displayed even after play is done.
Press STOP to clear menu display when
finished with menu.
2004/02/02, 15:07
23
Timer Recording
Ready Checklist
All connections are made. (pp. 12 ~ 15)
TV and DECK are plugged in.
Clock set correctly. (p. 18)
Tape has record tab intact. (p. 6)
Remote is in VCR mode. (Press VCR.)
Sufficient tape remaining for recording time.
1
POWER
Press PROG*
to display Program.
ADD/DLT
2
P DT START
1 -- --:-2 -- --:-3 -- --:-4 -- --:--
STOP
--:---:---:---:--
CH SPD
-- --- --- --- --
SELECT :
SET : SET
EXIT
: PROG
Example
SELECT
SET
VCR
• See selection order left.
Today
14
1
31
12
DAILY
13
1) Press .
2) Set record DATE,
press
to select:
1~31= one time, or
DAILY=Monday~Friday,
or WEEKLY= same time
each week.
SELECT /
Selection Order
WEEKLY
(SU)
WEEKLY
(MO)
WEEKLY
(SA)
3) Set remaining items,
press SET
to set START/ STOP times,
CH (channel) or LINE
input (p. 35), and tape
speed (SP, SLP).
Then press
to select.
PROG
Press PROG
to end programming.
3
P DT START
1 13 2:00p
2 -- --:-3 -- --:-4 -- --:--
STOP
3:20p
--:---:---:--
CH SPD
02 SLP
-- --- --- --
SET COMPLETED
CANCEL : ADD/DLT
SELECT :
SET : SET
EXIT
: PROG
To Enter More Programs,
press
to select and
press SET
to set an unused program
number, and then repeat
step 2.
Or
Press PROG
to exit.
VCR mode Indicator
VCR REC Indicator
VCR
TIMER
REC
Hi - Fi
TIMER Indicator
<Multi Function Display>
• The “Timer” Indicator lights up on DECK.
• You can set Timer Recording with the power on or off.
• “TIMER REC WILL START SOON” appears on-screen for 2 minutes
before Timer Recording starts. If DECK is in DVD mode, no message
appears, but the VCR REC Indicator, the VCR mode indicator and
“REC” will flash on Multi function Display.
24
PV-D4754S-K P1-25 (040202).p65
24
2004/02/02, 15:07
*Important: If a remote control button does not work when pressed,
press the VCR button on the remote and try the button again.
Review, Replace or Clear Program Contents:
(Recording is not in progress)
1
2
Press PROG
to display Program List.
P DT START STOP
1 13 2:00p 3:20p
2 14 7:00p 7:30p
3 -- --:-- --:-4 -- --:-- --:--
CH SPD
02 SLP
10 SP
-- --- --
Press
to select number.
CANCEL : ADD/DLT
SELECT :
SET : SET
EXIT
: PROG
3
To cancel a Timer
Recording in progress...
Hold down STOP in VCR mode for
a few seconds to cancel the Timer
Recording.
(The “TIMER” Indicator goes out
on Multi Function Display.)
• Any future daily or weekly recording
will be performed as programmed.
To Replace program...
P DT START STOP
1 13 2:00p 3:20p
2 14 7:00p 7:30p
3 -- --:-- --:-4 -- --:-- --:--
CH SPD
02 SLP
10 SP
-- --- --
Repeat Step 2 (p. 24)
to set new programs.
SELECT :
SET : SET
EXIT
: PROG
VCR
Operation
or
To Clear program...
P DT START
1 -- --:-2 14 7:00p
3 -- --:-4 -- --:--
STOP
--:-7:30p
--:---:--
CH SPD
-- -10 SP
-- --- --
Press ADD/DLT.
SELECT :
SET : SET
EXIT
: PROG
4
Press PROG
to end the programming.
Notes
• If you are using a Cable Box, the VCR’s channel for Timer Recording must be set to
the Cable Box input channel and Cable Box must be manually set to the desired
channel. Cable Box power must be left on.
• 2 minutes before Timer Recording is performed, “PLEASE PREPARE FOR TIMER
REC” appears and Timer Indicator flashes.
Be sure a cassette with record tab is loaded and DECK is in Stop mode.
• If a power interruption occurs while programming the timer, the timer program(s) may be
cancelled. If “TIMER PROGRAMS WERE LOST DUE TO POWER INTERRUPTION”
appears on-screen, please re-enter the timer programs.
• If the start time for Timer Recording comes up during recording and playing back,
Timer Recording will not be performed.
Important notes when using DSS Receiver
• When recording programs via DSS Receiver, DSS Receiver must be left on.
• When recording programs via an antenna or cable, DSS Receiver must be turned off.
25
PV-D4754S-K P1-25 (040202).p65
25
2004/02/02, 15:07
MTS Broadcast/ VHS Hi-Fi Stereo System
Connection
Make the Audio/Video Connection as shown on pp. 12 ~ 15.
• You can use TV connected to a Stereo amplifier and speakers instead of Stereo TV.
Receivable Broadcast Types
The following are possible audio broadcast types and onscreen displays.
The signal being received is indicated with a “ ” mark while
the selected audio mode is indicated with an arrow.
To display the broadcast signal being received,
➛ press DISPLAY*.
MTS Stereo and SAP broadcast
Multi-channel Television Sound
Stereo (main language) and
Secondary Audio Program (sub
language) broadcasts are being
received simultaneously.
Select STEREO or SAP audio mode.
STOP
1 2 : 0 0AM
CH 02
0 : 00 : 00
SP
1 2 : 0 0AM
CH 02
0 : 00 : 00
SP
STEREO
SAP
MONO
AUDIO
MTS Stereo broadcast
STOP
Multi-channel Television Sound
Stereo broadcast. Select STEREO
audio mode.
STEREO
SAP
MONO
(SAP/Hi-Fi)
DISPLAY
• If stereo broadcast is weak and
display flickers, select MONO audio
mode for possible better results.
SAP broadcast
STOP
Secondary Audio Program (sub
language) broadcast. Select SAP
audio mode for the sub language.
1 2 : 0 0AM
STEREO
SAP
MONO
MONO broadcast
STOP
Normal monaural sound broadcast.
STEREO
SAP
MONO
1 2 : 0 0AM
CH 02
0 : 00 : 00
SP
CH 02
0 : 00 : 00
SP
®
Equipped with
-TV
Noise Reduction for
true MTS reproduction.
®
-TV Noise
Reduction is required
for good stereo
separation and audio
®
fidelity.
is a
registered trademark,
®
and is licensed by
Technology Licensing.
26
PV-D4754S-K P26-35 (040202).p65
26
2004/02/02, 15:07
*Important: If a remote control button does not work when pressed,
press the VCR button on the remote and try the button again.
Audio Mode for Recording
1
Press AUDIO (SAP/Hi-Fi)
to display audio mode.
(Display disappears after 5 seconds.)
2
STEREO
SAP
MONO
Press AUDIO (SAP/Hi-Fi) repeatedly
to select desired mode.
• Refer to “Receivable Broadcast Types” on p. 26.
• Arrow indicates selection.
3
Make a recording.
See p. 21.
VCR
Operation
Audio Mode for Playback
1
2
3
Start playback.
See p. 20.
Press AUDIO (SAP/Hi-Fi)
to display audio mode.
H I F I : L/R
HIFI : L
HIFI : R
NORMAL
• Arrow indicates
selection.
Press AUDIO (SAP/Hi-Fi) repeatedly
to select desired mode.
• Select “HIFI (L/R)” or “HIFI (L)” or “HIFI (R)” to listen to stereo
recordings in stereo sound.
Select “NORMAL” for monaural sound.
• Display disappears after 5 seconds.
Notes
• Only tapes recorded in Hi-Fi stereo will playback with true stereo sound.
Standard stereo tapes will playback in monaural sound.
• To listen to Hi-Fi stereo playback, the DECK AUDIO (L/R) jacks must be connected to
a stereo TV or an external stereo amplifier and speakers. (See pp. 12, 14.)
• If tracking is adjusted during playback, Hi-Fi audio may revert to normal audio.
• Hi-Fi and normal audio playback volume level may differ.
27
PV-D4754S-K P26-35 (040202).p65
27
2004/02/02, 15:07
Multi-Brand Control Feature
Multi-Brand Control Setup
The Remote Control can be set to control some TVs.
1
2
Find your TV Brand Code Number on the
following page.
3
Confirm code entry,
Set up for TV control,
➛ hold down TV button,
➛ enter code with NUMBER keys.
➛ press POWER to turn selected unit on or off.
• See table below for controllable functions in each mode.
Notes
• Repeat setup after remote battery replacement.
• Remote will not control every TV made by the
manufacturer listed. If you get no response, your
particular unit cannot be controlled.
There are NO additional codes for the products
listed. If your product is not listed, then the
remote is not compatible with that product.
Using Multi-Brand Control
After remote is set up, you can select VCR, DVD, or TV
for the desired function.
Press VCR, DVD, or TV on the remote.
(Table below shows available remote buttons for each mode.)
Unit
DVD/VCR
TV
DVD
VCR
All
VOL +/-
TV
EJECT/OPEN/CLOSE *,
DISPLAY, PLAY, STOP,
FF/SLOW+, REW/SLOW-,
VCR/TV, PAUSE/STILL, SKIP,
AUDIO, CM/ZERO, SPEED, REC,
TAPE POSITION, PAGE,
COUNTER RESET
Mode
*
Bold: VCR Function
Italic: DVD Function
POWER, INPUT, NUMBER keys,
ENTER, CH / , VOL +/-
Bold Italic: VCR and DVD Functions
Normal: TV
Notes
• Not all functions listed may be controllable.
• In TV mode, it may be necessary to press ENTER after pressing NUMBER keys
for channel selection.
28
PV-D4754S-K P26-35 (040202).p65
28
2004/02/02, 15:07
TV Brand Code Numbers
Panasonic ......................................... 01,
Quasar .............................................. 01,
RCA .........................................................
GE ...........................................................
Zenith ......................................................
Magnavox ...............................................
Sylvania ..................................................
Sharp ................................................. 06,
Sony ........................................................
02
02
03
03
04
05
05
07
08
Toshiba ...................................................
Sanyo ......................................................
Fisher ......................................................
JVC .........................................................
Hitachi .....................................................
Mitsubishi .......................................... 07,
Samsung ................................................
Gold Star .................................... 15, 16,
09
10
10
11
12
13
14
17
Important Notes
• Some manufacturers use several codes for one brand.
If the first code entered fails, try the next one listed.
• Some TVs require you to turn on the power manually.
TV
NUMBER
keys
VCR
VCR
Operation
POWER
DVD
ENTER
29
PV-D4754S-K P26-35 (040202).p65
29
2004/02/02, 15:07
Tape Operation
Search System
Zero Search
For each recording, an invisible index
mark is placed on the tape. A program
index and information are also included
for timer recordings. These marks are
used to access or scan recordings.
Index Search
1
Press SEARCH*
to display SEARCH
in Stop or Play
mode, and then
press NUMBER
keys to select
recording number.
INDEX SEARCH
ENTER INDEX NUMBER :1
USING 1- 9 KEYS
FORWARD SEARCH :FF
REVERSE SEARCH :REW
EXIT
:SEARCH
• To calculate
number, see below.
Press FF/SLOW+
or REW/SLOW- on
the remote to start
search.
2
Play begins at
search end.
To search forward
or back 1 index,
press FF/SLOW+ or
REW/SLOW- on the
remote while
screen left is
displayed (10 sec.).
INDEX SEARCH
FORWARD SEARCH : FF
REVERSE SEARCH : REW
• To cancel, press
PLAY or STOP.
To Calculate Index Number
Example 1:
To go to rec. 2 from rec. 4, enter 3 and press REW.
1
2
3
4
5
6
NOTE:
3
4
5
Press DISPLAY during play
to display Counter.
PLAY
1 2 : 0 0AM
0 : 00 : 00
SP
Press COUNTER
RESET on remote at
desired position to
reset to “0:00:00”.
Continue to record, playback etc.
Press STOP.
REW
1 2 : 3 0AM
CH 02
0 : 30 : 30
SP
STOP
1 2 : 3 1AM
CH 02
0 : 00 : 00
SP
Press CM/ZERO
in Stop mode to start
Zero Search.
• DECK will go into FF or REW mode and
stop at the last point the Counter was set
to 0:00:00.
Commercial Skip
DECK fast forwards (skips) over 1, 2, or 3
minutes of recorded tape as desired.
1
Press CM/ZERO in Play mode.
• The s
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
