Panasonic CATU9000U Operating instructions

Panasonic CATU9000U Operating instructions
E
N
G
L
I
S
H
13

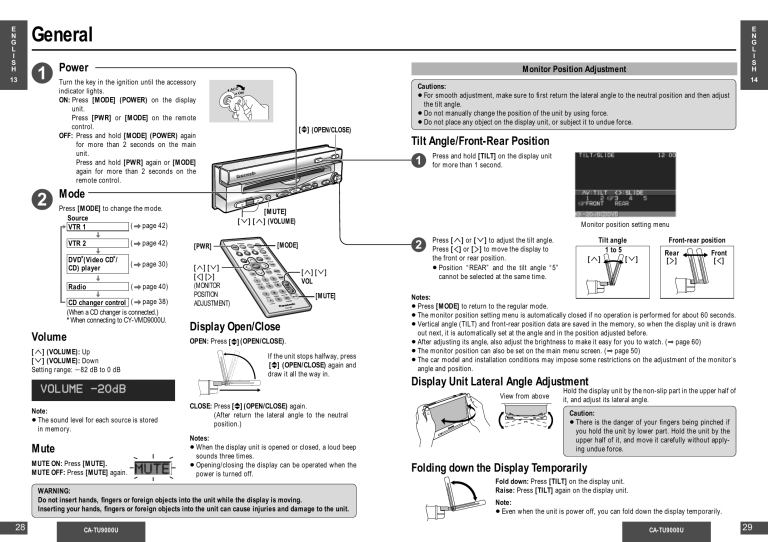

General
1
2
Power
Monitor Position Adjustment
Turn the key in the ignition until the accessory
indicator lights.
ON: Press [MODE] (POWER) on the display
unit.
Press [PWR] or [MODE] on the remote
control.
OFF: Press and hold [MODE] (POWER) again
for more than 2 seconds on the main
unit.
Press and hold [PWR] again or [MODE]
again for more than 2 seconds on the
remote control.
14
Cautions:
≥ For smooth adjustment, make sure to first return the lateral angle to the neutral position and then adjust
the tilt angle.
≥ Do not manually change the position of the unit by using force.
≥ Do not place any object on the display unit, or subject it to undue force.
ACC
ON
[ ] (OPEN/CLOSE)
Tilt Angle/Front-Rear Position
1
E
/CLOS
TILT
OPEN
Press and hold [TILT] on the display unit
for more than 1 second.
ENTER
ION
AT
NAVIG
NAVI
Mode
CT
ASPE
ASPDE
P•MO
E
MOD
U
MEN
ME
VOLU
Press [MODE] to change the mode.
Source
( page 42)
VTR 1
VTR 2
(
DVD*(Video CD*/
CD) player
(
Radio
(
page 42)
page 30)
page 40)
CD changer control ( page 38)
(When a CD changer is connected.)
*When connecting to CY-VMD9000U.
Volume
R
POWE
MUTE
[MUTE]
[#] ["] (VOLUME)
2
[MODE]
[PWR]
["] [#]
[%] [$]
(MONITOR
POSITION
ADJUSTMENT)
Monitor position setting menu
["] [#]
VOL
[MUTE]
E
P• MOD
Display Open/Close
OPEN: Press [ ] (OPEN/CLOSE).
["] (VOLUME): Up
[#] (VOLUME): Down
Setting range: j82 dB to 0 dB
If the unit stops halfway, press
[ ] (OPEN/CLOSE) again and
draw it all the way in.
Note:
≥ The sound level for each source is stored
in memory.
MUTE ON: Press [MUTE].
MUTE OFF: Press [MUTE] again.
CLOSE: Press [ ] (OPEN/CLOSE) again.
(After return the lateral angle to the neutral
position.)
Notes:
≥ When the display unit is opened or closed, a loud beep
sounds three times.
≥ Opening/closing the display can be operated when the
power is turned off.
WARNING:
Do not insert hands, fingers or foreign objects into the unit while the display is moving.
Inserting your hands, fingers or foreign objects into the unit can cause injuries and damage to the unit.
28
CA-TU9000U
Tilt angle
1 to 5
["]
[#]
Press ["] or [#] to adjust the tilt angle.
Press [%] or [$] to move the display to
the front or rear position.
≥ Position “REAR” and the tilt angle “5”
cannot be selected at the same time.
Front-rear position
Rear
[$]
Front
[%]
Notes:
≥ Press [MODE] to return to the regular mode.
≥ The monitor position setting menu is automatically closed if no operation is performed for about 60 seconds.
≥ Vertical angle (TILT) and front-rear position data are saved in the memory, so when the display unit is drawn
out next, it is automatically set at the angle and in the position adjusted before.
≥ After adjusting its angle, also adjust the brightness to make it easy for you to watch. (➡ page 60)
≥ The monitor position can also be set on the main menu screen. (➡ page 50)
≥ The car model and installation conditions may impose some restrictions on the adjustment of the monitor’s
angle and position.
Display Unit Lateral Angle Adjustment
View from above
Mute
E
N
G
L
I
S
H
TILT
Hold the display unit by the non-slip part in the upper half of
it, and adjust its lateral angle.
Caution:
≥ There is the danger of your fingers being pinched if
you hold the unit by lower part. Hold the unit by the
upper half of it, and move it carefully without applying undue force.
Folding down the Display Temporarily
Fold down: Press [TILT] on the display unit.
Raise: Press [TILT] again on the display unit.
Note:
≥ Even when the unit is power off, you can fold down the display temporarily.
CA-TU9000U
29
E
N
G
L
I
S
H
Basic Disc Operations
Meaning of symbols
15
DVD
VIDEO
VIDEO
CD
CD
Indicates the compatible types of disc.
Cautions:
≥ Do not use irregularly shaped disc.
≥ Do not insert foreign matter into the disc slots.
Perform these operations with the remote control.
Operations vary according to the disc.
For details, refer to the guide provided with the disc.
Mode display
Play setting
Disc format
(➡ page 36)
Insert a disc after making sure that there is no disc in the disc compartment.
(If “NO DISC” is displayed, insert the disc.)
Input is not possible when the operation is
not supported by the disc.
Mode display
Insert the disc.
[%] [$]
[#] ["]
[ENTER]
ENTER
TION
NAVIGA
NAVI
ASPECT
Play setting
Sound setting
(Stereo/monaural)
ASP
[<] (EJECT)
MODE
ER
MENU
ME
VOLU
POW
MUTE
Track number
Playing time
[MODE]
To make sure the play setting
Press [ENTER] during the playback.
Mode Selection
Press [MODE] to change to the DVD (Video CD, CD) mode.
Stop and Disc Eject
Press [<] (EJECT) on the display unit.
Playing time
Title/chapter number
Subtitle language/audio
language/angle
Video CD mode display
Disc Insert and Playback
Notes:
≥ Loading a disc when the power is off allows the power to
be turned on.
≥ You can play a disc even if the monitor is closed.
≥ If you leave a disc at the disc slot for approximately
30 seconds, the disc is loaded into the compartment
automatically after loud beep is energized three times.
≥ The sound may be interrupted for a few moments while
the disc format is being identified.
16
DVD mode display
Notes:
≥ Disc Limitations
Due to limitations of certain discs, some DVD video and video CD discs may not operate as described
in these Operating Instructions. Refer to the disc jacket for further details.
≥ This unit does not support DVD and video CD karaoke functions.
≥ The mode that supports the disc is selected, and playback starts.
≥ The disc format is automatically identified. (➡ page 36)
≥ When the menu screen appears, see “Selecting a Menu
Item” on page 31.
E
N
G
L
I
S
H
Only for the remote control
Selecting a Menu Item
Label side
[MODE]
[DVD] (DVD MENU)
[RET] (RETURN)
[%] [$] ["] [#]
[ENTER]
[:]
[9]
[0] to [9]
(SELECT MENU)
E
P• MOD
DVD
VIDEO
VIDEO
CD
Some DVD discs have unique menu structures called DVD menu.
Although the DVD menu’s contents and operation differ from disc to
disc, the following explains basic operation when this feature is used.
1
2
DVD:
Press [%], [$], [#] or ["] to select the desired menu.
DVD/video CD with playback control (➡ page 97):
Press [0] to [9] on the remote control.
Press [ENTER].
To display the menu:
DVD: Press [DVD] (DVD MENU) during playback.
Video CD: Press [RET] (RETURN) during playback.
CA-TU9000U
DVD MENU
1. SUBTITLE
2. AUDIO
3. ANGLE
Example:
Video CD
Select your favorite music.
To input the number again, or return to the previous display:
Press [RET] (RETURN).
Note for video CD with playback control:
≥ Pressing [:] [9] during playback will return to the menu display.
30
Example:
1. Love Supremes
2. Impressions
3. In a Sentimental Mood
Number:
CA-TU9000U
31
E
N
G
L
I
S
H
Basic Disc Operations (Continued)
[∫] (STOP)
[[ [] (PAUSE)
[1] (PLAY)
[:] [9]
[%] [$] ["] [#]
[ENTER]
[REP] (REPEAT)
Listening to DVD/Video CD
17
Go to Beginning
Fast Forward/
Fast Backward
[9]: Next track (chapter)
[:]: Beginning of the current track (chapter)
Previous track (Press twice.)
Note:
≥ When playing a DVD video, there are cases where it is not possible
to return to the start of a chapter that spans 2 titles.
≥ When play is stopped, the player records the point where [∫]
(STOP) was pressed. (Continued playback function)
Press [1] (PLAY) again, and play will resume from this point.
Stop
[0] to [9]
(TITLE/CHAPTER NUMBER)
Press and hold for more than 0.5 seconds during playback.
[9]: Fast forward
[:]: Fast backward
Release to resume the regular play on the regular speed.
≥ The speed changes if the button is held down as follows.
Regular speed > 1.5 times > 10 times > 20 times
Press [∫] (STOP) during playback.
To cancel continued playback:
Press [∫] (STOP) again in the stop mode.
Starting Playback
from a Specific
Title/Chapter
DVD
VIDEO
To resume normal playback:
Press [1] (PLAY) or [[ [ ] (PAUSE) again.
Slow Playback
Chapter/
Track
Press and hold [9] for more than 0.5 seconds in the pause mode.
≥ Playback is at about 1/3 normal speed.
To resume normal playback:
Press [1] (PLAY).
To pause:
Press [[ [ ] (PAUSE) again.
Note:
≥ Reverse slow playback is not possible.
Press [REP] (REPEAT) during playback.
Press [REP] (REPEAT) again to cancel.
Repeat
Title
Press and hold [REP] (REPEAT) for more than
2 seconds during playback.
Press and hold [REP] (REPEAT) for more than
2 seconds again to cancel.
Note:
≥ It is possible to press [%] [$] on the display unit instead of [:] [9] on the remote control except on
the DVD’s menu play.
32
CA-TU9000U
DVD Menu
Use this menu during
playback to select content,
audio, subtitle, etc., from a
menu (the DVD menu)
that is unique to each disc.
DVD
VIDEO
Title Menu
If the DVD has multiple
titles recorded on it, it is
possible to select the preferred title form the title
menu to start playback.
DVD
VIDEO
18
[DVD] (DVD MENU)
[RET] (RETURN)
[TITLE]
(TITLE/CHAPTER)
E
P• MOD
1 Press [TITLE] (TITLE/CHAPTER) to select the input mode.
2 Input preferred title/chapter
number.
Press [[ [ ] (PAUSE) during playback.
Pause
E
N
G
L
I
S
H
Only for the remote control
Regular mode
Chapter number input mode
(“CHAP” lights on yellow.)
To input the number again:
Title number input mode
Press [RET] (RETURN).
(“TITLE”
lights on yellow.)
3 Press [TITLE] (TITLE/CHAPTER).
≥ Playback will start automatically.
Notes:
≥ If no operation is performed, the display returns to the regular
mode.
≥ You can select the desired setting on the menu display. (➡ See
below.)
1 Press [DVD] (DVD MENU) during
playback.
2 Press [%], [$], [#] or ["] to select
the preferred menu.
3 Press [ENTER].
Example:
DVD MENU
1. SUBTITLE
2. AUDIO
3. ANGLE
To return the previous display:
Press [RET] (RETURN).
Note:
≥ Operations vary according to the disc. For details, refer to the guide
provided with the disc.
1 Press and hold [DVD] (DVD MENU)
Example:
for more than 2 seconds during playTITLE MENU
back.
Press
[%],
[$],
[#]
or
["]
to
select
2
Rivers
Castles
the preferred title.
3 Press [ENTER].
Lovers
Woods
To return the previous display:
Press [RET] (RETURN).
Note:
≥ Operations vary according to the disc. For details, refer to the guide
provided with the disc.
CA-TU9000U
33
E
N
G
L
I
S
H
Basic Disc Operations (Continued)
E
N
G
L
I
S
H
Only for the remote control
CD mode display
Track number
Mode display
19
20
Play setting
Playing time
Number of track
[SUB] (SUB TITLE)
[ANGLE]
[%] [$]
[REP] (REPEAT)
[AUDIO]
[0] (ST/MONO)
Switching the
Subtitle Language
DVD
VIDEO
“OVER 1” shows when the number
of tracks is 21 or more.
E
P• MOD
It is possible to change the subtitle language during play if the multiple languages are recorded on the disc.
Note:
≥ There may be a brief delay before the subtitles appear.
Switching the
Audio Language
DVD
VIDEO
Switching the
Angle
DVD
VIDEO
Listening to CD
Press [SUB] (SUB TITLE) during playback.
Go to Beginning
[$]: Next track
[%]: Beginning of the current track
Previous track (Press twice.)
Press [AUDIO] during playback.
It is possible to change the audio language during play if multiple
audio languages are recorded on the disc.
Fast Forward/
Fast Backward
Release to resume the regular play.
Press [ANGLE] during playback.
For DVDs which contain scenes which have been shot simultaneously from a number of different angles the same scene can be viewed
each of these different angles during play.
Press and hold.
[$]: Fast forward
[%]: Fast backward
Repeat
Press [REP] (REPEAT) during playback.
Press [REP] (REPEAT) again to cancel.
Notes:
≥ If no operation is performed for 5 seconds, the display returns to the regular mode.
≥ It may not be possible to switch language unless the unit is at the DVD menu (➡ page 33) or is at the DVD settings (➡ page 62).
≥ The language on the DVD settings has a priority over when the power is turned on or the disc is loaded.
≥ The number of languages depends on the disc. Some disc have only one language or have no language.
Switching between
Stereo and
Monaural
Press and hold [0] (ST/MONO) for more than 2 seconds.
It is possible to switch the audio between stereo sound and monaural
sound (L or R).
ST
VIDEO
CD
MONO Lch
MONO Rch
34
CA-TU9000U
: Stereo sound
: The left channel audio is output on both the left
and right speakers.
: The right channel audio is output on both the left
and right speakers.
CA-TU9000U
35
E
N
G
L
I
S
H
21
Selecting the Playback Mode and Setting the Sound Field
Press and hold [DRC] (PRO LOGIC) (DOWN MIX) for more than 2 seconds.
(For the user of CY-VMC7000U)
22
≥ Each time you press and hold [DRC] for more than 2 seconds, the output changes according to the audio
recording format (disc format) and the source.
∫ Dolby Digital
DVD
VIDEO
5.1-channel surround playback
(Number of channels: 1 to 5.1)
For Surround Format
Down mix
(2-channel stereo playback)
DVD
VIDEO
≥ This mode mixes the C, LS, and
RS signals with the L and R channels for output.
≥ When this mode is used, no audio
is output from the center and surround speakers, and the overall
volume changes slightly.
PRO • LOGIC
≥ No audio is output from the center
speaker.
Dolby surround playback
∫ dts
2-channel stereo playback
DVD
VIDEO
≥ This mode mixes the C, LS, and
RS signals with the L and R channels for output.
≥ When this mode is used, no audio
is output from the center and surround speakers, and the overall
volume changes slightly.
Down mix (2-channel stereo playback)
5.1-channel surround playback
∫ Linear PCM (LPCM)
DVD
VIDEO
VIDEO
CD
P• MODE
Producing Audio
That Is Audible at
Low Volumes
(Dynamic Range
Compression)
This function compresses the
difference in volume between
the lowest volume that can be
heard above background
noise and the maximum volume that can be played without distortion.
Because this function is able
to reduce peak levels while
still maintaining an “open”
sound field, use this function
when you want to keep the
volume low.
SPACE
[AUDIO]
(SPACE)
AUDIO
[DRC]
(DYNAMIC RANGE
COMPRESSION)
(PRO LOGIC) (DOWN MIX)
[DRC]
(DYNAMIC RANGE
COMPRESSION)
(PRO LOGIC) (DOWN MIX)
Press [DRC] to turn this function on and off.
DR COMP OFF
Movie theater mode with no compression.
DR COMP STD
Mode recommended by the software manufacturer for listening at low volume.
≥ Available only for the software with DR
COMP function.
≥ It is possible to adjust the Dynamic
Range Compression rate. (➡ page 74)
Mode with the greatest compression,
roughly equivalent to a TV broadcast.
DR COMP MIN
OFF
MIN
STD
Conversation
level
Press and hold [AUDIO] (SPACE) for more than 2 seconds to
change the setting.
Dolby surround playback
Space effects (sound field settings)
Notes:
≥ Audio from a radio cannot be switched to “LPCM”.
≥ The graphic equalizer are effective on linear PCM format mode. (➡ page 74)
≥ When discs which are not compatible with Dolby Pro Logic are played in the Dolby Pro Logic mode, they may
not be played back properly.
CA-TU9000U
[AUDIO]
(SPACE)
CD
≥ “LPCM” is displayed only for a
DVD video.
≥ Analog audio (VTR1/VTR2, CH·C)
can also be switched.
36
E
N
G
L
I
S
H
Only for the remote control
OFF (no indicator)
Sound Field
Settings (Space)
This function reproduces the
acoustics of various types of
concert halls, etc., in your
own car.
LIVE
HALL
CATHEDRAL
VOCAL
JAZZ
DISCO
STADIUM
This function is only effective for analog audio (VTR1/VTR2,
radio, CH·C) and linear PCM format audio.
This function can be set individually for each mode.
Default: OFF (no indicator)
Setting range: 7 types i “OFF”
CA-TU9000U
37
E
N
G
L
I
S
H
23
CD Changer Basics
CD changer functions are designed for optional Panasonic CD changer unit.
Preparation:
≥ Connect the CD changer, and load a magazine (disc).
Notes:
≥ Loading a magazine when the power is off allows the power to be turned on.
≥ Ejecting the magazine when the unit is in the CD changer mode allows the power to be turned off.
CD changer mode display
Track number*1
Mode display
24
Play setting
Playing time
Disc number
Number of disc in
CD changer
Caution:
≥ Do not use irregularly shaped disc.
*1Not shown correctly when the number
of tracks is 100 or more.
E
N
G
L
I
S
H
Number of track
“OVER 1” shows when the number of tracks is 21 or more.
Various Way of Listening (Only for the Remote Control)
1
CD Changer Mode
Press [MODE] to change to CD changer mode
and playback starts.
Note:
≥ Load a magazine with CDs when “NO MAGAZINE” is displayed.
Track
Press [4] (RANDOM).
All the available tracks on all discs in the magazine plays in a
random sequence.
≥ Press [4] (RANDOM) again to cancel.
Disc
Press and hold [4] (RANDOM)
for more than 2 seconds.
All the available tracks on the current disc plays in a random
sequence.
≥ Press and hold [4] (RANDOM) again to cancel.
Track
Press [5] (SCAN).
The first 10 seconds of each track on the discs plays in
sequence.
≥ Press [5] (SCAN) again to cancel.
With the scanning of all tracks over, the original program starts
playing from the beginning.
Disc
Press and hold [5] (SCAN)
for more than 2 seconds.
The first 10 seconds of the first track of all the discs in the magazine plays in sequence.
≥ Press and hold [5] (SCAN) again to cancel.
With the scanning of all tracks over, the original disc starts
playing from the beginning.
Track
Press [6] (CH REPEAT).
Repeat the current track.
≥ Press [6] (CH REPEAT) again to cancel.
Disc
Press and hold [6] (CH REPEAT)
for more than 2 seconds.
Repeat the current disc.
≥ Press and hold [6] (CH REPEAT) again to cancel.
Random Play
DISC/BAND
VOLUME
NAVIGATION
MUTE
MENU
MODE
NAVI
POWER
2
ASPECT
ASP
ENTER
TRACK/
TUNE
P•MODE
Disc Selection
["] (DISC): Next disc.
[#] (DISC): Previous disc.
[MODE]
3
Track Selection
["] [#] (DISC)
[%] [$] (TRACK)
[$] (TRACK): Next track.
[%] (TRACK): Beginning of the current track.
Previous track (Press twice.)
Track Search
E
P• MOD
[4] (RANDOM)
[5] (SCAN)
[6] (CH REPEAT)
Scan Play
Press and hold for more than 0.5 seconds.
[$] (TRACK): Fast forward
[%] (TRACK): Fast backward
Release to resume the regular play.
Repeat Play
38
CA-TU9000U
CA-TU9000U
39
E
N
G
L
I
S
H
Radio
Radio mode display
One-Touch Selection of a Station
Mode display
25
E
N
G
L
I
S
H
Up to 6 stations each can be saved in the FM1, FM2, AM1 and AM2 preset station memories.
Stereo indicator
26
Frequency
1 Select a band and frequency (step 1, 2 and 3 on the previous page).
Band
Preset memory
Manual Preset
Memory
Manually save a station in the
preset memory.
1
Radio Mode
2
Band
Press [MODE] to change to radio mode.
2 Press and hold [1] to [6] on the remote control for more than
2 seconds.
The frequency blinks once,
and a receiving station is
saved in the memory.
1 Select a band (step 1 and 2 on the previous page).
2 Press and hold [ENTER] for more than 2 seconds.
3
DISC/BAND
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
NAVI
ASPECT
ASP
ENTER
TRACK/
TUNE
P•MODE
["] (BAND): FM band
[#] (BAND): AM band
Auto Preset Memory
Tuning
[MODE]
["] [#] (BAND)
[%] [$] (TUNE)
[ENTER]
[$] (TUNE): UP
[%] (TUNE): Down
Automatically save strong
stations in the preset memory.
≥ The 6 strongest available stations will be automatically saved in
the memory under preset numbers 1 to 6.
≥ Once set, the preset stations are sequentially scanned for 5 seconds each.
≥ To stop scanning, press [1] to [6] on the remote control.
Press and hold [$] (TUNE) or [%] (TUNE) for more
than 0.5 seconds, then release. Seeking will start.
E
P• MOD
Note:
≥ The stereo indicator lights during reception of an FM stereo
broadcast.
[1] to [6]
(PRESET MEMORY)
Note:
≥ New stations are overwritten on existing saved stations after following this procedure.
1 Select a band (step 1 and 2 on the previous page).
Preset Station
Calling
40
CA-TU9000U
2 Press [1] to [6] on the remote control.
CA-TU9000U
41
E
N
G
L
I
S
H
Useful Functions
E
N
G
L
I
S
H
You can mute the sound from the rear speakers connected to the
front monitor (display unit of CY-VMD9000U/VMC7000U), when you
have different modes at the front and rear monitor, after connecting
the rear monitor.
You can enjoy the sound from the rear monitor by using headphones.
27
28
“P • MODE” indicator
lights when the private
mode is activated.
Private Mode
DISC/BAND
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
[MENU]
NAVI
ASPECT
ASP
ENTER
TRACK/
TUNE
P•MODE
Default: OFF
[MODE] [ASP]
[%] [$]
(P •MODE) (SELECT)
[ENTER]
[MODE] [MENU]
Private mode ON: Press and hold [ASP] (P • MODE) for more than 2 seconds on the display unit.
Press and hold [A] (P • MODE) for more than 2 seconds on the remote control.
Private mode OFF:Press and hold [ASP] (P • MODE) again for more than 2 seconds on the display
unit.
Press and hold [A] (P • MODE) again for more than 2 seconds on the remote control.
Notes:
≥ Be sure to set to OFF when you do not use the private mode.
≥ It is not possible to choose and set the SP SETUP/SP DELAY on the sound setting menu while private mode is activates.
1 Press and hold [MENU] for more than 2 seconds.
2 Press [$] or [%] to select an item.
AUTO
[%] [$]
(SELECT)
[ENTER]
P• MODE
[A] (P •MODE)
VTR1
Rear Monitor
You can have different picture or sound at the
front and rear monitor at the same time.
Default: AUTO
Preparation:
≥ Connect another monitor. (➡ page 77 of the
operating instructions for CY-VMD9000U)
42
CA-TU9000U
VTR2
DVD
: Picture and sound come out. These
are in the same mode as the front
monitor.
: Picture and sound in the VTR1 mode
always come out.
: Picture and sound in the VTR2 mode
always come out.
: Picture and sound in the DVD player
mode (disc in the DVD player) always
come out.
≥ Only sound in the CD player mode.
3 Press [ENTER] to set.
Rear monitor setting menu
(Example) Rear monitor
(CY-VM5800U)
VTR-IN
This unit
CY-VMD9000U/
VMC7000U
Control unit
Notes:
≥ Press [MODE] to return to the regular mode.
VIDEO-OUT
≥ The display returns to the previous one with no operation for 60 seconds after changing to the rear
monitor setting menu.
≥ Picture and sound from the car navigation system connected to an RGB input cord are not available
at the rear monitor.
≥ Radio and CD changer mode is not available at the rear monitor.
≥ You can mute the sound from the rear speakers connected to the front monitor (display unit of CYVMD9000U/VMC7000U), so that you can have different modes at the front and rear monitor. (➡ See
above.)
CA-TU9000U
43
E
N
G
L
I
S
H
Useful Functions (Continued)
29
When connecting to CY-VMC7000U
DVD Player
Preparation:
≥ Connect a DVD player. (➡ page 86)
DISC/BAND
VOLUME
NAVIGATION
MUTE
MENU
MODE
NAVI
POWER
ASPECT
ENTER
ASP
Press [MODE] to change to the VTR1 or VTR2 mode.
Select the same mode (VTR1 or VTR2) as the terminal
that is connected to a DVD player (VTR1-IN or VTR2IN).
Note:
≥ When you connect a mobile DVD player (CXDV700U), you can operate it by aiming a remote
control, that is supplied with the DVD player, at the
remote control sensor of the display unit.
Be sure to connect a remote-out cord. (➡ page 86)
E
N
G
L
I
S
H
(Example)
00
30
Panasonic DVD
player
(CX-DV700U)
This unit
CY-VMD9000U/
VMC7000U
Control unit
VTR2-IN
VTR1-IN
TRACK/
TUNE
P•MODE
[MODE]
Press [MODE] to change to the VTR1 or VTR2 mode.
VCR/Camcorder
[MODE]
Preparation:
≥ Connect a VCR or camcorder.
(➡ page 77 of the operating instructions for
CY-VMD9000U)
Select the same mode (VTR1 or VTR2) as the terminal that
is connected to a VCR or camcorder (VTR1-IN or VTR2IN).
Note:
≥ The sound may not be output if the VTR1-IN and/or
VTR2-IN level is excessively high.
>Make adjustments using the controls of the connected unit (on the output side) in such a way that the
“OVER” display will not appear.
If these adjustments cannot be made, set the input
level using the unit’s controls. (➡ page 66)
(Example)
VCR
Camcorder
This unit
CY-VMD9000U/
VMC7000U
Control unit
VTR1-IN VTR2-IN
P• MODE
Rear View Camera
Preparation:
≥ Connect a rear view camera and a reverse
lead. (➡ page 79 of the operating instructions for CY-VMD9000U)
≥ Select a terminal in the “CAMERA IN”
screen according to the terminal actually
connected to the rear view camera.
(➡ page 54)
44
CA-TU9000U
Shift the transmission gear into the reverse position.
≥ The display shows a picture from the rear view camera.
Notes:
≥ You can see a picture from the rear view camera even if
the power of the display unit is inactivated.
≥ You can see a picture from the rear view camera if you
change the mode to the same one (VTR1 or VTR2) as
the terminal to which the rear view camera was connected (VTR1-IN or VTR2-IN).
(Example)
Rear view camera
Panas o nic
This unit
CY-VMD9000U/
VMC7000U
Control unit
VTR1-IN VTR2-IN
CA-TU9000U
45
E
N
G
L
I
S
H
Useful Functions (Continued)
When you connect a car navigation system
through RGB cord [Panasonic car navigation (not available yet)]:
31
Car navigation ON: Press [NAVI] (NAVIGATION).
Car navigation OFF: Press [NAVI] (NAVIGATION)
again.
Car Navigation
DISC/BAND
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
NAVI
ASPECT
ASP
ENTER
TRACK/
TUNE
P•MODE
[MODE] [NAVI] (NAVIGATION)
Preparation:
≥ Connect a car navigation system.
≥ Select a terminal in the “NAVI SETUP”
screen according to the terminal actually
connected to the car navigation system.
(➡ page 52)
Notes:
≥ When you connect a Panasonic car navigation system with a built-in DVD player, use an RGB cord as
well.
≥ The sound that a Panasonic car navigation system
generates comes from the speakers supplied with
CY-VMD9000U/CY-VMC7000U.
DVD video/audio RGB: car navigation
output
00
32
Panasonic car
navigation system
CY-VMD9000U/
VMC7000U
Control unit
This unit
VTR1-IN VTR2-IN
CY-VMD9000U/VMC7000U
Display unit
RGB input cord
When you connect a car navigation system
to VTR1-IN or VTR2-IN terminal (other
brand’s car navigation system):
Car navigation ON: Press [NAVI] (NAVIGATION).
Car navigation OFF: Press [NAVI] (NAVIGATION)
again.
Or press [MODE] to change to the VTR1 or VTR2
mode.
[NAVI]
[MODE]
(NAVIGATION)
(Example)
E
N
G
L
I
S
H
(Example)
Other brand’s car
navigation system
This unit
CY-VMD9000U/
VMC7000U
Control unit
VTR1-IN VTR2-IN
Select the same mode (VTR1 or VTR2) as the terminal
that connected to a car navigation system (VTR1-IN or
VTR2-IN).
E
P• MOD
46
CA-TU9000U
CA-TU9000U
47
E
N
G
L
I
S
H
Useful Functions (Continued)
E
N
G
L
I
S
H
33
Press [ASP] (ASPECT) on the display unit or press [A] (ASPECT) on the remote control to change the
aspect ration as follows.
00
34
Normal (Default)
≥ The conventional display image has a 4 to 3
ratio of horizontal to vertical.
≥ In this case, a blank area remains on the
right and left sides of the display.
DISC/BAND
VOLUME
NAVIGATION
MUTE
MENU
MODE
NAVI
ASPECT
ASP
ENTER
TRACK/
TUNE
P•MODE
POWER
[ASP] (ASPECT)
Aspect Ratio
Default: Normal
Mode: 4 types
Full
≥ The screen is extended horizontally as a
whole to the aspect ratio of 16 to 9.
≥ The extension ratio is the same at any point
of the screen.
Zoom
≥ The screen is fully extended at the normal
aspect ratio of 4 to 3.
≥ The top and bottom of the screen are slightly cut.
Just
≥ The screen is extended horizontally to the
aspect ratio of 16 to 9.
≥ The extension ratio increases toward the
right and left ends of the screen.
E
P• MOD
[A] (ASPECT)
Notes:
≥ This adjustment is common to VTR1/VTR2 and DVD (video CD) mode.
≥ You cannot change the aspect in the menu screen and a screen in the CD mode. These are fixed to
“Full”.
≥ The “Zoom” and “Just” screens do not apply to the car navigation images.
≥ When the rear view camera is in operation with the transmission gear shift in the reverse position,
the image is shown on the “Full” screen only.
≥ In some cases, the picture looks different from the original one due to your selection of aspect.
Cautions:
≥ This is to remind you that compression or extension of the screen using the aspect ratio (screen mode)
changing function of this product for commercial purpose of profit making or viewing/listening by the
public could infringe on the rights of the author protected by the copyright law.
≥ If you expand a normal picture (4 to 3) by using “Just”, “Zoom” or “Full” aspect the full of the screen, you
might not see the periphery of the picture, or you might see deformed picture. Therefore, use the
“Normal” mode to see the original picture as the author intended it.
48
CA-TU9000U
CA-TU9000U
49
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
