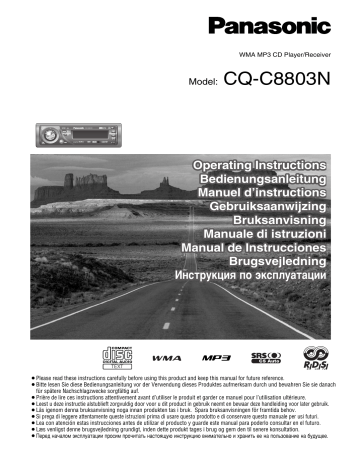

Panasonic CQC8803N Operating instructions

Panasonic CQC8803N Operating instructions
WMA MP3 CD Player/Receiver
Model:
CQ-C8803N
CQ-C8803N
DM
TA
DISP
PTY
Operating Instructions
Bedienungsanleitung
Manuel d’instructions
d instructions
Gebruiksaanwijzing
Bruksanvisning
Manuale di istruzioni
Manual de Instrucciones
Brugsvejledning
àÌÒÚÛ͈Ëfl ÔÓ ˝ÍÒÔÎÛ‡Ú‡ˆËË
TEXT
¡Please read these instructions carefully before using this product and keep this manual for future reference.
¡Bitte lesen Sie diese Bedienungsanleitung vor der Verwendung dieses Produktes aufmerksam durch und bewahren Sie sie danach
für spätere Nachschlagzwecke sorgfältig auf.
¡Prière de lire ces instructions attentivement avant d’utiliser le produit et garder ce manuel pour l’utilisation ultérieure.
¡Leest u deze instructie alstublieft zorgvuldig door voor u dit product in gebruik neemt en bewaar deze handleiding voor later gebruik.
¡Läs igenom denna bruksanvisning noga innan produkten tas i bruk. Spara bruksanvisningen för framtida behov.
¡Si prega di leggere attentamente queste istruzioni prima di usare questo prodotto e di conservare questo manuale per usi futuri.
¡Lea con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el futuro.
¡Læs venligst denne brugsvejledning grundigt, inden dette produkt tages i brug og gem den til senere konsultation.
¡èÂ‰ ̇˜‡ÎÓÏ ˝ÍÒÔÎÛ‡Ú‡ˆËË ÔÓÒËÏ ÔÓ˜ËÚ‡Ú¸ ̇ÒÚÓfl˘Û˛ ËÌÒÚÛÍˆË˛ ‚ÌËχÚÂθÌÓ Ë ı‡ÌËÚ¸  ̇ ÔÓθÁÓ‚‡ÌË ̇ ·Û‰Û˘ÂÂ.
Safety Information
■ Read the operating instructions for the unit and all other components of your car audio system carefully before using the
system. They contain instructions about how to use the system in a safe and effective manner. Panasonic assumes no
responsibility for any problems resulting from failure to
observe the instructions given in this manual.
This pictograph intends to alert you to the presence of important operating instructions and
Warning installation instructions. Failure to heed the
instructions may result in severe injury or death.
Warning
Observe the following warnings when using
this unit.
❑ The driver should neither watch the display nor
operate the system while driving.
Watching the display or operating the system will distract
the driver from looking ahead of the vehicle and can cause
accidents. Always stop the vehicle in a safe location and use
the parking brake before watching the display or operating
the system.
❑ Use the proper power supply.
This product is designed for operation with a negative
grounded 12 V DC battery system. Never operate this product with other battery systems, especially a 24 V DC battery
system.
❑ Keep batteries and insulation film out of reach of
infants.
Batteries and insulation film can be ingested, so keep them
out of the reach of infants. If an infant ingests a battery or
insulation film, please seek immediate medical attention.
❑ Protect the Deck Mechanism.
Do not insert any foreign objects into the slot of this unit.
❑ Do not disassemble or modify the unit.
Do not disassemble, modify the unit or attempt to repair the
product yourself. If the product needs to be repaired, consult
your dealer or an authorized Panasonic Service Centre.
❑ Do not use the unit when it is out of order.
If the unit is out of order (no power, no sound) or in an
abnormal state (has foreign objects in it, is exposed to
water, is smoking, or smells), turn it off immediately and
consult your dealer.
❑ The remote control unit should not lie about in the
car.
If the remote control unit lies about, it could fall on the floor
while driving, get wedged under the brake pedal, and lead to
a traffic accident.
❑ Refer fuse replacement to qualified service personnel.
When the fuse blows out, eliminate the cause and have it
replaced with the fuse prescribed for this unit by a qualified
service engineer. Incorrect replacement of the fuse may lead
to smoke, fire, and damage to the product.
2
CQ-C8803N
■ This manual uses pictographs to show you how to use the
product safely and to alert you to potential dangers resulting
from improper connections and operations. The meanings of
the pictographs are explained below. It is important that you
fully understand the meanings of the pictographs in order to
use this manual and the system properly.
Caution
This pictograph intends to alert you to the presence of important operating instructions and
installation instructions. Failure to heed the
instructions may result in injury or material damage.
Observe the following warnings when
installing.
❑ Disconnect the lead from the negative (–) battery
terminal before installation.
Wiring and installation with the negative (–) battery terminal
connected may cause electrical shock and injury due to a
short circuit.
Some cars equipped with the electrical safety system have
specific procedures of battery terminal disconnection.
FAILURE TO FOLLOW THE PROCEDURE MAY LEAD TO THE
UNINTENDED ACTIVATION OF THE ELECTRICAL SAFETY
SYSTEM RESULTING IN DAMAGE TO THE VEHICLE AND
PERSONAL INJURY OR DEATH.
❑ Never use safety-related components for installation, grounding, and other such functions.
Do not use safety-related vehicle components (fuel tank,
brake, suspension, steering wheel, pedals, airbag, etc.) for
wiring or fixing the product or its accessories.
❑ Installing the product on the air bag cover or in a
location where it interferes with airbag operation is
prohibited.
❑ Check for piping, gasoline tank, electric wiring, and
other items before installing the product.
If you need to open a hole in the vehicle chassis to attach or
wire the product, first check where the wire harness, gasoline tank, and electric wiring are located. Then open the hole
from outside if possible.
❑ Never install the product in a location where it interferes with your field of vision.
❑ Never have the power cord branched to supply other
equipment with power.
❑ After installation and wiring, you should check the
normal operation of other electrical equipment.
The continuation of their using in abnormal conditions may
cause fire, electrical shock or a traffic accident.
❑ In the case of installation to an airbag-equipping
car, confirm warnings and cautions of the vehicle
manufacturer before installation.
❑ Make sure the leads do not interfere with driving or
getting in and out of the vehicle.
❑ Insulate all exposed wires to prevent short circuiting.
❑ Keep the sound volume at an appropriate level.
Keep the volume level low enough to be aware of road and
traffic conditions while driving.
❑ Do not insert or allow your hand or fingers to be
caught in the unit.
To prevent injury, do not get your hand or fingers caught in
moving parts or in the disc slot. Especially watch out for
infants.
❑ This unit is designed for use exclusively in automobiles.
❑ Do not operate the unit for a prolonged period with
the engine turned off.
Operating the audio system for a long period of time with the
engine turned off will drain the battery.
❑ Do not expose the unit to direct sunlight or excessive heat.
Otherwise these will raise the interior temperature of the
unit, and it may lead to smoke, fire, or other damage to the
unit.
❑ Do not use the product where it is exposed to water,
moisture, or dust.
Exposure of the unit to water, moisture, or dust may lead to
smoke, fire, or other damage to the unit. Make especially
sure that the unit does not get wet in car washes or on rainy
days.
Avoid slanted or strongly curved surfaces for installation. If
the installation is not stable, the unit may fall down while
driving and this can lead to an accident or injury.
❑ Installation Angle
The product should be installed in a horizontal position with
the front end up at a convenient angle, but not more than
30˚.
The user should bear in mind that in some areas there may
be restrictions on how and where this unit must be installed.
Consult your dealer for further details.
❑ Wear gloves for safety. Make sure that wiring is
completed before installation.
❑ To prevent damage to the unit, do not connect the
power connector until the whole wiring is completed.
❑ Do not connect more than one speaker to one set of
speaker leads. (except for connecting to a tweeter)
Observe the following cautions when handling
the battery for the remote control unit.
● Use only specified battery (CR2025).
● Match the polarity of the battery with the (+) and (–) marks
in the battery case.
● Replace dead battery as soon as possible.
● Remove the battery from the remote control unit when not
using it for an extended period of time.
● Insulate the battery (by placing them in a plastic bag or covering them with vinyl tape) before disposal or storage.
Observe the following cautions when
installing.
● Dispose of the battery according to the local regulations.
● Do not disassemble, recharge, heat or short the battery. Do
❑ Refer wiring and installation to qualified service
personnel.
In case of battery leakage
● Thoroughly wipe the battery liquid off the battery case and
Installation of this unit requires special skills and experience.
For maximum safety, have it installed by your dealer.
Panasonic is not liable for any problems resulting from your
own installation of the unit.
❑ Follow the instructions to install and wire the product.
English
Observe the following cautions when using this
unit.
❑ Do not install the product where it is exposed to
strong vibrations or is unstable.
Safety Information
Caution
not throw a battery into a fire or water.
insert new battery.
● If any part of your body or clothing comes into contact with
battery liquid, wash it with plenty of water.
● If battery liquid comes into contact with your eyes, wash
them with plenty of water and get immediate medical attention.
Not following the instructions to properly install and wire the
product could cause an accident or fire.
❑ Take care not to damage the leads.
When wiring, take care not to damage the leads. Prevent
them from getting caught in the vehicle chassis, screws, and
moving parts such as seat rails. Do not scratch, pull, bend or
twist the leads. Do not run them near heat sources or place
heavy objects on them. If leads must be run over sharp
metal edges, protect the leads by winding them with vinyl
tape or similar protection.
❑ Use the designated parts and tools for installation.
Use the supplied or designated parts and appropriate tools
to install the product. The use of parts other than those supplied or designated may result in internal damage to the unit.
Faulty installation may lead to an accident, a malfunction or
fire.
❑ Do not block the air vent or the cooling plate of the
unit.
Blocking these parts will cause the interior of the unit to
overheat and will result in fire or other damage.
CQ-C8803N
3
Safety Information
CLASS 1 LASER PRODUCT
Label Indications and Their Locations
CAUTION
LASER RADIATION WHEN OPEN. DO NOT STARE INTO
BEAM.
Laser Product
Caution
THIS PRODUCT IS A CLASS 1 LASER PRODUCT.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR BY
YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
Do not take apart this unit or attempt to
make any changes yourself.
This unit is a very intricate device that uses a laser
pickup to retrieve information from the surface of
compact discs. The laser is carefully shielded so that
its rays remain inside the cabinet.
Therefore, never try to disassemble the player or alter
any of its parts since you may be exposed to laser
rays and dangerous voltages.
CAUTION - LASER RADIATION WHEN OPEN.
AVOID EXPOSURE TO
BEAM.
VORSICHT - LASERSTRAHLUNG,
WENN
GEÖFFNET. VERMEIDEN
SIE EIN AUSSETZEN
GEGENÜBER
DEM
LASERSTRAHL.
V A R OI TU S – L A S E R SÄTEILYVAARA
A V A TTA E S S A . V A R O
ALTISTUMISTA
SÄTEELLE.
FÖRSIKTIGHET –
LASERSTRÅLNING I
ÖPPNAT LÄGE. UNDVIK
ATT UTSÄTTAS FÖR
STRÅLEN.
ATTENTION –
RAYONNEMENT LASER
SI OUVERT, ÉVITER
TOUTE EXPOSITION AU
FAISCEAU.
ADVARSEL – LASERSTRÅLING.
UNNGÅ
E K S P ON E R I N G FOR
STRÅLEN VED ÅPNING.
ADVARSEL – LASER
UDSENDES NÅR DER
ER ÅBNET. UNDGÅ
UDSÆTTELSE FOR
STRÅLER.
ÇçàåÄçàÖ – ãÄáÖêçéÖ
àáãìóÖçàÖ
èêà
éíäêõíàà. àáÅÖÜÄíú
ÇéáÑÖâëíÇàü ãÄáÖêçéÉé
àáãìóÖçàü.
Deck Ass’y (Upper Side)
Before Reading These Instructions
Panasonic welcomes you to our constantly growing family of electronic products owners.
We endeavor to give you the advantages of precise electronic and mechanical engineering, manufactured with carefully
selected components, and assembled by people who are proud of the reputation their work has built for our company. We
know this product will bring you many hours of enjoyment, and after you discover the quality, value and reliability we have
built into it, you too will be proud to be a member of our family.
The instruction manual consists of 2 books. One is “Operating Instructions” describing the operations of the main unit. The other is
“System Upgrade Guidebook” describing the optional devices such as CD changer.
4
CQ-C8803N
Before Reading These Instructions
XXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXX
XXXXXXXXXXXXXXXX
OO-OOOOO
English
XXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXX
XXXXXXXXXXXXXXXX
OO-OOOOO
System Upgrade
Guidebook
(YEFM285767)
(YEFM262688)
Q'ty: 1
Installation
Instructions
(YEFM294131)
(YEFM294132)
(YEFM294133)
Q'ty: 1
PAN EUROPEAN
GUARANTEE
(Warranty Card)
Q'ty: 1
Q'ty: 1
POWER
SOURCE MENU
SEL
SRC
VOL
SET
BAND
MUTE
1
2
3
RANDOM
SCAN
REPEAT
4
5
7
8
9
0
DISP
TUNE
6
TUNE
#
NUMBER
Accessories
CAR AUDIO
Remote Control Unit
(including a battery)
(CR2025)
Power Connector
Mounting Collar
Trim Plate
(EUR7641010)
(YGAJ021010)
(YEFX0217314)
(YEFC051013)
Q'ty: 1
Lock Cancel Plate
Q'ty: 1
Mounting Bolt
(5 mmø)
Q'ty: 1
Q'ty: 1
ISO Antenna
adaptor
(YEP0FZ5740)
Q'ty: 1 set
Notes:
¡ The number in parenthesis underneath each accessory part name is the part number
for maintenance and service.
¡ Accessories and their parts numbers are subject to modification without prior notice
due to improvements.
¡ Mounting Collar and Trim Plate are mounted on the main unit at shipment.
Safety Information, Before Reading These Instructions
Operating
Instructions
Removable Face
Plate Case
(YEFA134145)
Q'ty: 1
CQ-C8803N
5
Features
CQ-C8803N
WMA MP3 CD Player/Receiver
Hands-Free Phone System
Connection of the optional Bluetooth hands-free kit (Hands-Free
Kit featuring Bluetooth® technology: CY-BT100N) allows users
to talk on a handsfree cellular phone if the phone supports
Bluetooth.
Note: This unit is designed only for receiving calls. It cannot
send calls.
Bluetooth®
The Bluetooth word mark and logo are owned by the
Bluetooth SIG, Inc. and any use of such marks by
Matsushita Electric Industrial Co.,Ltd. is under license.
Other trademarks and trade name are those of their respective owners.
SQ9
This is 9-band equalizer with 62.5, 125, 250, 500, 1 k, 2 k, 4 k,
8 k, and 16 kHz (default). Each band is adjustable between – 12
dB and 12 dB in steps of 2 dB.
Customize
Initially stored moving images and still images are editable to
taste. IMAGE STUDIO* allows you to process images from a
digital camera or other devices without difficulty. (a page 36)
* This software is downloadable from Panasonic Web site
(http://panasonic.co.jp/pas/en/software/customize/index.html)
Expansion Module (hub unit)
Connection of the Expansion Module (hub unit, CY-EM100N)
allows users to connect up to 4 optional devices shown below.
Wide array of components for system upgrade
Various optional components allow users to obtain availability
of wide range of system upgrade. Upgrading the system
delivers relaxed AV space in a car. For further information, refer
to the separate System Upgrade Guidebook.
¡ DVD Changer
The optional adapter (Conversion Cable for DVD/CD
Changer: CA-CC30N) allows you to connect the optional
Panasonic DVD changer unit (CX-DH801N).
¡ CD Changer
The optional adapter (Conversion Cable for DVD/CD
Changer: CA-CC30N) allows you to connect the optional
Panasonic CD changer unit (CX-DP880N).
¡ iPod®
The optional adapter (Direct Cable for iPod: CA-DC300N)
allows you to connect the optional iPod series.
iPod is a trademark of Apple Computer, Inc., registered in
the U.S. and other countries.
Sound Control
SQ (Sound Quality)
You have six preset modes (FLAT, ROCK, POP, VOCAL, JAZZ,
CLUB). You can customize your settings for these and save
them for instant recall.
Full Digital CD Receiver
The CQ-C8803N uses Radio DSP for digital conversion and
processing of FM/AM signals, and a digital amp to provide
amplification of the digital data. With this technology, Panasonic
achieves full digital processing of radio and CD signals from
input to speaker output. This means faithful reproduction of the
original sound.
Radio DSP
By digitally converting and processing FM/AM broadcast
signals, this greatly reduces adjacent interference and multipath
distortion.
A radio's IF filter has the job of preventing neighboring
broadcast frequencies from interfering with reception of your
desired station. Panasonic's Radio DSP uses an advanced
algorithm to perform this task with digital control. It maintains
the optimum balance between noise suppression and sound
quality by automatically adjusting the IF filter bandwidth in
response to the changing interference characteristics as you
drive.
Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)
This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.
For proper treatment, recovery and recycling, please take these products to designated collection
points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may
be able to return your products to your local retailer upon the purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate
waste handling. Please contact your local authority for further details of your nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.
6
CQ-C8803N
Contents
English
2
46
90
134
178
222
266
310
354
Common
¡Safety Information
¡Before Reading These Instructions
¡Features
¡Controls Layout
¡Preparation (ACC Setting etc.)
¡General
¡Sound Control
2
4
6
8
10
12
16
Each
Source
¡Radio
¡Radio Data System (RDS) in FM Broadcasting
¡CD Player
¡MP3/WMA Player
19
22
26
28
As Needed
Deutsch
Français
Nederlands
Svenska
Italiano
Español
Dansk
êÛÒÒÍËÈ
¡Audio Setting
¡Function Setting (Security Function Setting etc.)
¡Display Setting
¡Customize the Display (Customize Function)
¡Troubleshooting
¡Error Display Messages
¡Notes on Discs
¡Maintenance
¡Specifications
32
34
35
36
38
43
44
44
45
CQ-C8803N
7
Controls Layout
Main Unit
Note: This instruction manual explains operations for use with the buttons on the main unit. (Different operations excluded)
VOLUME (a page 13)
PUSH SEL Select
MENU (a page 34, 35)
(a page 32, 33)
DIM Dimmer (a page 15)
u Eject (a page 13)
SRS CS (a page 16)
TILT (a page 13)
/ 5 Pause/Play
y
TUNE (a page 19)
(a page 26, 28)
OPEN (a page 13)
TRACK (FILE)
BAND (a page 19)
(a page 26, 28)
SET (a page 34, 35)
P·SET Preset (a page 19)
APM Auto Preset Memory
DISC (a System Upgrade
(a page 19)
Guidebook)
TA
FOLDER (a page 28)
Traffic Announcement
(a page 24)
D·M Direct Memory
(a page 21)
CQ-C8803N
DM
TA
SQ Sound Quality
(a page 17)
DISP
PTY
MUTE (a page 13)
SBC-SW Super Bass
Control-Subwoofer
(a page 18)
D (DISP) Display (a page 15)
PTY Programme Type
(a page 25)
Release (a page 12)
Remote Control Sensor
SRC Source (a page 14)
PWR Power (a page 12)
When Face Plate
Opens
Disc slot
8
CQ-C8803N
#
Remote Control Unit
NUMBER
–
9
VOL Volume
}:Up
{:Down
SEL Select
MENU
Number
RANDOM
4
0 to 9
POWER
SRC (SOURCE)
RANDOM
POWER
SOURCE MENU
SEL
SRC
SCAN
5
REPEAT
6
7
SCAN
REPEAT
9
VOL
SET
BAND
Pause/Play
SET
APM Auto Preset
Memory
BAND
MUTE
1
2
3
RANDOM
SCAN
REPEAT
4
5
6
7
8
9
0
DISP
TUNE
TUNE
TRACK (FILE)
8
MUTE
SBC-SW Super Bass
Control-Subwoofer
TUNE
#
NUMBER
DISP Display
CAR AUDIO
0
Controls Layout
0
English
Number Buttons
Operations executable only with main unit/
operations executable only with remote control
P·SET (Preset)
DISC (FOLDER)
Although most of the functions of this unit are executable
with both the main unit and remote control, the following
functions are excluded.
Operations executable only with main unit
¡ Face panel’s opening, closing, tilting, and removal
actions (a page 13)
¡ Disc ejection (a page 13)
¡ Dimmer (a page 15)
¡ CS AUTO on, off, and adjustment (a page 16)
¡ SQ on, off, and adjustment (a page 17)
¡ Direct memory setting and calling (a page 21)
¡ TA ON/OFF (a page 24)
Operations executable only with remote control
¡Preset station calling with one-touch operation
(a page 19)
¡ Direct access to tracks on CDs (a page 27, 29)
¡ Random and repeat play with one-touch operation
(a page 27, 29)
¡ Scan playback (a page 27, 29)
¡ PI seek (a page 23)
CQ-C8803N
9
Cancellation of demonstration screen
Preparation
For the first use, the following screen may appear
repeatedly.
5 Press [{] or [}] to select
“DEMONSTRATION”.
1 Set your car's ignition switch to the ACC
or On position.
2 Press [SRC] (PWR: POWER).
The demonstration screen appears.
6 Press [BAND] (SET) to select “OFF”
7 Press [MENU].
For using the remote control, hold down [SEL]
(MENU) for 2 sec. or more.
3 Press [MENU] to display the menu
Note: This unit is operable as usual even if the
demonstration screen is activated. The demonstration
screen automatically appears if no operation is executed
for 1 minute.
display.
For using the remote control, hold down [SEL]
(MENU) for 2 sec. or more.
4 Press []] or [[] to display the
DISPLAY menu.
Preparation Before Initial Use
Warning
Pull the insulation film out
from the backside of
remote control gently.
Keep batteries and insulation film out of reach of
infants. If an infant ingests a battery, please seek
immediate medical attention.
Cautions
Remote Control Preparation
Insulation film
Battery Replacement
Tough pointed object
q Remove the battery holder
with the remote control unit
placed on a flat surface.
q Stick your thumbnail into
the groove, and push the
holder in the direction of
the arrow, and at the
same time.
w
w Pull it out in the direction
of the arrow using a
q
tough pointed object.
Back side
w Put a battery in the case
with (+) side facing up.
e Put the case back.
2
3
10
CQ-C8803N
¡Remove and dispose of an old battery immediately.
¡Do not disassemble, heat or short a battery. Do not
throw a battery into a fire or water.
¡Follow local regulations when disposing of a battery.
¡Improper use of a battery may cause overheating, an
explosion or ignition, resulting in injury or a fire.
Note: Battery Information:
Battery Type: Panasonic lithium battery (CR2025)
(Included in the remote control)
Battery Life: Approximately 6 months under normal use
(at room temperature)
OFF
ACC
IGN
The following functions are activated when the Security
Function is ON. (a page 34)
¡ The security indicator lights up when removing the
face plate.
¡ The alarm sounds and the message appears on the
screen to warn you to remove the face plate at ACC
off. (The above phenomenon occurs when the ACC
setting of the unit is set to ON at the ignition key is at
the ACC off position or when the ACC setting of the
unit is set to OFF at the power of the unit is off)
Security Indicator
You may need to set the following depending on the
devices to be connected.
Using Subwoofer
Other Settings
English
Be sure to select OFF when
your car has no ACC
position in the ignition
switch. Failure to do this
could cause the battery to
go dead.
For a ACC-equipped car, select ON. (a page 34) The
following functions are available. (default: off)
¡ The power is turned on automatically when inserting a
disc.
¡ The clock can be displayed even if the power is off.
(a page 15)
Preparation
ACC Setting
Security Function
Setting
Caution
2 Press [MENU] to display the menu display.
For using the remote control, hold down [MENU]
for 2 sec. or more.
¡ Subwoofer level adjustment (a page 33)
¡ Subwoofer low pass filter (a page 33)
Connecting an AV device (TV, VTR)
If you connect TV to AUX1 terminal, set the AUX1 setting
to TV.
1 Press [SRC] (SOURCE) to select the
AUX1 mode. (a page 14)
3 Press [BAND] (SET) to adjust.
: For connection of other than a TV (default)
: For connection of a TV
4 Press [MENU] to confirm the adjustment.
Clock adjustment
Notes:
¡ Adjust the clock when “NO CT” appears on the display.
¡ When a broadcast of FM Radio Data System is
received, the clock is put right automatically by the
Clock Time service. (a page 22)
1 Press [MENU] to display the menu
display.
For using the remote control, hold down [SEL]
(MENU) for 2 sec. or more.
5 Adjust the setting value.
[[]: Adjusting minutes
[]]: Adjusting hours
[}]: Forward
[{]: Backward
2 Press []] or [[] to display the
6 Press [BAND] (SET) to confirm the
3 Press [{] to select “CLOCK ADJ”.
4 Press [BAND] (SET) to confirm the
7 Press [MENU].
DISPLAY menu.
adjustment.
For using the remote control, hold down [SEL]
(MENU) for 2 sec. or more.
display.
CQ-C8803N
11
General
This chapter explains how to turn on or off the power, how to adjust the volume, etc.
Press [SRC] (PWR: POWER).
CQ-C8803N
DM
TA
(PWR: POWER)
Power On/off
Power on
DISP
PTY
Power off
Hold down [SRC] (PWR: POWER) until you
hear a beep, then release it.
Removing
Mounting
1 Turn off the power (a page 12)
2 Press [ ] (Release).
1 Slide the left side of the face plate in
place.
(The face plate disengages with a click when it is
removed.)
The face plate automatically closes after a
lapse of 5 seconds
while it is open.
The power is automatically turned off while
the unit is active.
(ANTI-THEFT SYSTEM)
Face Plate Removing/Mounting
You can remove the face plate to prevent it from being
stolen.
CQ-C8803N
DM
TA
until “click” is heard.
3
Put the face
plate in the case.
Cautions:
¡ It is recommended to remove or mount the face
plate when the plate is at the closed position.
Do not remove or mount the face plate when the
plate is in motion.
¡ This face plate is not waterproof. Do not expose it to
water or excessive moisture.
¡ Do not remove the face plate while driving your car.
12
2 Press the right end of the face plate
CQ-C8803N
¡ Do not place the face plate on the dashboard or
nearby areas where the temperature rises to high
levels.
¡ Do not touch the contacts on the face plate or on the
main unit, since this may result in poor electrical
contacts.
¡ If dirt or other foreign substances get on the contacts, wipe them off with clean and dry cloth.
¡ To avoid damaging the face plate, do not push it
down or place objects on it while it is open.
When a disc is already loaded, the disc will automatically
be ejected.
CQ-C8803N
DM
TA
DISP
PTY
Tilt
Cautions:
¡ To avoid damaging the face plate, do not push it
down or place objects on it while it is open.
¡ Do not pinch your finger or hand in the face plate.
¡ Do not insert foreign objects into the disc slots.
¡ For the following cases, the face plate automatically closes. Use caution not to catch your finger.
¡ After a lapse of 20 seconds
¡ When a disc is inserted
¡ When the face plate is removed (a page 12)
¡ When the power is set to off (at ACC-off)
Close
The display angle changes among 4 levels as follows
every time you hold down [u] (TILT) for 1 sec. or
more and release.
Note: The last selected
angle is memorized even
after turning off the power.
General
(OPEN/CLOSE, TILT)
Face Plate Motion (Open/Close, Tilt)
Press [u] (OPEN).
English
Open/Eject
TILT 1
TILT 2
TILT 3
OPEN
Press [u] (OPEN).
(VOLUME)
q Up
w Down
Setting Range: 0 to 40
Default: 18
Notes:
¡ The volume level can be set independently for each
source. (For radio, one volume setting for AM
(LW/MW), one volume setting for all FMs)
¡ The volume is not adjustable while an error display is
on the monitor. (a page 43)
¡ This unit memorizes individual volume levels for each
source. Make volume adjustments of each source
appropriately to prevent large volume fluctuation when
the source is changed.
Volume off (down)
Press [MUTE].
MUTE (ATT: ATTENUATION)
Temporary Volume Off (Down)
Volume Adjustment
TILT OFF
CQ-C8803N
DM
TA
DISP
PTY
Cancel
Press [MUTE] again.
Note: Volume-down range can be specified.
(a page 34)
CQ-C8803N
13
General
The source changes as follows every time
[SRC: SOURCE] is pressed.
CQ-C8803N
DM
TA
DISP
PTY
Radio
FM1, FM2, FM3, AM (LW/MW) (a page 19)
Player
System-up Connector
Device connected to the System-up Connector of the
this unit
When optional devices are connected:
Shift to connected devices
When an expansion module is connected:
The devices connected to the ports 1 to 4 are activated
in sequence after shifting to AUX2 (devices connected
to the AUX terminal of the expansion module).
When connecting DVD Changer
When connecting CD Changer
(SOURCE)
Source Selection
When loading CD (a page 26)
When loading MP3/WMA disc (a page 28)
AUX 1
When connecting iPod Player
Device connected to the AUX terminal of the this unit
When connecting a TV (a page 11)
When connecting Expansion Module
When connecting other than a TV
Note: For information about connectable devices, refer
to the System Upgrade Guidebook or the instruction
manual for each device.
14
CQ-C8803N
CQ-C8803N
DM
TA
DISP
PTY
At power-on:
Mode
Display OFF
All displays disappear in 5 seconds.
Ordinary display + clock
Ordinary display + graphic pattern
Only graphic pattern
General
(DISP: DISPLAY)
Folder hierarchy (MP3/WMA mode only.)
Display Change
English
The display changes as follows every time [D] (DISP:
DISPLAY) is pressed.
Note: The graphic pattern and still image are selectable.
(a page 35)
Only still image
Ordinary display + still image
At power-off:
Note: The clock appears only at ACC on setting.
Clock display (default)
Off
Brighter (default)
CQ-C8803N
DM
TA
(DIM: DIMMER)
Dimmer Control
The dimmer level changes as follows every time you hold
down [MENU] (DIM: DIMMER) for 2 sec. or more.
DISP
PTY
Medium
Darker
Note: This setting is not adjustable with the remote
control.
CQ-C8803N
15
Sound Control
This unit is equipped with CS AUTO technology as well as conventional tone adjustment. Select your favorite sound world.
Sound control
At CS Auto ON
At CS Auto OFF
CS AUTO
(Circle Surround Automotive )
Available items
¡ Mode selectable from among MUSIC/CINEMA/
MONO (a page 16)
Adjustable items in audio setting (a page 32)
FRONT-TruBass, REAR-TruBass, SUB.W-TruBass,
FRONT-FOCUS, REAR-FOCUS, F-R MIX
The following items are available only at CS AUTO off.
Available items
¡ SQ (mode selectable from among
FLAT/ROCK/POP/VOCAL/JAZZ/CLUB) (a page 17)
¡ SQ advanced setting/POSITION (a page 17)
¡ SBC-SW (a page 18)
Adjustable items in audio setting (a page 33)
Bass, Treble, Balance, Fader, Subwoofer level adjustment,
Subwoofer Low Pass Filter, High Pass Filter
CS AUTO allows your car interior to change to a splendid
audio room in a moment. Every speaker can be finetuned.
CQ-C8803N
DM
TA
DISP
PTY
You can toggle the CS AUTO function on and off every
time you hold down [VOLUME] (SRS CS) for 2 sec or
more.
Note: If you enable CS AUTO, the following functions
are automatically disabled:
SQ, POSITION, BASS/TREBLE, BALANCE/FADER, SUBWOOFER LEVEL, LPF, HPF, SBC-SW
Lights when CS AUTO is activated.
You can make a fine adjustment to CS AUTO.
1 Set the CS AUTO mode to on.
2 Hold down [SQ] for 2 sec. or more to
display the audio menu display.
CS AUTO MODE
CQ-C8803N
DM
Three-dimensional natural sound field is reproduced with
clarity in response to sound.
: Music
(CS AUTO Menu Display)
CS AUTO Setting
TA
(default in other than the AM mode)
: Cinema
: Monaural (default in the AM mode)
3 Press [BAND] (SET) to adjust.
DISP
PTY
4 Press [D] (DISP: DISPLAY) to confirm
the adjustment.
16
CQ-C8803N
is a trademark of SRS Labs, Inc.
CS Auto technology is incorporated under license
from SRS Labs, Inc.
CQ-C8803N
DM
TA
English
DISP
PTY
SQ changeover
The SQ category is changed every time [SQ] (SOUND
QUALITY) is pressed.
Note: Setting of SQ, bass/treble and volume are
influenced one another. If the influence mentioned above
causes distortion to the audio signal, readjust bass/treble
or volume. (a page 33)
Lights when SQ is activated.
SQ is adjustable in accordance with your taste.
1 Hold down [SQ]
SQ ADJUSTMENT (SQ9)
Sound Control
(SQ: SOUND QUALITY)
SQ Selection Based on Genre
The equalizer curve is selectable from among preset 6
types (FLAT, ROCK, POP, VOCAL, JAZZ, and CLUB)
depending on your listening category.
Note: SQ is not changeable when CS AUTO is enabled.
(a page 16)
CQ-C8803N
(SOUND QUALITY)
for 2 sec. or more
when CS AUTO is disabled.
DM
TA
(Band: 62.5, 125, 250, 500, 1 k, 2 k, 4 k, 8 k, and 16 kHz
(default), Setting range: –12 dB to 12 dB, in 2 dB steps)
You can make a fine adjustment to the currently selected
SQ presetting in each type.
2 Press [}] or [{] to select a function to
be adjusted.
3 Press [BAND]
(SET) to adjust.
(USER)
SQ adjustment
DISP
PTY
4
5 Press [D] (DISP: DISPLAY) to confirm
Adjust the setting value.
the adjustment.
[]][[]: Frequency band selection
qw:
Frequency selection
[}][{]: Level up/down
Note: If you hold down [BAND] for 2 sec. or more, the
presetting that is called up can be turned into the default.
POSITION
You can make the optimal sound field in accordance with
your seat.
[]][[]: Selection
(
): Disabled (default)
(
): Right side of front seat
(
): Left side of front seat
(
): Both sides of front seat
(
): Both sides of rear seat
CQ-C8803N
17
Sound Control
Substitutional Subwoofer
18
(SBC-SW: SUPER BASS CONTROL·SUBWOOFER)
The rear speaker can be used as a substitutional
subwoofer when a subwoofer is not connected.
CQ-C8803N
Holding down [MUTE] (SBC-SW) for 2 sec.
or more toggles SBC-SW on and off.
DM
TA
DISP
PTY
Off (default)
On
Notes:
¡ If ON is selected, the settings of subwoofer level
adjustment and subwoofer low pass filter are activated. (a page 33)
¡ SBC-SW is not changeable when CS AUTO is enabled.
(a page 16)
CQ-C8803N
Lights when SBC-SW is activated.
Radio
This chapter explains how to listen to the radio.
1 Press [SRC] (SOURCE) to select the
CQ-C8803N
DM
DISP
PTY
2 Press [BAND] to select a band.
Operation Flow
3 Select a station.
Frequency adjustment
[]] (TUNE): Lower
[[] (TUNE): Higher
Preset station selection
[{] (P·SET: PRESET): Lower preset number
[}] (P·SET: PRESET): Higher preset number
(APM: AUTO PRESET MEMORY P·SET: PRESET)
Up to 6 stations can be preset in AM (LW/MW), FM1,
FM2, and FM3 respectively.
Preset stations can be simply called up by pressing [}]
(P·SET) or [{] (P·SET).
Notes:
¡ Direct selection can be executed with [1] to [6] buttons on remote control.
¡ You can switch between 6 and 18 for FM presetting
stations. (EACH BAND/ALL BAND)
Auto Preset Memory (APM)
Stations with good receiving conditions automatically
preset.
1 Select a band.
down
2 Hold
[BAND] (APM)
Sound Control
Note: Hold down for 0.5 sec. or more and release
for station search.
Manual station preset
1 Tune in to a station.
2 Hold down [}] or [{] for 2 sec. or
more.
3 Select a preset number by pressing
[}] or [{].
Radio
Notes:
¡ For tuning in on only stations whose receiving conditions are good in the station search, set LOCAL to ON.
(a page 20)
¡ For reducing noise when a receiving FM stereo wave
is weak, set MONO to ON. (a page 20)
Note: Direct selection can be executed with [1] to
[6] buttons on remote control.
Station Preset
English
TA
radio mode.
Note: If [BAND] is pressed while receiving an FM
station, FM broadcasting is changeable among FM 1
to FM 3.
4 Hold down [BAND] (SET) for 2 sec. or
more to determine the selection.
DISP
PTY
for 2 sec. or
more.
The preset stations under best receiving conditions
are received for 5 sec. each after presetting the stations (SCAN). To stop scanning, press [}] or [{].
Notes:
¡ New stations overwrite existing saved stations.
¡ Only RDS stations will be saved at default setting (AF ON).
To select non RDS stations too, set AF OFF. (a page 24)
Notes:
¡ In step 2, a station can be registered by holding down
the numeric button [1] to [6] for 2 sec. or more.
¡ To stop presetting stations, press [D] (DISP: DISPLAY).
¡ The operation above allows users to replace the current station with the station preset in the selected
number while selecting a preset station.
CQ-C8803N
19
Radio
Radio Mode Display
Band
Frequency
Preset Number
Lights when LOCAL is
activated. (a page 20)
Lights while receiving an FM stereo signal.
Lights when MONO is activated. (a page 20)
In the AM mode, only AUDIO FILTER and LOCAL can be
selected.
Noise reduction when the signal strength decreases
: Receiving in stereo (default)
1 Press [MENU] to
: Receiving in mono and reducing the noise level
display the menu
display.
For using the remote
control, hold down
[SEL](MENU) for 2
sec. or more.
MONO (Monaural)
DISP
PTY
LOCAL
Setting when searching for a station
: Searching even for a relatively low-intensity
radio wave station (default)
Radio Menu Display
: Searching only for a high-intensity radio wave
station
2 Press [}] or [{] to select a mode to be
adjusted.
IF filter setting for noise suppression
: Wide range
3 Press [BAND]
(SET) to adjust.
: Middle range (default)
DISP
PTY
4 Press [MENU] to
confirm the
adjustment.
For using the remote control, hold down [SEL]
(MENU) for 2 sec. or more.
AUDIO FILTER (IF)
: Narrow range
PRESET
You can select 6 or 18 stations for FM presetting with the
use of APM.
:
Presets 6 stations to FM1 to FM3 respectively, that is, 18
stations in total at the same time. This function is useful
for presetting more than 6 stations. (default)
:
Presets 6 stations with good reception to the selected
band from FM1 to FM3. This function is useful for presetting stations in different areas in different bands.
D·M SET
(a page 21)
20
CQ-C8803N
CQ-C8803N
DM
TA
DISP
PTY
1 Receive an FM broadcast station via
(D·M: DIRECT MEMORY)
Via FM transmitter
Frequency setting
English
You can register frequencies via an FM transmitter integrated in a mobile audio device. Then, you can call up
those frequencies with a single touch of button from the
CD mode, changer mode, etc. (default: FM 87.50 MHz)
your FM transmitter. (a page 19)
2 Press [MENU] to call up the menu
Listening to an FM station via an
FM transmitter
screen.
3 Press [}] or [{] to select “D·M SET”.
4 Press [BAND] to register the frequen-
Hold down [TA] (D·M) for 2 sec. or more.
cy.
5 Press [MENU] to resume the normal
mode.
Note: If there is something wrong with treble sound,
activate the radio audio filter according to your equipment. (a page 21)
play.
For using the remote
control, hold down
[SEL](MENU) for 2
sec. or more.
RADIO AUDIO FILTER
You can select the reception status (band) of FM stations
registered on D·M.
: Off (default)
DISP
PTY
: High cut level 1
Radio
1 Press [MENU] to display the menu dis-
D·M Menu Display
: High cut level 2 (same processing at receiving
2
an FM station)
Press [BAND]
(SET) to adjust.
DISP
PTY
3 Press [MENU] to confirm the adjustment.
For using the remote control, hold down [SEL]
(MENU) for 2 sec. or more.
CQ-C8803N
21
Radio Data System (RDS) in FM Broadcasting
Useful functions such as AF, TA, PTY, etc. are available in the RDS (Radio Data System)-ready areas.
Some FM stations are broadcasting added data
compatible with RDS. This radio set offers convenient
functions using such data.
RDS service availability varies with areas. Please
understand if RDS service is not available in your area,
the following service is not available, either.
The following functions are available when receiving RDS
stations.
AF (Alternative Frequency)
PTY (Program Type)
The following functions are available when the PTY mode
is active (a page 25).
¡ The PTY of receiving station appears.
¡ Programs can be searched for by PTY.
Note: PTY language can be selected (a page 25).
What is RDS?
Other functions of RDS
The following functions are available when the AF mode
is active (a page 24).
CT (Clock Time)
¡ When receiving conditions become bad, a station with
better receiving conditions is automatically tuned in
to.
¡ When executing APM, only RDS stations are selected.
¡ When calling up a preset station, a best receiving station is selected automatically. (BSR Best Stations
Research)
PS (Program Service Name)
As well as the frequency, the name of the broadcast
station appears.
EON (Enhanced Other Network)
RDS information is updated constantly in response to the
current position.
Note: The AF available range can be adjusted.
(a page 24)
Lights while receiving the EON signal.
TA (Traffic Announcement)
22
The clock is automatically adjusted.
EON-TA
The following functions are
available when the TA mode
is active. (a page 24)
Traffic information from the current and other network
stations can be received.
¡ A TP (Traffic program)
station is automatically
searched for and
received at the instant
of toggling the TA mode
on if you are receiving a
non-TP station.
¡ When executing station search or APM, only TP stations are selected.
¡ Setting to TA on with the unit in another mode, it will
automatically switch to radio mode and output the
traffic announcement when the traffic announcement
begins. The traffic announcement having finished, the
unit will return to the previous mode. (TA Standby
Mode)
Emergency announcement automatically appears on the
display when it is received.
CQ-C8803N
Emergency Announcement Reception
Program Service Name
PTY on display
English
Lights when TA is activated.
Receiving station PTY
RDS mode display
Lights when PTY is
activated.
Lights while receiving a TP
station (that broadcasts
TA).
Lights when AF is
activated.
TA receiving display
PI Seek (Program Identification Seek)
(only by remote control unit)
If reception becomes poor when tuning in a preset
station, press the same preset number button. The same
station with better reception will be searched for.
Press the same preset number button again to cancel.
POWER
SOURCE MENU
SEL
SRC
VOL
SET
BAND
MUTE
1
2
3
RANDOM
SCAN
REPEAT
4
5
6
7
8
9
0
DISP
TUNE
TUNE
#
NUMBER
CAR AUDIO
Note: For PI Seek, cancel the TA mode first, then
execute PI Seek.
CQ-C8803N
Radio Data System (RDS) in FM Broadcasting
PI Seek
(PI SEEK: PROGRAM IDENTIFICATION SEEK)
Lights while receiving the
TA signal.
23
Radio Data System (RDS) in FM Broadcasting
TA ON/OFF
Pressing [TA] toggles TA on and off.
CQ-C8803N
DM
TA
DISP
PTY
(TA: TRAFFIC ANNOUNCEMENT)
TA
Notes:
¡ This operation is not adjustable by the remote control.
¡ Traffic information is available in monaural.
¡ Adjust the TA volume only while receiving a TA.
Lights when TA is activated.
1 Press [MENU] to display the menu dis-
24
DISP
PTY
AF
Adjusting the AF sensitivity
: AF on (
(AF: ALTERNATIVE FREQUENCY/REGION)
AF/Region Setting (FM Menu Display)
play.
For using the remote
control, hold down
[SEL] (MENU) for 2
sec. or more.
2 Press [}] or [{] to select a mode to be
adjusted.
lights.) (default)
: AF off
REGION
3 Press [BAND]
Setting the AF range
: The frequency is changed also for programs
outside the region. (default)
(SET) to adjust.
DISP
PTY
: The frequency is changed only for programs
within the region.
4 Press [MENU] to confirm the adjustment.
For using the remote control, hold down [SEL]
(MENU) for 2 sec. or more.
CQ-C8803N
Holding down [D] (PTY) for 2 sec. or more toggles PTY
mode on and off.
2 Press [BAND] (SET).
Search starts.
DISP
PTY
Notes:
¡ To stop searching, press [BAND] (SET).
English
PTY ON/OFF
¡ When there is no corresponding program type station,
Program Search by PTY
“NONE” is displayed.
Press [}] or [{] to select PTY in the PTY
mode.
Contents
NEWS
AFFAIRS, INFO, EDUCATE,
DRAMA, CULTURE, SCIENCE,
VARIED, WEATHER, FINANCE,
CHILDREN, SOCIAL, RELIGION,
PHONE IN, TRAVEL, LEISURE,
DOCUMENT
3
SPORT
SPORT
4
POP M
POP M
5
CLASSICS
CLASSICS
6
MUSIC
ROCK M, EASY M, LIGHT M,
OTHER M, JAZZ, COUNTRY,
NATION M, OLDIES, FOLK M
Another station in the same PTY is searched for by
pressing [BAND] (SET).
PTY
(PTY: PROGRAM TYPE)
1
2
Program Type
NEWS
SPEECH
Notes:
¡ Direct Access can be executed with [1] to [6] buttons
on remote control.
¡ When there is no corresponding program type station,
“NONE” is displayed.
¡ A desired PTY appears for 5 seconds.
¡ Preset contents are changeable.
1 Press []] or [[] to select PTY.
MUSIC
SPORT
SCIENCE
EASY M
WEATHER
RELIGION
JAZZ
FOLK M
NEWS
EDUCATE
VARIED
LIGHT M
FINANCE
PHONE IN
COUNTRY
DOCUMENT
Original PTY presets can be changed as you like.
1 Select a PTY that you would like to preset.
2 Follow the procedure of ordinary presetting. (a page 19)
PTY language selection
Note: PTY language is selectable only when PTY
appears.
1 Press [MENU] to display the menu display.
For using the remote control, hold down [SEL]
(MENU) for 2 sec. or more.
2 Press [BAND] (SET) to adjust.
:English
a
:German
a
:Spanish
a
:Swedish
a
:Italian
a
:French
:Dutch a (Back to ENGLISH)
a
3 Press [MENU] to confirm the adjustment.
Detailed PTY Selection
SPEECH
INFO
CULTURE
ROCK M
OTHER M
SOCIAL
LEISURE
OLDIES
PTY Preset Change
For using the remote control, hold down [SEL]
(MENU) for 2 sec. or more.
AFFAIRS
DRAMA
POP M
CLASSICS
CHILDREN
TRAVEL
NATION M
CQ-C8803N
Radio Data System (RDS) in FM Broadcasting
Programs can be searched for by use of PTY that has
been originally preset.
25
CD Player
When a disc is already loaded, press [SRC] (SOURCE)
to select the CD mode.
1 Press [u] (OPEN) to open the face
CQ-C8803N
DM
TA
plate.
When a disc is already loaded (
disc will automatically be ejected.
DISP
PTY
lights), the
Operation Flow
2 Load a disc with the printed side facing
up.
The face plate closes automatically, and the unit recognizes the disc and starts playing automatically,
too.
Printed side
3 Select a desired portion.
Track selection
[7] (TRACK): Next track
[6] (TRACK): Preceding track (press twice)
Note: Hold down for fast forward/reverse.
Pause
Press [BAND] (h / 5).
Press again to cancel.
4 Press [u] (OPEN) to eject the disc.
Note: The panel automatically closes after 20 seconds.
CD Mode Display
Track number
26
CD-TEXT display
Notes:
¡ For scrolling text, hold down [D] (DISP: DISPLAY)
for 2 sec. or more.
¡ “NO TEXT” is displayed when there is no information
on the disc.
CQ-C8803N
Time
Play Mode indicators
Lights when each mode is
activated.
Lights when the disc is
loaded.
¡ Refer to the section on “Notes on CD/CD Media (CD-ROM,
CD-R, CD-RW)” (a page 44).
¡ This unit does not support a MIX mode CD (a CD containing
both CD-DA and MP3/WMA data). In case of using such a
CD, problems may occur such as anacoustic playback.
¡ This unit does not support 8 cm discs.
¡ Do not use irregularly shaped discs. (a page 44)
¡ Do not use discs that have a seal or label attached.
¡ To avoid damaging the face plate, do not push it down or
place objects on it while it is open.
¡ Do not pinch your finger or hand in the face plate when the
face plate is in motion.
¡ Do not insert foreign matter into the disc slots.
English
Cautions:
1 Press [MENU] to display the menu display.
For using the remote
control, hold down
[SEL] (MENU) for 2
sec. or more.
RANDOM
DISP
PTY
: Off (default)
: Random playback
2 Press [}] or [{] to select a mode to be
adjusted.
REPEAT
: Off (default)
3 Press [BAND]
: Playing the current track repeatedly
(SET) to adjust.
DISP
PTY
TEXT (CD-TEXT)
: Enabled (default)
: Disabled
4 Press [MENU] to confirm the adjustment.
CD Player
(RANDOM, REPEAT)
Random, Repeat Play (CD Menu Display)
Random and Repeat play can be set.
For using the remote control, hold down [SEL]
(MENU) for 2 sec. or more.
Functions Only by
Remote Control Unit
Play Mode Selection
One-touch operation is available for selecting a track
playing style by use of [RANDOM] or [REPEAT].
RANDOM
Press [RANDOM].
Press again to cancel.
REPEAT
Press [REPEAT].
Press again to cancel.
SCAN play
You can find your favorite file by playing first 10-sec. of
each track.
Press [SCAN].
Press again to cancel.
Direct Access
A track can be directly selected.
Example: track number 5
1 Press [#] (NUMBER).
2 Press [5].
3 Press [SET].
Note: To suspend direct
selection, press [DISP] (DISPLAY).
CQ-C8803N
27
MP3/WMA Player
When a disc is already loaded, press [SRC] (SOURCE)
to select the MP3/WMA mode.
1 Press [u] (OPEN) to open the face
CQ-C8803N
DM
plate.
TA
DISP
PTY
When a disc is already loaded (
lights), the
disc will automatically be ejected.
2 Load a disc with the printed side facing
Operation Flow
up
The face plate closes automatically, and the unit recognizes the disc and starts playing automatically,
too. (It may take several minutes to start for a disc
that has a lot of files.)
Printed side
3 Select a desired portion.
Folder selection
[}] (FOLDER): Next folder
[{] (FOLDER): Preceding folder
File selection
[7] (TRACK): Next file
[6] (TRACK): Preceding file (press twice)
Note: Hold down for fast forward/reverse.
Pause
Note: The panel automatically closes after 20 seconds.
Press [BAND] (h / 5).
Press again to cancel.
4 Press [u] (OPEN) to eject the disc.
File number
Time
Folder number
MP3/WMA Mode Display
File type indicator
Information Display
Notes:
¡ For scrolling text, hold down [D] (DISP: DISPLAY)
for 2 sec. or more.
¡ “NO TEXT” is displayed when there is no information
on the disc.
¡ ID3/WMA tag information is displayed for the album
name and title/artist name.
Play Mode indicators
Lights when each mode is
activated.
(Folder Random)
(Folder Repeat)
(Folder Scan)
28
CQ-C8803N
Lights when the disc is
loaded.
1 Press [MENU] to display the menu dis-
RANDOM
: Off (default)
play.
For using the remote
control, hold down
[SEL] (MENU) for 2
sec. or more.
: Random playback (disc)
DISP
PTY
FOLDER RANDOM
: Off (default)
2 Press [}] or [{] to select a mode to be
adjusted.
3
: Random playback (folder)
REPEAT
Press [BAND]
(SET) to adjust.
: Off (default)
: Playing the current file repeatedly
DISP
PTY
FOLDER REPEAT
4 Press [MENU] to
confirm the adjustment.
For using the remote control, hold down [SEL]
(MENU) for 2 sec. or more.
: Off (default)
: Playing the current folder repeatedly.
TEXT
: Folder name/File name (default)
: Album/Title (tag information)
: No display
Functions Only by
Remote Control Unit
Play Mode Selection
One-touch operation is available for selecting a file
playing style by use of [RANDOM] or [REPEAT].
RANDOM, REPEAT
Press the button. Press again to cancel.
FOLDER RANDOM, FOLDER REPEAT
Hold down the button for 2 sec. or more. Hold
down again to cancel.
SCAN play
You can find your favorite file by playing first 10-sec. of
each file.
SCAN (All files)
Press [SCAN]. Press again to cancel.
MP3/WMA Player
(RANDOM, REPEAT)
Random, Repeat Play (MP3/WMA Menu Display)
Random and Repeat play can be set.
English
Notes:
¡ Refer to the section on “Notes on MP3/WMA” (a page 30)
¡ This unit does not support a MIX mode CD (a CD containing both CD-DA and MP3/WMA data). In case of using such a CD,
problems may occur such as anacoustic playback.
FOLDER SCAN (1st file in each folder)
Hold down [SCAN] for 2 sec. or more. Hold down
again to cancel.
Direct Access
A file in the current folder can be directly selected.
Example: file number 5
1 Press [#] (NUMBER).
2 Press [5].
3 Press [SET].
Notes:
¡ For folder selection, enter a number after pressing [#]
(NUMBER) twice.
¡ To suspend direct selection, press [DISP]
(DISPLAY).
CQ-C8803N
29
MP3/WMA Player
What is MP3/WMA?
MP3 (MPEG Audio Layer-3) and WMA (Windows MediaTM
Audio) are the compression formats of digital audio. The
former is developed by MPEG (Motion Picture Experts
Group), and the latter is developed by Microsoft
Corporation. Using these compression formats, you can
record the contents of about 10 music CDs on a single
CD media (This figures refer to data recorded on a 650
MB CD-R or CD-RW at a fixed bit rate of 128 kbps and a
sampling frequency of 44.1 kHz).
Note: MP3/WMA encoding and writing software is not
supplied with this unit.
Points to remember when making MP3/WMA files
Notes on MP3/WMA
Common
¡ High bit rate and high sampling frequency are recommended for high quality sounds.
¡ Selecting VBR (Variable Bit Rate) is not recommended
because playing time is not displayed properly and
sound may be skipped.
¡ The playback sound quality differs depending on the
encoding circumstances. For details, refer to the user
manual of your own encoding software and writing
software.
MP3
¡ It is recommended to set the bit rate to “128 kbps or
more” and “fixed”.
WMA
¡ It is recommended to set the bit rate to “64 kbps or
more” and “fixed”.
¡ Do not set the copy protect attribute on the WMA file
to enable this unit to play back.
Display Information
Displayed items
¡ CD-TEXT
Disc title
Track title
¡ MP3 (ID3 tag)
Album name
¡ MP3/WMA
Folder name
File name
¡ WMA (WMA tag)
Album name
Title name/artist name
Title name/artist name
Displayable characters
¡ Displayable length of file name/folder name: within 64
characters (Unicoded file and folder names are
reduced by half in the number of displayable characters.)
¡ Name files and folders in accordance with the standard of each file system. Refer to the instructions of
writing software for details.
¡ ASCII character set and special characters in each language can be displayed.
ASCII character set
A to Z, a to z, digits 0 to 9, and the following symbols:
(space) ! ” # $ % & ’ ( ) * + , - . / : ; < = > ? @ [ \ ] ˆ
_`{|}~
Notes:
¡ With some software in which MP3/WMA format files
have been encoded, the character information may not
be displayed properly.
¡ Undisplayable characters and symbols will be converted into an asterisk ( ).
*
Caution:
Never assign the “.mp3”, or “.wma” file
name extension to a file that is not in the
MP3/WMA format. This may not only produce noise from the speaker damage, but
also damage your hearing.
30
CQ-C8803N
Supported file systems
ISO 9660 Level 1/Level 2, Apple Extension to ISO 9660,
Joliet, Romeo
Note: Apple HFS, UDF 1.50, Mix CD and CD Extra are
not supported.
Compression formats
(Recommendation: “Points to remember when making MP3/WMA files” on the previous page)
Compression method
Bit rate
VBR
Sampling frequency
MPEG 1 audio layer 3 (MP3)
32 k – 320 kbps
Yes
32, 44.1, 48 kHz
MPEG 2 audio layer 3 (MP3)
8 k – 160 kbps
Yes
16, 22.05, 24 kHz
Windows Media Audio Ver. 2, 7, 8, 9*
32 k – 192 kbps
Yes
32, 44.1, 48 kHz
* WMA 9 Professional/LossLess/Voice are not supported.
Folder selection order/file playback order
Maximum number of files/folders
¡ Maximum number of files: 511 (files + folders)
¡ Maximum number of files in one folder: 255
¡ Maximum depth of trees: 8
¡ Maximum number of folders: 255 (Root folder is
included.)
Notes:
¡ You can shorten the duration between data read and
playback by decreasing the quantity of files or folders,
or the depth of the hierarchy.
¡ This unit counts the number of folders irrespective of
the presence or absence of an MP3/WMA file.
¡ If the selected folder does not contain any MP3/WMA
files, the nearest MP3/WMA files in the order of playback will be played.
¡ Playback order may be different from other MP3/WMA
players even if the same disc is used.
¡ “ROOT” appears when displaying the root folder
name.
Root Folder
(Root Directory)
1
2
q
Folder Selection
4
3
e
w
6
–
8
r
8
7
Tree 2
1
File Selection
In the order
–
y
q
5
Tree 1
In the order
MP3/WMA Player
Notes on MP3/WMA (continued)
¡ The file extension “.mp3” or “.wma” should be
assigned to each file depending on the file format.
¡ This unit does not have a play list function.
¡ Although Multi-session recording is supported, the
use of Disc-at-Once is recommended.
English
Recording MP3/WMA files on a CD-media
¡ You are recommended to minimize the chances of
making a disc that contains both CD-DA files and
MP3/WMA files.
¡ If CD-DA files are on the same disc as MP3 or WMA
files, the songs may not play in the intended order,
or some songs may not play at all.
¡ When storing MP3 data and WMA data on the same
disc, use different folders for each data.
¡ Do not record files other than MP3/WMA files and
unnecessary folder on a disc.
¡ The name of an MP3/WMA file should be added by
rules as shown in the following descriptions and also
comply with the rules of each file system.
¡ You may encounter trouble in playing MP3/WMA files
or displaying the information of MP3/WMA files
recorded with certain writing software or CD
recorders.
Tree 3
t
y
Tree 4
Tree 8
(Max.)
Copyright
It is prohibited by copyright laws to copy, distribute and
deliver copyrighted materials such as music without the
approval of copyright holder except enjoying yourself
personally.
No warranty
Above description complies with our investigations as of
December 2005. It has no warranty for reproducibility
and displayability of MP3/WMA.
CQ-C8803N
31
Audio Setting
1 Set the CS AUTO mode to on.
(a page 16)
2 Press [VOLUME]
(PUSH SEL:
SELECT) to display the menu
display.
3 Press [VOL-
UME] (PUSH
SEL: SELECT)
to select a mode
to be adjusted.
SUB.W-TruBass
(Setting range: Lv 1 to Lv 10 and OFF, Default: Lv 4)
q : Up
w : Down
FRONT FOCUS
(Setting range: Lv 1 to Lv 10 and OFF, Default: Lv 5)
q : Up
w : Down
Audio Setting (when CS AUTO activated)
REAR FOCUS
4 Turn [VOLUME] clockwise or counterclockwise to adjust.
Note: If no operation takes place for more than 10 sec.
in the audio menu (2 sec. in Main volume adjustment),
the display returns to the regular mode.
F-R MIX (Front to Rear Mixing)
Main volume adjustment
(Setting range: 0 to 40, Default: 18)
q : Up
w : Down
FRONT-TruBass
(Setting range: Lv 1 to Lv 10 and OFF, Default: Lv 4)
q : Up
w : Down
REAR-TruBass
(Setting range: Lv 1 to Lv 10 and OFF, Default: Lv 4)
q : Up
w : Down
32
(Setting range: Lv 1 to Lv 10 and OFF, Default: Lv 5)
q : Up
w : Down
CQ-C8803N
(Setting range: Lv 1 to Lv 10 and OFF, Default: Lv 4)
q : Up
w : Down
Notes:
¡ TruBass®
TruBass is an audio technology to which the technique
of bass sound reproduction used in pipe organs is
electrically applied, and in which an equalizer is not
used at all and bass sound from the speakers to be
used is richly reproduced.
¡ FOCUS®
Focus is an audio technology that moves the sound
image of playing sound vertically to reproduce the
sounds of instruments and voices clearly.
(a page 16)
2 Press [VOLUME]
(PUSH SEL:
SELECT) to display the AUDIO
menu display.
UME] (PUSH
SEL: SELECT)
to select a mode
to be adjusted.
4 Turn [VOLUME] clockwise or counterclockwise to adjust.
Note: f no operation takes place for more than 10
seconds in the audio menu (2 sec. in Main volume
adjustment), the display returns to the regular mode.
(Setting range: L (left)15 to R (right) 15 and Center,
Default: Center)
q : Right enhanced
w : Left enhanced
Fader adjustment
(Setting range: R (rear) 15 to F (front) 15 and Center,
Default: Center)
q : Front enhanced
w : Rear enhanced
Subwoofer level adjustment
(Setting range : mute (-∞), -6 dB to +6 dB, 2 dB Step,
Default: 0 dB)
q : Up
w : Down
Subwoofer Low Pass Filter
Main volume adjustment
(Setting range: 0 to 40, Default: 18)
q : Up
w : Down
(Setting range: Filter OFF, 60 Hz to 160 Hz, 5Hz Step,
Default: 120 Hz)
q : Up
w : Down
Subwoofer output range
Other speakers output ranges
Audio Setting
Audio Setting (when CS AUTO disactivated)
3 Press [VOL-
Balance adjustment
English
1 Set the CS AUTO mode to off.
High Pass Filter
Bass adjustment
(Setting range: -12 dB to +12 dB, 2 dB Step, Default:
Bass 0 dB)
q : Up
w : Down
(Setting range: Filter OFF, 90 Hz to 225 Hz, 5Hz Step,
Default: Filter OFF)
q : Up
w : Down
Treble adjustment
(Setting range: -12 dB to +12 dB, 2 dB Step, Default:
Treble 0 dB)
q : Up
w : Down
Note: Do not activate SQ and Bass/Treble at same time
to avoid causing sound distortion.
CQ-C8803N
33
Function Setting
Adjustment to display on the FUNCTION menu
1 Press [MENU] to display the menu display.
For using the remote
control, hold down
[SEL] (MENU) for 2
sec. or more.
MUTE KEY
Setting [MUTE] buttons’ functions
: Volume off (default)
: Volume down by 10 steps
DISP
PTY
: Volume down by 5 steps
2 Press []] or [[] to display the FUNCTION menu.
EXT.MUTE (External Mute)
Volume adjustment when an interruption such as car
navigation signal occurs
: Volume off (default)
: Volume down by 10 steps
: Volume down by 5 steps
FUNCTION Menu Display
3
: No change in volume
Press [}] or [{] to select a function to
be adjusted.
(External muting display)
4 Press [BAND]
(SET) to adjust.
DISP
PTY
SECURITY
Setting the security function (a page 11)
: ON (default)
5 Press [MENU] to confirm the adjust-
: OFF
ment.
For using the remote control, hold down [SEL]
(MENU) for 2 sec. or more.
ACC
Setting depending on your car
: ACC not equipped (default)
: ACC equipped
Caution
Be sure to select OFF when your car has no
ACC position in the ignition switch. Failure
to do this could cause the battery to go
dead.
BUILT-IN AMP
You can toggle the integrated amplifier on and off.
: Amplifier on (default)
: Amplifier off
(when the external amplifier is used)
lights when disactivated.
34
CQ-C8803N
Display Setting
Adjustment to display on the DISPLAY menu
display.
For using the remote
control, hold down
[SEL] (MENU) for 2
sec. or more.
(Setting range: 5 types, Default: All)
Switching by []] or [[]
DISP
PTY
All:
Sequential display from pattern A to D.
Pattern A-D
English
GRAPHIC PATTERN
1 Press [MENU] to display the menu
2 Press []] or [[] to display the
DISPLAY menu.
3 Press [}] or [{] to select a function to
be adjusted.
(Setting range: 11 types, Default: All)
4 Press [BAND]
5 Adjust the setting value.
6 Press [BAND] (SET).
7 Press [MENU] to confirm the
adjustment.
For using the remote control, hold down [SEL]
(MENU) for 2 sec. or more.
DEMONSTRATION
Switching by [BAND].
: Demonstration screen at no operation (default)
: Regular screen
Switching by []] or [[]
DISP
PTY
All:
Sequential display from pattern 1 to 10
No.1-10
CLOCK ADJ
Note: Adjust the clock when “NO CT” appears on the
display.
[[]: Adjusting minutes
[]]: Adjusting hours
[}]: Forward
[{]: Backward
Function Setting, Display Setting
DISPLAY Menu Display
(SET) to confirm
the display.
STILL IMAGE
Notes:
¡ The graphic pattern and still image are changeable.
(a page 36)
¡ If corrupted data is selected, “DISPLAY FILE INCOMPLETE” appears. (a page 37)
CQ-C8803N
35
Customize the Display (Customize Function)
You can edit the moving images and still images that are initially stored in the unit. You also can use the data that is downloaded from
the Panasonic Web site and the data that is stored with a digital camera or other devices and processed with exclusive software,
IMAGE STUDIO. See “Notes on Customize function” (a page 37) as well.
Note: Visit Panasonic Web site (http://panasonic.co.jp/pas/en/software/customize/index.html) for details.
Preparation:
Put the CD-R/RW that contains data to
be customized in hand.
6 Select a file.
1 If there is a disc inside, take out the
disc.
[}][{][]][[]:Select
[BAND] (SET): Confirm
2 Press [SRC]
(PWR) to select
the CD mode.
DISP
PTY
3 Hold down [PUSH SEL] for 4 sec. or
more to display the menu screen.
Notes:
¡ Files are automatically identified by their extensions, and target files are displayed.
¡ If “BACK” is selected, the screen of step 5
appears.
7 For a moving image file or still image
CUSTOMIZE Menu Display
file, select where to save the file.
4 Load a CD-R/RW that contains data.
Notes:
¡ It may take time for the unit to identify the CDR/RW.
¡ Discs recorded by the packet writing software are
not supported.
5 Select an item to be customized.
[}][{]:
Select
[BAND] (SET): Confirm
[]][[][}][{]:Select
[BAND] (SET): Confirm
Notes:
¡ New data overwrites existing data.
¡ If “BACK” is selected, the screen of step 6
appears.
8 Confirm the changed item.
[]][[]:
Select
[BAND] (SET): Confirm
Note: To exit the customize menu, hold down
[PUSH SEL] 4 sec. or more.
GRAPHIC PATTERN
Moving image (graphic pattern) data (a page 35)
STILL IMAGE
Still image data (a page 35)
OPENING MESSAGE
Moving image at power on
CLOSING MESSAGE
Moving image at power off
36
CQ-C8803N
Customization is performed. Do not turn off the
power in mid-operation. (It takes approx. 5 minutes
to complete this operation for a 548 kB moving
image.) After completion of this operation, the
screen of step 5 appears.
Note: If “NO” is selected, the screen of step 5
appears.
9 Press [OPEN] to eject the disc.
10 Hold down [PUSH SEL] for 4 sec. or
more.
The CD mode comes back.
At Customizing
The download service may be suspended or stopped
without advance notice. The download service is not
available in some areas. Please visit the site below for
further information.
Panasonic Web site:
(http://www.panasonic.co.jp/global/)
Download site:
¡ This download service is not available in some areas.
For details, please access the Panasonic website.
¡ IMAGE STUDIO is available only by downloading from
the address below. It is not bundled with this unit.
¡ Refer to the downloaded operating manual for how to
use IMAGE STUDIO.
http://panasonic.co.jp/pas/en/software/
customize/index.html
Error Display Messages
NO FILES DETECTED
No customize-specific data on the disc
a Load a disc that contains customize-specific
data.
Notes on File
¡ The customize-specific file is downloadable from the
URL below. You can create exclusive files stored with
a digital camera or other devices by using exclusive
software, IMAGE STUDIO that can be accessed from
the same URL.
¡ Do not change the extension. Otherwise, the data cannot be recognized.
CUSTOMIZING FAILED
Customize failed
a Check to see whether or not the extension is correct and file contents are appropriate.
DISPLAY FILE INCOMPLETE
At Disc Making
¡ Save only customize-specific data.
¡ Save all data in the root directory. Files contained in a
folder cannot be recognized.
¡ Follow the table below with regard to the number of
files that are saved to a disc. Files beyond the specified capacity are not readable.
¡ Discs recorded by the packet writing software are not
supported.
Type
Extension
GRAPHIC PATTERN
.pfm
10
STILL IMAGE
.pfs
15
OPENING MESSAGE
.pfo
5
CLOSING MESSAGE
.pfe
5
Intended moving image or still image is damaged.
a Customize it again and overwrite the file with
new one.
Customize the Display (Customize Function)
Notes on IMAGE STUDIO
Notes on Customize Function
¡ If customizing is interrupted on account of turning off
the power, stopping the engine, removing the face
plate or other reasons, you may lose the data. In such
a case, try customizing again.
¡ The default image exists on the Panasonic Web site. If
you would like to restore it, download the image from
the site.
English
Note on Download Service
Max. number
CQ-C8803N
37
Troubleshooting
If You Suspect Something Wrong
Check and take steps as described below.
If the described suggestions do not solve the problem, it is
recommended to take the unit to your nearest authorized Panasonic
Service Centre. The product should be serviced only by qualified
personnel. Please refer the checking and the repair to professionals.
Panasonic shall not be liable for any accidents arising out of neglect of
checking the unit or your own repair after your checking.
Never take measures especially those other than indicated by italic
letters in “Possible Solution” described below because those are too
dangerous for users to handle themselves.
Problem
No power to the
unit
Common
Sound is not
generated.
Noise
Possible cause a Possible solution
The power cord (battery, power and ground) is connected in the wrong way.
a Check the wiring.
Fuse blows out.
a Eliminate the cause of fuse blowout and replace the fuse with new one.
Consult your dealer.
MUTE is set to ON.
a Set MUTE to OFF.
The wiring of speaker lines are not correct, or a break or poor contact arises.
a Check the wiring in accordance with the wiring diagram. (Installation
Instructions)
There is an electromagnetic-wave generator such as a cellular phone near the unit or
its electrical lines.
a Keep an electromagnetic-wave generator such as a cellular phone away from
the unit and the wiring of the unit. In case that noise cannot be eliminated
due to the wiring harness of the car, consult your dealer.
The contact of the ground lead is poor.
a Make sure that the ground lead is connected to an unpainted part of the chassis securely.
Noise is made in
step with engine
revolutions.
38
Warning
¡ Do not use the unit in an irregular condition, for
example, without sound, or with smoke or a foul
smell, which can cause ignition or electric shock.
Immediately stop using the unit and consult your
dealer.
¡ Never try to repair the unit by yourself because it is
dangerous to do so.
CQ-C8803N
Alternator noise comes from the car.
a Change the wiring position of the ground lead.
a Mount a noise filter on the power supply.
Common (continued)
No sound from
speaker(s)
The speaker
channels are
reversed between
right and left.
The sound field is
not clear in the
stereo mode.
Central sound does
not settled.
The power fails
unintentionally.
Poor reception or
noise
Some operations are not executable in particular modes such as menu mode.
a Read the operating instructions carefully and cancel the mode. If the unit is
still out of order, consult your dealer.
English
Some operations
are not executable.
Possible cause a Possible solution
BALANCE/FADER setting is not appropriate.
a Readjust BALANCE/FADER.
There is a break, a short circuit, poor contact or wrong wiring regarding the speaker
wiring.
a Check the speaker wiring.
The speaker wiring is confused between right and left.
a Perform the speaker wiring in accordance with the wiring diagram.
The plus and minus terminals at right and left channels of speakers are connected
reversely.
a Perform the speaker wiring in accordance with the wiring diagram.
The safety device works.
a Consult your dealer, or your nearest Panasonic Service Centre.
Antenna installation or wiring of antenna cable is faulty.
a Check whether the antenna mounting position and its wiring are correct. In
addition, check to see whether the antenna ground is securely connected to
the chassis.
Troubleshooting
Problem
Radio
No power is supplied to the antenna amplifier (when using a film antenna, etc.).
a Check the wiring of the antenna battery lead.
FM Stereo broadcast
is received only in
mono.
The MONO mode is active.
a Cancel the MONO mode.
Only strong signal
stations can be
received.
The LOCAL mode is active.
a Cancel the LOCAL mode.
The number of auto
preset stations is
less than 6.
The number of receivable stations is less than 6.
a Move to an area where receivable stations number is maximum, and try presetting.
Preset stations
cannot be stored.
The contact of the battery lead is poor, or the battery lead is not always powered.
a Make sure that the battery lead is connected securely, and preset stations again.
CQ-C8803N
39
Troubleshooting
RDS
Problem
40
Possible cause a Possible solution
PS does not appear
even if an RDS
station is tuned in to.
(“NO PS” appears.)
A PS code cannot be received for the reason of bad receiving conditions, etc.
a A PS code appears if it is received. Wait for a while until conditions change.
Receiving
programs differs
from PTY that was
already set up.
When the station changed between programs, the unit could not receive the PTY
code.
a An appropriate programme is searched for and tuned in to after receiving a
corresponding PTY code. Therefore, wait for a while.
“NONE” appears
when selecting
PTY.
Any specified PTY programs cannot be received. There is no desired programme
being broadcast in your area.
a Select another PTY, or wait until a desired programme starts.
The clock time (CT)
is not accurate.
The unit received a station broadcasting time that is not appropriate for you, or the
unit is receiving a station that does not broadcast time.
a Receive a station broadcasting time that is appropriate for your area, or
adjust CT manually.
An AF station
cannot be received
even if AF indicator
lights.
There is little difference in receiving conditions between the current station and AF
stations. Update of the AF list ended in failure.
a Wait until the AF list is successfully updated. For unstable reception, tune in
to a stable station by the hand.
CQ-C8803N
No playback or
disc ejected
CD
Sound skipping or
noise
Sound skipping
due to vibration
Disc unejectable
Possible cause a Possible solution
The disc is inserted upside down.
a Insert a disc correctly.
There is a flaw or foreign material on the disc.
a Remove the foreign material, or use a flawless disc.
English
Problem
There is a flaw or foreign material on the disc.
a Remove the foreign material, or use a flawless disc.
The unit is not sufficiently secured.
a Secure the unit to the console box.
The unit is tilted at over 30˚ in the front-to-end direction.
a Make the angle 30˚ or less.
Something such as a peeled label obstructs the disc coming out.
a Press and hold the [u] (OPEN) for more than 2 seconds when the face plate
is open (disc forced ejection). In case that the disc forced ejection does not
work, consult your dealer.
MP3/WMA
No playback or
disc ejected
The disc has unplayable formatted data.
a Refer to the description about MP3/WMA for playable sound data except CDDA (i.e. music CD).
The CD-R/RWs that
are playable on
other devices are
not playable on
this unit.
The playability of some CD-R/RWs may depend on the combination of media,
recording software and recorder to be used even if these CD-R/RWs are playable on
other devices such as a PC.
a Make CD-R/RWs in different combination of media, recording software and
recorder after referring to the description about MP3/WMA.
Sound skipping or
noise
Troubleshooting
The microcontroller in the unit operates abnormally due to noise or other factors.
a Unplug the power cord and plug it again. In case the unit is still out of order,
consult your dealer.
There is a flaw or foreign material on the disc.
a Remove the foreign material, or use a flawless disc. For MP3/WMA, refer to
the description about MP3/WMA.
Playing VBR (Variable Bit Rate) files may cause sound skipping.
a Play Non-VBR files.
CQ-C8803N
41
Troubleshooting
Remote control unit
Problem
42
Possible cause a Possible solution
The battery is inserted in the wrong direction. A wrong battery is inserted.
aInsert a correct battery in the correct direction.
The battery is weak.
aReplace the battery with new one.
No response to
pressing buttons
The aiming direction of the remote control unit is wrong.
aAim the remote control unit at the sensor of the unit and press buttons.
The sensor is exposed to direct sunlight. (The remote control unit may not be
operable when the sensor is exposed to direct sunlight. In such a case, the
system is not faulty.)
aBlock off sunlight to the sensor.
CQ-C8803N
Error Display Messages
Display
English
Possible cause a Possible solution
The disc is dirty, or is upside down.
a Check the disc.
The disc has scratches.
a Check the disc.
The player for some reason cannot read the file you are trying to play. (File recorded
in an unsupported file system, compression scheme, data format, file name extension, damaged data, etc.)
a Select a file that the player can read. Check the type of data recorded on the
disc. Create a new disc if necessary.
(After 5 seconds)
A WMA file can be copyrighted.
a The file protected by copyright is not playable.
To next file automatically
No disc.
Note: Refer to the System Upgrade Guidebook for error messages regarding optional products.
CQ-C8803N
Troubleshooting, Error Display Messages
CD/MP3/WMA
No operation by some cause.
a Unplug the power cord and plug it again. In case the unit is still out of order,
consult your dealer. (a Installation Instructions)
43
Notes on
CD-Rs/RWs
Notes on CD/CD Media (CD-ROM, CD-R, CD-RW)
Notes on Discs
If you use commercial CDs, they must have
either of these labels shown at right.
Some copy-protected music CDs are not
playable.
TEXT
How to hold the disc
Printed side
¡ Do not touch the underside of the disc.
¡ Do not scratch on the disc.
¡ Do not bend the disc.
¡ When not in use, keep disc in the case.
Do not use irregularly shaped discs.
Do not leave discs in the following places:
¡ In direct sunlight
¡ Near car heaters
¡ Dirty, dusty and damp areas
¡ On seats and dashboards
Disc cleaning
Use a dry, soft cloth to wipe from the center outward.
Do not attach any seals or labels to your discs.
Do not write on the disc label with a ballpoint
pen or other hard-point pens.
Labels created by a printer Irregularly shaped discs
<Correct>
<Wrong>
¡ You may have trouble playing back some CD-R/RW discs recorded on CD recorders (CD-R/RW drives), either due
to their recording characteristics or dirt, fingerprints, scratches, etc. on the disc surface.
¡ CD-R/RW discs are less resistant to high temperatures and high humidity than ordinary music CDs. Leaving them
inside a car for extended periods may damage and make playback impossible.
¡ Some CD-R/RWs can not be played back successfully thanks to incompatibility among writing software, a CD
recorder (CD-R/RW drive) and the discs.
¡ This player cannot play the CD-R/RW discs if the session is not closed.
¡ This player cannot play the CD-R/RW discs which contains other than CD-DA or MP3/WMA data.
¡ Be sure to observe the instructions of CD-R/RW disc for handling it.
Cleaning the
Unit
Maintenance
Your product is designed and manufactured to ensure the minimum of maintenance. Use a soft cloth for
routine exterior cleaning. Never use benzine, thinner, or other solvents.
Fuse
If the fuse blows out, consult your dealer, or your nearest authorized Panasonic Service Centre.
44
Warning
¡Use fuses of the same specified rating (15 A). Using substitutes or fuses with higher ratings, or connecting the
unit directly without a fuse could cause fire or damage to the unit. If the replaced fuse fails, contact your
nearest authorized Panasonic Service Centre.
CQ-C8803N
Sampling Frequency
DA Converter
Pick-Up Type
Light Source
Wavelength
Frequency Response
Signal to Noise Ratio
Total Harmonic Distortion
Wow and Flutter
Channel Separation
8 times oversampling
4 DAC System
Astigma 3-beam
Semiconductor laser
790 nm
20 Hz – 20 kHz (±1 dB)
96 dB
0.01 % (1 kHz)
Below measurable limits
86 dB (2 V)
Radio
FM Stereo Radio
Frequency range
Usable sensitivity
Frequency Response
Alternate channel selectivity
Stereo separation
Image response ratio
IF response ratio
Signal to noise ratio
87.5 MHz – 108 MHz
8 dB/µV (S/N 30 dB)
30 Hz – 15 kHz (±3 dB)
75 dB (IF: MID)
40 dB (at 1 kHz)
75 dB (IF: MID)
100 dB (IF: MID)
62 dB
AM (MW) Radio
Frequency Range
Usable Sensitivity
531 kHz – 1 602 kHz
25 dB/µV (S/N 20 dB)
English
DC 12 V (11 V – 16 V), Test Voltage 14.4 V, Negative Ground
Bass; ±12 dB at 80 Hz, Treble; ±12 dB at 6 kHz
62.5, 125, 250, 500, 1 k, 2 k, 4 k, 8 k, 16 k (default) (Hz)
-12 dB to 12 dB (2 dB step)
Less than 2.5 A (CD mode, 0.5 W 4-Speaker)
70 W x 4 (at 1 kHz)
40 W x 4 (DIN 45 324,at 4 Ω)
4–8Ω
5 V (CD mode, 1 kHz, 0 dB)
5 V (CD mode, 1 kHz, 0 dB)
60 Ω
60 Ω
178(W) x 50(H) x 155(D) mm
1.7 kg
Notes on discs, Maintenance, Specifications
General
Power Supply
Tone Controls (Bass/Treble)
Equalizer Center Frequency
Variable Range of Equalizer
Current Consumption
Maximum Power Output
Power Output
Speaker Impedance
Pre-amp output voltage
Subwoofer-output voltage
Pre-amp output impedance
Subwoofer-output impedance
Dimensions (Main Unit)
Weight (Main Unit)
CD Player
Specifications
AM (LW) Radio
Frequency Range
Usable Sensitivity
153 kHz – 279 kHz
32 dB/µV (S/N 20 dB)
Notes:
¡Specifications and design are subject to modification without notice due to improvements.
¡Some figures and illustrations in this manual may be different from your product.
Direct Sales at Panasonic UK
Sales and Support Information
For UK and Ireland customers only.
Customer Care Centre
¡ For customers within the UK: 08705 357357
¡ For customers within the Republic of Ireland: 01 289
8333
¡ Visit our website for product information
¡ E-mail: [email protected]
¡ Order accessories and consumable items for your product with ease and confidence by phoning our Customer
Care Centre Monday - Thursday 9:00am - 5:30pm, Friday
9:30am - 5:30pm. (Excluding public holidays).
¡ Or go on line through our Internet Accessory ordering
application at www.panasonic.co.uk.
¡ Most major credit and debit cards accepted.
¡ All enquiries, transactions and distribution facilities are
provided directly by Panasonic UK Ltd.
¡ It couldn't be simpler!
¡ Also available through our Internet is direct shopping for
a wide range of finished products, so take a browse on
our website for further details.
CQ-C8803N
45
Matsushita Electric Industrial Co., Ltd.
Web Site : http://www.panasonic.co.jp/global/
YEFM285767A
NY0206-1026
Printed in China
●Probieren Sie den Radiobetrieb vor dem Einbau mit Antenne
und Lautsprechern aus.
Exclusively operated with 12 V battery with negative (–) ground.
Connect the power lead (red) very last. (for non-ISO connector)
Connect the battery lead (yellow) to the positive (+) terminal of
the battery or fuse block terminal (BAT). (for non-ISO connector)
Strip about 5 mm of the lead ends for connection.
Prenez contact avec un spécialiste pour le montage.
(for non-ISO connector)
●Vérifiez l’autoradio avant de procéder au montage.
Apply insulating tape to bare leads.
Secure loosened leads.
Consult a professional for installation.
●Verify the radio using the antenna and speakers before installation.
Wenden Sie sich zum Einbau an einen Fachmann.
Vraag een vakman voor de installatie.
●Controleer voor de installatie of de radio werkt met de antenne en
de luidsprekers.
Model:
Dieses Gerät ist ausschließlich für den Anschluss
an Bordnetze mit 12 V Batterie und negativer (–) Klemme
an Masse bestimmt.
Schließen Sie den Versorgungsleiter (rot) zum Schluss an.
●Mounting angle side to side : horizontal
front to rear : 0 - 30°
WMA MP3 CD Player/Receiver
CQ-C8803N
CQ-C8803N
DM
TA
DISP
PTY
English
Before Wiring/Vor der Verdrahtung/
Avant le câblage/Voor het aansluiten van de bedrading
Deutsch
Before Installation/Vor dem Einbau/
Avant l'installation/Voor de installatie
●Bevestigingshoek links/rechts : horizontaal
voor/achter : 0 - 30°
30°
Installation Instructions
Einbauanleitung
Instructions d’installation
Installatiehandleiding
Alimentez l’appareil absolument par la batterie de 12 V avec
sa polarité négative (–) mise à la masse.
Raccorder le fil d'alimentation (rouge) en dernier.
●Mounting space
●Einbauöffnung
●Espace nécessaire pour le montage
●Benodigde ruimte
(pour un connecteur non-ISO)
Connectez le fil (jaune) à la borne positive (+) de la batterie ou
à la borne (BAT) de la boîte à fusibles. (pour un connecteur non-ISO)
Dénudez les extrémités de fil de 5 mm environ pour la connexion.
53 mm
(pour un connecteur non-ISO)
Nederlands
Schließen Sie das Batteriekabel (gelb) an die positive (+)
Klemme der Batterie oder an die (BAT) Klemme des
Sicherungsblocks an. (wenn kein ISO-Stecker verwendet wird)
Entfernen Sie etwa 5 mm der Isolierung von den Kabelenden
für den Anschluss. (wenn kein ISO-Stecker verwendet wird)
Isolieren Sie alle freiliegenden Leiter.
Sichern Sie alle losen Leiter.
●Angle de montage latéral
: horizontal
longitudinal : 0 - 30°
Français
(wenn kein ISO-Stecker verwendet wird)
●Montagewinkel seitlich
: horizontal
vorne-hinten : 0 - 30°
Recouvrez les fils nus d’un ruban isolant.
Resserrez les connexions de fils.
182 mm
Uitsluitend voor gebruik met een 12 V accusysteem
met negatieve (–) aarding.
Sluit de stroomdraad (rood) pas het allerlaatst aan.
4.5 mm – 6.0 mm
Remove Mounting Collar q and Trim Plate r from the main
unit temporarily, which are already mounted at shipment.
Die bei der Lieferung montierte Einbauhalterung q und
Abdeckplatte r vorübergehend vom Gerät abmontieren.
Démontez provisoirement le cadre de montage q et la
plaque de garniture r de l’appareil principal, qui sont déjà
mis en place lors de l’expédition.
Verwijder de Bevestigingskraag q en de Afwerkingsrand r,
die bij het verlaten van de fabriek gemonteerd zijn,
tijdelijk van het hoofdtoestel.
(voor een niet-ISO aansluiting)
Sluit de accudraad (geel) aan op de positieve (+) aansluiting van de
accu of van het zekeringenblok (BAT). (voor een niet-ISO aansluiting)
Strip ongeveer 5 mm van de uiteinden van de draden om de
verbinding tot stand te kunnen brengen. (voor een niet-ISO aansluiting)
Isoleer blote draadeinden met isolatieband.
Zet loshangende draden vast.
Supplied Hardware/Mitgelieferte Hardware/Matériel d’installation/Meegeleverde onderdelen
No.
Item
Diagram
Mounting Collar
Einbauhalterung
Cadre de montage
Bevestigingskraag
Q’ty No.
Item
Trim Plate
Abdeckplatte
Plaque de garniture
Afwerkingsrand
1
YEFX0217314
Diagram
Q’ty
1
YEFC051013
Mounting Bolt (5 mmø)
Befestigungsschraube (5 mmø)
Boulon de fixation (5 mmø)
Bevestigingsbout (5 mmø)
1
ISO Antenna Adapter
ISO-Antennenadapter
Adaptateur d’antenne ISO
ISO antenne-adapter
1
Power Connector
Versorgungsstecker
Connecteur d’alimentation
Stroomstekker
1
Lock Cancel Plate
Verriegelungsfreigabeplatte
Plaque anti-blocage
Ontgrendelingsplaat
2
YGAJ021010
w, t and y consist of a set. (YEP0FZ5740)
w, t et y constituent un jeu. (YEP0FZ5740)
TEXT
●Please read these instructions carefully before using this product and keep this manual for future reference.
●Bitte lesen Sie diese Bedienungsanleitung vor der Verwendung dieses Produktes aufmerksam durch und bewahren
Sie sie danach für spätere Nachschlagzwecke sorgfältig auf.
●Prière de lire ces instructions attentivement avant d’utiliser le produit et garder ce manuel pour l’utilisation ultérieure.
●Leest u deze instructie alstublieft zorgvuldig door voor u dit product in gebruik neemt en bewaar deze handleiding voor later gebruik.
Matsushita Electric Industrial Co., Ltd.
Web Site : http://www.panasonic.co.jp/global/
YEFM294131A NY0206-1026
w, t und y bestehen als Satz. (YEP0FZ5740)
w, t en y bestaan uit een set. (YEP0FZ5740)
Printed in China
Installation/Einbau/Montage/Installatie
How to install the unit/Einbau des Gerätes/Mode de montage de l’appareil/Installeren van het toestel
Caution
● Wear gloves for safety.
● Make sure that wiring is completed
before installation.
Vorsicht ● Tragen Sie Handschuhe, um sich
1
Remove the cable from the battery negative terminal.
Trennen Sie das Kabel von der negativen Batterieklemme ab.
Retirer le câble de la borne négative de la batterie.
Koppel de kabel van de negatieve aansluiting van de accu los.
2
Mounting collar q insertion
Bend mounting tabs.
Einsetzen der Einbauhalterung q
Biegen Sie die Einbaulaschen ab.
Insertion du cadre de montage q
Replier les languettes de fixation.
Inbrengen bevestigingskraag q
Buig bevestigingslipjes om.
vor Verletzungen zu schützen.
● Achten Sie vor dem Einbau darauf,
dass die Verdrahtung fertiggestellt ist.
Attention ● Porter des gants à des fins de sécurité.
● S'assurer que le câblage est terminé avant
l'installation.
Let op
● Draag handschoenen voor uw veiligheid.
● Controleer of de bedrading correct is aangelegd
voor u gaat installeren.
3
Connection of power connector e
Anschluss des Versorgungssteckers e
Raccordement du connecteur d'alimentation e
Aansluiten van de stroomstekker e
Main unit securing
4
4
44
w
4
4
Securing to the fire wall
Befestigung an Brandschutzwand
Obtenir un pare-feu
Vastzetten aan het brandschot
Using the rear support strap (Option)
Verwendung der Einbauleiste (Option)
Utiliser de la barrette de support arrière (en option)
Gebruik van de achter-steunstrip (optioneel)
3 mm
q
Clank!
Using the Rubber bushing (Option)
Verwendung der Gummibuchse (Option)
Utiliser la bague d'amortisseur en caoutchouc (en option)
Gebruik van het rubber stootkussen (optioneel)
Tapping Screw (Option)
Blechschraube (Option)
Vis taraudeuse (en option)
Zelftappende schroef
(optioneel)
Rubber Bushing (Option)
Gummibuchse (Option)
Bague en caoutchouc (en option)
Rubber stootkussen (optioneel)
Rear Support Strap (Option)
Hinterer Stützstreifen
(Option)
Barrette d'appui arrière (en option)
Steunstrip achter (optioneel)
Mounting Bolt w
Befestigungsschraube w
Boulon de fixation w Rear Support Bracket
Bevestigingsbout w (supplied with car)
Einbauleiste (vorhanden im
Fahrzeug)
Support arrière
Hexagonal nut (Option)
To the unit
(fourni avec votre voiture)
Sechskantmutter (Option) An das Gerät
Achter-steunbeugel
Ecrou hexagonal (en option) Côté appareil
(behorend bij de auto)
Zeskantige moer (optioneel) Naar het toestel
Mounting Bolt w
Befestigungsschraube w
Boulon de fixation w
Bevestigingsbout w
To the unit
An das Gerät
Côté appareil
Naar het toestel
Snapping point
Einschnapppunkt
Position de rupture
Breekpunt
5
5
6
q
Bend appropriate tabs to secure the unit
without backlash.
Die entsprechenden Einbaulaschen so
umbiegen, dass das Gerät ohne Spielraum
fest sitzt.
Replier les languettes
de fixation appropriées
pour immobiliser
l'appareil sans
contrecoup.
Buig de juiste lipjes om
zodat het toestel vast
zit zonder speling.
q Screw the mounting bolt w into the main unit.
w Securing to the fire wall.
e Snap the right and left springs into each hole.
Befestigung des
q Schrauben Sie die Befestigungsschraube w
Hauptgerätes
in das Hauptgerät.
w An der Feuerschutzwand sichern.
e Lassen Sie die rechten und linken Federn in den
Löchern einschnappen.
Fixation de l'appareil q Visser le boulon de fixation w dans l'appareil
principal
principal.
w Saisissage du pare-feu.
e Bouteroller les ressorts droit et gauche dans chaque trou.
Vastzetten hoofdtoestel q Draai de bevestigingsbout w in het hoofdtoestel.
w Vastzetten aan het brandschot.
e Zet de achterkant van het hoofdtoestel vast.
e
Trim plate r mounting
Anbringen der Abdeckplatte r
Installation de la plaque de garniture r
Bevestigen van de afwerkingsrand r
Battery Cable reconnection
Wiederanschließen des Kabels
Rebranchement du câble
Opnieuw aansluiten kabel
How to remove the unit/Ausbau des Gerätes/
Dépose de l’appareil/Verwijderen van het toestel
Caution
When this unit is installed in dashboard,
ensure that there is sufficient air flow
around the unit to prevent damage from
overheating, do not block any ventilation
holes on the unit.
Vorsicht
Bei Einbau des Geräts im Armaturenbrett
sollte darauf geachtet werden, dass der
Luftstrom um das Gerät nicht behindert ist,
um Beschädigung durch Überhitzen zu
verhindern, und die Belüftungsöffnungen
des Geräts nicht blockiert sind.
Attention
Lorsque cet appareil est installé dans le
tableau de bord, assurez-vous qu'il y a une
circulation d'air suffisante autour de
l'appareil afin d'éviter tout endommagement
provoqué par une surchauffe et qu'aucun
trou d'aération de l'appareil n'est obturé.
Let op
Wanneer dit toestel in het dashboard wordt
geïnstalleerd, moet u ervoor zorgen dat er
voldoende ventilatie is rond het toestel. Om
oververhitting te voorkomen mogen de
ventilatie-openingen in het toestel niet
afgedekt worden.
1
Remove the face plate.
Nehmen Sie das
Bedienteil ab.
Retirer le plaque de
façade.
Verwijder de voorplaat.
2
Remove the trim plate r.
Entfernen Sie die
Abdeckplatte r.
Enlevez la plaque de
garniture r.
Verwijder de
afwerkingsrand r.
3
Lock release
w
e
q
w
q
q Insert the lock cancel plate
y until you hear a click.
w Pull the main unit.
Verriegelungsfreigabe
q Setzen Sie die
Verriegelungsfreigabeplatte y
ein, bis Sie ein Klickgeräusch
vernehmen können.
w Ziehen Sie an dem Hauptgerät.
w
Libération du verrouillage
q Introduisez la plaque antiblocage y jusqu’à entendre
un clic.
w Dégager l'appareil principal.
Ontgrendeling
q Steek de
ontgrendelingsplaat y naar
binnen tot u een klik hoort.
w Trek het hoofdtoestel naar
buiten.
4
Pull out the unit with
both hands.
Ziehen Sie das Gerät mit
beiden Händen heraus.
Retirez l’appareil à deux
mains.
Trek het toestel met beide
handen naar buiten.
Wiring/Verdrahtung/Câblage/Bedrading
Secure the converter with screws and so forth.
Keep some distance between RCA Cords and the antenna lead.
Den Wandler mit Schrauben usw. befestigen.
Etwas Abstand zwischen den RCA-Leitungen und der Antennenleitung vorsehen.
Fixez le convertisseur avec des vis ou un autre moyen appropri
Gardez une certaine distance entre les cordons RCA et le fil d’antenne.
Zet de converter vast met schroeven en wat dies meer zij.
Houd de RCA (tulpstekker) snoeren en de antennedraad bij elkaar uit de buurt.
DC/DC Converter
Gleichspannungswandler
Convertisseur CC/CC
DC-DC convertereenheid
Caution
To prevent damage to the unit, do not connect the power connector until the whole
wiring is completed.
Vorsicht
Um Beschädigung des Gerätes zu vermeiden, schließen Sie den Versorgungsstecker
erst an, nachdem die gesamte Verdrahtung vollständig beendet wurde.
Attention
Ne pas introduire la prise d'alimentation secteur dans l'appareil tant que le câblage n'est
pas complètement terminé afin de ne pas risquer d'endommager l'appareil.
Let op
Om schade aan het toestel te voorkomen mag u de stroomstekker pas aansluiten
wanneer de bedrading volledig is aangesloten.
Fuse (15 A) Refer fuse replacement to your nearest authorized Panasonic Service Centre. Do
not try fuse replacement by yourself.
Sicherung (15 A) Wenden Sie sich zum Austausch der Sicherung an eine autorisierte PanasonicKundendienststelle in Ihrer Nähe. Versuchen Sie nicht, den Austausch selbst vorzunehmen.
Fusible (15 A) Confier le remplacement de fusible au centre de service de service après-vente
Panasonic agréé le plus proche. Ne pas essayer de remplacer le fusible tout(e) seul(e).
Zekering (15 A) Laat het vervangen van de zekering over aan uw dichtstbijzijnde Panasonic
service-centrum. Probeer in geen geval zelf de zekering te vervangen.
Antenna
Antenne
Antenne
Antenne
C1 :
System-up Connector
System-Upgrade-Stecker
Connecteur de mise à niveau de système
Systeemuitbreidingsaansluiting
ISO Antenna Adapter (If needed)
ISO-Antennenadapter
(falls erfor derlich)
Adaptateur d'antenne ISO
(si nécessaire)
ISO antenne-adapter (Indien nodig)
(R)/(R)/(D)/(R)
(Red)/(Rot)/(Rouge)/(Rood)
S.W-OUT
(L)/(L)/(G)/(L)
(White)/(Weiß)/(Blanc)/(Wit)
(R)/(R)/(D)/(R)
(Red)/(Rot)/(Rouge)/(Rood)
AUX1-IN
(L)/(L)/(G)/(L)
(White)/(Weiß)/(Blanc)/(Wit)
C3 :
(Brown w/black stripe)/(Braun mit schwarzem Streifen)/(Brun à rayures noires)/
(Bruin met zwarte streep)
External Remote Control Lead
When using a non-Panasonic external remote control, refer to the manufacture for their
product before connecting.
Leitungsdraht für externe Fernbedienung
Wenn Sie eine externe Fernbedienung verwenden, die nicht von Panasonic hergestellt
wurde, wenden Sie sich vor dem Anschluss an den Hersteller des Produktes.
Fil de la télécommande extérieure
En cas d’utilisation d’une télécommande extérieure non-Panasonic, se référer aux
conseils du fabricant concerné pour les connexions électriques.
Externe afstandsbedieningsdraad
Bij gebruik van een externe afstandsbediening die niet van Panasonic is, dient u voor
aansluiting de handleiding of de fabrikant van het product in kwestie te raadplegen.
Subwoofer Output Connector
The RCA cord of an external power amplifer should be
connected.
Subwoofer-Ausgangsstecker
Hier das RCA-Kabel eines externen Leistungsverstärkers
anschließen.
Connecteur de sortie du haut-parleur des extrêmes-graves
Le cordon RCA d’un amplificateur de puissance extérieur
doit être raccordé.
Subwoofer uitgangsaansluiting
Hierop kunt u via een RCA (tulpstekker) snoer een externe
eindversterker aansluiten.
C4 :
AUX Input Connector
AUX-Eingangsstecker
Connecteur d'entrée AUX
AUX-ingangsaansluiting
(Red)/(Rot)/(Rouge)/(Rood)
PRE-OUT REAR
(L)/(L)/(G)/(L)
A7 : (Red)/(Rot)/(Rouge)/(Rood)
Power Lead (ACC or IGN) To ACC power, +12 V DC.
Versorgungskabel (ACC oder IGN) An die ACC-Stromklemme, +12 V Gleichspannung.
Fil d’alimentation (ACC ou IGN) A l’alimentation ACC, +12 V CC.
Stroomdraad (ACC of IGN) Naar ACC stroomvoorziening, + 12 V gelijkstroom.
ACC
Preamp Out Connector (Rear)
Vorverstärker-Ausgang (Rückseite)
Connecteur de sortie de préamplificateur (arrière)
Uitgangsaansluiting voorversterker (achter)
External Mute Lead
To the Navi Mute lead of the Panasonic car navigation system
or car telephone mute lead.
Externe-Stummschaltungskabel
An das Navigationssystem-Stummschaltungskabel des
Panasonic Navigationssystems oder an das
Autotelefon-Stummschaltungskabel.
Fil de Mise en sourdine extérieure
A raccorder au fil Navi Mute du système de navigation automobile de
Panasonic ou au fil de mise en sourdine du téléphone pour véhicule.
Externe-geluiddempingsdraad
Naar de Navi Mute draad van een Panasonic auto-navigatiesysteem
of naar de dempingsdraad voor deautotelefoon.
(Blue w/white stripe)/(Blau mit weißem Streifen)/(Bleu à rayures blanches)/(Blauw met witte streep)
Amp·Relay Control Power Lead To Panasonic power amplifier. (Max. 100 mA) (synchronized with the power on/off of amplifier)
Stromversorgungskabel für Verstärkerrelaissteuerung an den Panasonic Leistungsverstärker. (Max. 100 mA) (synchronisiert mit dem Ein/Ausschalten der
Stromversorgung des Verstärkers)
Fil d'alimentation de commande de relais d'amplificateur à amplificateur de puissance Panasonic. (Max. 100 mA) (synchronisé à l'application ou la coupure
d'alimentation de l'amplificateur)
Versterker-relais Stuurstroomdraad naar Panasonic eindversterker. (Max. 100 mA) (gesynchroniseerd met de eindversterker aan/uit)
A5
(R)/(R)/(D)/(R)
(Orange)/(Orange)/(Orange)/(Oranje)
BATTERY 15A
(White)/(Weiß)/(Blanc)/(Wit)
ISO Connector
ISO-Stecker
Connecteur ISO
ISO aansluiting
(R)/(R)/(D)/(R)
(Red)/(Rot)/(Rouge)/(Rood)
A
A
A
A
A
Preamp Out Connector (Front)
Vorverstärker-Ausgang (Vorderseite)
Connecteur de sortie de préamplificateur (avant)
(L)/(L)/(G)/(L) Uitgangsaansluiting voorversterker (voor)
(White)/(Weiß)/(Blanc)/(Wit)
PRE-OUT FRONT
B
A8 : (Black)/(Schwarz)/(Noir)/(Zwart)
Ground Lead To a clean, bare metallic part of the car chassis.
Massekabel An ein sauberes, metallisches Teil des Fahrzeugchassis.
Fil de mise à la masse A une partie métallique propre découverte du châssis de voiture.
Aarding Naar een schoon, bloot metalen onderdeel van het chassis.
A4 : (Yellow)/(Gelb)/(Jaune)/(Geel)
Battery Lead To the car battery, continuous +12 V DC.
Batteriekabel An die Batterie des Fahrzeuges, kontinuierlich +12 V Gleichspannung.
Fil de batterie A la batterie de voiture, alimentation continue de +12 V CC.
Accudraad Naar de accu van de auto, doorlopende stroomvoorziening + 12 V gelijkstroom.
A5 : (Blue)/(Blau)/(Bleu)/(Blauw)
A
Motor Antenna Relay Control Lead To Motor Antenna. (Max. 100 mA) (This lead is not
intended for use with a switch actuated power antenna)
Steuerkabel für Relais der motorbetriebenen Antenne Zu motorbetriebenen Antenne
(max. 100 mA) (Dieses Kabel dient nicht für die Verwendung mit einer über einen
Schalter aktivierten motorbetriebenen Antenne.)
Fil de commande de relais d’antenne motorisée A l’antenne motorisée (100 mA maxi.)
(Ce fil n’est pas conçu pour l’usage avec l’antenne commandée par interrupteur.)
Stuurdraad relais gemotoriseerde antenne Naar de gemotoriseerde antenne. (Max. 100
mA) (Deze draad is niet bedoeld voor een gemotoriseerde antenne die met een
schakelaar wordt ingeschakeld.)
System Upgrade Example: Connecting with the CD changer/Beispiel für ein System-Upgrade: Anschluss an den CD-Wechsler
/Exemple de mise à niveau de système: Raccordement à un changeur de disque CD/Voorbeeld systeemuitbreiding: Aansluiten van een CD-wisselaar
CX-DP880N
CQ-C8803N
(Optional)
(Option)
(en option)
(Optioneel)
System-up
Connector
System-UpgradeStecker
Connecteur de mise
à niveau de système
Systeemuitbreidingsaansluiting
Ground Lead
Massekabel
Fil de mise à la masse
Aarding
Battery Lead
Batteriekabel
Fil de batterie
Accudraad
CHANGER IN
(L)/(L)/(G)/(L)
(White)/(Weiß)/(Blanc)/(Wit)
RCA Cord
Cinchkabel
Cordon RCA
RCA (tulpstekker) snoer
(Red)/(Rot)/(Rouge)/(Rood)
Conversion Cable for DVD/CD Changer
Umwandlungskabel für DVD/CD-Wechsler
Câble de conversion de changeur DVD/CD
Conversiekabel voor DVD/CD-wisselaar
- B8
B8 :
Rear Left + (Green)
Hinten Links + (Grün)
Arrière gauche + (Vert)
Links achter + (Groen)
ISO Connector
ISO-Stecker
Connecteur ISO
ISO aansluiting
B5 :
Rear Left – (Green w/black stripe)
Hinten Links – (Grün mit schwarzem Streifen)
Arrière gauche – (Vert à rayures noires)
Links achter – (Groen met zwarte streep)
B
B
B
B
B4 :
Front Right + (Gray)
Vorne Rechts + (Grau)
Avant droit + (Gris)
Rechts voor + (Grijs)
Front Right – (Gray w/black stripe)
Vorne Rechts – (Grau mit schwarzem Streifen)
Avant droit – (Gris à rayures noires)
Rechts voor – (Grijs met zwarte streep)
B1 :
B2 :
Rear Right + (Violet)
Hinten Rechts + (Violett)
Arrière droit + (Violet)
Rechts achter + (Paars)
Rear Right – (Violet w/black stripe)
Hinten Rechts – (Violett mit schwarzem Streifen)
Arrière droit – (Violet à rayures noires)
Rechts achter – (Paars met zwarte streep)
-
CA-CC30N
- B6
B5 +
Front Left – (White w/black stripe)
Vorne Links – (Weiß mit schwarzem Streifen)
Avant gauche – (Blanc à rayures noires)
Links voor – (Wit met zwarte streep)
B3 :
+
B7 +
B6 :
B
Front Left + (White)
Vorne Links + (Weiß)
Avant gauche + (Blanc)
Links voor + (Wit)
DIN Cord
DIN-Kabel
Cordon DIN
DIN snoer
(R)/(R)/(D)/(R)
B7 :
- B2
B1 +
- B4
B3 +
(Optional)(Option)(en option)(Optioneel)
Power connector/Versorgungsstecker/Connecteur d’alimentation/Stroomstekker
Standard ISO/ISO-Standard/Normes ISO/Standaard ISO
A7
A4
IGN or ACC 12 V supply
12 V-Versorgung
(IGN/ACC)
Alimentation 12 V en
IGN ou ACC
IGN of ACC 12 V
stroomvoorziening
12 V Batteries (Continuous supply)
12 V-Batterie (Dauerversorgung)
Batterie de 12 V (alimentation continue)
12 V accu (doorlopende stroomvoorziening)
(❈)
ACC
Car-side connector
Steckverbinder am Fahrzeug
Connecteur côté voiture
Stekker aan autozijde
BATTERY 15A
(❈)
Car Type A/Kraftfahrzeug des Typs A/Type de voiture A/Autotype A
A4
A7
IGN or ACC 12 V supply
12 V-Versorgung
(IGN/ACC)
Alimentation 12 V en
IGN ou ACC
IGN of ACC 12 V
stroomvoorziening
12 V Batteries (Continuous supply)
12 V-Batterie (Dauerversorgung)
Batterie de 12 V (alimentation continue)
12 V accu (doorlopende stroomvoorziening)
●The pin arrangement of the power connector
conforms to ISO standard.
●Please check that the pin arrangement of the
connector in your car conforms to ISO standard.
●For car types A and B, change the wiring of the
red and yellow leads as shown at below.
●After connection, insulate the portions marked (❈)
with insulating tape.
Note: For cars other than types A and B, please
consult your local car shop.
Connect as follows.
Nehmen Sie den Anschluss wie folgt vor.
Branchez les haut-parleurs comme suit.
Sluit de luidsprekers als volgt aan.
L
Vorsichtsmaßregeln (ISO-Stecker)
●Die Stiftbelegung des Versorgungssteckers entspricht
dem ISO-Standard.
●Bitte stellen Sie sicher, dass die Stiftbelegung
des Steckers in Ihrem Fahrzeug dem ISO-Standard
entspricht.
●Für Fahrzeuge der Typen A und B, ändern Sie die
Verdrahtung der roten und gelben Leiter gemäß Abbildung.
●Nach dem Anschluss isolieren Sie die mit (❈) markierten
Abschnitte mit Isolierband.
Hinweis: Für andere Fahrzeuge als Typ A und B,
wenden Sie sich bitte an eine örtliche Pkw-Werkstatt.
●Use ungrounded speakers only.
Allowable input : 70 W or more
Impedance : 4 – 8 Ω
●Distance between speaker and amplifier: 30 cm or more
●Verwenden Sie nicht geerdete Lautsprecher.
Zulässige Belastbarkeit: 70 W oder mehr
Impedanz : 4 – 8 Ω
●Entfernung zwischen Lautsprecher und Verstärker: 30 cm oder mehr
●Utilisez uniquement des haut-parleurs non reliés à la masse.
Puissance d'entrée admissible: 70 W ou davantage
Impédance: 4 – 8 Ω
●Distance entre le haut-parleur et l'amplificateur: 30 cm ou davantage
R
●Gebruik uitsluitend ongeaarde luidsprekers.
Toegestaan ingangsvermogen: 70 W of hoger
Impedantie: 4 – 8 Ω
●Afstand tussen luidspreker en versterker: 30 cm of meer
Précautions (Connecteur ISO)
(❈)
Car-side connector
Steckverbinder am Fahrzeug
Connecteur côté voiture
Stekker aan autozijde
BATTERY 15A
ACC
(❈)
Car Type B/Kraftfahrzeug des Typs B/Type de voiture B/Autotype B
●La disposition des broches du connecteur d'alimentation
est conforme à la norme ISO.
●Veuillez vérifier si que la disposition des broches du
connecteur d'alimentation dans votre voiture est conforme
à la norme ISO.
●Pour les types de voiture A et B, changer le câblage des
fils rouge et jaune comme indiqué ci-dessous.
●Après avoir fait les connexions, isoler les sections
marquées (❈) avec de la bande isolante.
Remarque: Pour les voitures autres que des types A et B,
veuillez consulter votre magasin de matériel automobile local.
Caution
●Do not connect more than one speaker to one set of
speaker leads. (except for connecting to
a tweeter)
Vorsicht
A4
A7
No connection
Kein Anschluss
Aucune connexion
Geen aansluiting
12 V Batteries (Continuous supply)
12 V-Batterie (Dauerversorgung)
Batterie de 12 V (alimentation continue)
12 V accu (doorlopende stroomvoorziening)
(❈)
Car-side connector
Steckverbinder am Fahrzeug
Connecteur côté voiture
Stekker aan autozijde
Precautions (ISO Connector)
Speaker Connection/Anschluss der Lautsprecher/Branchement avec les haut-parleurs/Aansluiten van de luidsprekers
ACC
BATTERY 15A
(❈)
Voorzorgen (ISO stekker)
●De pen-configuratie van de stroomstekker voldoet aan de
ISO standaard.
●Controleer of de pen-configuratie van de stekker in uw
auto eveneens voldoet aan de ISO standaard.
●Voor auto's van type A en B, dient u de bedrading voor de rode
en gele draden te wijzigen zoals hieronder staat aangegeven.
●Na het aansluiten dient u de gedeelten die met (❈)
gemarkeerd zijn met isolatieband af te plakken.
Opmerking: Voor andere auto's dan die van type A en B
dient u uw garage te raadplegen.
●Schließen Sie niemals mehr als einen Lautsprecher
an einen Satz Lautsprecherleiter an. (außer bei
Anschluss eines Hochtonlautsprechers)
Attention
●Ne raccorder pas plus d'un haut-parleur à un
ensemble de fils de haut-parleur. (Sauf lors du
raccordement à un tweeter)
Let op
●Sluit niet meer dan één luidspreker aan op één paar
luidsprekerdraden. (Behalve bij aansluiting op een
tweeter.)
●Do not use a 3-wire type speaker system
having a common earth lead.
●Verwenden Sie niemals Lautsprechersysteme mit
Dreierverkabelung, die einen gemeinsamen
Erdungsleiter aufweist.
●Ne pas utiliser pas de système de haut-parleur
de type à 3 fils ayant un fil de mise à la masse
commun.
●Gebruik geen luidsprekersysteem met drie
draden en een gedeelde aarddraad.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
