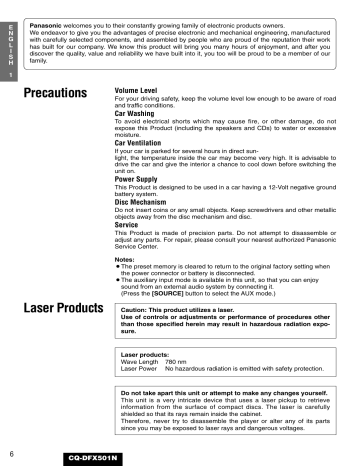

Panasonic welcomes you to their constantly growing family of electronic products owners.
We endeavor to give you the advantages of precise electronic and mechanical engineering, manufactured
with carefully selected components, and assembled by people who are proud of the reputation their work
has built for our company. We know this product will bring you many hours of enjoyment, and after you
discover the quality, value and reliability we have built into it, you too will be proud to be a member of our
family.
1
Precautions
Volume Level
For your driving safety, keep the volume level low enough to be aware of road
and traffic conditions.
Car Washing
To avoid electrical shorts which may cause fire, or other damage, do not
expose this Product (including the speakers and CDs) to water or excessive
moisture.
Car Ventilation
If your car is parked for several hours in direct sunlight, the temperature inside the car may become very high. It is advisable to
drive the car and give the interior a chance to cool down before switching the
unit on.
Power Supply
This Product is designed to be used in a car having a 12-Volt negative ground
battery system.
Disc Mechanism
Do not insert coins or any small objects. Keep screwdrivers and other metallic
objects away from the disc mechanism and disc.
Service
This Product is made of precision parts. Do not attempt to disassemble or
adjust any parts. For repair, please consult your nearest authorized Panasonic
Service Center.
Notes:
¡The preset memory is cleared to return to the original factory setting when
the power connector or battery is disconnected.
¡The auxiliary input mode is available in this unit, so that you can enjoy
sound from an external audio system by connecting it.
(Press the [SOURCE] button to select the AUX mode.)
Laser Products
Caution: This product utilizes a laser.
Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation exposure.
Laser products:
Wave Length 780 nm
Laser Power No hazardous radiation is emitted with safety protection.
Do not take apart this unit or attempt to make any changes yourself.
This unit is a very intricate device that uses a laser pickup to retrieve
information from the surface of compact discs. The laser is carefully
shielded so that its rays remain inside the cabinet.
Therefore, never try to disassemble the player or alter any of its parts
since you may be exposed to laser rays and dangerous voltages.
6
CQ-DFX501N
Remote Control Unit
E
N
G
L
I
S
H
Battery Installation
q Remove the battery holder.
Take hold of the holder at position B and pull it out
by pushing position A in the direction shown by
the arrow.
w Install the battery on the battery holder.
Set a new battery properly with its (+) side facing
up as shown in the figure.
e Insert the battery holder.
Push in the battery holder back into its original
position.
(Back side)
Lithium battery
2
Position B
Battery Notes
Battery holder
Position A
Remove and dispose of an old battery immediately.
Battery Information:
¡Battery Type:Panasonic lithium battery (CR2025)
(Included)
¡Battery Life: Approximately 6 months under normal
use (at room temperature)
Caution: Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire.
Battery leakage may damage the unit.
¡Do not disassemble or short the battery. Do not throw a battery into a fire.
¡Keep batteries away from children to avoid the risk of accidents.
¡Be careful to the disposal rules when you dispose of batteries.
Remote Controls
(ATT)
Power
PWR
Mode (Source)
Band, Disc up
MUTE
Mute/ATT
VOL
Volume Control
MODE
PRG
BAND/DISC UP
TUNE
TRACK
Tune, Track Search,
Fast Forward/backward
Car Audio
CQ-DFX501N
7
E
N
G
L
I
S
H
3
Power and Audio Controls
Power
Anti-Volume-Blast
Circuit
Turn the key in the ignition until the accessory indicator lights.
Power on : Press [SOURCE] (PWR).
Power off : Press [SOURCE] (PWR) again and hold.
Volume
Remote control sensor
[}VOL] : Up
[{VOL] : Down
Press and hold for rapid adjustment.
Notes:
¡When the power is switched on for the
first time, a demonstration message
appears on the display.
To cancel this display, press [DISP].
¡The demonstration is displayed when
the power is turned on by pressing
and holding [SOURCE] for 4 seconds.
VOLUME 20
Volume Level (0 to 40)
A U T O• P
When the power is switched
off and on again, the volume slowly rises to the previous level.
The anti-volume-blast circuit will not work when the
volume level is set lower
than position 20 on the display.
CQ-DFX501N
REMOTE
OPEN
MONO/LOC
VOL
SEL
SEL
VOLUME 20
BAND
TUNE
PTY
PWR
TRACK
S•HDB
SOURCE
CD RECEIVER WITH CHANGER CONTROL
DISC
CT
DISP
DISP
1
Audio Mode
q Press [SEL] to select the audio mode.
Regular Mode
Volume
2
3
EON・PTY・CT
RANDOM
R
4
SCAN
5 SCAN
REG
TA
AF
SUB·W
w Press [}VOL] or [{VOL] to change each level.
Bass
BASS
+ 3dB
(– 12 to + 12)
Treble
TREBLE + 3dB
(– 12 to + 12)
Balance
BALANCE L 2
(Left / Right : 1 to 15)
BALANCE CNT
(Center)
FADER
F 3
(Front / Rear : 1 to 15)
FADER
CNT
(Center)
Bass
Treble
REPEAT
REP 6
Fader
Balance
Sub-Woofer SUB·W LEV 4
Fader
Sub-Woofer
Note: If no operation takes place for more than 5 seconds in audio mode (2 seconds in Volume mode), the
display return to Regular Mode.
8
CQ-DFX501N
SUB·W MUTE
Adjustable range:
MUTE(0) to 8
(Default : level 4)
S•HDB
Regular Mode (OFF)
(Super High Definition Bass)
Especially for rock music, the bass-sound will
be more powerful.
Press [S•HDB] to change the Super High
Definition Bass on (BOOM, TIGHT).
AUTO•P
TIGHT
The bass sounds of the speakers
are moderately emphasized.
(The sounds of the subwoofer can
be heard clearly.)
BOOM
The bass sounds of the speakers
are strongly emphasized.
CQ-DFX501N
REMOTE
E
N
G
L
I
S
H
4
OPEN
MONO/LOC
VOL
BAND
PTY
PWR
TUNE
SEL
TRACK
S•HDB
SOURCE
CD RECEIVER WITH CHANGER CONTROL
DISC
CT
DISP
1
2
Function Control Mode
Press and hold [SEL] to the function control
q mode.
(“PATTERN” appears on the display.)
Regular Mode
w
Function Control Mode
Press [SEL] during the function control mode to
change function control mode as follows.
Level Meter
3
e
EON・PTY・CT
RANDOM
R
4
SCAN
5 SCAN
REPEAT
REP 6
TA
REG
AF
SUB·W
Press [[TUNE] to change each setting. Select your
desired setting. ([]TUNE]: opposite direction)
Level Meter
(default)
Pattern 1
Pattern 2
Pattern 3
Pattern off
Pattern 9
Pattern 4
Contrast
Contrast
Level 5
Dimmer
Level 1
Mute / ATT Switch
Security Indicator*
(default)
Level 4
Level 3
Level 2
Dimmer
(default)
Dimmer 3
(Brighter)
Dimmer 1
(Darker)
Dimmer 2
(Center)
*(a Page 21)
Note: The display will be back to the previous mode with
no operation for 10 seconds.
Mute / ATT switch
MUTE KEY
ATT KEY
: Set [MUTE] button as a Mute key.
: Set [MUTE] button as an Attenuator key.
Mute / Attenuator (ATT)
(Only for remote control)
On : Press [MUTE].
Off : Press [MUTE] again.
Decreasing volume range depends on setting.
MUTE
(ATT)
PWR
ATTENUATION
MUTE
MODE
VOL
CQ-DFX501N
9
E
N
G
L
I
S
H
5
Radio Basics
q Mode Selection (SOURCE)
Press [SOURCE] to change to the
radio mode.
Radio
CD Player
(When a CD is inserted)
CD changer control
(When a CD changer is connected)
AUX
w Band
FM1
Note: FM1-FM3
are contained in the
same band. Three
FM bands are provided to extend the
preset capacity.
FM1
Press [BAND] to change the
bands.
FM2
87.50
FM3
Band
AM (LW/MW)
FM Stereo Indicator
AUTO•P
CQ-DFX501N
REMOTE
OPEN
MONO/LOC
VOL
FM1
BAND
TUNE
SEL
87.50
S•HDB
CD RECEIVER WITH CHANGER CONTROL
DISC
CT
e Manual Tuning
[[TUNE] : Higher frequency.
[]TUNE] : Lower frequency.
Seek Tuning
Press and hold
[[TUNE] : Higher frequency.
[]TUNE] : Lower frequency.
Tuning will automatically stop when
the signals of the next broadcast
station are received.
1
2
3
EON・PTY・CT
RANDOM
R
4
SCAN
5 SCAN
REPEAT
REP 6
REG
TA
AF
SUB·W
r Mono/Local Selection (MONO/LOC)
Noise is significantly decreased when weak signals are
received from an FM broadcast station.
LOCAL : Only strong signals of stations are searched in seek tuning,
while at the LOCAL OFF setting, relatively weak signals are
also searched.
MONO :
FM broadcasts
AM broadcast
Press and hold [PTY] (MONO/
Press [PTY] (MONO/LOC) to
LOC) to change the mode.
switch LOCAL mode on and off.
Release when at the desired point.
MONO OFF / LOCAL OFF
MONO ON / LOCAL OFF
MONO ON / LOCAL ON
MONO OFF / LOCAL ON
CQ-DFX501N
PTY
PWR
SOURCE
DISP
10
STEREO
TRACK
LOCAL OFF
LOCAL ON
Preset Station Setting
Caution: To ensure safety, never attempt to preset
stations while you are driving.
Up to 6 stations each can be saved in the FM1, FM2, FM3 and
AM (LW/MW) preset station memories.
E
N
G
L
I
S
H
6
q Band
Press [BAND] to select a desired band. (a Page 10)
FM1
88.70
Preset Number
AUTO•P
CQ-DFX501N
REMOTE
OPEN
MONO/LOC
VOL
SEL
FM1-1
BAND
TUNE
88.70
PTY
PWR
TRACK
S•HDB
SOURCE
CD RECEIVER WITH CHANGER CONTROL
DISC
CT
DISP
1
2
w Auto Station Preset (AUTO•P)
Press and hold [BAND] (AUTO • P) for more than
2 seconds (Auto Preset Memory).
¡The 6 strongest available stations will be automatically saved in the memory under preset buttons [1] to [6].
¡Once set, the preset stations are sequentially
scanned for 5 seconds each.
3
EON・PTY・CT
RANDOM
R
4
SCAN
5 SCAN
REPEAT
REP 6
REG
TA
AF
SUB·W
e Tuning in a Preset
Station
Press the corresponding preset button [1] to
[6] to tune in a preset station.
Note: You can change the memory presetting by repeating the above procedure.
Manual Station Preset
q Use manual or seek tuning to find a station.
(a page 10)
w Press and hold one of the preset buttons [1] to
[6] until the display blinks once.
CQ-DFX501N
11
E
N
G
L
I
S
H
7
RDS (Radio Data System)
RDS Basics
The following functions are available when receiving RDS stations.
PS Display
CT Service
AF
(Program Service name)
(Clock Time)
(Alternative Frequency list)
The name of station is displayed
instead of the frequency.
When receiving an RDS station, the
CT (Clock Time) service automatically
adjusts the time and date.
"NO CT" is displayed in areas where
CT service is not available.
(a Page 15 for Clock Setting)
When reception is poor, an RDS station broadcasting the same program
is tuned in automatically.
AF Mode
Press [AF] to select one of the
following AF modes:
AF 1 Mode
(Default)
Low level AF operating sensitivity.
AF 2 Mode
High level AF operating sensitivity.
AF
When the AF network of an RDS
station is not required
AF OFF Mode
AUTO•P
CQ-DFX501N
REMOTE
OPEN
MONO/LOC
VOL
BBC R4
BAND
TUNE
SEL
1
PTY
PWR
TRACK
SOURCE
AF
S•HDB
CD RECEIVER WITH CHANGER CONTROL
DISC
CT
DISP
DISP
2
3
EON・PTY・CT
R
4
SCAN
5 SCAN
REPEAT
REP 6
REG
TA
AF
SUB·W
Display Change
Auto Preset Memory
REG (Region) Mode
Press [DISP] to change the
display as follows.
Auto preset of RDS stations works
only when AF mode is on.
PS (Program Service Name)(Default)
Best Station Research
Changes the selection range of AF,
Best Station Research and PI Seek.
Press and hold [AF] (REG) when AF
mode is on.
BBC R4
1
AF
Frequency
FM1
3 seconds
87.50
CT (Clock Time)
FM1
12
1
RANDOM
12:30
CQ-DFX501N
Best Station Research is automatically activated to store the station with
the best reception for each preset
button.
REGION ON
The frequency is changed only for
programs within the region.
PI (Program Identification) Seek
If Best Station Research does not
work properly and reception is poor
when tuning in a preset station, press
the same preset button again. PI
Seek will search an AF station with
good reception.
REGION OFF
The frequency is changed also for
programs outside the region.
RDS service availability varies with areas. Please understand if RDS service is not available in your area, the following service is not available, either. This chapter explains the summary and operation regarding RDS.
Traffic Announcements
Some RDS FM stations periodically
provide traffic information.
TP
TA
(Traffic Program identification)
(Traffic Announcements identification)
Broadcasting of traffic information
Radio announcements on traffic conditions
TA Mode
E
N
G
L
I
S
H
8
TA on
Press [TA] to switch TA mode on
and off.
TA ON
TA off
AUTO•P
CQ-DFX501N
REMOTE
OPEN
MONO/LOC
BBC R4
BAND
VOL
TUNE
SEL
EON
RDS PTY
TA ON REG
TP
AF
TRACK
S•HDB
CD RECEIVER WITH CHANGER CONTROL
DISC
CT
DISP
1
2
3
EON・PTY・CT
RANDOM
R
4
SCAN
5 SCAN
REPEAT
REP 6
REG
PTY
PWR
SOURCE
TA
AF
SUB·W
TA Volume Setting
Muting in TA Mode
(Volume Level : 0 to 40)
To listen only to Traffic Announcements while muting,
press and hold [TA] for more than 2 seconds.
To cancel the muting TA on mode (muting in TA mode /
TA mode), take either following two.
¡Press [TA] again.
¡Press [}VOL] several times.
Note: To switch to TA off, press [TA] again and hold for
more than 2 seconds.
Press [}VOL] or [{VOL] while receiving traffic
announcements .
The TA volume differs from the regular volume (by up to 5
levels).
TA in CD/CD Changer/AUX Mode
When TA is on, CD, CD changer or AUX playback will be
interrupted by FM traffic announcements.
CD 03
2’01
EON
TA ON
TP
Information
BBC R4
End
EON
TA ON
TP
AF
TP Auto Search
When reception of a TP station is poor, TP Auto Search
will automatically search for a TP station with better
reception.
Seek and Preset Station
TP Seek Tuning
Seek tunes only TP stations.
(a Page 10)
Auto TP Station Preset
The 6 strongest TP stations are saved in memory. (a Page 11)
Tuning in a TP Preset Station
(a Page 11)
CQ-DFX501N
13
E
N
G
L
I
S
H
9
RDS (Radio Data System)
(continued)
PTY Reception (Program Type)
RDS FM stations provide a program type identification signal.
Example: news, rock, classical music, etc.
PTY Mode
Press [PTY] to switch PTY display mode
on or off.
PTY on
Classics
PTY
PTY off
When there is no corresponding program
type, “None” is displayed.
AUTO•P
CQ-DFX501N
REMOTE
OPEN
MONO/LOC
VOL
Classics
BAND
SOURCE
CD RECEIVER WITH CHANGER CONTROL
DISC
CT
DISP
DISP
1
PTY Selection
[[TUNE] to change the program type
q Press
as follows. ([]TUNE] : opposite direction)
/
/
/
/
/
/
/
/
MUSIC /
Sport /
Science /
Easy M /
Weather /
Religion/
Jazz
/
Folk M /
News
Educate
Varied
Light M
Finance
Phone In
Country
Document
/
/
/
/
/
/
/
/
PWR
PTY
TRACK
S•HDB
SPEECH
Info
Culture
Rock M
Other M
Social
Leisure
Oldies
PTY
TUNE
SEL
Affairs /
Drama
/
Pop M
/
Classics /
Children/
Travel /
Nation M /
the desired program and press [BAND].
w Select
Seek will start to tune in to a station broadcast-
2
3
EON・PTY・CT
RANDOM
R
4
SCAN
REPEAT
5 SCAN
REP 6
REG
TA
AF
SUB·W
PTY Search
a program type by pressing the preset butq Select
ton.
The preset program type appears on the display
for 5 seconds.
(Example) Press preset button [1].
News
1
PTY
the same preset button again (or press
w Press
[BAND]) to tune in the desired program type
station.
(Example) Press preset button [1] again.
News
1
PTY
ing the selected program type.
PTY display in Swedish
Press [DISP] to switch the PTY display
language as follows.
News
PTY Preset Change
a program type by using PTY Selection
q Select
orpressing PTY Preset buttons.
Pop M
PTY
1
PTY
<English>
and hold one of the preset buttons [1] to
w Press
[6] until the display blinks once.
(Example) Press and hold preset button [1].
Nyheter
PTY
14
CQ-DFX501N
<Swedish>
News
1
PTY
Clock Setting
E
N
G
L
I
S
H
The clock uses 24-hour system.
When RDS CT service is not available, set the clock
as follows.
Note: Clock can be set only in the AM mode.
PTY Type Preset
1
News
News
1
NEWS
A U T O• P
VOL
SEL
CQ-DFX501
REMOTE
BAND
TUNE
TRACK
S•HDB
CD RECEIVER WITH CHANGER CONTROL
DISC
CT
2
Speech
SPEECH
2
AFFAIRS / INFO
EDUCATE / DRAMA
CULTURES / SCIENCE
VARIED / WEATHER
FINANCE / CHILDREN
SOCIAL / RELIGION
PHONE IN / TRAVEL
LEISURE / DOCUMENT
3
Sport
Sport
3
SPORT
4 Pop. Music Pop M
4
POP.M
5
CLASSICS
6
ROCK M / EASY M
LIGHT M / OTHER M
JAZZ / COUNTRY
NATION M / OLDIES
FOLK M
5
6
Classic
Music
Other
Music
Classics
MUSIC
EON (Enhanced Other Networks)
When EON data is received, the EON indicator lights and the
TA and AF functions are expanded as follows.
TA : Traffic information from the current and other network
stations can be received.
AF : The frequency list of preset RDS stations is updated
by EON data.
EON enables the radio to make fuller use of RDS information. It constantly updates the AF list of preset stations,
including that currently tuned in to. For example, if you preset a station far from home, you will later be able to receive
the same station at an alternative frequency, or any other
station serving the same program. EON also keeps track of
locally available TP stations for quick reception.
10
BAND
Program types are stored in memory under preset buttons
[1] to [6] as shown in the table below.
To tune in the desired program type, press any of preset buttons [1] to [6].
ype
No.
mT
y
a
t
r
e
g
s
pla
Pre
Dis
Pro
DISP
DISP
1
2
3
RANDOM
R
4
SCA
5S
] [ TUNE DISP(CT)
AM Band
q Press [BAND] to change to AM band.
AM
1005
(AM band)
w Press [DISP].
NO CT
(Clock display)
Hours
e Press and hold [DISP].
AM
0:00
(hour blinks)
r Press []TUNE] or [[TUNE].
AM
13:00
(hour set)
Minutes
t Press [DISP].
AM
13:00
(minute blinks)
y Press []TUNE] or [[TUNE].
AM
13:05
(minute set)
u Press [DISP].
Emergency Announcement
Reception
When an emergency announcement is broadcast, the unit is
automatically switched to receiving that broadcast. If this
happens in a mode other than radio mode (CD mode, CD
Changer mode, AUX mode) or in Muting in TA mode,
"Alarm!" blinks on the display.
AM
13:05
(end)
Note: Hold []TUNE] or [[TUNE] to change
numbers rapidly.
CQ-DFX501N
15
E
N
G
L
I
S
H
11
CD Player and CD Changer
Disc Insert and Playback
Open
q Open the front panel.
w Insert a disc.
e Close the front panel manually.
Play back will start automatically.
Listening to a CD
Mode Selection
OPEN
MONO/LOC
Press [SOURCE] to change to the
CD or CD changer mode.
PTY
PWR
Caution: Make sure that the disc indicator is
off before loading a disc. If the disc indicator
is on, eject the disc.
SOURCE
Label
Side
Radio
CD Player
(When a CD is inserted)
Eject
Disc Indicator
Stop and
Disc Eject
CD Changer Control
(When a CD changer is connected)
Press [u] (EJECT).
AUX
Cautions:
¡When the front panel is opened, do not force it down and do not put
anything on it since these may result in damage to the unit.
¡When ejecting a disc, do not close the front panel unit the disc is
ejected and removed from the disc slot completely.
¡Only 12cm CD is available for this unit.
¡Watch that your fingers, others’ or especially infants’ are not caught
in the front panel when closing it.
ONLY USE DISCS CARRYING THE LABEL
SHOWN ON THE RIGHT
How to hold the CD
¡Do not touch the underside of the disc. Label side
¡Do not make scratches on the disc.
¡Do not bend disc.
¡When not in use, keep CD in the case.
Do not use irregularly
shaped CDs
Track Selection
[fTRACK] : Advance to the next track
[aTRACK] : Back to beginning of the
current track
Back to previous track
(Press twice)
Track Search
Press and hold.
[fTRACK] : Fast forward
[aTRACK] : Fast backward
Release to resume the regular CD or CD changer play.
Various Way of Listening
Random Play
Track
Do not leave discs in the
following places:
Do not use irregularly shaped CDs
¡Direct sunlight
¡Dirty, dusty and damp area
¡Near car heaters
¡Seats and dashboards
Disc Cleaning
Track
<Right>
Use a dry, soft cloth to wipe
from the center outward.
<Wrong>
Scan Play
Disc
(Only for CD
Changer)
Caution on New Discs
A new disc may have rough edges on
its inner and outer perimeter. These
may cause malfunction.
Rough edge
Remove the rough edges
using a pencil, etc.
16
CQ-DFX501N
Repeat Play
Track
Note: The CD Changer functions are designed for an optional CD changer unit.
<CD Changer Display>
1-01
Disc
Track
Playing Time
Number Number
<CD Player Display>
Track Number
A U T O• P
12
Playing Time
CQ-DFX501N
REMOTE
0’10
E
N
G
L
I
S
H
OPEN
MONO/LOC
CD 01
BAND
VOL
TUNE
SEL
0’01
PTY
PWR
TRACK
S•HDB
SOURCE
CD RECEIVER WITH CHANGER CONTROL
DISC
CT
1
DISP
DISP
2
3
EON・PTY・CT
RANDOM
R
4
SCAN
5 SCAN
REPEAT
REP 6
TA
REG
AF
SUB·W
Random Scan Repeat
Display Change
Disc Selection (Only for CD Changer)
Press [DISP] to switch to the
clock display.
Press again to cancel.
CD
[1] ({DISC): Previous disc
[2] (}DISC): Next disc
14:21
(CD Player)
CD·CH
14:21
Error Display Messages for CD/CD Changer
(CD Changer)
¡Press [4] (R 5).
All tracks (on all discs in the CD changer magazine) are
played in random order.
¡Press again to cancel.
CD 03
2’01
-E1-
RAND
¡Press [5] (SCAN).
The first 10 seconds of each track on the disc are played in
sequence.
¡Press again to cancel.
CD 03
0’01
¡Press and hold [5] (SCAN) for more than 2 seconds.
The first track of all discs in the magazines is played for 10
seconds each.
¡Press again to cancel.
3-01
¡Press [6] (REPEAT).
The current track is repeated.
¡Press again to cancel.
CD 03
CD is dirty or inverted.
In the case of the CD player, “@ PLS
EJECT” is displayed after displaying this
error message when the front panel is closed. Open the panel
and press [u] to eject the CD.
In the case of the CD changer, the next CD is loaded to the CD
player automatically after displaying this error message.
CD is scratched.
In the case of the CD player, “@ PLS
EJECT” is displayed after displaying this
error message when the front panel is closed. Open the panel
and press [u] to eject the CD.
In the case of the CD changer, the next CD is loaded to the CD
player automatically after displaying this error message.
-E2-
CD stops operating for some reason.
Please eject the CD. Contact your nearest authorized Panasonic Service Center.
-E3-
0’03
2’01
There is no disc in the
magazine.
(Only for CD changer)
NO DISC
REP
CQ-DFX501N
17
E
N
G
L
I
S
H
13
Installation
Preparation
¡Before installation, check the radio operation with antenna and
speakers.
¡Disconnect the cable from the negative (–) battery terminal
(see caution below).
¡Unit should be installed in a horizontal position with the front
end up at a convenient angle, but not more than 30°.
¡We strongly recommend that you wear gloves
for installation work to protect yourself from
injuries.
First complete the electrical connections, and
then check them for correctness.(a Page 22)
30° or less
Caution: Do not disconnect the battery terminals of a car
with trip or navigational computer since all user settings
stored in memory will be lost. Instead take extra care with
installing the unit to prevent shorts.
Lock Lever (C)
Power Connector e
Dashboard Installation
53 mm
Installation Opening
The unit can be installed in
182 mm
any dashboard having an
opening as shown at right.
The dashboard should be
4.5 mm - 6 mm thick in order to be able to support the unit.
Installation Precautions
This product should be installed by a professional installer, if
possible.
In case of difficulty, please consult your nearest authorized
Panasonic Service Center.
1. This system is to be used only in a 12-volt, DC battery system
(car) with negative ground.
2. Follow the electrical connections carefully (a Page 22).
Failure to do so may result in damage to the unit.
3. Connect the power lead (red) after all other connections are
made.
4. Be sure to connect the battery lead (yellow) to the positive terminal (+) of the battery or fuse block (BAT) terminal.
5. Insulate all exposed wires to prevent short circuiting.
6. Secure all loose wires after installing the unit.
7. Please carefully read the operating and installation instructions
of the respective equipment before connecting it to this unit.
Make sure that the lock lever
(C) is flush with the mounting collar (not projecting
outward).
Lock Lever
18
CQ-DFX501N
¡When bending the mounting tab of the mounting collar with a screwdriver, be careful not to
injure your hands and fingers.
1
Insert Mounting Collar q into
the dashboard, and bend the
mounting tabs out with a screwdriver.
Q’ty
E
N
G
L
I
S
H
14
Supplied Hardware
No.
Item
Diagram
q
Mounting Collar
1
w
Mounting Bolt (5 mm ø)
1
e
Power Connector
1
r
Removable Face Plate Case
1
t
Trim Plate
1
y
ISO Antenna Adaptor
1
(ATT)
PWR
MUTE
MODE
u
VOL
Remote Control Unit
PRG
BAND/DISC UP
TUNE
TRACK
1
Car Audio
i
1
Lithium Battery (CR2025)
(a) Using the Rear Support Strap (Option)
Tapping Screw (Option)
Mounting Tabs
Mounting Bolt w
2
3
4
Secure the rear of the unit.
After fixing Mounting Bolt w and Power
Connector e, fix the rear of the unit to
the car body by either method (a) or (b)
shown at right.
Insert Trim Plate t.
After installation reconnect the
negative (–) battery terminal.
Fire Wall of Car
3 mmø
Hex. Nut (Option)
Rear Support Strap (Option)
wMounting Bolt
qMounting Collar
(b) Using the Rubber Cushion (Option)
Rear Support Bracket
(Provided on the car)
Rubber Cushion
(Option)
wMounting Bolt
qMounting Collar
CQ-DFX501N
19
E
N
G
L
I
S
H
15
Installation (continued)
To Remove the Unit
q Remove the removable face plate.
Open
Contact
q Open
(a) Open the face plate.
w Push
OPEN
MONO/LOC
e Pull out
PTY
PWR
SOURCE
(b) Push the face plate to either the right or left,
then pull it out toward you.
w Remove the trim plate t with a screwdriver.
e Pull out the unit while pushing down the lock
lever with a screwdriver.
;;;;;;;;;;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;;;;;;;;;;
t Trim Plate
Screwdriver
1
2
;;;;;;;;;;;
;;;;;;;; ;;
;
;
;
;
;
;;;;;;;;;;;;;
; ;;;;
;;;;;;;;;;;;;
;
;
;
;
;
;;;;;;;;;;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;;;; ;; ;
;;;;;;;;;;; ;;;;
;;;;;;;; ;;;;;;
;
;
;
;
;
;
;
;
;
;;;;;; ; ;;;;
;
;
;
;
;
;
;
;
;
;
;
;
Lock Lever
Lock Lever
Screwdriver
Screwdriver
r Remove the unit pulling with both hands.
Cautions:
¡Do not touch the contacts on the face plate or on the main unit, since this may result in poor electrical contacts.
¡If dirt or other foreign substances get on the contacts, wipe them off with clean and dry cloth.
¡Do not apply a strong downward force onto the face plate and do not put anything on it while it is open, or it might be
damaged.
20
CQ-DFX501N
Anti-Theft System
This unit is equipped with a removable face plate. Removing
this face plate makes the radio totally inoperable. The security indicator will blink.
E
N
G
L
I
S
H
r Removable Face Plate Case
16
Place Removable Face Plate
into Case
q Switch off the power of the unit.
w Remove the remobable face plate. (a Page 20)
e Gently press the bottom of the case and open the cover.
Place the face plate into the case and take it with you
when you leave the car.
Cautions:
¡This face plate is not water-proof. Do not expose it to water or excessive moisture.
¡Do not remove the face plate while driving your car.
¡Do not place the face plate on the dashboard or nearby areas where the temperature rises to high levels.
Install Removable Face Plate
q Fit the face plate with its right or left hole on one of the
pins provided on the main unit.
w Fit the other hole on the other pin applying slight pressure.
e Move the face plate up and down a few times to make
sure it is secure. Then close the front panel and press
down the right side of the face plate until it clicks into
place.
Security Indicator
The security indicator blinks when the removable face plate
is removed from the unit.
A U T O• P
CQ-DFX501N
REMOTE
OPEN
MONO/LOC
VOL
SEL
S·LED ON
BAND
TUNE
TRACK
S•HDB
PTY
PWR
SOURCE
CD RECEIVER WITH CHANGER CONTROL
DISC
CT
DISP
1
2
3
EON・PTY・CT
RANDOM
R
4
SCAN
5
REPEAT
SCAN REP 6
REG
TA
AF
SUB·W
q Press and hold [SEL] to change to display control
mode. (“PATTERN” is displayed.) (a Page 9)
w Press [SEL]. “S·LED ON” or “S·LED OFF” is displayed.
e Press []TUNE] or [[TUNE] to turn the security indicator on or off. (S·LED ON or OFF).
S·LED ON
S·LED OFF
r The security indicator blinks when the removable face
plate is removed.
Display
S·LED ON
Panel Removal Alarm
S·LED OFF
Security
Indicator
Panel Removal
Alarm
Blinks
ON
OFF
OFF
This alarm sounds to warn you not to forget to remove the
panel before leaving your car. This function is activated
when the security indicator is on.
CQ-DFX501N
21
E
N
G
L
I
S
H
Electrical Connections
Cable Wiring Diagram
Example : Connection with CD changer CX-DP88N (Option)
17
CD Changer
CX-DP88N
(Option)
Extension Cord
(DIN/BATT/RCA/GND)
(Black)
(Yellow)
Fuse (3A)
Changer Control DIN Cord
(L)(White)
CH•C-IN
(R)(Red)
RCA Cord
CD Changer
Control Connector
Antenna
CD Player/Receiver
CQ-DFX501N
y ISO Antenna
Adapter
L(White)
(if neebed)
R(Red)
Preamp Out Connector (Rear)
Preamp Out Connector (Front)
Sub-Woofer Out
(Monaural)
B7: Rear Left +
B8: Rear Left –
B5: Front Left +
Speakers
B (Brown)
B6: Front Left –
B3: Front Right +
B4: Front Right –
B1: Rear Right +
B2: Rear Right –
22
S.W-OUT
CQ-DFX501N
B7:(Green)
B5:(White)
B8:(Green w/black stripe)
B3:(Gray)
B6:(White w/black stripe)
B1:(Violet)
B4:(Gray w/black stripe)
B2:(Violet w/black stripe)
ePower
Connector
Ground Lead
To a clean, bare metallic
part of the car chassis
Battery Lead
To the car battery,
continuous +12V DC
(L)(White)
AUX Input Cord
AUX-IN
(R)(Red)
(Brown
w/black stripe)
A5
(Orange)
A (Black)
Cautions:
¡Check the connectors provided on your car (see note on page 4
and 5) before connecting the system.
¡This unit is designed for use in a car having a 12-volt negative
ground battery system.
¡To prevent damage to the unit, be sure to follow the connection
diagram below.
¡Strip about 5 mm of the lead ends for connection (only non-ISO
connector cords).
¡Do not insert the power connector into the unit until the wiring is
completed.
¡Be sure to insulate any exposed wires to prevent short circuiting
with the car chassis. Bundle all cables, and prevent cable terminals from touching any metal parts.
E
N
G
L
I
S
H
18
¡This unit can be connected to an optional CD changer (CXDP9061/DP9060EN, CX-DP88N, CX-DP801/DP803EN or CXDP601EN) and optional extension cord.
¡For details consult your nearest authorized Panasonic Dealer.
¡For connection to a CD changer, refer to the operating instructions of the CD changer (CX-DP9061/DP9060EN, CX-DP88N, CXDP801/DP803EN or CX-DP601EN).
C3 : External Remote Control Lead (Brown w/black stripe)
When using a non-Panasonic external remote control, refer to the
manufacturer for their product before connecting the external remote
control lead to the remote control.
If the external remote control lead is not used, insulate the lead with a
friction tape.
C1 : (Orange)
Telephone Mute Lead (*)
Connect to the car telephone mute lead.
Note: The telephone mute lead is only for connection to the radio
mute lead. Output other than telephone will not be muted
Navi Mute Lead (**)
To the Navi Mute lead of the Panasonic car navigation system.
If the navi mute lead is not used, insulate the lead with a friction tape.
* Telephone Mute
The sound from the speakers cannot be heard while the telephone conversation is in progress.
** Navi Mute
The sound from the speakers cannot be heard while the navigation guide is on.
(Black)
(Red)
ACC
(Dark blue)
Resistor(1kΩ)
(Yellow)
BATTERY 15A
Fuse(15A)
A8 : Ground Lead (Black)
To a clean, bare metallic part of the car chassis
A7 : Power Lead (ACC or IGN) (Red)
To ACC power, +12V DC
A4 : Battery Lead (Yellow)
To the car battery, continuous +12 V DC
A5 : (Dark blue)
Motor Antenna Relay Control Lead
(To Motor Antenna) (Max. 500mA)
This lead is not intended for use with a switch actuated power antenna.
Amp·Relay Control Power Lead
This lead is for connection to a Panasonic power amplifier.
CQ-DFX501N
23
E
N
G
L
I
S
H
Speaker Connections
Caution: Please follow the instructions given below. Failure to do so will cause damage to the unit and speakers.
19
<Right>
L +
-
R+
-
(White)
+
-
(White
w/black stripe)
(Gray)
+
-
(Gray
w/black stripe)
¡Use ungrounded speaker only.
¡The maximum speaker output should be 45 W or more. (If used with
the optional power amplifier, the speaker output should be higher than
the maximum amplifier output.)
¡The speaker impedance should be 4 - 8 Ω.
¡This unit uses the BTCL circuit, so each speaker should be connected
separately using parallel vinyl insulated cords.
¡The speaker cords and the power amplifier unit should be kept away
(about 30 cm apart) from the antenna and antenna extension cord.
<Wrong>
L +
-
+
-
L +
-
+
-
L +
-
+
+
-
-
Chassis
+
+
R -
-
+
R -
+
-
+
R -
+
+
-
-
Chassis
¡Never connect the speaker cord to
the body of the car.
¡Do not use a 3-wire type speaker
system having a common earth
lead.
¡Do not connect more than one
speaker to one set of speaker
leads.
Fuse
Use fuses of the same specified rating (15 A). Using different substitutes or fuses with higher ratings, or connecting the
unit directly without a fuse, could cause fire or damage to the unit.
If the replacement fuse fails, contact your nearest authorized Panasonic Service Center.
Maintenance
Your product is designed and manufactured to ensure the minimum of maintenance. Use a soft cloth for routine exterior
cleaning. Never use benzine, thinner, or other solvents.
24
CQ-DFX501N
Specifications
General
FM Stereo Radio
Power Supply
Frequency Range
Usable Sensitivity
Stereo Separation
: DC 12 V (11 V - 16 V), Test
Voltage 14.4 V, Negative
Ground
Tone Controls
: Bass; ±12 dB at 100 Hz
Treble;±12 dB at 10 kHz
Current Consumption
: Less than 2.5 A (CD mode,
0.5 W 4-Speaker)
Maximum Power Output
: 45 W x 4 (at 4 Ω)
Power Output
: 22 W x 4
(DIN45 324, at 4 Ω)
Speaker Impedance
: 4-8Ω
Pre-Amp Output Voltage
: 2 V (CD mode)
Pre-Amp Output Impedance : 600 Ω
Sub-Woofer Output Voltage : 2 V (CD mode)
Dimensions (Main Unit)
: 178(W) x 50(H) x
150(D) mm
Weight (Main Unit)
: 1.6 kg
: 87.5 - 108 MHz
: 6 dB/µV(S/N 30 dB)
: 35 dB (at 1 kHz)
E
N
G
L
I
S
H
20
MW Radio
Frequency Range
Usable Sensitivity
: 531 - 1,602 kHz
: 28 dB/µV (S/N 20 dB)
LW Radio
Frequency Range
Usable Sensitivity
: 153 - 279 kHz
: 32 dB/µV (S/N 20 dB)
CD Player
Sampling Frequency
DA Converter
Error Correction System
Pick-Up Type
Light Source
Wavelength
Frequency Responce
Signal to Noise Ratio
Total Harmonic Distortion
Wow and Flutter
Channel Separation
: 8 times oversampling
: MASH•1 bit/4 DAC System
: Panasonic Super Decoding
Algorithm
: Astigma 3-beam
: Semiconductor laser
: 780 nm
: 20 Hz - 20 kHz (±1 dB)
: 96 dB
: 0.01 % (1 kHz)
: Below measurable limits
: 75 dB
Note: Specifications and design are subject to modification without notice due to improvements.
CQ-DFX501N
25
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
