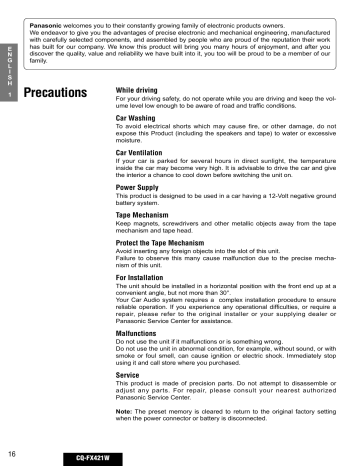

Panasonic welcomes you to their constantly growing family of electronic products owners.
We endeavor to give you the advantages of precise electronic and mechanical engineering, manufactured
with carefully selected components, and assembled by people who are proud of the reputation their work
has built for our company. We know this product will bring you many hours of enjoyment, and after you
discover the quality, value and reliability we have built into it, you too will be proud to be a member of our
family.
Precautions
While driving
For your driving safety, do not operate while you are driving and keep the volume level low enough to be aware of road and traffic conditions.
Car Washing
To avoid electrical shorts which may cause fire, or other damage, do not
expose this Product (including the speakers and tape) to water or excessive
moisture.
Car Ventilation
If your car is parked for several hours in direct sunlight, the temperature
inside the car may become very high. It is advisable to drive the car and give
the interior a chance to cool down before switching the unit on.
Power Supply
This product is designed to be used in a car having a 12-Volt negative ground
battery system.
Tape Mechanism
Keep magnets, screwdrivers and other metallic objects away from the tape
mechanism and tape head.
Protect the Tape Mechanism
Avoid inserting any foreign objects into the slot of this unit.
Failure to observe this many cause malfunction due to the precise mechanism of this unit.
For Installation
The unit should be installed in a horizontal position with the front end up at a
convenient angle, but not more than 30°.
Your Car Audio system requires a complex installation procedure to ensure
reliable operation. If you experience any operational difficulties, or require a
repair, please refer to the original installer or your supplying dealer or
Panasonic Service Center for assistance.
Malfunctions
Do not use the unit if it malfunctions or is something wrong.
Do not use the unit in abnormal condition, for example, without sound, or with
smoke or foul smell, can cause ignition or electric shock. Immediately stop
using it and call store where you purchased.
Service
This product is made of precision parts. Do not attempt to disassemble or
adjust any parts. For repair, please consult your nearest authorized
Panasonic Service Center.
Note: The preset memory is cleared to return to the original factory setting
when the power connector or battery is disconnected.
16
CQ-FX421W
Remote Control Unit Preparation
Battery Installation
q Remove the battery holder.
Take hold of the holder at position B and pull it out
by pushing position A in the direction shown by the
arrow.
w Install the battery on the battery holder.
Set a new battery properly with its (+) side facing
up as shown in the figure.
e Insert the battery holder.
Push in the battery holder back into its original
position.
(Back side)
Lithium battery
E
N
G
L
I
S
H
2
Position B
Battery Notes
Position A
Battery holder
Remove and dispose of an old battery immediately.
Battery Information:
¡Battery Type:Panasonic lithium battery (CR2025)
¡Battery Life: Approximately 6 months under normal
use (at room temperature)
Caution: Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire. Battery
leakage may damage the unit.
¡Do not disassemble or short the battery. Do not throw a battery into a fire.
¡Keep batteries away from children to avoid the risk of accidents.
¡Be careful to the disposal rules when you dispose of batteries.
Main Controls
Some of the functions may not be usable even if they are shown.
(ATT)
Power Button
PWR
Mode (Source) Button
Program, Band, Disc up Button
MUTE
Mute Button
VOL
Volume Control Buttons
MODE
PRG
BAND/DISC UP
TUNE
TRACK
Tune, Track/Search,
Fast Forward/Rewind Button
Car Audio
CQ-FX421W
17
Power and Sound Controls
E
N
G
L
I
S
H
3
Power
Turn the key in the ignition until the accessory
indicator lights.
Power on : Press [SOURCE] (PWR).
Power off : Press [SOURCE] (PWR) again
and hold.
Volume
Anti-Volume-Blast
Circuit
When the power is switched
off and on again, the volume
slowly rises to the previous
level.
The anti-volume-blast circuit
will not work when the volume level is set lower than
position 20 on the display.
Remote control sensor.
[}VOL] : Up
[{VOL] : Down
Press and hold for rapid adjustment.
Note: When the power is switched on for
the first time, a demonstration message
appears on the display.
To cancel this display, press [DISP].
Volume Level (0 to 40)
PRG
AUTO·P
CQ-FX421W
REMOTE
OPEN
MONO/LOC
VOL
BAND
PTY
PWR
TUNE
SEL
TRACK
SOURCE
S•HDB
CASSETTE RECEIVER WITH CHANGER CONTROL
CT
DISP
DISP
EON・PTY・CT
RANDOM
DISC
1 MTL
NR 2
3 TPS
Display Control Mode
and hold [SEL] to change to the display
q Press
control mode. (“PATTERN” appears on the dis-
SCAN
4
REPEAT
5 B·S
REP 6
TA
REG
AF
SUB·W
[SEL] during the display control mode
w Press
to change the display control mode as follows.
play.)
Regular Mode
Level Meter
Display Control Mode
Dimmer
Panel Removal Alarm*
* See page 33.
e Press [[TUNE] to change each setting. Select your desired setting. ([]TUNE] : opposite direction)
Level Meter
(Default)
Pattern 1
Dimmer
(Default)
Pattern 2
Pattern off
Pattern 3
Dimmer 3
(Brighter)
Dimmer 2
(Center)
Dimmer 1
(Darker)
Pattern 4
Note: The display will be back to the previous mode
with no operation for 5 seconds.
Mute
(Only for a Remote control)
Press [MUTE] to mute the sound completely.
Press [MUTE] again to cancel.
(ATT)
PWR
MUTE
MODE
VOL
18
CQ-FX421W
BAND/DISC UP
Audio Mode (Bass/Treble/Balance/Fader/Sub-Woofer)
q Press [SEL] to select the audio mode.
w Press [}VOL] or [{VOL] to change each level.
Regular Mode
Bass
(–12 to +12)
Treble
(–12 to +12)
Balance
(Left / Right: 1 to 15)
E
N
G
L
I
S
H
4
Volume
Bass
(Center)
Treble
Fader
(Front / Rear: 1 to 15)
Balance
(Center)
Fader
Adjustable range:
MUTE(0) to 8
(Default : level 4)
SubwooferVolume
Sub-Woofer
Note: If no operation takes place for more than 5 seconds in the audio mode (2 seconds in Volume mode), the
display returns to Regular Mode.
PRG
AUTO·P
CQ-FX421W
REMOTE
OPEN
MONO/LOC
VOL
BAND
PTY
PWR
TUNE
SEL
TRACK
S•HDB
SOURCE
CASSETTE RECEIVER WITH CHANGER CONTROL
CT
DISP
EON・PTY・CT
RANDOM
DISC
1 MTL
NR 2
3 TPS
4
SCAN
5 B·S
REPEAT
REP 6
REG
TA
AF
SUB·W
S•HDB
(Super High Definition Bass)
Especially for music, the bass-sound will be more powerful.
Press [S • HDB] to be able to listen to high-definition bass.
Press [S • HDB] again to cancel.
CQ-FX421W
19
Radio Basics
E
N
G
L
I
S
H
q Mode Selection (SOURCE)
Press [SOURCE] to change to the
radio mode.
Radio
Cassette Tape Player
(When a tape is inserted)
5
CD changer control
(When a CD changer is connected)
w Band
Press [BAND] to change the
bands.
FM1
FM2
FM3
Band
AM (LW/MW)
FM stereo indicator
PRG
AUTO·P
CQ-FX421W
REMOTE
OPEN
MONO/LOC
VOL
BAND
PTY
PWR
TUNE
SEL
TRACK
SOURCE
ST
S•HDB
CASSETTE RECEIVER WITH CHANGER CONTROL
CT
DISP
e Manual Tuning
[[TUNE] : Higher frequency.
[]TUNE] : Lower frequency.
Seek Tuning
[[TUNE] : Higher frequency.
[]TUNE] : Lower frequency.
Press and hold either of the buttons above for more than 0.5 seconds, then release it. Seeking will
automatically stop when a signal
of the next broadcast station is
received.
1 MTL
EON・PTY・CT
RANDOM
DISC
NR 2
3 TPS
4
SCAN
5 B·S
REPEAT
REP 6
TA
REG
AF
SUB·W
r Mono/Local Selection (MONO/LOC)
Noise is significantly decreased when weak signals are
received from an FM broadcast station.
LOCAL : Only strong signals of stations are searched in seek tuning,
while at the LOCAL OFF setting, relatively weak signals are
also searched.
MONO :
FM broadcasts
AM broadcast
Press [PTY] (MONO/LOC) to
Press and hold [PTY] (MONO/
switch LOCAL mode on and off.
LOC) to change the mode.
Release when at the desired point.
MONO OFF / LOCAL OFF (Default)
LOCAL OFF
MONO ON / LOCAL OFF
MONO ON / LOCAL ON
MONO OFF / LOCAL ON
20
CQ-FX421W
LOCAL ON
(Default)
Preset Station Setting
Caution: To ensure safety, never attempt to preset
stations while you are driving.
Up to 6 stations each can be saved in the FM1, FM2, FM3 and
AM (LW/MW) preset station memories.
q Band
1
6
Press [BAND] to select a desired band. (a Page 20)
PRG
AUTO·P
E
N
G
L
I
S
H
CQ-FX421W
REMOTE
OPEN
MONO/LOC
VOL
SEL
BAND
PTY
PWR
TUNE
TRACK
S•HDB
SOURCE
CASSETTE RECEIVER WITH CHANGER CONTROL
CT
DISP
1 MTL
EON・PTY・CT
RANDOM
DISC
NR 2
w Auto Station Preset (AUTO • P)
Note: New stations are overwritten on existing
saved stations after following this procedure.
Press and hold [BAND] (AUTO • P) for more than
2 seconds (Auto Preset Memory).
¡The 6 strongest available stations will be automatically saved in the memory under preset buttons [1] to [6].
¡Once set, the preset stations are sequentially
scanned for 5 seconds each.
3 TPS
4
SCAN
5 B·S
REPEAT
REP 6
REG
TA
AF
SUB·W
e Tuning in a Preset
Station
Press the corresponding preset button [1] to
[6] to tune in a preset station.
Note: You can change the memory presetting by repeating the above procedure.
Manual Station Preset
q Use manual or seek tuning to find a station.
(a Page 20)
w Press and hold one of the preset buttons [1] to
[6] until the display blinks once.
Preset Number
CQ-FX421W
21
RDS (Radio Data System)
E
N
G
L
I
S
H
1
7
RDS Basics
RDS service availability varies with areas. Please understand if RDS service is not available in your area,
this service is not available, either. This chapter explains the operation regarding RDS.
PS Display
CT Service
AF
(Program Service name)
(Clock Time)
(Alternative Frequency list)
The name of station is displayed
instead of the frequency.
When receiving an RDS station, the
CT (Clock Time) service automatically
adjusts the time.
"NO CT" is displayed in areas where
CT service is not available.
(a Page 25 for Clock Setting)
When reception is poor, an RDS station broadcasting the same program
is tuned in automatically.
AF Mode
Press [AF] to select one of the
following AF modes:
AF I Mode
(Default)
Low level AF operating sensitivity.
AF II Mode
High level AF operating sensitivity.
When the AF network of an RDS
station is not required
AF OFF Mode
PRG
AUTO·P
CQ-FX421W
REMOTE
OPEN
MONO/LOC
VOL
BAND
PTY
PWR
TUNE
SEL
TRACK
S•HDB
SOURCE
CASSETTE RECEIVER WITH CHANGER CONTROL
CT
DISP
DISP
EON・PTY・CT
RANDOM
DISC
1 MTL
NR 2
3 TPS
4
SCAN
5 B·S
REPEAT
REP 6
REG
TA
AF
SUB·W
Display Change
Auto Preset Memory
REG (Region) Mode
Press [DISP] to change the display
as follows.
Auto preset of RDS stations works
only when AF mode is on.
Changes the selection range of AF,
Best Station Research and PI Seek.
Press and hold [AF] (REG) when AF
mode is on.
PS (Program Service Name)
(Default)
3 seconds
Best Station Research
Best Station Research is automatically
activated to store the station with the
best reception for each preset button.
Frequency
The frequency is changed only for
programs within the region.
PI (Program Identification) Seek
CT (Clock Time)
22
CQ-FX421W
If Best Station Research does not
work properly and reception is poor
when tuning in a preset station, press
the same preset button again. PI
Seek will search an AF station with
good reception.
The frequency is changed also for
programs outside the region.
Note: These functions are not available where RDS Service is not available.
Traffic Announcements
Some RDS FM stations periodically
provide traffic information.
TP
TA
(Traffic Program identification)
(Traffic Announcements identification)
Broadcasting of traffic information
Radio announcements on traffic conditions
TA Mode
E
N
G
L
I
S
H
8
TA on
Press [TA] to switch TA mode on
and off.
TAon
TA off
PRG
AUTO·P
CQ-FX421W
REMOTE
OPEN
MONO/LOC
VOL
SEL
BAND
PTY
TPAF
EON
TUNE
TRACK
S•HDB
PWR
TAon
CASSETTE RECEIVER WITH CHANGER CONTROL
DISP
1 MTL
NR 2
3 TPS
SOURCE
EON・PTY・CT
RANDOM
DISC
CT
4
SCAN
5 B·S
REPEAT
REP 6
REG
TA
TA
AF
SUB·W
TA Volume Set
Muting in TA Mode
(Volume Level : 0 to 40)
To listen only to Traffic Announcements while muting,
press and hold [TA] for more than 2 seconds.
To cancel the muting TA on mode (muting in TA mode /
TA mode), take either following two.
¡Press [TA] again.
¡Press [}VOL] several times.
Note: To switch to TA off, press [TA] again and hold for
more than 2 seconds.
Press [}VOL] or [{VOL] while receiving traffic
announcements .
The TA volume differs from the regular volume (by up
to 5 levels).
TA in Tape/CD Changer Mode
TP Auto Search
When TA is on, tape or CD changer playback will be
interrupted by FM traffic announcements.
When reception of a TP station is poor, TP Auto Search
will automatically search for a TP station with better
reception.
Seek and Preset Station
TP Seek Tuning
Seek tunes only TP stations.
(a Page 20)
Auto TP Station Preset
The 6 strongest TP stations are saved in memory. (a Page 21)
Tuning in a TP Preset Station
(a Page 21)
CQ-FX421W
23
RDS (Radio Data System)
E
N
G
L
I
S
H
9
(continued)
PTY Reception (Program Type)
RDS FM stations provide a program type identification signal.
Example: news, rock, classical music, etc.
PTY Mode
Press [PTY] to switch PTY display mode on or off.
PTY on
PTY
When there is no corresponding program
type, “NO PTY” is display
PRG
AUTO·P
PTY off
CQ-FX421W
REMOTE
OPEN
MONO/LOC
VOL
BAND
PTY
PWR
TUNE
SEL
TRACK
S•HDB
PTY
CT
DISP
DISP
1 MTL
MUSIC /
SPORT /
SCIENCE /
M.O.R.M /
WEATHER /
RELIGION /
JAZZ
/
FOLK M /
NEWS
/
EDUCATE /
VARIED
/
LIGHT M /
FINANCE /
PHONE IN /
COUNTRY /
DOCUMENT /
AFFAIRS /
DRAMA /
POP M
/
CLASSICS /
CHILDREN /
TRAVEL /
NATIONAL /
the desired program and press [BAND].
w Select
Seek will start to tune in to a station broadcasting the selected program type.
Note:
PTY display in Swedish
Press [DISP] to switch the PTY display language as
follows.
English
Swedish
EON・PTY・CT
RANDOM
DISC
PTY Selection
[[TUNE] to change the program type
q Press
as follows. ([]TUNE] : opposite direction)
SPEECH /
INFO
/
CULTURES /
ROCK M /
OTHER M /
SOCIAL A /
LEISURE /
OLDIES /
SOURCE
CASSETTE RECEIVER WITH CHANGER CONTROL
NR 2
3 TPS
4
SCAN
5 B·S
REPEAT
REP 6
REG
TA
AF
SUB·W
PTY Search
a program type by pressing the preset
q Select
button.
The preset program type appears on the display
for 5 seconds.
(Example) Press preset button [1].
PTY
the same preset button again (or press
w Press
[BAND]) to tune in the desired program type
station.
(Example) Press preset button [1] again.
PTY
PTY Preset Change
a program type by using PTY Selection or
q Select
pressing PTY Preset buttons.
PTY
and hold one of the buttons [1] to [6].
w Press
(Example) Press and hold preset button [2].
PTY
24
CQ-FX421/FX321N
CQ-FX421W
Clock Setting
E
N
G
L
I
S
H
The clock uses the 24-hour system.
When RDS CT service is not available, set the
clock as follows.
PTY Type Preset
Program types are stored in memory under preset buttons
[1] to [6] as shown in the table below.
To tune in the desired program type, press any of preset buttons [1] to [6].
ype
No.
mT
y
a
t
r
e
g
s
pla
Pre
Pro
Dis
1
News
2
Speech
3
Sport
4 Pop. Music
5
6
NEWS
1
SPEECH 2
SPORT
3
SPORT
M 4
POP.M
Classic
Music CLASSICS 5
CLASSICS
Other
Music
ROCK M / M.O.R.M
LIGHT M / OTHER M
JAZZ / COUNTRY
NATIONAL / OLDIES
FOLK M
MUSIC
6
10
PRG
AUTO·P
VOL
SEL
CQ-FX421W
REMOTE
BAND
TUNE
TRACK
S•HDB
CASSETTE RECEIVER WITH CHANGER CONTROL
NEWS
AFFAIRS / INFO
EDUCATE / DRAMA
CULTURES / SCIENCE
VARIED / WEATHER
FINANCE / CHILDREN
SOCIAL A / RELIGION
PHONE IN / TRAVEL
LEISURE / DOCUMENT
POP
BAND
EON (Enhanced Other Networks)
When EON data is received, the EON indicator lights and the
TA and AF functions are expanded as follows.
TA : Traffic information from the current and other network
stations can be received.
AF : The frequency list of preset RDS stations is updated by
EON data.
EON enables the radio to make fuller use of RDS information.
It constantly updates the AF list of preset stations, including
that currently tuned in to. For example, if you preset a station far from home, you will later be able to receive the same
station at an alternative frequency, or any other station serving the same program. EON also keeps track of locally available TP stations for quick reception.
Emergency Announcement
Reception
When an emergency announcement is broadcast, the unit is
automatically switched to receiving that broadcast. If this
happens in a mode other than radio mode (tape mode, CD
Changer mode) or in Muting in TA mode, "ALARM" blinks on
the display.
CT
DISP
DISP
RANDOM
DISC
1 MTL
NR 2
3 TPS
4
SCAN
5 B·S
DISP (CT)
] [ TUNE
AM Band (You can set the clock time only in AM Band.)
q Press [BAND] to change to AM band.
AM 1305
(AM band)
w Press [DISP].
NO CT
(Clock display)
Note: Initial setting is “NO CT”.
Hours
e Press and hold [DISP].
0:00
(hour blinks)
r Press [[TUNE] or []TUNE].
10:00
(hour set)
Minutes
t Press [DISP].
10:00
(minute blinks)
y Press [[TUNE] or []TUNE].
10:35
(minute set)
u Press [DISP].
10:35
(end)
Note: Hold [[TUNE] or []TUNE] to
change numbers rapidly.
CQ-FX421W
25
Cassette Tape Player Basics
E
N
G
L
I
S
H
Tape Insert and Playback
q Open the front panel.
w Insert a cassette tape.
e Close the front panel manually.
Play back will start automatically.
Open
OPEN
MONO/LOC
11
PTY
[u] Eject
Exposed end
(Open end)
MD
Listening to a Cassette Tape
Mode Selection
Press [SOURCE] to change to Cassette tape play
mode.
Source
Radio
CD
Cassette Tape Player
(When a Tape is inserted)
CD changer control
(When a CD changer is connected)
Stop and Tape Eject
q Open the front panel.
w Press [u] to stop tape play and eject the cassette tape.
e Close the front panel manually.
Play Side Change
Press [BAND](PRG) to reverse.
Top Side Playing
Cautions:
¡When the front panel is opened, do not force it down and
do not put anything on it since these may result in damage
to the unit.
¡When ejecting a cassette tape, do not close the front panel
until the cassette tape is ejected and removed from the
cassette slot completely.
Watch that your fingers, others’ or especially infants’ are
not caught in the front panel when closing it.
Note: To maintain your cassette player in top condition, avoid
using tapes that are longer than 90 minutes (C-90).
Bottom Side Playing
Rewind and Fast Forward
Press [1TRACK] or [2TRACK] to activate
rewind or fast forward of the tape.
Notes on Cassette Tape
Tape Slack:
Use a pencil or similar object to take up the slack as shown. If
a loose tape is used, this may result in the tape becoming tangled in the rotating parts of the unit.
Pencil
Exposed end
(Open end)
Do not touch or
pull out the tape.
26
CQ-FX421/FX321N
CQ-FX421W
Press [BAND](PRG) to resume the tape play.
E
N
G
L
I
S
H
Lights when a tape is in the deck
12
PRG
AUTO·P
CQ-FX421W
REMOTE
OPEN
MONO/LOC
VOL
BAND
PTY
PWR
TUNE
SEL
TRACK
S•HDB
SOURCE
CASSETTE RECEIVER WITH CHANGER CONTROL
CT
DISP
1 MTL
EON・PTY・CT
RANDOM
DISC
NR 2
3 TPS
4
SCAN
5 B·S
REPEAT
REP 6
REG
TA
AF
SUB·W
Metal Tape Mode
Repeat Play
¡Press [1](MTL) when playing metal or chromium
dioxide (CrO2) tapes.
¡Press [1](MTL) again to cancel.
¡Press [6](REP) to repeat the current
program.
¡Press [6](REP) again to cancel.
MTL
REP
Note: Playing non-metal tapes in MTL mode causes
high frequency imbalance, which affects tone quality.
Blank Skip
¡Press [5](B • S) to skip unrecorded portions
longer than 15 seconds on the tape.
¡Press [5](B • S) again to cancel.
Dolby Noise Reduction
¡Press [2](NR) to set the Dolby B NR mode.
¡Press [2](NR) again to cancel.
B-SKIP
B
Note: Set the Dolby B NR mode when playing back a
tape recorded with Dolby B Noise Reduction.
Note: When repeat is on, the blank skip does
not work because the repeat has priority over
the blank skip.
Tape Program Search (TPS) Operation
q Press [3](TPS) to activate the Tape Program Search mode.
w To select a desired program, press [2TRACK] or [1TRACK]
corresponding times to go forward (up to 9) or backward (up to 8).
(Rewind:)
8t
0
(Fast forward:)
1
s9
e Press [3](TPS) again to cancel.
Notes:
The TPS mode may not work correctly in the following cases. This,
however, does not mean that the unit is defective.
¡There is an interval less than 3 seconds or having a high level of
noise or hum between programs.
¡There is particularly low-level passage during the program.
CQ-FX421W
27
CD Changer Control Basics
E
N
G
L
I
S
H
13
Mode Selection
Press [SOURCE] to change to the
CD changer mode.
Track Number
Source
Disc Number
Radio
Cassette Tape Player
(When a Tape is inserted)
PRG
AUTO·P
CQ-FX421W
REMOTE
OPEN
MONO/LOC
VOL
CD changer control
(When a CD changer is connected)
Playing Time
SEL
BAND
PTY
PWR
TUNE
TRACK
S•HDB
SOURCE
CASSETTE RECEIVER WITH CHANGER CONTROL
CT
DISP
DISP
EON・PTY・CT
RANDOM
DISC
1 MTL
NR 2
3 TPS
4
SCAN
5 B·S
REPEAT
REP 6
Track Selection
Disc Selection
[fTRACK] : Advance to the next track.
[aTRACK] : Back to beginning of the current
track.
Back to previous track.
(Press twice)
[1] ({DISC): Previous disc.
[2] (}DISC): Next disc.
REG
Display Change
Track Search
Press and hold
[fTRACK] : Fast forward
[aTRACK] : Fast backward
Release to resume the regular CD
changer play.
¡Press [DISP] to switch to the clock display.
¡Press again to cancel.
Error Display Messages
CDC
CDC
CDC
E1
Appears on the display when the CD is dirty or inverted. Select the next available CD.
E2
Appears on the display when CD is scratched.
Select the next available CD.
E3
Appears on the display when the unit stops operating for some reason.
Press the reset switch on the CD changer.
c
DISC No.
c
DISC No.
CDC 0000
28
TA
AF
SUB·W
Appears on the display when there is no disc in the magazine.
CQ-FX421/FX321N
CQ-FX421W
Note: The CD Changer functions are designed for an optional CD changer unit.
E
N
G
L
I
S
H
PRG
AUTO·P
CQ-FX421W
REMOTE
OPEN
14
MONO/LOC
VOL
SEL
BAND
PTY
PWR
TUNE
TRACK
S•HDB
SOURCE
CASSETTE RECEIVER WITH CHANGER CONTROL
CT
DISP
EON・PTY・CT
RANDOM
DISC
1 MTL
NR 2
3 TPS
4
SCAN
5 B·S
REPEAT
REP 6
REG
TA
AF
SUB·W
Track Random
¡Press [4] (RANDOM).
All tracks on all discs in the magazine are played in random order.
¡Press again to cancel.
RAND
Track Scan
¡Press [5] (SCAN).
The first 10 seconds of each track on the disc are played in sequence.
¡Press again to cancel.
Disc Scan
¡Press and hold [5] (SCAN) for more than 2 seconds.
The first track of all discs in the magazines is played for 10 seconds each.
¡Press again to cancel.
Track Repeat
¡Press [6] (REP).
The current track is repeated.
¡Press again to cancel.
REP
CQ-FX421W
29
Installation
E
N
G
L
I
S
H
15
Supplied Hardware
Preparation
No.
¡Before installation, check the radio operation with antenna and speakers.
¡Disconnect the cable from the negative (–) battery terminal (see caution below).
¡Unit should be installed in a horizontal position with the
front end up at a convenient angle, but not more than
30°.
Item
Diagram
Q’ty
q
Mounting Collar
1
w
Mounting Bolt (5 mmø)
1
e
Tapping Screw
1
r
Rear Support Strap
1
t
Hex. Nut
1
y
Power Connector
1
u
Removable Face Plate Case
1
i
Trim Plate
1
o
Remote Control Unit
30° or less
(ATT)
PWR
Caution: Do not disconnect the battery terminals of a
car with trip or navigational computer since all user settings stored in memory will be lost. Instead take extra
care with installing the unit to prevent shorts.
53 mm
Installation Precautions
This product should be installed by a professional installer,
if possible.
In case of difficulty, please consult your nearest authorized
Panasonic Service Center.
1. This system is to be used only in a 12-volt, DC battery
system (car) with negative ground.
2. Follow the electrical connections carefully (a Page 34).
Failure to do so may result in damage to the unit.
3. Connect the power lead (red) after all other connections
are made.
4. Be sure to connect the battery lead (yellow) to the positive terminal (+) of the battery or fuse block (BAT) terminal.
5. Insulate all exposed wires to prevent short circuiting.
6. Secure all loose wires after installing the unit.
7. Please carefully read the operating and installation
instructions of the respective equipment before connecting it to this unit.
30
CQ-FX421W
VOL
BAND/DISC UP
TUNE
TRACK
1
Car Audio
!0
1
Lithium Battery (CR2025)
(a) Using the Rear Support Strap (Option)
Dashboard Installation
Installation Opening
The unit can be installed
in any dashboard having
an opening as shown at
182 mm
right. The dashboard
should be 4.5 mm - 6 mm
thick in order to be able to support the unit.
MUTE
MODE
PRG
e Tapping Screw
Fire Wall of Car
3 mmø
t Hex. Nut
r Rear Support Strap
w Mounting Bolt
q Mounting Collar
(b) Using the Rubber Cushion (Option)
Rear Support Bracket
(Provided on the car)
Rubber Cushion
(Option)
w Mounting Bolt
q Mounting Collar
¡We strongly recommend that you wear gloves for installation work to protect yourself from injuries.
¡When bending the mounting tab of the mounting collar with a screwdriver, be careful not to injure your hands and
fingers.
First complete the electrical connections, and then
check them for correctness.(a Page 34)
1
Insert Mounting Collar q into
the dashboard, and bend the
mounting tabs out with a screwdriver.
E
N
G
L
I
S
H
16
Lock Lever (C)
Power Connector y
Mounting Tabs
Mounting Bolt w
2
3
4
Secure the rear of the unit.
After fixing Mounting Bolt w and Power
Connector y, fix the rear of the unit to
the car body by either method (a) or (b)
shown at left.
Insert Trim Plate i.
After installation reconnect the
negative (–) battery terminal.
Make sure that the lock lever (C)
is flush with the mounting collar
(not projecting outward).
Lock Lever
CQ-FX421W
31
Installation (continued)
E
N
G
L
I
S
H
17
To Remove the Unit
q Remove the removable
face plate.
(a) Open the face plate.
(b) Push the face plate
to either the right
or left, then pull it
out toward you.
Open
Contact
w Push
q Open
OPEN
MONO/LOC
e Pull out
PTY
PWR
w Remove the trim plate i with a screwdriver.
iTrim Plate
Screwdriver
1
2
e Pull out the unit while pushing down the lock
Lock Lever
lever with a screwdriver.
Lock Lever
r Remove the unit pulling with both hands.
Cautions:
¡Do not touch the contacts on the face plate or on the main unit, since this may result in poor electrical contacts.
¡If dirt or other foreign substances get on the contacts, wipe them off with clean and dry cloth.
¡Do not apply a strong downward force onto the face plate and do not put anything on it while it is open, or it might be
damaged.
32
CQ-FX421/FX321N
CQ-FX421W
Anti-Theft System
E
N
G
L
I
S
H
This unit is equipped with a removable face plate. Removing
this face plate makes the radio totally inoperable.
u Removable Face Plate Case
Place Removable Face Plate
into Case
q Switch off the power of the unit.
18
w Remove the removable face plate. (a Page 32)
e Gently press the bottom of the case and open the cover.
Place the face plate into the case and take it with you
when you leave the car.
Cautions:
¡This face plate is not water-proof. Do not expose it to water or excessive moisture.
¡Do not remove the face plate while driving your car.
¡Do not place the face plate on the dashboard or nearby areas where the temperature rises to high levels.
Install Removable Face Plate
q Fit the face plate with its right or left hole on one of the
pins provided on the main unit.
w Fit the other hole on the other pin applying slight pressure.
e Move the face plate up and down a few times to make
sure it is secure. Then close the front panel and press
down the right side of the face plate until it clicks into
place.
Panel Removal Alarm
This alarm sounds to warn you not to forget to remove the
panel before leaving your car.
PRG
AUTO·P
SEL
OPEN
BAND
PTY
PWR
TUNE
TRACK
S•HDB
q Press and hold [SEL] to change to display control
mode. (“PATTERN” is displayed.) (a Page 18)
w Press [SEL]. “LED On” or “LED OFF” is displayed.
e Press [] TUNE] or [[ TUNE] to turn the Panel
Removal alarm on or off (LED On or OFF).
CQ-FX421W
REMOTE
MONO/LOC
VOL
SOURCE
CASSETTE RECEIVER WITH CHANGER CONTROL
CT
DISP
NR 2
Display
EON・PTY・CT
RANDOM
DISC
1 MTL
3 TPS
4
SCAN
5 B·S
REPEAT
REP 6
REG
TA
AF
SUB·W
Panel Removal
Alarm
ON
OFF
CQ-FX421W
33
Electrical Connections
E
N
G
L
I
S
H
Cable Wiring Diagram
Example : Connection with CD changer CX-DP88N (Option).
19
CD Changer
Ground Lead
To a clean, bare metallic
part of the car chassis
CX-DP88N
(option)
Extension Cord
(DIN/BATT/RCA/GND)
(Black)
Battery Lead
To the car battery,
continuous +12 V DC
(Yellow)
Fuse (3A)
Changer Control DIN Cord
(L)(White)
CH•C-IN
(R)(Red)
RCA Cord
CD Changer
Control Connector
Antenna
Cassette Receiver
CQ-FX421W
L(White)
R(Red)
Preamp Out Connector (Rear)
Preamp Out Connector (Front)
Sub-Woofer Out
(Monaural)
Speakers
Rear Left +
Rear Left –
Front Left +
Front Left –
Front Right +
Front Right –
Rear Right +
Rear Right –
34
B (Brown)
CQ-FX421/FX321N
CQ-FX421W
(Green)
(White)
(Green w/black stripe)
(Gray)
(White w/black stripe)
(Violet)
(Gray w/black stripe)
(Violet w/black stripe)
y Power
Connector
Cautions:
¡Check the connectors provided on your car (see note on page 4 and 5) before connecting the system.
¡This unit is designed for use in a car having a 12-volt negative ground battery system.
¡To prevent damage to the unit, be sure to follow the connection diagram below.
¡Strip about 5 mm of the lead ends for connection (only non-ISO connector cords).
¡Do not insert the power connector into the unit until the wiring is completed.
¡Be sure to insulate any exposed wires to prevent short circuiting with the car chassis. Bundle all cables, and prevent
cable terminals from touching any metal parts.
E
N
G
L
I
S
H
20
¡This unit can be connected to an optional CD changer (CX-DP9061/DP9060EN, CX-DP88N, CX-DP801/DP803EN or
CX-DP601EN) and optional extension cord.
¡For details consult your nearest authorized Panasonic Dealer.
¡For connection to a CD changer, refer to the operating instructions of the CD changer (CX-DP9061/DP9060EN, CXDP88N, CX-DP801/DP803EN or CX-DP601EN).
C1 : (Orange)
Telephone Mute Lead (*)
Connect to the car telephone mute lead.
Note: The telephone mute lead is only for connection to the radio
mute lead. Output other than telephone will not be muted
Navi Mute Lead (**)
To the Navi Mute lead of the Panasonic car navigation system.
* Telephone Mute
The sound from the speakers cannot be heard while the telephone conversation is in progress.
** Navi Mute
The sound from the speakers cannot be heard while the navigation guide is on.
A5
(Dark blue)
(Orange)
A (Black)
(Black)
(Red)
ACC
(Dark blue)
Resistor (1 kΩ)
(Yellow)
BATTERY 15A
Fuse (15A)
A8 : Ground Lead (Black)
To a clean, bare metallic part of the car chassis
A7 : Power Lead (ACC or IGN) (Red)
To ACC power, +12VDC
A4 : Battery Lead (Yellow)
To the car battery, continuous +12 V DC
A5 : (Dark blue)
Motor Antenna Relay Control Lead
(To Motor Antenna) (Max. 500mA)
This lead is not intended for use with a switch actuated power antenna.
Amp·Relay Control Power Lead
This lead is for connection to a Panasonic power amplifier.
CQ-FX421W
35
Speaker Connections
E
N
G
L
I
S
H
21
Caution: Please follow the instructions given below. Failure to do so will cause damage to the unit and speakers.
<Right>
L +
-
R+
-
(White)
+
-
(White
w/black stripe)
(Gray)
+
-
(Gray
w/black stripe)
¡Use ungrounded speaker only.
¡The maximum speaker output should be 45 W or more. (If used with
the optional power amplifier, the speaker output should be higher than
the maximum amplifier output.)
¡The speaker impedance should be 4 - 8 Ω.
¡This unit uses the BTCL circuit, so each speaker should be connected
separately using parallel vinyl insulated cords.
¡The speaker cords and the power amplifier unit should be kept away
(about 30 cm apart) from the antenna and antenna extension cord.
<Wrong>
L +
-
+
-
L +
-
+
-
L +
-
+
+
-
-
Chassis
+
+
R -
-
+
R -
+
-
+
R -
+
+
-
-
Chassis
¡Never connect the speaker cord to
the body of the car.
¡Do not use a 3-wire type speaker
system having a common earth
lead.
¡Do not connect more than one
speaker to one set of speaker
leads.
Fuse
Use fuses of the same specified rating (15 A). Using different substitutes or fuses with higher ratings, or connecting the unit
directly without a fuse, could cause fire or damage to the unit.
If the fuse replacement fails, contact your nearest authorized Panasonic Service Center.
Maintenance
Your product is designed and manufactured to ensure the minimum of maintenance. Use a soft cloth for routine exterior
cleaning. Never use benzine, thinner, or other solvents.
36
CQ-FX421/FX321N
CQ-FX421W
Troubleshooting
Preliminary Steps
Check and take steps as described in the tables below.
If You Suspect Something is Wrong
Immediately switch the power off.
Disconnect the power connector and check that there is neither smoke nor heat form the unit before asking for repairs.
Never try to repair the unit yourself because it is dangerous to do so.
E
N
G
L
I
S
H
22
Caution:
¡Do not use the unit If It malfunctions or something is wrong.
¡Do not use the unit in abnormal condition, for example, without sound, or with smoke or foul smell. This can cause
ignition or electric shock. Immediately stop using the unit and call the store where you purchased.
Troubleshooting Tips
Common
Trouble
Unit does not turn on
No Sound
Cause
Step
Car’s engine switch is not on.
Turn your car’s ignition switch to ACC or
ON.
Cables are not correctly connected.
Connect cables correctly.
Battery cable is not correctly connected.
Connect the battery cable to the terminal
that is always live.
Accessory cable is not correctly connected.
Connect the accessory cable to your car’s
ACC source.
Grounding wire is not correctly connected.
Connect the grounding wire to a metal part
of the car.
Fuse is burnt out.
Call the store where you purchased the
unit, or your nearest service station and
ask for fuse replacement.
Mute is set to ON.
Set it to OFF.
Cables are not correctly connected.
Connect cables correctly.
Condensation(dew)
Wait for a while before use.
Radio
Trouble
Cause
Step
Much noise in FM stereo
and monaural broadcasts.
Station is too far, or signals are too weak.
Select other station of higher signal level.
The radio antenna is not extended enough.
Extend the radio antenna.
Preset station is reset.
Battery cable is not correctly connected.
Connect the battery cable to the terminal
that is always live.
CQ-FX421W
37
Troubleshooting (continued)
E
N
G
L
I
S
H
Cassette Tape Player
Trouble
Cause
Tape sound quality is poor.
Step
Heads are dirty.
Clean heads.(Ask a service representative
for advice.)
Poor quality tape.
Use better quality tape.
High tones are improperly
emphasized.
Dolby tape played with Dolby B NR off.
Activate the Dolby B NR mode.
Metal type tape played with Normal mode.
Change Normal mode to Metal mode.
Reproduction of high tones
is poor.
Non-Dolby tape plays with Dolby B NR on.
Cancel the Dolby B NR mode.
Normal type tape plays with Metal mode.
Change Metal mode to Normal mode.
Heads are magnetized.
Demagnetize heads. (Ask a service representative for advice.)
No sound
Blank tape inserted into the unit.
Insert recorded tape into the unit.
Wow and Flutter level is
very high.
Tape-running mechanism is dirty or out of
order.
Clean tape-running mechanism, or repair
it. (Ask a service representative for advice.)
Cause
Step
23
Sound Setting
Trouble
No sound from left, right,
front or rear speakers.
Left and right sounds are
reversed in stereo listening.
Left and right balance, or front and rear
balance is OFF on one side.
Adjust balance/fader mode as appropriate.
Cables are not correctly connected.
Connect cables correctly.
The right speaker wire is connected to the
left speaker and the left speaker wire to the
right speaker.
Reverse the speaker wire connections.
Remote Control
Trouble
Cause
Buttons do not function.
38
Step
Battery poles (+)(–) are reversed.
Insert the battery correctly.
Wrong battery used.
Check the battery.
Battery has run down.
Replace the Battery.
Remote control is pointed in the wrong
direction.
Direct the remote control at the sensor
(REMOTE) on the panel.
CQ-FX421W
Specifications
General
FM Stereo Radio
Power Supply
Frequency Range
Usable Sensitivity
Stereo Separation
: DC 12 V (11 V - 16 V), Test
Voltage 14.4 V, Negative
Ground
Tone Controls
: Bass; ±12 dB at 100 Hz
Treble; ±12 dB at 10 kHz
Current Consumption
: Less than 2.5 A (tape
mode, 0.5 W 4-Speaker)
Maximum Power Output
: 45 W x 4 (at 4 Ω)
Power Output
: 22 W x 4
(DIN45 324, at 4 Ω)
Speaker Impedance
: 4-8Ω
Pre-Amp Output Impedance : 600 Ω
Sub-Woofer Output Voltage
: 2V
Dimensions
: 178(W) x 50(H) x
150(D) mm
Weight
: 1.6 kg
: 87.5 - 108 MHz
: 6 dB/µV(S/N 30 dB)
: 35 dB (at 1 kHz)
MW Radio
Frequency Range
Usable Sensitivity
: 531 - 1 602 kHz
: 28 dB/µV (S/N 20 dB)
E
N
G
L
I
S
H
24
LW Radio
Frequency Range
Usable Sensitivity
: 153 - 279 kHz
: 32 dB/µV (S/N 20 dB)
Cassette Tape Player
Reproduction System
Tape Speed
FF/REW Time
Frequency Response
Wow and Flutter
Signal to Noise Ratio
:
:
:
:
4-track, 2-program stereo
4.76 cm/sec.
Less than 110 sec. (C-60)
30 - 17 000 Hz (normal)
30 - 18 000 Hz (metal)
: 0.12 % (WRMS)
: 52 dB (Dolby off)
62 dB (Dolby B NR on)
Note: Specifications and design are subject to modification without notice due to improvements.
Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation.
“DOLBY” and the double-D symbol B are trademarks of Dolby Laboratories Licensing Corporation.
CQ-FX421W
39
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
