Panasonic CQVAD9300U Operating instructions

Panasonic CQVAD9300U Operating instructions
E
N
G
L
I
S
H
1

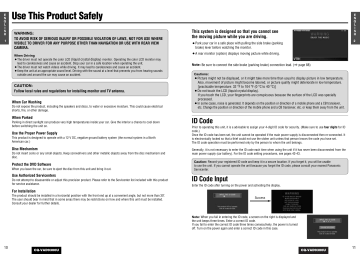

Use This Product Safely
WARNING:
TO AVOID RISK OF SERIOUS INJURY OR POSSIBLE VIOLATION OF LAWS, NOT FOR USE WHERE
VISIBLE TO DRIVER FOR ANY PURPOSE OTHER THAN NAVIGATION OR USE WITH REAR VIEW
CAMERA.
When Driving
¡The driver must not operate the color LCD (liquid crystal display) monitor. Operating the color LCD monitor may
lead to carelessness and cause an accident. Stop your car in a safe location when operating the unit.
¡The driver must not watch videos while driving. It may lead to carelessness and cause an accident.
¡Keep the unit at an appropriate sound level. Driving with the sound at a level that prevents you from hearing sounds
outside and around the car may cause an accident.
CAUTION:
Follow local rules and regulations for installing monitor and TV antenna.
When Car Washing
Do not expose the product, including the speakers and discs, to water or excessive moisture. This could cause electrical
shorts, fire, or other damage.
When Parked
Parking in direct sunlight can produce very high temperatures inside your car. Give the interior a chance to cool down
before switching the unit on.
Use the Proper Power Supply
This product is designed to operate with a 12 V DC, negative ground battery system (the normal system in a North
American car.)
Disc Mechanism
Do not insert coins or any small objects. Keep screwdrivers and other metallic objects away from the disc mechanism and
disc.
Protect the DVD Software
When you leave the car, be sure to eject the disc from this unit and bring it out.
Use Authorized Servicenters
Do not attempt to disassemble or adjust this precision product. Please refer to the Servicenter list included with this product
for service assistance.
E
N
G
L
I
S
H
This system is designed so that you cannot see
the moving picture while you are driving.
2
¡Park your car in a safe place with pulling the side brake (parking
brake) lever before watching the monitor.
¡A rear monitor (option) displays moving picture while driving.
Note: Be sure to connect the side brake (parking brake) connection lead. (a page 88)
Cautions:
¡Picture might not be displayed, or it might take more time than usual to display picture in low temperature.
Also, movement of picture might become labored, or picture quality might deteriorate in low temperature.
[practicable temperature: 32 °F to 104 °F (0 °C to 40 °C)]
¡Do not touch the LCD (liquid crystal display).
If you touch the LCD, your fingerprints are conspicuous because the surface of the LCD was specially
processed.
¡In some cases, noise is generated. It depends on the position or direction of a mobile phone and a CB transiever,
etc. Change the position or direction of the mobile phone and a CB transiever, etc. or keep them away from the unit.
ID Code
Prior to operating this unit, it is a advisable to assign your 4-digit ID code for security. (Make sure to use four digits for ID
code.)
Once the ID code has been set, the unit cannot be operated if the main power supply is disconnected then re-connected. It
is electronically locked so that a thief could not use the stolen unit unless that person knows the code you have set.
The ID code operation must be performed only by the person to whom the unit belongs.
Generally, it is not necessary to enter the ID code each time when using the unit if it has never been disconnected from the
main power supply (car battery). For the ID code setting procedures, see pages 42-43.
Caution: Record your registered ID code and keep it in a secure location. If you forget it, you will be unable
to use the unit. If you cannot operate the unit because you forget the ID code, please consult your nearest Panasonic
Servicenter.
ID Code Input
Enter the ID code after turning on the power and activating the display.
For Installation
The product should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30˚.
The user should bear in mind that in some areas there may be restrictions on how and where this unit must be installed.
Consult your dealer for further details.
Success
Note: When you fail in entering the ID code, a screen on the right is displayed and
the unit beeps three times. Enter a correct ID code.
If you fail to enter the correct ID code three times consecutively, the power is turned
off. Turn on the power again and enter a correct ID code in this case.
10
CQ-VAD9300U
CQ-VAD9300U
11
E
N
G
L
I
S
H
Components/Remote Control Unit Preparation
Name of Controls and Functions
Display Unit
Components
E
N
G
L
I
S
H
[ ] (OPEN/CLOSE)
¡Opens/closes the monitor.
(a page 20)
3
4
CQ-VAD9300U
[TILT]
¡Shows the monitor position
setting menu. (a page 21)
¡Tilts the monitor forward
temporarily. (a page 21)
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
NAVI
ASPECT
ASP
ENTER
TRACK/
CHANNEL
1
P·MODE
1. Display Unit
1
2. Hide-away Unit
1
1
5. TV Antenna
4. Lithium Battery
(CR2025)
3. Remote Control
Unit
1 set
Dimmer sensor
(a page 46)
XXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXX
XXXXXXXXXXXXXXXX
OO-OOOOO
[}] [{] (DISC)
¡Searches for TV stations
and memorizes them
automatically. (a page 23)
¡Selects a folder or a disc.
(a page 31, 37)
¡Selects (vertically) or
adjusts an operation or
item.
¡Selects a category.
(a page 38)
[]] [[] (TRACK/CHANNEL)
¡Selects or searches
a channel, track, file
or frequency.
(a page 22, 31, 34, 37)
¡Sequential transition from one
file to the next. (a page 31)
¡Selects (horizontally) or
adjusts an operation or item.
[ENTER]
¡Selects a band.
(a page 34)
¡Searches for broadcast stations and memorizes them
automatically. (a page 35)
¡Determines an operation or
item.
ENTER
1
1
6. Speaker*
*Do not use it for a
center speaker.
7. Wiping Cloth
1
8. Operating
Instructions
Disc slot
1 set
9. Warranty Card, etc.
CQ-VAD9300U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
10. Installation Hardware (screws, cords, etc.) (a page 74)
Remote control
sensor
Remote Control Unit Preparation
DISC
VOLUME
MUTE
MENU
MODE
POWER
Back side
Lithium battery
(supplied)
Position B
Position A
Caution: Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire. Battery
leakage may damage the unit.
¡Do not disassemble or short the battery. Do not throw a battery into a fire.
¡Keep batteries away from children to avoid the risk of accidents.
¡Be careful to observe proper local disposal rules when you dispose of batteries.
[}] [{] (VOLUME)
¡Adjusts the sound volume.
(a page 20)
[MUTE]
¡Mutes the sound temporarily.
(a page 20)
Battery Notes
Remove and dispose of the old battery immediately.
Battery holder
Battery Information:
¡Battery Type: Panasonic lithium battery (CR2025) (supplied)
¡Battery Life: Approximately 6 months with normal use (at room temperature)
ASPECT
NAVI
ASP
P·MODE
ENTER
TRACK/
CHANNEL
ENTER
Battery Installation (Inserting/Replacing the Battery)
q Remove the battery holder.
Pull the holder by the position B while pushing position A
in the direction indicated by the arrow.
w Install the battery on the battery holder.
Set a new battery properly with its (+) side facing up as shown in
the figure.
e Insert the battery holder.
Push the battery holder back into its original position.
NAVIGATION
[MENU]
¡Shows the menu screen.
(a page 40)
¡Shows the rear monitor
setting menu. (a page 72)
[MODE] (POWER)
¡Switches on/off the power. (a page 20)
¡Changes the modes such as sound and
picture. (a page 20)
ENTER
[u]
¡Ejects/reloads a disc. (a page 26, 30)
[ASP] (ASPECT) (P • MODE)
¡Selects the aspect ratio. (a page 71)
¡Activates/inactivates the private mode.
(a page 73)
[NAVI] (NAVIGATION)
¡Activates/inactivates the car
navigation. (a page 25, 40)
Note: Refer to “Electrical Connections” for names on the rear of the hide-away unit. (a page 86-87)
12
CQ-VAD9300U
CQ-VAD9300U
13
E
N
G
L
I
S
H
5
Name of Controls and Functions
(continued)
Remote Control Unit of the DVD/Video CD/CD/MP3 Playback
(Operation only for the remote control)
Remote Control
Aim the remote control at the remote control sensor of the
display unit and operate it.
[NAVI] (NAVIGATION)
¡Activates/inactivates the car
navigation. (a page 25, 40)
[TITLE]
¡Selects the channel directly.
(a page 38)
Meaning of symbols
VOLUME
NAVIGATION
MUTE
MENU
MODE
NAVI
ASPECT
ASP
ENTER
Indicates the compatible types of disc.
TRACK/
CHANNEL
[MODE]
¡Switches on/off the power. (a page 20)
¡Changes the modes such as sound and picture. (a page 20)
[RET]
¡Cancel the direct channel
selection. (a page 38)
[MENU]
¡Shows the menu screen. (a page 40)
¡Shows the rear monitor setting menu. (a page 72)
[OSD] (CAPTURE)
¡Displays information about each source on
the screen. (a page 16)
¡Saves your favorite part of playing picture as
a freeze-frame picture. (a page 53)
[DISP]
¡Changes the display. (a page 70)
[}] [{]
¡Searches for TV stations and
memorizes them automatically.
(a page 23)
¡Selects a disc. (a page 37)
¡Selects a category. (a page 38)
¡Selects (vertically) or adjusts an
operation or item.
[SPACE]
¡Setting the sound field.
(a page 67)
VIDEO
CD
CD
[MODE] VIDEO
¡Changes the modes such as sound
and picture. (a page 20)
DVD
DVD
MP3
[}] [{] []] [[] VIDEO
¡Selects an operation or item.
V
[DVD] (DVD MENU) VIDEO
¡Displays the DVD menu. (Operations vary
according to the disc.) (a page 28)
MP3
[ENTER]
¡Changes to the direct folder selection
mode. (a page 30)
[TITLE] (TITLE/CHAPTER)
¡Selects the title/chapter. (a page 28)
[}] [{]
¡Selects a folder. (a page 31)
DVD
VIDEO
CD
CD
[RET] (RETURN) VIDEO
¡Returns to the previous display.
(a page 28)
¡Inputs the number again.
(a page 28)
¡Displays the video CD's menu.
(a page 28)
[SCRL] (SCROLL) CD
¡Title scroll. (a page 31)
DVD
MP3
VIDEO
[SUB] (SUB TITLE)
¡Switching the subtitle language. (a page 29)
[ENTER]
¡Selects a band. (a page 34)
¡Searches for broadcast stations and
memorizes them automatically.
(a page 35)
¡Determines an operation or item.
[AUDIO] (ST/MONO)
CD
¡Switches between stereo or monaural sound.
(a page 29)
[0] to [9]
¡Selects a TV channel directly. (a page 22)
¡Memorizes and recalls broadcast stations. (a page 35)
¡Random [4], scan [5], repeat [6] for the CD changer mode.
(a page 37)
¡Sets the ID code. (a page 42)
MP3
[]] [[]
¡Selects a track or file. (a page 31)
¡Fast forward/fast reverse (a page 31)
¡Sequential transition from one file to
the next. (a page 31)
[ANGLE]
¡Switching the angle. (a page 29)
[A] (ASPECT) (P • MODE)
¡Selects the aspect ratio. (a page 71)
¡Activates/inactivates the private mode.
(a page 73)
VIDEO
CD
[ENTER]
¡Determines an operation or item.
[]] [[]
¡Selects or searches a channel,
frequency or track.
(a page 22, 34, 37)
¡Selects (horizontally) or adjusts an
operation or item.
CQ-VAD9300U
MP3
P·MODE
DVD
14
CD
6
DISC
POWER
[PWR]
¡Switches on/off the power.
(a page 20)
DVD VIDEO
VIDEO
CD
CQ-VAD9300U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
E
N
G
L
I
S
H
[AUDIO]
¡Switching the audio language. (a page 29)
VIDEO
[}] [{] (VOLUME)
¡Adjusts the sound volume.
(a page 20)
DVD
VIDEO
CD
CD
[■] (STOP) VIDEO
¡Stops playback. (a page 27, 31)
[MUTE]
¡Mutes the sound temporarily.
(a page 20)
[❚❚] (PAUSE)
¡Pause (a page 27, 31)
[B] (PLAY)
¡Playback (a page 27, 31)
[s] [d]
¡Goes to beginning. (a page 27, 31)
¡Fast forward/fast reverse.
(a page 27, 31)
¡Slow playback [d]. (a page 27)
DVD VIDEO
VIDEO
CD
CD
MP3
[REP] (REPEAT)
¡Repeats a playback. (a page 27, 31)
MP3
DVD
DVD
VIDEO
CD
[0] to [9] VIDEO
¡Selects an item on the menu.
(a page 28)
DVD
[0] to [9] VIDEO
¡Selects a title or chapter.
(a page 28)
[DRC] (PRO LOGIC) (DOWN MIX) VIDEO
¡Selecting the audio channel.
(a page 66)
¡Compresses the range of the playback level. (a page 67)
MP3
CD
[4] (RANDOM)
¡Random play. (a page 31)
CQ-VAD9300U
15
E
N
G
L
I
S
H
7
Indications on the Screen
Discs that can be Played Back
The State of the Current Output Appears
Disc
Note: Displaying contents and their positions partly vary with each mode. Refer to the description of each mode for details.
DVD video
Example:
DVD Mode
Disc size Video format Audio format Region No.
NTSC
Image•Sound/Mode Display
Video CD
The current mode appears.
Disc Indicator
Prohibition
Input is not possible
because a soundtrack, subtitle language or angle number which was not
recorded on the disc
has been selected or
because the user has
attempted to perform
an operation which is
not supported by the
unit.
TEXT
CD-R/RW
(a page 50)
Additional
Information
Channel,
source type,
various settings, etc.
Information of
Each Mode
Playing
elapsed time,
title, preset
list, etc.
Mode Display
Recordable
❒ Region Management Information
Example:
1
1 2
4 6
You can switch between OSD-ON and OSD-OFF regarding the mode information when watching a picture.
OSD off
(During playback)
Press [OSD] on
the Remote
Control.
Notes:
¡On-Screen Display also appears when operation is made (for 4 seconds).
¡On-Screen Display can be toggled between on and off only in the TV, VTR1/2, DVD and VCD modes. (When the captured
image is set as a wallpaper in the CD, MP3, RADIO, CD changer and Sirius modes, pressing [OSD] switches captured
images.)
CQ-VAD9300U
This product is designed and manufactured to respond to the Region Management
Information that is recorded on a DVD disc. If the Region number described on the
DVD disc does not correspond to the Region number of this product, this product
cannot play the disc.
The Region number for this product is “1” and “ALL”.
ALL
❒ Symbols used on jackets (Examples of such symbols include)
¡Number of subtitle languages
2
Screen size (H:V aspect ratio)
¡4:3 standard size
¡Number of audio tracks
4:3
2
3
The numbers indicate the number of languages, tracks, angles, etc., recorded on the
disc.
OSD (On-Screen Display) On/off
LPCM (CD-DA),
MP3
ReWritable
Note: About CD-Rs and CD-RWs, refer to “Notes on CD-Rs/RWs”. (a page 103)
¡Number of angles
OSD on
8
LPCM (CD-DA),
dts
CD
Clock Time
Default: off
Volume Display
MUTE blinks when
the MUTE function is
set to ON.
1
ALL
5” (12 cm)
: Sound (Radio (AM/FM)/CD/MP3/Changer (CH-C)/
Sirius Receiver (SIRIUS))
When the car navigation
mode is set to ON.
LPCM, MPEG1,
MPEG2, dts,
Dolby Digital
LPCM, MPEG1
: Image and sound (TV/VTR1•2/DVD/Video CD (VCD))
(OSD on a see below)
16
Mark (logo)
E
N
G
L
I
S
H
¡Letterbox
LB (➡ page 104)
¡16:9 wide size
16:9 LB
: Play back in letterbox format on a standard screen (4:3).
16:9 PS
: Play back in “Pan & Scan” (a page 104)
format on a standard screen (4:3).
Note: The size of the image that is displayed on the screen
depends on the screen mode (“Aspect Ratio” ➡ page 71),
and on the screen size for the content on the disc.
❒ The following discs cannot be played back on this product.
¡DVD-Audio
¡DVD-ROM
¡DVD-R
¡DVD-RAM
¡DVD+RW
¡DVD-RW
¡SVCD
¡VSD
¡CVD
¡CD-G
¡CD-ROM (except MP3)
¡CD-RW (except MP3 and CD-DA) ¡CD-R (except MP3 and CD-DA) ¡SACD
¡photo CD
¡CDV
¡Divx Video Discs
¡CD-EXTRA (audio-only playback possible)
¡Discs recorded in PAL format, others
¡DVDs with a region number other than “1” or “ALL”
¡Playing back a photo CD disc with this unit could damage the data that is recorded on the disc.
CQ-VAD9300U
17
E
N
G
L
I
S
H
9
System Upgrade
E
N
G
L
I
S
H
Recommended system: 5.1-channel Surround System
Advanced system
This unit has a built-in 5-channel amplifier. The procedure for setting up a 5.1-channel surround
system in order to play DVD software in a way that creates a “you are there” feel in a car is
described below.
Connecting devices shown below allows you to enjoy a wonderful world consisting of wide
variety of pictures and sounds.
Be sure to connect the display unit and hide-away unit with optical fiber cable.
Front Speakers: CJ-DVD177
Subwoofer: CJ-HD302
Use the left and right front speakers (such as
speakers that are built into the front door).
Because the audio imaging is not nearly as dependent
on the position where the subwoofer is installed as it
is with the other speakers, the subwoofer can be
installed anywhere that is convenient. (A separate
power amplifier for the subwoofer is needed.)
¡Details on wiring:
a page 86-87
¡Speaker settings:
a page 58-63
Camcorder
VCR
Rear View
Camera
Refer to “VTR”
(a page 24).
10
Refer to “VTR”
(a page 24)
Panaso nic
INTELLIGENT SYSTEM
POWER
BS G-CODE
¡Details on wiring:
a page 89-93
CQ-VAD9300U
Panasonic
Power amplifier
Panasonic
CQ-VAD9300U
Center Speaker: EAB-CF2
Install in the middle of the dashboard, near the
monitor.
¡The supplied speaker cannot be used as the
center speaker.
Surround Speakers: CJ-SS162
Main Unit Monitor
Sirius Receiver: CR-SRT100
Refer to “CD
Changer
Control”
(a page 36).
Use the left and right rear speakers (such as speakers
that are built into the rear door or the rear deck)
Note: Even if you are using this unit without installing a center speaker, surround speakers, or a subwoofer, it is still necessary to make the speaker settings in order to adjust the sound balance.
About Rear Monitor (a page 72)
CD Changer: CX-DP88U
Rear Monitor: CY-VMX6800U
Refer to “Sirius
Receiver
Control”
(a page 38).
Refer to “Rear
Monitor Set
Up” (a page
72)
Note: Above two products can be connected at once by incorporating with
CA-CD55 (option). (a page 91).
TV
VTR1/VTR2
DVD (VCD, CD, MP3)
Radio
CD Changer
Sirius Receiver
You can have different picture and sound at the front
monitor and rear monitor at the same time.
¡You can mute the sounds from the rear speakers if necessary.
(Private Mode a page 73)
The rear monitor does not display television picture when the main unit is in the
radio mode.
types of discs cannot
( ) Different
be played back at the same time.
Rear Monitor
TV
18
CQ-VAD9300U
VTR1/VTR2
DVD (VCD, CD, MP3)
For a CD and MP3, the screen becomes blue.
CQ-VAD9300U
19
E
N
G
L
I
S
H
11
General
Power
Display Open/Close
Turn your car's ignition key to ACC or ON position.
ON: press [MODE] (POWER) on the display unit.
Press [PWR] or [MODE] on the remote control.
OPEN: press [ ] (OPEN/CLOSE).
CLOSE: press [ ] (OPEN/CLOSE) again.
(After returning the lateral angle to the
neutral position.)
Notes:
¡When the display unit is opened or closed, a loud
beep sounds three times.
¡If the unit stops halfway, press [ ] (OPEN/CLOSE)
again and draw it all the way in.
¡Opening/closing the display can be done when the
power is off.
OFF: press [MODE] (POWER) again for more than
2 seconds on the display unit.
Press [PWR] again or [MODE] again for more
than 2 seconds on the remote control.
[
Monitor Position Adjustment
12
Cautions:
¡For smooth adjustment, make sure to first return the lateral angle to the neutral position and then adjust the tilt angle.
¡Avoid physical shock on the monitor.
Tilt Angle/Front-Rear Position
1 Press and hold [TILT] on the display unit for more than 1 second.
[TILT]
2
Warning: Do not touch the unit while the display
is moving. Inserting hands, fingers or foreign
objects into the unit can cause injuries and
damage to the unit.
] (OPEN/CLOSE)
TILT
OPEN/CL
CQ-VA
ASH
IN-D
OSE
LOR
E CO
H WID
7 INC
LCD
TV /
DVD
EO /
- VID
CQ-VAD
9300UIN-DASH 7 INC
H WIDE
COLOR
LCD TV
EO / RE
CEIVE
ENTER
/
TRACKL
CHANNE
ENTER
MOD
VO
CT
ASPE
ASP
MENU
Mode
VOLUM
Press [MODE] to change the mode.
DE
P·MO
E
ER
POW
MENU
MUTE
[MODE] (POWER)
TV
(a page 22)
VTR1
(a page 24)
VTR2
(a page 24)
[MUTE]
[}] [{] (VOLUME)
DVD/VCD (Video CD)/CD/MP3
[PWR]
(POWER)
[}] [{]
(VOLUME)
[MUTE]
ASPECT
ASP
P.MODE
E
ER
POW
MUTE
[}] [{]
[] ] [[ ]
(Adjust)
[}] [{]
[] ] [[ ]
(Adjust)
Press [}], [{], []] or [[] to adjust.
The setup is the same way as the one from MENU. Refer to
“SET-UP: User Settings” for details. (a page 40)
Notes:
¡Vertical angle (TILT) and front-rear position data are saved in the memory, so
when the display unit is drawn out next, it is automatically set at the angle and
in the position adjusted before.
¡After adjusting its angle, also adjust the brightness to make it easy for you to
watch. (a page 46)
¡The car model and installation condition may impose some restrictions on the
adjustment of the monitor's angle and position.
Caution: Do not interfere with the movement of the monitor. Do not change
the position of the unit forcibly.
Display Unit Lateral Angle Adjustment
Hold the display unit by the non-slip part in the upper half of it, and adjust its
lateral angle.
View from above
(a page 34)
CH-C (CD Changer Control)*
(a page 36)
TILT
SIRIUS (Sirius Receiver Control)* (a page 38)
* Selectable only when a CD changer and Sirius
receiver are connected.
Caution: There is the danger of your fingers being pinched if you hold the
unit by the lower part. Hold the unit by the upper half, and move it carefully
without applying undue force.
Volume
Folding Down the Display Temporarily
[}] (VOLUME): up
[{] (VOLUME): down
Setting Range: -82 dB to 0 dB
Note: The sound level for each source is
stored in memory.
Fold Down: press [TILT] on the display unit.
Raise: press [TILT] again on the display unit.
Mute
MUTE ON: press [MUTE].
MUTE OFF: press [MUTE] again.
CQ-VAD9300U
(a page 26, 30)
AM/FM (Radio)
[MODE]
20
TION
MODE
ON
GATI
NAVI
LUME
TILT
EIVER
REC
NAVI
R
DISC
NAVI
D9300U
DISC
NAVIGA
VID
/ DVD -
E
N
G
L
I
S
H
Note: Even when the unit is power off, you can fold down the display temporarily.
Caution: Do not place any object on the display unit, or subject it to undue
force.
CQ-VAD9300U
21
E
N
G
L
I
S
H
TV Tuner
It is required to install the supplied antenna to
receive TV broadcasts. Refer to the description of
mounting the TV antenna. (a page 82)
Mode display
13
E
N
G
L
I
S
H
Preset Channels
14
This function can search for channels automatically. Up to 18 channels can be stored.
Channel number
Press and hold [}] or [{] for more than 2 seconds.
[}]: the search starts from ch. 2 successively.
[{]: the search starts from ch. 69 in reverse successively.
Preset channels
CQ-VAD9300U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
Auto Preset
Memory
DISC
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
[MODE]
[MODE]
NAVI
ASPECT
ASP
ENTER
TRACK/
CHANNEL
P·MODE
[]] [[] (CHANNEL)
[}] [{] (Preset memory)
1
[] ] [[ ] (Channel)
[}] [{] (Preset memory)
* See below
¡A stored channel can be renewed every time you store another channel.
¡The unit may receive a channel that has poor-quality images depending
on broadcasting conditions.
¡The search returns to the start position if there is no receivable channel.
TV Mode
Press [MODE] to change to TV mode.
* “–” appears if the number of receivable channels is less than 18.
2
Channel Setting
[[] (CHANNEL): up
[]] (CHANNEL): down
Press and hold [[] (CHANNEL) or
[]] (CHANNEL) for more than 0.5 seconds.
Seeking will start.
[0] to [9]
(Direct channel
selection)
Preset Channel
Calling
Press [}] or [{] to select the channel.
Direct Channel Selection
(Only for remote control)
Enter a channel number by pressing [0] to [9].
Example: Channel Number 17
Press [1] and [7].
22
CQ-VAD9300U
CQ-VAD9300U
23
E
N
G
L
I
S
H
15
VTR
You can view the images and listen to the sounds
from the connected external devices in the VTR1
mode and VTR2 mode respectively.
Mode display
External Devices Connectable to VTR1/VTR2
E
N
G
L
I
S
H
16
Refer to “Electrical Connections” for each external device connection. (a page 92-93)
Example:
VTR1
: Camcorder
VTR2
: Rear View Camera
VTR2-IN
VTR1-IN
VCR/Camcorder
CQ-VAD9300U
Hide-away Unit
CQ-VAD9300U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
Select the same mode (VTR1 or VTR2) as the terminal that is connected
to a VCR or Camcorder (VTR1-IN or VTR2-IN).
Note: Adjust the VTR input level if sound do not comes out normally with
“OVER” displayed. (a page 56)
DISC
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
NAVI
ASPECT
ASP
ENTER
TRACK/
CHANNEL
P·MODE
[MODE]
Camcorder
[MODE]
Rear View Camera
VTR1/VTR2 Mode
Press [MODE] to change to VTR1 or VTR2 mode.
Rear View
Camera
Select the same mode (VTR1 or VTR2) as the terminal that is connected
to a rear view camera (VTR1-IN or VTR2-IN).
Note: It can also be set to switch to an image through the rear view camera automatically if the shift lever is put into the reverse position.
(a page 42)
Note: You can set up the system so that the VTR
mode is not selected (VTR skip). (a page 44)
(VTR set to either CAMERA INPUT and NAVI INPUT is
not skipped even if VTR skip is set to on.)
Car Navigation
Select the same mode (VTR1 or VTR2) as the terminal that is connected
to a car navigation system (VTR1-IN or VTR2-IN).
Note: It can also be set to switch to an image and sound through the car
navigation system only by pressing [NAVI] (NAVIGATION). (a page 40)
Note: VTR1 and VTR2 terminals are not used for the Panasonic car navigation system (available in future). Refer to
“Electrical Connections” for connection (a page 84-87) and “Navigation Set Up” for setting. (a page 40)
24
CQ-VAD9300U
CQ-VAD9300U
25
E
N
G
L
I
S
H
DVD/Video CD Player
DVD VIDEO
VIDEO
CD
Disc Insert
1
17
CQ-VA
IN-DA
SH 7
INCH
CO
WIDE
LOR
LCD
DVD
TV /
- VID
EO /
D930
RECE
[u] (Eject)
(Lights when
a disc is in
the deck)
0U
TILT
IVER
DISC
ENTER
CT
ASPE
NAVIG
ATION
NAVI
ASP E
.MOD
P
[]] [[]
(➡ page 27)
MODER
MENU
ME
VOLU
POWE
MUTE
[MODE]
Label side
Indicates the compatible types of disc.
Perform these operations (➡page 27-29) with the remote control.
¡The mode that supports the disc is selected, and
playback starts.
¡The audio format is automatically identified.
(➡ page 104)
¡When the menu screen appears, see “DVD
Menu/Video CD Menu” on page 28.
Operations vary according to the disc. For details, refer to the guide provided with the disc.
E
N
G
L
I
S
H
1
18
Basic Operation
When DVD or Video CD is in the player, press
[MODE] to change to DVD or Video CD player
mode and playback starts.
Go to Beginning
Notes:
¡Do not insert a disc when disc indicator
or
eject button lights because a disc is already
loaded.
¡The power will be turned on automatically when a
disc is loaded.
¡You can play a disc even if the monitor is closed.
¡The sound may be interrupted for a few moments
while the audio format is being identified.
Fast Forward/
Fast Reverse
DVD VIDEO
VIDEO
CD
[d]: next track (chapter)
[s]: beginning of the current track (chapter)
Previous track (chapter) (Press twice.)
Note: When playing a DVD video, there are cases where it is not possible to return to the start of a chapter that spans 2 titles. (➡ page 104)
DVD VIDEO
VIDEO
CD
Press and hold
[d]: fast forward
[s]: fast reverse
Release to resume playback.
The speed changes if the button is held down as follows.
Regular speed /1.5 times /10 times /20 times
DVD VIDEO
VIDEO
CD
Press [3] (STOP).
Press [5] (PLAY) again, and play will resume from the point where [3]
(STOP) is pressed. (Continued playback function)
To cancel continued playback, press [3] (STOP) again in the stop
mode.
[y] (PAUSE)
Cautions:
¡Do not use irregularly shaped discs.
¡Do not insert foreign matter into the disc slot.
[MODE]
[REP] (REPEAT)
[3] (STOP)
Disc Eject
Press [u] to stop playback and eject the disc.
(Press [u] again to reload the disc.)
Note: If you leave a disc in the slot for more than 30
seconds after its ejection, the disc will be automatically
reloaded after loud beep is energized three times.
[5] (PLAY)
[s] [d]
(➡ page 27)
Notes:
¡Due to limitations of certain discs, some DVD video
and Video CD discs may not operate as described in
these Operating Instructions. Refer to the disc jacket for further details.
¡This unit does not support DVD and Video CD
karaoke functions.
DVD mode display
Video CD mode display
Mode display
Sound setting (Stereo/monaural)
Disc indicator
Disc indicator
Stop
Pause
Slow
Playback
Repeat
Play
Press [y] (PAUSE).
DVD VIDEO
VIDEO
CD
DVD VIDEO
VIDEO
CD
DVD VIDEO
VIDEO
CD
To resume playback, [5] (PLAY) or [y] (PAUSE) again.
Press and hold [d] in the pause mode.
Playback is at about 1/3 normal speed.
To resume normal playback, press [5] (PLAY).
To pause, press [y] (PAUSE) again.
Note: Reverse slow playback is not possible.
Press [REP] (REPEAT).
Press [REP] (REPEAT) again to cancel.
Note: It is possible to press []] [[] on the display unit instead of [s] [d] on the remote control. ( [[] on the display
unit cannot be used in place of [d] that is used for slow playback.)
Audio format
(➡ page 104)
Playing time
Play setting
Chapter number
Title number
Subtitle language/audio language/angle
26
CQ-VAD9300U
Mode display
Playing time
Play setting
CQ-VAD9300U
27
E
N
G
L
I
S
H
DVD/Video CD Player
DVD VIDEO
VIDEO
CD
(continued)
E
N
G
L
I
S
H
Indicates the compatible types of disc.
Chapter/Title Selection
Useful Function
1
19
1
20
DVD Menu/
Video CD Menu
Use this menu during
playback to select content,
audio, subtitle, etc., from a
menu (the DVD/Video CD
menu) that is unique to each
disc.
DVD VIDEO
VIDEO
CD
MENU DVD
1. SUBTITLE
2. AUDIO
3. ANGLE
w Press []], [[], [}] or [{] to
select the preferred menu.
For the DVD/Video CD with playback
control (➡ page 104), press [0] to [9]
on the remote control.
Select your favorite music.
e Press [ENTER].
To return the previous display, press [RET]
(RETURN).
1. Love Supremes
2. Impressions
3. In a Sentimental Mood
Number:
If the DVD has multiple titles
recorded on it, it is possible
to select the preferred title
from the title menu to start
playback.
DVD
VIDEO
w Press []], [[], [}] or [{] to
select the preferred title.
For the DVD with playback control
(➡ page 104), press [0] to [9]
on the remote control.
Starting Playback
from a Specific
Title/Chapter
DVD
VIDEO
CQ-VAD9300U
e Press [TITLE] (TITLE/CHAPTER).
Playback will start automatically.
It is possible to change the subtitle language during play if the multiple
languages are recorded on the disc.
Note: There may be a brief delay before the subtitles appear.
Press [AUDIO] during playback.
It is possible to change the audio language during play if multiple audio
languages are recorded on the disc.
Switching the
Angle
DVD
VIDEO
For DVDs which contain scenes which have been shot simultaneously
from a number of different angles the same scene can be viewed from
each of these different angles during play.
Castles
Press [AUDIO] (ST/MONO).
Lovers
Woods
It is possible to switch the audio between stereo sound and monaural
sound (L or R).
Switching between
Stereo and
Monaural
To return the previous display, press [RET] (RETURN).
w Press [0] to [9] to input preferred
title/chapter number.
To input the number again, press
[RET] (RETURN).
Switching the
Audio
DVD
Language
VIDEO
Press [SUB] (SUB TITLE) during playback.
Rivers
e Press [ENTER].
q Press [TITLE] (TITLE/CHAPTER)
to select the input mode. The mode
changes as shown at right every
time [TITLE] (TITLE/CHAPTER)is
pressed.
Switching the
Subtitle
DVD
Language
VIDEO
Press [ANGLE] during playback.
q Press and hold [DVD] (DVD MENU) for Example:
more than 2 seconds during playback.
TITLE MENU
Title Menu
28
Example:
q Press [DVD] (DVD MENU) during
DVD playback.
(For the Video CD menu, press [RET]
(RETURN) during playback.)
VIDEO
CD
STEREO
MONO Lch : the left channel audio is output on both the left and
right speakers.
MONO Rch : the right channel audio is output on both the left
and right speakers.
Regular Mode
Chapter Number Input Mode
Title Number Input Mode
[DVD]
(DVD MENU)
(a page 28)
[TITLE]
(TITLE/CHAPTER)
(a page 28)
[]] [[] [}] [{]
(Select)
[ENTER]
(a page 28)
[SUB]
(SUB TITLE)
[ANGLE]
[0] to [9]
(Title/chapter
Number)
(a page 28)
“5” lights on pink.
Notes:
¡For the VCD mode, do not press [TITLE] (TITLE/CHAPTER) but press
the numerical key to enter a number directly.
¡If no operation is performed for 8 seconds after [TITLE] (TITLE/CHAPTER) has been pressed, the display returns to the regular mode.
¡If the title/chapter number is pressed and no operation is performed for
2 seconds, the playback will start from the number of the title/chapter
entered.
: stereo sound
[AUDIO]
(ST/MONO)
[RET] (RETURN)
(a page 28)
Notes:
¡If no operation is performed for 5 seconds, the display returns to the regular
mode.
¡It may not be possible to switch the language unless the unit is at the DVD menu
(➡ page 28) or is at the DVD settings.
(➡ page 48)
¡The language on the DVD settings has a
priority over when the power is turned on
or the disc is loaded. (➡ page 48)
¡The number of languages depends on the
disc. Some discs have only one language
or have no language.
CQ-VAD9300U
29
CD/MP3 Player
E
N
G
L
I
S
H
CD
MP3
Disc Insert
1
21
[u] (Eject)
(Lights when
a disc is in
the deck)
CQ-VA
IN-DA
SH 7
INCH
WIDE
COLO
R LC
D TV
/ DVD
-
/
VIDEO
D930
RECE
0U
TILT
IVER
DISC
ENTER
ASPE
NAVIG
ATION
NAVI
CT
ASP E
.MOD
P
[]] [[]
(Track/file)
[}] [{]
(Folder)
[ENTER]
MODER
MENU
ME
VOLU
POWE
MUTE
The mode that supports the disc is selected, and playback starts.
When a disc is in the player, press [MODE] to
change to CD or MP3 player mode and playback
starts.
Notes:
¡Do not insert a disc when disc indicator
or
eject button lights because a disc is already
loaded.
¡The power will be turned on automatically when a
disc is loaded.
¡You can play a disc even if the monitor is closed.
E
N
G
L
I
S
H
Indicates the compatible types of disc.
Basic Operation
1
22
Perform these operations with the remote control.
MP3
[d]: next track/file
[s]: beginning of the current track/file
Previous track/file (Press twice.)
CD
Press and hold.
[d]: fast forward
[s]: fast reverse
Release to resume playback.
MP3
[}]: next folder
[{]: previous folder
Go to Beginning
CD
Fast Forward/
Fast Reverse
[MODE]
Label side
Cautions:
¡Do not use irregularly shaped discs.
¡Do not insert foreign matter into the disc slots.
CD/MP3 mode display
Mode display
Disc Eject
Disc indicator
Press [u] to stop playback and eject the disc.
(Press [u] again to reload the disc.)
Total track
Disc title
Track title
Play setting
Track number
[y] (PAUSE)
[MODE]
[3] (STOP)
Play time
[] ] [[ ]
(Track/file)
[}] [{] (Folder)
[ENTER]
Note: If you leave a disc in the slot for more than 30
seconds after its ejection, the disc will be automatically
reloaded after loud beep is energized three times.
Direct Folder Selection
Folder
Selection
Sequential Transition
From One File
MP3
to the Next
Press and hold.
[}]: forward
[{]: backward
Title
Scroll
CD
MP3
Press [SCRL] (SCROLL).
Stop
CD
MP3
Press [3] (STOP).
Pause
CD
MP3
MP3
q Press [ENTER] during playback.
w Press []], [[] , [}] or [{] to select a folder.
[] ] [[ ]: movement among different levels of trees
[}] [{] : movement in the same tree
e Press [ENTER].
CD
Repeat Play
[SCRL] (SCROLL)
MP3
[REP] (REPEAT)
: MP3 files are included
[5] (PLAY)
[s] [d]
(➡ page 31)
: No MP3 files
Note: It is not possible to display the whole trees and
a file list in a folder.
[4] (RANDOM)
* For “Folder selection order/MP3 file playback
order”. (➡ page 33)
30
CQ-VAD9300U
When the file list is displayed:
[}]: previous folder
[{]: next folder
CD
Random
Play
Press [y] (PAUSE).
To resume playback, [5] (PLAY) or [y] (PAUSE) again.
Press [REP] (REPEAT).
Press [REP] (REPEAT) again to cancel.
Current
File
Press [REP] (REPEAT).
Press [REP] (REPEAT) again to cancel.
Current
Folder
Press and hold [REP] (REPEAT) for more than 2 seconds.
Press and hold [REP] (REPEAT) again to cancel.
Press [4] (RANDOM).
Press [4] (RANDOM) again to cancel.
All
Files
MP3
Press [4] (RANDOM).
Press [4] (RANDOM) again to cancel.
All Files in the Press and hold [4] (RANDOM) for more than 2 seconds.
Current Folder Press and hold [4] (RANDOM) again to cancel.
Note: It is possible to press []] [[] on the display unit instead of [s] [d] on the remote control.
CQ-VAD9300U
31
E
N
G
L
I
S
H
1
23
CD/MP3 Player
E
N
G
L
I
S
H
(continued)
This player allows you to play MP3 files recorded on CD-ROMs, CD-Rs
(Recordable) and CD-RWs (Rewritable).
Folder selection order/MP3 file playback order (Example)
: [] ][[ ]
Root Folder
Current Folder
Folder in the next
lower level of tree
What is MP3?
MP3, short for MPEG-1 Audio Layer 3, MPEG-2 Audio Layer 3 LSF (Low Sampling Frequency), is a standard for compressing digital video data adopted for video CDs and similar media. It is one of the audio compression systems covered by
MPEG's (Motion Picture Experts Group) digital audio compression standards. What it does is reduce the number of bytes
in a song without detracting from the sound quality by eliminating big sound waves within the sound range that is imperceptible to the human ear. This compression allows you to reduce the contents of a conventional music CD by a factor of
around 10. This means that you can record the contents of 10 music CDs on a single CD-R or CD-RW. (The figures refer
to data recorded on a 650 MB CD-R or CD-RW at a fixed bit rate of 128 kbps and a sampling frequency of 44.1 kHz.)
: MP3 files are included
1
Points to Remember When Recording an MP3 Disc
1
5
¡Do not record files other than MP3s or unnecessary folders on a disc. If many folders or files other than MP3s
are recorded on a disc, it may take some time before playback starts.
¡Use ISO 9660 file system (Extension of the ISO 9660 file systems are included.) (a page 33). APPLE HFS file
system is not supported. If they do not conform to ISO 9660 file system, the file may not play normally, or the file
or folder names may not be displayed correctly.
¡Make sure to add the “.mp3” extension to each MP3 file name. A file with a different file name extension or none
at all will not play.
¡Although Multi session recording is supported, the use of Disc-at-Once is recommended. Make sure to close the
session when you finished recording on a disc.
¡A disc recorded by the packet writing software are not supported.
¡A playlist function is not supported. Record files and folders in the order in which you want them to be played.
Some writing software lets you specify the recording order by adding a prefix in the range of “01” - “99”, etc. to the
file name. For details refer to the user manual of your writing software.
Notes:
¡You may encounter trouble in playing MP3s or displaying the information of MP3 files recorded with certain writing
softwares or CD recorders (CD-R/RW drives).
¡If a disc contains both MP3 and CD-DA, only CD-DA data is reproduced properly. (MP3 files are played but no
sound is output).
Root
Tree 1
6
File Selection
In the order
6
4
~
e
w
■ Converting (encoding) audio data to an MP3 file
~
q
r
Tree 2
Root
: No MP3 files
Root Folder
(Root Directory)
Folder Selection
In the order
q
3
■ Recording MP3 files on a CD-R/RW
1
3
1
24
: [}][{]
5
4
2
¡It is recommended that you set the bit rate to “128 kbps or more” and “Fixed”.
¡Bit rate 8 kbps of MPEG-2 and sampling frequency 16 kHz of MPEG-2 can not be reproduced.
¡VBR (Variable Bit Rate) is not supported.
¡The playback sound quality differs depending on the encoding software and the bit rate. For details refer to the user
manual of your encoding software.
2
r
Tree 1
Tree 2
Notes:
¡This unit counts the number of folders irrespective
of the presence or absence of MP3 file.
¡If the selected folder does not contain any MP3
files, the nearest MP3 files in the order of playback
will be played.
¡Playback order may be different from other MP3
players even if the same disc is used.
¡“ROOT” appears when displaying the root folder’s
folder name.
Tree 3
Maximum number of files/folders
¡Maximum number of trees: 8
¡Maximum number of folders: 254 (Root folder is not included.)
¡Maximum number of files: 512
Note: If the number of files and folders exceeds the number mentioned above, successful playback may not be
performed.
Supported file systems and file names
Supported file system
ISO 9660 Level 1/Level 2
Joliet*
Romeo
Apple Extension to ISO 9660
Displayable folder names and file names
Name files and folders in accordance with the standard of each file system.
Refer to the instructions of writing software for details.
¡This player can display file names of up to 31 ASCII character set in scroll mode.
* Up to 15 letters can be displayed when scrolling in the Joliet system.
According to the standard, “á”, “ç”, etc. can be used. However, this unit can
not display those letters.
¡The unit recognizes only ASCII character set. Chinese characters, accented
French characters and accented Spanish characters will be converted into an
asterisk.
Note: MP3 encode software and writing software are not supplied to this model.
Copyright
Warning: Never assign the “.mp3” file name extension to a file that is not in the MP3 format. This may produce
noise from the speakers and cause speaker damage and can damage your hearing.
It is prohibited by copyright laws to copy, distribute and deliver copyrighted materials such as music without the approval
of copyright holder except enjoying yourself personally.
No warranty
Above description complies with our investigations as of December 2002. It has no warranty for reproducibility and displayability of MP3.
32
CQ-VAD9300U
CQ-VAD9300U
33
E
N
G
L
I
S
H
Radio
One-touch Selection of a Station
Mode display
25
Up to 6 stations each can be saved in the FM1, FM2, FM3 and AM preset station memories.
E
N
G
L
I
S
H
26
Select a band and frequency. (step w and e on the previous page)
Press and hold [1] to [6] on the remote control for more than 2 seconds.
Stereo indicator
Band list
Preset memory
Band
Frequency
Manual Preset
Memory
CQ-VAD9300U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
The frequency blinks once, and
a receiving station is saved in
the memory.
DISC
VOLUME
NAVIGATION
MUTE
MENU
MODE
NAVI
POWER
[MODE]
ASPECT
ENTER
ASP
TRACK/
CHANNEL
P·MODE
[]] [[] (Tuning)
[ENTER] (Band)
Select a band. (step w on the previous page)
1
[MODE]
[]] [[]
(Tuning)
[ENTER]
(Band)
2
Radio Mode
Press and hold [ENTER] for more than 2 seconds.
Press [MODE] to change to radio mode.
Band
FM1
Press [ENTER] to change
the bands.
FM2
Auto Preset
Memory
¡The 6 strongest available stations will be automatically saved in the
memory under preset numbers 1 to 6.
¡Once set, the preset stations are sequentially scanned for 5 seconds
each.
¡To stop the scanning, press [1] to [6] on the remote control.
FM3
AM
[1] to [6]
(Preset memory)
Note: The stereo indicator lights during reception of
an FM stereo broadcast.
Note: New stations overwrite existing saved stations after following this procedure.
3
Tuning
[[]: up
[]]: down
Press and hold [[] or []] for more than 0.5 seconds, then release. Seeking will start and stops at next
available station.
34
CQ-VAD9300U
Preset Station
Calling
Select a band. (step w on the previous page)
Press [1] to [6] on the remote control.
CQ-VAD9300U
35
E
N
G
L
I
S
H
CD Changer Control
Mode display
CD changer functions are designed for an optional
Panasonic CD changer unit.
Read the operating instructions for CD changer as well.
27
Preparation: Connect the CD changer (a page 89, 91),
and load a magazine (disc).
Play setting
Disc
number
Track
number
Play time
Basic Operation
CQ-VAD9300U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
Notes:
¡The power will be turned on automatically when a
magazine is loaded.
¡Load a magazine with CDs when “NO MAGAZINE” is
displayed.
¡CD text is not supported in CD changer mode.
[] ] [[ ] (TRACK) ¡CD changer cannot play MP3 data recoded CD[}] [{] (DISC)
R/RW discs.
DISC
VOLUME
NAVIGATION
MUTE
MENU
MODE
NAVI
ASPECT
ASP
P·MODE
POWER
[MODE]
ENTER
TRACK/
CHANNEL
Track Selection
[d] (TRACK): next track
[s] (TRACK): beginning of the current track
Previous track (Press twice.)
Disc Selection
[}] (DISC): next disc
[{] (DISC): previous disc
Fast Forward/
Fast Reverse
Press and hold.
[d]: fast forward
[s]: fast reverse
Release to resume playback.
All Tracks
Caution: Do not use irregularly shaped CDs.
28
Perform these operations with the remote control.
Total time
Total track
Disc list
E
N
G
L
I
S
H
Press [4] (RANDOM).
Press [4] (RANDOM) again to cancel.
Random Play
All Tracks on Press and hold [4] (RANDOM) for more than 2 seconds.
the Current Disc Press and hold [4] (RANDOM) again to cancel.
[MODE]
CD Changer Mode
[] ] [[ ] (Track)
[}] [{] (Disc)
Press [MODE] to change to CD changer mode and
playback starts.
Scan Play
The first 10 seconds of each
track will be played.
System Expansion
The use of Dual CD Changer Selector CA-CD55
(option) allows you to make the following connections. (a Page 91)
Dual changers connection
[1] (CH 1)
[2] (CH 2)
Two changers can be connected to the terminals of
CA-CD55 respectively.
The changers are arranged as follows.
[4] (RANDOM)
[5] (SCAN)
[6] (CH REPEAT)
(Changer repeat)
All Tracks
Press [5] (SCAN).
Press [5] (SCAN) again to cancel.
1st Track on
Each Disc
Press and hold [5] (SCAN) for more than 2 seconds.
Press and hold [5] (SCAN) again to cancel.
Current Track
Press [6] (CH REPEAT).
Press [6] (CH REPEAT) again to cancel.
Current Disc
Press and hold [6] (CH REPEAT) for more than 2 seconds.
Press and hold [6] (CH REPEAT) again to cancel.
Repeat Play
Note: It is possible to press []] [[] on the display unit instead of [s] [d] on the remote control.
[1]: CH 1
[2]: CH 2
Changer and Sirius receiver connection
A changer is connected to one terminal of CA-CD55,
and a Sirius receiver is connected to the other terminal of it.
36
CQ-VAD9300U
CQ-VAD9300U
37
E
N
G
L
I
S
H
Sirius Receiver Control
Note: The Sirius Satellite coverage is only for the United States except Hawaii and Alaska. There is no Sirius Satellite
coverage in Canada. The instruction for Satellite Operation Controls in this Operating Instructions will not be applied.
Channel number
29
Channel name
Artist name
Song title
Band
Preset
channels
Precaution:
¡Connect the Sirius receiver, CR-SRT100
(option). (a page 90-91)
¡Set the Sirius setting to SET ON.
(a page 68)
¡Sirius satellite radio is available on a
chargeable basis.
¡The CA-CD55, available separately as an
optional accessory, is required to connect
the CD changer and the Sirius receiver for
your listening enjoyment at the same time.
Preset Channels
E
N
G
L
I
S
H
30
Up to 6 stations each can be saved in the SR1, SR2 and SR3 preset station memories.
q Press [ENTER] to select a band.
w Select a channel.
Manual Preset
Memory
e Press and hold [1] to [6] on the
remote control until the display blinks
once.
CQ-VAD9300U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
Note: New channels are overwritten on existing saved channels after following this procedure.
DISC
VOLUME
NAVIGATION
MUTE
MENU
MODE
NAVI
ASPECT
ASP
ENTER
TRACK/
CHANNEL
P·MODE
POWER
[MODE]
[] ] [[ ] (CHANNEL)
[}] [{]
1
2
Sirius Mode
Press [MODE] to change to Sirius mode.
Band
Preset Channel
Calling
q Press [ENTER] to select a band.
w Press [1] to [6] on the remote control.
Press [ENTER] to change the bands.
SR1
[TITLE]
(For direct selection)
SR2
[MODE]
SR3
[] ] [[ ] (Channel)
[}] [{] (Category)
[ENTER] (Band)
[RET]
(RETURN)
3
Channel Selection
[[]: up
[]]: down
Music. The way it was meant to be heard.
Completely commercial-free.
Press and hold [[] or []] to change channels rapidly.
Note: You can put restrictions on channel
selection. Refer to “Channel Search Method
Setting” in the “Sirius Settings” page for
details.
(a page 68)
You are riding in your car. Your crank up your favorite
music station. You never hear a commercial. Not one.
Nice fantasy? No fantasy. It is Sirius Satellite Radio. 60
original music channels, all commercial-free-not just
some of them - all of them. Guaranteed. So it is just you,
the road and the music.
Direct Channel Selection
(Only for Remote Control)
[1] to [6]
(Preset memory)
Enter a channel number by pressing [0] to [9].
Example: Channel Number 28
q Press [TITLE].
w Press [2] and [8].
e Press [TITLE] to set.
To cancel, press [RET].
Category Selection
Press [}] or [{] to choose the category.
The first channel in a selected category is
received.
38
CQ-VAD9300U
What is Sirius Satellite Radio?
100 channels of the best in-car entertainment
Only Sirius has 60 original music channels, from today's
hits to R&B oldies to classical masterpieces. From
authentic country and real bluegrass to cool jazz, hot
latin, reggae, rock and many more. Plus 40 channels of
world-class sports, news and entertainment, like ESPN,
The Speed Channel, CNBC, Fox News, Radio Disney and
E! Entertainment Radio.
Rely on Sirius rocket science for superior coverage
Only Sirius has three powerful satellites that fly in figureright orbits to ensure coast-to-coast coverage. These
orbits allow Sirius satellites to broadcast a high angles
for a “clear line of sight” and a direct signal to our car.
Count on S>PLEX technology for superior sound
resolution
Sirius employs S>PLEX technology (statistical multiplexing), which optimizes the fidelity on each channel to give
you superior digital sound. So rock really soars, jazz really jams and country really sings.
Once you experience 100 channels for digital entertainment, you will never want to leave your car. For more
information, visit sirius.com
With Sirius, the emphasis is on the music and entertainment you want. Our music is hosted by Master Music
Programmers and on-air personalities who are true
experts. They back up the music with compelling information about the song being played, and they understand
that sometimes it is best to just let the music speak for
itself.
CQ-VAD9300U
39
E
N
G
L
I
S
H
SET-UP: User Settings
[MODE]
(End)
31
[}] [{]
[] ] [[ ]
(Select)
[ENTER]
CQ-VAD9300U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
VOLUME
NAVIGATION
MUTE
MENU
MENU
MODE
MODE
NAVI
POWER
ASPECT
ASP
ENTER
ENTER
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no
operation for more than 60 seconds after changing to
the setting menu.
[MENU]
TRACK/
CHANNEL
P·MODE
E
N
G
L
I
S
H
32
[MENU] [MODE] [}] [{] []] [[]
(Select)
(End)
[ENTER]
1
Menu
2
Submenu
3
Setting
TILT
Monitor Position
TILT (Tilting angle adjustment)
Default: 3
Setting range: 1 to 5
q Press [MENU] to
display the menu.
q Press [}] or [{] to
select “TILT/SLIDE”.
w Press [[] or []] to
select “USER”.
w Press [ENTER] to set.
TILT/SLIDE
USER
SCREEN
Navigation Set Up
NAVI INPUT (Navigation input)
Selection of the terminal that connects to the
car navigation system allows you to switch to
images and sounds of the car navigation system by pressing [NAVI] (NAVIGATION).
Default: RGB
NAVI VOLUME (Navigation volume)
Volume adjustment of the car navigation system is executed.
Default: 4
Default: –10 dB
40
CQ-VAD9300U
1
2
3
[}]
w Press [ENTER] to set.
NAVI SETUP
Rear
[[]
FRONT
REAR
Notes:
¡For smooth adjustment, make sure to first return the lateral angle to the neutral position and then adjust the tilt angle.
¡Front-rear position “REAR” and tilt angle “5” cannot be selected at the same time.
¡The monitor position setting menu can also be displayed by pressing the [TILT] button on the display unit for more
than 1 second. (a page 21)
DATE
q Press [}] or [{] to
select “NAVI SETUP”.
Front
[]]
Front-rear position
NAVI INPUT
CAPTURE
5
Press []] or [[] to select the setting.
q Press [}] or [{] to select
an item.
Navigation input
VTR1
: connected to the RGB input cord, or a car navigation system
not connected
: connected to the VTR1-IN
VTR2
: connected to the VTR2-IN
RGB
AUDIO
4
SLIDE
DVD
SIRIUS
NAVI MUTE (Navigation mute level)
Select the mute level of this unit during the
voice guidance from the Panasonic car navigation system (available in future).
Preparation: Connect the navi mute lead.
Note: You can set the navigation mute level
when “RGB” is selected on navigation input.
[{]
Press [{] or [}] to select the setting.
SLIDE (Front-rear position)
Default: Front
Setting range: Front, Rear
Tilting angle adjustment
Note: Make sure to select “RGB” when no car navigation is connected.
w Press [[] or []] to select
the setting.
NAVI VOLUME
e Press [ENTER] to set.
0 : the sound that a car navigation system generates does not come out.
1
2
3
Navigation volume
5 : volume level
4
Low
High
NAVI MUTE (dB)
0
Navigation mute level
: unchanged
–10 : decrease 10 dB
–20 : decrease 20 dB
– ∞ : no sound
CQ-VAD9300U
41
E
N
G
L
I
S
H
SET-UP: User Settings
(continued)
[MODE]
(End)
33
[}] [{]
[]] [[]
(Select/adjust)
[ENTER]
CQ-VAD9300U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
VOLUME
NAVIGATION
MUTE
MENU
MENU
MODE
MODE
POWER
NAVI
ASPECT
ASP
ENTER
ENTER
[MENU]
TRACK/
CHANNEL
P·MODE
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no
operation for more than 60 seconds after changing to
the setting menu.
E
N
G
L
I
S
H
34
[0] to [9]
[MENU] [MODE] [}] [{] []] [[]
(Select/adjust)
(End)
[ENTER]
1
Menu
2
Submenu
3
Setting
Rear View Camera Set up
CAMERA INPUT (Rear view camera input)
Selection of the terminal that connects to the
rear view camera allows you to view images
through the rear view camera automatically
when you put the shift lever into the reverse
position.
Preparation: Connect the reverse lead.
(a page 93)
Default: OFF
CAMERA INPUT
OFF
q Press [MENU] to
display the menu.
w Press [[] or []] to
select “USER”.
w Press [ENTER] to set.
USER
SCALE (Rear view camera scale display)
Images through the rear view camera can be
shown in the scale display mode.
q Press [}] or [{] to
select “CAMERA SETUP”.
CAMERA SETUP
q Press [}] or [{] to select
an item.
w Press [[] , []] , [}] or
[{] to select or adjust the
setting.
e Press [ENTER] to set.
SCREEN
SCALE ADJUST (Scale adjustment)
Default: 0 (width/angle)
: connected to the VTR1-IN
VTR2
: connected to the VTR2-IN
Note: Make sure to select “OFF” when no rear view camera is connected.
SCALE
Rear view camera scale display
OFF
: scale display off
ON
: scale display on
Scale adjustment
How to set your ID code (for the first time)
q Enter an 4 digit ID code.
w Enter the same 4 digit ID code again.
ID Code setting
Generally, it is not necessary to enter the ID
code each time when using the unit if it has
never been disconnected from the main
power supply (car battery).
VTR1
Press [[] or []] to adjust the width.
Press [}] or [{] to adjust the angle.
DVD
DATE
Prior to operating this unit, it is advisable to
assign your 4-digit ID code for security.
(Make sure to use four digits for ID code.)
Once the ID code has been set, the unit cannot
be operated if the main power supply is disconnected then re-connected. It is electronically locked so that a thief could not use the
stolen unit unless that person knows the code
you have set.
The ID code operation must be performed only
by the person whom the unit belongs to.
: unconnected
SCALE ADJUST
Default: OFF
Rear view camera input
CAPTURE
AUDIO
SIRIUS
q Press [}] or [{] to
select “ID-CODE”.
w Press [ENTER] to set.
ID-CODE
Press [0] to [9] on the remote
control to input the ID code.
Caution: Record your registered ID code and keep it in a
secure location. If you forget it,
you will be unable to use the
unit. In case you forget the ID
code, please consult your nearest Panasonic Servicenter.
How to change your ID code
q Enter the preset (old) 4 digit ID code. If the wrong ID code is entered, a
new ID code cannot be registered.
w Enter a new 4 digit ID code.
e Enter the new 4 digit ID code again.
How to cancel the known ID code
Note: Should your unit ever require service, cancel your ID code before sending for repair.
q Enter the preset (old) 4 digit ID code. If the wrong ID code is entered, it is
not possible to cancel the ID code function.
w Press and hold [ENTER] until “Complete!” is displayed. The ID code cancelling procedure is completed. The unit now works without an ID code.
Note: Refer to ID Code Input regarding how to enter the ID code. (a page 11)
42
CQ-VAD9300U
CQ-VAD9300U
43
E
N
G
L
I
S
H
SET-UP: User Settings
(continued)
[MODE]
(End)
35
[}] [{]
[] ] [[ ]
(Select)
[ENTER]
CQ-VAD9300U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
VOLUME
NAVIGATION
MUTE
MENU
MENU
MODE
MODE
POWER
NAVI
ASPECT
ASP
ENTER
ENTER
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no
operation for more than 60 seconds after changing to
the setting menu.
[MENU]
TRACK/
CHANNEL
P·MODE
E
N
G
L
I
S
H
36
[MENU] [MODE] [}] [{] []] [[]
(Select)
(End)
[ENTER]
1
Menu
2
Submenu
3
Setting
BEEP
Button Operation Sound
Default: ON
Note: The beep sound cannot be silenced
when the display opens and closes.
q Press [MENU] to
display the menu.
w Press [[] or []] to
select “USER”.
Video Control Setting
This “Video Control Setting” is required
when you connect a Panasonic car navigation system with a built-in DVD player
(available in future).
USER
q Press [}] or [{] to
select “etc”.
Beep setting
OFF
: operation sound (Beep) OFF
ON
: operation sound (Beep) ON
VIDEO-CNT
w Press [ENTER] to set.
q Press [}] or [{] to select
an item.
etc
w Press [[] or []] to select
the setting.
e Press [ENTER] to set.
SCREEN
Default: VTR1
Video control setting
VTR1
: connected to the VTR1-IN
VTR2
: connected to the VTR2-IN
Notes:
¡Select a terminal connected to the DVD output terminal of a Panasonic car
navigation system with a built-in DVD player (available in future) through
an RCA cord.
¡When you connect a Panasonic car navigation system with a built-in DVD
player, connect a video control lead as well. (a page 84)
DVD
Memory Clearance
DATE
The state of all of the current memories are
returned to default settings.
Caution: Be aware that this setting
restores the unit to default settings, so
that all the memories and settings that
you have set will be eliminated.
CAPTURE
q Press [}] or [{] to
select “MEMORY CLEAR”.
MEMORY CLEAR
AUDIO
: default settings
w Press [ENTER] to set.
VTR 1
VTR skip
q Press [}] or [{] to
select “VTR SKIP”.
Default: ON
w Press [ENTER] to set.
CQ-VAD9300U
YES
q Press [[] or []] to select NO
or YES.
VTR SKIP
q Press [}] or [{] to select an item.
w Press [[] or []] to select the
setting.
e Press [ENTER] to set.
44
: no memory clear.
The display returns to the previous one.
w Press [ENTER] to set.
SIRIUS
If a VTR is not used, the VTR mode is skipped
when changing the mode.
NO
VTR skip
OFF
: skip VTR1
ON
: not skip VTR1
VTR 2
VTR skip
OFF
: skip VTR2
ON
: not skip VTR2
CQ-VAD9300U
45
E
N
G
L
I
S
H
SET-UP: Display (Screen) Settings
[MODE]
(End)
37
[}] [{]
[] ] [[ ]
(Select/adjust)
[ENTER]
CQ-VAD9300U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
VOLUME
NAVIGATION
MUTE
MENU
MENU
MODE
MODE
NAVI
POWER
ASPECT
ASP
ENTER
ENTER
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no
operation for more than 60 seconds after changing to
the setting menu.
[MENU]
TRACK/
CHANNEL
P·MODE
E
N
G
L
I
S
H
38
[MENU] [MODE] [}] [{] []] [[]
(Select/adjust)
(End)
[ENTER]
1
Dimmer
Menu
q Press [MENU] to
display the menu.
Default: AUTO
w Press [[] or []] to
select “SCREEN”.
2
Submenu
3
Setting
q Press [}] or [{] to
select “DIMMER”.
AUTO : automatically adjusted according to ambient light intensity.
w Press [ENTER] to set.
DIMMER
1
q Press [[] or []] to select
the setting.
2
3
Darker
4
Brighter
w Press [ENTER] to set.
USER
CONTRAST
SCREEN
Decrease the contrast
between black and white
DVD
q Press [}] or [{] to select
an item.
DATE
Display Adjustment
CAPTURE
Adjust the image contrast
q Press [}] or [{] to
select “PICTURE”.
BRIGHT
Increase the contrast
between black and white
Adjust the image brightness
w Press [[] or []] to adjust.
Lighten
Darken
w Press [ENTER] to set.
Default: ±0
Setting range: –15 to +15
AUDIO
COLOR
SIRIUS
Adjust the image color depth
Lighten the depth of
color on the display
TINT
Adjust the image tone or tint
Emphasize red in
the color image
46
CQ-VAD9300U
Deepen the depth of
color on the display
Emphasize green in
the color image
CQ-VAD9300U
47
E
N
G
L
I
S
H
SET-UP: DVD Settings
[MODE]
(End)
39
CQ-VAD9300U
[}] [{]
[] ] [[ ]
(Select)
[ENTER]
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
VOLUME
NAVIGATION
MUTE
MENU
MENU
MODE
MODE
POWER
NAVI
ASPECT
ASP
ENTER
ENTER
[MENU]
TRACK/
CHANNEL
P·MODE
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no
operation for more than 60 seconds after changing to
the setting menu.
E
N
G
L
I
S
H
40
[0] to [9]
[MENU] [MODE] [}] [{] []] [[]
(Select)
(End)
[ENTER]
1
Menu
2
Submenu
3
Setting
MENU
q Press [MENU] to
display the menu.
Language Setting
Default: ENGLISH
w Press [[] or []] to
select “DVD”.
USER
q Press [}] or [{] to
select “LANGUAGE”.
w Press [ENTER] to set.
Note: This operation allows you to select a
language for DVD software on the precondition
that the DVD software supports your selecting
language.
SCREEN
q Press [}] or [{] to select
an item.
w Press [[] or []] to select
the setting.
e Press [ENTER] to set.
Language code input
ENG
: English
FRE
SPA
: Spanish
OTHER
SUB TITLE
: English
FRE
SPA
: Spanish
OTHER
q Input the four digit language
code pressing the buttons [0]
to [9] on the remote control.
w Press [ENTER] to set.
(Language code list a page 105)
AUDIO
48
CQ-VAD9300U
: other language
Input the language code.
DVD
CAPTURE
Note: Screen aspect of the display unit is
changed according to the aspect ratio setting
(a page 71) and DVD software's aspect.
: French
Note: A disc supporting closed captioning and subtitles may overlap each
other on the screen. In this case, turn the subtitle off.
DATE
Default: DVD ASPECT...WIDE
LETTERBOX...PAN & SCAN
: other language
Input the language code.
: subtitle are not displayed.
AUDIO
Display Aspect and DVD
Software Mode
: French
Subtitle language
ENG
DISP OFF
LANGUAGE
DVD menu language
ENG
FRE
SPA
: Spanish
OTHER
DVD ASPECT
WIDE
SIRIUS
Audio language
: English
NARROW
q Press [}] or [{] to
select “DISPLAY”.
DISPLAY
q Press [}] or [{] to select
an item.
w Press [[] or []] to select
the setting.
e Press [ENTER] to set.
: other language
Input the language code.
Display aspect setting
: plays a video in wide screen (16:9).
: plays a video in 4:3 screen.
LETTERBOX
w Press [ENTER] to set.
: French
DVD software mode
PAN & SCAN : plays wide-screen video in Pan & Scan mode (in which the
left and right edges of the screen are cut off).
LETTERBOX : plays wide-screen video in letterbox mode (in which black
bands appear at the top and bottom of the screen).
Notes:
¡Set the software setting according to the symbol used on jackets. (a page 17)
¡DVD software mode setting is ignored if “PAN & SCAN” or “LETTERBOX” is
already set in the software.
CQ-VAD9300U
49
E
N
G
L
I
S
H
SET-UP: Clock/date Settings
[MODE]
(End)
41
[}] [{]
[] ] [[ ]
(Select/adjust)
[ENTER]
CQ-VAD9300U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
VOLUME
NAVIGATION
MUTE
MENU
MENU
MODE
MODE
POWER
NAVI
ASPECT
ASP
ENTER
ENTER
[MENU]
TRACK/
CHANNEL
P·MODE
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no
operation for more than 60 seconds after changing to
the setting menu.
E
N
G
L
I
S
H
42
[MENU] [MODE] [}] [{] []] [[]
(Select/adjust)
(End)
[ENTER]
1
Menu
2
Submenu
3
Setting
DISPLAY
q Press [MENU] to
display the menu.
Clock and Date Setting
Default: DISPLAY...OFF
YEAR ADJUST...2003
MONTH ADJUST...1
DAY ADJUST...1
HOUR ADJUST...AM 12
MINUTE ADJUST...00
Notes:
¡The clock starts after the unit returns to the
regular mode by pressing [MODE].
¡Perform the setup of Daylight Saving Time
manually.
w Press [[] or []] to
select “DATE”.
USER
SCREEN
q Press [}] or [{] to select
an item.
q Press [}] or [{] to
select “CLOCK”.
w Press [[] or []] to select
or adjust the setting.
Clock display
OFF
: clock display OFF
ON
: clock display ON ([12:00] is displayed before adjusting
the clock.)
YEAR ADJUST
MONTH ADJUST
Year adjustment
Month adjustment
e Press [ENTER] to set.
w Press [ENTER] to set.
CLOCK
DAY ADJUST
Day adjustment
HOUR ADJUST
Hour adjustment
DVD
DATE
MINUTE ADJUST
CAPTURE
Minute adjustment
AUDIO
SIRIUS
Calendar Display
q Press [}] or [{] to
select “CALENDAR”.
w Press [ENTER] to set.
Note: The calendar is not editable. (e.g.
Holidays cannot be marked.)
50
CQ-VAD9300U
CALENDAR
Press [}]: calendar from the current year to years in future successively
Press [{]: calendar from the current year to years in the past successively
Press [] ]: calendar from the current month to months in the past successively
Press [[ ]: calendar from the current month to months in future successively
CQ-VAD9300U
51
E
N
G
L
I
S
H
SET-UP: Capture Function
[MODE]
(End)
43
[MENU]
[}] [{]
[] ] [[ ]
(Select)
[ENTER]
CQ-VAD9300U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
VOLUME
NAVIGATION
MUTE
MENU
MENU
MODE
MODE
NAVI
POWER
ASPECT
ASP
ENTER
ENTER
TRACK/
CHANNEL
P·MODE
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no
operation for more than 60 seconds after changing to
the setting menu.
E
N
G
L
I
S
H
44
[MENU] [MODE] []] [[]
(Select)
(End)
[ENTER]
1
Menu
2
Submenu
3
Setting
q Press [ENTER] to import the image.
q Press [MENU] to
display the menu.
w Press [[] or []] to
select “CAPTURE”.
USER
w Press [[] or []] to select a save area.
¡You can store five images at maximum.
¡The existing image is replaced with a new image when saving an image in
an area. Check the right-hand smaller image on the screen before saving a
new one. If you would like to keep the existing image, do not overwrite.
Image Capture
Up to five images can be imported from TV,
VTR, DVD or Video CD (VCD).
Preparation: Show the image on the display
that you would like to capture.
Note: Refer to “Wall Paper” and “Display
Change” in the “SET-UP: Other Settings” page
to display the imported image on the screen.
(a page 54, 70)
SCREEN
DVD
DATE
q Press [}] or [{] to
select “CAPTURE”.
w Press [ENTER] to set.
e Press [ENTER] to save the image.
CAPTURE
CAPTURE
AUDIO
r Image saving completed.
SIRIUS
Notes:
¡Do not turn off the unit while saving an image.
¡To capture an image from TV, the broadcasting condition should be fairly
well.
Copyright
It is prohibited by copyright laws to copy, distribute and deliver copyrighted materials such as commercial DVDs/Video
CDs, other published or broadcast material without the approval of copyright holder except for personal use.
Note: A captured image may have some distortion or be otherwise different from the original image due to compression.
52
CQ-VAD9300U
[OSD]
(CAPTURE)
Direct Image Capture (Only for remote control)
If you would like to capture a picture, press and hold [OSD] (CAPTURE) for
more than 2 seconds.
Subsequent steps are the same as the steps w described above.
CQ-VAD9300U
53
E
N
G
L
I
S
H
SET-UP: Capture Function
(continued)
[MODE]
(End)
45
[}] [{]
[] ] [[ ]
(Select)
[ENTER]
CQ-VAD9300U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
VOLUME
NAVIGATION
MUTE
MENU
MODE
NAVI
ASPECT
ASP
[ASP]
[MENU]
ENTER
TRACK/
CHANNEL
P·MODE
POWER
[MODE]
(End)
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no
operation for more than 60 seconds after changing to
the setting menu.
[MENU]
1
Menu
2
Submenu
3
Setting
WALLPAPER
FULL
Wallpaper
Captured wallpaper scale selection between full
screen and animation section.
Note: Wallpaper is displayable only in the CD,
MP3, radio and CD changer modes.
WINDOW
q Press [MENU] to
display the menu.
w Press [[] or []] to
select “CAPTURE”.
q Press [}] or [{] to
select “WALLPAPER”.
w Press [ENTER] to set.
WALLPAPER
: full screen
: animation section
Note: When the wallpaper is set to FULL, you can switch the screen to
NORMAL by pressing [ASP] (On remote control unit: Press [A]). To cancel,
press [ASP] (or [A]) again.
FULL
w Press [ENTER].
DATE
CAPTURE
AUDIO
WINDOW
q Press [[] or []] to select the image to be deleted.
The default image is displayed on the right-hand smaller window.
DVD
Deletion of saved image.
q Press [[] or []] to select
the setting.
w Press [ENTER] to set.
Wallpaper scale
USER
SCREEN
Image Deletion
(INITIALIZE)
46
[A]
[]] [[]
(Select)
[ENTER]
Default: FULL
E
N
G
L
I
S
H
q Press [}] or [{] to
select “INITIALIZE”.
e Press [[] or []] to select YES. Press [ENTER].
w Press [ENTER] to set.
INITIALIZE
SIRIUS
r The existing image is deleted and the default image is displayed.
Note: Deleted images cannot be recovered.
54
CQ-VAD9300U
CQ-VAD9300U
55
E
N
G
L
I
S
H
SET-UP: Sound Settings
[MODE]
(End)
47
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no
operation for more than 60 seconds after changing to
the setting menu.
[MENU]
CQ-VAD9300U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
NAVI
ASPECT
ASP
ENTER
TRACK/
CHANNEL
[}] [{]
[] ] [[ ]
(Select/adjust)
[ENTER]
P·MODE
[}] [{] [MENU] [MODE] []] [[]
(VOLUME)
(Select/adjust)
(End)
[ENTER]
1
Setting the VTR
(VTR1/VTR2)
Input Level
Make this setting if it is not possible to adjust
the volume through the connected device (on
the output side).
Note: This setting is serviceable for an external device that is connected to VTR1 or VTR2
without an optical fiber cable. (e.g. VCR)
Menu
2
Submenu
3
E
N
G
L
I
S
H
48
[}] [{]
(VOLUME)
Setting
Press []] or [[] to adjust the input level.
q Press [MENU] to
display the menu.
w Press [[] or []] to
select “AUDIO”.
q Press [}] or [{] to
select “VTR LEVEL”.
-18 dB -15 dB -12 dB
w Press [ENTER] to set.
Lower
SCREEN
-6 dB
-3 dB
±0 dB : Input level
Normal
USER
VTR LEVEL
-9 dB
Notes:
¡If the input level from VTR1/VTR2 is too high, the audio will not be output normally.
Adjust the input level so that “OVER” does not appear.
¡After setting the input level
The volume can be adjusted by pressing the [}] or [{] (VOLUME) on the display unit or the remote control.
DVD
Default: ±0 dB
DATE
CAPTURE
Digital Input Setting
This allows you to set up a mode where an
optical fiber cable is used.
SIRIUS
q Press [}] or [{] to
select “DIGITAL IN”.
w Press [ENTER] to set.
DIGITAL IN
Default: DVD
56
AUDIO
CQ-VAD9300U
q Press [[] or []] to select
the setting.
w Press [ENTER] to set.
OFF
: optical fiber cable is not used.
DVD
: optical fiber cable is used for the DVD player of the unit.
VTR1
: optical fiber cable is used for an external device that is
connected to VTR1.
VTR2
: optical fiber cable is used for an external device that is
connected to VTR2.
CQ-VAD9300U
57
E
N
G
L
I
S
H
SET-UP: Sound Settings
(continued)
[MODE]
(End)
49
[}] [{]
[] ] [[ ]
(Select)
[ENTER]
CQ-VAD9300U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
VOLUME
NAVIGATION
MUTE
MENU
MENU
MODE
MODE
POWER
NAVI
ASPECT
ASP
ENTER
ENTER
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no
operation for more than 60 seconds after changing to
the setting menu.
[MENU]
TRACK/
CHANNEL
P·MODE
E
N
G
L
I
S
H
50
[MENU] [MODE] [}] [{] []] [[]
(Select)
(End)
[ENTER]
1
Menu
2
Submenu
3
Setting
q Press [MENU] to
display the menu.
FRONT
w Press [[] or []] to
select “AUDIO”.
Setting the
absence/presence and
size of each speaker
Default: FRONT (Front L/R)...LARGE
CENTER (Center)*...SMALL
SURROUND (Surround L/R)...LARGE
SUB • W (Subwoofer)**...YES
q Press [}] or [{] to select
an item.
USER
e Press [ENTER] to set.
DATE
* A center speaker (option, EAB-CF2 recommended) is required. Supplied speaker can
not be used for a center speaker.
** A subwoofer (option, CJ-HD302 recommended) is required. A power amplifier
(option) is also required for connecting a
subwoofer.
58
CQ-VAD9300U
q Press [}] or [{] to
select “SP SETUP”.
AUDIO
SIRIUS
: for large speakers, when bass playback is possible (at least
100 Hz or lower)
SMALL
: for small speakers, or when bass playback is not possible
CENTER
Center speaker setting
LARGE
: for large speakers, when bass playback is possible (at least
100 Hz or lower)
SMALL
: for small speakers, or when bass playback is not possible
NONE
: when not using a center speaker
w Press [ENTER] to set.
SP SETUP
CAPTURE
LARGE
w Press [[] or []] to select
the setting.
SCREEN
DVD
Front speaker setting
SURROUND
Surround speaker setting
LARGE
: for large speakers, when bass playback is possible (at least
100 Hz or lower)
SMALL
: for small speakers, or when bass playback is not possible
NONE
: when not using surround speakers
SUB • W
Subwoofer speaker setting
YES
: when using a subwoofer
NO
: when not using a subwoofer
CQ-VAD9300U
59
E
N
G
L
I
S
H
SET-UP: Sound Settings
(continued)
[MODE]
(End)
51
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no
operation for more than 60 seconds after changing to
the setting menu.
[MENU]
CQ-VAD9300U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
NAVI
ASPECT
ENTER
ASP
TRACK/
CHANNEL
[}] [{]
[] ] [[ ]
(Select/adjust)
[ENTER]
P·MODE
[}] [{] [MENU] [MODE]
(End)
(VOLUME)
[}] [{] []] [[]
(Select/adjust)
[ENTER]
1
Menu
2
Submenu
3
E
N
G
L
I
S
H
52
[}] [{]
(VOLUME)
Setting
FRONT L
Left front speaker output balance
CENTER
Center speaker output balance
FRONT R
Right front speaker output balance
q Press [MENU] to
display the menu.
w Press [[] or []] to
select “AUDIO”.
q Press [}] or [{] to select
an item.
USER
w Press [[] or []] to adjust.
SCREEN
Adjusting the output
balance of each speaker
Default: ±0 dB for all speakers
Setting range: –12 dB to +12 dB (1 dB steps)
DVD
DATE
q Press [}] or [{] to
select “SP LEVEL”.
R¡SUR
Right surround speaker output balance
L¡SUR
Left surround speaker output balance
SUB¡W
Subwoofer speaker output balance
w Press [ENTER] to set.
SP LEVEL
CAPTURE
AUDIO
SIRIUS
A test signal (a continuous tone) is output from each speaker for approximately two seconds.
Adjust the output balance so that the tone appears to have the same volume from each speaker.
Adjusting the output balance:
Adjust the volume of all of the other speakers to the volume level of the speaker from which the test signal
appears to be the quietest.
¡If the speaker setting is “NONE” or “NO” for a speaker, the test signal is not output and that speaker cannot be
selected. (a page 58)
¡Press [}] or [{] (VOLUME) to adjust the volume of the test signal.
60
CQ-VAD9300U
CQ-VAD9300U
61
E
N
G
L
I
S
H
SET-UP: Sound Settings
(continued)
[MODE]
(End)
53
[}] [{]
[] ] [[ ]
(Select/adjust)
[ENTER]
CQ-VAD9300U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
NAVI
ASPECT
ASP
ENTER
[MENU]
TRACK/
CHANNEL
P·MODE
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no
operation for more than 60 seconds after changing to
the setting menu.
E
N
G
L
I
S
H
54
[MENU] [MODE] [}] [{] []] [[]
(Select/adjust)
(End)
[ENTER]
1
Adjusting the Timing
with which the Audio
from Each Speaker
Reaches the Listener’s
Position
Menu
1 ms = 0.001 seconds
Submenu
3
Setting
CENTER
Center speaker delay time setting
q Press [MENU] to
display the menu.
w Press [[] or []] to
select “AUDIO”.
(Delay time setting)
Default: 0 ms for all speakers
Setting range:
Center speaker...0 ms to 5 ms (1 ms steps)
Surround speakers...0 ms to 15 ms
(1 ms steps)
2
q Press [}] or [{] to
select “SP DELAY”.
w Press [ENTER] to set.
USER
SURROUND
Surround speaker delay time setting
q Press [}] or [{] to select
an item.
w Press [[] or []] to adjust.
SP DELAY
Adjust the delay time so that output from the center and surround speakers reaches the listener’s ears at the
same time as the output from the front speakers.
SCREEN
¡Make this adjustment while listening to sound.
¡If the speaker setting is “NONE” for a speaker, that speaker cannot be selected. (a page 58)
¡When “PRO LOGIC” is displayed, 15 ms are automatically added to the delay time setting for the surround speakers.
DVD
DATE
Maintaining the
Ambience Even while
Listening at a Low
Volume Level
(Dynamic range compression rate
adjustment)
Default: 1.0 (Level recommended by those
involved in program and software production)
Setting range: 0.0 to 1.0 (in 0.1 increments)
H CUT
This adjusts the compression rate in the treble (high-frequency) range.
CAPTURE
AUDIO
SIRIUS
High-level cut
q Press [}] or [{] to
select “DR COMP”.
w Press [ENTER] to set.
q Press [}] or [{] to select
an item.
L BOOST
Low-level boosting
This adjusts the compression rate in the bass (low-frequency) range.
w Press [[] or []] to adjust.
DR COMP
Note: The 0.0 setting is the same
as the DR COMP OFF setting.
Note: This adjustment takes effect when “STD”
is selected as the DR COMP setting. (a page 67)
62
CQ-VAD9300U
CQ-VAD9300U
63
E
N
G
L
I
S
H
SET-UP: Sound Settings
(continued)
[MODE]
(End)
55
[}] [{]
[] ] [[ ]
(Select/adjust)
[ENTER]
CQ-VAD9300U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
VOLUME
NAVIGATION
MUTE
MENU
MENU
MODE
MODE
POWER
NAVI
ASPECT
ASP
ENTER
ENTER
[MENU]
TRACK/
CHANNEL
P·MODE
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no
operation for more than 60 seconds after changing to
the setting menu.
E
N
G
L
I
S
H
56
[1] to [6]
(Preset memory)
[MENU] [MODE] [}] [{] []] [[]
(Select/adjust)
(End)
[ENTER]
1
Menu
2
Submenu
3
Setting
Preset number
The level of each of the 7 frequency bands can be adjusted, and up
to 6 different levels can be stored in the memory.
q Press [MENU] to
display the menu.
Level (dB)
w Press [[] or []] to
select “AUDIO”.
USER
Adjusting the Level for
Each of the Frequency
Bands
(Graphic equalizer)
Default: ±0 dB for each band
Adjustment range: –12 dB to +12 dB
(in 2 dB steps)
Frequency band (Hz)
q Press [[] or []] to select
frequency band.
SCREEN
DVD
DATE
w Press [}] or [{] to adjust
the level.
q Press [}] or [{] to
select “GRAPHIC-EQ”.
w Press [ENTER] to set.
GRAPHIC-EQ
CAPTURE
Frequency band
80 Hz
160 Hz 320 Hz 640 Hz 1.6 kHz
4 kHz
10 kHz
To store a level adjustment in the memory (preset memory):
Press and hold the corresponding preset button [1] to [6] for more
than 2 seconds.
¡When a level adjustment has been stored in a preset button, a
preset number will appear.
(The new level adjustment will overwrite the previous level
adjustment, erasing it in the process.)
To recall a level adjustment:
On the GRAPHIC-EQ adjustment display, press the corresponding
preset button [1] to [6].
Note: Effective for 2-channel audio (LPCM, Dolby Digital/dts 2channel) and analog audio (TV, VTR, radio, CD changer).
AUDIO
SIRIUS
64
CQ-VAD9300U
CQ-VAD9300U
65
DVD VIDEO
VIDEO
CD
(continued)
MP3
E
N
G
L
I
S
H
Indicates the compatible types of disc.
[SPACE]
1
58
Change audio channels as shown below by pressing [DRC] (PRO LOGIC) (DOWN MIX) for more than 2 seconds.
5.1-channel surround playback
(Number of channels: 1 to 5.1)
(R)
(C)
Select down mix for easier listening
if audio is too low to be heard.
¡Dolby Digital
DVD
VIDEO
¡dts
DVD
VIDEO
CD
Changing 2-channel
Dolby Surround Audio to
4-Channel Surround
Playback (Pro Logic)
PRO • LOGIC
DVD
VIDEO
Changing 2-channel
audio/analog audio to
4-channel surround
playback (Pro Logic)
Even 2-channel audio/analog audio
not recorded in Dolby Surround
audio can be switched to
4-channel surround playback.
¡LPCM/MP3
DVD VIDEO
VIDEO
CD
CD
MP3
¡Dolby Digital/dts 2-channel
¡Analog audio (VTR, CD changer)
(S.W
(S
W))
W
(
(LS)
(L)
2-channel Dolby Surround audio
(R)
(LS)
S
S)
(R)
(S.W
(S
W))
W
(L)
Pro Logic
4-channel surround playback
S)
(
(C)
(RS)
(S
(S.W)
(LS)
S
S)
(L)
(LS)
Producing Audio
That Is Audible at
Low Volumes
(Dynamic Range
Compression)
This function is effective for
playback of Dolby
Digital/Dolby Surround DVD
video. The words of an
actor hardly audible during
playback at a low volume,
for example, will become
easier to listen to by selecting DR COMP MIN.
¡When Pro Logic (4-channel surround playback) is selected, 2-channel Dolby
Surround audio is output after conversion to a 4-channel output from the
center (C), front (R), (L) and surround (RS), (LS). (The same audio from
(RS) and (LS).)
2-channel audio/analog audio
(R)
(R)
(RS)
(S
(S.W)
(
(L)
Pro Logic
4-channel surround playback
(LS)
(C)
(RS)
(S
(S.W)
(L)
(LS)
(R) and (RS), (L) and (LS) are same
audio (except for Dolby Digital/dts
2-channel).
¡When Pro Logic (4-channel surround playback) is selected, 2-channel
audio/analog audio is output after conversion to a 4-channel output from
the center (C), front (R), (L) and surround (RS), (LS). (The same audio from
(RS) and (LS).)
Note: Pro Logic (4-channel surround playback) selection does not apply to
TV and radio.
Note: For each audio recording system (Dolby Digital/dts/Dolby Surround (Dolby Pro Logic)/LPCM), refer to the
Definition of Terms. (➡ page 104)
CQ-VAD9300U
[DRC]
(Dynamic Range
Compression)
(PRO LOGIC)
(DOWN MIX)
S)
¡When down mix is selected, center (C) and surround (RS) (LS) signals are
mixed with the signals of the two channels (stereo) of right front (R) and left
front (L) to be output. There will be no audio output from the center (C),
surround (RS), (LS) and subwoofer (SW), while the output audio from the
fronts (R) and (L) will be a little greater.
¡ If “FRONT” is set to “SMALL” in speaker setting (➡ page 58) after selecting
down mix, there will also be audio output from the subwoofer (SW).
Effective for Dolby Surround DVD
playback
¡Dolby Surround (Dolby Pro Logic)
(R)
(RS)
(S.W)
(L)
Down mix
2-channel stereo playback
Panasonic
Changing Dolby Digital/
dts Audio to 2-Channel
Stereo Playback
(Down mix)
66
CD
Audio Channel Setting
Panasonic
1
57
SET-UP: Sound Settings
Panasonic
E
N
G
L
I
S
H
Press [DRC] to change the setting.
DR COMP OFF
: movie theater mode
with no compression.
DR COMP STD
: mode recommended by the software manufacturer for listening at low volume.
¡It is possible to adjust the Dynamic Range
Compression rate. (➡ page 62)
DR COMP MIN
: mode with the greatest compression, roughly
equivalent to a TV broadcast.
OFF
STD
MIN
Conversation
level
Press [SPACE] to change the setting.
OFF (No Indicator) : no sound field effect
LIVE
: 2-channel audio is distributed to be a 5.1channel output.
: sound field effect as if in a live house
HALL
: sound field effect as if in a concert hall
JAZZ
: sound field effect suited to listening to jazz
MULTI-CH
Sound Field
Settings (Space)
Effective for 2-channel audio
(LPCM, Dolby Digital/dts 2channel) and analog audio
(TV, VTR, radio, CD changer).
Pro Logic (4-channel surround playback) selection is
automatically invalid after this
setting. (➡ page 62)
Default: OFF (no indicator)
Setting range: 8 types + “OFF”
STADIUM
: sound field effect as if in a stadium
DISCO
: sound field effect as if in a disco
VOCAL
: sound field effect suited to listening to vocals
CATHEDRAL
: sound field effect as if in a church
Notes:
¡Not effective for Dolby Surround audio recordings and down-mixed
2-channel audio.
¡This function can be set individually for each mode.
CQ-VAD9300U
67
E
N
G
L
I
S
H
SET-UP: Sirius Settings
The following settings can be performed only when the Sirius mode is activated and a Sirius receiver unit is
connected.
[MODE]
(End)
59
[}] [{]
[] ] [[ ]
(Select)
[ENTER]
CQ-VAD9300U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
VOLUME
NAVIGATION
MUTE
MENU
MENU
MODE
MODE
POWER
NAVI
ASPECT
ASP
ENTER
ENTER
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no
operation for more than 60 seconds after changing to
the setting menu.
[MENU]
TRACK/
CHANNEL
P·MODE
E
N
G
L
I
S
H
60
[MENU] [MODE] [}] [{] []] [[]
(Select)
(End)
[ENTER]
1
Menu
2
Submenu
3
Setting
SIRIUS SET
Setting up Sirius
q Press [MENU] to
display the menu.
q Press [}] or [{] to
select “SIRIUS SET”.
This setup switches the Sirius connection on
and off.
w Press [[] or []] to
select “SIRIUS”.
w Press [ENTER] to set.
SIRIUS SET
Default: OFF
q Press [[] or []] to select the
setting.
w Press [ENTER] to set.
USER
Setting up Sirius
ON
: Sirius ON.
OFF
: Sirius OFF.
Notes:
¡“NOT CONNECTED” appears if a Sirius receiver unit is not connected.
¡Even if the Sirius receiver is connected, Sirius mode would not be active
properly unless Sirius Setting is set to ON. (The picture which is shown
when CD changer mode is active may be displayed)
SCREEN
DVD
SEARCH SETUP
DATE
Channel Search Method
Setting
CAPTURE
AUDIO
ALL
q Press [}] or [{] to
select “SEARCH
SETUP”.
w Press [ENTER] to set.
SEARCH SETUP
Tuning method setting
: every channel can be selected even if it is not included in the
agreement.
SUBSCRIBED : only channels covered by the agreement can be selected.
q Press [}] or [{] to select
an item.
w Press [[] or []] to select the
setting.
e Press [ENTER] to set.
CATEGORY
ALL
IN
Category priority setting
: a channel can be selected from every category.
: only channels in the current category can be selected.
SIRIUS
q Press [}] or [{] to
select “SIRIUS ID”.
Sirius ID Confirmation
w Press [ENTER] to set.
SIRIUS ID
68
CQ-VAD9300U
The SIRIUS ID is required when making an agreement or making a change in the
agreement.
Press [ENTER] to return to the menu display.
Note: The screen shown at left does not return to the menu unless [MODE]
is pressed.
CQ-VAD9300U
69
E
N
G
L
I
S
H
61
SET-UP: Other Settings
E
N
G
L
I
S
H
Aspect Ratio
Display Change
Display is changeable only in
the CD, MP3, radio and CD
changer modes.
Press [DISP] on the remote control to change the display as follows.
62
Press [ASP] (ASPECT) on the display unit or press [A] (ASPECT) on the
remote control to change the aspect ratio as follows.
Default: NORMAL
Mode: 4 types
Standard display
NORMAL
¡The conventional display image has a 4
to 3 ratio of horizontal to vertical.
¡In this case, a blank area remains on the
right and left sides of the display.
Default: Standard display
The following display is also
available only in the MP3 mode.
Captured display 1-5 (default)
Press [OSD] on the remote control to
change the display as follows.
ID3Tag information display
CQ-VAD9300U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
VOLUME
NAVIGATION
MUTE
MENU
MODE
NAVI
POWER
ASPECT
ASP
ENTER
FULL
¡The screen is extended horizontally as a
whole to the aspect ratio of 16 to 9.
¡The extension ratio is the same at any
point of the screen.
TRACK/
CHANNEL
P·MODE
[ASP] (ASPECT)
ZOOM
¡The screen is fully extended at the normal
aspect ratio of 4 to 3.
¡The top and bottom of the screen are
slightly cut.
Folder/file lists display
[A] (ASPECT)
Clock/calendar display
[OSD]
[DISP]
70
CQ-VAD9300U
JUST
¡The screen is extended horizontally to the
aspect ratio of 16 to 9.
¡The extension ratio increases toward the
right and left ends of the screen.
Notes:
¡This adjustment is common to TV, VTR1, VTR2, DVD and video CD mode.
¡You cannot change the aspect in the menu screen and a screen in the CD, MP3, radio, CD changer and Sirius
mode. These are fixed to “FULL” as well as a Navigation Image.
¡When the rear view camera is in operation with the transmission gear shift in the reverse position, the image is
shown on the “FULL” screen only.
¡In some cases, the picture looks different from the original one due to your selection of aspect.
Cautions:
¡This is to remind you that compression or extension of the screen using the aspect ratio (screen mode)
changing function of this product for commercial purpose of profit making or viewing/listening by the public
could infringe on the rights of the author protected by the copyright law.
¡If you expand normal picture (4 to 3) by using “JUST”, “ZOOM” or “FULL” aspect to the full of the screen, you
might not see the periphery of the picture, or you might see a distorted picture. Therefore, use the “NORMAL” mode to see the original picture as the author intended it.
CQ-VAD9300U
71
E
N
G
L
I
S
H
63
SET-UP: Other Settings
E
N
G
L
I
S
H
(continued)
Rear Monitor Set Up
Private Mode
You can have different picture and
sound at the front and rear
monitor at the same time.
q Press and hold [MENU] for more than
2 seconds.
Default: AUTO
e Press [ENTER] to set.
Preparation: Connect another
optional rear monitor. (e.g. CYVMX6800U) (a page 92)
w Press [[] or []] to select the setting.
Rear monitor setting menu
TV
CQ-VAD9300U
DISC
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
NAVI
ASPECT
ENTER
ASP
DVD
TRACK/
CHANNEL
P·MODE
[MENU] [MODE] []] [[]
(End)
[MODE] (End)
Press and hold [ASP] (P • MODE) on the display unit or [A] (P • MODE) on
the remote control for more than 2 seconds to activate the private mode function or inactivate it in turn.
You can mute the sounds from
the rear speakers if necessary.
Activation of the private mode
allows you to enjoy the front
monitor and rear monitor (e.g.
CY-VMX6800U) independently
with different sources at the
same time.
“P • MODE” indicator lights when
the Private Mode is activated.
Default: OFF
AUTO
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
64
: picture and sound come out. These are in the same mode
as the front monitor.
: picture and sound in the TV mode always come out.
CQ-VAD9300U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
: picture and sound in the DVD player mode (disc in the DVD
player) always come out.
Only sound in the CD, MP3 player mode.
VTR1
: picture and sound in the VTR1 mode always come out.
VTR2
: picture and sound in the VTR2 mode always come out.
Private Mode OFF
Private Mode ON
Radio
Radio
DVD
DVD
Radio
Mute
DISC
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
NAVI
ASPECT
ASP
ENTER
TRACK/
CHANNEL
P·MODE
[ASP] (P • MODE)
[MENU]
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one with no operation for 60 seconds
after changing to the rear monitor setting menu.
¡You can mute the sound from the rear speakers connected to this unit, so
that you can have different sound of modes at the front and rear monitor.
(a See Private Mode on next page)
[]] [[]
¡Picture and sound from the car navigation system connected to an RGB
input cord are not available at the rear monitor.
[A] (P • MODE)
Main Unit
Monitor
VTR1/VTR2
TV
DVD (VCD, CD, MP3)
Radio
CD Changer
Sirius Receiver
The rear monitor does not display television
picture when the main unit is in the radio
mode.
TV
VTR1/VTR2
Rear Monitor
72
CQ-VAD9300U
DVD (VCD, CD, MP3)
Different types of discs cannot be played
back at the same time.
It is recommended to use optional Over-head Monitor
(CY-VMX6800U) and headphones supplied to CYVMX6800U.
Notes:
¡Be sure to set to OFF when you do not use the private mode.
¡It is not possible to choose and set the SP DELAY on the sound setting menu while private mode is active.
(a page 62)
For a CD and MP3, the screen becomes blue.
CQ-VAD9300U
73
E
N
G
L
I
S
H
Installation Guide
❏ Installation Hardware (For Wiring)
WARNING
65
No.
This installation information is designed for experienced installers and is not
intended for non-technical individuals. It does not contain warnings or cautions of
potential dangers involved in attempting to install this product.
Any attempt to install this product in a motor car by anyone other than qualified
installer could cause damage to the electrical system and could result in serious
personal injury or death.
This product should be installed by a professional.
However, if you plan to install this product yourself, your
first step is to decide where to install it. The instructions in
these pages will guide you through the remaining steps:
(Please refer to the “WARNING” statement above).
¡Identify and label the car wires.
¡Connect the car wires to the wires of the power connector.
¡Install the unit.
¡Check the operation of the unit.
Item
If you encounter problems, please consult your nearest
professional installer.
Display Unit/Hide-away Unit
Connecting Cord
Caution: This unit operates with a 12 volt DC negative ground auto battery system only. Do not attempt to
use it in any other system. Doing so could cause serious damage.
Diagram
Qty
No.
Item
Double-Faced Adhesive Tape
!4
(for spacer)
Double-Faced Adhesive Tape
!5
(for speaker)
Diagram
1
e Mounting Spring
2
!6 Clamp (for speaker)
2
r Rubber Pad
1
!7
Binding-Head Screw
(M5 x 8 mm)
4
1 set
1
t Mounting Bolt (M5)
1
!8 Tapping Screw
(ø 6 x 20 mm)
4
y Flange Nut (M6)
1
!9 Hex. Nut (M5)
4
1
@0 Mounting Bracket
2
1
@1 Base Bracket
2
1
@2
2
@3 Velcro Tape
2
4
@4
Antenna Clamp
4
4
@5
Cord Clamp (for antenna)
4
Binding-Head Screw
(M5 x 6 mm)
Flat-Head Screw
!1
(M5 x 6 mm)
Binding-Head Screw
!2
(M4 x 3 mm)
Spacer
2
CQ-VAD9300U
#4 Center Speaker Lead
#5
Center Speaker Extension
Lead
Qty
1
1
1
1
1
66
Cautions:
¡Use the specified fuse. Be sure to always use the
specified fuse. If a fuse other than the specified fuse
is used, it may cause a fire or an accident.
¡Do not damage the cord by pinching or pulling it. Do
not pull or damage the cord. If the cord is not treated
properly, it will short out or be severed and may
cause a fire or an accident.
1
1
1
1
❏ Required Tools
You’ll need a screwdriver and the following:
12 V DC
Test Bulb
Electrical
Tape
Side-Cut
Pliers
1
Qty
w Mounting Collar
!0
Radio Antenna Extension
Cord
Diagram
Before you begin installation, look for the following items
which are packed with your unit.
1
o Rear Support Strap
Power Connector
(for hide-away unit)
#2 Ground Lead
#3
q Trim Plate
Washer Assembling Hex.Bolt
u (M5 x 10 mm)
Washer Assembling Hex.Bolt
i
(M6 x 20 mm)
74
@9
#1
❏ Installation Hardware (For Installation)
!3
@8 Clip Connector
#0 Optical Fiber Cable
❏ Overview
No.
Item
Power Connector
@6
(for display unit)
Reverse Extension Cord
@7
(for rear view camera)
¡Use with 12 volt DC negative ground car. This unit is
only for use with a 12 volt DC negative ground car. It
cannot be used in large trucks or diesel cars which are
24 volt DC cars. If it is used in the wrong type of car, it
may cause a fire or an accident.
E
N
G
L
I
S
H
Double-Faced Adhesive Tape
(for hide-away unit)
2
¡Warranty Card …… Fill this out promptly.
¡Panasonic Servicenter for Service Directory ……
Keep for future reference in case the product needs
servicing.
¡Installation Hardware …… Needed for installation.
❏ Dashboard Specifications
THICKNESS
MIN. 3/16” (4.75 mm)
MAX. 7/32” (5.56 mm)
❏ Before Installation
2-3/32” (53 mm)
Warning
¡Do not install the monitor in a location which
obstructs driving, visibility or which is prohibited by
applicable laws and regulations. If the monitor is
installed in a location which obstructs forward visibility
or operation of the air bag or other safety equipment or
which interferes with operation of the car, it may cause
an accident.
❏ Identify All Leads
¡Never use bolts or nuts from the car's safety devices for
installation. If bolts or nuts from the steering wheel,
brakes or other safety devices are used for installation
of the monitor, it may cause an accident.
The first step in installation is to identify all the car wires
you’ll use when hooking up your LCD monitor.
As you identify each wire, we suggest that you label it
using masking tape and a permanent marker. This will
help avoid confusion when making connections later.
¡Attach the wires correctly. If the wiring is not correctly
performed, it may cause a fire or an accident. In particular, be sure to run and secure the lead wire so that it
does not get tangled with a screw or the moving portion
of a seat rail.
7-5/32” (182 mm)
Note: Do not connect the power connector to the display
unit until you have made all connections. If there are no
plastic caps on the hooking wires, insulate all exposed
leads with electrical tape until you are ready to use them.
Identify the leads in the following order.
CQ-VAD9300U
75
E
N
G
L
I
S
H
67
Installation Guide
Power Lead
If your car has a radio or is pre-wired for one:
Cut the connector wires one at a time from the plug (leaving the leads as long as possible) so that you can work with
individual leads. Turn the ignition on to the accessory position, and ground one lead of the test bulb to the chassis.
ready to begin connecting them to the LCD monitor wires.
The wiring diagram (a page 84-93) shows the proper connections and color coding of the leads.
We strongly recommend that you test the unit before making a final installation.
You can set the unit on the floor and make temporary connections to test the unit. Use electrical tape to cover all
exposed wires.
Important: Connect the red power lead last, after you
have made and insulated all other connections.
Touch the other lead of the test bulb to each of the exposed
wires from the cut radio connector plug. Touch one wire at a
time until you find the outlet that causes the test bulb to light.
Now turn the ignition off and then on. If the bulb also turns
off and on, that outlet is the car power lead.
If your car is not wired for an audio unit:
Go to the fuse block and find the fuse port for radio
(RADIO) accessory (ACC) or ignition (IGN).
Battery Lead
If your stereo unit has a yellow lead, you will need to locate
the car's battery lead. Otherwise you may ignore this procedure. (The yellow battery lead provides continuous power
to maintain a clock or other functions.)
If your car has a radio or is pre-wired for one:
With the ignition and headlights off, identify the car battery
lead by grounding one lead of the test bulb to the chassis
and checking the remaining exposed wires from the cut
radio connector plug.
If your car is not wired for an audio unit:
Go to the fuse block and find the fuse port for the battery,
usually marked BAT.
Speakers (not supplied speaker)
Identify the car speaker leads. There are two leads for each
speaker, usually color coded.
A handy way to identify the speaker leads and the speaker
they are connected with is to test the leads using a 1.5 V
AA battery as follows.
Hold one lead against one pole of the battery and stroke the
other lead across the other pole. You will hear a scraping
sound in a speaker if you are holding a speaker lead.
If not, keep testing different lead combinations until you
have located all the speaker leads. When you label them,
include the speaker location for each.
❏ Connect All Leads
Now that you have identified all the wires in the car, you're
76
CQ-VAD9300U
E
N
G
L
I
S
H
(continued)
Ground
Connect the black ground lead of the power connector to
the metal car chassis.
Speakers (not supplied speaker)
Connect the speaker wires. See the wiring diagram for the
proper hookups. Follow the diagram carefully to avoid
damaging the speakers and the stereo unit.
The speakers used must be able to handle more than 45 W
of audio power. If using an optional audio power, the speakers should be able to handle the maximum amplifier output
power. Speakers with low input ratings can be damaged.
Speaker impedance should measure 4–8 Ω, which is typically marked on most speakers. Lower or higher impedance speakers will affect output and can cause both speaker and stereo unit damage.
Caution: Never ground the speaker cords. For example, do not use a chassis ground system or a three-wire
speaker common system. Each speaker must be connected separately using parallel insulated wires. If in
doubt about how your car’s speakers are wired, please
consult with your nearest professional installer.
Battery
Connect the yellow battery lead to the correct radio wire or
to the battery fuse port on the fuse block.
Equipment
Connect any optional equipment according to the instructions furnished with the equipment. Read the operating and
installation instructions of any equipment you will connect
to this unit.
Power
Connect the red power lead to the correct car radio wire or
to the appropriate fuse port on the fuse block.
If the LCD monitor functions properly with all these connections made, disconnect the wires and proceed to the
final installation.
❏ Final Installation
Lead Connections
Connect all wires, making sure that each connection is
insulated and secure. Bundle all loose wires and fasten
them with tape so they will not fall down later. Now insert
the LCD monitor into the mounting collar.
Congratulations! After making a few final checks, you’re
ready to enjoy your new LCD monitor.
❏ Final Checks
1. Make sure that all wires are properly connected and
insulated.
2. Make sure that the LCD monitor is securely held in
the mounting collar.
3. Turn on the ignition to check the unit for proper
operation.
If you have difficulties, consult your nearest authorized professional installer for assistance.
❏ Precautions
Cautions:
¡We strongly recommend that you wear gloves for
installation work to protect yourself from injuries.
¡When bending the mounting tab of the mounting collar with a screwdriver, be careful not to injure your
hands and fingers.
¡Disconnect the cable from the negative (–) battery terminal (see caution at right).
¡Unit should be installed in a horizontal position with the
front end up at a convenient angle, but less than 30°.
68
less than 30°
Caution: Do not disconnect the battery terminals of a
car with trip or navigational computer since all user settings stored in memory will be lost. Instead take extra
care with installing the unit to prevent shorts.
This unit should be professionally installed. In case of difficulty, please consult with your nearest professional
installer.
1. This unit only operates in a 12-volt DC negative ground
system.
2. Follow the electrical connections carefully (a page 8493). Failure to do so may result in damage to the unit.
3. Connect the power lead after all other connections are
made.
4. Be sure to connect the battery lead (yellow) to the positive terminal (+) of the battery or fuse block (BAT) terminal.
5. Insulate all exposed wires to prevent short circuiting.
6. Secure all loose wires after installing the unit.
7. Please carefully read the operating and installation
instructions of the respective equipment before connecting it to this unit.
Caution: Please follow the laws and regulations of
your state, province or country for installation of the
unit.
❏ Transportation Bracket Removal
Be sure to remove the transportation brackets before use (installation).
Use Binding-Head Screws (M5 x 6 mm) for installation. (a page 78)
Be careful not to lose these Binding-Head Screws.
Transportation
Display Unit
Binding-Head
Screws
(M5 x 6 mm)
Bracket
Transportation
Bracket
Binding-Head
Screws
(M5 x 6 mm)
CQ-VAD9300U
77
E
N
G
L
I
S
H
69
Installation Guide
E
N
G
L
I
S
H
(continued)
Mounting the Display Unit
70
❏ Installation Procedures
(When using Mounting Collar w)
Note: The car model,
installation conditions and
combination of the units
used may impose some
restrictions on opening
and closing the monitor as
well as on the angle and
position to which the
monitor can be adjusted.
Method for Fixing the Rear of the Unit
1
Insert the Mounting Collar w into the dashboard, and
bend the mounting tabs out with a screwdriver.
Fastening the Mounting Collar
The tabs to bent vary depending on the car. Bend them
with a screwdriver to fasten the Mounting Collar w
securely in the dashboard.
(a) Using the Rear Support Strap o
Drill a hole 6.5 to 7 mm
in diameter.
y Flange Nut
(M6)
(b) Using the Rubber Pad r
r Rubber Pad
t Mounting Bolt (M5)
i Washer Assembling Hex.
Bolt (M6 x 20 mm)
Fire wall of car
Display Unit
Dashboard
Bracket
(On car)
o Rear Support Strap
u Washer
Assembling
Hex. Bolt
(M5 x 10 mm)*1
w Mounting Collar
Tab
Display Unit
@6 Power Connector
*1: Use M5 x 8 mm size bolt (optional) if bolts other than
the supplied ones are to be used.
#0 Optical Fiber Cable
@9 Display Unit/Hide-away
Unit Connecting Cord
t Mounting Bolt (M5)
e Mounting Spring
!1 Flat-Head Screw
(M5 x 6 mm)
2
3
4
5
6
78
CQ-VAD9300U
Attach the Mounting Springs e to the display unit.
To Remove the Display Unit
Establish the rear connection of the unit.
After fixing Power Connector @6, Display Unit/Hide-away
Unit Connecting Cord @9 and Optical Fiber Cable #0, fix
the rear of the unit to the car body by either method (a) or
(b) shown at right.
q Push the right and left clamp plates outward, one at a time, and pull the display unit toward yourself.
w After removing the right and left clamp plates, pull the unit with both hands till it comes off.
w
q
Insert the unit into Mounting Collar w
Secure the clamp plate of Mounting Collar
w to the hook of Mounting Spring e.
Clamp plate
Insert Trim Plate q.
Push here to
remove the
clamp plates.
After installation
reconnect the negative
(–) battery terminal.
CQ-VAD9300U
79
E
N
G
L
I
S
H
71
Installation Guide
❏ Installation Procedures (When not using Mounting Collar w)
Use the brackets supplied with your car when mounting this unit. The bracket shape and mounting method vary with car
manufacturers, car types and manufacturing year. Please consult your nearest dealer or installer.
Select mounting screws according to the hole positions and hole shape of the bracket.
2 pieces
!0 Binding-Head Screw (M5 x 6 mm)
Recycle the Binding-Head Screws that fixed the transportation brackets for two more
positions.
!2 Binding-Head Screw (M4 x 3 mm)
4 pieces
!1 Flat-Head Screw (M5 x 6 mm)
When using these
mounting holes
Mounting the Hide-away Unit
72
Cautions:
¡Never mount the unit in any of the following locations to avoid damage due to overheating;
1. Near the heater port.
2. Places like the dashboard or rear deck, where it may be exposed to direct sunlight.
¡Do not mount the unit near the door, where it could be exposed to rain.
¡Do not separate the hide-away unit.
❑ Mount the unit on the car carpet by using Velcro Tape @3.
Attach the seal side of the Velcro Tape @3
to the hide-away unit, then mount the unit
on the carpet.
4 pieces
Note: Some carpet materials may not be
suitable for this mounting method. In this
case, please contact your nearest
Panasonic Servicenter for installation.
Use the supplied Spacer !3 if mounting hole of your car is shaped like below.
!0 Binding-Head Screw
(M5 x 6 mm)
Display Unit
Not used
@3 Velcro Tape
!3 Spacer
Mounting Hole
of a Bracket
(in section)
❑ Unit installation by using the Mounting Brackets @0 and the Base Brackets @1.
Bracket
Existing Bracket (R)
!0 Binding-Head Screw
(M5 x 6 mm)
!9 Hex. Nut (M5)
!4 Double-Faced
Adhesive Tape
@0 Mounting Bracket
!7 Binding-Head Screw
(M5 x 8 mm)
!3 Spacer
Existing Bracket (L)
(Bracket originally
attached to the car)
!4 Double-Faced Adhesive Tape
Carpet
Let the bolts of
the base bracket
pass the carpet.
Mounting the Speaker
Before mounting the speaker, wipe water, dust and oil stains
off from the place where the speaker should be mounted to
enhance adhesive strength.
Cautions:
¡Do not install the speaker in a location which obstructs
operation of the air bag or other safety equipment.
¡Do not leave a credit card or other magnetic cards near
the speaker to avoid damaging the cards.
CQ-VAD9300U
!8 Tapping Screw (ø 6 x 20 mm)
Speaker
!5 Double-Faced
Adhesive Tape
!6 Clamp
@1 Base Bracket
Make cuts by
using cutter.
80
E
N
G
L
I
S
H
(continued)
@2 Double-Faced Adhesive Tape
Drill for 4.8 mm diameter holes to the chassis.
* Put the tape and the base bracket together with each hole of the tape and
bracket connected so that the screw goes in at two positions.
Note: Apply an anticorrosive to the holes and tapping screws.
Caution: You run the risk of interfering with the mounting or causing damage by drilling into the gas tank, a wiring
harness, or other component.
CQ-VAD9300U
81
E
N
G
L
I
S
H
Installation Guide
E
N
G
L
I
S
H
(continued)
Mounting the TV Antenna
73
74
Cautions:
¡Be sure to install the TV antenna on the inner side of
the rear window.
¡Be sure to connect the power lead of the TV antenna
to ACC power DC 12 V.
¡Keep the antenna away from the external amplifier
and the rear speaker cord as much as possible.
Preparations:
Remove the upholstery at the both sides of the rear
window to establish a ground.
1
Straighten the bent antenna element.
Confirm the adhering positions.
2
Insert the grounding plate into the antenna body and hold the antenna element with the Antenna Clamp @4.
Select a suitable screw point for
the grounding plate to adhere to a
metal part and remove the screw
and the terminal cover.
Shorter side
Longer
side
Affix the antenna temporarily with adhesive tape after
confirming the antenna position.
q
Screw
Insert
points
Follow the steps below to install the grounding plate.
q Insert the grounding plate into the antenna body.
w Hold the grounding plate with the terminal cover.
Grounding r
e Screw the grounding plate.
r Hold the antenna element with the Antenna Clamp @4. Plate
e Screw
w
Terminal cover
r
Caution: Be sure to connect
the grounding plate. Otherwise,
desensitization will be caused.
Peel the sheet from the back of antenna body
and affix it. Then, affix the grounding plate on a
metal part.
Follow the steps below to affix the antenna securely.
q Affix the antenna body.
w Straighten the antenna element and affix it.
e Put the Antenna Clamp @4 on the center of the antenna element.
r Adjust the angle and position of the grounding plate and affix it.
3
Remove the upholstery.
Observe the following to enhance adherability.
¡Wipe the inner surface of the rear window with a
wet and soft cloth along the heating wire. But do
not leave water droplets on the glass.
¡When the outside-air temperature is less than 68
°F (20 °C), switch on the rear window defogger or
the car heater to warm the surface of the rear window for approx. 5 minutes.
Adjust
r
Some models restrict the installation
of the TV antenna due to rear window
size or open/close of the hatch.
Contact your dealer.
For a hatchback type:
5
e
w
e
w
Antenna cable identification
4
To TV antenna
connector on the
hide-away unit.
q
Cord routing
Hold the cord with
a Cord Clamp @5.
For some models, you cannot straighten
the longer element.
Antenna Cord
No bending
Stick the grounding plate skillfully and hold the loose
antenna element with the Antenna Clamp @4 so that
the element will not become caught in the hatchback
door. Adjust the cord length so that the cord does
not interfere with the movement of the hatchback
door, and secure the cord with Cord Clamp @5.
82
CQ-VAD9300U
Power Lead
To ACC power,
+12 V DC.
Ground Lead
To a clean, bare
metallic part of
the car chassis.
Comfortably curving
(Fuse 0.5 A)
ACC 0.5A
0.5A
(Red)
(Black)
Route the cord behind the
rear seat and affix it with
adhesive tape.
Route the cord inside the
upholstery and under the
carpet.
Cautions:
¡Avoid contacting the adhesive surface.
¡Do not re-adhere to avoid weakening adherability.
¡Avoid adhering on the heating wire as much as possible.
CQ-VAD9300U
83
E
N
G
L
I
S
H
75
Electrical Connections
Wiring Diagram
Accessory used for wiring
No.
Item
Q'ty
No.
@6
Power Connector (for display unit)
1
#1
Power Connector (for hide-away unit)
1
@7
@8
Reverse Extension Cord (for rear view camera)
Clip Connector
1
1
#2
Ground Lead
1
#3
Radio Antenna Extension Cord
1
@9
Display Unit/Hide-away Unit
Connecting Cord
1
#4
Center Speaker Lead
1
Optical Fiber Cable
1
#5
Center Speaker Extension Lead
1
#0
Item
Cautions:
¡This unit is designed for use in a car having a 12-volt negative ground battery system.
¡Be sure to insulate any exposed wires from a possible short-circuit from the car chassis. Bundle all cables and keep
cable terminals free from touching any metal parts.
¡Note that if your car has a driving computer or a navigation computer, disconnecting the cable from the battery may
clear the memory.
¡Install the cords avoiding the spots where the tempereture should be extremely high.
Q'ty
E
N
G
L
I
S
H
76
Notes:
¡To prevent damage to the unit, be sure to follow the connection diagram below.
¡Be sure to fully plug in the connectors. Secure them with clamps and tape.
¡When game machine are connected, the picture may be unstable.
¡When removing the Power Connector @6 and Display Unit/Hide-away Unit Connecting Cord @9 , be sure to press the clip.
¡All other installation methods require the use of dedicated metal fittings. Consult with a qualified servicing engineer or your
dealer if other methods are required.
@9 Display Unit/Hide-away Unit Connecting Cord
RGB Input Cord
To the RGB Connector of the Panasonic
car navigation system (available in future).
Display Unit
(Rear)
(Front)
Digital Audio Output
Connector (optical)
#0 Optical Fiber Cable
Video Control Lead
To the Video Control Lead of the
Panasonic car navigation system
(available in future).
Side Brake (Parking Brake) Connection
Lead
Be sure to wire the side brake (parking
brake) for safety and preventing accidents.
(a page 88)
Reverse Lead
When connecting the rear view camera,
use the reverse lead. (a page 93)
Note: Use a Reverse Extension Cord @7 if
needed.
Power Lead
To ACC power, +12 V DC.
VIDEO-CONT
(Green/yellow stripe)
Ground Lead
To a clean, bare metallic part of the car
chassis.
84
CQ-VAD9300U
Notes on handling optical fiber cable:
¡Do not allow the cable to be damaged by getting it caught in the door,
placing a heavy object on it, etc.
¡Make sure that the cable is not
strained when it is connected.
¡Do not bend the cable sharply.
Caution: Do not
insert the power
connector into the
unit until the wiring
is completed.
SIDE BRAKE
Hide-away Unit
25 mm or more
(Blue/yellow stripe)
(Rear)
REVERSE
(Violet/white stripe)
!
(Resistor 220 Ω)
ACC
(Fuse 5 A)
Panasonic
SPEAKER
Speaker Lead
@
(Black/green stripe)
BATTERY 5A
Note: See next page for hide-away unit
electrical connection.
(Black)
(Black)
(Red)
Battery Lead
To the car battery, continuous +12 V DC.
@6 Power Connector
(Black/green stripe)
Speaker
Note: Supplied only for the operation sound such as beep.
Do not use it for a center speaker.
Caution: Do not use the supplied speaker for some
other units or components.
(Yellow)
(Black)
CQ-VAD9300U
85
E
N
G
L
I
S
H
Electrical Connections
Hide-away Unit
(Rear)
77
@9 Display Unit/Hide-away
Unit Connecting Cord
#5 Center Speaker Extension Lead
!
(Black)
CENTER
(Black/green stripe)
To Center Speaker
(EAB-CF2 recommended)
@
78
!
(Left)
(White)
FRONT L
TV Antenna
Refer to “Mounting the TV Antenna”
for TV antenna connection.
(a page 82)
(White/black stripe)
@
!
FRONT R
(Gray/black stripe)
REAR L
#4 Center Speaker Lead
(Black)
(Green/black stripe)
REAR R
(Violet/black stripe)
(Black/green stripe)
@
To Rear Speaker
NAVI MUTE
(Orange)
Rear Speaker Lead (Left)
(Blue/white stripe)
CQ-VAD9300U
(Front)
(Yellow)
ACC
(Red)
(Black)
Radio Antenna Connector (RADIO ANT IN)
Note: Use the Radio Antenna Extension
Cord #3 if necessary.
#0 Optical Fiber Cable
Make sure to use the one that is
supplied specially for this unit.
BATTERY 15A
(Resistor 220 Ω)
86
Ground Terminal
Power Connector
Center Speaker Output Connector
(CENTER SP OUT)
Video Input Terminal 1 (VTR1-IN)
Video Input Terminal 2 (VTR2-IN)
Connect a VCR, camcorder, rear view camera, other
brand’s car navigation system, etc. (a page 92-93)
Video Output Terminal (VIDEO-OUT)
Connect the rear monitor. (a page 92)
AMP-CONT MAX 0.1A
(Fuse 15 A)
Ground Lead
To a clean, bare metallic part
of the car chassis
(Rear)
Rear Speaker Lead (Right)
TWIN CD C-CONT
(Brown/white stripe)
Power Lead
To ACC power, +12 V DC.
TV Antenna Connector
(TV ANT IN)
Front Speaker Lead (Left)
Motor Antenna Relay Control Lead
(To motor antenna) (Max. 0.1 A)
ANT-CONT MAX 0.1A
This lead is not intended for use
(Blue)
with a switch actuated power antenna.
Note: The power antenna extends automatically
when the radio mode is selected.
Battery Lead
To the car battery, continuous
+12 V DC.
(Right)
@
Display Unit/Hide-away Unit Connector
Front Speaker Lead (Right)
External Amplifier Control
Power Lead
To an external amplifier.
(Left)
!
(Violet)
CENTER
@
#1 Power Connector
Dual CD Changer Control Lead
(Right)
!
(Green)
Navi Mute Lead
Connect to the Navi Mute Lead
of the Panasonic car navigation
system. (available in future)
To Front Speaker
(Gray)
#2 Ground Lead
To a clean, bare metallic part of the car chassis
E
N
G
L
I
S
H
(continued)
Optical Digital
Input Connector
(DIGITAL IN)
Dust cap
Remove the dust cap
before use.
CD Changer Control Connector
(CD • C-IN) (a page 89, 91)
Pre-Out Connector (Front)
Pre-Out Connector (Rear)
Pre-Out Connector (Center)
Subwoofer Output Connector
Sirius Receiver Control
Connector (a page 90, 91)
To external amplifier
CQ-VAD9300U
87
E
N
G
L
I
S
H
Electrical Connections
Color of the Connectors
Connecting the Side Brake (Parking Brake) Connection Lead
79
80
Color of the connectors used for the connections in
pages 89-93.
Caution: For safety, be sure to ask your nearest professional installer to do this connection.
Side brake (Parking brake)
E
N
G
L
I
S
H
(continued)
Foot brake
Side brake (parking brake) switch
Red
White
Yellow
(Not used)
The side brake (parking brake) switch position varies with the car model.
For details on the exact location of the side brake (parking brake) switch
in your car, contact your dealer.
Connection with CD Changer (CX-DP88U)
Note: Refer to the operating instructions for the connected devices, in addition.
Brake light
Ground Lead (Black)
Battery
+
SIDE BRAKE
Side Brake (Parking Brake) Connection
Lead (Blue/yellow stripe)
When the side brake (parking brake) lever is
engaged, the unit is grounded by the chassis.
q Attach a Clip Connector @8 to the end of the side
brake (parking brake) connection lead.
—
CD Changer
CX-DP88U
@8 Clip Connector
(option)
Car chassis
Power Connector
(Supplied to CX-DP88U)
w The Clip Connector @8 is connected to the power
source side lead of the side brake (parking brake)
lever.
(L) (White)
RCA Cord
Comes up to this point.
(R) (Red)
Side Brake (Parking Brake)
Connection Lead
(Blue/yellow stripe)
Power source side lead
CQ-VAD9300U
(Fuse 3 A)
CD Changer Control
Connector
CQ-VAD9300U
Hide-away Unit
(Front)
88
Battery Lead (Yellow)
DIN Cord
CQ-VAD9300U
89
E
N
G
L
I
S
H
Electrical Connections
E
N
G
L
I
S
H
(continued)
Connection with Sirius Receiver (CR-SRT100)
81
Connection with Dual CD Changer Selector (CA-CD55)
The diagram below shows an example of “changer and Sirius receiver connection”. For “two changers connection”,
just replace the Sirius receiver that connects to the CD.C-2 terminal with another changer.
CQ-VAD9300U
Hide-away Unit
(Front)
CD changer
CX-DP88U
Power Connector
(Supplied to CX-DP88U)
(option)
Ground Lead (Black)
To a clean, bare metallic part of the car chassis
(L) (White)
DIN Cord
RCA Cord
(R) (Red)
Battery Lead (Yellow)
To the car battery,
continuous +12 V DC
RCA Cord
(Option)
DIN Cord
(Supplied to CA-CD55)
(R)
(Red)
Dual CD Changer
Selector
CA-CD55
DIN Cord
Sirius Receiver
CR-SRT100
(option)
82
CD·C-1
(option)
(R) (Red)
(L) (White)
(R) (Red)
(L) (White)
(L)
(White)
CD·C-2
(R) (Red)
CQ-VAD9300U
Hide-away Unit
(Front)
(R) (Red)
(R)
(Red)
(L)
(White)
(R)
(Red)
(L)
(White)
(L) (White)
(L) (White)
Ground Lead (Black)
To a clean, bare metallic part
of the car chassis
RCA Cord
(Supplied to CA-CD55)
RCA Cord
(Option)
TWIN CD·C-CONT
Battery Lead (Yellow)
To the car battery, continuous +12 V DC
Clip connector
(Option)
Sirius Receiver
CR-SRT100
(option)
(R)
(Red)
(L)
(White)
(R)
(Red)
(L)
(White)
RCA Cord
Ground Lead (Black)
To a clean, bare metallic part of the car chassis
DIN Cord
Battery Lead (Yellow)
To the car battery, continuous
+12 V DC
90
CQ-VAD9300U
Power Connector
(Supplied to CR-SRT100)
CQ-VAD9300U
91
E
N
G
L
I
S
H
83
Electrical Connections
Connection with VCR or Camcorder
Connection with Rear View Camera
Note: Refer to the operating instructions for the connected devices, in addition.
Note: Refer to the operating instructions for the connected devices, in addition.
Rear View Camera
Control Unit (option)
CQ-VAD9300U
Display Unit (Rear)
CQ-VAD9300U
Hide-away Unit
(Front)
E
N
G
L
I
S
H
(continued)
84
Camera Input
Camcorder (option)
Audio
Video
output Left Right
(Video)
(Yellow)
Rear View Camera (option)
(R)
(Red)
Panaso nic
(Video)
(Yellow)
(Video)
(Yellow)
(R)
(Red)
@6 Power Connector
INTELLIGENT SYSTEM
(L)
(White)
POWER
Hide-away Unit
(Front)
BS G-CODE
VCR (option)
(L)
(White)
RCA Cord (Option)
RCA Cord (Option)
(Video)
(Yellow)
Connection with Rear Monitor
Connecting the Reverse Lead
Note: Refer to the operating instructions for the connected devices, in addition.
If using an optional rear view camera, the reverse lead must
be connected.
Connect the reverse lead (violet/white stripe) to the positive (+)
lead of the reverse lamp (the lamp with a clear lens that lights
when the transmission gear is shifted into the reverse position).
Notes:
¡Connect the reverse lead after cutting the terminal at the end.
¡Use a Reverse Extension Cord @7 if needed.
CQ-VAD9300U
Hide-away Unit
(Front)
VTR1-IN
Over-head Monitor
CY-VMX6800U
(R)
(Red)
(L)
(White)
Reverse lamp
(option)
(Video)
(Yellow)
Clip connector
(option)
Check the reverse lamp.
Take it out of the back of
the tail lamp mount.
Battery
Car chassis
(R)
(Red)
RCA Cord (Option)
(L)
(White)
(Video)
(Yellow)
REVERSE
P
Reverse Lead (Violet/white stripe)
Cut here.
92
CQ-VAD9300U
R
N
D
2
L
Transmission gear
CQ-VAD9300U
93
E
N
G
L
I
S
H
Troubleshooting
Preliminary Steps
Check and take steps as described in the tables below.
85
If You Suspect Something Wrong
Immediately switch power off.
Disconnect the power cable and check that there is neither smoke
nor heat from the unit before asking for repairs. Never try to repair
the unit yourself because it is dangerous to do so.
Cautions:
¡Do not use the unit if it malfunctions or is
something wrong.
¡Do not use the unit in an irregular condition, for example, no sound, smoke or foul
smell, can cause ignition or electric shock.
Immediately stop using it and call the store
where you purchased it.
■ Common
■ Common (Continued)
Trouble
86
A mobile phone is used near the unit.
aKeep the mobile phone away from the unit.
Noise
Picture is not clear.
The unit’s grounding wire is not connected securely.
aCheck the metal areas of the car body (chassis), and connect the
grounding wire more securely.
Trouble
Cause/Step
Car’s ignition switch is not on.
aTurn your car’s ignition switch to ACC or ON.
The tilt angle or the
front-rear position of
the display is not
adjustable.
Cables are not correctly connected.
aConnect cables correctly.
Battery cable is not correctly connected.
aConnect the battery cable to the terminal that is always live.
The monitor does not
go back into the unit.
Cause/Step
There is an obstacle.
aInstall the unit where the unit moves freely.
The monitor direction is not proper.
aChange the monitor direction to the center.
The monitor stops on the way to the home position.
aRaise the monitor a little and press [ ] (OPEN/CLOSE).
Accessory cable is not correctly connected.
aConnect the accessory cable to your car's ACC source.
Grounding wire is not correctly connected.
aConnect the grounding wire to a metal part of your car.
■ Remote Control
Trouble
Battery poles (+) (–) are reversed.
aInsert the battery correctly.
The volume is adjusted to zero.
aRaise the volume.
Wrong battery.
aCheck the battery.
Buttons are invalid for
operation.
Mute is set to ON.
aSet it to OFF.
Battery has run down.
aReplace the battery.
Cables are not correctly connected.
aConnect cables correctly.
Remote control is in the wrong direction.
aDirect the remote control at remote control sensor on the display unit.
Condensation (dew)
aWait for a while before use.
Side brake (parking brake) cord is not correctly connected.
aConnect the side brake connection lead correctly.
Only sound,
no picture.
You did not pull the side brake (parking brake) lever.
aPull the side brake (parking brake) lever.
CQ-VAD9300U
Cause/Step
Fuse is burnt.
aCall the store where you purchased the unit, or your nearest Panasonic
Servicenter (see the attached sheet) and ask for fuse replacement.
No sound
94
Cause/Step
■ Monitor
Trouble
No power
E
N
G
L
I
S
H
■ TV
Trouble
Unclear image due to
noise
Cause/Step
The intensity of the radio wave is too low.
aChange the broadcast station.
Connection or installation of the TV antenna has not been performed correctly.
aCheck the connection or installation.
CQ-VAD9300U
95
E
N
G
L
I
S
H
87
Troubleshooting
■ DVD video, Video CD, CD, CD-R, CD-RW
Trouble
■ CD
Trouble
Cause/Step
The disc is upside down.
aPlace the disc in the correction direction, the label side up.
The disc is inside but
no sound.
The disc is ejected
automatically.
E
N
G
L
I
S
H
(continued)
The disc is dirty.
aClean the disc, referring to the section on “Notes on Discs” (a page 103).
Cause/Step
88
CD text is not
displayed normally.
Disc is dirty, or has scratches.
a Clean the disc, referring to the section on “Notes on Discs” (a page 103).
Time is counted but no
sound comes out.
The 1st track of a mix mode disc was reproduced. (Mix mode is a format in
which data, except music, is recorded on the 1st track and music data is
recorded on other than the 1st track in a session.)
aPlay back music data recorded on other than the 1st track.
The unit can only play the following types of discs: DVD video, video CD, music
CD and MP3.
Connect the optical fiber cable.
CD sound skips, tone
quality is low.
The disc is dirty.
aClean the disc, referring to the section on “Notes on Discs” (a page 103).
Mounting angle is over 30°.
aAdjust mounting angle to less than 30°.
Sound skip due to
vibration.
The buttons do not
work.
The disc is not ejected.
Unstable mounting.
aMount the unit securely with the mounting parts, referring to the section on
installation.
■ MP3
Trouble
No playback.
It takes too long for
playback to start.
Poor recording quality,
sound skipping
96
Trouble
Cause/Step
Cannot switch the audio
language/subtitle
language/angle.
¡It is not possible to switch if the disc does not have multiple audio languages/subtitle languages/angles recorded on it. (Refer to the guide provided
with your disc.)
¡Some discs permit switching through a menu screen.
¡Sometimes, switching angles is possible only with certain scenes.
CQ-VAD9300U
The folders and files recorded on the disc are layered too much.
aAs checking of files takes longer in this case, do not record any unnecessary folders or files other than MP3s on the disc.
(If there are many hierarchies of files and folders, it may take up to 150
seconds to start playback.)
aThe recording quality differs depending on the encoding software used,
and on settings such as the bit rate. Set the bit rate within the range specified in the specifications chart (a page 106).
It is recommended to set the bit rate to “128 kbps or more” and “Fixed”.
High-speed writing was executed when MP3 data was recorded on the disc.
aDecrease writing speed as low as possible.
■ DVD video
The audio/subtitle
language selected in the
DVD settings is not
used.
The disc does not conform to any of the file systems supported by this player.
aInsert a disc that conforms to the file systems supported by this player.
(a page 33).
The MP3 file is missing the “.mp3” file name extension.
aMake sure to add the “.mp3” extension to each MP3 file name.
Some operations are not permitted with certain discs.
(Refer to the guide provided with your disc.)
¡Disc is defective.
¡Mechanical trouble.
aPress [u]. If failure persists, press the reset switch. If normal operation
is not restored, call the store where you purchased the unit or the nearest
Panasonic Servicenter.
Cause/Step
If audio or subtitles in the languages are not recorded on the disc, the audio or
subtitles do not switch to that language. (Some discs permit switching through
a menu screen. Refer to the guide provided with your disc.)
Files are not played in
the desired order.
Folder/file name is not
displayed correctly.
Files or folders are not recorded in the desired playback order.
aSome writing software lets you specify the recording order by adding a
prefix in the range of “01” - “99”, etc. to the file name. For details refer
to the user manual of your writing software.
The disc does not conform to the file systems supported by this player.
aInsert a disc that conforms to the file systems supported by this player.
(a page 33).
aThere may be a problem with your writing software or CD recorder (CDR/RW drive). For details refer to the user manual of your writing software.
CQ-VAD9300U
97
E
N
G
L
I
S
H
89
Troubleshooting
■ MP3 (Continued)
Trouble
■ Display Settings
Cause/Step
You turned off the ignition switch of the car during playback.
aPlaying another file will return the file playing time to normal.
File playing time is not
displayed correctly.
You played a file in which character information had been recorded by use of
ID3Tag 2.0 or later version.
aA file in which character information was recorded by use of ID3Tag 2.0
or later version may not be reproduced normally. For example, the file
playing time may not be displayed correctly.
■ Radio
Trouble
Cause/Step
Station is too far, or signals are too weak.
aSelect other stations of higher signal level.
Poor reception of FM
stereo and monaural
broadcasts.
The picture from a car
navigation system is
not displayed.
The picture from a VCR or a
camcorder is not displayed.
No sound from a VCR or
a camcorder.
The picture from a rear
view camera is not displayed.
The picture or the sound
of the rear monitor is not
switchable.
98
CQ-VAD9300U
Trouble
Cause/Step
The brightness of the
screen is not stable.
“AUTO” dimmer is selected.
aSelect one of the dimmer levels from among 1 to 4 to make the dimmer
adjustment become free from light intensity.
The picture is dark.
The picture is whitish.
Something is wrong
with the picture. The
picture is light in color.
The screen is not adjusted properly.
aMake every adjustment of the screen.
Red, blue, or green
spots appears.
This is a characteristic of liquid crystal panels and is not a problem.
Trouble
Cause/Step
No sound from left,
right, front, or rear
speaker.
Cables are not correctly connected.
aConnect the cables correctly.
The radio antenna is not extended enough.
aFully extend the radio antenna.
Left and right sounds
are reversed.
The speaker leads are connected in reverse between right and left.
aConnect the speaker wires to the correct one.
No sound on the
speaker.
The speaker setting is “NO” or “NONE”.
aSet it correctly.
Cause/Step
Playing back a disc having a subwoofer channel
¡Subwoofer is set to “NO” in the speaker setting.
aSet subwoofer to “YES”.
¡Down mix
aNo technical trouble. Cancel the down mix.
¡Private mode is set to “ON”.
aSet private mode to “OFF”.
The connection of a car navigation system is not correct.
aConnect it correctly.
Input setting of a car navigation system is not correct.
aMake the input setting correct.
A VCR or Camcorder is not connected correctly.
aConnect a VCR or Camcorder correctly.
The VTR1-IN and/or VTR2-IN level is excessively high. (The “OVER” display
appears.)
aAdjust the VTR Input level.
Rear view camera is not connected correctly.
aConnect a rear view camera correctly.
Input setting of a camera is not correct.
aMake the input setting correct.
“AUTO” is not selected for the setting of a rear monitor.
aSelect “AUTO” for the setting.
90
■ Sound Settings
The motor antenna relay control lead is not connected correctly.
aIf there is a motor antenna in the car, connect the motor antenna relay
control lead to the motor antenna lead that is installed in the car correctly.
■ Car Navigation, VCR, Camcorder, Rear View Camera, Rear Monitor
Trouble
E
N
G
L
I
S
H
(continued)
No sound from the
subwoofer
A disc without subwoofer channel is played back, or analog audio is played
back
¡Subwoofer is set to “NO” in the speaker setting.
aSet subwoofer to “YES”.
¡Sound field is set to “OFF”.
aNo technical trouble. Set it to other than “OFF”.
¡A disc recorded on 1 ch, 3 ch, 4 ch, or 5 ch is played back.
aNo technical trouble. No audio is output from the subwoofer when such
a disc is played back.
Note: Sound does not come out of the subwoofer with default speaker setting when SPACE is set to OFF. (However, some speaker settings allow
sound output even if SPACE is set to OFF.) If SPACE is set to VOCAL, the
sound output level from the subwoofer is lower than other SPACE settings
(except for OFF).
CQ-VAD9300U
99
E
N
G
L
I
S
H
91
Troubleshooting
■ Sirius (Continued)
Error Display Messages
■ CD/MP3/DVD/Video CD/CD Changer
Display
- E1 -
Cause/Step
- E3 -
No operation by some cause.
aPress [u]. If failure persists, press the reset switch. (Press the reset
switch in the CD changer). If normal operation is not restored, call the
store where you purchased the unit or the nearest Panasonic
Servicenter.
- E4 -
The type of the file that is selected is not supported.
aCheck disc.
PAL/NTSC ERROR
REGION ERROR
No disc is in the player.
aInsert disc into the disc slot.
No magazine is in the changer.
aLoad the changer with CD-loaded magazine.
The selected channel is invalid.
aSelect a channel which can be received instead.
NOT CONNECTED
¡The Sirius receiver fails to operate for some reason.
¡SET ON serves as the Sirius setting and the Sirius receiver has not been
connected.
aSelect a channel which can be received instead.
Maintenance
Your product is designed and manufactured to ensure a minimum of maintenance. Use a dry soft cloth for routine exterior
cleaning. Never use benzine, thinner or other solvents.
Product Servicing
If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized
Panasonic Servicenter. The product should be serviced only by a qualified technician.
Replacing the Fuse
Use fuses of the same specified rating (5 A for display unit, 15 A for hide-away unit). Using different substitutes or fuses with
higher rating, or connecting the product directly without a fuse, could cause fire or damage to this unit.
If the replacement fuse fails, contact your nearest Panasonic Servicenter for service.
An attempt was made to play a PAL disc.
aPress [u] and check the disc.
An attempt was made to play a disc with a region number other than “1” or
“ALL”.
aPress [u] and check the disc.
Notes:
¡There may be cases when the disc numbers affected by an error are displayed before E1 and E2.
¡Displays and the steps to be taken for errors vary in part from changer to changer. For details, refer to the Operating
Instructions for the changer used.
92
INVALID CHANNEL
Disc is dirty, or is upside down.
aCheck disc.
Disc has scratches.
aCheck disc.
NO MAGAZINE
Cause/Step
Display
- E2 -
NO DISC
E
N
G
L
I
S
H
(continued)
If the Unit Begins to Operate Malfunctionally...
Reset switch
Insert a hard, slender stick into the hole and push the switch.
Important
Push the switch only when the unit fails to operate with any buttons. (Stored settings and adjustments are not cleared.)
If the unit fails to return to normal condition, call the nearest Panasonic Servicenter and ask for repairs.
Display Unit
Hide-away Unit
■ Sirius
Display
Cause/Step
ACQUIRING SIGNAL
Your location is out of receivable areas (e.g. in a tunnel), or the unit is decoding a
selected broadcast. The display appears also while the connections are being
checked after the power has been turned on.
aWait until getting out of the unreceivable area or completing the decoding.
CALL 888-539CALL
888 539 SIRIUS
SIRIUS
TO TO SUBSCRIBED
SUBSCRIBE
SIRIUS ID ERROR
100
CQ-VAD9300U
CQ-VAD9300U
RESE
T
NCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
User's registration has not been carried out.
aComplete user's registration.
DISC
A channel that is not included in the agreement was selected.
aSelect a channel that is included in the agreement. Refer to the operating instructions for Sirius receiver with regard to the agreement.
The ID could not be acquired.
aContact your nearest Panasonic Servicenter for service.
NAVIGATION
MENU
MODE
POWER
NAVI
ASPECT
ASP
P·MODE
ENTER
TRACK/
CHANNEL
Reset switch
Notes:
¡We recommend that you press both of the reset switches on the Display Unit and the Hide-away Unit one by one in any
order.
¡If the ID-CODE has been already set, you will be asked to enter the ID-CODE right after the unit is restarted.
CQ-VAD9300U
101
E
N
G
L
I
S
H
93
Maintenance
To Prevent Damage to the System Exterior
Notes on Discs
Do not apply pesticides, benzine, thinner or other volatile substances to the unit.
The cabinet surface primarily consists of plastic materials.
Do not wipe with benzine, thinner or similar substances because this will result in
discoloration or removal of the paint.
When a cloth with a cleansing chemical is used, follow the caution points.
Do not leave the unit in contact with rubber or vinyl products for long periods of
time.
Do not use cleansers which have polishing granules because this could damage
the surface of the unit.
Pesticide
Alcohol
Wax
Tape
How to hold the disc
¡Do not touch the underside of the disc.
¡Do not scratch the disc.
¡Do not bend disc.
¡When not in use, keep disc in the case.
94
Label side
Do not use irregularly shaped discs.
Thinner
Benzine Adhesive
Tape
Do not leave discs in the following places:
¡Direct sunlight
¡Near car heaters
¡Dirty, dusty and damp areas
¡On seats and dashboards
Disc cleaning
Use a dry, soft cloth to wipe from the center outward.
Do not use irregularly shaped discs.
<Right>
<Wrong>
Do not attach any seals or labels to your discs.
Clean Dirt by Wiping Lightly with a Soft Cloth
When the unit is dirty, wipe the surface of the display using the Wiping Cloth (supplied).
■
E
N
G
L
I
S
H
Do not write on the disc label in a heavy pen or
ballpoint pen.
Without a Wiping Cloth
When the unit is dirty, wipe with a well-wrung cloth dipped in liquid dishwashing detergent (neutral) diluted with water
and then go over the same surface with a dry cloth.
(Since there is the possibility of water drops getting inside of the unit, do not directly apply cleanser to the surface.)
Wring well.
Go over the same surface with a dry
cloth.
Wipe lightly.
a
a
Notes on CD-Rs/RWs
¡You may have trouble playing back some CD-R/RW discs recorded on CD recorders (CD-R/RW drives), either due to
their recording characteristics or dirt, fingerprints, scratches, etc. on the disc surface.
¡CD-R/RW discs are less resistant to high temperatures and high humidity than ordinary music CDs. Leaving them inside
a car for extended periods may damage and make playback impossible.
¡The unit may not successfully play back a CD-R/RW that was made by the combination of writing software, a CD
recorder (CD-R/RW drive) and a disc if they are incompatible with one another.
¡This player cannot play CD-R/RW discs if the session is not closed.
¡This player cannot play CD-R/RW discs which contain other than CD-DA or MP3 data (Video CD, etc.).
¡Be sure to observe the handling instructions of CD-R/RW discs.
Dishwashing soap diluted with water
Note: Do not scratch the screen with your nails or other hard objects. The resulting scratches or marks will obscure the
images.
Caution: If water drops or similar wet substances get inside the monitor, it may cause a malfunction.
102
CQ-VAD9300U
CQ-VAD9300U
103
E
N
G
L
I
S
H
95
Definition of Terms
Digital audio output connector (Optical)
The digital audio output connector (optical) converts
electrical signals into optical signals and transfers
them to the amplifier. Consequently, it has a number
of features including its immunity from electrical interference from external sources and its ability to prevent
the generation of noise and its minimal effect on the
external environment.
Interactive DVD
An interactive DVD is DVD software which includes
multiple angles, multiple plot endings, etc.
Dolby Digital
This fully discrete format divides the music signals
into 5.1 channels: Front Left (L), Front Right (R),
Center (C), Left Surround (LS), Right Surround (RS)
and Subwoofer (SW: 0.1 channel) for recording and
playback. The number of channels that are recorded
depends on the software. (1 to 5.1 channels)
LPCM (Linear PCM audio)
In this format, the audio signal is converted to digital
data and recorded in two channels without compression. Because the capacity of a DVD video disc is
large, it can store more data with better accuracy than
a CD.
Manufactured under license from Dolby
Laboratories. “Dolby” and the double-D symbol
are trademarks of Dolby Laboratories.
Confidential unpublished works. Copyright
1992 – 1997 Dolby Laboratories. All rights
reserved.
Dolby Pro Logic
This format records signals from four channels [Front
Left (L), Front Right (R), Center (C), and Monaural
Surround (S)] in two channels, decodes those channels through a Dolby Pro Logic decoder, and then outputs the resulting signals in four channels.
dts
This format requires more data than Dolby Digital, and
provides higher quality surround playback.
Similar to Dolby Digital, this fully discrete format
divides the music signals into 5.1 channels: Front Left
(L), Front Right (R), Center (C), Left Surround (LS),
Right Surround (RS) and Subwoofer (SW: 0.1 channel) for recording and playback.
Manufactured under license from Digital
Theater Systems, Inc. US Pat. No. 5,451,942
and other world-wide patents issues and pending. “DTS” and “DTS Digital Surround” are
trademarks of Digital Theater Systems, Inc. ©
1996 Digital Theater Systems, Inc. All rights
reserved.
104
Language Code List
CQ-VAD9300U
Letterbox screen
This refers to a screen on which the playback picture
of wide-screen DVDs or Video CDs appears with black
bands running along the top and bottom.
Pan & Scan screen
This refers to a screen on which the playback picture
of wide-screen DVDs or Video CDs is cut off at the left
and right sides.
Playback control (Video CD)
If the Video CD has “With Playback Control” or others
written on the disc surface or on the jacket, the scenes
or information to be viewed (or listened to) can be
selected interactively with the screen by looking at the
menu shown on the screen.
In these instructions, playback using the menu screen
is referred to as the “menu play” for video CDs. This
player supports Video CDs with playback control.
Title, Chapter (DVD)
DVDs are divided into some large sections (titles) or
some small sections (chapters). Each section is numbered; these numbers are called “Title number” or
“Chapter number”.
Title 1
Chapter 1
Title 2
Chapter 2 ……
Chapter 1 ……
Track (Video CD/CD)
Video CDs or CDs are divided into some sections
(tracks). Each section is numbered; these numbers are
called “Track number”.
Track 1
Track 2
Track 3
Track ……
E
N
G
L
I
S
H
How to input the language code, refer to page 49.
Code
6565
6566
6570
6577
6582
6583
6588
6590
6665
6669
6671
6672
6678
6679
6682
6765
6779
6783
6789
6865
6869
6890
6976
6978
6979
6983
6984
6985
7065
7073
7074
7079
7082
7089
7165
7168
7176
7178
7185
7265
7273
7282
7285
Language Name
Afar
Abkhazian
Afrikaans
Ameharic
Arabic
Assamese
Aymara
Azerbaijani
Bashkir
Byelorussian
Bulgarian
Bihari
Bengali; Bangla
Tibetan
Breton
Catalan
Corsican
Czech
Welsh
Danish
German
Bhutani
Greek
English
Esperanto
Spanish
Estonian
Basque
Persian
Finnish
Fiji
Faroese
French
Frisian
Irish
Scots Gaelic
Galician
Guarani
Gujarati
Hausa
Hindi
Croatian
Hungarian
Code
7289
7365
7378
7383
7384
7387
7465
7473
7487
7565
7575
7576
7577
7578
7579
7583
7585
7589
7665
7678
7679
7684
7686
7771
7773
7775
7776
7778
7779
7782
7783
7784
7789
7865
7869
7876
7879
7982
8065
8076
8083
8084
8185
Language Name
Armenian
Interlingua
Indonesian
Icelandic
Italian
Hebrew
Japanese
Yiddish
Javanese
Georgian
Kazakh
Greenlandic
Cambodian
Kannada
Korean
Kashmiri
Kurdish
Kirghiz
Latin
Lingala
Laothian
Lithuanian
Latvian, Lettish
Malagasy
Maori
Macedonian
Malayalam
Mongolian
Moldavian
Marathi
Malay
Maltese
Burmese
Nauru
Nepali
Dutch
Norwegian
Oriya
Panjabi
Polish
Pashto, Pushto
Portuguese
Quechua
Code
8277
8279
8285
8365
8368
8372
8373
8375
8376
8377
8378
8379
8381
8382
8385
8386
8387
8465
8469
8471
8472
8473
8475
8476
8479
8482
8484
8487
8575
8582
8590
8673
8679
8779
8872
8979
9072
9085
Language Name
Rhaeto-Romance
Romanian
Russian
Sanskrit
Sindhi
Serbo-Croatian
Singhalese
Slovak
Slovenian
Samoan
Shona
Somali
Albanian
Serbian
Sundanese
Swedish
Swahili
Tamil
Telugu
Tajik
Thai
Tigrinya
Turkmen
Tagalog
Tonga
Turkish
Tatar
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapük
Wolof
Xhosa
Yoruba
Chinese
Zulu
CQ-VAD9300U
96
105
E
N
G
L
I
S
H
97
Specifications
Display Unit
Hide-away Unit
General
Power supply
Current consumption
Maximum power output (external speaker)
Compatible speaker impedance
Dimensions (W x H x D)
Weight
:
:
:
:
:
:
12 V DC (11 V - 16 V), test voltage 14.4 V, negative ground
Less than 1.5 A
0.7 W
8Ω
7” x 1-15/16” x 6-5/16” (178 x 50 x 160 mm)
5 lbs. 1 oz. (2.3 kg)
Monitor
Liquid crystal panel
Screen dimensions (W x H x D)
Number of pixels
Valid pixel ratio
Display method
Drive method
Light source
:
:
:
:
:
:
:
7” wide
6-1/16” x 3-7/16” x 6-15/16” (154 x 87 x 177 mm)
336,960 pixels (234 vertical x 480 horizontal x 3)
Over 99.99%
Transparent color filter format
TFT (Thin Film Transistor) active matrix format
Internal light (Built-in small fluorescent lamp)
Supplied speaker
Impedance
Maximum power input
: 8Ω
: 2W
Digital audio output
Disc
DVD
Video CD
Sound recording format
Optical digital audio output from connector
Dolby Digital
Dolby Digital bitstream (1 – 5.1 ch)
DTS*
DTS bitstream (1 – 5.1 ch)
(The analog portion is not output.)
Linear PCM
(48 kHz 16/20/24 bit)
Linear PCM (2 ch)
(48 kHz sampling/16 bit only)
MPEG 1
MPEG 1 bitstream
Linear PCM
Linear PCM (2 ch)
(44.1 kHz sampling/16 bit)
Linear PCM
Linear PCM (2 ch)
(44.1 kHz sampling/16 bit)
DTS*
DTS bitstream (1 – 5.1 ch)
(The analog portion is not output.)
MP3
Linear PCM (2 ch)
(32 kHz/44.1 kHz/48 kHz sampling/16 bit)
CD
MP3
*DTS only works with optical outputs.
“DTS” and “DTS Digital Sorround” are trademarks of Digital Theater Systems, Inc.
Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, and 4,819,098, licensed for limited viewing uses only.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents
and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright
protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited
viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is
prohibited.
106
E
N
G
L
I
S
H
CQ-VAD9300U
General
Power supply
Current consumption
Maximum power output
Compatible speaker impedance
Video input signal
Audio input sensitivity
Video output signal
Pre-Amp output voltage
Pre-Amp output impedance
Dimensions (W x H x D)
Weight
:
:
:
:
:
:
:
:
:
:
:
12 V DC (11 V - 16 V), test voltage 14.4 V, negative ground
Less than 10 A (during disc playback)
45 W x 4 ch + 35 W (at 16 V)
4Ω
Composite video signal, 1.0 Vp-p (75 Ω)
2 Vrms
Composite video signal, 1.0 Vp-p (75 Ω)
4 Vrms
Less than 60 Ω
9-5/8” x 1-5/8” x 5-7/8” (245 x 42 x 150 mm)
3 lbs. 16 oz. (1.8 kg)
FM stereo radio
Frequency range
Usable sensitivity
Stereo separation
S/N ratio
:
:
:
:
87.9 - 107.9 MHz
12 dBf
35 dB (1 kHz)
70 dB
AM stereo radio
Frequency range
Usable sensitivity
Image rejection ratio
: 530 - 1 710 kHz
: 28 dB/µV
: 50 dB
Video section
Signal format
Video output
Region number
: NTSC (Standard signal format in U.S and Japan)
: 75 Ω, 1 Vp-p
: 1 and ALL
Audio section
Output voltage/Impedance
Frequency characteristics
(when “LARGE” is selected)
Front L/R, Center, Rear (surround) L/R
Delay time
Dolby Digital
Center
Rear (surround) L/R
Dolby Pro Logic
Rear (surround) L/R
Distortion
Front L/R (1 kHz, 0 dB, PCM input)
Dynamic range
S/N ratio
98
: 4 Vrms/60 Ω
: 20 Hz - 20 kHz (±1 dB)
: 0 - 5 ms
: 0 - 15 ms
: 15 - 30 ms
: 0.01 %
: 96 dB (during CD playback and connected with optical fiber cable)
: 100 dB (during CD playback and connected with optical fiber cable)
Above specifications comply with EIA standards.
Note: Specifications and the design are subject to modification without notice due to improvements in technology.
CQ-VAD9300U
107
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
