Panasonic | CQVD7700U | Operating instructions | Panasonic CQVD7700U Operating Instructions

E
N
G
L
I
S
H
1

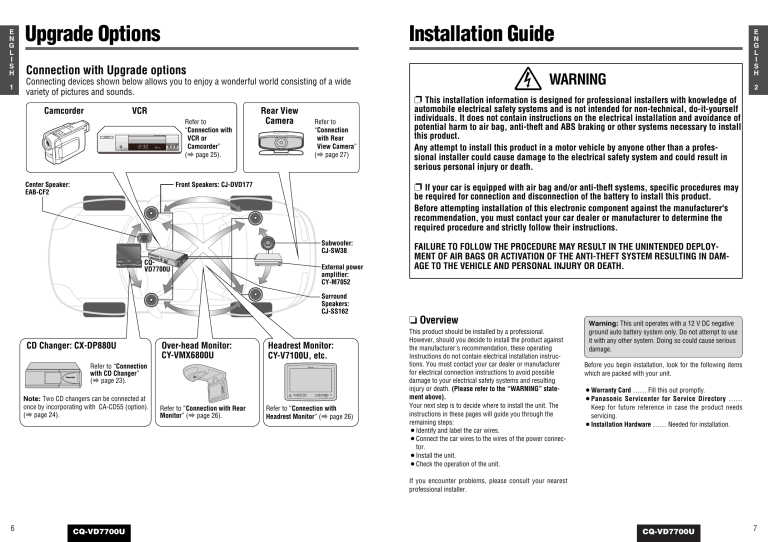

Upgrade Options
Installation Guide
Connection with Upgrade options
Connecting devices shown below allows you to enjoy a wonderful world consisting of a wide
variety of pictures and sounds.
Camcorder
VCR
INTELLIGENT SYSTEM
POWER
BS G-CODE
Refer to
“Connection with
VCR or
Camcorder”
(a page 25).
Rear View
Camera
Panaso nic
Refer to
“Connection
with Rear
View Camera”
(a page 27)
WARNING
2
❐ This installation information is designed for professional installers with knowledge of
automobile electrical safety systems and is not intended for non-technical, do-it-yourself
individuals. It does not contain instructions on the electrical installation and avoidance of
potential harm to air bag, anti-theft and ABS braking or other systems necessary to install
this product.
Any attempt to install this product in a motor vehicle by anyone other than a professional installer could cause damage to the electrical safety system and could result in
serious personal injury or death.
❐ If your car is equipped with air bag and/or anti-theft systems, specific procedures may
Front Speakers: CJ-DVD177
Center Speaker:
EAB-CF2
E
N
G
L
I
S
H
be required for connection and disconnection of the battery to install this product.
Before attempting installation of this electronic component against the manufacturer's
recommendation, you must contact your car dealer or manufacturer to determine the
required procedure and strictly follow their instructions.
TILT
Subwoofer:
CJ-SW38
OPEN / CLOSE
OPEN / CLOSE
TILT
CQ-VD7700U
CQ-VD7700U
TRACK/
CHANNEL
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD / SD RECEIVER
ENTER
OPEN
DISC
VOLUME
MUTE
NAVI
NAVIGATION
DISP
MODE
ASP
POWER
ASPECT
P·MODE
SD CARD
CQVD7700U
External power
amplifier:
CY-M7052
Surround
Speakers:
CJ-SS162
CD Changer: CX-DP880U
Over-head Monitor:
CY-VMX6800U
Headrest Monitor:
CY-V7100U, etc.
Refer to “Connection
with CD Changer”
(a page 23).
Note: Two CD changers can be connected at
once by incorporating with CA-CD55 (option).
(a page 24).
CY-V7100U
PHONES
Refer to “Connection with Rear
Monitor” (a page 26).
Refer to “Connection with
Headrest Monitor” (a page 26)
FAILURE TO FOLLOW THE PROCEDURE MAY RESULT IN THE UNINTENDED DEPLOYMENT OF AIR BAGS OR ACTIVATION OF THE ANTI-THEFT SYSTEM RESULTING IN DAMAGE TO THE VEHICLE AND PERSONAL INJURY OR DEATH.
❏ Overview
This product should be installed by a professional.
However, should you decide to install the product against
the manufacturer's recommendation, these operating
Instructions do not contain electrical installation instructions. You must contact your car dealer or manufacturer
for electrical connection instructions to avoid possible
damage to your electrical safety systems and resulting
injury or death. (Please refer to the “WARNING” statement above).
Your next step is to decide where to install the unit. The
instructions in these pages will guide you through the
remaining steps:
¡Identify and label the car wires.
¡Connect the car wires to the wires of the power connector.
¡Install the unit.
¡Check the operation of the unit.
Warning: This unit operates with a 12 V DC negative
ground auto battery system only. Do not attempt to use
it with any other system. Doing so could cause serious
damage.
Before you begin installation, look for the following items
which are packed with your unit.
¡Warranty Card …… Fill this out promptly.
¡Panasonic Servicenter for Service Directory ……
Keep for future reference in case the product needs
servicing.
¡Installation Hardware …… Needed for installation.
If you encounter problems, please consult your nearest
professional installer.
6
CQ-VD7700U
CQ-VD7700U
7
E
N
G
L
I
S
H
Installation Guide (continued)
❏ Installation Hardware
(For Installation)
❏ Before Installation
3
No.
Item
q Trim Plate
Diagram
Q'ty
1
<YEP9FZ2739>
w Mounting Collar
Tapping Screw (5 mmø x 16
mm) (for rear of the unit)
Hex. Nut (5 mmø)
y
(for rear of the unit)
t
1
1
1
<YEP9FZ2714>
u Rear Support Strap
1
<YEFG04019>
Round Head Screw
i
(5 mmø x 6 mm)
Flat-Head Screw
o
(5 mmø x 6 mm)
Round Head Screw
!0
(4 mmø x 3 mm)
2
!2
Double-Faced Adhesive Tape
!8 (for hide-away unit)
2
!9 Velcro Tape
2
<YEP9FZ3042>
@0 Antenna Clamp
4
@1 Cord Clamp (for antenna)
4
❏ Installation Hardware
(For Wiring)
No.
Item
Power Connector
(for display unit)
Reverse Extension Cord
@3
(for rear view camera)
@2
Round Head Screw
(5 mmø x 8 mm)
Tapping Screw
!4
(6 mmø x 20 mm)
!5 Hex. Nut (5 mmø)
Display Unit/Hide-away Unit
@5
Connecting Cord
@6
1
set
4
Power Connector
(for hide-away unit)
1
<YEAJ012003>
@7 Ground Lead
1
<YEAJ09271>
@8
Radio Antenna Extension
Cord
@9 Center Speaker Lead
4
#0
2
2
<YEFG012424>
1
Center Speaker Extension
Lead
CQ-VD7700U
¡Attach the wires correctly. If the wiring is not correctly performed, it may cause a fire or an accident.
In particular, be sure to run and secure the lead wire
so that it does not get tangled with a screw or the
moving portion of a seat rail.
¡Use with 12 V DC negative ground car. This unit is
only for use with a 12 V DC negative ground car. It
cannot be used in large trucks or diesel cars which
are 24 V DC cars. If it is used in the wrong type of
car, it may cause a fire or an accident.
Cautions:
¡Use the specified fuse. Be sure to always use the
specified fuse. If a fuse other than the specified fuse
is used, it may cause a fire or an accident.
¡Do not damage the cord by pinching or pulling it.
Do not pull or damage the cord. If the cord is not
treated properly, it will short out or be severed and
may cause a fire or an accident.
❏ Required Tools
4
2-3/32” (53 mm)
7-5/32” (182 mm)
❏ Identify All Leads
The first step in installation is to identify all the car wires
you’ll use when hooking up your LCD monitor.
As you identify each wire, we suggest that you label it
using masking tape and a permanent marker. This will
help avoid confusion when making connections later.
Note: Do not connect the power connector to the display
unit until you have made all connections. If there are no
plastic caps on the hooking wires, insulate all exposed
leads with electrical tape until you are ready to use them.
Identify the leads in the following order.
Power Lead
If your car has a radio or is pre-wired for one:
Cut the connector wires one at a time from the plug (leaving the leads as long as possible) so that you can work
with individual leads. Turn the ignition on to the accessory
position, and ground one lead of the test bulb to the chassis.
Touch the other lead of the test bulb to each of the exposed
wires from the cut radio connector plug. Touch one wire at a
time until you find the outlet that causes the test bulb to
light.
You’ll need a screwdriver and the following:
1
<YEAJ071463>
#1 TV Antenna
1 set
12 V DC
Test Bulb
Electrical
Tape
Side-Cut
Pliers
Now turn the ignition off and then on. If the bulb also turns
off and on, that outlet is the car power lead.
<YEAA12692A (R)/12693A (L)>
#2 Audio Cable
1
<KIHB12FC0002>
Notes:
¡The number in parenthesis underneath each accessory part name is the part number for maintenance and service.
¡Accessories and their parts numbers are subject to modification without prior notice due to improvements.
¡Trim Plate q and Mounting Collar w are mounted on the main unit at shipment.
8
¡Never use bolts or nuts from the car's safety devices
for installation. If bolts or nuts from the steering
wheel, brakes or other safety devices are used for
installation of the monitor, it may cause an accident.
THICKNESS
MIN. 3/16” (4.75 mm)
MAX. 7/32” (5.56 mm)
1
<YEAA09141>
4
Warning
¡Do not install the monitor in a location which
obstructs driving, visibility or which is prohibited
by applicable laws and regulations. If the monitor
is installed in a location which obstructs forward visibility or operation of the air bag or other safety
equipment or which interferes with operation of the
car, it may cause an accident.
1
<YEAJ071659>
<YEFG021010A>
!7 Base Bracket
1
1
4
<YEP9BS1194>
!6 Mounting Bracket
Q'ty
1
@4 Clip Connector
<YEP9FZ2761>
!3
<YEP9FZ3041>
Diagram
2
Double-Faced Adhesive Tape
(for spacer)
Q'ty
<YEAJ012002>
4
<YEP9BS1206>
!1 Spacer
Diagram
2
<YEFX0052714>
r Mounting Bolt (5 mmø)
Item
1
<YEFG012694>
e Mounting Spring
No.
❏ Dashboard Specifications
E
N
G
L
I
S
H
If your car is not wired for an audio unit:
Go to the fuse block and find the fuse port for radio
(RADIO) accessory (ACC) or ignition (IGN).
Battery Lead
If your stereo unit has a yellow lead, you will need to
locate the car's battery lead. Otherwise you may ignore
this procedure. (The yellow battery lead provides continu-
CQ-VD7700U
9
E
N
G
L
I
S
H
5
Installation Guide (continued)
ous power to maintain a clock or other functions.)
If your car has a radio or is pre-wired for one:
With the ignition and headlights off, identify the car battery
lead by grounding one lead of the test bulb to the chassis
and checking the remaining exposed wires from the cut
radio connector plug.
If your car is not wired for an audio unit:
Go to the fuse block and find the fuse port for the battery,
usually marked BAT.
Speakers (not supplied)
Identify the car speaker leads. There are two leads for each
speaker, usually color coded.
A handy way to identify the speaker leads and the speaker
they are connected with is to test the leads using a 1.5 V
AA battery as follows.
Hold one lead against one pole of the battery and stroke
the other lead across the other pole. You will hear a scraping sound in a speaker if you are holding a speaker lead.
If not, keep testing different lead combinations until you
have located all the speaker leads. When you label them,
include the speaker location for each.
❏ Connect All Leads
Now that you have identified all the wires in the car, you're
ready to begin connecting them to the LCD monitor wires.
Electrical Connections (a page 18-27) shows the proper
connections and color coding of the leads.
We strongly recommend that you test the unit before making a final installation.
You can set the unit on the floor and make temporary connections to test the unit. Use electrical tape to cover all
exposed wires.
Important: Connect the red power lead last, after you
have made and insulated all other connections.
Ground
Connect the black ground lead of the power connector to
the metal car chassis.
Speakers
Connect the speaker wires. See the wiring diagram for the
proper hookups. Follow the diagram carefully to avoid
damaging the speakers and the stereo unit.
The speakers used must be able to handle more than 70 W
(Center Speaker: 35W) of audio power. If using an optional
audio power, the speakers should be able to handle the
maximum amplifier output power. Speakers with low input
ratings can be damaged.
10
CQ-VD7700U
Speaker impedance should measure 4–8 Ω, which is typically marked on most speakers. Lower or higher impedance speakers will affect output and can cause both speaker and stereo unit damage.
Caution: Never ground the speaker cords. For example, do not use a chassis ground system or a threewire speaker common system. Each speaker must be
connected separately using parallel insulated wires. If
in doubt about how your car’s speakers are wired,
please consult with your nearest professional installer.
Battery
Connect the yellow battery lead to the correct radio wire or
to the battery fuse port on the fuse block.
Equipment
Connect any optional equipment according to the instructions furnished with the equipment. Read the operating
and installation instructions of any equipment you will
connect to this unit.
Power
Connect the red power lead to the correct car radio wire or
to the appropriate fuse port on the fuse block.
If the LCD monitor functions properly with all these connections made, disconnect the wires and proceed to the
final installation.
❏ Precautions
Caution: Various settings that have been stored in the
memory in other on-board equipment (car navigation
etc.) may be lost if the battery terminals are disconnected.
Therefore, Therefore, we recommend you to make a
record of or to back up the settings before disconnecting the terminals.
After completing installation of the main unit, set up the
equipment again according to the settings.
Cautions:
¡We strongly recommend that you wear gloves for
installation work to protect yourself from injuries.
¡When bending the mounting tab of the mounting
collar with a screwdriver, be careful not to injure
your hands and fingers.
¡Disconnect the cable from the negative (–) battery terminal (see caution at right).
¡Unit should be installed in a horizontal position with the
front end up at a convenient angle, but less than 30°.
Warning: If your car is equipped with air bag
and/or anti-theft systems, specific procedures
may be required for connection and disconnection of the battery to install this product.
Before attempting installation of this electronic
component against the manufacturer's recommendation, you must contact your car dealer or
manufacturer to determine the required procedure and strictly follow their instructions.
FAILURE TO FOLLOW THE PROCEDURE MAY
RESULT IN THE UNINTENDED DEPLOYMENT OF
AIR BAGS OR ACTIVATION OF THE ANTI-THEFT
SYSTEM RESULTING IN DAMAGE TO THE VEHICLE AND PERSONAL INJURY OR DEATH.
Congratulations! After making a few final checks, you’re
ready to enjoy your new LCD monitor.
❏ Final Checks
1. Make sure that all wires are properly connected and
insulated.
2. Make sure that the LCD monitor is securely held in
the mounting collar.
3. Turn on the ignition to check the unit for proper
operation.
6
This unit should be professionally installed. In case of difficulty, please consult with your nearest professional
installer.
1. This unit only operates in a 12 V DC negative ground
system.
2. Follow the Electrical Connections carefully (a page 1827). Failure to do so may result in damage to the unit.
3. Connect the power lead after all other connections are
made.
4. Be sure to connect the battery lead (yellow) to the positive terminal (+) of the battery or fuse block (BAT) terminal.
5. Insulate all exposed wires to prevent short circuiting.
6. Secure all loose wires after installing the unit.
7. Please carefully read the operating and installation
instructions of the respective equipment before connecting it to this unit.
Caution: Please follow the laws and regulations of
your state, province or country for installation of the
unit.
❏ Final Installation
Lead Connections
Connect all wires, making sure that each connection is
insulated and secure. Bundle all loose wires and fasten
them with tape so they will not fall down later. Now insert
the LCD monitor into the mounting collar.
E
N
G
L
I
S
H
less than 30°
❏ Transportation Bracket Removal
Be sure to remove the transportation brackets before use (installation).
Use Round Head Screws (5 mmø x 6 mm) for installation. (a page 14)
Be careful not to lose these Round Head Screws.
Transportation
Transportation
Bracket
Display Unit
Round Head Screw
(5 mmø x 6 mm)
Bracket
Round Head Screw
(5 mmø x 6 mm)
If you have difficulties, consult your nearest authorized
professional installer for assistance.
CQ-VD7700U
11
E
N
G
L
I
S
H
7
Installation Guide
(continued)
Mounting the Display Unit
Method for Fixing the Mounting Spring
❏ Installation Procedures
(When using Mounting Collar w)
Note: The car model, installation
conditions and combination of the
units used may impose some
restrictions on opening and closing the monitor as well as on the
angle and position to which the
monitor can be adjusted.
8
Two holes of the mounting spring allow you to select between two mounting types as shown below.
1
Insert the Mounting Collar w into the dashboard, and
bend the mounting tabs out with a screwdriver.
(A) Regular installation method
E
N
G
L
I
S
H
(B) Deeper installation method
Fastening the Mounting Collar
How much to bend the tabs will vary depending on the
car. Bend them with a screwdriver to fasten the
Mounting Collar w securely in the dashboard.
Dashboard
IMPORTANT
When this unit is installed
in dashboard, ensure that
there is sufficient air flow
around the unit to prevent
damage from overheating.
Do not block any ventilation
holes on the unit.
A few millimeters of
console projecting
w Mounting Collar
o Flat-Head Screw
Tab
Less projecting
o Flat-Head Screw
@2 Power Connector
o Flat-Head Screw
o Flat-Head Screw
Caution: Method (B) is not available in some types of
cars.
#2 Audio Cable
@5 Display Unit/Hide-away
Unit Connecting Cord
r Mounting Bolt (5 mmø)
e Mounting Spring
o Flat-Head Screw
(5 mmø x 6 mm)
2
3
4
5
6
12
CQ-VD7700U
Attach the Mounting Springs e to the display unit.
Establish the rear connection of the unit.
After fixing Power Connector @2, Display Unit/Hide-away
Unit Connecting Cord @5 and Audio Cable #2 , fix the
rear of the unit to the car body by either method (a) or (b)
shown at right.
Insert the unit into Mounting Collar w
Secure the clamp plate of Mounting Collar
w to the hook of Mounting Spring e.
Clamp plate
Insert Trim Plate q from left side to right side.
After installation
reconnect the negative
(–) battery terminal.
Method for Fixing the Rear of the Unit
(a) Using the Rear Support Strap u.
Fire wall of car
3 mmø
(b) Using the Rubber Cushion (option)
Rear Support Bracket
(Provided on the Car)
u Rear Support Strap
Rubber Cushion
(option)
t Tapping Screw
(5 mmø x 16 mm)
y Hex. Nut
(5 mmø)
r Mounting Bolt
(5 mmø)
r Mounting Bolt
(5 mmø)
CQ-VD7700U
13
E
N
G
L
I
S
H
9
Installation Guide
E
N
G
L
I
S
H
(continued)
❏ Installation Procedures (When not using Mounting Collar w)
Mounting the Hide-away Unit
Use the brackets supplied with your car when mounting this unit. The bracket shape and mounting method vary with car
manufacturers, car types and manufacturing year. Please consult your nearest dealer or installer.
Select mounting screws according to the hole positions and hole shape of the bracket.
i Round Head Screw (5 mmø x 6 mm)
2 pieces
Recycle the Round Head Screws that fixed the transportation brackets for two more
positions.
!0 Round Head Screw (4 mmø x 3 mm)
4 pieces
o Flat-Head Screw (5 mmø x 6 mm)
Use the supplied Spacer !1 if mounting hole of your
car is shaped like below.
10
Cautions:
¡Never mount the unit in any of the following locations to avoid damage due to overheating;
1. Near the heater port.
2. Places like the dashboard or rear deck, where it may be exposed to direct sunlight.
¡Do not mount the unit near the door, where it could be exposed to rain.
¡Do not separate the hide-away unit.
When using these
mounting holes
❑ Mount the unit on the car carpet by using Velcro Tape !9.
i Round Head Screw
(5 mmø x 6 mm)
Note: Some carpet materials may not be
suitable for this mounting method. In this
case, please contact your nearest
Panasonic Servicenter for installation.
Attach the seal side of the Velcro Tape !9
to the hide-away unit, then mount the unit
on the carpet.
4 pieces
Display Unit
!1 Spacer
Mounting Hole
of a Bracket
(in section)
!9 Velcro Tape
Bracket
Existing Bracket (R)
!2 Double-Faced
Adhesive Tape
i Round Head Screw
(5 mmø x 6 mm)
!1 Spacer
!2 Double-Faced Adhesive Tape
Existing Bracket (L) (Bracket originally attached to the car)
❑ Unit installation by using the Mounting Brackets !6 and the Base Brackets !7.
!3 Round Head Screw (5
mmø x 8 mm)
!5 Hex. Nut
(5 mmø)
!6 Mounting Bracket
!3 Round Head Screw
(5 mmø x 8 mm)
!4 Tapping Screw
(6 mmø x 20 mm)
Carpet
To Remove the Display Unit
q Push the right and left clamp plates outward, one at a time, and pull the display unit toward yourself.
w After removing the right and left clamp plates, pull the unit with both hands till it comes out.
Let the bolts of
the base bracket
pass the carpet.
w
q
!7 Base Bracket
Make cuts by
using cutter.
Push here to
remove the
clamp plates.
* To remove Trim plate q, pull it from right side to left side.
14
CQ-VD7700U
!4 Tapping Screw (6 mmø x 20 mm)
!8 Double-Faced Adhesive Tape
Drill four 4.8 mm diameter holes into the chassis.
* Put the tape and the base bracket together with each hole of the tape and
bracket connected so that the screw goes in at two positions.
Notes:
¡Apply an anticorrosive to the holes and tapping screws.
¡Keep a safe distance between the hide-away unit and other electronic equipment.
Caution: You run the risk of interfering with the mounting or causing damage by drilling into the gas tank, a wiring
harness, or other component.
CQ-VD7700U
15
E
N
G
L
I
S
H
Installation Guide
E
N
G
L
I
S
H
(continued)
Mounting the TV Antenna
11
12
Cautions:
¡Be sure to install the TV antenna on the inner side of
the rear window.
¡Be sure to connect the power lead of the TV antenna
to ACC power DC 12 V.
¡Keep the antenna away from the external amplifier
and the rear speaker cord as much as possible.
Preparations:
Remove the upholstery at both sides of the rear
window to establish a ground.
1
Straighten the bent antenna element.
Confirm the adhering positions.
2
Insert the grounding plate into the antenna body and hold the antenna element with the Antenna Clamp @0.
Select a suitable screw point for
the grounding plate to adhere to a
metal part and remove the screw
and the terminal cover.
Shorter side
Longer
side
Affix the antenna temporarily with adhesive tape after
confirming the antenna position.
q
Screw
Insert
points
Follow the steps below to install the grounding plate.
q Insert the grounding plate into the antenna body.
w Hold the grounding plate with the terminal cover.
Grounding r
e Screw the grounding plate.
r Hold the antenna element with the Antenna Clamp @0. Plate
e Screw
w
Terminal cover
r
Caution: Be sure to connect
the grounding plate. Otherwise,
desensitization will occur.
Peel the sheet from the back of the antenna body
and affix it. Then, affix the grounding plate on a
metal part.
Follow the steps below to affix the antenna securely.
q Affix the antenna body.
w Straighten the antenna element and affix it.
e Put the Antenna Clamp @0 on the center of the antenna element.
r Adjust the angle and position of the grounding plate and affix it.
3
Remove the upholstery.
Observe the following to enhance adherability.
¡Wipe the inner surface of the rear window with a
wet and soft cloth along the heating wire. But do
not leave water droplets on the glass.
¡When the outside-air temperature is less than 68
°F (20 °C), switch on the rear window defogger or
the car heater to warm the surface of the rear window for approx. 5 minutes.
Adjust
r
Some models restrict the installation
of the TV antenna due to rear window
size or open/close of the hatch.
Contact your dealer.
For a hatchback type:
5
e
w
e
w
Antenna cable identification
4
To TV antenna
connector on the
hide-away unit.
q
Cord routing
Hold the cord with
a Cord Clamp @1.
For some models, you cannot straighten
the longer element.
Antenna Cord
No bending
Stick the grounding plate skillfully and hold the loose
antenna element with the Antenna Clamp @0 so that
the element will not become caught in the hatchback
door. Adjust the cord length so that the cord does
not interfere with the movement of the hatchback
door, and secure the cord with Cord Clamp @1.
16
CQ-VD7700U
Power Lead
To ACC power,
+12 V DC.
Ground Lead
To a clean, bare
metallic part of
the car chassis.
Comfortably curving
(Fuse 0.5 A)
ACC 0.5A
0.5A
(Red)
(Black)
Route the cord behind the
rear seat and affix it with
adhesive tape.
Route the cord inside the
upholstery and under the
carpet.
Cautions:
¡Avoid contacting the adhesive surface.
¡Do not re-adhere to avoid weakening adherability.
¡Avoid adhering on the heating wire as much as possible.
CQ-VD7700U
17
E
N
G
L
I
S
H
13
Electrical Connections
Wiring Diagram
Cautions:
¡This unit is designed for use in a car having a 12 V negative ground battery system.
¡Be sure to insulate any exposed wires from a possible short-circuit from the car chassis. Bundle all cables and keep
cable terminals free from touching any metal parts.
¡Note that if your car has a driving computer or a navigation computer, disconnecting the cable from the battery may
clear the memory.
¡Install the cords avoiding the spots where the temperature can be extremely high.
Accessory used for wiring
No.
Item
Q'ty
No.
@7
Ground Lead
1
@8
Radio Antenna Extension Cord
1
@9
Center Speaker Lead
1
#0
Center Speaker Extension Lead
1
Item
Q'ty
@2
Power Connector (for display unit)
1
@3
Reverse Extension Cord (for rear view
camera)
1
@4
Clip Connector
1
@5
Display Unit/Hide-away Unit
Connecting Cord
1
#1
TV Antenna
1 set
@6
Power Connector (for hide-away unit)
1
#2
Audio Cable
1
E
N
G
L
I
S
H
14
Notes:
¡To prevent damage to the unit, be sure to follow the connection diagram below.
¡Be sure to fully plug in the connectors. Secure them with clamps and tape.
¡When game machines are connected, the picture may be unstable.
¡When removing the Power Connector @2 and Display Unit/Hide-away Unit Connecting Cord @5, be sure to press the clip.
¡All other installation methods require the use of dedicated metal fittings. Consult with a qualified servicing engineer or your
dealer if other methods are required.
@5 Display Unit/Hide-away Unit Connecting Cord
Display Unit (Rear)
RGB Input Cord
To the RGB Connector of the Panasonic
car navigation system (available in future).
Video Control Lead
To the Video Control Lead of the
Panasonic car navigation system
(available in future).
Side Brake (Parking Brake) Connection
Lead
Be sure to wire the side brake (parking
brake) for safety and preventing accidents.
(a page 22)
Reverse Lead
When connecting the rear view camera,
use the reverse lead. (a page 27)
Note: Use a Reverse Extension Cord @3 if
needed.
Audio Output
Connector
VIDEO-CONT
(Green/yellow stripe)
@7 Ground Lead
To a clean, bare metallic part of the
car chassis
@2 Power Connector
Caution: Do not
insert the power
connector into the
unit until the wiring
is completed.
SIDE BRAKE
(Rear)
Note: Ground Lead @7 should
be grounded to the point that
is also used as the grounding
point for the display unit if you
can.
Hide-away Unit
#2 Audio Cable
(Front)
(Blue/yellow stripe)
REVERSE
(Violet/white stripe)
(Black)
※
Note: See next page for hide-away unit
electrical connection.
CAMERA-IN
Camera Input
To the rear view camera
Battery Lead
To the car battery, continuous +12 V DC.
Ground Lead
To a clean, bare metallic part of the car
chassis.
18
CQ-VD7700U
※ Remove the vinyl cap
when connecting.
(Fuse 5 A)
BATTERY 5A
(Yellow)
(Noise Filter)
(Black)
CQ-VD7700U
19
E
N
G
L
I
S
H
Electrical Connections
E
N
G
L
I
S
H
(continued)
#0 Center Speaker Extension Lead
Hide-away Unit
(Front)
15
!
(Black)
(Black/green stripe)
!
(White)
@
FRONT L
#1 TV Antenna
Refer to “Mounting the TV Antenna”
for TV antenna connection.
(a page 16)
(White/black stripe)
!
(Gray)
(Gray/black stripe)
!
(Green)
(Green/black stripe)
@6 Power Connector
Navi Mute Lead
Connect to the Navi Mute Lead
of the Panasonic car navigation
system. (available in future)
(Right)
Display Unit/Hide-away Unit Connector
Front Speaker Lead (Left)
TV Antenna Connector (TV ANT IN)
(Front)
NAVI MUTE
(Left)
@
(Violet/black stripe)
Digital Audio Output
(Right)
To Rear Speaker
(Violet)
@9 Center Speaker Lead
To Front Speaker
!
REAR R
CENTER
(Left)
@
REAR L
@5 Display Unit/Hide-away
Unit Connecting Cord
16
@
FRONT R
#2 Audio Cable
To Center Speaker
@
CENTER
(Orange)
Front Speaker Lead (Right)
Center Speaker
Connector
Motor Antenna Relay Control Lead
(To motor antenna) (Max. 100 mA)
ANT-CONT MAX 0.1A
This lead is not intended for use
(Blue)
with a switch actuated power antenna.
Note: The power antenna extends automatically
when the radio mode is selected.
Twin (Dual) CD Changer
Control Lead
External Amplifier Control
Power Lead
To an external amplifier.
Rear Speaker Lead (Left)
Rear Speaker Lead (Right)
TWIN CD C-CONT
(Brown/white stripe)
Video Input Terminal 1 (VTR1-IN)
Video Input Terminal 2 (VTR2-IN)
Connect a VCR, camcorder, other brand’s car
navigation system, etc. (a page 25)
Video Output Terminal (VIDEO-OUT)
Connect the rear monitor. (a page 26)
Power Connector
Ground Terminal
AMP-CONT MAX 0.1A
(Blue/white stripe)
Radio Antenna Connector
(RADIO ANT IN)
Note: Use the Radio Antenna
Extension Cord @8 if necessary.
To remove the Fuse...
Fuse (15 A)
3
Speaker connections
Battery Lead
To the car battery, continuous
+12 V DC.
1
BATTERY 15A
(Yellow)
2
(Rear)
(Resistor 220 Ω)
Power Lead
To ACC power, +12 V DC.
Ground Lead
To a clean, bare metallic part
of the car chassis
20
CQ-VD7700U
@6 Power Connector
ACC
(Red)
(Black)
• Do not connect more than one speaker to
one set of speaker leads (except for connecting to a tweeter).
• Do not use a 3-wire type speaker system
having a common earth lead.
Fuse (15 A)
CD Changer Control Connector (CD
• C-IN)
(a page 23, 24)
Pre-Out Connector (Front)
Pre-Out Connector (Rear)
To external amplifier
Center Output Connector
Subwoofer Output Connector (Mono)
If the fuse (rear panel) blows frequently, they may be something
wrong with the unit. Contact the
shop where you purchased this
product.
CQ-VD7700U
21
E
N
G
L
I
S
H
Electrical Connections
Connecting the Side Brake (Parking Brake) Connection Lead
17
Color of the Connectors
18
Color of the connectors used for the connections in
pages 23-26.
Caution: For safety, be sure to ask your nearest professional installer to do this connection.
Hand brake
E
N
G
L
I
S
H
(continued)
Foot brake
Side brake (parking brake) switch
Red
White
Yellow
Black
The side brake (parking brake) switch position varies with car model.
For details on the exact location of the side brake (parking brake) switch
in your car, contact your dealer.
Connection with CD Changer (CX-DP880U)
Note: Refer to the operating instructions for the connected devices, in addition.
Brake light
Battery
CD Changer
+
SIDE BRAKE
Side Brake (Parking Brake) Connection
Lead (Blue/yellow stripe)
When the side brake (parking brake) lever is
engaged, the unit is grounded by the chassis.
CX-DP880U
—
(option)
@4 Clip Connector
Car chassis
Power Connector
(Supplied with CX-DP880U)
(L)(White)
Battery Lead
To the car battery, continuous +12 V DC
q Attach a Clip Connector @4 to the end of the side
brake (parking brake) connection lead.
w The Clip Connector @4 is connected to the power
source side lead of the side brake (parking brake)
lever.
(Yellow)
Ground Lead
To a clean, bare metallic part of the car chassis
(L)
(White)
Comes up to this point.
(R)(Red)
RCA Cord
(Black)
(R)
(Red)
DIN Cord
CD Changer Control
Connector
Side Brake (Parking Brake)
Connection Lead
(Blue/yellow stripe)
22
CQ-VD7700U
Power source side lead
CQ-VD7700U
Hide-away Unit (Rear)
CQ-VD7700U
23
E
N
G
L
I
S
H
Electrical Connections
(continued)
Connection with Dual CD Changer Selector (CA-CD55)
Subwoofer and Center Speaker Connection via External Amp.
19
20
CQ-VD7700U
Hide-away Unit (Rear)
CD changer
CX-DP880U
(option)
Sub-Woofer
(Option)
Power Connector
(Supplied with CX-DP880U)
Center Speaker
(Option)
DIN Cord
Ground Lead (Black)
To a clean, bare metallic part of the car chassis
RCA Cord
Battery Lead (Yellow)
To the car battery, continuous +12 V DC
External Power Amplifier
CY-M7052
(Option)
DIN Cord
(Supplied to CA-CD55)
CQ-VD7700U
Hide-away Unit
(Rear)
E
N
G
L
I
S
H
(R)
(Red)
Dual CD Changer
Selector
CA-CD55
(L)
(White)
CD·C-1
(option)
RCA Cord
(Option)
RCA Cord
(Option)
Notes:
¡Use Y-Shaped RCA cord to connect the subwoofer only.
¡External Amplifier output should be less than the speaker input tolerance.
CD·C-2
(R) (Red)
(L) (White)
(R)
(Red)
(L)
(White)
(R)
(Red)
(L)
(White)
Connection with VCR or Camcorder
(L) (White)
(R) (Red)
Note: Refer to the operating instructions for the connected devices, in addition.
RCA Cord
(Supplied to CA-CD55)
TWIN CD·C-CONT
RCA Cord
(if needed)
(Option)
Clip connector
(Option)
Twin (Dual) CD
Changer Control Lead
(R)
(Red)
TWIN CD·C-CONT
(Brown/white stripe)
CQ-VD7700U
Hide-away Unit
(Rear)
(L)
(White)
Video
Audio
Output Left Right
(R)
(Red)
(R)
(Red)
CD Changer
(Video)
(Yellow)
(Video)
(Yellow)
CX-DP880U
(option)
Camcorder (option)
(L)
(White)
INTELLIGENT SYSTEM
POWER
Power Connector
(Supplied to CX-DP880U)
(L)
(White)
BS G-CODE
VCR (option)
RCA Cord
Ground Lead (Black)
To a clean, bare metallic part of the car chassis
(R)
(Red)
(L)
(White)
RCA Cord (Option)
DIN Cord
Battery Lead (Yellow)
To the car battery, continuous +12 V DC
24
CQ-VD7700U
CQ-VD7700U
25
E
N
G
L
I
S
H
21
Electrical Connections
E
N
G
L
I
S
H
(continued)
Connection with Rear Monitor
Connection with Rear View Camera
Note: Refer to the operating instructions for the connected devices, in addition.
22
Note: Refer to the operating instructions for the connected devices, in addition.
CQ-VD7700U
Hide-away Unit
(Rear)
Rear View Camera
Control Unit (option)
CQ-VD7700U
Display Unit (Rear)
Camera Input
VTR1-IN
(R)
(Red)
(L)
(White)
Over-head Monitor
CY-VMX6800U
(Video)
(Yellow)
(option)
(R)
(Red)
RCA Cord (Option)
(Video)
(Yellow)
Rear View Camera (option)
@2 Power Connector
Panaso nic
(Video)
(Yellow)
RCA Cord (Option)
(L) (White)
Connection with Headrest Monitor
※
CAMERA-IN
Note: Refer to the operating instructions for the connected
devices, in addition.
Caution: For people sitting in the front seats, please
enjoy only audio during driving.
(Video)
(Yellow)
Camera Input
(Black)
※ Remove the vinyl cap when connecting.
CY-V7100U
Display Unit
CQ-VD7700U
Hide-away Unit
(Rear)
CY-V7100U
(R)
(Red)
(Video)
(Yellow)
PHONES
(L) (White)
Connecting the Reverse Lead
If using an optional rear view camera, the reverse lead must
be connected.
Connect the reverse lead (violet/white stripe) to the positive (+)
lead of the reverse lamp (the lamp with a clear lens that lights
when the transmission gear is shifted into the reverse position).
Notes:
¡Connect the reverse lead after cutting the terminal at the end.
¡Use a Reverse Extension Cord @3 if needed.
Check the reverse lamp.
Take it out of the back of
the tail lamp mount.
RCA cord (option)
DIN Connector
(L) (White)
Power Lead
(Supplied with CY-V7100U)
(R)
(Red)
3A
VTR 1
ACC Power Lead (Red)
VTR 2
ACC
(Front)
Ground Lead (Black)
Reverse lamp
(Video)
(Yellow)
CQ-VD7700U
Battery
Car chassis
(Rear)
CY-V7100U
Hide-away Unit
REVERSE
P
Reverse Lead (Violet/white stripe)
Junction Cable
(Supplied with CY-V7100U)
26
Clip connector
(option)
Cut here.
R
N
D
2
L
Transmission gear
CQ-VD7700U
27
Download PDF

advertising
