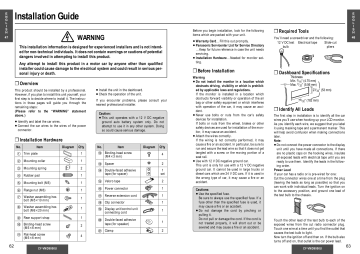

Installation Guide
E
N
G
L
I
S
H
Before you begin installation, look for the following
items which are packed with your unit.
WARNING
47
This installation information is designed for experienced installers and is not intended for non-technical individuals. It does not contain warnings or cautions of potential
dangers involved in attempting to install this product.
Any attempt to install this product in a motor car by anyone other than qualified
installer could cause damage to the electrical system and could result in serious personal injury or death.
❐ Overview
This product should be installed by a professional.
However, if you plan to install this unit yourself, your
first step is to decide where to install it. The instructions in these pages will guide you through the
remaining steps:
(Please refer to the “WARNING” statement
above.)
≥ Identify and label the car wires.
≥ Connect the car wires to the wires of the power
connector.
≥ Install the unit in the dashboard.
≥ Check the operation of the unit.
If you encounter problems, please consult your
nearest professional installer.
Caution:
≥ This unit operates with a 12 V DC negative
ground auto battery system only. Do not
attempt to use it in any other system. Doing
so could cause serious damage.
❐ Installation Hardware
No.
62
Item
Diagram
Q’ty
No.
Item
Diagram
Q’ty
< Binding-head screw
(M4k3 mm)
4
= Spacer
2
1 Trim plate
1
2 Mounting collar
1
3 Mounting spring
2
4 Rubber pad
1
> Double-faced adhesive
tape (for spacer)
5 Mounting bolt (M5)
1
? Velcro tape
2
6 Flange nut (M6)
1
@ Power connector
1
7 Washer assembling hex.
bolt (M5k10 mm)
1
A Reverse extension cord
1
B Clip connector
1
8 Washer assembling hex.
bolt (M6k20 mm)
1
C Display unit/control unit
connecting cord
1
9 Rear support strap
1
D Double-faced adhesive
tape (for speaker)
1
E Clamp
2
: Binding-head screw
(M5k6 mm)
2
; Flat-head screw
(M5k6 mm)
4
CY-VMD9000U
1
set
≥ Warranty Card…Fill this out promptly.
≥ Panasonic Servicenter List for Service Directory
…Keep for future reference in case the unit needs
servicing.
≥ Installation Hardware…Needed for monitor setting.
❐ Before Installation
Warning
≥ Do not install the monitor in a location which
obstructs driving, visibility or which is prohibited by applicable laws and regulations.
If the monitor is installed in a location which
obstructs forward visibility or operation of the air
bag or other safety equipment or which interferes
with operation of the car, it may cause an accident.
≥ Never use bolts or nuts from the car’s safety
devices for installation.
If bolts or nuts from the wheel, brakes or other
safety devices are used for installation of the monitor, it may cause an accident.
≥ Attach the wires correctly.
If the wiring is not correctly performed, it may
cause a fire or an accident. In particular, be sure to
run and secure the lead wire so that it does not get
tangled with a screw or the moving portion of a
seat rail.
≥ Use with 12 V DC negative ground car.
This unit is only for use with a 12 V DC negative
ground car. It cannot be used in large trucks or
diesel cars which are 24 V DC cars. If it is used in
the wrong type of car, it may cause a fire or an
accident.
Cautions:
≥ Use the specified fuse.
Be sure to always use the specified fuse. If a
fuse other than the specified fuse is used, it
may cause a fire or an accident.
≥ Do not damage the cord by pinching or
pulling it.
Do not pull or damage the cord. If the cord is
not treated properly, it will short out or be
severed and may cause a fire or an accident.
E
N
G
L
I
S
H
❐ Required Tools
48
You’ll need a screwdriver and the following:
12 V DC test Electrical tape
Slide-cut
bulb
pliers
❐ Dashboard Specifications
Thickness
Min. 3/16q (4.75 mm)
Max. 7/32q (5.56 mm)
23/32q (53 mm)
75/32q (182 mm)
❐ Identify All Leads
The first step in installation is to identify all the car
wires you’ll use when hooking up your LCD monitor.
As you identify each wire, we suggest that you label
it using masking tape and a permanent marker. This
will help avoid confusion when making connections
later.
Note:
≥ Do not connect the power connector to the display
unit until you have made all connections. If there
are no plastic caps on the hooking wires, insulate
all exposed leads with electrical tape until you are
ready to use them. Identify the leads in the following order.
Power Lead
If your car has a radio or is pre-wired for one:
Cut the connector wires one at a time from the plug
(leaving the leads as long as possible) so that you
can work with individual leads. Turn the ignition on
to the accessory position, and ground one lead of
the test bulb to the chassis.
Touch the other lead of the test bulb to each of the
exposed wires from the cut radio connector plug.
Touch one wire at a time until you find the outlet that
causes the test bulb to light.
Now turn the ignition off and then on. If the bulb also
turns off and on, that outlet is the car power lead.
CY-VMD9000U
63
Installation Guide (Continued)
E
N
G
L
I
S
H
If your car is not wired for an audio unit:
Go to the fuse block and find the fuse port for radio
(RADIO), accessory (ACC), or ignition (IGN).
49
Battery Lead
If your unit has a yellow lead, you will need to locate
the car’s battery lead. Otherwise you may ignore this
procedure. (The yellow battery lead provides continuous power to maintain a clock, memory storage, or
other functions.)
If your car has a radio or is pre-wired for one:
With the ignition and headlights off, identify the car
battery lead by grounding one lead of the test bulb to
the chassis and checking the remaining exposed
wires from the cut radio connector plug.
If your car is not wired for an audio unit:
Go to the fuse block and find the fuse port for the
battery, usually marked BAT.
Speakers (not supplied speaker)
Identify the car speaker leads. There are two leads
for each speaker, usually color coded.
A handy way to identify the speaker leads and the
speaker they are connected with is to test the leads
using a 1.5 V AA battery as follows.
Hold one lead against one pole of the battery and
stroke the other lead across the other pole. You will
hear a scraping sound in a speaker if you are holding
a speaker lead.
If not, keep testing different lead combinations until
you have located all the speaker leads. When you
label them, include the speaker location for each.
❐ Connect All Leads
Now that you have identified all the wires in the car,
you are ready to begin connecting them to the LCD
monitor wires. The wiring diagram (➡ pages 70, 71)
shows the proper connections and color coding of
the leads.
We strongly recommend that you test the unit
before making a final installation.
You can set the unit on the floor and make temporary connections to test the unit. Use electrical tape
to cover all exposed wires.
Important:
≥ Connect the red power lead last, after you have
made and insulated all other connections.
Ground
Connect the black ground lead of the power connector to the metal car chassis.
64
CY-VMD9000U
Speakers (not supplied speaker)
Connect the speaker wires. See the wiring diagram
for the proper hookups. Follow the diagram carefully to avoid damaging the speakers and the stereo
unit.
The speakers used must be able to handle more than
45 W of audio power. If using an optional audio
power, the speakers should be able to handle the
maximum amplifier output power. Speakers with
low input ratings can be damaged.
Speaker impedance should measure 4–8 ≠, which
is typically marked on most speakers. Lower or
higher impedance speakers will affect output and
can cause both speaker and stereo unit damage.
Caution:
≥ Never ground the speaker cords. For example,
do not use a chassis ground system or a threewire speaker common system. Each speaker
must be connected separately using parallel
insulated wires. If in doubt about how your
car’s speakers are wired, please consult with your
nearest professional installer.
❐ Final Checks
1. Make sure that all wires are properly connected
and insulated.
2. Make sure that the LCD monitor is securely held
in the mounting collar.
3. Turn on the ignition to check the unit for proper
operation.
If you have difficulties, consult your nearest authorized professional installer for assistance.
❐ Preparation
≥ We strongly recommend that you wear gloves
for installation work to protect yourself from
injuries.
≥ When bending the mounting tabs of the mounting collar with a screwdriver, be careful not to
injure your hands and fingers.
≥ Disconnect the cable from the negative - battery
terminal (see caution at right).
≥ Unit should be installed in a horizontal position
with the front end up at a convenient angle, but not
more than 30o.
Battery
Connect the yellow battery lead to the correct radio
wire or to the battery fuse port on the fuse block.
Equipment
Connect any optional equipment according to the
instructions furnished with the equipment. Read the
operating and installation instructions of any equipment you will connect to this unit.
Power
Connect the red power lead to the correct car radio
wire or to the appropriate fuse port on the fuse
block.
If the LCD monitor functions properly with all these
connections made, disconnect the wires and proceed to the final installation.
❐ Final Installation
Lead Connections
Connect all wires, making sure that each connection
is insulated and secure. Bundle all loose wires and
fasten them with tape so they will not fall down later.
Now insert the LCD monitor into the mounting collar.
Less than 30x
E
N
G
L
I
S
H
Caution:
≥ Do not disconnect the battery terminals of a car
with a trip or navigational computer since all
user settings stored in memory will be lost.
Instead take extra care with installing the unit
to prevent shorts.
50
This unit should be professionally installed. In case
of difficulty, please consult with your nearest professional installer.
1. This unit only operates in a 12 V DC negative
ground system.
2. Follow the electrical connections carefully
(➡ pages 70, 71). Failure to do so may result in
damage to the unit.
3. Connect the power connector after all other connections are made.
4. Be sure to connect the battery lead (yellow) to the
positive terminal (+) of the battery or fuse block
(BAT) terminal.
5. Insulate all exposed wires to prevent short circuiting.
6. Secure all loose wires after installing the unit.
7. Please carefully read the operating and installation instructions of the respective equipment
before connecting it to this unit.
Caution:
≥ Please follow the laws and regulations of your
state, province or country for installation of the
unit.
Mounting the Display Unit
❐ Transportation bracket removal
Be sure to remove the transportation brackets before use (installation) and keep them for the future.
Use binding-head screws (M5k6 mm) for installation. (➡ page 68)
Be careful not to lose these binding-head screws.
Transportation bracket
Binding-head screws
(M5a6 mm)
Display unit
Transportation bracket
Binding-head screws
(M5a6 mm)
Congratulations! After making a few final checks,
you’re ready to enjoy your new LCD monitor.
CY-VMD9000U
65
Installation Guide (Continued)
E
N
G
L
I
S
H
❐ Installation Procedures
(When using mounting collar 2)
51
mounting collar 2 into the dashboard,
1 Insert
and bend the mounting tabs out with a screw-
(a) Using the rear support strap 9
(b) Using the rubber pad 4
52
driver.
Note:
≥ The car model, installation conditions and
combination of the units used may impose
some restrictions on opening and closing the
monitor as well as on the angle and position
to which the monitor can be adjusted.
6 Flange nut (M6)
Fastening the mounting collar
The tabs to be bent vary depending on the car.
Bend them with a screwdriver to fasten the
mounting collar 2 securely in the dashboard.
2 Mounting collar
Tab
4 Rubber pad
Drill a hole 6.5 to 7 mm in diameter.
8 Washer assembling
hex. bolt (M6a20 mm)
5 Mounting bolt (M5)
Fire wall
of car
Dashboard
Tab
E
N
G
L
I
S
H
Bracket (on car)
9 Rear support strap
Display unit
7 Washer assembling hex. bolt
(M5a10 mm)*1
Display unit
*1Use M5a8 mm size bolts (optional) if bolts other than the supplied ones are to be used.
❐ Installation Procedures
(When not using mounting collar 2)
; Flat-head screw (M5k6 mm)
@ Power connector
Use the brackets supplied with your car when mounting this unit. The bracket shape and mounting method
vary with car manufactures, car types and manufacturing year.
Please consult your nearest your nearest Panasonic Servicenter for details.
Select mounting screws according to the hole positions and hole shape of the bracket.
C Display unit/control unit
connecting cord
5 Mounting bolt (M5)
Attach the mounting springs 3 to the display
unit.
3 Mounting spring
Secure the rear of the unit.
After fixing power connector @ and display
unit/control unit connecting cord C, fix the rear of
the unit to the car body by either method (a) or (b)
shown at right.
Insert trim plate 1.
2
3
4
: Binding-head screw (M5k6 mm)
2 pieces
Recycle the binding-head screws that fixed the transportation brackets for
two more positions.
< Binding-head screw (M4k3 mm)
4 pieces
When using these mounting holes
Side of the display unit
; Flat-head screw (M5k6 mm)
4 pieces
After installation, reconnect the negative - bat5 tery
terminal.
66
CY-VMD9000U
CY-VMD9000U
67
Installation Guide (Continued)
E
N
G
L
I
S
H
Use the supplied spacer = if mounting hole of your car is shaped like below.
53
Mounting hole of a
bracket (in section)
Display unit
= Spacer
Not used.
E
N
G
L
I
S
H
Mounting the Speaker (Supplied)
: Binding-head screw
(M5a6 mm)
Bracket
54
Before mounting the speaker, wipe a drop of water, dust and an oil stain off from the place where the speaker
should be mounted to enhance adhesive strength.
Speaker (supplied)
E Clamp
≥ Cannot be used for a center speaker.
D Double-faced adhesive tape
: Binding-head screw
(M5a6 mm)
Existing bracket (R)
> Double-faced adhesive tape
= Spacer
> Double-faced adhesive tape
Existing bracket (L)
(Bracket originally attached to the car.
The exterior design differs from that of the actual product.)
Mounting the Control Unit
Cautions:
≥ Do not install the speaker in a location which obstructs operation of the air bag or other safely equipment.
≥ Do not leave a credit card or other magnetic cards near the speakers to avoid damaging the cards.
❐ Mounting Example
Control unit
Before mounting the unit, wipe a drop of water, dust
and an oil stain off from the place where the unit
should be mounted to enhance velcro strength.
Stick velcro tape ? on the carpet (underneath the passenger seat, etc.) and mount the control unit on it.
Removing the Display Unit
the right and left clamp plates outward, one
1 Push
at a time, and pull the display unit toward yourself.
Note:
≥ Some carpet materials may not be suitable for this
mounting method. In this case, please contact your
nearest Panasonic Servicenter for installation.
Push here to remove
the clamp plates.
? Velcro tape
? Velcro tape
Carpet
Notes:
≥ Never mount the control unit in any of the following locations to avoid damage due to overheating:
• Near the heater port.
• Places like the dashboard or rear deck, where it may be exposed to direct sunlight.
≥ Do not mount the control unit near the door, where it could be exposed to rain.
removing the right and left clamp plates, pull
2 After
the unit with both hands till it comes off.
Mounting the AV Control Unit with Receiver (CA-TU7000U) or
Multi Channel AV Control Unit with Receiver (CA-TU9000U)
Refer to the operating instructions of the AV control unit with receiver (CA-TU7000U) or multi channel AV control unit with receiver (CA-TU9000U).
68
CY-VMD9000U
CY-VMD9000U
69
E
N
G
L
I
S
H
Electrical Connections
55
Accessory used for wiring
Wiring Diagram
No.
Item
Cautions:
≥ This unit is designed to operate off a 12 V DC, negative ground battery system.
≥ To prevent damage to the unit, be sure to follow the connection diagram below.
≥ Remove approximately 1/4q (5 mm) of protective covering from the ends of the leads before connecting.
≥ Do not insert the power connector into the unit until the wiring is completed.
≥ Be sure to insulate any exposed wires from a possible short-circuit from the car chassis. Bundle all
cables and keep cable terminals free from touching any metal parts.
≥ Note that if your car has a driving computer or a navigation computer, disconnecting the battery cables
may cause the contents of memory for these computers to be lost.
≥ The side brake (parking brake) connection lead should be connected by a professional installer. In case
of difficulty, please consult your nearest authorized Panasonic Servicenter.
≥ All other installation methods require the use of dedicated metal fittings. Consult with a qualified servicing engineer or your dealer if other methods are required.
Q’ty
@
Power connector
1
A
Reverse extension cord
1
B
Clip connector
1
C
Display unit/control unit
connecting cord
1
E
N
G
L
I
S
H
C Display unit/control unit connecting cord
CY-VMD9000U Display unit (rear)
RGB input cord
56
Notes:
≥ Be sure to fully plug in the connector.
≥ Install the cord to avoid high-temperature spots and secure with clamps and tape.
≥ When game devices are connected, the image may be unstable.
CY-VMD9000U
≥ When removing the DIN plug, be sure to press the clip.
To the RGB connector of the Panasonic car
navigation system (not available yet).
Digital signal output terminal
Connect the multi channel AV control unit with receiver (CA-TU9000U).
( See the operating instructions of the CA-TU9000U.)
Control unit (rear)
@ Power connector
You need the optical fiber cable (sold separately).
Video control lead
(Green/yellow stripe)
To the video control lead of the Panasonic
car navigation system (not available yet).
Side brake (parking brake)
connection lead
Be sure to wire the side brake (parking brake) for
safety and preventing accidents. ( page 78)
Reverse lead
When connecting the rear view camera,
use the reverse lead. ( page 79)
(Black)
VIDEO-CONT
SIDE BRAKE
(Blue/yellow stripe)
REMOTE-OUT
Remote control signal
receiver cord
To the REMOTE-IN terminal of the
Panasonic DVD video player
(CX-DV700U).
Use this cord when connected to
CX-DV700U.
Connector
Connect AV control unit with receiver (CA-TU7000U)
or multi channel AV control unit with receiver (CA-TU9000U).
REVERSE
(Black)
(Violet/white stripe)
Control unit (front)
(Black)
+
Panasonic
SPEAKER
Speaker lead
Use a reverse extension cord A if needed.
Power lead
To ACC power, _12 V DC.
220 Ω
ACC
(Black/green stripe)
Supplied speaker
(Red)
R (Red)
5A
To the input terminat of
the auxiliary system.
PRE-OUT
Pre-out cord
(Yellow)
Ground lead
To a clean, bare metallic part of the car chassis.
70
CY-VMD9000U
(Black)
VIDEO-OUT
Cannot be used for a center speaker.
(Fuse 5 A)
BATTERY 5 A
VTR1-IN
VTR2-IN
(Black/green stripe)
(Resistor 220 ≠)
Battery lead
To the car battery, continuous _12 V DC.
Leave the cover unremoved if you
do not connect AV control unit with
receiver (CA-TU7000U) or multi
channel AV control unit with receiver
(CA-TU9000U).
L (White)
Video output terminal
Connect the second monitor.
( page 77)
Video input terminal 2 (VTR2-IN)
Connect a VCR, camcorder, rear view camera,
other brand’s navigation system, and so on.
( pages 77, 79)
Video input terminal 1 (VTR1-IN)
Connect a VCR, camcorder, rear view camera, other
brand’s car navigation system, and so on.
( pages 77, 79)
CY-VMD9000U
71
Electrical Connections (Continued)
E
N
G
L
I
S
H
Connection with Multi Channel AV Control Unit with Receiver (CA-TU9000U)
57
E
N
G
L
I
S
H
Notes:
≥ Refer to the operating instructions for the connected devices, in addition.
≥ Refer to the operating instructions for the CA-TU9000U.
58
CY-VMD9000U
Display unit (rear)
@ Power connector
R (Red)
Pre-out cord
No audio is output from the pre-out cord when
connecting to CA-TU9000U.
PRE-OUT
L (White)
CA-TU9000U
Multi channel AV control unit
with receiver (front)
Optical fiber cable (sold separately, CA-LRD60)
Notes on handling optical fiber cable:
• Do not bend the cable sharply.
• Do not allow the cable to be damaged by getting it caught in the door, placing a
heavy object on it, etc.
CA-TU9000U
Multi channel AV control unit
with receiver (rear)
CY-VMD9000U Control unit
CY-VMD9000U Control unit
(Red)
(Red)
To subwoofer
RCA cord (optional)
Power amplifier
Center speaker extension cord
(supplied to CA-TU9000U)
+
(Black)
-
(Black/green stripe)
+
(Green)
-
(Green/black stripe)
+
(Violet)
-
(Violet/black stripe)
+
(White)
-
(White/black stripe)
+
(Gray)
To center speaker
CENTER
(Left)
(Black)
CENTER
(Black/green stripe)
Rear speaker cord (left)
REAR L
Center speaker cord
(supplied to CA-TU9000U)
To rear speaker
(Right)
Rear speaker cord (right)
REAR R
(Left)
Power connector (supplied to CA-TU9000U)
Front speaker cord (left)
FRONT L
To front speaker
-
72
Front speaker cord (right)
C Display unit/control unit connecting cord
FRONT R
(Right)
CY-VMD9000U
(Gray/black stripe)
CY-VMD9000U
73
Electrical Connections (Continued)
E
N
G
L
I
S
H
Connection with AV Control Unit with Receiver (CA-TU7000U)
59
CY-VMD9000U
Display unit (rear)
E
N
G
L
I
S
H
Notes:
≥ Refer to the operating instructions for the connected devices, in addition.
≥ Refer to the operating instructions for the CA-TU7000U.
Digital surround processor
CY-AC300
Operating unit
Operating unit/main unit connecting cord
(supplied to CY-AC300)
DIGITAL
OUND
SURR
DIGITAL
ESSOR
PROC
PRO LOGIC
CE
SOUR
AC300
super
E
L
VOL
S
60
E
MUT
1
bright
multi-colo
2
r displ
powe
ay & 30W
3
4
r ampl
ifier for
center
speaker
POSITION
P POSI
DR COM
SPAC
E
DIMMER
SUB • W
REAR
FRONT
ANALOG-IN
DIM
SPC
PWR
CY-AC300
Main unit (rear)
CY-AC300
Main unit (front)
L
L
@ Power connector
R (Red)
Pre-out cord
R
No audio is output from the pre-out cord
when connecting to CA-TU7000U.
PRE-OUT
L
Power connector
(supplied to CY-AC300)
POWER SUPPLY
CONTROL
UNIT
R
R
(L) (R) (L) (R) (L) (R)
L (White)
Optical fiber cable (sold separately, CA-LRD60)
RCA cord (optional)
Notes on handling optical fiber cable:
• Do not bend the cable sharply.
• Do not allow the cable to be damaged by getting it
caught in the door, placing a heavy object on it, etc.
Center speaker cord
+
(Black)
-
(Black/green stripe)
To center speaker
CENTER
(Red)
To subwoofer
CY-VMD9000U
Control unit
CA-TU7000U
AV control unit with receiver
(front)
CA-TU7000U
AV control unit with receiver
(rear)
CY-VMD9000U
Control unit
Pre-out (Front)
MAIN-IN (Rear)
MAIN-IN (Front)
RCA cord (optional)
Power amplifier
+
(Green)
(Left)
Rear speaker cord (left)
(R) (L) (R) (L) (R) (L)
REAR L
-
(Green/black stripe)
+
(Violet)
-
(Violet/black stripe)
+
(White)
-
(White/black stripe)
+
(Gray)
To rear speaker
(Right)
Rear speaker cord (right)
REAR R
(Left)
Power connector (supplied to CA-TU7000U)
Front speaker cord (left)
FRONT L
To front speaker
-
74
Front speaker cord (right)
C Display unit/control unit connecting cord
FRONT R
(Right)
CY-VMD9000U
(Gray/black stripe)
CY-VMD9000U
75
E
N
G
L
I
S
H
Electrical Connections (Continued)
61
Note:
≥ Refer to the operating instructions for the connected devices, in addition.
Connection with CD Changer (CX-DP88U)
Ground lead (Black)
E
N
G
L
I
S
H
Connection with VCR or Camcorder
62
Note:
≥ Refer to the operating instructions for the connected devices, in addition.
CY-VMD9000U Control unit (front)
CD Changer (CX-DP88U)
Video
output
Power connector
(supplied to CX-DP88U)
Camcorder
R (Red)
RCA cord
Video (Yellow)
VCR
(R) (Red)
CY-VMD9000U
Control unit (front)
Video (Yellow)
L (White)
(L) (White)
CD changer
control connector
Audio
Left Right
R (Red)
L (White)
Battery lead (Yellow)
RCA cord (optional)
BATTERY
(Fuse 3 A)
DIN cord
CA-TU7000U
AV control unit with receiver CA-TU7000U (front)
or
CA-TU9000U
Multi channel AV control unit
CY-VMD9000U
with receiver
Connection with Rear Monitor
Note:
≥ Refer to the operating instructions for the connected devices, in addition.
CY-VMD9000U Control unit (front)
Control unit (rear)
Rear monitor
(CY-VM5800U)
Video (Yellow)
VTR-IN
R-I
N
CA-TU7000U (rear)
VT
Power connector
(supplied to CA-TU7000U/
9000U)
RCA cord (optional)
76
CY-VMD9000U
CY-VMD9000U
77
Electrical Connections (Continued)
E
N
G
L
I
S
H
Connecting the Side Brake (Parking Brake) Connection Lead
63
Connection with Rear View Camera
CY-VMD9000U Display unit (rear)
Side brake
(parking brake) switch
Foot brake
64
Note:
≥ Refer to the operating instructions for the connected devices, in addition.
Caution:
≥ For safety, be sure to ask your nearest professional installer to do this connection.
Side brake (parking brake)
E
N
G
L
I
S
H
Rear view camera control unit
Camera input
Video output
Video
(Yellow)
Rear view camera
Panaso nic
@ Power connector
The side brake (parking brake) switch position varies with the car
model.
For details on the exact location of the side brake (parking brake)
switch in your car, contact your dealer.
CY-VMD9000U
Control unit (front)
RCA cord (optional)
Brake light
Side brake (parking brake) connection lead
(Blue/yellow stripe)
Battery
SIDE BRAKE
When the side brake (parking brake)
lever is engaged, the unit is grounded
by the chassis.
Video (Yellow)
B Clip connector
Check the reverse lamp.
Car chassis
1
Attach a clip connector B to the end of the
side brake (parking brake) connection
lead.
2
Side brake (parking brake) connection lead
(Blue/yellow stripe)
The clip connector B is connected to the
power source side lead of the side brake
(parking brake) lever.
Connecting the Reverse Lead
In case using an optional rear view camera, the reverse lead
must be connected.
Connect the reverse lead (violet/white stripe) to the positive (_)
lead of the reverse lamp (the lamp with a clear lens that lights
when the transmission gear is shifted into the reverse position).
Notes:
≥ Connect the reverse lead after cutting the terminal at the end.
≥ Use a reverse extension cord A if needed.
Take it out of the back of the tail lamp mount.
Reverse lamp
Clip connector
Comes up to this point.
Battery
Car chassis
Power source side lead
Reverse lead (Violet/white stripe)
REVERSE
P
Cut here.
78
CY-VMD9000U
R
N
D
2
L
Transmission gear
CY-VMD9000U
79
E
N
G
L
I
S
H
Troubleshooting
65
Check and take steps as described in the tables below.
Preliminary Steps
If You Suspect Something Wrong
Immediately switch power off.
Disconnect the power connector and check that there is
neither smoke nor heat from the unit before asking for
repairs. Never try to repair the unit yourself because it is
dangerous to do so.
Cautions:
≥ Do not use the unit if it malfunctions or is
something wrong.
≥ Do not use the unit in abnormal condition, for
example, without sound, or with smoke or
foul smell, can cause ignition or electric
shock. Immediately stop using it and call the
store where you purchased it.
❐ Common (continued)
Trouble
The volume is adjusted to zero.
➡Raise the volume.
Mute is set to ON.
➡Set it to OFF.
No sound.
❐ Common
No power.
Car’s engine switch is not on.
➡Turn your car’s ignition switch to ACC or ON.
Cables are not correctly connected.
➡Connect cables correctly.
Condensation (dew)
➡Wait for a while before use.
Battery cable is not correctly connected.
➡Connect the battery cable to the terminal that is always live.
Side brake (parking brake) connection lead is not correctly connected.
➡Connect the side brake (parking brake) connection lead correctly.
Only sound, no picture.
Accessory cable is not correctly connected.
➡Connect the accessory cable to your car’s ACC source.
Fuse is burnt.
➡Call the store where you purchased the unit, or your nearest
Panasonic Servicenter (see the attached sheet) and ask for fuse
replacement.
You did not pull the side brake (parking brake) lever.
➡Pull the side brake (parking brake) lever.
Noise.
Picture is not clear.
A mobile phone is used near the unit.
➡Keep the mobile phone away from the unit.
❐ Monitor
Trouble
The tilt angle or the
front-rear position of the
display is not adjustable.
The monitor does not go
back into the unit.
CY-VMD9000U
Speakers setting is set to OFF.
➡Set it to other than OFF.
The MAIN-IN is set to ON (when the digital surround processor is not
connected).
➡Set the MAIN-IN to OFF when you do not use the MAIN-IN (when the
digital surround processor is not connected).
Cause/Step
Grounding wire is not correctly connected.
➡Connect the grounding wire to a metal part of the car.
80
66
Cause/Step
Cables are not correctly connected.
➡Connect cables correctly.
Troubleshooting Tips
Trouble
E
N
G
L
I
S
H
Cause/Step
There is an obstacle.
➡Install the unit where the unit moves freely.
The monitor direction is not proper.
➡Change the monitor direction to the center.
The monitor stops on the way to the home position for some reason.
➡Raise the monitor a little and press [ ] (OPEN/CLOSE).
CY-VMD9000U
81
Troubleshooting (Continued)
E
N
G
L
I
S
H
❐ DVD video, Video CD, CD
67
Trouble
❐ Radio
Cause/Step
The disc is upside down.
➡Place the disc in the correction direction, the label side up.
The disc is inside but no
sound.
The disc is ejected automatically.
The disc is dirty.
➡Clean the disc, referring to the section on “Notes on Discs”.
The unit can only play the following types of discs: DVD video, video CD
and music CD.
DVD playback mode is “DTS”.
➡Set “Dolby Digital” or “PCM”.
dts playback is possible when connecting to CA-TU9000U.
The disc is dirty.
➡Clean the disc, referring to the section on “Notes on the discs”.
Sound skip due to vibration.
Mounting angle is over 30°.
➡Adjust mounting angle to less than 30°.
Unstable mounting.
➡Mount the unit securely with the mounting parts, referring to the
section on installation.
The buttons do not work.
Cannot switch the audio
language/subtitle language/angle.
82
Some operations are not permitted with certain discs.
(Refer to the guide provided with your disc.)
≥ It is not possible to switch if the disc does not have multiple audio languages/subtitle languages/angles recorded on it.
(Refer to the guide provided with your disc.)
≥ Some discs permit switching through a menu screen.
≥ Sometimes, switching angles is possible only with certain scenes.
The audio/subtitle language selected in the
DVD settings is not used.
If audio or subtitles in the languages are not recorded on the disc, the
audio or subtitles do not switch to that language. (Some discs permit
switching through a menu screen. Refer to the guide provided with your
disc.)
The disc is not ejected.
≥ CD is defective.
≥ Mechanical trouble.
➡Press [<] (EJECT). If failure persists, press the reset switch. If normal operation is not restored, call the store where you purchased
the unit or the nearest Panasonic Servicenter to ask for repair.
CY-VMD9000U
E
N
G
L
I
S
H
Trouble
Much noise is FM stereo
and monaural broadcasts.
Preset station is reset.
68
Cause/Step
Station is too far, or signals are too weak.
➡Select other stations of higher signal level.
The radio antenna is not extended enough.
➡Fully extend the radio antenna.
Battery cable is not correctly connected.
➡Connect the battery cable to the terminal that is always live.
❐ Car Navigation, VCR, Camcorder, Rear View Camera, Rear Monitor
Trouble
The picture from a car
navigation system is not
displayed.
The picture from a VCR
or a camcorder is not
displayed.
The picture from a rear
view camera is not displayed.
The picture or the sound
of the second monitor is
not switchable.
Cause/Step
The connection of a car navigation system is not correct.
➡Connect it correctly.
Input setting of a car navigation system is not correct.
➡Make the input setting correct.
A VCR or camcorder is not connected correctly.
➡Connect it correctly.
Rear view camera is not connected correctly.
➡Connect it correctly.
Input setting of a camera is not correct.
➡Make the input setting correct.
“AUTO” is not selected for the setting of a rear monitor.
➡Select “AUTO” for the setting.
CY-VMD9000U
83
Troubleshooting (Continued)
E
N
G
L
I
S
H
❐ Display Settings
69
Error Display Messages
Trouble
Cause/Step
The brightness of the
screen is not stable.
“AUTO” dimmer is selected.
➡Select one of the dimmer levels from among “1” to “4” to make the
dimmer adjustment become free from light intensity.
The picture is dark.
The picture is whitish.
Something is wrong with
the picture. The picture
is light in color.
The screen is not adjusted properly.
➡Make every adjustment of the screen.
Red, blue, or green
spots appears.
This is characteristic of liquid crystal panels and is not a problem.
" E1 "
Cause/Step
Left and right balance, or front and rear balance is off on one side.
➡Adjust BAL/FAD as appropriate.
Cables are not correctly connected.
➡Connect the cables correctly.
The right speaker wire is connected to the left speaker and the left
speaker wire to the right speaker.
➡Connect the speaker wires to the correct one.
❐ Remote Control
Trouble
Cause/Step
Battery polarities are reversed.
➡Insert the battery correctly.
Buttons are invalid for
operation.
Display
" E3 "
Trouble
Left and right sounds are
reversed in stereo listening.
70
" E2 "
❐ Sound Settings
No sound from left, right,
front, or rear speaker.
E
N
G
L
I
S
H
Wrong the battery.
➡Check the battery.
NO DISC
Cause/Step
≥ Disc is dirty, or is upside down.
≥ Disc has scratches.
≥ Disc is not ejected.
➡Check disc.
➡Press [<] (EJECT). If failure persists, press the reset switch. (Press
the reset switch in the CD changer.)
If normal operation is not restored, call the store where you purchased the unit or the nearest Panasonic Servicenter to ask for
repairs.
No operation by some cause.
➡Press [<] (EJECT). If failure persists, press the reset switch. (Press
the reset switch in the CD changer.)
If normal operation is not restored, call the store where you purchased the unit or the nearest Panasonic Servicenter to ask for
repairs.
No disc is in the player.
➡Insert the disc into the disc slot.
NO MAGAZINE
No magazine is in the changer.
➡Load the changer with CD-loaded magazine.
PAL/NTSC ERR
An attempt was made to play a PAL disc.
➡Press [<] (EJECT) and check the disc.
REGION ERR
An attempt was made to play a disc with a region number that was not
“1” or “ALL”.
➡Press [<] (EJECT) and check the disc.
Notes:
≥ There may be cases when the disc numbers affected by an error are displayed before E1 and E2.
≥ Displays and the steps to be taken for errors vary in part from changer to changer. For details, refer to the
Operating Instructions for the changer used.
The battery has run down.
➡Replace the battery.
Remote control is in the wrong direction.
➡Direct the remote control at remote control sensor on the display
unit.
84
CY-VMD9000U
CY-VMD9000U
85
E
N
G
L
I
S
H
Troubleshooting (Continued)
71
Your product is designed and manufactured to ensure a minimum of maintenance. Use a soft cloth for routine
exterior cleaning. Never use benzine, thinner or other solvents.
Maintenance
Maintenance
E
N
G
L
I
S
H
To Prevent Damage to the System Exterior
Product Servicing
If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized Panasonic Servicenter. The product should be serviced only by a qualified technician.
Replace the Fuse
Use fuses of the same specified rating (5 A). Using different substitutes or fuses with higher ratings, or connecting the product directly without a fuse, could cause fire or damage to the unit.
If the replacement fuse fails, contact your nearest Panasonic Servicenter for service.
72
Do not apply pesticides, benzine, thinner or other volatile substances to the unit.
The cabinet surface primarily consists of plastic materials.
Do not wipe with benzine, thinner or similar substances
because this will results in discoloration or removal of the
paint.
When a cloth with a cleansing chemical is used, follow the
caution points.
Do not leave the unit in contact with rubber or vinyl products
for long periods of time.
Do not use cleansers which have polishing granules because
this could damage the surface of the unit.
Pesticide
Alcohol
Wax
Tape
Thinner
Benzine
Adhesive
Tape
Clean Diet by Wiping Lightly with a Soft Cloth
When the unit is dirty, wipe the surface of the display using wiping cloth, an accessory to the unit.
Reset Switch
Reset switch
Insert a hard, slender stick into the hole and push the
switch.
Press the reset switch on the AV control unit with receiver
(CA-TU7000U) or multi channel AV control unit with
receiver (CA-TU9000U) connected to this unit.
DISC/BAND
NAVIGATION
MENU
MODE
POWER
NAVI
ASPECT
ASP
P•MODE
ENTER
TRACK/
TUNE
≥ The unit returns to the default state when the trouble is
reset.
Remember, the data and settings stored in the memory
are deleted.
Without a Wiping Cloth
When the unit is dirty, wipe with a well-wrung cloth dipped in a liquid dish washing detergent (neutral) diluted
with water and then go over the same surface with a dry cloth.
(Since there is the possibility of water drops getting inside of the unit, do not directly apply cleanser to the surface.)
Note:
≥ Do not scratch the screen with your nails or other hard objects. The resulting scratches or marks will obscure
the images.
Go over the same surface with a
dry cloth.
Wring well.
Wipe lightly.
Important:
≥ Push the switch only when the unit fails to operate
with any buttons.
≥ If the unit fails to return to normal condition, call the
nearest Panasonic Servicenter and ask for repairs.
DISC/BAND
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
NAVI
ASPECT
ASP
P•MODE
ENTER
TRACK/
CHANNEL
DISC/BAND
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
NAVI
ASPECT
ASP
ENTER
TRACK/
CHANNEL
P•MODE
Kitchen cleanser diluted with water.
Caution:
≥ If water drops or similar wet substances get inside the monitor, it may cause a malfunction.
86
CY-VMD9000U
CY-VMD9000U
87
Maintenance (Continued)
E
N
G
L
I
S
H
Definition of Terms
Notes on Discs
73
How to hold the disc
≥ Do not touch the underside of the disc.
≥ Do not make scratches on the discs.
≥ Do not bend disc.
≥ When not in use, keep the disc in the case.
Label side
Do not use irregular shaped discs.
Do not leave discs on the following places:
≥ Direct sunlight
≥ Near car heaters
≥ Dirty, dusty and damp areas
≥ Seats and dashboards
Do not use irregular shaped discs.
<Right>
<Wrong>
Disc cleaning
Use a dry, soft cloth to wipe from the center outward.
Rough edge
Caution on new discs
≥ A new disc may have rough edges on its inner and outer
perimeter. These may cause malfunction.
≥ Remove the rough edges using a pencil, etc.
Digital audio output connector (Optical)
The digital audio output connector (optical) converts
electrical signals into optical signals and transfers
them to the amplifier. Consequently, it has a number
of features including its immunity from electrical
interference from external sources and its ability to
prevent the generation of noise and its minimal effect
on the external environment.
Interactive DVD
An interactive DVD is DVD software which includes
multiple angles, multiple plot endings, etc.
Dolby Digital
This fully discrete format divides the music signals
into 5.1 channels: Front Left (L), Front Right (R),
Center (C), Left Surround (LS), Right Surround (RS)
and Subwoofer (SW: 0.1 channel) for recording and
playback. The number of channels that are recorded
depends on the software. (1 to 5.1 channels)
Linear PCM audio (LPCM)
In this format, the audio signal is converted to digital
data and recorded in two channels without compression. Because the capacity of a DVD video disc is
large, it can store more data with better accuracy
than a CD.
Manufactured under license from Dolby
Laboratories. “Dolby” and the double-D symbol
are trademarks of Dolby Laboratories.
Confidential unpublished works. Copyright
1992–1997 Dolby Laboratories. All rights
reserved.
Dolby Pro Logic
This format records signals from four channels
[Front Left (L), Front Right (R), Center (C), and
Monaural Surround (S)] in two channels, decodes
those channels through a Dolby Pro Logic decoder,
and then outputs the resulting signals in four channels.
E
N
G
L
I
S
H
74
Letterbox screen
This refers to a screen on which the playback picture
of wide-screen DVDs or Video CDs appears with
black bands running along the top and bottom.
Pan & Scan screen
This refers to a screen on which the playback picture
of wide-screen DVDs or Video CDs is cut off at the
left and right sides.
Playback control (Video CD)
If the Video CD has “With Playback Control” or others
written on the disc surface or on the jacket, the
scenes or information to be viewed (or listened to)
can be selected interactively with the screen by looking at the menu shown on the screen.
In these instructions, playback using the menu
screen is referred to as the “menu play” for video
CDs. This player supports Video CDs with playback
control.
Rough edge
88
CY-VMD9000U
dts
This format requires more data than Dolby Digital,
and provides higher quality surround playback.
Similar to Dolby Digital, this fully discrete format
divides the music signals into 5.1 channels: Front
Left (L), Front Right (R), Center (C), Left Surround
(LS), Right Surround (RS) and Subwoofer (SW: 0.1
channel) for recording and playback.
Title, Chapter (DVD)
DVDs are divided into some large sections (titles) or
some small sections (chapters). Each section is
numbered; these numbers are called “Title number”
or “Chapter number”.
Manufactured under license from Digital Theater
Systems, Inc. US Pat. No. 5,451,942 and other
world-wide patents issues and pending. “DTS”
and “DTS Digital Surround” are trademarks of
Digital Theater Systems, Inc. C 1996 Digital
Theater Systems, Inc. All rights reserved.
Track (Video CD/CD)
Video CDs or CDs are divided into some sections
(tracks). Each section is numbered; these numbers
are called “Track number”.
Title 1
Chapter 1
Track 1
Title 2
Chapter 2 ……
Track 2
Chapter 1 ……
Track 3
CY-VMD9000U
Track ……
89
E
N
G
L
I
S
H
75
Language Code List
Specifications
How to input the language code, refer to page 56.
General
Power supply:
Current consumption:
Maximum power output
(external speaker):
Compatible speaker impedance:
Video input signal:
Audio input sensitivity:
Video output signal:
Pre-Amp output voltage:
Pre-Amp output impedance:
Dimensions (WkHkD):
Display unit:
Control unit:
Weight:
Display unit:
Control unit:
Code
6565
6566
6570
6577
6582
6583
6588
6590
6665
6669
6671
6672
6678
6679
6682
6765
6779
6783
6789
6865
6869
6890
6976
6978
6979
6983
6984
6985
7065
7073
7074
7079
7082
7089
7165
7168
7176
7178
7185
7265
7273
7282
7285
90
Language Name
Afar
Abkhazian
Afrikaans
Ameharic
Arabic
Assamese
Aymara
Azerbaijani
Bashkir
Byelorussian
Bulgarian
Bihari
Bengali; Bangla
Tibetan
Breton
Catalan
Corsican
Czech
Welsh
Danish
German
Bhutani
Greek
English
Esperanto
Spanish
Estonian
Basque
Persian
Finnish
Fiji
Faroese
French
Frisian
Irish
Scots Gaelic
Galician
Guarani
Gujarati
Hausa
Hindi
Croatian
Hungarian
CY-VMD9000U
Code
7289
7365
7378
7383
7384
7387
7465
7473
7487
7565
7575
7576
7577
7578
7579
7583
7585
7589
7665
7678
7679
7684
7686
7771
7773
7775
7776
7778
7779
7782
7783
7784
7789
7865
7869
7876
7879
7982
8065
8076
8083
8084
8185
Language Name
Armenian
Interlingua
Indonesian
Icelandic
Italian
Hebrew
Japanese
Yiddish
Javanese
Georgian
Kazakh
Greenlandic
Cambodian
Kannada
Korean
Kashmiri
Kurdish
Kirghiz
Latin
Lingala
Laothian
Lithuanian
Latvian, Lettish
Malagasy
Maori
Macedonian
Malayalam
Mongolian
Moldavian
Marathi
Malay
Maltese
Burmese
Nauru
Nepali
Dutch
Norwegian
Oriya
Panjabi
Polish
Pashto, Pushto
Portuguese
Quechua
Code
8277
8279
8285
8365
8368
8372
8373
8375
8376
8377
8378
8379
8381
8382
8385
8386
8387
8465
8469
8471
8472
8473
8475
8476
8479
8482
8484
8487
8575
8582
8590
8673
8679
8779
8872
8979
9072
9085
Language Name
Rhaeto-Romance
Romanian
Russian
Sanskrit
Sindhi
Serbo-Croatian
Singhalese
Slovak
Slovenian
Samoan
Shona
Somali
Albanian
Serbian
Sundanese
Swedish
Swahili
Tamil
Telugu
Tajik
Thai
Tigrinya
Turkmen
Tagalog
Tonga
Turkish
Tatar
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapük
Wolof
Xhosa
Yoruba
Chinese
Zulu
E
N
G
L
I
S
H
12 V DC (11 V–16 V), test voltage 14.4 V, negative ground
Less than 1.5 A
76
0.7 W
8≠
Composite video signal, 1.0 Vp-p (75 ≠)
1.8 Vrms
Composite video signal, 1.0 Vp-p (75 ≠)
1.8 Vrms (CD)
Less than 600 ≠
7qk115/16qk615/16q (178k50k160 mm)
6qk13/16qk57/8q (153k21k150 mm)
5 lb. 5 oz. (2.4 kg)
1 lb. 5 oz. (0.6 kg)
Monitor
Liquid crystal panel:
Screen dimensions (WkHkD):
Number of pixels:
Valid pixel ratio:
Display method:
Drive method:
Light source:
7q wide
61/16qk37/16qk615/16q (154k87k177 mm)
336 960 pixels (234 verticalk480 horizontalk3)
Over 99.99 %
Transparent color filter format
TFT (Thin Film Transistor) active matrix format
Internal light (built-in small fluorescent lamp)
Video section
Signal format:
Video output:
Region number:
NTSC (Standard signal format in U.S. and Japan.)
75 ≠, 1 Vp-p
1 and ALL
Supplied Speaker
Impedance:
Maximum power input:
8≠
2W
Above specifications comply with EIA standards.
Note:
≥ Specifications and design are subject to modification without notice due to improvements in technology.
CY-VMD9000U
91
Panasonic Consumer Electronics
Company, Division of Matsushita
Electric Corporation of America
One Panasonic Way, Secaucus,
New Jersey 07094
http://www.panasonic.com
Panasonic Sales Company.
Division of Matsushita Electric of
Puerto Rico, Inc. (“PSC”)
Ave. 65 de Infanteria, Km. 9.5
San Gabriel Industrial Park,
Carolina, Puerto Rico 00985
http://www.panasonic.com
YEFM283736
Panasonic Canada Inc.
5770 Ambler Drive,
Mississauga, Ontario
L4W 2T3
http://www.panasonic.ca
F0301-0 Printed in Japan
Imprimé au Japon
Impreso en Japón
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
