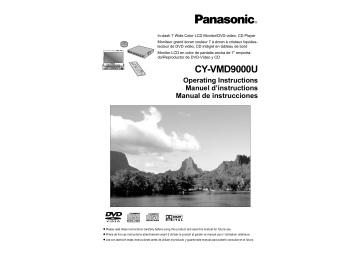

Panasonic CYVMD9000U Operating instructions

Panasonic CYVMD9000U Operating instructions
In-dash 7 Wide Color LCD Monitor/DVD-video, CD Player
Moniteur grand écran couleur 7 à écran à cristaux liquideslecteur de DVD vidéo, CD intégré en tableau de bord
Panasonic
Monitor LCD en color de pantalla ancha de 7q empotrado/Reproductor de DVD-Vídeo y CD
DISC/BAND
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
NAVI
ASPECT
ASP
ENTER
TRACK/
TUNE
P•MODE
P• MODE
CY-VMD9000U
Operating Instructions
Manuel d’instructions
Manual de instrucciones
≥ Please read these instructions carefully before using this product and save this manual for future use.
≥ Prière de lire ces instructions attentivement avant d’utiliser Ie produit et garder ce manuel pour l’utilisation ultérieure.
≥ Lea con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el futuro.
Safety Information
E
N
G
L
I
S
H
Label Indication and Location
Display unit
Model No.
N˚ De Modèle CY-VMD9000U
12V
8
5A
Manufactured by Matsushita Communication
Industrial Co., Ltd.
Yokohama Japan Made in Japan
Serial No.
N˚ De Série
Control unit
Model No.
YEPOFX4425
N˚ De Modèle (CY-VMC7000U)
(CY-VMD9000U)
12V
Manufactured by Matsushita Communication
Industrial Co., Ltd.
Yokohama Japan Made in Japan
Find the model number and serial number on either
the back or bottom of the unit. Please record them in
the spaces below and retain this booklet as a permanent record of your purchase to help with identification in case of theft.
MODEL NUMBER
CY-VMD9000U
SERIAL NUMBER
DATE PURCHASED
FROM
2
CY-VMD9000U
Consignes de sécurité
Información para su seguridad
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
AVERTISSEMENT:
POUR ÉVITER TOUT RISQUE DE BLESSURES
GRAVES OU D’INFRACTION AUX LOIS, LE MONITEUR NE DOIT PAS ÊTRE UTILISÉ À UN ENDROIT
OÙ IL SOIT VISIBLE PAR LE CONDUCTEUR.
ADVERTENCIA:
PARA REDUCIR EL RIESGO DE INCENDIOS O SACUDIDAS ELÉCTRICAS, NO EXPONGA ESTE PRODUCTO A LA LLUVIA NI A LA HUMEDAD.
WARNING:
NOT FOR USE WHERE VIDEO MONITOR IS VISIBLE TO DRIVER TO AVOID RISK OF SERIOUS
INJURY OR POSSIBLE VIOLATION OF STATE
LAWS.
AVERTISSEMENT:
POUR RÉDUIRE LES RISQUES D’INCENDIE OU
D’ÉLECTROCUTION, N’EXPOSEZ PAS CET APPAREIL
À LA PLUIE OU À L’HUMIDITÉ.
ADVERTENCIA:
ESTE APARATO NO DEBE UTILIZARSE DONDE EL
CONDUCTOR PUEDA VER EL MONITOR DE VÍDEO,
PARA EVITAR ACCIDENTES GRAVES O POSIBLES
VIOLACIONES DE LAS LEYES ESTATALES.
CAUTION:
THIS PRODUCT IS A CLASS I LASER PRODUCT.
HOWEVER
THIS
PRODUCT
USES
A
VISIBLE/INVISIBLE LASER BEAM WHICH
COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED.
BE SURE TO OPERATE THIS PRODUCT CORRECTLY AS INSTRUCTED.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
ATTENTION :
CET APPAREIL EST UN PRODUIT LASER DE LA
CLASSE I. IL UTILISE, TOUTEFOIS, UN RAYON
LASER VISIBLE/INVISIBLE POUVANT EXPOSER À
UN RAYONNEMENT DANGEREUX S’IL EST DIRIGÉ.
UTILISEZ CET APPAREIL CORRECTEMENT EN SUIVANT LES INSTRUCTIONS.
L’UTILISATION DE COMMANDES OU RÉGLAGES OU
L’EXÉCUTION D’OPÉRATIONS AUTRES QUE CELLES
QUI SONT INDIQUÉES DANS CE DOCUMENT PEUVENT RÉSULTER EN UNE EXPOSITION À UN RAYONNEMENT DANGEREUX.
N’OUVREZ PAS LES COUVERCLES ET N’ESSAYEZ
PAS D’EFFECTUER VOUS-MÊME DES RÉPARATIONS. ADRESSEZ-VOUS À UN PERSONNEL QUALIFIÉ POUR TOUTE RÉPARATION.
PRECAUCIÓN:
ÉSTE ES UN PRODUCTO LÁSER DE LA CLASE I. SIN
EMBARGO, ESTE PRODUCTO UTILIZA UN RAYO
LÁSER VISIBLE/INVISIBLE QUE PODRÍA CAUSAR
UNA EXPOSICIÓN PELIGROSA A LA RADIACIÓN.
ASEGÚRESE DE UTILIZAR CORRECTAMENTE ESTE
PRODUCTO, COMO SE INDICA EN LAS INSTRUCCIONES.
LA UTILIZACIÓN DE CONTROLES, EL HACER
AJUSTES O EL SEGUIR PROCEDIMIENTOS DISTINTOS DE LOS ESPECIFICADOS EN ESTE MANUAL
PODRÍA CAUSAR UNA EXPOSICIÓN PELIGROSA A
LA RADIACIÓN.
NO ABRA LAS CUBIERTAS NI HAGA REPARACIONES
USTED MISMO. SOLICITE LOS TRABAJOS DE SERVICIO AL PERSONAL CALIFICADO.
Laser products:
Wave length: 780 nm
Laser power: No hazardous radiation is emitted
with safety protection.
Produits laser:
Longueur d’onde: 780 nm
Puissance du laser: Aucune radiation dangereuse
n’est émise avec la protection de
sécurité.
Productos láser:
Longitud de onda: 780 nm
Potencia láser:
Con protección de seguridad no
se emite radiación peligrosa.
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, AND ANNOYING INTERFERENCE, USE
ONLY THE INCLUDED COMPONENTS.
AFIN DE PRÉVENIR TOUT RISQUE D’INCENDIE OU
D’INTERFÉRENCES, UTILISER UNIQUEMENT LES
COMPOSANTS FOURNIS.
PARA REDUCIR EL RIESGO DE INCENDIOS O SACUDIDAS ELÉCTRICAS, Y PARA EVITAR LAS INTERFERENCIAS MOLESTAS, UTILICE SOLAMENTE LOS
COMPONENTES INCLUIDOS.
CAUTION:
PLEASE FOLLOW THE LAWS AND REGULATIONS
OF YOUR STATE, PROVINCE OR COUNTRY FOR
INSTALLATION OF THE UNIT.
ATTENTION:
OBSERVEZ LES LOIS ET REGLEMENTS DE VOTRE
DEPARTEMENT, PROVINCE OU PAYS POUR L’INSTALLATION DE L’APPAREIL.
PRECAUCIÓN:
RESPETE LAS LEYES Y REGULACIONES DE SU
ESTADO,
PROVINCIA O PAÍS PARA LA INSTALACIÓN DEL APARATO.
Il est recommandé de noter, dans l’espace prévu cidessous, les numéros de modèle et de série inscrits soit à
l’arrière soit sur le fond de l’appareil, et de conserver ce
manuel comme mémorandum de l’achat afin de permettre
l’identification de l’appareil en cas de vol.
NUMÉRO DE MODÈLE
CY-VMD9000U
NUMÉRO DE SÉRIE
DATE DE L’ACHAT
VENDEUR
Encuentre el número de modelo y el número de serie en la
parte posterior o inferior de la unidad. Anótelos en el espacio de abajo y guarde este manual a modo de prueba permanente de su compra, para que pueda utilizarlo en el
caso de que le roben la unidad.
NÚMERO DE MODELO
CY-VMD9000U
NÚMERO DE SERIE
FECHA DE ADQUISICIÓN
VENDEUR
CY-VMD9000U
F
R
A
N
Ç
A
I
S
E
S
P
A
Ñ
O
L
3
Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product will bring you many hours of enjoyment. Our reputation is built on precise electronic and mechanical
engineering, manufactured with carefully selected components and assembled by people who take pride in
their work. Once you discover the quality, reliability, and value we have built into this product, you too will be
proud to be a member of our family.
E
N
G
L
I
S
H
Features
The following is a chart that shows additional functions due to combination with CA-TU7000U/CA-TU9000U.
Models
These operating Instructions explain how to operate the CY-VMD9000U in two systems:
≥ When you are using the CY-VMD9000U by itself
≥ When you are using the CY-VMD9000U in combination with the CA-TU7000U AV
control unit with receiver.
Function
For details on set up and connections, refer to the Operating Instructions for the CA-TU7000U.
If you will be using the CY-VMD9000U in combination with the CA-TU9000U multi channel AV control
unit with receiver, which is designed specifically for use with the CY-VMD9000U, refer to the Operating
Instructions for the CA-TU9000U.
Power output
Note:
≥ This book describes a connection with Panasonic car navigation system. However, Panasonic car navigation
system is not on the market at this moment (March 2001). Therefore, the descriptions with regard to
Panasonic car navigation system are marked with light gray belt (
)to distinguish them from others.
A note on screen displays:
≥ Most of the example screen displays shown in these Operating Instructions are for when the CY-VMD9000U
is being used by itself.
≥ If you are using the CY-VMD9000U in combination with the CA-TU7000U or CA-TU9000U, the contents of the
menus, etc., may differ somewhat.
Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, and 4,819,098, licensed for limited viewing uses only.
This product incorporates copyright protection technology that is protected by method claims of certain
U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this
copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is
prohibited.
E
N
G
L
I
S
H
CY-VMD9000U only
CY-VMD9000U r
CA-TU7000U
Applicable
CY-VMD9000U r
CA-TU9000U
Applicable
Radio (AM/FM)
Not applicable
CD changer control*1
Not applicable
Applicable
Applicable
0.7 W
45 Wa4 ch
45 Wa4 chi35 W
Not applicable
Applicable
Not applicable
Not applicable
Applicable
Applicable
Not applicable
Applicable
Not applicable
Applicable
≥ TONE (Bass/Treble)
≥ Balance/Fader
Applicable
≥ VTR input level
≥ Digital input setting
≥ Setting the speaker
≥ Speaker level
≥ Speaker delay time
≥ Dynamic range
compression rate
≥ Graphic equalizer
Priority to Navigation
When Navigation is
“ON”, the Navigation
audio is given priority.
Fixed to Navigation
Only the Navigation
audio is output.
Fixed to Navigation
Only the Navigation
audio is output.
Speaker volume
Adjusts the volume of
the supplied speaker.
Volume
Adjusts the volume of
the external speakers
connected to the unit.
Volume
Adjusts the volume of
the external speakers
connected to the unit.
Applicable
Connect the optical
fiber cable (sold
separately).
Applicable
Connect the optical
fiber cable (sold
separately).
Loudness
Private mode*
2
External input setting
(MAIN-IN FRONT/REAR)
Sound setting
Output of the speaker
supplied with CY-VMD9000U
≥ Cannot be used for a
center speaker.
Volume adjustment
Optical digital
connections
Not applicable
Not applicable
*1 A CD changer is optional.
*2 A function that mutes the sound from the rear speakers connected to the front monitor (this unit) when you
have different modes at the front and rear monitor after connecting the rear monitor.
4
CY-VMD9000U
CY-VMD9000U
5
Contents
E
N
G
L
I
S
H
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
E
N
G
L
I
S
H
❒ Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Where to get service help, troubleshooting tips, error display messages,
reset switch
❒ Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
❒ Use this Product Safely. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
ID code, ID code input
❒ Components/Remote Control Unit Preparation . . . . . . . . . . . . . . . . . 18
❒ Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
To prevent damage to the system exterior, clean dirt by wiping lightly with
a soft cloth, notes on discs
❒ Name of Controls and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
❒ Definition of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
❒ Discs that can be Played Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Disc formats
❒ Language Code List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
❒ Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
❒ General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Power, mode, volume, mute, display open/close, monitor position
adjustment
❒ Basic Disc Operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Disc insert and playback, mode selection, stop and disc eject, selecting a
menu item, listening to DVD/video CD, listening to CD
❒ CD Changer Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
CD changer mode, disc selection, track selection, track search, various way
of listening
❒ Radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Radio mode, band, tuning, one-touch selection of a station
FM
❒ Useful Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Private mode, VCR/camcorder, rear view camera, rear monitor, car
navigation, aspect ratio
❒ User Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Monitor position, navigation set up, rear view camera set up, clock setting,
ID code setting, button operation sound, video control setting, main input
❒ Display (Screen) Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Dimmer, contrast, brightness, color, tint
❒ DVD Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
DVD menu language, subtitle language, audio language, display aspect and
DVD software mode
❒ Sound Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Bass/treble, balance/fader, dynamic range compression, tone enhancement
❒ Installation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Mounting the display unit, control unit, speaker, removing the display unit
❒ Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Wiring diagram, connection with CA-TU9000U/CA-TU7000U, CD changer
(CX-DP88U), VCR, camcorder, rear monitor, connecting the side brake
(parking brake) connection lead, connection with rear view camera
6
CY-VMD9000U
CY-VMD9000U
7
Use this Product Safely
E
N
G
L
I
S
H
WARNING:
TO AVOID RISK OF SERIOUS INJURY OR POSSIBLE VIOLATION OF LAWS, NOT FOR USE
WHERE VISIBLE TO DRIVER FOR ANY PURPOSE OTHER THAN NAVIGATION OR USE
WITH REAR VIEW CAMERA.
1
When Driving:
≥ The driver must not operate the color LCD monitor. Operating the color LCD monitor may lead to carelessness and cause an accident. Stop your car in a safe location when operating the unit.
≥ The driver must not watch videos while driving. It may lead to carelessness and cause an accident.
≥ Keep the unit at an appropriate sound level. Driving with the sound at a level that prevents you from hearing sounds outside and around the car may cause an accident.
When Driving
The driver must not operate the color LCD monitor. Operating the color LCD monitor may lead to distraction and
cause an accident. Stop your car in a safe location when operating the unit.
When Car Washing
Do not expose the product, including the speakers and discs, to water or excessive moisture. This could cause
electrical shorts, fire, or other damage.
E
N
G
L
I
S
H
This system is designed so that you cannot see picture
from VCR, and other devices while you are driving.
00
2
≥ Park your car in a safe place with pulling the side brake (parking brake)
lever before watching the monitor.
≥ Picture can be seen on the second monitor.
Note:
≥ Be sure to connect the side brake (parking brake) connection lead.
(➡ page 78)
Cautions:
≥ Picture might not be displayed, or it might take more time than usual to display picture in low temperature. Also, movement of picture might become labored, or picture quality might become deteriorative in
low temperature. [Practicable temperature: 32 °F to 104 °F (0 °C to 40 °C)]
≥ Do not touch the LCD (liquid crystal display).
If you touch the LCD, your fingerprints are conspicuous because the surface of the LCD was specially
processed.
≥ In some cases, noise is generated. It depends on the position or direction of a cellular phone.
Change the position or direction of the cellular phone, or keep it away from the unit.
ID Code
When Parked
Parking in direct sunlight can produce very high temperatures inside your car. Give the interior a chance to cool
down before switching the unit on.
Use the Proper Power Supply
This product is designed to operate off a 12 V DC, negative ground battery system (the normal system in a North
American car).
Disc Mechanism
Do not insert coins or any small objects. Keep screwdrivers and other metallic objects away from the disc mechanism and disc.
Protect the DVD Software
When you leave the car, be sure to eject the disc from this unit and bring it out.
Use Authorized Servicenters
Do not attempt to disassemble or adjust this precision product. Please refer to the Servicenter list including with
this product for service assistance.
Prior to operating this unit, it is a advisable to assign your 4-digit ID code for security. (Make sure to use four
digits for ID code. ID code cannot be set with two or three digits.)
Once the ID code has been set, the unit cannot be operated if the main power supply is disconnected then reconnected. It is electrically locked so that a thief could not use the stolen unit unless that person knows the code
you have set.
The ID code operation must be performed only by the person whom the unit belongs to.
Generally, it is not necessary to enter the ID code each time when using the unit if it has never been disconnected from the main power supply (car battery). For the ID code setting procedures, see pages 50, 51.
Cautions:
≥ Record your registered ID code and keep it in a secure location. If you forget it, you will be unable to use
the unit.
≥ In case that you cannot operating the unit because of forgetting the ID code, please consult your nearest
Panasonic Servicenter.
For Installation
This product should be installed in a horizontal position with the front end up at a convenient angle, but not more
than 30x.
The user should bear in mind that in some areas there may be restrictions on how and where this unit must be
installed. Consult your dealer for further details.
ID Code Input
Enter the ID code after turning on the power and activating the display.
Success
Note:
≥ When fail in entering ID code, a screen on the right is displayed and the unit
beeps three times.
Enter a correct ID code.
In case of failing in entering ID code three times consecutively, the power is
turned off. Turn on the power again and enter a correct ID code in this case.
16
CY-VMD9000U
CY-VMD9000U
17
Components/Remote Control Unit Preparation
E
N
G
L
I
S
H
Name of Controls and Functions
E
N
G
L
I
S
H
Display Unit
Components
[ ] (OPEN/CLOSE)
≥ Opens/closes the monitor.
(➡ page 24)
3
00
4
Panasonic
[TILT]
≥ Shows the monitor position
setting menu.
≥ Tilts the monitor forward temporarily.
(➡ page 25)
P• MODE
DISC/BAND
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
NAVI
ASPECT
ASP
ENTER
TRACK/
TUNE
P•MODE
≥ Display unit (1)
≥ Control unit (1)
≥ Speaker (1)
≥ Remote control
unit (1)
≥ Battery (1)
≥ Installation
hardware
(screws, cords,
etc. )
(➡ page 62)
≥ Power connector
(1)
≥ Wiping cloth (1)
Dimmer sensor
(➡ page 54)
["] [#] (DISC/BAND)
≥ Selects a disc or a band*1.
(➡ pages 32, 34)
≥ Selects (vertically) or adjusts
an operation or item.
Disc slot
≥ Operating instruc- ≥ Warranty card, etc.
tions (1)
Remote control
sensor
Remote Control Unit Preparation
DISC/BAND
VOLUME
MUTE
MENU
Battery Installation (Inserting/Replacing the Battery)
1
2
3
Remove the battery holder.
Pull the holder by the position B while pushing position A in
the direction indicated by the arrow.
Install the battery on the battery holder.
Set a new battery properly with its (i) side facing up as
shown in the figure.
Insert the battery holder.
Push in the battery holder back into its original position.
Back side
[#] ["] (VOLUME)
≥ Adjusts the sound volume.
(➡ page 24)
Position A
Battery Notes
Battery holder
Remove and dispose of an old battery immediately.
Battery Information:
Position B
≥ Battery type: Panasonic lithium battery (CR2025) (supplied)
≥ Battery life: Approximately 6 months with normal use (at room temperature)
Caution:
≥ Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire.
Battery leakage may damage the unit.
≥ Do not disassemble or short the battery. Do not throw a battery into a fire.
≥ Keep batteries away from children to avoid the risk of accidents.
≥ Be careful to the local disposal rules when you dispose of batteries.
[MUTE] (LOUDNESS)*2
≥ Mutes the sound temporarily.
(➡ page 24)
≥ Compensate bass and treble in the
low and middle volume level.*2
(➡ page 60)
[MENU]
≥ Shows the menu screen.
(➡ page 44)
≥ Shows the rear monitor setting
menu. (➡ page 38)
[MODE] (POWER)
≥ Switches on/off the power.
≥ Changes the modes such as sound and
picture.
(➡ page 24)
MODE
POWER
NAVIGATION
ASPECT
NAVI
ASP
P•MODE
ENTER
TRACK/
TUNE
[%] [$] (TRACK/TUNE)
≥ Selects or searches a track or
a frequency*1.
(➡ pages 32, 34)
≥ Selects
(horizontally)
or
adjusts an operation or item.
[ENTER]
≥ Searches for broadcast stations and memorizes them
automatically.*1 (➡ page 35)
≥ Determines an operation or
item.
[<] (EJECT)
≥ Ejects a disc. (➡ page 26)
[ASP] (ASPECT) (P•MODE)*1
≥ Selects the aspect ratio. (➡ page 42)
≥ Activates/inactivates the private mode.*1
(➡ page 36)
[NAVI] (NAVIGATION)
≥ Activates/inactivates the car navigation. (➡ page 40)
*1 When connected to CA-TU7000U/9000U.
*2 When connected to CA-TU7000U.
Note:
≥ See page 71 about the name of the controls and functions of the control unit.
18
CY-VMD9000U
CY-VMD9000U
19
Name of Controls and Functions (Continued)
E
N
G
L
I
S
H
E
N
G
L
I
S
H
Remote Control Unit of the DVD/Video CD/CD Playback
(Operation only for the remote control)
Remote Control Unit
5
Aim the remote control unit at the remote control sensor of the
display unit and operate it.
Meaning of symbols
DVD VIDEO
VIDEO
CD
CD
6
Indicates the compatible types of disc.
DISC/BAND
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
[NAVI] (NAVIGATION)
≥ Activates/inactivates the car navigation. (➡ page 40)
NAVI
ASPECT
ASP
ENTER
TRACK/
TUNE
[MODE]
≥ Switches on/off the power.
≥ Changes the modes such as sound and picture.
(➡ page 24)
[MENU]
≥ Shows the menu screen. (➡ page 44)
≥ Shows the rear monitor setting menu.
(➡ page 38)
[PWR]
≥ Switches on/off the power.
(➡ page 24)
["] [#] (DISC/BAND)
≥ Selects a disc or a band*1.
(➡ pages 32, 34)
≥ Selects (vertically) or adjusts
an operation or item.
["] [#] (VOL)
≥ Adjusts the sound volume.
(➡ page 24)
[[ [ ] (PAUSE)
≥ Pause
[1] (PLAY)
≥ Playback
DVD
[:] [9]
≥ Go to beginning
≥ Fast forward/fast backward
≥ Slow playback [9]
(➡ page 28)
DVD
[A] (ASPECT) (P•MODE)*1
≥ Selects the aspect ratio. (➡ page 42)
≥ Activates/inactivates the private mode.*1
(➡ page 36)
[0] to [9]
≥ Sets the ID code. (➡ page 50)
≥ Memorize broadcast stations.*1 (➡ page 35)
≥ Selects listening item for the CD changer mode.*1 (➡ page 33)
CY-VMD9000U
VIDEO
CD
VIDEO
CD
[MODE]
≥ Changes the modes such as sound and picture.
(➡ page 24)
DVD V
[DVD] (DVD MENU) VIDEO
≥ Displays the DVD menu.
(Operations vary according to
the disc.) (➡ page 29)
VIDEO
[RET] (RETURN) VIDEO CD
≥ Returns to the previous display.
≥ Inputs the number again.
≥ Displays the video CD’s menu.
(➡ page 27)
VIDEO
["] [#] [%] [$] VIDEO CD
≥ Selects an operation or item.
[ENTER]
≥ Searches for broadcast stations and
memorizes them automatically.*1
(➡ page 35)
≥ Determines an operation or item.
20
VIDEO
CD
To stop the playback: CD
Change the mode or turn the
power off.
P• MODE
* When connected to CA-TU7000U/9000U.
*2 When connected to CA-TU7000U.
DVD
[∫] (STOP) VIDEO
≥ Stop playback
Playback will start automati- CD
cally when the disc is inserted.
[%] [$] (TRACK/TUNE)
≥ Selects or searches a track or a frequency*1. (➡ pages 31, 32, 34)
≥ Selects (horizontally) or adjusts an operation or item.
1
DVD
P•MODE
P• MODE
[ENTER]
≥ Determines an operation or
item.
[MUTE] (LOUDNESS)*2
≥ Mutes the sound temporarily.
(➡ page 24)
≥ Compensates bass and treble in
the low and middle volume
level.*2 (➡ page 60)
DVD
[DRC]
VIDEO
(DYNAMIC RANGE COMPRESSION)
≥ Compresses the range of the playback level. (➡ page 60)
[%] [$] CD
≥ Selects a track.
≥ Fast forward/fast backward
(➡ page 31)
DVD
[REP] (REPEAT) VIDEO
≥ Repeats a playback.
(➡ pages 28, 31)
VIDEO
CD
DVD
[TITLE] (TITLE/CHAPTER) VIDEO
≥ Selects the title/chapter. (➡ page 29)
CD
DVD
[0] to [9] VIDEO
≥ Selects listening item on the menu. (➡ page 27)
≥ Selects a title or chapter. (➡ page 29)
VIDEO
[0] to [9]
CD
≥ Selects listening item on the menu. (➡ page 27)
≥ Selects a track. (➡ page 27)
≥ Switches between stereo or monaural sound.
(➡ page 30)
[SUB] (SUB TITLE)
≥ Switching the subtitle language. (➡ page 30)
[ANGLE]
≥ Switching the angle. (➡ page 30)
[AUDIO]
≥ Switching the audio language. (➡ page 30)
Note:
≥ The following functions are activated when
connected to CA-TU9000U. (See the operating
instructions of CA-TU9000U.)
• SPACE • PRO LOGIC • DOWN MIX
CY-VMD9000U
21
Discs that can be Played Back
E
N
G
L
I
S
H
Mark (logo)
Disc
Disc size
Video format Region number
7
DVD video
NTSC
1
ALL
❒ When “
E
N
G
L
I
S
H
” is displayed
Input is not possible because a soundtrack, subtitle language or angle number which
was not recorded on the disc has been selected or because the use has attempted to
perform an operation which is not supported by the unit.
8
5q (12 cm)
Video CD
NTSC
3q (8 cm)
Disc Formats
CD
❒ Region management information
Example:
DVD
VIDEO
❒ LPCM (Linear PCM)
This product is designed and manufactured to respond to the region management information that is recorded on a DVD disc. If the region number described
on the DVD disc does not correspond to the region number of this product, this
product cannot play the disc.
You can play discs with labels containing the region number “1” and “ALL”.
VIDEO
CD
CD
In this format, the audio signal is converted to digital data and recorded
in two channels without compression. Because the capacity of a DVD
video disc is large, it can store more data with better accuracy than a CD.
Note:
≥ “LPCM” is displayed only for DVD video discs.
DVD
VIDEO
❒ Symbols used on jackets (Examples of such symbols include)
❒ Dolby Digital
≥ Number of subtitle languages
This fully discrete format divides the music signals into 5.1 channels:
Front Left (L), Front Right (R), Center (C), Left Surround (LS), Right
Surround (RS) and Subwoofer (SW: 0.1 channel) for recording and playback. The number of channels that are recorded depends on the software. (1 to 5.1 channels)
Note:
≥ The supplied speaker only outputs the audio from the Front Left (L),
Front Right (R), and Center (C) channels.
≥ Number of audio tracks
Screen size (H:V aspect ratio)
≥ 4:3 standard size
≥ Letterbox
≥ Number of angles
The numbers indicate the number of languages, tracks, angles, etc., recorded on the
disc.
LB
4:3
(➡ page 89)
≥ 16:9 wide size
16:9 LB : Plays back in letterbox format on a
standard screen (4:3).
16:9 PS : Plays back in “Pan & Scan” (➡
page 89) format on a standard
screen (4:3).
Note:
≥ The size of the image that is displayed on the
screen depends on the screen mode of the CYVMD9000U (“Aspect Ratio” ➡ page 42), and on
the screen size for the content on the disc.
❒ Surround Format
DVD
VIDEO
PRO • LOGIC
This format records signals from four channels [Front Left (L), Front
Right (R), Center (C), and Monaural Surround (S)] in two channels,
decodes those channels through a Dolby Pro Logic decoder, and then
outputs the resulting signals in four channels.
❒ The following discs cannot be played back on this product.
≥ DVD-Audio
≥ CD-R
≥ DVD-ROM
≥ DVD-RAM
≥ DVD+RW
≥ DVD-RW
≥ dts DVDs
≥ DVD-R
≥ SVCD
≥ CVD
≥ CD-G
≥ CD-ROM
≥ CD-RW
≥ VSD
≥ SACD
≥ dts CDs
≥ CDV
≥ photo CD
≥ Divx video discs
≥ CD-EXTRA (audio-only playback possible)
≥ Discs recorded in PAL format, others
≥ DVDs with a region number other than “1” or “ALL”
≥ Playing back a CD-R disc or a photo CD disc with this unit could damage the data that is recorded on
the disc.
≥ This unit cannot play back a “dts CD” correctly.
22
CY-VMD9000U
Notes:
≥ If “DTS” is selected in the disc settings while playing back a DVD video disc, the audio will not be output.
Change the disc setting to “Dolby Digital” or “PCM”.
(For details on how to change this setting, refer to the instructions provided with the disc.)
≥ dts playback is possible if the CY-VMD9000U is connected to the CA-TU9000U multi channel AV control
unit with receiver (sold separately).
CY-VMD9000U
23
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
