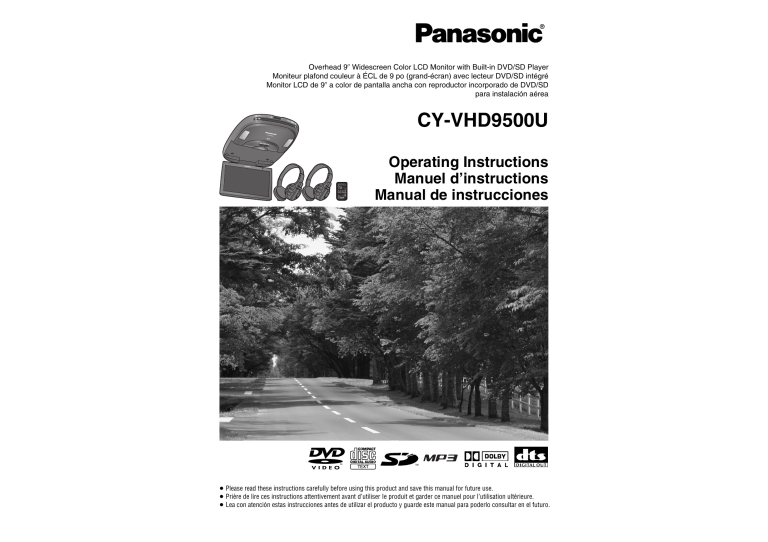

Overhead 9q Widescreen Color LCD Monitor with Built-in DVD/SD Player
Moniteur plafond couleur à ÉCL de 9 po (grand-écran) avec lecteur DVD/SD intégré
Monitor LCD de 9q a color de pantalla ancha con reproductor incorporado de DVD/SD
para instalación aérea
CY-VHD9500U
Operating Instructions
Manuel d’instructions
Manual de instrucciones
≥ Please read these instructions carefully before using this product and save this manual for future use.
≥ Prière de lire ces instructions attentivement avant d’utiliser Ie produit et garder ce manuel pour l’utilisation ultérieure.
≥ Lea con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el futuro.
E
N
G
L
I
S
H
Panasonic welcomes you to our ever growing family of electronic product owners. We know that
this product will bring you many hours of enjoyment. Our reputation is built on precise electronic and
mechanical engineering, manufactured with carefully selected components and assembled by people
who take pride in their work. Once you discover the quality, reliability, and value we have built into this
product, you too will be proud to be a member of our family.
To ensure proper operation, please carefully read through these instructions as well as the installation
instructions provided separately.
Warnings
The main unit must never be operated
directly (for instance, inserting or
ejecting discs or adjusting the monitor
angle) while the vehicle is moving.
Forbidden
CY-VHD9500U
Operating Instrunctions
It may result in an accident and/or
injury in a case where the brakes are
suddenly applied or when the vehicle
accelerates suddenly.
To avoid the risk of serious injury or
possible violation of laws, not for use
where visible to driver for any purpose
other than use with rear view camera (or
navigation).
It may lead to distraction and cause
an accident.
Forbidden
The driver must not operate this
product, watch the monitor or use the
IR wireless headphones while driving.
Do not expose the product to excessive
heat.
It may lead to distraction and cause
an accident.
CY-VHD9500U
Installation Instrunctions
Safety Information
The following provides an explanation of rules that should always be observed in order to prevent harm to
the user and to others and to prevent damage to your property.
The level of damage and risk that may occur when a rule is ignored and the player is used improperly is
divided into the following categories.
Warning
This mark indicates that, “There is a risk of serious injury or death”.
Caution
This mark indicates that, “There is a risk of injury or physical
damage”.
The types of rules are divided into the following categories.
(The following is only a portion of the picture marks.)
This type of picture mark indicates something that you should not do,
i.e. “Forbidden”.
This picture mark indicates something that you must do, i.e.
“Compulsory”.
2
CY-VHD9500U
E
N
G
L
I
S
H
At the time of operation
This could cause the product to start
smoking or ignite, or cause electrical
shock or other malfunction in some
cases.
Forbidden
Forbidden
Do not use the product where it will get
wet, or where there is a lot of moisture
or dust.
Do not leave the remote control unit
lying around.
This could cause the product to start
smoking or ignite, or cause electrical
shock or other malfunction in some
cases.
Forbidden
In particular, take care that the
product will not get wet when the car
is washed or when it rains.
Do not place SD memory cards and
batteries within the reach of children.
There is a risk that children
could swallow the SD memory
card/batteries. If a child does swallow
the SD memory card/batteries,
Forbidden
contact your doctor immediately.
If, when the remote control unit has
been left on the driver’s seat side,
it gets under your feet and slides
under the brake pedal while you are
Forbidden
driving, this could interfere with your
driving and lead to a traffic accident.
Do not use the product when it is
broken or there is some abnormality.
In the unlikely event that the product
breaks (such as when no image is
displayed or there is no sound) or
there is some abnormality (such
Forbidden
as when a foreign object is inside
the product, water was spilled on
it, smoke comes out or the product
emits a strange smell), immediately
stop using the product and be sure
to contact the store from which you
purchased your product or a nearby
Panasonic Servicenter.
Continuing to use the product in that
condition could cause accidents, fire
or electrical shock.
CY-VHD9500U
3
E
N
G
L
I
S
H
Safety Information (continued)
Warnings
Do not, under any circumstances,
install the product in a place where the
driver’s ability to drive the car or the
driver’s field of vision will be impaired.
Installing the product in a place
where it will interfere with the
driver’s field of vision either in front
or behind or in a place where it will
Forbidden
interfere with the driver’s ability
to drive the car may lead to traffic
accidents and/or injury.
Have a professional technician wire
and install the product.
Professional skill and experience
is required to wire and install the
product. Improper installation could
result in failure of safety equipment
resulting in accident and injury.
For safety’s sake, always ask the
store from which you purchased the
product to install and wire it for you.
Use in DC 12 V - grounded vehicles.
This product is only for DC 12 V grounded vehicles. It cannot be used
in DC 24 V vehicles (such as large
trucks, diesel vehicles designed for
cold climates, etc.).
Using this product in such vehicles
could cause fire or other malfunction.
Be sure to disconnect the battery’s terminal while wiring and installing the
product.
Warnings
At the time of installation
Install the product securely so that it
will not shift out of place or drop down.
Loose screws or insecure installation
may cause the product to shift out
of position or drop down, etc. while
the car is moving, resulting in an
accident and/or injury.
Do not disassemble, repair or modify
the product.
Do not disassemble, repair or
modify the product, or cut the cord
to connect it to the power supply
for another device. This could
Disassembly
cause fire, electrical shock or other
Forbidden
malfunction.
Never use the car’s safety equipment
for installing or grounding the product.
Using the bolts, nuts and screws of
the car’s safety equipment (steering
and brake systems, fuel tank, etc.)
could cause accidents. Follow
Forbidden
the instructions and only use the
accessories provided with the product
and the specified parts.
Do not install the product in a position
where it will interfere with the
operation of the air bag.
The air bag may fail to operate
properly or the main unit or its parts
could become dislodged and end
up flying through the air by an air
Forbidden bag which has opened, causing an
accident and/or injury.
Be sure to use fuses with the prescribed
capacity. Have a professional
technician replace the fuses.
Using fuses that exceed the
prescribed capacity could cause
the product to start smoking, ignite
or otherwise malfunction. For
replacement and repair of fuses,
contact the store from which you
purchased your product or a nearby
Panasonic servicenter.
Contact your car dealer or manufacturer
to determine the required procedure
and strictly follow their instructions
before attempting installation of this
product if your car is equipped with air
bag and/or anti-theft systems.
Specific procedures may be required
for connection and disconnection
of the battery to install this product.
Failure to follow the procedure may
result in the unintended deployment
of air bags or activation of the
anti-theft system resulting in damage
to the car and personal injury.
Install the product after checking the
position of the car’s pipes, tank and
electrical wiring.
When opening holes in the car body
to install the product, be careful not
to touch or interfere with the pipes,
tank or electrical wiring. Doing so
could cause fire or accidents.
E
N
G
L
I
S
H
At the time of installation
Always use the accessories provided
with the product and the specified parts.
Using parts other than those
specified could damage the inside
of the product or cause the product
to not be securely fastened and
thus come loose, which could cause
accidents, malfunction or fire.
Do not install the product in a location
where it will be subject to heavy
vibration or in an unstable location.
Installing the product in a sloping
location or on a noticeably curved
surface, etc. may cause the product
to shift out of position or drop down,
Forbidden etc. while the car is moving, resulting
in an accident and/or injury.
Follow the instructions to install and
wire the product.
Not following the instructions to
properly install and wire the product
could cause accidents or fire.
Run the cords so that they do not
interfere with driving or with entering
or exiting the car.
Run the cords so that they do not
wrap around the steering wheel,
gearshift, brake pedal, etc. or around
your legs, and secure all the cords
together. Not doing so could cause
accidents or injury.
Doing the wiring and installation
with the battery’s - terminal still
connected could cause electrical
shock and injury due to a short
circuit accidents.
4
CY-VHD9500U
CY-VHD9500U
5
E
N
G
L
I
S
H
Safety Information (continued)
Cautions
Use the product at the proper volume
setting.
Driving when you are unable to hear
sounds around you or from outside
the car can cause accidents.
When using IR wireless headphones,
keep the volume level down, and avoid
using IR wireless headphones for
prolonged periods of time.
Do not insert foreign objects into the
SD memory card or disc slot.
Putting metal objects like coins or
things that burn easily inside the
product could cause short circuits
or insulation failure, leading to fire,
Forbidden
electrical shock or other malfunction.
Be particularly careful that children
follow this rule.
Do not put fingers inside moving parts
or in the disc loading slot.
Otherwise, your sense of hearing
may become impaired. If you
experience a ringing in your ears,
reduce volume or discontinue use.
Forbidden
Do not leave a disc/SD memory card
which is not completely housed inside
the product in place.
Otherwise, the disc may drop down,
hitting your face, eye or other part of
the body and causing injury.
Do not allow anybody’s hands or fingers
or any other objects to be sandwiched
or wedged between the main unit and
monitor.
Forbidden
Doing so may cause an accident,
injury and/or malfunctioning.
Be particularly careful that children
follow this rule.
Doing so may cause an accident,
injury and/or malfunctioning.
Forbidden
When the temperature inside the vehicle
is high such as on a hot summer’s
day, cool off the inside of the vehicle
sufficiently by, for instance, turning on the
air conditioner before using this product.
If the temperature inside the vehicle
is still high, the product itself may
become hot enough to burn you if
you touch it.
Do not play discs in the wrong or
damaged format.
For instance, if you add the “.mp3”
extension to a file which is not
formatted as an MP3 file, a loud
Forbidden noise will be heard through the
speakers, possibly damaging them
and hurting your eardrums.
6
CY-VHD9500U
Inserting fingers could cause injury
or malfunction.
Be particularly careful that children
follow this rule.
Do not hit the product with your hands or
objects. When getting into or out of the
vehicle, do not bump your belongings or
luggage against the product.
Forbidden
Do not swing from the product or pull it.
Forbidden
Cautions
At the time of operation
Doing so may cause an accident,
injury and/or malfunctioning.
Be particularly careful that children
follow this rule.
Avoid keeping the dome lights on for
prolonged periods. And remember to
turn the dome light switch to OFF or
DOOR when you leave the car.
At the time of operation
Stop play immediately if you start to
feel unwell in playing video games etc.
on the unit’s screen.
For health reasons, avoid playing
video games etc. for prolonged
periods of time.
Otherwise, it will consume battery
power and may prevent the engine
from starting.
Do not expose the remote control unit
and IR wireless headphones to direct
sunlight.
E
N
G
L
I
S
H
Do not watch the monitor with the
engine off for prolonged periods.
Otherwise, it will consume battery
power and may prevent the engine
from starting.
Otherwise, it may cause battery
leakage or malfunctioning.
Forbidden
Forbidden
Proper Use of the Batteries
Remote control unit: Lithium battery (CR2025/1F)
IR wireless headphones: Manganese R03, AAA, UM-4 dry cells
Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury
or a fire. Battery leakage may damage the product.
Do not mix old and new batteries. (IR wireless headphones)
Do not use alkaline dry cells. (There is the danger of liquid leakage.)
Do not recharge, disassemble, deform or heat the batteries. Do not put them in fire or
water. Do not place them in contact with metal objects.
Forbidden
Do not leave the battery or the remote control unit containing the battery in places where
the temperature is extremely high (such as inside cars with all the windows closed, or
inside the car trunk, places where the sun shines directly on it, or near the heater). Such
misuse/abuse can cause the batteries to burst, rupture, leak or overheat causing fire and
damage to property or injury.
Only use the specified batteries.
Insert the batteries with the + and - ends as shown on the battery case.
Immediately replace used up batteries.
When not using the remote control unit for a long period of time, remove the battery.
Insulate the batteries when disposing of or storing them. (Put them in a plastic bag or
wrap them with tape or something.)
Obey local ordinances when disposing of the batteries.
What to do if a battery has leaked (R03, AAA, UM-4 dry cells)
Carefully wipe up all the electrolyte on the battery case, and then replace the leaking battery with a new
one. If your body or clothing has made contact with the electrolyte, wash it off thoroughly with water.
If some of the electrolyte should find its way into your eyes, do not rub them but immediately wash
them with water, and consult a doctor.
CY-VHD9500U
7
E
N
G
L
I
S
H
Safety Information (continued)
Cautions
Caution for replacing the bulb of the dome light
Before connecting the product with
another device, consult the operating
instructions of the device concerned to
ensure that the product and device will
be connected properly.
Incorrect connections may cause
accidents and/or malfunctioning.
Failure to heed this caution may
result in an accident and/or injury.
Cautions
Wire breaks and short circuits can
cause electrical shock or fire.
Run the cords so that they do not get
tangled in the moving parts (such as
Forbidden
the seat rails), screws or car body.
Do not damage, pull too hard, fold,
twist, or work on the cords. Do
not place the cords near heating
appliances or put heavy objects on
the cords.
Install the monitor in a position where
it will not hit anybody’s head when it
opens and closes.
To prevent damage to the unit, be sure to follow the connection diagram.
Do not connect the power connector to the unit until the wiring is completed.
When connecting stripped wires, be sure to wrap them securely with electrical tape to
prevent shorts.
Bundle all cables and keep cable terminals free from touching any metal parts.
Wear gloves for installation work to
protect yourself from injuries.
Failure to heed this caution may
result in an accident and/or injury.
Take care that the wiring is not pinched
or caught by the base plate attached to
the roof or any other parts.
Failure to heed this caution may
result in an accident and/or injury.
Do not damage the cords.
At the time of installation
Caution for electrical connections:
Ask a qualified specialist to do this job.
While you are replacing a bulb, be absolutely sure to keep the dome light switch at OFF.
Otherwise, you may burn yourself.
The bulb is very hot to the touch while it is lighted and immediately after it has gone off.
Before attempting to replace it, turn the dome light switch off, wait several minutes and
then check that it cooled off.
Use a bulb with the specified ratings (12 V/5 W). Do not use any other bulb.
Gripping the bulb with too much force may break it. Wear fingerstalls or use some other
anti-slip method when replacing it.
If an RCA or similar cord is to be
connected to the product, adjust its
position and length so that it will not
become entangled or come into contact
with your body. After use, be absolutely
sure to disconnect it from the product.
Cautions
At the time of operation or installation
E
N
G
L
I
S
H
Failure to heed this caution may
result in an accident and/or injury.
As you cut the headliner, take care
not to cut your fingers. Also take care
not to damage any other areas of the
headliner.
Failure to heed this caution may
result in an accident and/or injury.
At the time of installation
Take care not to injure your fingers with
the power drill or other tool you are
using. Also take care not to damage the
wiring near the ceiling panel.
Failure to heed this caution may
result in an accident, injury and/or
malfunctioning.
Do not poke your fingers between the
ceiling and this product.
Failure to heed this caution
may result in an injury and/or
malfunctioning of the product.
Failure to heed this caution may
result in an accident and/or injury.
Wear goggles or protective eyewear to
shield your eyes from airborne metal
particles during drilling.
Before installing the unit, be absolutely
sure to check that the screws do not
make any contact with the ceiling
panel.
If some space is required between
the base plate and the unit, attach
and adjust the under cover. For
details on installing the under cover,
consult your dealer.
NO WARRANTY
Panasonic shall have no liability for reduction in safety or any accident caused by installing this
product. We shall not guarantee any auto parts damaged during installation.
Forbidden
8
CY-VHD9500U
CY-VHD9500U
9
E
N
G
L
I
S
H
Notes on Use
When Listening with IR Wireless
Headphones
≥ Even if your headphones are the open-air type
designed to let you hear outside sounds, do not
turn up the volume so high that you can not hear
what is around you.
≥ Sound can be deceiving. Over time your hearing
comfort level adapts to higher volumes of sound.
So what sounds normal can actually be loud and
harmful to your hearing. Guard against this by
setting your equipment at a safe level BEFORE
your hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it
comfortably and clearly, and without distortion.
≥ Once you have established a comfortable sound
level, set the dial and leave it there.
≥ Do not attempt to adjust the size while wearing
headphones. (You may find that your hair is pulled
as it becomes entwined with the headphones.)
≥ There may be breaks in the sound or noise may
be heard if the headphones are used at a distance
from this unit (display) or if obstructions block
the infrared rays. These problems are caused by
characteristics which are inherent in infrared rays,
and thus are not indicative of any malfunctioning.
≥ Make sure that the infrared sensor window is not
covered by your hands or hair.
≥ Since these headphones use infrared rays for
operation, avoid using them in direct sunlight.
≥ When playing DVD video recordings and listening
to their sound through IR wireless headphones,
the sound may be heard at a low level even
after the volume of the IR wireless headphones
has been turned up. In a case like this, stop
playing the disc, and then change the DRC
(Dynamic Range Compression) setting among
the DVD video settings (page 82) to “Minimum”
or “Standard”. However, depending on a disc’
s format and content (music DVD, etc.), you
may feel that the sound is not being reproduced
properly. If this is the case, keep the DRC setting
at OFF.
≥ When listening to sound through headphones,
the volume level is a little lower compared
with listening to sound which is delivered from
speakers through an external device.
10
CY-VHD9500U
Liquid Crystal Panel
≥ Storage temperature range: `4 °F to 176 °F
(`20 °C to 80 °C)
When the liquid crystal panel reaches high
temperatures or low temperatures, chemical
changes occur within the liquid crystal panel
which may cause malfunctions.
≥ Do not strongly impact the liquid crystal panel.
≥ When the temperature is very cold or very hot,
the image may not appear clearly or may move
slowly. Also, movement of the image may seem
to be out of synchronization or the image quality
may decline in such environments. Note that this
is not a malfunction or problem.
Usage temperature range: 32 °F to 104 °F
(0 °C to 40 °C)
≥ There may be red spots, blue spots and green
spots on the panel surface. This is a characteristic
of liquid crystal panels and is not a problem. The
liquid crystal panel is built with very high precision
technology and has at least 99.99 % effective image
pixels. Be aware that on 0.01 % of the panel there
may be missing pixels or constantly light pixels.
Spots
≥ In order to protect the liquid crystal panel, keep it
out of direct sunlight while the unit is not in use.
≥ Sudden changes in the temperature inside the car
such as those which occur immediately after the
car’s air conditioner or heater has been turned on
may cause the inside of the liquid crystal panel
to cloud over due to water vapor or it may cause
condensation (droplets of water) to form and, as
a result, the panel may not work properly. Do not
use the unit while these symptoms are in evidence
but leave the unit standing for about an hour, and
then resume or start use.
Protect Disc and SD memory Card
≥ When you leave the car, be sure to eject the
disc/SD memory card from this unit and bring it
out.
When not Using the Product
≥ Lock the monitor in the fully closed position.
≥ If the display unit cannot be locked, be absolutely
sure to consult your dealer and remedy the
situation.
Dimmer Sensor
≥ This unit automatically adjusts the screen
brightness in accordance with the brightness of
its surroundings. However, the dimmer sensor
may not function properly if it is exposed directly
to sunlight or other strong sources of light.
E
N
G
L
I
S
H
Exemption from Liability
≥ The manufacturer will not be liable in any way for
any incidental damages (such as loss of business
income or changes or loss of memory data)
which may result from the use of or failure to use
this product.
≥ The terms and conditions of the warranty which
accompanies the product do not apply when the
product is operated in a vehicle which is used for
business purposes (such as a bus, taxi cab or
commercial vehicle).
≥ No guarantees can be made for the numerical
values which have been set in the product when
those values have been changed as a result of
misuse of the product by the user or any third
party or of the effects of static or electrical noise
or of malfunctioning or repairs.
≥ The manufacturer will not be liable in any way for
the loss, destruction or erasure of SD card data
which is a result of improper handling.
The following applies only in the U.S.A.
CAUTION:
NOTICE:
THIS PRODUCT IS A CLASS I LASER
PRODUCT.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
This product has a fl uorescent lamp that
contains a small amount of mercury. It
also contains lead in some components.
Disposal of these materials may be regulated
in your community due to environmental
considerations.
For disposal or recycling information
please contact your local authorities,
or the Electronics Industries Alliance:
<http://www.eiae.org>
Find the model number and serial number on either the back or bottom of the unit. Please record them in the
space below and retain this booklet as a permanent record of your purchase to help with identification in case
of theft.
MODEL NUMBER
SERIAL NUMBER
DATE PURCHASED
FROM
CY-VHD9500U
CY-VHD9500U
11
E
N
G
L
I
S
H
Installation Guide
Features
For details on installation, refer to the installation instructions provided separately.
Safety Installation Diagram
≥ This unit opens and closes at the maximum dimensions given below.
9 inch Flip-down Overhead Monitor
In response to increasing demand for rear seat
entertainment systems, we have developed the
flip-down overhead monitor. This is a large 9 inch
wide screen model.
Built-in DVD Video Player (page 56)
Approximately 515/16q (150 mm)*
Installation angle: Less than 20˚
Approximately
1113/16q
(300 mm)
Maximum Approximately
120˚
1113/16q
(300 mm)
This player can play back DVD video discs, video
CDs, music CDs and MP3 (CD-R/RW) discs.
Built-in SD Player (page 66)
This player can play back data recorded on SD
memory card (hereafter referred as “SD card”) as
still pictures, moving pictures, music or voice for
instance.
Built-in IR Transmitter for Wireless
Headphones (page 52)
An infrared transmitter built into the overhead
monitor beams the sound signal to listeners
wearing wireless headphones (2 sets supplied)
permitting front and rear passengers to enjoy
separate program material. With wireless
headphones (hereafter referred as “IR wireless
headphones”), listeners are free to move about in
their seats and groove to the beat without tangled
cords.
Game Position (page 64)
* Install the product in such a way as to maintain
the distances shown even when the display unit
is rotated by 30˚ toward the front seat headrest
(page 50).
WARNING:
Have a professional technician wire and install the product.
Professional skill and experience is required to wire and install the product. Improper installation
could result in failure of safety equipment resulting in accident and injury.
For safety’s sake, always ask the store from which you purchased the product to install and wire it for
you.
12
CY-VHD9500U
E
N
G
L
I
S
H
2 sets of VTR Input Terminals and 1 set
each of VTR Output and Video Output
Terminals
With these terminals on this unit you can enjoy
many different kinds of images including ones
from game players, camcorders and other video
units. What’s more, the images on the unit’s
screen can be output to the front seat monitor.
Digital Audio Output Terminal for
Upgrading to Dolby Digital and dts
Surround (page 14)
When the unit is connected with a digital
surround processor and used in combination with
a subwoofer and center speaker, you can enjoy
Dolby Digital or dts 5.1 channel audio play.
Monitor Position and Angle Adjustment
Functions (page 50)
The screen can be adjusted up to 120 ˚ toward the
viewers or away from them and up to 30 ˚ to their
left or right to position it exactly where they want
it to be.
Blue ceiling reflected illumination
(page 46)
The blue ceiling reflected illumination serves as
indirect lighting to light up the unit.
The remote control unit features a GAME button to
enable games to be enjoyed with the best image
quality when a game player has been connected
to the unit. When the button is pressed, the
brightness and contrast are automatically
switched to the dedicated game settings.
CY-VHD9500U
13
E
N
G
L
I
S
H
System Upgrade
Discs/Cards that can be Played Back
Recommended system
Disc
Mark (logo)
Disc size
Video format
(system which outputs the sound from the speakers through the front seat car audio unit)
DVD video
Rear speaker (option)
Front speaker (option)
NTSC
CY-VHD9500U
Another external device
(e.g. VCR, option)
CQ-C9800U
CD player/receiver (option)
Front speaker (option)
Rear speaker (option)
Mark (logo)
Front speaker (option)
CQ-VA707WEUC
In-dash LCD
Monitor/Receiver (option)
Center speaker
(EAB-CF2, option)
CY-AC300
Digital surround
processor (option)
Rear speaker (option)
Another external device
(e.g. game machine, option)
CY-VHD9500U
Subwoofer (option)
Another external device
(e.g. VCR, option)
Front speaker (option)
Rear speaker (option)
Simple system
(independent rear seat system which uses the accessory IR Wireless Headphones)
1, ALL
SD card
*CD-DA: A general music CD format
Note:
≥ About CD-Rs and CD-RWs, refer to “Notes on
CD-Rs/RWs” (page 94).
≥ About SD cards, refer to “Notes on SD Cards” (page 66).
Region Management Information
Advanced system (Dolby Digital/dts 5.1ch output system)
LPCM,
MPEG1/MPEG2,
Dolby Digital
LPCM (CD-DA*),
MP3
CD
Card
Region No.
LPCM (CD-DA*),
MPEG1
5q (12 cm)
Video CD
Audio format
E
N
G
L
I
S
H
This product is designed and manufactured to
respond to the Region Management Information that
is recorded on a DVD disc. If the Region number
described on the DVD disc does not correspond
to the Region number of this product, this product
cannot play the disc.
The Region number for this product is
“1” and “ALL”.
Example:
Symbols used on jackets (examples of such symbols include)
: Play back in letter box format on a
≥ Number of subtitle languages
standard screen (4:3).
≥ Number of audio tracks
: Play back in “Pan & Scan” (page 97)
≥ Number of angles
format on a standard screen (4:3).
The numbers indicate the number of languages,
tracks, angles, etc., recorded on the disc.
Note:
≥ The size of the image that is displayed on the
Screen size (H:V aspect ratio)
screen depends on the screen mode (“Aspect
≥ 4:3 standard size
Ratio”, page 84), and on the screen size for the
≥ Letterbox
(page 97)
content on the disc.
≥ 16:9 wide size
The following discs cannot be played back on this product.
CY-VHD9500U
IR Wireless
Headphones
(supplied)
14
CY-VHD9500U
≥ DVD-Audio
≥ DVD-ROM
≥ DVD-R
≥ DVD-RAM ≥ DVD_RW
≥ DVD-RW ≥ SVCD
≥ VSD
≥ CVD
≥ CD-G
≥ CD-ROM (except MP3)
≥ CD-RW (except MP3 and CD-DA)
≥ CD-R (except MP3 and CD-DA)
≥ SACD
≥ photo CD
≥ CDV
≥ Divx Video Discs
≥ CD-EXTRA (audio-only playback possible)
≥ Discs recorded in PAL format, others
≥ DVDs with a region number other than “1” or “ALL”
≥ Playing back a photo CD disc with this unit could damage the data that is recorded on the disc.
CY-VHD9500U
15
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
