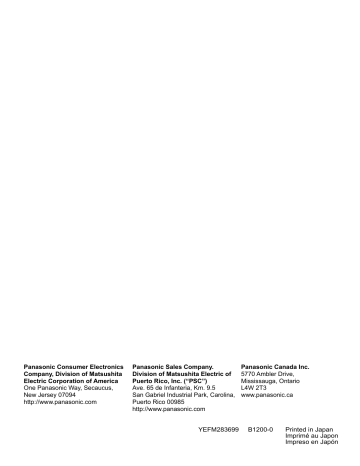

Panasonic Consumer Electronics

Company, Division of Matsushita

Electric Corporation of America

One Panasonic Way, Secaucus,

New Jersey 07094 http://www.panasonic.com

Panasonic Sales Company.

Division of Matsushita Electric of

Puerto Rico, Inc. (“PSC”)

Ave. 65 de Infanteria, Km. 9.5

San Gabriel Industrial Park, Carolina,

Puerto Rico 00985 http://www.panasonic.com

Panasonic Canada Inc.

5770 Ambler Drive,

Mississauga, Ontario

L4W 2T3 www.panasonic.ca

YEFM283699 B1200-0 Printed in Japan

Imprimé au Japon

Impreso en Japón

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / PLAYER

VOLUME

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

ENTER

DISC/BAND

TRACK/

YUNE

1

4

2

5

3

7

8

A

6

9

0

In-dash 7 Wide Color LCD Monitor / CD Player

Moniteur grand écran couleur 7 à écran à cristaux liquides - lecteur de CD intégré en tableau de bord

Monitor LCD en color de pantalla ancha de 7" emportrado/Reproductor de CD

®

CY-VMC7000U

Operating Instructions

Manuel d’instructions

Manual de Instrucciones

¡

Please read these instructions carefully before using this product and save this manual for future use.

¡

Prière de lire ces instructions attentivement avant d’utiliser le produit et garder ce manuel pour l’utilisation ultérieure.

¡

Lea con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el futuro.

2

E

N

G

L

I

S

H

Safety Information

Label Indication and Location

Display Unit

Control Unit

Model No.

N

°

De Modèle

CY-VMC7000U

1 2 V

8

5 A

Manufactured by Matsushita Communication

Industrial Co., Ltd.

Yokohama Japan Made in Japan

Serial No.

N

°

De Série

Model No.

N

°

De Modèle

YEPOFX4425

(CY-VMC7000U)

(CY-VMD9000U)

1 2 V

Manufactured by Matsushita Communication

Industrial Co., Ltd.

Yokohama Japan Made in Japan

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS PRODUCT TO

RAIN OR MOISTURE.

CAUTION:

THIS PRODUCT IS A CLASS

I

LASER PRO-

DUCT.

USE OF CONTROLS OR ADJUSTMENTS OR

PERFORMANCE OF PROCEDURES OTHER

THAN THOSE SPECIFIED HEREIN MAY RESULT

IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR

YOURSELF. REFER SERVICING TO QUALI-

FIED PERSONNEL.

Laser products:

Wave length: 780 nm

Laser power: No hazardous radiation is emitted with safety protection.

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, USE ONLY THE INCLUDED COMPO-

NENTS.

CAUTION:

PLEASE FOLLOW THE LAWS AND REGULA-

TIONS OF YOUR STATE, PROVINCE OR

COUNTRY FOR INSTALLATION OF THE UNIT.

Find the model number and serial number on either the back or bottom of the unit. Please record them in the space below and retain this booklet as a permanent record of your purchase to help with identification in case of theft.

MODEL NUMBER

CY-VMC7000U

SERIAL NUMBER

DATE PURCHASED

FROM

CY-VMC7000U

Consignes de sécurité

MISE EN GARDE:

POUR RÉDUIRE LES RISQUES D’INCENDIE OU

D’ÉLECTROCUTION, N’EXPOSEZ PAS CET APPAREIL

À LA PLUIE OU À L’HUMIDITÉ.

ATTENTION:

CET APPAREIL EST UN PRODUIT LASER DE CLASSE

I .

L’UTILISATION DE COMMANDES OU RÉGLAGES OU

L’EXÉCUTION D’OPÉRATIONS AUTRES QUE CELLES

QUI SONT INDIQUÉES DANS CE DOCUMENT PEU-

VENT RÉSULTER EN UNE EXPOSITION À UN RAYON-

NEMENT DANGEREUX.

N’OUVREZ PAS LES COUVERCLES ET N’ESSAYEZ

PAS D’EFFECTUER VOUS-MÊME DES RÉPARATIONS.

ADRESSEZ-VOUS À UN PERSONNEL QUALIFIÉ POUR

TOUTE RÉPARATION.

Produits laser:

Longueur d’onde: 780 nm

Puissance du laser: Aucune radiation dangereuse n’est

émise avec la protection de sécurité.

AFIN DE PRÉVENIR TOUT RISQUE D’INCENDIE,

UTILISER UNIQUEMENT LES COMPOSANTS FOUR-

NIS.

ATTENTION :

OBSERVEZ LES LOIS ET REGLEMENTS DE

VOTRE DEPARTEMENT, PROVINCE OU PAYS

POUR L’INSTALLATION DE L’APPAREIL.

Il est recommandé de noter, dans l’espace prévu cidessous, les numéros de modèle et de série inscrits soit à l’arrière soit sous le fond de l’appareil, et de conserver ce manuel comme mémorandum de l’achat afin de permettre l’identification de l’appareil en cas de vol.

NUMÉRO DE MODÈLE

CY-VMC7000U

NUMÉRO DE SÉRIE

DATE DE L’ACHAT

VENDEUR

Información para su seguridad

ADVERTENCIA:

PARA REDUCIR EL RIESGO DE INCENDIOS O SACU-

DIDAS ELÉCTRICAS, NO EXPONGA ESTE PRODUCTO

A LA LLUVIA NI A LA HUMEDAD.

PRECAUCIÓN:

ÉSTE ES UN PRODUCTO LÁSER DE LA CLASE

I

.

LA UTILIZACIÓN DE CONTROLES, EL HACER

AJUSTES O EL SEGUIR PROCEDIMIENTOS DISTIN-

TOS DE LOS ESPECIFICADOS EN ESTE MANUAL

PODRÍA CAUSAR UNA EXPOSICIÍON PELIGROSA A

LA RADIACIÍON.

NO ABRA LAS CUBIERTAS NI HAGA REPARACIONES

USTED MISMO. SOLICITE LOS TRABAJOS DE SERVI-

CIO AL PERSONAL CALIFICADO.

E

S

P

A

Ñ

O

L

F

R

A

N

Ç

A

I

S

Productos láser:

Longitud de onda: 780 nm

Potencia láser: Con protección de seguridad no se emite radiación peligrosa.

PARA REDUCIR EL RIESGO DE INCENDIOS O SACU-

DIDAS ELÉCTRICAS, UTILICE SOLAMENTE LOS

COMPONENTES INCLUIDOS.

PRECAUCIÓN:

RESPETE LAS LEYES Y REGULACIONES DE

SU ESTADO, PROVINCIA O PAÍS PARA LA

INSTALACIÓN DEL APARATO.

Busque el número del modelo y el número de serie ya sea en la parte trasera o en el fondo de la unidad.

Sírvase anotar dichos números en el espacio siguiente, y mantenga este librete como una anotación permanente de su compra para ayudar en la identificación en el caso de robo.

NÚMERO DEL MODELO

CY-VMC7000U

NÚMERO DE SERIE

FECHA DE COMPRA

NOMBRE DE LA TIENDA

CY-VMC7000U

3

E

N

G

L

I

S

H

Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product will bring you many hours of enjoyment. Our reputation is built on precise electronic and mechanical engineering, manufactured with carefully selected components and assembled by people who take pride in their work.

Once you discover the quality, reliability, and value we have built into this product, you too will be proud to be a member of our family.

Features

Integration of the monitor and CD player

7-inch wide LCD display

Delivers images of high quality and superb color reproduction.

Fully powered display positioning mechanism (except for lateral angle)

Positioning of the display unit is fully power driven. This includes extending the unit, raising it to upright position, adjusting its vertical (tilt) angle and moving it to the front and rear.

The lateral angle to the right and left can be adjusted manually.

ID code setup

4-digit ID code for increased security.

Built-in automatic dimmer

The brightness of the screen is automatically adjusted in response to surrounding brightness.

External extension terminal

¡

Two video input (on the control unit side)

You can connect a car navigation system, DVD player, VCR, camcorder and rear view camera with this unit if they have video output type terminal.

¡

One video output (on the control unit side)

You can connect another monitor for passengers in the rear seat. (You can enjoy a map of the car navigation on the front monitor, and passengers in the rear seat can enjoy video picture on the rear monitor at the same time. )

¡

One pre-out cord (on the display unit side)

You can connect this unit with 1 DIN audio unit.

Note: This book describes a connection with Panasonic Car Navigation System. However, Panasonic Car

Navigation System is not on the market at this moment (Febuary 2000). Therefore, the descriptions with regard to Panasonic Car Navigation System are marked with light gray belt to distinguish them from others.

4

You can organize more advanced system by integrating an optional AV control unit with receiver (CA-TU7000U).

Refer to instructions supplied with devices that are connected to this unit for further information such as operations and connections if you integrate an AV control unit with receiver.

CY-VMC7000U

Contents

Safety Information .......................................................................................... Page 2

Features .................................................................................................................. 4

¢

Use This Product Safely

............................................................................ 10

¢

Components / Remote Control Preparation

.......................................... 12

Components, Battery Installation and battery notes

¢

Name of Controls and Functions

............................................................. 13

Name of buttons and its functions

¢

General

.......................................................................................................... 14

Power, mode change, volume, mute, display open/close and monitor position adjustment

¢

CD Player

...................................................................................................... 16

Loading/ejecting a disc, CD play, track selection, search, repeat, random and scan

¢

Picture / Sound from Auxiliary Devices

................................................. 18

Car navigation system, DVD player, VCR / camcorder, rear view camera and rear seat monitor.

¢

Useful Functions

......................................................................................... 22

Aspect ratio change

¢

User Settings

................................................................................................ 24

Monitor position, navigation setup, rear view camera setup, clock setting, ID code setting, button operation sound and video control setting

¢

Display Settings

.......................................................................................... 32

Dimmer, contrast, brightness, color and tint

¢

Installation Guide

........................................................................................ 34

Step-by-step procedures

¢

Electrical Connections

............................................................................... 42

Cautions and cable wiring diagram

¢

Troubleshooting

.......................................................................................... 48

Where to get service help, troubleshooting tips, error display messages and reset switch

¢

Maintenance

................................................................................................. 53

Care of the unit and notes on CD

¢

Specifications

.............................................................................................. 55

CY-VMC7000U

5

E

N

G

L

I

S

H

I

S

H

E

N

G

L

1

Use This Product Safely

WARNING:

TO AVOID RISK OF SERIOUS INJURY OR POSSIBLE VIOLATION OF

LAWS, NOT FOR USE WHERE VISIBLE TO DRIVER FOR ANY PURPOSE

OTHER THAN NAVIGATION OR USE WITH REAR VIEW CAMERA.

When Driving

¡

The driver must not operate the color LCD monitor. Operating the color LCD monitor may lead to carelessness and cause an accident. Stop your vehicle in a safe location when operating the unit.

¡

The driver must not watch videos while driving. It may lead to carelessness and cause an accident.

¡ Keep the unit at an appropriate sound level. Driving with the sound at a level that prevents you from hearing sounds outside and around the vehicle may cause an accident.

When Driving

Keep the volume level low enough to be aware of road and traffic conditions.

When Car Washing

Do not expose the product, including the speakers and CDs, to water or excessive moisture. This could cause electrical shorts, fire, or other damage.

When Parked

Parking in direct sunlight can produce very high temperatures inside your vehicle. Give the interior a chance to cool down before switching the unit on.

Use the Proper Power Supply

This product is designed to operate with a 12 volt, negative ground battery system (the normal system in a North American car.)

Disc Mechanism

Do not insert coins or any small objects. Keep screwdrivers and other metallic objects away from the disc mechanism and disc.

Use Authorized Servicenters

Do not attempt to disassemble or adjust this precision product. Please refer to the Servicenter list included with this product for service assistance.

For Installation

The product should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30˚.

10

CY-VMC7000U

This system is designed so that you can not see picture from VCR, DVD player, and other devices while you are driving.

¡ Park your car in a safe place and engage the parking brake lever before watching the monitor.

¡ Picture can be seen on the second monitor.

Note:

Be sure to connect the parking brake connection lead. ( a page 46)

Cautions

¡ Picture might not be displayed, or it might take more time than usual to display picture in low temperature.

Also, movement of picture might become labored, or picture quality might become deteriorate in low temperature. (practicable temperature: 0 °C - 40 °C)

¡ Do not touch the LCD (liquid crystal display).

If you touch the LCD, your fingerprints will be conspicuous because the surface of the LCD was specially processed.

¡

In some cases, noise is generated. It depends on the position or direction of a cellular phone.

Change the position or direction of the cellular phone, or keep it away from the unit.

ID Code

Prior to operating this unit, it is a advisable to assign your 4-digit ID code for security. (Make sure to use

four digits

for ID code. ID code can not be set with two or three digits.)

Once the ID code has been set, the unit cannot be operated if the main power supply is disconnected then re-connected. It is electronically locked so that a thief could not use the stolen unit unless that person knows the code you have set.

The ID code operation must be performed only by the person whom the unit belongs to.

Generally, it is not necessary to enter the ID code each time when using the unit if it has never been disconnected from the main power supply (car battery). For the ID code setting procedures, see pages 28 to 29.

Caution:

Record your registered ID code and keep it in a secure location. If you forget it, you will be unable to use the unit. In case that you can not operate the unit because of forgetting the ID code, please consult your nearest

Panasonic Servicenter.

ID Code Input

Enter the ID code after turning on the power and activating the display.

I

S

H

E

N

G

L

2

Success

Note:

When failing in entering ID code, a screen on the right is displayed, and the unit beeps three times. Enter a correct ID code.

In case of failing in entering ID code three times consecutively, the power is turned off. Turn on the power again and enter a correct ID code in this case.

11

CY-VMC7000U

I

S

H

E

N

G

L

3

Components / Remote Control Preparation

Components

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / PLAYER

VOLUME

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

ENTER

DISC/BAND

TRACK/

YUNE

1

1. Display Unit 2. Control Unit

1

3. Speaker

1

1

4

7

2

5

3

8

6

9

0

A

4. Remote Control

1

5. Batteries

2

XXXXXXXXXXXXXXX

XXXXXXXXXXXXXXXXX

XXXXXXXXXXXXXX

XXXXXXXXXXXXXXXX

OO-OOOOO

1 set ( a page 34)

6. Installation

Hardware

7. Power Connector

1

8. Wiping Cloth

1

9. Operating

Instructions

Remote Control Preparation

Battery Insertion

1. Open the battery holder cover.

Lightly depress the cover and slide it out.

2. Insert the battery.

Insert batteries in the correct direction, making sure that their positive (+) and negative (–) ends match the same symbols in the battery holder.

3. Replace the cover.

The cover is fixed in place with a click.

1

10. Warranty Card, etc.

(−)  (+)

−

+

(+)

+

−

(−)

12

Battery Notes

¡ Battery type:

¡ Battery life:

Batteries to be used: Two manganese UM4 AAA dry cells (R03) (do not use alkaline dry cells.)

About 5 months under normal conditions of use. (Manganese dry cells at normal temperature)

Caution: Improper use of batteries may cause overheating, explosion or ignition, resulting in injury or fire. Battery leakage may cause damage to the unit.

¡

Do not disassemble or short the batteries. Do not throw the batteries into a fire.

¡ To avoid the risk of an accident, keep the batteries away from children.

¡

To store batteries, insulate them with tape or the like. Contact with metallic objects or other batteries can cause ignition or rupture.

¡ If the batteries are used in the wrong way, there is the danger of liquid leakage, rupture, injuries, and failure. (Insert batteries correctly with respect to their positive (+) and negative (–) ends.)

Caution:

When decayed, follow the rules and regulations of your country.

CY-VMC7000U

Name of Controls and Functions

Display Unit

Dimmer sensor

( a page 32)

[TILT]

¡ Shows the monitor position setting menu. ( a page 15)

¡ Tilts the monitor forward temporarily.

( a page 15)

CD slot

Remote control sensor

[

}

] [

{

] (VOLUME)

¡ Adjusts the sound volume. ( a page 14)

[MUTE]

¡

Mutes the sound temporarily. ( a page 14)

VOLUME

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

DISC/BAND

ENTER

TRACK/

YUNE

[ ] (OPEN/CLOSE)

¡ Opens/closes the monitor. ( a page 14)

[

}

] [

{

] (DISC/BAND)

¡

Selects (vertically) or adjusts an operation or item.

[

]

] [

[

]

(TRACK/TUNE)

¡ Selects or searches a track.

( a page 16)

¡ Selects (horizontally) or adjusts an operation or item.

[ENTER]

¡ Determines an operation or item.

ENTER

ENTER

ENTER

[

u

]

¡

Ejects a CD. ( a page 16)

[ASP]

(ASPECT)

¡

Selects the aspect ratio. ( a page 22)

[MENU]

¡

Shows the menu screen. ( a page 24)

¡ Shows the rear monitor setting menu.

( a page 20)

[NAVI] (NAVIGATION)

¡ Activates/inactivates the navigation. ( a page 18)

Remote Control

Aim the remote control at the remote control sensor of the display unit and operate it.

[PWR]

¡ Switches on/off the power. ( a page 14)

[

}

] [

{

]

(VOLUME)

¡

Adjusts the sound volume.

( a page 14)

[MUTE]

¡

Mutes the sound temporarily.

( a page 14)

[MODE]

¡ Switches on/off the power. ( a page 14)

¡

Changes the modes such as sound and picture. ( a page 14)

[0] to [9]

¡

Selects listening pattern. ( a page 17)

¡ Sets the ID code. ( a page 28)

[MODE]

(POWER)

¡

Switches on/off the power. ( a page 14)

¡ Changes the modes such as sound and picture.

( a page 14)

[

}

] [

{

]

(DISC/BAND)

¡

Selects (vertically) or adjusts an operation or item.

[

]

] [

[

]

(TRACK)

¡

Selects or searches a track. ( a page 16)

¡ Selects (horizontally) or adjusts an operation or item.

[ENTER]

¡

Determines an operation or item.

1

4

7

2

3

5

8

6

9

0

A

[NAVI]

(NAVIGATION)

¡

Activates/inactivates the navigation.

( a page 18)

[MENU]

¡

Shows the menu screen. ( a page 24)

¡ Shows the rear monitor setting menu.

( a page 20)

[ ] (OPEN/CLOSE)

¡ Opens/closes the monitor.

( a page 14)

[A] (ASPECT)

¡ Selects the aspect ratio.

( a page 22)

I

S

H

E

N

G

L

4

13

CY-VMC7000U

I

S

H

E

N

G

L

5

General

[ ] (OPEN/CLOSE)

TILT

OPEN/CLOSE

VOLUME

CY-TU7000U

INDASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

MENU

POWER

[MODE]

(POWER)

[MUTE]

[

{

] [

}

] (VOLUME)

DISC/BAND

TRACK/

TUNE

ENTER

Mode

Press

[MODE]

to change the mode.

VTR1

VTR2

( a page 18)

( a page 18)

CD Player

( a page 16)

Turn the key in the ignition until the accessory indicator lights.

Power

ON

: Press

[MODE]

(POWER)

. (On the display unit)

Press

[PWR]

or

[MODE]

. (On the remote control)

OFF

: Press

[MODE] (POWER)

again for more than 2 seconds. (On the display unit)

Press

[PWR]

again or

[MODE]

again for more than 2 seconds. (On the remote control)

[MUTE]

[MODE]

[

}

] [

{

] (VOLUME)

[PWR]

(Power)

[ ] (OPEN/CLOSE)

1

4

7

2

3

5

8

6

9

0

A

Display Open / Close

OPEN

: Press

[ ] (OPEN/CLOSE)

.

If the unit stops halfway, press

[ ] (OPEN/CLOSE)

again and draw it all the way in.

Volume

[

}

]

(VOLUME)

:

Up

[

{

] (VOLUME) :

Down

CLOSE

: Press

[ ] (OPEN/CLOSE)

again.

(After return the lateral angle to the neutral position.)

Note:

When the display unit is opened or closed, a loud beep sounds three times.

Warning:

Do not insert hands, fingers or foreign objects into the unit while the display is moving.

Inserting your hands, fingers or foreign objects into the unit can cause injuries and damage to the unit.

Default : Volume 24 Setting Range : 0 to 40

Note:

The sound level for each source is stored in memory.

MUTE

MUTE ON

: Press

[MUTE]

.

MUTE OFF

: Press

[MUTE]

again.

14

CY-VMC7000U

Monitor Position Adjustment

Cautions:

¡ For smooth adjustment, make sure to first return the lateral angle to the neutral position and then adjust the tilt angle.

¡

Do not manually change the position of the unit by using force.

Tilt Angle / Front-Rear Position

[TILT]

1

Press and hold

[TILT]

on the display unit for more than 1 second.

I

S

H

E

N

G

L

6

VOLUME

[

}

] [

{

]

[

]

] [

[

]

(Adjust)

CY-V

MC7

000U

TILT

Monitor Position Setting Menu

MUTE

IN-DASH 7 WIDE COLOR LCD MONITOR / PLAYER

NAV

IGAT

ION

NAVI

ASPECT

ASP

MODE

POWER

MENU

DISC/BAND

ENTE

R

2

[

}

] [

{

]

Press

[

}

]

or

[

{

]

to adjust the tilt angle. Press

[

]

]

or

[

[

]

to move the display to the front or rear position.

[

]

] [

[

]

(Adjust)

Tilt Angle

Front-Rear Position

[

{

]

1 to 5

[

}

]

Front Rear

[

]

] [

[

] 3

1

4

2

5

6

9

Position "REAR" and tilt angle "5" cannot be selected at the same time.

Notes:

¡

Press

[MODE]

to return to the regular mode.

¡ The monitor position setting menu is automatically closed if no operation is performed for about 60 seconds.

¡

Vertical angle (TILT) and front-rear position data are saved in the memory, so when the display unit is drawn out next, it is automatically set at the angle and in the position adjusted before.

¡ After adjusting its angle, also adjust the brightness to make it easy for you to watch. ( a page 32)

¡

The display position can also be set on the main menu screen. ( a page 24)

Display Unit Lateral Angle Adjustment

Hold the display unit by the non-slip part in the upper half of it, and adjust its lateral angle.

TILT

Caution:

There is the danger of your fingers being pinched if you hold the unit by lower part. Hold the unit by the upper half of it, and move it carefully without applying undue force.

Folding Down the Display Temporarily

Fold Down

: Press

[TILT]

on the display unit.

Raise

: Press

[TILT]

again on the display unit.

Note:

Even when the unit is power off, you can fold down the display temporarily.

Caution:

Do not place any object on the display unit, or subject it to undue force.

CY-VMC7000U

15

I

S

H

E

N

G

L

7

CD Player

Mode Display

Track Number

Play Time

Disc Insert

Playback starts automatically.

Notes :

¡

Load a CD after making sure that there is no CD in the disc compartment. (If "NO DISC" is displayed while the CD mode is activated, you will find there is no CD in the compartment.)

¡ Loading a CD when the power is off will turn the power on.

16

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

DISC/BAND

VOLUME

MUTE MENU

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

Number of Track

The monitor shows

“Over B ” when the number of tracks is

21 or more.

[MODE]

[

]

] [

[

] (TRACK)

[

u

]

(Eject)

[

]

] [

[

]

(TRACK)

VOLU

ME MUTE

CY-V

MC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / PLAYER

MOD

E

POW

ER

ATIO

N

NAVIG

NAVI

ASPE

CT

ASP

DE

P·MO

DISC/BA

ND

ENTE

R

Label Side

Disc Eject

Press

[

u

]

to stop playback and eject the CD.

When CD is in the player

Press

[MODE]

to change to CD player mode and playback starts.

1

4

7

2

A

5

3

8

0

6

9

Track Selection

[

[

]

(TRACK)

: Next track

[

]

] (TRACK)

: Beginning of the current track

Previous track (Press twice.)

[MODE]

Track Search

Press and hold.

[

[

]

(TRACK)

: Fast forward

[

]

] (TRACK)

: Fast backward

Notes :

¡

You can play a CD even if the monitor is closed.

¡ If you leave a CD at the CD slot for approximately 30 seconds, the CD is loaded into the compartment automatically after loud beep is energized three times.

Cautions:

¡ Do not use irregularly shaped CDs.

¡

Do not insert foreign matter into the disc slots.

CY-VMC7000U

Various Way of Listening

(Only on the remote control)

Press

[4]

(RANDOM)

Random Play

All the available tracks are played in a random sequence.

1

7

2

5

3

6

9

8

A

0

Press

[5] (SCAN)

Press

[4]

(RANDOM)

again to cancel.

Scan Play

The first 10 seconds of each track plays in sequence.

1

4

2

7

A

8

3

0

6

9

With the scanning of all tracks over, the original program starts playing from the beginning.

Press

Press

[6] (REPEAT)

[5]

(SCAN)

again to cancel.

I

S

H

E

N

G

L

8

Repeat Play

Repeat the current selection.

Press

[6] (REPEAT)

again to cancel.

2

1

4

7

5

8

3

A

0

9

CY-VMC7000U

17

I

S

H

E

N

G

L

9

Picture/Sound from Auxiliary Devices

Car Navigation

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

VOLUME

MUTE MENU

POWER

NAVIGATION ASPECT

ASP

P·MODE

ENTER

DISC/BAND

TRACK/

YUNE

[MODE] [NAVI]

(NAVIGATION)

Preparation:

¡ Connect a car navigation system.

¡

Select a terminal in the "NAVI SETUP" screen according to the terminal actually connected to the car navigation system.

( a page 24)

[MODE]

[NAVI] (NAVIGATION)

1

4

7

2

A

3

5

8

6

9

0

DVD Player

Preparation:

Connect a DVD player.

( a page 44)

18

CY-VMC7000U

When you connect a car navigation system through

RGB cord [Panasonic Car Navigation (not available yet)]:

Car Navigation ON :

Press

[NAVI] (NAVIGATION)

.

Car Navigation OFF :

Press

[NAVI]

(NAVIGATION)

again.

Note:

When you connect a Panasonic car navigation system with a built-in DVD player, use an RCA cord as well.

(Example)

DVD video/audio output

RGB: car navigation

I

S

H

E

N

G

L

10

Panasonic Car

Navigation System

VTR1-IN

CY-VMC7000U

Control Unit

VTR2-IN

CY-VMC7000U

Display Unit

RGB input cord

(Example)

Other brand’s car navigation system

When you connect a car navigation system to VTR1-

IN or VTR2-IN terminal (other brand’s car navigation system):

Car Navigation ON :

Press

[NAVI] (NAVIGATION)

.

Car Navigation OFF :

Press

[NAVI] (NAVIGATION)

again.

Or press

[MODE]

to change to the VTR1 or VTR2 mode.

Select the same mode (VTR1 or VTR2) as the terminal that connected to a car navigation system (VTR1-IN or VTR2-IN).

VTR1-IN

CY-VMC7000U

Control Unit

VTR2-IN

Press

[MODE]

to change to the VTR1 or VTR2 mode.

(Example)

Panasonic DVD

Player / Receiver

(CQ-DVR909U)

Select the same mode (VTR1 or VTR2) as the terminal that is connected to a DVD video player (VTR1-IN or VTR2-IN).

Note:

This unit is not equipped with a power amplifier. If you connect a DVD player / receiver equipped with a power amplifier (such as CQ-DVR909U) to this unit, you can enjoy powerful sound.

VTR1-IN

CY-VMC7000U

Control Unit

VTR2-IN

VTR-OUT

FRONT

CY-VMC7000U

19

I

S

H

E

N

G

L

11

Picture/Sound from Auxiliary Devices

(continued)

VCR / Camcorder

Preparation:

Connect a VCR or Camcorder.

( a page 46)

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

VOLUME

MUTE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[MENU] [MODE]

DISC/BAND

TRACK/

YUNE

[

]

] [

[

]

(Select)

[ENTER]

Rear View Camera

Preparation:

¡

Connect a rear view camera and a reverse lead. ( a page 47)

¡

Select a terminal in the "CAMERA IN" screen according to the terminal actually connected to the rear view camera. ( a page 26)

[

]

] [

[

]

(Select)

[ENTER]

[MODE]

1

2

3

5

4

7

A

8

0

6

9

[MENU]

Rear Seat Monitor

You can have different picture or sound at the front monitor and rear monitor at the same time.

Default : AUTO

Preparation:

Connect another monitor.

( a page 44)

20

CY-VMC7000U

Press

[MODE]

to change to the VTR1 or VTR2 mode.

Select the same mode (VTR1 or VTR2) as the terminal that is connected to a VCR or Camcorder (VTR1-IN or VTR2-IN).

(Example)

Camcorder

VTR1-IN

CY-VMC7000U

Control Unit

POWER

BS G-CODE

INTELLIGENT SYSTEM

VCR

VTR2-IN

Shift the transmission gear into the reverse position.

The display shows a picture from the rear view camera.

(Example)

Rear View Camera

Notes:

¡

You can see a picture from the rear view camera even if the power of the display unit is inactivated.

¡

You can a see picture from the rear view camera if you change the mode to the same one (VTR1 or VTR2) as the terminal to which the rear view camera was connected (VTR1-IN or VTR2-IN).

VTR1-IN

CY-VMC7000U

Control Unit

VTR2-IN

1

Press and hold

[MENU]

for more than 2 seconds.

(Example)

Rear Seat

Monitor

I

S

H

E

N

G

L

12

2

Rear Monitor Setting Menu

Press

[

[

]

or

[

]

]

to select an item.

AUTO

VTR1

VTR2

: Picture and sound come out. These are in the same mode as the front seat monitor.

: Picture and sound in the VTR1 mode always come out.

: Picture and sound in the VTR2 mode always come out.

Press

[ENTER]

to set.

VIDEO-OUT

CY-VMC7000U

Control Unit

3

Notes:

¡

Press

[MENU]

or

[MODE]

to return to the regular mode.

¡ The display returns to the previous one if there is no operation for 60 seconds, after changing to the rear monitor setting menu.

¡ Picture and sound from the car navigation system connected to an RGB are not available at the rear monitor.

¡ Sound in the CD mode is not available at the rear monitor.

CY-VMC7000U

21

I

S

H

E

N

G

L

13

Useful Functions

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

VOLUME

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

P·MODE

[ASP] (ASPECT)

ENTER

DISC/BAND

TRACK/

YUNE

Aspect Ratio

(for VTR Mode)

Default : Normal

Mode: 4 types

[A]

(ASPECT)

1

4

7

2

3

5

8

6

9

0

22

CY-VMC7000U

Press

[ASP]

(ASPECT)

on the display unit or press

[A]

(ASPECT)

on the remote control to change the aspect ratio as follows.

Normal

¡

The conventional display image has a 4 to 3 ratio of horizontal to vertical.

¡ In this case, a blank area remains on the right and left sides of the display.

I

S

H

E

N

G

L

14

Full

¡

The screen is extended horizontally as a whole to the aspect ratio of 16 to 9.

¡

The extension ratio is the same at any point of the screen.

Zoom

¡ The screen is fully extended at the normal aspect ratio of 4 to 3.

¡

The top and bottom of the screen are slightly cut.

Just

¡ The screen is extended horizontally to the aspect ratio of 16 to 9.

¡

The extension ratio increases toward the right and left ends of the screen.

Notes:

¡ This adjustment is common to VTR1 and VTR2.

¡

You can not change the aspect in the menu screen and a screen in the CD mode. These are fixed to “Full”.

¡ The “Zoom” and “Just” screens do not apply to car navigation images.

¡

When the rear view camera is in operation with the transmission gear shift in the reverse position, the image is shown on the “Full” screen only.

¡

In some cases, the picture looks different from the original one due to your selection of aspect.

Cautions:

¡ This is to remind you that compression or extension of the screen using the aspect ratio (screen mode) changing function of this product for commercial purpose of profit making or viewing / listening by the public could infringe on the rights of the author protected by the copyright law.

¡ If you expand normal picture (4 to 3) by using “Just”, “Zoom” or “Full” aspect to the full of the screen, you might not see the periphery of the picture, or you might see deformed picture. Therefore, use the “Normal” mode when you see original picture in deference to picture-making purpose.

CY-VMC7000U

23

I

S

H

E

N

G

L

15

User Settings

1

Press

[MENU]

to display the main menu.

2 q

Press

[

[

]

or

[

]

]

to select "USER".

Press

[

}

]

or

[

{

]

to select an item.

w

Press

[ENTER]

to set.

[MENU]

VOLUME

MUTE

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

ENTER

DISC/BAND

TRACK/

YUNE

[MODE]

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

VOLUME

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

DISC/BAND

TRACK/

YUNE

[

}

] [

{

]

[

]

] [

[

]

(Select)

[ENTER]

Monitor Position

Default : TILT...3

SLIDE...Front

Setting range : TILT...1 to 5

SLIDE...Front, Rear

Select

TILT / SLIDE

Select

USER

Navigation Set Up

Default : Navigation input...RGB

Speaker setting...AUTO

Note:

You can set the Navigation speaker setting when "RGB" is selected on Navigation input.

Select

NAVI SETUP

24

CY-VMC7000U

3 q w

Press adjust.

Press

VOLUME

[

[

]

,

[

]

]

[ENTER]

,

[

}

]

or to set. (for NAVI SETUP)

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

[

{

]

to select and

Notes:

¡ Press

[MODE]

to return to the regular mode.

¡

The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting / adjusting menu.

[

}

] [

{

]

[

]

] [

[

]

(Select and Adjust)

[ENTER]

DISC/BAND

TRACK/

YUNE

[MODE]

[

}

] [

{

]

[

]

] [

[

]

(Select and Adjust)

[ENTER]

1

4

7

2

5

3

6

8

9

A

0

[MENU]

I

S

H

E

N

G

L

16

The monitor position setting menu can also be displayed by pressing the

[TILT]

button on the display unit for more than 1 second. (For details, refer to page 15.)

Tilt Angle

Front-Rear Position

1 to 5

Tilting angle adjustment : 1 2 3 4 5

[

{

] [

}

]

Front Rear

[

]

] [

[

]

Front-rear position : FRONT REAR

Notes:

¡ For smooth adjustment, make sure to first return the lateral angle to the neutral position and then adjust the tilt angle.

¡ Front-rear position "REAR" and tilt angle "5" cannot be selected at the same time.

RGB

VTR1

VTR2

NAVI IN

Navigation Input

: Connected to the RGB input cord, or a car navigation system not connected

: Connected to the VTR1-IN

: Connected to the VTR2-IN

SP SETUP

OFF

Speaker Setting (Output setting of accessory speakers)

: Sound does not come out.

: The sound comes out in the same mode as the picture.

AUTO

NAVI : The sound from the Panasonic car navigation system (not available yet) always comes out.

25

CY-VMC7000U

I

S

H

E

N

G

L

17

User Settings

(continued)

1

Press

[MENU]

to display the main menu.

2 q

Press

[

[

]

or

[

]

]

to select "USER".

Press

[

}

]

or

[

{

]

to select an item.

w

Press

[ENTER]

to set.

[MENU]

VOLUME

MUTE

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

ENTER

DISC/BAND

TRACK/

YUNE

[MODE]

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

VOLUME

MUTE

MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

DISC/BAND

TRACK/

YUNE

[

}

] [

{

]

[

]

] [

[

]

(Select)

[ENTER]

Rear View Camera

Set Up

Default : OFF

Select

CAMERA IN

Select

USER

Clock Setting

Default : Clock display...OFF

Select

CLOCK

26

CY-VMC7000U

3 q

Press

[

[

]

,

[

]

]

,

[

}

]

or

[

{

]

to select and adjust.

w

Press

[ENTER]

to set.

VOLUME

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

MUTE

MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

Notes:

¡ Press

[MODE]

to return to the regular mode.

¡

The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting / adjusting menu.

[

}

] [

{

]

[

]

] [

[

]

(Select and Adjust)

[ENTER]

DISC/BAND

TRACK/

YUNE

[MODE]

[

}

] [

{

]

[

]

] [

[

]

(Select and Adjust)

[ENTER]

1

4

7

2

5

3

6

8

9

0

A

[MENU]

I

S

H

E

N

G

L

18

OFF

VTR1

VTR2

: Unconnected

: Connected to the VTR1-IN

: Connected to the VTR2-IN

Notes:

¡ Make sure to select “OFF” when no rear view camera is connected.

¡ In case using an optional rear view camera, the reverse lead must be connected. ( a page 47)

Clock Display

DISPLAY

OFF

Clock Display

: Clock display OFF

ON : Clock display ON ([12:00] is displayed before adjusting the clock.)

ADJUST

Clock Adjustment

Adjust the time (12-hour system).

Press

[

]

]

to adjust the hour.

Press

[

[

]

to adjust the minute.

Hold

[

]

]

or

[

[

]

to change numbers rapidly.

SEC RESET

Clock Re-adjustment

Reset the clock to zero seconds.

The clock display blinks once and clock starts.

[

]

]

hour advance

[

[

]

minute advance blinks once

27

CY-VMC7000U

I

S

H

E

N

G

L

19

User Settings

(continued)

1

Press

[MENU]

to display the main menu.

2 q

Press

[

[

]

or

[

]

]

to select "USER".

Press

[

}

]

or

[

{

]

to select an item.

w

Press

[ENTER]

to set.

[MENU]

VOLUME

MUTE

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

ENTER

DISC/BAND

TRACK/

YUNE

[MODE]

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

VOLUME

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

DISC/BAND

TRACK/

YUNE

[

}

] [

{

]

[

]

] [

[

]

(Select)

[ENTER]

28

ID Code setting

Prior to operating this unit, it is advisable to assign your 4-digit ID code for security.

(Make sure to use

four digits

for ID code. ID code can not be set with two or three digits.)

Once the ID code has been set, the unit cannot be operated if the main power supply is disconnected then re-connected. It is electronically locked so that a thief could not use the stolen unit unless that person knows the code you have set.

The ID code operation must be performed only by the person whom the unit belongs to.

Generally, it is not necessary to enter the ID code each time when using the unit if it has never been disconnected from the main power supply (car battery).

Caution:

Record your registered ID code and keep it in a secure location. If you forget it, you will be unable to use the unit. In case that you can not operate the unit because of forgetting the ID code, please consult your nearest Panasonic Servicenter.

Note:

Refer to ID Code Input regarding how to enter the ID code. ( a page 11)

Select

USER

CY-VMC7000U

Select

ID-CODE

3

Enter an ID code by using the remote control.

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

VOLUME

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

DISC/BAND

TRACK/

YUNE

[ENTER]

Note:

Press

[MODE]

to return to the regular mode.

I

S

H

E

N

G

L

20

[

}

] [

{

]

[

]

] [

[

]

(Select)

[ENTER]

[MODE]

[MENU]

A

[0]

to

[9]

(ID code input)

How to Set Your ID Code (For the First Time)

q

Enter an ID code of 4 digits using the buttons

[0]

to

[9]

on the remote control.

Note:

When you are setting your ID code for the first time, it is not necessary to enter the old ID code.

w

Enter the ID code of 4 digits again using the buttons

[0]

to

[9]

on the remote control.

How to Change Your ID Code

q

Enter the preset (old) ID code of 4 digits using the buttons

[0]

to

[9]

on the remote control. If the wrong ID code is entered, a new ID code cannot be registered.

w Enter a new ID code of 4 digits using the buttons

[0]

to

[9]

on the remote control.

e

Enter the new ID code of 4 digits again using the buttons

[0]

to

[9]

on the remote control.

How to Cancel the Known ID Code

Note:

Should your unit ever require service, cancel your

ID code before sending for repair.

q

Enter the preset (old) ID code of 4 digits using the buttons

[0]

to

[9]

on the remote control. If the wrong ID code is entered, it is not possible to cancel the ID code function.

w

Press and hold

[ENTER]

until display the

"Complete!".

The ID code cancelling procedure is completed. The unit now works without an ID code.

CY-VMC7000U

29

I

S

H

E

N

G

L

21

User Settings

(continued)

1

Press

[MENU]

to display the main menu.

2 q

Press

[

[

]

or

[

]

]

to select "USER".

Press

[

}

]

or

[

{

]

to select an item.

w

Press

[ENTER]

to set.

[MENU]

VOLUME

MUTE

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

ENTER

DISC/BAND

TRACK/

YUNE

[MODE]

Button Operation Sound

Default : ON

Video Control Setting

This “Video Control Setting” is required when you connect a Panasonic car navigation system with a built-in DVD player. (not available yet)

Default : VTR1

Select

USER

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

VOLUME

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

DISC/BAND

TRACK/

YUNE

[

}

] [

{

]

[

]

] [

[

]

(Select)

[ENTER]

Select

etc.

30

CY-VMC7000U

3 q

Press

[

[

]

,

[

]

]

,

[

}

]

or

[

{

]

to select.

w

Press

[ENTER]

to set.

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

VOLUME

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

DISC/BAND

TRACK/

YUNE

[

}

] [

{

]

[

]

] [

[

]

(Select)

[ENTER]

Notes:

¡ Press

[MODE]

to return to the regular mode.

¡

The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting / adjusting menu.

[

}

] [

{

]

[

]

] [

[

]

(Select)

[ENTER]

[MODE]

1

4

7

2

5

3

6

8

9

0

A

[MENU]

I

S

H

E

N

G

L

22

OFF

BEEP

Beep Setting

: Operation sound (Beep) OFF

ON

: Operation sound (Beep) ON

Note:

The loud beep is energized when opening or closing the display unit even if you select OFF for the beep setting.

VIDEO-CONT

Video Control Setting

VTR1

: Connected to the VTR1-IN

VTR2

: Connected to the VTR2-IN

Note:

Select a terminal connected to the DVD output terminal of a Panasonic car navigation system with a built-in DVD player (not available yet) through an RCA cord.

CY-VMC7000U

31

I

S

H

E

N

G

L

23

Display Settings

1

Press

[MENU]

to display the main menu.

2 q

Press

[

[

]

or

[

]

]

to select "SCREEN".

Press

[

}

]

or

[

{

]

to select an item.

w

Press

[ENTER]

to set.

[MENU]

VOLUME

MUTE

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

ENTER

DISC/BAND

TRACK/

YUNE

[MODE]

Dimmer

Default : AUTO

Contrast

Default : ± 0

Setting range : - 15 to + 15

Brightness

Default : ± 0

Setting range : - 15 to + 15

Color

Default : ± 0

Setting range : - 15 to + 15

32

Tint

Default : ± 0

Setting range : - 15 to + 15

CY-VMC7000U

Select

SCREEN

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

VOLUME

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

DISC/BAND

TRACK/

YUNE

[

}

] [

{

]

[

]

] [

[

]

(Select)

[ENTER]

Select

DIMMER

Select

CONTRAST

Select

BRIGHT

Select

COLOR

Select

TINT

3

Press

[

[

]

or

[

]

]

to select and adjust.

Notes:

¡ Press

[MODE]

to return to the regular mode.

¡

The display returns to the previous one if there is no operation for more than 60 seconds after changing to the setting / adjusting menu.

[

}

] [

{

]

[

]

] [

[

]

(Select and Adjust)

[ENTER]

DISC/BAND

TRACK/

YUNE

[MODE]

[

]

] [

[

]

(Select and Adjust)

[ENTER]

1

4

7

2

A

3

5

8

6

9

0

[MENU]

VOLUME

CY-VMC7000U

IN-DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

I

S

H

E

N

G

L

24

AUTO : Automatically adjusted according to ambient light intensity.

1 2 3 4

Press

[ENTER]

to set.

: Darker (1) to Brighter (4)

Decrease the contrast between black and white.

Increase the contrast between black and white.

Darken

Lighten the depth of color on the display

Emphasize red in the color image

Lighten

Deepen the depth of color on the display

Emphasize green in the color image

CY-VMC7000U

33

I

S

H

E

N

G

L

25

Installation Guide

WARNING

This installation information is designed for experienced installers and is not intended for non-technical individuals. It does not contain warnings or cautions of potential dangers involved in attempting to install this product.

Any attempt to install this product in a motor car by anyone other than qualified installer could cause damage to the electrical system and could result in serious personal injury or death.

34

Overview

This product should be installed by a professional.

However, if you plan to install this product yourself, your first step is to decide where to install it. The instructions in these pages will guide you through the remaining steps: (Please refer to the “WARN-

ING” statement above).

¡

Identify and label the car wires.

¡

Connect the car wires to the wires of the power connector.

Installation Hardware

No.

Item Diagram Qty

q

Trim Plate 1

1 w Mounting Collar e

Mounting Spring r

Rubber Pad t Mounting Bolt (M5) y Flange Nut (M6) u i

Washer Assembling Hex.Bolt

(M5 x 10 mm)

Washer Assembling Hex.Bolt

(M6 x 20 mm) o Rear Support Strap

!0

!1

Binding-Head Screw

(M5 x 6 mm)

Flat-Head Screw

(M5 x 6 mm)

CY-VMC7000U

2

4

1

1

1

2

1

1

1

¡

Install the unit in the dashboard.

¡

Check the operation of the unit.

If you encounter problems, please consult your nearest professional installer.

Caution: This unit operates with a 12 volt DC negative ground auto battery system only. Do not attempt to use it in any other system. Doing so could cause serious damage.

No.

!2

Item

Binding-Head Screw

(M4 x 3 mm)

!3

Spacer

!4

Double-Faced Adhesive

Tape (for spacer)

!5

Velcro Tape

Diagram Qty

4

2

1 set

2

!6

!7

Power Connector

Reverse Extension Cord

1

1

!8

Clip Connector

!9

@0

Display Unit/Control Unit

Connecting Cord

Double-Faced Adhesive

Tape (for speaker)

@1

Clamp 2

1

1

1

CY-VMC7000U

Before you begin installation, look for the items on the right which are packed with your unit.

¡

Warranty Card …… Fill this out promptly.

¡

Panasonic Servicenter for Service Directory

…… Keep for future reference in case the product needs servicing.

¡ Installation Hardware …… Needed for in-dash installation

Before Installation

Warning

¡

Do not install the monitor in a location which obstructs driving, visibility or which is prohibited by applicable laws and regulations. If the monitor is installed in a location which obstructs forward visibility or operation of the air bag or other safety equipment or which interferes with operation of the vehicle, it may cause an accident.

¡

Never use bolts or nuts from the vehicle's safety devices for installation. If bolts or nuts from the steering wheel, brakes or other safety devices are used for installation of the monitor, it may cause an accident.

¡

Attach the wires correctly. If the wiring is not correctly performed, it may cause a fire or an accident. In particular, be sure to run and secure the lead wire so that it does not get tangled with a screw or the moving portion of a seat rail.

¡

Use with 12 volt DC negative ground vehicle. This unit is only for use with a 12 volt DC negative ground vehicle. It cannot be used in large trucks or diesel vehicles which are 24 volt DC vehicles. If it is used in the wrong type of vehicle, it may cause a fire or an accident.

Caution

¡ Use the specified fuse. Be sure to always use the specified fuse. If a fuse other than the specified fuse is used, it may cause a fire or an accident.

¡

Do not damage the cord by pinching or pulling it.

Do not pull or damage the cord. If the cord is not treated properly, it will short out or be severed and may cause a fire or an accident.

Required Tools

You’ll need a screwdriver and the following:

12 V DC

Test Bulb

Electrical

Tape

Side-Cut

Pliers

Dashboard Specifications

THICKNESS

MIN. 3/16" (4.75 mm)

MAX. 7/32" (5.56 mm)

2-3/32" (53 mm)

7-5/32" (182 mm)

Identify All Leads

The first step in installation is to identify all the car wires you’ll use when hooking up your LCD monitor.

As you identify each wire, we suggest that you label it using masking tape and a permanent marker. This will help avoid confusion when making connections later.

Note: Do not connect the power connector to the display unit until you have made all connections. If there are no plastic caps on the hooking wires, insulate all exposed leads with electrical tape until you are ready to use them. Identify the leads in the following order.

I

S

H

E

N

G

L

26

CY-VMC7000U

35

I

S

H

E

N

G

L

27

Installation Guide

(continued)

Power Lead

If your car has a radio or is pre-wired for one :

Cut the connector wires one at a time from the plug

(leaving the leads as long as possible) so that you can work with individual leads. Turn the ignition on to the accessory position, and ground one lead of the test bulb to the chassis.

Important: Connect the red power lead last, after you have made and insulated all other connections.

Ground

Connect the black ground lead of the power connector to the metal car chassis.

Battery

Connect the yellow battery lead to the correct radio wire or to the battery fuse port on the fuse block.

Touch the other lead of the test bulb to each of the exposed wires from the cut radio connector plug.

Touch one wire at a time until you find the outlet that causes the test bulb to light.

Now turn the ignition off and then on. If the bulb also turns off and on, that outlet is the car power lead.

If your car is not wired for an audio unit :

Go to the fuse block and find the fuse port for accessory (ACC) or ignition (IGN).

Equipment

Connect any optional equipment such as an DVD video player according to the instructions furnished with the equipment. Read the operating and installation instructions of any equipment you will connect to this unit.

Power

Connect the red power lead to the correct car radio wire or to the appropriate fuse port on the fuse block.

If the LCD monitor functions properly with all these connections made, disconnect the wires and proceed to the final installation.

Battery Lead

If your stereo unit has a yellow lead, you will need to locate the car's battery lead. Otherwise you may ignore this procedure. (The yellow battery lead provides continuous power to maintain a clock, memory storage, or other functions.)

If your car has a radio or is pre-wired for one:

With the ignition and headlights off, identify the car battery lead by grounding one lead of the test bulb to the chassis and checking the remaining exposed wires from the cut radio connector plug.

If your car is not wired for an audio unit :

Go to the fuse block and find the fuse port for the battery, usually marked BAT.

Connect All Leads

Now that you have identified all the wires in the car, you're ready to begin connecting them to the LCD monitor wires. The connection diagram ( B page

42) shows the proper connections and color coding of the leads.

We strongly recommend that you test the unit before making a final installation.

You can set the unit on the floor and make temporary connections to test the unit. Use electrical tape to cover all exposed wires.

Final Installation

Lead Connections

Connect all wires, making sure that each connection is insulated and secure. Bundle all loose wires and fasten them with tape so they won't fall down later.

Now insert the LCD monitor into the mounting collar.

Congratulations! After making a few final checks, you’re ready to enjoy your new LCD monitor.

Final Checks

1. Make sure that all wires are properly connected and insulated.

2. Make sure that the LCD monitor is securely held in the mounting collar.

3. Turn on the ignition to check the unit for proper operation.

If you have difficulties, consult your nearest authorized professional installer for assistance.

36

CY-VMC7000U

Precautions

¡

We strongly recommend that you wear gloves for installation work to protect yourself from injuries.

¡

When bending the mounting tab of the mounting collar with a screwdriver, be careful not to injure your hands and fingers.

¡ Disconnect the cable from the negative (–) battery terminal (see caution below).

¡

Unit should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30°.

less than 30°

I

S

H

E

N

G

L

28

Caution : Do not disconnect the battery terminals of a car with trip or navigational computer since all user settings stored in memory will be lost. Instead take extra care with installing the unit to prevent shorts.

This unit should be professionally installed. In case of difficulty, please consult with your nearest professional installer.

1. This unit only operates in a 12-volt DC negative ground system.

2. Follow the electrical connections carefully ( a page 42 to 47). Failure to do so may result in damage to the unit.

3. Connect the power lead after all other connections are made.

4. Be sure to connect the battery lead (yellow) to the positive terminal (+) of the battery or fuse block (BAT) terminal.

5. Insulate all exposed wires to prevent short circuiting.

6. Secure all loose wires after installing the unit.

7. Please carefully read the operating and installation instructions of the respective equipment before connecting it to this unit.

Caution : Please follow the laws and regulations of your state, province or country for installation of the unit.

Mounting the Display Unit

Transportation bracket removal

Be sure to remove the transportation brackets before use (installation).

Use Binding-Head Screws (M5 x 6 mm) for installation.

Be careful not to lose these Binding-Head Screws.

Binding-Head

Screws

(M5 x 6 mm)

Transportation

Bracket

Display Unit

Binding-Head

Screws

(M5 x 6 mm)

Transportation

Bracket

37

CY-VMC7000U

I

S

H

E

N

G

L

29

Installation Guide

(continued)

Installation Procedures

(When using Mounting Collar

w

)

1

Insert the Mounting Collar

w

into the dashboard, and bend the mounting tabs out with a screwdriver.

Fastening the Mounting Collar

The tabs to be bent vary depending on the car.

Bend them with a screwdriver to fasten the

Mounting Collar w securely in the dashboard.

Dashboard

Tab w

Mounting Collar

38

!6 Power Connector

!9

Display Unit/Control Unit

Connecting Cord t

Mounting Bolt e

Mounting

Spring 2

Attach the Mounting Springs

e

to the display unit.

!1

Flat-Head Screw

3

Secure the rear of the unit.

Fix the rear of the unit to the car body by either method (a) or (b) shown at right after fixing

Power Connector

!6

and Display Unit/Control

Unit Connecting Cord

!9

.

4

5

Insert Trim Plate

q

.

After installation reconnect the negative

(–) battery terminal.

CY-VMC7000U

(a) Using the Rear Support Strap

o

Drill a hole 6.5 to 7 mm in diameter.

i

Washer Assembling Hex.

Bolt

(M

6 x 20 mm

) y

Flange Nut

(M6)

Fire wall of car o

Rear Support Strap u

Washer

Assembling

Hex. Bolt

(M5 x 10 mm )

Display Unit

(b) Using the Rubber Pad

r r

Rubber Pad t

Mounting Bolt (M5)

Display Unit

Bracket

(On car)

I

S

H

E

N

G

L

30

Installation Procedures (When not using Mounting Collar

w

)

Use the brackets supplied with your car when mounting this unit. The bracket shape and mounting method vary with car manufacturers, car types and manufacturing year. Please consult your nearest Panasonic Servicenter for details.

Select mounting screws according to the hole positions and hole shape of the bracket.

!0

Binding-Head Screw (M5 x 6 mm) 2 pieces

Recycle the Binding-Head Screws that fixed the transportation brackets for two more positions.

!2

Binding-Head Screw (M4 x 3 mm)

4 pieces

When using these mounting holes

!1

Flat-Head Screw (M5 x 6 mm) 4 pieces

CY-VMC7000U

39

I

S

H

E

N

G

L

31

Installation Guide

(continued)

Use the supplied Spacer

!3

if mounting hole of your car is shaped like below.

Display Unit

Not used

!3

Spacer

Mounting Hole of a Bracket

(in section)

Bracket

!0

Binding-Head Screw

(M5 x 6 mm)

!0

Binding-Head Screw

(M5 x 6 mm)

Existing Bracket (L)

!4

Double-Faced

Adhesive Tape

Existing Bracket (R)

(Bracket originally attached to the car)

!3

Spacer

!4

Double-Faced Adhesive Tape

Mounting the Control Unit

Mounting Example

Stick Velcro Tape

!5

on the carpet and mount the control unit on it.

Control Unit

Note:

Some carpet materials may not be suitable for this mounting method. In this case, please contact your nearest Panasonic

Servicenter for installation.

!5

Velcro Tape

Carpet

Notes:

¡ Never mount the control unit in any of the following locations to avoid damage due to overheating:

1. Near the heater port.

2. Places like the dashboard or rear deck, where it may be exposed to direct sunlight.

¡

Do not mount the control unit near the door, where it could be exposed to rain.

40

CY-VMC7000U

Mounting the Speaker

Before mounting the speaker, wipe a drop of water, dust and an oil stain off from the place where the speaker should be mounted to enhance adhesive strength.

Speaker

@0

Double-Faced

Adhesive Tape

Cautions :

¡

Do not install the speaker in a location which obstructs operation of the air bag or other safety equipment.

¡ Do not leave a credit card or other magnetic cards near the speaker to avoid damaging the cards.

To Remove the Display Unit

q

Push the right and left clamp plates outward, one at a time, and pull the display unit toward yourself.

w

After removing the right and left clamp plates, pull the unit with both hands till it comes off.

q w

@1

Clamp

I

S

H

E

N

G

L

32

Push here to remove the clamp plates.

CY-VMC7000U

41

I

S

H

E

N

G

L

33

Electrical Connections

Wiring Diagram

Cautions:

¡

This product is designed to operate off a 12 volt, negative ground battery system.

¡

To prevent damage to the unit, be sure to follow the connection diagram below.

¡

Remove approx. 1/4" (5mm) of protective covering from the ends of the leads before connecting.

¡

Do not insert the power connector into the unit until the wiring is completed.

¡

Be sure to insulate any exposed wires from a possible short-circuit from the car chassis. Bundle all cables and keep cable terminals free from touching any metal parts.

¡

Remember, if your car has a drive computer or a navigation computer, the data of its memory may be erased when the battery terminals are disconnected.

!9

Display Unit / Control Unit Connecting Cord

42

RGB Input Cord

To the RGB Connector of the Panasonic car navigation system (not available yet)

Supplied Hardware

No.

Item Q'ty

!6

Power Connector

!7

Reverse Extension

Cord

!8

Clip Connector

!9

Display Unit / Control

Unit Connecting Cord

1

1

1

1

Video Control Lead

To the Video Control lead of the Panasonic car navigation system (not available yet)

Side Brake (Parking Brake)

Connection Lead

Be sure to wire the parking brake for safety and preventing accidents. ( a page 46)

Reverse Lead

When connecting the rear view camera, use the reverse lead. ( a page 47)

Use a Reverse Extension Cord

!7

if needed.

Battery Lead

To the car battery, continuous +12V DC

VIDEO-CONT

(Green / yellow stripe)

SIDE BRAKE

(Bule / yellow stripe)

REVERSE

(Violet / white stripe)

BATTERY 5A

(Fuse 5A)

Power Lead

To ACC power, +12V DC

(Yellow)

ACC

(Resistor 220

)

(Red)

Ground Lead

To a clean, bare metallic part of the car chassis

CY-VMC7000U

(Black)

CY-VMC7000U

Display Unit (Rear)

!6

Power Connector

(Black)

REMOTE-OUT

(Black) !

Speaker Lead

SPEAKER

(Black / green stripe)

@

(R) (Red)

Pre-out Cord

PRE-OUT

(L) (White)

Cautions:

¡

Ask a qualified service person for installation and wiring.

The installation and wiring of this unit requires special skills and experience. For safety, ask the store where you purchased it to perform installation and wiring.

¡

Do Not Disassemble or Modify.

Do not disassemble or modify the unit. Do not remove the coverings from the ends of cables and wires to provide power for other devices. Because it may generate smoke or fire, and cause electric shock or trouble.

Notes:

¡ Be sure to fully plug in the connector.

¡

Install the cord to avoid high-temperature sports and secure with clamps and tape.

¡ When game devices are connected, the image may be unstable.

¡ When removing the DIN plug, be sure to press the clip.

I

S

H

E

N

G

L

34

CY-VMC7000U

Control Unit (Rear)

Remote Control Signal

Receiver Cord

To the REMOTE-IN terminal or Remote Control Signal

Receiver Cord of the

Panasonic DVD video player

(Black)

Panasonic

(Black / green stripe)

Speaker

(supplied to

CY-VMC7000U)

Connector Point

Connect AV control unit with receiver (CA-TU7000U).

Leave the cover unremoved if you do not connect the AV Control

Unit (CA-TU7000U)

CY-VMC7000U

Control Unit

(Front)

Video output terminal

Connects the second monitor. ( a

page 44)

Video input terminal 2 (VTR2-IN)

Connects a VCR, camcorder, rear view camera, other brand’s car navigation system, and so on. ( a page 46)

Video input terminal 1 (VTR1-IN)

Connects a VCR, camcorder, rear view camera, other brand’s car navigation system, and so on. ( a page 46)

CY-VMC7000U

43

I

S

H

E

N

G

L

35

Electrical Connections

(continued)

Example: Connection with DVD Player / Receiver

(CQ-DVR909U) and Rear Seat Monitor

CY-VMC7000U

Display Unit (Rear)

44

!9

Display Unit / Control

Unit Connecting Cord

!6

Power Connector

(R) (Red)

PRE OUT

Pre-Out Cord

CY-VMC7000U

Control Unit (Rear)

(L) (White)

RCA Cord

(Option)

(L)

(White)

(R)

(Red)

(Video)

(Yellow)

(R)

(Red)

(L)

(White)

(Video)

(Yellow)

RCA Cord (Option)

RCA Cord (Option)

CY-VMC7000U

Control Unit (Front)

RCA Cord (Option)

CY-VMC7000U

Note:

Refer to the operating instructions for the connected devices, in addition.

DVD Player/Receiver

CQ-DVR909U

(R) (Red)

AUX-IN

AUX Input Cord

(L) (White)

(Video) (Yellow)

(R) (Red)

VTR-OUT

Video Output Cord

FRONT

Pre-Out Cord (Front)

(L) (White)

Power Amplifier Unit

(Supplied to CQ-DVR909U)

(Video)

(Yellow)

(L)

(White)

Video output

Audio

Left Right

(R)

(Red)

Rear Seat Monitor

Power Connector

(Supplied to CQ-DVR909U)

CY-VMC7000U

45

I

S

H

E

N

G

L

36

I

S

H

E

N

G

L

37

Electrical Connections

(continued)

Connection with VCR or Camcorder

Note:

Refer to the operating instructions for the connected devices, in addition.

CY-VMC7000U

Control Unit

(Front)

(R)

(Red)

(L)

(White)

(Video)

(Yellow)

POWER

BS G-CODE

INTELLIGENT SYSTEM

Video output

Audio

Left Right

(Video)

(Yellow)

(L)

(White)

RCA Cord (Option)

Connecting the Parking Brake Connection Lead

Caution:

For safety, be sure to ask your nearest professional installer to do this connection.

Parking Brake Foot Brake

The parking brake switch position varies with the vehicle model.

(R)

(Red)

Parking Brake Switch

+

SIDE BRAKE

!8

Clip

Connector

Battery

Brake Light

Vehicle Chassis

Side Brake (Parking Brake) Connection Lead (Blue / yellow stripe)

When the parking brake lever is engaged, the unit is grounded by the chassis.

q

Attach a Clip Connector !8 to the end of the parking brake connection lead.

w

The Clip Connector !8 is connected to the power source side lead of the parking brake lever.

Comes up to this point

46

Side Brake (Parking Brake) Connection Lead

(Blue / yellow stripe)

CY-VMC7000U

Power Source Side Lead

Connection with Rear View Camera

Note:

Refer to the operating instructions for the connected devices, in addition.

Video output

CY-VMC7000U

Display Unit

(Rear)

Rear View Camera

Control Unit

Camera input

!6

Power Connector

Rear View Camera

Panasonic

(Video)

(Yellow)

I

S

H

E

N

G

L

38

CY-VMC7000U

Control Unit

(Front)

RCA Cord (Option)

(Video)

(Yellow)

Check the reverse lamp.

Connecting the Reverse Lead

* In case using an optional rear view camera, the reverse lead must be connected.

¡

Connect the reverse lead (violet / white stripe) to the positive (+) lead of the reverse lamp (the lamp with a clear lens that lights when the transmission gear is shifted into the reverse position).

* Take it out of the back of the tail lamp mount.

Reverse Lamp

Clip Connector

Battery

Vehicle Chassis

Reverse Lead

(Violet / white stripe)

REVERSE

Cut here

Notes:

¡ Connect the reverse lead after cutting the terminal at the end.

¡ Use a Reverse Extension Cord !7

if needed.

P

R

N

D

2

L

Transmission Gear

47

CY-VMC7000U

I

S

H

E

N

G

L

39

Troubleshooting

Preliminary Steps

Check and take steps as described in the tables below.

If You Suspect Something Wrong

Immediately switch power off.

Disconnect the power cable and check that there is neither smoke nor heat from the unit before asking for repairs. Never try to repair the unit yourself because it is dangerous to do so.

Cautions:

¡

Do not use the unit if it malfunctions or is something wrong.

¡

Do not use the unit in an irregular condition, for example, without sound, or with smoke or foul smell, can cause ignition or electric shock. Immediately stop using it and call the store where you purchased it.

Common

Symptom

No power

No sound

Check / Remedy

Car’s engine switch is not on.

a

Turn your car’s ignition switch to ACC or ON.

Cables are not correctly connected.

a

Connect cables correctly.

Battery cable is not correctly connected.

a

Connect the battery cable to the terminal that is always live.

Accessory cable is not correctly connected.

a

Connect the accessory cable to your car's ACC source.

Grounding wire is not correctly connected.

a

Connect the grounding wire to a metal part of your car.

Fuse is burnt.

a

Call the store where you purchased the unit, or your nearest Panasonic

Servicenter (see the attached sheet) and ask for fuse replacement.

The volume is adjusted to zero.

a

Raise the volume.

Mute is set to ON.

a

Set it to OFF.

Cables are not correctly connected.

a

Connect cables correctly.

Speakers setting is set to OFF.

a

Set it to other than OFF.

Condensation (dew) a

Wait for a while before use.

48

CY-VMC7000U

Symptom

Only sound, no picture.

Noise

Picture is not clear.

Monitor

Symptom

The tilt angle or the front-rear position of the display is not adjustable.

The monitor does not go back into the unit.

Check / Remedy

Side brake cord is not correctly connected.

a

Connect the side brake cord correctly.

You did not pull the parking brake lever.

a

Pull the parking brake lever.

You are using a cellular phone near the unit.

a

Keep some space between the unit and your cellular phone.

Check / Remedy

There is an obstacle.

a

Install the unit where the unit moves freely.

The monitor direction is not proper.

a

Change the monitor direction to the center.

The monitor stops on the way to the home position for some reason.

a

Raise the monitor a little and press [ ] (OPEN/CLOSE).

CD

Symptom

CD is inside but no sound.

CD sound skips, tone quality is low.

Sound skip due to vibration.

CD is not ejected.

Check / Remedy

CD is upside down.

a

Place CD in the correction direction, the label side up.

CD is dirty.

a

Clean CD, referring to the section on Notes on CD.

CD is dirty.

a

Clean CD, referring to the section on Notes on CD.

Mounting angle is over 30 degrees.

a

Adjust mounting angle to less than 30 degrees.

Unstable mounting.

a

Mount the unit securely with the mounting parts, referring to the section on

Installation.

¡

CD is defective.

¡ Mechanical trouble.

a

Press [

u

]. If failure persists, press the reset switch. If normal operation is not restored, call the store where you purchased the unit or the nearest

Panasonic Servicenter to ask for repairs.

I

S

H

E

N

G

L

40

49

CY-VMC7000U

I

S

H

E

N

G

L

41

Troubleshooting

(continued)

Car Navigation, DVD Player, VCR, Camcorder, Rear View Camera, Rear Monitor

Symptom Check / Remedy

The connection of a car navigation system is not correct.

a

Connect it correctly.

The picture from a car navigation system is not displayed.

Input setting of a car navigation system is not correct.

a

Make the input setting correct.

The picture from a DVD player is not displayed.

The connection of a DVD player is not correct.

a

Connect it correctly.

The picture from a VCR or a camcorder is not displayed.

A VCR or Camcorder is not connected correctly.

a

Connect a VCR or Camcorder correctly.

The picture from a rear view camera is not displayed.

The picture or the sound of the second monitor is not switchable.

Rear view camera is not connected correctly.

a

Connect a rear view camera correctly.

Input setting of a camera is not correct.

a

Make the input setting correct.

“AUTO” is not selected for the setting of a rear monitor.

a

Select “AUTO” for the setting.

Display Settings

Symptom

The brightness of the screen is not stable.

The picture is dark.

The picture is whitish.

Something is wrong with the picture. The picture is light in color.

Red, blue, or green spots appears.

Check / Remedy

“AUTO” dimmer is selected.

a

Select one of the dimmer levels from among 1 to 4 to make the dimmer adjustment become free from light intensity.

The screen is not adjusted properly.

a

Make every adjustment of the screen.

This is a characteristic of liquid crystal panels and is not a problem.

50

CY-VMC7000U

Remote Control

Symptom

Buttons are invalid for operation.

Check / Remedy

Battery polarities (+) (–) are reversed.

a

Insert the batteries correctly.

Wrong batteries.

a

Check the batteries.

Batteries have run down.

a

Replace the batteries.

Remote control is in the wrong direction.

a

Direct the remote control at remote control sensor on the display unit.

Error Display Messages

CD

Display

−E1−

Check / Remedy

Disc is dirty, or is upside down.

a

Check disc.

−E2−

Disc has scratches.

a

Check disc.

−E3−

NO DISC

No operation by some cause.

a

Press [

u

]. If failure persists, press the reset switch. If normal operation is not restored, call the store where you purchased the unit or the nearest

Panasonic Servicenter to ask for repairs.

No disc is in the player.

a

Insert disc into the CD slot.

I

S

H

E

N

G

L

42

CY-VMC7000U

51

I

S

H

E

N

G

L

43

Troubleshooting

(continued)

Maintenance

Your product is designed and manufactured to ensure a minimum of maintenance. Use a dry soft cloth for routine exterior cleaning. Never use benzine, thinner or other solvents.

Product Servicing

If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized

Panasonic Servicenter. The product should be serviced only by a qualified technician.

Replacing the Fuse

Use fuses of the same specified rating (5 amps). Using different substitutes or fuses with a higher rating, or connecting the product directly without a fuse, could cause fire or damage to this unit.

If the replacement fuse fails, contact your nearest Panasonic Servicenter for service.

CY-VMC7000U

DASH 7 WIDE COLOR LCD MONITOR / CD PLAYER

MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

P·MODE

Reset Switch

Reset switch

Insert a hard, slender stick into the hole and push the switch.

The unit returns to the default state when the trouble is reset.

Remember, the data and settings stored in the memory are deleted.

Important

Push the switch only when the unit fails to operate with any buttons.

If the unit fails to return to normal condition, call the nearest

Panasonic Servicenter and ask for repairs.

ENTER

DISC/BAND

TRACK/

YUNE

52

CY-VMC7000U

Maintenance

To prevent damage to the system exterior

Do not apply pesticides, benzine, thinner or other volatile substances to the unit.

The cabinet surface primarily consists of plastic materials.

Do not wipe with benzine, thinner or similar substances because this will result in discoloration or removal of the paint.

When a cloth with a cleansing chemical is used, follow the caution notes.

Do not leave the unit in contact with rubber or vinyl products for long periods of time.

Do not use cleanser which have polishing granules because this could damage the surface of the unit.

Alcohol

Thinner

Pesticide

Wax

Tape

Benzine

Adhesive

Tape

I

S

H

E

N

G

L

44

Clean dirt by wiping lightly with a soft cloth

When the unit is dirty, wipe the surface of the display using Wiping Cloth, an accessory to the unit.

Without a Wiping Cloth

When the unit is dirty, wipe with a well-wrung cloth dipped in a liquid dishwashing detergent (neutral) diluted with water and then go over the same surface with a dry cloth.

(Since there is the possibility of water drops getting inside of the unit, do not directly apply cleanser to the surface.)

Wring well.

Wipe lightly.

Go over the same surface with a dry cloth.

a a

VOLUME

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

ENTER

DISC/BAND

TRACK/

CHANNEL

VOLUME

MUTE MENU MODE

POWER

NAVIGATION

NAVI

ASPECT

ASP

ENTER

DISC/BAND

TRACK/

CHANNEL

Kitchen cleanser diluted with water

Caution:

If water drops or similar wet substances get inside the monitor, it may cause a malfunction.

53

CY-VMC7000U

I

S

H

E

N

G

L

45

Maintenance

(continued)

Notes on CD

ONLY USE DISCS CARRYING THE LABEL

How to hold the CD

¡

Do not touch the underside of the disc.

¡

Do not make scratches on the disc.

¡ Do not bend disc.

¡

When not in use, keep CD in the case.

Do not use irregularly shaped CDs

Do not leave discs in the following places:

¡ Direct sunlight

¡ Near car heaters

¡

Dirty, dusty and damp areas

¡ Seats and dashboards

Disc Cleaning

Use a dry, soft cloth to wipe from the center outward.

Caution on New Discs

A new disc may have rough edges on its inner and outer perimeter. These may cause malfunction.

Remove the rough edges using a pencil, etc.

Label side

<Right>

Music agsjbc ujniu imnmk bhxujk kkmj ibi abcde

Music agsjbc ujniu imnmk bhxujk kkmj ibi abcde

Do not use irregularly shaped CDs

<Wrong>

Rough edge

Notes on CD-R Disc

A playable CD-R disc is only a CD-R disc on which sound was recorded.

¡ Some recorded CD-R discs by using CD recorder are not playable because of their characteristic, or scratches or dirt on the discs.

¡

You can not play a CD-R disc that has not been finalized.

¡ A CD-RW disc is not playable.

¡

MP3 file, video CD, CD-ROM and CD-EX disc are not playable.

¡ Be sure to observe the handling instructions of CD-R disc.

¡

Do not apply a disc that has a label printed by a commercially available label printer.

54

CY-VMC7000U

Specifications

General

Power Supply

Current Consumption : Less than 1.5 A

Maximum Power Output (External Speaker) : 0.7 W

Compatible Speaker Impedance : 8

Video Input Signal : Composite video signal, 1.0 Vp-p (75

)

Audio Input Sensitivity

Video Output Signal

Pre-Amp Output Voltage

Pre-Amp Output Impedance

: 1.8 Vrms

: Composite video signal, 1.0 Vp-p (75

)

: 1.8 Vrms (CD)

: Less than 600

Dimensions (W x H x D)

Display Unit

Control Unit

Weight

Display Unit

Control Unit

: DC 12 V (11 V - 16 V), test voltage 14.4 V, negative ground

: 7” x 1-15/16” x 6-15/16” (178 x 50 x 160 mm)

: 6” x 13/16” x 5-7/8” (153 x 21 x 150 mm)

: 5 lbs. 1 oz. (2.3 k

: 1 lbs. 5 oz. (0.6 k g g

)

)

Monitor

Liquid Crystal Panel

Screen Dimensions (W x H x D)

Number of Pixels

Valid Pixel Ratio

Display Method

Drive Method

Light Source

CD Player

Sampling Frequency

DA Converter

Error Correction System

Pick-Up Type

Light Source

Wave Length

Frequency Response

Signal to Noise Ratio

Total Harmonic Distortion

Wow and Flutter

Channel Separation

Supplied Speaker

Impedance

Maximum Power Input

: 7" wide

: 6-1/16" x 3-7/16" x 6-15/16" (154 x 87 x 177 mm)

: 336,960 pixels (234 vertical x 480 horizontal x 3)

: Over 99.99%

: Transparent color filter format

: TFT (Thin Film Transistor) active matrix format

: Internal light (Built-in small fluorescent lamp)

: 8 times oversampling

: MASH•1 bit/4 DAC System

: Panasonic Super Decoding Algorithm

: Astigma 3-beam

: Semiconductor Laser

: 780 nm

: 20 Hz - 20 kHz (±1 dB)

: 80 dB (IHF, A)

: 0.05 % (1 kHz)

: Below measurable limits

: 80 dB

: 8

: 2 W

Above specifications comply with EIA standards.

Note:

Specifications and the design are subject to modification without notice due to improvements in technology.

I

S

H

E

N

G

L

46

CY-VMC7000U

55

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
