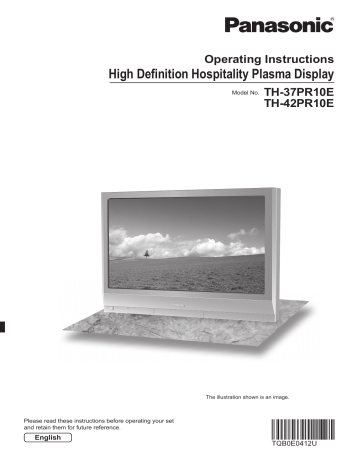

Operating Instructions
High Definition Hospitality Plasma Display
Model No.
TH-37PR10E
TH-42PR10E
The illustration shown is an image.
Please read these instructions before operating your set
and retain them for future reference.
English
Dear Panasonic Customer
Welcome to the Panasonic family of customers. We hope that you will have many years of
enjoyment from your new Plasma Display.
To obtain maximum benefit from your set, please read these Instructions before making
any adjustments, and retain them for future reference.
Retain your purchase receipt also, and note down the model number and serial number of
your set in the space provided on the rear cover of these instructions.
Visit our Panasonic Web Site
http://panasonic.net
Table of Contents
Important Safety Notice ........................................... 3
Safety Precautions ................................................... 4
Accessories .............................................................. 7
Accessories Supply ................................................. 7
Connections .............................................................. 8
PC Input Terminals connection ................................ 9
SERIAL Terminals connection ............................... 10
Power On / Off......................................................... 11
Basic Controls ........................................................ 12
On-Screen Menu Displays ..................................... 14
Initial selections ..................................................... 16
Selecting the input signal ...................................... 16
Selecting the On-Screen Menu Language ............ 16
ASPECT Controls ................................................... 17
Adjusting Pos. /Size ............................................... 18
MULTI PIP ................................................................ 19
Advanced PIP.......................................................... 20
Picture Adjustments ............................................... 21
Advanced settings ................................................. 22
Sound Adjustment .................................................. 23
Mute ...................................................................... 23
Digital Zoom ............................................................ 24
2
PRESENT TIME Setup / Set up TIMER .................. 25
PRESENT TIME Setup.......................................... 25
Set up TIMER ........................................................ 26
Screensaver (For preventing image retention) .... 27
Setup of Screensaver Time ................................... 28
Reduces screen image retention ........................... 28
Side Panel Adjustment .......................................... 29
Reduces power consumption ............................... 30
Customizing the Input labels ................................. 30
Setup for Input Signals .......................................... 31
Component / RGB-in select ................................... 31
3D Y/C Filter .......................................................... 31
Colour system / Panasonic Auto ........................... 32
Cinema reality / P-NR ............................................ 32
Sync ...................................................................... 33
Refresh Rate ......................................................... 33
H-Freq. (kHz) / V-Freq. (Hz) .................................. 33
Options Adjustments ............................................. 34
Weekly Command Timer ....................................... 38
Shipping condition ................................................. 40
Troubleshooting ..................................................... 41
PC input signals ..................................................... 42
Command list of Weekly Command Timer ........... 43
Specifications ......................................................... 44
Important Safety Notice
WARNING
1) To prevent damage which may result in fire or shock hazard, do not expose this appliance to dripping
or splashing.
Do not place containers with water (flower vase, cups, cosmetics, etc.) above the set. (including on
shelves above, etc.)
No naked flame sources, such as lighted candles, should be placed on / above the set.
2) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified
service personnel.
3) Do not remove the earthing pin on the power plug. This apparatus is equipped with a three pin earthing-type
power plug. This plug will only fit an earthing-type power outlet. This is a safety feature. If you are unable to
insert the plug into the outlet, contact an electrician.
Do not defeat the purpose of the earthing plug.
4) To prevent electric shock, ensure the earthing pin on the AC cord power plug is securely connected.
CAUTION
This appliance is intended for use in environments which are relatively free of electromagnetic fields.
Using this appliance near sources of strong electromagnetic fields or where electrical noise may overlap with the
input signals could cause the picture and sound to wobble or cause interference such as noise to appear.
To avoid the possibility of harm to this appliance, keep it away from sources of strong electromagnetic fields.
Trademark Credits
• VGA is a trademark of International Business Machines Corporation.
• Macintosh is a registered trademark of Apple Computer, USA.
• S-VGA is a registered trademark of the Video Electronics Standard Association.
Even if no special notation has been made of company or product trademarks, these trademarks have been
fully respected.
Note:
Do not allow a still picture to be displayed for an extended period, as this can cause a permanent image retention
to remain on the Plasma Display.
Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3
mode.
3
Safety Precautions
WARNING
Setup
This Plasma Display is for use only with the following optional accessories. Use with any other type of optional
accessories may cause instability which could result in the possibility of injury.
(All of the following accessories are manufactured by Matsushita Electric Industrial Co., Ltd.)
• Pedestal ..............................................................................................................TY-ST09GR-K
• Wall-hanging bracket (vertical) ............................................................................TY-WK42PV3W
• Wall-hanging bracket (angled) ............................................................................TY-WK42PR3W
• BNC Component Video Terminal Board ..............................................................TY-42TM6A
• BNC Composite Video Terminal Board ...............................................................TY-42TM6B
• BNC Dual Video Terminal Board .........................................................................TY-FB9BD
• Ir Through Terminal Board ..................................................................................TY-FB9RT
• RCA Component Video Terminal Board ..............................................................TY-42TM6Z
• RCA Composite Video Terminal Board ...............................................................TY-42TM6V
• PC Input Terminal Board .....................................................................................TY-42TM6P
• RGB (Digital) Terminal Board ..............................................................................TY-42TM6D
• HDMI Terminal Board ..........................................................................................TY-FB8HM
• SCART Terminal Board .......................................................................................TY-FB8SC
• U/V Tuner Board with Hospitality Port .................................................................TY-FB9TE
• Set Up Loader .....................................................................................................TY-RM09SL
• AV terminal BOX .................................................................................................TY-TB10AV
Always be sure to ask a qualified technician to carry out set-up.
Small parts can present choking hazard if accidentally swallowed. Keep small parts away from young children. Discard
unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from
being played with by young children, creating the potential risk of suffocation.
Do not place the Plasma Display on sloped or unstable surfaces.
• The Plasma Display may fall off or tip over.
Do not place any objects on top of the Plasma Display.
• If water is spills onto the Plasma Display or foreign objects get inside it, a short-circuit may occur which could result
in fire or electric shock. If any foreign objects get inside the Plasma Display, please consult your local Panasonic
dealer.
Transport only in upright position!
• Transporting the unit with its display panel facing upright or downward may cause damage to the internal
circuitry.
Ventilation should not be impleded by covering the ventilation openings with items such as newspapers, table
cloths and curtains.
For sufficient ventilation;
If using the pedestal (optional accessory) for the Plasma Display, leave a space of at least 10 cm at the top,
left and right, at least 6 cm at the bottom, and at least 7 cm at the rear. If using some other setting-up method,
leave a space of at least 10 cm at the top, bottom, left and right, and at least 7 cm at the rear.
4
Safety Precautions
When using the Plasma Display
The Plasma Display is designed to operate on 220 - 240 V AC, 50/60 Hz.
Do not cover the ventilation holes.
• Doing so may cause the Plasma Display to overheat, which can cause fire or damage to the Plasma Display.
Do not stick any foreign objects into the Plasma Display.
• Do not insert any metal or flammable objects into the ventilations holes or drop them onto the Plasma Display, as
doing so can cause fire or electric shock.
Do not remove the cover or modify it in any way.
• High voltages which can cause severe electric shocks are present inside the Plasma Display. For any inspection,
adjustment and repair work, please contact your local Panasonic dealer.
Ensure that the mains plug is easily accessible.
An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing
connection.
Do not use any power supply cord other than that provided with this unit.
• Doing so may cause fire or electric shocks.
Securely insert the power supply plug as far as it will go.
• If the plug is not fully inserted, heat may be generated which could cause fire. If the plug is damaged or the wall
socket is loose, they shall not be used.
Do not handle the power supply plug with wet hands.
• Doing so may cause electric shocks.
Do not do anything that may damage the power cable. When disconnecting the power cable, pull on the plug
body, not the cable.
• Do not damage the cable, make any modifications to it, place heavy objects on top of it, heat it, place it near any
hot objects, twist it, bend it excessively or pull it. To do so may cause fire and electric shock. If the power cable is
damaged, have it repaired at your local Panasonic dealer.
If the Plasma Display is not going to be used for any prolonged length of time, unplug the power supply plug
from the wall outlet.
If problems occur during use
If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odour starts to come out
from the Plasma Display, immediately unplug the power supply plug from the wall outlet.
• If you continue to use the Plasma Display in this condition, fire or electric shock could result. After checking that
the smoke has stopped, contact your local Panasonic dealer so that the necessary repairs can be made. Repairing
the Plasma Display yourself is extremely dangerous, and shall never be done.
If water or foreign objects get inside the Plasma Display, if the Plasma Display is dropped, or if the cabinet
becomes damages, disconnect the power supply plug immediately.
• A short circuit may occur, which could cause fire. Contact your local Panasonic dealer for any repairs that need to
be made.
5
Safety Precautions
CAUTION
When using the Plasma Display
Do not bring your hands, face or objects close to the ventilation holes of the Plasma Display.
• Heated air comes out from the ventilation holes at the top of Plasma Display will be hot. Do not bring your hands
or face, or objects which cannot withstand heat, close to this port, otherwise burns or deformation could result.
Be sure to disconnect all cables before moving the Plasma Display.
• If the Plasma Display is moved while some of the cables are still connected, the cables may become damaged,
and fire or electric shock could result.
Disconnect the power supply plug from the wall socket as a safety precaution before carrying out any
cleaning.
• Electric shocks can result if this is not done.
Clean the power cable regularly to prevent it becoming dusty.
• If dust built up on the power cord plug, the resultant humidity can damage the insulation, which could result in fire.
Pull the power cord plug out from the wall outlet and wipe the mains lead with a dry cloth.
This Plasma Display radiates infrared rays, therefore it may affect other infrared communication equipment.
Install your infrared sensor in a place away from direct or reflected light from your Plasma Display.
Cleaning and maintenance
The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning
cloth or a soft, lint-free cloth.
• If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water in
which neutral detergent has been diluted 100 times, and then wipe it evenly with a dry cloth of the same type until
the surface is dry.
• Do not scratch or hit the surface of the panel with fingernails or other hard objects, otherwise the surface may
become damaged. Furthermore, avoid contact with volatile substances such as insect sprays, solvents and thinner,
otherwise the quality of the surface may be adversely affected.
If the cabinet becomes dirty, wipe it with a soft, dry cloth.
• If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been
added and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.
• Do not allow any detergent to come into direct contact with the surface of the Plasma Display. If water droplets get
inside the unit, operating problems may result.
• Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the
cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods
in contact with articles made from rubber or PVC.
6
Accessories
Accessories Supply
Check that you have the accessories and items shown
Operating Instruction book
Power supply cord
Fixing bands × 2
The remote control is not included with this set. Available for purchase separately.
Object model : EUR7636090R
7
Connections
AC cord connection (see page 11)
– AC cord fixing
Close
Unplug the AC cord
1
Push until
the hook
clicks.
1 Plug the AC cord into
2
the display unit.
Plug the AC cord until
it clicks.
2 Fix the AC cord with
the clamper. which
is atttached to the
unit.
Open
Unplug the AC cord pressing
the two knobs.
2. Pull off.
Note:
Note:
Make sure that the AC cord is locked
on both the left and right sides.
1. Keep the
knob pressed.
When disconnecting the AC
cord, be absolutely sure to
disconnect the AC cord plug
at the socket outlet first.
– Cable fixing bands Secure any excess cables with bands as required.
Pass the attached cable
fixing band through the
clip as shown in the
figure.
To secure cables connected to Terminals, wrap the cable fixing band around them
then pass the pointed end through the locking block, as shown in the figure.
While ensuring there is sufficient slack in cables to minimize stress (especially
in the power cord), firmly bind all cables with the supplied fixing band.
To tighten:
To loosen:
Push the catch
Pull
2
1
Pull
AUDIO
SLOT1
SLOT2
Optional Terminal
Board Insert Slot
(covered)
8
SLOT3
PC
IN
From EXTERNAL
monitor terminal on
Computer (see page 9)
SERIAL
From SERIAL Terminal
on Computer
(see page 10)
Connections
PC Input Terminals connection
COMPUTER
AUDIO
PC IN
Conversion adapter
(if necessary)
RGB
Mini D-sub 15p
PC cable
Audio
Stereo plug
Connect a cable which matches
the audio output terminal on the computer.
Notes:
• Due to space limitations, occasionally you may have trouble connecting Mini D-sub 15P cable with ferrite core to PC input
Terminal.
• Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical scanning
frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.)
• The display resolution is a maximum of 768 × 720 dots (TH-37PR10E), 768 × 768 dots (TH-42PR10E) when the
aspect mode is set to “4:3”, and 1,024 × 720 dots (TH-37PR10E), 1,024 × 768 dots (TH-42PR10E) when the aspect
mode is set to “16:9”. If the display resolution exceeds these maximums, it may not be possible to show fine detail
with sufficient clarity.
• The PC input terminals are DDC2B-compatible. If the computer being connected is not DDC2B-compatible, you will
need to make setting changes to the computer at the time of connection.
• Some PC models cannot be connected to the set.
• There is no need to use an adapter for computers with DOS/V compatible Mini D-sub 15P terminal.
• The computer shown in the illustration is for example purposes only.
• Additional equipment and cables shown are not supplied with this set.
• Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the specified
frequency range.
• Component Input is possible with the pin 1, 2, 3 of the Mini D-sub 15P Connector.
• Change the “Component/RGB-in select” setting in the “Setup” menu to “Component”
(when Component connection) or “RGB” (when RGB signal connection). (see page 31)
• To use sync input VBS signals, use the connector which incorporates a 75-ohm termination resistance and which is
available on the market, for the connection of the HD connector where the VBS signals are to be input.
Signal Names for Mini D-sub 15P Connector
Pin No.
5
4
10 9
3
2
8
1
7
6
15 14 13 12 11
Pin Layout for PC Input
Terminal
Signal Name
R (PR/CR)
Pin No.
6
Signal Name
GND (Ground)
Pin No.
1
11
Signal Name
NC (not connected)
2
G (Y)
7
GND (Ground)
12
SDA
3
B (PB/CB)
8
GND (Ground)
13
HD/SYNC
4
NC (not connected)
9
NC (not connected)
14
VD
5
GND (Ground)
10
GND (Ground)
15
SCL
9
Connections
SERIAL Terminals connection
The SERIAL terminal is used when the Plasma Display is controlled by a computer.
COMPUTER
1
2
6
SERIAL
RS-232C Straight cable
3
7
4
8
5
9
Pin layout for SERIAL Terminal
D-sub 9p
Notes:
• Use the RS-232C cable to connect the computer to the Plasma Display.
• The computer shown is for example purposes only.
• Additional equipment and cables shown are not supplied with this set.
The SERIAL terminal conforms to the RS-232C interface specification, so that the Plasma Display can be controlled
by a computer which is connected to this terminal.
The computer will require software which allows the sending and receiving of control data which satisfies the conditions
given below. Use a computer application such as programming language software. Refer to the documentation for
the computer application for details.
Communication parameters
Signal level
Synchronization method
Baud rate
Parity
Character length
Stop bit
Flow control
RS-232C compliant
Asynchronous
9600 bps
None
8 bits
1 bit
-
Basic format for control data
The transmission of control data from the computer
starts with a STX signal, followed by the command,
the parameters, and lastly an ETX signal in that order.
If there are no parameters, then the parameter signal
does not need to be sent.
STX
C1 C2 C3
Start
(02h)
:
P1 P2 P3 P4 P5
ETX
Colon
Parameter(s)
(1 - 5 bytes)
3-character
command (3 bytes)
7
8
Shorted
1 • 9
NC
Command
Command
PON
POF
AVL
AMT
IMS
End
(03h)
Notes:
• If multiple commands are transmitted, be sure to wait
for the response for the first command to come from
this unit before sending the next command.
• If an incorrect command is sent by mistake, this
unit will send an “ER401” command back to the
computer.
• SL1A, SL1B, SL2A and SL2B of Command IMS are
available only when a dual input terminal board is
attached.
10
RS-232C Conversion cable
D-sub 9-pin female
Details
2
RXD
3
TXD
5
GND
4 • 6
Non use
DAM
Parameter
None
None
**
0
1
None
SL1
SL2
SL3
PC1
SL1A
SL1B
SL2A
SL2B
None
NORM
ZOOM
FULL
JUST
SELF
Control details
Power ON
Power OFF
Volume 00 - 63
Audio MUTE OFF
Audio MUTE ON
Input select (toggle)
Slot1 input
Slot2 input
Slot3 input
PC input
Slot1 input (INPUT1A)
Slot1 input (INPUT1B)
Slot2 input (INPUT2A)
Slot2 input (INPUT2B)
Screen mode select (toggle)
NORMAL (4 : 3)
ZOOM
FULL
JUST
Panasonic AUTO
With the power off, this display responds to PON command only.
Power On / Off
Connecting the AC cord plug to the Plasma Display.
Fix the AC cord plug securely to the
Plasma Display with the clamper.
(see page 8)
Connecting the plug to the Wall Outlet
Notes:
• Main plug types vary between countries. The power plug shown
at right may, therefore, not be the type fitted to your set.
• When disconnecting the AC cord, be absolutely sure to
disconnect the AC cord plug at the socket outlet first.
Press the Power switch on the Plasma Display to turn the set
on: Power-On.
Remote Control Sensor
Power Indicator: Green
Example: The screen below is displayed for a while after the
Plasma Display is turned on (setting condition is an
example).
Press the
Power Indicator
button on the remote control to turn the Plasma Display off.
Power Indicator: Red (standby)
Press the
button on the remote control to turn the Plasma Display on.
Power Indicator: Green
Turn the power to the Plasma Display off by pressing the
unit, when the Plasma Display is on or in standby mode.
switch on the
Note:
During operation of the power management function, the power indicator turns
orange in the power off state.
11
Basic Controls
INPUT button
(INPUT1, INPUT2, INPUT3
and PC selection)
(see page 16)
Remote control sensor
INPUT MENU
Power Indicator
The Power Indicator will light.
• Power-OFF .... Indicator not illuminated (The unit
will still consume some power
as long as the power cord is still
inserted into the wall outlet.)
• Standby.......... Red
• Power-ON ...... Green
• DPMS .............Orange (With PC input signal
and during operation of PC’s
screensaver.)
Main Power On / Off Switch
How to release button lock
MENU and ENTER/■ buttons are locked before
shipping.
You can unlock them with unit buttons.
1. Press +/▲ 4 times.
2. Press INPUT 4 times.
3. Press –/▼ 4 times.
4. Press ENTER/■.
VOL
ENTER/
Volume Adjustment
Volume Up “+” Down “–”
When the menu screen is displayed:
“+”: press to move the cursor up
“–”: press to move the cursor down
(see page 14)
Enter / Aspect button
This button is locked by initial setting.
(see page 14, 17)
MENU Screen ON / OFF
This button is locked by initial setting.
Each time the MENU button is pressed, the
menu screen will switch. (see page 14)
Normal Viewing
Setup
Sound
Pos. /Size
N button (see page 18, 21, 22, 23)
POS. / SIZE button (see page 18)
PICTURE button (see page 21)
Note:
After unlocking the buttons, Button lock in
OPTIONS menu is set to “Off”. (see page 35)
INPUT button
(INPUT1, INPUT2, INPUT3 and PC selection)
Press to select INPUT1, INPUT2, INPUT3 and PC input
SLOTS sequentially. (see page 16)
SURROUND button
The surround setting switches on and off each time
the SURROUND button is pressed.
The benefits of surround sound are enormous. You
can be completely enveloped in sound; just as if
you were at a concert hall or cinema.
Note:
The surround settings are memorized separately
for each Sound Mode (Normal, Dynamic, Clear).
Sound mute On / Off (see page 23)
On
Off
Surround
12
On
Numeric buttons
ASPECT button
Press to adjust the aspect. (see page 17)
MULTI Window buttons (see page 19)
Basic Controls
The remote control is not included with this set. Available for purchase separately.
Object model : EUR7636090R
Standby (ON / OFF) button
The Plasma Display must first be plugged into the wall outlet and turned on at the power switch (see page 11).
Press ON to turn the Plasma Display On, from Standby mode. Press OFF to turn the Plasma Display Off to Standby
R button (see page 15)
mode.
Press the R button to return to previous menu screen.
Status button
ACTION button
Press to make
Press the “Status” button to display the current system status.
POSITION
selections.
buttons
1
PC
1 Input label
4:3
2
2 Aspect mode (see page 17)
SOUND button
3 Off timer
(see page 23)
The off timer indicator is
displayed only when the off
Off timer 90
3
timer has been set.
SET UP button (see page 14, 15)
DIRECT INPUT buttons
Press the INPUT “1”, “2”, “3” or “PC” input mode selection button to
select the input mode.
This button is used to switch directly to INPUT mode.
These buttons can only display the slot which is installed. If you
press the button whose slot is not installed, it automatically displays
the current input signal.
When a dual input terminal board is attached, A or B is displayed
depending on the selected input signal. (Ex. INPUT1A, INPUT1B)
Note:
Image retention (image lag) may occur on the plasma display panel
when a still picture is kept on the panel for an extended period. The
function that darkens the screen slightly is activated to prevent image
retention (see page 41), this function is not the perfect solution to
image retention.
Channel Adjustment
You can use this button when U/V Tuner Board with Hospitality Port
is installed (optional accessories). Refer to each Board's Operating
Instruction for detail.
Volume Adjustment
Press the Volume Up “+” or Down “–” button to increase or decrease
the sound volume level.
OFF TIMER button
The Plasma Display can be preset to switch to stand-by after a
fixed period. The setting changes to 30 minutes, 60 minutes, 90
minutes and 0 minutes (off timer cancelled) each time the button
is pressed.
30
60
90
0
When three minutes remain, “Off timer 3” will flash.
The off timer is cancelled if a power interruption occurs.
Digital Zoom (see page 24)
Press to access
Digital Zoom.
This displays an enlargement of the designated part of the
displayed image.
13
On-Screen Menu Displays
To Picture adjust menu
(see page 21)
Normalise
The MENU button on the unit can also
be pressed.
1 Press to select.
1/2
Normal
Normal
Picture Mode
Contrast
Brightness
Colour
Tint
Sharpness
25
0
0
0
5
INPUT MENU
VOL
ENTER/
Each time the MENU button is pressed,
the menu screen will switch.
2/2
Normal Viewing
Sound
Setup
Pos. /Size
Normal
Off
On
White balance
Colour Management
Advanced settings
[ from the unit ]
INPUT MENU
VOL
ENTER/
2
1
1 Press to select.
2 Press to access each adjust
screen.
Press to select
“On”.
Setup
Signal
Component/RGB-in select
Press to enter
Advanced settings.
1/2
Advanced settings
Normal
Black extension
Input level
Gamma
AGC
0
0
2.2
Off
2/2
Advanced settings
0
0
0
0
0
0
W/B High R
W/B High G
W/B High B
W/B Low R
W/B Low G
W/B Low B
Setup
During “AV(S Video)”,
“Component” and “Digital” input
signal.
To Sound adjust menu
(see page 23)
During “RGB / PC” input signal.
Normalise
14
Normal
0
0
0
0
Sound
Normalise
Pos. /Size
Pos. /Size
H-Pos
H-Size
V-Pos
V-Size
2/2
Screensaver
MULTI DISPLAY Setup
Set up TIMER
PRESENT TIME Setup
To Pos./Size adjust menu (see page 18)
Normalise
RGB
PC
Off
Off
Off
Off
English (UK)
Input label
Power save
Standby save
Power management
Auto power off
OSD Language
To Advanced settings
(see page 21, 22)
Normalise
1/2
Normal
H-Pos
H-Size
V-Pos
V-Size
Clock Phase
0
0
0
0
0
Normal
Sound Mode
Bass
Mid
Treble
Balance
Surround
Audio Out (PIP)
Normal
0
0
0
0
Off
Main
On-Screen Menu Displays
Note:
Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting.
2 Press to access
[ from the unit ]
each adjust
screen.
INPUT MENU
VOL
Press the R button to return to
previous menu screen.
ENTER/
Press to return to next menu screen.
To Signal screen for AV
(S Video) (see page 31, 32)
[ AV ]
Signal
3D Y/C Filter (NTSC)
Colour system
Cinema reality
Panasonic Auto (4 : 3)
P-NR
On
Auto
Off
4:3
Off
To Signal screen for
Component (see page 32)
[ Component ]
Signal
Cinema reality
P-NR
Off
Off
To Signal screen for RGB
(see page 32, 33)
[ RGB ]
Signal
Sync
Cinema reality
P-NR
Auto
Off
Off
H-Freq. 33.8
kHz
V-Freq.
Hz
60.0
To Signal screen for Digital
(see page 32, 33)
[ Digital ]
Signal
Cinema reality
P-NR
Off
Off
H-Freq. 33.8
kHz
V-Freq.
Hz
60.0
Note : “Signal” setup menu displays different setting condition for each input signals. (see page 16)
Press to select Start Time / Finish Time
(When Time Designation is selected).
Press to select Periodic Time / Operating Time
(When Interval is selected).
To setup Screensaver
(see page 27-29)
Screensaver
Screensaver
PRESENT TIME
Start
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit
15:00
White bar scroll
Time Designation
6:15
12:30
High
Off
Off
PRESENT TIME
Press to Setup.
Screensaver
Start
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit
15:00
White bar scroll
Time Designation
6:15
12:30
High
Off
Off
Screensaver
PRESENT TIME
Start
Function
Mode
Periodic Time
Operating Time
Side panel
Wobbling
Peak limit
15:00
Press the R button to return
to “Setup” menu.
White bar scroll
Interval
12:00
3:00
High
Off
Off
To Set up Timer selection
screen (see page 25, 26)
Press to select POWER ON
Time / POWER OFF Time.
Set up TIMER
PRESENT TIME
POWER ON Function
POWER ON Time
POWER OFF Function
POWER OFF Time
10:00
Off
0:00
Off
0:00
Press to Set up
POWER ON Time /
POWER OFF Time.
PRESENT TIME
MON 99:99
Set
DAY
PRESENT TIME
15:00
White bar scroll
Interval
12:00
3:00
High
Off
Off
Set up TIMER
PRESENT TIME
POWER ON Function
POWER ON Time
POWER OFF Function
POWER OFF Time
10:00
Off
12:00
Off
18:00
Set up TIMER
To PRESENT TIME Setup
(see page 25)
PRESENT TIME Setup
PRESENT TIME
Start
Function
Mode
Periodic Time
Operating Time
Side panel
Wobbling
Peak limit
PRESENT TIME
Press the R button to return
to “Setup” menu.
POWER ON Function
POWER ON Time
POWER OFF Function
POWER OFF Time
10:00
On
12:00
On
18:00
MON
99:99
15
Initial selections
Selecting the input signal
Select the input signals to be connected by installing the optional Terminal Boards.
Press to select the input signal to be played back from
the equipment which has been connected to the Plasma
Display.
Input signals will change as follows:
INPUT1
INPUT2
INPUT3
PC
Notes:
• Selecting is also possible by pressing the INPUT button on the unit.
• Input terminal will not be selected if the terminal board is not installed into the
SLOT.
• Select to match the signals from the source connected to the component/RGB
input terminals. (see page 31)
• In 2 screen display, the same input mode cannot be selected for the main picture
and sub picture.
INPUT MENU
VOL
ENTER/
Swing up the door at “PULL”.
Selecting the On-Screen Menu Language
Press to display the Setup menu.
Press to select the OSD Language.
Press to select your preferred language.
Selectable languages
English(UK)
Deutsch
Français
Italiano
Español
ENGLISH(US)
.......(Chinese)
.......(Japanese)
16
Setup
1/2
Signal
Component/RGB-in select
Input label
Power save
Standby save
Power management
Auto power off
OSD Language
RGB
PC
Off
Off
Off
Off
English (UK)
ASPECT Controls
The Plasma Display will allow you to enjoy viewing the picture at its maximum size, including wide screen cinema
format picture.
Press repeatedly to move through the aspect options:
4:3
Zoom
Panasonic Auto
Note:
When selecting an input slot that attaches BNC Dual Video Terminal
Board (TY-FB9BD), Panasonic Auto cannot be selected.
[from the unit]
INPUT MENU
The aspect mode changes each time the ENTER button is
pressed.
ENTER/
VOL
[During MULTI PIP Operations]
• Picture and Picture, Picture in Picture :
• Others
:
16 : 9
Just
4:3
16 : 9
Aspect switching is not possible.
Notes:
• For PC signal input, the mode switches between “4:3”, “Zoom” and “16:9” only.
• For a 1125 (1080) / 60i · 50i · 24p · 25p · 30p · 24sF, 1250 (1080) / 50i, 750 (720) / 60p · 50p
signal input, the mode is set to “16:9” mode, and switching is not possible.
• Panasonic Auto can be selected only during Video signal input.
• The aspect mode is memorized separately for each input terminal.
Mode
Explanation
4:3 will display a 4:3 picture at its standard 4:3 size.
4
4:3
4:3
3
4
Zoom mode magnifies the central section of the picture.
16
Zoom
Zoom
3
4
9
16:9 will display the picture at its maximum size but with slight
elongation.
16
16 : 9
16 : 9
3
4
9
16
Just
Just
3
4
9
16
Panasonic Auto
3
Panasonic
Auto
For an elongated image
4
3
For a 4:3 image
9
Image is expanded
Changes in
accordance with
the Panasonic Auto
mode setting (see
page 32).
Just mode will display a 4:3 picture at its maximum size but with
aspect correction applied to the center of the screen so that
elongation is only apparent at the left and right edges of the screen.
The size of the picture will depend on the original signal.
The display will automatically become enlarged (depending on the
picture source), allowing you to view the picture at its maximum size.
Notes:
• Panasonic Auto mode is designed to automatically adjust the
aspect ratio to handle a mix of 16:9 and 4:3 program material.
Certain 4:3 program material, such as stock market data screens,
may occasionally cause the image size to change unexpectedly.
When viewing such programs, it is recommended that the ASPECT
be set to 4:3.
• If adjusting the Picture V-Pos/V-Size in Panasonic Auto with 16:9
mode, the adjustment is not memorized. When exiting the mode,
the screen will return to a former adjustment.
• Panasonic Auto can not be selected while BNC Dual Video
Terminal Board (TY-FB9BD) is installed.
Note:
Do not allow the picture to be displayed in 4:3 mode for an extended period, as this can cause a permanent image retention
to remain on the Plasma Display Panel.
17
Adjusting Pos. / Size
1
Press to display the Pos. /Size menu.
2
Press to select H-Pos / H-Size / V-Pos / V-Size /
Clock Phase.
3
Press to adjust Pos. / Size.
During “AV(S Video)”, “Component”
and “Digital” input signal.
4
Pos. /Size
Press to exit from adjust mode.
Normalise
Notes:
• Adjustment details are memorized separately for different input signal formats
(Adjustments for component signals are memorized for 525 (480) / 60i · 60p,
625 (575) / 50i · 50p, 1125 (1080) / 60i · 50i · 24p · 25p · 30p · 24sF, 1250
(1080) / 50i, 750 (720) / 60p · 50p each, and RGB/PC/Digital signals are
memorized for each frequency.)
• If a “Cue” or “Rew” signal from a VCR or DVD player is received, the picture
position will shift up or down. This picture position movement cannot be
controlled by the Picture Pos./Size function.
• If adjusting the Picture V-Pos/V-Size in Panasonic Auto with 16:9 mode, the
adjustment is not memorized. When exiting the mode, the screen will return
to a former adjustment.
Normal
0
0
0
0
H-Pos
H-Size
V-Pos
V-Size
During “RGB / PC” input signal.
Pos. /Size
Normalise
Normal
H-Pos
H-Size
V-Pos
V-Size
Clock Phase
H-Pos
Adjust the horizontal position.
H-Size
Adjust the horizontal size.
V-Pos
Adjust the vertical position.
V-Size
Adjust the vertical size.
Clock Phase
(RGB/PC in mode)
Helpful Hint (
0
0
0
0
0
Eliminate the flickering and distortion.
/
Normalise
Normalisation)
While the Pos. / Size display is active, if either the N button on the remote control is pressed at any time or the ACTION
( ) button is pressed during “Normalise”, then all adjustment values are returned to the factory settings.
18
MULTI PIP
Press repeatedly.
Each time pressing this button main picture and sub picture will be displayed
as follows below.
[Picture and Picture]
Main picture
Normal
Viewing
Press to swap main
picture and sub picture.
Sub picture
Sub picture
A
B
A
B
B
A
B
A
Press to select the input mode.
Under main Picture and sub picture display,
select the picture which you would like to
change input modes.
Notes:
• The sub picture sound is heard while a sub
picture operation is underway.
• The sub picture operation automatically
returns to the main picture operation if
a sub picture operation has not been
performed for about 5 seconds or if any
of the remote control buttons is pressed
button).
(except
Press to change input signal.
[Picture out Picture]
Main picture
[Example]
Main picture label is bright
[Picture in Picture]
Main picture
A
B
B
A
Sub picture label is bright
PC1
VIDEO2
A
Sub picture
PC1
VIDEO2
A
B
B
Input modes switching is possible
Main picture label is changed
C
Sub picture label is changed
VIDEO2
VIDEO1
B
A
PC1
VIDEO2
D
Picture is changed
Press to move the sub picture.
Each time the location of the sub picture will be moved.
Notes:
• This button is effective only in the picture in picture.
• The sub picture may be hidden by the on screen display, depending on its position.
Notes:
• If “Input lock” in Options menu is set to other than “Off”, MULTI PIP function isn’t available.
• Sound output is from the picture which is selected in Audio Out (PIP) (See page 23).
• In 2 screen display, the same input mode cannot be selected for the main picture and sub picture.
• The main picture and sub picture are processed by different circuits, resulting in a slight difference in the clarity of
the pictures. There may also be a difference in the picture quality of the sub picture depending on the type of signals
displayed on the main picture and depending on the 2-picture display mode.
• Due to the small dimensions of the sub pictures, these sub pictures cannot be shown in detail.
• Computer screen picture is displayed in a simplified format, and it may not be possible to discern details on them satisfactorily.
• Following combinations of two analog signals cannot be displayed simultaneously;
Component - Component, Component - PC (RGB), PC (RGB) - Component, PC (RGB) - PC (RGB)
19
Advanced PIP
1
Press to display the Setup menu.
2
Press to select “OSD Language”.
3
Press and hold until the Options menu is displayed.
Press to select Advanced PIP.
4
Options
1/3
Weekly Command Timer
Onscreen display
Initial INPUT
Initial VOL level
Maximum VOL level
INPUT lock
Button lock
Remocon User level
Advanced PIP
Press to adjust the menu.
Off : Sets normal two screen display mode
(see page 19).
On : Sets Advanced PIP mode.
5
One screen
6
Press to exit from
Options menu.
On
Off
Off
0
Off
0
Off
Off
Off
Off
Advanced PIP
1
2
6
5
Sub screen Main screen
3
(When Advanced PIP is On)
7
4
Press repeatedly.
Each time pressing this button main picture and sub picture will be displayed as above.
Note:
To use
,
,
,
buttons for the screen operations, follow the procedures in the previous page.
Notes:
• Advanced PIP corresponding signal
•
•
•
•
•
•
•
•
Sub screen
Main screen
NTSC, PAL, SECAM (tuner, video)
525i, 525p, 625i, 625p, 750/60p, 750/50p, 1125/60i, 1125/50i,
1250/50i (Component Video, RGB, DVI, SDI, HDMI)
[email protected], [email protected], [email protected],
[email protected] (RGB, DVI, HDMI)
[email protected] (DVI)
If “Input lock” in Options menu is set to other than “Off”, MULTI PIP function isn’t available.
Sound output is from the picture which is selected in Audio Out (PIP) (See page 23).
In 2 screen display, the same input mode cannot be selected for the main picture and sub picture.
The main picture and sub picture are processed by different circuits, resulting in a slight difference in the clarity of
the pictures. There may also be a difference in the picture quality of the sub picture depending on the type of signals
displayed on the main picture and depending on the 2-picture display mode.
Due to the small dimensions of the sub pictures, these sub pictures cannot be shown in detail.
Computer screen picture is displayed in a simplified format, and it may not be possible to discern details on them satisfactorily.
Following combinations of two analog signals cannot be displayed simultaneously;
Component - Component, Component - PC (RGB), PC (RGB) - Component, PC (RGB) - PC (RGB)
Refer to each board's operating instruction for DVI, SDI, HDMI's corresponding signals.
20
Picture Adjustments
1
2
Press to display the Picture menu.
Select to adjust each item.
Press to select the menu to adjust.
Select the desired level by looking at
the picture behind the menu.
Note:
Menu that cannot be adjusted is grayout. Adjustable menu
changes depending on signal, input and menu setting.
1/2
Normalise
Press “ ” or “ ” button to switch between modes.
Normal
Normal
Normal
Picture Mode
Contrast
Brightness
Colour
Tint
Sharpness
Cinema
25
0
0
0
5
Normal
For viewing in standard (evening lighting) environments.
This menu selects the normal levels of Brightness
and Contrast.
2/2
Dynamic
For viewing in brighter environments.
This menu selects higher than normal levels of
Brightness and Contrast.
Normal
Off
On
White balance
Colour Management
Advanced settings
Cinema
Ideal for movies.
Press to select “On”.
Press to enter
Advanced Settings.
Advanced settings On
Enables fine picture adjustment at a professional
level (see next page).
Note:
If you would like to change the picture and colour of the
selected Picture menu to something else, adjust using the
items in the Picture menu. (see next page)
1/2
Advanced settings
Normalise
Dynamic
Press “ ” or “ ” button to switch between modes.
Normal
0
0
Black extension
Input level
Gamma
AGC
Normal
Cool
Warm
2.2
Off
2/2
Advanced settings
Colour Management On
Enables vivid colour adjustment automatically.
0
0
0
0
0
0
W/B High R
W/B High G
W/B High B
W/B Low R
W/B Low G
W/B Low B
Advanced settings Off
Displays images with settings of the Picture menu.
Helpful Hint (
/
Normalise
Normalisation)
While the “Picture” menu is displayed, if either the N button on the remote control is pressed at any time or the
ACTION ( ) button is pressed during “Normalise”, then all adjustment values are returned to the factory settings.
21
Picture Adjustments
Item
Contrast
Brightness
Colour
Tint
Sharpness
Effect
Less
Notes:
• “Colour” and “Tint” settings cannot be
adjusted for “RGB/PC” and “Digital”
input signal.
• You can change the level of each
function (Contrast, Brightness, Colour,
Tint, Sharpness) for each Picture
Mode.
• The setting details for normal,
dynamic and cinema respectively
are memorized separately for each
input terminal.
• The “Tint” setting can be adjusted
for NTSC signal only during “AV
(S Video)” input signal.
• In Contrast, there is not a noticeable
change even when contrast is
increased with a bright picture or
reduced with a dark picture.
Adjustments
More
Darker
Brighter
Less
More
Reddish
Greenish
Less
More
Selects the proper brightness and
density for the room.
Adjusts for easier viewing of dark
pictures such as night scenes and
black hair.
Adjusts colour saturation.
Adjusts for nice skin colour.
Adjusts picture sharpness.
Advanced settings
Item
Black
extension
Effect
Details
Adjusts the dark shades of the image in gradation.
Less
More
Less
More
Down
Up
Off
On
W/B High
R
Less
More
W/B High
G
Less
More
W/B High
B
Less
More
Less
More
Less
More
Less
More
Input level
Gamma
AGC
W/B Low R
W/B Low G
W/B Low B
Adjustment of parts which are extremely bright and hard to see.
(This cannot be adjusted when the input signal is Digital.)
S Curve
2.0
2.2
2.5
Increases the brightness of dark signal automatically.
Adjusts the white balance for light red areas.
Adjusts the white balance for light green areas.
Adjusts the white balance for light blue areas.
Adjusts the white balance for dark red areas.
Adjusts the white balance for dark green areas.
Adjusts the white balance for dark blue areas.
Notes:
• Carry out “W/B” adjustment as follows.
1. Adjust the white balance of the bright sections using the “W/B High R”, “W/B High G” and “W/B High B” settings.
2. Adjust the white balance of the dark sections using the “W/B Low R”, “W/B Low G” and “W/B Low B” settings.
3. Repeat steps 1 and 2 to adjust.
Steps 1 and 2 affect each other’s settings, so repeat each step in turn to make the adjustment.
• The adjustment values are memorized separately for each input terminal.
• The adjustment range values should be used as an adjustment reference.
Helpful Hint (
/
Normalise
Normalisation)
On the remote control unit, while the “Advanced settings” menu is displayed, if either the N button is pressed at any time or
the ACTION ( ) button is pressed during “Normalise”, then all adjustment values are returned to the factory settings.
22
Sound Adjustment
1
2
Press to display the Sound menu.
Select to adjust each item.
Press to select the menu to adjust.
Select the desired level by listening to the sound.
Bass
Adjusts low pitch sounds
Sound
Normalise
Mid
Adjusts normal sounds
Treble
Adjusts high pitch sounds
Balance
Adjusts left and right volumes
Sound Mode
Bass
Mid
Treble
Balance
Surround
Audio Out (PIP)
Surround
Select On or Off
Emits the original sound.
Normal
Normal
Main
Sub
Musical note
Normal
Accentuates sharp
sound.
Dynamic
0
0
0
0
Attenuates human voice.
Clear
Off
Main
Selects main
picture sound.
Selects PIP frame
sound.
INPUT1
PC
A
(When main picture
sound is chosen.)
B
INPUT1
PC
A
(When PIP frame
sound is chosen.)
B
is displayed on right side of the audio output screen label.
Notes:
• Press the SURROUND button to directly turn the surround effect On and Off. (see page 12)
• Bass, Mid, Treble and Surround settings are memorized separately for each Sound Mode.
Helpful Hint (
/
Normalise
Normalisation)
While the “Sound” menu is displayed, if either the N button on the remote control is pressed at any time or the
ACTION ( ) button is pressed during “Normalise”, then all adjustment values are returned to the factory settings.
Mute
Useful when answering the phone or receiving unexpected visitors.
Press to mute the sound.
Press again to reactivate sound. Sound is also reactivated when power is turned off
or volume level is changed.
23
Digital Zoom
This displays an enlargement of the designated part of the displayed image.
1
Display the operation guide.
Press to access Digital Zoom.
The operation guide will be displayed.
Exit
1
During Digital Zoom, only the following buttons can be operated.
[Unit]
[Remote control]
POSITION /
ACTION button
VOL button
INPUT MENU
MUTE button
VOL
ENTER/
VOL button
SURROUND button
OFF TIMER button
2
Select the area of the image to be enlarged.
Press on the enlargement location to select.
The cursor will move.
Exit
2
3
Select the magnification required for the enlarged display.
Each time this is pressed, the magnification factor changes.
This is shown in the image being displayed.
×1
4
×2
×3
Return to normal display (quit Digital Zoom).
Press to exit from the Digital Zoom.
Notes:
• When power goes OFF (including “Off Timer” operation), Digital Zoom terminates.
• The Digital Zoom function cannot be selected while in the following operation state:
“Multi-viewer” (Picture in Picture, Picture out Picture, Picture and Picture) operation. (see page 19)
• While Digital Zoom is in operation, “Adjusting Pos. / Size” cannot be used.
24
×4
PRESENT TIME Setup / Set up TIMER
The timer can switch the Plasma Display On or Off.
Before attempting Timer Set, confirm the PRESENT TIME and adjust if necessary.
Then set POWER ON Time / POWER OFF Time.
1
Press to display the Setup menu.
2
Press to select Set up TIMER or PRESENT TIME Setup.
Setup
1/2
Signal
Component/RGB-in select
Press to display the Set up TIMER screen or
PRESENT TIME Setup screen.
Input label
Power save
Standby save
Power management
Auto power off
OSD Language
RGB
PC
Off
Off
Off
Off
English (UK)
Setup
2/2
Screensaver
MULTI DISPLAY Setup
Set up TIMER
PRESENT TIME Setup
PRESENT TIME Setup
Display the PRESENT TIME Setup screen.
To setup DAY and PRESENT TIME, follow the procedure described below.
1
Press to select DAY or PRESENT TIME.
PRESENT TIME Setup
PRESENT TIME
MON 99:99
Set
Press to setup DAY or PRESENT TIME.
MON
DAY
button: Forward
99:99
PRESENT TIME
button: Back
Notes:
• Pressing “ ” or “ ” button once changes PRESENT TIME 1minute.
• Pressing “ ” or “ ” button continuously changes PRESENT TIME by 15 minutes.
2
Press to select Set.
PRESENT TIME Setup
PRESENT TIME
MON 99:99
Set
DAY
PRESENT TIME
3
TUE
10:00
Press to store PRESENT TIME Setup.
Notes:
• Set cannot be selected unless PRESENT TIME is set.
• Unless setting the present time other than “99:99”, DAY setting is invalid.
Press to exit from PRESENT TIME Setup.
25
PRESENT TIME Setup / Set up TIMER
Set up TIMER
Display the Set up TIMER screen.
1
Press to select
POWER ON Time / POWER OFF Time.
Set up TIMER
PRESENT TIME
10:00
Off
POWER ON Function
Press to setup
12:00
POWER ON Time
POWER ON Time / POWER OFF Time.
Off
POWER OFF Function
button: Forward
POWER OFF Time
18:00
button: Back
Notes:
• Pressing “ ” or “ ” button once changes POWER ON Time / POWER OFF Time
1minute.
• Pressing “ ” or “ ” button continuously changes POWER ON Time / POWER OFF
Time by 15 minutes.
2
Press to select POWER ON Function/POWER
OFF Function.
PRESENT TIME
Press to select On.
3
Press twice to exit from Setup.
Note:
Timer function will not work unless “PRESENT TIME” is set.
26
Set up TIMER
POWER ON Function
POWER ON Time
POWER OFF Function
POWER OFF Time
On
12:00
On
18:00
10:00
Screensaver (For preventing image retention)
Do not display a still picture, especially in 4:3 mode, for any length of time.
If the display must remain on, a Screensaver should be used.
1
Press to display the Setup menu.
2
Press to select Screensaver.
Setup
2/2
Screensaver
MULTI DISPLAY Setup
Set up TIMER
PRESENT TIME Setup
Press to display Screensaver screen.
3
Reversal / Scroll selection
Screensaver
PRESENT TIME
Press to select Function.
Press to select the desired function.
White bar scroll
Image Reversal
Start
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit
99:99
White bar scroll
Off
6:15
12:30
High
Off
Off
White bar scroll : The white bar will scroll from left to right.
Image Reversal : Negative image will be displayed on the screen.
4
Mode selection
Screensaver
PRESENT TIME
Press to select Mode.
Press to select each mode items.
Off
Start
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit
99:99
White bar scroll
Off
6:15
12:30
High
Off
Off
Interval
: Operates when Periodic Time and Operating Time are setup
and those times arrive.
Time Designation : Operates when Start Time and Finish Time are setup and
those times arrive.
On
: Operates when Start is selected and the ACTION ( ) button
is pressed.
5
Start setting
Screensaver
When the Mode is set to On, press to select
Start.
PRESENT TIME
Start
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit
99:99
White bar scroll
On
6:15
12:30
High
Off
Off
Press to start Screensaver.
The menu screen will disappear and the Screensaver will be activated. To stop the
Screensaver under On, press the R button.
27
Screensaver (For preventing image retention)
Setup of Screensaver Time
After selecting Time Designation or Interval, the relevant Time Setup will become available for selection and the
Operating Time may be set. (Time cannot be set when “Mode” is “On” or “Off”.)
Screensaver
Screensaver
PRESENT TIME
Start
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit
15:10
Screensaver
PRESENT TIME
Start
Function
Mode
Periodic Time
Operating Time
Side panel
Wobbling
Peak limit
White bar scroll
Time Designation
6:15
12:30
High
Off
Off
15:00
White bar scroll
Interval
12:00
3:00
High
Off
Off
Press to select Start Time / Finish Time
(When Time Designation is selected).
Press to select Periodic Time / Operating Time
(When Interval is selected).
PRESENT TIME
Start
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit
99:99
White bar scroll
Off
6:15
12:30
High
Off
Off
Screensaver
PRESENT TIME
Press to setup.
button: Forward
Notes:
button: Back
• Pressing “ ” or “ ” button once changes the Time 1minute.
[However, switching occurs every 15 minutes when Periodic Time is selected.]
• Pressing “ ” or “ ” button continuously changes the Time by 15 minutes.
Screensaver
Screensaver
PRESENT TIME
Start
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit
15:10
White bar scroll
Time Designation
0:00
0:00
High
Off
Off
15:00
White bar scroll
Time Designation
6:15
12:30
High
Off
Off
Screensaver
PRESENT TIME
Start
Function
Mode
Periodic Time
Operating Time
Side panel
Wobbling
Peak limit
Start
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit
15:00
White bar scroll
Interval
0:00
0:00
High
Off
Off
PRESENT TIME
Start
Function
Mode
Periodic Time
Operating Time
Side panel
Wobbling
Peak limit
15:00
White bar scroll
Interval
12:00
3:00
High
Off
Off
Note: Timer function will not work unless “PRESENT TIME” is set.
Reduces screen image retention
These functions prevent the occurrence of an “image retention” on the display when turned ON.
Wobbling: Automatically shifts the display image (therefore unnoticeable to the eye) to prevent image retention of
sharper contour of image.
On1: Shifts the image every 30 seconds.
On2: Shifts the image at a dot level pitch depending on screen-detection.
Peak limit: Suppresses image contrast (peak brightness).
Note: When a still picture is viewed for an extended time, the screen may become slightly darker. (see page 41)
1
2
Press to display the Setup menu.
Press to select “Screensaver”.
Press to select “Wobbling” or “Peak limit”.
Press to select “On1”, “On2” or “Off” (Wobbling).
“On” or “Off” (Peak limit).
28
2/2
Screensaver
MULTI DISPLAY Setup
Set up TIMER
PRESENT TIME Setup
Press to display Screensaver menu.
3
Setup
Screensaver
PRESENT TIME
Start
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit
White bar scroll
Off
6:15
12:30
High
Off
Off
99:99
Screensaver (For preventing image retention)
Side Panel Adjustment
Do not display a picture in 4:3 mode for an extended period,
as this can cause an image retention to remain on the side
panels either side of the display field.
To reduce the risk of such an image retention, illuminate the
side panels.
side panel
4:3
Screen Display
image retention
This function may be applicable to the non-picture area.
Non picture area
Picture out Picture
Picture and Picture
Display the Screensaver screen.
(Refer to the previous page, operation guide steps 1 and 2)
1
Press to select Side panel.
Screensaver
PRESENT TIME
Press to select Off, Low, Mid, High.
Low
Off
Mid
High
2
Start
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit
99:99
White bar scroll
Off
6:15
12:30
High
Off
Off
Press to exit from Screensaver.
Notes:
• To reduce the occurrence of image retention, set the Side panel to High.
• The side panels may flash (alternate black / white) depending on the picture being shown on the screen. Using
Cinema mode will reduce such flashing.
29
Reduces power consumption
• Power save:
When this function is turned On, luminous level of the Plasma Display is suppressed, so
power consumption is reduced.
• Standby save:
When this function is turned On, power consumption of the microcomputer is reduced
during power supply standby (see page 11-13), so standby power of the set is reduced.
• Power management: The unit power supply is turned On or Off depending on whether or not there is a signal
during PC input mode.
This function is enabled when it is turned On. (Only during input from PC (Mini D-sub) terminal)
• Auto power off:
Equipment power supply is turned Off when there is no signal.
When this is set to On, the power supply of the unit goes Off 10 minutes after the input
signals stop.
This function is effective for input signals except input from PC (Mini D-sub) terminal.
1
2
Press to select
“Power save”
“Standby save”
“Power management”
“Auto power off”.
1/2
Signal
Component/RGB-in select
Input label
Power save
Standby save
Power management
Auto power off
OSD Language
Press to select “On” or “Off”.
On
3
Setup
RGB
PC
Off
Off
Off
Off
English (UK)
Off
Press to exit from Setup.
Note:
“Power management” and “Auto power off” are effective
during normal viewing (one picture screen) only.
Customizing the Input labels
This function can change the label of the Input signal to be displayed.
Select the input signal which you would like to change its label before customizing the Input labels. (see page 13, 16)
Press to select Input label.
Press to change the Input label.
Setup
1/2
Signal
Component/RGB-in select
Input label
Power save
Standby save
Power management
Auto power off
OSD Language
RGB
PC
Off
On
Off
Off
English (UK)
Note:
While selecting an Input signal through Optional Terminal Board connected to Slot1, Slot2 and Slot3, the Input label
will depend on each Optional Terminal Board.
Input labels for Slot1, Slot2, Slot3 and Mini D-sub:
[Slot1 Input] INPUT1 / VIDEO1 / COMPONENT1 / RGB1 / DIGITAL1 / PC1 / DVD1 / CATV1 / VCR1 / STB1
[Slot2 Input] INPUT2 / VIDEO2 / COMPONENT2 / RGB2 / DIGITAL2 / PC2 / DVD2 / CATV2 / VCR2 / STB2
[Slot3 Input] INPUT3 / VIDEO3 / COMPONENT3 / RGB3 / PC3 / DVD3 / CATV3 / VCR3 / STB3
[PC (Mini D-sub) input] PC / COMPONENT / RGB / DVD / STB
When BNC Dual Video Terminal Board (TY-FB9BD) is used, an “A” or “B” is added at the end of each input label,
depending on the input selected (see below).
Addition sign
“A”
“B”
Selected Input
Composite
S VIDEO
30
Setup for Input Signals
Component / RGB-in select
Select to match the signals from the source connected to the Component / RGB input terminals.
Y, PB, PR signals
“Component”
R, G, B, HD, VD signals
“RGB”
1
2
Press to display the Setup menu.
Press to select the “Component / RGB-in
select”.
Press to select the desired input signal.
Component
RGB
3
Setup
Press to exit from adjust mode.
Note:
Selection may not be possible, depending on which optional board is installed.
1/2
Signal
Component/RGB-in select
Input label
Power save
Standby save
Power management
Auto power off
OSD Language
RGB
PC
Off
Off
Off
Off
English (UK)
3D Y/C Filter – For NTSC AV images
Select “Signal” from the “Setup” menu during AV(S Video) input signal. (“Signal
[AV]” menu is displayed.)
1
Press to select the “3D Y/C Filter (NTSC)”
1/2
Signal
Component/RGB-in select
Press to set On / Off.
2
Setup
Input label
Power save
Standby save
Power management
Auto power off
OSD Language
RGB
PC
Off
Off
Off
Off
English (UK)
Press ACTION ( ) button
Press to exit from adjust mode.
Note:
When On, this setting only affects NTSC input signals.
[ AV ]
Signal
3D Y/C Filter (NTSC)
Colour system
Cinema reality
Panasonic Auto (4 : 3)
P-NR
On
Auto
Off
4:3
Off
31
Setup for Input Signals
Colour system / Panasonic Auto
Select Signal from the “Setup” menu during AV(S Video) input signal. (“Signal
[AV]” menu is displayed.)
Setup
1/2
Signal
Component/RGB-in select
Press to select the “Colour system” or
“Panasonic Auto”.
RGB
PC
Off
Off
Off
Off
English (UK)
Input label
Power save
Standby save
Power management
Auto power off
OSD Language
Press to select each functions.
Press ACTION ( ) button
If the picture image becomes unstable:
With the system set on Auto, under conditions of low level or noisy input
signals the image may in rare cases become unstable. Should this occur,
set the system to match the format of the input signal.
Mode
Colour system
[ AV ]
Signal
On
Auto
Off
4:3
Off
3D Y/C Filter (NTSC)
Colour system
Cinema reality
Panasonic Auto (4 : 3)
P-NR
Function
Set the colour system to match the input signal. When selecting “Auto”, the color system is automatically
selected from NTSC/PAL/SECAM, however, M.NTSC signal is not displayed properly depending on
the attached terminal board. To display M.NTSC signal, select “M.NTSC” in Colour system.
Auto
PAL
SECAM
M.NTSC
NTSC
Panasonic Auto Set to “4 : 3” to view 4:3 images in an unchanged format when Panasonic Auto is selected.
(4 : 3)
If you would like to view 4:3 images in Just format, set to “Just”.
Note:
Panasonic Auto does not function when BNC Dual Video Terminal Board (TY-FB9BD) is used.
Cinema reality / P-NR
Cinema reality:
When on, the display attempts to reproduce a more natural interpretation of sources
such as movie pictures, which are recorded at 24 frames per second.
If the picture is not stable, turn the setting to off.
Note:
When On, this setting only affects the following signal input:
• NTSC / PAL signal input during “AV(S Video)” input signal.
• 525i(480i) 625i(575i), 1125(1080) / 60i signal input during “Component” input
signal.
Setup
Signal
Component/RGB-in select
1
Press ACTION ( ) button
32
[ AV ]
Signal
3D Y/C Filter (NTSC)
Colour system
Cinema reality
Panasonic Auto (4 : 3)
P-NR
Signal
2
RGB
PC
Off
Off
Off
Off
English (UK)
Input label
Power save
Standby save
Power management
Auto power off
OSD Language
P-NR:
Automatically reduces unwanted picture noise.
Note:
P-NR cannot be adjusted while a PC signal is being applied.
Press to select Cinema
reality or P-NR.
Press to set On / Off.
1/2
Cinema reality
P-NR
Press to exit from adjust mode.
On
Auto
Off
4:3
Off
[ Component ]
Off
Off
[ RGB ]
Signal
Sync
Cinema reality
P-NR
Auto
Off
Off
H-Freq. 33.8
kHz
V-Freq.
Hz
60.0
[ Digital ]
Signal
Cinema reality
P-NR
Off
Off
H-Freq. 33.8
kHz
V-Freq.
Hz
60.0
Setup for Input Signals
Sync
Select Signal from the “Setup” menu during RGB input signal.
1
Setup
Press to adjust.
1/2
Signal
Component/RGB-in select
RGB
PC
Off
Off
Off
Off
English (UK)
Input label
Power save
Standby save
Power management
Auto power off
OSD Language
2
Press ACTION ( ) button
Press to exit from adjust mode.
[ RGB ]
Signal
Setting RGB sync signal:
Sync
Cinema reality
P-NR
Confirm that the input is set to RGB input (this setting is valid only for RGB input
signal).
Auto: The H and V sync or synchronized signal are automatically selected.
If both input, it is selected the H and V sync.
on G: Uses a synchronized signal on the Video G signal, which is input
from the G connector.
VBS: Uses a synchronized signal of Composite Sync input, which is input
from the HD connector.
Auto
Off
Off
H-Freq. 33.8
kHz
V-Freq.
Hz
60.0
Sync
Auto
Sync
on G
Sync
VBS
Refresh Rate
This function sets the refresh rate of the display.
This menu is displayed when the input signal is 50 Hz system (50i, 50p, 25p, 24p, 24sF) of vertical scan rate.
100 Hz: Reduce screen flicker.
50 Hz: Enhance the resolution of moving images.
Note:
It is recommended to set to 100 Hz normally.
1
Press to select Refresh Rate.
Press to adjust.
Signal
3D Y/C Filter (NTSC)
Colour system
Cinema reality
Panasonic Auto (4 : 3)
P-NR
Refresh Rate
Signal
2
Press to exit from adjust
mode.
Cinema reality
P-NR
Refresh Rate
[ AV ]
Auto
Off
4:3
Off
100 Hz
[ Component ]
Off
Off
100 Hz
[ RGB ]
Signal
Sync
Cinema reality
P-NR
Refresh Rate
Auto
Off
Off
100 Hz
H-Freq. 33.8
kHz
V-Freq.
Hz
60.0
[ Digital ]
Signal
Cinema reality
P-NR
Refresh Rate
Off
Off
100 Hz
H-Freq. 33.8
kHz
V-Freq.
Hz
60.0
H-Freq. (kHz) / V-Freq. (Hz)
Displays the H (Horizontal) / V (Vertical) frequencies.
This display is valid only for RGB / PC and Digital input signal.
Display range:
Horizontal 15 - 110 kHz
Vertical 48 - 120 Hz
H-Freq. 33.8
kHz
V-Freq.
Hz
60.0
33
Options Adjustments
1
Press to display the Setup menu.
2
Press to select “OSD Language”.
3
Press and hold until the Options menu is displayed.
4
Press to select your preferred menu.
5
Press to adjust the menu.
Options
1/3
Weekly Command Timer
6
Onscreen display
Initial INPUT
Initial VOL level
Maximum VOL level
INPUT lock
Button lock
Remocon User level
Advanced PIP
Press to exit from Options menu.
Item
Effect
Sets Weekly Command Timer. (see page 38)
Onscreen
display
On: Displays all the following on screen.
• Power on display
• Input signal switch display
• No signal display
• Mute and the remaining time of off-timer after
Off: Hides all the items above from view.
Initial INPUT
34
Off
Off
Off
Off
0
0
Off
Off
Off
Off
Adjustments
Weekly
Command
Timer
On
On
was pressed.
Off
PC
INPUT1
INPUT2
INPUT3
Adjusts the input signal when the unit is turned on.
Notes:
• Only the adjusted signal is displayed. (see page 16).
• Signal can be displayed when the Terminal board is installed.
• This menu is available only when “INPUT lock” is “Off”.
• When a dual input terminal board is attached, A or B is displayed depending on the selected
input signal. (Ex. INPUT1A, INPUT1B)
Options Adjustments
Options
1/3
Weekly Command Timer
Onscreen display
Initial INPUT
Initial VOL level
Maximum VOL level
INPUT lock
Button lock
Remocon User level
Advanced PIP
Item
Effect
Off
On
On
0
0
Off
Off
Off
Off
button to adjust the volume when the unit is turned on.
Off
On
Off: Sets normal volume.
On: Sets your preferred volume.
Notes:
• When “Maximum VOL level” is “On”, the volume can only be adjusted between 0 and your maximum range.
• You can hear the changed volume regardless of your volume setting before opening the options menu if you
adjust the volume when “Initial VOL level” is “On” and cursor is on the menu.
Press
Maximum VOL
level
Off
Off
Off
Off
Adjustments
Press
Initial VOL
level
On
button to adjust the maximum volume.
Off
On
Off: Sets auto maximum volume.
On: Sets your preferred maximum volume.
Notes:
• If the “Maximum VOL level” is set lower than the “Initial VOL level”, the “Initial VOL level”
automatically becomes the same as the “Maximum VOL level”.
• The volume display can go up to 63 regardless of the settings.
• You can hear the changed volume regardless of your volume setting before opening the options menu if you
adjust the volume when “Maximum VOL level” is “On” and cursor is on the menu.
Off
PC
INPUT1
INPUT2
INPUT3
Locks the input switch operation.
Notes:
• Only the adjusted signal is displayed (see page 16).
• Signal can be displayed when the Terminal board is installed.
• Input switch can be used when this is set to “Off”.
• In two screen display mode, if anything other than “Off” is set, the value will be fixed as the value
input in the single screen display mode.
• When a dual input terminal board is attached, A or B is displayed depending on the selected input
signal. (Ex. INPUT1A, INPUT1B)
INPUT lock
Off
MENU&ENTER
On
Off: All the buttons at the bottom of the main unit can be used.
MENU & ENTER:
Locks MENU and ENTER/ buttons on bottom face of main unit.
On: Locks all the button on bottom face of main unit.
Sets Button lock with the unit buttons in the following procedure.
Off: Press
four times→Press INPUT four times→Press
four times→Press ENTER/
MENU & ENTER: Press ENTER/ four times→Press
four times→Press INPUT four times→Press ENTER/
On: Press
four times→Press ENTER/ four times→Press
four times→Press ENTER/
Button lock
Off
User1
User2
User3
Off: You can use all of the buttons on the remote control.
User1: You can only use
,
,
,
, ,
control.
Remocon
User level
,
,
buttons on the remote
User2: You can only use
,
, buttons on the remote control.
User3: Locks all the buttons on remote control.
Advanced PIP
Off
On
Off: Sets normal two screen display mode (see page 19).
On: Sets Advanced PIP mode (see page 20).
Notes:
• When “INPUT lock” is “On”, you cannot use all the two screen display functions.
•
,
buttons are unavailable during Advanced PIP mode operation.
35
Options Adjustments
Options
Item
Off-timer
function
Effect
Enable
Initial Power Mode
ID select
Remote ID
Serial ID
Display size
Studio W/B
Studio Gain
Normal
0
Off
Off
Off
Off
Off
Adjustments
Normal
Standby
On
Sets the power mode of the unit for when the power recovers from failure or after plugging off
and in again.
Normal: Power returns in as the same state as before the power interruption.
Standby: Power returns in standby mode. (Power Indicator : red/orange)
On:
Power returns in power On. (Power Indicator : green)
Note:
When using multiple displays, “Standby” is preferred to be set in order to reduce a
power load.
Sets panel ID number when panel is used in “Remote ID” or “Serial ID”.
Set value range: 0 - 100
(Standard value: 0)
ID select
Serial ID
Off-timer function
Enable: Enables the “Off-timer function”.
Disable: Disables the “Off-timer function”.
Enable Disable
Note:
When “Disable” is set, the Off-timer is cancelled.
Initial Power
Mode
Remote ID
2/3
Off
Off
On
Off:
On:
Disables ID remote control functions. You can use normal remote control operations.
Enable ID remote control functions.
On
Sets the panel ID Control.
Off: Disables external control by the ID.
On: Enables the external control by the ID.
Adjusts the image display size on screen.
Off: Sets the normal image display size on screen.
On: Sets the image display size approximately 95 % of the normal image display..
Off
On
Display size
Studio W/B
Studio Gain
36
Off
Off
Off
On
On
On
Notes:
• This setting is valid only when the input signals are as follows;
NTSC, PAL, SECAM, M.NTSC, PAL60, PAL-M, PAL-N (BNC Dual Video Terminal Board
(TY-FB9BD)) 525i, 525p, 625i, 625p, 750/60p, 750/50p, 1125/60i, 1125/50i, 1125/24sF, 1125/25p,
1125/24p, 1125/30p, 1250/50i (Component Video, RGB, DVI, SDI, HDMI)
• This setting is invalid when two screen display, digital zoom or Multi screen is selected.
• When “Display size” is set to “On”, “Pos. /Size” adjustment cannot be used.
• Refer to each board’s operating instruction for DVI, SDI, HDMI’s corresponding signals.
Off: Nullify all the settings adjusted.
On: Sets the colour temperature for TV studio.
Note: Valid only when the low is set as colour temperature on screen adjustment.
Sharpens the contrast for a better view when a part of the image is too light to see.
Off: Disables “Studio Gain”.
On: Enables “Studio Gain”.
Note: This setting is valid only when the input signals are as follows:
Component Video, RGB (analog), SDI, HDMI
Options Adjustments
3/3
Options
Slot power
V. lnstallation
Rotate
Serial Slot Select
Item
Effect
Off
Off
Off
Slot1
Adjustments
Off
Auto
On
Off: Power is not transmitted to the slot power.
Auto: Power is transmitted to the slot power only when main power is on.
On: Power is transmitted to the slot power when main power is on or in the standby state.
Note: In some cases, power is transmitted to the slot power when main power is on or in the
standby state regardless of the slot power setting.
Slot Power
V.Installation
Rotate
Off
On
Off
On
Note: This mode is unavailable.
Off: Does not rotate the image.
On: Rotates the image 180 degrees.
Slot1
Slot2
Slot3
Selects the slot which communicates serial.
Note: The setting of an external command can be set only from the fixed serial terminal (see page 10).
Serial Slot
Select
Normalization
When both main unit buttons and remote control are disabled due to the “Button lock”, “Remocon User level” or “Remote
ID” adjustments, set all the values “Off” so that all the buttons are enabled again.
Press the
button on main unit together with
button on the remote control and hold for more than 5 seconds.
VOL
The “SHIPPING” menu is displayed and the lock is released when it disappears.
37
Options Adjustments
Weekly Command Timer
You can set 7-day timer programming by setting time and command.
Note:
Before setting Weekly Command Timer, set PRESENT TIME Setup. (see page 25)
1
Press to select Function.
Press to select “On”.
Options
1/3
Weekly Command Timer
On
Onscreen display
Note:
• When Function is set to On, SET up TIMER
(see page 26) is unavailable and Interval /
Time Designation in Mode of Screensaver
(see page 27) cannot be selected.
2
Press to select a day.
Press to select a program number.
Note:
• You can set the program from 1 to 7.
--- indicates unset.
Press ACTION ( ) button
Weekly Command Timer
Function
On
Monday
Program1
Tuesday
Wednesday
Thursday
Friday
Saturday
Sunday
Program Edit
Program3
--Program3
--Program6
Program4
Weekly Command Timer
Function
On
Monday
Tuesday
Program1
Program3
Wednesday
Thursday
Friday
Saturday
Sunday
Program Edit
--Program3
--Program6
Program4
Program number
3
Press to select Program Edit.
Thursday
Friday
Saturday
Sunday
Program Edit
Program3
--Program6
Program4
Press to show the Program Edit screen.
Program Edit screen
4
38
Press to select Program.
Press to change the program numbers (1-7).
1/8
Weekly Command Timer
Program
8:00
01
10:30
02
--:-03
--:-04
--:-05
12:00
06
9:12
07
--:-08
1
PON
IMS:SL1
------DAM:ZOOM
AVL:10
---
Options Adjustments
Press to select a command number.
5
Press to show the previous / next command
pages (1-8) of the selected program.
Press to show the command setting screen.
1/8
Weekly Command Timer
Program
01
02
03
04
05
06
07
08
1
8:00
10:30
PON
IMS:SL1
--:--
---
--:--
---
--:--
---
12:00
9:12
--:--
DAM:ZOOM
AVL:10
---
8/8
Weekly Command Timer
Program
57
58
59
60
61
62
63
64
1
20:00
AVL:00
20:30
22:00
DAM:NORM
POF
--:--
---
--:--
---
--:--
---
--:--
---
--:--
---
Command (--- indicates unset)
Set time of timer(--:-- indicates unset)
Command numbers
6
Press to select Command No.
Press to select a command number.
Command setting screen
Weekly Command Timer
Program
1
Command No
Time
Command
7
Press to select Time / Command.
02
10:30
IMS:SL1
Weekly Command Timer
Program
Command No
Time
1
02
Press to set each item.
10:30
IMS:SL1
Command
Time: Set the time to execute a command
program.
Pressing “ ” or “ ” button once changes “Time” 1 minute.
Pressing “ ” or “ ” button continuously changes “Time” by 15 minutes.
Command:Select a command to execute at the set time. This unit has 64 commands
to set. (see page 43)
Notes:
• Command is performed in order of execution time, regardless of the command number.
• If a command execution time overlaps with that of other commands, these commands
are performed in number order.
• Pressing , Time becomes --:-- and Command becomes ---.
Note:
• Press
to return to the previous screen.
39
Shipping condition
This function allows you to reset the unit to the factory setting.
1
Press to display the Setup menu.
2
Press to select “OSD Language”.
3
Press and hold till the SHIPPING menu is
displayed.
Setup
1/2
Signal
Component/RGB-in select
4
Press to select “YES”.
Input label
Power save
Standby save
Power management
Auto power off
OSD Language
SHIPPING
Press to confirm.
[from the unit]
1 Press the MENU button till the Setup menu is displayed.
2 Press the Volume Up“+” or Down“–” button to select “OSD Language”.
3 Press and hold the ENTER button till the SHIPPING menu is displayed.
4 Press the Volume Up“+” or Down“–” button to select “YES”.
5 Press the ENTER button and wait for 10 sec.
Note:
Press the R button to return to Setup menu when SHIPPING menu is displayed.
40
RGB
PC
Off
Off
Off
Off
English (UK)
YES
Troubleshooting
Before you call for service, determine the symptoms and make a few simple checks as shown below.
Symptoms
Sound
Interference
Noisy Sound
Normal Picture
No Sound
No Picture
No Sound
No Picture
Normal Sound
No Colour
Normal Sound
No remote control operations can be performed.
A cracking sound is sometimes heard from the unit.
The top or bottom of the picture on the screen is cut
off when I use the zoom function.
Areas at the top and bottom of the screen where
the image is missing appear when I use the zoom
function.
I can hear sounds coming from inside the unit.
Checks
Electrical Appliances
Cars / Motorcycles
Fluorescent light
Volume
(Check whether the mute function has been activated on the remote control.)
Not plugged into AC outlet
Not switched on
Picture and Brightness/Volume setting
(Check by pressing the power switch or stand-by button on the remote control.)
If a signal with a non-applicable colour system format, or frequency is input, only
the input terminal indication is displayed.
Colour controls set at minimum level
(see page 21, 22)
Colour system (see page 32)
Check whether the batteries have discharged completely and, if they have not,
whether they were inserted properly.
Check whether the remote control sensor is exposed to an outdoor light or a
strong fluorescent light.
Check whether the remote control designed specifically for use with the unit is
being used. (The unit cannot be operated by any other remote control.)
If there is nothing wrong with the picture or sound, this is the sound of the cabinet
undergoing very slight contractions in response to changes in the room temperature.
There are no adverse effects on the performance or other aspects.
Adjust the position of the picture on the screen.
When using a video software program (such as a cinema size program) with a
screen wider than one in the 16:9 mode, blank areas separate from the images
are formed at the top and bottom of the screen.
When the power is turned on, a sound of the display panel being driven may be
heard: This is normal and not indicative of malfunctioning.
This Plasma Display uses special image processing. Hence a slight time lag may occur between image and audio, depending on the
type of input signal. However, this is not a malfunction.
Plasma Display panel
Symptoms
The screen darkens slightly
when bright pictures with minimal
movements are shown.
It takes a while for the picture
to appear.
The edges of the images
flicker.
The brightness on both sides of
images in the 4:3 mode changes.
Some parts of the screen do
not light up.
Image retention appears
Checks
The screen will darken slightly when photos, still images of a computer or other pictures with minimal
movements are shown for an extended period. This is done to reduce image retention on the screen
and the shortening of the screen’s service life: It is normal and not indicative of malfunctioning.
The unit digitally processes the various signals in order to reproduce esthetically pleasing images. As
such, it sometimes takes a few moments for the picture to appear when the power has been turned
on, when the input has been switched or when the images for the main picture and sub picture on
the two screens are swapped.
Due to the characteristics of the system used to drive the panel, the edges may appear to flicker in
the fast-moving parts of the images: This is normal and not indicative of malfunctioning.
When viewing the side panels at the “High” or “Mid” setting, the brightness on both sides may change
depending on the kind of program shown: This is normal and not indicative of malfunctioning.
The plasma display panel is manufactured using an extremely high level of precision technology,
however, sometimes some parts of the screen may be missing picture elements or have luminous
spots. This is not a malfunction.
Do not allow a still picture to be displayed for an extended period, as this can cause a permanent
image retention to remain on the Plasma Display.
Examples of still pictures include logos, video games, computer images, teletext and images displayed
in 4:3 mode.
Note:
The permanent image retention on the Plasma Display resulting from fixed image use is not an
operating defect and as such is not covered by the Warranty.
This product is not designed to display fixed images for extended periods of time.
41
PC input signals
Applicable input signals for Mini D-sub 15P (Component) / Mini D-sub 15P (RGB) (* Mark)
Horizontal
Vertical
Dot clock
Mini D-sub 15P Mini D-sub 15P
Signal name
frequency
frequency
frequency
(Component)
(RGB)
(kHz)
(Hz)
(MHz)
1
525 (480) / 60i
15.73
59.94
13.5
2
525 (480) / 60p
31.47
59.94
27.0
∗1
3
625 (575) / 50i
15.63
50.00
13.5
4
625 (575) / 50p
31.25
50.00
27.0
5
750 (720) / 60p
45.00
60.00
74.25
6
750 (720) / 50p
37.50
50.00
74.25
7
1,125 (1,080) / 60i
33.75
60.00
74.25
8
1,125 (1,080) / 50i
28.13
50.00
74.25
9
1,125 (1,080) / 24sF
27.00
47.92
74.25
10
1,125 (1,080) / 30p
33.75
30.00
74.25
11
1,125 (1,080) / 25p
28.13
25.00
74.25
12
1,125 (1,080) / 24p
27.00
24.00
74.25
13
1,250 (1,080) / 50i
31.25
50.00
74.25
14
640 × 400 @70 Hz
31.46
70.07
25.17
15
640 × 480 @60 Hz
31.47
59.94
25.18
∗2
16
640 × 480 @72 Hz
37.86
72.81
31.5
17
640 × 480 @75 Hz
37.50
75.00
31.5
18
640 × 480 @85 Hz
43.27
85.01
36.0
19
852 × 480 @60 Hz
31.47
59.94
33.54
∗2
20
800 × 600 @56 Hz
35.16
56.25
36.0
21
800 × 600 @60 Hz
37.88
60.32
40.0
22
800 × 600 @72 Hz
48.08
72.19
50.0
23
800 × 600 @75 Hz
46.88
75.00
49.5
24
800 × 600 @85 Hz
53.67
85.06
56.25
25
1,024 × 768 @60 Hz
48.36
60.00
65.0
26
1,024 × 768 @70 Hz
56.48
70.07
75.0
27
1,024 × 768 @75 Hz
60.02
75.03
78.75
28
1,024 × 768 @85 Hz
68.68
85.00
94.5
29
1,152 × 864 @75 Hz
67.50
75.00
108.0
30
1,280 × 960 @60 Hz
60.00
60.00
108.0
31
1,280 × 960 @85 Hz
85.94
85.00
148.5
32
1,280 × 1,024 @60 Hz
63.98
60.02
108.0
33
1,280 × 1,024 @75 Hz
79.98
75.03
135.0
34
1,280 × 1,024 @85 Hz
91.15
85.02
157.5
35
1,600 × 1,200 @60 Hz
75.00
60.00
162.0
36
1,600 × 1,200 @65 Hz
81.25
65.00
175.5
37
1,066 × 600 @60 Hz
37.64
59.94
53.0
38
1,366 × 768 @60 Hz
48.36
60.00
86.71
39
Macintosh13” (640 × 480)
35.00
66.67
30.24
40
Macintosh16” (832 × 624)
49.72
74.54
57.28
41 Macintosh21” (1,152 × 870)
68.68
75.06
100.0
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
∗1: When selected the RGB format and 525p signal input to the Mini D-sub 15P terminal, it is recognized as VGA 60Hz signal.
∗2: When inputted VGA 60Hz format signal from the other than Mini D-sub 15P terminal, it is recognized as 525p signal.
Note: Signals without above specification may not be displayed properly.
42
Command list of Weekly Command Timer
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
Command
AAC:MENCLR
AAC:MENDYN
AAC:MENSTD
AAC:SURMON
AAC:SUROFF
AMT:0
AMT:1
ASO:M
ASO:S
AVL:00
AVL:10
AVL:20
AVL:30
AVL:40
AVL:50
AVL:60
DAM:FULL
DAM:JUST
DAM:NORM
DAM:SELF
DAM:ZOOM
DWA:OFF
DWA:OVL1
DWA:OVL2
DWA:OVL3
DWA:OVL4
DWA:OVL5
DWA:OVL6
DWA:OVLOF
DWA:OVLON
DWA:PIN0
DWA:PIN1
DWA:PIN2
DWA:PIN3
DWA:PIP
DWA:POP
DWA:SWP
DWA:TWN
IMS:PC1
IMS:SL1
IMS:SL1A
IMS:SL1B
IMS:SL2
IMS:SL2A
IMS:SL2B
IMS:SL3
ISS:PC1
ISS:SL1
ISS:SL1A
ISS:SL1B
ISS:SL2
ISS:SL2A
ISS:SL2B
ISS:SL3
OSP:SCR0
OSP:SCR1
POF
PON
SSC:FNC0
SSC:FNC1
SSC:MOD0
SSC:MOD3
VMT:0∗
VMT:1∗
Control details
Audio Menu (Clear)
Audio Menu (Dynamic)
Audio Menu (Standard)
Surround (ON)
Surround (OFF)
Audio Mute (OFF)
Audio Mute (ON)
Audio out when PIP mode (Main Picture)
Audio out when PIP mode (Sub Picture)
Audio Volume (00)
Audio Volume (10)
Audio Volume (20)
Audio Volume (30)
Audio Volume (40)
Audio Volume (50)
Audio Volume (60)
Aspect (16:9)
Aspect (Just)
Aspect (4:3)
Aspect (Panasonic Auto)
Aspect (Zoom)
Advanced PIP mode (OFF)
Advanced PIP mode (1) (see page 20)
Advanced PIP mode (2) (see page 20)
Advanced PIP mode (3) (see page 20)
Advanced PIP mode (4) (see page 20)
Advanced PIP mode (5) (see page 20)
Advanced PIP mode (6) (see page 20)
Advanced PIP mode (OFF) (normal two screen display mode)
Advanced PIP mode (ON)
The location of the sub picture (lower right)
The location of the sub picture (lower left)
The location of the sub picture (upper left)
The location of the sub picture (upper right)
Dual Picture mode (Picture in Picture)
Dual Picture mode (Picture out Picture)
Swap main picture and sub picture when PIP mode
Dual Picture mode (Picture and Picture)
Input select (PC1) (Main Picture when PIP mode)
Input select (SLOT1) (Main Picture when PIP mode)
Input select (SLOT1A) (Main Picture when PIP mode)
Input select (SLOT1B) (Main Picture when PIP mode)
Input select (SLOT2) (Main Picture when PIP mode)
Input select (SLOT2A) (Main Picture when PIP mode)
Input select (SLOT2B) (Main Picture when PIP mode)
Input select (SLOT3) (Main Picture when PIP mode)
Sub Picture Input Select (PC1)
Sub Picture Input Select (SLOT1)
Sub Picture Input Select (SLOT1A)
Sub Picture Input Select (SLOT1B)
Sub Picture Input Select (SLOT2)
Sub Picture Input Select (SLOT2A)
Sub Picture Input Select (SLOT2B)
Sub Picture Input Select (SLOT3)
Screen Saver White bar scroll (OFF)
Screen Saver White bar scroll (ON)
Power OFF
Power ON
Screen Saver function (White bar scroll)
Screen Saver function (Image Reversal)
ScreenSaver (Mode (OFF))
ScreenSaver (Mode (ON))
Picture Mute (OFF)
Picture Mute (ON)
∗ Picture Mute cannot be unlocked by powering off/on with the remote control. Turn off and on again with the button
on the unit or enter the command VMT:0 to unlock Picture Mute.
43
Specifications
TH-37PR10E
Power Source
TH-42PR10E
220 - 240 V AC, 50/60 Hz
Power Consumption
Power on
325 W
365 W
Stand-by condition
Save off 1.0 W, Save on 0.8 W
Save off 1.0 W, Save on 0.8 W
Power off condition
0.5 W
0.5 W
Drive method : AC type
37-inch, 16:9 aspect ratio
Drive method : AC type
42-inch, 16:9 aspect ratio
818 mm (W) × 461 mm (H)
× 939 mm (diagonal)
920 mm (W) × 518 mm (H)
× 1,056 mm (diagonal)
737,280 (1,024 (W) × 720 (H))
[3,072 × 720 dots]
786,432 (1,024 (W) × 768 (H))
[3,072 × 768 dots]
Plasma Display panel
Screen size
(No.of pixels)
Operating condition
Temperature
0 °C - 40 °C
Humidity
20 % - 80 %
Applicable signals
Scanning format
PC signals
525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 750 (720) / 60p · 50p, 1125 (1080) / 60i ·
50i · 24p · 25p · 30p · 24sF ···· SMPTE274M, 1250 (1080) / 50i
VGA, SVGA
VGA, SVGA, XGA
XGA, SXGA, UXGA ···· (compressed)
SXGA, UXGA ···· (compressed)
Horizontal scanning frequency 15 - 110 kHz Horizontal scanning frequency 15 - 110 kHz
Vertical scanning frequency 48 - 120 Hz
Vertical scanning frequency 48 - 120 Hz
Connection terminals
PC IN
(HIGH-DENSITY MINI D-SUB 15PIN)
B/PB/CB :
R/PR/CR :
HD/VD :
VBS (use HD port)
AUDIO IN (M3 JACK)
SERIAL
Y or G with/sync 1.0 Vp-p (75 Ω)
Y or G without/sync 0.7 Vp-p (75 Ω)
0.7 Vp-p (75 Ω)
0.7 Vp-p (75 Ω)
1.0 - 5.0 Vp-p (high impedance)
with/picture 1.0 Vp-p (high impedance)
without/picture 0.3 Vp-p (high impedance)
0.5 Vrms (high impedance)
EXTERNAL CONTROL TERMINAL (D-SUB 9PIN)
RS-232C COMPATIBLE
Accessories Supplied
Fixing bands
Dimensions (W × H × D)
Mass (weight)
TMME203 × 2
917 mm × 644 mm × 95 mm
(109 mm when including protruding portion of slots)
1,020 mm × 705 mm × 95 mm
(109 mm when including protruding portion of slots)
approx. 25.0 kg net
approx. 28.0 kg net
Sound
Speaker
120 mm × 60 mm × 2 pcs, 8 Ω
Audio Output
20 W [10 W + 10 W] (10 % THD)
Notes:
• Design and specifications are subject to change without notice. Mass and dimensions shown are approximate.
• This equipment complies with the EMC standards listed below.
EN55022, EN55024, EN61000-3-2, EN61000-3-3.
44
Memo
45
Memo
46
Memo
47
Information on Disposal for Users of Waste Electrical & Electronic Equipment
(private households)
This symbol on the products and/or accompanying documents means that used electrical
and electronic products should not be mixed with general household waste.
For proper treatment, recovery and recycling, please take these products to designated
collection points, where they will be accepted on a free of charge basis. Alternatively, in
some countries you may be able to return your products to your local retailer upon the
purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable resources and prevent any
potential negative effects on human health and the environment which could otherwise arise
from inappropriate waste handling. Please contact your local authority for further details of your nearest
designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further
information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct
method of disposal.
Customer’s Record
The model number and serial number of this product can be found on its rear panel. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record
of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.
Model Number
Serial Number
Matsushita Electric Industrial Co., Ltd.
Web Site : http://panasonic.net
© 2007 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
Printed in Czech Republic
MBS0307S0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
