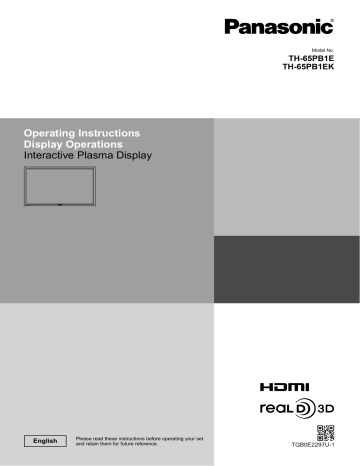

Model No.
TH-65PB1E
TH-65PB1EK
Operating Instructions
Display Operations
Interactive Plasma Display
English
Please read these instructions before operating your set
and retain them for future reference.
Dear Panasonic Customer
Welcome to the Panasonic family of customers. We hope that you will have many years of
enjoyment from your new Plasma Display.
To obtain maximum benefit from your set, please read these Instructions before making
any adjustments, and retain them for future reference.
Retain your purchase receipt also, and note down the model number and serial number of
your set in the space provided on the rear cover of these instructions.
Visit our Panasonic Web Site
http://panasonic.net
Table of Contents
Important Safety Notice ........................................... 3
Safety Precautions ................................................... 4
3D Safety Precautions ............................................. 7
Accessories .............................................................. 9
Accessories Supply ................................................. 9
Remote Control Batteries ........................................ 9
Connections ............................................................ 10
Speaker connection ............................................... 10
AC cord connection and fixing, cable fixing ........... 10
Video equipment connection ..................................11
VIDEO and COMPONENT / RGB IN connection ...11
HDMI connection ................................................... 12
DVI-D IN connection .............................................. 12
PC Input Terminals connection .............................. 13
SERIAL Terminals connection ............................... 14
Power On / Off......................................................... 15
Selecting the input signal ...................................... 17
Basic Controls ........................................................ 18
ASPECT Controls ................................................... 20
Digital Zoom ............................................................ 21
Viewing 3D images ................................................. 22
To view the 3D images .......................................... 22
Troubleshooting for 3D Eyewear .......................... 23
Table of images that can be seen for each 3D
Picture Format and the source image format ........ 23
On-Screen Menu Displays ..................................... 24
Adjusting Pos./Size ................................................ 25
Picture Adjustments ............................................... 28
Advanced settings ................................................. 29
Picture Profiles ....................................................... 30
Saving profiles ....................................................... 31
Loading profiles ..................................................... 32
Editing profiles ....................................................... 32
Sound Adjustment .................................................. 33
SDI Sound Output ................................................. 33
Setup menu ............................................................. 34
2
Day/Time Setup / On/Off Timer Setup ................... 35
Day/Time Setup ..................................................... 35
On/Off Timer Setup................................................ 35
Touch-Pen Mode ..................................................... 36
3D Settings .............................................................. 37
Screensaver (For preventing image retention) .... 38
Setup of Screensaver Time ................................... 39
Reduces screen image retention .......................... 40
Extended life settings ............................................ 40
ECO Mode settings................................................. 43
Customizing the Input labels................................. 44
Function Button Settings....................................... 45
No activity power off .............................................. 46
Menu Display Duration / OSD Brightness ............ 46
OSD Language ........................................................ 46
Display orientation ................................................. 46
Setup for MULTI DISPLAY ...................................... 47
How to Setup MULTI DISPLAY ............................. 47
ID Remote Control Function .................................. 48
Setup for Portrait .................................................... 49
How to setup Portrait ............................................. 49
Setup for Input Signals .......................................... 51
Component / RGB-in select ................................... 51
YUV / RGB-in select .............................................. 51
Signal menu .......................................................... 52
Options Adjustments ............................................. 55
3D Safety Precautions (To hide 3D Safety
Precautions) .......................................................... 58
Weekly Command Timer ....................................... 58
Audio input select .................................................. 60
Input Search .......................................................... 61
Troubleshooting ..................................................... 62
List of Aspect Modes ............................................. 63
Applicable Input Signals ........................................ 64
Shipping condition ................................................. 65
Command list of Weekly Command Timer ........... 66
Specifications ......................................................... 67
Important Safety Notice
WARNING
1) To prevent damage which may result in fire or shock hazard, do not expose this appliance to dripping
or splashing.
Do not place containers with water (flower vase, cups, cosmetics, etc.) above the set. (including on
shelves above, etc.)
No naked flame sources, such as lighted candles, should be placed on / above the set.
2) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified
service personnel.
3) Do not remove the earthing pin on the power plug. This apparatus is equipped with a three pin earthing-type
power plug. This plug will only fit an earthing-type power outlet. This is a safety feature. If you are unable to
insert the plug into the outlet, contact an electrician.
Do not defeat the purpose of the earthing plug.
4) To prevent electric shock, ensure the earthing pin on the AC cord power plug is securely connected.
CAUTION
This appliance is intended for use in environments which are relatively free of electromagnetic fields.
Using this appliance near sources of strong electromagnetic fields or where electrical noise may overlap with the
input signals could cause the picture and sound to wobble or cause interference such as noise to appear.
To avoid the possibility of harm to this appliance, keep it away from sources of strong electromagnetic fields.
IMPORTANT: THE MOULDED PLUG
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This display is supplied with a moulded three pin mains plug for your safety and convenience. A 10 amp fuse is
fitted in this plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 10
amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark
ASA
or the BSI mark
on the body of the fuse.
If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a replacement cover is obtained.
A replacement fuse cover can be purchased from your local Panasonic dealer.
Do not cut off the mains plug.
Do not use any other type of mains lead except the one supplied with this display.
The supplied mains lead and moulded plug are designed to be used with this display to avoid
interference and for your safety.
If the socket outlet in your home is not suitable, get it changed by a qualified electrician.
If the plug or mains lead becomes damaged, purchase a replacement from an authorized dealer.
WARNING : — THIS DISPLAY MUST BE EARTHED.
How to replace the fuse. Open the fuse compartment with a screwdriver and replace the fuse.
Trademark Credits
• VGA is a trademark of International Business Machines Corporation.
• Macintosh is a registered trademark of Apple Inc., USA.
• SVGA, XGA, SXGA and UXGA are registered trademarks of the Video Electronics Standard Association.
Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.
• HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
• “RealD 3D” is a trademark of RealD.
Note:
Do not allow a still picture to be displayed for an extended period, as this can cause a permanent image retention
to remain on the Plasma Display.
Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.
3
Safety Precautions
WARNING
Setup
This Plasma Display is for use only with the following optional accessories. Use with any other type of optional
accessories may cause instability which could result in the possibility of injury.
(All of the following accessories are manufactured by Panasonic Corporation.)
• Pedestal ......................................................................... TY-ST65P20
• Mobile stand for Display ................................................. TY-ST65PF1
• Wall-hanging bracket (angled) ....................................... TY-WK65PR20
• BNC Dual Video Terminal Board .................................... TY-FB9BD
• HD-SDI Terminal Board .................................................. TY-FB9HD
• HD-SDI Terminal Board with audio ................................ TY-FB10HD
• Dual Link HD-SDI Terminal Board .................................. TY-FB11DHD
• Dual HDMI Terminal Board ............................................ TY-FB10HMD
• DVI-D Terminal Board .................................................... TY-FB11DD
• AV Terminal Box ............................................................. TY-TB10AV
• 3D IR TRANSMITTER ................................................... TY-3D30TRW
• 3D Eyewear.................................................................... TY-EW3D3SE, TY-EW3D3ME, TY-EW3D3LE
• Electronic Pen for Interactive Plasma Display ............... TY-TPEN1PBW
• Wireless Module............................................................. ET-WM200E
Always be sure to ask a qualified technician to carry out set-up.
Small parts can present choking hazard if accidentally swallowed. Keep small parts away from young children. Discard
unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from
being played with by young children, creating the potential risk of suffocation.
Do not place the Plasma Display on sloped or unstable surfaces, and ensure that the Plasma Display does
not hang over the edge of the base.
• The Plasma Display may fall off or tip over.
Do not place any objects on top of the Plasma Display.
• If water is spills onto the Plasma Display or foreign objects get inside it, a short-circuit may occur which could result
in fire or electric shock. If any foreign objects get inside the Plasma Display, please consult your local Panasonic
dealer.
Transport only in upright position!
• Transporting the unit with its display panel facing upright or downward may cause damage to the internal
circuitry.
Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table
cloths and curtains.
For sufficient ventilation;
If using the pedestal (optional accessory), leave a space of 10 cm or more at the top, left and right, and 7 cm
or more at the rear, and also keep the space between the bottom of the display and the floor surface.
If using some other setting-up method, follow the manual of it. (If there is no specific indication of installation
dimension in the installation manual, leave a space of 10 cm or more at the top, bottom, left and right, and 7 cm
or more at the rear.)
When installing the Plasma Display vertically;
Turn up the power switch for the upward direction when you install the Plasma Display vertically.
And set “Display orientation” to “Portrait” in Setup menu. (see page 46)
4
Safety Precautions
When using the Plasma Display
The Plasma Display is designed to operate on 220 - 240 V AC, 50/60 Hz.
Do not cover the ventilation holes.
• Doing so may cause the Plasma Display to overheat, which can cause fire or damage to the Plasma Display.
Do not stick any foreign objects into the Plasma Display.
• Do not insert any metal or flammable objects into the ventilations holes or drop them onto the Plasma Display, as
doing so can cause fire or electric shock.
Do not remove the cover or modify it in any way.
• High voltages which can cause severe electric shocks are present inside the Plasma Display. For any inspection,
adjustment and repair work, please contact your local Panasonic dealer.
Ensure that the mains plug is easily accessible.
An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.
Do not use any power supply cord other than that provided with this unit.
• Doing so may cause fire or electric shocks.
Securely insert the power supply plug as far as it will go.
• If the plug is not fully inserted, heat may be generated which could cause fire. If the plug is damaged or the wall
socket is loose, they shall not be used.
Do not handle the power supply plug with wet hands.
• Doing so may cause electric shocks.
Do not do anything that may damage the power cable. When disconnecting the power cable, pull on the plug body, not the cable.
• Do not damage the cable, make any modifications to it, place heavy objects on top of it, heat it, place it near any
hot objects, twist it, bend it excessively or pull it. To do so may cause fire and electric shock. If the power cable is
damaged, have it repaired at your local Panasonic dealer.
If the Plasma Display is not going to be used for any prolonged length of time, unplug the power supply plug
from the wall outlet.
To prevent the spread of fire, keep candles or other open flames away from this product at all times.
If problems occur during use
If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odour starts to come out
from the Plasma Display, immediately unplug the power supply plug from the wall outlet.
• If you continue to use the Plasma Display in this condition, fire or electric shock could result. After checking that
the smoke has stopped, contact your local Panasonic dealer so that the necessary repairs can be made. Repairing
the Plasma Display yourself is extremely dangerous, and shall never be done.
If water or foreign objects get inside the Plasma Display, if the Plasma Display is dropped, or if the cabinet
becomes damages, disconnect the power supply plug immediately.
• A short circuit may occur, which could cause fire. Contact your local Panasonic dealer for any repairs that need to be made.
5
Safety Precautions
CAUTION
When using the Plasma Display
Do not bring your hands, face or objects close to the ventilation holes of the Plasma Display.
• Heated air comes out from the ventilation holes at the top of Plasma Display will be hot. Do not bring your hands
or face, or objects which cannot withstand heat, close to this port, otherwise burns or deformation could result.
Be sure to disconnect all cables before moving the Plasma Display.
• If the Plasma Display is moved while some of the cables are still connected, the cables may become damaged,
and fire or electric shock could result.
Disconnect the power supply plug from the wall socket as a safety precaution before carrying out any
cleaning.
• Electric shocks can result if this is not done.
Clean the power cable regularly to prevent it becoming dusty.
• If dust built up on the power cord plug, the resultant humidity can damage the insulation, which could result in fire.
Pull the power cord plug out from the wall outlet and wipe the mains lead with a dry cloth.
Do not burn or breakup batteries.
• Batteries must not be exposed to excessive heat such as sunshine, fire or the like.
This Plasma Display radiates infrared rays, therefore it may affect other infrared communication equipment.
Install your infrared sensor in a place away from direct or reflected light from your Plasma Display.
Cleaning and maintenance
The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning
cloth or a soft, lint-free cloth.
• If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water in
which neutral detergent has been diluted 100 times, and then wipe it evenly with a dry cloth of the same type until
the surface is dry.
• Do not scratch or hit the surface of the panel with fingernails or other hard objects, otherwise the surface may
become damaged. Furthermore, avoid contact with volatile substances such as insect sprays, solvents and thinner,
otherwise the quality of the surface may be adversely affected.
If the cabinet becomes dirty, wipe it with a soft, dry cloth.
• If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been
added and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.
• Do not allow any detergent to come into direct contact with the surface of the Plasma Display. If water droplets get
inside the unit, operating problems may result.
• Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the
cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods
in contact with articles made from rubber or PVC.
6
Safety Precautions
3D Safety Precautions
WARNING
Small Parts
3D Eyewear contains small parts (battery and specialised band, etc.) and must be kept out of reach of small
children to avoid accidental ingestion.
Disassembly
Do not disassemble or modify the 3D Eyewear.
CAUTION
To enjoy 3D images safely and comfortably, please read these instructions fully.
Use for commercial applications and public viewing
Someone in authority should responsibly convey the precautions for use of the 3D Eyewear to the user.
3D Eyewear (sold separately)
Do not drop, exert pressure on, or step on the 3D Eyewear.
Be careful of the tips of the frame when putting on the 3D Eyewear.
Be careful not to trap a finger in the hinge section of the 3D Eyewear.
Pay special attention when children are using the 3D Eyewear.
3D Eyewear should not be used by children younger than 5 - 6 years old, as a guideline.
All children must be fully supervised by parents or guardians who must ensure their safety and health
throughout the using 3D Eyewear.
7
Safety Precautions
Viewing 3D Content
Content for 3D viewing includes commercially available Blu-ray discs, 3D broadcasts, etc.
When preparing your own 3D content, ensure that it is properly produced.
Do not use the 3D Eyewear if you have a history of over-sensitivity to light, heart problems, or have any other
existing medical conditions.
Please stop using the 3D Eyewear immediately, if you feel tired, are not feeling well or experience any other
uncomfortable sensation.
Take an appropriate break after viewing a 3D movie.
Take a break of between 30 - 60 minutes after viewing 3D content on interactive devices such as 3D games
or computers.
Be careful not to strike the screen or other people unintentionally. When using the 3D Eyewear the distance
between the user and screen can be misjudged.
The 3D Eyewear must only be worn when viewing 3D content.
If you do not look toward the screen for a while when viewing 3D images, the 3D Eyewear may be turned off
automatically.
If you suffer from any eyesight problems (short / far-sighted, astigmatism, eyesight differences in left and
right), please ensure to correct your vision before using the 3D Eyewear.
Stop using the 3D Eyewear if you can clearly see double images when viewing 3D content.
Do not use the 3D Eyewear at a distance less than the recommended distance.
View from at least the recommended distance (3 times the effective height of the screen).
Recommended distance: 2.4 m
When the top and bottom area of the screen is blackened, such as movies, view the screen at a distance
3 times further than the height of the actual image. (That makes the distance closer than above recommended
figure.)
3D Eyewear (sold separately) Use
Before using the 3D Eyewear, ensure no breakable objects surrounding the user to avoid any accidental
damage or injury.
Remove the 3D Eyewear before moving around to avoid falling or accidental injury.
Use the 3D Eyewear only for the intended purpose and nothing else.
Do not use 3D Eyewear in the condition of high temperature.
Do not use if the 3D Eyewear is physically damaged.
Do not use any devices that emit the infrared signals near the 3D Eyewear, as this may cause the 3D Eyewear
false operations.
Do not use devices (such as mobile phones or personal transceivers) that emit strong electromagnetic waves
near the 3D Eyewear as this may cause the 3D Eyewear to malfunction.
Stop using the 3D Eyewear immediately if a malfunction or fault occurs.
Stop using the 3D Eyewear immediately if you experience any redness, pain, or skin irritation around the nose
or temples.
In rare cases, the materials used in the 3D Eyewear may cause an allergic reaction.
8
Accessories
Accessories Supply
Check that you have the accessories and items shown
Operating
Instruction book
Software DVD-ROM × 1
Remote Control Batteries for the Remote
Transmitter
Control Transmitter
N2QAYB000691 (R6 (UM3) Size × 2)
• elite Panaboard software
• elite Panaboard book
• Operating Instructions
Display Operations
Network Operations
Electronic Pen Operations
• Software license statements
GNU GENERAL PUBLIC LICENSE
GNU LESSER GENERAL PUBLIC LICENSE
Power supply cord
Clamper × 1
TMME289
Ferrite core × 2
J0KG00000014
Electronic Pen set
Refer to “Operating Instructions,
Electronic Pen Operations”.
Use the Ferrite cores to comply with the EMC standard.
(refer to “Operating Instructions, Network Operations”)
Remote Control Batteries
Requires two R6 batteries.
1. Pull and hold the hook, then open
the battery cover.
2. Insert batteries - note correct
polarity ( + and -).
3. Replace the cover.
“R6 (UM3)” size
+
+
-
Helpful Hint:
For frequent remote control users, replace old batteries with Alkaline
batteries for longer life.
Precaution on battery use
Incorrect installation can cause battery leakage and corrosion that will damage the remote control transmitter.
Disposal of batteries should be in an environment-friendly manner.
Observe the following precaution:
1. Batteries shall always be replaced as a pair. Always use new batteries when replacing the old set.
2. Do not combine a used battery with a new one.
3. Do not mix battery types (example: “Zinc Carbon” with “Alkaline”).
4. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.
5. Battery replacement is necessary when remote control acts sporadically or stops operating the Plasma Display set.
6. Do not burn or breakup batteries.
7. Batteries must not be exposed to excessive heat such as sunshine, fire or the like.
9
Connections
Speaker connection
Note:
Please use 8 Ω/10 W speaker.
2
1
Red
Red
Black
Black
While pressing the lever,
insert the core wire.
Return the lever.
AC cord connection and fixing, cable fixing
AC cord fixing
Unplug the AC cord
Plug the AC cord into the display unit.
Plug the AC cord until it clicks.
Note:
Make sure that the AC cord is locked on
both the left and right sides.
Unplug the AC cord pressing the
two knobs.
Note:
When disconnecting the AC cord, be
absolutely sure to disconnect the AC
cord plug at the socket outlet first.
Using the clamper
Secure any excess cables with clamper as required.
Note:
One clamper is supplied with this unit. In case of securing cables at three positions, please purchase it separately.
1 Attach the clamper
To remove from the unit:
2 Bundle the cables
To loosen:
hole
snaps
Insert the clamper
in a hole.
10
Keep pushing
both side
snaps
hooks
Set the
tip in the
hooks
knob
Keep
pushing
the knob
Connections
Video equipment connection
Terminals are on the bottom side of the Plasma Display.
SERIAL: Control the
Plasma Display by
connecting to PC
(see page 14)
3D IR TRANSMITTER:
Connect the 3D IR
TRANSMITTER
(optional accessory).
(8Ω,20W[10W+10W])
SLOT: Terminal board (optional
accessories) insert slot
Note:
(see page 4)
The right side slot is for
terminal board with 2-slot width.
The terminal board with 1-slot
width does not function when
installed in the right side slot.
AV IN (VIDEO): Composite Video Input
Terminal (see below)
COMPONENT/RGB IN: Component/RGB Video
Input Terminal (see below)
DVI-D IN: DVI-D Input Terminal (see page 12)
PC IN: PC Input Terminal
Connect to video terminal of PC or equipment with Y,
PB(CB) and PR(CR) output (see page 13).
AV IN (HDMI): HDMI Input
Terminal (see page 12)
Connect to video equipment
such as VCR or DVD player.
WIRELESS
MODULE, LAN:
Refer to “Operating
Instructions, Network
Operations”.
VIDEO and COMPONENT / RGB IN connection
Note:
Additional equipment, cables and adapter plugs
shown are not supplied with this set.
VIDEO
OUT
L
RCA-BNC
Adapter plug
R
AUDIO L-R:
Shared with VIDEO and
COMPONENT/RGB IN
(8Ω,20W[10W+10W])
VCR
AUDIO
OUT
Notes:
• Change the “Component/RGB-in select” setting in the “Setup”
menu to “Component” (when Component signal connection) or
“RGB” (when RGB signal connection). (see page 51)
• Signals input to COMPONENT/RGB IN terminals correspond to
Sync on G or Sync on Y.
DVD Player
L
AUDIO
R OUT
RCA-BNC
Adapter plug
Computer
RGB Camcorder
Y
PB
PR
Y, PB, PR,
OUT
11
Connections
HDMI connection
[Pin assignments and signal names]
Signal name
Pin No.
1
2
3
4
5
6
7
8
9
10
T.M.D.S Data2+
(8Ω,20W[10W+10W])
Pin No. Signal name
T.M.D.S Clock
11
Shield
T.M.D.S Data2
Shield
T.M.D.S Data2T.M.D.S Data1+
T.M.D.S Data1
Shield
T.M.D.S Data1T.M.D.S Data0+
T.M.D.S Data0
Shield
T.M.D.S Data0T.M.D.S Clock+
12
T.M.D.S Clock-
13
CEC
14
Reserved
(N.C. on device)
15
16
17
18
19
SCL
SDA
DDC/CEC
Ground
+5V Power
Hot Plug Detect
19
18
HDMI cable
3 1
4 2
HDMI
AV OUT
DVD player
Note:
Additional equipment and HDMI cable shown are not supplied with this set.
DVI-D IN connection
Shared with PC IN.
PC with DVI-D
video out
(8Ω,20W[10W+10W])
Stereo mini plug (M3)
DVI-video cable (Within 5 m)
DVI-D Input Connector
Pin Layouts
1
Pin No.
8
9
16
17
24
Connection port view
1
2
3
4
5
6
7
8
9
10
11
12
Signal Name
T.M.D.S. data 2T.M.D.S. data 2+
T.M.D.S. data 2 shield
DDC clock
DDC data
T.M.D.S. data 1T.M.D.S. data 1+
T.M.D.S. data 1 shield
Pin No.
13
14
15
16
17
18
19
20
21
22
23
24
Signal Name
+5 V DC
Ground
Hot plug detect
T.M.D.S. data 0T.M.D.S. data 0+
T.M.D.S. data 0 shield
T.M.D.S. clock shield
T.M.D.S. clock+
T.M.D.S. clock-
Notes:
• Additional equipment and cables shown are not supplied with this set.
• Use the DVI-D cable complying with the DVI standard. Image deterioration may occur depending on the length or
the quality of the cable.
12
Connections
PC Input Terminals connection
Shared with DVI-D IN.
(8Ω,20W[10W+10W])
COMPUTER
Conversion adapter
(if necessary)
(Female)
Mini D-sub 15p
RGB
PC cable
(Male)
Audio
Stereo mini plug (M3)
Connect a cable which matches
the audio output terminal on the computer.
Notes:
• With regard to the typical PC input signals that are described in the applicable input signals list (see page 64), adjustment
values such as for the standard picture positions and sizes have already been stored in this unit. You can add up to eight
PC input signal types that are not included in the list.
• Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical scanning
frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.)
• The display resolution is a maximum of 1,440 × 1,080 dots when the aspect mode is set to “4:3”, and 1,920 × 1,080
dots when the aspect mode is set to “16:9”. If the display resolution exceeds these maximums, it may not be possible
to show fine detail with sufficient clarity.
• The PC input terminals are DDC2B-compatible. If the computer being connected is not DDC2B-compatible, you will
need to make setting changes to the computer at the time of connection.
• Some PC models cannot be connected to the set.
• There is no need to use an adapter for computers with DOS/V compatible Mini D-sub 15P terminal.
• The computer shown in the illustration is for example purposes only.
• Additional equipment and cables shown are not supplied with this set.
• Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the specified
frequency range.
• Component Input is possible with the pin 1, 2, 3 of the Mini D-sub 15P Connector.
• Change the “Component/RGB-in select” setting in the “Setup” menu to “Component”
(when Component signal connection) or “RGB” (when RGB signal connection). (see page 51)
Signal Names for Mini D-sub 15P Connector
5
4
10 9
3
2
8
1
7
6
15 14 13 12 11
Pin No.
Signal Name
Pin No.
Signal Name
Pin No.
Signal Name
1
R (PR/CR)
6
GND (Ground)
11
NC (not connected)
2
G (Y)
7
GND (Ground)
12
SDA
3
B (PB/CB)
8
GND (Ground)
13
HD/SYNC
4
NC (not connected)
9
+5 V DC
14
VD
5
GND (Ground)
10
GND (Ground)
15
SCL
Pin Layout for PC Input
Terminal
13
Connections
SERIAL Terminals connection
The SERIAL terminal is used when the Plasma Display is controlled by a computer.
Note: To use serial control for this unit, make sure to set the “Control I/F Select” in the “Network Setup” menu to
“RS-232C”. (refer to “Operating Instructions, Network Operations”)
(Male)
COMPUTER
(8Ω,20W[10W+10W])
9
5
RS-232C Straight cable
8
4
7
3
6
2
1
Pin layout for SERIAL Terminal
(Female)
D-sub 9p
Notes:
• Use the RS-232C straight cable to connect the computer to the Plasma Display.
• The computer shown is for example purposes only.
• Additional equipment and cables shown are not supplied with this set.
The SERIAL terminal conforms to the RS-232C interface
specification, so that the Plasma Display can be controlled
by a computer which is connected to this terminal.
The computer will require software which allows the
sending and receiving of control data which satisfies
the conditions given below. Use a computer application
such as programming language software. Refer to the
documentation for the computer application for details.
Communication parameters
Signal level
Synchronization method
Baud rate
Parity
Character length
Stop bit
Flow control
C1 C2 C3
Start
(02h)
:
P1 P2 P3 P4 P5
Details
RXD
TXD
GND
Non use
(Shorted in this set)
NC
Command
Command
PON
POF
AVL
AMT
IMS
ETX
Colon
Parameter(s)
(1 - 5 bytes)
3-character
command (3 bytes)
End
(03h)
Notes:
• If multiple commands are transmitted, be sure to wait for
the response for the first command to come from this unit
before sending the next command.
• If an incorrect command is sent by mistake, this unit will
send an “ER401” command back to the computer.
• S1A and S1B of Command IMS are available only when
a dual input terminal board is attached.
• Consult your local Panasonic dealer for detail instructions
on command usage.
14
Pin No.
2
3
5
4 • 6
7
8
1 • 9
These signal names are those of computer specifications.
RS-232C compliant
Asynchronous
9600 bps
None
8 bits
1 bit
-
Basic format for control data
The transmission of control data from the computer
starts with a STX signal, followed by the command, the
parameters, and lastly an ETX signal in that order. If there
are no parameters, then the parameter signal does not
need to be sent.
STX
Signal names for D-sub 9P connector
DAM
Parameter
None
None
**
0
1
None
SL1
S1A
S1B
VD1
YP1
HM1
DV1
PC1
NW1
None
ZOOM
FULL
JUST
NORM
ZOM2
ZOM3
SJST
SNOM
SFUL
14:9
Control details
Power ON
Power OFF
Volume 00 - 63
Audio MUTE OFF
Audio MUTE ON
Input select (toggle)
SLOT input (SLOT INPUT)
SLOT input (SLOT INPUT A)
SLOT input (SLOT INPUT B)
VIDEO input (VIDEO)
COMPONENT/RGB IN input
(COMPONENT)
HDMI input (HDMI)
DVI-D IN input (DVI)
PC IN input (PC)
Network input (NETWORK)
Screen mode select (toggle)
Zoom, Zoom1
16:9
Just, Just1 (For Video/SD/HD signal)
4:3, 4:3 (1)
Zoom2 (For Video/SD/HD signal)
Zoom3 (For Video/SD/HD signal)
Just2 (For HD signal)
4:3 (2) (For HD signal)
4:3 Full (For HD signal)
14:9 (For Video/SD/HD signal)
With the power off, this display responds to PON command
only.
Power On / Off
Connecting the AC cord plug to the Plasma Display.
Connecting the plug to the Wall Outlet
Notes:
• Main plug types vary between countries. The power
plug shown at right may, therefore, not be the type
fitted to your set.
• When disconnecting the AC cord, be absolutely
sure to disconnect the AC cord plug at the socket
outlet first.
INPUT
MENU
-/
VOL
+/
ENTER/
Power Indicator
Press the Power switch on the Plasma Display to
turn the set on: Power-On.
Remote Control Sensor
Power Indicator: Green
[Starting up the network]
It takes some time for the network to start up just
after the power is turned on.
During that time, “Network Setup” in the “Setup” menu
is grayed out and cannot be set.
Press the
button on the remote control to turn the Plasma Display off.
Power Indicator: Red (standby)
Press the
button on the remote control to turn the Plasma Display on.
Power Indicator: Green
Turn the power to the Plasma Display off by pressing the
unit, when the Plasma Display is on or in standby mode.
switch on the
Note:
During operation of the power management function, the power indicator turns
orange in the power off state.
15
Power On / Off
When first switching on the unit
Following screen will be displayed when the unit is turned on for the first time.
Select the items with the remote control. Unit buttons are invalid.
OSD Language
Day/Time Setup
Display orientation
OSD Language
Display orientation
Day/Time Setup
Time
English (UK)
MON 99:99
Set
Deutsch
Day
Time
Français
Italiano
MON
99:99
Landscape
Portrait
Español
ENGLISH (US)
Day/Time Setup
Time
MON 99:99
Set
Day
Time
Select
TUE
10:00
Set
Select the
language.
2 Set.
1
Select “Day” or
“Time”.
2 Setup “Day” or
“Time”.
1
1
Select “Set”.
2
Set.
For vertical installation,
select “Portrait”.
2 Set.
1
Notes:
• Once the items are set, the screens won't be displayed when switching on the unit next time.
• After the setting, the items can be changed in the following menus.
OSD Language (see page 46)
Day/Time Setup (see page 35)
Display orientation (see page 46)
Power ON warning message
The following message may be displayed when turning the unit power ON:
3D Safety Precautions
When 3D images will be viewed by unspecified number of
people or used for commercial applications, someone in
authority should convey the following precautions.
These precautions should be followed in the home as well.
3D Viewing/ 3D Content/ Viewing distance/ 3D Eyewear
recommendations
- To enjoy 3D images safely and comfortably, please
read the Operating Instructions fully.
Activate 3D Safety Precautions if you deliver 3D images to unspecified audiences for business or other purposes.
If “3D Function” in “3D Settings” is set to “On”, a warning message is displayed every time the power is
turned ON. (see page 37)
No activity power off Precautions
’No activity power off’ is enabled.
If “No activity power off” in Setup menu is set to “Enable”, a warning message is displayed every time
the power is turned ON. (see page 46)
These message displays can be set with the following menu: Options menu
3D Safety Precautions (see page 58)
Power On Message (see page 57)
16
Selecting the input signal
Press to select the input signal to be played back from the equipment which has
been connected to the Plasma Display.
Input signals will change as follows:
PC
NETWORK
VIDEO
COMPONENT*
HDMI
DVI
PC: PC input terminal in PC IN.
NETWORK: Network input terminal in LAN or WIRELESS MODULE.
VIDEO: Video input terminal in AV IN (VIDEO).
COMPONENT*: Component or RGB input terminal in COMPONENT/RGB IN.
HDMI: HDMI input terminal in AV IN (HDMI).
DVI: DVI input terminal in DVI-D IN.
* “COMPONENT” may be displayed as “RGB” depending on the setting of
“Component/RGB-in select”. (see page 51)
When an optional Terminal Board is installed:
PC
NETWORK
SLOT INPUT
VIDEO
COMPONENT
HDMI
DVI
SLOT INPUT: Input terminal in Terminal Board
INPUT
MENU
-/
VOL
+/
ENTER/
Note:
When a Terminal Board incompatible with the Plasma Display is installed,
“Non-Compatible Function Board” is displayed.
INPUT
MENU
-/
VOL
+/
ENTER/
When a Terminal Board with dual input terminals is installed:
PC
NETWORK
SLOT INPUT A
SLOT INPUT B
VIDEO
COMPONENT
HDMI
DVI
SLOT INPUT A, SLOT INPUT B: Dual input terminal in Terminal Board.
Notes:
• Selecting is also possible by pressing the INPUT button on the unit.
• Outputs the sound as set in “Audio input select” in the Options menu. (see page 60)
• Select to match the signals from the source connected to the component/RGB input terminals. (see page 51)
• Image retention (image lag) may occur on the plasma display panel when a still picture is kept on the panel for an
extended period. The function that darkens the screen slightly is activated to prevent image retention (see page 62),
but this function is not the perfect solution to image retention.
17
Basic Controls
Main Unit
Remote control sensor
Volume Adjustment
Volume Up “+” Down “–”
When the menu screen is
displayed:
“+” : press to move the cursor up
“–” : press to move the cursor down
(see page 24)
INPUT
MENU
-/
Main Power On / Off Switch
Power Indicator
The Power Indicator will light.
• Power-OFF .... Indicator not illuminated (The unit will
still consume some power as long as
the power cord is still inserted into the
wall outlet.)
• Standby ........ Red
Orange (When “Slot power” is set to
“On”. See page 57)
Orange (Depending on the type of
the function board installed, when the
power is supplied to the slot)
Orange (When “Control I/F Select” is
set to “LAN” or “WEB Control” is set to
“On”. Refer to “Operating Instructions,
Network Operations”)
• Power-ON ...... Green
• PC Power management (DPMS)
......................... Orange (With PC input signal. See
page 43)
• DVI-D Power management
......................... Orange (With DVI input signal. See
page 43)
18
VOL
+/
ENTER/
Enter / Aspect button
(see page 20, 24)
MENU Screen ON / OFF
Each time the MENU button is pressed, the menu
screen will switch. (see page 24)
Normal Viewing
Sound
Pos./Size
INPUT button
(INPUT signal selection)
(see page 17)
Setup
Basic Controls
Remote Control Transmitter
ACTION button
Press to make selections.
ASPECT button
Press to adjust the aspect.
(see page 20)
Standby (ON / OFF) button
The Plasma Display must first be
plugged into the wall outlet and turned
on at the power switch (see page 15).
Press this button to turn the Plasma
Display On, from Standby mode.
Press it again to turn the Plasma
Display Off to Standby mode.
POS./SIZE button
(see page 25)
PICTURE button
(see page 28)
Sound mute On / Off
Press this button to mute the
sound.
Press again to reactivate sound.
Sound is also reactivated when
power is turned off or volume level
is changed.
N button
(see page 27, 28, 29, 33)
POSITION buttons
INPUT button
Press to select Input signal
sequentially. (see page 17)
ECO MODE (ECO)
Press to change the ECO MODE
setup status. (see page 43)
FUNCTION buttons (FUNCTION)
(see page 45)
OFF TIMER button
The Plasma Display can be preset to switch to
stand-by after a fixed period. The setting changes
to 30 minutes, 60 minutes, 90 minutes and 0
minutes (off timer cancelled) each time the button
is pressed.
30 min
60 min
90 min
0 min (Cancel)
When three minutes remain, “Off timer 3 min”
will flash.
The off timer is cancelled if a power interruption
occurs.
AUTO SETUP button
Automatically adjusts the position/
size of the screen. (see page 25)
SET UP button (see page 34)
SOUND button (see page 33)
Volume Adjustment
Press the Volume Up “+” or Down “–”
button to increase or decrease the
sound volume level.
R button (see page 24)
Press the R button to return to
previous menu screen.
RECALL button
Press the “RECALL” button to display
the current system status.
1 Input label
2 Aspect mode (see page 20)
During 3D images
(see page 37)
Audio input (see page 60)
Profile name (see page 32)
NANODRIFT Saver operating
(see page 41)
3 Touch Pen mode On/Off
(see page 36)
4 Off timer
The off timer indicator is
displayed only when the off
timer has been set.
5 Clock display (see page 57)
PC
1
4:3
3D
♪ COMPONENT
2
Touch-Pen
On
3
90min
4
Memory name: MEMORY2
NANODRIFT
5
10:00
Off timer
Digital Zoom (see page 21)
19
ASPECT Controls
The Plasma Display will allow you to enjoy viewing the picture at its maximum size, including wide screen cinema
format picture.
Note:
Be aware that if you put the display in a public place for commercial purposes or a public showing
and then use the aspect mode select function to shrink or expand the picture, you may be violating
the copyright under copyright law. It is prohibited to show or alter the copyrighted materials of other
people for commercial purposes without the prior permission of the copyright holder.
Press repeatedly to move through the aspect options:
For details about the aspect mode, please see “List of Aspect Modes” (page 63).
[from the unit]
The aspect mode changes each time the ENTER button is pressed.
INPUT
MENU
-/
VOL
+/
ENTER/
For VIDEO (S VIDEO) signal input:
4:3
Zoom1
For PC signal input:
4:3
Zoom
Zoom2
16:9
Zoom3
16:9
14:9
Just
For SD signal input (525 (480) / 60i • 60p, 625 (575) / 50i • 50p):
4:3
Zoom1
Zoom2
Zoom3
16:9
14:9
Just
For HD signal input [1125 (1080) / 60i • 50i • 60p • 50p • 24p • 25p • 30p • 24sF, 1250 (1080) / 50i,
750 (720) / 60p • 50p]:
4:3
Just
4:3 Full
14:9
Zoom1
16:9
Zoom2
Zoom3
[For 3D images or Touch Pen mode]
The aspect is fixed as “16:9” and you cannot switch.
Notes:
• The aspect mode is memorized separately for each input terminal.
• Do not allow the picture to be displayed in 4:3 mode for an extended period, as this can cause a permanent image
retention to remain on the Plasma Display Panel.
All Aspect mode
Set “All Aspect” to “On” in Options menu to enable the extended aspect mode (page 57). When All Aspect mode, the aspect
mode of pictures is switched as follows. For details about the aspect mode, please see “List of Aspect Modes”. (page 63)
For VIDEO (S VIDEO) signal input:
4:3
Zoom1
For PC signal input:
4:3
Zoom
Zoom2
16:9
Zoom3
16:9
14:9
Just
For SD signal input (525 (480) / 60i • 60p, 625 (575) / 50i • 50p):
4:3
Zoom1
Zoom2
Zoom3
16:9
14:9
Just
For HD signal input [1125 (1080) / 60i • 50i • 60p • 50p • 24p • 25p • 30p • 24sF, 1250 (1080) / 50i, 750 (720) / 60p • 50p]:
4:3 Full
Zoom1
Zoom2
Zoom3
16:9
14:9
Just1
Just2
4:3 (1)
4:3 (2)
20
Digital Zoom
This displays an enlargement of the designated part of the displayed image.
1
Display the operation guide.
Exit
Press to access Digital Zoom.
The operation guide will be displayed.
1
During Digital Zoom, only the following buttons can be operated.
[Remote control]
OFF TIMER button
[Unit]
VOL button
INPUT
MENU
-/
VOL
+/
ENTER/
MUTE button
VOL button
POSITION /
ACTION button
2
Select the area of the image to be enlarged.
Press on the enlargement location to select.
The cursor will move.
Exit
2
3
Select the magnification required for the enlarged display.
Each time this is pressed, the magnification factor changes.
This is shown in the image being displayed.
s1
4
s2
s3
s4
Return to normal display (quit Digital Zoom).
Press to exit from the Digital Zoom.
Notes:
• When power goes OFF (including “Off Timer” operation), Digital Zoom terminates.
• The Digital Zoom function cannot be selected while in the following operation state:
During Touch Pen mode (see page 36).
During 3D images (see page 37)
When MULTI DISPLAY Setup is On (see page 47).
When Portrait Setup is On (see page 49).
When Screensaver (except for Negative image) is running (see page 38)
• While Digital Zoom is in operation, “Adjusting Pos./Size” cannot be used.
21
Viewing 3D images
You can enjoy viewing 3D images with contents or programmes compatible with 3D effect by using the 3D eyewear
(optional).
Note:
You need the 3D IR TRANSMITTER (optional) and the 3D eyewear (optional) to view the 3D images on this display.
For further information, see the instruction manuals of the 3D IR TRANSMITTER and the 3D eyewear.
This display supports “Frame Sequential*1”, “Side by Side*2” and “Top and Bottom*3” 3D formats.
*1: The 3D format that the images for the left and right eyes are recorded with the high definition quality and alternately played back
*2, *3: See “Table of images that can be seen for each 3D Picture Format and the source image format” on page 23.
To view the 3D images
To view the contents of the Frame Sequential format (ex. 3D-compatible Blu-ray Disc, etc.) with 3D effect
Connect the 3D-compatible player via an HDMI cable (see page 12) and playback the contents.
• Use fully wired HDMI compliant cable.
• For the settings of the player, read the manual of the player.
• If you use the non 3D-compatible player, the images will be displayed without 3D effect.
To view the contents of 3D formats other than Frame Sequential with 3D effect.
Match the picture format in “3D Picture Format” (see page 37) before viewing.
• You can view “Side by Side” and “Top and Bottom” with 3D effect even if you use the non 3D-compatible player.
• Please consult the suppliers of contents or programmes for availability of this service.
Turn the 3D Eyewear on
• See the instruction manual of 3D eyewear for handling.
Put on the 3D Eyewear
Watch the 3D images
Notes:
• If the room is lit by fluorescent lights and light appears to flicker when using the 3D Eyewear, switch off the
fluorescent light. Alternatively, please set “3D Refresh Rate” to “100Hz” or “120Hz” whichever reduces flicker.
(see page 53)
• 3D content will not be correctly visible if the 3D Eyewear is worn upside down or back-to-front.
• Do not wear the 3D Eyewear when watching anything other than 3D images. Liquid crystal displays (such as
computer screens, digital clocks or calculators, etc.) may be difficult to see while wearing the 3D Eyewear.
• Do not use the 3D Eyewear as sunglasses.
• 3D effects may be perceived differently depending on the person.
22
Viewing 3D images
Troubleshooting for 3D Eyewear
Symptoms
Checks
Cannot see 3D images
3D Eyewear is turned off automatically
There is something wrong with the 3D
images
• Has the 3D Eyewear been switched On?
• Ensure that “3D Function” in “3D Settings” is set to “On”. (see page 37)
• Some 3D image signals may not be automatically recognized as 3D
images. Set “3D Picture Format” in “3D Settings” to match the picture
format. (see page 37)
• Check if 3D IR TRANSMITTER is turned on and corrected properly.
• Check that there are no obstacles between the 3D IR TRANSMITTER
and the 3D Eyewear. If the 3D Eyewear stops receiving the infrared
signal for about 5 minutes, the 3D Eyewear will be turned off
automatically.
• Check the available area to use the 3D Eyewear.
• Depending on the person, the 3D images may be difficult to see,
or cannot be seen, especially in users that have a different level of
eyesight between the left and right eyes.
Take the necessary steps (wearing glasses etc.) to correct your
eyesight before use.
• Check that there are no obstacles between the 3D IR TRANSMITTER
and the 3D Eyewear or that the 3D Eyewear is placed inside the
coverage area. If the 3D Eyewear stops receiving the infrared signal
for about 5 minutes, the 3D Eyewear will be turned off automatically.
• Switch “Reverse” and “Normal” under “3D Picture Sequence” in “3D
Settings” (see page 37).
Indicator lamp will not light when the 3D • The battery may be running low or flat. Change the battery or charge
glasses are turned ON.
the 3D glasses.
Table of images that can be seen for each 3D Picture
Format and the source image format
If the picture appears to be abnormal, refer to the table below to choose the correct 3D picture format setting.
3D Picture Format
Source image
format
Auto
Side by Side
*1
Normal*2
Top and Bottom
Native
Side by side
Top and bottom
*1
Normal format
(2D)
Normal
Normal*2
Normal
When the source image is not recognized correctly
When “3D Function” is set to “On”, the images will be displayed with 3D effect. When set to “Off”, displayed
without 3D effect.
• Depending on the player or contents, the image may be different from the above illustrations.
*1
*2
23
On-Screen Menu Displays
Remote Control
Unit
1 Display the menu screen.
Press several times.
MENU
Press to select.
(Example: Picture menu)
2 Select the item.
Select.
Normalise
Each time the MENU button is pressed, the
menu screen will switch.
Normal Viewing
Sound
Pos./Size
Setup
Select.
Press.
Normal
Normal
Picture Mode
Contrast
Brightness
Colour
Hue
Sharpness
White balance
Advanced settings
25
0
0
0
5
Normal
Memory save
Memory load
Memory edit
(Example: Picture menu)
3 Set.
Set.
Adjust.
Press.
4 Exit the menu.
Press several times.
MENU
Press.
Press
to return to the previous menu.
Menu display list
Note: Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting.
Picture menu
Setup menu
Pos./Size menu
Sound menu
Normalise
Setup
Normal
Picture Mode
Contrast
Brightness
Colour
Hue
Sharpness
White balance
Advanced settings
Memory save
Memory load
Memory edit
see page 28-32
Normal
25
0
0
0
5
Normal
No activity power off
Menu Display Duration
OSD Brightness
OSD Language
MULTI DISPLAY Setup
Portrait Setup
On/Off Timer Setup
Day/Time Setup
Network Setup
Display orientation
see page 34-54
Pos./Size
Normalise
Auto Setup
Touch-Pen Mode
3D Settings
Signal
Screensaver
Extended life settings
ECO Mode settings
Input label
Function Button Settings
Component/RGB-in select
Setup
24
1/2
H-Pos
H-Size
V-Pos
V-Size
Dot Clock
Clock Phase
Clamp Position
1:1 Pixel Mode
RGB
Disable
30 S
5
English (UK)
2/2
Landscape
1/2
Sound
Normalise
Normal
see page 25-27
Normal
Sound Mode
Bass
Mid
Treble
Balance
Surround
0
0
0
0
0
0
0
Off
SDI Sound Output
Left Channel
Right Channel
Sound Out
Level Meter
see page 33
Normal
0
0
0
0
Off
2/2
Channel 1
Channel 1
Off
Off
Adjusting Pos./Size
1
Press to display the Pos./Size menu.
2
Press to select the menu to adjust.
3
Press to adjust the menu.
4
Press to exit from adjust mode.
Pos./Size
Normalise
Auto Setup
H-Pos
H-Size
V-Pos
V-Size
Dot Clock
Clock Phase
Clamp Position
1:1 Pixel Mode
Normal
0
0
0
0
0
0
0
Off
Note:
Unadjustable items are grayed
out.
Adjustable items differ depending
on the input signal and the
display mode.
Notes:
• Adjustment details are memorized separately for different input signal formats (Adjustments for component signals are
memorized for 525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 1125 (1080) / 60i · 50i · 60p · 50p · 24p · 25p · 30p · 24sF,
1250 (1080) / 50i, 750 (720) / 60p · 50p each, and RGB/PC/Digital signals are memorized for each frequency.)
• If a “Cue” or “Rew” signal from a VCR or DVD player is received, the picture position will shift up or down. This picture
position movement cannot be controlled by the Picture Pos./Size function.
Auto Setup
When inputting a PC signal as an example, “H-Pos/V-Pos”, “H-Size/V-Size”, “Dot Clock” and “Clock
Phase” are automatically corrected.
This setting is enabled under the following conditions:
• When inputting an analog signal (Component/PC):
This setting is enabled if “Component/RGB-in select” (see page 51) in Setup menu is “RGB”.
• When inputting a digital signal (HDMI/DVI):
A PC format signal enables this setting.
When the signal is not PC format, this setting is enabled only if “Over Scan” (see page 26) is “Off” or
“1:1 Pixel Mode” (see page 27) is “On”. “H-Size/V-Size” is not automatically adjusted.
This setting will be invalid and will not work under the following conditions:
• When NETWORK input is selected.
• When VIDEO signal input
• During Multiple display, Portrait display or Digital Zoom.
• Aspect is set to “Just”
• “Display size” in the Options menu (see page 56) is set to “On”
Using Remote Control
When
on the remote control is pressed, “Auto Setup” will be executed.
When Auto Setup does not work, “Invalid” is displayed.
Auto mode
When the “Auto Setup“ is set to “Auto” in the Options menu (see page 57), automatic position adjustment starts:
• When the display power is turned ON.
• When the input signal is switched.
25
Adjusting Pos./Size
Notes:
• If the dot clock frequency of an analog signal is 162 MHz or higher, “Dot Clock” and “Clock Phase”
cannot be automatically corrected.
• When digital signal input, Dot Clock and Clock Phase cannot be made.
• Auto Setup may not work when a cropped or dark image is input. In such case, switch to a bright image
with borders and other objects are clearly shown, and then try auto setup again.
• Depending on the signal, out of alignment may occur after Auto Setup. Carry out fine tuning for the
position/size as required.
• If Auto Setup cannot set properly for vertical frequency 60Hz XGA signal (1024×[email protected]0Hz,
1280×[email protected], and 1366×[email protected]), pre-selecting the individual signal in “XGA Mode” (see page
52) may results in correct Auto Setup.
• Auto Setup does not work well when a signal such as additional information is superimposed out of
valid image period or intervals between synchronizing and image signals are short, or for image signal
with tri-level synchronizing signal added.
• If Auto Setup cannot adjust correctly, select “Normalise” once and press ACTION ( ), then adjust
Pos./Size manually.
H-Pos
Adjust the horizontal position.
V-Pos
Adjust the vertical position.
H-Size
Adjust the horizontal size.
V-Size
Adjust the vertical size.
Dot Clock
(During Component/PC input signal)
Periodic striped pattern interference (noise) may occur when a striped pattern is displayed. If this happens,
adjust so that any such noise is minimized.
Clock
Phase
(During Component/PC input signal)
Eliminate the flickering and distortion.
Over scan Turn image over scan On/Off.
Configurable signals are as follows:
525i, 525p, 625i, 625p, 750/60p, 750/50p (Component Video, RGB, DVI, SDI, HDMI)
On
Off
Notes:
• When “Off” is set, “H-Size” and “V-Size” cannot be adjusted.
• When the “Display size” is set to “On” in the Options menu, this setting will be invalid. (see page 56)
26
Adjusting Pos./Size
Clamp Position
(During Component/PC input signal)
Adjusts the clamp position when black parts of the image have no detail due to underexposure
or are tinged with green.
Optimum value for Clamp Position adjustment
When black parts have no detail due to underexposure (blackout)
→ Value that causes least blackout is the optimum.
When black parts are tinged with green
→ Value that cancels the greenishness without causing blackout is the optimum.
1:1 Pixel Mode
Adjusts the display size when 1125i, 1125p or 1250i signal is input.
Notes:
• Select On when you would like to replay 1920 × 1080 input signal.
• Applicable input signal;
1125 (1080) / 50i · 60i · 24sF · 24p · 25p · 30p · 50p · 60p, 1250 (1080) / 50i
• Select Off when flickering is shown around the image.
• H-Size and V-Size cannot be adjusted when On is selected.
Off
On
1:1 Pixel Mode
When the input signal is a 2k1k signal (2048 × 1080 / 24p, 2048 × 1080 / 24sF), the display size
(2k1k)
is adjusted as follows.
(For 2k1k signals)
Off
On (Left)
On (Center)
On (Right)
Note:
2k1k signals can only be received when the Dual Link HD-SDI Terminal Board (TY-FB11DHD) is installed.
Helpful Hint (
/
Normalise
Normalisation)
While the Pos./Size display is active, if either the N button on the remote control is pressed at any time or the ACTION
( ) button is pressed during “Normalise”, then all adjustment values are returned to the factory settings.
27
Picture Adjustments
1
Press to display the Picture menu.
2
Select to adjust each item.
Press to select the menu to adjust.
Select the desired level by looking at the picture behind the menu.
Note:
Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal,
input and menu setting.
Normalise
Press “ ” or “ ” button to switch between modes.
Normal
Dynamic
Cinema
Monitor
Normal
Normal
Picture Mode
Contrast
Brightness
Colour
Hue
Sharpness
White balance
Advanced settings
25
0
0
0
5
Normal
For viewing in standard (evening lighting) environments.
This menu selects the normal levels of Brightness
and Contrast.
Normal
Dynamic
For viewing in brighter environments.
This menu selects higher than normal levels of
Brightness and Contrast.
Cinema
For use in viewing tone-focused pictures with
brightness reduced.
Press to enter
Advanced settings.
Advanced settings
Enables fine picture adjustment at a professional
level (see next page).
Advanced settings
Normalise
Normal
0
0
Black extension
Input level
Gamma
W/B High R
W/B High G
W/B High B
W/B Low R
W/B Low G
W/B Low B
2.2
0
0
0
0
0
0
Monitor
For use when creating broadcast or movie content.
With this picture, even if the overall average picture
level (APL) changes, the brightness of areas with
the same signal level does not change.
Picture Mode during Touch Pen mode
Only “Normal” or “Dynamic” can be selected in Picture
Mode during Touch Pen mode.
If “Cinema” or “Monitor” has been selected and you
set to Touch Pen mode, the setting of Picture Mode
changes to “Normal”.
Notes:
• When “Monitor” is selected in Picture Mode, the
following menu items cannot be set.
Extended life settings: Peak limit (see page 41)
MULTI DISPLAY Setup menu: Video Wall
Uniformity (see page 48)
Portrait Setup menu: Video Wall Uniformity
(see page 50)
• If you would like to change the picture and colour of
the selected Picture menu to something else, adjust
using the items in the Picture menu. (see next page)
Press “ ” or “ ” button to switch between modes.
Normal (9300K)
Helpful Hint (
/
Normalise
Cool (11500K)
Warm (6500K)
Normalisation)
While the “Picture” menu is displayed, if either the N button on the remote control is pressed at any time or the
ACTION ( ) button is pressed during “Normalise”, then all adjustment values are returned to the factory settings.
28
Picture Adjustments
Item
Contrast
Brightness
Colour
Hue
Sharpness
Effect
Less
Adjustments
More
Darker
Brighter
Less
More
Reddish
Greenish
Less
More
Selects the proper brightness
and density for the room.
Adjusts for easier viewing of
dark pictures such as night
scenes and black hair.
Adjusts colour saturation.
Notes:
• You can change the level of each function
(Contrast, Brightness, Colour, Hue, Sharpness)
for each Picture Mode.
• The setting details for Normal, Dynamic,
Cinema and Monitor respectively are memorized
separately for each input terminal.
• In Contrast, there is not a noticeable change
even when contrast is increased with a bright
picture or reduced with a dark picture.
Adjusts for nice skin colour.
Adjusts picture sharpness.
Advanced settings
Item
Black
extension
Effect
Details
Less
More
Less
More
Down
Up
W/B High
R
Less
More
W/B High
G
Less
More
W/B High
B
Less
More
Less
More
Less
More
Less
More
Input level
Gamma
W/B Low R
W/B Low G
W/B Low B
Adjusts the dark shades of the image in gradation.
Adjustment of parts which are extremely bright and hard to see.
2.0
2.2
2.4
2.6
Adjusts the white balance for light red areas.
Adjusts the white balance for light green areas.
Adjusts the white balance for light blue areas.
Adjusts the white balance for dark red areas.
Adjusts the white balance for dark green areas.
Adjusts the white balance for dark blue areas.
Notes:
• Carry out “W/B” adjustment as follows.
1. Adjust the white balance of the bright sections using the “W/B High R”, “W/B High G” and “W/B High B” settings.
2. Adjust the white balance of the dark sections using the “W/B Low R”, “W/B Low G” and “W/B Low B” settings.
3. Repeat steps 1 and 2 to adjust.
Steps 1 and 2 affect each other’s settings, so repeat each step in turn to make the adjustment.
• The adjustment values are memorized separately for each input terminal.
• The adjustment range values should be used as an adjustment reference.
Helpful Hint (
/
Normalise
Normalisation)
On the remote control unit, while the “Advanced settings” menu is displayed, if either the N button is pressed at any time or
the ACTION ( ) button is pressed during “Normalise”, then all adjustment values are returned to the factory settings.
29
Picture Profiles
Up to 8 combinations of picture adjustment values (in the Picture menu and Advanced settings) can be stored in the
display memory as profiles and applied as needed, for a convenient way to enjoy your preferred picture settings.
Normalise
Normal
Picture Mode
Contrast
Brightness
Colour
Hue
Sharpness
White balance
Advanced settings
Dynamic
18
0
0
0
3
Normal
Save profiles(page 31)
Memory save
Memory load
Memory edit
Normalise
Normal
Picture Mode
Contrast
Brightness
Colour
Hue
Sharpness
White balance
Advanced settings
Load profiles(page 32)
Edit profiles(page 32)
Normal
25
0
0
0
5
Normal
Save profiles
Edit the profile
Delete or rename
the profile
Save the picture
adjustment values in
the MEMORY1 profile
MY PICTURE
MEMORY2
MEMORY3
MEMORY4
MEMORY1
MEMORY2
MEMORY3
MEMORY4
MEMORY8
MEMORY8
Load the profile
Original picture
Custom picture
Normalise
Normalise
Normal
Picture Mode
Contrast
Brightness
Colour
Hue
Sharpness
White balance
Advanced settings
30
Apply the MEMORY1
profile
Normal
0
0
0
0
0
Normal
Normal
Picture Mode
Contrast
Brightness
Colour
Hue
Sharpness
White balance
Advanced settings
Normal
25
0
0
0
5
Normal
Picture Profiles
Saving profiles
Follow these steps to save picture adjustment values as profiles.
Note:
When the settings are locked in “Extended life settings”, profiles cannot be saved.
1
Specify the picture quality in the Picture menu and
Advanced settings. (see page 28, 29)
2
In the Picture menu, select “Memory save”.
3
5
1 select
Memory save
Memory load
Memory edit
2 access
A
N
a
n
0
!
_
Select a profile name for saving the picture adjustment
values.
1 select
Memory save
1. [
2. [
3. [
4. [
]
]
]
]
C
P
c
p
2
#
|
MEMORY1█
D E F
Q R S
d e f
q r s
3 4 5
$ % &
~ < >
Ok
G
T
g
t
6
’
(
H
U
h
u
7
)
I
V
i
v
8
+
[
J
W
j
w
9
–
]
K
X
k
x
L M
Y Z
l m
y z
Space
/ = ?
{
}
,
Cancel
All delete
Delete
2 set
@
.
\
;
ˆ
:
Example: Specifying “MY PICTURE”
1
Select “All delete”.
MEMORY1█
All text is deleted.
To delete individual characters, select “Delete”.
Select “Ok”.
1 select
Memory save
2
Save the adjusted value in ”MEMORY1”
Ok
B
O
b
o
1
”
`
2 set
MEMORY1
MEMORY2
MEMORY3
MEMORY4
“∗” appears for a profile in which the picture
adjustments have already been saved.
4
Enter a name for the profile.
[Entering profile names]
Profile names can be up to 40 characters.
To enter text, select characters in the on-screen
keyboard.
Edit the default profile name in the text box as
desired.
Memory name input
1 select
Select “M”.
M█
2 set
Repeat this process to enter the next character.
Cancel
3
Select “Y”.
MY█
4
Select “Space”.
MY
6
█
When you finished entering the profile name, select
“Ok”.
To cancel saving the profile, select “Cancel”.
Memory name input
1 select
A
N
a
n
0
!
_
B
O
b
o
1
”
`
C
P
c
p
2
#
|
MY PICTURE█
D E F G
Q R S T
d e f g
q r s t
3 4 5 6
$ % & ’
~ < > (
Ok
H
U
h
u
7
)
I
V
i
v
8
+
[
J
W
j
w
9
–
]
K
X
k
x
L M
Y Z
l m
y z
Space
/ = ?
{
}
,
Cancel
All delete
Delete
2 set
@
.
\
;
ˆ
:
31
Picture Profiles
Loading profiles
Load profiles and apply the picture adjustment values to the display as follows.
Notes:
• Loaded profiles are stored in memory according to the selected input terminal. (see page 17)
• When the settings are locked in “Extended life settings”, profiles cannot be loaded.
1
In the Picture menu, select “Memory load”.
1 select
Memory save
Memory load
Memory edit
2
Select the profile to load.
2 access
1. [
2. [
3. [
4. [
]
]
]
]
2 set
MEMORY1
MEMORY2
MEMORY3
MEMORY4
While in Touch Pen mode, a profile(s), whose
“Picture Mode” is set to “Cinema” or “Monitor”, is
grayed out and cannot be selected.
PC
When profile is being loaded,
profile name is displayed.
1 select
Memory load
16:9
Memory name: MEMORY2
NANODRIFT
Editing profiles
Delete or rename profiles as follows.
<Deleting profiles>
1
2
In the Picture menu, select “Memory edit”.
1 select
Memory save
Memory load
Memory edit
Select “Memory delete”.
1 select
Memory edit
Select the profile to delete.
To delete all profiles, select “All delete”.
Memory delete
1. [
2. [
3. [
4. [
4
]
]
]
]
1
2
3
1 select
2 set
Select the profile to rename.
1 select
Memory name change
1. [
2. [
3. [
4. [
]
]
]
]
2 set
MEMORY1
MEMORY2
MEMORY3
MEMORY4
Enter a name for the profile.
Entering profile names
page 31
1 select
Memory name input
1 select
Delete the ”MEMORY1” data.
1 select
Memory edit
Memory delete
Memory name change
4
Memory delete
2 access
Select “Memory name change”.
2 set
MEMORY1
MEMORY2
MEMORY3
MEMORY4
All delete
1 select
Memory save
Memory load
Memory edit
2 set
Select “Ok”.
Ok
In the Picture menu, select “Memory edit”.
2 access
Memory delete
Memory name change
3
<Renaming profiles>
A
N
a
n
0
!
_
2 set
Cancel
5
B
O
b
o
1
”
`
C
P
c
p
2
#
|
█EMORY1
M
D E F
Q R S
d e f
q r s
3 4 5
$ % &
~ < >
Ok
G
T
g
t
6
’
(
H
U
h
u
7
)
I
V
i
v
8
+
[
J
W
j
w
9
–
]
K
X
k
x
L M
Y Z
l m
y z
Space
/ = ?
{
}
,
Cancel
All delete
Delete
2 set
@
.
\
;
ˆ
:
When you finished entering the profile name, select
“Ok”.
To cancel renaming the profile, select “Cancel”.
Cancel
Ok
1 select
2 set
32
Sound Adjustment
1
Normalise
2
Select to adjust each item.
Press to select the menu to adjust.
Select the desired level by listening to the sound.
3
1/2
Sound
Press to display the Sound menu.
Normal
Sound Mode
Bass
Mid
Treble
Balance
Surround
Normal
0
0
0
0
Off
Press to exit from adjust mode.
Item
Sound Mode
Bass
Mid
Treble
Balance
Surround
Details
Normal: Emits the original sound.
Dynamic: Accentuates sharp sound.
Clear:
Attenuates human voice.
Adjusts low pitch sounds.
Adjusts normal sounds.
Adjusts high pitch sounds.
Adjusts left and right volumes.
Select On or Off.
Note: Bass, Mid, Treble and Surround settings are memorized separately for each Sound Mode.
Helpful Hint (
/
Normalise
Normalisation)
While the “Sound” menu is displayed, if either the N button on the remote control is pressed at any time or the
ACTION ( ) button is pressed during “Normalise”, then all adjustment values are returned to the factory settings.
SDI Sound Output
This menu is available only when selecting a slot that any of the following terminal boards is installed:
HD-SDI Terminal Board with audio (TY-FB10HD) or Dual Link HD-SDI Terminal Board (TY-FB11DHD)
SDI Sound Output
Left Channel
Right Channel
Sound Out
Level Meter
2/2
Channel 1
Channel 1
Off
Off
Item
Left Channel
Right Channel
Details
Channel 1 to Channel 16
Selects left audio channel.
Channel 1 to Channel 16
Selects right audio channel.
Sound Out
On
On:
Off:
Off
Enables audio output.
Disables audio output.
Level Meter
Off
1-8ch
9-16ch
Sets audio channels to show in the audio level meter.
8 channels are displayed in the audio level meter; 4 channels
each on both right and left sides of the display.
Off: Hides the audio level meter.
1-8ch: Displays the audio level meter (1-8ch)
9-16ch: Displays the audio level meter (9-16ch)
33
Setup menu
1
Press to display the Setup menu.
2
Press to select the menu to adjust.
3
Press to adjust the menu.
4
Press to exit from adjust mode.
Press
Setup
1/2
Touch-Pen Mode
3D Settings
Signal
Screensaver
Extended life settings
ECO Mode settings
Input label
Function Button Settings
Component/RGB-in select
No activity power off
Menu Display Duration
OSD Brightness
OSD Language
RGB
Disable
30 S
5
English (UK)
to return to the previous menu.
Setup menu screen
Setup
1/2
Touch-Pen Mode
3D Settings
Signal
Screensaver
Extended life settings
ECO Mode settings
Input label
Function Button Settings
Component/RGB-in select
No activity power off
Menu Display Duration
OSD Brightness
OSD Language
Setup
MULTI DISPLAY Setup
Portrait Setup
On/Off Timer Setup
Day/Time Setup
Network Setup
Display orientation
34
Page 36
Page 37
Page 52
Page 38
Page 40
Page 43
Page 44
Page 45
RGB
Disable
30 S
5
English (UK)
Page 51
Page 46
Page 46
Page 46
Page 46
2/2
Page 47
Page 49
Page 35
Page 35
Landscape
Page 46
Network Setup
Set this to connect the Display to a computer via a network. For details
of PJLink and Network, refer to “Operating Instructions, Network
Operations”.
Day/Time Setup / On/Off Timer Setup
The timer can switch the Plasma Display On or Off.
Before attempting Timer Set, confirm the Time and adjust if necessary.
Then set POWER ON Time / POWER OFF Time.
1
2
Setup
Press to display the Setup menu.
Press to select On/Off Timer Setup or Day/Time Setup.
Press to display the On/Off Timer Setup screen or
Day/Time Setup screen.
2/2
MULTI DISPLAY Setup
Portrait Setup
On/Off Timer Setup
Day/Time Setup
Network Setup
Display orientation
Landscape
Day/Time Setup
1
2
Press to select Day or Time.
Day/Time Setup
Press to setup Day or Time.
Set
button: Forward
Day
button: Back
Time
Notes:
• Pressing “ ” or “ ” button once changes Time 1 minute.
• Pressing “ ” or “ ” button continuously changes Time by 15 minutes.
Time
MON 99:99
MON
99:99
Press to select Set.
Press to store Day/Time Setup.
Notes:
• Set cannot be selected unless Time is set.
• Unless setting the present time other than “99:99”, “Day” and “Time” cannot be set.
• The settings of “Day” and “Time” are reset when leaving the display turned off for
about 7 days for the following reasons:
Pressing
switch of the unit to turn off the display.
Disconnecting the AC cord.
Interruption of power supply.
On/Off Timer Setup
1
Press to select
On/Off Timer Setup
POWER ON Time / POWER OFF Time.
Time 99:99
Press to setup
Off
POWER ON Function
POWER ON Time / POWER OFF Time.
0:00
POWER ON Time
button: Forward
Off
POWER OFF Function
button: Back
POWER OFF Time
0:00
Notes:
• Pressing “ ” or “ ” button once changes POWER ON Time / POWER OFF Time
1 minute.
• Pressing “ ” or “ ” button continuously changes POWER ON Time / POWER OFF Time
by 15 minutes.
2
Press to select POWER ON Function/POWER OFF Function.
Press to select On.
Note: Timer function will not work unless “Time” is set.
35
Touch-Pen Mode
Set Touch Pen mode.
Select “Touch-Pen Mode” in “Setup” menu and press
Touch-Pen Mode
SLOT INPUT
HDMI
DVI
PC
NETWORK
Off
Off
Off
Off
Off
button.
“SLOT INPUT” is displayed when an optional Terminal Board is installed.
When a Terminal Board with dual input terminals is installed, “SLOT INPUT A”
and “SLOT INPUT B” are displayed.
Set “On” or “Off” for each input terminal.
If you switch to the input terminal that is set to “On”, the mode becomes Touch Pen
Touch-Pen On
mode.
“Touch-Pen: On” is displayed in Touch Pen mode.
Notes:
• When the following signal input, “Touch-Pen Mode” are disabled:
50i/50p/25p/24sF/24p signals and PC format signals with 50 Hz vertical frequency.
• The electronic pen cannot be used when VIDEO or COMPONENT input is selected.
• When using the electronic pen, adjust “Pos./Size” so that the screen of the computer can be correctly displayed.
(see page 25)
Setting the Remote Control
You can also turn Touch Pen mode On/Off with the FUNCTION buttons on the remote control. (see page 45)
In Touch Pen mode, the menus and functions are restricted as follows.
Pos./Size menu
Picture menu
Setup menu
Options menu
ASPECT Controls
Digital Zoom
36
3D Settings
Signal
Extended life settings
MULTI DISPLAY Setup
Portrait Setup
1:1 Pixel Mode: On
Over scan: Off
Picture Mode: “Normal” or “Dynamic” only. (see page 28)
3D Function: Off
FRAME CREATION: Off
Picture Mode: “Normal” or “Dynamic” only. (see page 28)
MULTI DISPLAY Setup: Off
Portrait Setup: Off
Display size: Unavailable
Rotate: Unavailable
16:9
Unavailable
3D Settings
To view the 3D images, please adjust and setup the 3D settings.
Note:
Set these settings for each input terminals.
Select “3D Settings” in “Setup” menu and press
button.
3D Settings sub-menu screen
3D Settings
3D Function
3D Picture Format
3D Picture Sequence
Safety Precautions
On
Auto
Normal
• 3D Function
On
Off
On: To view the 3D images, please set it to “On”. You can see 3D images for 3D image signal and 2D images for
2D image signal.
Off: You can see 2D images instead of 3D images.
When set to “On”, “3D” is displayed during 3D images.
PC
3D
16:9
NANODRIFT
• 3D Picture Format
3D images method is set.
Auto: 3D images are automatically displayed according to the signal.
Side by Side/Top and Bottom: One of the formats of the 3D standard. Select these formats as necessary.
Native: Displays the input signal as it is. Use to identify the format type of the input signal.
• 3D Picture Sequence
Normal
Reverse
This function calibrates the timing to switch the right and left images as well as the timing to switch the shutter of
right and left 3D Eyewear.
Select “Reverse” if you feel that the sense of depth is unusual.
• Safety Precautions
Displays the precautions for viewing 3D images.
37
Screensaver (For preventing image retention)
Do not display a still picture, especially in 4:3 mode, for any length of time.
If the display must remain on, a Screensaver should be used.
1
Select “Screensaver” in “Setup” menu and press
2
Function selection
button.
Screensaver
Time
Press to select Function.
Press to select the desired function.
Negative image
Scrolling bar only
White screen
Overlay scrolling bar
Start
Function
Mode
99:99
Scrolling bar only
Off
Negative image : Negative image will be displayed on the screen.
Scrolling bar only : A white bar will scroll from left to right. The image won't be displayed.
Overlay scrolling bar : The brightness of the image will be decreased and a white bar will scroll
on it.
White screen
: The whole screen will be white.
3
Mode selection
Press to select Mode.
Press to select each
mode items.
4
Off
Interval
: Operates when Periodic Time and Operating
Time are setup and those times arrive.
Time Designation : Operates when Start Time and Finish Time
are setup and those times arrive.
Standby after SCR Saver: Operates while Screensaver duration, and
display enters standby mode.
On
: Operates when Start is selected and the
ACTION ( ) button is pressed.
Start setting
When the Mode is set to On, press to select Start.
Press to start Screensaver.
The menu screen will disappear and the Screensaver will be activated. To stop the
Screensaver under On, press the R button or any buttons on the main unit.
Note: When the display is turned off, the Scrensaver will be deactivated.
38
Screensaver (For preventing image retention)
Setup of Screensaver Time
After selecting Time Designation, Interval or Standby after SCR Saver, the relevant Time Setup will become available
for selection and the Operating Time may be set. (Time cannot be set when “Mode” is “On” or “Off”.)
Press to select Start Time / Finish Time
(when Time Designation is selected).
Press to select Periodic Time / Operating Time
(when Interval is selected).
Press to select Screensaver duration
(when Standby after SCR Saver is selected).
Press to setup.
button: Forward
button: Back
Notes:
• Pressing “ ” or “ ” button once changes the Time 1 minute.
[However, switching occurs every 15 minutes when Periodic Time is selected.]
• Pressing “ ” or “ ” button continuously changes the Time by 15 minutes.
• “Screensaver duration” of the “Standby after SCR Saver” can be set from 0:00
to 23:59. When this is set to “0:00”, “ Standby after SCR Saver” will not be
activated.
Note: Timer function will not work unless “Time” is set.
Screensaver
Time
Start
Function
Mode
Start Time
Finish Time
15:00
Scrolling bar only
Time Designation
6:15
12:30
Screensaver
Time
Start
Function
Mode
Periodic Time
Operating Time
15:00
Scrolling bar only
Interval
12:00
3:00
Screensaver
Time 15:00
Start
Scrolling bar only
Function
Standby after SCR Saver
Mode
6:15
Screensaver duration
39
Reduces screen image retention
Extended life settings
The following settings are setup to reduce image retention:
Select “Extended life settings” in “Setup” menu and press
button.
Extended life settings
Express settings
Custom settings
Reset
Set to the recommended value
Set individually
Reset to the factory settings
Extended life settings
Recommended settings
Picture Mode
Contrast
Side panel
NANODRIFT Saver
Peak limit
Lock settings
Apply to current input
Apply to all inputs
Dynamic
30
High
High mid
Off
unlock
Image Retention Reduction
Menu
Image Retention Reduction Menu
“Extended life settings” enables you to set the following 5 menus (Image Retention Reduction Menu) as recommended
values or set them individually.
Picture Mode
Contrast
“Picture Mode” and “Contrast” are same as “Picture” menu items (see page 28). The settings of this menu will be
reflected to the “Picture” menu.
Side panel
Do not display a picture in 4:3 mode for an extended period,
as this can cause an image retention to remain on the side
panels on either side of the display field.
To reduce the risk of such an image retention, illuminate
the side panels.
This function may be applicable to the non-picture area.
Off:
Low:
Mid:
High:
side panel
4:3 Screen
Display
retention
Darken both ends.
Make it dark gray.
Make it gray.
Make it light gray.
Notes:
• To reduce the occurrence of image retention, set the Side panel to High.
• The side panel may flash (alternate black/white) depending on the picture being shown on the screen. Using Cinema
mode will reduce such flashing.
40
Reduces screen image retention
NANODRIFT Saver
Moves the display position of the screen slightly to reduce image retention on the display panel.
Low–High: NANODRIFT Saver operates. The display position of the screen moves at set time intervals. You can set
the screen movement range. Some of the screen may appear to be missing as a result of this operation.
If you change the value, a mask is displayed in the range where the picture is missing as a result of
position movement.
When “NANODRIFT” Image Retention Reduction is
operating, “NANODRIFT” is displayed.
PC
16:9
NANODRIFT
Note:
This function does not work in the following cases.
When “MULTI DISPLAY Setup” is set to “On”
When “PORTRAIT Setup” is set to “On”
When in digital zoom mode
Peak limit
On: Suppresses image contrast (peak brightness).
Note: When a still picture is viewed for an extended time, the screen may become slightly darker. (see page 62)
Express settings
Set the “Image Retention Reduction” menu to the recommended settings.
All menus will be locked.
Picture Mode: Normal
Contrast: Recommended setting for each model
Side panel: High
NANODRIFT Saver: High mid
Peak limit: On
1 Select “Express settings”.
Extended life settings
Express settings
Custom settings
Reset
2 Select the input to apply the settings.
Extended life settings
Apply to current input
Apply to all inputs
3 Select “Yes”.
1 select
2 access
1 select
2 set
1 select
Extended life settings
Apply to current input
Yes
No
2 set
41
Reduces screen image retention
Custom settings
Set the individual “Image Retention Reduction” menu.
1 Select “Custom settings”.
Extended life settings
Express settings
Custom settings
Reset
1 select
2 access
set each menu to the recommended setting:
2 To
Select “Recommended settings”.
1 select
Extended life settings
Recommended settings
Picture Mode
Contrast
Side panel
NANODRIFT Saver
Peak limit
Lock settings
Apply to current input
Apply to all inputs
Dynamic
30
High
High mid
Off
Unlock
2 set
Recommended settings
Picture Mode
Contrast
Side panel
NANODRIFT Saver
Peak limit
Lock settings
Apply to current input
Apply to all inputs
Dynamic
30
High
High mid
Off
Unlock
2 adjust
Dynamic
30
0
0
0
5
Normal
Touch Pen mode when a menu is locked
When a menu is locked, “Touch-Pen Mode” are
disabled and Touch Pen mode cannot be set.
5 Select the input to apply the settings.
Extended life settings
Recommended settings
lock each menu setting:
4 To
Set the “Lock settings” to “Lock”.
1 select
Extended life settings
Recommended settings
Picture Mode
Contrast
Side panel
NANODRIFT Saver
Peak limit
Lock settings
Apply to current input
Apply to all inputs
Normal
Picture Mode
Contrast
Brightness
Colour
Hue
Sharpness
White balance
Advanced settings
Extended life settings
1 select
Extended life settings
Normalise
Memory save
Memory load
Memory edit
Each menu will be set as same
as the “Express settings”.
3 Set each menu.
When a menu is locked, it is grayed out and cannot
be set.
“Picture Mode” and “Contrast” will no longer be able
to set in the “Picture” menu, and they are labeled
with icon to indicate their locked status. Also,
“Normalise”, “Memory save” and “Memory load”
are not available.
Dynamic
30
High
High mid
Off
Lock
2 adjust
Picture Mode
Contrast
Side panel
NANODRIFT Saver
Peak limit
Lock settings
Apply to current input
Apply to all inputs
Dynamic
30
High
High mid
Off
Lock
6 Select “Yes”.
1 select
2 set
1 select
Extended life settings
Apply to current input
Yes
No
2 set
Reset
Reset the “Image Retention Reduction” menu to the factory settings. Each menu will be unlocked.
1 Select “Reset”.
Extended life settings
Express settings
Custom settings
Reset
2 Select the input to reset the settings.
Extended life settings
Reset current input
Reset all inputs
42
1 select
2 access
3 Select “Yes”.
Reset current input
Yes
1 select
2 set
1 select
Extended life settings
No
2 set
ECO Mode settings
Select “ECO Mode settings” in “Setup” menu and press
button.
ECO Mode settings
ECO Mode
Power save
Standby save
PC Power management
DVI-D Power management
No signal power off
Custom
Off
On
1 select
2 adjust
Off
Off
Disable
ECO Mode
Custom: The menu of power consumption reduction is individually set.
On: The following fixed values are set to the menu of power consumption reduction. Individual setting is not available.
Power save: On
DVI-D Power management: On
Standby save: On
No signal power off: Enable
PC Power management: On
Using Remote Control
When
is pressed, the “ECO Mode” setting
ECO Mode
On
changes.
Custom settings
The menu of the power consumption reduction is individually set. This setting is enabled when “ECO Mode” is set
to “Custom”.
Power save
When this function is turned On, luminous level of the Plasma Display is suppressed, so power consumption is
reduced.
Standby save
When this function is turned On, power consumption of the microcomputer is reduced during power supply standby
(see page 15, 18, 19), so standby power of the set is reduced.
PC Power management
When this function is set to On, it operates under the following conditions to turn the power on or off automatically.
When no pictures (HD/VD sync signals) are detected for 30 or so seconds during PC signal input:
→ Power is turned off (standby); the power indicator lights up orange.
When pictures (HD/VD sync signals) are subsequently detected:
→ Power is turned on; the power indicator lights up green.
Notes:
• This function operates only during PC signal input.
• This function is effective when “Sync” is set to “Auto”, “Component / RGB-in select” is set to “RGB” and during
normal viewing.
DVI-D Power management
When this function is set to On, it operates under the following conditions to turn the power on or off automatically.
When no pictures (sync signal) are detected for 30 or so seconds during DVI signal input:
→ Power is turned off (standby); the power indicator lights up orange.
When pictures (sync signal) are subsequently detected:
→ Power is turned on; the power indicator lights up green.
Notes:
• This function operates only during DVI signal input.
• This function is invalid during input from DVI-D Terminal Board (TY-FB11DD).
• Depending on the type of terminal board equipped, this function may be invalid.
No signal power off
Equipment power supply is turned Off when there is no signal.
When this is set to “Enable”, the power supply of the unit goes Off 10 minutes after the input signals stop.
43
Customizing the Input labels
This function can change the label of the Input signal to be displayed. (see page 17)
Select “Input label” in “Setup” menu and press
button.
Input label
SLOT INPUT
VIDEO
COMPONENT
HDMI
DVI
PC
NETWORK
Image input
[SLOT INPUT]*1
[VIDEO]
[COMPONENT]*2
[HDMI]
[DVI]
[PC]
[NETWORK]
SLOT INPUT
VIDEO
COMPONENT
HDMI
DVI
PC
NETWORK
Input label
SLOT INPUT / DVD1 / DVD2 / DVD3 / DVD4 / Blu-ray1 / Blu-ray2 / Blu-ray3 / Blu-ray4 /
CATV / VCR / STB / (Skip)
VIDEO / DVD1 / DVD2 / DVD3 / DVD4 / Blu-ray1 / Blu-ray2 / Blu-ray3 / Blu-ray4 / CATV /
VCR / STB / (Skip)
COMPONENT / DVD1 / DVD2 / DVD3 / DVD4 / Blu-ray1 / Blu-ray2 / Blu-ray3 / Blu-ray4 /
CATV / VCR / STB / (Skip)
HDMI / DVD1 / DVD2 / DVD3 / DVD4 / Blu-ray1 / Blu-ray2 / Blu-ray3 / Blu-ray4 / CATV /
VCR / STB / (Skip)
DVI / DVD1 / DVD2 / DVD3 / DVD4 / Blu-ray1 / Blu-ray2 / Blu-ray3 / Blu-ray4 / CATV /
VCR / STB / (Skip)
PC / DVD1 / DVD2 / DVD3 / DVD4 / Blu-ray1 / Blu-ray2 / Blu-ray3 / Blu-ray4 / CATV /
VCR / STB / (Skip)
NETWORK / (Skip)
(Skip): The INPUT button press will skip its input.
*1 “SLOT INPUT” is displayed when a Terminal Board is installed.
*2 “COMPONENT” may be displayed as “RGB” depending on the setting of “Component/RGB-in select”. (see page 51)
When a Terminal Board with dual input terminals is installed
“SLOT INPUT” is displayed as “SLOT INPUT A” and “SLOT INPUT B” and independent settings are available.
[SLOT INPUT A]
SLOT INPUT A / DVD1 / DVD2 / DVD3 / DVD4 / Blu-ray1 / Blu-ray2 / Blu-ray3 / Blu-ray4 /
CATV / VCR / STB / (Skip)
[SLOT INPUT B]
SLOT INPUT B / DVD1 / DVD2 / DVD3 / DVD4 / Blu-ray1 / Blu-ray2 / Blu-ray3 / Blu-ray4 /
CATV / VCR / STB / (Skip)
When a Terminal Board with fixed display (such as Tuner Board) is installed
Only fixed display and (Skip) are available as Input label of “SLOT INPUT”.
[SLOT INPUT]
44
fixed display / (Skip)
Function Button Settings
Set the functions that operates when
is pressed.
Function Button Settings
Select “Function Button Settings” in “Setup” menu and
press
button.
• Function Button 1, Function Button 2
The following functions are set to the FUNCTION button.
Function Button 1
Function Button 2
Function Button Guide
Touch-Pen
Scrolling bar
On
Note:
Factory settings are as follows.
FUNCTION1 button: Touch-Pen
FUNCTION2 button: Scrolling bar
ECO Mode settings / 3D Settings / Signal / On/Off Timer Setup
The menu is displayed. (Example: ECO Mode settings)
ECO Mode settings
ECO Mode
Power save
Standby save
PC Power management
DVI-D Power management
No signal power off
Custom
Off
On
Off
Off
Disable
Pressing the FUNCTION button clears the menu.
Scrolling bar
Activates the “Scrolling bar only” screensaver.
After 15 minutes, the display enters standby mode.
To exit this mode, press any button.
INPUT (SLOT)* - INPUT (NETWORK)
Simply press
to select the input.
* “INPUT (SLOT)” is displayed when an optional Terminal Board is installed.
When a Terminal Board with dual input terminals is installed, “INPUT (SLOT A)” and “INPUT (SLOT B)” are
displayed.
Touch-Pen
Press
and turn Touch Pen mode On/Off.
Touch-Pen
On
Network Setup
“Network Setup” menu is displayed.
Computer Search
The list of connectable computers on the network is
displayed.
Multi-Live
Switch to the Multi-Live mode when using the
“Wireless Manager mobile edition 5.5”.
AV Mute
Mutes the audio and video. To exit this mode, press any button.
• Function Button Guide
The function display setting for the FUNCTION button is configured.
On: Press the FUNCTION button to display the function list of the button.
Off: The function list is not displayed.
The operation starts.
Function
1:Touch-Pen
2:Scrolling bar
45
No activity power off
Disable
Enable
When this function is set to “Enable”, the power is turned off (standby) automatically when there is no operation of
the Plasma Display for 4 hours.
Starting from 3 minutes before the turn off, the remaining time will be displayed.
Press any key to abort.
No activity power off 3min
When the power is turned off due to this function, a message “Last turn off due to ’No activity power off’.” is
displayed next time the power is turned on.
Note:
During the screensaver is running, this function is disabled.
Menu Display Duration / OSD Brightness
Set the display time and brightness of the on-screen menu display.
Menu Display Duration: 5 S - 30 S
OSD Brightness: 1 - 5
OSD Language
Select your preferred language.
■ Selectable languages
English(UK)
Deutsch
Français
Italiano
Español
ENGLISH(US)
.......(Chinese)
.......(Japanese)
Русский .......(Russian)
Display orientation
Sets the fan control, panel drive control, and the display style of on-screen menu for vertical installation.
Landscape
Fan control and panel drive control for
horizontal installation.
Portrait
Fan control and panel drive control for vertical
installation. On-screen menu will be rotated 90
degrees counterclockwise to be suitable for the
setting.
Notes:
• Turn up the power switch for the upward direction when you set Display vertically.
• When you change this setting, fan control and panel drive control will be switched as the power is turned on next time.
46
Setup for MULTI DISPLAY
By lining up Plasma Displays in groups, for example, as illustrated below, an enlarged picture may be displayed across
all screens.
For this mode of operation, each plasma display has to be set up with a Display number to determine its location.
Notes:
• During Touch Pen mode, “MULTI DISPLAY Setup” becomes “Off” and this function cannot be used.
• During Multi display, the 3D images are displayed as 2D images.
(Example)
group of 4 (2 × 2) group of 9 (3 × 3)
group of 16 (4 × 4)
group of 25 (5 × 5)
How to Setup MULTI DISPLAY
1
Select “MULTI DISPLAY Setup” in “Setup” menu and press
button.
Press to select the MULTI DISPLAY Setup.
2
MULTI DISPLAY Setup
Off
×2
×2
Off
A1
Off
MULTI DISPLAY Setup
Horizontal Scale
Vertical Scale
Seam hides video
Location
Video Wall Uniformity
Press to select “On” or “Off”.
Item
MULTI DISPLAY Setup
Details
Select “On” or “Off”.
Note: If you set MULTI DISPLAY Setup to On, Portrait Setup will be unavailable.
Horizontal Scale
Select “× 1”, “× 2”, “× 3”, “× 4”, “× 5”.
Vertical Scale
Select “× 1”, “× 2”, “× 3”, “× 4”, “× 5”.
Select “On” or “Off”.
To hide joints between displays.
To show joints between displays.
Suitable for moving image display.
Suitable for still image display.
On
Off
Seam hides video
Select the required arrangement number. (A1-E5 : Refer to the following)
Display Number locations for each arrangement.
(Examples)
( 2 × 1) ( 2 × 3 )
(4×2)
(4×4)
Location
(5×5)
A1
A2
A3
A4
B1
B2
B3
B4
A5
B5
C1
C2
C3
C4
C5
D1
D2
D3
D4
D5
E1
E2
E3
E4
E5
47
Setup for MULTI DISPLAY
Item
Details
Reduces the peak of brightness for each display to enable as uniform display as possible.
Select “Off” or “On”.
The brightness depends on each
display’s setting.
The brightness difference is
minimized.
Off
On
Video Wall Uniformity
Note:
If you set Video Wall Uniformity to On, the following menus will be unavailable and these
settings will be fixed to the initial values.
Picture menu: Colour, Hue, Input level (Advanced settings)
ID Remote Control Function
You can set the remote control ID when you want to use this remote control on one of several different displays.
Note:
To operate this function, please purchase ID remote controller sold separately.
Object model : EUR7636090R
1
Switch
to
2
Press the
button on the remote control.
3
Press one of
-
,
for the tens digit setting.
4
Press one of
-
,
for the units digit setting.
on the right side.
Notes:
• The numbers in 2, 3 and 4 should be set up quickly.
• Adjustable ID number range is 0 - 99.
• If a number button is pressed more than two times, the first two numbers become the ID number for the remote
control.
ID remote control button operation
The operation is the same as normal remote control except for the
button.
ID Cancellation
Press
button on remote control. (This has the same effect as pressing the
,
,
buttons at the same time.)
Notes:
• Set the Remote ID “On” to operate the ID remote control.
If Remote ID is set to “On”, you can use the remote control without identical ID number during option menu display.
(see page 56)
• The ID remote control cannot be used when ID select is set to anything other than 0, and the remote control ID is
not the same as the ID select number (see page 56).
48
Setup for Portrait
Divide an input image into 3 parts, and display one of them to a plasma display which is set vertically. The image will be enlarged
3 times and rotated 90-degree.
(Example)
Notes:
• During Touch Pen mode, “Portrait Setup” becomes “Off” and this function cannot be used.
• When using the Portrait function with displays set vertically, “Display orientation” in Setup menu has to be set to “Portrait”
(see page 46).
• Turn up the power switch for the upward direction when you set Display vertically.
• During Portrait display, the 3D images are displayed as 2D images.
How to setup Portrait
1
Select “Portrait Setup” in “Setup” menu and press
button.
Press to select the Portrait Setup.
2
Press to select “On” or “Off”.
Note:
If you set Portrait Setup to On, MULTI DISPLAY
Setup will be unavailable.
3
Press to select Seam hides video.
Press to select “Off” , “On”.
Portrait Setup
Portrait Setup
Seam hides video
Viewing Area
Location
Video Wall Uniformity
Portrait Setup
Portrait Setup
Seam hides video
Viewing Area
Location
Video Wall Uniformity
To hide joints between displays.
To show joints between displays.
Suitable for moving image display.
Suitable for still image display.
On
Off
Off
Off
16 : 9
1
Off
Off
Off
16 : 9
1
Off
49
Setup for Portrait
4
Viewing Area / Location
Viewing Area: Set a mode of image division for Portrait function.
Location:
Set a location of image to be displayed for Portrait function.
Press to select Viewing Area or Location.
Press to select each functions.
Portrait Setup
Portrait Setup
Seam hides video
Viewing Area
Location
Video Wall Uniformity
Notes:
• For HD signal videos, the “Viewing Area” is set at “16:9”,
and cannot be changed.
HD signal: 1125(1080) / 60i • 50i • 60p • 50p • 24p • 25p
• 30p • 24sF, 750(720) / 60p • 50p, 1250(1080) / 50i
• When “Viewing Area” is “16:9”, the aspect mode is set to “16:9”.
Location setting
When Portrait Setup is “On”:
Display the image of the selected location.
Off
Off
16 : 9
1
Off
When Portrait Setup is “Off”:
Represent an area of the selected Location at a normal
brightness and darken the rest of it.
Viewing Area and Location
The mode of image division and the Location by setting of Viewing Area is as follows.
Viewing Area : 16:9
Suitable to display 16:9 images. 4:3 images
extend transversely.
Both right and left sides of the image are
cut by 48 dots.
Location 1
Location 2
Undisplayed area (48 dots)
Viewing Area : 4:3
Location 1
5
Location 2
Location 3
Location 3
4:3 images are displayed without changing
aspect ratio.
Although the images of each Location
overlap, you can adjust Pos./Size to display
the image normally. (see page 25)
Video Wall Uniformity
Reduces the peak of brightness for each display to enable as uniform display as possible.
Press to select Video Wall Uniformity
Press to select “Off” , “On”.
The brightness depends
The brightness
on each display’s setting. difference is minimized.
Portrait Setup
Portrait Setup
Seam hides video
Viewing Area
Location
Video Wall Uniformity
Off
Off
16 : 9
1
Off
Off
On
Note:
If you set Video Wall Uniformity to On, the following menus will be unavailable and these settings will be fixed to the
initial values.
Picture menu: Colour, Hue, Input level (Advanced settings)
50
Setup for Input Signals
Component / RGB-in select
Component
RGB
Select to match the signals from the source connected to the Component / RGB or PC input terminals.
Y, PB, PR signals
“Component”
RGB signals
“RGB”
Note:
Make setting of the selected input terminal (COMPONENT/RGB IN or PC IN).
YUV / RGB-in select
YUV
RGB
Select to match the signals from the source connected to the DVI input terminals.
“YUV”
YUV signals
RGB signals
“RGB”
Notes:
• Selection may not be possible, depending on which optional board is installed.
• Make setting of the selected input terminal (SLOT or DVI-D IN).
51
Setup for Input Signals
Signal menu
Note:
“Signal” setup menu displays a different setting condition for each input signal.
Select “Signal” in “Setup” menu and press
For Video (S VIDEO)
For RGB
[ AV ]
Signal
3D Y/C Filter (NTSC)
Colour system
Cinema reality
Noise reduction
On
Auto
Off
Off
[ RGB ]
Signal
Sync
Cinema reality
XGA Mode
Noise reduction
H-Freq.
V-Freq.
Signal Format
For Component
[ Component ]
Signal
button.
Auto
Off
Auto
Off
63.98 kHz
60.02 Hz
1280×1024/60i
For Digital
[ Digital ]
Signal
Sync
Cinema reality
XGA Mode
Noise reduction
H-Freq.
V-Freq.
Signal Format
Auto
Off
Auto
Off
Cinema reality
Noise reduction
H-Freq.
Off
Off
63.98
kHz
V-Freq. 60.02 Hz
Dot Clock Freq. 108.0 MHz
Signal Format 1280×1024/60i
63.98 kHz
60.02 Hz
1280×1024/60i
• 3D Y/C Filter (NTSC)
This menu is displayed when BNC Dual Video Terminal Board (TY-FB9BD) is installed to the unit.
Set this menu when the moving image looks unnatural during Video (S Video) input signal.
On
Off
Note:
When On, this setting only affects NTSC input signals.
• Colour system
Auto
PAL
SECAM
M.NTSC
NTSC
Set the colour system to match the input signal. When “Auto” is set, Colour system will be automatically selected
from NTSC/PAL/SECAM/M.NTSC.
To display PAL60 signal, select “Auto” or “PAL”.
If the picture image becomes unstable:
With the system set on Auto, under conditions of low level or noisy input signals the image may in rare cases
become unstable. Should this occur, set the system to match the format of the input signal.
• Cinema reality
When “On”, the display attempts to reproduce a more natural interpretation of sources such as movie pictures,
which are recorded at 24 frames per second.
If the picture is not stable, turn the setting to “Off”.
On
Off
Note:
When On, this setting only affects the following signal input:
• NTSC / PAL signal input during Video (S Video) input signal.
• 525i(480i), 625i(575i), 1125(1080)/60i signal input during “Component” input signal.
• XGA Mode
This menu is displayed when the input signal is analog (Component/PC). This unit supports three types of XGA
signals with 60Hz vertical frequency having different aspect ratios and sampling rates (1,024 × 768 @ 60Hz,
1,280 × 768 @ 60Hz and 1,366 × 768 @ 60Hz).
Auto
1024×768
1280×768
1366×768
Auto: Automatically selected from 1024×768/1280×768/1366×768.
Switch the setting to suit the input signal for better display depends on the angle of view or display
resolution condition.
Note:
After making this setting, be sure to make each adjustment (such as “Auto Setup”) on the “Pos./Size” menu as
necessary. (see page 25)
52
Setup for Input Signals
• Sync
This function operates only during input from PC IN terminal.
Setting RGB sync signal
Confirm that the input is set to RGB input (this setting is valid only for RGB input signal).
Auto: The H and V sync or synchronized signal is automatically selected. If both input, it is selected the H and V sync.
on G: Uses a synchronized signal on the Video G signal, which is input from the G connector.
Setting Component sync signal
Confirm that the input is set to Component input (this setting is valid only for Component input signal).
Auto: The H and V sync or synchronized signal is automatically selected. If both input, it is selected the H and V sync.
on Y: Uses a synchronized signal on the Video Y signal, which is input from the Y connector.
Note:
Signals input to COMPONENT/RGB IN terminals correspond to Sync on G or Sync on Y.
• SDI Through
Set the active through function of the Dual Link HD-SDI Terminal Board (TY-FB11DHD).
On
Off
On: Enables active through.
Off: Disables active through.
Note:
Settings can only be performed for this menu when a slot mounted with a Dual Link HD-SDI Terminal Board
(TY-FB11DHD) is selected.
• FRAME CREATION
Automatically compensates the picture frame rate and removes juddering movements to make the images
smooth.
Off
Mid
Max
Note:
Depending on the contents, images may be noisy. To prevent the noise, change the setting.
• 3D Refresh Rate
Reduces juddering or flicker of image due to lighting interference during 3D viewing.
100Hz
120Hz
Note:
This setting is disabled when “FRAME CREATION” is set to “Off”.
• HDMI Range
Switches the dynamic range according to the input signal from HDMI terminal.
Video(16-235)
Full(0-255)
Auto
Video(16-235): If the input signal is the video range, Example: HDMI terminal output for DVD player
Full(0-255): If the input signal is full range, Example: HDMI terminal output for personal computer
Auto: Switches the dynamic range automatically between “Video(16-235)” and “Full(0-255)” according to the input signal.
Note:
This function can be set only for HDMI signal input.
53
Setup for Input Signals
• Noise reduction
Sets the following three NR (Noise Reduction) functions together.
P-NR, Mosquito NR, Block NR
(
Press to select “Noise reduction”.
)
Noise reduction
Off
Press to select “Off”, “Min” , “Mid” , “Max” , “Advanced”.
Advanced NR
Sets the three NR functions separately.
1
Press to enter Advanced NR.
2
Noise reduction
Press to select “Advanced”.
Press to select P-NR, Mosquito
NR or Block NR.
Press to select “Off”, “Min”, “Mid”,
“Max”.
Advanced
▼
[ AV ]
Advanced NR
P-NR
Mosquito NR
Block NR
Advanced NR
P-NR
Mosquito NR
Block NR
P-NR
Mosquito NR
Block NR
Off
Off
Off
[ Component ]
Off
Off
Off
[ RGB ]
Advanced NR
Off
Off
Off
[ Digital ]
Advanced NR
P-NR
Mosquito NR
Block NR
Off
Off
Off
P-NR:
Automatically reduces unwanted picture noise.
Mosquito NR: Reduces mosquito noise around subtitles on MPEG videos.
Block NR: Reduces block noise when playing MPEG videos.
Note:
Noise reduction cannot be adjusted while a PC signal is being applied.
• Input signal display
Displays the frequency and the type of the current input signal.
This display is valid only for Component / RGB / PC and Digital input signal.
Display range:
Horizontal 15 - 110 kHz
Vertical
48 - 120 Hz
The dot clock frequency is displayed during DVI signal input.
54
H-Freq.
V-Freq.
Signal Format
H-Freq.
63.98 kHz
60.02 Hz
1280×1024/60i
63.98
kHz
V-Freq. 60.02 Hz
Dot Clock Freq. 108.0 MHz
Signal Format 1280×1024/60i
Options Adjustments
Options
1
Press to display the Setup menu.
Weekly Command Timer
Audio input select
Input Search
Press to select “OSD Language”.
2
Onscreen display
Initial input
Initial VOL level
Maximum VOL level
Input lock
Button lock
Remocon User level
Press for more than 3 seconds.
Press to select “Options”.
3
Options
Shipping
Press to display the Options menu.
Press to select your preferred menu.
4
Press to adjust the menu.
5
On
Off
Off
0
Off
0
Off
Off
Off
Options
2/3
Off-timer function
Enable
Initial Power Mode
ID select
Remote ID
Serial ID
Display size
Studio W/B
Studio Gain
Normal
Options
0
Off
Off
Off
Off
Off
3/3
Off
Slot power
Off
Power On Screen Delay
Clock Display
Off
All Aspect
Off
Auto Setup
Manual
Rotate
Off
Advanced Motion Resolution
On
Power On Message (No activity power off)
On
3D Safety Precautions
On
Press to exit from Options menu.
Item
1/3
Adjustments
Weekly Command Timer Sets Weekly Command Timer. (see page 58)
Audio input select Set up the sound when an image input is selected. (see page 60)
Input Search
Set auto input switching for when there is no signal. (see page 61)
On: Displays all the following on screen.
• Power on display
• Input signal switch display
Onscreen display
• No signal display
• Mute and the remaining time of off-timer after
was pressed.
Off: Hides all the items above from view.
Adjusts the input signal when the unit is turned on.
SLOT INPUT*1
VIDEO
COMPONENT*2
HDMI
DVI
PC
NETWORK
Off
*1 “SLOT INPUT” is displayed when an optional Terminal Board is installed.
When a Terminal Board with dual input terminals is installed, “SLOT INPUT A” and “SLOT INPUT B” are displayed.
Initial input
*2 “COMPONENT” may be displayed as “RGB” depending on the setting of “Component/RGB-in select”. (see page 51)
Notes:
• Only the adjusted signal is displayed. (see page 17)
• This menu is available only when “Input lock” is “Off”.
Press
Initial VOL level
On
Off
Off: Sets normal volume.
On: Sets your preferred volume.
Notes:
• When “Maximum VOL level” is “On”, the volume can only be adjusted between 0 and your maximum range.
• You can hear the changed volume regardless of your volume setting before opening the options menu
if you adjust the volume when “Initial VOL level” is “On” and cursor is on the menu.
Press
Maximum VOL level
button to adjust the volume when the unit is turned on.
button to adjust the maximum volume.
On
Off
Off: Sets auto maximum volume.
On: Sets your preferred maximum volume.
Notes:
• If the “Maximum VOL level” is set lower than the “Initial VOL level”, the “Initial VOL level” automatically
becomes the same as the “Maximum VOL level”.
• The volume display can go up to 63 regardless of the settings.
• You can hear the changed volume regardless of your volume setting before opening the options menu
if you adjust the volume when “Maximum VOL level” is “On” and cursor is on the menu.
55
Options Adjustments
Item
Adjustments
Input lock
Locks the input switch operation.
Off
SLOT INPUT*1
VIDEO
COMPONENT*2
HDMI
DVI
PC
NETWORK
*1 “SLOT INPUT” is displayed when an optional Terminal Board is installed.
When a Terminal Board with dual input terminals is installed, “SLOT INPUT A” and “SLOT INPUT B”
are displayed.
*2 “COMPONENT” may be displayed as “RGB” depending on the setting of “Component/RGB-in select”.
(see page 51)
Notes:
• Only the adjusted signal is displayed (see page 17).
• Input switch can be used when this is set to “Off”.
Off
MENU&ENTER
On
Off: All the buttons on main unit can be used.
and
MENU&ENTER: Locks
MENU
Button lock
buttons on main unit.
ENTER/
On: Locks all the button on main unit.
Sets Button lock with the unit buttons in the following procedure.
Off: Press four times→Press
four times→Press four times→Press
MENU&ENTER: Press
four times→Press four times→Press
four times→Press
On: Press four times→Press
four times→Press four times→Press
ENTER/
INPUT
ENTER/
INPUT
ENTER/
Remocon User level
ENTER/
ENTER/
Off
User1
User2
User3
Off: You can use all of the buttons on the remote control.
User1: You can only use
, , , ,
buttons on the remote control.
button on the remote control.
User2: You can only use
User3: Locks all the buttons on remote control.
Off-timer function
Enable: Enables the “Off-timer function”.
Disable: Disables the “Off-timer function”.
Note: When “Disable” is set, the Off-timer is cancelled.
Initial Power Mode
Normal
Standby
On
Sets the power mode of the unit for when the power recovers from failure or after plugging off and in again.
Normal: Power returns in as the same state as before the power interruption.
Standby: Power returns in standby mode. (Power Indicator : red/orange)
On:
Power returns in power On. (Power Indicator : green)
Note: When using multiple displays, “Standby” is preferred to be set in order to reduce a power load.
ID select
Remote ID
Serial ID
Sets panel ID number when panel is used in “Remote ID” or “Serial ID”.
Set value range: 0 - 100
(Standard value: 0)
The setting of this menu is valid only when using ID remote control.
Off: Disables ID remote control functions. You can use normal remote control operations.
On: Enable ID remote control functions.
Note: To use the ID remote control function, it is necessary to set each ID number of remote control and display unit.
About the setting method, please refer to “ID Remote Control Function” (see page 48) and “ID
select” (above-mentioned).
Sets the panel ID Control.
Off: Disables external control by the ID.
On: Enables the external control by the ID.
Adjusts the image display size on screen.
Off: Sets the normal image display size on screen.
On: Sets the image display size approximately 95 % of the normal image display.
Off
On
Display size
56
Notes:
• This setting is valid only when the input signals are as follows;
NTSC, PAL, SECAM, M.NTSC, PAL60, PAL-M, PAL-N (Video)
525i, 525p, 625i, 625p, 750/60p, 750/50p, 1125/60i, 1125/50i, 1125/24sF, 1125/25p, 1125/24p,
1125/30p, 1125/60p, 1125/50p, 1250/50i (Component Video, RGB, DVI, SDI, HDMI)
• This setting is invalid when digital zoom, Multi display or Portrait display is selected.
• When “Display size” is set to “On”, “H-Pos” and “V-Pos” in “Pos./Size” can be adjusted.
• Refer to each board’s operating instruction for DVI, SDI, HDMI’s corresponding signals.
Options Adjustments
Item
Adjustments
Studio W/B
Off: Nullify all the settings adjusted.
On: Sets the colour temperature for TV studio.
Note: Valid only when the “Warm” is set as “White balance” in Picture menu.
Studio Gain
Sharpens the contrast for a better view when a part of the image is too light to see.
Off: Disables “Studio Gain”.
On: Enables “Studio Gain”.
Note: This setting is valid only when the input signals are as follows:
Component Video, RGB (analog), SDI, HDMI
Slot power
Off
Auto
On
Off: Power is not transmitted to the slot power.
Auto: Power is transmitted to the slot power only when main power is on.
On: Power is transmitted to the slot power when main power is on or in the standby state.
Note: In some cases, power is transmitted to the slot power when main power is on or in the standby
state regardless of the slot power setting.
Power On Screen
Delay
Off
1
2
3....
30
You can set the power-on delay time of the displays to reduce the power load, when you press
to
turn on the multiple displays that are set together, for example, on MULTI DISPLAY system.
Set each display’s setting individually.
Off:
The display will be turned on at the same time as
is pressed.
1 to 30 (sec.): Set the power-on delay time (second).
After pressing
, the display will be powered on with time delay depending on this setting.
Notes:
• During this function is working, the power indicator is blinking green.
• This function also works when the power recovers from failure or after plugging off and in again the
power cord.
After you unplug and plug the power cord in while the unit is in standby mode and also the power is
being supplied to a terminal board, the unit will start supplying the power to the board with time delay
according to the setting.
The power indicator lights up red first and it turns orange when the power starts being supplied to the board.
Off: Not display the clock.
On: Display the clock.
The clock is displayed at the lower left of the screen when
Clock Display
button is pressed.
Note: When “Day/Time Setup” is not set, the clock is not displayed even if “Clock
Display” is “On”. (see page 35)
10:00
All Aspect
Sets All Aspect mode (advanced aspect setting) or default aspect mode.
With each press of
button, the aspect changes in the selected mode.
Off: Default aspect mode
On: All Aspect mode
Aspect mode of each setting is as follows:
(Example: HD signal)
Off 4:3→4:3 Full→Zoom1→Zoom2→Zoom3→16:9→14:9→Just
On 4:3 (1)→4:3 (2)→4:3 Full→Zoom1→Zoom2→Zoom3→16:9→14:9→Just1→Just2
Auto Setup
Sets the operational mode of the automatic position adjustment in the Pos./Size menu.
Manual: Automatic position adjustment starts when
is pressed on the remote control or automatic
position adjustment is executed from the Pos./Size menu.
Auto: Other than remote control or menu operation, automatic position adjustment starts:
When the display power is turned ON.
When the input signal is switched.
Rotate
Advanced Motion
Resolution
Power On Message
(No activity power
off)
Off: Does not rotate the image.
On: Rotates the image 180 degrees.
Note: During the image is rotated, the 3D images are displayed as 2D images.
Displays motion picture images at higher resolution.
On
Off
Notes:
• Please set to “Off” if images look unnatural.
• This function is disabled during 3D images.
Whether to show/hide No activity power off Precautions at the time of power ON is set.
On: The warning precautions are shown at the time of power ON.
Off: The warning precautions are not shown at the time of power ON.
Note: This setting is enabled only if “No activity power off” is “Enable” (see page 46).
57
Options Adjustments
Item
Adjustments
3D Safety Precautions show/hide is set during power ON.
On: 3D Safety Precaution is shown every time when the power is ON.
Off: 3D Safety Precaution is not shown when the power is ON.
When the setting changes from “On” to “Off”, the confirmation screen is displayed as below. Pressing
“YES” switches the setting.
3D Safety
Precautions
3D Safety Precautions
If Off is selected, the 3D safety precautions
will not be displayed when power is turned on.
Change Setting?
YES
NO
Normalisation
When both main unit buttons and remote control are disabled due to the “Button lock”, “Remocon User level” or
“Remote ID” adjustments, set all the values “Off” so that all the buttons are enabled again.
Press the
button on main unit together with
button on the remote control and hold for more than 5 seconds.
The “Shipping” menu is displayed and the lock is released when it disappears.
Weekly Command Timer
You can set 7-day timer programming by setting time and command.
Note:
Before setting Weekly Command Timer, set Day/Time Setup. (see page 35)
1
Press to select Function.
Press to select “On”.
Note:
• When Function is set to On, On/Off Timer
Setup (see page 35) is unavailable and
Interval / Time Designation in Mode of
Screensaver (see page 38) cannot be
selected.
2
58
Weekly Command Timer
Audio input select
Input Search
On
Onscreen display
Press ACTION ( ) button
Weekly Command Timer
On
Press to select a day.
Monday
Tuesday
Program1
Press to select a program number.
Wednesday
Thursday
Friday
Saturday
Sunday
Program Edit
Press to select Program Edit.
Press to show the Program Edit screen.
4
1/3
Function
Note:
• You can set the program from 1 to 7.
--- indicates unset.
3
Options
Press to select Program.
Press to change the program numbers (1-7).
Program3
--Program3
--Program6
Program4
y Program number
Program3
Thursday
--Friday
Program6
Saturday
Program4
Sunday
Program Edit
Program Edit screen
1/8
Weekly Command Timer
Program
8:00
01
10:30
02
--:-03
--:-04
--:-05
12:00
06
9:12
07
--:-08
1
PON
IMS:SL1
------DAM:ZOOM
AVL:10
---
Options Adjustments
5
Press to select a command number.
Press to show the previous / next command
pages (1-8) of the selected program.
Press to show the command setting screen.
1/8
Weekly Command Timer
Program
01
02
03
04
05
06
07
08
1
8:00
10:30
PON
IMS:SL1
--:--
---
--:--
---
--:--
---
12:00
9:12
--:--
DAM:ZOOM
AVL:10
---
8/8
Weekly Command Timer
Program
57
58
59
60
61
62
63
64
1
20:00
AVL:00
20:30
22:00
DAM:NORM
POF
--:--
---
--:--
---
--:--
---
--:--
---
--:--
---
Command (--- indicates unset)
Set time of timer(--:-- indicates unset)
Command numbers
6
Press to select Command No.
Press to select a command number.
Command setting screen
Weekly Command Timer
Program
1
Command No
Time
Command
7
Press to select Time / Command.
02
10:30
IMS:SL1
Weekly Command Timer
1
Program
Press to set each item.
02
Command No
Time: Set the time to execute a command program.
10:30
Time
IMS:SL1
Command
Pressing “ ” or “ ” button once changes “Time” 1
minute.
Pressing “ ” or “ ” button continuously changes “Time” by 15 minutes.
Command: Select a command to execute at the set time. This unit has 64 commands to set.
(see page 66)
Notes:
• Command is performed in order of execution time, regardless of the command number.
• If a command execution time overlaps with that of other commands, these commands are
performed in number order.
• Pressing , Time becomes --:-- and Command becomes ---.
Note:
Press
to return to the previous screen.
59
Options Adjustments
Audio input select
Set up the sound when an image input is selected.
Options
1/3
Weekly Command Timer
Audio input select
Input Search
Onscreen display
On
Press ACTION ( ) button
Audio input select
Press to select image input.
Press to select audio input.
SLOT INPUT
VIDEO
COMPONENT
HDMI
DVI
PC
NETWORK
♪ SLOT INPUT
♪ VIDEO/COMPONENT
♪ VIDEO/COMPONENT
♪ HDMI
♪ DVI/PC
♪ DVI/PC
♪ NETWORK
Image input
[SLOT INPUT]*1
[VIDEO]
[COMPONENT]*2
[HDMI]
[DVI]
[PC]
[NETWORK]
Audio input
SLOT INPUT / VIDEO/COMPONENT / DVI/PC / NETWORK / NO AUDIO
SLOT INPUT / VIDEO/COMPONENT / DVI/PC / NETWORK / NO AUDIO
SLOT INPUT / VIDEO/COMPONENT / DVI/PC / NETWORK / NO AUDIO
SLOT INPUT / VIDEO/COMPONENT / HDMI / DVI/PC / NETWORK / NO AUDIO
SLOT INPUT / VIDEO/COMPONENT / DVI/PC / NETWORK / NO AUDIO
SLOT INPUT / VIDEO/COMPONENT / DVI/PC / NETWORK / NO AUDIO
SLOT INPUT / VIDEO/COMPONENT / DVI/PC / NETWORK / NO AUDIO
VIDEO/COMPONENT: Sound input for both VIDEO and COMPONENT.
DVI/PC: Sound input for both DVI and PC.
NO AUDIO: No audio input (Mute)
*1 “SLOT INPUT” is displayed when a Terminal Board is installed.
*2 “COMPONENT” may be displayed as “RGB” depending on the setting of “Component/RGB-in select”.
(see page 51)
When a Terminal Board with dual input terminals is installed
“SLOT INPUT” is displayed as “SLOT INPUT A” and “SLOT INPUT B” and independent settings are available.
To set other image inputs, you can select “SLOT INPUT A” and “SLOT INPUT B”.
Image input
Audio input
[SLOT INPUT A]
[SLOT INPUT B]
[VIDEO]
[COMPONENT]
[HDMI]
[DVI]
[PC]
[NETWORK]
SLOT INPUT A / VIDEO/COMPONENT / DVI/PC / NETWORK / NO AUDIO
SLOT INPUT B / VIDEO/COMPONENT / DVI/PC / NETWORK / NO AUDIO
SLOT INPUT A / SLOT INPUT B / VIDEO/COMPONENT / DVI/PC / NETWORK / NO AUDIO
SLOT INPUT A / SLOT INPUT B / VIDEO/COMPONENT / DVI/PC / NETWORK / NO AUDIO
SLOT INPUT A / SLOT INPUT B / VIDEO/COMPONENT / HDMI / DVI/PC / NETWORK / NO AUDIO
SLOT INPUT A / SLOT INPUT B / VIDEO/COMPONENT / DVI/PC / NETWORK / NO AUDIO
SLOT INPUT A / SLOT INPUT B / VIDEO/COMPONENT / DVI/PC / NETWORK / NO AUDIO
SLOT INPUT A / SLOT INPUT B / VIDEO/COMPONENT / DVI/PC / NETWORK / NO AUDIO
When Image input and Audio input differ from each other, the Audio input is displayed as below.
PC
16:9
COMPONENT
NANODRIFT
Notes:
• HDMI Audio is selectable only for HDMI Input.
• You cannot set audio of B for SLOT INPUT A, or audio of A for SLOT INPUT B.
60
Options Adjustments
Input Search
When a signal is not detected, another input with a signal is automatically selected.
Options
1/3
Weekly Command Timer
Audio input select
Input Search
Press ACTION ( ) button
1 select
Input Search
Input Search
Primary Input
Secondary Input
2 adjust
Off
Input Search
Off: When there is no signal, the input is not switched automatically.
All Inputs: Searches all inputs and switches to an input with a signal.
Input search is executed in the following order.
(Example) When the current input is PC
PC
NETWORK
SLOT INPUT
VIDEO
COMPONENT
HDMI
DVI
Priority: Searches “Primary Input” and “Secondary Input” in order and switches to an input with a signal.
Searching...
“Searching...” is displayed during the input search.
Primary Input, Secondary Input
Set the input to search when “Priority” is selected.
(NONE)
SLOT INPUT*
VIDEO
COMPONENT
HDMI
DVI
PC
NETWORK
* “SLOT INPUT” is displayed when an optional Terminal Board is installed.
When a Terminal Board with dual input terminals is installed, “SLOT INPUT A” and “SLOT INPUT B” are displayed.
Notes:
• This menu is available only when “Input lock” is “Off”. (see page 56)
• If the input is changed by this function, the last input is selected when the power is turned on next time.
If you wish to retain the original input when the power is turned on, set “Initial input” to the original input.
(see page 55)
61
there is any abnormality in the electronic pen, see “Electronic
Troubleshooting • When
Pen Operations” of the Operating Instructions.
Before you call for service, determine the symptoms and make a few simple checks as shown below.
Symptoms
Sound
Interference
Noisy Sound
Normal Picture
No Sound
Checks
Electrical Appliances
Cars / Motorcycles
Fluorescent light
Volume
(Check whether the mute function has been activated on the remote control.)
Check if speakers are connected properly.
No Picture
No Sound
No Picture
Normal Sound
Not plugged into AC outlet
Not switched on
Picture and Brightness/Volume setting
(Check by pressing the power switch or stand-by button on the remote control.)
If a signal with a non-applicable colour system format, or frequency is input, only
the input terminal indication is displayed.
No Colour
Normal Sound
Colour controls set at minimum level (see page 28, 29)
Colour system (see page 52)
No remote control operations can be performed.
A cracking sound is sometimes heard from the unit.
The top or bottom of the picture on the screen is cut
off when I use the zoom function.
Areas at the top and bottom of the screen where
the image is missing appear when I use the zoom
function.
I can hear sounds coming from inside the unit.
Parts of the unit become hot.
Check whether the batteries have discharged completely and, if they have not,
whether they were inserted properly.
Check whether the remote control sensor is exposed to an outdoor light or a
strong fluorescent light.
Check whether the remote control designed specifically for use with the unit is
being used. (The unit cannot be operated by any other remote control.)
If there is nothing wrong with the picture or sound, this is the sound of the cabinet
undergoing very slight contractions in response to changes in the room temperature.
There are no adverse effects on the performance or other aspects.
Adjust the position of the picture on the screen.
When using a video software program (such as a cinema size program) with a
screen wider than one in the 16:9 mode, blank areas separate from the images
are formed at the top and bottom of the screen.
When the power is turned on, a sound of the display panel being driven may be
heard: This is normal and not indicative of malfunctioning.
Even when the temperature of parts of the front, top and rear panels has risen, these
temperature rises will not pose any problems in terms of performance or quality.
Power automatically turns off unexpectedly.
Check the settings of “PC Power management”, “DVI-D Power management”, “No
signal power off” and “No activity power off” in the Setup menu. Any of them may be
set to “On (Enable)”. (see page 43, 46)
Power indicator is blinking in red.
There is possibility of malfunction. Please contact an Authorized Service Center.
This Plasma Display uses special image processing. Hence a slight time lag may occur between image and audio, depending on the
type of input signal. However, this is not a malfunction.
Plasma Display panel
Symptoms
The screen darkens slightly
when bright pictures with minimal
movements are shown.
It takes a while for the picture
to appear.
The edges of the images
flicker.
The brightness on both sides of
images in the 4:3 mode changes.
Some parts of the screen do
not light up.
Image retention appears
Whirring sounds can be heard
from the display unit.
62
Check
The screen will darken slightly when photos, still images of a computer or other pictures with minimal
movements are shown for an extended period. This is done to reduce image retention on the screen
and the shortening of the screen’s service life: It is normal and not indicative of malfunctioning.
The unit digitally processes the various signals in order to reproduce esthetically pleasing images. As
such, it sometimes takes a few moments for the picture to appear when the power has been turned
on, when the input has been switched.
Due to the characteristics of the system used to drive the panel, the edges may appear to flicker in
the fast-moving parts of the images: This is normal and not indicative of malfunctioning.
When viewing the side panels at the “High” or “Mid” setting, the brightness on both sides may change
depending on the kind of program shown: This is normal and not indicative of malfunctioning.
The plasma display panel is manufactured using an extremely high level of precision technology,
however, sometimes some parts of the screen may be missing picture elements or have luminous
spots. This is not a malfunction.
Do not allow a still picture to be displayed for an extended period, as this can cause a permanent image retention to
remain on the Plasma Display.
Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.
Note:
The permanent image retention on the Plasma Display resulting from fixed image use is not an
operating defect and as such is not covered by the Warranty.
This product is not designed to display fixed images for extended periods of time.
The display unit is fitted with a cooling fan to dissipate heat generated during normal use. The whirring
sound is caused by rotation of the fan and is not a malfunction.
List of Aspect Modes
Aspect mode
All Aspect: Factory setting
On
All Aspect: Off
16:9
14:9
16:9
Just
–
The pictures with a 4:3 aspect ratio among the 16:9 aspect
ratio signals are enlarged horizontally so that the picture
distortion is minimized. The left and right edges of the
pictures are cut off. The display of the areas around the
left and right edges of the screen is slightly elongated.
4:3
4:3 (1)
–
4:3 Full
The pictures with a 4:3 aspect ratio among the 16:9
aspect ratio signals are enlarged horizontally so that
their display fills the screen. The left and right edges of
the pictures are cut off.
Zoom1
Letterbox pictures with a 16:9 aspect ratio are enlarged
vertically and horizontally so that their display fills the
screen. The top and bottom edges of the pictures are
cut off.
Zoom2
The letterbox pictures with a 2.35:1 aspect ratio among
the 16:9 aspect ratio signals are enlarged vertically and
horizontally so that their display fills the screen. The top
and bottom edges as well as the left and right edges of
the pictures are cut off.
Zoom3
Letterbox pictures with a 2.35:1 aspect ratio are enlarged
vertically and horizontally so that their display fills the
screen vertically and is slightly larger than the screen
horizontally. The top and bottom edges as well as the
left and right edges of the pictures are cut off.
Zoom1
Zoom3
Pictures with a 4:3 aspect ratio are displayed with their
original aspect ratio. Side panels are displayed at the
left and right edges of the screen.
The pictures with a 4:3 aspect ratio among the 16:9
aspect ratio signals are displayed with their original
aspect ratio. The left and right edges of the pictures are
masked with side panels.
Zoom
Zoom2
The display of the pictures fills the screen.
In the case of SD signals, pictures with a 4:3 aspect
ratio are enlarged horizontally, and displayed. This
mode is suited to displaying anamorphic pictures with
a 16:9 aspect ratio.
Pictures with a 4:3 aspect ratio are enlarged horizontally
so that the picture distortion is minimized. The display of
the areas around the left and right edges of the screen
is slightly elongated.
4:3
4:3 Full
Description
14:9
Just1
4:3 (2)
Enlarged screen
Letterbox pictures with a 14:9 aspect ratio are enlarged
vertically and horizontally so that their display fills the
screen vertically and is slightly smaller than the screen
horizontally. The top and bottom edges of the pictures
are cut off. Side panels are displayed at the left and right
edges of the screen.
Just
Just2
63
Applicable Input Signals
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
Signal name
Horizontal frequency
(kHz)
Vertical frequency
(Hz)
525 (480) / 60i
525 (480) / 60p
625 (575) / 50i
625 (576) / 50i
625 (575) / 50p
625 (576) / 50p
750 (720) / 60p
750 (720) / 50p
1,125 (1,080) / 60p
1,125 (1,080) / 60i
1,125 (1,080) / 50p
1,125 (1,080) / 50i
1,125 (1,080) / 24sF
1,125 (1,080) / 30p
1,125 (1,080) / 25p
1,125 (1,080) / 24p
1,250 (1,080) / 50i
2,048 × 1,080 / 24sF ∗7
2,048 × 1,080 / 24p ∗7
640 × 400 @70 Hz
640 × 480 @60 Hz
640 × 480 @72 Hz
640 × 480 @75 Hz
640 × 480 @85 Hz
800 × 600 @56 Hz
800 × 600 @60 Hz
800 × 600 @72 Hz
800 × 600 @75 Hz
800 × 600 @85 Hz
852 × 480 @60 Hz
1,024 × 768 @50 Hz
1,024 × 768 @60 Hz
1,024 × 768 @70 Hz
1,024 × 768 @75 Hz
1,024 × 768 @85 Hz
1,066 × 600 @60 Hz
1,152 × 864 @60 Hz
1,152 × 864 @75 Hz
1,280 × 768 @60 Hz
1,280 × 800 @60 Hz (1)
1,280 × 800 @60 Hz (2)
1,280 × 960 @60 Hz
1,280 × 960 @85 Hz
1,280 × 1,024 @60 Hz
1,280 × 1,024 @75 Hz
1,280 × 1,024 @85 Hz
1,366 × 768 @50 Hz
1,366 × 768 @60 Hz
1,400 × 1,050 @60 Hz
1,440 × 900 @60 Hz (1)
1,440 × 900 @60 Hz (2)
1,600 × 1,200 @60 Hz
1,600 × 1,200 @65 Hz
1,920 × 1,080 @60 Hz
1,920 × 1,200 @60 Hz
Macintosh13” (640 × 480)
Macintosh16” (832 × 624)
Macintosh21” (1,152 × 870)
15.73
31.47
15.63
15.63
31.25
31.25
45.00
37.50
67.50
33.75
56.26
28.13
27.00
33.75
28.13
27.00
31.25
27.00
27.00
31.46
31.47
37.86
37.50
43.27
35.16
37.88
48.08
46.88
53.67
31.47
39.55
48.36
56.48
60.02
68.68
37.64
53.70
67.50
47.70
49.31
49.70
60.00
85.94
63.98
79.98
91.15
39.55
48.36
65.22
55.47
55.93
75.00
81.25
67.50
74.04
35.00
49.72
68.68
59.94
59.94
50.00
50.00
50.00
50.00
60.00
50.00
60.00
60.00
50.00
50.00
48.00
30.00
25.00
24.00
50.00
48.00
24.00
70.07
59.94
72.81
75.00
85.01
56.25
60.32
72.19
75.00
85.06
59.94
50.00
60.00
70.07
75.03
85.00
59.94
60.00
75.00
60.00
59.91
59.81
60.00
85.00
60.02
75.03
85.02
50.00
60.00
60.00
59.90
59.89
60.00
65.00
60.00
59.95
66.67
74.54
75.06
*Mark: Applicable input signal
COMPONENT / RGB
DVI-D IN
IN / PC IN
(Dot clock
HDMI
(Dot clock (MHz))
(MHz))
* (13.5)
* (27.0)
*
* (27.0) ∗5
* (27.0)
*
* (13.5)
* (27.0)
*
* (27.0)
* (27.0)
*
* (74.25)
* (74.25)
*
* (74.25)
* (74.25)
*
* (148.5) ∗1
* (148.5)
*
* (74.25) ∗1
* (74.25)
*
* (148.5) ∗1
* (148.5)
*
* (74.25) ∗1
* (74.25)
*
* (74.25) ∗2
* (74.25) ∗1
* (74.25)
* (74.25) ∗1
* (74.25)
* (74.25) ∗1
* (74.25)
*
* (74.25) ∗3
*
*
*
*
*
*
*
*
*
*
*
(25.17)
(25.18)
(31.5)
(31.5)
(36.0)
(36.0)
(40.0)
(50.0)
(49.5)
(56.25)
(33.54)
*
*
*
*
*
(65.0)
(75.0)
(78.75)
(94.5)
(53.0)
*
*
*
*
*
*
*
*
*
(108.0)
(80.14)
(71.0)
(83.5)
(108.0)
(148.5)
(108.0)
(135.0)
(157.5)
∗6
∗6
* (86.71)
*
*
*
*
*
(88.75)
(106.5)
(162.0)
(175.5)
(148.5)
∗4
* (25.18)
*
* (40.0)
*
* (34.24)
* (51.89)
* (65.0)
*
*
*
* (53.0)
* (81.62)
*
*
* (71.0)
* (83.5)
*
*
* (108.0)
*
*
*
*
*
*
*
*
*
*
*
*
*
(69.92)
(87.44)
(122.61)
(88.75)
(106.5)
(162.0)
* (148.5)
* (154.0)
*
*
* (30.24)
* (57.28)
* (100.0)
∗1: Based on SMPTE 274M standard.
∗2: Based on SMPTE RP211 standard.
∗3: Based on SMPTE 295M standard.
∗4: The input signal is recognized as 1,125 (1,080) / 60p.
∗5: When selected the RGB format and 525p signal input to the PC IN terminal, it is recognized as VGA 60Hz signal.
∗6: When inputted VGA 60Hz format signal from the other than PC IN terminal, it is recognized as 525p signal.
∗7: Based on SMPTE 292M and 372M standards. These signals can be received when the Dual Link HD-SDI Terminal
Board (TY-FB11DHD) is installed.
Note: Signals without above specification may not be displayed properly.
64
Applicable Input Signals
Video input (VIDEO)
Signal name
1
2
3
4
5
NTSC
PAL
PAL60
SECAM
Modified NTSC
Horizontal
frequency(kHz)
15.73
15.63
15.73
15.63
15.73
Vertical
frequency(Hz)
59.94
50.00
59.94
50.00
59.94
Shipping condition
This function allows you to reset the unit to the factory setting.
1
2
Setup
Press to display the Setup menu.
Press to select “OSD Language”.
Press for more than 3 seconds.
3
Touch-Pen Mode
3D Settings
Signal
Screensaver
Extended life settings
ECO Mode settings
Input label
Function Button Settings
Component/RGB-in select
RGB
Disable
30 S
5
English (UK)
No activity power off
Menu Display Duration
OSD Brightness
OSD Language
Press to select “Shipping”.
Press to display the Shipping menu.
4
1/2
Press to select “YES”.
Options
Shipping
Shipping
YES
NO
Press to confirm.
5
Wait for 10 seconds.
6
Press the power switch (
) on main unit to turn the power off.
[from the unit]
1 Press the MENU button till the Setup menu is displayed.
2 Press the Volume Up“+” or Down“–” button to select “OSD Language”.
3 Press and hold the ENTER button till the Shipping menu is displayed.
4 Press the Volume Up“+” or Down“–” button to select “YES”.
5 Press the ENTER button and wait for 10 sec.
) on main unit to turn the power off.
6 Press the power switch (
65
Command list of Weekly Command Timer
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
66
Command
AAC:MENCLR
AAC:MENDYN
AAC:MENSTD
AAC:SURMON
AAC:SUROFF
AMT:0
AMT:1
−
−
AVL:00
AVL:10
AVL:20
AVL:30
AVL:40
AVL:50
AVL:60
DAM:FULL
DAM:JUST
DAM:NORM
−
DAM:ZOOM
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
IMS:SL1
IMS:S1A
IMS:S1B
IMS:VD1
IMS:YP1
IMS:HM1
IMS:DV1
IMS:PC1
IMS:NW1
−
−
−
−
−
−
−
OSP:SCR0
OSP:SCR1
POF
PON
SSC:FNC0
SSC:FNC1
SSC:MOD0
SSC:MOD3
VMT:0∗
VMT:1∗
Control details
Audio Menu (Clear)
Audio Menu (Dynamic)
Audio Menu (Standard)
Surround (ON)
Surround (OFF)
Audio Mute (OFF)
Audio Mute (ON)
−
−
Audio Volume (00)
Audio Volume (10)
Audio Volume (20)
Audio Volume (30)
Audio Volume (40)
Audio Volume (50)
Audio Volume (60)
Aspect (16:9)
Aspect (Just)
Aspect (4:3)
−
Aspect (Zoom)
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
Input select (SLOT INPUT)
Input select (SLOT INPUT A)
Input select (SLOT INPUT B)
Input select (VIDEO)
Input select (COMPONENT)
Input select (HDMI)
Input select (DVI)
Input select (PC)
Input select (NETWORK)
−
−
−
−
−
−
−
Screen Saver Scrolling bar only (OFF)
Screen Saver Scrolling bar only (ON)
Power OFF
Power ON
Screen Saver function (Scrolling bar only)
Screen Saver function (Negative image)
Screen Saver (Mode (OFF))
Screen Saver (Mode (ON))
Picture Mute (OFF)
Picture Mute (ON)
∗ Picture Mute cannot be unlocked
by powering off/on with the remote
control. Turn off and on again with
the button on the unit or enter the
command VMT:0 to unlock Picture
Mute.
Specifications
TH-65PB1E / TH-65PB1EK
220 - 240 V AC, 50/60 Hz
Power Source
Power Consumption
Power on
Stand-by condition
Power off condition
Plasma Display panel
Screen size
(No.of pixels)
Operating condition
Temperature
Humidity
Applicable signals
Colour System
Scanning format
PC signals
Connection terminals
AV IN
VIDEO
AUDIO L-R
HDMI
COMPONENT/RGB IN
Y/G
PB/CB/B
PR/CR/R
AUDIO L-R
DVI-D IN
AUDIO
PC IN
AUDIO
SERIAL
3D IR TRANSMITTER
3D SHUTTER OUT
DC 8V OUT
WIRELESS MODULE
LAN
EXT SP
Dimensions (W × H × D)
Mass (weight)
main unit only
510 W
0.5 W
0.3 W
Drive method : AC type 65-inch, 16:9 aspect ratio
1,434 mm (W) × 806 mm (H) × 1,645 mm (diagonal)
2,073,600 (1,920 (W) ×1,080 (H))
[5,760 × 1,080 dots]
0 °C - 40 °C
20 % - 80 %
NTSC, PAL, PAL60, SECAM, Modified NTSC
525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 750 (720) / 60p · 50p, 1125 (1080) / 60i · 60p · 50i ·
50p · 24p · 25p · 30p · 24sF, 1250 (1080) / 50i
VGA, SVGA, XGA, SXGA
UXGA ···· (compressed)
Horizontal scanning frequency 15 - 110 kHz
Vertical scanning frequency 48 - 120 Hz
BNC
RCA Pin jack × 2
BNC
BNC
BNC
RCA Pin jack × 2
DVI-D 24 Pin
Content Protection
Stereo mini jack (M3) × 1
High-Density Mini D-sub 15 Pin
1.0 Vp-p (75 Ω)
0.5 Vrms, Shared with COMPONENT/RGB IN
TYPE A Connector
with sync 1.0 Vp-p (75 Ω)
0.7 Vp-p (75 Ω)
0.7 Vp-p (75 Ω)
0.5 Vrms, Shared with VIDEO
Compliance with DVI Revision 1.0
Compatible with HDCP 1.1
0.5 Vrms, Shared with PC IN
Y or G with sync 1.0 Vp-p (75 Ω)
Y or G without sync 0.7 Vp-p (75 Ω)
PB/CB/B: 0.7 Vp-p (75 Ω)
PR/CR/R: 0.7 Vp-p (75 Ω)
HD/VD: 1.0 - 5.0 Vp-p (high impedance)
0.5 Vrms, Shared with DVI-D IN
Stereo mini jack (M3) × 1
External Control Terminal
D-sub 9 Pin
RS-232C compatible
for 3D IR TRANSMITTER (TY-3D30TRW)
M3 jack × 1
Center plus, for EIAJ 4mm plug
for Wireless module (ET-WM200E)
RJ45 10BASE-T/100BASE-TX, compatible with PJLink™
8 Ω, 20 W [10 W + 10 W] (10 % THD)
1,554 mm × 925 mm × 99 mm
approx. 60.0 kg net
Notes:
• Design and specifications are subject to change without notice. Mass and dimensions shown are approximate.
• This equipment complies with the EMC standards listed below.
EN55022, EN55024, EN61000-3-2, EN61000-3-3.
67
This product incorporates the following software:
(1) the software developed independently by or for Panasonic Corporation,
(2) the software owned by third party and licensed to Panasonic Corporation,
(3) the software licensed under the GNU General Public License, Version 2.0 (GPL-2.0),
(4) the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL-2.1) and/or,
(5) open source software other than the software licensed under the GPL and/or LGPL.
For the software categorized as (3) and (4), please refer to the terms and conditions of GPL-2.0 and LGPL-2.1, as
the case may be at
http://www.gnu.org/licenses/old-licenses/gpl-2.0.html and
http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html
The GPL/LGPL software is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without
even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.
At least three (3) years from delivery of products, Panasonic will give to any third party who contact us at the contact
information provided below, for a charge no more than our cost of physically performing source code distribution, a
complete machine-readable copy of the corresponding source code and the copyright notice, covered under
GPL-2.0/LGPL-2.1.
Contact Information
[email protected]
For the software categorized as (5) includes as follows.
1. The software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)
2. The software developed by the University of California, Berkeley and its contributors.
3. FreeType code.
4. The Independent JPEG Group's JPEG software.
5. thttpd code.
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used
electrical and electronic products and batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to
applicable collection points, in accordance with your national legislation and the Directives
2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and
prevent any potential negative effects on human health and the environment which could otherwise
arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your
local municipality, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national
legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for
further information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these items, please
contact your local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the
requirement set by the Directive for the chemical involved.
Customer’s Record
The model number and serial number of this product can be found on its rear panel. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your
purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.
Model Number
Web Site : http://panasonic.net
© Panasonic Corporation 2012
Serial Number
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
