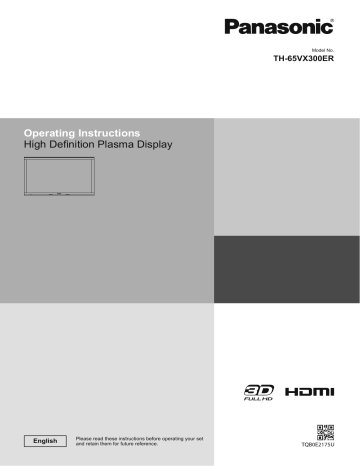

Model No.
TH-65VX300ER
Operating Instructions
High Definition Plasma Display
English
Please read these instructions before operating your set
and retain them for future reference.
Dear Panasonic Customer
Welcome to the Panasonic family of customers. We hope that you will have many years of
enjoyment from your new Plasma Display.
To obtain maximum benefit from your set, please read these Instructions before making
any adjustments, and retain them for future reference.
Retain your purchase receipt also, and note down the model number and serial number of
your set in the space provided on the rear cover of these instructions.
Visit our Panasonic Web Site
http://panasonic.net
Table of Contents
Important Safety Notice ........................................... 3
Safety Precautions ................................................... 4
3D Safety Precautions ............................................. 7
Accessories .............................................................. 9
Accessories Supply ................................................. 9
Remote Control Batteries ........................................ 9
Connections ............................................................ 10
Speaker connection ............................................... 10
AC cord connection and fixing, cable fixing ........... 10
Video equipment connection ..................................11
COMPONENT / RGB IN connection ..................... 12
HDMI connection ................................................... 12
PC Input Terminals connection .............................. 13
SERIAL Terminals connection ............................... 14
Power On / Off......................................................... 15
Selecting the input signal ...................................... 18
Basic Controls ........................................................ 19
ASPECT Controls ................................................... 21
Viewing 3D images ................................................. 22
To view the 3D images .......................................... 22
Troubleshooting for 3D Eyewear .......................... 23
Table of images that can be seen for each 3D
Picture Format and the source image format ........ 23
On-Screen Menu Displays ..................................... 24
Adjusting Pos. /Size ............................................... 25
Picture Adjustments ............................................... 28
Advanced settings ................................................. 30
Colour space adjustment (Colour Gamut) ............. 32
Picture Profiles ....................................................... 34
Saving profiles ....................................................... 35
Loading profiles ..................................................... 36
Editing profiles ....................................................... 37
Locking profiles ..................................................... 38
Sound Adjustment .................................................. 40
SDI Sound Output ................................................. 40
Setup menu ............................................................. 41
Component / RGB-in select ................................... 41
YUV / RGB-in select .............................................. 41
External scaler mode ............................................. 42
2
Power save ............................................................ 43
Standby save ......................................................... 43
PC Power management ........................................ 43
No signal power off ................................................ 43
No activity power off .............................................. 43
OSD design ........................................................... 44
OSD position ......................................................... 44
OSD Language ...................................................... 44
3D Settings ............................................................ 45
Signal menu .......................................................... 46
Waveform Monitor ................................................. 48
Marker Settings ..................................................... 49
RGB/MONO settings ............................................. 51
Screensaver .......................................................... 52
Extended life settings ............................................ 54
Customizing the Input labels ................................. 57
Function Button Settings ....................................... 57
Day/Time Setup / On/Off Timer Setup ................... 58
Network Setup ....................................................... 59
Options Adjustments ............................................. 60
3D Safety Precautions (To hide 3D Safety
Precautions) .......................................................... 61
Using FUNCTION button ........................................ 62
Using Network Function ........................................ 64
Example of Network Connection ........................... 64
Command Control ................................................. 64
PJLink™ Protocol .................................................. 65
Using Web Browser Control .................................. 66
Before Using Web Browser Control....................... 66
Access from Web Browser .................................... 66
Display Control (BASIC CONTROL/OPTION
CONTROL Screen) ............................................... 67
NETWORK SETTING (Network Setup Screen) .... 68
Password Setting (Password Setup Screen) ........ 68
Troubleshooting ..................................................... 69
List of Aspect Modes ............................................. 70
Applicable Input Signals ........................................ 71
Shipping condition ................................................. 72
Specifications ......................................................... 73
Important Safety Notice
WARNING
1) To prevent damage which may result in fire or shock hazard, do not expose this appliance to dripping
or splashing.
Do not place containers with water (flower vase, cups, cosmetics, etc.) above the set. (including on
shelves above, etc.)
No naked flame sources, such as lighted candles, should be placed on / above the set.
2) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified
service personnel.
3) Do not remove the earthing pin on the power plug. This apparatus is equipped with a three pin earthing-type
power plug. This plug will only fit an earthing-type power outlet. This is a safety feature. If you are unable to
insert the plug into the outlet, contact an electrician.
Do not defeat the purpose of the earthing plug.
4) To prevent electric shock, ensure the earthing pin on the AC cord power plug is securely connected.
CAUTION
This appliance is intended for use in environments which are relatively free of electromagnetic fields.
Using this appliance near sources of strong electromagnetic fields or where electrical noise may overlap with the
input signals could cause the picture and sound to wobble or cause interference such as noise to appear.
To avoid the possibility of harm to this appliance, keep it away from sources of strong electromagnetic fields.
IMPORTANT: THE MOULDED PLUG
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This display is supplied with a moulded three pin mains plug for your safety and convenience. A 10 amp fuse is
fitted in this plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 10
amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark
ASA
or the BSI mark
on the body of the fuse.
If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a replacement cover is obtained.
A replacement fuse cover can be purchased from your local Panasonic dealer.
Do not cut off the mains plug.
Do not use any other type of mains lead except the one supplied with this display.
The supplied mains lead and moulded plug are designed to be used with this display to avoid
interference and for your safety.
If the socket outlet in your home is not suitable, get it changed by a qualified electrician.
If the plug or mains lead becomes damaged, purchase a replacement from an authorized dealer.
WARNING : — THIS DISPLAY MUST BE EARTHED.
How to replace the fuse. Open the fuse compartment with a screwdriver and replace the fuse.
Trademark Credits
• VGA is a trademark of International Business Machines Corporation.
• Macintosh is a registered trademark of Apple Inc., USA.
• SVGA, XGA, SXGA and UXGA are registered trademarks of the Video Electronics Standard Association.
Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.
• HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
Note:
Do not allow a still picture to be displayed for an extended period, as this can cause a permanent image retention
to remain on the Plasma Display.
Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.
3
Safety Precautions
WARNING
Setup
This Plasma Display is for use only with the following optional accessories. Use with any other type of optional
accessories may cause instability which could result in the possibility of injury.
(All of the following accessories are manufactured by Panasonic Corporation.)
• Speakers ........................................................................ TY-SP65P11WK
• Pedestal ......................................................................... TY-ST65VX300
• Wall-hanging bracket (angled) ....................................... TY-WK65PR20
• BNC Dual Video Terminal Board .................................... TY-FB9BD
• HD-SDI Terminal Board .................................................. TY-FB9HD
• HD-SDI Terminal Board with audio ................................ TY-FB10HD
• Dual Link HD-SDI Terminal Board .................................. TY-FB11DHD
• Dual HD-SDI Terminal Board for 3D .............................. TY-FB30DHD3D
• Dual HDMI Terminal Board ............................................ TY-FB10HMD
• DVI-D Terminal Board .................................................... TY-FB11DD
• Dual DVI-D Terminal Board for 3D ................................. TY-FB30DD3D
• AV Terminal Box ............................................................. TY-TB10AV
• 3D IR TRANSMITTER ................................................... TY-3D30TRW
Always be sure to ask a qualified technician to carry out set-up.
Small parts can present choking hazard if accidentally swallowed. Keep small parts away from young children. Discard
unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from
being played with by young children, creating the potential risk of suffocation.
Do not place the Plasma Display on sloped or unstable surfaces, and ensure that the Plasma Display does
not hang over the edge of the base.
• The Plasma Display may fall off or tip over.
Do not place any objects on top of the Plasma Display.
• If water is spills onto the Plasma Display or foreign objects get inside it, a short-circuit may occur which could result
in fire or electric shock. If any foreign objects get inside the Plasma Display, please consult your local Panasonic
dealer.
Transport only in upright position!
• Transporting the unit with its display panel facing upright or downward may cause damage to the internal
circuitry.
Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table
cloths and curtains.
For sufficient ventilation;
If using the pedestal (optional accessory), leave a space of 10 cm or more at the top, left and right, and 7 cm
or more at the rear, and also keep the space between the bottom of the display and the floor surface.
If using some other setting-up method, follow the manual of it. (If there is no specific indication of installation
dimension in the installation manual, leave a space of 10 cm or more at the top, bottom, left and right, and 7 cm
or more at the rear.)
4
Safety Precautions
When using the Plasma Display
The Plasma Display is designed to operate on 220 - 240 V AC, 50/60 Hz.
Do not cover the ventilation holes.
• Doing so may cause the Plasma Display to overheat, which can cause fire or damage to the Plasma Display.
Do not stick any foreign objects into the Plasma Display.
• Do not insert any metal or flammable objects into the ventilations holes or drop them onto the Plasma Display, as
doing so can cause fire or electric shock.
Do not remove the cover or modify it in any way.
• High voltages which can cause severe electric shocks are present inside the Plasma Display. For any inspection,
adjustment and repair work, please contact your local Panasonic dealer.
Ensure that the mains plug is easily accessible.
An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.
Do not use any power supply cord other than that provided with this unit.
• Doing so may cause fire or electric shocks.
Securely insert the power supply plug as far as it will go.
• If the plug is not fully inserted, heat may be generated which could cause fire. If the plug is damaged or the wall
socket is loose, they shall not be used.
Do not handle the power supply plug with wet hands.
• Doing so may cause electric shocks.
Do not do anything that may damage the power cable. When disconnecting the power cable, pull on the plug body, not the cable.
• Do not damage the cable, make any modifications to it, place heavy objects on top of it, heat it, place it near any
hot objects, twist it, bend it excessively or pull it. To do so may cause fire and electric shock. If the power cable is
damaged, have it repaired at your local Panasonic dealer.
If the Plasma Display is not going to be used for any prolonged length of time, unplug the power supply plug
from the wall outlet.
To prevent the spread of fire, keep candles or other open flames away from this product at all times.
If problems occur during use
If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odour starts to come out
from the Plasma Display, immediately unplug the power supply plug from the wall outlet.
• If you continue to use the Plasma Display in this condition, fire or electric shock could result. After checking that
the smoke has stopped, contact your local Panasonic dealer so that the necessary repairs can be made. Repairing
the Plasma Display yourself is extremely dangerous, and shall never be done.
If water or foreign objects get inside the Plasma Display, if the Plasma Display is dropped, or if the cabinet
becomes damages, disconnect the power supply plug immediately.
• A short circuit may occur, which could cause fire. Contact your local Panasonic dealer for any repairs that need to be made.
5
Safety Precautions
CAUTION
When using the Plasma Display
Do not bring your hands, face or objects close to the ventilation holes of the Plasma Display.
• Heated air comes out from the ventilation holes at the top of Plasma Display will be hot. Do not bring your hands
or face, or objects which cannot withstand heat, close to this port, otherwise burns or deformation could result.
Be sure to disconnect all cables before moving the Plasma Display.
• If the Plasma Display is moved while some of the cables are still connected, the cables may become damaged,
and fire or electric shock could result.
Disconnect the power supply plug from the wall socket as a safety precaution before carrying out any
cleaning.
• Electric shocks can result if this is not done.
Clean the power cable regularly to prevent it becoming dusty.
• If dust built up on the power cord plug, the resultant humidity can damage the insulation, which could result in fire.
Pull the power cord plug out from the wall outlet and wipe the mains lead with a dry cloth.
Do not burn or breakup batteries.
• Batteries must not be exposed to excessive heat such as sunshine, fire or the like.
This Plasma Display radiates infrared rays, therefore it may affect other infrared communication equipment.
Install your infrared sensor in a place away from direct or reflected light from your Plasma Display.
Cleaning and maintenance
The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning
cloth or a soft, lint-free cloth.
• If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water in
which neutral detergent has been diluted 100 times, and then wipe it evenly with a dry cloth of the same type until
the surface is dry.
• Do not scratch or hit the surface of the panel with fingernails or other hard objects, otherwise the surface may
become damaged. Furthermore, avoid contact with volatile substances such as insect sprays, solvents and thinner,
otherwise the quality of the surface may be adversely affected.
If the cabinet becomes dirty, wipe it with a soft, dry cloth.
• If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been
added and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.
• Do not allow any detergent to come into direct contact with the surface of the Plasma Display. If water droplets get
inside the unit, operating problems may result.
• Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the
cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods
in contact with articles made from rubber or PVC.
6
Safety Precautions
3D Safety Precautions
WARNING
Small Parts
3D Eyewear contains small parts (battery and specialised band, etc.) and must be kept out of reach of small
children to avoid accidental ingestion.
Disassembly
Do not disassemble or modify the 3D Eyewear.
Lithium Battery
Batteries must not be exposed to excessive heat such as sunshine, fire or the like.
CAUTION
To enjoy 3D images safely and comfortably, please read these instructions fully.
Use for commercial applications and public viewing
Someone in authority should responsibly convey the precautions for use of the 3D Eyewear to the user.
3D Eyewear
Do not drop, exert pressure on, or step on the 3D Eyewear.
Always store the 3D Eyewear in the case provided when not in use.
Be careful of the tips of the frame when putting on the 3D Eyewear.
Be careful not to trap a finger in the hinge section of the 3D Eyewear.
Pay special attention when children are using the 3D Eyewear.
3D Eyewear should not be used by children younger than 5 - 6 years old, as a guideline.
All children must be fully supervised by parents or guardians who must ensure their safety and health
throughout the using 3D Eyewear.
7
Safety Precautions
Viewing 3D Content
Content for 3D viewing includes commercially available Blu-ray discs, 3D broadcasts, etc.
When preparing your own 3D content, ensure that it is properly produced.
Do not use the 3D Eyewear if you have a history of over-sensitivity to light, heart problems, or have any other
existing medical conditions.
Please stop using the 3D Eyewear immediately, if you feel tired, are not feeling well or experience any other
uncomfortable sensation.
Take an appropriate break after viewing a 3D movie.
Take a break of between 30 - 60 minutes after viewing 3D content on interactive devices such as 3D games
or computers.
Be careful not to strike the screen or other people unintentionally. When using the 3D Eyewear the distance
between the user and screen can be misjudged.
The 3D Eyewear must only be worn when viewing 3D content.
If you do not look toward the screen for a while when viewing 3D images, the 3D Eyewear may be turned off
automatically.
If you suffer from any eyesight problems (short / far-sighted, astigmatism, eyesight differences in left and
right), please ensure to correct your vision before using the 3D Eyewear.
Stop using the 3D Eyewear if you can clearly see double images when viewing 3D content.
When the multiple plasma displays are placed side by side, 3D images may be seen doubly due to interference
among them. Place each display at an appropriate location to avoid it.
Do not use the 3D Eyewear at a distance less than the recommended distance.
View from at least the recommended distance (3 times the effective height of the screen).
Recommended distance
TH-65VX300ER: 2.4 m
When the top and bottom area of the screen is blackened, such as movies, view the screen at a distance
3 times further than the height of the actual image. (That makes the distance closer than above recommended
figure.)
3D Eyewear Use
Before using the 3D Eyewear, ensure no breakable objects surrounding the user to avoid any accidental
damage or injury.
Remove the 3D Eyewear before moving around to avoid falling or accidental injury.
Always put the 3D Eyewear in the case (supplied) after use.
Use the 3D Eyewear only for the intended purpose and nothing else.
Do not use 3D Eyewear in the condition of high temperature.
Do not use if the 3D Eyewear is physically damaged.
Do not use any devices that emit the infrared signals near the 3D Eyewear, as this may cause the 3D Eyewear
false operations.
Do not use devices (such as mobile phones or personal transceivers) that emit strong electromagnetic waves
near the 3D Eyewear as this may cause the 3D Eyewear to malfunction.
Stop using the 3D Eyewear immediately if a malfunction or fault occurs.
Stop using the 3D Eyewear immediately if you experience any redness, pain, or skin irritation around the nose
or temples.
In rare cases, the materials used in the 3D Eyewear may cause an allergic reaction.
Lithium Battery
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
8
Accessories
Accessories Supply
Check that you have the accessories and items shown
Operating Instruction book
CD-ROM
(Operating
instructions)
Power supply cord
Remote Control
Transmitter
N2QAYB000688
Clamper × 1
TMME289
Batteries for the Remote
Control Transmitter
(R6 (UM3) Size × 2)
Ferrite core × 2
J0KG00000014
Use the Ferrite cores to comply
with the EMC standard.
(see page 64)
Remote Control Batteries
Requires two R6 batteries.
1. Pull and hold the hook, then open
the battery cover.
2. Insert batteries - note correct
polarity ( + and -).
Close
Open
“R6 (UM3)” size
Hook
Helpful Hint:
For frequent remote control users, replace old batteries with Alkaline
batteries for longer life.
Precaution on battery use
Incorrect installation can cause battery leakage and corrosion that will damage the remote control transmitter.
Disposal of batteries should be in an environment-friendly manner.
Observe the following precaution:
1. Batteries shall always be replaced as a pair. Always use new batteries when replacing the old set.
2. Do not combine a used battery with a new one.
3. Do not mix battery types (example: “Zinc Carbon” with “Alkaline”).
4. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.
5. Battery replacement is necessary when remote control acts sporadically or stops operating the Plasma Display set.
6. Do not burn or breakup batteries.
Batteries must not be exposed to excessive heat such as sunshine, fire or the like.
9
Connections
Speaker connection
When connecting the speakers, be sure to use only the optional accessory speakers.
Refer to the speaker’s Installation Manual for details on speaker installation.
Speakers (Optional accessories)
2
1
Red
Red
Black
Black
While pressing the lever,
insert the core wire.
Return the lever.
AC cord connection and fixing, cable fixing
AC cord fixing
Unplug the AC cord
Plug the AC cord into the display unit.
Plug the AC cord until it clicks.
Note:
Make sure that the AC cord is locked on
both the left and right sides.
Unplug the AC cord pressing the
two knobs.
Note:
When disconnecting the AC cord, be
absolutely sure to disconnect the AC
cord plug at the socket outlet first.
Using the clamper
Secure any excess cables with clamper as required.
Note:
One clamper is supplied with this unit. In case of securing cables at three positions, please purchase it separately.
1 Attach the clamper
To remove from the unit:
2 Bundle the cables
To loosen:
hole
snaps
Insert the clamper
in a hole.
10
Keep pushing
both side
snaps
hooks
Set the
tip in the
hooks
knob
Keep
pushing
the knob
Connections
Video equipment connection
SLOT: Terminal board (optional
accessories) insert slot
Note:
(see page 4)
The right side slot is for factory use only.
The terminal board with 1-slot width
does not function when installed in the
right side slot.
3D IR TRANSMITTER:
Connect the 3D IR
TRANSMITTER (optional
accessory).
LAN: Connect to a
network to control
the unit. (see page
SERIAL:
Control the Plasma Display
by connecting to PC.
(see page 14)
Terminals are on the bottom
side of the Plasma Display.
60)
COMPONENT/RGB IN: Component/RGB Video Input
Terminal (see page 12)
AV IN (HDMI): HDMI Input Terminal (see page 12)
Connect to video equipment such as VCR or DVD
player.
PC IN: PC Input Terminal
Connect to video terminal
of PC or equipment with Y,
PB(CB) and PR(CR) output
(see page 13).
11
Connections
COMPONENT / RGB IN connection
Note:
Additional equipment, cables and adapter plugs shown are not supplied with this set.
Notes:
• Change the “Component/RGB-in select” setting in the “Setup”
menu to “Component” (when Component signal connection) or
“RGB” (when RGB signal connection). (see page 41)
• Signals input to COMPONENT/RGB IN terminals correspond to
Sync on G or Sync on Y.
DVD Player
Y
PB
PR
Computer
RGB Camcorder
Y, PB, PR,
OUT
L
R
AUDIO
OUT
HDMI connection
[Pin assignments and signal names]
Pin No.
Signal name
Pin No.
Signal name
T.M.D.S Clock
Shield
1
T.M.D.S Data2+
11
2
T.M.D.S Data2
Shield
T.M.D.S Data2T.M.D.S Data1+
T.M.D.S Data1
Shield
T.M.D.S Data1T.M.D.S Data0+
T.M.D.S Data0
Shield
T.M.D.S Data0T.M.D.S Clock+
12
T.M.D.S Clock-
13
CEC
14
Reserved
(N.C. on device)
3
4
5
6
7
8
9
10
15
16
17
18
19
SCL
SDA
DDC/CEC
Ground
+5V Power
Hot Plug Detect
19
18
3 1
4 2
Note:
Additional equipment and HDMI cable shown are not supplied with this set.
12
HDMI cable
HDMI
AV OUT
HDMI
AV OUT
DVD player DVD player
Connections
PC Input Terminals connection
Shared with DVI-D IN.
(Female)
COMPUTER
Audio
Stereo mini plug (M3)
Connect a cable which matches
the audio output terminal on the computer.
Conversion adapter
(if necessary)
RGB
PC cable
Mini D-sub 15p
(Male)
Notes:
• With regard to the typical PC input signals that are described in the applicable input signals list (see page 71), adjustment
values such as for the standard picture positions and sizes have already been stored in this unit. You can add up to eight
PC input signal types that are not included in the list.
• Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical scanning
frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.)
• The display resolution is a maximum of 1,440 × 1,080 dots when the aspect mode is set to “4:3”, and 1,920 × 1,080
dots when the aspect mode is set to “16:9”. If the display resolution exceeds these maximums, it may not be possible
to show fine detail with sufficient clarity.
• The PC input terminals are DDC2B-compatible. If the computer being connected is not DDC2B-compatible, you will
need to make setting changes to the computer at the time of connection.
• Some PC models cannot be connected to the set.
• There is no need to use an adapter for computers with DOS/V compatible Mini D-sub 15P terminal.
• The computer shown in the illustration is for example purposes only.
• Additional equipment and cables shown are not supplied with this set.
• Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the specified
frequency range.
• Component Input is possible with the pin 1, 2, 3 of the Mini D-sub 15P Connector.
• To use sync input VBS signals, use the connector which incorporates a 75-ohm termination resistance and which is
available on the market, for the connection of the HD connector where the VBS signals are to be input.
• Change the “Component/RGB-in select” setting in the “Setup” menu to “Component”
(when Component signal connection) or “RGB” (when RGB signal connection). (see page 41)
Signal Names for Mini D-sub 15P Connector
5
4
10 9
3
2
8
1
7
6
15 14 13 12 11
Pin No.
Signal Name
Pin No.
Signal Name
Pin No.
Signal Name
1
R (PR/CR)
6
GND (Ground)
11
NC (not connected)
2
G (Y)
7
GND (Ground)
12
SDA
3
B (PB/CB)
8
GND (Ground)
13
HD/SYNC
4
NC (not connected)
9
+5 V DC
14
VD
5
GND (Ground)
10
GND (Ground)
15
SCL
Pin Layout for PC Input
Terminal
13
Connections
SERIAL Terminals connection
The SERIAL terminal is used when the Plasma Display is controlled by a computer.
Note: To use serial control for this unit, make sure to set the “Control I/F Select” in the “Network Setup” menu to
“RS-232C”. (see page 59)
(Male)
COMPUTER
9
5
RS-232C Straight cable
8
4
7
3
6
2
1
Pin layout for SERIAL Terminal
(Female)
D-sub 9p
Notes:
• Use the RS-232C straight cable to connect the computer to the Plasma Display.
• The computer shown is for example purposes only.
• Additional equipment and cables shown are not supplied with this set.
The SERIAL terminal conforms to the RS-232C interface
specification, so that the Plasma Display can be controlled
by a computer which is connected to this terminal.
The computer will require software which allows the
sending and receiving of control data which satisfies
the conditions given below. Use a computer application
such as programming language software. Refer to the
documentation for the computer application for details.
Communication parameters
Signal level
Synchronization method
Baud rate
Parity
Character length
Stop bit
Flow control
C1 C2 C3
Start
(02h)
:
P1 P2 P3 P4 P5
Details
RXD
TXD
GND
Non use
(Shorted in this set)
NC
Command
Command
PON
POF
AVL
AMT
IMS
ETX
Colon
Parameter(s)
(1 - 5 bytes)
3-character
command (3 bytes)
End
(03h)
Notes:
• If multiple commands are transmitted, be sure to wait
for the response for the first command to come from
this unit before sending the next command.
• If an incorrect command is sent by mistake, this unit will
send an “ER401” command back to the computer.
• S1A and S1B of Command IMS are available only when
a dual input terminal board is attached.
• Consult your local Panasonic dealer for detail
instructions on command usage.
14
Pin No.
2
3
5
4 • 6
7
8
1 • 9
These signal names are those of computer specifications.
RS-232C compliant
Asynchronous
9600 bps
None
8 bits
1 bit
-
Basic format for control data
The transmission of control data from the computer
starts with a STX signal, followed by the command, the
parameters, and lastly an ETX signal in that order. If there
are no parameters, then the parameter signal does not
need to be sent.
STX
Signal names for D-sub 9P connector
DAM
Parameter
None
None
**
0
1
None
SL1
S1A
S1B
YP1
HM1
HM2
PC1
None
ZOOM
FULL
JUST
NORM
ZOM2
ZOM3
SJST
SNOM
SFUL
14:9
Control details
Power ON
Power OFF
Volume 00 - 63
Audio MUTE OFF
Audio MUTE ON
Input select (toggle)
SLOT input (SLOT INPUT)
SLOT input (SLOT INPUT A)
SLOT input (SLOT INPUT B)
COMPONENT/RGB IN input
(COMPONENT)
HDMI1 input (HDMI1)
HDMI2 input (HDMI2)
PC IN input (PC)
Screen mode select (toggle)
Zoom, Zoom1
16:9
Just, Just1 (For Video/SD/HD signal)
4:3, 4:3 (1)
Zoom2 (For Video/SD/HD signal)
Zoom3 (For Video/SD/HD signal)
Just2 (For HD signal)
4:3 (2) (For HD signal)
4:3 Full (For HD signal)
14:9 (For Video/SD/HD signal)
With the power off, this display responds to PON command
only.
Power On / Off
Connecting the AC cord plug to the Plasma Display.
Connecting the plug to the Wall Outlet
Notes:
• Main plug types vary between countries. The power
plug shown at right may, therefore, not be the type
fitted to your set.
• When disconnecting the AC cord, be absolutely
sure to disconnect the AC cord plug at the socket
outlet first.
INPUT
MENU
OK
Power
Indicator
Remote Control
Sensor
Press the Power switch on the Plasma Display to
turn the set on: Power-On.
INPUT
MENU
Power Indicator: Green
Press the
button on the remote control to turn the Plasma Display off.
Power Indicator: Red (standby)
Press the
button on the remote control to turn the Plasma Display on.
Power Indicator: Green
Turn the power to the Plasma Display off by pressing the
unit, when the Plasma Display is on or in standby mode.
switch on the
Note:
During operation of the power management function, the power indicator turns
orange in the power off state.
15
Power On / Off
When first switching on the unit
Following screen will be displayed when the unit is turned on for the first time.
Select the items with the remote control. Unit buttons are invalid.
OSD Language
English (UK)
Deutsch
OSD Language
Français
1
2
Italiano
Select the language.
Español
ENGLISH (US)
Set.
Русский
Day/Time Setup
1
Select “Day” or “Time”.
2
Setup “Day” or “Time”.
Day/Time Setup
Time MON 99:99
Set
Day
Time
1
Select “Set”.
2
Set.
MON
99:99
Day/Time Setup
Time MON 99:99
Set
Day
PRESENT TIME OF DAY
Time
PRESENT
TIME OF DAY
MON
99:99
99:99
No activity power off
1 To enable No activity power off, select “Enable”.
No activity power off
Display will be turned off
when there is no activity for 4 hours.
Enable
Disable
2 Set.
1 Select “Yes” or “No”.
If selecting “Enable”, a
confirmation window appears.
No activity power off
Are you sure
you want to enable ’No activity power off’ ?
Yes
2 Set.
Notes:
• Once the items are set, the screens won't be displayed when switching on the unit next time.
• After the setting, the items can be changed in the following menus.
OSD Language (see page 44)
Day/Time Setup (see page 58)
No activity power off (see page 43)
16
No
Power On / Off
Power ON warning message
The following message may be displayed when turning the unit power ON:
3D Safety Precautions
When 3D images will be viewed by unspecified number of
people or used for commercial applications, someone in
authority should convey the following precautions.
These precautions should be followed in the home as well.
3D Viewing/ 3D Content/ Viewing distance/ 3D Eyewear
recommendations
- To enjoy 3D images safely and comfortably, please
read the Operating Instructions fully.
Activate 3D Safety Precautions if you deliver 3D images to unspecified audiences for business or other purposes.
If “3D Function” in “3D Settings” is set to “On”, a warning message is displayed every time the power is
turned ON. (see page 45)
No activity power off Precautions
’No activity power off’ is enabled.
If “No activity power off” in Setup menu is set to “Enable”, a warning message is displayed every time
the power is turned ON. (see page 43)
These message displays can be set with the following menu: Options menu
3D Safety Precautions (see page 61)
Power On Message (see page 61)
17
Selecting the input signal
Press to select the input signal to be played back from the equipment
which has been connected to the Plasma Display.
INPUT
COMPONENT
Component or RGB input terminal in COMPONENT/RGB IN.*
HDMI1
HDMI input terminals in HDMI 1 to HDMI 2.
HDMI2
PC input terminal in PC IN.
PC
* “COMPONENT” may be displayed as “RGB” depending on the
setting of “Component/RGB-in select”. (see page 41)
When an optional Terminal Board is installed:
INPUT
SLOT INPUT
COMPONENT
HDMI1
Input terminal in Terminal Board
When a dual input Terminal Board is installed, “SLOT INPUT A” and “SLOT INPUT B”
are displayed.
HDMI2
PC
Using dedicated buttons for input selection
Press to select HDMI signal terminals in HDMI 1 or HDMI 2.
Press to select component or RGB signal terminal in COMPONENT/RGB IN.
Press to select PC signal terminal in PC IN.
Press to select Input terminal in Terminal Board.
For dual input Terminal Board, you can select either input terminal
using A or B button.
Notes:
• Selecting is also possible by pressing the INPUT button on the unit.
• Select to match the signals from the source connected to the component/RGB
input terminals. (see page 41)
• Image retention (image lag) may occur on the plasma display panel when a still
picture is kept on the panel for an extended period. The function that darkens
the screen slightly is activated to prevent image retention (see page 69), but this
function is not the perfect solution to image retention.
18
INPUT
MENU
ENTER/■
INPUT
MENU
ENTER/■
Basic Controls
Main Unit
INPUT button
(Input signal selection)
(see page 18)
When the menu screen is
displayed:
“▲” : press to move the cursor up
“▼” : press to move the cursor down
(see page 24)
Remote control
sensor
INPUT
Main Power On / Off Switch
MENU Screen ON / OFF
Each time the MENU button is pressed, the menu
screen will switch. (see page 24)
Normal Viewing
Setup
Sound
Pos./Size
MENU
ENTER/■
Enter / Aspect
button
(see page 21, 24)
Power Indicator
The Power Indicator will light.
• Power-OFF .... Indicator not illuminated (The unit will
still consume some power as long as
the power cord is still inserted into
the wall outlet.)
• Standby ........ Red
Orange (Depending on the type of
the function board installed, when the
power is supplied to the slot)
Orange (When “CONTROL I/F
SELECT” is set to “LAN”. See page
59)
• Power-ON ...... Green
• PC Power management (DPMS)
....................... Orange (With PC input signal.
See page 43)
Infrared transmitter for 3D Eyewear
Note:
Do not place any objects between the
transmitter and 3D Eyewear.
19
Basic Controls
Remote Control Transmitter
Standby (ON / OFF) button
The Plasma Display must first be plugged
into the wall outlet and turned on at the power
switch (see page 15).
Press this button to turn the Plasma Display
On, from Standby mode. Press it again to turn
the Plasma Display Off to Standby mode.
LIGHT button
The remote control’s buttons illuminate.
AUTO SETUP button
Automatically adjusts the position/ size of
the screen. (see page 26)
HDMI buttons
Press to select HDMI 1 or HDMI 2 input.
(see page 18)
PICTURE button
(see page 28)
OK button
Press to make selections.
Cursor buttons
INPUT button
Press to select input signal sequentially.
(see page 18)
RECALL button
Press the “RECALL” button to display
the current system status.
1 Input label
2 Aspect mode (see page 21)
During 3D images (see page 45)
Profile name (see page 36)
NANODRIFT Saver operating
(see page 55)
Mode of RGB/MONO Settings (see page 51)
Mode of HV Delay (see page 27)
3D Colour Compensation: Off (see page 45)
3 Off timer
The off timer indicator is displayed
only when the off timer has been set.
1
PC
4:3
Memory name: MEMORY2
NANODRIFT
R Off
H Delay
3D Colour Compensation Off
Off timer 90 min
2
3
ASPECT button
Press to adjust the aspect. (see page 21)
Numeric buttons
(see page 36)
MEM. LOAD button
(see page 36)
20
COMPO. button
Press to select Component or RGB
input. (see page 18)
SLOT buttons
Press to select SLOT Terminal Board.
(see page 18)
MENU button
Displays menu screen. (see page 24)
POS. /SIZE button
(see page 25)
RETURN button (see page 24)
Press the RETURN button to return to
previous menu screen.
FUNCTION buttons
(see page 57, 62)
EXIT button
Exits from Menu screen.
3D
PC button
Press to select PC input. (see page 18)
VIDEO MENU button
Press to select Picture Mode.
(see page 29)
Normal
Dynamic
Monitor
Cinema
EX.SCALER button
(see page 42)
OFF TIMER button
The Plasma Display can be preset
to switch to stand-by after a fixed
period. The setting changes to 30
minutes, 60 minutes, 90 minutes
and 0 minutes (off timer cancelled)
each time the button is pressed.
30 min
60 min
90 min
0 min
When three minutes remain, “Off
timer 3 min” will flash.
The off timer is cancelled if a
power interruption occurs.
ASPECT Controls
The Plasma Display will allow you to enjoy viewing the picture at its maximum size, including wide screen cinema
format picture.
Note:
Be aware that if you put the display in a public place for commercial purposes or a public showing
and then use the aspect mode select function to shrink or expand the picture, you may be violating
the copyright under copyright law. It is prohibited to show or alter the copyrighted materials of other
people for commercial purposes without the prior permission of the copyright holder.
Press repeatedly to move through the aspect options:
For details about the aspect mode, please see “List of Aspect Modes” (page 70).
[from the unit]
The aspect mode changes each time the ENTER button is pressed.
INPUT
ENTER/■
MENU
For VIDEO (S VIDEO) signal input:
4:3
Zoom1
For PC signal input:
4:3
Zoom
Zoom2
16:9
Zoom3
16:9
14:9
Just
For SD signal input (525 (480) / 60i • 60p, 625 (575) / 50i • 50p):
4:3
Zoom1
Zoom2
Zoom3
16:9
14:9
Just
For HD signal input [1125 (1080) / 60i • 50i • 60p • 50p • 24p • 25p • 30p • 24sF, 1250 (1080) / 50i,
750 (720) / 60p • 50p]:
4:3
Just
4:3 Full
14:9
Zoom1
16:9
Zoom2
Zoom3
[For 3D images]
The aspect is fixed as “16:9” and you cannot switch.
Notes:
• The aspect mode is memorized separately for each input terminal.
• Do not allow the picture to be displayed in 4:3 mode for an extended period, as this can cause a permanent image
retention to remain on the Plasma Display Panel.
All Aspect mode
Set “All Aspect” to “On” in Options menu to enable the extended aspect mode (page 61). When All Aspect mode, the
aspect mode of pictures is switched as follows. For details about the aspect mode, please see “List of Aspect Modes”.
(page 70)
For VIDEO (S VIDEO) signal input:
4:3
Zoom1
Zoom2
For PC signal input:
4:3
Zoom
16:9
Zoom3
16:9
14:9
Just
For SD signal input (525 (480) / 60i • 60p, 625 (575) / 50i • 50p):
4:3
Zoom1
Zoom2
Zoom3
16:9
14:9
Just
For HD signal input [1125 (1080) / 60i • 50i • 60p • 50p • 24p • 25p • 30p • 24sF, 1250 (1080) / 50i, 750 (720) / 60p • 50p]:
4:3 Full
Zoom1
Zoom2
Zoom3
16:9
14:9
Just1
Just2
4:3 (1)
4:3 (2)
21
Viewing 3D images
You can enjoy viewing 3D images with contents or programmes compatible with 3D effect by using the 3D eyewear
(optional).
Note:
You need the 3D eyewear (optional) to view the 3D images on this display.
For further information, see the instruction manuals of the 3D eyewear.
This display supports “Frame Sequential*1”, “Side by Side*2”, “Top and Bottom*3” and “Simultaneous*4” 3D formats.
*1: The 3D format that the images for the left and right eyes are recorded with the high definition quality and alternately played back
*2, *3: See “Table of images that can be seen for each 3D Picture Format and the source image format” on page 23.
*4: To view “Simultaneous” 3D images, one of the following terminal boards should be installed:
Dual HD-SDI Terminal Board for 3D (TY-FB30DHD3D), Dual DVI-D Terminal Board for 3D (TY-FB30DD3D)
To view the 3D images
To view the contents of the Frame Sequential format (ex. 3D-compatible Blu-ray Disc, etc.) with 3D effect
Connect the 3D-compatible player via an HDMI cable (see page 12) and playback the contents.
• Use fully wired HDMI compliant cable.
• For the settings of the player, read the manual of the player.
• If you use the non 3D-compatible player, the images will be displayed without 3D effect.
To view the contents of 3D formats other than Frame Sequential with 3D effect.
Match the picture format in “3D Picture Format” (see page 45) before viewing.
• You can view “Side by Side” and “Top and Bottom” with 3D effect even if you use the non 3D-compatible player.
• Please consult the suppliers of contents or programmes for availability of this service.
Turn the 3D Eyewear on
• See the instruction manual of 3D eyewear for handling.
Put on the 3D Eyewear
Watch the 3D images
Notes:
• If the room is lit by fluorescent lights and light appears to flicker when using the 3D Eyewear, switch off the
fluorescent light. Alternatively, please set “3D Refresh Rate” to “100Hz” or “120Hz” whichever reduces flicker.
(see page 47)
• 3D content will not be correctly visible if the 3D Eyewear is worn upside down or back-to-front.
• Do not wear the 3D Eyewear when watching anything other than 3D images. Liquid crystal displays (such as
computer screens, digital clocks or calculators, etc.) may be difficult to see while wearing the 3D Eyewear.
• Do not use the 3D Eyewear as sunglasses.
• 3D effects may be perceived differently depending on the person.
22
Viewing 3D images
Troubleshooting for 3D Eyewear
Symptoms
Checks
Cannot see 3D images
• Has the 3D Eyewear been switched On?
• Ensure that “3D Function” in “3D Settings” is set to “On”. (see page 45)
• Some 3D image signals may not be automatically recognized as 3D
images. Set “3D Picture Format” in “3D Settings” to match the picture
format. (see page 45)
• Check that there are no obstacles between the display (or 3D IR
TRANSMITTER) and the 3D Eyewear. If the 3D Eyewear stops
receiving the infrared signal for about 5 minutes, the 3D Eyewear will
be turned off automatically.
• Check the available area to use the 3D Eyewear.
• Depending on the person, the 3D images may be difficult to see,
or cannot be seen, especially in users that have a different level of
eyesight between the left and right eyes.
Take the necessary steps (wearing glasses etc.) to correct your
eyesight before use.
3D Eyewear is turned off automatically
• Check that there are no obstacles between the Display (or 3D IR
TRANSMITTER) and the 3D Eyewear or that the 3D Eyewear is
placed inside the coverage area. If the 3D Eyewear stops receiving
the infrared signal for about 5 minutes, the 3D Eyewear will be turned
off automatically.
There is something wrong with the 3D
• Switch “Reverse” and “Normal” under “3D Picture Sequence” in “3D
images
Settings” (see page 45).
Indicator lamp will not light when the 3D • The battery may be running low or flat. Change the battery or charge
glasses are turned ON.
the 3D glasses.
Table of images that can be seen for each 3D Picture
Format and the source image format
If the picture appears to be abnormal, refer to the table below to choose the correct 3D picture format setting.
3D Picture Format
Source image
format
Auto
Side by Side
*1
Normal*2
Top and Bottom
Native
Side by side
Top and bottom
*1
Normal format
(2D)
Normal
Normal*2
Normal
When the source image is not recognized correctly
*2
When “3D Function” is set to “On”, the images will be displayed with 3D effect. When set to “Off”, displayed
without 3D effect.
• Depending on the player or contents, the image may be different from the above illustrations.
*1
23
On-Screen Menu Displays
Remote Control
1 Display the menu screen.
Press
2 Select the menu.
2
Access
1
Select
Normalise
Setup
Picture Mode
Pos./Size
Contrast
Sound
Brightness
0
Sharpness
0
Press several times.
MENU
Each time the MENU button is pressed,
the menu screen will switch.
Normal Viewing
Sound
Pos. /Size
Setup
Monitor
White balance
Options
Unit
Warm
Advanced settings
Memory save
Memory load
The menu can be displayed directly by pressing
these buttons. (see page 25, 28)
Memory edit
3 Select the item.
Select.
Normalise
Monitor
Picture Mode
Contrast
25
Brightness
0
Sharpness
5
White balance
Press.
Warm
Advanced settings
ENTER/■
Select
(Example: Picture menu)
4 Set.
Set.
Press.
Adjust
ENTER/■
5 Exit the menu.
Press several times.
Press
Press
MENU
to return to the previous menu.
Menu display list
Note: Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting.
Picture menu
Setup menu
Normalise
Picture Mode
Normal
Pos. /Size menu
3D Settings
Normalise
Signal
Waveform Monitor
Auto Setup
H-Pos
0
Normalise
Contrast
25
Brightness
0
0
6
Marker settings
RGB/MONO settings
H-Size
Colour
V-Pos
0
Hue
0
Screensaver
V-Size
0
Sharpness
5
Extended life settings
Input label
White balance
Advanced settings
Normal
Function Button Settings
On/Off Timer Setup
Day/Time Setup
Memory save
Memory load
RGB
External scaler mode
Off
Power save
Standby save
PC Power management
Off
On
Off
No signal power off
Disable
No activity power off
Enable
OSD design
Type1
OSD position
Upper left
OSD Language
English (UK)
see page 41-59
24
0
Clock Phase
0
0
Sound Mode
Bass
Mid
Treble
Balance
Surround
Volume
1:1 Pixel Mode
Off
HV Delay
Off
Network Setup
Component/RGB-in select
Memory edit
see page 28-39
Dot Clock
Clamp Position
Sound menu
see page 25-27
Normal
0
0
0
0
Off
1
see page 40
Adjusting Pos. /Size
1 Display the menu screen.
2 Select “Pos. /Size”.
2
access
1
select
2
adjust
1
select
Setup
Pos. /Size
Sound
3 Select the item and set.
Normalise
Auto Setup
H-Pos
0
H-Size
0
V-Pos
0
V-Size
0
Dot Clock
0
Clock Phase
0
0
Clamp Position
1:1 Pixel Mode
Off
HV Delay
Off
Note:
Unadjustable items are grayed out.
Adjustable items differ depending on the input signal and the display mode.
4 Exit the menu.
To display a menu for adjustment of the Pos. /Size
menu on the bottom of the screen
H-Pos
0
To hide the menu
2
adjust or select
1
select the menu
or
Notes:
• Adjustment details are memorized separately for different input signal formats (Adjustments for component signals are
memorized for 525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 1125 (1080) / 60i · 50i · 60p · 50p · 24p · 25p · 30p · 24sF,
1250 (1080) / 50i, 750 (720) / 60p · 50p each, and RGB/PC/Digital signals are memorized for each frequency.)
• If a “Cue” or “Rew” signal from a VCR or DVD player is received, the picture position will shift up or down. This picture
position movement cannot be controlled by the Picture Pos./Size function.
Helpful Hint ( Normalise Normalisation)
While the Pos. /Size display is active, if the OK button is pressed during “Normalise”, then all adjustment values
are returned to the factory settings.
25
Adjusting Pos./Size
● Auto Setup
When inputting a PC signal as an example, “H-Pos/V-Pos”, “H-Size/V-Size”, “Dot Clock” and
“Clock Phase” are automatically corrected.
This setting is enabled under the following conditions:
• When inputting an analog signal (Component/PC):
This setting is enabled if “Component/RGB-in select” (see page 41) in Setup menu is “RGB”.
• When inputting a digital signal (HDMI/DVI):
A PC format signal enables this setting.
When the signal is not PC format, this setting is enabled only if “Over Scan” (see page 27) is
“Off” or “1:1 Pixel Mode” (see page 27) is “On”. “H-Size/V-Size” is not automatically adjusted.
This setting will be invalid and will not work under the following conditions:
• When VIDEO signal input
• Aspect is set to “Just”
• “Display size” in the Options menu (see page 61) is set to “On”
Using Remote Control
When
on the remote control is pressed, “Auto Setup” will be executed.
When Auto Setup does not work, “Invalid” is displayed.
Auto mode
When the “Auto Setup“ is set to “Auto” in the Options menu (see page 61), automatic position
adjustment starts:
• When the display power is turned ON.
• When the input signal is switched.
Notes:
• If the dot clock frequency of an analog signal is 162 MHz or higher, “Dot Clock” and “Clock
Phase” cannot be automatically corrected.
• When digital signal input, Dot Clock and Clock Phase cannot be made.
• Auto Setup may not work when a cropped or dark image is input. In such case, switch to
a bright image with borders and other objects are clearly shown, and then try auto setup
again.
• Depending on the signal, out of alignment may occur after Auto Setup. Carry out fine tuning
for the position/size as required.
• If Auto Setup cannot set properly for vertical frequency 60Hz XGA signal (1024×[email protected],
1280×[email protected], and 1366×[email protected]), pre-selecting the individual signal in “XGA Mode”
(see page 46) may results in correct Auto Setup.
• Auto Setup does not work well when a signal such as additional information is superimposed
out of valid image period or intervals between synchronizing and image signals are short, or
for image signal with tri-level synchronizing signal added.
• If Auto Setup cannot adjust correctly, select “Normalise” once and press OK button, then
adjust Pos. /Size manually.
● H-Pos
Adjust the horizontal position.
● V-Pos
Adjust the vertical position.
● H-Size
Adjust the horizontal size.
● V-Size
Adjust the vertical size.
● Dot Clock
(During Component/PC input signal)
Periodic striped pattern interference (noise) may occur when a striped pattern is displayed. If this
happens, adjust so that any such noise is minimized.
● Clock Phase (During Component/PC input signal)
Eliminate the flickering and distortion.
26
Adjusting Pos./Size
● Over scan
Turn image over scan On/Off.
Configurable signals are as follows:
525i, 525p, 625i, 625p, 750/60p, 750/50p (Component Video, RGB, DVI, SDI, HDMI)
On
Off
Notes:
• When “Off” is set, “H-Size” and “V-Size” cannot be adjusted.
• When the “Display size” is set to “On” in the Options menu, this setting will be invalid.
● Clamp Position (During Component/PC input signal)
Adjusts the clamp position when black parts of the image have no detail due to underexposure
or are tinged with green.
Optimum value for Clamp Position adjustment
When black parts have no detail due to underexposure (blackout)
→ Value that causes least blackout is the optimum.
When black parts are tinged with green
→ Value that cancels the greenishness without causing blackout is the optimum.
● 1:1 Pixel Mode Adjusts the display size when 1125i, 1125p or 1250i signal is input.
Notes:
• Select On when you would like to replay 1920 × 1080 input signal.
• Applicable input signal;
1125 (1080) / 50i · 60i · 24sF · 24p · 25p · 30p · 50p · 60p, 1250 (1080) / 50i
• Select Off when flickering is shown around the image.
• H-Size and V-Size cannot be adjusted when On is selected.
Off
On
● 1:1 Pixel Mode (2k1k) When the input signal is a 2k1k signal (2048 × 1080 / 24p, 2048 × 1080 / 24sF), the
display size is adjusted as follows.
(For 2k1k signals)
Off
On (Left)
On (Centre)
On (Right)
Note:
2k1k signals can only be received when the Dual Link HD-SDI Terminal Board (TY-FB11DHD) or the Dual
HD-SDI Terminal Board for 3D (TY-FB30DHD3D) is installed.
● HV Delay
(During Component [video format] / SDI input signal)
Video blanking period is displayed.
Off
H Delay
V Delay
HV Delay
Notes:
• This function is enabled when “Studio mode” in Options menu is set to “On” during 2D viewing.
• This function can also be used with the FUNCTION button on the remote control (see page 63).
27
Picture Adjustments
1 Display the menu screen.
2 Select “Picture”.
2
access
1
select
2
adjust
1
select
Setup
Pos./Size
Sound
3 Select the item and set.
Normalise
Picture Mode
Normal
Contrast
25
Brightness
0
Colour
6
Hue
0
Sharpness
5
White balance
Note:
Menu that cannot be adjusted is grayout. Adjustable menu changes
depending on signal, input and menu setting.
Normal
Advanced settings
4 Exit the menu.
To display a menu for adjustment of the Picture menu on
the bottom of the screen,
Contrast
25
2
adjust or select
1
select
To display a menu for Advanced settings adjustment, press PICTURE button again.
Black extension
To hide the menu
0
or
Helpful Hint ( Normalise Normalisation)
While the “Picture” menu is displayed, if the OK button is pressed during “Normalise”, then all adjustment values
are returned to the factory settings.
28
Picture Adjustments
● Picture Mode
You can switch to the optimal picture mode for the video
source and viewing environment.
Normal
Monitor
Dynamic
Cinema
Normal:
Cinema:
For viewing in standard (evening lighting) environments.
For use in viewing tone-focused pictures with brightness
This menu selects the normal levels of Brightness and
reduced.
Contrast.
Monitor:
Dynamic:
For use when creating broadcast or movie content.
For viewing in brighter environments.
With this picture, even if the overall average picture
This menu selects higher than normal levels of
level (APL) changes, the brightness of areas with the
Brightness and Contrast.
same signal level does not change.
Notes:
• When “Monitor” is selected in Picture Mode, the following menu items cannot be set.
Picture menu: Contrast
Extended life settings: Peak limit (see page 55)
Setup menu: Power save (see page 43)
• If you would like to change the picture and colour of the selected Picture menu to something else, adjust using
the items in the Picture menu. (see below)
● Contrast
Adjusts the proper picture contrast.
● Brightness
Adjusts for easier viewing of dark pictures
such as night scenes and black hair.
● Colour
Adjusts colour saturation.
● Hue
Adjusts for nice skin colour.
● Sharpness
Adjusts picture sharpness.
Less
More
Darker
Brighter
Less
More
Reddish
Greenish
Less
More
● White balance Switches to various screen colour
tones.
Normal: Intermediate colour temperature (9300K).
Warm: Colour with a reddish tinge (6500K).
Warm2: Colour with a reddish tinge (6100K).
Warm3: Colour with a reddish tinge (5600K).
Studio: Optimal colour temperature for studio viewing (3200K).
Cool: Colour with a bluish tinge (11500K).
Normal
Cool
Warm
Studio*
Warm2
Warm3
* “Studio” can be modified when
“Studio mode” in the Options menu
is “On”. (see page 60)
Notes:
• You can change the level of each function (Contrast, Brightness, Colour, Hue, Sharpness) for each Picture
Mode.
• The setting details for Normal, Dynamic, Cinema and Monitor respectively are memorized separately for each
input terminal.
• In Contrast, there is not a noticeable change even when contrast is increased with a bright picture or reduced
with a dark picture.
29
Picture Adjustments
Advanced settings
Enables fine picture adjustment at a professional level.
Notes:
• The adjustment values are memorized separately for each input terminal.
• The adjustment range values should be used as an adjustment reference.
Select the item and set.
Advanced settings
Normalise
Picture Mode
Contrast
25
Brightness
0
Colour
6
Hue
0
Sharpness
5
White balance
Normalise
Normal
2
1
access
select
Normal
Advanced settings
Black extension
0
Input level
0
Gamma
W/B High R
0
W/B High G
0
W/B High B
0
W/B Low R
0
W/B Low G
0
W/B Low B
0
2.2
Cinema reality
Studio Gain
Noise reduction
Colour gamut
● Input level
Adjustment of parts which are extremely bright and hard to see.
2.2
2.35
2.4
1
select
Off
Adjusts the dark shades of the image in gradation.
1.0*
change
Off
Off
● Black
extension
● Gamma
2
2.6
Less
More
Less
More
Down
Up
Less
More
* When 2k1k signals are received with the Dual Link HD-SDI
Terminal Board (TY-FB11DHD) or the Dual DH-SDI Terminal
Board for 3D (TY-FB30DHD3D), Gamma “1.0” cannot be
selected.
● “W/B” adjustment
W/B High R
0
W/B High G
0
W/B High B
0
W/B Low R
0
W/B Low G
0
W/B Low B
0
Adjusts the white balance for light red, light
green or light blue areas.
Adjusts the white balance for dark red, dark
green or dark blue areas.
Carry out “W/B” adjustment as follows.
1. Adjust the white balance of the bright sections using the “W/B High R” , “W/B High G” and “W/B High B” settings.
2. Adjust the white balance of the dark sections using the “W/B Low R” , “W/B Low G” and “W/B Low B”
settings.
3. Repeat steps 1 and 2 to adjust.
Steps 1 and 2 affect each other’s settings, so repeat each step in turn to make the adjustment.
30
Picture Adjustments
● Cinema reality When “On”, the display attempts to reproduce a more
natural interpretation of sources such as movie pictures,
which are recorded at 24 frames per second. If the picture is
not stable, turn the setting to “Off”.
On
Off
Note:
When “On”, this setting only affects the following signal input:
• NTSC / PAL signal input during Video (S Video) input signal.
• 525i (480i), 625i (575i), 1125 (1080) / 60i signal input during “Component” input signal.
● Studio Gain
Sharpens the contrast for a better view when a part of the
image is too light to see.
On
Off
Off: Disables “Studio Gain”.
On: Enables “Studio Gain”.
Notes:
• “Studio Gain” can be modified when “Studio mode” in the Options menu is “On”. When “Studio mode” is “Off”,
this setting is “Off” and cannot be changed. (see page 60)
• This setting is valid only when the input signals are as follows:
Component Video, RGB (analog), SDI, HDMI
● Noise reduction
Sets the following three NR (Noise Reduction) functions together.
P-NR, Block NR, Mosquito NR
Off
Advanced
Min
Max
Mid
[Advanced NR]
Sets the three NR functions separately.
1
2
Select “Advanced”.
Noise reduction
Advanced
P-NR
Off
Block NR
Off
Mosquito NR
Off
select
Select the item and set.
Noise reduction
Advanced
P-NR
Off
Block NR
Off
Mosquito NR
Off
2
set
1
select
Off
Max
Min
Mid
P-NR:
Automatically reduces unwanted picture noise.
Block NR:
Reduces block noise when playing MPEG videos.
Mosquito NR: Reduces mosquito noise around subtitles on MPEG videos.
Note:
“Noise reduction” cannot be adjusted while a PC signal is being applied.
Helpful Hint ( Normalise Normalisation)
On the remote control unit, while the “Advanced settings” menu is displayed, if the OK button is pressed during
“Normalise”, then all adjustment values are returned to the factory settings.
31
Picture Adjustments
Colour space adjustment (Colour gamut)
Changes the colour space to BT.709 signal standard chromaticity point and fine-tunes it.
Advanced settings
Normalise
Black extension
0
Input level
0
Gamma
W/B High R
0
W/B High G
0
W/B High B
0
W/B Low R
0
W/B Low G
0
W/B Low B
0
2
access
2.2
Select the item and set.
Colour gamut
Colour gamut
1
Native
select
2
change
1
select
Off
Cinema reality
Studio Gain
Off
Noise reduction
Colour gamut
Off
● Colour gamut
DIGITAL CINEMA COLOUR: Sets colour gamut to reproduce the original colour of movies.
Custom: Enables the colour space adjustment, the colour space adjustment set in the “EDIT” is reflected.
Native: Disables the colour space adjustment, images are displayed in the original colour gamut of the panel.
BT.709: Changes the colour space to BT.709 signal standard chromaticity point.
EBU: Changes the colour space to EBU signal standard chromaticity point.
SMPTE-C: Changes the colour space to SMPTE-C signal standard chromaticity point.
Notes:
• This setting is memorized separately for each input terminal and “Picture Mode”.
• For 3D images, this setting becomes “Native” and no setting is available.
● Edit
Colour space is fine-tuned.
Notes:
• This setting is valid when “Colour gamut” is “Custom”.
• This setting is memorized separately for each input terminal and “Picture Mode”.
1
2
Select “Edit”.
2
access
1
select
Select an adjustment
item.
select
65535
3
Press the
button.
Adjustment is ended.
32
Colour gamut
Custom
Edit
R Ratio
G Ratio
B Ratio
R
65535
2110
0
G
2900
65535
1760
B
0
0
65535
Reset
Change the numerical value.
[To adjust with the ▲▼ button]
Press the
button.
Change the numerical value
with the ▲▼ button.
Press the
button.
4
Colour gamut
y
[To input the numerical value directly]
Input the numerical value from
Pressing the
Press the
to
will cancel the value change.
button.
x
Chromaticity diagram displays in
gray the dot and line to be adjusted.
Picture Adjustments
● Reset
Resets the adjustment value of colour space.
Note:
This setting is reflected only for the selected input terminal and the “Picture Mode”.
1
Select “Reset”.
Colour gamut
Custom
Colour gamut
2
access
1
select
1
select
2
set
Edit
R Ratio
G Ratio
B Ratio
R
G
B
65535
2110
0
2900
65535
1760
0
0
65535
Reset
2
Select “Ok”.
Colour gamut
Reset
Ok
Cancel
● Chromaticity diagram
The RGB triangle representing current colour space is shown.
Colour gamut: Custom
— Native
— Custom
y
x
White line: Colour gamut with “Native” setting (original colour gamut.)
Yellow line: Colour gamut with “Custom” setting (current colour gamut.)
33
Picture Profiles
Up to 16 combinations of picture adjustment values (in the Picture menu and Advanced settings) can be stored in
the display memory as profiles and applied as needed, for a convenient way to enjoy your preferred picture settings.
Note:
If setting items (Picture menu and Advanced settings) are set differently between Memory save and Memory load,
they may not reflect for Memory load.
Normalise
Picture Mode
Contrast
Dynamic
25
Brightness
0
Colour
6
Hue
0
Sharpness
5
White balance
Normal
Advanced settings
Save profiles(page 35)
Load profiles(page 36)
Edit profiles(page 37)
Memory save
Memory load
Memory edit
Onscreen display
Normalise
Picture Mode
On
Studio mode
Off
Internal 3D Emitter
On
Display size
Off
All Aspect
Auto Setup
Off
Manual
25
Brightness
0
Colour
6
Hue
0
Sharpness
5
White balance
Normal
Advanced settings
Advanced Motion Resolution
On
Power On Message (No activity power off)
On
3D Safety Precautions
Memory lock
Cinema
Contrast
Save profiles
On
Save the picture
adjustment values in the
MEMORY1 profile
Lock profiles(page 38, 39)
Edit the profile
Delete or rename
the profile
MY PICTURE
MEMORY2
MEMORY3
MEMORY4
MEMORY1
MEMORY2
MEMORY3
MEMORY4
Locked profile
MEMORY16
MEMORY16
Load the profile
Original picture
Custom picture
Normalise
Normalise
Normal
Picture Mode
Picture Mode
Cinema
Contrast
0
Contrast
25
Brightness
0
Brightness
0
Colour
0
Colour
6
Hue
0
Hue
0
Sharpness
0
Sharpness
5
White balance
Advanced settings
34
Apply the MEMORY1
profile
Normal
White balance
Advanced settings
Normal
Picture Profiles
Saving profiles
Follow these steps to save picture adjustment values as profiles.
Note:
When the settings are locked in “Extended life settings”, profiles cannot be saved.
1
Specify the picture quality in the Picture menu and
Advanced settings. (see page 28-33)
2
In the Picture menu, select “Memory save”.
2 access
Memory save
5
Memory load
Memory edit
3
1
select
Select a profile name for saving the picture adjustment
values.
2 set
Enter a name for the profile.
[Entering profile names]
Profile names can be up to 40 characters.
To enter text, select characters in the on-screen
keyboard.
Edit the default profile name in the text box as
desired.
1 select
Memory name input
A
N
a
n
0
!
_
Memory save
1. [
2. [
]
MEMORY1
]
MEMORY2
3. [ 1]
]
MEMORY4
4. [
13. [
4
1
select
B
O
b
o
1
”
`
C
P
c
p
2
#
|
MEMORY3
]
MEMORY13
14. [
15. [
]
MEMORY14
]
MEMORY15
16. [
]
MEMORY16
MEMORY1█
D E F
Q R S
d e f
q r s
3 4 5
$ % &
~ < >
Ok
G
T
g
t
6
’
(
H
U
h
u
7
)
I
V
i
v
8
+
[
J
W
j
w
9
–
]
K
X
k
x
L M
Y Z
l m
y z
Space
/ = ?
{
}
,
Cancel
All delete
Delete
@
.
\
;
2
set
ˆ
:
Example: Specifying “MY PICTURE”
Select “All delete”.
1
MEMORY1█
Profiles are labeled with these icons to indicate their
locked status. (see page 38)
[ ], [ ]:Settings can be saved in this profile.
[ ], [ ]:Settings cannot be saved in this profile.
All text is deleted.
To delete individual characters, select “Delete”.
Select “Ok”.
Repeat this process to enter the next character.
Select “M”.
2
M█
Memory save
1
select
2
set
Select “Y”.
3
Save the adjusted value in ”MEMORY1”
Ok
Cancel
MY█
Select “Space”.
4
MY
6
█
When you finished entering the profile name, select
“Ok”.
To cancel saving the profile, select “Cancel”.
1 select
Memory name input
A
N
a
n
0
!
_
B
O
b
o
1
”
`
C
P
c
p
2
#
|
MY PICTURE█
D E F
Q R S
d e f
q r s
3 4 5
$ % &
~ < >
Ok
G
T
g
t
6
’
(
H
U
h
u
7
)
I
V
i
v
8
+
[
J
W
j
w
9
–
]
K
X
k
x
L M
Y Z
l m
y z
Space
/ = ?
{
}
,
Cancel
All delete
Delete
@
.
\
;
2
set
ˆ
:
35
Picture Profiles
Loading profiles
Load profiles and apply the picture adjustment values to the display as follows.
Notes:
• Loaded profiles are stored in memory according to the selected input terminal (see page 18).
• When the settings are locked in “Extended life settings”, profiles cannot be loaded.
<Loading profiles from the Picture menu>
<Loading profiles directly from the remote control>
1
To load profiles 1–9
In the Picture menu, select “Memory load”.
2 access
Memory save
Memory load
Memory edit
2
1
select
Select the profile to load.
1. [ ]
2. [ 1]
12. [ 2]
MEMORY1
MEMORY2
MEMORY12
2
set
1
select
Profiles are labeled with these icons to indicate their
locked status. (see below)
<Loading profiles from
1
Press
2
Select the profile to load.
1. [ ]
2. [ 1]
12. [ 2]
on the remote control>
1
Press a button in the range
2
Select “Ok”.
–
.
Memory load
Load from ”MEMORY2”
Ok
1
select
2
set
1
Cancel
To load profiles 10–16
Example: To load profile 16
1
to list the profiles.
Press
.
The profile number is displayed in the upper-right
corner of the screen.
16
MEMORY1
MEMORY2
MEMORY12
2
set
1
select
2
Select “Ok”.
Memory load
1
select
2
set
Load from ”MEMORY16”
Profiles are labeled with these icons to indicate their
locked status. (see below)
Loading locked profiles…
In the Picture menu, profiles are labeled with these
icons to indicate their locked status.
:Lock1
:Lock2
Normalise
Picture Mode
Dynamic
Contrast
25
Brightness
0
Ok
Cancel
PC
16:9
When profile is being
loaded, profile name is
displayed.
Memory name: MEMORY2
NANODRIFT
Operations with locked profiles are restricted. (see page 38)
Picture adjustment values in the Picture menu cannot be changed, except for the “Picture Mode”. Once you edit the
“Picture Mode” setting, you can edit “Contrast”, “Brightness”, and other picture adjustment values.
Lock1
Picture adjustment values are shown.
Lock2
Picture adjustment values are hidden.
Normalise
Normalise
Picture Mode
Normal
Can be specified.
Picture Mode
Contrast
25
Brightness
0
Brightness
Colour
6
Colour
Hue
0
Sharpness
5
White balance
Advanced settings
36
Cannot be specified.
Normal
Normal
Can be specified.
Contrast
Hue
Sharpness
White balance
Advanced settings
Cannot be specified.
Picture Profiles
Editing profiles
Delete or rename profiles as follows.
<Deleting profiles>
<Renaming profiles>
Note:
Locked profiles and profiles currently in use cannot be
deleted.
Note:
Locked profiles cannot be renamed.
1
In the Picture menu, select “Memory edit”.
2
Memory save
1
In the Picture menu, select “Memory edit”.
Memory save
access
Memory edit
Memory load
Memory edit
2
Memory delete
2
set
1
select
Select the profile to delete.
To delete all profiles, select “All delete”.
1. [
2. [
]
]
MEMORY1
MEMORY2
All delete
4
select
Select “Memory delete”.
Memory name change
3
1
2
set
1
select
2
access
1
select
2
set
1
select
2
set
1
select
Select “Memory name change”.
Memory delete
Memory name change
3
4
Select the profile to rename.
1. [
2. [
]
]
MEMORY2
12. [
]
MEMORY12
MEMORY1
Enter a name for the profile.
Entering profile names
page 35
Select “Ok”.
Memory name input
Memory delete
1
select
2
set
A
N
a
n
0
!
_
Delete the ”MEMORY1” data.
Ok
2
Memory load
Cancel
5
B
O
b
o
1
”
`
C
P
c
p
2
#
|
█
MEMORY1
D E F
Q R S
d e f
q r s
3 4 5
$ % &
~ < >
Ok
G
T
g
t
6
’
(
H
U
h
u
7
)
I
V
i
v
8
+
[
J
W
j
w
9
–
]
K
X
k
x
L M
Y Z
l m
y z
Space
/ = ?
{
}
,
Cancel
All delete
Delete
@
.
\
;
1
select
2
set
ˆ
:
When you finished entering the profile name, select
“Ok”.
To cancel renaming the profile, select “Cancel”.
Ok
Cancel
1 select
2
set
37
Picture Profiles
Locking profiles
You can lock saved profiles to restrict operations when the profiles are loaded. You can also set passwords.
Notes:
• When the lock is set in “Extended life settings”, profile cannot be locked.
• If profile is locked, the menu operations of “Extended life settings” are restricted. (see page 55)
<Locking and unlocking profiles>
1
Display the menu screen.
2
Select “Options” and hold
more.
Enter a 4-digit password.
The default password is
“0123”.
5
Select “Ok”.
for 3 seconds or
access
(3 seconds
or more)
1 select
2
Setup
Pos. /Size
Sound
Select “Memory lock”.
Onscreen display
On
Studio mode
Off
Internal 3D Emitter
On
Display size
Off
All Aspect
Auto Setup
Off
Manual
2
1
access
select
Cancel
1
select
2
set
Select the profile and specify the desired lock
setting.
MEMORY1
Lock1
MEMORY2
Off
MEMORY12
Off
isf Mode
Off
2
1
adjust
select
Change password
7
Advanced Motion Resolution
On
Power On Message (No activity power off)
On
3D Safety Precautions
Memory lock
Input password
Ok
6
Options
3
4
Exit the menu.
On
Once a profile is locked, the following operations are restricted when the profile is loaded.
Setting
Editing the Profile
(Memory edit)
Off (unlocked) Allowed
Lock1
Prohibited
Lock2
Prohibited
Editing Picture Adjustment
Values via the Menu
(Picture menu, Advanced
settings)
Allowed
Prohibited (picture adjustment
values are shown)
Prohibited (picture adjustment
values are hidden)
Saving Picture Adjustment Values
(Memory save)
Allowed
Allowed
Prohibited
<Changing passwords>
1
Follow steps 1–5 in the previous procedure, <Locking
and unlocking profiles>.
2
Select “Change password”.
MEMORY1
Lock1
MEMORY2
Off
MEMORY12
Off
isf Mode
Off
2
access
1
select
3
Enter a new 4-digit password.
4
Select “Ok”.
Change password
Ok
5
Note:
Make a note of the new password to remember it.
38
Input new password
Exit the menu.
Cancel
1
select
2
OK
Picture Profiles
<isf Mode Setting>
Switches to “Picture Mode” mode display.
1
Follow steps 1–5 in the previous procedure,
<Locking and unlocking profiles>.
2
Select “isf Mode”.
MEMORY1
Lock1
MEMORY2
Off
MEMORY12
Off
isf Mode
Off
2
adjust
1
select
Change password
3
Specify “On” or “Off”.
4
Exit the menu.
Specifying “On” for isf Mode changes the “Picture Mode” mode display as follows.
“Picture Mode” mode display
isf Mode: Off
Normal
Dynamic
Cinema
Monitor
Normalise
Picture Mode
Normal
Contrast
25
Brightness
0
Colour
6
Hue
0
Sharpness
5
Mode display when
isf Mode: On
Normal
isf Mode Day
isf Mode Night
Monitor
is selected
isf Mode: Off
Picture Mode
isf Mode: On
Picture Mode
Normal
Normal
Dynamic
isf Mode Day
Cinema
isf Mode Night
Monitor
Monitor
39
Sound Adjustment
1 Display the menu screen.
2 Select “Sound”.
Setup
2
access
1
select
2
adjust
1
select
Pos. /Size
Sound
3 Select the item and set.
Normalise
Sound Mode
Bass
Mid
Treble
Balance
Surround
Volume
Normal
0
0
0
0
Off
1
4 Exit the menu.
Item
Sound Mode
Bass
Mid
Treble
Balance
Surround
Volume
Details
Normal: Emits the original sound.
Dynamic: Accentuates sharp sound.
Clear:
Attenuates human voice.
Adjusts low pitch sounds.
Adjusts normal sounds.
Adjusts high pitch sounds.
Adjusts left and right volumes.
Select On or Off.
Adjusts the sound volume level.
Note: Bass, Mid, Treble and Surround settings are memorized separately for each Sound Mode.
Helpful Hint ( Normalise Normalisation)
While the “Sound” menu is displayed, if the OK button is pressed during “Normalise”, then all adjustment values
are returned to the factory settings.
SDI Sound Output
This menu is available only when selecting a slot that any of the following terminal boards is installed:
HD-SDI Terminal Board with audio (TY-FB10HD), Dual Link HD-SDI Terminal Board (TY-FB11DHD), or Dual HD-SDI
Terminal Board for 3D (TY-FB30DHD3D)
SDI Sound Output
2/2
Left Channel
Channel 1
Right Channel
Channel 2
Sound Out
On
Level Meter
Off
Item
Left Channel
Right Channel
Sound Out
Level Meter
40
Details
Channel 1 to Channel 16
Selects left audio channel.
Channel 1 to Channel 16
Selects right audio channel.
On
Off
On: Enables audio output.
Off: Disables audio output.
Off
1-8ch
9-16ch
Sets audio channels to show in the audio level meter.
8 channels are displayed in the audio level meter;
4 channels each on both right and left sides of the
display.
Off: Hides the audio level meter.
1-8ch: Displays the audio level meter (1-8ch)
9-16ch: Displays the audio level meter (9-16ch)
Setup menu
1 Display the menu screen.
2 Select “Setup”.
2
access
1
select
Setup
Pos. /Size
Sound
3 Select the item and set.
3D Settings
Signal
Waveform Monitor
2
adjust
Marker settings
RGB/MONO settings
1
select
Screensaver
Extended life settings
Input label
Function Button Settings
On/Off Timer Setup
Day/Time Setup
Network Setup
Component/RGB-in select
RGB
External scaler mode
Off
Power save
Standby save
PC Power management
Off
On
Off
No signal power off
Disable
No activity power off
Enable
OSD design
Type1
OSD position
OSD Language
Upper left
English (UK)
4 Exit the menu.
Component / RGB-in select
Component
RGB
Select to match the signals from the source connected to the Component / RGB or PC input terminals.
Y, PB, PR signals
“Component”
RGB signals
“RGB”
Note:
Make setting of the selected input terminal (COMPONENT RGB IN or PC IN).
YUV / RGB-in select
YUV
RGB
Select to match the signals from the source connected to the DVI input terminals.
YUV signals
“YUV”
RGB signals
“RGB”
Notes:
• Selection may not be possible, depending on which optional board is installed.
• Make setting of the selected input terminal (SLOT).
41
Setup menu
External scaler mode
Off
On
This menu can be used to specify whether the built-in scaler or an external scaler is used for scaler functions such
as resizing and picture quality adjustment.
The setting is valid with the following input signals.
1125 (1080) / 24p•25p•30p•50p•60p
Off: Use the built-in scaler.
On: Use an external scaler.
Note:
If “On” is set when other than corresponding signal is input, “Input signal must be 1125p(1080p)”message is
displayed.
Using Remote Control
Each time you press
External scaler mode
, an external scaler is activated or deactivated.
On
Note:
Selecting “On” in this setting deactivates the following settings and disables these operations.
Pos. /Size menu:
H-Size, V-Size, 1:1 Pixel Mode (see page 26, 27)
Picture menu:
Brightness, Colour, Hue, Sharpness, Memory save, Memory load (see page 29, 35, 36)
Advanced settings: Cinema reality, Noise reduction (see page 31)
Signal menu:
XGA Mode (see page 46)
Options menu:
Display size, All Aspect (see page 61)
ASPECT Controls (see page 21)
“EXT. SCALER” is displayed in the menu screen to indicate that an external scaler is in use.
Normalise
EXT.SCALER
Picture Mode
Contrast
Brightness
Colour
Hue
42
Normal
25
Setup menu
Power save
Off
On
When this function is turned On, luminous level of the Plasma Display is suppressed, so power consumption is
reduced.
Standby save
Off
On
When this function is turned On, power consumption of the microcomputer is reduced during power supply standby
(see page 15, 17, 19), so standby power of the set is reduced.
PC Power management
Off
On
When this function is set to On, it operates under the following conditions to turn the power on or off automatically.
When no pictures (HD/VD sync signals) are detected for 30 or so seconds during PC signal input:
→ Power is turned off (standby); the power indicator lights up orange.
When pictures (HD/VD sync signals) are subsequently detected:
→ Power is turned on; the power indicator lights up green.
Notes:
• This function operates only during PC signal input.
• This function is effective when “Sync” is set to “Auto”, “Component / RGB-in select” is set to “RGB”.
No signal power off
Disable
Enable
Equipment power supply is turned Off when there is no signal.
When this is set to “Enable”, the power supply of the unit goes Off 10 minutes after the input signals stop.
No activity power off
Enable
Disable
When this function is set to “Enable”, the power is turned off (standby) automatically when there is no operation of
the Plasma Display for 4 hours.
Starting from 3 minutes before the turn off, the remaining time will be displayed.
Press any key to abort.
No activity power off 3min
When the power is turned off due to this function, a message “Last turn off due to ’No activity power off’.” is
displayed next time the power is turned on.
Note:
During the screensaver is running, this function is disabled.
43
Setup menu
OSD design
Choose the background colour (transparency).
Type1
Type2
Type3
OSD position
Choose the display position.
Each time you press
Display example
or
, the on-screen menu display position changes.
Upper left
Centre
OSD Language
Select your preferred language.
Selectable languages
English(UK)
Deutsch
Français
Italiano
Español
ENGLISH(US)
.......(Chinese)
.......(Japanese)
Русский .......(Russian)
44
Setup menu
3D Settings
To view the 3D images, please adjust and setup the 3D settings.
Note:
Set these settings for each input terminals.
Select the item and set.
3D Settings
Signal
Waveform Monitor
2
access
3D Settings
3D Function
Marker settings
RGB/MONO settings
1
Screensaver
select
3D Picture Format
On
Auto
3D Viewing Mode
3D
3D Picture Sequence
Extended life settings
Input label
Normal
3D Colour Compensation
2
change
1
select
On
Safety Precautions
Function Button Settings
On/Off Timer Setup
Day/Time Setup
Network Setup
Component/RGB-in select
RGB
• 3D Function
On
OFF
On: To view the 3D images, please set it to “On”. You can see 3D images for 3D image signal and 2D images for
2D image signal.
Off: You can see 2D images instead of 3D images.
When set to “On”, “3D” is displayed during 3D images.
PC
3D
16:9
NANODRIFT
• 3D Picture Format
3D images method is set.
Auto: 3D images are automatically displayed according to the signal.
Simultaneous: Set this format when selecting a slot that one of the following terminal boards is installed:
Dual HD-SDI Terminal Board for 3D (TY-FB30DHD3D), Dual DVI-D Terminal Board for
3D (TY-FB30DD3D)
Side by Side/Top and Bottom: One of the formats of the 3D standard. Select these formats as necessary.
Native: Displays the input signal as it is. Use to identify the format type of the input signal.
• 3D Viewing Mode
The 3D images are separated and displayed as right and left images.
3D: Normal 3D images display (initial setting)
Comparison: Left image (L) and right image (R) are placed side by side. If the 3D system is “Top and Bottom”, the
images are displayed, being set one above the other.
Left: Only the left image (L) is displayed.
Right: Only the right image (R) is displayed.
3D
Comparison
Left
Notes:
• This function is disabled during 2D images.
• The factory default setting is “3D”. To view the 3D images, please use “3D”.
Right
• 3D Picture Sequence
Reverse
Normal
This function calibrates the timing to switch the right and left images as well as the timing to switch the shutter of
right and left 3D Eyewear.
Select “Reverse” if you feel that the sense of depth is unusual.
• 3D Colour Compensation
On
Off
The colour adjustment during the 3D images is set.
On: The colour when using the 3D Eyewear is adjusted. (initial setting)
Off: The colour when using the 3D Eyewear is not adjusted. The 2D image setting is used.
Note: The factory default setting is “On”. To view the 3D images, please set it to “On”.
• Safety Precautions
Displays the precautions for viewing 3D images.
45
Setup menu
Signal menu
Note:
“Signal” setup menu displays a different setting condition for each input signal.
Select the item and set.
3D Settings
Signal
Waveform Monitor
2
Marker settings
RGB/MONO settings
access
Extended life settings
Input label
[ AV ]
Signal
3D Y/C Filter (NTSC)
On
Colour system
Function Button Settings
On/Off Timer Setup
Day/Time Setup
Auto
For Component
Network Setup
Component/RGB-in select
RGB
External scaler mode
Off
Power save
Off
Input signal display
Mid
XGA Mode
Auto
H-Freq.
33.7 kHz
V-Freq.
60.0 Hz
Signal Format
Displays the frequency and the type of
the current input signal.
This display is valid only for
Component / RGB / PC and Digital input signal.
Display range:
Horizontal 15 - 110 kHz
Vertical 48 - 120 Hz
The dot clock frequency is displayed during DVI signal input.
1
select
[ RGB ]
Signal
Sync
Auto
1024 ×768
XGA Mode
H-Freq.
33.7 kHz
V-Freq.
60.0 Hz
Signal Format
[ Component ]
Signal
FRAME CREATION
change
For RGB
For Video (S VIDEO)
1 select
Screensaver
2
1125(1080)/60i
1125(1080)/60i
For Digital
(Example: HDMI input)
[ Digital ]
Signal
FRAME CREATION
Mid
H-Freq.
33.7 kHz
V-Freq.
60.0 Hz
Dot Clock Freq.
Signal Format
108.0 MHz
1125(1080)/60i
• 3D Y/C Filter (NTSC)
This menu is displayed when BNC Dual Video Terminal Board (TY-FB9BD) is installed to the unit.
Set this menu when the moving image looks unnatural during Video (S Video) input signal.
On
Off
Note:
When On, this setting only affects NTSC input signals.
• Colour system
This menu is displayed when BNC Dual Video Terminal Board (TY-FB9BD) is installed to the unit.
Auto
SECAM
M.NTSC
PAL
NTSC
Set the colour system to match the input signal. When “Auto” is set, Colour system will be automatically selected
from NTSC/PAL/SECAM /M.NTSC.
To display PAL60 signal, select “Auto” or “PAL”.
If the picture image becomes unstable:
With the system set on Auto, under conditions of low level or noisy input signals the image may in rare cases
become unstable. Should this occur, set the system to match the format of the input signal.
• XGA Mode
This menu is displayed when the input signal is analog (Component/PC). This unit supports three types of XGA
signals with 60Hz vertical frequency having different aspect ratios and sampling rates (1,024 × 768 @ 60Hz,
1,280 × 768 @ 60Hz and 1,366 × 768 @ 60Hz).
Auto
1024×768
1280×768
1366×768
Auto: Automatically selected from 1024×768/1280×768/1366×768.
Switch the setting to suit the input signal for better display depends on the angle of view or display resolution
condition.
Note:
After making this setting, be sure to make each adjustment (such as “Auto Setup”) on the “Pos. /Size” menu as
necessary. (see page 25)
46
Setup menu
• Sync
This function operates only during input from PC IN terminal.
Setting RGB sync signal
Confirm that the input is set to RGB input (this setting is valid only for RGB input signal).
Auto: The H and V sync or synchronized signal is automatically selected. If both input, it is selected the H and V sync.
on G: Uses a synchronized signal on the Video G signal, which is input from the G connector.
VBS: Uses a synchronized signal of Composite Sync input, which is input from the HD connector.
Setting Component sync signal
Confirm that the input is set to Component input (this setting is valid only for Component input signal).
Auto: The H and V sync or synchronized signal is automatically selected. If both input, it is selected the H and V sync.
on Y: Uses a synchronized signal on the Video Y signal, which is input from the Y connector.
Note:
Signals input to COMPONENT/RGB IN terminals correspond to Sync on G or Sync on Y.
• SDI Through
Set the active through function of the Dual Link HD-SDI Terminal Board (TY-FB11DHD).
Off
On
On: Enables active through.
Off: Disables active through.
Note:
Settings can only be performed for this menu when a slot mounted with a Dual Link HD-SDI Terminal Board
(TY-FB11DHD) is selected.
• FRAME CREATION
Automatically compensates the picture frame rate and removes juddering movements to make the images smooth.
Off
Mid
Max
Note:
Depending on the contents, images may be noisy. To prevent the noise, change the setting.
• 3D Refresh Rate
Reduces juddering or flicker of image due to lighting interference during 3D viewing.
100Hz
120Hz
Note:
This setting is disabled when “FRAME CREATION” is set to “Off”.
• HDMI Range
Switches the dynamic range according to the input signal from HDMI 1 or HDMI 2 terminals.
Video(16-235)
Full(0-255)
Auto
Video(16-235): If the input signal is the video range, Example: HDMI terminal output for DVD player
Full(0-255): If the input signal is full range, Example: HDMI terminal output for personal computer
Auto: Switches the dynamic range automatically between “Video(16-235)” and “Full(0-255)” according to the input signal.
Note:
This function can be set only for HDMI 1 or HDMI 2 terminal input.
• SDI Signal Format
This menu is available only when selecting a slot that the Dual HD-SDI Terminal Board for 3D (TY-FB30DHD3D)
is installed and set the input signal format for the board.
Auto
YCbCr(4:2:2) 10bit
YCbCr(4:2:2) 10bit 60p/50p
YCbCr(4:4:4) 10bit
RGB(4:4:4) 10bit
YCbCr(4:2:2) 12bit
YCbCr(4:4:4) 12bit
RGB(4:4:4) 12bit
XYZ(4:4:4) 12bit
Auto: Automatically selects the signal format according to the input signal.
47
Setup menu
Waveform Monitor
The input signal from video equipment is displayed as waveforms so that the signal level can be checked.
Notes:
• This function is enabled when “Studio mode” in Options menu is set to “On”.
• This function is disabled during 3D images.
• Applicable input signal; HDMI, DVI, SDI
Select the item and set.
3D Settings
Signal
Waveform Monitor
2
Marker settings
RGB/MONO settings
1
Screensaver
Waveform Monitor
access
Waveform Monitor
select
Extended life settings
Input label
Off
On
Time out (5 min)
2
change
1
select
• Waveform Monitor
Function Button Settings
On/Off Timer Setup
On: The waveform monitor is displayed.
Off: The waveform monitor is not displayed.
Day/Time Setup
Network Setup
• Time out (5 min)
Component/RGB-in select
The waveform monitor display time-out is set.
On: The display of the waveform monitor disappears in
5 minutes.
Off: The waveform monitor display time-out does not occur.
RGB
External scaler mode
Off
Power save
Off
Display of the waveform monitor
1
2
3
Set “Waveform Monitor” to “On”.
The waveform monitor can also be displayed using the FUNCTION button on the remote control (see page
63).
Exit the menu.
Press
to switch the display mode.
Notes:
• The display mode and display position of the waveform
monitor are stored.
• The aspect is fixed as “16:9” during the waveform
monitor display.
Full scan (Y)
Single line scan (B)
Full scan (R)
Single line scan (G)
Full scan (G)
Single line scan (R)
Full scan (B)
Single line scan (Y)
Full scan mode
The display position of the waveform monitor can be changed with the cursor button.
Operation guide
Mode Change
Monitor Position
Exit
Single line scan mode
Scan line can be changed with the cursor button.
100%
Y
50%
Scan line
Operation guide
0%
100%
Y
Mode Change
50%
0%
4
Press
Scan Line Position
Exit
to exit the waveform monitor.
The waveform monitor ends after 5 minute time-out or by setting “Waveform Monitor” to “Off”.
48
Setup menu
Marker settings
Various markers for editing image are displayed.
Notes:
• This function is available when “Studio mode” in Options menu is set to “On”
• This function is disabled during 3D images.
• An aspect of “4:3” or “16:9” is valid for this function. Only an aspect of “16:9” is valid at the input of HD signal.
Select the item and set.
3D Settings
Signal
Waveform Monitor
Marker settings
2
Marker settings
RGB/MONO settings
access
Marker
Time out (5 min)
1
Screensaver
Extended life settings
Input label
select
16:9
Preset1
Off
2
change
90%
1
select
Marker Size (%)
Colour
Brightness
Function Button Settings
On/Off Timer Setup
Red
3
80%
4:3
Day/Time Setup
Marker Size (%)
Network Setup
Component/RGB-in select
RGB
External scaler mode
Off
Power save
Off
Colour
Brightness
Green
3
Centre
Off
Colour
Blue
Brightness
3
Cross Hatch
Off
Colour
Brightness
Marker display settings
• Marker
Set show/hide of the marker.
Off: The marker is not displayed.
Preset1 / Preset2: The marker is displayed by Preset1 or 2 setting. You can configure the display setting of
Preset1/2.
• You can also display the marker with the FUNCTION button on the remote control (see page 63).
• Time out (5 min)
Set the marker display time-out.
On: The marker display disappears in 5 minutes (time out).
Off: The marker display time-out does not occur.
Marker advanced settings
• 16 : 9
Select 16:9 marker display and the marker type.
Off
4:3(1.33)
13:9(1.44)
14:9(1.55)
CNSCO(2.39)
90%
88%
80%
User
• This setting is valid only if an aspect of “16:9” is used.
Aspect marker:
4:3, 13:9, 14:9, CNSCO, VISTA
4:3 marker
CNSCO marker (2.39:1)
Safe area marker:
95%, 93%, 90%, 88%, 80%, User
VISTA(1.85)
95%
93%
VISTA marker (1.85:1)
• Selecting User allows the marker area set in 1% increments
in “Marker Size (%)” to be reflected in the configuration of
safe area marker.
90% Area marker
49
Setup menu
•4:3
Select 4:3 marker display and the safe area marker type.
Off
95%
93%
90%
88%
80%
User
• Selecting User allows the marker area set in 1% increments
in “Marker Size (%)” to be reflected in the configuration of
safe area marker.
90% Area marker
• Centre
The centre marker is displayed.
Off
On
• Cross Hatch
The markers at regular vertical and horizontal intervals are displayed.
Off
On
• Marker Size (%)
User setting for the marker area can be configured.
80% - 100%
This setting is valid for the selection of “User” in “16:9” or “4:3.”
• Brightness
Brightness is set for each marker.
1–5
• Colour
Colour is set for each marker.
Red
Green
Blue
Yellow
Note:
Several markers can be displayed at once.
(Example)
16:9 marker: 95% safe area marker
4:3marker: 80% safe area marker
50
Cyan
Magenta
Gray
Setup menu
RGB/MONO settings
Turn off R, G, B signals to adjust the image.
3D Settings
Signal
Waveform Monitor
Marker settings
RGB/MONO settings
2
access
1
select
Screensaver
Extended life settings
Input label
RGB/MONO settings
Mode Select
Function Button Settings
On/Off Timer Setup
Day/Time Setup
Network Setup
1
R On/Off
RGB
On
G On/Off
On
B On/Off
On
Select mode by “Mode Select”.
RGB/MONO settings
Mode Select
R On/Off
RGB
On
G On/Off
On
B On/Off
On
2
change
1
select
RGB: Displays with one of red, green and blue signals cut.
Blue only: Displays in solid blue.
MONO: Only Y signal is used for black and white displays.
2
Configure each mode setting.
For RGB mode
RGB/MONO settings
Mode Select
R On/Off
RGB
On
G On/Off
On
B On/Off
On
2
change
1
select
• R On/Off, G On/Off, B On/Off
Off
On
On: The red (for “R On/Off”), green (for “G On/Off”) or blue (for “B On/Off”) signal is on.
Off: The red (for “R On/Off”), green (for “G On/Off”) or blue (for “B On/Off”) signal is cut.
For Blue only mode
For MONO mode
RGB/MONO settings
RGB/MONO settings
Mode Select
Blue only
On
Blue only
• Blue only
Off
On
On: The Blue only mode is enabled.
Off: The Blue only mode is disabled
Mode Select
MONO
MONO
On
• MONO
Off
On
On: The MONO mode is enabled.
Off: The MONO mode is disabled
The RGB/MONO settings function is also enabled/disabled with the FUNCTION button on the remote control (see
page 63).
PC
16:9
NANODRIFT
R Off
When the function is enabled, selected mode is displayed.
Note:
With MONO set, the colour adjustment in the Picture menu is not available.
When the setting of each item is enabled, the item being currently set to ‘Enable’ becomes disabled.
51
Setup menu
Screensaver
Do not display a still picture, especially in 4:3 mode, for any length of time.
If the display must remain on, a Screensaver should be used.
3D Settings
Signal
Waveform Monitor
Marker settings
RGB/MONO settings
Screensaver
2
access
1
select
Extended life settings
Input label
Screensaver
Time 15:00
Function Button Settings
On/Off Timer Setup
Start
Function
Mode
Day/Time Setup
Network Setup
Negative image
Off
Component/RGB-in select
RGB
External scaler mode
Off
Power save
Off
1 Function selection
Screensaver
Time 15:00
Start
Function
Mode
Negative image
Off
2
change
1
select
Negative image : Negative image will be displayed on the screen.
Scrolling bar only : A white bar will scroll from left to right. The image won't
be displayed.
Overlay scrolling bar : The brightness of the image will be decreased and a
white bar will scroll on it.
White screen : The whole screen will be white.
2 Mode selection
Screensaver
Time 15:00
Start
Function
Mode
Negative image
On
2
change
1
select
Off
Interval: Operates when Periodic Time and Operating Time are setup and
those times arrive.
Time Designation: Operates when Start Time and Finish Time are setup
and those times arrive.
Standby after SCR Saver: Operates while Screensaver duration, and
display enters standby mode.
On: Operates when Start is selected and the OK button is pressed.
52
Setup menu
3 Setup of Screensaver Time
After selecting Time Designation, Interval or Standby after SCR Saver, the relevant Time Setup will become
available for selection and the Operating Time may be set. (Time cannot be set when “Mode” is “On” or “Off”.)
Screensaver
Time 15:00
Start
Function
Mode
Start Time
Finish Time
Negative image
Time Designation
6:15
12:30
Screensaver
Time 15:00
Start
Function
Mode
Periodic Time
Operating Time
Negative image
Interval
12:00
3:00
2
change
1
select
Notes:
• Pressing “ ” or “ ” button once changes the Time 1 minute.
[However, switching occurs every 15 minutes when Periodic Time is selected.]
• Pressing “ ” or “ ” button continuously changes the Time by 15 minutes.
• “Screensaver duration” of the “Standby after SCR Saver” can be set from
0:00 to 23:59. When this is set to “0:00”, “ Standby after SCR Saver” will
not be activated.
Note: Timer function will not work unless “Day/Time Setup” is set.
Screensaver
Time 15:00
Start
Function
Mode
Screensaver duration
Negative image
Standby after SCR Saver
6:15
setting
4 Start
Select “Start”.
2
set
1
select
Screensaver
Time 15:00
Start
Function
Mode
Negative image
On
The menu screen will disappear and the Screensaver will be activated. To
stop the Screensaver under On, press the R button or any buttons on
the main unit.
Note: When the display is turned off, the Scrensaver will be deactivated.
53
Setup menu
Extended life settings
The following settings are setup to reduce image retention:
Extended life settings
3D Settings
Set to the recommended value
Set individually
Reset to the factory settings
Express settings
Signal
Waveform Monitor
Marker settings
RGB/MONO settings
Screensaver
2
access
1
select
Extended life settings
Input label
Custom settings
Reset
Extended life settings
Recommended settings
Picture Mode
Function Button Settings
On/Off Timer Setup
Contrast
Day/Time Setup
Network Setup
Side panel
High
NANODRIFT Saver
Mid
Peak limit
Component/RGB-in select
RGB
External scaler mode
Off
Power save
Off
Dynamic
30
Lock settings
Off
Image Retention Reduction
Menu
Unlock
Apply to current input
Apply to all inputs
Image Retention Reduction Menu
“Extended life settings” enables you to set the following 5 menus (Image Retention Reduction Menu) as recommended
values or set them individually.
Picture Mode
Contrast
“Picture Mode” and “Contrast” are same as “Picture” menu items (see page 29). The settings of this menu will be
reflected to the “Picture” menu.
Side panel
Do not display a picture in 4:3 mode for an extended period,
as this can cause an image retention to remain on the side
panels on either side of the display field.
To reduce the risk of such an image retention, illuminate
the side panels.
This function may be applicable to the non-picture area.
Off:
Low:
Mid:
High:
side panel
4:3 Screen
Display
retention
Darken both ends.
Make it dark gray.
Make it gray.
Make it light gray.
Notes:
• To reduce the occurrence of image retention, set the Side panel to High.
• The side panel may flash (alternate black/white) depending on the picture being shown on the screen. Using Cinema
mode will reduce such flashing.
54
Setup menu
NANODRIFT Saver
Moves the display position of the screen slightly to reduce image retention on the display panel.
Low–High: NANODRIFT Saver operates. The display position of the screen moves at set time intervals. You can set
the screen movement range. Some of the screen may appear to be missing as a result of this operation.
If you change the value, a mask is displayed in the range where the picture is missing as a result of
position movement.
When “NANODRIFT” Image Retention Reduction is
operating, “NANODRIFT” is displayed.
PC
16:9
NANODRIFT
Peak limit
On: Suppresses image contrast (peak brightness).
Note: When a still picture is viewed for an extended time, the screen may become slightly darker. (see page 69)
Extended life settings when profile is locked
If profile is locked with “Memory lock” of the Options menu, the operations of this settings menu are
restricted as shown below. “Locking profiles”
page 38
Express settings: Cannot be set.
Custom settings: “Picture Mode”, “Contrast” and “Lock settings” cannot be set.
Reset:
“Picture Mode” and “Contrast” are not reset.
Express settings
Set the “Image Retention Reduction” menu to the recommended settings.
All menus will be locked.
Picture Mode: Normal
Contrast: Recommended setting for each model
Side panel: High
NANODRIFT Saver: Mid
Peak limit: On
1 Select “Express settings”.
Extended life settings
Express settings
2 access
Custom settings
1 select
Reset
2 Select the input to apply the settings.
Extended life settings
Apply to current input
2 set
Apply to all inputs
1 select
3 Select “Yes”.
Extended life settings
Apply to current input
Yes
No
1
select
2
set
55
Setup menu
Custom settings
Set the individual “Image Retention Reduction” menu.
1 Select “Custom settings”.
Extended life settings
2
access
1
select
Express settings
Custom settings
Reset
set each menu to the recommended setting:
2 To
Select “Recommended settings”.
2
Extended life settings
set
Picture Mode
Dynamic
30
Side panel
High
NANODRIFT Saver
Mid
Peak limit
Off
Lock settings
Dynamic
Contrast
1
select
30
0
0
Brightness
Colour
Hue
0
5
Sharpness
White balance
Unlock
Normal
Advanced settings
Apply to current input
Apply to all inputs
Memory save
Memory load
Each menu will be set
as same as the “Express
settings”.
Memory edit
Extended life settings
5 Select the input to apply the settings.
3 Set each menu.
Extended life settings
adjust
1 select
2
Recommended settings
MENU
Mode
Dynamic
Contrast
Normalise
Picture Mode
Recommended settings
Contrast
When a menu is locked, it is grayed out and
cannot be set.
“Picture Mode” and “Contrast” will no longer be
able to set in the “Picture” menu, and they are
labeled with icon to indicate their locked status.
Also, “Normalise”, “Memory save” and “Memory
load” are not available.
30
Side panel
High
NANODRIFT Saver
Mid
Peak limit
Off
Lock settings
Extended life settings
Recommended settings
Picture Mode
Dynamic
Contrast
30
Side panel
High
NANODRIFT Saver
Mid
Peak limit
1
select
1
select
2
set
1
select
2
set
Unlock
Apply to current input
Apply to current input
Apply to all inputs
Apply to all inputs
6 Select “Yes”.
lock each menu setting:
4 To
Set the “Lock settings” to “Lock”.
Extended life settings
Apply to current input
Extended life settings
adjust
1 select
2
Recommended settings
Picture Mode
Dynamic
Contrast
set
Off
Lock settings
Unlock
2
30
Side panel
High
NANODRIFT Saver
Mid
Peak limit
Yes
No
Off
Lock settings
Unlock
Apply to current input
Apply to all inputs
Reset
Reset the “Image Retention Reduction” menu to the factory settings. Each menu will be unlocked.
1 Select “Reset”.
Extended life settings
2
access
1
select
2
set
1
select
Express settings
2 Select the input to reset the settings.
Extended life settings
Reset current input
Reset all inputs
56
Extended life settings
Reset current input
Custom settings
Reset
3 Select “Yes”.
Yes
No
Setup menu
Customizing the Input labels
This function can change the label of the Input signal to be displayed. (see page 18)
Select an input terminal and set.
3D Settings
Signal
Waveform Monitor
2
Marker settings
RGB/MONO settings
Input label
SLOT INPUT
Extended life settings
Input label
Function Button Settings
On/Off Timer Setup
SLOT INPUT
COMPONENT
HDMI1
HDMI2
PC
select
1
Screensaver
access
COMPONENT
HDMI1
HDMI2
PC
2
change
1
select
Note:
The setting items are the same as the input terminal list of
“Selecting the input signal” (page 18).
Day/Time Setup
Network Setup
Component/RGB-in select
RGB
The input label changes as follows each time the ◄ or ► button is pressed.
Original
DVD1
DVD2
(Skip)
STB
DVD3
VCR
DVD4
CATV
Blu-ray1
Blu-ray4
Blu-ray2
Blu-ray3
(Skip) : The INPUT button press will skip its input.
Function Button Settings
Set the function to operate when the FUNCTION button 1 to 4 on the remote control is pressed.
Using FUNCTION button
page 62
Select the item and set.
3D Settings
Signal
Waveform Monitor
Marker settings
RGB/MONO settings
2
access
1
select
Screensaver
Extended life settings
Input label
Function Button Settings
Function Button 1
Function Button 2
Function Button 3
Function Button 4
Function Button Guide
3D Settings
Signal
Colour gamut
Scrolling bar
On
2
change
1
select
Note:
The button functions are configured in two ways depending
on the setting (On/Off) of “Studio mode” in the Options
menu.
Function Button Settings
On/Off Timer Setup
Day/Time Setup
Network Setup
Component/RGB-in select
RGB
• Function Button 1 - Function Button 4
The following functions are set to the FUNCTION
button.
Waveform Monitor*
Marker settings*
HV Delay*
Blue only
3D Settings
Signal
Colour gamut
Scrolling bar
R On/Off
G On/Off
B On/Off
MONO
Test Patterns
Volume +
Volume Mute
• Function Button Guide
The function display setting for the FUNCTION button
is configured.
On: Press the FUNCTION button to display the
function list of the button.
Off: The function list is not displayed.
* “Waveform Monitor”, “Marker settings” and “HV Delay” can be
set when “Studio mode” in Options menu is “On”.
57
Setup menu
Day/Time Setup / On/Off Timer Setup
Screensaver
Extended life settings
Input label
Function Button Settings
On/Off Timer Setup
Day/Time Setup
2
access
1
select
Network Setup
Component/RGB-in select
RGB
Day/Time Setup
1
2
Press to select Day or Time.
Day/Time Setup
Press to set up Day or Time.
Set
button: Forward
Day
button: Back
Time
Notes:
• Pressing “ ” or “ ” button once changes Time 1 minute.
• Pressing “ ” or “ ” button continuously changes Time by 15 minutes.
Time MON 15:00
MON
15:00
Press to select Set.
Press to store Day/Time Setup.
Notes:
• Set cannot be selected unless Time is set.
• Unless setting the present time other than “99:99”, “Day” and “Time” cannot be set.
• The settings of “Day” and “Time” are reset when leaving the display turned off for about
7 days for the following reasons:
switch of the unit to turn off the display.
Pressing
Disconnecting the AC cord.
Interruption of power supply.
On/Off Timer Setup
1
Press to select POWER ON Time / POWER OFF
Time.
Press to setup
POWER ON Time / POWER OFF Time.
button: Forward
button: Back
On/Off Timer Setup
Time 15:00
POWER ON Function
Off
POWER ON Time
12:00
POWER OFF Function
Off
16:00
POWER OFF Time
Notes:
• Pressing “ ” or “ ” button once changes POWER ON Time / POWER OFF Time 1 minute.
• Pressing “ ” or “ ” button continuously changes POWER ON Time / POWER OFF Time
by 15 minutes.
2
Press to select POWER ON Function/POWER OFF Function.
Press to select On.
Note: Timer function will not work unless “Time” is set.
58
Setup menu
Network Setup
Make the various settings to use the network function.
Screensaver
DHCP, IP address, Subnet mask and Gateway settings
Extended life settings
Input label
1 Set DHCP.
When “Off” is selected, IP address and other settings can be set manually.
Function Button Settings
On/Off Timer Setup
2 Select the item and press
3 Enter an address.
Day/Time Setup
Network Setup
Component/RGB-in select
RGB
IP address
192.168.
I
0.
8
.
Use
to select a digit.
Use
to change a number or input the
numerical value from
to
.
3 Press
.
1
2
2
access
1
select
4 Select “Save” and press
Network Setup
Save
DHCP
Pressing
Off
IP address
192.168. 0. 8
Subnet mask
255.255.255. 0
Gateway
192.168. 0. 1
Port setting
Select “Port” and press
Enter a port number.
1
2
Port
01024
I
Port
1024
LAN Speed
Auto
Network ID
Control I/F Select
MAC Address
0
RS-232C
--:--:--:--:--:--
will cancel the address change.
.
.
Use
to select a digit.
2 Use
to change a number or input the
numerical value from
to
.
3 Press
.
1
Pressing
will cancel the port number change.
Save
Save the current network Setup. Each value set for
DHCP, IP address, Subnet mask, and Gateway will be
saved. If “NG” is displayed, check the same IP address
is not used within the same network.
Port
Set the port number used for command control.
The available setting range is 1024 – 65535.
When the PJLink™ protocol is used, the port setting is
not necessary.
DHCP (DHCP client function)
To obtain an IP address automatically using a DHCP
server, set this to “On”. If DHCP server is not used, set
this to “Off”.
LAN Speed
Set the connection speed of the LAN environment.
Select the value from Auto, 10 Half, 10 Full, 100 Half or
100 Full.
IP address (IP address display and setting)
Enter an IP address if DHCP server is not used.
Network ID
Set the ID to identify this unit.
The available setting range is 0 – 99.
Subnet mask (Subnet mask display and setting)
Enter a subnet mask if DHCP server is not used.
Gateway (Gateway address display and setting)
Enter a gateway address if DHCP server is not used.
Control I/F Select
Set whether to control with RS-232C (serial) or LAN.
When “LAN” is set, power is supplied to LAN circuit,
and power indicator is lit orange under the condition of
power “Off” with remote control (stand-by state).
MAC Address
Display the MAC address of this unit. However, the MAC
address is not displayed when the “Control I/F Select” is
set to “RS-232C”.
Notes:
• To use a DHCP server, make sure the DHCP server is started.
• Contact your network administrator for details on settings.
59
Options Adjustments
1
2
3
Display the menu screen.
Select “Options”.
Press
for more than 3 seconds.
2
access (more
than 3 seconds)
1
select
2
set
1
select
Setup
Pos./Size
Sound
Options
4
Select the item and set.
Onscreen display
On
Studio mode
Off
Internal 3D Emitter
On
Display size
Off
All Aspect
Auto Setup
Off
Manual
Advanced Motion Resolution
On
Power On Message (No activity power off)
On
3D Safety Precautions
Memory lock
5
On
Exit the menu.
Item
Onscreen display
Adjustments
On: Displays all the following on screen.
• Power on display
• Input signal switch display
• No signal display
• Remainig time of off-timer after
was pressed.
Off: Hides all the items above from view.
For switching functions in setting menus used for television studio applications.
Studio mode
Advanced
Studio Gain
Setup
Waveform Monitor
Marker settings
3D colour compensation
Function Button Settings
Pos./Size
Internal 3D Emitter
60
Setting menu
White balance
Waveform Monitor
Marker settings
HV Delay
HV Delay
Studio mode: On
“Studio” can be
selected.
Available.
Studio mode: Off
“Studio” not
available.
Unavailable (set to
“Off” and cannot be
changed).
Available
Unavailable
Available
Unavailable
Available
Unavailable
The button functions are separately
configured in “On” and “Off”.
Configurable.
Not configurable.
Available
Unavailable
Set the infrared transmitter for the 3D Eyewear.
On: Use the infrared transmitter of the unit and the external 3D IR TRANSMITTER (available
separately.)
Off: Use the external 3D IR TRANSMITTER (available separately.)
Options Adjustments
Item
Adjustments
Adjusts the image display size on screen.
Off: Sets the normal image display size on screen.
On: Sets the image display size approximately 95 % of the normal image display.
Off
On
Display size
Notes:
• This setting is valid only when the input signals are as follows;
NTSC, PAL, SECAM, M.NTSC, PAL60, PAL-M, PAL-N (Video)
525i, 525p, 625i, 625p, 750/60p, 750/50p, 1125/60i, 1125/50i, 1125/24sF, 1125/25p, 1125/24p,
1125/30p, 1125/60p, 1125/50p, 1250/50i (Component Video, RGB, DVI, SDI, HDMI)
• When “Display size” is set to “On”, “H-Pos” and “V-Pos” in “Pos./Size” can be adjusted.
• Refer to each board’s operating instruction for DVI, SDI, HDMI’s corresponding signals.
Sets All Aspect mode (advanced aspect setting) or default aspect mode.
With each press of
All Aspect
button, the aspect changes in the selected mode.
Off: Default aspect mode
On: All Aspect mode
Aspect mode of each setting is as follows:
(Example: HD signal)
Off 4:3→4:3 Full→Zoom1→Zoom2→Zoom3→16:9→14:9→Just
On 4:3 (1)→4:3 (2)→4:3 Full→Zoom1→Zoom2→Zoom3→16:9→14:9→Just1→Just2
Sets the operational mode of the automatic position adjustment in the Pos./Size menu.
Manual: Automatic position adjustment starts when
Auto Setup
Advanced Motion
Resolution
Power On Message
(No activity power off)
3D Safety Precautions
Auto:
is pressed on the remote control or
automatic position adjustment is executed from the Pos./Size menu.
Other than remote control or menu operation, automatic position adjustment starts:
When the display power is turned ON.
When the input signal is switched.
Displays motion picture images at higher resolution.
On
Off
Notes:
• Please set to “Off” if images look unnatural.
• This function is disabled during 3D images.
Whether to show/hide No activity power off Precautions at the time of power ON is set.
On: The warning precautions are shown at the time of power ON.
Off: The warning precautions are not shown at the time of power ON.
Note: This setting is enabled only if “No activity power off” is “Enable” (see page 43).
3D Safety Precautions show/hide is set during power ON.
On: 3D Safety Precaution is shown every time when the power is ON.
Off: 3D Safety Precaution is not shown when the power is ON.
When the setting changes from “On” to “Off”, the confirmation screen is displayed as below.
Pressing “YES” switches the setting.
3D Safety Precautions
If Off is selected, the 3D safety precautions
will not be displayed when power is turned on.
Change Setting?
YES
Memory lock
NO
Locks or unlocks saved profiles. Also for setting passwords. (see page 38)
61
Using FUNCTION button
Assigning functions to the FUNCTION button on the remote control enables a user to switch
between show/hide and modes with just a single touch of a button. The function settings are
configured by using “Function Button Settings” in the Setup menu (see page 57). The button
functions are configured in two ways depending on the setting (On/Off) of “Studio mode” in the
Options menu.
The factory preset functions are as described below.
Function Button 1: 3D Settings
Function Button 2: Signal
Function Button 3: Colour gamut
Function Button 4: Scrolling bar
Display of the FUNCTION button guide
Pressing the FUNCTION button can display the FUNCTION button guide to refer for the function
of each button.
The operation starts.
Function
1: 3D Settings
2: Signal
3: Colour gamut
4: Scrolling bar
If the guide display is not needed, set “Function Button Guide” in “Function Button Settings” to “Off” (see page 57).
3D Settings / Signal / Colour gamut
The menu screen is displayed.
(Example: 3D Settings)
3D Settings
3D Function
On
Auto
3D Picture Format
3D Viewing Mode
3D
3D Picture Sequence
Normal
3D Colour Compensation
On
Safety Precautions
Pressing the FUNCTION button clears the menu.
Scrolling bar / Test Patterns
Confirmation screen (Example: Scrolling bar)
Press to select
“Yes”.
Function
Scrolling bar
Yes
No
The operation starts.
Press.
Scrolling bar
Test Patterns
Activates the “Scrolling bar only” screensaver. After
15 minutes, the display enters standby mode.
Each time you press
(seven in all).
, a different test pattern is displayed
Colour Bars
To exit this mode, press any button.
Black
1% window
Red
Green
Frame
(2 lines × 2 dots)
Blue
To exit this mode, press any button other than
Note:
“PC Power management” and “No signal power off” are deactivated during “Scrolling bar” or “Test Patterns”
operation. (see page 43)
62
.
Using FUNCTION button
Waveform Monitor
The waveform monitor displays (see page 48).
To exit this mode, press the FUNCTION button.
Marker settings
The marker displays (see page 49).
Each time the FUNCTION button is pressed, the screen is switched in the following order; Preset 1 → Preset 2 → Off.
HV Delay
The video blanking period displays (see page 27).
Each time the FUNCTION button is pressed, the screen is switched in the following order; H Delay → V Delay →
HV Delay→ Off.
Blue only
The screen displays only blue colour for image adjustment.
To exit this mode, press FUNCTION button.
MONO
The screen is displayed in black and white by the Y signal alone (see page 51).
To cancel, press the FUNCTION button.
R On/Off / G On/Off / B On/Off
R / G / B signals are turned off (see page 51).
Each time the FUNCTION button is pressed, each signal switches between On/Off.
Volume + / Volume –
The volume is adjusted.
Press the FUNCTION button to turn the volume UP/DOWN.
Mute
The sound is temporarily muted.
Press the FUNCTION button again to cancel.
63
Using Network Function
This unit has a network function to control the network connected display with your computer.
Note:
To use the network function, set each “Network Setup” setting and make sure to set the “Control I/F Select” to “LAN”.
(see page 59)
When “LAN” is set, power is supplied to LAN circuit, and power indicator is lit orange under the condition of power
“Off” with remote control (stand-by state).
Example of Network Connection
Display (main unit, rear)
COMPUTER
Less
than
10 cm
LAN cable
(not supplied)
Ferrite core
(supplied)
Installing the Ferrite core
Ferrite core
(supplied)
Less
than
10 cm
Open
Pull back the tabs
(in two places)
Wind the cable
twice
Press the cable
through and close
Hub or broadband router
Notes:
• Make sure the broadband router or hub supports 10BASE-T/100BASE-TX.
• To connect a device using 100BASE-TX, use “category 5” LAN cable.
• Touching the LAN terminal with a statically charged hand (body) may cause damage due to its discharge.
Do not touch the LAN terminal or a metal part of the LAN cable.
• For instructions on how to connect, consult your network administrator.
Command Control
Network function of the unit can control the unit in the same way as serial control from a network.
Supported commands
Commands used in the serial control are supported. (see page 14)
Note:
Consult your local Panasonic dealer for detail instructions on command usage.
64
Using Network Function
PJLink™ Protocol
The network function of the unit conforms with PJLink™ class 1 and you can operate the following actions from your
computer using PJLink™ protocol.
• Display setup
• Display status query
Supported commands
Commands to control the unit with PJLink™ protocol are shown in the table below.
Command
Control
POWR
Power control
POWR?
Power status query
INPT
INPT?
AVMT
Input switch
Input switch query
Shutter control
AVMT?
Shutter control query
ERST?
Error status query
LAMP?
INST?
Lamp status query
Input switch list query
NAME?
INF1?
INF2?
INFO?
CLSS?
Projector name query
Manufacturer name query
Model name query
Other information query
Class information query
Remark
Parameter
0 = Standby 1 = Power “On”
Parameter
0 = Standby 1 = Power “On”
Parameter
See the parameter for command INST?
Parameter
10 = Picture On (picture mute deactivated), 11 = Picture Off (picture on mute)
20 = Audio On (audio mute deactivated), 21 = Audio Off (audio on mute)
30 = Shutter mode Off (picture and audio mute deactivated)
31 = Shutter mode On (picture and audio on mute)
Parameter
11 = Picture Off (picture on mute)
21 = Audio Off (audio on mute)
30 = Shutter mode Off (picture and audio mute deactivated)
31 = Shutter mode On (picture and audio on mute)
Parameter
First byte: Means fan error. 0 or 2.
Second byte: 0
Third byte: 0
Fourth byte: 0
Fifth byte: 0
Sixth byte: Means other error. 0 or 2.
Meaning of the 0 – 2 settings:
0 = Error is not detected, 2 = Error
Not supported
Parameter
Numbers 11 to 13 are depending on the slot installation condition
11: PC IN input (PC)
When a single input terminal board When a dual input terminal board is
is attached
attached
11: SLOT input (SLOT INPUT)
11: SLOT input (SLOT INPUT A)
12: PC IN input (PC)
12: SLOT input (SLOT INPUT B)
13: PC IN input (PC)
21: COMPONENT/RGB IN input
(COMPONENT)
31: HDMI input (HDMI1)
32: HDMI input (HDMI2)
Returns empty character (no name information)
Returns “Panasonic”
Returns “TH-65VX300”
Returns version number
Returns “1”
PJLink™ security authentication
Set “Panasonic” for the PJLink™ password.
• PJLink™ is a pending trademark in Japan, the United States, and other countries or areas.
65
Using Web Browser Control
You can use a Web browser to control the unit and set up a network and password.
Before Using Web Browser Control
To use the Web browser control, the unit and computer setups are required.
Unit Setup
Set each “Network Setup” setting and make sure to set the “Control I/F Select” to “LAN”. (see page 59)
Computer Setup
Disable the proxy server settings and enable JavaScript.
(Windows)
Disable proxy server settings
1 Display [Internet Properties] window.
Click [Start] – [Control Panel] – [Network and Internet
Connections] – [Internet Options].
2 Click the [Connections] tab and then [LAN Settings].
3 Deselect the [Use automatic configuration script] and
[Use a proxy server for your LAN] boxes.
4 Click [OK].
Enable JavaScript
1 Display [Internet Properties] window.
Click [Start] – [Control Panel] – [Network and Internet
Connections] – [Internet Options].
2 Set the security level on the [Security] tab to [Default
Level]. Alternatively enable [Active scripting] from the
[Custom Level] button.
(Macintosh)
Disable proxy server settings
1 From the [Safari] menu, click [Preferences].
General screen is displayed.
2 From the [Advanced] tab, click the [Change
Settings…] button next to [Proxies]. Click [Proxies]
and set up a proxy server.
3 Deselect the [Web Proxy] and [Automatic Proxy
Configuration] boxes.
4 Click [Apply Now].
Enable JavaScript
1 Display [Security] of Safari.
2 Select [Enable JavaScript] under [Web content].
Access from Web Browser
Access to the TOP screen of the Web browser control using a Web browser.
1 Start your Web browser.
2 Enter the IP address set with the “Network Setup” of the
unit. (see page 59)
3 Enter the user name and password when the
Authentication screen is displayed.
Authentication screen
4 Click [OK].
After logged in, the TOP screen of the Web browser
control is displayed. (see page 67)
66
Notes:
● The password used here is the same password
used for command control and the PJLink™
security authentication.
● Default user name and password are as follows:
User name: user1
Password: Panasonic
● The password can be changed on the Password
Setup screen after logging in (see page 64). The
user name cannot be changed.
● Under no circumstances, Panasonic Corporation
or it's associated companies will ask customers
their password directly.
Even if you are asked directly, please do not
reveal your password.
Using Web Browser Control
TOP screen structure of the Web browser control
After logging in, the TOP screen of the Web browser control is displayed.
Menu
Menu items are displayed. When a button is clicked,
setup screen of each item is displayed.
Item
BASIC
CONTROL
OPTION
CONTROL
NETWORK
SETTING
CHANGE
PASSWORD
Details
BASIC CONTROL screen is displayed.
(see below)
OPTION CONTROL screen is
displayed. (see below)
Network Setup screen is displayed.
(see page 68)
Password setup screen is displayed.
(see page 68)
According to the selected item from the main menu,
setup status or set items are displayed.
Network ID information
ID to identify the unit is displayed.
Display Control (BASIC CONTROL/OPTION CONTROL Screen)
Click BASIC CONTROL or OPTION CONTROL from the menu. Various controls of the unit can be set.
BASIC CONTROL screen
OPTION CONTROL screen
Click BASIC CONTROL from the menu. Unit status and
buttons to change settings are displayed.
Click OPTION CONTROL from the menu. Command input
field for command control of the unit is displayed.
Item
COMMAND
RESPONSE
SEND
Item
POWER
Details
Switch ON/OFF of the unit power.
Switch the input signals. Displayed
buttons vary according to the
INPUT SELECT
connection status of the video
device.
AUDIO MUTE Switch ON/OFF of the sound mute.
ASPECT
Switch the screen modes
Details
Enter a command. Use the same
command used for the serial control.
(see page 14)
Response from the unit is displayed.
Command is sent and run.
Note:
After the settings are changed, it may take a while till
the display status is displayed.
67
Using Web Browser Control
NETWORK SETTING (Network Setup Screen)
Click NETWORK SETTING from the menu. Various settings of a network can be set. For the details of the setting
items, please check Network Setup under the Set up of the unit. (see page 59)
Item
Notes:
• To use a DHCP server, make sure the DHCP server
is started.
• During a DHCP server is used, IP ADDRESS,
SUBNET MASK, and GATEWAY values cannot be
entered.
• When the set values are changed properly,
“NETWORK SETTING CHANGED.” message and
the changed set items are displayed.
Details
Set to ON when a DHCP server is
DHCP
used, or OFF when it is not used.
IP ADDRESS
Enter an IP address.
SUBNET MASK Enter a subnet mask.
GATEWAY
Enter a gateway address.
Enter the port number used for
PORT
command control. The available
setting range is 1024 - 65535.
Set the connection speed of the LAN
LAN SPEED
environment.
Set the ID to identify this unit. The
NETWORK ID
available setting range is 0 - 99.
SAVE
Save the each set value.
Password Setting (Password Setup Screen)
Click CHANGE PASSWORD from the menu. Password to access the Web browser control can be set. When
the password is changed in this screen, the password used for command control and the PJLink™ security
authentication is also changed.
Item
Notes:
• The default password is “Panasonic”.
• Up to 32 alphanumeric characters can be used for a
password.
• When the password is changed properly, “Password
has changed.” message is displayed.
68
OLD
PASSWORD
NEW
PASSWORD
Details
Enter the old password.
Enter the new password.
NEW
PASSWORD
(RETYPE)
Enter the password entered in “NEW
PASSWORD” for confirmation.
SAVE
Save the new password. The
confirmation screen is displayed.
Click OK to change the password.
Troubleshooting
Before you call for service, determine the symptoms and make a few simple checks as shown below.
Symptoms
Sound
Interference
Noisy Sound
Normal Picture
No Sound
Checks
Electrical Appliances
Cars / Motorcycles
Fluorescent light
Volume
(Check whether the mute function has been activated on the remote control.)
Check if speakers are corrected properly.
No Picture
No Sound
No Picture
Normal Sound
Not plugged into AC outlet
Not switched on
Picture and Brightness/Volume setting
(Check by pressing the power switch or stand-by button on the remote control.)
If a signal with a non-applicable colour system format, or frequency is input, only
the input terminal indication is displayed.
No Colour
Normal Sound
Colour controls set at minimum level (see page 28-33)
Colour system (see page 46)
No remote control operations can be performed.
A cracking sound is sometimes heard from the unit.
The top or bottom of the picture on the screen is cut
off when I use the zoom function.
Areas at the top and bottom of the screen where
the image is missing appear when I use the zoom
function.
I can hear sounds coming from inside the unit.
Parts of the unit become hot.
Check whether the batteries have discharged completely and, if they have not,
whether they were inserted properly.
Check whether the remote control sensor is exposed to an outdoor light or a
strong fluorescent light.
Check whether the remote control designed specifically for use with the unit is
being used. (The unit cannot be operated by any other remote control.)
If there is nothing wrong with the picture or sound, this is the sound of the cabinet
undergoing very slight contractions in response to changes in the room temperature.
There are no adverse effects on the performance or other aspects.
Adjust the position of the picture on the screen.
When using a video software program (such as a cinema size program) with a
screen wider than one in the 16:9 mode, blank areas separate from the images
are formed at the top and bottom of the screen.
When the power is turned on, a sound of the display panel being driven may be
heard: This is normal and not indicative of malfunctioning.
Even when the temperature of parts of the front, top and rear panels has risen, these
temperature rises will not pose any problems in terms of performance or quality.
Power automatically turns off unexpectedly.
Check the settings of “PC Power management”, “No signal power off” and “No
activity power off” in the Setup menu. Any of them may be set to “On (Enable)”.
(see page 43)
Power indicator is blinking in red.
There is possibility of malfunction. Please contact an Authorized Service Center.
This Plasma Display uses special image processing. Hence a slight time lag may occur between image and audio, depending on the
type of input signal. However, this is not a malfunction.
Plasma Display panel
Symptoms
The screen darkens slightly
when bright pictures with minimal
movements are shown.
It takes a while for the picture
to appear.
The edges of the images
flicker.
The brightness on both sides of
images in the 4:3 mode changes.
Some parts of the screen do
not light up.
Image retention appears
Whirring sounds can be heard
from the display unit.
Check
The screen will darken slightly when photos, still images of a computer or other pictures with minimal
movements are shown for an extended period. This is done to reduce image retention on the screen
and the shortening of the screen’s service life: It is normal and not indicative of malfunctioning.
The unit digitally processes the various signals in order to reproduce esthetically pleasing images. As
such, it sometimes takes a few moments for the picture to appear when the power has been turned
on, when the input has been switched.
Due to the characteristics of the system used to drive the panel, the edges may appear to flicker in
the fast-moving parts of the images: This is normal and not indicative of malfunctioning.
When viewing the side panels at the “High” or “Mid” setting, the brightness on both sides may change
depending on the kind of program shown: This is normal and not indicative of malfunctioning.
The plasma display panel is manufactured using an extremely high level of precision technology,
however, sometimes some parts of the screen may be missing picture elements or have luminous
spots. This is not a malfunction.
Do not allow a still picture to be displayed for an extended period, as this can cause a permanent image retention to
remain on the Plasma Display.
Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.
Note:
The permanent image retention on the Plasma Display resulting from fixed image use is not an
operating defect and as such is not covered by the Warranty.
This product is not designed to display fixed images for extended periods of time.
The display unit is fitted with a cooling fan to dissipate heat generated during normal use. The whirring
sound is caused by rotation of the fan and is not a malfunction.
69
List of Aspect Modes
Aspect mode
All Aspect: Factory setting
On
All Aspect: Off
16:9
14:9
16:9
Just
–
The pictures with a 4:3 aspect ratio among the 16:9 aspect
ratio signals are enlarged horizontally so that the picture
distortion is minimized. The left and right edges of the
pictures are cut off. The display of the areas around the
left and right edges of the screen is slightly elongated.
4:3
4:3 (1)
–
4:3 Full
The pictures with a 4:3 aspect ratio among the 16:9
aspect ratio signals are enlarged horizontally so that
their display fills the screen. The left and right edges of
the pictures are cut off.
Zoom1
Letterbox pictures with a 16:9 aspect ratio are enlarged
vertically and horizontally so that their display fills the
screen. The top and bottom edges of the pictures are
cut off.
Zoom2
The letterbox pictures with a 2.35:1 aspect ratio among
the 16:9 aspect ratio signals are enlarged vertically and
horizontally so that their display fills the screen. The top
and bottom edges as well as the left and right edges of
the pictures are cut off.
Zoom3
Letterbox pictures with a 2.35:1 aspect ratio are enlarged
vertically and horizontally so that their display fills the
screen vertically and is slightly larger than the screen
horizontally. The top and bottom edges as well as the
left and right edges of the pictures are cut off.
Zoom1
Zoom3
70
Pictures with a 4:3 aspect ratio are displayed with their
original aspect ratio. Side panels are displayed at the
left and right edges of the screen.
The pictures with a 4:3 aspect ratio among the 16:9
aspect ratio signals are displayed with their original
aspect ratio. The left and right edges of the pictures are
masked with side panels.
Zoom
Zoom2
The display of the pictures fills the screen.
In the case of SD signals, pictures with a 4:3 aspect
ratio are enlarged horizontally, and displayed. This
mode is suited to displaying anamorphic pictures with
a 16:9 aspect ratio.
Pictures with a 4:3 aspect ratio are enlarged horizontally
so that the picture distortion is minimized. The display of
the areas around the left and right edges of the screen
is slightly elongated.
4:3
4:3 Full
Description
14:9
Just1
4:3 (2)
Enlarged screen
Letterbox pictures with a 14:9 aspect ratio are enlarged
vertically and horizontally so that their display fills the
screen vertically and is slightly smaller than the screen
horizontally. The top and bottom edges of the pictures
are cut off. Side panels are displayed at the left and right
edges of the screen.
Just
Just2
Applicable Input Signals
*Mark: Applicable input signal
Horizontal frequency Vertical frequency
(kHz)
(Hz)
525 (480) / 60i
15.73
59.94
525 (480) / 60p
31.47
59.94
625 (575) / 50i
15.63
50.00
625 (576) / 50i
15.63
50.00
625 (575) / 50p
31.25
50.00
625 (576) / 50p
31.25
50.00
750 (720) / 60p
45.00
60.00
750 (720) / 50p
37.50
50.00
1,125 (1,080) / 60p
67.50
60.00
1,125 (1,080) / 60i
33.75
60.00
1,125 (1,080) / 50p
56.26
50.00
1,125 (1,080) / 50i
28.13
50.00
1,125 (1,080) / 24sF
27.00
48.00
1,125 (1,080) / 30p
33.75
30.00
1,125 (1,080) / 25p
28.13
25.00
1,125 (1,080) / 24p
27.00
24.00
1,250 (1,080) / 50i
31.25
50.00
2,048 × 1,080 / 24sF ∗7
27.00
48.00
27.00
24.00
2,048 × 1,080 / 24p ∗7
640 × 400 @70 Hz
31.46
70.07
640 × 480 @60 Hz
31.47
59.94
640 × 480 @72 Hz
37.86
72.81
640 × 480 @75 Hz
37.50
75.00
640 × 480 @85 Hz
43.27
85.01
800 × 600 @56 Hz
35.16
56.25
800 × 600 @60 Hz
37.88
60.32
800 × 600 @72 Hz
48.08
72.19
800 × 600 @75 Hz
46.88
75.00
800 × 600 @85 Hz
53.67
85.06
852 × 480 @60 Hz
31.47
59.94
1,024 × 768 @50 Hz
39.55
50.00
1,024 × 768 @60 Hz
48.36
60.00
1,024 × 768 @70 Hz
56.48
70.07
1,024 × 768 @75 Hz
60.02
75.03
1,024 × 768 @85 Hz
68.68
85.00
1,066 × 600 @60 Hz
37.64
59.94
1,152 × 864 @60 Hz
53.70
60.00
1,152 × 864 @75 Hz
67.50
75.00
1,280 × 768 @60 Hz
47.70
60.00
1,280 × 960 @60 Hz
60.00
60.00
1,280 × 960 @85 Hz
85.94
85.00
1,280 × 1,024 @60 Hz
63.98
60.02
1,280 × 1,024 @75 Hz
79.98
75.03
1,280 × 1,024 @85 Hz
91.15
85.02
1,366 × 768 @50 Hz
39.55
50.00
1,366 × 768 @60 Hz
48.36
60.00
1,400 × 1,050 @60 Hz
65.22
60.00
1,600 × 1,200 @60 Hz
75.00
60.00
1,600 × 1,200 @65 Hz
81.25
65.00
1,920 × 1,080 @60 Hz
67.50
60.00
1,920 × 1,200 @60 Hz
74.04
59.95
Macintosh13” (640 × 480)
35.00
66.67
Macintosh16” (832 × 624)
49.72
74.54
Macintosh21” (1,152 × 870)
68.68
75.06
Signal name
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
COMPONENT / RGB IN / PC IN
(Dot clock (MHz))
* (13.5)
* (27.0) ∗5
* (13.5)
* (25.17)
* (25.18)
* (31.5)
* (31.5)
* (36.0)
* (36.0)
* (40.0)
* (50.0)
* (49.5)
* (56.25)
* (33.54)
∗1
∗1
∗1
∗1
∗2
∗1
∗1
∗1
∗3
∗6
*
*
*
*
*
*
*
*
*
*
∗6
* (65.0)
* (75.0)
* (78.75)
* (94.5)
* (53.0)
*
*
*
*
*
* (108.0)
* (80.14)
* (108.0)
* (148.5)
* (108.0)
* (135.0)
* (157.5)
*
*
*
*
*
* (86.71)
* (162.0)
* (175.5)
* (148.5)
*
*
*
* (27.0)
* (74.25)
* (74.25)
* (148.5)
* (74.25)
* (148.5)
* (74.25)
* (74.25)
* (74.25)
* (74.25)
* (74.25)
* (74.25)
HDMI1-2
∗4
* (30.24)
* (57.28)
* (100.0)
*
*
∗1: Based on SMPTE 274M standard.
∗2: Based on SMPTE RP211 standard.
∗3: Based on SMPTE 295M standard.
∗4: The input signal is recognized as 1,125 (1,080) / 60p.
∗5: When selected the RGB format and 525p signal input to the PC IN terminal, it is recognized as VGA 60Hz signal.
∗6: When inputted VGA 60Hz format signal from the other than PC IN terminal, it is recognized as 525p signal.
∗7: Based on SMPTE 292M and 372M standards. These signals can be received when the Dual Link HD-SDI Terminal
Board (TY-FB11DHD) or the Dual HD-SDI Terminal Board for 3D (TY-FB30DHD3D) is installed.
Note: Signals without above specification may not be displayed properly.
71
Shipping condition
This function allows you to reset the unit to the factory setting.
1
Display the menu screen.
2
Select “Setup”.
2
access
1
select
1
select
1
select
2
set
1
select
2
set
Setup
Pos. /Size
Sound
3
Select “OSD Language”.
Network Setup
Component/RGB-in select
RGB
External scaler mode
Off
Power save
Standby save
PC Power management
Off
On
Off
No signal power off
Disable
No activity power off
Enable
OSD design
Type1
OSD position
Upper left
OSD Language
English (UK)
4
Press
5
Select “YES”.
for more than 5 seconds.
Reset to factory default.
YES
6
NO
Select “YES” and wait for 10 sec.
All saved data will be erased
CONTINUE?
YES
NO
7
Note:
Press
Press the power switch (
) on main unit to turn the power off.
to return to Setup menu when confirmation screen is displayed.
[from the unit]
1 Press the MENU button till the Setup menu is displayed.
2 Press the
or
button to select “OSD Language”.
3 Press the ENTER button for more than 5 seconds.
4 Press the
or
button to select “YES”.
5 Press the ENTER button.
6 Press the
or
button to select “YES”.
7 Press the ENTER button and wait for 10 sec.
8 Press the power switch (
) on main unit to turn the power off.
Executing this function restores all settings and adjustment values in the following menus to the factoryset default values, as shipped.
On-screen menu: Picture, Advanced settings, Setup, Pos. /Size, Sound, Options
Unlocking profiles (Memory lock: Off, Password: 0123)
72
Specifications
Product Fiche
Manufacturer
Model No.
Energy efficiency class
Visible screen size (diagonal)
On mode average power consumption
Annual energy
consumption
Standby power consumption
Off mode power consumption
Display resolution
Power Source
Rated power consumption
Standby power consumption
Plasma Display panel
Screen size
(No.of pixels)
Operating condition
Temperature
Humidity
Applicable signals
Scanning format
PC signals
Connection terminals
LAN
AV IN
HDMI 1-2
COMPONENT/RGB IN
Y/G
PB/CB/B
PR/CR/R
AUDIO L-R
PC IN
Panasonic Corporation
TH-65VX300ER
D
165 cm / 65 inches
390 W
569 kWh/year
Energy consumption XYZ kWh per year, based on the power consumption of the television operating
4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
0.50 W
0.30 W
1,920 (W) × 1,080 (H)
220 - 240 V AC, 50/60 Hz
450 W
Save off 0.8 W, Save on 0.5 W
Drive method : AC type
65-inch, 16:9 aspect ratio
1,434 mm (W) × 806 mm (H) × 1,645 mm (diagonal)
2,073,600 (1,920 (W) × 1,080 (H)) [5,760 × 1,080 dots]
0 °C - 40 °C
20 % - 80 %
525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 750 (720) / 60p · 50p, 1125 (1080) / 60i · 60p · 50i ·
50p · 24p · 25p · 30p · 24sF, 1250 (1080) / 50i
VGA, SVGA, XGA, SXGA
UXGA ···· (compressed)
Horizontal scanning frequency 15 - 110 kHz
Vertical scanning frequency 48 - 120 Hz
RJ45 10BASE-T/100BASE-TX, compatible with PJLink™
TYPE A Connector × 2
RCA Pin jack
RCA Pin jack
RCA Pin jack
RCA Pin jack × 2
High-Density Mini D-sub 15 Pin
VBS (use HD port)
AUDIO
SERIAL
3D IR TRANSMITTER
3D SHUTTER OUT
DC 8V OUT
EXT SP
Dimensions (W × H × D)
Mass (weight)
main unit only
with speakers
with sync 1.0 Vp-p (75 Ω)
0.7 Vp-p (75 Ω)
0.7 Vp-p (75 Ω)
0.5 Vrms
Y or G with sync 1.0 Vp-p (75 Ω)
Y or G without sync 0.7 Vp-p (75 Ω)
PB/CB/B: 0.7 Vp-p (75 Ω)
PR/CR/R: 0.7 Vp-p (75 Ω)
HD/VD: 1.0 - 5.0 Vp-p (high impedance)
with picture 1.0 Vp-p (high impedance)
without picture 0.3 Vp-p (high impedance)
0.5 Vrms
Stereo mini jack (M3) × 1
External Control Terminal
D-sub 9 Pin
RS-232C compatible
for 3D IR TRANSMITTER
M3 jack × 1
Centre plus, for EIAJ 4mm plug
8 Ω, 20 W [10 W + 10 W] (10 % THD)
1,554 mm × 924 mm × 94 mm
approx. 60.0 kg net
approx. 66.0 kg
Notes:
• Design and specifications are subject to change without notice. Mass and dimensions shown are approximate.
• This equipment complies with the EMC standards listed below.
EN55022, EN55024, EN61000-3-2, EN61000-3-3.
• Product fiche: Based on (EU) No.1062/2010 ANNEX III
• ENERGY LABEL attached on the back cover is only for European countries.
73
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used
electrical and electronic products and batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to
applicable collection points, in accordance with your national legislation and the Directives
2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and
prevent any potential negative effects on human health and the environment which could otherwise
arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your
local municipality, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national
legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for
further information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these items, please
contact your local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the
requirement set by the Directive for the chemical involved.
<Software Information for This Product>
This product has software installed partially licensed under the Free BSD LICENSE.
Free BSD LICENSE regulations under the above specifications are as follows:
(These regulations are set by the third party; therefore the original (English) regulations are stated.)
Copyright © 1980, 1986, 1993
The Regents of the University of California. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the
following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following
disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement:
This product includes software developed by the University of California, Berkeley and its contributors.
4. Neither the name of the University nor the names of its contributors may be used to endorse or promote products
derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS
OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL
THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Customer’s Record
The model number and serial number of this product can be found on its rear panel. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your
purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.
Model Number
Web Site : http://panasonic.net
© Panasonic Corporation 2011
Serial Number
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
