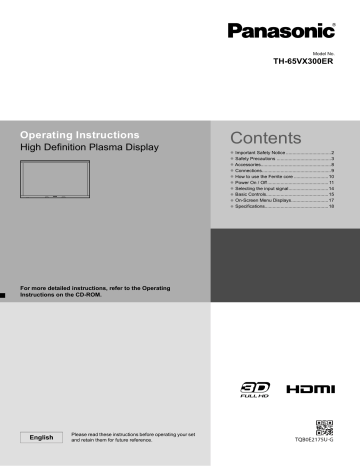

Model No.
TH-65VX300ER
Operating Instructions
High Definition Plasma Display
For more detailed instructions, refer to the Operating
Instructions on the CD-ROM.
h
English
Please read these instructions before operating your set
and retain them for future reference.
Contents
Safety Notice ..................................2
• Important
Safety Precautions .........................................3
• Accessories.....................................................8
• Connections....................................................9
• How to use the Ferrite core ..........................10
• Power On / Off .............................................. 11
• Selecting the input signal..............................14
• Basic Controls...............................................15
• On-Screen Menu Displays............................17
• Specifications................................................18
•
Important Safety Notice
WARNING
1) To prevent damage which may result in fire or shock hazard, do not expose this appliance to dripping
or splashing.
Do not place containers with water (flower vase, cups, cosmetics, etc.) above the set. (including on
shelves above, etc.)
No naked flame sources, such as lighted candles, should be placed on / above the set.
2) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified
service personnel.
3) Do not remove the earthing pin on the power plug. This apparatus is equipped with a three pin earthing-type
power plug. This plug will only fit an earthing-type power outlet. This is a safety feature. If you are unable to
insert the plug into the outlet, contact an electrician.
Do not defeat the purpose of the earthing plug.
4) To prevent electric shock, ensure the earthing pin on the AC cord power plug is securely connected.
CAUTION
This appliance is intended for use in environments which are relatively free of electromagnetic fields.
Using this appliance near sources of strong electromagnetic fields or where electrical noise may overlap with the
input signals could cause the picture and sound to wobble or cause interference such as noise to appear.
To avoid the possibility of harm to this appliance, keep it away from sources of strong electromagnetic fields.
IMPORTANT: THE MOULDED PLUG
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This display is supplied with a moulded three pin mains plug for your safety and convenience. A 10 amp fuse is
fitted in this plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 10
amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark
ASA
or the BSI mark
on the body of the fuse.
If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a replacement cover is obtained.
A replacement fuse cover can be purchased from your local Panasonic dealer.
Do not cut off the mains plug.
Do not use any other type of mains lead except the one supplied with this display.
The supplied mains lead and moulded plug are designed to be used with this display to avoid
interference and for your safety.
If the socket outlet in your home is not suitable, get it changed by a qualified electrician.
If the plug or mains lead becomes damaged, purchase a replacement from an authorized dealer.
WARNING : — THIS DISPLAY MUST BE EARTHED.
How to replace the fuse. Open the fuse compartment with a screwdriver and replace the fuse.
Trademark Credits
• VGA is a trademark of International Business Machines Corporation.
• Macintosh is a registered trademark of Apple Inc., USA.
• SVGA, XGA, SXGA and UXGA are registered trademarks of the Video Electronics Standard Association.
Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.
• HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
Note:
Do not allow a still picture to be displayed for an extended period, as this can cause a permanent image retention
to remain on the Plasma Display.
Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.
2
Safety Precautions
WARNING
Setup
This Plasma Display is for use only with the following optional accessories. Use with any other type of optional
accessories may cause instability which could result in the possibility of injury.
(All of the following accessories are manufactured by Panasonic Corporation.)
• Speakers ........................................................................ TY-SP65P11WK
• Pedestal ......................................................................... TY-ST65VX300
• Wall-hanging bracket (angled) ....................................... TY-WK65PR20
• BNC Dual Video Terminal Board .................................... TY-FB9BD
• HD-SDI Terminal Board .................................................. TY-FB9HD
• HD-SDI Terminal Board with audio ................................ TY-FB10HD
• Dual Link HD-SDI Terminal Board .................................. TY-FB11DHD
• Dual HD-SDI Terminal Board for 3D .............................. TY-FB30DHD3D
• Dual HDMI Terminal Board ............................................ TY-FB10HMD
• DVI-D Terminal Board .................................................... TY-FB11DD
• Dual DVI-D Terminal Board for 3D ................................. TY-FB30DD3D
• AV Terminal Box ............................................................. TY-TB10AV
• 3D IR TRANSMITTER ................................................... TY-3D30TRW
Always be sure to ask a qualified technician to carry out set-up.
Small parts can present choking hazard if accidentally swallowed. Keep small parts away from young children. Discard
unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from
being played with by young children, creating the potential risk of suffocation.
Do not place the Plasma Display on sloped or unstable surfaces, and ensure that the Plasma Display does
not hang over the edge of the base.
• The Plasma Display may fall off or tip over.
Do not place any objects on top of the Plasma Display.
• If water is spills onto the Plasma Display or foreign objects get inside it, a short-circuit may occur which could result
in fire or electric shock. If any foreign objects get inside the Plasma Display, please consult your local Panasonic
dealer.
Transport only in upright position!
• Transporting the unit with its display panel facing upright or downward may cause damage to the internal
circuitry.
Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table
cloths and curtains.
For sufficient ventilation;
If using the pedestal (optional accessory), leave a space of 10 cm or more at the top, left and right, and 7 cm
or more at the rear, and also keep the space between the bottom of the display and the floor surface.
If using some other setting-up method, follow the manual of it. (If there is no specific indication of installation
dimension in the installation manual, leave a space of 10 cm or more at the top, bottom, left and right, and 7 cm
or more at the rear.)
3
Safety Precautions
When using the Plasma Display
The Plasma Display is designed to operate on 220 - 240 V AC, 50/60 Hz.
Do not cover the ventilation holes.
• Doing so may cause the Plasma Display to overheat, which can cause fire or damage to the Plasma Display.
Do not stick any foreign objects into the Plasma Display.
• Do not insert any metal or flammable objects into the ventilations holes or drop them onto the Plasma Display, as
doing so can cause fire or electric shock.
Do not remove the cover or modify it in any way.
• High voltages which can cause severe electric shocks are present inside the Plasma Display. For any inspection,
adjustment and repair work, please contact your local Panasonic dealer.
Ensure that the mains plug is easily accessible.
An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.
Do not use any power supply cord other than that provided with this unit.
• Doing so may cause fire or electric shocks.
Securely insert the power supply plug as far as it will go.
• If the plug is not fully inserted, heat may be generated which could cause fire. If the plug is damaged or the wall
socket is loose, they shall not be used.
Do not handle the power supply plug with wet hands.
• Doing so may cause electric shocks.
Do not do anything that may damage the power cable. When disconnecting the power cable, pull on the plug body, not the cable.
• Do not damage the cable, make any modifications to it, place heavy objects on top of it, heat it, place it near any
hot objects, twist it, bend it excessively or pull it. To do so may cause fire and electric shock. If the power cable is
damaged, have it repaired at your local Panasonic dealer.
If the Plasma Display is not going to be used for any prolonged length of time, unplug the power supply plug
from the wall outlet.
To prevent the spread of fire, keep candles or other open flames away from this product at all times.
If problems occur during use
If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odour starts to come out
from the Plasma Display, immediately unplug the power supply plug from the wall outlet.
• If you continue to use the Plasma Display in this condition, fire or electric shock could result. After checking that
the smoke has stopped, contact your local Panasonic dealer so that the necessary repairs can be made. Repairing
the Plasma Display yourself is extremely dangerous, and shall never be done.
If water or foreign objects get inside the Plasma Display, if the Plasma Display is dropped, or if the cabinet
becomes damages, disconnect the power supply plug immediately.
• A short circuit may occur, which could cause fire. Contact your local Panasonic dealer for any repairs that need to be made.
4
Safety Precautions
CAUTION
When using the Plasma Display
Do not bring your hands, face or objects close to the ventilation holes of the Plasma Display.
• Heated air comes out from the ventilation holes at the top of Plasma Display will be hot. Do not bring your hands
or face, or objects which cannot withstand heat, close to this port, otherwise burns or deformation could result.
Be sure to disconnect all cables before moving the Plasma Display.
• If the Plasma Display is moved while some of the cables are still connected, the cables may become damaged,
and fire or electric shock could result.
Disconnect the power supply plug from the wall socket as a safety precaution before carrying out any
cleaning.
• Electric shocks can result if this is not done.
Clean the power cable regularly to prevent it becoming dusty.
• If dust built up on the power cord plug, the resultant humidity can damage the insulation, which could result in fire.
Pull the power cord plug out from the wall outlet and wipe the mains lead with a dry cloth.
Do not burn or breakup batteries.
• Batteries must not be exposed to excessive heat such as sunshine, fire or the like.
This Plasma Display radiates infrared rays, therefore it may affect other infrared communication equipment.
Install your infrared sensor in a place away from direct or reflected light from your Plasma Display.
Cleaning and maintenance
The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning
cloth or a soft, lint-free cloth.
• If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water in
which neutral detergent has been diluted 100 times, and then wipe it evenly with a dry cloth of the same type until
the surface is dry.
• Do not scratch or hit the surface of the panel with fingernails or other hard objects, otherwise the surface may
become damaged. Furthermore, avoid contact with volatile substances such as insect sprays, solvents and thinner,
otherwise the quality of the surface may be adversely affected.
If the cabinet becomes dirty, wipe it with a soft, dry cloth.
• If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been
added and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.
• Do not allow any detergent to come into direct contact with the surface of the Plasma Display. If water droplets get
inside the unit, operating problems may result.
• Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the
cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods
in contact with articles made from rubber or PVC.
5
Safety Precautions
3D Safety Precautions
WARNING
Small Parts
3D Eyewear contains small parts (battery and specialised band, etc.) and must be kept out of reach of small
children to avoid accidental ingestion.
Disassembly
Do not disassemble or modify the 3D Eyewear.
Lithium Battery
Batteries must not be exposed to excessive heat such as sunshine, fire or the like.
CAUTION
To enjoy 3D images safely and comfortably, please read these instructions fully.
Use for commercial applications and public viewing
Someone in authority should responsibly convey the precautions for use of the 3D Eyewear to the user.
3D Eyewear
Do not drop, exert pressure on, or step on the 3D Eyewear.
Always store the 3D Eyewear in the case provided when not in use.
Be careful of the tips of the frame when putting on the 3D Eyewear.
Be careful not to trap a finger in the hinge section of the 3D Eyewear.
Pay special attention when children are using the 3D Eyewear.
3D Eyewear should not be used by children younger than 5 - 6 years old, as a guideline.
All children must be fully supervised by parents or guardians who must ensure their safety and health
throughout the using 3D Eyewear.
6
Safety Precautions
Viewing 3D Content
Content for 3D viewing includes commercially available Blu-ray discs, 3D broadcasts, etc.
When preparing your own 3D content, ensure that it is properly produced.
Do not use the 3D Eyewear if you have a history of over-sensitivity to light, heart problems, or have any other
existing medical conditions.
Please stop using the 3D Eyewear immediately, if you feel tired, are not feeling well or experience any other
uncomfortable sensation.
Take an appropriate break after viewing a 3D movie.
Take a break of between 30 - 60 minutes after viewing 3D content on interactive devices such as 3D games
or computers.
Be careful not to strike the screen or other people unintentionally. When using the 3D Eyewear the distance
between the user and screen can be misjudged.
The 3D Eyewear must only be worn when viewing 3D content.
If you do not look toward the screen for a while when viewing 3D images, the 3D Eyewear may be turned off
automatically.
If you suffer from any eyesight problems (short / far-sighted, astigmatism, eyesight differences in left and
right), please ensure to correct your vision before using the 3D Eyewear.
Stop using the 3D Eyewear if you can clearly see double images when viewing 3D content.
When the multiple plasma displays are placed side by side, 3D images may be seen doubly due to interference
among them. Place each display at an appropriate location to avoid it.
Do not use the 3D Eyewear at a distance less than the recommended distance.
View from at least the recommended distance (3 times the effective height of the screen).
Recommended distance
TH-65VX300ER: 2.4 m
When the top and bottom area of the screen is blackened, such as movies, view the screen at a distance
3 times further than the height of the actual image. (That makes the distance closer than above recommended
figure.)
3D Eyewear Use
Before using the 3D Eyewear, ensure no breakable objects surrounding the user to avoid any accidental
damage or injury.
Remove the 3D Eyewear before moving around to avoid falling or accidental injury.
Always put the 3D Eyewear in the case (supplied) after use.
Use the 3D Eyewear only for the intended purpose and nothing else.
Do not use 3D Eyewear in the condition of high temperature.
Do not use if the 3D Eyewear is physically damaged.
Do not use any devices that emit the infrared signals near the 3D Eyewear, as this may cause the 3D Eyewear
false operations.
Do not use devices (such as mobile phones or personal transceivers) that emit strong electromagnetic waves
near the 3D Eyewear as this may cause the 3D Eyewear to malfunction.
Stop using the 3D Eyewear immediately if a malfunction or fault occurs.
Stop using the 3D Eyewear immediately if you experience any redness, pain, or skin irritation around the nose
or temples.
In rare cases, the materials used in the 3D Eyewear may cause an allergic reaction.
Lithium Battery
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
7
Accessories
Accessories Supply
Check that you have the accessories and items shown
Operating Instruction book
CD-ROM
(Operating
instructions)
Power supply cord
Remote Control
Transmitter
N2QAYB000688
Clamper × 1
TMME289
Batteries for the Remote
Control Transmitter
(R6 (UM3) Size × 2)
Ferrite core × 2
J0KG00000014
Use the Ferrite cores to comply
with the EMC standard.
(see page 10)
Remote Control Batteries
Requires two R6 batteries.
1. Pull and hold the hook, then open
the battery cover.
2. Insert batteries - note correct
polarity ( + and -).
Close
Open
“R6 (UM3)” size
Hook
Helpful Hint:
For frequent remote control users, replace old batteries with Alkaline
batteries for longer life.
Precaution on battery use
Incorrect installation can cause battery leakage and corrosion that will damage the remote control transmitter.
Disposal of batteries should be in an environment-friendly manner.
Observe the following precaution:
1. Batteries shall always be replaced as a pair. Always use new batteries when replacing the old set.
2. Do not combine a used battery with a new one.
3. Do not mix battery types (example: “Zinc Carbon” with “Alkaline”).
4. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.
5. Battery replacement is necessary when remote control acts sporadically or stops operating the Plasma Display set.
6. Do not burn or breakup batteries.
Batteries must not be exposed to excessive heat such as sunshine, fire or the like.
8
Connections
Speaker connection
When connecting the speakers, be sure to use only the optional accessory speakers.
Refer to the speaker’s Installation Manual for details on speaker installation.
Speakers (Optional accessories)
2
1
Red
Red
Black
Black
While pressing the lever,
insert the core wire.
Return the lever.
AC cord connection and fixing, cable fixing
AC cord fixing
Unplug the AC cord
Plug the AC cord into the display unit.
Plug the AC cord until it clicks.
Note:
Make sure that the AC cord is locked on
both the left and right sides.
Unplug the AC cord pressing the
two knobs.
Note:
When disconnecting the AC cord, be
absolutely sure to disconnect the AC
cord plug at the socket outlet first.
Using the clamper
Secure any excess cables with clamper as required.
Note:
One clamper is supplied with this unit. In case of securing cables at three positions, please purchase it separately.
1 Attach the clamper
To remove from the unit:
2 Bundle the cables
To loosen:
hole
snaps
Insert the clamper
in a hole.
Keep pushing
both side
snaps
hooks
Set the
tip in the
hooks
knob
Keep
pushing
the knob
9
Connections
Video equipment connection
3D IR TRANSMITTER:
Connect the 3D IR
TRANSMITTER (optional
accessory).
SERIAL:
Control the Plasma Display
by connecting to PC.
SLOT: Terminal board (optional
accessories) insert slot
Note:
(see page 3)
The right side slot is for factory use only.
The terminal board with 1-slot width
does not function when installed in the
right side slot.
LAN: Connect to a
network to control
the unit.
Terminals are on the bottom
side of the Plasma Display.
COMPONENT/RGB IN: Component/RGB Video Input
Terminal
AV IN (HDMI): HDMI Input Terminal
Connect to video equipment such as VCR or DVD
player.
PC IN: PC Input Terminal
Connect to video terminal
of PC or equipment with Y,
PB(CB) and PR(CR) output.
How to use the Ferrite core
COMPUTER
Display (main unit, rear)
Less
than
10 cm
LAN cable
(not supplied)
Ferrite core
(supplied)
Installing the Ferrite core
Ferrite core
(supplied)
Less
than
10 cm
Open
Pull back the tabs
(in two places)
Wind the cable
twice
Press the cable
through and close
Hub or broadband router
Notes:
• Make sure the broadband router or hub supports 10BASE-T/100BASE-TX.
• To connect a device using 100BASE-TX, use “category 5” LAN cable.
• Touching the LAN terminal with a statically charged hand (body) may cause damage due to its discharge.
Do not touch the LAN terminal or a metal part of the LAN cable.
• For instructions on how to connect, consult your network administrator.
10
Power On / Off
Connecting the AC cord plug to the Plasma Display.
Connecting the plug to the Wall Outlet
Notes:
• Main plug types vary between countries. The power
plug shown at right may, therefore, not be the type
fitted to your set.
• When disconnecting the AC cord, be absolutely
sure to disconnect the AC cord plug at the socket
outlet first.
INPUT
MENU
OK
Power
Indicator
Remote Control
Sensor
Press the Power switch on the Plasma Display to
turn the set on: Power-On.
INPUT
MENU
Power Indicator: Green
Press the
button on the remote control to turn the Plasma Display off.
Power Indicator: Red (standby)
Press the
button on the remote control to turn the Plasma Display on.
Power Indicator: Green
Turn the power to the Plasma Display off by pressing the
unit, when the Plasma Display is on or in standby mode.
switch on the
Note:
During operation of the power management function, the power indicator turns
orange in the power off state.
11
Power On / Off
When first switching on the unit
Following screen will be displayed when the unit is turned on for the first time.
Select the items with the remote control. Unit buttons are invalid.
OSD Language
English (UK)
Deutsch
OSD Language
Français
1
2
Italiano
Select the language.
Español
ENGLISH (US)
Set.
Русский
Day/Time Setup
1
Select “Day” or “Time”.
2
Setup “Day” or “Time”.
Day/Time Setup
Time MON 99:99
Set
Day
Time
1
Select “Set”.
2
Set.
MON
99:99
Day/Time Setup
Time MON 99:99
Set
Day
PRESENT TIME OF DAY
Time
PRESENT
TIME OF DAY
MON
99:99
99:99
No activity power off
1 To enable No activity power off, select “Enable”.
No activity power off
Display will be turned off
when there is no activity for 4 hours.
Enable
Disable
2 Set.
1 Select “Yes” or “No”.
If selecting “Enable”, a
confirmation window appears.
No activity power off
Are you sure
you want to enable ’No activity power off’ ?
Yes
2 Set.
Notes:
• Once the items are set, the screens won't be displayed when switching on the unit next time.
• After the setting, the items can be changed in the following menus.
OSD Language
Day/Time Setup
No activity power off
12
No
Power On / Off
Power ON warning message
The following message may be displayed when turning the unit power ON:
3D Safety Precautions
When 3D images will be viewed by unspecified number of
people or used for commercial applications, someone in
authority should convey the following precautions.
These precautions should be followed in the home as well.
3D Viewing/ 3D Content/ Viewing distance/ 3D Eyewear
recommendations
- To enjoy 3D images safely and comfortably, please
read the Operating Instructions fully.
Activate 3D Safety Precautions if you deliver 3D images to unspecified audiences for business or other purposes.
If “3D Function” in “3D Settings” is set to “On”, a warning message is displayed every time the power is
turned ON.
No activity power off Precautions
’No activity power off’ is enabled.
If “No activity power off” in Setup menu is set to “Enable”, a warning message is displayed every time
the power is turned ON.
These message displays can be set with the following menu: Options menu
3D Safety Precautions
Power On Message
13
Selecting the input signal
Press to select the input signal to be played back from the equipment
which has been connected to the Plasma Display.
INPUT
COMPONENT
Component or RGB input terminal in COMPONENT/RGB IN.*
HDMI1
HDMI input terminals in HDMI 1 to HDMI 2.
HDMI2
PC input terminal in PC IN.
PC
* “COMPONENT” may be displayed as “RGB” depending on the
setting of “Component/RGB-in select”.
When an optional Terminal Board is installed:
INPUT
SLOT INPUT
COMPONENT
HDMI1
Input terminal in Terminal Board
When a dual input Terminal Board is installed, “SLOT INPUT A” and “SLOT INPUT B”
are displayed.
HDMI2
PC
Using dedicated buttons for input selection
Press to select HDMI signal terminals in HDMI 1 or HDMI 2.
Press to select component or RGB signal terminal in COMPONENT/RGB IN.
Press to select PC signal terminal in PC IN.
Press to select Input terminal in Terminal Board.
For dual input Terminal Board, you can select either input terminal
using A or B button.
Notes:
• Selecting is also possible by pressing the INPUT button on the unit.
• Select to match the signals from the source connected to the component/RGB
input terminals.
• Image retention (image lag) may occur on the plasma display panel when a still
picture is kept on the panel for an extended period. The function that darkens
the screen slightly is activated to prevent image retention, but this function is not
the perfect solution to image retention.
14
INPUT
MENU
ENTER/■
INPUT
MENU
ENTER/■
Basic Controls
Main Unit
INPUT button
(Input signal selection)
(see page 14)
When the menu screen is
displayed:
“▲” : press to move the cursor up
“▼” : press to move the cursor down
(see page 17)
Remote control
sensor
INPUT
Main Power On / Off Switch
MENU Screen ON / OFF
Each time the MENU button is pressed, the menu
screen will switch. (see page 17)
Normal Viewing
Setup
Sound
Pos./Size
Infrared transmitter for 3D Eyewear
Note:
Do not place any objects between the
transmitter and 3D Eyewear.
MENU
ENTER/■
Enter / Aspect
button
(see page 17)
Power Indicator
The Power Indicator will light.
• Power-OFF .... Indicator not illuminated (The unit will
still consume some power as long as
the power cord is still inserted into
the wall outlet.)
• Standby ........ Red
Orange (Depending on the type of
the function board installed, when the
power is supplied to the slot)
Orange (When “CONTROL I/F
SELECT” is set to “LAN”.)
• Power-ON ...... Green
• PC Power management (DPMS)
....................... Orange (With PC input signal.)
• No activity power off
....................... Red
When this function is set to “Enable”,
the power is turned off (standby)
automatically when there is no
operation of the Plasma Display for
4 hours.
Starting from 3 minutes before the
turn off, the remaining time will be
displayed.
Press any key to abort.
No activity power off 3min
15
Basic Controls
Remote Control Transmitter
Standby (ON / OFF) button
The Plasma Display must first be plugged
into the wall outlet and turned on at the power
switch (see page 11).
Press this button to turn the Plasma Display
On, from Standby mode. Press it again to turn
the Plasma Display Off to Standby mode.
LIGHT button
The remote control’s buttons illuminate.
AUTO SETUP button
Automatically adjusts the position/ size of
the screen.
HDMI buttons
Press to select HDMI 1 or HDMI 2 input.
(see page 14)
PICTURE button
EXIT button
Exits from Menu screen.
INPUT button
Press to select input signal sequentially.
(see page 14)
RECALL button
Press the “RECALL” button to display
the current system status.
1 Input label
2 Aspect mode
During 3D images
Profile name
NANODRIFT Saver operating
Mode of RGB/MONO Settings
Mode of HV Delay
3D Colour Compensation: Off
3 Off timer
The off timer indicator is displayed
only when the off timer has been set.
1
PC
4:3
Memory name: MEMORY2
NANODRIFT
R Off
H Delay
3D Colour Compensation Off
Off timer 90 min
ASPECT button
Press to adjust the aspect.
Numeric buttons
MEM. LOAD button
16
COMPO. button
Press to select Component or RGB
input. (see page 14)
SLOT buttons
Press to select SLOT Terminal Board.
(see page 14)
MENU button
Displays menu screen. (see page 17)
POS. /SIZE button
RETURN button (see page 17)
Press the RETURN button to return to
previous menu screen.
FUNCTION buttons
(see page 57, 62 on the CD-ROM)
OK button
Press to make selections.
Cursor buttons
3D
PC button
Press to select PC input. (see page 14)
2
3
VIDEO MENU button
Press to select Picture Mode.
Dynamic
Normal
Monitor
Cinema
EX.SCALER button
OFF TIMER button
The Plasma Display can be preset
to switch to stand-by after a fixed
period. The setting changes to 30
minutes, 60 minutes, 90 minutes
and 0 minutes (off timer cancelled)
each time the button is pressed.
30 min
60 min
90 min
0 min
When three minutes remain, “Off
timer 3 min” will flash.
The off timer is cancelled if a
power interruption occurs.
On-Screen Menu Displays
Remote Control
1 Display the menu screen.
Press
2 Select the menu.
2
Access
1
Select
Normalise
Setup
Picture Mode
Pos./Size
Contrast
Sound
Brightness
0
Sharpness
0
Press several times.
MENU
Each time the MENU button is pressed,
the menu screen will switch.
Normal Viewing
Sound
Pos. /Size
Setup
Monitor
White balance
Options
Unit
Warm
Advanced settings
Memory save
Memory load
The menu can be displayed directly by pressing
these buttons.
Memory edit
3 Select the item.
Select.
Normalise
Monitor
Picture Mode
Contrast
25
Brightness
0
Sharpness
5
White balance
Press.
Warm
Advanced settings
ENTER/■
Select
(Example: Picture menu)
4 Set.
Set.
Press.
Adjust
ENTER/■
5 Exit the menu.
Press several times.
Press
Press
MENU
to return to the previous menu.
Menu display list
Note: Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting.
Setup menu
Picture menu
Normalise
Picture Mode
Normal
Pos. /Size menu
3D Settings
Normalise
Signal
Waveform Monitor
Auto Setup
H-Pos
0
Normalise
Contrast
25
Brightness
0
0
6
Marker settings
RGB/MONO settings
H-Size
Colour
V-Pos
0
Hue
0
Screensaver
V-Size
0
Sharpness
5
Extended life settings
Input label
White balance
Normal
Advanced settings
Function Button Settings
On/Off Timer Setup
Day/Time Setup
Memory save
Memory load
0
Clock Phase
0
0
Sound Mode
Bass
Mid
Treble
Balance
Surround
Volume
1:1 Pixel Mode
Off
HV Delay
Off
Network Setup
Component/RGB-in select
RGB
Memory edit
see page 28-39 on the
CD-ROM
Dot Clock
Clamp Position
Sound menu
External scaler mode
Off
Power save
Standby save
PC Power management
Off
On
Off
No signal power off
Disable
No activity power off
Enable
OSD design
Type1
OSD position
Upper left
OSD Language
Normal
0
0
0
0
Off
1
see page 40 on the
CD-ROM
see page 25-27 on the
CD-ROM
English (UK)
see page 41-59 on the
CD-ROM
17
Specifications
Product Fiche
Manufacturer
Model No.
Energy efficiency class
Visible screen size (diagonal)
On mode average power consumption
Annual energy
consumption
Standby power consumption
Off mode power consumption
Display resolution
Power Source
Rated power consumption
Standby power consumption
Plasma Display panel
Screen size
(No.of pixels)
Operating condition
Temperature
Humidity
Applicable signals
Scanning format
PC signals
Connection terminals
LAN
AV IN
HDMI 1-2
COMPONENT/RGB IN
Y/G
PB/CB/B
PR/CR/R
AUDIO L-R
PC IN
Panasonic Corporation
TH-65VX300ER
D
165 cm / 65 inches
390 W
569 kWh/year
Energy consumption XYZ kWh per year, based on the power consumption of the television operating
4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
0.50 W
0.30 W
1,920 (W) × 1,080 (H)
220 - 240 V AC, 50/60 Hz
450 W
Save off 0.8 W, Save on 0.5 W
Drive method : AC type
65-inch, 16:9 aspect ratio
1,434 mm (W) × 806 mm (H) × 1,645 mm (diagonal)
2,073,600 (1,920 (W) × 1,080 (H)) [5,760 × 1,080 dots]
0 °C - 40 °C
20 % - 80 %
525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 750 (720) / 60p · 50p, 1125 (1080) / 60i · 60p · 50i ·
50p · 24p · 25p · 30p · 24sF, 1250 (1080) / 50i
VGA, SVGA, XGA, SXGA
UXGA ···· (compressed)
Horizontal scanning frequency 15 - 110 kHz
Vertical scanning frequency 48 - 120 Hz
RJ45 10BASE-T/100BASE-TX, compatible with PJLink™
TYPE A Connector × 2
RCA Pin jack
RCA Pin jack
RCA Pin jack
RCA Pin jack × 2
High-Density Mini D-sub 15 Pin
VBS (use HD port)
AUDIO
SERIAL
3D IR TRANSMITTER
3D SHUTTER OUT
DC 8V OUT
EXT SP
Dimensions (W × H × D)
Mass (weight)
main unit only
with speakers
with sync 1.0 Vp-p (75 Ω)
0.7 Vp-p (75 Ω)
0.7 Vp-p (75 Ω)
0.5 Vrms
Y or G with sync 1.0 Vp-p (75 Ω)
Y or G without sync 0.7 Vp-p (75 Ω)
PB/CB/B: 0.7 Vp-p (75 Ω)
PR/CR/R: 0.7 Vp-p (75 Ω)
HD/VD: 1.0 - 5.0 Vp-p (high impedance)
with picture 1.0 Vp-p (high impedance)
without picture 0.3 Vp-p (high impedance)
0.5 Vrms
Stereo mini jack (M3) × 1
External Control Terminal
D-sub 9 Pin
RS-232C compatible
for 3D IR TRANSMITTER
M3 jack × 1
Centre plus, for EIAJ 4mm plug
8 Ω, 20 W [10 W + 10 W] (10 % THD)
1,554 mm × 924 mm × 94 mm
approx. 60.0 kg net
approx. 66.0 kg
Notes:
• Design and specifications are subject to change without notice. Mass and dimensions shown are approximate.
• This equipment complies with the EMC standards listed below.
EN55022, EN55024, EN61000-3-2, EN61000-3-3.
• Product fiche: Based on (EU) No.1062/2010 ANNEX III
• ENERGY LABEL attached on the back cover is only for European countries.
18
Declaration of Conformity
with the requirements of Technical Regulation on the Restriction Of the use of certain Hazardous
Substances in Electrical and Electronic Equipment
(adopted by Order No.1057 of Cabinet of Ministers of Ukraine)
The Product is in conformity with the requirements of Technical Regulation on the Restriction Of the use of certain
Hazardous Substances in electrical and electronic equipment (TR on RoHS).
The content of hazardous substance with the exemption
of the applications listed in the Annex No.2 of TR on RoHS:
1.
2.
3.
4.
5.
6.
Lead (Pb) – not over 0.1wt % or 1000wt ppm;
Cadmium (Cd) – not over 0.01wt % or 100wt ppm;
Mercury (Hg) – not over 0.1wt % or 1000wt ppm;
Hexavalent chromium (Cr6+) – not over 0.1wt % or 1000wt ppm;
Polybrominated biphenyls (PBBs) – not over 0.1wt % or 1000wt ppm;
Polybrominated diphenyl ethers (PBDEs) – not over 0.1wt % or 1000wt ppm.
19
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used
electrical and electronic products and batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to
applicable collection points, in accordance with your national legislation and the Directives
2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and
prevent any potential negative effects on human health and the environment which could otherwise
arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your
local municipality, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national
legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for
further information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these items, please
contact your local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the
requirement set by the Directive for the chemical involved.
<Software Information for This Product>
This product has software installed partially licensed under the Free BSD LICENSE.
Free BSD LICENSE regulations under the above specifications are as follows:
(These regulations are set by the third party; therefore the original (English) regulations are stated.)
Copyright © 1980, 1986, 1993
The Regents of the University of California. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the
following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following
disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement:
This product includes software developed by the University of California, Berkeley and its contributors.
4. Neither the name of the University nor the names of its contributors may be used to endorse or promote products
derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS
OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL
THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Customer’s Record
The model number and serial number of this product can be found on its rear panel. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your
purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.
Model Number
Web Site : http://panasonic.net
© Panasonic Corporation 2011
Serial Number
Printed in Czech Republic
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
