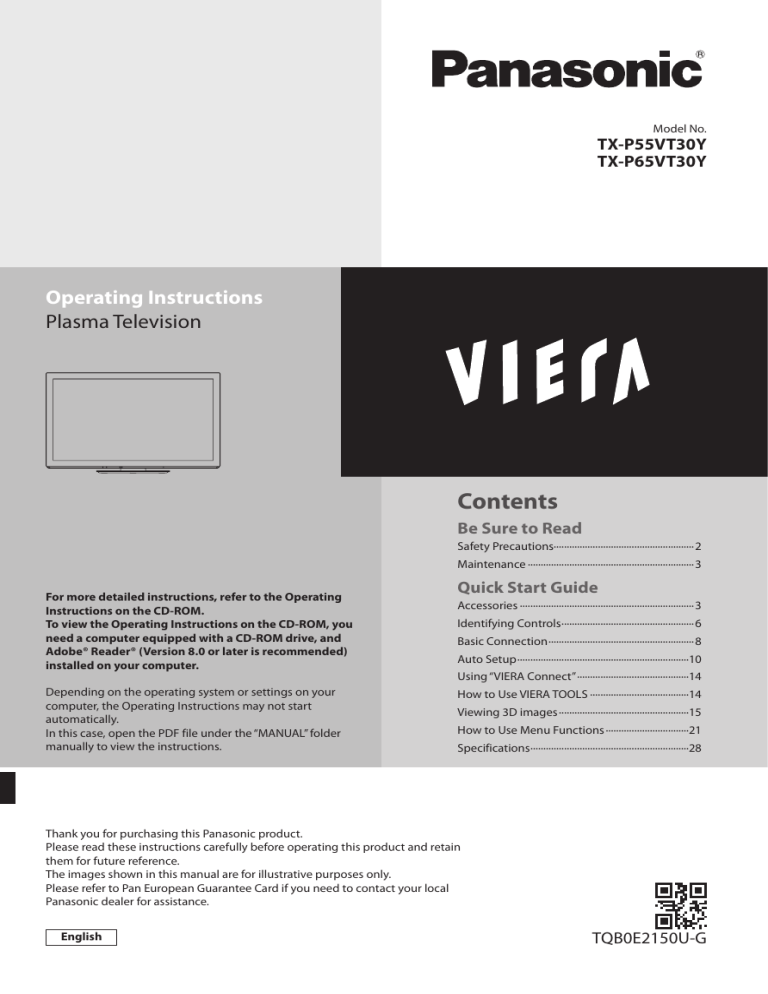

Model No.
TX-P55VT30Y
TX-P65VT30Y
Operating Instructions
Plasma Television
Contents
Be Sure to Read
Safety Precautions······················································2
Maintenance ································································3
For more detailed instructions, refer to the Operating
Instructions on the CD-ROM.
To view the Operating Instructions on the CD-ROM, you
need a computer equipped with a CD-ROM drive, and
Adobe® Reader® (Version 8.0 or later is recommended)
installed on your computer.
Quick Start Guide
Accessories ···································································3
Identifying Controls ···················································6
Basic Connection ························································8
Auto Setup ··································································10
Using “VIERA Connect” ···········································14
Depending on the operating system or settings on your
computer, the Operating Instructions may not start
automatically.
In this case, open the PDF file under the “MANUAL” folder
manually to view the instructions.
How to Use VIERA TOOLS ······································14
Viewing 3D images ··················································15
How to Use Menu Functions ································21
Specifications ·····························································28
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain
them for future reference.
The images shown in this manual are for illustrative purposes only.
Please refer to Pan European Guarantee Card if you need to contact your local
Panasonic dealer for assistance.
English
TQB0E2150U-G
Safety Precautions
Warning
Handling the mains plug and lead
the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause fire.)
• Insert
that the mains plug is easily accessible.
• Ensure
the earth pin on the mains plug is securely connected to prevent electrical shock.
• Ensure
• An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing
connection.
not touch the mains plug with a wet hand. (This may cause electrical shock.)
• Do
the mains lead. (A damaged lead may cause fire or electrical shock.)
• Do• Donotnotdamage
move the TV with the lead plugged in the socket outlet.
•
•
•
•
Do not place a heavy object on the lead or place the lead near a high-temperature object.
Do not twist the lead, bend it excessively, or stretch it.
Do not pull on the lead. Hold onto the mains plug body when disconnecting lead.
Do not use a damaged mains plug or socket outlet.
If you find any abnormality,
remove the mains plug
immediately!
AC 220-240 V
50 / 60 Hz
Power source
Do not expose to rain or excessive moisture
prevent damage which might result in electric shock
• This TV is designed to operate on AC 220-240 V, 50 / 60 Hz. • Toor fire,
do not expose this TV to rain or excessive moisture.
Safety Precautions
Do not remove covers and NEVER modify
the TV yourself
not remove the rear cover as live parts are accessible
• Do
when it is removed. There are no user serviceable parts
•
inside. (High-voltage components may cause serious
electrical shock.)
Have the TV checked, adjusted, or repaired at your local
Panasonic dealer.
Do not expose to direct sunlight and other
sources of heat
This TV must not be exposed to dripping or splashing
water and objects filled with liquid, such as vases, must
not be placed on top of or above the TV.
Do not insert foreign objects into the TV
not allow any objects to drop into the TV through the
• Do
air vents. (Fire or electrical shock may result.)
Do not place the TV on sloped or unstable
surfaces, and ensure that the TV does not
hang over the edge of the base
exposing the TV to direct sunlight and other sources • The TV may fall off or tip over.
• Avoid
of heat.
To prevent the spread
of fire, keep candles or
other open flames away
from this product at all
times
Use only the dedicated pedestals /
mounting equipment
an unapproved pedestal or other fixtures may make
• Using
the TV unstable, risking injury. Be sure to ask your local
Panasonic dealer to perform setup.
• Use approved pedestals (p. 4) / wall-hanging brackets.
Do not allow children to handle SD Card
with any small object, SD Cards can be swallowed by
• Asyoung
children. Please remove SD Card immediately after
use and store out of reach of children.
Caution
When cleaning the TV, remove the mains
plug
• Cleaning an energized TV may cause electrical shock.
2
Do not block the rear air vents
ventilation by newspapers, table cloths, curtains,
• Blocked
etc. may cause overheating, fire or electrical shock.
When the TV is not going to be used for a
long period of time, remove the mains plug
Do not expose your ears to excessive
volume from the headphones
TV will still consume some power even in the Off mode, • Irreversible damage can be caused.
• This
as long as the mains plug is still connected to a live socket
Do not apply strong force or impact to the
display panel
outlet.
Transport only in upright position
• This may cause damage resulting in injury.
the TV with its display panel facing upward or
• Transporting
The TV is heavy. Handle the TV by 2 or more
downward may cause damage to the internal circuitry.
people. Support as shown to avoid injury by
the TV tipping or falling.
Allow sufficient space around the TV for
radiated heat
using the
• When
pedestal, keep the space
Minimum distance
10
10
10
7
•
(cm)
between the bottom of
the TV and the surface
where the TV is set.
In case of using
Wall-hanging bracket,
follow the manual of it.
First, remove the mains plug from the socket outlet.
Display panel, Cabinet, Pedestal
Regular care :
Gently wipe the surface of the display panel, cabinet,
or pedestal by using a soft cloth to clean the dirt or
fingerprints.
For stubborn dirt :
Dampen a soft cloth with clean water or diluted neutral detergent
(1 part detergent to 100 parts water). Then wring the cloth and
wipe the surface. Finally, wipe away all the moisture.
Caution
not use a hard cloth or rub the surface too hard. This may cause scratches on the surface.
• Do
care not to subject the TV’s surfaces to water or detergent. A liquid inside the TV could lead to product failure.
• Take
care not to subject the surfaces to insect repellent, solvent, thinner or other volatile substances. This may degrade
• Take
surface quality or cause peeling of the paint.
surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch the surface
• The
with your fingernail or other hard objects.
not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. This may degrade
• Do
surface quality.
Safety Precautions | Maintenance | Accessories
Maintenance
Mains plug
Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may lead to fire or electrical shock.
Accessories
Remote Control
N2QAYB000593
•
Operating Instructions
Pan European Guarantee Card
Batteries for the
Remote Control (2)
R6
(p. 6)
•
Pedestal
(p. 4)
(TX-P55VT30Y)
Ferrite core (2)
(Large size)
(p. 9)
(TX-P65VT30Y)
Ferrite core
(Small size)
Use the Ferrite cores to comply with the EMC standard.
3
Wireless LAN Adaptor
and exclusive stand
(p. 9)
3D Eyewear set (2)
(p. 16)
Terminal adaptors
Satellite adaptor
(p. 8)
•
• RF(p.adaptor
8, 9)
adaptor
• SCART
(p. 8, 9)
• Composite adaptor
• Audio adaptor
• Optical digital audio adaptor
Clamper
(p. 8)
• COMPONENT adaptor
may not be placed all together. Take care not to throw them away unintentionally.
• Accessories
product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by young
• This
children accidentally. Keep these parts out of reach of young children.
■ Wireless LAN Adaptor
Caution
Be aware of the following limits before using the supplied Wireless LAN Adaptor.
To use the Wireless LAN Adaptor, an access point needs to be obtained.
Do not use the Wireless LAN Adaptor to connect to any wireless network (SSID∗) for which you do not have usage rights.
Such networks may be listed as a result of searches. However, using them may be regarded as illegal access.
∗SSID is a name for identifying a particular wireless network for transmission.
Do not subject the Wireless LAN Adaptor to high temperatures, direct sunlight or moisture.
Do not bend, or subject the Wireless LAN Adaptor to strong impacts.
Do not disassemble or alter the Wireless LAN Adaptor in any way.
Do not attempt to install the Wireless LAN Adaptor in any incompatible device.
Do not remove the Wireless LAN Adaptor from the TV’s USB port during operations.
Data transmitted and received over radio waves may be intercepted and monitored.
To avoid malfunctions caused by radio wave interference, keep the TV away from the devices such as other wireless LAN
devices, microwaves and the devices that use 2.4 GHz and 5 GHz signals when using the Wireless LAN Adaptor.
When noises occur due to the static electricity, etc., the TV might stop operating for the protection of the devices. In this case,
turn the TV Off with Mains power On / Off switch, then turn it On again.
Depending on the area, this Wireless LAN Adaptor may not be available.
Additional information for Wireless LAN Adaptor and access point may be on the following web site. (English only)
http://panasonic.jp/support/global/cs/tv/
•
•
Accessories
•
•
•
•
•
•
•
•
•
•
Attaching / removing the pedestal
Warning
Do not disassemble or modify the pedestal.
Otherwise the TV may fall over and become damaged, and personal injury may result.
•
Caution
Do not use any pedestal other than the one provided with this TV.
Otherwise the TV may fall over and become damaged, and personal injury may result.
Do not use the pedestal if it becomes warped or physically damaged.
If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest Panasonic dealer
immediately.
During set-up, make sure that all screws are securely tightened.
If insufficient care is taken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough
to support the TV, and it might fall over and become damaged, and personal injury may result.
Ensure that the TV does not fall over.
If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal injury may
result.
Two or more people are required to install and remove the TV.
If two or more people are not present, the TV may be dropped, and personal injury may result.
When removing the pedestal from the TV, do not remove the pedestal by the methods other than the specified
procedure. (p. 5)
Otherwise the TV and / or pedestal may fall over and become damaged, and personal injury may result.
•
•
•
•
•
•
4
TX-P55VT30Y
A Assembly screw (8)
C
B Pole (2)
L : TBL5ZA3107
R : TBL5ZA3108
•
•
M5 × 25
L
Base
TBL5ZX0059
•
R
TX-P65VT30Y
D Assembly screw (6)
F
M5 × 30
E
G Base
TBL5ZX0171
Pole (2)
TBL5ZA3125
•
•
H Allen wrench
Assembly screw (4)
M6 × 25
1
Assembling the pedestal
Use the assembly screws A / D to fasten the poles
B / F to the base C / G securely.
Make sure that the screws are securely tightened.
Forcing the assembly screws the wrong way will strip
the threads.
•
•
•
Securing the TV
Use the assembly screws A / E to fasten securely.
Tighten the four assembly screws loosely at first, then
tighten them firmly to fix securely.
Carry out the work on a horizontal and level surface.
•
•
A
/
E
Arrow mark
B- L
C
(TX-P65VT30Y)
Use the allen wrench
•
Hole for pedestal
installation
B-R
Front
H
Accessories
(TX-P55VT30Y)
“L” or “R” mark is stamped on the front of the
pole.
A
2
to tighten the screws.
D
H
C
/G
(View from the bottom)
F
Front
F
G
Removing the pedestal from the TV
Be sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV.
1 Remove the assembly screws A /
2 Pull out the pedestal from the TV.
3 Remove the assembly screws A /
E
from the TV.
D
from the pole.
5
Identifying Controls
Remote Control
1
2
3
4
5
6
7
15
8
21
9
22
15 Input mode selection
3 [Main Menu]
16 Direct TV Recording
• Switches TV On or Off standby
2 3D button
to the viewing mode
• Switches
between 2D and 3D
16
17
18
19
20
to access Picture, Sound,
• Press
Timer and Setup Menus
• Changes aspect ratio
5 Light
Lights the buttons (numeric,
• sound
mute, last view, volume,
channel) for about 5 seconds
6 [VIERA Link Menu]
7 Information
24
25
channel and programme
• Displays
information
8 OK
selections and choices
• Confirms
after selecting channel
• Press
positions to quickly change
12
Identifying Controls
• Displays the Channel List
9 [Option Menu]
Easy optional setting for viewing,
• sound,
etc.
27
14
programme immediately
• Records
in DVD Recorder / VCR with Q-Link
17 TV Guide
18 [VIERA Connect]
VIERA Connect home
• Displays
screen
19 VIERA TOOLS
some special feature
• Displays
icons and accesses easily
20 Exit
to the normal viewing
• Returns
screen
21 Cursor buttons
• Makes selections and adjustments
to the previous menu
• Returns
/ page
22 Return
channel
26
13
- switches DVB-S / DVB-C /
• TV
DVB-T / Analogue mode
- switches to AV input mode
• AV
from Input Selection list
or VIERA Link connection
4 Aspect
23
10
11
1 Standby On / Off switch
23 Coloured buttons
•
10 Teletext
• Switches to teletext mode
• Displays subtitles
12 Numeric buttons
Changes channel and teletext
• pages
characters
• Sets
in Standby mode, switches
• When
TV On (Press for about 1 second)
11 Subtitles
28
24
25
26
13 Sound Mute
• Switches sound mute On or Off
14 Volume Up / Down
(red-green-yellow-blue)
Used for the selection, navigation
and operation of various
functions
Hold
Freeze / unfreeze picture
Holds the current teletext page
(teletext mode)
Index
Returns to the teletext index page
(teletext mode)
Last view
Switches to previously viewed
channel or input mode
Channel Up / Down
Connected equipment operations
27
28
•
•
•
•
■ Installing / removing remote’s batteries
1
Caution
Pull open
Hook
2
Close
installation may cause battery leakage and corrosion, resulting
• Incorrect
in damage to the remote control.
not mix old and new batteries.
• Do
not mix different battery types (such as alkaline and manganese
• Do
batteries).
not use rechargeable (Ni-Cd) batteries.
• Do
not burn or breakup batteries.
• Do
Batteries must not be exposed to excessive heat such as sunshine, fire or
the like.
Note the correct
polarity (+ or -)
6
• Do not disassemble or modify the remote control.
TV
5
1
6
7 Changes the input mode
8 Mains power On / Off switch
to switch the mains power.
• Use
If you turned the TV Off during Standby mode by the
remote control last time, the TV will be in Standby
mode when you turn the TV On with Mains power On
/ Off switch.
7
2
12
3
9 Remote control signal receiver
not place any objects between the TV remote
• Do
control signal receiver and remote control.
10 C.A.T.S. (Contrast Automatic Tracking System)
4
8
9
10 11
sensor
Senses brightness to adjust picture quality when [Eco
Mode] in the Picture Menu is set to [On] (p. 22)
•
11 Power and Timer LED
1
2
3
4
: Standby
• Red
Green : On
CI slot
SD Card slot
USB 3 port
HDMI1 - 4 terminal
5 Function select
/ [Contrast] / [Brightness] / [Colour] /
• [Volume]
[Sharpness] / [Tint] (NTSC signal) / [Bass]∗ / [Treble]∗ /
•
12 Infrared transmitter for 3D Eyewear
not place any objects between the transmitter
• Do
and 3D Eyewear.
6 Channel Up / Down, Value change (when using the F
button), Switching the TV On (press either button for
about 1 second when in Standby mode)
Using the On Screen Displays - Operation guide
Identifying Controls
[Balance] / [Auto Setup]
∗[Music] or [Speech] mode in the Sound Menu
Orange : Timer Programming On
Orange (flash) :
Recording of Timer Programming, Direct TV
Recording or One Touch Recording in progress
Red with orange flash :
Standby with Timer Programming On, Direct TV
Recording or One Touch Recording
The LED blinks when the TV receives a command
from the remote control.
Many features available on this TV can be accessed via the On Screen Display menu.
Operation guide
How to use remote control
Operation guide will help you to operate by using the
remote control.
Example : [Sound Menu]
Main Menu
Sound
Timer
Setup
Mode
Bass
Treble
Balance
Headphone Volume
Surround
Auto Gain Control
Volume Correction
Speaker Distance to Wall
Select
EXIT
Change
Open the main menu
1/2
Move the cursor / select the menu item / select from a
range of options
0
0
0
11
Move the cursor / adjust levels / select from a range of
options
Music
Off
Off
0
Over 30cm
Selects the basic sound mode.
RETURN
Page up
Page down
Access the menu / store settings after adjustments have
been made or options have been set
Return to the
previous menu
Exit the menu system
and return to the normal
viewing screen
Operation guide
Auto power standby function
The TV will automatically go to Standby mode in the following conditions :
• no signal is received and no operation is performed for 30 minutes in Analogue TV mode
• [Off Timer] is active in the Timer Menu (p. 24)
• no operation is performed for the period selected in [Auto Standby] (p. 24)
This function does not affect the recording of Timer Programming, Direct TV Recording and One Touch Recording.
•
7
Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
There are some restrictions on placement for viewing 3D images. For details (p. 15, 20)
Example 1
Connecting dish or aerial
TV only
To ensure your satellite dish is correctly installed, please consult your local dealer.
Also please consult the received satellite broadcasting companies for details.
Rear of the TV
•
•
Satellite dish
For digital satellite broadcasts
Terrestrial aerial
Satellite cable
Satellite adaptor
(supplied)
For digital cable, digital terrestrial and analogue
broadcasts
Cable
•
AC 220-240 V
50 / 60 Hz
RF cable
RF adaptor
(supplied)
Mains lead
Basic Connection
■ Clamper (Standard accessory / Attached with the mains lead)
Attach the clamper
Bundle the cables
To remove from the TV :
To loosen :
hole
snaps
Insert the
clamper in a
hole
hooks
Set the
tip in the
hooks
Keep pushing
both side
snaps
knob
Keep pushing
the knob
not bundle the Satellite cable, RF cable and mains lead together (could cause distorted image).
• Do
cables with clampers as necessary.
• Fix
• When using the optional accessory, follow the option’s assembly manual to fix cables.
Example 2
Connecting DVD Recorder / VCR and Player
TV, DVD Recorder / VCR and Player
Rear of the TV
Fully wired HDMI
compliant cable
Player /
3D-compatible player
SCART adaptor
(supplied)
AC 220-240 V
50 / 60 Hz
Terrestrial
aerial
Cable
Mains lead
8
Fully wired SCART cable
RF adaptor
(supplied)
RF cable
RF OUT
RF cable
RF IN
DVD Recorder or VCR
Example 3
Connecting DVD Recorder / VCR and Set top box
TV, DVD Recorder / VCR and Set top box
Rear of the TV
Cable
Fully wired HDMI
compliant cable
Set top box
SCART adaptor
(supplied)
Terrestrial
aerial
AC 220-240 V
50 / 60 Hz
RF cable
Mains lead
Fully wired
SCART cable
Fully wired
SCART cable
RF adaptor
(supplied)
RF cable
RF OUT
RF IN
DVD Recorder or VCR
■ Connecting to the network environment (Network connections)
•
•
•
Wireless LAN Adaptor and exclusive stand
(supplied)
Insert the Wireless LAN Adaptor to the stand straightly and
completely.
Connect to the USB 1 or 2 port.
•
•
Internet
environment
Basic Connection
To enable the network service functions (VIERA Connect, etc.), you need to connect the TV to a broadband network
environment.
If you do not have any broadband network services, please consult your retailer for assistance.
Connect with LAN cable (Wired connection) or Wireless LAN Adaptor (Wireless connection).
Setup of the network connection will start after the tuning (when first using the TV) (p. 11 - 13)
Wireless connection
Rear of the TV
Access point
Wired connection
Ferrite core - Large size (supplied)
Less
than
10 cm
LAN cable
Installing the Ferrite core
Less
than
10 cm
Internet
environment
Pull back the tabs
(in two places)
Wind the cable
twice
Press the cable
through and close
Note
watch 3D contents (p. 15)
• ToConnect
to the TV’s AV1 for a DVD Recorder / VCR supporting Q-Link.
• For HDMI-compatible
equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by using HDMI
• cable.
also read the manual of the equipment being connected.
• Please
the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor. Otherwise,
• Keep
distortion of image / sound may occur or operation of other equipment may be interfered.
9
Auto Setup
Search and store TV channels automatically.
These steps are not necessary if the setup has been completed by your local dealer.
Please complete connections (p. 8, 9) and settings (if necessary) of the connected equipment before starting Auto Setup. For
details of settings for the connected equipment, read the manual of the equipment.
•
•
1
Plug the TV into mains socket and switch On
2
Select the language
3
a few seconds to be displayed
• Takes
the red LED shows on the TV, press the Standby On / Off switch on the remote
• Ifcontrol
for about 1 second.
Menüsprache
Deutsch
Dansk
English
Svenska
Français
Norsk
Italiano
Suomi
Español
Türkçe
Português
Еλληνικά
Nederlands
Srpyski
Hrvatski
Slovenščina
Latviešu
eesti keel
Lietuvių
select
Country
Auto Setup
Denmark
Sweden
Norway
Finland
Luxembourg
Belgium
Netherlands
Turkey
Greece
Poland
Czech
Hungary
Slovakia
Slovenia
Croatia
Estonia
Lithuania
Others
set
•
Depending on the country you select,
select your Region or store the Child LockPIN number (“0000” cannot be stored) by
following the on screen instructions.
Select the mode you want to tune
TV Signal Selection
DVB-S
DVB-C
DVB-T
Analogue
Start Auto Setup
5
set
Select your country
Germany
Austria
France
Italy
Spain
Portugal
Switzerland
Malta
Andorra
4
select
Polski
čeština
Magyar
Slovenčina
Български
Română
select
tune / skip tuning
: tune (search for the available channels)
: skip tuning
Select [Start Auto Setup]
TV Signal Selection
DVB-S
DVB-C
DVB-T
Analogue
Start Auto Setup
select
access
Setup will start to search for TV channels and store them.
• Auto
The stored channels and sorted channel order vary depending on the country, area,
broadcasting system and conditions of signal reception.
Auto Setup screen varies depending on the country you select.
1 DVB-S Search Mode
Search Mode
Free Channels
All Channels
select mode
set
10
2 DVB-S Satellite Search
DVB-S Auto Setup
Satellite
Progress
This will take up to 40 minutes.
Checking LNB2
0%
Satellite
Astra 19.2°E
Hot Bird 13°E
Press EXIT to skip Satellite installation
Searching Satellite
100%
5
3 [DVB-S Auto Setup]
4 [DVB-C Network Settings]
DVB-S Auto Setup
Satellite
Astra 19.2° E
0%
Progress
This will take about 30 minutes.
No.
Channel Name
Type
CBBC Channel
1
Free TV
BBC Radio Wales
2
Free TV
E4
3
Free TV
Free TV: 3
Pay TV: 0
100%
Quality
100
100
100
on the country you select, select your cable provider
• Depending
beforehand by following the on screen instructions.
DVB-C Network Settings
Frequency
Network ID
Auto
Auto
Start Auto Setup
Radio: 0
select [Start Auto Setup]
Searching
access
Normally set [Frequency] and [Network ID] to [Auto].
If [Auto] is not displayed or if necessary, enter [Frequency] and [Network
ID] specified by your cable provider with numeric buttons.
5 [DVB-C Auto Setup]
6 [DVB-T Auto Setup]
DVB-C Auto Setup
DVB-T Auto Setup
0%
Progress
This will take about 3 minutes.
No.
Channel Name
CBBC Channel
1
BBC Radio Wales
2
E4
3
Free TV: 3
100%
Type
Free TV
Free TV
Free TV
Pay TV: 0
Searching
Quality
100
100
100
This will take about 3 minutes.
CH
Channel Name
CBBC Channel
62
BBC Radio Wales
62
E4
62
62
Cartoon Nwk
Free TV: 4
Radio: 0
CH 5
Progress
Pay TV: 0
Searching
69
Type
Free TV
Free TV
Free TV
Free TV
Quality
100
100
100
100
Radio: 0
on the country you select, the channel selection screen will
• Depending
be displayed after DVB-T Auto Setup if multiple channels have the same
logical channel number. Select your preferred channel or exit the screen
for automatic selections.
7 [Analogue Auto Setup]
8 Preset Download
Analogue Auto Setup
CH 2
78 CC 1
41
Channel Name
If Q-Link, VIERA Link or similar technology compatible recorder is
connected, channel, language, country / region settings are automatically
downloaded to the recorder.
Sending Preset Data
Please wait!
0%
Analogue: 2
100%
Remote control unavailable
Searching
downloading has failed, you can download later through the Setup
• IfMenu.
[Download] (p. 25)
6
Auto Setup
Scan
This will take about 3 minutes.
CH
CH 29
CH 33 BBC1
Setup the network connection
Setup the network connection to enable the network service functions such as VIERA Connect, etc. (p. 14).
To setup the wireless connection, use the Wireless LAN Adaptor (supplied). (p. 4)
Please note that this TV does not support wireless public access points.
Ensure the network connections (p. 9) and network environment are completed before starting setup.
Select the network type
Network Setup
[Wired] “Wired connection” (p. 9)
[Wireless] “Wireless connection” (p. 9)
•
•
Select Wired or Wireless
Wired
Wireless Set later
select
access
• To setup later on or skip this step
Select [Set later] or
■ [Wired]
1. Select [Auto]
Acquire IP Address
Auto
select
access
2. Go to the next step 7
Connection Test
Manual
Check network cable connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection.
Automatically setup is done and the test of the network
connection starts.
To set manually, select [Manual] and set each item.
•
: succeeded
The test is successful and
the TV is connected to
the network.
: failed
Check the settings and
connections. And then
select [Retry].
(Press twice)
11
6
■ [Wireless]
Select the connection type
select
Connection Type
Please select network connection type.
access
Search for access point
WPS(Push button)
[Search for access point]
Access points found automatically are listed.
1. Select your desired access point
select
Available Access Points
No.
1
2
3
Wireless type
11n(2.4GHz)
11n(5GHz)
11n(5GHz)
SSID
Access Point A
Access Point B
Access Point C
Encrypt
Reception
access
: Encrypted access point
• To search access points again
the information of the
• For
highlighted access point
(yellow)
• To set manually
(red)
2. Access the encryption key input mode
Encryption Key Setting
Connection will be made with the following settings:SSID : Access Point A
Authentication type : WPA-PSK
Encryption type : TKIP
Please input the encryption key.
access point is not encrypted, the confirmation screen
• Ifwillthebeselected
displayed. It is recommended to select the encrypted access
point.
Encryption key
Auto Setup
3. Enter the encryption key of the access point
Set characters
Access Point Settings
Encryption key
select
A
B
C D
E
F
G H
U
V W X
Y
Z
a
b
c
d
e
f
g
h
i
u
v
w
x
y
z
(
)
+
0
I
J
K
L M N O
P
Q
1
2
3
4
5
6
7
8
9
j
k
l
m n
o
p
q
-
.
*
_
R
S
T
!
:
#
r
s
t
Store
set
• You can set characters by using numeric buttons.
4. Select [Yes]
Access Point Settings
select
set
Encryption key is set to:XXXXXXXX
Select 'Yes' to confirm.
Select 'No' to change.
Yes
No
the encryption key, select [No].
• ToIf there-enter
connection has failed, check the encryption key, settings
• and positions
of your access point. And then, follow the on screen
instructions.
5. After the access point setting is finished, perform the connection test
Connection Test
Check access point connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection.
: succeeded
The test is successful and the TV is connected to the
network.
: failed
Check the settings and connections. And then select
[Retry].
To set manually, select [Manual] and set each item.
•
6. Go to the next step 7
(Press twice)
12
6
[WPS(Push button)]
1. Press the WPS button on the access point until the light flashes
2. Connect the Wireless LAN Adaptor and the access point
WPS(Push button)
1) Please press the ‘WPS’ button on the access
point until its light flashes.
2) When the light is flashing select ‘Connect’ on
TV.
If you are unsure, please check the instruction
manual of the access point.
Connect
that your access point supports WPS for this setup.
• Ensure
: Wi-Fi Protected Setup™
• WPS
the connection has failed, check the settings and positions of your
• Ifaccess
point. And then, follow the on screen instructions.
3. After the access point setting is finished, perform the connection test
Connection Test
: succeeded
The test is successful and the TV is connected to the
network.
Check access point connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection.
: failed
Check the settings and connections. And then select
[Retry].
To set manually, select [Manual] and set each item.
4. Go to the next step 7
•
(Press twice)
7
Select [Home]
Select [Home] viewing environment to use in your home environment.
Please select your viewing environment.
Home
select
set
Shop
■ [Shop] viewing environment (for shop display only)
Select [Home] viewing environment to use in your home environment.
You can return to viewing environment selection screen at the stage of Shop confirmation screen and Automatic
Demo Off / On selection screen.
•
1 Return to viewing environment selection
2 Select [Home]
screen
Please select your viewing environment.
Home
Shop
You have selected shop mode
Automatic Demo
Off
Auto Setup
[Shop] viewing environment is the demonstration mode to explain main features of this TV.
Shop
select
set
On
To change viewing environment later on, you will need to initialise all settings by accessing Shipping Condition.
[Shipping Condition] (p. 27)
Auto Setup is now complete and your TV is ready for viewing.
If tuning has failed, check the connection of the satellite cable, RF cable, and then, follow the on screen instructions.
all channels [Auto Setup] (p. 25, 26)
• ToTo retune
the available TV mode later [Add TV Signal] (p. 25, 26)
• To add
• initialise all settings [Shipping Condition] (p. 27)
Do not display a still picture for a long time
This causes the image to remain on the plasma screen (“image retention”). This is not considered a malfunction and is not
covered by the warranty.
Typical still images :
Channel number and other logos
Image displayed in 4:3 mode
Video game
Computer image
•
•
•
•
To prevent image retention, contrast is lowered automatically after a few minutes if no signals are sent or no operations are
performed.
13
Using “VIERA Connect”
VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA CAST features greatly.
VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as
photos, videos, games, etc. from VIERA Connect home screen.
This TV has no full browser function and all features of websites may not be available.
•
1
Turn power on
for about 1 second
• Press
• Mains power On / Off switch should be On (p. 7).
Enjoy selected internet content with VIERA Connect.
Simply press the OK / INTERNET button
2
Every time you turn on the TV, VIERA Connect introduction
banner appears. The banner is subject to change.
Access VIERA Connect
While the banner is displayed
Using “VIERA Connect” | How to Use VIERA TOOLS
button design varies
• The
depending on the remote
or
Example :
Welcome to VIERA Connect™
VIERA Connect™ home screen is subject to change without notice.
The services through VIERA Connect™ are operated by their respective service providers, and service may
be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no
warranty for the content or the continuity of the services.
All features of websites or content of the service may not be available.
control.
on the usage conditions, it may take a
• Depending
while to read all the data.
might be displayed before VIERA Connect
• Messages
home screen.
Please read these instructions carefully and follow the
on screen instructions.
Example : VIERA Connect home screen
To go to the next level
[MORE]
To back to the previous level
[BACK]
Don’t show this message again
ENTER
Some content may be inappropriate for some viewers.
Some content may only be available for specific countries and may be presented in specific languages.
■ To exit from
VIERA Connect
•
•
set the VIERA
• ToConnect
instruction
banner display off
[VIERA Connect
Banner] (p. 27)
MORE
BACK
How to Use VIERA TOOLS
You can access some special features easily by using the VIERA TOOLS function.
1
Display icons of the feature
2
Select a feature
select
access
■ To return to TV
VIERA Link Control
or
3
14
Follow the operations of each feature
Viewing 3D images
You can enjoy viewing 3D images with contents or programmes corresponding to the 3D effect by wearing the 3D Eyewear
(supplied).
This TV supports [Frame Sequential]∗1, [Side by Side]∗2 and [Top and Bottom]∗3 3D formats.
∗1 : The 3D format that the images for the left and right eyes are recorded with the high definition quality and alternately
played back
∗2, ∗3 : Other available 3D formats
How to use the 3D Eyewear (p. 16)
How to view the 3D images (p. 19)
•
•
Danger
Prohibition of Heating
Do not put 3D Eyewear in fire, heat it or leave it in places that can get hot.
3D Eyewear contains a lithium-ion polymer rechargeable battery, so heating may result in combustion or rupture that may
cause burns or fire.
•
•
Warning
Small Parts
3D Eyewear contains small parts (ferrite core, etc.) and must be kept out of reach of small children to avoid accidental
ingestion.
•
Disassembly
Caution
To enjoy 3D images safely and comfortably, please read these instructions fully.
3D Eyewear
Do not drop, exert pressure on, or step on the 3D Eyewear.
Be careful of the tips of the frame when putting on the 3D Eyewear.
Always keep the 3D Eyewear in a cool, dry place.
Be careful not to trap a finger in the hinge section of the 3D Eyewear.
•
•
•
•
Viewing 3D Content
not use the 3D Eyewear if you have a history of over-sensitivity to light, heart problems, or have any other existing
• Do
medical conditions.
stop using the 3D Eyewear immediately, if you feel tired, are not feeling well or experience any other uncomfortable
• Please
sensation.
you set the effect by using [3D Adjustment], take into account that the vision of 3D images varies among different
• When
individuals.
an appropriate break after viewing a 3D movie.
• Take
a break of between 30 - 60 minutes after viewing 3D content on interactive devices such as 3D games or computers.
• Take
not to strike the TV screen or other people unintentionally. When using the 3D Eyewear the distance between the
• Beusercareful
and screen can be misjudged.
3D Eyewear must only be worn when viewing 3D content.
• The
you do not look toward the TV screen for a while when viewing 3D images, the 3D Eyewear may be turned off
• Ifautomatically.
you suffer from any eyesight problems (short / far-sighted, astigmatism, eyesight differences in left and right), please
• Ifensure
to correct your vision before using the 3D Eyewear.
using the 3D Eyewear if you can clearly see double images when viewing 3D content.
• Stop
not use the 3D Eyewear at a distance less than the recommended distance.
• Do
The recommended viewing distance is at least 3 times of image height.
Viewing 3D images
not disassemble or modify the 3D Eyewear.
• Do
• When disposing this 3D Eyewear, refer “Disposal” (p. 18) and disassemble properly for removing the rechargeable battery.
Charging
by connecting the included charging cable to the USB port of this TV. Charging with other devices may result in
• Charge
battery leakage, heating or rupture.
• Do not use the included charging cable for uses other than charging
TX-P55VT30Y : 2.1 m or more
TX-P65VT30Y : 2.4 m or more
When the top and bottom area of the screen is blackened, such as movies, view the screen at a distance at least 3 times
further than the height of the actual image. (That makes the distance closer than above recommended figure.)
15
3D Eyewear Use
Pay special attention when children are using the 3D Eyewear.
3D Eyewear should not be used by children younger than about 5 - 6 years old, as a guideline. All children must be fully
supervised by parents or guardians who must ensure their safety and health throughout the using 3D Eyewear.
Before using the 3D Eyewear, ensure no breakable objects surrounding the user to avoid any accidental damage or injury.
Remove the 3D Eyewear before moving around to avoid falling or accidental injury.
Always store the 3D Eyewear in the case supplied with the 3D Eyewear when not in use.
Use the 3D Eyewear only for the intended purpose and nothing else.
Do not use 3D Eyewear in the condition of high temperature.
Do not use if the 3D Eyewear is physically damaged.
Do not use any devices that emit the infrared signals near the 3D Eyewear, as this may cause the 3D Eyewear false operations.
Do not use devices (such as mobile phones or personal transceivers) that emit strong electromagnetic waves near the 3D
Eyewear as this may cause the 3D Eyewear to malfunction.
Do not expose the infrared receiver section to bright light such as direct sunshine and fluorescent light. The 3D image may
not be displayed correctly.
Stop using the 3D Eyewear immediately if a malfunction or fault occurs.
Stop using the 3D Eyewear immediately if you experience any redness, pain, or skin irritation around the nose or temples.
In rare cases, the materials used in the 3D Eyewear may cause an allergic reaction.
•
•
•
•
•
•
•
•
•
•
•
•
•
3D Eyewear
3D Eyewear set (2)
TY-EW3D2MA
3D Eyewear
N5ZZ00000223
•
•
• 3D Eyewear can be worn over vision correction glasses.
3D Eyewear case
Charging cable
Ferrite core
Viewing 3D images
Part names and functions
Infrared receiver
Receives infrared signals from the TV.
3D Eyewear is controlled by receiving infrared signals from the TV, which allows you to view 3D images.
If the eyewear stops receiving infra-red signal from the TV, the power automatically switches off after 5 minutes.
•
•
Note
• Do not soil the infrared receiver section or attach stickers etc. to it.
Lenses - Liquid Crystal Shutter
Controls the images for 3D viewing.
The left and right liquid crystal shutters are alternately opened and
closed in time with the images on the TV screen to achieve the 3D
effect.
•
Note
not apply pressure to or scratch the surface of the liquid crystal
• Do
shutter.
Indicator lamp
Lights or flashes during use or charging to show the status of the rechargeable
battery.
Power switch
Switches on the 3D Eyewear power.
The 3D Eyewear is turned on by setting the power switch to “ON”. Set the power switch
to “OFF” to turn off the 3D Eyewear.
Charging port
Connect the charging cable.
16
■ Battery status shown by indicator lamp
Indicator lamp status
Battery status
Lights for 2 seconds when turned on
Sufficient battery level
Flashes 5 times when turned on
Low battery level
Flashes once every 2 seconds when in use
Operating normally
Lights continuously when off
Charging
Lamp off
Power off
Attaching Ferrite Core
Be sure to attach the provided ferrite core to the charging cable to reduce interference or electrical noise.
1 Attach the ferrite core as close to USB connector of
2 Close the ferrite core until it clicks.
the charging cable as shown.
Mini USB connector
USB connector
USB connector
•
•
1 Turn the TV to Standby mode with the remote control.
2 Connect as shown in the diagram.
indicator lamp lights red, and charging starts.
• The
• When the indicator lamp turns off, charging is completed. (Approximately 2 hours required)
Viewing 3D images
Charging the 3D Eyewear
Preparations
Set [USB Charge in Standby] in the Setup menu to [On].
Switch off the 3D Eyewear.
3 After charging is completed, remove the charging cable.
USB connector
Mini USB connector
Note
• Do not turn the TV Off with Mains power On / Off switch during charging.
Storing and cleaning the 3D Eyewear
the supplied 3D Eyewear case to store the 3D Eyewear.
• Use
storing the 3D Eyewear in hot or highly humid locations.
• Avoid
a clean, soft and dry cloth to wipe the 3D Eyewear. Otherwise, dirt or dust may scratch the eyewear.
• Use
not use benzene, thinner, or wax on the 3D Eyewear, as doing so may cause the paint to peel off.
• Do
not submerge the 3D Eyewear in liquid such as water when cleaning.
• Do
the long period of disuse, full charge the 3D Eyewear once every 6 months to keep the battery performance.
• During
• As the liquid crystal shutters (lens) are fragile and easily broken, be very careful when cleaning them.
17
Disposal
A lithium-ion polymer rechargeable battery is built in to the 3D Eyewear. Please discard according to local regulations.
When disposing this 3D Eyewear, disassemble properly by following the procedure below, and remove the internal
rechargeable battery.
Do not disassemble this 3D Eyewear except when disposing of it.
Danger
As the rechargeable battery is specifically for this 3D Eyewear, do not use it for any other device.
Do not charge the removed battery.
Do not throw the battery in a fire, or apply heat to it.
Do not pierce the battery with a nail, subject it to an impact, or dismantle or modify it.
Do not let the wires touch any other metal or each other.
Do not carry or store the battery with a necklace, hair pin, or the like.
Do not charge, use, or leave the battery in a hot location such as near a fire or under the hot sun.
Doing so may cause the battery to generate heat, ignite, or rupture.
•
•
•
•
•
•
Warning
Do not place the removed battery, screws, and other items within reach of infants.
Accidental swallowing of such an item may have an adverse effect on the body.
In the event that you think such an item has been swallowed, consult a doctor immediately.
•
In the event of fluid leaking from the battery, take the following measure, and do not touch the fluid with bare hands.
Fluid entering into an eye may cause loss of eyesight.
Wash the eye with water immediately without rubbing it, and then consult a doctor.
Fluid getting on your body or clothes may cause inflammation of the skin or injury.
Sufficiently rinse with clean water, and then consult a doctor.
•
•
Viewing 3D images
■ How to remove the battery
Disassemble this 3D Eyewear after the battery has run out of power.
The following figures are intended to explain how to dispose of the 3D Eyewear, not for describing how to repair.
The 3D Eyewear cannot be repaired once it has been disassembled.
1 Fold the part of the
frame without the power
switch, and then remove
the two screws on the
inside of the hinge with a
precision Phillips (plus + )
screwdriver.
2 Bend the frame inwards
Side cover
and pull it off from the
side cover.
If it is difficult to
remove, insert a
flat-blade (minus - )
screwdriver and force
it off.
•
Frame
Screws
Battery
3 Remove the battery from
inside the side cover, and
cut the two wires one by
one with scissors.
Insulate the wire parts
of the removed battery
with cellophane tape.
•
Note
sufficient care when performing this work so as not to injure yourself.
• Take
• Do not damage or dismantle the battery.
18
To view the 3D images
You can enjoy the 3D images in a variety of ways.
(Frame Sequential, Side by Side and Top and Bottom are the supported 3D format.)
■ Playing back 3D-compatible Blu-ray disc (Frame Sequential format)
the 3D-compatible player via a fully wired HDMI compliant cable.
• Connect
mode is not switched automatically, select the input mode connected to the player.
• IfIf input
• you use the non 3D-compatible player, the images will be displayed on 2D mode.
■ 3D-supported broadcast
• Please consult the suppliers of contents or programmes for availability of this service.
■ 3D photos and 3D videos taken by 3D-compatible Panasonic products
• Available in Media Player and Network services
■ 2D images converted to 3D
Set to [2D
3D] mode in [3D Mode Selection]
1
Turn the 3D Eyewear on
2
Put on the 3D Eyewear
the 3D images
3 Watch
precautions will be displayed when you first watch the 3D image. Select [Yes] or [No] to continue to view 3D
• Safety
images.
4
Turn off the 3D Eyewear after using it
Changing 2D - 3D mode
You can easily change the viewing mode between 2D and 3D using the 3D button.
Select the mode
3D Mode Selection
select
2D
3D
2D
set
3D
Viewing 3D images
If you select [Yes], this message will be displayed again in the same condition after Mains power On / Off switch is next
turned On. Select [No] if you do not wish to display this message again.
of [3D Mode Selection] vary
• Items
depending on the condition.
[3D] / [2D] / [2D 3D] :
Displays the appropriate image that you desire without selecting 3D format
This mode may not work properly depending on the source image format. In this case, select the appropriate 3D format
manually.
•
■ To change 3D format manually
When the image is not changed properly using [3D], [2D] or [2D
During the above operation
(red)
3D] mode, use this manual setting.
Select the mode
3D Mode Selection (Manual)
Original
Frame Sequential - 3D
Frame Sequential - 2D
Side by Side - 3D
Side by Side - 2D
Top and Bottom - 3D
Top and Bottom - 2D
2D 3D
select
set
19
Table of images that can be seen for each [3D Mode Selection (Manual)] and the source image format
If the picture appears to be abnormal, refer to the table below to choose the correct 3D mode.
[3D Mode Selection]
Source
image format
[Original]
Frame Sequential
[Frame
Sequential
- 3D]
[Side by Side
- 3D]
[Top and
Bottom - 3D]
[2D
3D]
Normal 3D∗1
Side by Side (Full)
Normal 3D∗1
Side by Side
Normal 3D∗1
Top and Bottom
Normal 3D∗1
Normal format (2D)
Normal 3D
∗1 : When selecting [Frame Sequential - 2D], [Side by Side - 2D] or [Top and Bottom - 2D], the images will be displayed without
3D effect.
Depending on the player or broadcasts, the image may be different from the above illustrations.
•
Viewing 3D images
Available range for the 3D Eyewear
If the 3D Eyewear is placed outside the coverage area for about 5 minutes, the 3D Eyewear will be turned off automatically.
: Coverage area for using the 3D Eyewear
Approx.
3.2 m
35°
35°
Approx.
3.2 m
Approx. 3.2 m
Approx.
3.2 m
20°
20°
View from the top
Note
View from the side
cannot view the 3D images with the 3D Eyewear too far from the TV, because of the difficulty of receiving infrared signals
• You
from the TV.
range may be shortened depending on the obstacles between the infrared sensors on the TV and the 3D Eyewear, the
• The
dirt on the infrared sensors or the surrounding environment.
you do not look toward the TV screen for a while when viewing 3D images, the 3D Eyewear may be turned off automatically
• Ifeven
if in the coverage area.
are differences in the viewing range of the 3D Eyewear among individuals.
• There
• The 3D Eyewear may not operate correctly at the outside of the viewing range.
20
How to Use Menu Functions
Various menus allow you to make settings for the picture, sound, and other functions.
1
Display the menu
2
Select the menu
• Displays the functions that can be set (varies according to the input signal)
Example : [Picture Menu]
select
Main Menu
access
Sound
Timer
Setup
Select the item
3
Example : [Picture Menu]
1/2
select
60
0
30
5
0
access
Dynamic
How to Use Menu Functions
Viewing Mode
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance
Vivid Colour
Eco Mode
Warm
Off
Off
■ Choose from among alternatives
■ To return to TV at any
select
Cool
Normal
Warm
Colour Balance
store
■ Adjust using the slide bar
Sharpness
5
time
change
store
Moved
■ Go to the next screen
■ To return to the
Child Lock
Access
Displays the next screen
previous screen
access
■ Enter characters by free input menu
■ To change menu
pages
up
down
You can enter names or numbers freely for some items.
Set characters one by one
User input
Name
select
C D
E
F
U
A
V W X
Y
Z
a
b
B
c
d
e
f
G H
g
I
J
K
L M N O
S
T
0
1
2
3
4
5
6
7
8
9
!
:
#
h
i
j
k
l
m n
o
p
u
v
w
x
y
z
(
)
P
Q
q
R
r
s
t
+
-
.
*
_
Store
set
• You can set characters by using numeric buttons.
reset the picture settings only
• To [Reset
to Defaults] in the Picture Menu (p. 23)
reset the sound settings only
• To [Reset
to Defaults] in the Sound Menu (p. 24)
initialise all settings
• To [Shipping
Condition] in the Setup Menu (p. 27)
■ To reset the settings
21
Menu list
Menu
Item
How to Use Menu Functions
Viewing Mode
Basic picture mode [Dynamic] / [Normal] / [Cinema] / [THX (True Cinema)] / [Game] /
[Photo] / [Professional1] / [Professional2]
In each Viewing Mode and input, [Contrast], [Brightness], [Colour], [Sharpness], [Tint],
[Colour Balance], [Vivid Colour], [Eco Mode], [P-NR] and [3D-COMB] can be adjusted
and stored to suit your particular viewing requirement.
[Dynamic] :
Provides enhanced picture contrast and sharpness when viewing in a bright room.
[Normal] :
Recommended for viewing under normal ambient room lighting conditions.
[Cinema] :
For watching movies in a darkened room with the improved performance of contrast,
black and colour reproduction
[THX (True Cinema)] :
Precisely reproduces the original quality of the image without any revision.
Recommended for playback of THX disc (disc with [THX] logo)
THX mode is used to mirror the picture settings used by professional filmmakers,
faithfully reproducing the image quality of THX Certified movies.
[Game] :
Fast response signal specifically to provide suitable images for playing games
[Photo] :
Set [Reversal Film Effect] to [On] to provide the suitable image quality for photos
[Professional1 / 2] :
Allows you to set the professional picture settings in [Advanced Settings], [Lock
Settings] and [Copy Adjustment]
Contrast, Brightness,
Colour, Sharpness
Increases or decreases the levels of these options according to your personal
preference
Tint
With an NTSC signal source connected to the TV, the picture hue can be adjusted to
suit your taste
Colour Balance
Allows you to set the overall colour tone of the picture [Cool] / [Normal] / [Warm]
Vivid Colour
Automatically adjusts colours to vivid ones [Off] / [On]
Colour Remaster
Displays the vivid images with the expanded colour gamut [Off] / [On] / [Auto]
Reversal Film Effect
Provides the picture effect such as the reversal film [Off] / [On]
Eco Mode
Automatic Brightness Control function
Adjusts picture settings automatically dependent on ambient lighting conditions
[Off] / [On]
P-NR
Picture Noise Reduction
Automatically reduces unwanted picture noise and flicker noise in the contoured parts
of a picture [Off] / [Min] / [Mid] / [Max]
3D-COMB
Makes still or slow moving pictures look more vivid [Off] / [On]
Picture in Picture
Displays two windows at once
2D
3D Settings
22
Adjustments / Configurations (alternatives)
3D Depth
Selects a level of 3D-image depth for viewing converted 2D images
[Min] / [Mid] / [Max]
3D Adjustment
Adjustment of the 3D effect (except in [2D 3D] mode) [Off] / [On]
[Effect] : Adjust the 3D depth according to the contents or to your preference.
Picture Sequence
Select [Reverse] if you feel that the sense of depth is unusual. (except in [2D
mode) [Normal] / [Reverse]
Edge Smoother
Select [On] if you feel the contoured parts of an image are not smooth enough. (except
in [2D 3D] mode) [Off] / [On]
3D]
Menu
Item
Adjustments / Configurations (alternatives)
3D Settings
3D Detection
Automatically detects the 3D format signals [Off] / [On] / [On (Advance)]
[On (Advance)] : Detects all the 3D format signals and displays the 3D image
automatically.
[On] : Detects the particular 3D format signals (Frame Sequential, etc.) and displays the
3D image automatically.
3D Signal Message
Selects whether to give a notification message when a signal of 3D format is found
[Off] / [On]
Safety Precautions
Displays the precautions for viewing 3D images.
Screen Display
Turns the screen off when you select [Off ]
[Off] / [On]
Advanced Settings
Automatically compensates the picture frame rate and removes juddering movements
to make the images smooth [Off] / [Mid] / [Max]
24p Smooth Film
Automatically compensates the picture frame rate to make the 24p source movie
images smooth [Off] / [Mid] / [Max]
Film Cadence
Detection
Automatically makes the film source movie images clear [Off] / [On]
3D Refresh Rate
Reduces juddering and flicker noises of the 3D images [Auto] / [100Hz]
Resolution Enhancer
Enhances the picture resolution to make the image sharper [Off] / [Mid] / [Max]
Side Panel
Increases the brightness of the side panel [Off] / [Low] / [Mid] / [High]
16:9 Overscan
Selects the screen area displaying the image [Off] / [On]
[On] : Enlarged the image to hide the edge of the image.
[Off] : Displayed the image in the original size.
AV Colour System
Selects optional colour system based on video signals in AV mode
[Auto] / [PAL] / [SECAM] / [M.NTSC] / [NTSC]
DVI Input Setting
Changes the black level in the image for HDMI input mode with DVI input signal
manually [Normal] / [Full]
Pixel Orbiter
Selects the mode for wobbling of the image to prevent panel “image retention”
[Auto] / [On]
[Auto] : Automatically works only for the appropriate images and you rarely recognise
the wobbling.
Scrolling Bar
Scrolls the vertical bar to prevent panel “image retention”
Sound
Reset to Defaults
Press the OK button to reset the present Picture Viewing Mode of the selected input to
the default settings
Mode
Selects the basic sound mode [Music] / [Speech] / [User]
[Music] : Improves sound quality for watching music videos, etc.
[Speech] : Improves sound quality for watching news, drama, etc.
[User] : Adjusts the sounds manually by using the equaliser to suit your favourite
sound quality.
Bass
Increases or decreases level to enhance or minimise lower, deeper sound output
Treble
Increases or decreases level to enhance or minimise sharper, higher sound output
Equaliser
Adjusts the frequency level to suit your favourite sound quality
How to Use Menu Functions
Intelligent Frame
Creation
23
Menu
Adjustments / Configurations (alternatives)
Balance
Adjusts volume level of right and left speakers
Headphone Volume
Adjusts the volume of the headphones
Surround
Surround sound settings
[Off] / [V-Audio] / [V-Audio Surround] / [V-Audio ProSurround]
[V-Audio] :
Provides a dynamic enhancer of width to simulate improved spatial effects
[V-Audio Surround] :
Provides a dynamic enhancer of width and depth to simulate improved spatial effects
[V-Audio ProSurround] :
Provides a more progressive enhancer and reverberation to simulate improved spatial
effects
Auto Gain Control
Adjusts the current volume level if it is extremely different from the previous viewed
channel or input mode [Off] / [On]
Volume Correction
Adjusts the volume of individual channel or input mode
Speaker Distance to Wall
Adjusts the low frequency sound [Over 30cm] / [Up to 30cm]
MPX
Selects multiplex sound mode (if available)
[Stereo] : Use this normally
[Mono] : When stereo signal cannot be received
[M1] / [M2] : Available while mono signal is transmitted
Audio Preference
Selects the initial setting for audio tracks [Auto] / [Multichannel] / [Stereo] / [MPEG]
[Auto] : Automatically selects the audio tracks if programme has more than two tracks.
The priority is given in the following order - Dolby Digital Plus, HE-AAC, Dolby
Digital, MPEG.
[Multichannel] : The priority is given to multi-channel audio track.
[Stereo] : The priority is given to stereo (2ch) audio track.
[MPEG] : The priority is given to MPEG.
SPDIF Selection
SPDIF : A standard audio transfer file format
Selects the initial setting for digital audio output signal from DIGITAL AUDIO OUT and
HDMI2 (ARC function) terminals [Auto] / [PCM]
[Auto] : Dolby Digital Plus, Dolby Digital and HE-AAC (48 kHz) multi-channel are output
as Dolby Digital Bitstream.
MPEG is output as PCM.
[PCM] : Digital output signal is fixed to PCM.
HDMI1 / 2 / 3 / 4 Input
Select to fit the input signal [Digital] / [Analogue]
[Digital] : HDMI cable connection
[Analogue] : HDMI-DVI adaptor cable connection
SPDIF Delay
Adjusts the delay time of the sound output from DIGITAL AUDIO OUT and HDMI2 (ARC
function) terminals if the sound does not synchronize the image
Reset to Defaults
Press the OK button to reset the present Sound Mode, [Balance], [Headphone Volume]
and [Surround] to the default settings
Timer Programming
Sets a timer to remind watching or record forthcoming programmes
Off Timer
Sets the time until the TV automatically goes to Standby mode
[Off] / [15] / [30] / [45] / [60] / [75] / [90] (minutes)
Auto Standby
Sets the time the TV automatically goes to Standby mode when no operation is
performed for the selected times [Off] / [2] / [4] (hours)
Sound
How to Use Menu Functions
Timer
24
Item
Menu
Item
Adjustments / Configurations (alternatives)
Eco Navigation
Automatically sets the TV to the most suitable energy-saving mode
Recording Setup
Settings for the recording feature of the USB HDD / SD Card
Link Settings
VIERA Link
Sets to use VIERA Link functions [Off] / [On]
HDMI Content Type
Adjusts the picture settings according to the content type signal from the connected
equipment via HDMI cable [Off] / [Auto]
AV1 out
Chooses the signal to be transmitted from the TV to Q-Link [TV] / [AV2] / [Monitor]
[Monitor] : Image displayed on screen
Power on Link
Sets to use Power on Link function [Off] / [On]
Power off Link
Sets to use Power off Link function [Off] / [On]
Standby Power Save
Controls the power consumption in Standby mode of the connected equipment to
reduce the consumption [Off] / [On]
Intelligent Auto
Standby
Makes non-watched or non-used connected equipment go into Standby mode to
reduce the power consumption
[Off] / [On (With reminder)] / [On (No reminder)]
Download
Downloads channel, language, country / region settings to a Q-Link or VIERA Link
compatible equipment connected to the TV
Locks a channel / AV input to prevent access to it
Setup
DVB-S Tuning Menu
DVB-C Tuning Menu
Favourites Edit
Creates list of favourite DVB-S channels
Channel List
Skips the unwanted DVB-S channels or edits DVB-S channels
Auto Setup
Automatically sets the DVB-S channels received in the area
Manual Tuning
Sets the DVB-S channels manually
Update Channel List
Updates DVB-S Channel List while keeping your settings
New Channel
Message
Selects whether to give a notification message when a new DVB-S channel is found
[Off] / [On]
Signal Condition
Checks the DVB-S signal condition
Antenna System
Sets the antenna system to use plural LNBs for receiving several satellites
[One LNB] / [MiniDiSEqC] / [DiSEqC 1.0] / [Single Cable]
LNB Configuration
Selects the satellite for each LNB
Add TV Signal
Adds the TV mode
Favourites Edit
Creates list of favourite DVB-C channels
Channel List
Skips the unwanted DVB-C channels or edits DVB-C channels
Auto Setup
Automatically sets the DVB-C channels supplied
Manual Tuning
Sets the DVB-C channels manually
Update Channel List
Updates DVB-C Channel List while keeping your settings
Favourite Network
Selects your favourite network for each broadcasters (only available in some countries)
New Channel
Message
Selects whether to give a notification message when a new DVB-C channel is found
[Off] / [On]
How to Use Menu Functions
Child Lock
25
Menu
Item
DVB-C Tuning Menu
DVB-T Tuning Menu
Analogue Tuning Menu
Setup
How to Use Menu Functions
Language
Display Settings
26
Adjustments / Configurations (alternatives)
Service Replacement
Set to [On] to enable a message to switch to the available service (only available in
some countries) [Off] / [On]
Signal Condition
Checks the DVB-C signal condition
Attenuator
Automatically reduces the DVB-C signal to avoid the interference [Off] / [On]
Add TV Signal
Adds the TV mode
Favourites Edit
Creates list of favourite DVB-T channels
Channel List
Skips the unwanted DVB-T channels or edits DVB-T channels
Auto Setup
Automatically sets the DVB-T channels received in the area
Manual Tuning
Sets the DVB-T channels manually
Update Channel List
Updates DVB-T Channel List while keeping your settings
Favourite Network
Selects your favourite network for each broadcasters (only available in some countries)
New Channel
Message
Selects whether to give a notification message when a new DVB-T channel is found
[Off] / [On]
Signal Condition
Checks the DVB-T signal condition
Add TV Signal
Adds the TV mode
Channel List
Skips the unwanted Analogue channels or edits Analogue channels
Auto Setup
Automatically sets the Analogue channels received in the area
Manual Tuning
Sets the Analogue channels manually
Add TV Signal
Adds the TV mode
OSD Language
Changes language for on screen displays
Preferred Audio 1 / 2
Selects the first and second preferred language for DVB multi audio (depending on the
broadcaster)
Preferred Subtitles
1/2
Selects the first and second preferred language for DVB subtitles (depending on the
broadcaster)
Preferred Teletext
Selects the preferred language for DVB teletext service (depending on the broadcaster)
Preferred Subtitle
Type
Selects the preferred subtitle type [Standard] / [Hard of Hearing]
Teletext
Teletext display mode [TOP (FLOF)] / [List]
Teletext Character
Set
Selects teletext language font [West] / [East1] / [East2]
[West] : English, French, German, Greek, Italian, Spanish, Swedish, Turkish, etc.
[East1] : Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc.
[East2] : Czech, Hungarian, Lettish, Polish, Rumanian, etc.
Menu
Item
Adjustments / Configurations (alternatives)
Display Settings
Default Guide
Selects the default TV Guide type when the GUIDE button is pressed (only available in
some countries) [Channel List] / [TV Guide]
[TV Guide] : Electronic Programme Guide (EPG) is available.
[Channel List] : EPG is not available and the channel list will appear instead of it.
Input Labels
Labels or skips each input terminal
Banner Display
Timeout
Sets how long the Information banner stays on screen
[0 (No display)] / [1] / [2] / [3] / [4] / [5] / [6] / [7] / [8] / [9] / [10] (seconds)
VIERA Connect
Banner
Sets the VIERA Connect introduction banner display [Off] / [On]
Playing Time Display
Set to [On] to display a continuous record of time spent using Game mode every 30
minutes [Off] / [On]
Radio Mode
Sets the timer for turning off the screen automatically when a radio channel is selected
[Off] / [5] / [10] / [15] / [20] (seconds)
Uses include to watch encrypted channels
Network Setup
Sets the network setting to use in your network environment
DivX® VOD
Displays DivX VOD registration code
Advance(isfccc)
Enables the advanced picture settings [Off] / [On]
System Menu
Setup
USB Keyboard
Layout
Selects the language that your USB Keyboard supports
Shipping Condition
Resets all settings, for example, when moving house
System Update
Downloads new software to this TV
Software Licence
Displays the software licence information
System Information
Displays the system information of this TV
GUIDE Plus+
Settings
Update
Performs the update of the GUIDE Plus+ schedule and advertising information for the
GUIDE Plus+ system
Postcode
Sets your postcode to display advertisements in the GUIDE Plus+ system
System
Information
Displays the system information of the GUIDE Plus+ system
Other Settings
Power on Preference
Automatically selects the input when the TV is turned on [TV] / [AV]
Set to [TV] to view picture from TV tuner.
Set to [AV] to view input from an external equipment connected to the AV1 or HDMI1
terminal, e.g. set top box.
USB Charge in
Standby
Enables to supply the power from the USB port in Standby mode [Off] / [On]
Power Save
Reduces brightness of picture to economise on power consumption [Off] / [On]
Time Zone
Adjusts the time data
Exchange Channel
List
Exports / Imports DVB-S Channel List settings using the SD Card to share the same
settings with VIERA which has the same function
items and selectable options vary depending on the current input signal, setting and mode.
• Menu
different menu will be displayed when [Advance(isfccc)] in the Setup Menu is set to [On] or in the mode of Media Player /
• Anetwork
service operations.
• Only available items can be selected.
How to Use Menu Functions
Common Interface
27
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used electrical and
electronic products and batteries should not be mixed with general household waste. For proper treatment,
recovery and recycling of old products and used batteries, please take them to applicable collection points,
in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and prevent
any potential negative effects on human health and the environment which could otherwise arise from
inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your local
municipality, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further
information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these items, please contact your
local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples) :
This symbol might be used in combination with a chemical symbol. In this case it complies with the
requirement set by the Directive for the chemical involved.
Specifications
TX-P55VT30Y
TX-P65VT30Y
Power Source
AC 220-240 V, 50 / 60 Hz
Rated Power Consumption
430 W
500 W
On mode Average Power
Consumption
(based on IEC 62087 Ed.2
measurement method)
222 W
311 W
Standby Power
Consumption
0.30 W
30.00 W (With monitor out recording)
equipment complies with the EMC standards listed below.
• This
EN55013, EN61000-3-2, EN61000-3-3, EN55020, EN55022, EN55024
Notice for DVB / Data broadcasting / IPTV functions
TV is designed to meet the standards (as of August, 2010) of DVB-T (MPEG2 and MPEG4-AVC(H.264)) digital terrestrial
• This
services, DVB-C (MPEG2 and MPEG4-AVC(H.264)) digital cable services and DVB-S (MPEG2 and MPEG4-AVC(H.264)) digital
•
•
•
•
•
•
•
satellite services.
Consult your local dealer for availability of DVB-T or DVB-S services in your area.
Consult your cable service provider for availability of DVB-C services with this TV.
This TV may not work correctly with the signal which does not meet the standards of DVB-T, DVB-C or DVB-S.
Not all the features are available depending on the country, area, broadcaster, service provider and satellite.
Not all CI modules work properly with this TV. Consult your service provider about the available CI module.
This TV may not work correctly with CI module that is not approved by the service provider.
Additional fees may be charged depending on the service provider.
The compatibility with future services is not guaranteed.
Check the latest information on the available services at the following website. (English only)
http://panasonic.jp/support/global/cs/tv/
M0411-0
Web Site : http://panasonic.net
© Panasonic Corporation 2011
Printed in Czech Republic
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
